Contribution of blood viscosity in the assessment of flow-mediated dilation and arterial stiffness

Abstract

Flow-mediated dilation (FMD) is a non-invasive index of endothelial function. In an attempt to standardize FMD for shear stimulus, shear rate (velocity/diameter), rather than shear stress (viscosity*velocity/diameter), is commonly used as a surrogate measure, although it is limited by individual differences in blood viscosity. The purpose of this study was to determine the contribution of whole blood viscosity to FMD and other key measures of vascular function. Blood viscosity, FMD, carotid artery compliance, and carotid–femoral pulse wave velocity (cfPWV) were measured in 98 apparently healthy adults varying widely in age (18–63 years). Whole blood viscosity was not significantly correlated with FMD, cfPWV, or carotid artery compliance. Shear rate was a stronger correlate with FMD than shear stress that takes blood viscosity into account (r = 0.43 vs 0.28). No significant differences were observed between whole blood viscosity and traditional risk factors for cardiovascular disease. Age was positively correlated with cfPWV (r = 0.65, p < 0.001) and negatively correlated with FMD (r = −0.24, p < 0.05) and carotid artery compliance (r = −0.45, p < 0.01). Controlling for viscosity did not reduce the strength of these relations. These results indicate that whole blood viscosity does not significantly impact measures of vascular function and suggests that the common practice to use shear rate, rather than shear stress, in the adjustment of FMD is valid.

Keywords

carotid artery compliance pulse wave velocity shear rate shear stress

Introduction

Flow-mediated dilation (FMD) is a non-invasive index of endothelial function.¹ During the measurement, blood flow is occluded and then reintroduced in a manner sufficient to elicit a reactive hyperemic response in the conduit artery of interest. The shear stimulus caused by the sudden reperfusion stimulates the endothelium to release nitric oxide causing vasodilation. Investigators have proposed normalizing FMD by the shear stimulus in an effort to adjust FMD for a given stimulus.^2–4 Common practice in the literature is to estimate shear rate (velocity/diameter) rather than shear stress (viscosity*velocity/diameter) because of the more invasive nature of measuring blood viscosity and/or a lack of specialized equipment to measure viscosity. In these instances, blood viscosity is assumed constant across subjects. Although this assumption appears reasonable, emerging evidence linking individual differences in viscosity to cardiovascular disease^5–8 casts doubt on such an assumption. Currently, it remains unclear whether such an assumption is valid and the degree by which viscosity affects FMD.

Accordingly, the primary purpose of this study was to determine the contribution of whole blood viscosity to a measure of FMD. Additionally, as the secondary purpose, we determined the potential contribution of blood viscosity on other key vascular measures (pulse wave velocity and arterial compliance).

Methods

Subjects

A total of 98 adults varying in age (18–63 years) were studied. All subjects were non-smokers and free of overt cardiovascular disease as assessed by medical history. None of the subjects was taking cardiovascular-acting or hematological medications. The study was reviewed and approved by the Institutional Review Board. All subjects provided their written informed consent prior to participation.

Measurements

Following a 12-hour overnight fast, a blood sample was collected from the antecubital vein by venipuncture. Plasma concentrations of total, low-density lipoprotein (LDL)-, and high-density lipoprotein (HDL)-cholesterol, triglycerides, and glucose were determined by standard enzymatic methods. Brachial blood pressure was measured in triplicate at rest in a supine position with an automated oscillometric device (HEM-907XL; OMRON Healthcare, Vernon Hills, IL, USA). Whole blood viscosity was measured immediately after blood collection at 60 revolutions/minute (representing a shear rate of 212/s) using a micro cone-plate viscometer (LVT-I; Brookfield Engineering Laboratories, Stoughton, MA, USA). The coefficient of variation for whole blood viscosity is 8% in our laboratory.

All vascular measurements below were performed after fasting and abstaining from caffeine for ≥ 4 hours. Participants were asked to avoid strenuous physical activity and alcohol for ≥ 24 hours before measurement. For premenopausal women, measures of vascular function were performed during the early follicular phase of their menstrual cycle to control for the effects of estrogen.⁹ Subjects were studied in a supine position after ≥ 15 minutes of rest in a quiet temperature-controlled (22–24°C) laboratory setting.

Flow-mediated dilation (FMD)

Brachial FMD measurements were performed as previously described.¹⁰ A longitudinal image of the brachial artery was obtained using an ultrasound machine equipped with a high-resolution (15 MHz) linear-array transducer (iE 33; Phillips, Bothel, WA, USA). A customized transducer-holding device secured the transducer in place 5–10 cm proximal to the antecubital fossa. Following the baseline recording, the blood flow occlusion cuff placed on the forearm distal to the elbow was inflated to 100 mmHg above baseline systolic blood pressure for 5 minutes using a rapid cuff inflator (E20; Hokanson, Bellevue, WA, USA). All ultrasound-derived images were transferred and analyzed using image analysis software (Brachial Analyzer; Medical Imaging Applications, Coralville, IA, USA). FMD was calculated using the following equation: (maximum diameter – baseline diameter) / baseline diameter × 100%. Shear rate was obtained using the equation: blood velocity/brachial artery diameter. Shear stress was calculated as whole blood viscosity*blood velocity/brachial artery diameter.

Carotid–femoral pulse wave velocity (cfPWV)

The cfPWV was determined using an automated previously validated device (VP-2000; Colin Medical Instruments, San Antonio, TX, USA), as previously described.^11,12

Carotid artery compliance

Carotid artery compliance was measured in a subgroup of 40 subjects with a combination of ultrasound imaging of the common carotid artery (by B-mode ultrasound) and recording of contralateral carotid arterial pressure (by applanation tonometry; VP-2000; Colin Medical Instruments), as previously described.^13,14

Statistical analyses

Pearson product-moment correlation analyses were used to determine relations among whole blood viscosity and cardiovascular risk factors and measures of vascular function. Partial correlation analyses were used to control for the effect of whole blood viscosity on measures of vascular function. Because both shear rate and shear stress were not normally distributed based on the Shapiro–Wilk test, the data were transformed using either the log scale or square root, and Spearman correlation analyses were then used to evaluate associations. Significance was set a priori at p < 0.05. All data are expressed as mean ± SEM.

Results

Selected subject characteristics are displayed in Table 1. Whole blood viscosity displayed a wide range of distribution from 1 to 5.5 cP60. No significant associations were observed between whole blood viscosity and traditional risk factors for cardiovascular disease (Pearson-r ranging from 0.01 to −0.31). Whole blood viscosity was not significantly correlated with FMD (r = −0.11; Figure 1) or any other measures of vascular function (cfPWV and carotid artery compliance). Shear rate was found to be a stronger correlate with FMD than shear stress (r = 0.43 and 0.28; Figure 2). The results were essentially the same when both shear rate and shear stress data were normalized and Spearman correlation analyses were performed. Spearman correlation coefficients were 0.41 and 0.20. As expected, age was negatively correlated with FMD (r = −0.24, p < 0.05) and carotid artery compliance (r = −0.45, p < 0.01), and positively correlated with cfPWV (r = 0.65, p < 0.001). Accounting for blood viscosity did not reduce the strength of the associations as these relations remained statistically significant (FMD, r = −0.24; cfPWV, r = 0.65; carotid artery compliance, r = −0.44).

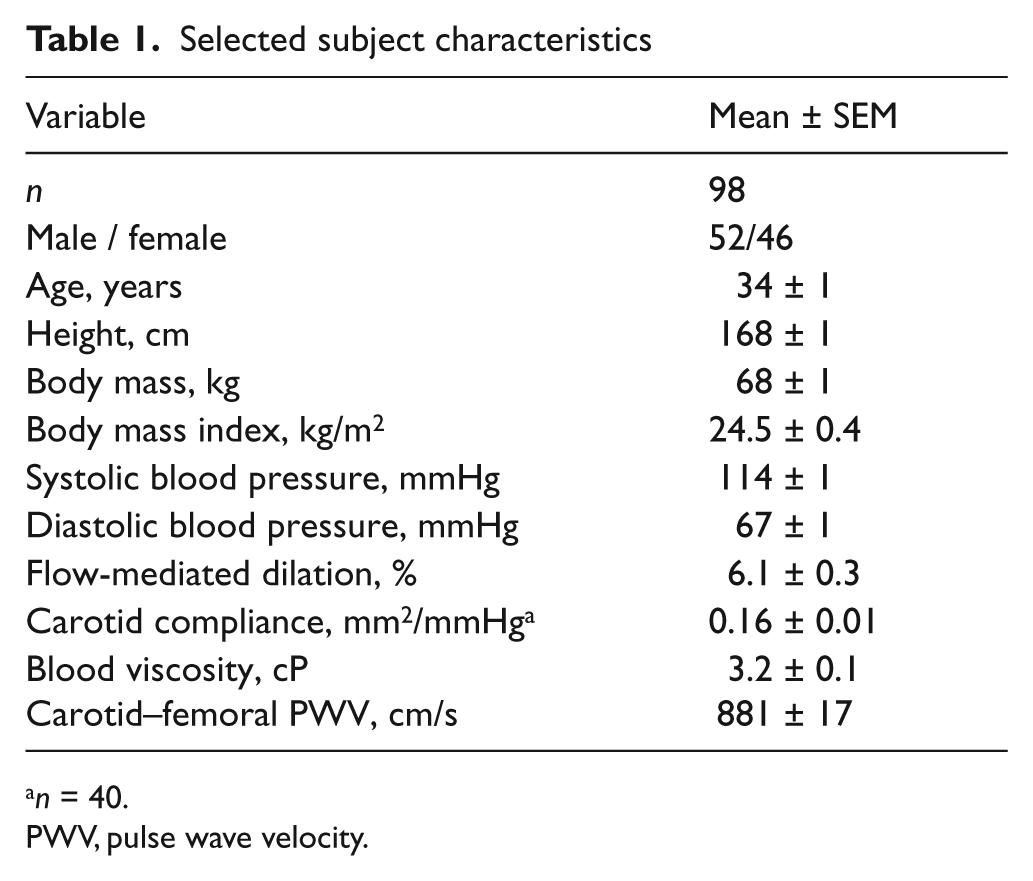

Table 1.

Selected subject characteristics

Variable	Mean ± SEM
n	98
Male / female	52/46
Age, years	34 ± 1
Height, cm	168 ± 1
Body mass, kg	68 ± 1
Body mass index, kg/m²	24.5 ± 0.4
Systolic blood pressure, mmHg	114 ± 1
Diastolic blood pressure, mmHg	67 ± 1
Flow-mediated dilation, %	6.1 ± 0.3
Carotid compliance, mm²/mmHg^a	0.16 ± 0.01
Blood viscosity, cP	3.2 ± 0.1
Carotid–femoral PWV, cm/s	881 ± 17

n = 40.

PWV, pulse wave velocity.

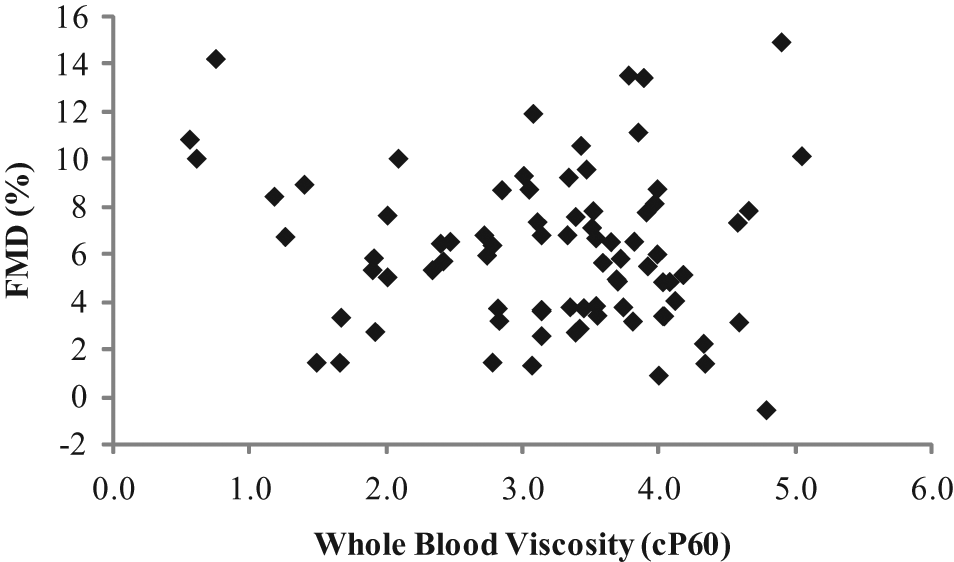

Figure 1.

Association between flow-mediated dilation (FMD) and whole blood viscosity.

Figure 2.

Associations between flow-mediated dilation (FMD) and shear stress and shear rate.

Discussion

The purpose of this study was to determine the impact of whole blood viscosity on measures of vascular function. We found no significant correlations between whole blood viscosity and FMD or other key measures of vascular function (cfPWV and carotid artery compliance). Shear rate was a stronger correlate with FMD compared with shear stress in the present study. It appears that the inclusion of blood viscosity, which has its own inherent variability, may have introduced greater variability and reduced the association of shear stress with FMD. The present findings indicate that blood viscosity may not be a necessary component when adjusting FMD for shear stimulus.

It is well established that FMD and carotid artery compliance decreases and cfPWV increases with advancing age.^14–17 Consistent with the previous studies, measures of vascular function were significantly associated with age in the present study. To confirm the impact of blood viscosity on these measures, we performed partial correlation analyses controlling for blood viscosity. The relation between vascular function and age remained statistically significant even after the individual differences in whole blood viscosity were incorporated. These findings suggest that blood viscosity does not appear to modulate the relations between vascular function and age.

Whole blood viscosity is determined by hematocrit, plasma viscosity, aggregation of red blood cells, and deformability of red blood cells.¹⁸ It was not until the 1960s that the ability to measure blood viscosity drastically improved and became considered a component of blood flow. Since then, a number of studies have focused on the importance of this measure with regard to both age and disease status.^6,18–22 In our sample of apparently healthy adults, blood viscosity was not significantly correlated with any of the risk factors for cardiovascular disease, including age. While some studies have found a positive correlation between blood viscosity and certain cardiovascular disease risk factors,^5–8,22 others have not.^18,21 Similarly, the relation between aging and blood viscosity is highly debated within the literature. Some studies have found an increase in blood viscosity with age,^20,23,24 whereas others, like the present study, have failed to discover similar findings.^25,26 Thus, the association between blood viscosity and risk factors for cardiovascular disease remains controversial.

Limitations to the present study include the lack of diseased populations. All of the subjects studied were considered apparently healthy without any overt disease. This would diminish the generalizability of the present study findings to other populations. However, the subject selection is also a strength of the present study since the influence of disease states and the use of medications that potentially confound the data interpretation are minimized by this approach. Despite the choice of subject selection, we were able to achieve a wide range of whole blood viscosity values in our sample ranging from 1 to 5.5 cP60. To the best of our knowledge, this is the first study to determine the impact of blood viscosity on FMD and arterial stiffness in a healthy population. Previous research in patients with chronic anemia has also found no correlation between blood viscosity and FMD.²⁷

In summary, whole blood viscosity was not associated with FMD and other vascular functional measures. Shear rate was more strongly correlated with FMD than shear stress. Taken together, these results are not consistent with the assertion that measurements of whole blood viscosity should be included when evaluating vascular function. The next step in this line of investigation is to assess what level of blood viscosity is necessary in order to register an influence on FMD.

Footnotes

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

Conflict of interest

None declared.

References

Celermajer

Sorensen

Gooch

. Non-invasive detection of endothelial dysfunction in children and adults at risk of atherosclerosis. Lancet 1992; 340: 1111–1115.

Giannattasio

Piperno

Failla

Vergani

Mancia

. Effects of hematocrit changes on flow-mediated and metabolic vasodilation in humans. Hypertension 2002; 40: 74–77.

Koller

Sun

Kaley

. Role of shear stress and endothelial prostaglandins in flow- and viscosity-induced dilation of arterioles in vitro. Circ Res 1993; 72: 1276–1284.

Melkumyants

Balashov

Khayutin

. Endothelium dependent control of arterial diameter by blood viscosity. Cardiovasc Res 1989; 23: 741–747.

Bonithon-Kopp

Levenson

Scarabin

. Longitudinal associations between plasma viscosity and cardiovascular risk factors in a middle-aged French population. Atherosclerosis 1993; 104: 173–182.

Crowley

Metzger

Assaf

Carleton

Merrill

Valeri

. Low density lipoprotein cholesterol and whole blood viscosity. Ann Clin Lab Sci 1994; 24: 533–541.

Koenig

Sund

Ernst

Keil

Rosenthal

Hombach

. Association between plasma viscosity and blood pressure. Results from the MONICA-project Augsburg. Am J Hypertens 1991; 4: 529–536.

Smith

Lowe

Lee

Tunstall-Pedoe

. Rheological determinants of blood pressure in a Scottish adult population. J Hypertens 1992; 10: 467–472.

Chan

MacAllister

Colhoun

Vallance

Hingorani

. Changes in endothelium-dependent vasodilatation and alpha-adrenergic responses in resistance vessels during the menstrual cycle in healthy women. J Clin Endocrinol Metab 2001; 86: 2499–2504.

10.

Corretti

Anderson

Benjamin

. Guidelines for the ultrasound assessment of endothelial-dependent flow-mediated vasodilation of the brachial artery: A report of the International Brachial Artery Reactivity Task Force. J Am Coll Cardiol 2002; 39: 257–265.

11.

Cortez-Cooper

Supak

Tanaka

. A new device for automatic measurements of arterial stiffness and ankle–brachial index. Am J Cardiol 2003; 91: 1519–1522, A9.

12.

Sugawara

Hayashi

Yokoi

. Brachial–ankle pulse wave velocity: An index of central arterial stiffness? J Hum Hypertens 2005; 19: 401–406.

13.

Sugawara

Komine

Hayashi

. Reduction in alpha-adrenergic receptor-mediated vascular tone contributes to improved arterial compliance with endurance training. Int J Cardiol 2009; 135: 346–352.

14.

Tanaka

Dinenno

Monahan

Clevenger

DeSouza

Seals

. Aging, habitual exercise, and dynamic arterial compliance. Circulation 2000; 102: 1270–1275.

15.

Avolio

Deng

. Effects of aging on arterial distensibility in populations with high and low prevalence of hypertension: Comparison between urban and rural communities in China. Circulation 1985; 71: 202–210.

16.

Celermajer

Sorensen

Bull

Robinson

Deanfield

. Endothelium-dependent dilation in the systemic arteries of asymptomatic subjects relates to coronary risk factors and their interaction. J Am Coll Cardiol 1994; 24: 1468–1474.

17.

O’Rourke

Staessen

Vlachopoulos

Duprez

Plante

. Clinical applications of arterial stiffness; definitions and reference values. Am J Hypertens 2002; 15: 426–444.

18.

De Backer

De Buyzere

Segers

. The role of whole blood viscosity in premature coronary artery disease in women. Atherosclerosis 2002; 165: 367–373.

19.

Forconi

Gori

. The evolution of the meaning of blood hyperviscosity in cardiovascular physiopathology: Should we reinterpret Poiseuille? Clin Hemorheol Microcirc 2009; 42: 1–6.

20.

Carallo

Irace

De Franceschi

. The effect of aging on blood and plasma viscosity. An 11.6 years follow-up study. Clin Hemorheol Microcirc 2011; 47: 67–74.

21.

de Simone

Devereux

Chinali

Best

Lee

Welty

. Association of blood pressure with blood viscosity in American Indians: The Strong Heart Study. Hypertension 2005; 45: 625–630.

22.

Levenson

Simon

Cambien

Beretti

. Cigarette smoking and hypertension. Factors independently associated with blood hyperviscosity and arterial rigidity. Arteriosclerosis 1987; 7: 572–577.

23.

de Simone

Devereux

Chien

Alderman

Atlas

Laragh

. Relation of blood viscosity to demographic and physiologic variables and to cardiovascular risk factors in apparently normal adults. Circulation 1990; 81: 107–117.

24.

Lowe

Drummond

Forbes

Barbenel

. The effects of age and cigarette-smoking on blood and plasma viscosity in men. Scott Med J 1980; 25: 13–17.

25.

Feher

Koltai

Kesmarky

Szapary

Juricskay

Toth

. Hemorheological parameters and aging. Clin Hemorheol Microcirc 2006; 35: 89–98.

26.

Manetta

Aloulou

Varlet-Marie

Mercier

Brun

. Partially opposite hemorheological effects of aging and training at middle age. Clin Hemorheol Microcirc 2006; 35: 239–244.

27.

Nagy

Toth

Roth

Tarjan

. Effect of transfusion on the endothelium dependent dilatation of brachial artery in patients with chronic anemia. Clin Hemorheol Microcirc 1999; 20: 145–150.
