Fenestrated stent grafts for the treatment of complex aortic aneurysm disease: A mature treatment paradigm

Abstract

The introduction of fenestrated stent grafts (SGs) to treat abdominal aortic aneurysms (AAAs) with short proximal necks began in 1999. Nowadays, the whole visceral aorta can be treated totally by endovascular means. The established use of fenestrated devices to treat complex AAAs as a first-line management option has been previously reported. An up-to-date evaluation of the literature was performed including all types of publications regarding the use of fenestrated technology to repair complex AAAs. Fenestrated repair is now an established alternative to hybrid/chimney/snorkel repairs. However, specific criteria and prerequisites are required for the use and improvement of this method. Multiple device morphologies have been used incorporating the visceral arteries in various combinations. This modular strategy connects different devices (bridging covered stents and bifurcated SGs) with the aortic main body, thus excluding the aneurysm from the circulation. Precise deployment of the fenestrated SG is mandatory for successful visceral vessel revascularization. Accurate SG sizing and customization, a high level of technical skill, and facilities with modern imaging techniques including 3D road mapping and dedicated hybrid rooms are required. Most experience has been with the custom-made Zenith Cook platform, although off-the-shelf devices have been recently implanted. More complex repairs have been performed over the last few years, but device complexity has also increased. Perioperative, mid-term, and a few recently reported long-term results are encouraging. Secondary interventions remain the main problem, similar to that observed after traditional endovascular abdominal aortic aneurysm repair (EVAR).

Keywords

complex aortic aneurysms fenestrated stent grafts endovascular AAA

Evolution of the fenestrated technology: from EVAR to stent grafts with holes and scallops

Endovascular abdominal aortic aneurysm repair (EVAR) is an established alternative to open surgery for the treatment of infrarenal abdominal aortic aneurysms (AAAs).¹

Overall, its suitability is primarily affected by poor proximal and distal sealing zones and limited iliac access.² Short, wide or severely angulated proximal aortic necks are found to be too unfavorable to be used as a landing zone and are thought to be the most likely causes for ineligibility of EVAR.^3,4 Should these circumstances be ignored, or attempts made to extend the use of commercial infrarenal stent grafts (SGs) (Table 1) into complex anatomy, problems related to early and late failure will eventually arise.⁵ For example, the shorter the non-dilated segment between the aneurysm and the lowest renal artery (what we call proximal neck), the less contact there is between an entirely infrarenal SG device, and the higher the likelihood of a type I endoleak or SG migration.⁶

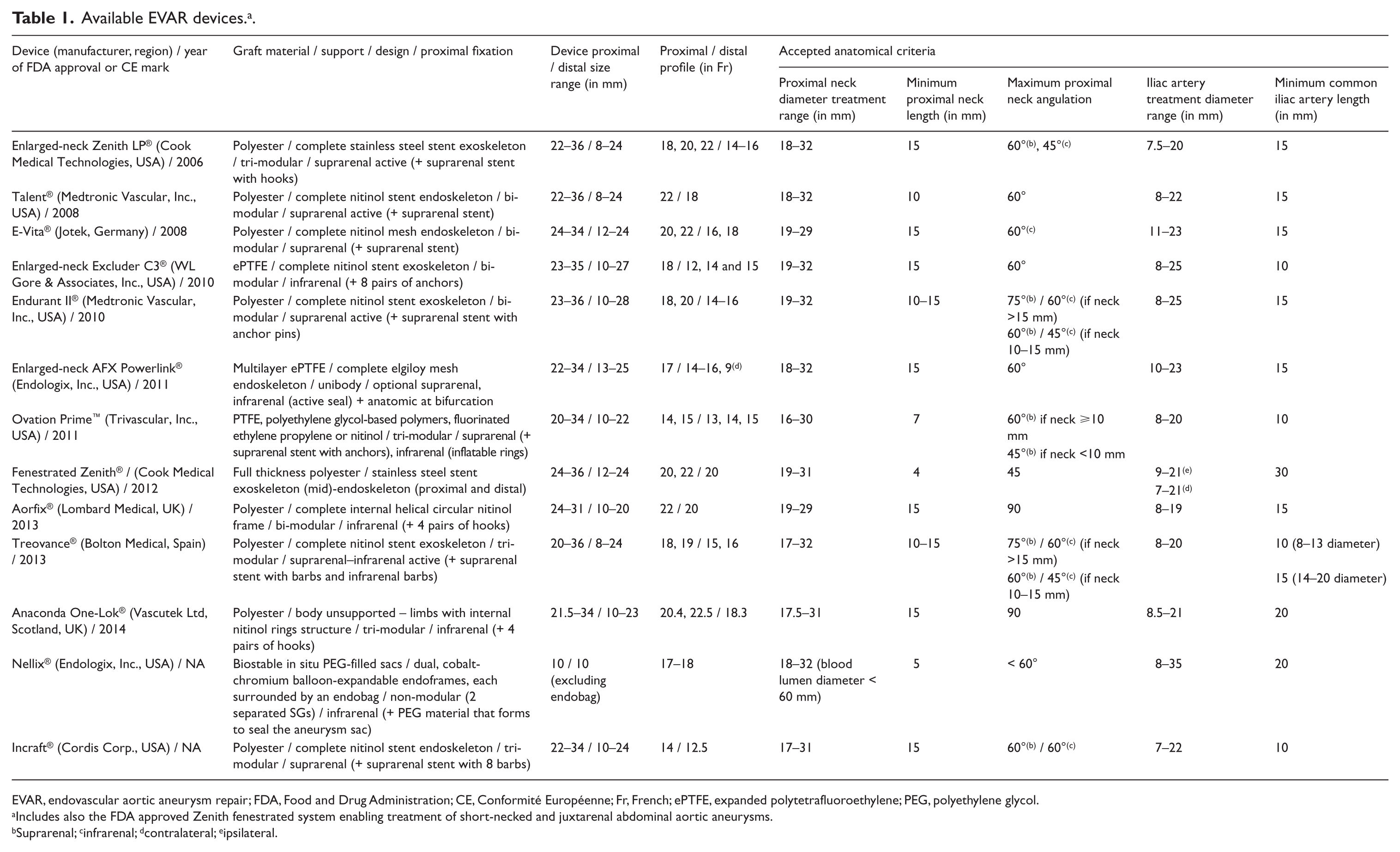

Table 1.

Available EVAR devices.^a

Device (manufacturer, region) / year of FDA approval or CE mark	Graft material / support / design / proximal fixation	Device proximal / distal size range (in mm)	Proximal / distal profile (in Fr)	Accepted anatomical criteria
	Graft material / support / design / proximal fixation	Device proximal / distal size range (in mm)	Proximal / distal profile (in Fr)	Proximal neck diameter treatment range (in mm)	Minimum proximal neck length (in mm)	Maximum proximal neck angulation	Iliac artery treatment diameter range (in mm)	Minimum common iliac artery length (in mm)
Enlarged-neck Zenith LP® (Cook Medical Technologies, USA) / 2006	Polyester / complete stainless steel stent exoskeleton / tri-modular / suprarenal active (+ suprarenal stent with hooks)	22–36 / 8–24	18, 20, 22 / 14–16	18–32	15	60°^(b), 45°^(c)	7.5–20	15
Talent® (Medtronic Vascular, Inc., USA) / 2008	Polyester / complete nitinol stent endoskeleton / bi-modular / suprarenal active (+ suprarenal stent)	22–36 / 8–24	22 / 18	18–32	10	60°	8–22	15
E-Vita® (Jotek, Germany) / 2008	Polyester / complete nitinol mesh endoskeleton / bi-modular / suprarenal (+ suprarenal stent)	24–34 / 12–24	20, 22 / 16, 18	19–29	15	60°^(c)	11–23	15
Enlarged-neck Excluder C3® (WL Gore & Associates, Inc., USA) / 2010	ePTFE / complete nitinol stent exoskeleton / bi-modular / infrarenal (+ 8 pairs of anchors)	23–35 / 10–27	18 / 12, 14 and 15	19–32	15	60°	8–25	10
Endurant II® (Medtronic Vascular, Inc., USA) / 2010	Polyester / complete nitinol stent exoskeleton / bi-modular / suprarenal active (+ suprarenal stent with anchor pins)	23–36 / 10–28	18, 20 / 14–16	19–32	10–15	75°^(b) / 60°^(c) (if neck >15 mm)60°^(b) / 45°^(c) (if neck 10–15 mm)	8–25	15
Endurant II® (Medtronic Vascular, Inc., USA) / 2010
Enlarged-neck AFX Powerlink® (Endologix, Inc., USA) / 2011	Multilayer ePTFE / complete elgiloy mesh endoskeleton / unibody / optional suprarenal, infrarenal (active seal) + anatomic at bifurcation	22–34 / 13–25	17 / 14–16, 9^(d)	18–32	15	60°	10–23	15
Ovation Prime^™ (Trivascular, Inc., USA) / 2011	PTFE, polyethylene glycol-based polymers, fluorinated ethylene propylene or nitinol / tri-modular / suprarenal (+ suprarenal stent with anchors), infrarenal (inflatable rings)	20–34 / 10–22	14, 15 / 13, 14, 15	16–30	7	60°^(b) if neck ⩾10 mm	8–20	10
Ovation Prime^™ (Trivascular, Inc., USA) / 2011						45°^(b) if neck <10 mm
Fenestrated Zenith® / (Cook Medical Technologies, USA) / 2012	Full thickness polyester / stainless steel stent exoskeleton (mid)-endoskeleton (proximal and distal)	24–36 / 12–24	20, 22 / 20	19–31	4	45	9–21^(e)	30
							7–21^(d)
Aorfix® (Lombard Medical, UK) / 2013	Polyester / complete internal helical circular nitinol frame / bi-modular / infrarenal (+ 4 pairs of hooks)	24–31 / 10–20	22 / 20	19–29	15	90	8–19	15
Treovance® (Bolton Medical, Spain) / 2013	Polyester / complete nitinol stent exoskeleton / tri-modular / suprarenal–infrarenal active (+ suprarenal stent with barbs and infrarenal barbs)	20–36 / 8–24	18, 19 / 15, 16	17–32	10–15	75°^(b) / 60°^(c) (if neck >15 mm)	8–20	10 (8–13 diameter)
Treovance® (Bolton Medical, Spain) / 2013						60°^(b) / 45°^(c) (if neck 10–15 mm)		15 (14–20 diameter)
Anaconda One-Lok® (Vascutek Ltd, Scotland, UK) / 2014	Polyester / body unsupported – limbs with internal nitinol rings structure / tri-modular / infrarenal (+ 4 pairs of hooks)	21.5–34 / 10–23	20.4, 22.5 / 18.3	17.5–31	15	90	8.5–21	20
Nellix® (Endologix, Inc., USA) / NA	Biostable in situ PEG-filled sacs / dual, cobalt-chromium balloon-expandable endoframes, each surrounded by an endobag / non-modular (2 separated SGs) / infrarenal (+ PEG material that forms to seal the aneurysm sac)	10 / 10 (excluding endobag)	17–18	18–32 (blood lumen diameter < 60 mm)	5	< 60°	8–35	20
Incraft® (Cordis Corp., USA) / NA	Polyester / complete nitinol stent endoskeleton / tri-modular / suprarenal (+ suprarenal stent with 8 barbs)	22–34 / 10–24	14 / 12.5	17–31	15	60°^(b) / 60°^(c)	7–22	10

EVAR, endovascular aortic aneurysm repair; FDA, Food and Drug Administration; CE, Conformité Européenne; Fr, French; ePTFE, expanded polytetrafluoroethylene; PEG, polyethylene glycol.

Includes also the FDA approved Zenith fenestrated system enabling treatment of short-necked and juxtarenal abdominal aortic aneurysms.

Suprarenal; ^cinfrarenal; ^dcontralateral; ^eipsilateral.

Besides the above-described unsuitable infrarenal neck anatomy, many patients possess aortic aneurysm changes that encroach upon the visceral region and might be unsuitable candidates for infrarenal aortic devices.⁷ Furthermore, a high percentage of them have severe comorbidities precluding traditional open repair.^8–10 Thus, the unmet medical needs to preserve the endovascular management of complex aortic aneurysms urged clinicians and manufactures to develop SGs with fenestrations (holes) or scallops (gaps or valleys in the upper graft fabric margin) to access visceral arteries, called fenestrated SGs, simply to allow extension of the sealing zone indefinitely, limited only by the desire to limit the number of visceral vessels incorporated into the repair.¹¹ When successful, fenestrated EVAR (FEVAR) leads to complete exclusion of the aneurysm while maintaining antegrade renovisceral perfusion in vital organs. Some designs are without fenestrations but with branches (pre-attached limbs or cuffs) targeted for the visceral aortic vessels, suitable for the endovascular treatment of thoracoabdominal aortic aneurysms (TAAAs). At least for short-necked and juxtarenal aortic aneurysms (JRAs), fenestrated stent-grafting technology has been shown to be feasible,^12–20 with published results of high-volume experienced single centers^21–31 and a few recent multicenter trials^32,33 sharing remarkable short- and mid-term results, with the durability of the technique being satisfactory (technical success > 95%, low mortality rates averaging 1–2% and low rates of mid-term branch vessel occlusion averaging 4–9%).^25–29,34 Other imaginative procedures have also been developed or modified to allow for the segmental or complete coverage of the aorta in the region of vital branches, including the ‘chimney’, ‘snorkel’, ‘periscope’^35–37 and combined endovascular exclusion and extra-anatomic mesenteric/renal bypasses (hybrid visceral revascularization).³⁸

The objective of this paper was to provide an up-to-date review on the elective repair of perirenal and TAAAs via the FEVAR approach.

Criteria and prerequisites for use and improvement of the fenestrated technology

General criteria

The most important indications for fenestrated SGs are listed in Table 2.^{2,22,24,27,28,30,34,39–50} Owing to the normal suprarenal aortic lumen, it is generally accepted that fenestrated devices are preferably used for pararenal aneurysms (PRAs).

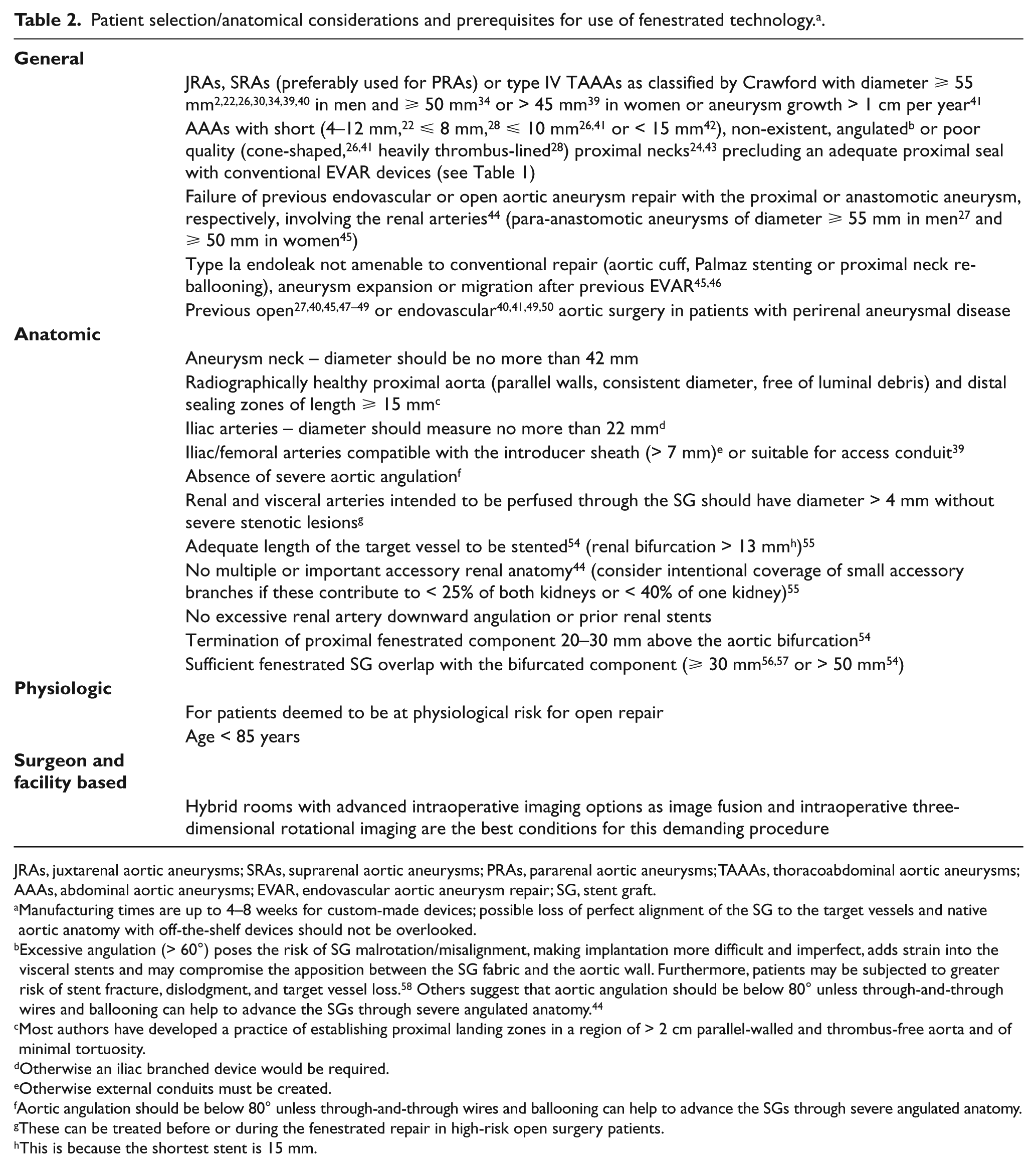

Table 2.

Patient selection/anatomical considerations and prerequisites for use of fenestrated technology.^a

General
	JRAs, SRAs (preferably used for PRAs) or type IV TAAAs as classified by Crawford with diameter ⩾ 55 mm^{2,22,26,30,34,39,40} in men and ⩾ 50 mm³⁴ or > 45 mm³⁹ in women or aneurysm growth > 1 cm per year⁴¹
	AAAs with short (4–12 mm,²² ⩽ 8 mm,²⁸ ⩽ 10 mm^26,41 or < 15 mm⁴²), non-existent, angulated^b or poor quality (cone-shaped,^26,41 heavily thrombus-lined²⁸) proximal necks^24,43 precluding an adequate proximal seal with conventional EVAR devices (see Table 1)
	Failure of previous endovascular or open aortic aneurysm repair with the proximal or anastomotic aneurysm, respectively, involving the renal arteries⁴⁴ (para-anastomotic aneurysms of diameter ⩾ 55 mm in men²⁷ and ⩾ 50 mm in women⁴⁵)
	Type Ia endoleak not amenable to conventional repair (aortic cuff, Palmaz stenting or proximal neck re-ballooning), aneurysm expansion or migration after previous EVAR^45,46
	Previous open^{27,40,45,47–49} or endovascular^40,41,49,50 aortic surgery in patients with perirenal aneurysmal disease
Anatomic
	Aneurysm neck – diameter should be no more than 42 mm
	Radiographically healthy proximal aorta (parallel walls, consistent diameter, free of luminal debris) and distal sealing zones of length ⩾ 15 mm^c
	Iliac arteries – diameter should measure no more than 22 mm^d
	Iliac/femoral arteries compatible with the introducer sheath (> 7 mm)^e or suitable for access conduit³⁹
	Absence of severe aortic angulation^f
	Renal and visceral arteries intended to be perfused through the SG should have diameter > 4 mm without severe stenotic lesions^g
	Adequate length of the target vessel to be stented⁵⁴ (renal bifurcation > 13 mm^h)⁵⁵
	No multiple or important accessory renal anatomy⁴⁴ (consider intentional coverage of small accessory branches if these contribute to < 25% of both kidneys or < 40% of one kidney)⁵⁵
	No excessive renal artery downward angulation or prior renal stents
	Termination of proximal fenestrated component 20–30 mm above the aortic bifurcation⁵⁴
	Sufficient fenestrated SG overlap with the bifurcated component (⩾ 30 mm^56,57 or > 50 mm⁵⁴)
Physiologic
	For patients deemed to be at physiological risk for open repair
	Age < 85 years
Surgeon and facility based
	Hybrid rooms with advanced intraoperative imaging options as image fusion and intraoperative three-dimensional rotational imaging are the best conditions for this demanding procedure

JRAs, juxtarenal aortic aneurysms; SRAs, suprarenal aortic aneurysms; PRAs, pararenal aortic aneurysms; TAAAs, thoracoabdominal aortic aneurysms; AAAs, abdominal aortic aneurysms; EVAR, endovascular aortic aneurysm repair; SG, stent graft.

Manufacturing times are up to 4–8 weeks for custom-made devices; possible loss of perfect alignment of the SG to the target vessels and native aortic anatomy with off-the-shelf devices should not be overlooked.

Excessive angulation (> 60°) poses the risk of SG malrotation/misalignment, making implantation more difficult and imperfect, adds strain into the visceral stents and may compromise the apposition between the SG fabric and the aortic wall. Furthermore, patients may be subjected to greater risk of stent fracture, dislodgment, and target vessel loss.⁵⁸ Others suggest that aortic angulation should be below 80° unless through-and-through wires and ballooning can help to advance the SGs through severe angulated anatomy.⁴⁴

Most authors have developed a practice of establishing proximal landing zones in a region of > 2 cm parallel-walled and thrombus-free aorta and of minimal tortuosity.

Otherwise an iliac branched device would be required.

Otherwise external conduits must be created.

Aortic angulation should be below 80° unless through-and-through wires and ballooning can help to advance the SGs through severe angulated anatomy.

These can be treated before or during the fenestrated repair in high-risk open surgery patients.

This is because the shortest stent is 15 mm.

Appropriate terminology is important when referring to FEVAR to fully understand the repair. Aortic aneurysms in the region of the renal arteries are named PRAs and further classified into juxtarenal and suprarenal types.⁵¹ A JRA is defined as an aneurysm with a < 10 mm infrarenal aortic neck (i.e. with involvement of the aneurysmal dilatation up to the level of the renal arteries) that originates from normal aorta.⁵² Although a JRA by definition is that in which the surgeon is able to place an infrarenal cross-clamp safely, a clear definition or a clear stratified classification system for JRAs does not exist,⁴⁰ especially in FEVAR studies. Donas et al. described a primary JRA as that with a short infrarenal neck < 9 mm or an aneurysmal extension to the inter-renal aorta.⁴⁰ Depending on the definition, JRAs represent almost 15% of all AAAs.²⁰

SRAs involve the origin of at least one renal artery and include the PRAs, which involve the renal arteries but do not extend into the superior mesenteric artery (SMA), and paravisceral aortic aneurysms, which involve the renal arteries and the SMA, but not the celiac axis.⁵² Type IV TAAAs involve the origin of all four visceral arteries including the celiac axis, extending up to the diaphragmatic hiatus.^17,52,53 Other authors prefer to classify repairs based on the postoperative degree of aortic coverage.³¹

Anatomical criteria

Basic anatomic conditions

Generally, patients will have a survival benefit if the size of their AAA exceeds 5–5.5 cm.¹ Slightly larger diameters are universally accepted for fenestrated repair of JRAs and paravisceral aneurysms. Indications for treatment with FEVAR include short-necked AAAs (Figure 1), JRAs, or SRAs with diameters ⩾ 55 mm^{2,22,30,34,39,40} in men and ⩾ 50 mm³⁴ or > 45 mm³⁹ in women. Other described indications are listed in Table 1.

Figure 1.

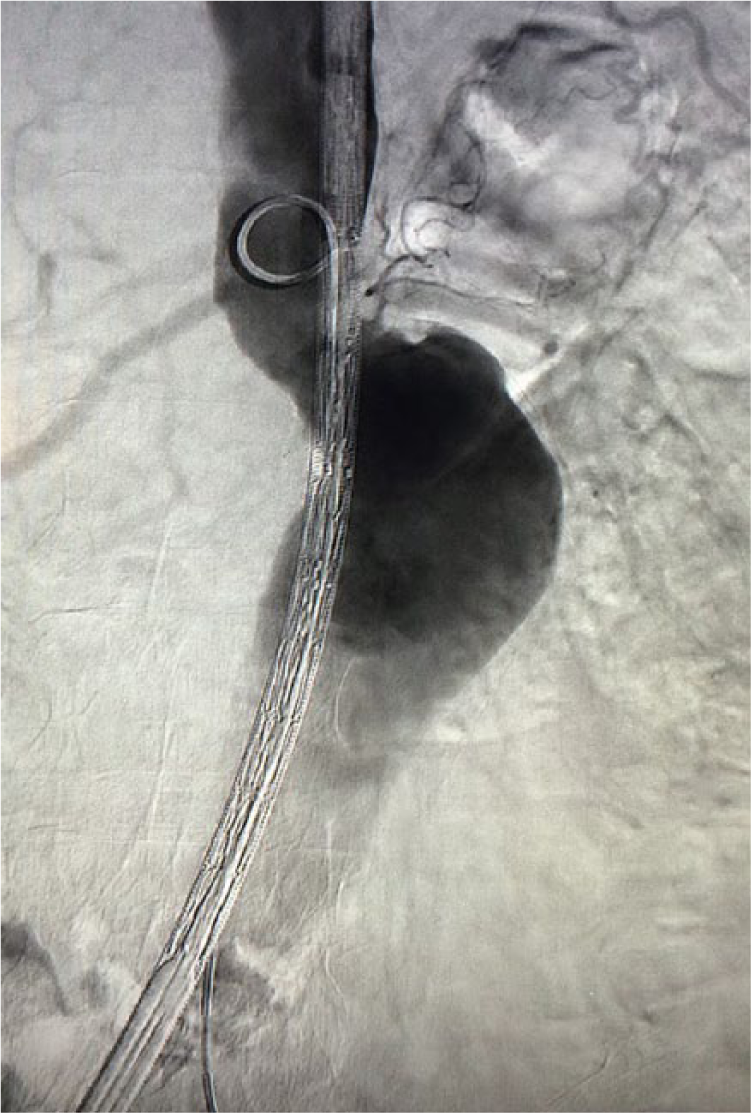

Angiography of a high-risk patient with a very short-necked infrarenal abdominal aortic aneurysm, which is unsuitable for standard endovascular repair (EVAR) but suitable for fenestrated repair.

Specific anatomic conditions

Extended basic anatomic criteria and technical issues for application of FEVAR with custom-made endografts are summarized in Table 2.^{39,44,54–58} Despite the use of fenestrations which are necessary to incorporate visceral vessels bearing the desired sealing zone, a segment of relatively normal suprarenal aorta that constitutes the proximal neck is still required in fenestrated grafts. Most authors have developed a practice of establishing proximal landing zones in a region of > 2 cm parallel-walled and thrombus-free aorta and of minimal tortuosity. This is conceptually different to landing zone choice in conventional infrarenal repair, given the lack of confinement to the non-branched aorta. However, with FEVAR there is likely additional risk incurred by incorporating the entire visceral segment. Traveling up the supravisceral segment, there is concern about whether the incidence of spinal cord ischemia markedly rises.³¹

Physiologic criteria

Given the complexity of open aortic aneurysm repair and its complications, the application of a less invasive aortic intervention, like FEVAR, for patients deemed to be at physiological risk for open repair is intuitive.³³ The terms ‘unfit’ or ‘at high risk for open aneurysm repair’ patients, combined with unfavorable anatomic criteria for standard EVAR, were used as inclusion criteria in several FEVAR studies.^23,27,28,30 Significant comorbidities which were analyzed are based on Societies’ or National reporting guidelines.⁵⁹ The French counterpart of the US Food and Drug Administration (FDA) determined the following high-risk patient characteristics for open repair: age > 80 years; coronary artery bypass graft (CABG)/coronary stent or previous myocardial infarction (MI) with no possible coronary revascularization; clinical symptoms of congestive heart failure (CHF); left ventricular ejection fraction (LVEF) < 40%; severe chronic obstructive lung disease (COPD), renal insufficiency (creatinine > 120 µmol/L) and hostile abdomen.⁵⁶ In other reports on FEVAR, medical high risk was also complementary based on patients anticipated to be unable to tolerate aortic cross-clamping⁶⁰ or redo surgery (abdominal³⁰ and/or iliac aortic repair),⁴⁰ patients with LVEF < 25%,^30,43 patients with an American Society of Anaesthesiologists (ASA) score more than 3,^40,61 or evidence of non-reconstructable cardiac ischemia.³⁰

Surgeon and facility-based criteria

In general, FEVAR is indicated for elective cases due to the customization required for the SGs, although surgeon-modified SGs and fixed-design standardized off-the-shelf devices have been used in the acute setting⁶² or for specific anatomies, respectively.^42,57,63 The surgeon/interventionalist and his tools (armamentarium) and imaging facility (operating theatre environment) are important for the FEVAR procedure. Current developments in fixed X-ray platforms enable advanced intraoperative imaging options such as image fusion and intraoperative three-dimensional (3D) rotational imaging.

Device planning and implantation are complex, requiring advanced training and a steep learning curve. Owing to the demanding nature of the procedure, considerable debate still exists about whether fenestrated endografts should be limited to a small number of specialized centers.⁶⁴ Compelling evidence suggests that FEVAR requires appropriately dedicated teams, experience, technical infrastructure and definitely a minimum annual enrollment rate (institutional and individual practitioner rate) in order to offer acceptable results for these fragile patients. An annual threshold of 15–20 complex aneurysms performed with FEVAR technology, preferably treating JRAs or PRAs with one or two fenestrations and a SMA scallop, including a few cases with proper proctoring, are necessary until a requisite level of competency is achieved.⁶⁴

Alternative options to FEVAR

Off-label use of EVAR outside instructions for use

Newer and more flexible SGs have marginally extended their instructions for use (IFU): proximal neck length > 10 mm when straight, or angulation < 90° where neck length is > 20 mm.^16,65 Although not considered an alternative option, in some instances the use of standard EVAR for suboptimal necks, and outside IFU of commercially available devices, has been advocated;^66,67 however, late re-intervention rates are likely to be higher.⁶⁶ In a large cohort of patients (> 10,000) who underwent EVAR with commercial devices in the US between 1999 and 2008, the incidence of AAA sac enlargement after EVAR was 41% at 5 years, a rate that increased over the study period. As shown in pre-EVAR anatomic computed tomography (CT) imaging data, liberalization of the anatomic characteristics deemed suitable for EVAR has occurred, and several of these factors, including aortic neck diameter and aortic neck angle, were independently associated with aortic aneurysm sac enlargement,⁶⁸ which is a clinical parameter of increased risk of rupture. Patients with low compliance with EVAR guidelines had an incidence of endoleak and sac enlargement at 5 years: 32% and 41%, respectively.⁶⁸ Recently, a greater incidence of type I endoleak was documented in an off-label group of patients versus an IFU group of patients receiving the new generation Endurant II device (Medtronic Inc, Minneapolis, MN). This endoleak, identified at 1 year, persisted in this patient population up to 5 years, although there was no difference between the IFU and off-label groups as regards survival, graft thrombosis, or re-intervention rates.⁶⁹ These mid- and long-term data support a recommendation for cautious application of standard EVAR in patients outside the device-specific IFU.⁶⁹

Hybrid, chimney and snorkel repairs

A variety of alternative approaches have been used to extend the indications of EVAR to patients with unfavorable anatomy.^70,71 Retrograde revascularization of the visceral vessels (surgical bypass) followed by endovascular exclusion of the aortic aneurysmal site (open debranching technique) has been used,⁷² but complication rates remain similar to that of open repair.^73,74

Other options include the chimney and snorkel techniques. These were first described by Greenberg et al.,³⁵ and use commercially available devices by creating parallel channels with covered stents (CVs) to maintain renal and visceral branch perfusion and to intentionally relocate the EVAR seal zone cranially. The chimney, snorkel, periscope and sandwich grafts are cheaper than the fenestrated graft, require limited endovascular tools for implantation, and have immediate availability and broader applicability in the acute setting;⁷⁵ for example, in patients suffering from large or rapidly expanding aneurysms (> 0.5 cm/annually), emergent ruptured or symptomatic aneurysms⁴⁰ and in those who cannot withstand the time required by the manufacturer for device customization.⁷⁶

This approach, which is considered as another off-the-shelf solution, can also be used as a bailout from accidental coverage of vital side branches during deployments requiring close approximation of the main body to the branch artery in question.^36,77,78 Elective indications include JRAs or aneurysms with severely angulated necks, when alternative techniques and/or devices are not options.⁵⁷ The chimney technique fundamentally differs from fenestrated and branched EVAR with regards to the relationship of the visceral stents to the aortic SG. While fenestrated and branched visceral stents are mated and sealed within integral constructs of the SG, chimney stents are positioned along the outside of the SG. Thus, the technique relies on the close conformation of the SG and the aortic wall around the chimney stent. The sandwich technique involves the use of CVs placed in the abdominal aorta branches, like chimneys, that are ‘sandwiched’ between two aortic endografts.⁷⁵ This concept of parallel endografting, although off-label, has been popularized, but the additional seal achieved is imperfect. As such, concern remains about the effects of type I endoleak through the ‘gutters’ created by the multiple side-by-side CVs outside the main endograft on long-term durability as well as branched vessel patency.^70,71 Potential strategies to nullify the gutter effect include the achievement of a ring of seal, or ‘gasket’ seal, in the neck of the aneurysm (JRAs) outside the area of the parallel endografts, the use of long overlap zones (no neck aneurysms) or, more attractively, direct obliteration of the gutters (‘eye of the tiger maneuver’). These adjuncts might help to improve outcomes with parallel grafts, not for only bailout situations.⁷⁹

Although technical success is high, two systematic reviews have shown that operative mortality (6% and 4.3%) and rate of type I endoleak (10% and 14%) are unquestionably high.^70,71 In anatomically matched populations undergoing open or chimney repair of JRAs or SRAs, operative mortality did not differ between groups (4.8%); however, acute kidney injury was higher in the endovascular arm (29% vs 4.8%), possibly due to planned renal artery coverage in some patients. Nonetheless, permanent dialysis occurred only in open surgery patients (9.5%).⁷⁸ In a recent comparable study with a population of 90 consecutive JRA patients, early mortality and permanent hemodialysis have been reported as higher in the endovascular arm (chimney and fenestrated repair) versus open repair arm (0% vs 6.4% and 0% vs 6.5%, respectively).⁴⁰ In another similar study (50 consecutive JRA patients undergoing fenestrated or chimney repair), early mortality did not differ between groups (8%); however, renal complications including deterioration of renal function (> 50% rise in serum creatinine) and renal infarction were considerably higher in the chimney group (25% vs 13% and 25% vs 8%, respectively).⁸⁰ In the latter study, the occurrence of early postoperative high-flow type I/III endoleaks was in favor of the fenestrated option (7.9% vs 25%).⁸⁰ Although the potential for this type of endoleak is reduced by creating two chimneys with a 20 mm seal zone length,⁷ such a proximal segment endoleak is difficult to repair, and proximal extremity ballooning of the endograft with a compliant balloon or placement of a Palmaz stent may not be sufficient in the long term.⁸⁰ The high rate of complications like persistent dialysis and type I or III endoleak were also confirmed in other single-center studies for the chimney procedure (7.1% dialysis and 14% endoleak rate, respectively).⁸¹

Available devices

Fenestrated SGs are usually custom-made and significantly more expensive than standard SGs. Manufacturing that is based on precise plans of the location of the visceral arteries from CT datasets is time-consuming and may take up to 4–8 weeks.

Currently, fenestrated or branched endografts are not commercially available. The Zenith Cook device (Cook Medical Inc, Bloomington, IN) formed the foundation of the fenestrated grafts in nearly all the cases, now with over 15 years of experience. It is composed of woven polyester fabric and Gianturco stainless steel stents. The top of the fabric is attached to a barbed anchor stent, while the stent below this is the high radial force sealing stent. The abdominal fenestrated Zenith SG has a composite body with an individual customized tubular proximal body (which typically contains from one to four fenestrations, depending on patient characteristics, for preservation of flow to both renals, SMA and celiac axis), a distal bifurcated body and iliac limb components.⁸² The required length of the SG portion placed above the renal arteries will dictate which vessels must be incorporated in the repair as fenestrations.⁸³

Proximal SG components have holes in the fabric or scallops at the end of the fabric that are positioned precisely adjacent to the aortic branch artery orifices. Fenestrations are nitinol reinforced and can be constructed of varying sizes. Small fenestrations (6×6 mm, 6×8 mm) are preferably designed for the renal arteries, while larger (8, 10, or 12 mm) strut-free ones are used preferably for the SMA and celiac axis.⁵¹ Scallops used for the celiac artery (or combined with the SMA), represent a U-shaped gap within the proximal fabric of the SG and are provided in 10–40 mm widths and 6–12 mm heights depending on the device manufacturer and design. These fenestrations can be fixed in position over the ostia by deploying CVs (side branches) through the fenestrations and into the arterial branches. CVs are inserted in places where the aorta is aneurysmal, and ordinary stents are inserted in places where the aorta is of normal caliber.⁸⁴ Since 2005, more and more bare metal stents have been replaced by CVs. Almost all bridging stents used in recently published reports are balloon-expandable CVs. CVs have enhanced the applicability of endovascular options, such as the use of side branches and fenestrations apart from aortic wall, and the use of SGs without stent-supported proximal components (PCs). Scallops are intended to preserve vessel perfusion with aneurysm exclusion without the use of further bridging devices. In contrast to fenestrated SGs, branched SGs incorporate pre-attached limbs or cuffs targeted for the visceral aortic branches.²⁷ In fenestrated endografting, the seal occurs between the CVs and the nitinol ring of the reinforced fenestration but the seal in a branched repair is obtained between the outer wall of the CVs and the inner wall of the branch artery.⁸⁵

The Zenith system has been commercially available in the European Union (CE-marked) since late 2005 and was approved by the FDA in April 2012. Consequently, an explosive increase in FEVAR may be expected also in the USA. However, several manufacturers are in the process of developing fenestrated devices for JRAs based on their corresponding infrarenal SG platform. Results on the use of the custom-made human implant Anaconda™ (Vascutek, Paisley, Scotland) have been reported recently.⁴²

As increasingly complex aortic pathology is treated via endovascular means, innovation has been driven through the use of novel techniques and devices customized in consultation with manufacturers.⁷⁵ For example, the combination of fenestrations and branches in the same proximal SG component has been used in narrow or angulated reno-visceral aortic segments,⁸⁶ or internal/external cuffs (axially oriented or caudally directed) for TAAAs and PRAs.⁸⁷ Moreover, to overcome the necessity of aortic main body customization, off-the-shelf devices have become apparent. These are fixed SG configurations, depending on the manufacturer, developed to accommodate in a wide range of aortic anatomies owing to the fact that recurrent patterns of similar arterial morphologies exist. Thus, off-the-shelf devices are applicable in predicted but not all possible anatomies (~54–88% in the literature). Currently, the main reason for their use is to treat patients with symptomatic or ruptured complex aortic aneurysms who are poor candidates for open surgical repair or have limited or no other immediate endovascular options.⁸⁸ Off-the-shelf designs are intended to treat patients with JRAs or PRAs, provided that a healthy neck exists below the SMA. Additionally, two other anatomical parameters are fundamental for the high applicability of the device: an adequate proximal neck, which is required for sealing and fixation, and the proper geometric relationship of the visceral vessels in order to provide a means of accommodating a large range of anatomies. Standard off-the-shelf devices developed for the treatment of patients with complex AAAs include the Ventana (Endologix, Irvine, CA, USA) (no longer clinically available) and p-Branch (Cook Inc., Bloomington, IN, USA) systems, which can be used for the treatment of JRAs/PRAs, or for aneurysms that limit just below the SMA, respectively. The p-Branch standardized device is a modular system intended to incorporate the renals with two conical pivot fenestrations and the SMA with one fixed fenestration and maintain patency to the celiac axis with a scallop. Recent reports describe up to 97% and up to 75% of neck and visceral vessel applicability using this SG.⁶²

Several authors have attempted to modify existing endografts to offer this technique to some patients who have no other options for aneurysm repair.⁸⁹ Of interest, 30-day mortality has been quoted as low (2%) in a recent report, suggesting that physician-modified off-the-shelf devices will definitely play a future role in the management of these complex patients.⁸⁹ Lack of quality control, inconsistent use of modifications, the potential risk of device contamination, and integrity issues that could originate from structural changes in the device are the most significant drawbacks of this practice.⁸⁸

Procedure planning

Planning procedures that extend the proximal sealing zone above the renal arteries are challenging since there is little margin for error. FEVAR work-up consists of clinical examination and high-resolution contrast-enhanced spiral CT scans (slice thickness < 2 mm), which are then reconstructed in a vascular 3D workstation. Custom-made SGs are then designed on multiplanar (axial, sagittal and coronal) reconstructions and centerline of flow calculations. Essential information required includes the relationship of the aneurysm to the aortic branches and the spatial relationships between visceral vessels (including the presence and orientation of supernumerary or aberrant vessels). An appreciation of the angulations and the tortuosity, calcification, diameter and coexisting occlusive disease of the access vessels is also required. Diameters and lengths of the aorta and iliac arteries (sealing zone cross-sectional diameters, total aorta length to be covered by the SG, diameter of the aortic lumen at the level of the target vessels), and visceral vessel morphology length between the ostium of each target vessel, diameter and ‘clock position’ (refers to the circumferential position related to the clock face, recorded to the quarter hour) of the origin of each target vessel are used to measure the relative positions of visceral arteries to match the fenestrations. Small, large or scalloped fenestrations (located at the uppermost portion of the fabric) are incorporated in the device design according to individualized patient anatomy.^2,56 The required length of the SG portion placed above renal arteries will dictate which vessels must be incorporated in the repair as fenestrations.⁸³

Details of the technique

SG implantation technique has been described in more detail previously,^25,30,90 but has undergone several modifications over time. In brief (basic steps), open or percutaneous arterial access is required via both femoral arteries. In case of small and calcified external iliac arteries, a retroperitoneal approach and an iliac conduit may be required. The PC is introduced in one side (the delivery sheath of the PC has a diameter of 22–24 Fr and a large (20–24 Fr) sheath is inserted on the contralateral side, each over a stiff wire. The latter is positioned just above the aortic bifurcation and after retrieval of the stiff wire three or four smaller sheaths are introduced through the large sheath valve. Through one of these sheaths, a pig-tail angiography catheter is then advanced into the aneurysm, proximal to the target vessels.⁵⁶ In some institutions, to reduce the amount of contrast medium required, branch vessels are pre-cannulated at this point to serve as markers for easier alignment of the device.⁴ The PC is then advanced to the pre-planned aneurysm position and oriented with respect to branch arteries prior to unsheathing. To match the intended target vessels, not only is precise longitudinal positioning required, but correct rotational torque control of the delivery system must be applied.⁴⁶ When accurate positioning of the unsheathed SG is confirmed using small injections of contrast volume in repeated angiograms, implantation of the PC starts slowly (first two stents are deployed). This slow deployment and the partially constrained PC allows for last-minute repositioning if required,⁵⁶ taking into account that this facility to reposition the device is compromised in adverse neck angles.⁸² The lumen of the distal end of the PC is then catheterized from the contralateral side and, accordingly, after over-the-wire side branch access sheath insertion (7 or 8 Fr depending on the stent diameter to be used), each target vessel is selectively cannulated through its corresponding fenestration (Figure 2). Successful catheterization is confirmed with a small amount of contrast medium injection.

Figure 2.

With the proximal component still partially constrained, the superior mesenteric artery (SMA) and renal arteries are cannulated through the dedicated fenestrations (in this patient the stent graft has a scallop fenestration for the celiac axis).

After all access sheaths are sequentially advanced to target arteries over stiff wires, appropriately sized CVs are inserted in places where the aorta is aneurysmal, and ordinary stents are inserted in places where the aorta is of normal caliber (Figure 3).⁸⁴

Figure 3.

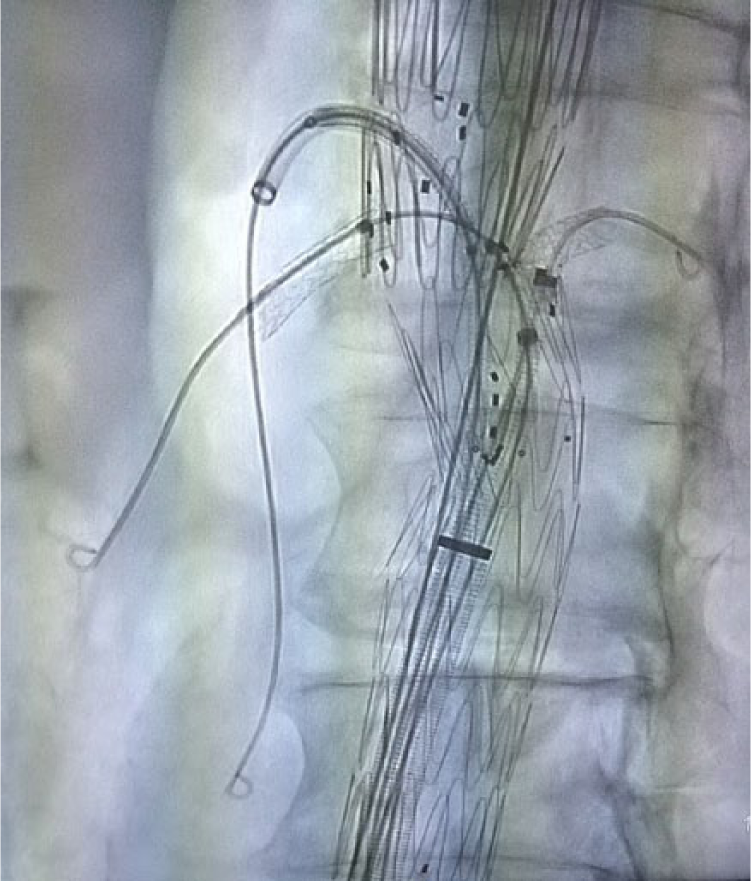

Fluoroscopy image of the proximal component of the stent graft: through a 7 Fr sheath, BeGraft balloon-expandable covered stents are advanced and deployed into the renal arteries. The superior mesenteric artery covered stent is in place but not yet expanded.

When all bridging stents/CVs are in place, the constrained PC is fully deployed. Prior to CVs deployment, the PC is dilated with a large compliant balloon. Using C-arm tube projections perpendicular to the fenestrations, the CVs are then deployed to their profile and flared proximally (the segment protruding into the SG lumen beyond the fenestration, usually 3–5 mm) with a balloon (10–12 mm); all maneuvers were performed after partial access sheath withdrawal (Figure 4). The procedure ends with cannulation of the PC gate permitting its connection with the bifurcated and other distal aortic components as planned (iliac extensions and/or iliac side branch devices) (Figure 5). A final angiogram confirms the absence of endoleak and patency of all SG components (Figure 6). The last steps are similar to the standard EVAR technique. Large sheaths in both femoral arteries must be removed as quickly as possible in order to avoid the occurrence of leg ischemia.

Figure 4.

Flaring of the aortic portion of the left renal artery bridging covered stent is performed using the tip of a large (10–12 mm diameter) balloon catheter (A). Selective angiography of the left renal artery after covered stent placement showing good patency of the target vessel and no signs of type I or type III endoleak at this level (B).

Figure 5.

After all the sheaths and covered stents are in the correct place, the proximal component is fully deployed (A). Insertion of the bifurcated distal component of the stent graft from the right side (B), which is then deployed after adjustment for correct overlapping with the proximal component (C). Cannulation of the contralateral limb (C) and retrograde angiogram through the left-sided sheath showing the iliac bifurcation (D) for the correct length measurement and placement of the left iliac limb.

Figure 6.

Completion angiogram after the fenestrated repair (fenestrations for the renal arteries and the SMA; scallop fenestration for the celiac axis). All visceral and renal vessels are nicely patent and no endoleak is detected.

Outcome measures

Perioperative and late mortality

Despite the theoretical advantages of FEVAR over open surgery, like the minimal invasive technique and avoidance of laparotomy and suprarenal aortic cross-clamping, investigations revealed comparable perioperative mortality rates^9,20 (with some studies reporting higher mortality with open repair).^12,91 In specialized centers, FEVAR was associated with even lower 30-day mortality rates (1% to 2.6%).^{22,25,26,30,31} This compares favorably with that of open surgical repair of short-necked aneurysms, which has operative mortality rates of 2.5% to 5.8%.^92,93 Notably, in a recent meta-analysis, the mortality rate in open repair and FEVAR studies (21 and 14 studies, respectively) were exemplary and equivalent (4.1%), although a higher rate of postoperative major complications and re-interventions due to bleeding and embolic events were observed with open repair.⁹ Noteworthy, greater rates of postoperative complications such as renal impairment (18.5% vs 9.8%), new onset of dialysis (3.9% vs 1.5%) and cardiac complications (11.3% vs 3.7%) were reported for open repair.²⁰ In a large UK registry not including less experienced centers, perioperative mortality was marginally higher (4.1%) than that reported in single-center or single-operator studies, suggesting that patient comorbidities should be taken into account.¹⁰

Despite the fear of target vessel loss, ischemic consequences of end-organs appear to be more frequent with open repair in the early postoperative period, as shown by instances of mesenteric ischemia necessitating bowel resection and acute renal failure requiring permanent dialysis.⁹¹ In a recent large national database,⁹⁴ FEVAR had comparable mortality to EVAR, but FEVAR was associated with an increased risk of overall complications attributed to the higher morphological complexity of an operation utilizing, for example, visceral vessel cannulation and renal stenting with attendant risks of embolization and thrombosis, lasts longer, and requires a learning curve with new technology. Pooled estimated perioperative mortality for patients undergoing fenestrated repair is 2.3%,³¹ which is lower than that reported for open or endovascular repair of standard infrarenal aneurysms.

Deaths because of technical errors or intraoperative complications, fortunately at the early phases of the learning curve, are not uncommon.^27,34,95 An increased duration of surgery (> 260 minutes) and postoperative events (postoperative complications, the need for dialysis and redo procedures) are strongly associated with a greater risk of 30-day and in-hospital death.³⁹ Mortality has also been correlated with adverse renal events, as shown in several studies.^34,96 Patients experiencing spinal cord ischemia, for example, have a 10 times greater risk of death and notably the majority of those not fully recovered die rapidly.³⁹

There is also evidence that outcomes are strongly correlated to the level and to the proximal extension of aneurysm disease. In a multicenter study, in-hospital mortality, combined (30-day, in-hospital) mortality and/or severe complications were strongly associated (more than double risk of death) with the aneurysm disease extension (JRAS and PRAs vs SRAs and all types of TAAAs).³⁹ Besides the prognostication in endovascular repair of TAAAs depending in the classical Crawford classification, there is also a trend for poorer long-term outcomes for patients treated with a device that requires coverage above the celiac artery.³¹ Also, the extent of the aneurysm repair, as determined by the proximal sealing zone of the SG, is also associated with outcome. As the proximal zone of SG coverage ascends, mortality significantly increases.⁹⁷

Worse 5-year survival rates were seen with FEVAR compared to open repair (55% vs 73%) in a large meta-analysis. As stated, selection bias, higher-risks patients offered FEVAR and significantly higher secondary re-interventions rates of FEVAR might explain the decreased long-term survival.⁹ Data emerged from a 12-year experience center reported decreased, survival (20%) after a mean follow-up of 8 years. This survival was negatively associated with increased age, congestive heart failure, cancer and previous aneurysm repair. Only 2% of these deaths were aortic aneurysm-related.³¹ In a similar study, overall survival was 76% at 3 years and 60% at 5 years. During the 10-year study period, 54% of the patients died (9% of aneurysm related causes), an overall mortality rate which is in line with that observed in patients with peripheral vascular disease, indicating severe comorbidities in this patient group.⁹⁵

Target vessel stenosis/occlusion

Target vessel occlusion still represents one of the most main complications of FEVAR.⁸⁵ Series from referral centers have included between 45 and 607 patients, with 117–1907 target vessels.^{5,10,29,32–34,39,80,97} Up to July 2012, a total of 2463 target vessels have been accessed through fenestrations and/or scallops, all within the use of the fenestrated Zenith SG.²⁰ Overall, early target vessel patency rate ranges from 90.5% to 99.7%.³³ The published 1-year target vessel patency rates ranges from 90.5% to 97%.¹² Recently pooled estimates of vessel patency at completion angiogram and in the long-term (5 years) during follow-up were reported 98.2% and 95.8%, respectively.⁹ Verhoeven et al., reported a cumulative visceral target vessel patency (275 target vessels in 100 patients) of 93.3% at 5 years.²² However, stent patency of target vessels must be differentiated from target vessel patency and was reported 95.7% at 1 year and 88.6% at 4 years.³⁴

In-stent-visceral stenosis/occlusion can be catastrophic with serious clinical sequelae (death, lifelong dialysis, bowel ischemia). Stenting of a fenestration is mandatory to avoid early visceral artery occlusion. Scallops are generally not stented.²² Cannulating target vessels followed by tracking sheaths and CVs can be challenging when doing a FEVAR. Unsuccessful catheterization/stenting and visceral vessel loose is reported rather low despite the more complexity of FEVAR compared to standard EVAR. Important factors contributing to technical failure include the inadequate device design and suboptimal procedure planning.⁸⁶ Intraoperative technical failure was reported only 1.1% and 2.1% by Verhoeven et al.²² and by Mastracci et al.,³¹ suggesting that expertise is of paramount importance.

Renal issues

One concern regarding FEVAR is the potential of negative effect on renal function. Postoperative renal impairment was not rare in a multicenter trial (18%)³⁹ and in a literature review (22.2%),¹⁷ and was mostly observed in patients with PAOD, long-lasting operations and complex cases.³⁹ Moreover, the risk for adverse renal events was 16% in patients without preoperative renal dysfunction and 39% in patients with preoperative renal dysfunction.⁹⁶ In other studies, transient as well as permanent post-procedural renal impairment was not influenced by preoperative renal status.³⁴ If the high prevalence of renal insufficiency of the patient population prior to treatment of aneurysms that involve or abut the renal arteries is a stronger contributing factor, remains to be determined. Notably, Rao et al., reported that preoperative renal dysfunction is rather common in patients with JRAs scheduled for FEVAR (6–44% in all 13 included studies, > 10% in 8/13 studies).⁹ High incidence of renal insufficiency has been reported in patients with AAAs (up to 25%); however, no correlation with greater risk of failure of primary EVAR has been found. In contrast, an increased tendency for FEVAR failure in those patients with renal insufficiency has been reported.⁴⁶

The primary reason for renal deterioration or transient/permanent dialysis is renal artery thrombosis after failed catheterization of this target vessel.³³ The renal artery as a target vessel was strongly correlated with perioperative vessel related events (technical failure, vessel injuries and early occlusions).⁸⁶ Renal insults not requiring hemodialysis, such as iatrogenic arteriovenous fistula, perinephric hemorrhages and small infarcts to the renal pole, are not uncommon.^21,82,98 Postoperative evolution of estimated glomerular filtration rate (eGFR) has been reported in a few studies. In the French multicenter trial (n = 134 patients), renal function showed a significant improvement or remained stable in 90% of patients and hemodialysis, either temporary or permanent, was required in 4.5%.³³

Renal dysfunction is prevalent also after open repair techniques. Long-term survival after open repair of infrarenal AAAs decreases from 51% to only 12% at 10 years in the setting of the presence or absence of post-procedural renal dysfunction.⁹⁶ Short-term mean endovascular postoperative eGFR and serum creatinine values were presented significantly lower compared to those obtained after open surgical repair.⁴⁰ The avoidance of suprarenal clamping and ischemia possibly explains the excellent results of the endovascular arm (FEVAR and chimney EVAR) in comparable studies with open surgical repair (0 vs 6.5% requirement of persistent dialysis).⁴⁰ In contrast to these results, a recent well-conducted meta-analysis reported similar perioperative mortality rates (30-day and in-hospital) between open and endovascular repair of juxtarenal aneurysms (4.1%). Similarly, pooled proportions for postoperative renal insufficiency and permanent dialysis were not statistically different (13.9% vs 11.4% and 2.8% vs 1.9%, respectively). However, secondary interventions were more and long-term survival was lower (at a statistically significant level) in FEVAR compared to open repair (pooled event rate 12.7% vs 4.9% and survival rate 55% vs 73%). Furthermore, more FEVAR patients developed renal impairment during follow-up than open repair patients (19.7% vs 7.7%, p < 0.0001), suggesting that apart from possible higher preoperative comorbidities and heterogenous reporting of renal outcomes, repeat interventions and contrast nephropathy from utilization of CT angiography surveillance at short intervals might play a role in this progressive renal damage.⁹

Type I and type III endoleaks

Like standard EVAR, successful aneurysm exclusion should follow any fenestrated endograft implanted in the perirenal position without any type I or III endoleaks (failure of graft/aorta or branch stent/branch artery wall interface (e.g. branch stent dislocation from poor apposition of branch walls) or failure of device–device interface, respectively (either from PC/branch stent, branch stent/branch stent, PC/bifurcated device or bifurcated device/limb extension component separation or from branch stent/branch stent fracture)) at completion angiogram. Failure to obtain an adequate seal between the various SG modular components and the arterial wall may lead to continuous pressurization of the aneurysm sac and subsequent rupture. Sealing zone failure in EVAR has been related to morphologic factors such as neck angulation, short neck, conical geometry, excessive calcium burden,⁶⁶ and non-adherence to device instructions for repairs.⁶⁸ However, within FEVAR, the physician has the opportunity to customize more proximal and longer sealing zones, thus removing the anatomical barrier of the visceral aorta.⁹⁹ Although more complex, higher than juxtarenal repairs to achieve healthier sealing zones correspond to lower endoleak rates,⁹⁹ despite the greater risk of spinal cord ischemia with increasing graft coverage above the celiac artery, and the greater risk of celiac occlusion with supraceliac landing zones.³¹ Parallel-walled aortas are more protective against proximal endoleaks than non-cylindrical shaped aortas.⁹⁹

Proximal endoleaks detected at the operative room can be corrected with ancillary procedures, usually with the insertion of a Palmaz stent. However, their occurrence is considered a bad prognostic sign for the durability of the repair, as many of them, regardless of the immediate success, usually recur during follow-up.⁹⁹

The rates of early types I and III endoleak were 5.8% and 2.6%, respectively, and the rates of late endoleaks were 2.2% and 3.2% in the latest meta-analysis on FEVAR versus open repair.⁹ Overall, and in a recent large data (607 patients receiving four design devices), the rates of types I, II and III endoleak through the entire follow-up period (mean = 8 years) were 3%, 16% and 4.6%, respectively. Notably, a higher incidence of type I endoleak was observed in patients receiving device configurations with only renal fenestrations, suggesting that sealing in the mid-visceral aorta, with a shorter length of aorta coverage, jeopardizes the stability of the proximal SG.³¹ A high percentage of endoleaks eventually require redo operations, which puts into question the longevity of the repair.^28,31

Regular CT examinations are required to adjudicate the absence of endoleaks. Not all patients demonstrate shrinkage of the aneurysm sac during follow-up. Aneurysm diameter changes after FEVAR are considered significant when ⩾ 5 mm. Aneurysm diameter decreased ⩾ 5 mm in 39% of patients at 12 months, 64% at 36 months and 71% at 60 months in a recent study with a mean follow-up of 67 months.⁹⁵

Endograft migration

Migration in infrarenal EVAR has been classified as any movement > 10 mm or that caused symptoms or required re-intervention. There is little detailed information regarding migration in fenestrated SGs in the literature. Early identification of any migration is crucial. This early recognition of device instability gives the physician the opportunity to intervene early and avert any serious clinical sequelae.¹⁰⁰ The main concerns are blood flow compromise to target vessels and loss of an aortic seal leading to aneurysm reperfusion. Noteworthy, only those cases complicated by serious clinical events or requiring re-intervention are reported in the literature.

Migration rates between 1% and 7% have been reported,^25,29 or higher in other studies, all requiring re-interventions.⁸⁵ Previous evaluation confirmed that insufficient landing zone or imprecise planning of the procedure could explain most of the adverse events, including migrations/type I endoleak with or without visceral stent fractures.⁸⁵ England et al.¹⁰⁰ pointed out that protective contributing factors to a low incidence of migration rates in FEVAR include barbs, higher fixation of SG fabric, bare proximal stent struts and a separate proximal component. Technical (proximal SG oversizing, length of common iliac artery landing zone) and other acquired anatomical issues (proximal neck enlargement, angulation) may predict SG migration. As such, cranial progression of aortic disease with further dilation of the aortic neck in the fenestrated segment results in loss of fixation and possible migration.³²

Migration can also occur at any time between the two components of the SG. Component separation is defined as any movement between the proximal fenestrated component and the distal bifurcated part. Iliac limb migration has a very low incidence.¹⁰⁰

In another series, migration has been defined as cranial or caudal movement of the device relative to a vascular landmark of ⩾ 4 mm.¹⁰⁰ This does not mean that subtle levels of migration preclude clinical events. Target vessel stent crushing and subsequent occlusion have been reported even with small (< 5 mm) movements.³² Applying the above definition, 14% of a patient cohort (n = 55, mean fenestration ratio = 2.02) receiving fenestrated SGs had an estimated probability of proximal migration at 12 months; by 36 months, this had increased to 22% (mean: 8% per year). Iliac limb migrations were less frequent with 12- and 36-month probabilities of 3% and 8%, respectively.¹⁰⁰

Re-interventions

Re-interventions are usually required for endoleak, target vessel event (stenosis/occlusion) and graft limb complications. Kristmundsson et al., among 31 re-interventions performed in 20 (37%) patients undergoing FEVAR, reported that 29% of re-interventions were endoleak related, 26% target-vessel related and 13% graft-limb related. Most of them were based on complications detected within the regular follow-up.⁹⁵

Troisi et al. documented after a mean follow-up of 25 months that the incidence of early and late complications requiring a secondary procedure after utilization of fenestrated and branched devices is not negligible. Overall, 34 repeat procedures were performed in 28 patients (26.2%) but the majority of them were carried out within 1 year postoperatively (mean follow-up 2 years).⁸⁵ Re-interventions were performed primarily for type III endoleaks. Compared to open surgery, FEVAR requires more re-interventions in the long-term (12.7% vs 4.9%, p < 0.0001).¹² Most of the re-interventions were for bleeding during surgery (⩽ 30 days) or for endoleak or vessel occlusion/stenosis during follow-up (most occurred between 6 and 12 months) after FEVAR. Noteworthy, some FEVAR redo procedures, including SG components destruction, endoleaks, graft kinking and renal artery occlusion, led to worse mortality and morbidity compared to open repair re-interventions.⁹

In the largest fenestrated report (607 patients), long-term survival in patients classified as having JRAs or type IV TAAAs has been reported 20% after a mean of 8 years of follow-up. During that period, only 2% of deaths were aortic related. Moreover, patients treated with a device requiring coverage above the celiac artery (supraceliac landing zone) experience a greater branch re-intervention rate compared to patients treated with other configurations.³¹ In other studies, freedom from secondary interventions was 89%⁵⁸ and 63%³² at 5 years, respectively, after fenestrated and branched endografting.

Given the high rate of re-interventions required after endovascular repair of complex aortic aneurysms and the need for aggressive follow-up in the long-term, it is alarming to see that FEVAR is applied to a similar cohort of patients as open repair.

All basic outcome measures are summarized in Table 3.

Table 3.

Early (< 30 days) results of the use of fenestrated/branched technology.

1^st Author, year	No. of patients	Indications	%
1^st Author, year	No. of patients	Indications	Target vessel patency	Technical success (%)^a	30-day mortality	Endoleak (I/III)	Permanent dialysis^b	Renal deterioration^c,d	Re-interventions^e
Anderson, 2001¹⁰¹	13	AAAs with suboptimal neck anatomy	93.9	13/13 (100)	0	0	0	15.4	23.1
Semmens, 2006²¹	58	AAAs with an unsuitable neck for standard EVAR	99.1	57/58 (98.3)	3.5	8.6	0	6.9	3.5
Halak, 2006¹⁰²	17	17 AAAs with proximal neck precluding standard EVAR (including 11 JRAs and 7 short-necked AAAs)	91.4	16/17 (94.1)	0	0	5.9	11.8	5.9
Ziegler, 2007²⁷	60	49 AAAs with inadequate sealing zone, 10 para-anastomotic aneurysms and 1 TAAA	95	52/60 (86.7)	0	8.3	1.7	13.3	6.7
Scurr, 2008²⁹	45	JRAs	98.3	43/45 (95.6)	2.2	2.2	0	2.2	8.9
Bicknell, 2009¹⁰³	15	7 JRAs and 8 TAAAs (I=2, III=2, IV=4)	98	14/15 (93.4)	0	0	0	NCS	26.7
Amiot, 2010³³	134	99 JRAs, 27 SRAs and 8 type IV TAAAs	96.5	128/134 (95.5)	2.2	2.3	1.5	17.9	17.9
Coscas, 2012⁸⁰	50	JRAs	96.7	35/38 (92.1)	2	8	0	10	6
Starnes, 2012⁸⁹	47	JRAs (asymptomatic, symptomatic, ruptured)	97.6	80/82 (97.6)	2.1	2.1	2.1	NCS	2
GLOBALSTAR Registry, 2012¹⁰	318	JRAs and PRAs	98.2	309/318 (97.2)	4.1	3.8	0.3	3.5	6
Donas, 2012⁴⁰	29	JRAs	97.7	28/29 (96.6)	0	0	0	13.8	3.5
Suominen, 2013¹⁰⁴	21	JRAs	100	18/21 (85.7)	9.5	4.8	0	4.8	4.8
Quiñones-Baldrich, 2013⁵⁷	31	JRAs and PRAs	99.2	30/31 (96.8)	0	3.2	3.2	6.5	9.7
Kitagawa, 2013⁶³	16	JRAs	100	16/16 (100)	0	0	0	0	6.3
Grimme, 2014³⁴	138	Short-necked AAAs, JRAs and SRAs	97.5	127/138 (92.0)	1.5	3.6	1.5	9.4	5.1
Oderich, 2014³²	67	JRAs	97.8	67/67 (100)	1.5	0	1.5	0	13.4
Rolls, 2014⁴¹	13	Complex AAAs	100	13/13 (100)	0	0	0	30.8	15.4
Dijkstra, 2014⁴²	25	23 JRAs and 2 short-necked AAAs	94.6	22/25 (88)	4	12	0	NCS	0
Ullery, 2014¹⁰⁵	18	16 JRAs, 1 PRA and 1 type IV TAAA	96.1	18/18 (100)	5.6	5.6	5.6	16.7	5.6
Farber, 2014¹⁰⁶	16	TAAAs (including JRAs and PRAs)	98.4	16/16 (100)	0	0	0	12.5	6.3
Sveinsson, 2015⁵	288	JRAs and PRAs	99.5	283/288 (98.3)	2.1	NCS	0.4	NCS	NCS
Marzelle, 2015 (WINDOWS trial)³⁹	268	136 JRAs, 48 PRAs, 16 SRAs and 68 TAAAs (I=2, II=16, III=24, IV=26)	99.3	239/245^f (97.6)	6.7	5.6	0.4	12.3	13.8
Mastracci, 2015³¹	610	258 JRAs, 349 type IV TAAAs and 3 unclassified aneurysms	93.2^g	594/607 (97.9)	NCS^h	9.6ⁱ	NCS	8.2	26^j
Patel, 2015⁹⁷	150	49 JRAs, 76 SRAs and 25 type IV TAAAs	97.1	138/150 (92.0)	8	1.3	NCS	8.7	8.7

AAAs, abdominal aortic aneurysms; EVAR, endovascular aortic aneurysm repair; JRAs, juxtarenal aortic aneurysms; TAAAs, thoracoabdominal aortic aneurysms; SRAs, suprarenal aortic aneurysms; PRAs, pararenal aortic aneurysms; NCS, not clearly stated.

Technical success: satisfactory deployment of all the fenestration(s)/branches and bridging stents/stent grafts into the intended (according to preoperative planning) target vessel(s). It also required patency of the endograft and all target vessels after deployment of all basic endograft components (proximal and bifurcated) as evidenced by intraoperative completion angiography.

Data extended beyond 30 days.

Terms used for renal dysfunction/deterioration: a 30% reduction of the estimated glomerular filtration rate (eGFR), serum creatinine (SCr) > 2 mg/dL (180 µM) or a rise of > 30% from baseline, significant rise in creatinine concentration, doubling of creatinine or > 50% decline in eGFR/threefold increase in creatinine, a > 75% decline in renal function, or a SCr > 4 mg/dL with an acute rise of 0.5 mg/dL.

Terms used for renal failure: SCr increase > 0.5 mg/dL on two consecutive assessments, decline in postoperative creatinine clearance (25%, 50%, 75%, total loss of kidney function requiring hemodialysis over 4 weeks) compared to preoperative value, one stage shift downward of the normal eGFR (> 90 mL/min).

Re-interventions for endoleak (EL) and target vessel event, other unplanned procedures (also includes those for severe intraoperative complications).

Reported data.

12-year follow-up.

Only 8-year all-cause and aneurysm-related mortality reported.

Includes also type IV and unknown endoleak.

Includes branch, device body, device limbs, remote aneurysm, embolization and other extremity re-interventions (branch re-interventions = 9.9%).

Conclusions

The evolution of fenestrated and branched EVAR has opened up the visceral aorta to totally endovascular repair. The use of fenestrated SGs for complex aneurysm disease has grown enormously the last years and has been proved safe and effective in the short- and mid-term follow-up. Stent grafts with fenestrations, scallops and occasionally branches have to be customized to each patient’s anatomy and precisely deployed in vivo. Bridging covered stents between the main graft and the target vessels eventually exclude the aneurysm preserving blood flow to vital organs. Outcomes depend mostly on the level of expertise and organizing facilities, correct planning but also on proximal extension of the disease which increases also the complexity of the repair. Remaining issues are within the range of those reported for EVAR.

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

References

Greenhalgh

Brown

Kwong

.; EVAR trial participants. Comparison of endovascular aneurysm repair with open repair in patients with abdominal aortic aneurysm (EVAR trial 1), 30-day operative mortality results: Randomised controlled trial. Lancet 2004; 364: 843–848.

Tambyraja

Fishwick

Bown

. Fenestrated aortic endografts for juxtarenal aortic aneurysm: Medium term outcomes. Eur J Vasc Endovasc Surg 2011; 42: 54–58.

Hobo

Laheij

Buth

; EUROSTAR collaborators. The influence of aortic cuffs and iliac limb extensions on the outcome of endovascular abdominal aortic aneurysm repair. J Vasc Surg 2007; 45: 79–85.

Mastracci

. Fenestrated endografts for complex abdominal aortic aneurysms. Perspect Vasc Surg Endovasc Ther 2010; 22: 214–218.

Sveinsson

Sobocinski

Resch

. Early versus late experience in fenestrated endovascular repair for abdominal aortic aneurysm. J Vasc Surg 2015; 61: 895–901.

Chuter

. Fenestrated and branched stent-grafts for thoracoabdominal, pararenal and juxtarenal aortic aneurysm repair. Semin Vasc Surg 2007; 20: 90–96.

Arko

Filis

Seidel

. How many patients with infrarenal aneurysms are candidates for endovascular repair?: The Northern California experience. J Endovasc Ther 2004; 11: 33–40.

Ehsan

Murray

Farquharson

. Endovascular repair of complex aortic aneurysms. Ann Vasc Surg 2011; 25: 716–725.

Rao

Lane

Franklin

. Open repair versus fenestrated endovascular aneurysm repair of juxtarenal aneurysms. J Vasc Surg 2015; 61: 242–255.

10.

British Society for Endovascular Therapy and the Global Collaborators on Advanced Stent-Graft Techniques for Aneurysm Repair (GLOBALSTAR) Registry. Early results of fenestrated endovascular repair of juxtarenal aortic aneurysms in the United Kingdom. Circulation 2012; 125: 2707–2715.

11.

Greenberg

Qureshi

. Fenestrated and branched devices in the pipeline. J Vasc Surg 2010; 52(4 Suppl): 15S–21S.

12.

Nordon

Hinchliffe

Holt

. Modern treatment of juxtarenal abdominal aortic aneurysms with fenestrated endografting and open repair – A systematic review. Eur J Vasc Endovasc Surg 2009; 38: 35–41.

13.

Sun

Mwipatayi

Semmens

. Short to midterm outcomes of fenestrated endovascular grafts in the treatment of abdominal aortic aneurysms: A systematic review. J Endovasc Ther 2006; 13: 747–753.

14.

Health Quality Ontario. Fenestrated endovascular grafts for the repair of juxtarenal aortic aneurysms: An evidence-based analysis. Ont Health Technol Assess Ser 2009; 9: 1–51.

15.

Bakoyiannis

Economopoulos

Georgopoulos

. Fenestrated and branched endografts for the treatment of thoracoabdominal aortic aneurysms: A systematic review. J Endovasc Ther 2010; 17: 201–209.

16.

Cross

Gurusamy

Gadhvi

. Fenestrated endovascular aneurysm repair. Br J Surg 2012; 99: 152–159.

17.

Linsen

Jongkind

Nio

. Pararenal aortic aneurysm repair using fenestrated endografts. J Vasc Surg 2012; 56: 238–246.

18.

Donas

Torsello

Bisdas

. Early outcomes for fenestrated and chimney endografts in the treatment of pararenal aortic pathologies are not significantly different: A systematic review with pooled data analysis. J Endovasc Ther 2012; 19: 723–728.

19.

Liu

. Fenestrated endovascular repair for pararenal abdominal aortic aneurysms: A systematic review and meta-analysis. Ann Vasc Surg 2013; 27: 1190–1200.

20.

Katsargyris

Oikonomou

Klonaris

. Comparison of outcomes with open, fenestrated, and chimney graft repair of juxtarenal aneurysms: Are we ready for a paradigm shift? J Endovasc Ther 2013; 20: 159–169.

21.

Semmens

Lawrence-Brown

Hartley

. Outcomes of fenestrated endografts in the treatment of abdominal aortic aneurysm in Western Australia (1997–2004). J Endovasc Ther 2006; 13: 320–329.

22.

Verhoeven

Vourliotakis

Bos

. Fenestrated stent grafting for short-necked and juxtarenal abdominal aortic aneurysm: An 8-year single-centre experience. Eur J Vasc Endovasc Surg 2010; 39: 529–536.

23.

Greenberg

Haulon

Lyden

. Endovascular management of juxtarenal aneurysms with fenestrated endovascular grafting. J Vasc Surg 2004; 39: 279–287.

24.

Verhoeven

Prins

Tielliu

. Treatment of short-necked infrarenal aortic aneurysms with fenestrated stent-grafts: Short-term results. Eur J Vasc Endovasc Surg 2004; 27: 477–483.

25.

O’Neill

Greenberg

Haddad

. A prospective analysis of fenestrated endovascular grafting: Intermediate-term outcomes. Eur J Vasc Endovasc Surg 2006; 32: 115–123.

26.

Muhs

Verhoeven

Zeebregts

. Mid-term results of endovascular aneurysm repair with branched and fenestrated endografts. J Vasc Surg 2006; 44: 9–15.

27.

Ziegler

Avgerinos

Umscheid

. Fenestrated endografting for aortic aneurysm repair: A 7-year experience. J Endovasc Ther 2007; 14: 609–618.

28.

Kristmundsson

Sonesson

Malina

. Fenestrated endovascular repair for juxtarenal aortic pathology. J Vasc Surg 2009; 49: 568–574.

29.

Scurr

Brennan

Gilling-Smith

. Fenestrated endovascular repair for juxtarenal aortic aneurysm. Br J Surg 2008; 95: 326–332.

30.

Greenberg

Haulon

O’Neill

. Primary endovascular repair of juxtarenal aneurysms with fenestrated endovascular grafting. Eur J Vasc Endovasc Surg 2004; 27: 484–491.

31.

Mastracci

Eagleton

Kuramochi

. Twelve-year results of fenestrated endografts for juxtarenal and group IV thoracoabdominal aneurysms. J Vasc Surg 2015; 61: 355–364.

32.

Oderich

Greenberg

Farber

.; Zenith Fenestrated Study Investigators. Results of the United States multicenter prospective study evaluating the Zenith fenestrated endovascular graft for treatment of juxtarenal abdominal aortic aneurysms. J Vasc Surg 2014; 60: 1420–1428.e1–5.

33.

Amiot

Haulon

Becquemin

.; Association Universitaire de Recherche en Chirurgie Vasculaire. Fenestrated endovascular grafting: The French multicentre experience. Eur J Vasc Endovasc Surg 2010; 39: 537–544.

34.

Grimme

Zeebregts

Verhoeven

. Visceral stent patency in fenestrated stent grafting for abdominal aortic aneurysm repair. J Vasc Surg 2014; 59: 298–306.

35.

Greenberg

Clair

Srivastava

. Should patients with challenging anatomy be offered endovascular aneurysm repair? J Vasc Surg 2003; 38: 990–996.

36.

Coscas

Kobeiter

Desgranges

. Technical aspects, current indications, and results of chimney grafts for juxtarenal aortic aneurysms. J Vasc Surg 2011; 53: 1520–1527.

37.

Lachat

Bisdas

Rancic

. Chimney endografting for pararenal aortic pathologies using transfemoral access and the lift technique. J Endovasc Ther 2013; 20: 492–497.

38.

Black

Wolfe

Clark

. Complex thoracoabdominal aortic aneurysms: Endovascular exclusion with visceral revascularization. J Vasc Surg 2006; 43: 1081–1089; discussion 1089.

39.

Marzelle

Presles

Becquemin

; WINDOWS trial participants. Results and factors affecting early outcome of fenestrated and/or branched stent grafts for aortic aneurysms: A multicenter prospective study. Ann Surg 2015; 261: 197–206.

40.

Donas

Eisenack

Panuccio

. The role of open and endovascular treatment with fenestrated and chimney endografts for patients with juxtarenal aortic aneurysms. J Vasc Surg 2012; 56: 285–290.

41.

Rolls

Jenkins

Bicknell

. Experience with a novel custom-made fenestrated stent graft in the repair of juxtarenal and type IV thoracoabdominal aneurysms. J Vasc Surg 2014; 59: 615–622.

42.

Dijkstra

Tielliu

Meerwaldt

. Dutch experience with the fenestrated Anaconda endograft for short-neck infrarenal and juxtarenal abdominal aortic aneurysm repair. J Vasc Surg 2014; 60: 301–307.

43.

Chisci

Kristmundsson

de Donato

. The AAA with a challenging neck: Outcome of open versus endovascular repair with standard and fenestrated stent-grafts. J Endovasc Ther 2009; 16: 137–146.

44.

Austermann

Panuccio

Torsello

. Use of fenestrated endografts. In: Torsello

Donas

(eds) Endovascular treatment of complex abdominal and thoracoabdominal aneurysms. Turin: Edizioni Minerva Medica, 2012, pp.31–42.

45.

Verhoeven

Muhs

Zeebregts

. Fenestrated and branched stent-grafting after previous surgery provides a good alternative to open redo surgery. Eur J Vasc Endovasc Surg 2007; 33: 84–90.

46.

Martin

Greenberg

Mastracci

. Late rescue of proximal endograft failure using fenestrated and branched devices. J Vasc Surg 2014; 59: 1479–1487.

47.

Greenberg

West

Pfaff

. Beyond the aortic bifurcation: Branched endovascular grafts for thoracoabdominal and aortoiliac aneurysms. J Vasc Surg 2006; 43: 879–886.

48.

Oikonomou

Katsargyris

Bekkema

. Fenestrated endografting of juxtarenal aneurysms after open aortic surgery. J Vasc Surg 2014; 59: 307–314.

49.

Katsargyris

Oikonomou

Spinelli

. Fenestrated and branched stent-grafting after previous open or endovascular aortic surgery. J Cardiovasc Surg (Torino) 2014; 55(2 Suppl 1): 95–103.

50.

Katsargyris

Yazar

Oikonomou

. Fenestrated stent-grafts for salvage of prior endovascular abdominal aortic aneurysm repair. Eur J Vasc Endovasc Surg 2013; 46: 49–56.

51.

Farber

Vallabhaneni

. Moving into the paravisceral aorta using fenestrated and branched endografts. Semin Vasc Surg 2012; 25: 193–199.

52.

Chaikof

Blankensteijn

Harris

.; Ad Hoc Committee for Standardized Reporting Practices in Vascular Surgery of The Society for Vascular Surgery/American Association for Vascular Surgery. Reporting standards for endovascular aortic aneurysm repair. J Vasc Surg 2002; 35: 1048–1060.

53.

Fillinger

Greenberg

McKinsey

.; Society for Vascular Surgery Ad Hoc Committee on TEVAR Reporting Standards. Reporting standards for thoracic endovascular aortic repair (TEVAR). J Vasc Surg 2010; 52: 1022–1033.e15.

54.

Greenberg

Sternbergh

3rd Makaroun

.; Fenestrated Investigators. Intermediate results of a United States multicenter trial of fenestrated endograft repair for juxtarenal abdominal aortic aneurysms. J Vasc Surg 2009; 50: 730–737.e1.

55.

Mohabbat

Greenberg

Mastracci

. Revised duplex criteria and outcomes for renal stents and stent grafts following endovascular repair of juxtarenal and thoracoabdominal aneurysms. J Vasc Surg 2009; 49: 827–837.

56.

Haulon

Amiot

Magnan

.; Association Universitaire de Recherche en Chirurgie Vasculaire (AURC). An analysis of the French multicentre experience of fenestrated aortic endografts: Medium-term outcomes. Ann Surg 2010; 251: 357–362.

57.

Quiñones-Baldrich

Holden

Mertens

. Prospective, multicenter experience with the Ventana Fenestrated System for juxtarenal and pararenal aortic aneurysm endovascular repair. J Vasc Surg 2013; 58: 1–9.

58.

Mastracci

Greenberg

Eagleton

. Durability of branches in branched and fenestrated endografts. J Vasc Surg 2013; 57: 926–933.

59.

Chaikof

Fillinger

Matsumura

. Identifying and grading factors that modify the outcome of endovascular aortic aneurysm repair. J Vasc Surg 2002; 35: 1061–1066.

60.

Scali

Waterman

Feezor

. Treatment of acute visceral aortic pathology with fenestrated/branched endovascular repair in high-surgical-risk patients. J Vasc Surg 2013; 58: 56–65.e1.

61.

Tsilimparis

Perez

Dayama

. Endovascular repair with fenestrated-branched stent grafts improves 30-day outcomes for complex aortic aneurysms compared with open repair. Ann Vasc Surg 2013; 27: 267–273.

62.

Ricotta

2nd Tsilimparis

. Surgeon-modified fenestrated-branched stent grafts to treat emergently ruptured and symptomatic complex aortic aneurysms in high-risk patients. J Vasc Surg 2012; 56: 1535–1542.

63.

Kitagawa

Greenberg

Eagleton

. Zenith p-branch standard fenestrated endovascular graft for juxtarenal abdominal aortic aneurysms. J Vasc Surg 2013; 58: 291–300.

64.

Haulon

Barillà

Tyrrell

. Debate: Whether fenestrated endografts should be limited to a small number of specialized centers. J Vasc Surg 2013; 57: 875–882.

65.

Perdikides

Georgiadis

Avgerinos

. The Aorfix stent-graft to treat infrarenal abdominal aortic aneurysms with angulated necks and/or tortuous iliac arteries: Midterm results. J Endovasc Ther 2009; 16: 567–576.

66.

AbuRahma

Campbell

Stone

. The correlation of aortic neck length to early and late outcomes in endovascular aneurysm repair patients. J Vasc Surg 2009; 50: 738–748.

67.

Torsello

Troisi

Donas

. Evaluation of the Endurant stent graft under instructions for use vs off-label conditions for endovascular aortic aneurysm repair. J Vasc Surg 2011; 54: 300–306.

68.

Schanzer

Greenberg

Hevelone

. Predictors of abdominal aortic aneurysm sac enlargement after endovascular repair. Circulation 2011; 123: 2848–2855.

69.

Troisi

Torsello

Weiss

. Midterm results of endovascular aneurysm repair using the Endurant stent-graft according to the instructions for use vs. off-label conditions. J Endovasc Ther 2014; 21: 841–847.

70.

Moulakakis

Mylonas

Avgerinos

. The chimney graft technique for preserving visceral vessels during endovascular treatment of aortic pathologies. J Vasc Surg 2012; 55: 1497–1503.

71.

Wilson

Zhou

Bachoo

. Systematic review of chimney and periscope grafts for endovascular aneurysm repair. Br J Surg 2013; 100: 1557–1564.

72.

Lin

Kougias

Bechara

. Clinical outcome of staged versus combined treatment approach of hybrid repair of thoracoabdominal aortic aneurysm with visceral vessel debranching and aortic endograft exclusion. Perspect Vasc Surg Endovasc Ther 2012; 24: 5–13.

73.

Rigberg

McGory

Zingmond

. Thirty-day mortality statistics underestimate the risk of repair of thoracoabdominal aortic aneurysms: A statewide experience. J Vasc Surg 2006; 43: 217–222.

74.

Cowan

Jr Dimick

Henke

. Surgical treatment of intact thoracoabdominal aortic aneurysms in the United States: Hospital and surgeon volume-related outcomes. J Vasc Surg 2003; 37: 1169–1174.

75.

Buck

van Herwaarden

Schermerhorn

. Endovascular treatment of abdominal aortic aneurysms. Nat Rev Cardiol 2014; 11: 112–123.

76.

Banno

Cochennec

Marzelle

. Comparison of fenestrated endovascular aneurysm repair and chimney graft techniques for pararenal aortic aneurysm. J Vasc Surg 2014; 60: 31–39.

77.

Donas

Torsello

Austermann

. Use of abdominal chimney grafts is feasible and safe: Short-term results. J Endovasc Ther 2010; 17: 589–593.

78.

Bruen

Feezor

Daniels

. Endovascular chimney technique versus open repair of juxtarenal and suprarenal aneurysms. J Vasc Surg 2011; 53: 895–904; discussion 904–905.

79.

Minion

. Molded parallel endografts for branch vessel preservation during endovascular aneurysm repair in challenging anatomy. Int J Angiol 2012; 21: 81–84.

80.

Coscas

Becquemin

Majewski

. Management of perioperative endoleaks during endovascular treatment of juxta-renal aneurysms. Ann Vasc Surg 2012; 26: 175–184.

81.

Lee

Greenberg

Dalman

. Early experience with the snorkel technique for juxtarenal aneurysms. J Vasc Surg 2012; 55: 935–946; discussion 945–946.

82.

Scurr

McWilliams

. Fenestrated aortic stent grafts. Semin Intervent Radiol 2007; 24: 211–220.

83.

Greenberg

. Aortic aneurysm, thoracoabdominal aneurysm, juxtarenal aneurysm, fenestrated endografts, branched endografts, and endovascular aneurysm repair. Ann N Y Acad Sci 2006; 1085: 187–196.

84.

Chuter

. Branched stent-grafts for endovascular repair of aortic and iliac aneurysms. Tech Vasc Interv Radiol 2005; 8: 56–60.

85.

Troisi

Donas

Austermann

. Secondary procedures after aortic aneurysm repair with fenestrated and branched endografts. J Endovasc Ther 2011; 18: 146–153.

86.

Panuccio

Bisdas

Berekoven

. Performance of bridging stent grafts in fenestrated and branched aortic endografting. Eur J Vasc Endovasc Surg 2015; 50: 60–70.

87.

Reilly

Rapp

Grenon

. Efficacy and durability of endovascular thoracoabdominal aortic aneurysm repair using the caudally directed cuff technique. J Vasc Surg 2012; 56: 53–63; discussion: 63–64.

88.

Georgiadis

van Herwaarden

Antoniou

. Systematic review of off-the-shelf or physician-modified fenestrated and branched endografts. J Endovasc Ther 2016; 23: 98–109.

89.

Starnes

. Physician-modified endovascular grafts for the treatment of elective, symptomatic, or ruptured juxtarenal aortic aneurysms. J Vasc Surg 2012; 56: 601–607.

90.

Moore

Hinojosa

O’Neill

. Fenestrated endovascular grafts for juxtarenal aortic aneurysms: A step by step technical approach. Catheter Cardiovasc Interv 2007; 69: 554–571.

91.

Canavati

Millen

Brennan

. Comparison of fenestrated endovascular and open repair of abdominal aortic aneurysms not suitable for standard endovascular repair. J Vasc Surg 2013; 57: 362–367.

92.

West

Noel

Bower

. Factors affecting outcomes of open surgical repair of pararenal aortic aneurysms: A 10-year experience. J Vasc Surg 2006; 43: 921–927.

93.

Jean-Claude

Reilly

Stoney

. Pararenal aortic aneurysms: The future of open aortic aneurysm repair. J Vasc Surg 1999; 29: 902–912.

94.

Glebova

Selvarajah

Orion

. Fenestrated endovascular repair of abdominal aortic aneurysms is associated with increased morbidity but comparable mortality with infrarenal endovascular aneurysm repair. J Vasc Surg 2015; 61: 604–610.

95.

Kristmundsson

Sonesson

Dias

. Outcomes of fenestrated endovascular repair of juxtarenal aortic aneurysm. J Vasc Surg 2014; 59: 115–120.

96.

Haddad

Greenberg

Walker

. Fenestrated endovascular grafting: The renal side of the story. J Vasc Surg 2005; 41: 181–190.

97.

Patel

Constantinou

Simring

. Results of complex aortic stent grafting of abdominal aortic aneurysms stratified according to the proximal landing zone using the Society for Vascular Surgery classification. J Vasc Surg 2015; 62: 319–325.e2.

98.

Metcalfe

Holt

Hinchliffe

. Fenestrated endovascular aneurysm repair: Graft complexity does not predict outcome. J Endovasc Ther 2012; 19: 528–535.

99.

O’Callaghan

Greenberg

Eagleton

. Type Ia endoleaks after fenestrated and branched endografts may lead to component instability and increased aortic mortality. J Vasc Surg 2015; 61: 908–914.

100.

England

García-Fiñana

Fisher

. Migration of fenestrated aortic stent grafts. J Vasc Surg 2013; 57: 1543–1552.

101.

Anderson

Berce

Hartley

. Endoluminal aortic grafting with renal and superior mesenteric artery incorporation by graft fenestration. J Endovasc Ther 2001; 8: 3–15.

102.

Halak

Goodman

Baker

. The fate of target visceral vessels after fenestrated endovascular aortic repair – General considerations and mid-term results. Eur J Vasc Endovasc Surg 2006; 32: 124–128.

103.

Bicknell

Cheshire

Riga

. Treatment of complex aneurysmal disease with fenestrated and branched stent grafts. Eur J Vasc Endovasc Surg 2009; 37: 175–181.

104.

Suominen

Pimenoff

Salenius

. Fenestrated and chimney endografts for juxtarenal aneurysms: Early and midterm results. Scand J Surg 2013; 102: 182–188.

105.

Ullery

Lee

. Shuttering of the superior mesenteric artery during fenestrated endovascular aneurysm repair. J Vasc Surg 2014; 60: 900–907.

106.

Farber

Vallabhaneni

Marston

. ‘Off-the-shelf’ devices for complex aortic aneurysm repair. J Vasc Surg 2014; 60: 579–584.
