Parametrically excited vibrations of marine riser under random wave forces and earthquake

Abstract

This article presents theoretical studies for parametrically excited vibrations of marine riser of the floating production, drilling, storage, and offloading system under random wave forces and earthquake excitation. The equation of motion of the riser is obtained by a mathematical method utilizing Euler beam theory and Galerkin method. The trigonometric series method is used to formulate random wave force and earthquake excitation in time domain. The dynamic analysis, spectral response analysis, and key parameters’ sensitivity analysis are conducted for the riser system. Parameter studies are conducted for the effects of wave and earthquake parameters and structural parameters on dynamics response of the riser system. The results from this study can provide valuable recommendations for the design and construction of the parametrically excited marine riser system under random wave forces and earthquake excitation and can promote widely practical application of the deep water riser in complicated environmental conditions.

Keywords

dynamics response earthquake excitation key parameters’ sensitivity analysis parametrically excited marine riser random wave forces

Introduction

The oil and gas industry has extracted hydrocarbon resources from a great number of petroleum reserves located in the ocean. Many of these field developments require a stand-alone production and storage facility with drilling facilities. A floating production, drilling, storage, and offloading (FPDSO) unit is the natural solution, which combines the well-established floating production, storage, and offloading (FPSO) unit with a drilling unit. One of the proposed forms of FPDSO benefits from the mature technology of the tension leg deck (TLD). TLD is based on using the gravity of weights, instead of buoyancy, as in the existing dry tree concepts, as a means to pretension risers. Marine risers are structures that employed to convey gas and oil between top-end vessel and sea bed. With the development of oil and gas exploration toward deeper ocean, the use of marine risers is vital for oil and gas production.

The risers operate in the ocean for a long time and are subjected to various environmental conditions like ocean wave, current, and earthquakes and are affected greatly by the dynamic coupling between the motion of the floating hull in waves and marine riser. Of all mentioned, wave is one of the most important and complicated environmental factors and is random, which may induce the failure of the whole structure. Besides, most of oil/gas resources are in the Circum-Pacific seismic belt, the most active seismic zone in the world; the effect of earthquake may be very significant. It is noted (Duan et al., 2010) that 85% of the total amount of the earthquakes occurs in the ocean. Research on subsea risers in seismic conditions is one of the academic and engineering attractions in offshore engineering.

The riser has been an interesting topic in marine structure research; it was studied in the aspects of axial dynamic analysis in installation, natural frequency analysis considering multiphase internal flow behavior, modeling, and nonlinear dynamics analysis (Dai et al., 2014; Montoya-Hernández et al., 2014; Wang et al., 2014c), and so on. The riser will suffer considerable wave-induced vibration and vortex-induced vibration, which can last for almost the whole design life in harsh environments. The vibration of the riser in the cross-flow direction is dominated by vortex-induced resonance phenomena, and a considerable amount of work has been done (Chen et al., 2014; Quen et al., 2014; Wang et al., 2014a), but there are few researches on wave-induced vibration; Lei et al. (2014) presented dynamic analysis of the riser on wave-induced vibration in frequency domain. Although the earthquake has significant effect on the riser, few results have been reported for riser seismic dynamic analysis except those from Duan et al. (2010) and Li et al. (2013). Some researchers (Nguyen, 2015; Su and Sun, 2013; Wang et al., 2014b) presented various computational methods for analyzing seismic-induced vibration of suspended cables, cracked beam-like bridge, and high-strength concrete pile. However, the study of dynamic response on the riser under combined effect of random wave forces and earthquake excitation has not been seen yet. To keep the safety of the drilling system, the needs to understand and design for dynamic behavior of parametrically excited riser in deep water under random wave forces and earthquake excitation become essential.

In this study, the marine riser of FPDSO in oil and gas industry under random wave forces and earthquake excitation is taken as the research background. The equation of motion of the rise is obtained by Euler beam theory and Galerkin method. Random wave force and earthquake excitation in time domain are made by trigonometric series method. The dynamic analysis, spectral response analysis, and key parameters’ sensitivity analysis are made for the riser system.

Methodology

Equation of motion for the riser

In the TLD system of FPDSO, four equivalent risers are fixed symmetrically at the four corners of the deck, while there are four weights in the water. Thus, the TLD system can be simplified as a one-quarter model; Figure 1 shows the simplified model of parametrically excited marine riser of the TLD system, with its coordinate system origin at the anchored point of sea bed.

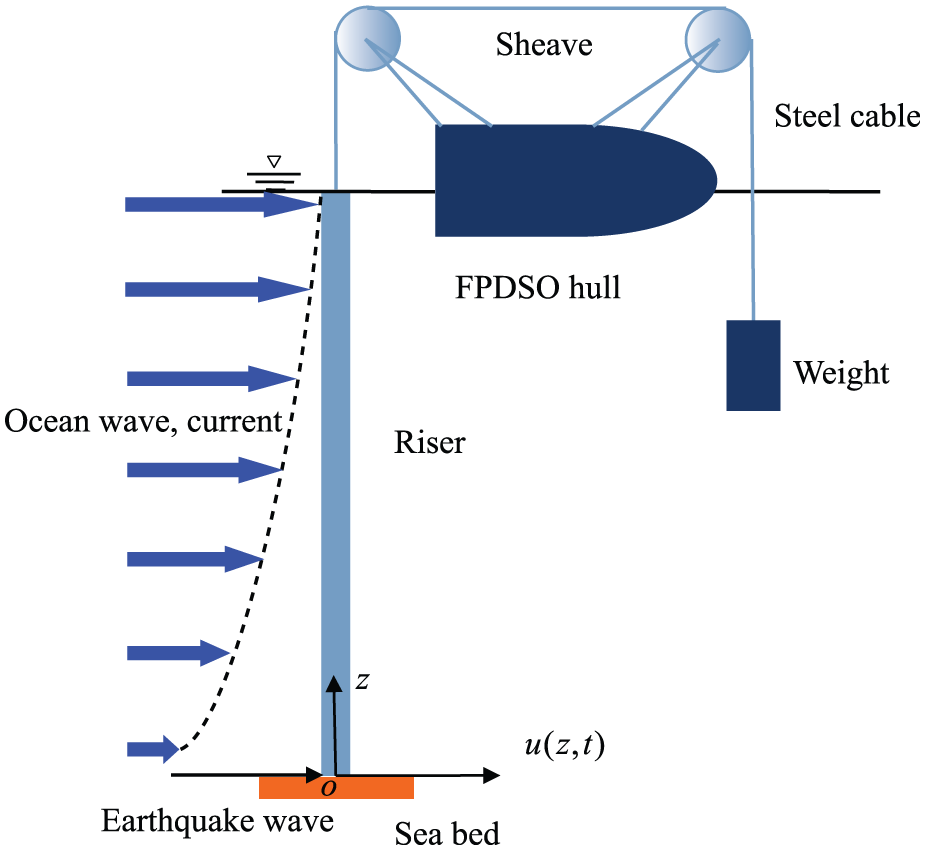

Figure 1.

Simplified model of parametrically excited marine riser of the TLD system.

As the mooring constraints, the horizontal motion of the hull is assumed as small, so that the hull is oscillating primarily in the vertical direction, thus the heave motion of the hull can be expressed as (Lei et al., 2014)

u_{h} (t) = A_{0} \cos (ω_{0} t)

(1)

where $A_{0}$ and $ω_{0}$ are the heave excitation amplitude and frequency, respectively. In this study, $A_{0}$ is adopted as 1.0 m.

The friction between the steel cable and the sheave is ignored; the dynamic tension of the riser based on Newton’s second law can be expressed as

N (z, t) = M_{w} g - wl + wz + 2 M_{w} {\overset{\cdot\cdot}{u}}_{h} (t)

(2)

where $M_{w}$ is the mass of the weights submerged in the water, g is the acceleration of gravity, w is the submerged weights of the riser per unit length, l is the length of the riser, and z is the vertical height of the riser above the sea bed. In this study, $M_{w} = fwl / g$ with the typical value f being 1.3.

Substituting equation (1) into equation (2), we have

N (z, t) = N_{0} + wz - N_{f} \cos (ω_{0} t)

(3)

where $N_{0} = M_{w} g - wl$ is the pretension applied at the bottom of the riser, and $N_{f} = 2 M_{w} A_{0} ω_{0}^{2}$ is the amplitude of riser tension fluctuation.

The three-dimensional dynamic behavior of the riser will be induced by out-of-plane excitation and is very complicated to solve. To simplify, the marine riser can be modeled as a Bernoulli–Euler beam (Chen et al., 2015; Rao et al., 2015), which is the classical method which implies that only the in-plane motions of the riser are considered. Besides, the conserved assumption is adopted, that is, the riser under combined effect of random wave forces and earthquake excitation in the same direction is considered to obtain the largest structural dynamic response. Thus, the directions of earthquake wave and wave force are shown in Figure 1, and the riser can only move in in-line direction. The current velocity of the ocean is small which leads to the vibration of the riser in the cross-flow direction by vortex-induced resonance being small. And the horizontal earthquake excitation acts on the anchoring point of the riser. Thus, the dynamic behavior of the top tensioned riser can be modeled as a Bernoulli–Euler beam, and its governing equation is

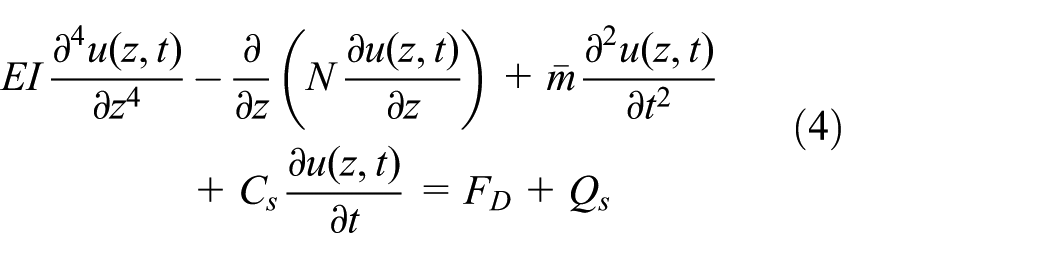

\begin{matrix} EI \frac{\partial^{4} u (z, t)}{\partial z^{4}} - \frac{\partial}{\partial z} (N \frac{\partial u (z, t)}{\partial z}) + \bar{m} \frac{\partial^{2} u (z, t)}{\partial t^{2}} \\ + C_{s} \frac{\partial u (z, t)}{\partial t} = F_{D} + Q_{s} \end{matrix}

(4)

where $u (z, t)$ is the dynamics lateral displacement of the riser; $\bar{m}$ , E, and I are the mass per unit length, the modulus of elasticity, and the cross-sectional moment of inertia of the riser, respectively; $C_{s}$ is the viscous damping coefficient; $F_{D}$ is the acting force applied by water per unit length when the riser oscillates; and $Q_{s}$ is the earthquake excitation force.

As modeled as pinned at two ends, the boundary conditions at the end of the riser are given as

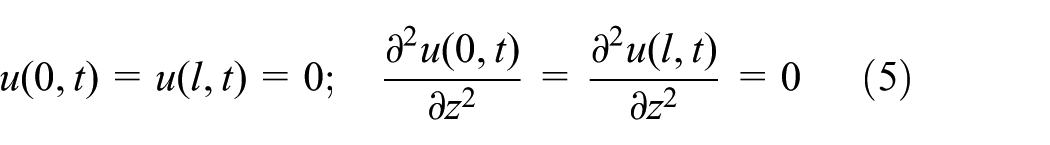

u (0, t) = u (l, t) = 0; \frac{\partial^{2} u (0, t)}{\partial z^{2}} = \frac{\partial^{2} u (l, t)}{\partial z^{2}} = 0

(5)

Formulation of random wave force in time domain

$F_{D}$ can be expressed by Morison’s equation as (Sarpkaya, 2004)

\begin{matrix} F_{D} = \frac{1}{2} ρ_{w} D C_{D} (v - \frac{\partial u}{\partial t}) | v - \frac{\partial u}{\partial t} | \\ + C_{M} \frac{π}{4} ρ_{w} D^{2} \frac{\partial v}{\partial t} - (C_{M} - 1) \frac{π}{4} ρ_{w} D^{2} \frac{\partial^{2} u}{\partial t^{2}} \end{matrix}

(6)

where $ρ_{w}$ is the water density, D is the outer diameter of the riser, $C_{D}$ is the drag coefficient, $C_{M}$ is the inertia coefficient, u is the displacement of the riser, and v is the instantaneous flow velocity projection in the direction of motion of the riser which can be expressed as (Bao et al., 2013)

v = ω \frac{\cosh kz}{\sinh kd} η, ω^{2} = k \tanh kd

(7)

where d is the water depth, k is the wave number, $ω$ is the angular frequency of the wave, and $η$ is the free surface of the wave with the wave spectrum $S_{η η} (ω)$ .

The first term in equation (6) represents the nonlinear drag force due to the relative motion between the fluid and the structural response, and it acts effectively to dampen the motion response of the marine riser. Morison’s equation cannot be utilized in the form of equation (6) for linear spectral analysis because of its nonlinearity. Often in practice the nonlinear drag force is linearized resulting in the separation of the kinematic contributions (Niedzwecki and Liagre, 2003). The nonlinear drag force (i.e. the first term in equation (6)) is given by

F_{drag} = \frac{1}{2} ρ_{w} D C_{D} v_{r} | v_{r} |

(8)

where $v_{r}$ is the relative velocity between the fluid and the structure.

Sarpkaya and Isaacson (1981) consider an approach where the quadratic term of the drag force due to the relative fluid velocity is replaced by a linear expression involving the root mean square value of the relative velocity $σ_{v_{r}}$

v_{r} | v_{r} | = \sqrt{\frac{8}{π}} σ_{v_{r}} v_{r}

(9)

Thus, the wave force can be linearized as (Lei et al., 2014; Niedzwecki and Liagre, 2003)

\begin{matrix} F_{D} = \frac{1}{2} ρ_{w} D C_{D} \sqrt{\frac{8}{π}} σ_{v_{r}} v_{r} \\ + C_{M} \frac{π}{4} ρ_{w} D^{2} \frac{\partial v}{\partial t} - (C_{M} - 1) \frac{π}{4} ρ_{w} D^{2} \frac{\partial^{2} u}{\partial t^{2}} \end{matrix}

(10)

Often as a first approximation (Bao et al., 2013; Chatterjee and Chakraborty, 2014; Niedzwecki and Liagre, 2003), the wave damping due to the relative motion can be simplified assuming that $σ_{v_{r}} \approx σ_{v}$ and $v_{r} \approx v$ .

Substituting equation (10) into equation (4)

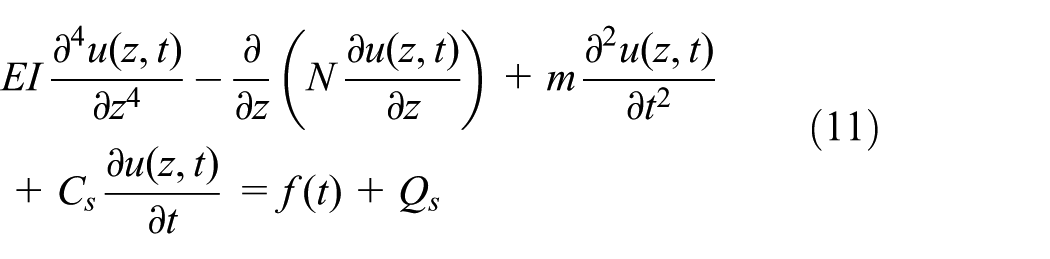

\begin{matrix} EI \frac{\partial^{4} u (z, t)}{\partial z^{4}} - \frac{\partial}{\partial z} (N \frac{\partial u (z, t)}{\partial z}) + m \frac{\partial^{2} u (z, t)}{\partial t^{2}} \\ + C_{s} \frac{\partial u (z, t)}{\partial t} = f (t) + Q_{s} \end{matrix}

(11)

The first two terms in equation (10) contribute to the time-varying wave force $f (t)$ , and the third term in equation (10) contributes to an added-mass term, that is, $m = \bar{m} + (C_{M} - 1) \frac{π}{4} ρ_{w} D^{2}$

Then, the power spectrum of wave force $f (t)$ can be obtained as (Bao et al., 2013; Chatterjee and Chakraborty, 2014)

\begin{matrix} S_{ff} (ω) = {(\frac{1}{2} ρ_{w} D C_{D} \sqrt{\frac{8}{π}} σ_{v})}^{2} S_{vv} (ω) \\ + {(C_{M} \frac{π}{4} ρ_{w} D^{2})}^{2} S_{\overset{\cdot}{v} \overset{\cdot}{v}} (ω) \end{matrix}

(12)

where $σ_{v}$ is the standard deviation of the velocity spectrum $S_{vv} (ω)$ , given as

σ_{v} = \sqrt{\int_{0}^{+ \infty} S_{vv} (ω) d ω}

(13)

The spectral densities for the horizontal wave velocity and wave acceleration are given by (Borgman, 1967)

S_{vv} (ω) = \frac{ω^{2} \cosh^{2} (kz)}{\sinh^{2} (kd)} S_{η η} (ω)

(14)

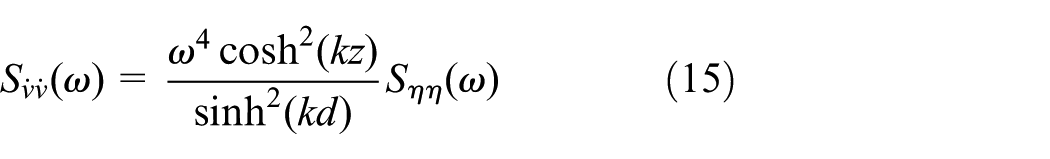

S_{\overset{\cdot}{v} \overset{\cdot}{v}} (ω) = \frac{ω^{4} \cosh^{2} (kz)}{\sinh^{2} (kd)} S_{η η} (ω)

(15)

The irregular wave conditions can be expressed by the Pierson–Moskowitz wave spectrum (Pillai and Prasad, 2000)

S_{η η} (ω) = \frac{1}{2 π} \frac{H_{s}^{2}}{4 π T_{z}^{4}} {(\frac{2 π}{ω})}^{5} \exp [- \frac{1}{π T_{z}^{4}} {(\frac{2 π}{ω})}^{4}]

(16)

where $H_{s}$ is the significant wave height and $T_{z}$ is the zero crossing period. And the typical Pierson–Moskowitz wave spectrum for $H_{s} = 1.0 m$ and $T_{z} = 4 s$ .

The random wave force acting on the riser can be modeled as a zero mean ergodic Gaussian process consistent with the usual random model for ocean waves; the wave force can be expressed as (Chatterjee and Chakraborty, 2014)

F_{D} = f (t) = f (ω) e^{i ω t}

(17)

where $f (ω)$ is the random amplitude of wave force.

In this study, the classical method, that is, random phase spectrum method (Bao et al., 2013; Chatterjee and Chakraborty, 2014; Niedzwecki and Liagre, 2003), is used to simulate the random wave force in the time domain. The statistical properties of $f (t)$ are usually obtained by assuming v and $\partial v / \partial t$ as stationary bivariate Gaussian stochastic process. The time-history data for wave force are readily generated using spectral density of the forcing function

f (t) = \sum_{i = 1}^{N} \sqrt{(2 \cdot Δ ω \cdot S_{ff} (ω_{i}))} \cos (ω_{i} t + ε_{i})

(18)

where $Δ ω$ is the constant difference between successive frequencies, $ω_{i} = i \cdot Δ ω$ is the ith wave frequency, N is the total number of frequency points considered in the calculation, and $ε_{i}$ is the random phase angle between $0$ and $2 π$ . The frequency increment $Δ ω$ and the number of frequency points N are determined based on the frequency band of the wave force that will be included in the simulation. In this study, $Δ ω = 0.01$ and $N = 400$ are adopted.

Formulation of earthquake excitation in time domain

The earthquake excitation in time domain can be expressed as

Q_{s} = m a_{g} (t)

(19)

where $a_{g} (t)$ is the input ground motion acceleration of earthquake, which can come from records of seismostation at a given location or artificial stochastic process.

As the process time of earthquake random excitation is transitory, the non-stationary characteristics of random excitation should be considered. Using evolutionary theory of power spectrum density (Bi and Hao, 2012), the non-stationary random process can usually be written as the product of a stationary random process and a deterministic slowly varying modulation function

a_{g} (t) = a (t) w (t)

(20)

where $a (t)$ is a stationary process and $w (t)$ is a deterministic envelope function with a maximum value of 1.

The deterministic envelope function $w (t)$ is written as (Martinelli et al., 2011)

{\begin{matrix} w (t) = (t / t_{0})^{2} & 0 < t < t_{0} \\ w (t) = 1 & t_{0} < t < t_{n} \\ w (t) = \exp [- c (t - t_{n})] & t_{0} < t \end{matrix}

(21)

where $t_{0} - t_{n}$ is the significant duration and c is the non-uniformly modulated coefficient. A typical value c is adopted as 0.2.

In order to define $a (t)$ , a possible approach to the problem is by assuming that the motion induced by the earthquake is a realization of a stationary stochastic process. The time-history data for stationary earthquake excitation are readily generated using spectral density

a (t) = \sum_{k = 1}^{n} \sqrt{(4 \cdot Δ ω \cdot S (ω_{k}))} \cos (ω_{k} t + ε_{k})

(22)

where $Δ ω$ is the constant difference between successive frequencies, $ω_{k} = k \cdot Δ ω$ is the kth wave frequency, $S (ω_{k})$ is the power spectrum of $ω_{k}$ , n is the total number of frequency points considered in the calculation, and $ε_{k}$ is the random phase angle between $0$ and $2 π$ .

In engineering practice (Bi and Hao, 2012), design target response spectrum for a given site is more commonly available instead of the ground motion power spectrum density function. Therefore, it will be very useful to generate ground motion time histories that are compatible to the given design target response spectrum.

For a given design target acceleration response spectrum $S_{a}^{T} (ω)$ , the corresponding ground motion power spectrum $S (ω)$ can be estimated by (Bi and Hao, 2012)

S (ω) = \frac{ζ}{π ω} {[S_{a}^{T} (ω)]}^{2} \frac{1}{\ln [- \frac{π}{ω T_{d}} \ln (1 - P)]}

(23)

where $T_{d}$ is the time duration of earthquake, $ζ$ is the damping ratio, and P is the exceeding probability. In this study, the value of parameter P is taken as 0.9.

The design target acceleration response spectrum is determined by basic parameters of seismic intensity, site classification, peak acceleration, and damping ratio of practical condition in engineering. According to the Chinese code for seismic design of buildings (GB 50011-2010, 2010), the design target acceleration response spectrum can be expressed as in Figure 2.

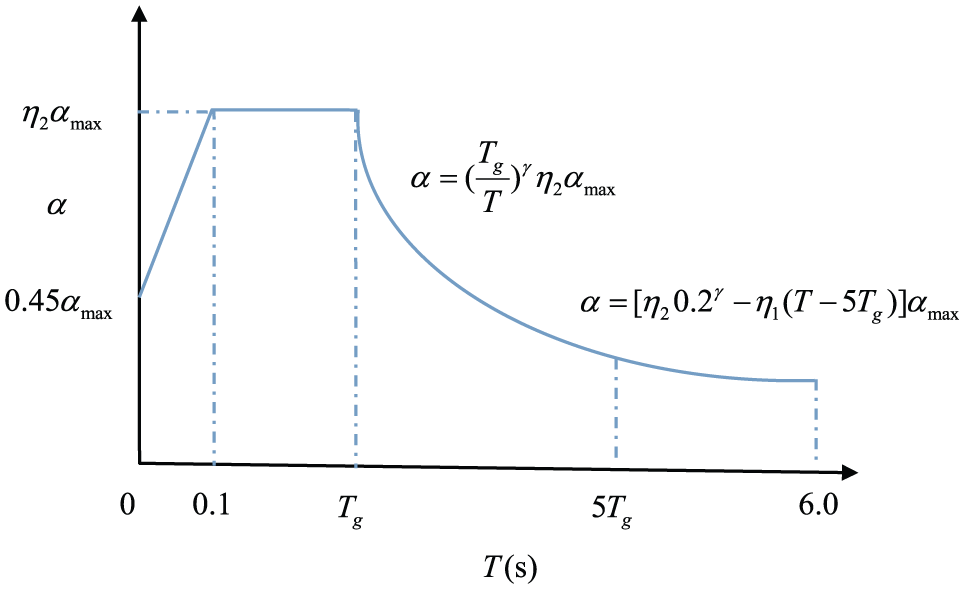

Figure 2.

Design acceleration response spectra in the Chinese code for seismic design.

In Figure 2, where abscissa T is the natural period of the structure, ordinate $α$ is the earthquake affecting coefficients (the ratio of seismic peak accelerations to acceleration of gravity), $α_{max}$ is the maximum of the earthquake affecting coefficients, $T_{g}$ is the characteristic site period, $γ$ is the attenuation index, $η_{1}$ is the descending slope coefficient, and $η_{2}$ is the damping adjustment coefficient. In this study, the value of the parameters $α_{max}$ is taken as 0.16 (8° frequent earthquake), and $T_{g}$ is taken as 0.30 (the I site classifications, the second group).

The coefficients $γ$ , $η_{1}$ , and $η_{2}$ can be obtained by

γ = 0.9 + \frac{0.05 - ζ}{0.3 + 6 ζ}

(24)

η_{1} = 1 + \frac{0.05 - ζ}{0.08 + 1.6 ζ}, η_{1} ⩾ 0

(25)

η_{2} = 0.02 + \frac{0.05 - ζ}{4 + 32 ζ}, η_{2} ⩾ 0.55

(26)

Using the above approach, the generated ground motion time histories usually match well with the design target response spectrum. If the response spectrums of the generated time histories do not match satisfactorily the design target spectrum (Bi and Hao, 2012), iterations need to be carried out by adjusting the power spectrum density function until satisfactory compatibility is achieved.

Solution of the equation

By separation of variables, vibration mode of the riser may be expressed as

u (z, t) = \sum_{m = 1}^{\infty} ψ_{m} (z) T_{m} (t)

(27)

where $ψ_{m} (z)$ are the vibration mode functions of the riser, and $T_{m} (t)$ are the time functions. For the Euler beam pinned at two ends, the nth order natural frequency $ω_{n}$ of the system can be obtained by (Lei et al., 2014)

\int_{0}^{l} \sqrt{- \frac{1}{2} \frac{T_{e} (z)}{EI} + \frac{1}{2} \sqrt{{(\frac{T_{e} (z)}{EI})}^{2} + 4 \frac{m ω_{n}^{2}}{EI}}} dz = n π

(28)

where $T_{e} (z) = N_{0} + wz$ is the dynamic tension of the riser.

And the nth order vibration mode is written as

ψ_{n} (z_{a}) = \sin (\int_{0}^{z_{a}} \sqrt{- \frac{1}{2} \frac{T_{e} (z)}{EI} + \frac{1}{2} \sqrt{{(\frac{T_{e} (z)}{EI})}^{2} + 4 \frac{m ω_{n}^{2}}{EI}}} dz)

(29)

where $z_{a}$ is the vertical height from the anchored point of sea bed.

To obtain an approximate solution of equation (4), Galerkin method is applied to transform the partial differential equation into a set of ordinary ones. Substituting equation (27) into equation (4), multiplying each term by $ψ_{n} (z)$ , integrating over $z \in (0, l)$ , and invoking the orthogonality property of the normal modes give

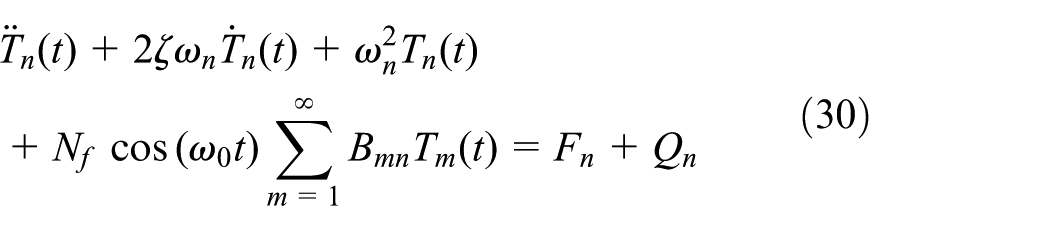

\begin{matrix} {\overset{\cdot\cdot}{T}}_{n} (t) + 2 ζ ω_{n} {\overset{\cdot}{T}}_{n} (t) + ω_{n}^{2} T_{n} (t) \\ + N_{f} \cos (ω_{0} t) \sum_{m = 1}^{\infty} B_{mn} T_{m} (t) = F_{n} + Q_{n} \end{matrix}

(30)

with

ζ = \frac{2 m ω_{n}}{C_{s}}

(31)

B_{mn} = \frac{\int_{0}^{l} (\frac{d^{2} ψ_{m} (z)}{d z^{2}}) ψ_{n} (z) dz}{m \int_{0}^{l} ψ_{n}^{2} (z) dz}

(32)

F_{n} = \frac{\int_{0}^{l} f (t) ψ_{n} (z) dz}{m \int_{0}^{l} ψ_{n}^{2} (z) dz}

(33)

Q_{n} = \frac{\int_{0}^{l} m a_{g} (t) ψ_{n} (z) dz}{m \int_{0}^{l} ψ_{n}^{2} (z) dz}

(34)

where $ζ$ is the damping ratio of the riser, $B_{mn}$ is the coupling coefficients between the models, $F_{n}$ is the nth order wave force, and $Q_{n}$ is the nth order earthquake force.

Equation (30) can be expressed as matrix from

M \overset{\cdot\cdot}{T} (t) + C \overset{\cdot}{T} (t) + KT (t) = F + Q

(35)

where $M$ , $C$ , and $K$ are the mass, damping, and stiffness vector of the system, respectively; $T (t)$ is the displacement response vector; $F$ is the wave force vector; and $Q$ is the earthquake force vector.

The details of equation (35) are as follows

M = I_{n \times n}

(36)

C = diag [2 ζ ω_{1}, 2 ζ ω_{2}, \dots, 2 ζ ω_{n}]

(37)

\begin{matrix} K = diag [ω_{1}^{2}, ω_{2}^{2}, \dots, ω_{n}^{2}] \\ + N_{f} \cos (ω_{0} t) [\begin{matrix} B_{11} & B_{12} & \dots & B_{1 n} \\ B_{21} & B_{22} & \dots & B_{2 n} \\ ⋮ & ⋮ \\ B_{n 1} & B_{n 2} & \dots & B_{nn} \end{matrix}] \end{matrix}

(38)

F = [\begin{matrix} F_{1} & F_{2} & \dots & F_{n} \end{matrix}]^{T}

(39)

Q = [\begin{matrix} Q_{1} & Q_{2} & \dots & Q_{n} \end{matrix}]^{T}

(40)

where $I$ is the identity matrix.

As the first mode is dominated in the motion equation of the riser, and for simplicity, only the first third-order modes are taken into account.

Because the excitation is random, the stochastic responses of the risers are often solved in the frequency domain. To estimate the response spectrum of the riser under random wave forces and earthquake, spectral analysis for the system is made.

The displacement response of equation (35) can be obtained by Duhamel integration

T (t) = \int_{0}^{t} h (t - τ, τ) R (τ) d τ

(41)

where $h (t - τ, τ)$ is the impulse response function matrix of the time-variant system at time $τ$ , and $R (τ)$ is the external force matrix at time $τ$ . Here (Gupta, 1992; Pour et al., 2011), $h (t - τ, τ) = - (1 / ω_{D}) e^{- ζ ω (t - τ)} \sin [ω_{D} (t - τ)]$ , $R (τ) = F (τ) + Q (τ)$ , and $ω_{D} = ω \sqrt{1 - ζ^{2}}$ .

Then equation (41) can be written as

T (t) = - \frac{1}{ω_{D}} \int_{0}^{t} e^{- ζ ω (t - τ)} \sin ω_{D} (t - τ) [F (τ) + Q (τ)] d τ

(42)

For a specified time t, equation (42) can be calculated from the following equation

T (t) = - \frac{1}{ω_{D}} \sum_{i = 1}^{n} e^{- ζ ω (t - t_{i})} \sin ω_{D} (t - t_{i}) [F (t_{i}) + Q (t_{i})] Δ t

(43)

Thus, the relative displacement spectra $S_{d} (ω)$ , relative velocity spectra $S_{v} (ω)$ , and absolute acceleration spectra $S_{a} (ω)$ of the motion equation can be obtained by (Feng et al., 2012)

S_{d} (ω) = {| T (t) |}_{max}

(44)

S_{v} (ω) = {| \overset{\cdot}{T} (t) |}_{max}

(45)

S_{a} (ω) = {| T (t) + a (t) |}_{max}

(46)

where $a (t)$ is the external force acceleration vector.

From equation (43), equations (44) to (46) can be written as (Gupta, 1992; Pour et al., 2011)

\begin{matrix} S_{d} (ω) = \\ \frac{1}{ω_{D}} {| \sum_{i = 1}^{n} e^{- ζ ω (t - t_{i})} \sin ω_{D} (t - t_{i}) [F (t_{i}) + Q (t_{i})] Δ t |}_{max} \end{matrix}

(47)

\begin{matrix} S_{v} (ω) = \frac{1}{ω_{D}} {| \sum_{i = 1}^{n} e^{- ζ ω (t - t_{i})} [\cos ω_{D} (t - t_{i}) - \frac{ζ}{\sqrt{1 - ζ^{2}}} \sin ω_{D} (t - t_{i})] [F (t_{i}) + Q (t_{i})] Δ t |}_{max} \end{matrix}

(48)

S_{a} (ω) = ω_{D} {| \sum_{i = 1}^{n} e^{- ζ ω (t - t_{i})} [(1 - \frac{ζ^{2}}{1 - ζ^{2}}) \sin ω_{D} (t - t_{i}) + \frac{2 ζ}{\sqrt{1 - ζ^{2}}} \cos ω_{D} (t - t_{i})] [F (t_{i}) + Q (t_{i})] Δ t |}_{max}

(49)

Numerical results and discussion

A design scheme of FPDSO and its riser is selected as an illustrative example for numerical study using MATLAB program, and its physical and geometric parameters are listed in Table 1. With aforementioned methodology, a typical simulated time-history of random wave force for per unit length of riser is shown in Figure 3, with its time duration and time interval being 200 and 0.02 s, respectively. According to the Chinese code for seismic design of buildings (GB 50011-2010, 2010), four earthquake waves in four site classifications are selected in this study. And for fair comparison, their peak accelerations are adjusted to $0.3 g$ corresponding to 8° earthquake, as shown in Figure 4 and Table 2.

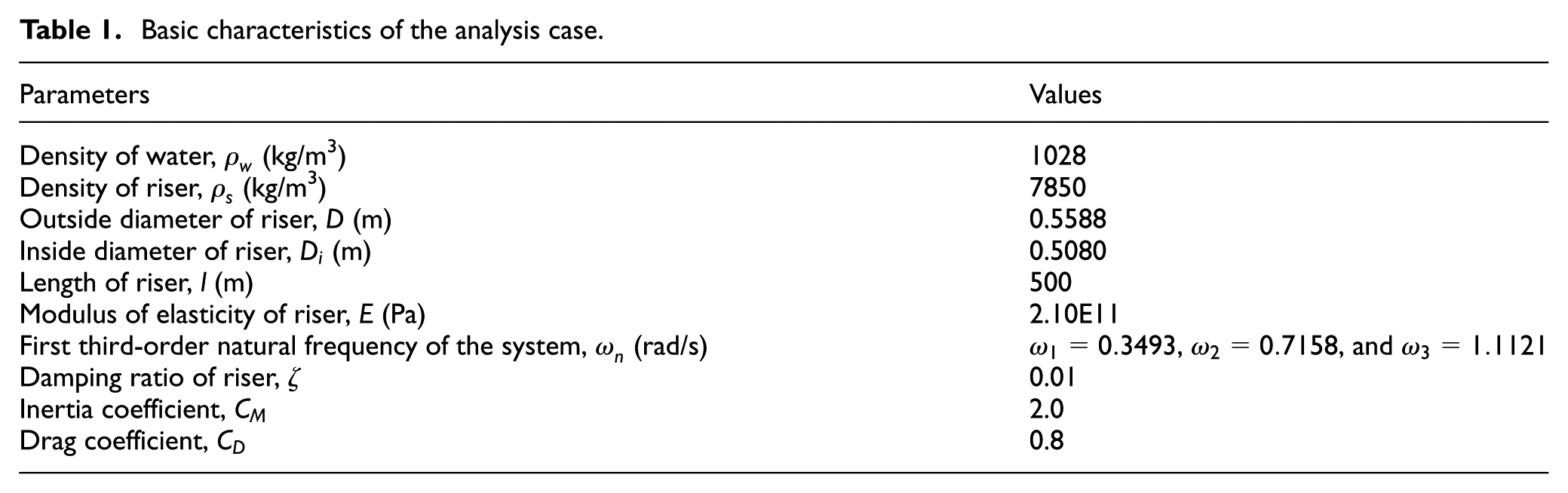

Table 1.

Basic characteristics of the analysis case.

Parameters	Values
Density of water, $ρ_{w}$ (kg/m³)	1028
Density of riser, $ρ_{s}$ (kg/m³)	7850
Outside diameter of riser, D (m)	0.5588
Inside diameter of riser, $D_{i}$ (m)	0.5080
Length of riser, l (m)	500
Modulus of elasticity of riser, E (Pa)	2.10E11
First third-order natural frequency of the system, $ω_{n}$ (rad/s)	$ω_{1} = 0.3493$ , $ω_{2} = 0.7158$ , and $ω_{3} = 1.1121$
Damping ratio of riser, $ζ$	0.01
Inertia coefficient, $C_{M}$	2.0
Drag coefficient, $C_{D}$	0.8

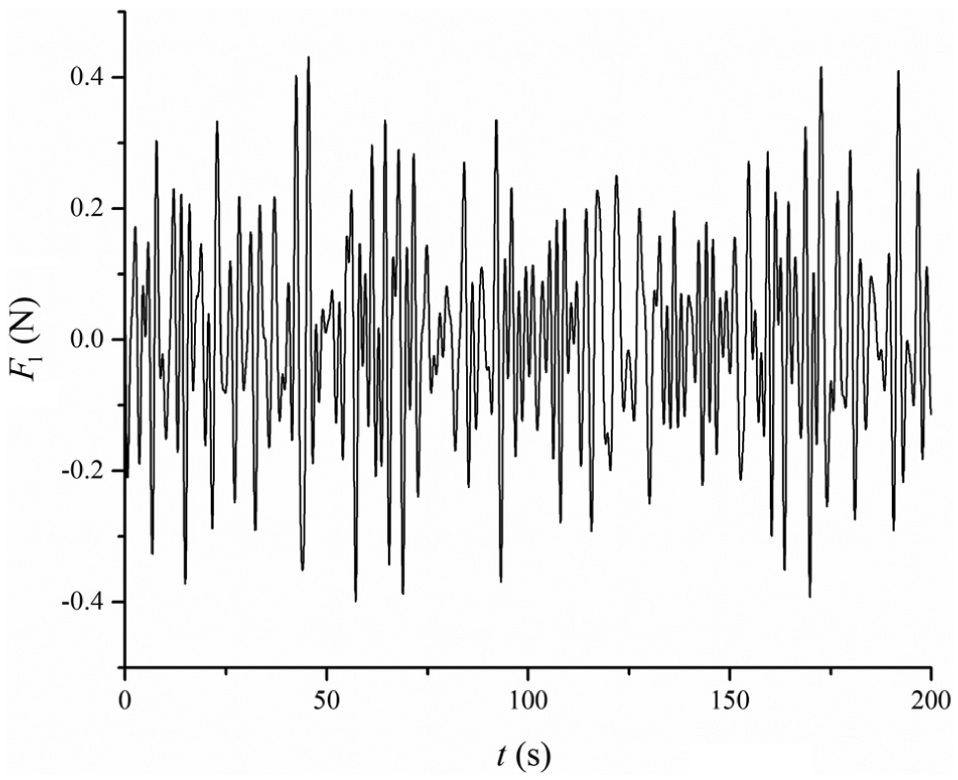

Figure 3.

The first-order random wave force time-history for per unit length of riser.

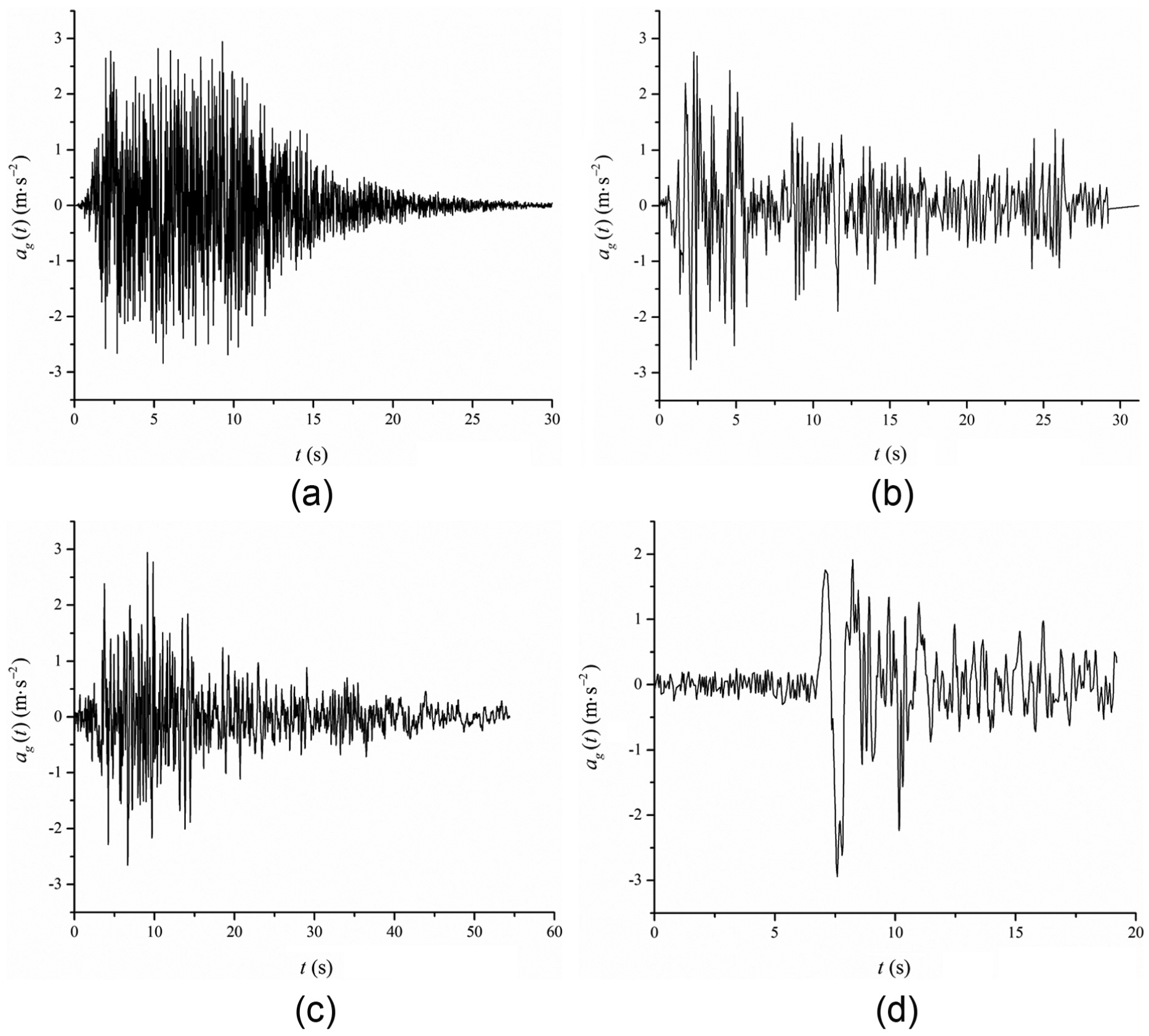

Figure 4.

Four earthquake waves’ time-history in four site classifications: (a) artificial earthquake (I), (b) El centro earthquake (II), (c) Taft earthquake (III), and (d) Tianjin earthquake (IV).

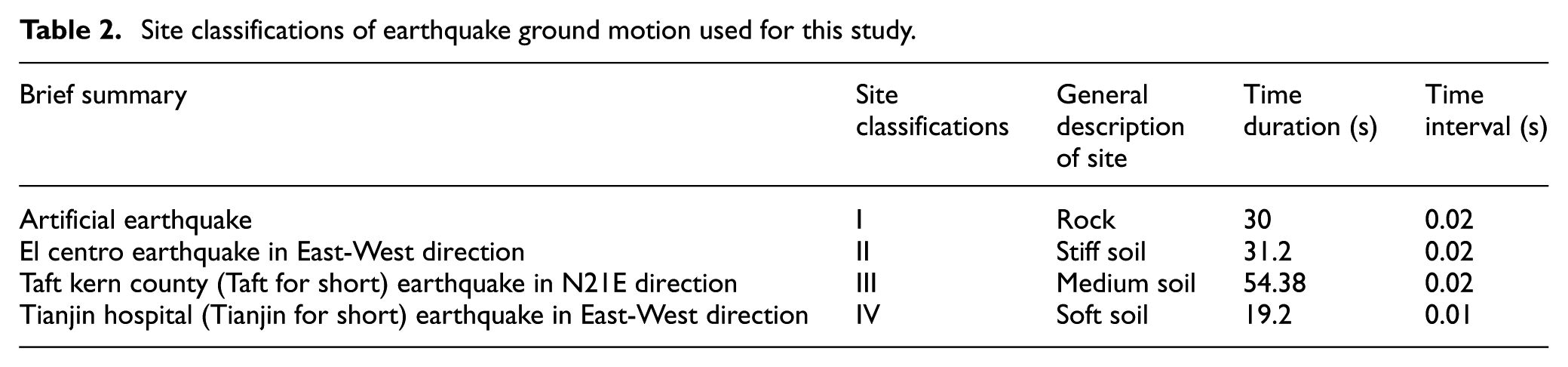

Table 2.

Site classifications of earthquake ground motion used for this study.

Brief summary	Site classifications	General description of site	Time duration (s)	Time interval (s)
Artificial earthquake	I	Rock	30	0.02
El centro earthquake in East-West direction	II	Stiff soil	31.2	0.02
Taft kern county (Taft for short) earthquake in N21E direction	III	Medium soil	54.38	0.02
Tianjin hospital (Tianjin for short) earthquake in East-West direction	IV	Soft soil	19.2	0.01

The fourth-order Runge–Kutta method is used to solve the differential equation (30); each mode response of the riser under random wave forces and earthquake may be obtained. By substituting the first third-order mode response into equation (27), the displacement response of the riser may be obtained.

Dynamic response analysis

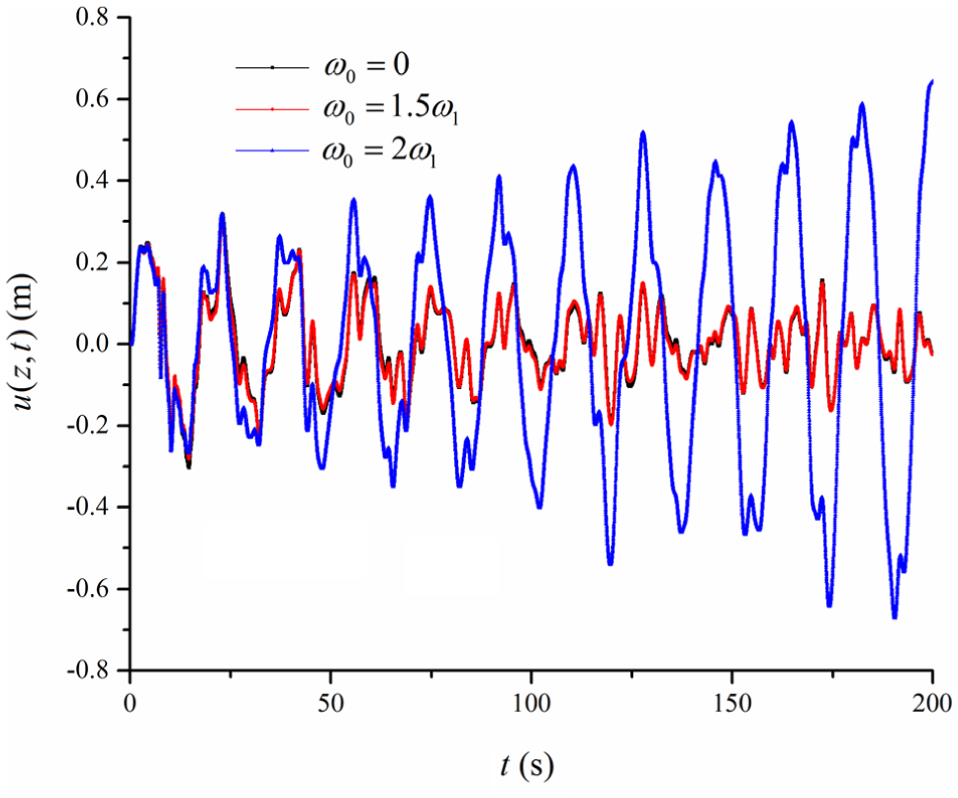

Figure 5 shows the mid-span displacement time-history of the riser when in different heave excitation frequencies under Tianjin earthquake. When the riser is subjected to the earthquake wave in parametric excitation $ω_{0} = 2 ω_{1}$ , parametric resonance of the riser occurs; the maximum value and the mean value in this case are signally larger than the other two cases. When in parametric excitation $ω_{0} = 0$ and $ω_{0} = 1.5 ω_{1}$ , parametric resonance of the riser does not occur, the motion amplitude in $ω_{0} = 1.5 ω_{1}$ is a little larger than in $ω_{0} = 0$ , and the maximum value in $ω_{0} = 0$ is only about 47.1% of those in $ω_{0} = 2 ω_{1}$ . Because the system has entered into instability state by inducing parametric resonance and insufficient damping ratio, when in parametric excitation $ω_{0} = 2 ω_{1}$ , the maximum value of motion response of the riser appears at the time of 200 s. While in parametric excitation $ω_{0} = 0$ and $ω_{0} = 1.5 ω_{1}$ , the maximum value appears at the time of 0–30 s, that is, the time duration of earthquake, after that the motion amplitude attenuates.

Figure 5.

Mid-span displacement time-history of the riser when in different heave excitation frequencies under random wave force and Tianjin earthquake.

The random wave force and four site classifications’ earthquakes are, respectively, applied to the vibration response analysis of the riser. Figures 6 and 7 present, respectively, the displacement curves in the parametric excitation $ω_{0} = 1.5 ω_{1}$ and $ω_{0} = 2 ω_{1}$ . In Figure 6, the variational laws of curves of four site classifications’ earthquakes are similar; with the increase in time, the displacement response of the riser is increased, which reaches a maximum value in the range of $0.0 - 50.0 s$ , and after that the value attenuates. And, in Figure 7, because the system enters into instability state by inducing parametric resonance and insufficient damping ratio, with the increase in time, the displacement response of the riser is increased. Both in Figures 6 and 7, site class of earthquake wave affects the vibration response of the riser largely. In Figure 6, the peak values of the mid-span displacement of the riser under artificial earthquake, El centro earthquake, Taft earthquake, and Tianjin earthquake are 0.89, 0.47, 0.53, and 0.31 m, respectively, and occur at the time when the earthquake wave reaches its energy-intensive zone. Similarly, in Figure 7, the peak values of the mid-span displacement of the riser under above earthquake waves are 2.94, 0.68, 1.49, and 0.64 m, respectively. The riser under artificial earthquake has the largest motion amplitude, and the Taft earthquake has the second largest motion amplitude; conversely, the Tianjin earthquake has the smallest motion amplitude.

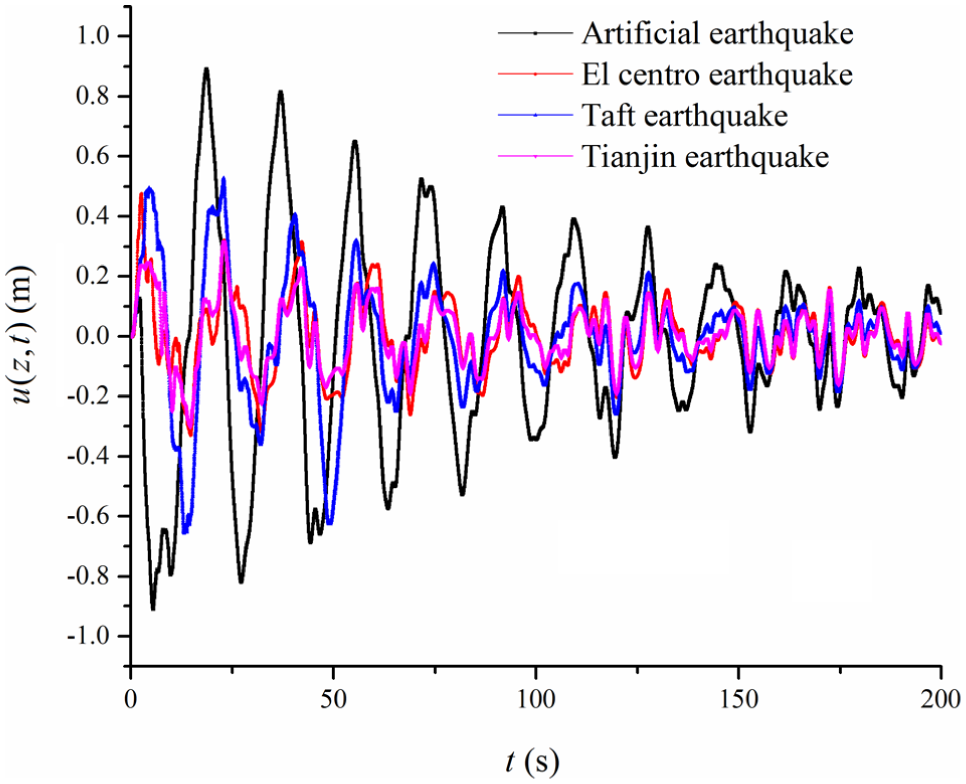

Figure 6.

Mid-span displacement time-history of the riser when in excitation frequency $ω_{0} = 1.5 ω_{1}$ under random wave force and four site classifications’ earthquakes.

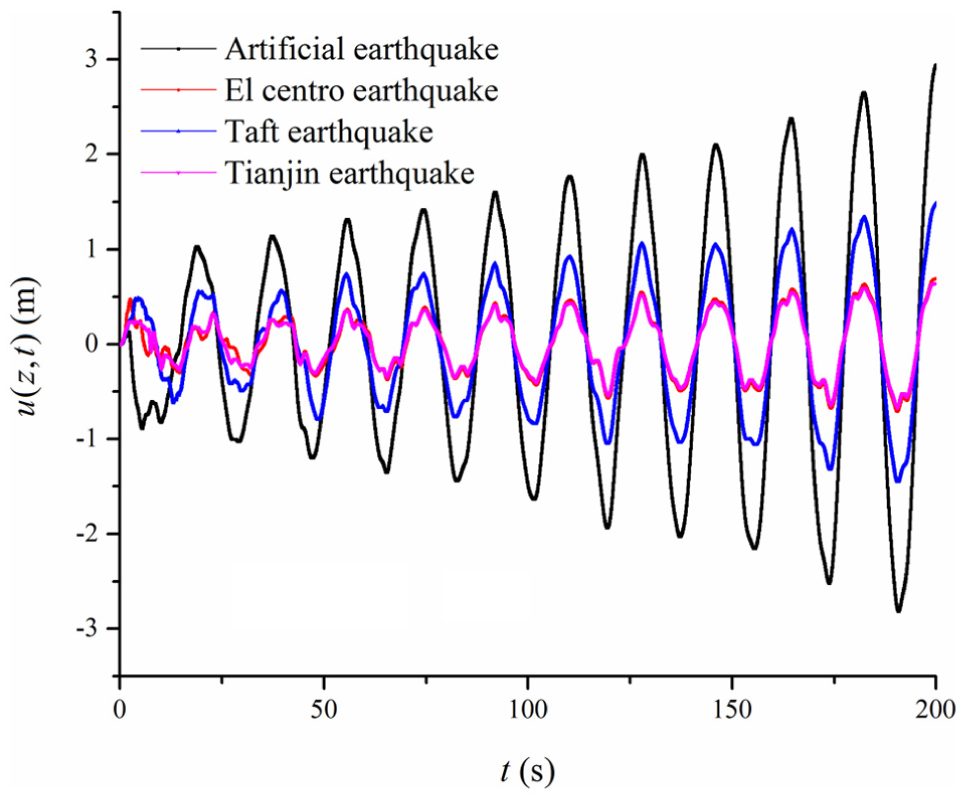

Figure 7.

Mid-span displacement time-history of the riser when in excitation frequency $ω_{0} = 2 ω_{1}$ under random wave force and four site classifications’ earthquakes.

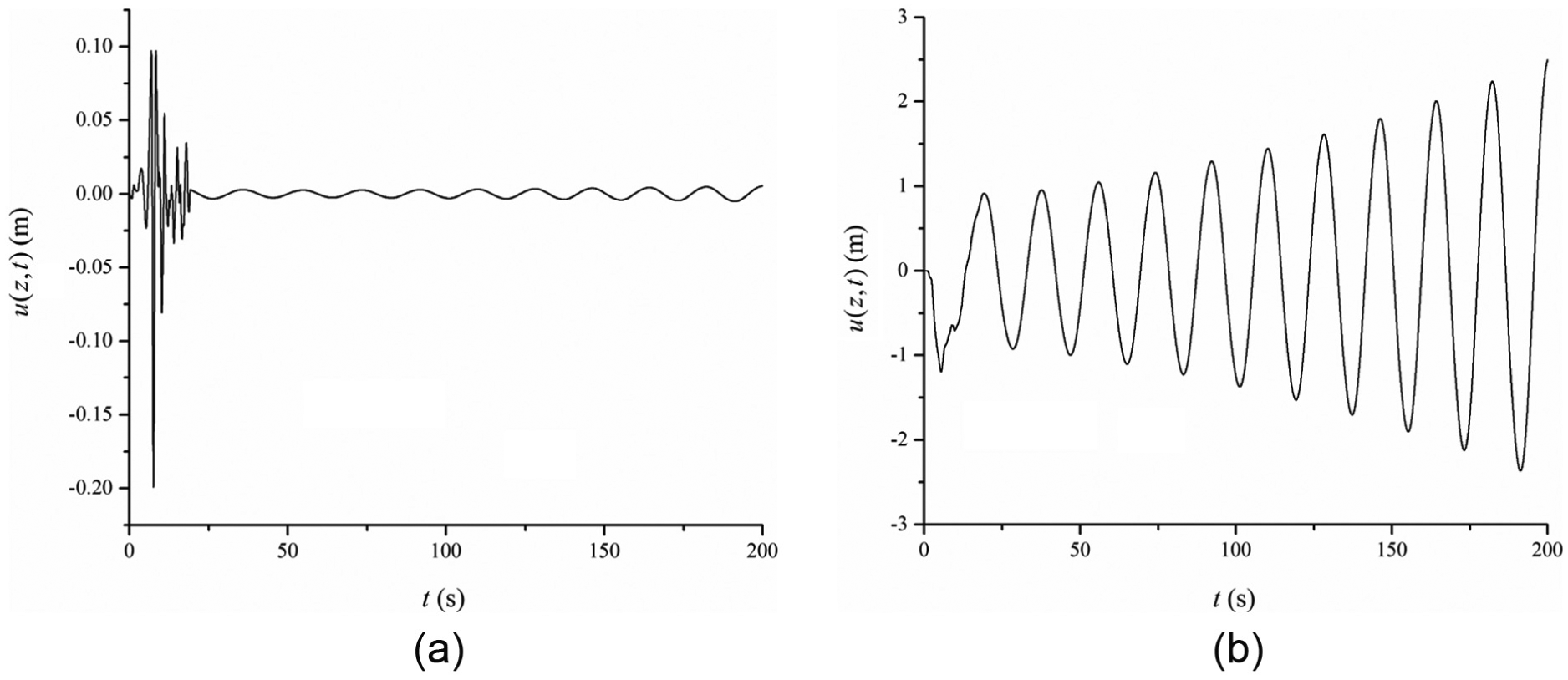

To explore the effect of earthquake alone on the riser, while ignoring wave force, Figure 8 shows the results. As shown in Figure 8(a), with the parametric excitation frequency satisfying the parametric resonance condition, the vibration response of the riser under Tianjin earthquake alone dies out quickly when the earthquake is over. While in Figure 8(b), the vibration response of the riser under artificial earthquake alone adds with the time even though the earthquake is over. And the motion amplitude of the riser under artificial earthquake alone is obviously larger than the one under Tianjin earthquake alone. With insufficient damping ratio, as the energy of artificial earthquake is obviously larger than of Tianjin earthquake, larger energy and longer time duration can induce instability phenomenon easier; it can be used to explain the aforementioned results.

Figure 8.

Mid-span displacement time-history of the riser when in excitation frequency $ω_{0} = 2 ω_{1}$ under earthquakes alone while ignoring wave force: (a) Tianjin earthquake alone and (b) artificial earthquake alone.

The study (Lei et al., 2014; Xia and Fujino, 2006) noted that smaller damping and larger excitation level can cause the system more unstable. When the system is stable, any small perturbation to the system would decay slowly with time. While the parametric excitation makes the system unstable, the perturbation leads to a significant vibration whose amplitude increases with time, which should be avoided in practice. The aforementioned result suggests that parametric excitation and system instability have a strong effect on the vibration response of the riser. Thus, the fundamental frequency of the riser system located in complicated marine environment should be thought over carefully to avoid parametric resonance. Based on equation (28), the key parameters for deciding the fundamental frequency of the riser are m, E, I, $T_{e} (z)$ , and l of the riser, while the parametric excitation frequency $ω_{0}$ mainly depends on ocean environmental conditions on the hull. And, to avoid instability phenomenon, effective measures should be taken to enhance damping and reduce excitation level. As site class of earthquake wave affects the vibration response of the riser largely, for engineering design of the risers, in situ records of earthquake waves are strongly recommended for more practical calculations, especially for the riser located at the hard rock foundation.

Spectral response analysis

The relative displacement and absolute acceleration response spectra of the riser under wave force alone are shown in Figures 9 and 10, respectively. In Figure 9, the amplitude and energy of the displacement power spectrum is focused in a small range within $ω = 0.2 - 4.0 rad / s$ and is very small when the frequency is greater than 4.0 rad/s. Taking damping ratio $ζ = 0$ as a typical example, the maximum value of the displacement power spectrum is 0.88 m in about $ω = 1.2 rad / s$ , while the steady value is 0.0049 rad/s in $ω = 10 rad / s$ . In Figure 10, similarly, the amplitude and energy of the acceleration power spectrum are focused in a small range within $ω = 0.2 - 4.0 rad / s$ and is very small when the frequency is greater than 4.0 rad/s. Unlike in Figure 9, in $ζ = 0.1$ , with the increase in the frequency in the range of $0.0 - 2.0 rad / s$ , the acceleration power spectrum is increased, which reaches a maximum value about at the point of $2.0 rad / s$ , and after that the value attenuates.

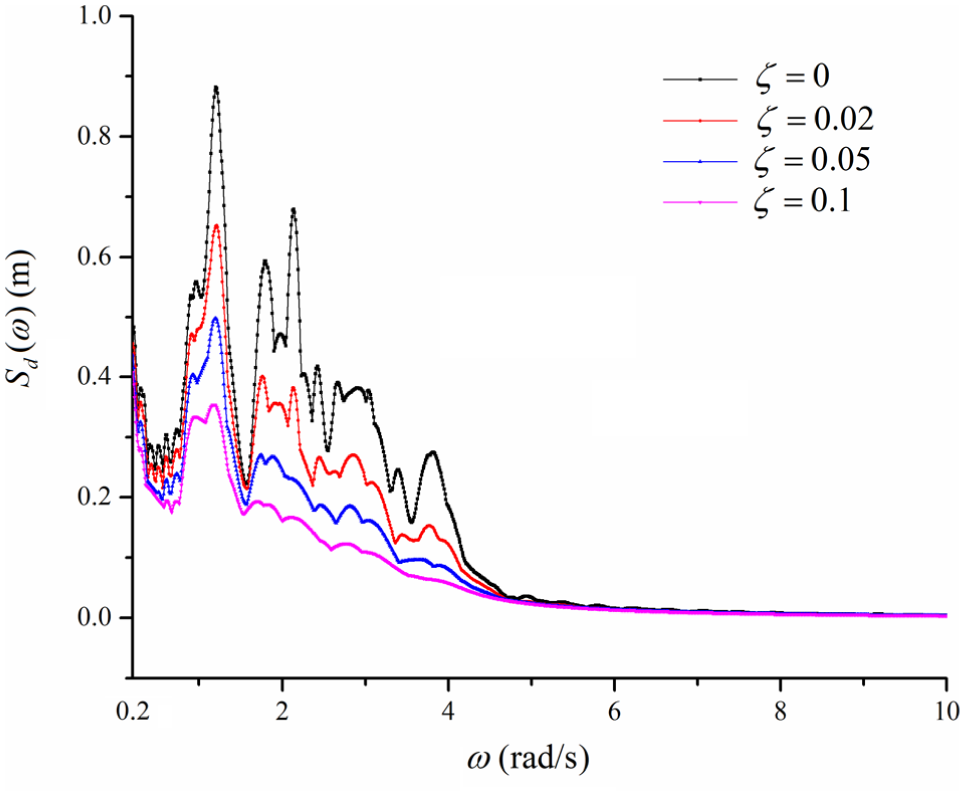

Figure 9.

Relative displacement response spectra under wave force alone when in different damping ratios.

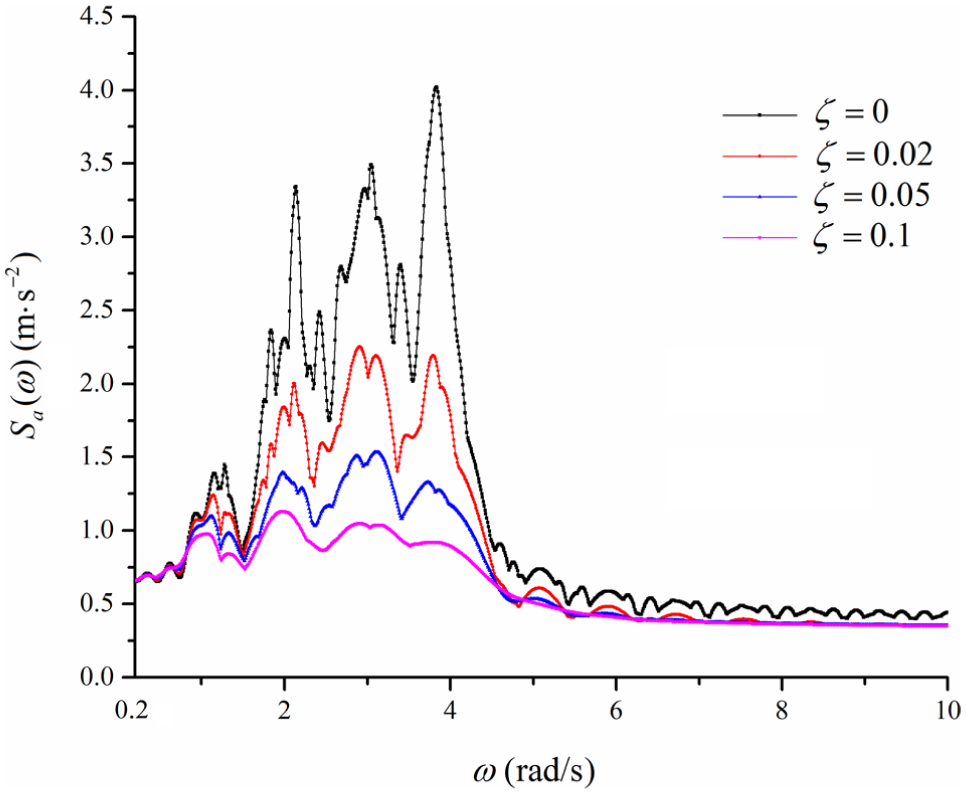

Figure 10.

Absolute acceleration response spectra under wave force alone when in different damping ratios.

While considering the combined affect of random wave force and El centro earthquake, Figures 11 and 12 show the results. Compared with Figure 9, due to the effect of earthquake, the amplitude and energy of the displacement response spectra in Figure 11 are added; in $ζ = 0.02$ , the maximum values of displacement response spectra add from 0.65 to 0.88 m, and energy mutation occurs in the range within $ω = 4.0 - 10.0 rad / s$ . And compared with Figure 10, the amplitude and energy of the acceleration response spectra in Figure 12 change a lot; it can be expected that earthquake excitation dominates in motion acceleration response of the riser. The amplitude and energy of the displacement power spectrum are no longer focused in a small range within $ω = 0.2 - 4.0 rad / s$ , but is increased with the increase in the excitation frequency. A peak value but not maximum value occurs about in the $ω = 2.2 rad / s$ .

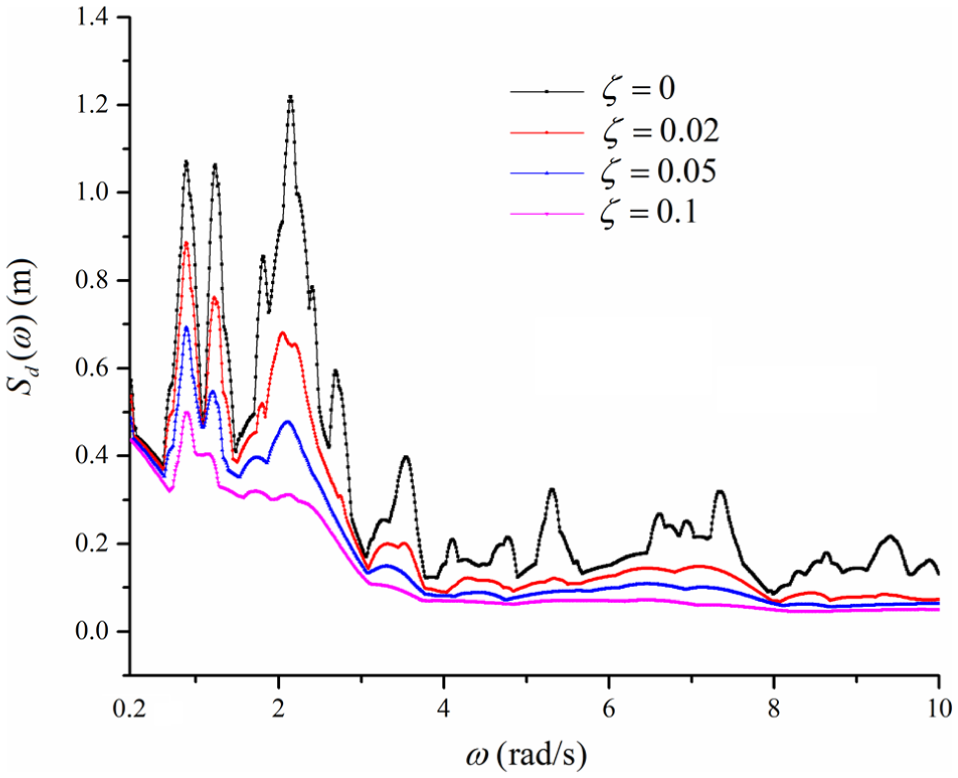

Figure 11.

Relative displacement response spectra under random wave force and El centro earthquake when in different damping ratios.

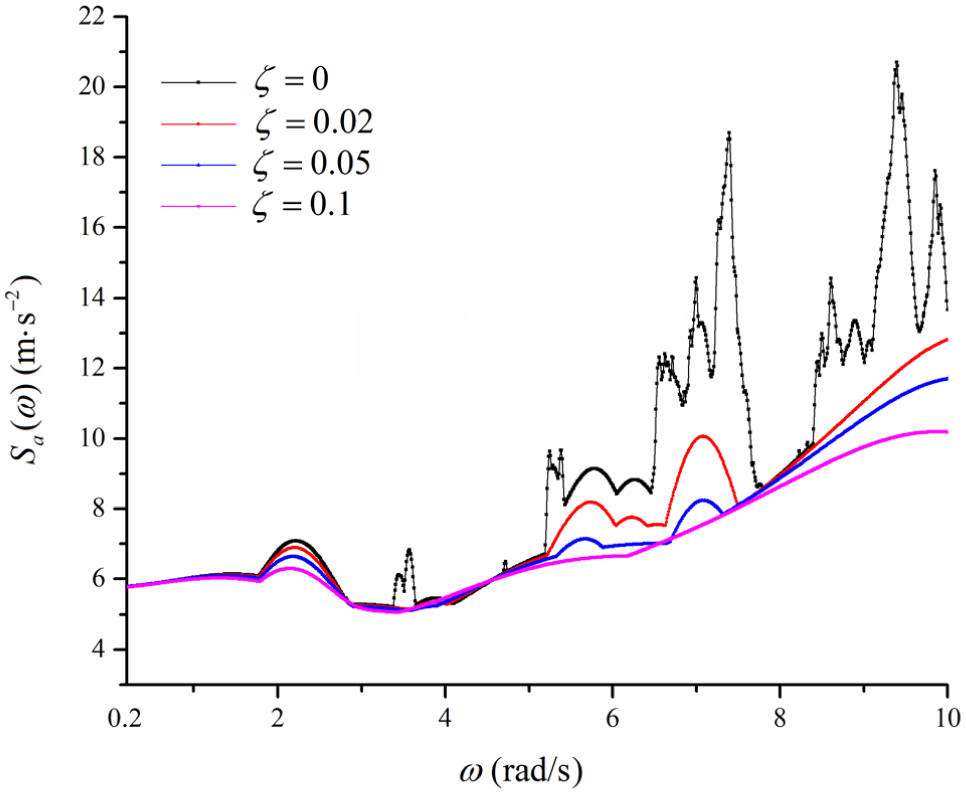

Figure 12.

Absolute acceleration response spectra under random wave force and El centro earthquake when in different damping ratios.

The influence of damping ratio on the response spectra of the riser is also investigated, and four alternative levels of damping ratio $ζ = 0, 0.02, 0.05, and 0.1$ are adopted. Comparing Figures 9 to 12, the amplitude and energy of the response power spectrum are decreased as the modal damping ratio is increased. Taking Figure 9 as an illustrative example, the curve of $ζ = 0$ is rough; there are many peak values occurring in all the ranges of frequency. While the curve of $ζ = 0.1$ is comparatively smooth, there are only several peak values occurring in the energy concentration zone. The rate of descent of the maximum values between $ζ = 0$ and $ζ = 0.1$ is reached up to 45.51%. This is an expected result because damping plays an important role in energy dissipation and makes the riser system more stable.

In preliminary design of the riser system, it is recommended that the fundamental frequency of the riser should always fall in the range of the frequencies of energy concentration zone under random wave force and earthquake excitation, and equation (28) is a basic presentation for calculating the riser frequency. For detailed design checking against random wave force and earthquake excitation, methods developed in this study are strongly recommended. And increasing the damping of the riser can reduce the motion responses of the system; large-amplitude vibration of the riser may be avoided by locating dampers on the riser or the hull.

Key parameters’ sensitivity analysis

Parameter studies are conducted for the effects of wave and earthquake parameters and structural parameters on dynamics response of the riser system; Figures 13 to 15 show the results.

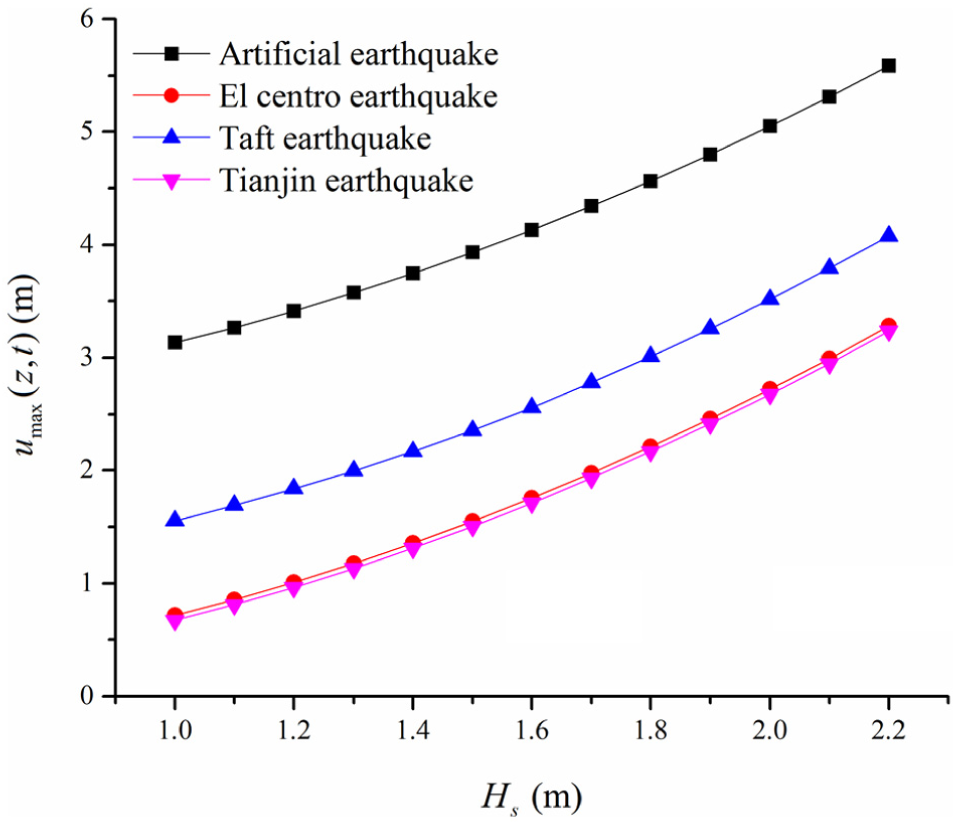

Figure 13.

The effect of significant wave height on the maximum displacement with respect to four site classifications’ earthquakes.

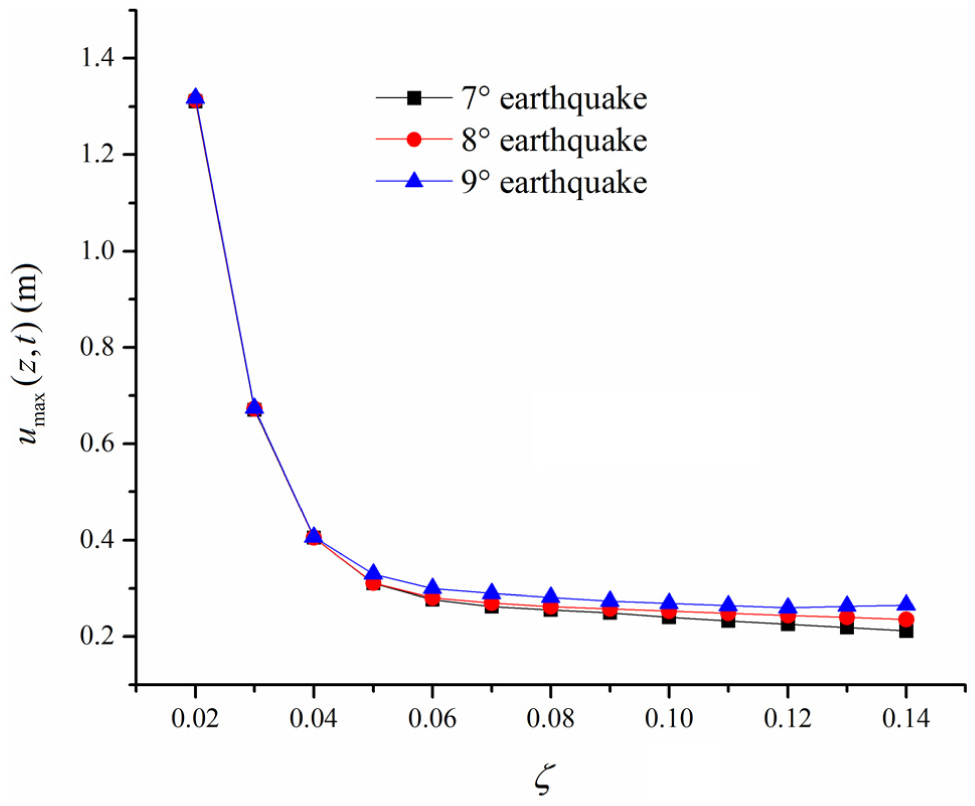

Figure 14.

The effect of damping ratio on the maximum displacement with respect to three El centro earthquake intensities.

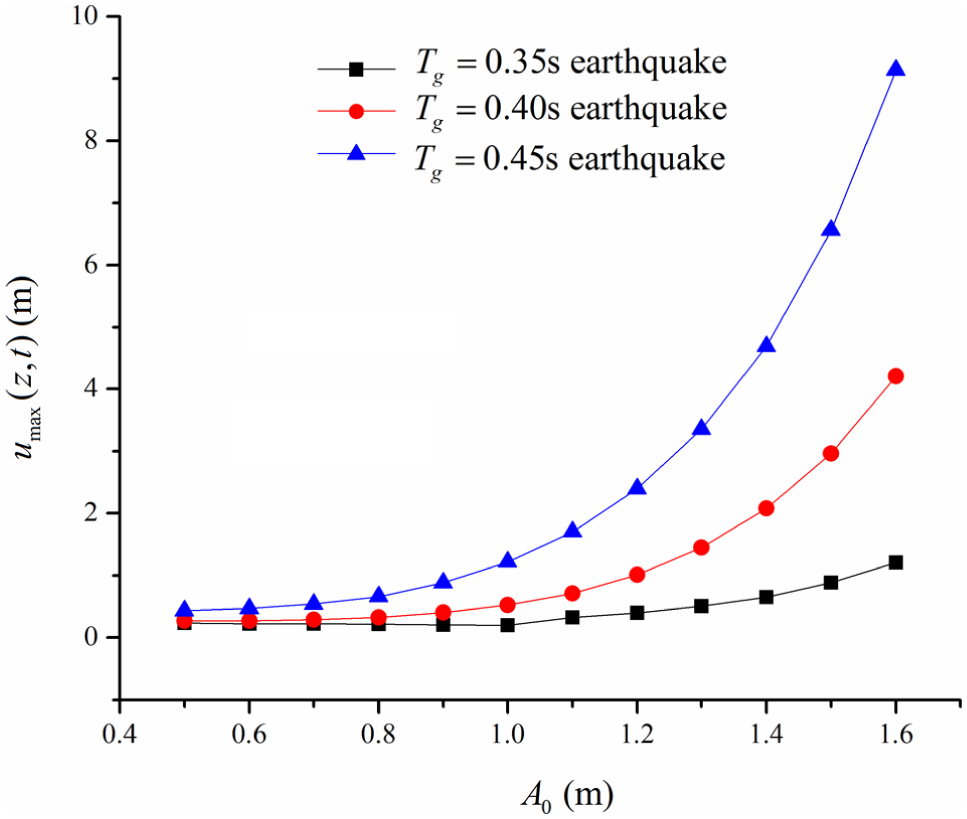

Figure 15.

The effect of heave excitation amplitude on the maximum displacement with respect to three artificial earthquake characteristic site periods.

In Figure 13, in four site classifications’ earthquakes’ cases, the variational laws of curves are similar; the maximum value of the displacement increases with the increase in significant wave heights, which is very dangerous for the riser system. It can be expected that the difference value is huge when the significant wave height remains basically unchanged. And in significant wave heights’ cases, under different earthquake excitations, the artificial earthquake induces the largest peak response values, the Taft earthquake induces the second largest peak response values, and the Tianjin earthquake induces the smallest peak response values. Thus, the peak value of significant wave height is the most important parameter in determining the dynamic response of the riser which necessitates careful consideration during the early stage of design, especially in rock site classification foundation.

In Figure 14, it can be seen that the maximum displacement response values of the riser decrease with the increase in the damping ratio, which reveals that the damping ratio can suppress the dynamic response of the system. In this study, the peak accelerations of 7°, 8°, and 9°earthquake are adjusted to $0.15 g$ , $0.3 g$ , and $0.4 g$ , respectively. Taking different earthquake intensities for comparison, it can be seen that while in the same damping ratio in the range of $ζ = 0.04 - 0.14$ , the maximum displacement response values of the riser increase with the increase in the earthquake intensity. It is noteworthy that while in the same damping ratio in the range of $ζ = 0.02 - 0.04$ , the difference value between different earthquake intensities is small; the reason may come from the system having entered into instability state by inducing insufficient damping ratio.

In Figure 15, it can be seen that the maximum displacement response values of the riser are significantly increased with the increase in the heave excitation amplitude, indicating that the riser becomes much more unsafe as the hull is located in worse ocean environmental conditions. In both heave excitation amplitude cases, the maximum displacement response values of the riser increase with the increase in the earthquake characteristic site periods, and it can be expected that the difference value is huge when the heave excitation amplitude increases.

To keep the safety of the riser system, the numerical simulation in the design stage for the riser system located in complicated marine environment is necessary and significant, and the wave and earthquake parameters and structural parameters have considerable influence on the response of the riser and should be considered carefully.

Conclusion

The marine riser of FPDSO system in oil and gas industry under random wave forces and earthquake excitation is taken as the research background. The mathematical method for dynamics motion of the riser is built utilizing Euler beam theory and Galerkin method. Random wave force and earthquake excitation in time domain are formulated by trigonometric series method. The dynamic analysis, spectral response analysis, and key parameters’ sensitivity analysis are conducted for the riser system. The effects of the wave and earthquake parameters and structural parameters on dynamics response of the system under random excitation are studied. The presented study can be used to obtain valuable recommendations for the design and construction of the parametrically excited marine riser system under random wave forces and earthquake excitation and can promote widely practical application of the deep water riser in complicated environmental conditions.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Natural Science Foundation of China (11272361, 11172333) and the Science and Technology Project Foundation of GuangDong Province (2014A020218004).

References

Bao

Hao

(2013) Integrated ARMA model method for damage detection of subsea pipeline system. Engineering Structures 48: 176–192.

Hao

(2012) Modelling and simulation of spatially varying earthquake ground motions at sites with varying conditions. Probabilistic Engineering Mechanics 29: 92–104.

Borgman

(1967) Ocean Wave Simulation for Engineering Design (No. HEL-9-13). Berkeley, CA: Hydraulic Engineering Lab, California University—Berkeley.

Chatterjee

Chakraborty

(2014) Vibration mitigation of structures subjected to random wave forces by liquid column dampers. Ocean Engineering 87: 151–161.

Chen

Guo

. (2014) Dynamic analysis of coupling between floating top-end heave and riser’s vortex-induced vibration by using finite element simulations. Applied Ocean Research 48: 1–9.

Chen

Zheng

. (2015) Impacts of top-end vessel sway on vortex-induced vibration of the submarine riser for a floating platform in deep water. Ocean Engineering 99: 1–8.

Dai

Abdelkefi

Wang

(2014) Modeling and nonlinear dynamics of fluid-conveying risers under hybrid excitations. International Journal of Engineering Science 81: 1–14.

Duan

Wang

Yue

. (2010) Dynamics of risers for earthquake resistant designs. Petroleum Science 7(2): 273–282.

Feng

. (2012) Nonlinear response spectra of cable net facades. Soil Dynamics and Earthquake Engineering 32(1): 71–86.

10.

GB 50011-2010 (2010) Code for Seismic Design of Buildings. Beijing, China: Ministry of Construction (in Chinese).

11.

Gupta

(1992) Response Spectrum Method in Seismic Analysis and Design of Structures, vol. 4. Boca Raton, FL: CRC press.

12.

Lei

Zhang

Lin

. (2014) Frequency domain response of a parametrically excited riser under random wave forces. Journal of Sound and Vibration 333(2): 485–498.

13.

Peng

(2013) Theoretical analysis of seismic response for marine drilling risers. Applied Mechanics and Materials 423: 1531–1536.

14.

Martinelli

Barbella

Feriani

(2011) A numerical procedure for simulating the multi-support seismic response of submerged floating tunnels anchored by cables. Engineering Structures 33(10): 2850–2860.

15.

Montoya-Hernández

Vázquez-Hernández

Cuamatzi

. (2014) Natural frequency analysis of a marine riser considering multiphase internal flow behavior. Ocean Engineering 92: 103–113.

16.

Nguyen

(2015) Dynamic analysis of a cracked beam-like bridge subjected to earthquake and moving vehicle. Advances in Structural Engineering 18(1): 75–96.

17.

Niedzwecki

Liagre

(2003) System identification of distributed-parameter marine riser models. Ocean Engineering 30(11): 1387–1415.

18.

Pillai

Prasad

(2000) Fatigue reliability analysis in time domain for inspection strategy of fixed offshore structures. Ocean Engineering 27(2): 167–186.

19.

Pour

Jaafar

Noorzaei

(2011). A comparative study between codes of spectrum for a single degree of freedom (SDOF) system in two different hazardous regions. IOP Conference Series: Materials Science and Engineering 17(1): 012033.

20.

Quen

Abu

Kato

. (2014) Investigation on the effectiveness of helical strakes in suppressing VIV of flexible riser. Applied Ocean Research 44: 82–91.

21.

Rao

Vandiver

Jhingran

(2015) Vortex induced vibration excitation competition between bare and buoyant segments of flexible cylinders. Ocean Engineering 94: 186–198.

22.

Sarpkaya

(2004) A critical review of the intrinsic nature of vortex-induced vibration. Journal of Fluids and Structures 19: 389–447.

23.

Sarpkaya

Isaacson

(1981) Mechanics of Wave Forces on Offshore Structures. New York: Van Nostrand Reinhold.

24.

Sun

(2013) Seismic response of submerged floating tunnel tether. China Ocean Engineering 27: 43–50.

25.

Wang

Baarholm

. (2014a) Fatigue damage of a steel catenary riser from vortex-induced vibration caused by vessel motions. Marine Structures 39: 131–156.

26.

Wang

Yang

Zhao

. (2014b) Seismic performance of prestressed high strength concrete pile to pile cap connections. Advances in Structural Engineering 17(9): 1329–1342.

27.

Wang

Gao

Fang

(2014c) Axial dynamic analysis of marine riser in installation. Journal of Natural Gas Science and Engineering 21: 112–117.

28.

Xia

Fujino

(2006) Auto-parametric vibration of a cable-stayed-beam structure under random excitation. Journal of Engineering Mechanics: ASCE 132(3): 279–286.
