Localizing and quantifying structural damage by means of a beetle swarm optimization algorithm

Abstract

An efficient meta-heuristic algorithm, named beetle swarm optimization (BSO), is proposed to localize and quantify structural damage using limited vibration measurement data. The beetle antennae search (BAS) algorithm that imitats a random walking mechanism in nature was recently developed to solve the optimization problem. However, the ratio of convergence of this algorithm significantly relys on the random direction and deviation for high-dimensional problems. To overcome this shortcoming, the BSO inspired by the swarm intelligence strategy is proposed. In the iterative search process of the BSO, each beetle swarm moves in a random direction like the BAS and the swarm of beetles is cognitive with the optimal one for the searching behavior. Consequently, the optimal one is updated step by step until a better beetle appears. To demonstrate the capability and robustness of the BSO, numerical and experimental studies using limited vibration measurement data of an offshore wind turbine structure are carried out for structural damage identification. An novel objective function is established by combining natural frequencies with mode shapes of the structure. The numerical results show that the BSO can accurately localize and quantify various types of damage even in a noise and temperature variations polluted environment. Moreover, it has higher accuracy and faster convergence speed than the BAS and the particle swarm optimization (PSO) algorithms. These promising performances could contribute to establishing a structural monitoring system for safety assurance of wind turbine structures.

Keywords

beetle antennae search beetle swarm optimization damage localization damage severity estimation vibration-based method wind turbine

Introduction

Wind power has been considered as one of the most promising renewable energies in the world. More and more wind turbines are installed on onshore and offshore wind farms. For sustainable development, these structures equipped with larger capacities, taller towers, and longer blades have been presented as the future tendency. Compared with other large-scale civil engineering structures (e.g., buildings and bridges), the wind turbine structures work in a more harsh ocean environment and are subjected to complex wave, current, typhoon, and seismic loadings. During their life span of service, damage is continuously accumulated. To ensure structural safety, online structural health monitoring and real-time assessment of structural condition have become the inevitable tendency (Koh and Dyke, 2007; Oliveira et al., 2018; Seyedpoor, 2011; Shi et al., 1998; Wang et al., 2012, 2019; Yuen, 1985; Zhan et al., 2020).

During the past few decades, there has been an increasing interest in structural damage identification by vibration-based methods, whicn are able to assess the damage state of structures. Many alternative approaches have been available so far. One of the essential categories is the two-stage method. More specifically, one approach is applied for determining the damage in the first stage and the other algorithm is implemented to quantify the corresponding severity in the second stage after the location of damage has been approximately predicted. For instance, the vibration-based approach and meta-heuristic optimization algorithm have been widely adopted (Seyedpoor, 2011, 2012; Srinivas et al., 2011; Villalba and Laier, 2012). One primary problem with the two-stage method is that the precision of severity estimation hugely depends on the accuracy of damage localization (Xu et al., 2019a).

Conversely, the overall goal of the second category is to localize and quantify the damage simultaneously. Generally, the damage identification has been regarded as an optimization process to minimize the error of the modal parameters between the predicted and measured structures. For example, these optimization-based methods have been widely used, e.g., the genetic algorithm (Chou and Ghaboussi, 2001; Rao et al., 2004) and the particle swarm optimization (Kang et al., 2012). Excellent performances have been obtained to localize the damage and estimate the corresponding severity simultaneously because of their powerful search capabilities. However, the identified result of these methods usually diverges, and the computational burden increases rapidly when the measured noise and spatially incompleteness of modal parameters are considered.

The support structure of a wind turbine is vital to its operational safety (Yang and Zhu, 2015). Most recently, many studies have been conducted to monitor the damage of the support using the numerical and experimental data, such as the frequency spectrum change-based methods (Opoka et al., 2016; Soman et al., 2018), total modal energy-based methods (Li et al., 2018), and vibration-based methods (Luczak et al., 2019). These methods can detect and localize the damage of wind turbine structures successfully; however, few investigations attempt to assess the severity of damage to guide the following structural state assessment, such as remaining life prediction. Furthermore, the identified modal parameters are noise-polluted and spatially-incomplete due to the accuracy of the measurement equipment and the difficulty of installation, therefore a challenging problem arises in damage identification by using noise-polluted and limited data. Thus, a robustness approach should be badly needed to implement for structural damage identification of the wind turbine structure.

The beetle antennae search (BAS) (Jiang and Li, 2017) algorithm that imitats a random walking mechanism in nature was recently developed to solve the optimization problem. Compared with other meta-heuristic algorithms, it only uses one beetle, and the corresponding computational burden could be dramatically reduced. However, the ratio of convergence of this algorithm significantly relys on the random direction and deviation for high-dimensional problems. Inspired by the swarm intelligence, the beetle swarm optimization (BSO) is developed to overcome these shortcomings. To demonstrate the capability and robustness of the BSO, numerical and experimental studies using limited vibration measurement data of an offshore wind turbine structure are carried out for structural damage identification. An objective function is also established by combining the natural frequencies with limited mode shapes. Comparative studies are also conducted with different objective functions, weighting factors of the frequencies and mode shapes, and optimization algorithms. The uncertain parameters of the measurement are also considered.

The study structure is arranged as follows. Firstly, the novel objective function, and the original BAS and the novel BSO are introduced as the theoretical backgrounds for structural damage identification. Then, numerical and experimental studies are performed to investigate their effectiveness, respectively. Some conclusions are finally drawn.

Optimization-based damage identification

Objective function

Typically, minimizing an objective function established by the change of modal parameters is the principle of the optimization-based damage identification method. The changes in modal parameters and their combinations are widely utilized to construct an objective function (Frigui et al., 2018; Meruane and Heylen, 2011; Pandey and Biswas, 1994; Pandey et al., 1991; Perera et al., 2009; Shabbir and Omenzetter, 2016; Villalba and Laier, 2012). Among them, the natural frequencies are easier to be measured and have high sensitivity to damage (Hakim and Razak, 2013); besides, their measurement errors are negligible compared to that of mode shapes (Perera et al., 2009). Therefore, these frequencies are widely used for damage identification at first. However, the spatial information cannot be reflected in these frequencies (Yan et al., 2007). The mode shape-based functions, such as modal assurance criterion (MAC) (Meruane and Heylen, 2011) and co-ordinate modal assurance criterion (COMAC) (Lieven and Ewins, 1988), are preferred in some situations. In this study, a novel objective function is established by using the changes in natural frequencies and COMAC for structural damage identification.

f = 1 - \frac{1}{N_{m}} \sum_{i = 1}^{N_{m}} \frac{1}{1 + C_{fre} ({\tilde{ω}}_{i}^{*}, ω_{i}^{*}) + W * C_{comac} ({\tilde{φ}}_{iv}^{*}, φ_{iv}^{*})}

(1)

where

C_{fre} ({\tilde{ω}}_{i}^{*}, ω_{i}^{*}) = | \frac{{\tilde{ω}}_{i}^{*}}{ω_{i}^{*}} - 1 |

(2)

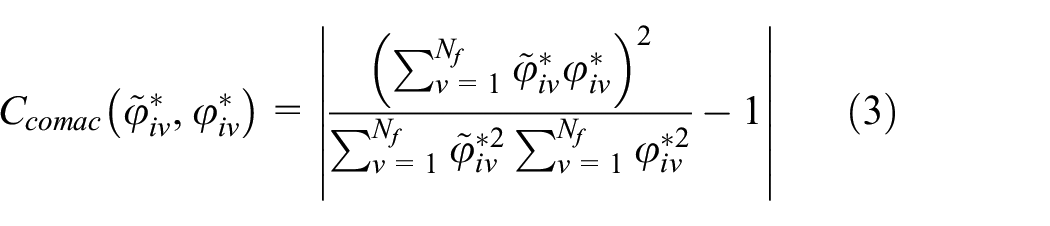

C_{comac} ({\tilde{φ}}_{iv}^{*}, φ_{iv}^{*}) = | \frac{{(\sum_{v = 1}^{N_{f}} {\tilde{φ}}_{iv}^{*} φ_{iv}^{*})}^{2}}{\sum_{v = 1}^{N_{f}} {\tilde{φ}}_{iv}^{* 2} \sum_{v = 1}^{N_{f}} φ_{iv}^{* 2}} - 1 |

(3)

Note that ${\tilde{ω}}_{i}^{*}$ and $ω_{i}^{*}$ are the i-th natural frequencies of the predicted and measured structure; ${\tilde{φ}}_{iv}^{*}$ and $φ_{iv}^{*}$ extracted from ${\tilde{ϕ}}_{i}^{*}$ and $ϕ_{i}^{*}$ are the i-th mode shapes at the v-th degree of freedom (DoF); $N_{m}$ and $N_{f}$ are the numbers of modes and DoFs, respectively; and $W = 2$ is the weighting factor in this study (the choice of this factor would be justified in section 3.4.2). When these modal parameters of the predicted structure equal to that of the measured one, $f = 0$ ; otherwise, $f > 0$ .

Original BAS

The BAS was recently proposed and used in the optimization problem, which imitates the beetle’s random walking mechanism for searching in nature. Figure 1 shows the searching behavior of the beetle. The longhorn beetle uses the right and left antennae to feel the odor’s concentration and moves to the next position based on the best side of the antennae. Under the propagation of odor (the black line in Figure 1), the beetle traces the headstream of the odor step by step based on the searching behavior, and the headstream and trajectory (the blue line in Figure 1) of the beetle is finally obtained.

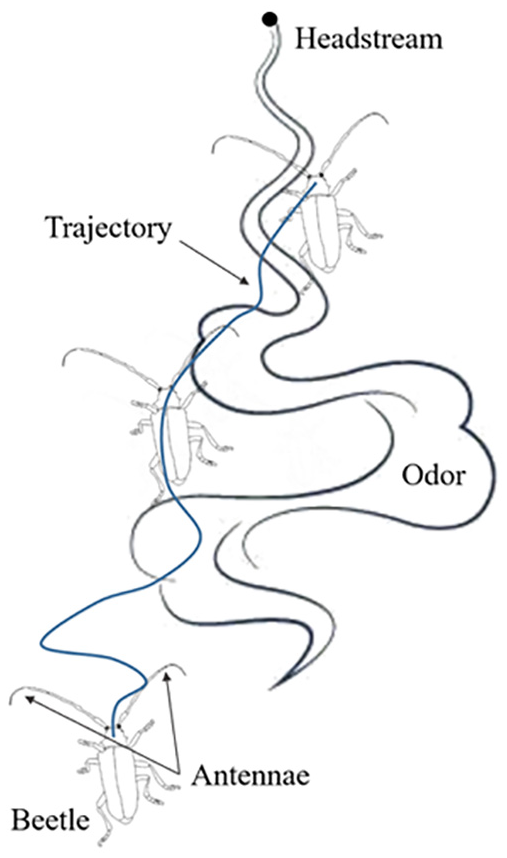

Figure 1.

Searching behavior of the beetle in the BAS algorithm.

Compared with other meta-heuristic algorithms, it only uses one beetle, and the corresponding computational burden could be dramatically reduced. Thus, the original BAS are firstly selected for structural damage identification. In this study, the t-th beetle’s position and the odor’s concentration were regarded as the damage severity $α^{t}$ and the objective function $f (α^{t})$ , respectively, for the damage identification process. The iterative model was generated to associate with odor detection as follows

α^{t} = α^{t - 1} + δ^{t - 1} b sign (f (α_{r}) - f (α_{l}))

(4)

where $δ^{t}$ denotes the step size and $sign$ is the function of sign; $b$ denotes a random direction, and $α_{r}$ and $α_{l}$ are the positions of right- and left-hand sides of long antennae for searching behavior, respectively. These above parameters are arranged as follows

b = rnd (N_{e}, 1) / rnd (N_{e}, 1)

(5)

α_{r} = α^{t - 1} - d^{t - 1} b; α_{l} = α^{t - 1} + d^{t - 1} b

(6)

Note that $N_{e}$ denotes the number of the structural member, and $rnd$ denotes a random function; $d$ is set as the sensing length of antennae at (t-1)-th iterations. More detailed information can be found in Ref. (Jiang and Li, 2017).

The process of the BAS for damage identification can be summarized, as shown in Algorithm 1.

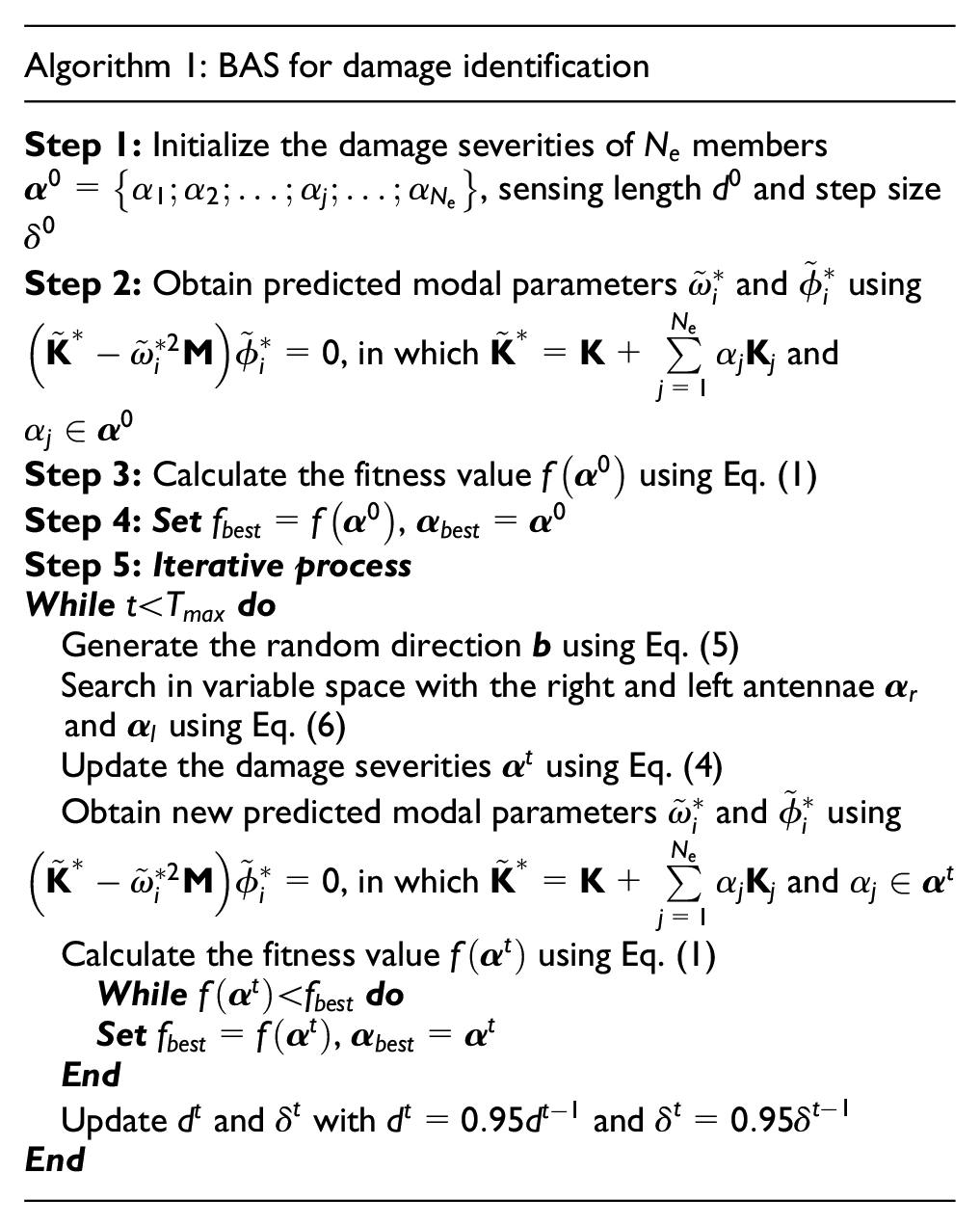

Algorithm 1: BAS for damage identification
Step 1: Initialize the damage severities of $N_{e}$ members $α^{0} = {α_{1}; α_{2}; \dots; α_{j}; \dots; α_{N_{e}}}$ , sensing length $d^{0}$ and step size $δ^{0}$ Step 2: Obtain predicted modal parameters ${\tilde{ω}}_{i}^{}$ and ${\tilde{ϕ}}_{i}^{}$ using $({\tilde{K}}^{} - {\tilde{ω}}_{i}^{ 2} M) {\tilde{ϕ}}_{i}^{} = 0$ , in which ${\tilde{K}}^{} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}$ and $α_{j} \in α^{0}$ Step 3: Calculate the fitness value $f (α^{0})$ using Eq. (1) Step 4: Set $f_{best} = f (α^{0})$ , $α_{best} = α^{0}$ Step 5: Iterative process While $t < T_{\max}$ do Generate the random direction $b$ using Eq. (5) Search in variable space with the right and left antennae $α_{r}$ and $α_{l}$ using Eq. (6) Update the damage severities $α^{t}$ using Eq. (4) Obtain new predicted modal parameters ${\tilde{ω}}_{i}^{}$ and ${\tilde{ϕ}}_{i}^{}$ using $({\tilde{K}}^{} - {\tilde{ω}}_{i}^{ 2} M) {\tilde{ϕ}}_{i}^{} = 0$ , in which ${\tilde{K}}^{} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}$ and $α_{j} \in α^{t}$ Calculate the fitness value $f (α^{t})$ using Eq. (1) While $f (α^{t}) < f_{best}$ do Set $f_{best} = f (α^{t})$ , $α_{best} = α^{t}$ End Update $d^{t}$ and $δ^{t}$ with $d^{t} = 0.95 d^{t - 1}$ and $δ^{t} = 0.95 δ^{t - 1}$ End

Algorithm 1: BAS for damage identification

Step 1: Initialize the damage severities of

N_{e}

members

α^{0} = {α_{1}; α_{2}; \dots; α_{j}; \dots; α_{N_{e}}}

, sensing length

d^{0}

and step size

δ^{0}

Step 2: Obtain predicted modal parameters

{\tilde{ω}}_{i}^{*}

and

{\tilde{ϕ}}_{i}^{*}

using

({\tilde{K}}^{*} - {\tilde{ω}}_{i}^{* 2} M) {\tilde{ϕ}}_{i}^{*} = 0

, in which

{\tilde{K}}^{*} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}

and

α_{j} \in α^{0}

Step 3: Calculate the fitness value

f (α^{0})

using Eq. (1)
Step 4: Set

f_{best} = f (α^{0})

α_{best} = α^{0}

Step 5: Iterative process
While

t < T_{\max}

do
Generate the random direction

b

using Eq. (5)
Search in variable space with the right and left antennae

α_{r}

and

α_{l}

using Eq. (6)
Update the damage severities

α^{t}

using Eq. (4)
Obtain new predicted modal parameters

{\tilde{ω}}_{i}^{*}

and

{\tilde{ϕ}}_{i}^{*}

using

({\tilde{K}}^{*} - {\tilde{ω}}_{i}^{* 2} M) {\tilde{ϕ}}_{i}^{*} = 0

, in which

{\tilde{K}}^{*} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}

and

α_{j} \in α^{t}

Calculate the fitness value

f (α^{t})

using Eq. (1)
While

f (α^{t}) < f_{best}

do
Set

f_{best} = f (α^{t})

α_{best} = α^{t}

End
Update

d^{t}

and

δ^{t}

with

d^{t} = 0.95 d^{t - 1}

and

δ^{t} = 0.95 δ^{t - 1}

End

Novel BSO

Generally, there are some shortcomings for the BAS. The first is that only one beetle is used, and it moves in a random direction at each iteration. It cannot guarantee the effective move of the beetle for searching the optimal solution. The second is a lack of swarm cognitive by using only one individual. These results deviate significantly, especially for a high-dimensional optimization problem. Inspired by the PSO, the BSO is proposed by combining the BAS with swarm intelligence. In each step, a group of beetles are employed for searching behavior, and each beetle moves in a random direction based on the BAS. The optimal-global beetle is updated step by step once a better one appeared. Until the BSO cannot found a better one, the iterative process is completed. The optimal-global beetle is the estimated solution to the optimization problem. With the swarm intelligence and the group cognitive strategy, the possibility of finding an optimal position of beetle, can be significantly enhanced. Thus the BSO can quickly obtain a more accurate solution than the BAS.

The iterative model can also be generated by considering the BSO’s searching behavior, and the n-th beetle at t-th iteration $α_{n}^{t}$ moves based on the swarm cognitive strategy as follows

\begin{matrix} α_{n}^{t} = α_{n}^{t - 1} + c_{1} (δ^{t - 1} sign (f (α_{nr}^{t - 1}) - f (α_{nl}^{t - 1})) b) \\ + c_{2} (α_{best} - α_{n}^{t - 1}) \end{matrix}

(7)

Note that the move strategy contains three parts. The first is the inertial part $α_{n}^{t - 1}$ relies on the previous step solution (see the blue dotted line in Figure 2(b)). The second and third are defined as the individual and group cognitive parts $c_{1} (δ^{t - 1} sign (f (α_{nr}^{t - 1}) - f (α_{nl}^{t - 1})) b)$ and $c_{2} (α_{best} - α_{n}^{t - 1})$ , see the yellow dotted and orange dotted lines in Figure 2(b), respectively. The coefficients of individual and group cognitive parts $c_{1}$ and $c_{2}$ are two random numbers that belong to [0, 2]. The positions of right- and left-hand sides $α_{nr}^{t - 1}$ and $α_{nl}^{t - 1}$ are arranged as follows

α_{nr}^{t - 1} = α_{n}^{t - 1} - d^{t - 1} b; α_{nl}^{t - 1} = α_{n}^{t - 1} + d^{t - 1} b

(8)

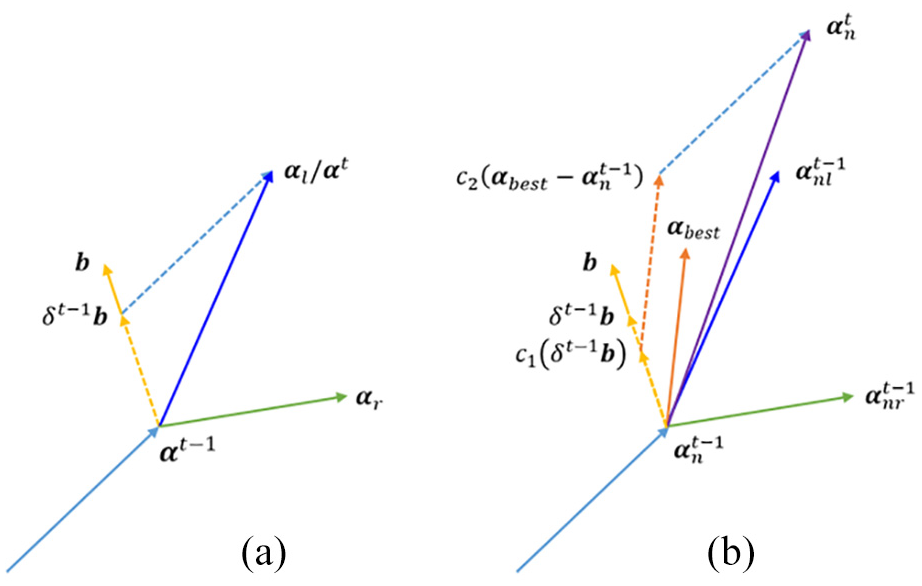

Figure 2.

Iterative model: (a) in the BAS and (b) in the BSO.

It is noteworthy that the move strategy of the original BAS can be regarded as a particular case of the novel BSO when $c_{1} = 1$ and $c_{2} = 0$ . Due to swarm intelligence, the BSO could acquire a more satisfying performance than the BAS.

Similarly, the process of the BSO can be also showed in Algorithm 2.

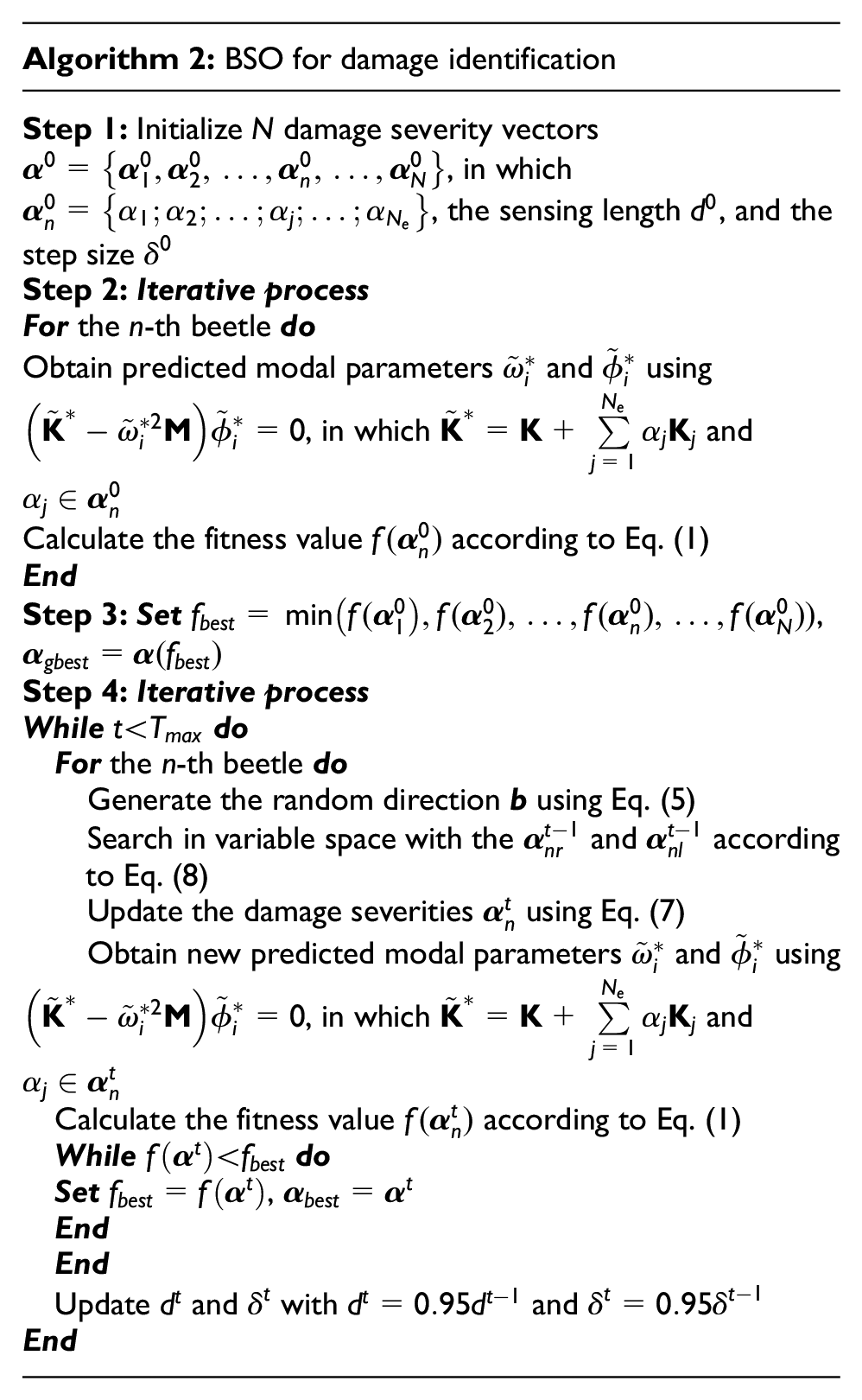

Algorithm 2: BSO for damage identification
Step 1: Initialize N damage severity vectors $α^{0} = {α_{1}^{0}, α_{2}^{0}, \dots, α_{n}^{0}, \dots, α_{N}^{0}}$ , in which $α_{n}^{0} = {α_{1}; α_{2}; \dots; α_{j}; \dots; α_{N_{e}}}$ , the sensing length $d^{0}$ , and the step size $δ^{0}$ Step 2: Iterative process For the n-th beetle do Obtain predicted modal parameters ${\tilde{ω}}_{i}^{}$ and ${\tilde{ϕ}}_{i}^{}$ using $({\tilde{K}}^{} - {\tilde{ω}}_{i}^{ 2} M) {\tilde{ϕ}}_{i}^{} = 0$ , in which ${\tilde{K}}^{} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}$ and $α_{j} \in α_{n}^{0}$ Calculate the fitness value $f (α_{n}^{0})$ according to Eq. (1) End Step 3: Set $f_{best} = min (f (α_{1}^{0}), f (α_{2}^{0}), \dots, f (α_{n}^{0}), \dots, f (α_{N}^{0}))$ , $α_{gbest} = α (f_{best})$ Step 4: Iterative process While $t < T_{\max}$ do For the n-th beetle do Generate the random direction $b$ using Eq. (5) Search in variable space with the $α_{nr}^{t - 1}$ and $α_{nl}^{t - 1}$ according to Eq. (8) Update the damage severities $α_{n}^{t}$ using Eq. (7) Obtain new predicted modal parameters ${\tilde{ω}}_{i}^{}$ and ${\tilde{ϕ}}_{i}^{}$ using $({\tilde{K}}^{} - {\tilde{ω}}_{i}^{ 2} M) {\tilde{ϕ}}_{i}^{} = 0$ , in which ${\tilde{K}}^{} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}$ and $α_{j} \in α_{n}^{t}$ Calculate the fitness value $f (α_{n}^{t})$ according to Eq. (1) While $f (α^{t}) < f_{best}$ do Set $f_{best} = f (α^{t})$ , $α_{best} = α^{t}$ End End Update $d^{t}$ and $δ^{t}$ with $d^{t} = 0.95 d^{t - 1}$ and $δ^{t} = 0.95 δ^{t - 1}$ End

Algorithm 2: BSO for damage identification

Step 1: Initialize N damage severity vectors

α^{0} = {α_{1}^{0}, α_{2}^{0}, \dots, α_{n}^{0}, \dots, α_{N}^{0}}

, in which

α_{n}^{0} = {α_{1}; α_{2}; \dots; α_{j}; \dots; α_{N_{e}}}

, the sensing length

d^{0}

, and the step size

δ^{0}

Step 2: Iterative process
For the n-th beetle do
Obtain predicted modal parameters

{\tilde{ω}}_{i}^{*}

and

{\tilde{ϕ}}_{i}^{*}

using

({\tilde{K}}^{*} - {\tilde{ω}}_{i}^{* 2} M) {\tilde{ϕ}}_{i}^{*} = 0

, in which

{\tilde{K}}^{*} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}

and

α_{j} \in α_{n}^{0}

Calculate the fitness value

f (α_{n}^{0})

according to Eq. (1)
End
Step 3: Set

f_{best} = min (f (α_{1}^{0}), f (α_{2}^{0}), \dots, f (α_{n}^{0}), \dots, f (α_{N}^{0}))

α_{gbest} = α (f_{best})

Step 4: Iterative process
While

t < T_{\max}

do
For the n-th beetle do
Generate the random direction

b

using Eq. (5)
Search in variable space with the

α_{nr}^{t - 1}

and

α_{nl}^{t - 1}

according to Eq. (8)
Update the damage severities

α_{n}^{t}

using Eq. (7)
Obtain new predicted modal parameters

{\tilde{ω}}_{i}^{*}

and

{\tilde{ϕ}}_{i}^{*}

using

({\tilde{K}}^{*} - {\tilde{ω}}_{i}^{* 2} M) {\tilde{ϕ}}_{i}^{*} = 0

, in which

{\tilde{K}}^{*} = K + \sum_{j = 1}^{N_{e}} α_{j} K_{j}

and

α_{j} \in α_{n}^{t}

Calculate the fitness value

f (α_{n}^{t})

according to Eq. (1)
While

f (α^{t}) < f_{best}

do
Set

f_{best} = f (α^{t})

α_{best} = α^{t}

End
End
Update

d^{t}

and

δ^{t}

with

d^{t} = 0.95 d^{t - 1}

and

δ^{t} = 0.95 δ^{t - 1}

End

Numerical simulation

Wind turbine structure

A finite element model of the tripod wind turbine structure is established in this study, as shown in Figure 3. It comprises 18 nodal points and 20 uniform beam elements, including two middle column (Nos. 16-17), three tower (Nos. 18-20), three diagonal (Nos. 13-15), three transversal (Nos. 10-12), and nine pile braces (Nos. 1-9), as shown in Figure 13(b). The diameters of the middle column, tower, and other braces are 30 mm, 30 mm, and 20 mm, respectively. The wall thicknesses have the same dimension as 2 mm for all the members. The height of the structure is 2.5 m, and a 3.3 kg weighted steel plate is mounted on the top of the tower to simulate the lumped mass of blades. The wind structure was fixed on the ground, and the detailed dimensions can be found in section Experiment setup. The essential material properties are as follows: Young’s modulus E = 2.06×10¹¹ Pa, mass density $ρ$ = 7850 kg/m³, and Poisson ratio v = 0.3.

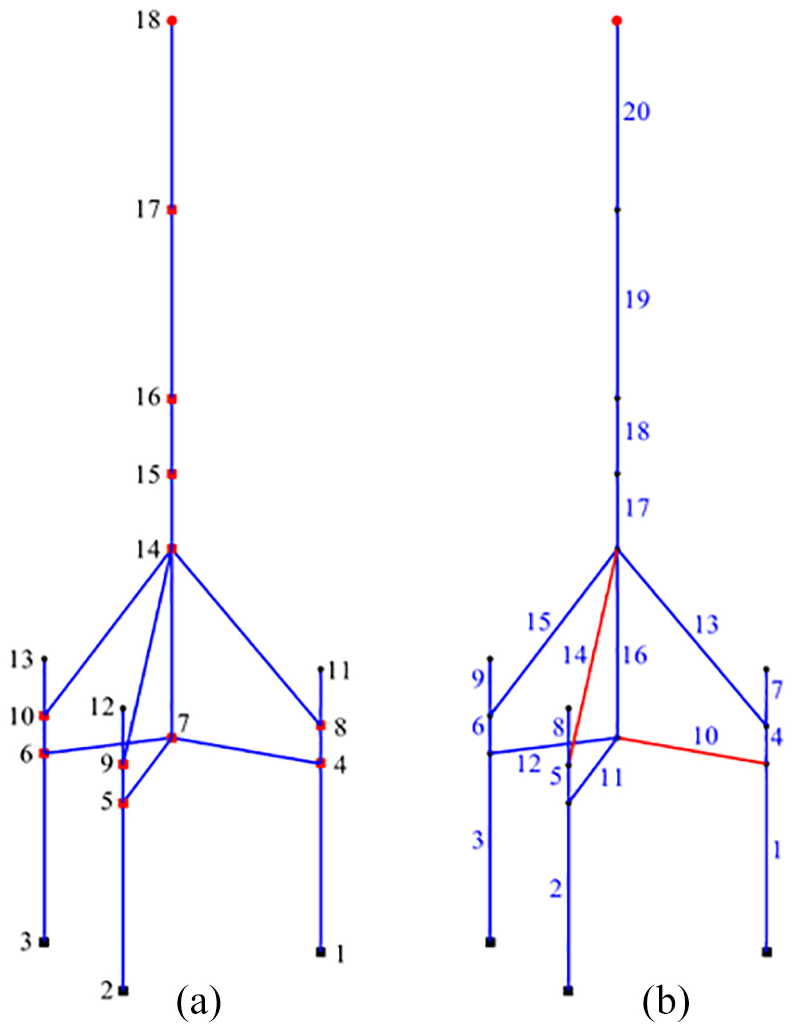

Figure 3.

Sketches of the tripod wind turbine: (a) nodal points and (b) elements.

A structural modal analysis of the baseline model was executed. The obtained first five natural frequencies are 4.5377 Hz, 4.5746 Hz, 23.7421 Hz, 24.8588 Hz, and 38.1706 Hz, and the corresponding mode shapes are exhibited, as shown in Figure 4.

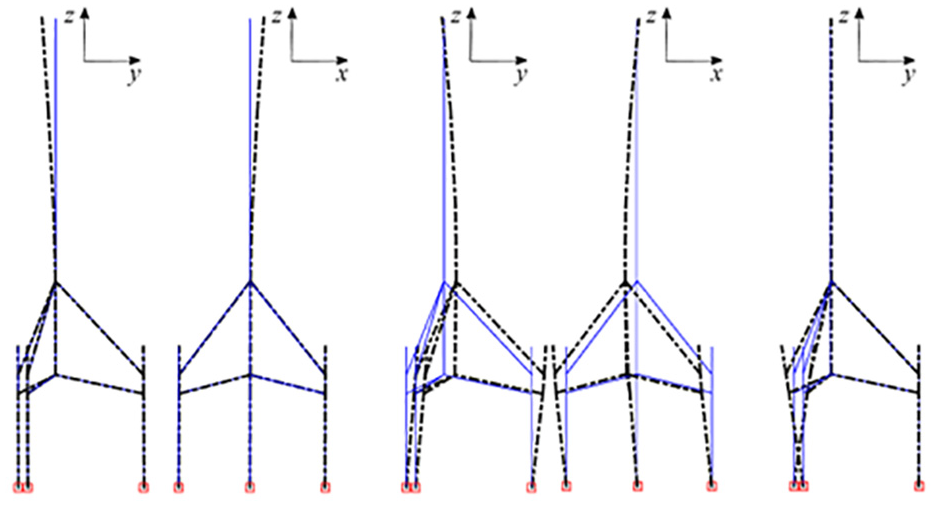

Figure 4.

The first five mode shapes of the structure.

Damage cases and measured noise

For acquiring modal parameters of the damaged structure, the structural damage is simulated by reducing the corresponding elasticity modulus of the damaged element (Dessi and Camerlengo, 2015; Koh and Dyke, 2007). Four damage cases are studied considering different types of members and severities. As listed in Table 1, the transversal brace has a 20% stiffness loss in the first damage case. The 20% and 5% stiffness losses of the diagonal brace 14 are considered for the next two damage cases. The last is a double-damage case with the 20% and 10% stiffness losses of the mentioned transversal and diagonal braces. The first natural frequencies among different damage cases are also listed in Table 1.

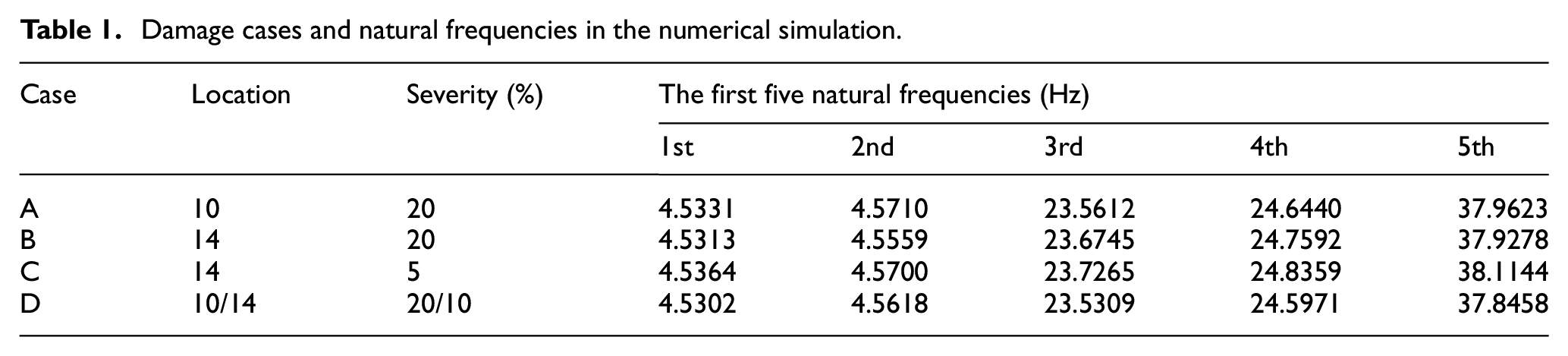

Table 1.

Damage cases and natural frequencies in the numerical simulation.

Case	Location	Severity (%)	The first five natural frequencies (Hz)
Case	Location	Severity (%)	1st	2nd	3rd	4th	5th
A	10	20	4.5331	4.5710	23.5612	24.6440	37.9623
B	14	20	4.5313	4.5559	23.6745	24.7592	37.9278
C	14	5	4.5364	4.5700	23.7265	24.8359	38.1144
D	10/14	20/10	4.5302	4.5618	23.5309	24.5971	37.8458

In general, the measured modal parameters contain noise and errors, including the measurement noises and uncertainties parameters. To demonstrate the robustness of the proposed optimization algorithm, the i-th noise-polluted natural frequencies and mode shapes at v-th DoF, denoted by ${\hat{ω}}_{i}^{*}$ and ${\hat{φ}}_{iv}^{*}$ , respectively, are arranged by adding the random value to the actual one (Li et al., 2007; Modak et al., 2002; Villalba and Laier, 2012).

{\hat{ω}}_{i}^{*} = ω_{i}^{*} (1 + n_{ω} γ_{ω})

(9)

{\hat{φ}}_{iv}^{*} = φ_{iv}^{*} (1 + n_{φ} γ_{φ})

(10)

where $γ_{ω}$ and $γ_{φ}$ are two Gaussian random numbers with the mean 0 and standard deviation 1; $n_{ω}$ and $n_{φ}$ are the noise levels of natural frequency and mode shape, respectively.

Damage identification

The original BAS and the novel BSO were utilized to localize and quantify the damage in numerical simulation. In this section, all the elements, i.e., $N_{e} = 20$ , were firstly regarded as the potentially damaged elements due to no damage localization information. The sensing length $d^{0}$ and the step size $δ^{0}$ were preset as the same values 0.95. Finally, a total of 300 iterations ( $T_{\max} = 300$ ) were selected in the study. Note that these coefficients of individual and group cognitive parts $c_{1}$ and $c_{2}$ are two random numbers that belong to [0, 2]. Totally 60 bettles were used for the damage identification. It was assumed that only the first five modal parameters were available, and only the displacements at nodal points {4-10,14-17} were measured.

Noise-free scenario

Figure 5 presents the estimated results of damage identification in the noise-free scenario, where these results by using the BAS and the BSO are exhibited in sub-figure Figure 5(a) to (c) and (d) to (e), respectively.

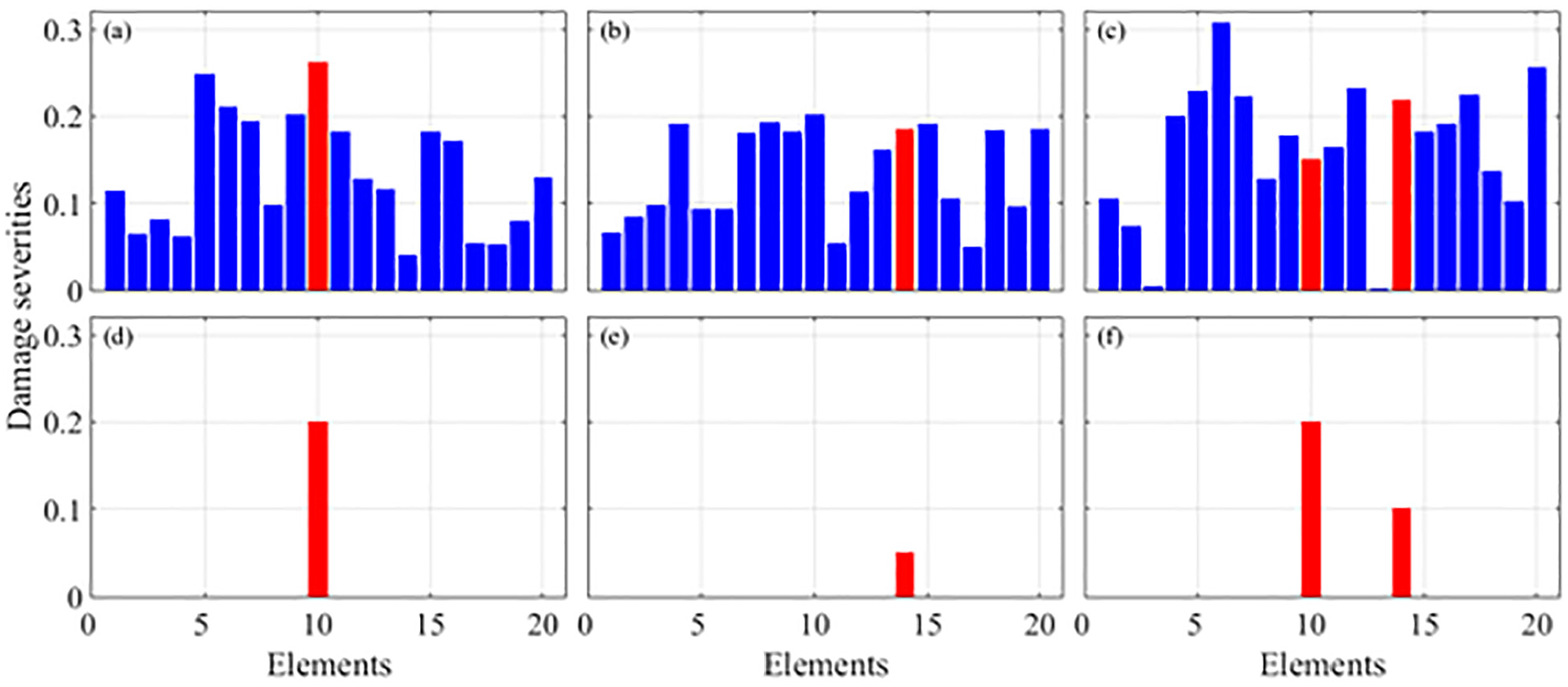

Figure 5.

Damage identification results in the noise-free scenario: (a) case A-BAS; (b) case C-BAS; (c) case D-BAS; (d) case A-BSO; (e) case C-BSO and (f) case D-BSO.

As shown in Figure 5(a), one can find that the actual damaged member 10 is damaged due to the most considerable severity of the damage. However, several intact members (e.g., {5-7,9}) are suspected to be damaged, considering their high severities. The BAS can identify the actual damage, but also cause false-positive errors. In contrast, the BSO locates the actual damage without any errors, as shown in Figure 5(d). Besides, the estimated severity of damage is 20.00%, which is precisely equal to the correct value of 20%. Similar results were obtained from the damage case B. It is concluded that the BSO performs better on the damage localization and severity estimation for the single-damage case in the noise-free scenario.

Figure 5(b) and (e) shows the identified results of the minor-damage case C. The damaged member 14 and several other intact members {4,7-10,15,18,20} are suspected due to their relative severities of damage (see Figure 5(b)). Only the actual damage is located without any errors by using the BSO, as shown in Figure 5(e). Furthermore, the BSO can accurately quantify the severity of the minor-damage. It is also suggested that the BSO outperforms the BAS for damage identification in the minor-damage case.

For the double-damage case D, the estimated damage identifications results are exhibited in Figure 5(c) and (f), respectively. The BSO performs better on structural damage identification than the BAS in the double-damage case, as shown in Figure 5(c) and (f). In total, the BSO outperforms the BAS for structural damage identification in the noise-free scenario.

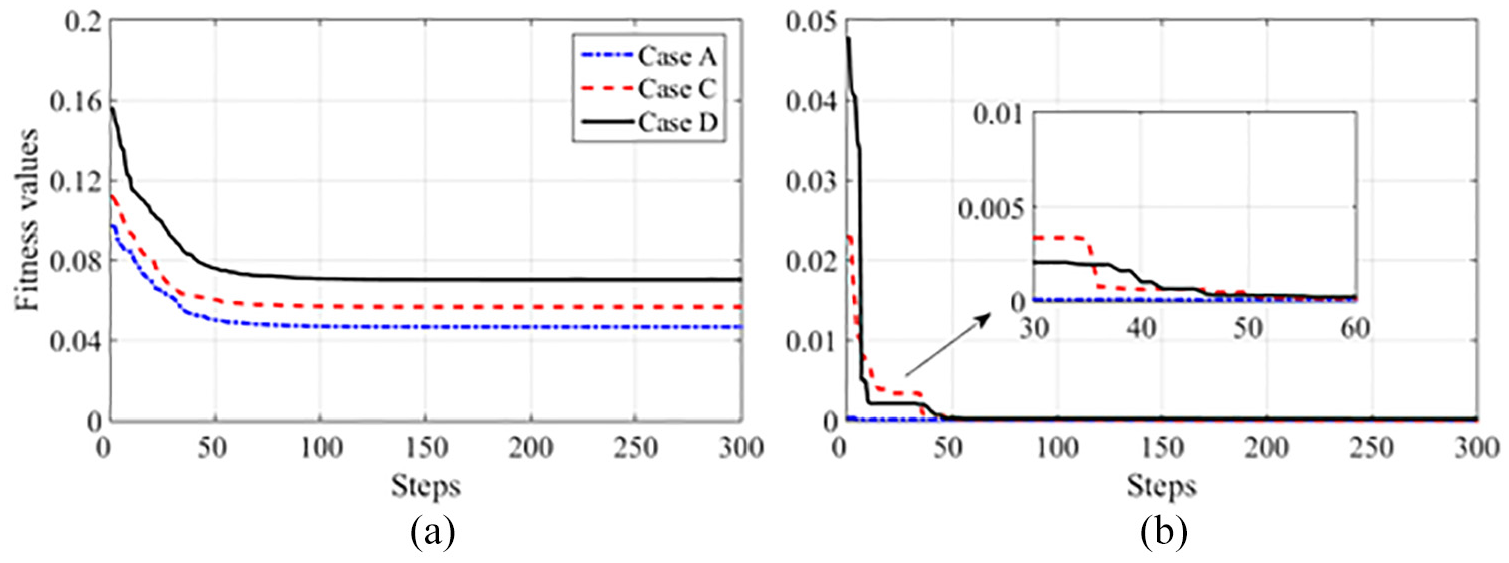

The convergence histories by using the BAS and the BSO are showed in Figure 6. These fitness values of the BSO converge to 0 (less than 10⁻⁵), which are significantly smaller than these values of the BAS (e.g., 0.0465, 0.0565, and 0.0701 for the damage cases A, C, and D). The estimated results of the BSO are consequently more accurate than these of the BAS. The identified results using the BAS are not reliable even in a noise-free scenario. The main reason is that the BAS is easily trapped in local minima, especially in a high-dimension search space. Moreover, the convergence speeds of the BSO are faster than the BAS, as shown in Figure 6. It is concluded that the BSO has a better performance on optimization problems with a more accurate solution and faster convergence speed.

Figure 6.

Convergence histories in the noise-free scenario: (a) BAS and (b) BSO.

Noise-polluted scenario

In this section, the measurement noise was considered and simulated based on equations (7) and (8) to investigate the robustness of the damage identification approach. A standard noise of 0.15% and 3% as the benchmark of natural frequency and mode shape was suggested (Dinh-Cong et al., 2019; Messina et al., 1998; Seyedpoor, 2012). The noise levels $n_{ω} = 0.15 %$ and $n_{φ} = 3 %$ were used, and the estimated results are shown in Figure 7.

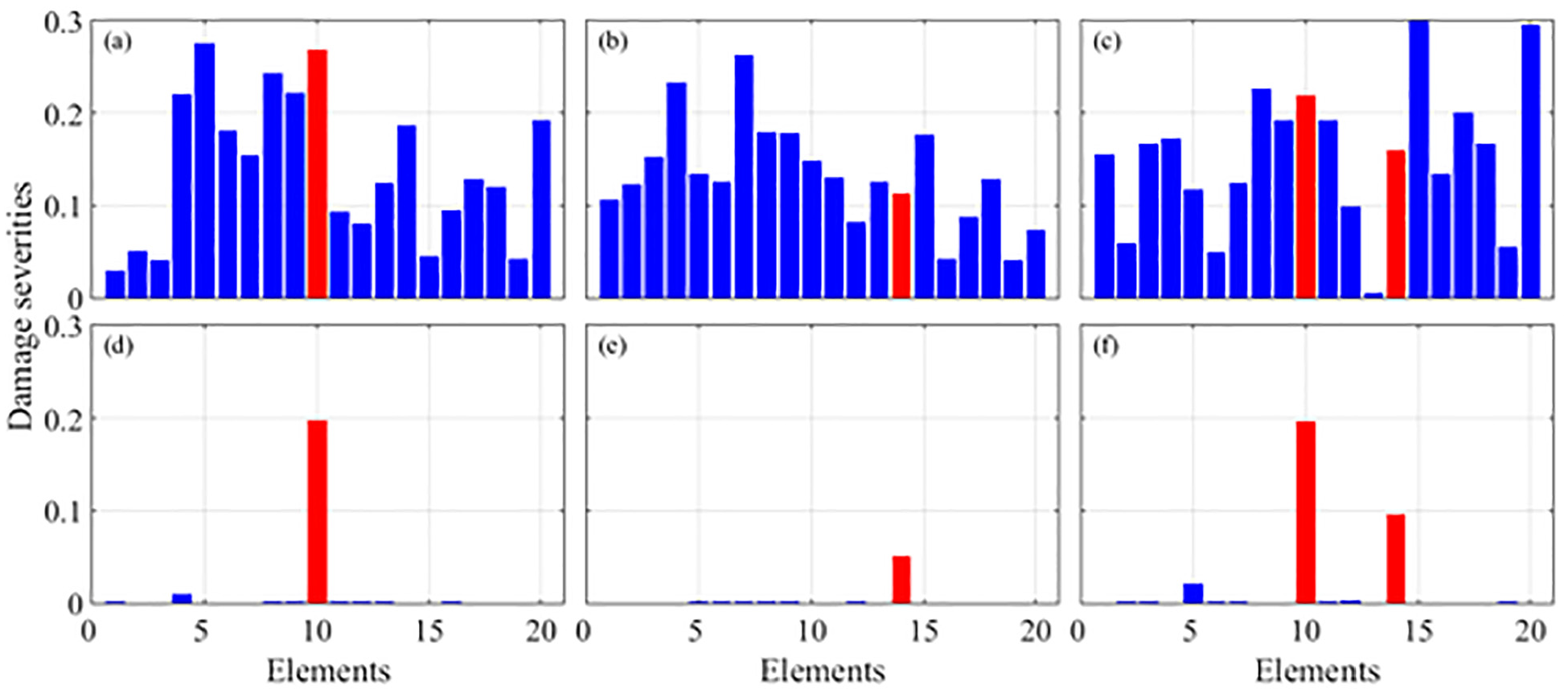

Figure 7.

Damage identification results in the noise-polluted scenario: (a) case A-BAS; (b) case C-BAS; (c) case D-BAS; (d) case A-BSO; (e) case C-BSO and (f) case D-BSO.

From Figure 7(a) and (d), one can see that the BSO performs better than the BAS. It is observed that the spurious damage occurs on several members (5 and 10) by using the BAS. And the BSO can accurately locate the true damaged member without any errors. The estimation of damage severity by using the BAS is 26.83% with a relative error of 34.15%, while the BSO gets 19.78% severity with only 1.10% relative error. Thus, the BSO holds a higher precision in the damage severity estimation. Surprisingly, one can notice that the estimated severity of member 4 (precisely the neighbor of member 10) in Figure 7(d) has a negligibly small value. Generally, the nodal displacement of the damaged member could mutate. Consequently, the estimated severity of the connected member 4, which shares the same nodal point 4 with the damaged member 10, rises to some degree.

In minor damage, some high damage indicator values occur at intact members (e.g., 4 and 7) by using the BAS, as shown in Figure 7(b). Further, the actual damage locations are challenging to be identified by the BAS. In contrast, the BSO (shown in Figure 7(e) and (f)) can accurately determine the actual minor- and double-damage and estimate the severity of the damage. For example, the estimated severities of members 10 and 14 are 19.63% and 9.60%, with the small relative errors 1.85% and 4.00%, respectively. Thus, the novel BSO has an outstanding performance both in localizing and quantifying the minor-damage and double-damage. Note that the estimated severity of member 5 (shares a nodal point 9 with the actual damaged member 14) also has a negligibly small value. An explanation can be found in the damage case A.

By analyzing the convergence histories, one can conclude that the BSO has better performance with a more accurate solution and faster convergence speed in the noise-polluted scenario.

Noise robustness

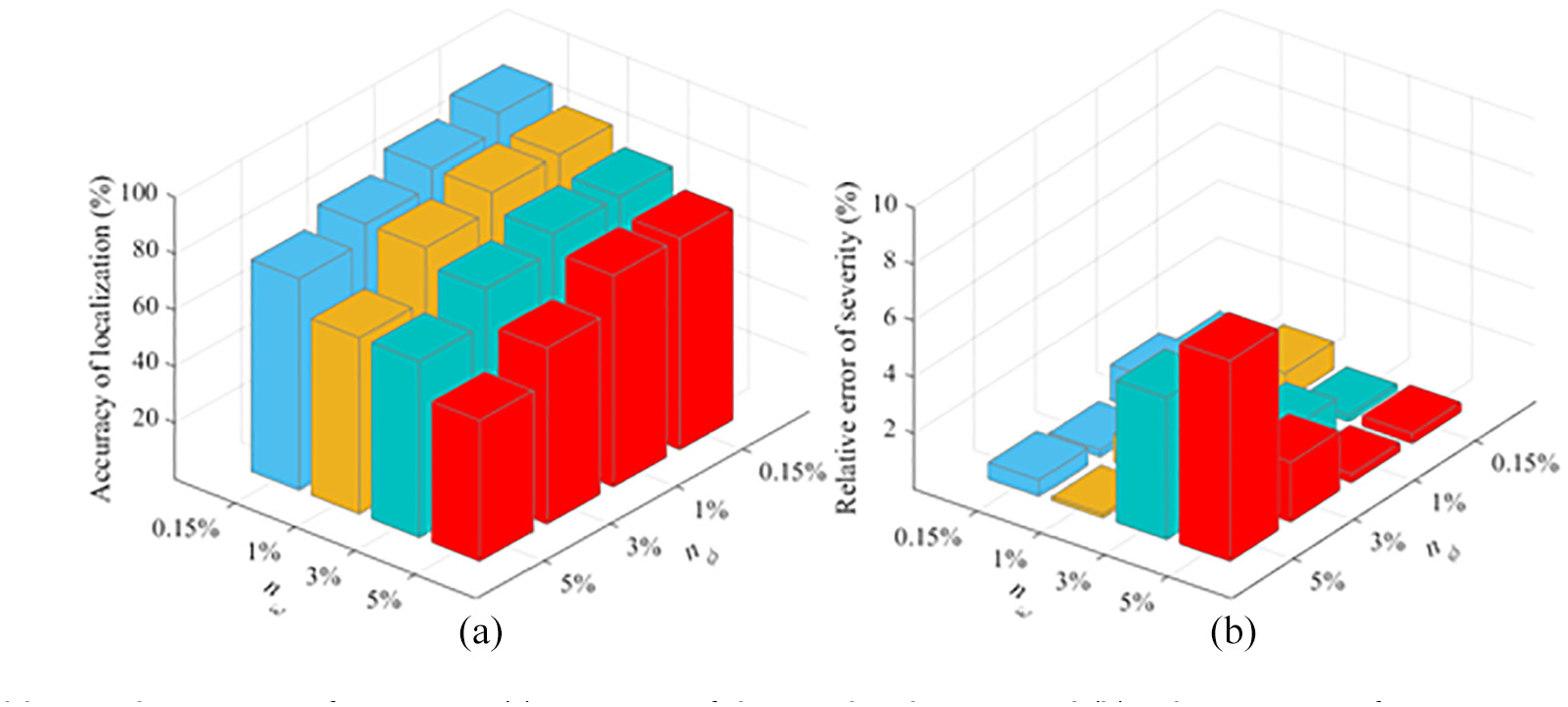

In this study, four noise levels (0.15%, 1%, 3%, and 5%) of the natural frequencies and mode shapes were considered to illustrate the robustness of the BSO. Monte Carlo simulations were carried out for each noise combinations. Figure 8 shows the noise robustness performance using the two indicators (such as accuracy of localization and relative errors of the severity of damage). The accuracy of localization reduces as noise levels increases. The accuracy is about 75%, even in the high noise levels ( $n_{ω} = 3 %$ and $n_{φ} = 3 %$ ), as shown in Figure 8(a). It is concluded that the novel BSO has excellent robustness for the damage localization. Further, it has excellent precision of the severity estimation. The maximum value of the relative error of severity is 7.12% in the lousy noise environment ( $n_{ω} = 5 %$ and $n_{φ} = 5 %$ ).

Figure 8.

Noise robustness performances: (a) accuracy of damage localization and (b) relative error of severity.

Discussion

Objective functions

The proposed objective function is compared with the other functions. The damage case B with preset noise is discussed in the following research.

(a) The modal flexibility-based function (Pandey and Biswas, 1994)

F_{1} = \frac{1}{N_{m}} \sum_{i = 1}^{N_{m}} {({\tilde{ϕ}}_{i}^{*} {\tilde{Λ}}^{*} {\tilde{ϕ}}_{i}^{* T} - ϕ_{i}^{*} Λ^{*} {ϕ_{i}^{* T}}_{2})}^{2}

(11)

where ${\tilde{Λ}}^{*}$ and $Λ^{*}$ are the diagonal matrices, whose entities are $1 / {\tilde{ω}}_{i}^{* 2}$ and $1 / ω_{i}^{* 2}$ of the predicted and measured structure, respectively.

(b) The weighted function (Villalba and Laier, 2012)

\begin{matrix} F_{2} = \frac{1}{N_{m}} \sum_{i = 1}^{N_{m}} \\ {(1 + C_{fre} ({\tilde{ω}}_{i}^{*}, ω_{i}^{*}) + 2 * \sqrt{\frac{\sum_{v = 1}^{N_{f}} {({\tilde{φ}}_{iv}^{*} - φ_{iv}^{*})}^{2}}{\sum_{v = 1}^{N_{f}} φ_{iv}^{* 2}}})}^{- 1} \end{matrix}

(12)

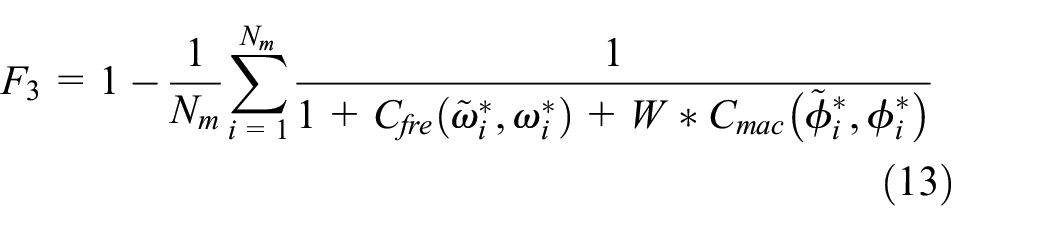

(c) The proposed objective functions, where $F_{3}$ uses the mode displacement at all DoFs and $F_{4}$ (same as Eq. (1) applies mode displacement at partial DoFs)

F_{3} = 1 - \frac{1}{N_{m}} \sum_{i = 1}^{N_{m}} \frac{1}{1 + C_{fre} ({\tilde{ω}}_{i}^{*}, ω_{i}^{*}) + W * C_{mac} ({\tilde{ϕ}}_{i}^{*}, ϕ_{i}^{*})}

(13)

F_{4} = 1 - \frac{1}{N_{m}} \sum_{i = 1}^{N_{m}} \frac{1}{1 + C_{fre} ({\tilde{ω}}_{i}^{*}, ω_{i}^{*}) + W * C_{comac} ({\tilde{φ}}_{iv}^{*}, φ_{iv}^{*})}

(14)

where

C_{mac} ({\tilde{ϕ}}_{i}^{*}, ϕ_{i}^{*}) = | \frac{{({\tilde{ϕ}}_{i}^{*} ϕ_{i}^{*})}^{2}}{{\tilde{ϕ}}_{i}^{* 2} ϕ_{i}^{* 2}} - 1 |

(15)

Because only partial DoFs are available, the modal expansion process (Zhang and Wei, 1999) is required to acquire the spatially complete mode shapes $ϕ_{i}^{*}$ for $F_{1}$ and $F_{3}$ . 1000 Monte Carlo simulations were performed for each objective function with noise-polluted modal parameters. Figure 9 shows the identification results evaluated based on statistical accuracy (mean value $μ$ ) and the precision (standard deviation $σ$ ).

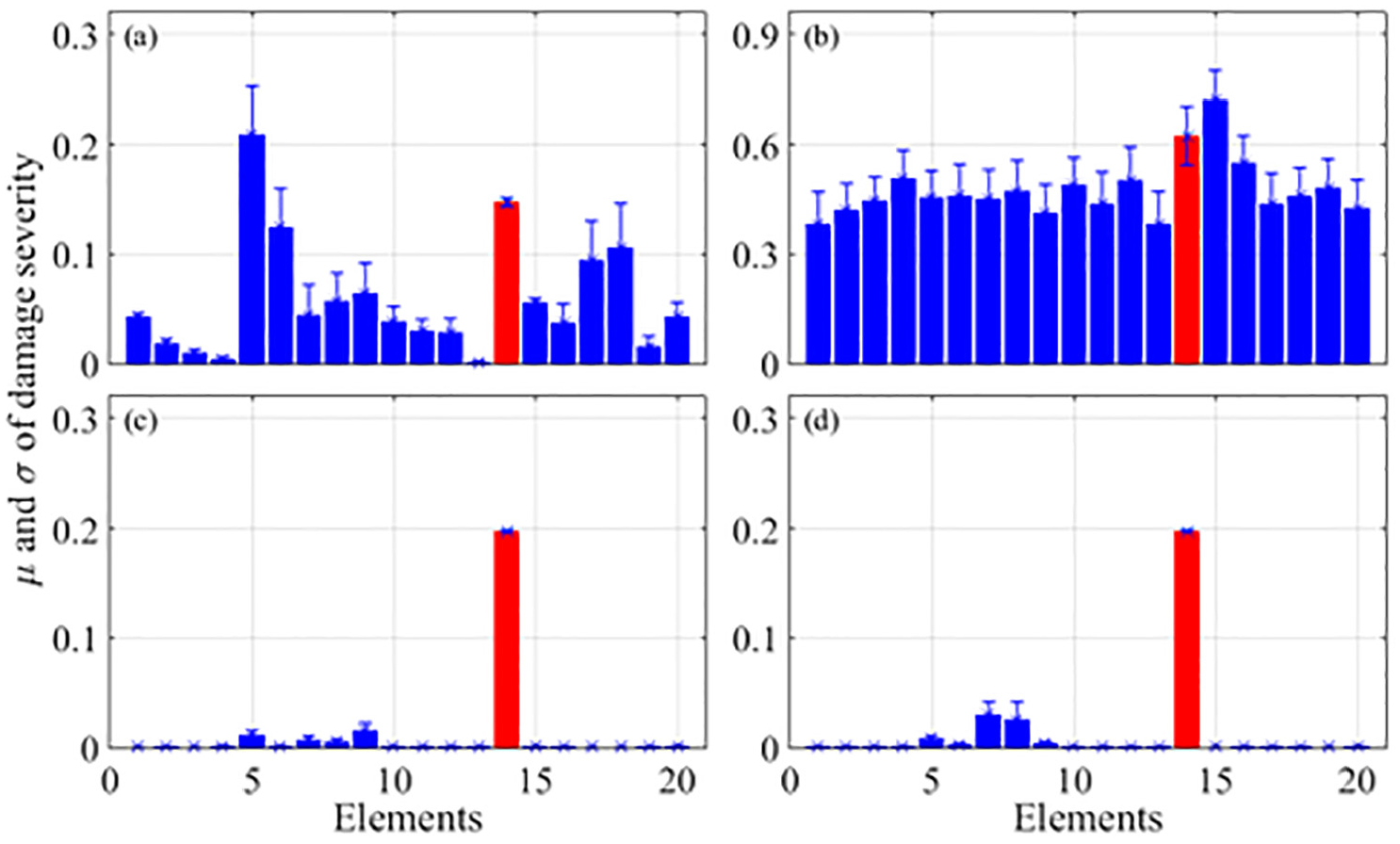

Figure 9.

Damage identification results using: (a) $F_{1}$ ; (b) $F_{2}$ ; (c) $F_{3}$ and (d) $F_{4}$ .

Figure 9(a) shows that the damaged member 10 has a high severity value by using $F_{1}$ . However, the maximal value is located at member 5 (intact member), which cause the false-positive error. Besides, the estimated severity of member 10 is very different from the actual value. A similar conclusion was obtained using $F_{2}$ . In contrast, the proposed functions can locate actual damage without any errors. Moreover, the severities can be accurately estimated (e.g., 19.88% and 19.77%) with negligible relative errors (e.g., 0.6% and 1.65%) when using $F_{3}$ and $F_{4}$ . It is noteworthy that the performance can be slightly improved due to the use of more modal placements. The same conclusions were obtained from other cases. In total, the proposed objective function is more suitable for damage identification than other functions.

Weighting factors

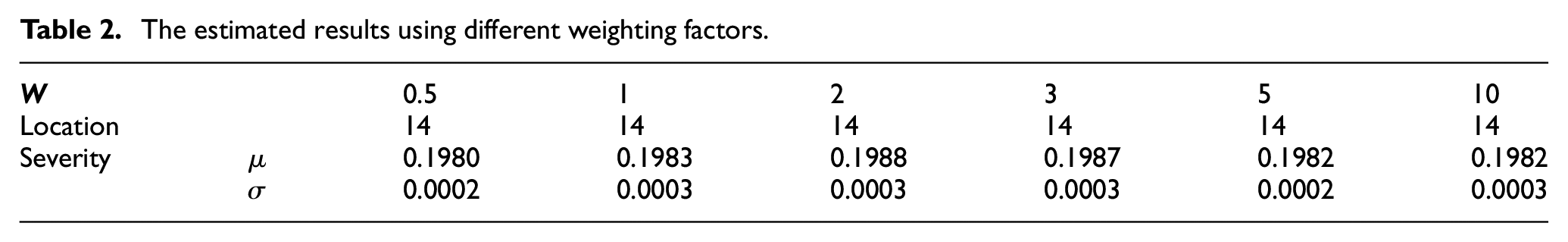

Table 2 shows the estimated results using the proposed objective function $F_{4}$ with different weighting factors. As listed in Table 2, one can see that the mean values of the damage severity are about 19.80% with various weighting factors, and the standard deviations are 0.0002 or 0.0003. With the increase of the factors, the mean value first increases and then decreases. It is concluded that a suitable weighted factor could identify the severity of damage with the most satisfying accuracy and precision. Thus, $W = 2$ or $W = 3$ is suggested for the damage identification using the proposed objective function.

Table 2.

The estimated results using different weighting factors.

$W$		0.5	1	2	3	5	10
Location		14	14	14	14	14	14
Severity	$μ$	0.1980	0.1983	0.1988	0.1987	0.1982	0.1982
Severity	$σ$	0.0002	0.0003	0.0003	0.0003	0.0002	0.0003

Optimization algorithm

The performance of the proposed BSO is also compared with other well-known optimization algorithms, namely BAS and particle swarm optimization (PSO). For comparison, the number of the particles and the maximum number of iterations are identical to those of the BSO, that is, 60 particles/beetles and 300 iterations.

The BSO can accurately locate the actual damage and quantify the severity of the damage, as shown in Figure 10. The PSO can identify the actual damage but also cause some false-positive errors. This is because the PSO has the shortcoming of the premature convergence. Unsatisfied results can be obtained for the BAS.

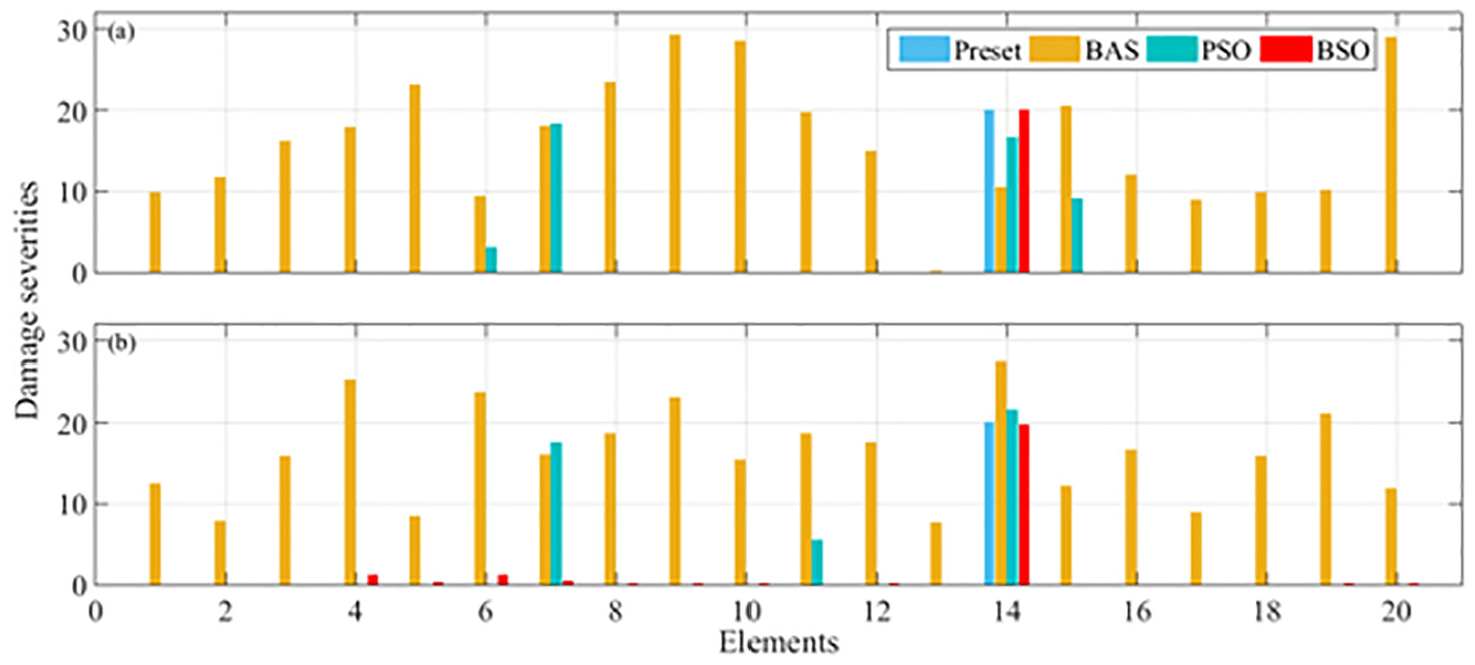

Figure 10.

Damage identification results among different optimization algorithms: (a) in the noise-free scenario and (b) in the noise-polluted scenario.

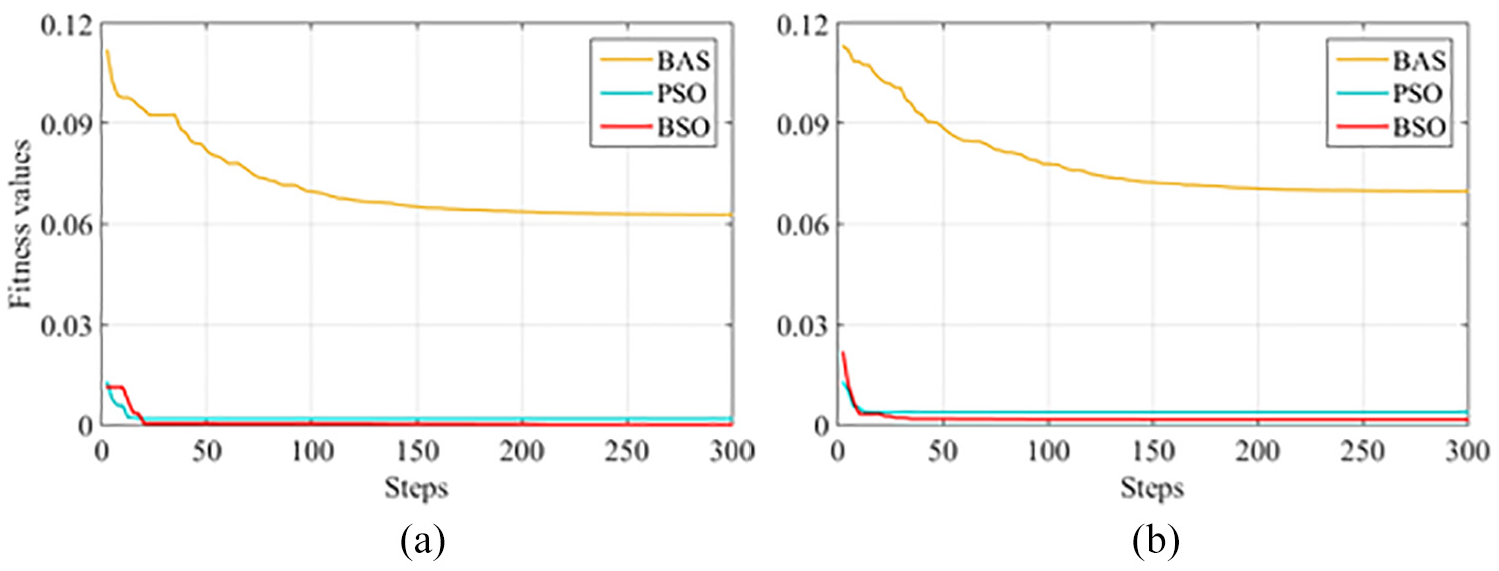

Figure 11 displays the convergence history of different algorithms. It is suggested that the convergence speed of the BSO is significantly faster than that of the BAS but slightly slower than the PSO. The BSO is more effective in solving the damage identification problem with high accuracy and fast convergence speed.

Figure 11.

Convergence histories among different optimization algorithms: (a) in the noise-free scenario and (b) in the noise-polluted scenario.

Uncertain parameters

Generally, the vibration measurements are accompanied by various types of uncertainties, one of which is the change in ambient conditions. The temperature is the most common condition that has been widely investigated in published literature. (Xia et al., 2006; Xu et al., 2019b; Wang et al., 2020). The effect of temperature is considered in this study. It was assumed that Young’s modulus depends linearly on the temperature according to the experimental investigation (Woon and Mitchell, 1996). Note that the still water level was assumed to be precisely located on the connection between the tower and supporting structure and was not changed during the simulation. Structural members 17 to 20 were exposed into air, and the others were beneath the water surface. The air temperatures were considered as a Gaussian process with a mean 10°C and standard deviation 8°C, while the water temperature with a mean 15°C and standard deviation 4°C.

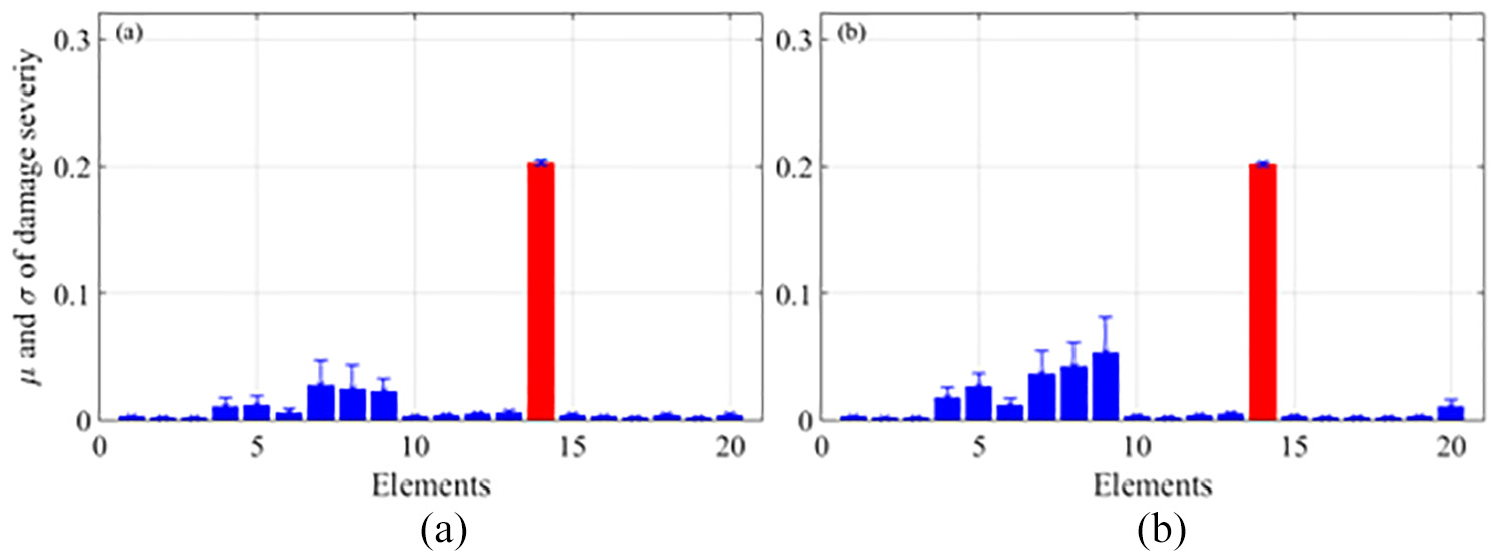

Figure 12 shows the identification results evaluated based on the mean value $μ$ and standard deviation $σ$ . It is also concluded that the BSO can accurately locate the actual damage and quantify the severity with the uncertain parameter effect. Note that the estimated severity of the intact member is 5.32%, which is larger than that without the uncertain parameter effect (see Figure 9(d)). The uncertain parameter would have a significant influence on the damage identification, espeacially for the minor-damage under complex environment.

Figure 12.

Damage identification results of damage case B under the temperature effect: (a) in the noise-free scenario and (b) in the noise-polluted scenario.

Experimental validation

Experiment setup

Modal tests on the wind turbine structure were conducted (Li et al., 2018). As shown in Figure 13(a), it was welded with Q235-steel cylindrical pipes, and the physical structure was fixed to the basin ground. The pile function was equivalent to three fixed piles with a 0.5 m depth. In the experimental setup, the excitation was simulated by beating the top plate of the wind turbine structure via a hammer to acquire enough vibration response and excite all the modes in the band of interest. For simulating the damage, two flange replacements were preset on the brace, as shown in Figure 13(c). The damage appeared by loosening those bolts in the flanges, and the damage recovered by re-tightening these bolts. Totally 11 three-component acceleration sensors (Model 4803A-0002) were installed at nodal points {4-10,14-17} to measure the translational motions in 33 DoFs. A data acquisition system (CRONOS PL 64-DCB8) was connected to these acceleration sensors to collect signals. A typical signal with a 200 Hz sampling rate was used, as showed in Figure 14. The modal parameters are identified by using the eigen-system realization algorithm (Wang and Liu, 2010).

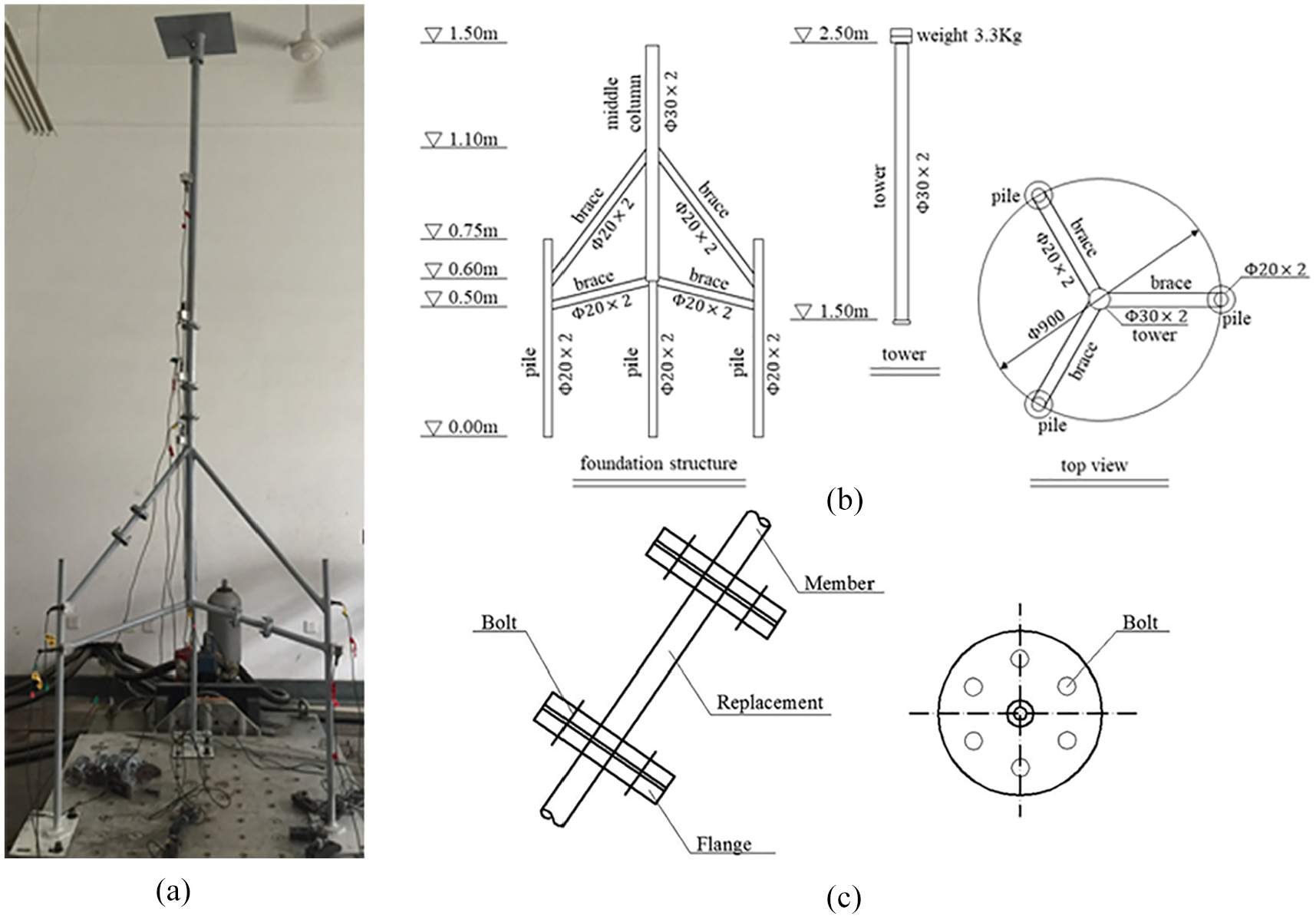

Figure 13.

(a) Physical structure of the wind turbine; (b) dimension and element type of the wind turbine and (c) physical structure of the flange replacement.

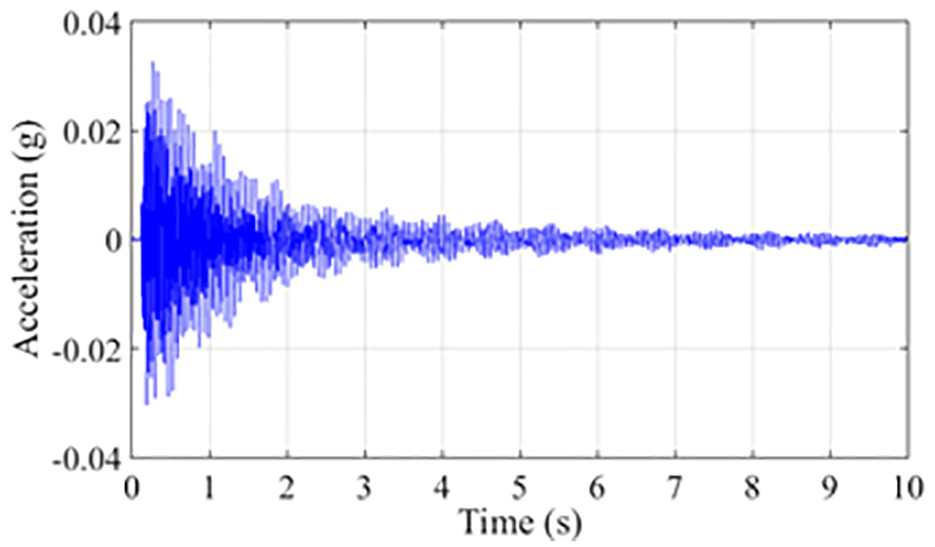

Figure 14.

Measured signal in the time domain.

Damage cases

The experimental tests of three damage cases were carried out:

Case I: the transversal brace 10 with half of the bolts loosen;

Case II: the diagonal brace 14 with half of the bolts loosen;

Case III: a combination of members 10 and 14 with half of the bolts loosen.

Three damage cases and natural frequencies are listed in Table 3.

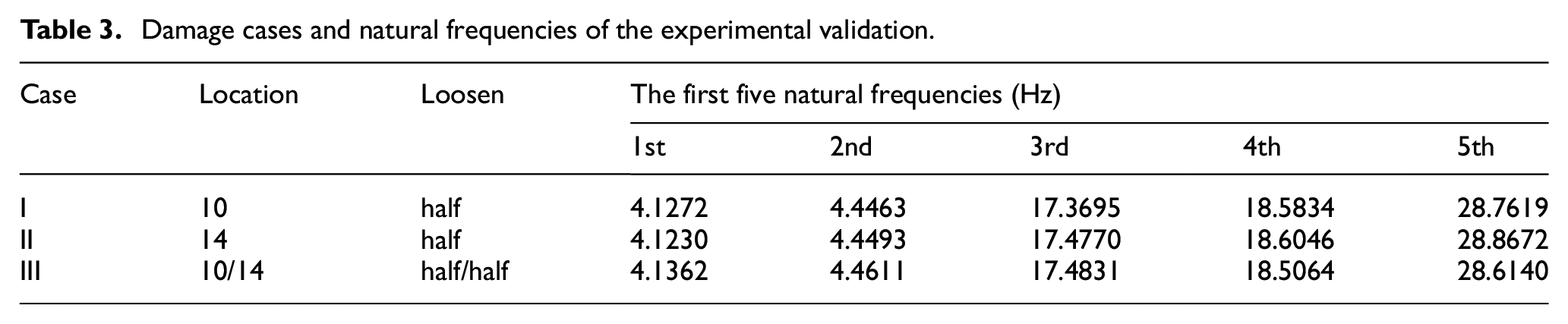

Table 3.

Damage cases and natural frequencies of the experimental validation.

Case	Location	Loosen	The first five natural frequencies (Hz)
Case	Location	Loosen	1st	2nd	3rd	4th	5th
I	10	half	4.1272	4.4463	17.3695	18.5834	28.7619
II	14	half	4.1230	4.4493	17.4770	18.6046	28.8672
III	10/14	half/half	4.1362	4.4611	17.4831	18.5064	28.6140

Finite element model

A finite element model (see Figure 3) was constructed based on the physical parameters. Three parameters, including the first five natural frequencies (FREs), a relative of frequencies (REFs), and MACs, are listed in Table 4. The last three FREs (23.7421 Hz, 24.8588 Hz, and 38.1706 Hz) are significantly higher than those of the measured structure. Thus, model updating was necessary to obtain a reliable updated model. Using the CMCM (Hu et al., 2007), one can get the updated model, and the corresponding parameters are also listed in Table 4. Good agreement between the updated and measured model is obtained, and the updated model is utilized for the following damage identification.

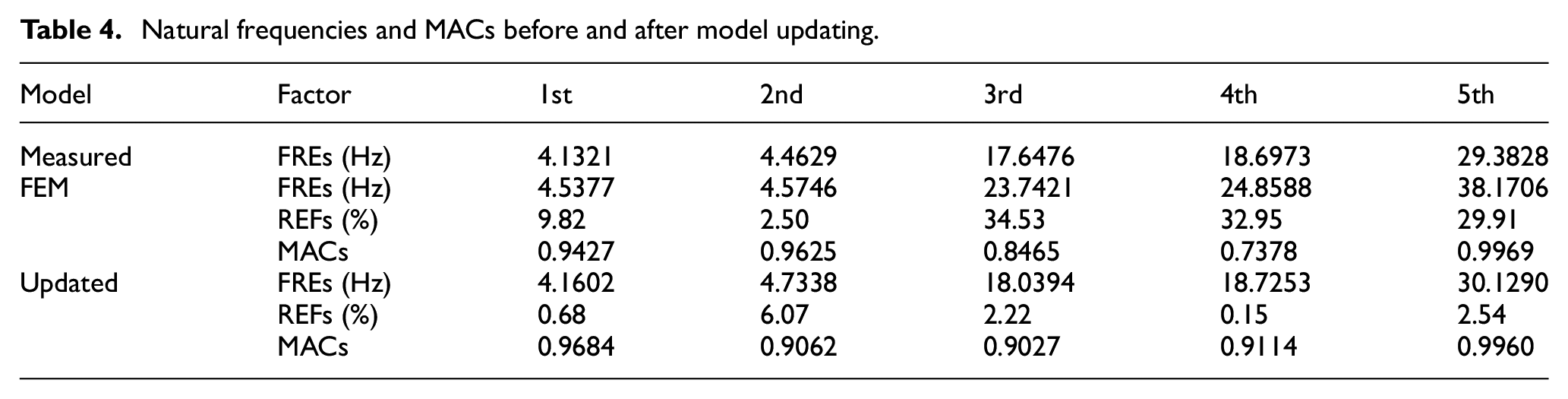

Table 4.

Natural frequencies and MACs before and after model updating.

Model	Factor	1st	2nd	3rd	4th	5th
Measured	FREs (Hz)	4.1321	4.4629	17.6476	18.6973	29.3828
FEM	FREs (Hz)	4.5377	4.5746	23.7421	24.8588	38.1706
	REFs (%)	9.82	2.50	34.53	32.95	29.91
	MACs	0.9427	0.9625	0.8465	0.7378	0.9969
Updated	FREs (Hz)	4.1602	4.7338	18.0394	18.7253	30.1290
	REFs (%)	0.68	6.07	2.22	0.15	2.54
	MACs	0.9684	0.9062	0.9027	0.9114	0.9960

Damage identification

Figure 15 shows the estimated results of the damage cases I-III. The damage location can not be accurately detected when using the BAS since almost all the elements have a considerable estimation value. In contrast, BSO can correctly locate the damage with ignorable errors. For example, the estimated severities of members 2 and 8 exceed zero but quite small (e.g., 3.21% and 2.44%), as shown in Figure 15(e). Note that these low values also have physical meaning, as the two members share the same nodal points with the damaged ones. Thus, the BSO has better performance on the structural damage localization.

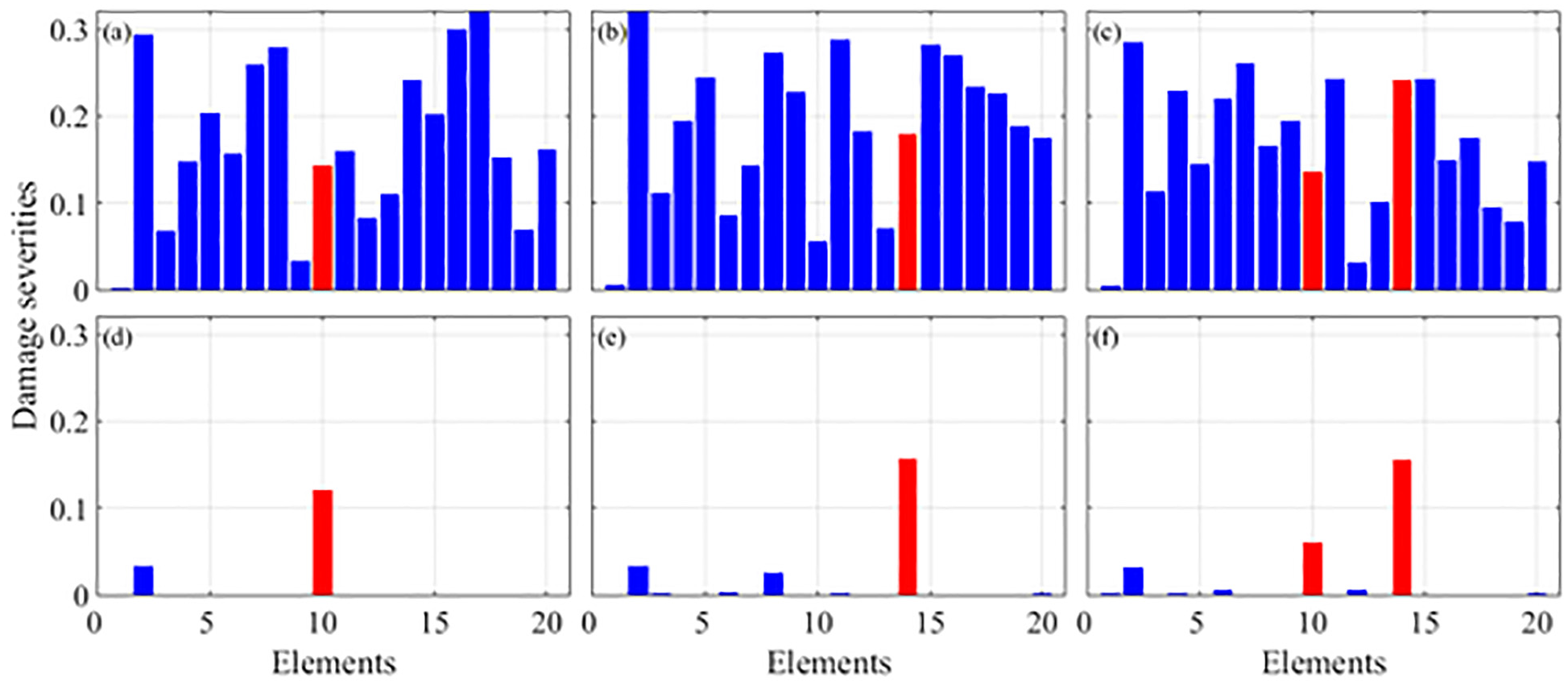

Figure 15.

Damage identification results: (a) case I-BAS; (b) case II-BAS; (c) case III-BAS; (d) case I-BSO; (e) case II-BSO and (f) case III-BSO.

Besides, one can see that the estimated severities of damage are 12.00%, 15.60%, and 6.01% and 15.42% for the three damage cases. Thus, the BSO could determine and assess the severity of the bolt-loosening damage. One question that whether the severities of transversal brace 10 and diagonal brace 14 with identical loosened bolts are equal to each other also should be discussed. As a more critical supporting member, the diagonal brace would suffer more breakage than the transversal brace with the same damage. However, the diagonal brace severities are nearly the same as in the cases II and III, which indicates the consistency of severity estimation from the BSO. Note that the severity of transversal brace is underestimated compared to that in the case I. It is because that the damaged diagonal brace could produce a considerable influence on the dynamic characteristics of the transversal brace.

Conclusions

By combining the BAS with the swarm intelligence strategy, the BSO algorithm was first developed to localize and quantify the damage of the wind turbine structure. A novel objective function was developed for structural damage identification with the combined use of natural frequencies and COMAC. The effectiveness and robustness were numerically investigated and experimentally verified using limited data. Comparative studies with other functions, the weight factor of the proposed objective function, and different optimization algorithms were also discussed. Some conclusions can be drawn:

The BSO can localize and quantify the damage of the wind turbine structure accurately, even in a noise and ambient temperature polluted environment. It also successfully located and quantified the bolt-loosening damage in the experimental test.

The BSO has higher accuracy and more robust reliability of optimization problems than the BAS and PSO algorithms.

The objective function combining natural frequencies with COMAC is better adapted for damage identification than the flexibility and the natural frequency-mode shape functions.

It is noteworthy that the estimated severities of damage by using the experimental data are not compared to the actual reduction of stiffness. Because the damage of the tested wind turbine structure was simulated with two half loosened bolts and the stiffness reductions are unknown. In practice, the loosened bolts would result in the nonlinear characters of the structure. Thus, further work is envisaged for the actual severity estimation of the nonlinear damage using the measured signals directly. Note that only the hammer excitation is considered in this study. More realistic excitations (such as wave, rotor, or wave and rotor (Soman, 2020)) should be investigated in future work.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Science Fund for Distinguished Young Scholars [grant numbers 51625902]; the National Key Research and Development Program of China [grant number 2019YFC0312404]; the Major Scientific and Technological Innovation Project of Shandong Province [grant number 2019JZZY010820]; the National Natural Science Foundation of China [grant number 51809134]; the Taishan Scholars Program of Shandong Province [grant number TS201511016]; and the Natural Science Foundation of Shandong Province [grant number ZR2017MEE007].

ORCID iDs

Yufeng Jiang

Shuqing Wang

Yingchao Li

References

Chou

Ghaboussi

(2001) Genetic algorithm in structural damage detection. Computers and Structures 79: 1335–1353.

Dessi

Camerlengo

(2015) Damage identification techniques via modal curvature analysis: overview and comparison. Mechanical Systems and Signal Processing 52: 181–205.

Dinh-Cong

Nguyen-Thoi

Vinyas

, et al. (2019) Two-stage structural damage assessment by combining modal kinetic energy change with symbiotic organisms search. International Journal of Structural Stability and Dynamics 19: 1950120.

Frigui

Faye

Martin

, et al. (2018) Global methodology for damage detection and localization in civil engineering structures. Engineering Structures 171: 686–695.

Hakim

SJS

Razak

(2013) Structural damage detection of steel bridge girder using artificial neural networks and finite element models. Steel and Composite Structures 14: 367–377.

SLJ

Wang

(2007) Cross model cross mode method for model updating. Mechanical Systems and Signal Processing 21: 1690–1703.

Jiang

(2017) BAS: beetle antennae search algorithm for optimization problems. arXiv preprint arXiv: 1710.10724.

Kang

(2012) Damage detection based on improved particle swarm optimization using vibration data. Applied Soft Computing 12: 2329–2335.

Koh

Dyke

(2007) Structural health monitoring for flexible bridge structures using correlation and sensitivity of modal data. Computers and Structures 85: 117–130.

10.

Fang

SLJ

(2007) Damage localization and severity estimate for three-dimensional frame structures. Journal of Sound and Vibration 301: 481–494.

11.

Zhang

Yang

(2018) Numerical and experimental investigation of modal-energy-based damage localization for offshore wind turbine structures. Advances in Structural Engineering 21: 1510–1525.

12.

Lieven

NAJ

Ewins

(1988) Spatial correlation of mode shapes: the coordinate modal assurance criterion. In: Proceedings of the 6th international modal analysis conference, Kissimmee, FL, 1 February, pp. 690–695. Society for Experimental Mechanics.

13.

Luczak

Telega

Zagato

, et al. (2019) On the damage detection of a laboratory scale model of a tripod supporting structure by vibration-based methods. Marine Structures 64: 146–160.

14.

Meruane

Heylen

(2011) An hybrid real genetic algorithm to detect structural damage using modal properties. Mechanical Systems and Signal Processing 25: 1559–1573.

15.

Messina

Williams

Contursi

(1998) Structural damage detection by a sensitivity and statistical-based method. Journal of Sound and Vibration 216: 791–808.

16.

Modak

Kundra

Nakra

(2002) Comparative study of model updating methods using simulated experimental data. Computers and Structures 80: 437–447.

17.

Oliveira

Magalhᾶes

Cunha

, et al. (2018) Vibration-based damage detection in a wind turbine using 1 year of data. Structural Control and Health Monitoring 25: e2238.

18.

Opoka

Soman

Mieloszyk

, et al. (2016) Damage detection and localization method based on a frequency spectrum change in a scaled tripod model with strain rosettes. Marine Structures 49: 163–179.

19.

Pandey

Biswas

(1994) Damage detection in structures using changes in flexibility. Journal of Sound and Vibration 169: 3–17.

20.

Pandey

Biswas

Samman

(1991) Damage detection from changes in curvature mode shapes. Journal of Sound and Vibration 145: 321–332.

21.

Perera

Fang

Huerta

(2009) Structural crack detection without updated baseline model by single and multi-objective optimization. Mechanical Systems and Signal Processing 23: 752–768.

22.

Rao

Srinivas

Murthy

BSN

(2004) Damage detection in vibrating bodies using genetic algorithms. Computers and Structures 82: 963–968.

23.

Seyedpoor

(2011) Structural damage detection using a multi-stage particle swarm optimization. Advances in Structural Engineering 14: 533–549.

24.

Seyedpoor

(2012) A two stage method for structural damage detection using a modal strain energy based index and particle swarm optimization. International Journal of Non-linear Mechanics 47: 1–8.

25.

Shabbir

Omenzetter

(2016) Model updating using genetic algorithms with sequential niche technique. Engineering Structures 120: 166–182.

26.

Shi

Law

Zhang

(1998) Structural damage localization from modal strain energy change. Journal of Engineering Mechanics 218: 825–844.

27.

Soman

(2020) Semi-automated methodology for damage assessment of a scaled wind turbine tripod using enhanced empirical mode decomposition and statistical analysis. International Journal of Fatigue 134: 105475.

28.

Soman

Mieloszyk

Ostachowicz

(2018) A two-step damage assessment method based on frequency spectrum change in a scaled wind turbine tripod with strain rosettes. Marine Structures 61: 419–433.

29.

Srinivas

Ramanjaneyulu

Jeyasehar

(2011) Multi-stage approach for structural damage identification using modal strain energy and evolutionary optimization techniques. Structural Health Monitoring 10: 219–230.

30.

Villalba

Laier

(2012) Localizing and quantifying damage by means of a multi-chromosome genetic algorithm. Advances in Engineering Software 50: 150–157.

31.

Wang

Chan

THT

Thambiratnam

, et al. (2012) Correlation-based damage detection for complicated truss bridges using multi-layer genetic algorithm. Advances in Structural Engineering 15: 693–706.

32.

Wang

Liu

(2010) New accuracy indicator to quantify the true and false modes for eigensystem realization algorithm. Structural Engineering and Mechanics 34: 625–634.

33.

Wang

, et al. (2020) Identifying the presence of structural damage: a statistical hypothesis testing approach combined with residual strain energy. Mechanical Systems and Signal Processing 140: 106655.

34.

Wang

Xia

, et al. (2019) A novel tikhonov regularization-based iterative method for structural damage identification of offshore platforms. Journal of Marine Science and Technology 24(2): 575–592.

35.

Woon

Mitchell

(1996) Variations in structural dynamic characteristics caused by changes in ambient temperature: I. Experimental. In: Proceedings of the 14th international modal analysis conference, Dearborn, MI, February, pp. 963–671.

36.

Xia

Hao

Zanardo

, et al. (2006) Long term vibration monitoring of an RC slab: temperature and humidity effect. Engineering Structures 28: 441–452.

37.

Wang

Jiang

(2019a) Iterative two-stage approach for identifying structural damage by combining the modal strain energy decomposition method with the multiobjective particle swarm optimization algorithm. Structural Control and Health Monitoring 26: e2301.

38.

Wang

(2019b) A residual strain energy based damage localisation method for offshore platforms under environmental variations. Ships and Offshore Structures 14: 747–754.

39.

Yan

Cheng

, et al. (2007) Development in vibration based structural damage detection. Mechanical Systems and Signal Processing 21: 2198–2211.

40.

Yang

Zhu

(2015) Robust design optimization of supporting structure of offshore wind turbine. Journal of Marine Science and Technology 20: 689–702.

41.

Yuen

MMF

(1985) A numerical study of the eigenparameters of a damaged cantilever. Journal of Sound and Vibration 103: 301–310.

42.

Zhan

Jiang

(2020) Three-dimensional images generated from diffuse ultrasound wave: detections of multiple cracks in concrete structures. Structural Health Monitoring 19(1): 12–25.

43.

Zhang

Wei

(1999) Model Updating and Damage Detection. Beijing: Science Press.
