Towards standardisation of evidence-based clinical care process specifications

Abstract

There is a strong push towards standardisation of treatment approaches, care processes and documentation of clinical practice. However, confusion persists regarding terminology and description of many clinical care process specifications which this research seeks to resolve by developing a taxonomic characterisation of clinical care process specifications. Literature on clinical care process specifications was analysed, creating the starting point for identifying common characteristics and how each is constructed and used in the clinical setting. A taxonomy for clinical care process specifications is presented. The De Bleser approach to limited clinical care process specifications characterisation was extended and each clinical care process specification is successfully characterised in terms of purpose, core elements and relationship to the other clinical care process specification types. A case study on the diagnosis and treatment of Type 2 Diabetes in the United Kingdom was used to evaluate the taxonomy and demonstrate how the characterisation framework applies. Standardising clinical care process specifications ensures that the format and content are consistent with expectations, can be read more quickly and high-quality information can be recorded about the patient. Standardisation also enables computer interpretability, which is important in integrating Learning Health Systems into the modern clinical environment. The approach presented allows terminologies for clinical care process specifications that were widely used interchangeably to be easily distinguished, thus, eliminating the existing confusion.

Keywords

caremaps clinical care process specifications clinical documentation clinical pathways evidence-based practice standardisation

Introduction

Care process specification, also described as care process modelling, arose from a need to evaluate the quality of healthcare delivery.^1,2 Documentation of care processes is said to result in healthcare quality improvement as it helps those involved in patient care to develop a shared understanding of care to be provided, and a reference point for identifying areas for future improvement.^3–6 The intention is to ensure that services being provided to patients deliver the desired health outcomes consistent with current clinical knowledge.² Deviation from those quality standards established in the care process specification (described as variation), is the driving force making adaptation of change in any given care process specification necessary.⁷

A wide range of terms exist for what we describe collectively here as clinical care process specification (CCPS) documents, each of whose remit could generally be described as the documentation of care processes for improving healthcare quality and outcomes. These terms include: clinical practice guidelines (CPG)⁸ which are sometimes also known as consensus-based guidelines (CBG)⁹ and local operating procedures (LOP),^10,11 clinical decision rules (CDR),¹² clinical pathways,¹³ care plans,¹⁴ treatment protocols (TP)¹⁵ and caremaps¹⁶ which in their contemporary form share some similarities with clinical algorithms dating from the early 1980s.¹⁷ A key issue limiting the effectiveness of these tools is lack of agreement on whether some of the titles described above represent distinct clinical documents,^18–20 or are synonymous.^18,21–23 Furthermore, standardisation of definitions, presentations and development processes for most types of clinical documentation have either been incomplete or only added to the confusion.^16,18,24,25

The British Medical Association and Royal College of Nursing developed a joint guidance stating that use of standardised forms is beneficial in reducing variation in healthcare practice.²⁶ The use of different versions of the same clinical care specification in different units within the same care facility, and between different care facilities, may not previously have been seen as such an important issue. However, in this increasingly digital healthcare environment we are seeing greater amounts of data being generated and captured daily, including from diagnostic devices used, or sensors worn, by the patient while in the community. Any differences in the documentation approach or data recording method results in fragmented data, complicates the integration of data about the same patient from different sources and inhibits health information exchange (HIE).^27,28

Even though standardisation of healthcare practice, procedure and tools can improve healthcare quality, outcomes and accountability, there remains significant resistance to its implementation.^16,29,30 This is not surprising, as the issue of distinguishing these clinical tools persists.¹⁶ We have sought to resolve the disagreement in the distinction between these terms using extensive literature review and input from a wide range of clinical experts to identify a taxonomy and characterisation, with specific attention focused on identifying differences and similarities for a range of common clinical document types. We address the problem of a lack of standardisation of terminology and formalisation of specifications of clinical care processes, and aims to investigate a taxonomy and a way to characterise CCPS documents to: (1) identify and formalise the definition, structure, content and in later works, development process for each and (2) contribute towards the standardisation of the terminologies used when referring to these documents. In addressing the problem and achieving the aim of this work, this article has the following three objectives:

Produce a taxonomy based on all of the terminologies that are used to represent CCPS documents, to aid in resolving the confusion observed in the literature regarding whether these terms are synonymous, similar or representation of distinct clinical specifications.

Characterise each CCPS, so that readers can identify that if a document has these properties, then it must be this type of CCPS. Specific questions associated with this objective are: What are they composed of? What are the common and unique elements? Can we develop a descriptive terminology, definition and demonstrate the structure of each based on our review of the literature, their individual domains and overall use case?

Evaluate the characterisation framework through application, for example, clinical artefacts from a hospital or clinical provider.

Background, context and problem

Why clinical documents were developed?

Many of the clinical documents, or tools, reviewed in this research were developed and refined during the 1980s and 1990s in response to a number of key needs, including the need to control costs and to improve the quality of patient care.^31–33 Using project management (PM) and total quality management (TQM) tools more common to industry, hospital managers sought to reengineer the processes of hospital care to reduce clinical resources and error rates, and improve patient outcomes.^20,33–35 However, clinical costs continued to increase, and error rates persisted with distressing frequency.³⁶

The move to standardisation

In the early 2000s, the focus of hospital management and clinical literature shifted towards the theme of standardisation. Researchers, politicians, those engaged in hospital governance and some clinicians recognised that standardisation should be considered to be of paramount importance.³⁷ They sought to achieve standardisation of such things as clinical decisions, diagnostic and therapeutic methods, evidence-based guidelines, care approaches, practice standards and clinical information.^32,36–39 Standardisation in the name of quality care and outcomes would become the single-minded national focus of healthcare service delivery for entire countries.^32,39 This type of standardisation has been promoted with such passion that multiple teams within the same country, or even within the same organisation, can be seen developing standardisation frameworks with some level of similarity and overlap.^40–42 Overall, this drive towards standardisation has had little effect on the definition, development and structure of clinical documentation. As we approached the end of the first full decade of standardisation, calls for standardised clinical care documents continued to increase,^{16,39,43–45} and an unmet need was also identified in calls to resolve poorly standardised taxonomy and nomenclatures being used in developing and cataloguing some clinical documentation.⁴⁶ When disagreement persists in the literature resulting directly from the lack of standardisation in the nomenclature, definition and structure of these documents, efforts to standardise healthcare services using them will continue to fall short of expectation.

Methodology and approach

A search was conducted using Scopia, Science Direct, PubMed, EBSCOhost, DOAJ and Elsevier for literature discussing the definition, development or use of a range of clinical document types including: caremaps (caremap, care map and CareMap), pathways (care, clinical and critical pathways), guidelines (CPG), plans (care plans), rules (CDR), and protocols (care protocol). In each case literature was sought where authors had attempted to: (1) define the document type, (2) detail the inputs used in development (evidence, literature, team composition, etc.), (3) identify the intended patients, conditions and audience, (4) detail the aim, goals and intended outcomes and (5) highlight potential benefits and barriers encountered during development and operationalisation of the document. The literature was used in partnership with several different but compatible research methodologies to meet the objectives shown in Table 1.

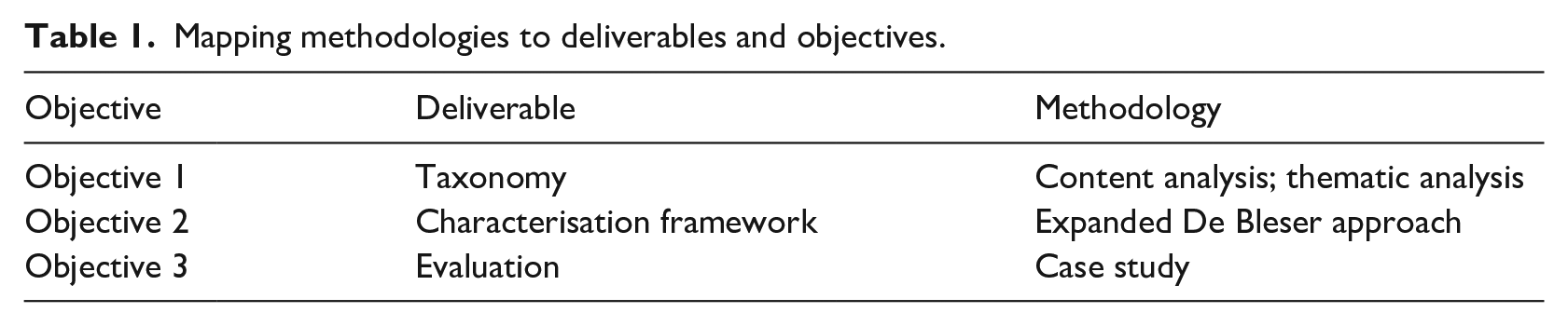

Table 1.

Mapping methodologies to deliverables and objectives.

Objective	Deliverable	Methodology
Objective 1	Taxonomy	Content analysis; thematic analysis
Objective 2	Characterisation framework	Expanded De Bleser approach
Objective 3	Evaluation	Case study

Content and thematic analyses

Concept analysis (CA) and thematic analysis (TA) are separate but interrelated qualitative approaches for descriptive data analysis with low levels of interpretation.⁴⁷ CA is an accepted systematic coding and categorisation method for investigating texts and resolving quantitative description of the features.^47,48 CA first establishes categories and then records the instances in which that category is evident or can be inferred from within the collected texts being analysed.⁴⁸ TA is a more qualitative method used to identify, analyse and report patterns, or themes, that emerge as being important within the material being analysed.^47,48 TA provides the systematic element characteristic of CA, and can also combine analysis of frequency with analysis of in context meaning, therefore providing a more truly qualitative analysis.⁴⁸ CA and TA are established methodologies regularly used in clinical, nursing and other healthcare research contexts.^47–50

The literature review resulted in spreadsheets with the details and a brief description of each article. CA was then used to data mine the literature to inductively develop a list of concepts that were used either in discussion of the particular CCPS document, or which were a structural component of examples provided or included by the authors. These concepts were used to populate the spreadsheets in the format of formal CA charts.^51–53 TA extended these with context, collecting together examples of where different authors represented the same general idea in a variety of ways or with differing language, and thus making each concept of interest identified in the literature more generic by describing it based on its underlying theme.

To identify the scope of author positions on whether CCPS documents were the same or distinct, we collected data on how authors described and discussed them in this context as shown in Appendix 1. Where authors described a document type as also known by, or was the same as another, these were indicated with an unfilled square. Where they provided narrative that differentiated or distinguished different types, this is indicated with a filled circle. Separate rows are used to record subsequent instances identified in the same text being reviewed. In our primary spreadsheet we also collected any definitions authors provided for each document type, as well as descriptions of input materials, goals, uses and whether they provided an exemplar document for the reader.

The expanded De Bleser approach

As part of our methodology, we viewed CCPS documents as consisting of elements that can be represented along continuums describing either their (1) degree of prescriptiveness or (2) input to healthcare quality improvement. De Bleser et al.⁵⁴ identified both the continuum and their elements which they applied in development of a characterisation framework for clinical pathways only. The continuums and their elements were presented on two axes: an y-axis with elements describing levels from current practice to healthcare quality improvement, and the x-axis ranking elements from descriptive to prescriptive.

Drawing on De Bleser et al’s framework, we extended De Bleser’s coordinate system approach for use in describing CCPS documents’ evidential and practical application, that is, the addition of an hierarchy of CCPS based on the strength of systematically developed evidence contained within the document along a virtual z-axis describing how applicable the document is to the conduct of patient care, as illustrated in Figure 1.

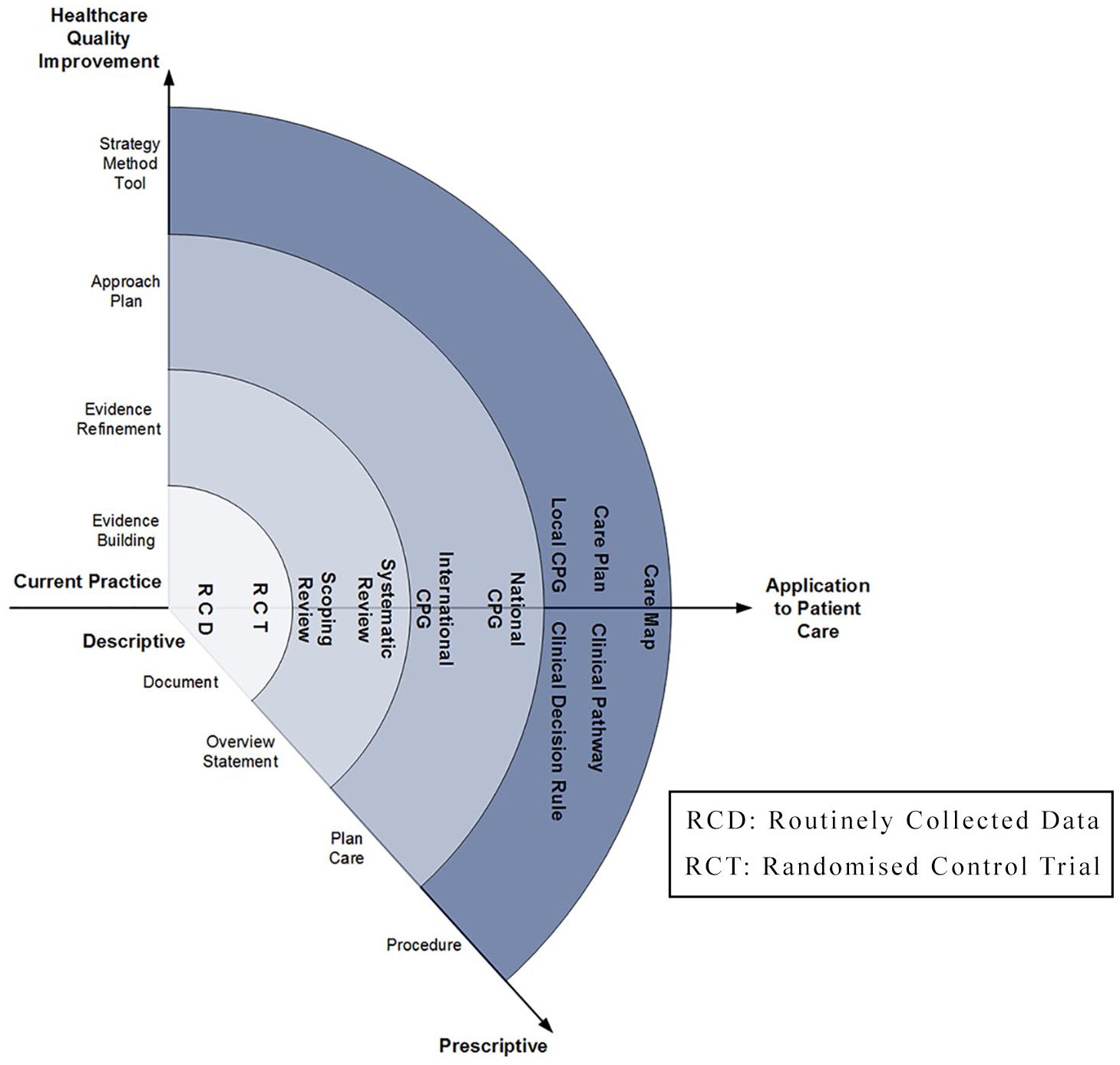

Figure 1.

The expanded De Bleser approach.

Evaluative case study

The taxonomy and CCPS document characteristics through a case study using specifications for diabetes care. The case study approach provides a real-life perspective on observed interactions and is regularly used in information sciences.^55–58 Case studies are considered as developed and tested as any other scientific method and are a valid method where more rigid approaches to experimental research cannot or do not apply.^59–61

Results

The taxonomy for evidence-based clinical care processes

In developing the taxonomy shown in Figure 2, we considered all instances identified in the table in Appendix 1, along with authors’ definitions and descriptions of each document type and input from our clinical experts. The taxonomy identifies the categories of clinical documents we determined from our review as being unique or distinct, as well as a hierarchy for how authors described each as being derived from, dependant on, or acting as a component of another. A solid connecting line, or arc, represents where a strong and direct, almost, parent–child relationship was resolved from the literature. A dashed connecting arc represents those instances where an indirect relationship was inferred from authors’ narratives. Each document type and their described interrelationships are discussed in the following section.

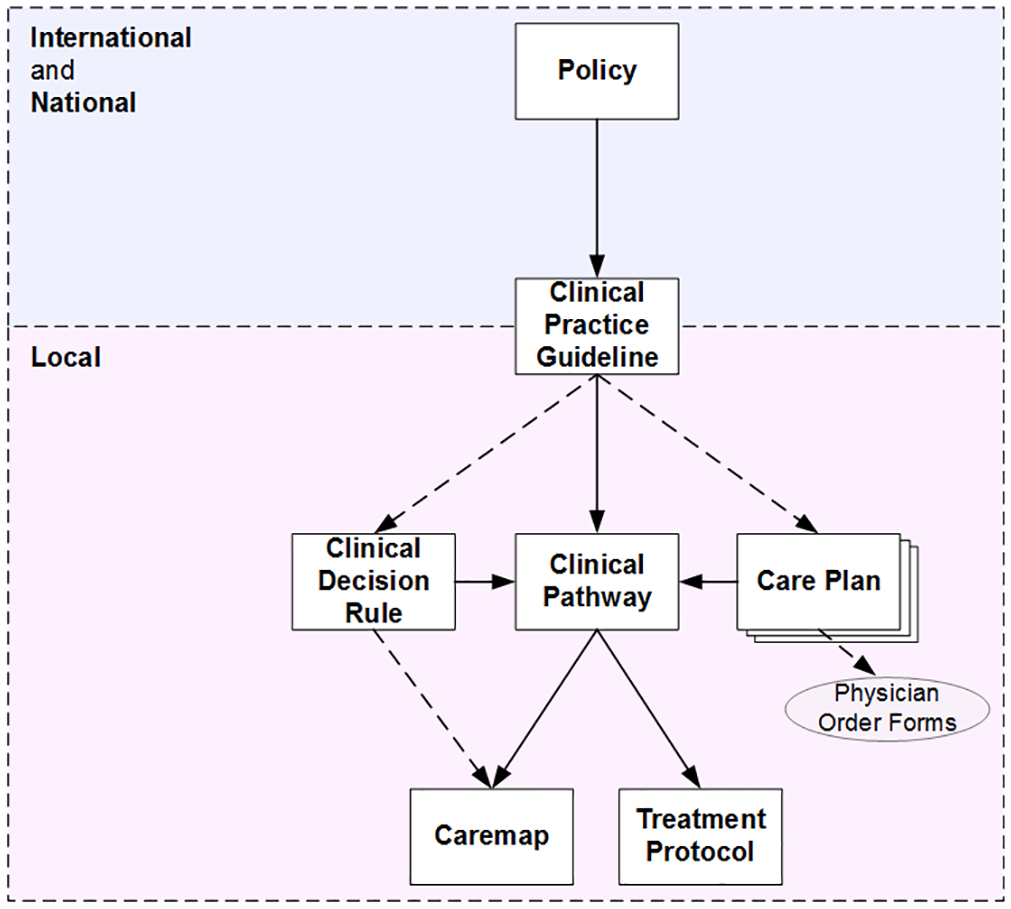

Figure 2.

Taxonomy and hierarchy for clinical care process specification documents.

There is a notable relationship between this taxonomy and the expanded De Bleser model in Figure 1, especially in the hierarchy of systematically developed evidence described on the z-axis. In both cases, the clinical care specifications naturally fall in order of clinical, or operational, usability.

Policy

Policy was the most fundamental and formative document identified. Because policymaking can be driven or impeded by highly charged and competitive political ideologies and value systems, the resulting policies are not always based on clear and convincing scientific evidence.^62,63 International and national organisations can also give rise to health policy.^64–66 Policy can be applied at both a national and local level, with local policies often being representative of aspects of national or regional policy made relevant to specific local populations, whether based on ethnicity, age or disease criteria.^66,67 Policy can directly determine a population’s health and health outcomes, especially where it is used to guide regulation of the distribution of specific types of health service in terms of human and material resources, how those healthcare services are funded, and the accessibility of those services for patients.^66,68

CPG

It is generally accepted that CPG are systematically developed statements based on critical assessment of scientific evidence, experience and consensus and are intended to aid in decision making about appropriate care for patients in specific clinical circumstances.^62,69–71 CPGs seek to provide clinicians with a vital shortcut to identifying the underlying science that informs particular clinical decisions.⁷⁰ Our review identified a hierarchy for CPG: (1) global, (2) national, (3) regional and (4) local. We also established other possible perspectives such as that of levels of customisation in which one guideline may exist at each level as a customised instance of a version at another level. Furthermore, in such a view, a CPG may originate at any level such that customisation may occur as a generalisation or a specialisation process to suit a population or an individual, respectively. Thus, a health facility–based CPG may become regionalised or nationalised or globalised while global CPG may be nationalised or regionalised or localised at a healthcare facility through customisation, that is, generalisation or specialisation, respectively. A key point to note here is that as you move from global, through national and regional, to local, the patient population for which the CPG applies reduces and becomes less heterogeneous while the guideline becomes more specific as a result of customisation.

Global guidelines are international guidelines published by organisations such as the World Health Organization (WHO)^72,73 and World Federation of Haemophilia (WFH)⁷⁴ and multinational guidelines, sometimes described as CBG or consensus statements from groups like the European Society of Cardiologists (ESC).⁷⁵ International and multinational guidelines tend towards general or globally applicable recommendations for the diagnosis or management of specific conditions or clinical presentations.

In combination with local synthesis of evidence, global guidelines are regularly used in the production of national guidelines, which are endorsed for and intended to inform consistent clinical care across entire countries or health sectors.^76–78 Given that there are a limited number of countries with sufficient infrastructure and financial resources to support committees and organisations that develop national guidelines, it is not unusual to observe the national guidelines of countries like the United Kingdom or Canada being used to support production of local guidelines in small countries like New Zealand.

Regional guidelines draw on health policy and national guidelines in the production of a more operationalised form of CPG dealing with demographic population needs in specific states, counties or municipalities.⁷⁹

Local guidelines is the term we are using to represent those CPG (recently termed LOP) in some Australian and American hospitals) that are developed and used directly in hospitals, general practice clinics and other patient-facing locations. They provide operationalised and instantiated evidence and clinical knowledge drawn from regional, national and global guidelines and are targeted to support and improve clinical decision-making and care delivered directly at the patient’s bedside;⁷⁹ they may also consider the cost of treatment in relation to the local budget for health implementation. Patients with the same condition sometimes receive different treatment at different hospitals, as different healthcare providers may disagree on what the best evidence may be in a given situation.⁸⁰ For this reason facility, or local, guidelines may also reflect particular elements of organisational culture, and it is not unknown for hospitals to amend guideline diagnostic or treatment threshold values either (1) to make the guideline more approachable to clinicians and increase adherence, (2) as a response to elements identified from previous clinical errors, (3) where based on past experience, senior consultants feel it may aid in the avoidance of future poor patient outcomes and potential litigation^79–82 or (4) for local health economic considerations.

Clinical pathway

Although CPGs and clinical pathways both provide a defined approach for a specific medical condition or treatment process, clinical pathways were a separate care process specification applied to healthcare practice in the 1980s with an additional focus on (1) the use of benchmarked outcomes, (2) cost containment through efficient resource use and (3) management of patient care within a structured hospitalisation period and reduced length-of-stay (LOS).^83,69

Our work revealed that clinical pathways were the term most often described as being the same or synonymous with others studied in this review, predominantly with caremaps. They were also the term most often distinguished as different from others, especially CPGs. We also identified an issue of confusion within the literature as to whether clinical pathways, critical pathways and care pathways represented the same^22,54,84 or distinct^62,85 specifications. As part of the work on this article, an attempt at analysis of the various definitions was made. Given significant variance in defining elements used across the literature pool, the resulting definition was not probative and had potential to increase the confusion. Although some works provided simple and direct statements on the format, describing their particular pathway as a paper-based document or blueprint,^34,86,87 others gave more comprehensive descriptions discussing systematic use of clinical evidence, the types of clinical staff and motivations driving the development and use of pathways.^35,54,88

There was very limited evidence from which to infer the existence of minor operational differences between the three. In our analysis, the term critical pathways was observed more often in situations where the care is short, intervention- or event-based and relatively urgent, that is, in emergency medicine, surgical or intensive care domains.⁸⁴ The term care pathways was observed more often in the nursing domain to describe the day-to-day routine of care provided for patients. And clinical pathways appeared to be more broadly applicable, in that they often sought to address a wider range of patient issues than just this particular illness or clinical presentation and were observed across a range of care domains including: nursing, oncology, community-based care and mental health. Despite potential for these minor operational distinctions we believe it could be disingenuous to identify pathways as three separate objects. De Bleser et al.⁵⁴ also investigated the nomenclature issue for pathways, determining that while critical pathways was the internationally accepted term, more than half of all authors in their study had shown a preference for clinical pathway. For all these reasons our taxonomy treats them as a single term, clinical pathway.

Care plan

Care plans are an organised multidisciplinary day-by-day lists of care activities with intermediate outcome-based goals that healthcare providers will undertake to support identified patient problems.^84,89 A clinical unit may have a care plan specified for patients with particular medical problem, for example, caesarean section,⁸⁴ community-acquired pneumonia⁹⁰ or stroke.⁸⁶ However, as care plans are specific to the patient they can only become prescriptive once the nurse or clinician has assessed that patient’s particular deficits and needs.⁸⁸ An implied relationship exists whereby the care plan may draw knowledge of the condition from the CPG, as indicated in Figure 1 by the dashed line. However, in practice care plans include no supporting literature or knowledge gained from retrospective chart or patient record reviews that would justify the practices used as part of the plan.⁹⁰ Care plans are a constituent component of the clinical pathway,^84,89,91 and due to their prescriptive and scheduled nature, are credited as the component used to achieve reduced LOS.⁹⁰

Clinical decision rule

CDR help clinicians in their decision-making role by providing a link between published and clinical evidence, best practice and the diagnosis or clinical outcome under consideration.^62,92,93 CDRs draw on evidence from guidelines to provide operationalised and efficient approaches to assessing probabilities for diagnostic, treatment and prognostic decisions integrated into the clinical pathway.^69,92–94 The rules help to establish pretest probability, provide simple screening tests for common problems and estimate risk.^62,95

Caremap

Caremaps have undergone a number of transformations since their inception in the mid-1980s. Traditional caremaps of the 1980s and early 1990s were heavily text-based holistic documents that, similar to clinical pathways, were concerned with restoring the entire patient to normality.¹⁶ Transitional caremaps of the late 1990s and early 2000s were text with some early diagrammatic examples of the flow of care but narrowed their focus to the patient’s primary condition and entire hospital stay event while focusing on cost containment and resource consumption.¹⁶ And the contemporary caremaps of today present as informative flow diagrams that present the sequence of activities and potential outcome paths for a single diagnostic, screening and/or intervention event.¹⁶ Versions of clinical algorithm that are more alike contemporary caremap diagrams⁹⁶ are often observed appended to CPGs and clinical pathways, providing clinicians with a simple diagrammatic flow of the clinical decision paths evidenced within the main document.

Treatment protocol

Known variously as clinical, care or TP, these are standard descriptors of clinical care activities developed on the basis of guideline-based evidence, and usually found incorporated into clinical pathways and described against a timeline.^34,97 Examples of TPs for severe acute respiratory syndrome,⁹⁸ post-resuscitation care,⁹⁹ lung donor treatment¹⁰⁰ and rhabdomyolysis-based renal failure⁹⁷ show the structure of these to treatment steps arranged in sequence for a particular clinical presentation. Some also include outcome assessment factors for evaluating the success of protocol application or for consideration of whether to move the patient onto more aggressive treatment options.^98,99 Given the structure and presentation of TPs, many have potential for description using the graphical formalisation of the caremap.

Characterisation of evidence-based clinical care processes

Table 2 provides a characterisation for CCPS based on their presentation, structure, the population they effect and their clinical intention. It also positions each document with reference to De Bleser et al.’s continuums or axes: the x-axis (descriptive/prescriptive) and the y-axis (healthcare quality improvement). And finally, it aligns the six clinical CCPS on a continuum in order of operational usability.

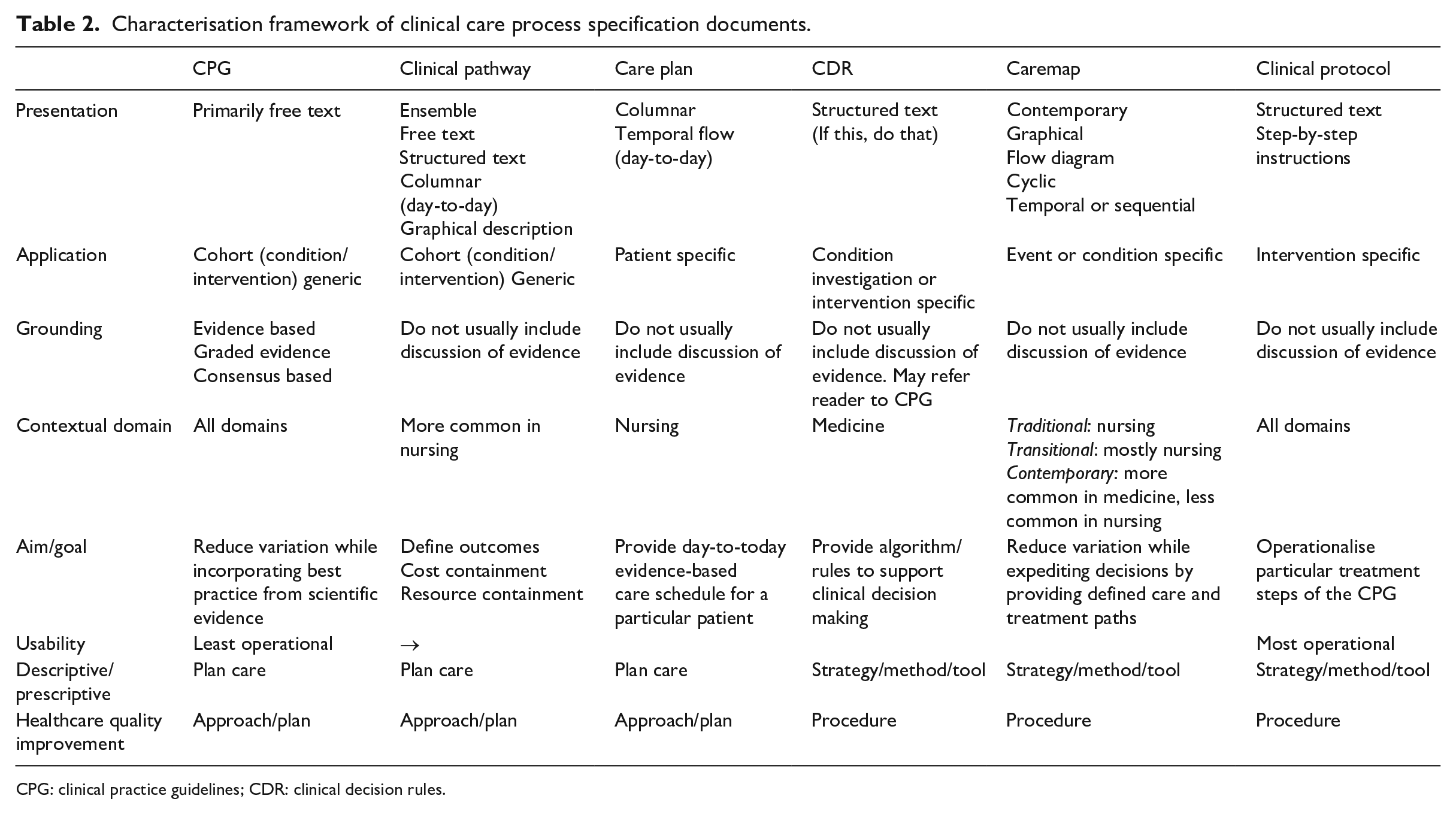

Table 2.

Characterisation framework of clinical care process specification documents.

	CPG	Clinical pathway	Care plan	CDR	Caremap	Clinical protocol
Presentation	Primarily free text	Ensemble Free text Structured text Columnar (day-to-day) Graphical description	Columnar Temporal flow (day-to-day)	Structured text (If this, do that)	Contemporary Graphical Flow diagram Cyclic Temporal or sequential	Structured text Step-by-step instructions
Application	Cohort (condition/intervention) generic	Cohort (condition/intervention) Generic	Patient specific	Condition investigation or intervention specific	Event or condition specific	Intervention specific
Grounding	Evidence based Graded evidence Consensus based	Do not usually include discussion of evidence	Do not usually include discussion of evidence	Do not usually include discussion of evidence. May refer reader to CPG	Do not usually include discussion of evidence	Do not usually include discussion of evidence
Contextual domain	All domains	More common in nursing	Nursing	Medicine	Traditional: nursing Transitional: mostly nursing Contemporary: more common in medicine, less common in nursing	All domains
Aim/goal	Reduce variation while incorporating best practice from scientific evidence	Define outcomes Cost containment Resource containment	Provide day-to-today evidence-based care schedule for a particular patient	Provide algorithm/rules to support clinical decision making	Reduce variation while expediting decisions by providing defined care and treatment paths	Operationalise particular treatment steps of the CPG
Usability	Least operational	→				Most operational
Descriptive/prescriptive	Plan care	Plan care	Plan care	Strategy/method/tool	Strategy/method/tool	Strategy/method/tool
Healthcare quality improvement	Approach/plan	Approach/plan	Approach/plan	Procedure	Procedure	Procedure

CPG: clinical practice guidelines; CDR: clinical decision rules.

This characterisation is robust in the sense that in addition to De Blesser’s elements it also incorporates aspects that allow CCPS to be analysed more comprehensively in terms of their content, structure and target patient cohort. This table would be useful in tasks seeking to identify or design particular CCPS documentation and ensure that it covers all of the aspects incorporated in Table 2.

Case study: Type 2 Diabetes and diabetes in pregnancy CCPSs in England

This section applies the taxonomy and characterisation to clinical documentation from England on the topic of Type 2 Diabetes (T2D) and diabetes in pregnancy. In each of the following, any reference to a section identifies a section so labelled within the particular clinical care specification document being described. Each of the specifications cited includes a URL in the reference so that the reader may access the document.

Policy

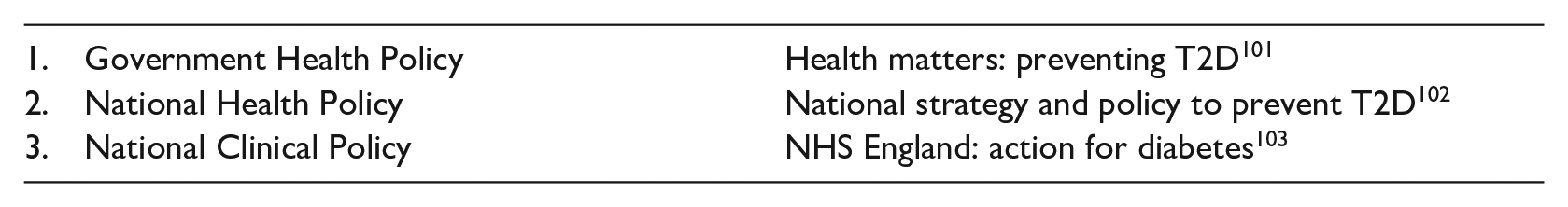

We identified three related documents that describe policy regarding diabetes, and more specifically T2D, namely:

1. Government Health Policy	Health matters: preventing T2D¹⁰¹
2. National Health Policy	National strategy and policy to prevent T2D¹⁰²
3. National Clinical Policy	NHS England: action for diabetes¹⁰³

Government policies generally open by expounding on the scope and scale of a public health issue. This information, which centres around the community and resource impact of the medical condition tends to be followed by messages to the lay public that are over-simplified such that they lose the proper meaning and efficacy they are intended to convey. In effect, they miss their goal and become more like promotional material intended for the media, as seen in the example of Figure 3, with claims based on a very small subset of cherry-picked and highly motivated volunteers.

Figure 3.

Clinical practice guidelines for Type 2 Diabetes.¹⁰¹

One component of this same policy which has become enshrined in UK taxation legislation, is the laudable challenge to remove 20 per cent of the caloric content comprised by sugar from all products produced across the food and drinks industry. While put in holistic context, this caloric-reduction policy carries over in Section 4 of the identified National Health Policy. However, this policy approach has resulted in manufacturers finding it necessary to replace sugar primarily with artificial sweeteners like aspartame and saccharin. Both these non-nutritive sweeteners have received sufficient research to suggest that the health dangers of frequent or daily use may also be harmful.^104–106 This example demonstrates our claims regarding policy that it is: (1) politically motivated, (2) often not based on established scientific evidence and (3) it tends towards having been constructed by politicians from many small sound bites seeking air time to expound the virtues of their policy and elicit support from the ordinary citizen.

CPG

A selection of CPG relevant to T2D and diabetes in pregnancy are shown in Table 3.

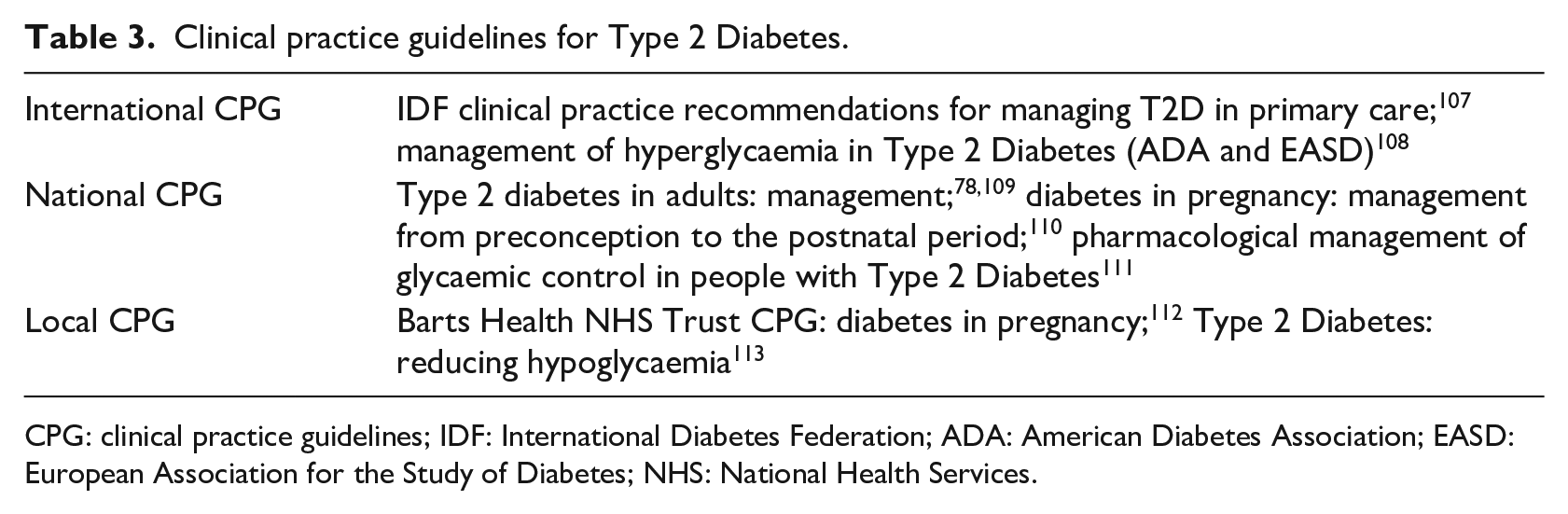

Table 3.

Clinical practice guidelines for Type 2 Diabetes.

International CPG	IDF clinical practice recommendations for managing T2D in primary care;¹⁰⁷ management of hyperglycaemia in Type 2 Diabetes (ADA and EASD)¹⁰⁸
National CPG	Type 2 diabetes in adults: management;^78,109 diabetes in pregnancy: management from preconception to the postnatal period;¹¹⁰ pharmacological management of glycaemic control in people with Type 2 Diabetes¹¹¹
Local CPG	Barts Health NHS Trust CPG: diabetes in pregnancy;¹¹² Type 2 Diabetes: reducing hypoglycaemia¹¹³

CPG: clinical practice guidelines; IDF: International Diabetes Federation; ADA: American Diabetes Association; EASD: European Association for the Study of Diabetes; NHS: National Health Services.

Similar to the government policy which claimed it had, or would, deliver weight loss, the international guideline at Section 1.2 recommends weight loss as the key tool for preventing T2D.

The international guideline at Section 1.3 also provides for a regimen of testing and thresholds to be used in diagnosing the diabetic patient. In this case the International Diabetes Federation (IDF) guideline follows a diagnostic standard from another international guideline, that of the WHO. Similar diagnostic testing and threshold recommendations carry through in the national CPG at Section 1.6 and local CPG at Section 4.3.

At each level, the recommendations in CPGs become more applicable to patient care. The international and national guidelines present the perfect scenario or perfect model for treatment, while local guidelines recognise that there are non-compliant patients and not everything will go according to plan.

Clinical decision rule

In many cases, CDR can be identified and isolated from within the content of local CPGs. For example, from within the Barts Health National Health Services (NHS) Trust local CPG described above, comes a diagnostic threshold rule for glycaemic control in pregnancy for diabetic mothers who were treated only with diet control:

10.1 Monitor blood glucose 4 hourly.

If blood glucose >7.0 mmol/L on 2 consecutive occasions, start IV insulin/glucose infusion.

If the woman requires a Caesarean section and the blood glucose >7.0 mmol/L, start IV insulin/glucose regime.

Clinical pathway

Two English diabetes clinical pathways are:

Clinical management: optimal pathway¹¹⁴

New patient clinic pathway¹¹⁵

Each presents an approach to screening and patient assessment, care planning, patient support and education that includes for lifestyle changes in diet, weight, exercise and insulin/glucose control. Each also makes reference to, and recommendations regarding, potential complications that may arise in future for these patients and advises the signs and symptoms that clinicians and patients should be mindful of. These pathways present as a generic blueprint for care of patients with diabetes.

Care plan

Two relevant care plans are:

My personal diabetes health care plan and record¹¹⁵

My personal diabetes handheld record and care plan¹¹⁷

Each contains information and contact details for services the patient may require. More importantly however, each provides space and tables for recording the day-to-day condition, treatment and care recommendations specific to that patient.

Caremaps

Caremaps provide a visual roadmap of care for a specific condition or treatment process. Caremaps can aid in treatment selection, understanding of disease progression, and can also provide the base knowledge that together with clinical expertise can be used in health research and development of Learning Health System (LHS). The PamBayesian project¹¹⁸ has developed the following caremaps for diabetes in pregnancy as part of a project to develop clinical decision support LHS for use by clinicians and patients:

Midwifery Booking Visit GDM Booking Visit

Diagnostic Caremap GDM Diagnostic Decisions 2.0

Management Caremap GDM Management Decisions 2.0

Standardisation before computerisation

CCPS computerisation

Various types of CCPS such as caremaps, CPG and clinical protocols are increasingly becoming the subject of computerization.¹¹⁹ For computerisation to be easily achievable, CCPS need to be formalised to make them computer-interpretable.¹²⁰ Formalisation of CCPS refers to specification using precise and unambiguous terms and structures, usually using computational or mathematical formalisms, making the resulting CCPS as computer interpretable.

Standardisation as a prerequisite to computerization

CCPS computerisation is enabled by CCPS formalisation which in turn is enabled by CCPS standardisation. Consequently, computerising CCPS that have not first been standardised creates more problems than it solves, or as one group of authors put it, that a mess computerised is a computerised mess.¹²¹ While this research has referred to the need to standardise the structure and presentation of CCPS, there is also a need to standardise the content captured within the CCPS by standardising the underlying language. This is crucial to the challenge of formalisation to attain computer interpretability and hence computerisation.

Role of data and information standardisation in CCPS computerization

Data standardisation is needed to resolve the Data Triple-I issues of integrity, integration and interoperability identified in a 2019 literature review as significant barriers to adoption of health information technology.¹²² The use of standardised clinical terminology and approaches to eliciting and reporting routine clinical data is necessary to improving clinical practice and communication and enabling accurate computerisation of health record data.¹²³ In our experience there are many existing healthcare provider projects in the United Kingdom, Australia and New Zealand that seek to standardise information that has already been captured, or to standardise coding of data as it is captured. The issue observed is that they do this more often without considering whether the underlying clinical document or form was standardised first. Where standards are considered there tends to be disagreement as to which underlying methodology, terminology, data standard or data exchange protocol should prevail: SNOMED, ICD-10, METeOR, FHIR or others.

The benefits of standardisation in the context of CCPS computerization

Standardisation of clinical documents has been observed to improve data collection, data quality, and to enable automated coding and analysis.^124,125 Standardisation of CCPS using approaches that include: (1) defined data definitions and (2) attention to built-in computer interpretability¹²⁶ supports data standardisation, mitigating the Data Triple-I issues and increasing the chances for successful creation and adoption of LHS.

Discussion and related works

The confusion arising out of the absence of standardised definitions and nomenclature for clinical documents has been known since at least 2006.^{18,54,127,128} As a result of this lack of standard terminology and taxonomy, successive and discordant attempts at defining and describing a structure and development process for some have only served to intensify the issue.^54,127,128 It is further intensified when we observe examples of authors who identified multiple document types as synonymous in name or structure,^18,34,84,128 only to differentiate them in the same research by describing one as a single or multi-component item of the other,^34,84 or a translation of the other represented in different structural form.¹²⁸ In earlier research,¹⁶ our team identified examples where authors described a clinical document in-text using one label listed in the ‘Introduction’ of this article, only to find that the included clinical document was titled or described itself using another.^129,130 Such instances exemplify this issue and its potential to create lasting confusion.

Authors have sought to define or present approaches to develop different CCPS during the last two decades, yet significant variance in the complexity level, design approach, content and representational structures for those discussed here has persisted.^16,24 This lack of standard and formal care process specifications, differences in communication and information transfer between clinicians providing caring for the same patient can affect the quality of care and introduce additional risk of harm for as much as 25 per cent of all patients.^131,132 Error reporting documentation also tends towards not being standardised. However, even where some effort has been made to standardise, clinical decision and treatment errors remain underreported. Although clinicians and clinical researchers are encouraged to be honest and transparent in such situations, we can never be certain whether reported error figures quoted are representative of the entire scope of the problem.^133–136

Standardised approaches, especially in clinical documentation, ensure that each time a healthcare provider approaches that type of document, the format and content are consistent with expectation.¹⁶ Standardised documentation ensures sufficient higher quality information is recorded and reported, enabling documents to be read quicker and content within to be better retained, all with the effect of improving overall patient safety and outcomes.^{16,131,137,138}

Summary and conclusion

Since the early 2000s there has been a significant shift towards standardisation of healthcare and healthcare practice. Efforts to standardise healthcare can be held back by many things, one of which may be the lack of consistent nomenclature and definitions for CCPS documents, many of which are used every day in hospitals and general practice clinics. We have addressed the challenge by: (1) presenting a four-layer taxonomy for CCPS documents that begins with those documents that are least-able to be applied in clinical care and moves towards those which are most capable of use in the clinical setting and (2) drawing upon previous efforts to standardise the definition and structure of one type of CCPS document, expanding that method to apply to all documents included in the taxonomy. We evaluated our approach through a case study looking at a range of CCPS documents from the United Kingdom concerning diagnosis and treatment of patients with T2D and diabetes in pregnancy. We hope that the results and discussion will stimulate those in healthcare and healthcare service management to consider the potential benefits of standardising clinical documentation in the same way that evidence-based medicine aims to standardise healthcare. Standardising the way patient care is documented and reported will reduce significant data integration and interoperability issues as national health services continue to move towards implementing centralised electronic shared care records.

Footnotes

Appendix

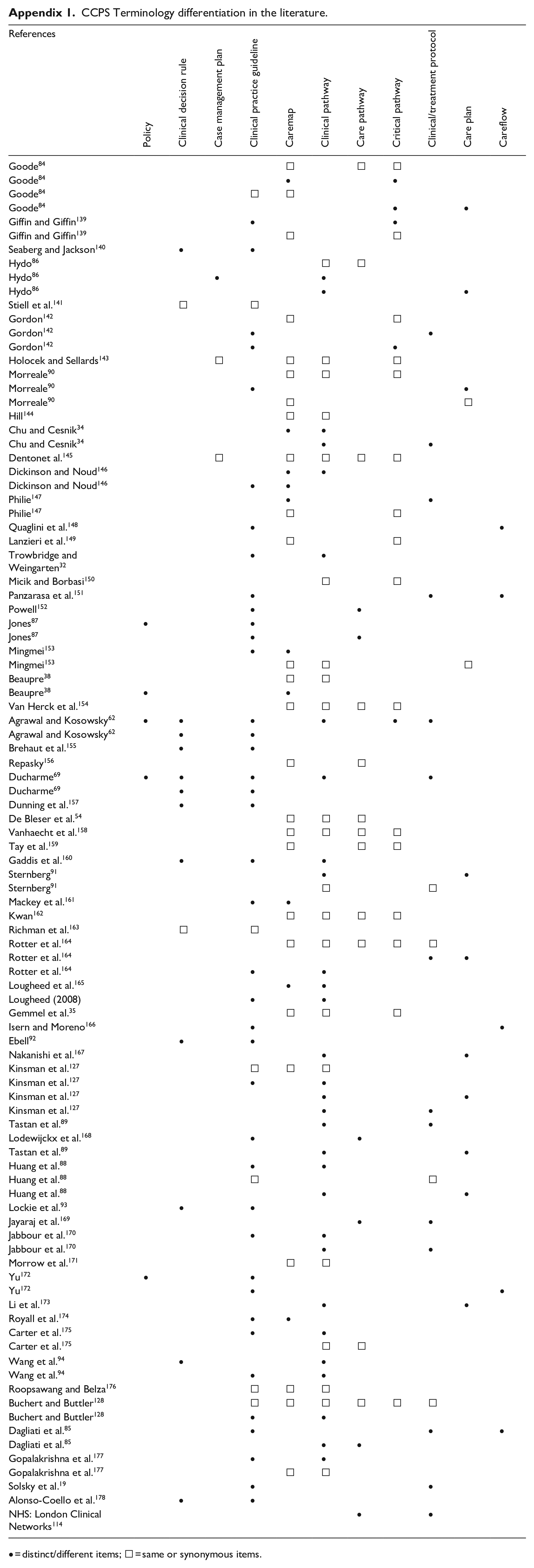

Appendix 1.

References	Policy	Clinical decision rule	Case management plan	Clinical practice guideline	Caremap	Clinical pathway	Care pathway	Critical pathway	Clinical/treatment protocol	Care plan	Careflow
Goode⁸⁴					□		□	□
Goode⁸⁴					•			•
Goode⁸⁴				□	□
Goode⁸⁴								•		•
Giffin and Giffin¹³⁹				•				•
Giffin and Giffin¹³⁹					□			□
Seaberg and Jackson¹⁴⁰		•		•
Hydo⁸⁶						□	□
Hydo⁸⁶			•			•
Hydo⁸⁶						•				•
Stiell et al.¹⁴¹		□		□
Gordon¹⁴²					□			□
Gordon¹⁴²				•					•
Gordon¹⁴²				•				•
Holocek and Sellards¹⁴³			□		□	□		□
Morreale⁹⁰					□	□		□
Morreale⁹⁰				•						•
Morreale⁹⁰					□					□
Hill¹⁴⁴					□	□
Chu and Cesnik³⁴					•	•
Chu and Cesnik³⁴						•			•
Dentonet al.¹⁴⁵			□		□	□	□	□
Dickinson and Noud¹⁴⁶					•	•
Dickinson and Noud¹⁴⁶				•	•
Philie¹⁴⁷					•				•
Philie¹⁴⁷					□			□
Quaglini et al.¹⁴⁸				•							•
Lanzieri et al.¹⁴⁹					□			□
Trowbridge and Weingarten³²				•		•
Micik and Borbasi¹⁵⁰						□		□
Panzarasa et al.¹⁵¹				•					•		•
Powell¹⁵²				•			•
Jones⁸⁷	•			•
Jones⁸⁷				•			•
Mingmei¹⁵³				•	•
Mingmei¹⁵³					□	□				□
Beaupre³⁸					□	□
Beaupre³⁸	•				•
Van Herck et al.¹⁵⁴					□	□	□	□
Agrawal and Kosowsky⁶²	•	•		•		•		•	•
Agrawal and Kosowsky⁶²		•		•
Brehaut et al.¹⁵⁵		•		•
Repasky¹⁵⁶					□		□
Ducharme⁶⁹	•	•		•		•			•
Ducharme⁶⁹		•		•
Dunning et al.¹⁵⁷		•		•
De Bleser et al.⁵⁴					□	□	□
Vanhaecht et al.¹⁵⁸					□	□	□	□
Tay et al.¹⁵⁹					□		□	□
Gaddis et al.¹⁶⁰		•		•		•
Sternberg⁹¹						•				•
Sternberg⁹¹						□			□
Mackey et al.¹⁶¹				•	•
Kwan¹⁶²					□	□	□	□
Richman et al.¹⁶³		□		□
Rotter et al.¹⁶⁴					□	□	□	□	□
Rotter et al.¹⁶⁴									•	•
Rotter et al.¹⁶⁴				•		•
Lougheed et al.¹⁶⁵					•	•
Lougheed (2008)				•		•
Gemmel et al.³⁵					□	□		□
Isern and Moreno¹⁶⁶				•							•
Ebell⁹²		•		•
Nakanishi et al.¹⁶⁷						•				•
Kinsman et al.¹²⁷				□	□	□
Kinsman et al.¹²⁷				•		•
Kinsman et al.¹²⁷						•				•
Kinsman et al.¹²⁷						•			•
Tastan et al.⁸⁹						•			•
Lodewijckx et al.¹⁶⁸				•			•
Tastan et al.⁸⁹						•				•
Huang et al.⁸⁸				•		•
Huang et al.⁸⁸				□					□
Huang et al.⁸⁸						•				•
Lockie et al.⁹³		•		•
Jayaraj et al.¹⁶⁹							•		•
Jabbour et al.¹⁷⁰				•		•
Jabbour et al.¹⁷⁰						•			•
Morrow et al.¹⁷¹					□	□
Yu¹⁷²	•			•
Yu¹⁷²				•							•
Li et al.¹⁷³						•				•
Royall et al.¹⁷⁴				•	•
Carter et al.¹⁷⁵				•		•
Carter et al.¹⁷⁵						□	□
Wang et al.⁹⁴		•				•
Wang et al.⁹⁴				•		•
Roopsawang and Belza¹⁷⁶				□	□	□
Buchert and Buttler¹²⁸				□	□	□	□	□	□
Buchert and Buttler¹²⁸				•		•
Dagliati et al.⁸⁵				•					•		•
Dagliati et al.⁸⁵						•	•
Gopalakrishna et al.¹⁷⁷				•		•
Gopalakrishna et al.¹⁷⁷					□	□
Solsky et al.¹⁹				•					•
Alonso-Coello et al.¹⁷⁸		•		•
NHS: London Clinical Networks¹¹⁴							•		•

• = distinct/different items; □ = same or synonymous items.

Acknowledgements

The authors thank Anokunda, Danika, Thomas, Liam and James.

Authors Note

The ORCID for the co-authors are as follow, Norman E Fenton: 0000-0003-2924-0510, Kudakwashe Dube: 0000-0002-2829-8481, Evangelia Kyrimi: 0000-0001-6727-2279, Graham A Hitman: 0000-0002-6637-9004

Contributors

S.M. performed the primary research and prepared the first draft. S.M. proposed the basis for the taxonomy and expanded De Bleser approach, which was refined by E.K. and K.D. J.S. and G.H. provided clinical input and review. K.D. and N.F. supervised the research. All authors contributed, commented and approved the final draft.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship and/or publication of this article: S.M., N.F., G.H. and E.K. acknowledge support from the EPSRC under project EP/P009964/1: PAMBAYESIAN: patient managed decision-support using Bayes Networks. K.D. acknowledges financial support from Massey University for his study sabbatical with the PamBayesian team.

ORCID iD

Scott McLachlan

References

Donabedian

. The quality of care: how can it be assessed? JAMA 1988; 260(12): 1743–1748.

Rubin

Pronovost

Diette

. The advantages and disadvantages of process-based measures of health care quality. Int J Qual Health Care 2001; 13(6): 469–474.

Backman

Kohatsu

, et al. Implementing a quality improvement collaborative to improve hypertension control and advance million hearts among low-income Californians, 2014-2015. Prev Chronic Dis 2017; 14: E61.

Coates

Fuller

Wrench

, et al. A quality improvement clinical pathway for enhanced recovery after elective Caesarean Section: results of a consensus exercise and survey, 2016, http://eprints.whiterose.ac.uk/99487/1/Coates%20et%20al%202016%20Enhanced%20Recovery%20Pathway%20for%20Elective%20Caesarean.pdf

Deneckere

Euwema

Van Herck

, et al. Care pathways lead to better teamwork: results of a systematic review. Soc Sci Med 2012; 75(2): 264–268.

Jun

Ward

Morris

, et al. Health care process modelling: which method when? Int J Qual Health Care 2009; 21(3): 214–224.

Neuhauser

Provost

Bergman

. The meaning of variation to healthcare managers, clinical and health-services researchers, and individual patients. BMJ Qual Saf 2011; 20(Suppl. 1): i36–i40.

Seidman

Gurgel

Lin

, et al. Clinical practice guideline: allergic rhinitis. Otolaryng Head Neck 2015; 152(Suppl. 1): S1–S43.

Beskow

Dombeck

Thompson

, et al. Informed consent for biobanking: consensus-based guidelines for adequate comprehension. Genet Med 2015; 17(3): 226–233.

10.

Hennaut

Duong

Chiodini

, et al. Prospective cohort study investigating the safety and efficacy of ambulatory treatment with oral cefuroxime-axetil in febrile children with urinary tract infection. Front Pediatr 2018; 6: 237.

11.

The Royal Hospital for Women. Local operating procedures: A-Z links, 2019, https://www.seslhd.health.nsw.gov.au/royal-hospital-for-women/policies-and-publications

12.

Holmes

Sokolove

Brant

, et al. A clinical decision rule for identifying children with thoracic injuries after blunt torso trauma. Ann Emerg Med 2002; 39(5): 492–499.

13.

Downey

Cluzeau

Chalkidou

, et al. Clinical pathways, claims data, and measuring quality/measuring quality of care: the authors reply. Health Aff 2017; 36(2): 382–383.

14.

Handelsman

Bloomgarden

Grunberger

, et al. American association of clinical endocrinologists and American college of endocrinology–clinical practice guidelines for developing a diabetes mellitus comprehensive care plan–2015. Endocr Pract 2015; 21(Suppl. 1): 1–87.

15.

Salmonson

Sjoberg

Brogren

. The standard treatment protocol for paracetamol poisoning may be inadequate following overdose with modified release formulation: a pharmacokinetic and clinical analysis of 53 cases. Clin Toxicol 2018; 56(1): 63–68.

16.

McLachlan

Kyrimi

Dube

, et al. Clinical caremap development: how can caremaps standardise care when they are not standardised? In: Proceedings of the 12th international joint conference on biomedical engineering systems and technologies, 2019, https://www.eecs.qmul.ac.uk/~norman/papers/McLachlan_et_al_2019_HEALTHINF.pdf

17.

Margolis

. Uses of clinical algorithms. JAMA 1983; 249(5): 627–632.

18.

Cholock

. Care map for the management of Asthma in a pediatric population in a primary health care setting. Thesis in fulfillment of the degree of Master of Nursing, University of Manitoba, Winnipeg, MB, Canada, 2001.

19.

Solsky

Edelstein

Brodman

, et al. Perioperative care map improves compliance with best practices for the morbidly obese. Surgery 2016; 160(6): 1682–1688.

20.

Zander

. Quantifying, managing and improving quality: Part 1: how CareMaps link CQI to the patient. New Defin 1992; 7(4) : 1–3.

21.

Campbell

Hotchkiss

Bradshaw

, et al. Integrated care pathways. Brit Med J 1998; 316(7125): 133.

22.

Holecek

Sellards

. Use of a detailed clinical pathway for Bone Marrow Transplant patients. J Pediatr Oncol Nurs 1997; 14(4): 252–257.

23.

O’Neill

Dluhy

. Utility of structured care approaches in education and clinical practice. Nurs Outlook 2000; 48(3): 132–135.

24.

Bumgarner

Evans

. Clinical care map for the ambulatory laparoscopic cholecystectomy patient. J Perianesth Nurs 1999; 14(1): 12–16.

25.

Shiffman

Shekelle

Overhage

, et al. Standardized reporting of clinical practice guidelines: a proposal from the conference on guideline standardization. Ann Intern Med 2003; 139(6): 493–498.

26.

Freeman

Field

Perkins

. Variation in local trust Do Not Attempt Cardiopulmonary Resuscitation (DNACPR) policies: a review of 48 English healthcare trusts. BMJ Open 2015; 5: e006517.

27.

De Pietro

Francetic

. E-health in Switzerland: the laborious adoption of the federal law on electronic health records (EHR) and health information exchange (HIE) networks. Health Policy 2018; 122(2): 69–74.

28.

Piwek

Ellis

Andrews

, et al. The rise of consumer health wearables: promises and barriers. PLoS Med 2016; 13(2): e1001953.

29.

Martin

Kocman

Stephens

, et al. Pathways to professionalism? quality improvement, care pathways and the interplay of standardisation and clinical autonomy. Sociol Health Illn 2017; 39(8): 1314–1329.

30.

Wears

. Standardisation and its discontents. Cogn Technol Work 2015; 17(1): 89–94.

31.

Comried

. Cost analysis: initiation of HBMC and first CareMap. Nurs Econ 1996; 14(1): 34–39.

32.

Trowbridge

Weingarten

. Critical pathways. In: Eisenberg

Kamerow

(eds) Making health care safer: a critical analysis of patient safety practices (Evident report/technology assessment no. 43). Rockville, MD: Agency for Healthcare Research and Quality, 2001, www.ahcpr.gov/clinic/ptsafety

33.

Wall

Proyect

. Critical pathway implementation guide. Chicago, IL: Precept Press, 1997.

34.

Chu

Cesnik

. Improving clinical pathway design: lessons learned from a computerised prototype. Int J Med Inform 1998; 51(1): 1–11.

35.

Gemmel

Vandaele

Tambeur

. Hospital Process Orientation (HPO): the development of a measurement tool. Total Qual Manag Bus 2008; 19(12): 1207–1217.

36.

Morris

. Decision support and safety of clinical environments. Qual Saf Health Care 2002; 11(1): 69–75.

37.

Panz

Raal

Paiker

, et al. Performance of the CardioChek PA and Cholestech LDX point-of-care analysers compared to clinical diagnostic laboratory methods for the measurement of lipids. Cardiovasc J S Afr 2005; 16(2): 112–117.

38.

Beaupre

Effectiveness of a caremap for treatment of elderly patients with hip fracture. Doctoral Dissertation, University of Alberta, Alberta, CA, 2004.

39.

Hubner

Flemming

Heitmann

, et al. The need for standardised documents in continuity of care: results of standardising the eNursing summary. Stud Health Technol Inform 2010; 160(Pt. 2): 1169–1173.

40.

NHS Digital. Quality and Outcomes Framework (QOF), enhanced services and core contract extraction specifications (business rules), 2018, https://digital.nhs.uk/data-and-information/data-collections-and-data-sets/data-collections/quality-and-outcomes-framework-qof (accessed 21 April 2019).

41.

NHS. Commission for quality and innovation, 2019, https://www.england.nhs.uk/nhs-standard-contract/cquin/ (accessed 21 April 2019).

42.

NICE. Standards and indicators, 2018, https://www.nice.org.uk/standards-and-indicators (accessed 21 April 2019).

43.

Mitchell

Plunkett

Dale

. Use of formal advance care planning documents: a national survey of UK Paediatric Intensive Care Units. Arch Dis Child 2014; 99(4): 327–330.

44.

Scott

Mitchell

Reymond

, et al. Difficult but necessary conversations – the case for advance care planning. Med J Aust 2013; 199(10): 662–666.

45.

Wilson

. Making nursing visible? Gender, technology and the care plan as script. Inform Technol Peopl 2002; 15(2): 139–158.

46.

Harrison

Young

Price

, et al. What are the unmet supportive care needs of people with cancer? a systematic review. Support Care Cancer 2009; 17(8): 1117–1128.

47.

Vaismoradi

Turunen

Bondas

. Content analysis and thematic analysis: implications for conducting a qualitative descriptive study. Nurs Health Sci 2013; 15(3): 398–405.

48.

Joffe

Hardy

. Content and thematic analysis. In: Marks

Yardley

(eds) Research methods for clinical and health psychology. London: SAGE, 2004, pp. 56–68.

49.

Fereday

Muir-Cochrane

. Demonstrating rigor using thematic analysis: a hybrid approach of inductive and deductive coding and theme development. Int J Qual Meth 2006; 5(1): 80–92.

50.

Vaismoradi

Jones

Turunen

, et al. Theme development in qualitative content analysis and thematic analysis. J Nurs Educ Prac 2016; 6(5): 100–110.

51.

Ganter

Willie

. Applied lattice theory: formal concept analysis. In: Gratzer

(ed.) General lattice theory. Basel: Birkhauser, 1997, pp. 347–366.

52.

Stumme

. Formal concept analysis. In: Staab

Studer

(eds) Handbook on ontologies. Berlin: Springer, 2009, pp. 177–199.

53.

Stumme

Taouil

Bastide

, et al. Computing iceberg concept lattices with TITANIC. Data Knowl Eng 2002; 42(2): 189–222.

54.

De Bleser

Depreitere

De Waele

, et al. Defining pathways. J Nurs Manage 2006; 14: 553–563.

55.

Lee

AS.

A scientific method for MIS case studies. MIS Quart 1989; 13(1): 33–50.

56.

Cable

GG.

Integrating case study and survey research methods: an example in information systems. Eur J Inf Syst 1994; 3(2): 112–126.

57.

Smithson

Information retrieval evaluation in practice: a case study approach. Inform Process Manag 1994; 30(2): 205–221.

58.

Peak

Guynes

Kroon

Information technology alignment planning –a case study. Inform Manage 2005; 42(5): 635–649.

59.

Eisenhardt

KM.

Building theories from case study research. Acad Manag Rev 1989; 14(4): 532–550.

60.

Tellis

Application of a case study methodology. Qual Rep 1997; 3(3): 1–19.

61.

Yin

RK.

Applications of case study research. SAGE, 2011.

62.

Agrawal

Kosowsky

JM.

Clinical practice guidelines in the emergency department. Emerg Med Clin 2009; 27(4): 555–567.

63.

Koon

Hawkins

Mayhew

. Framing and the health policy process: a scoping review. Health Policy Plan 2016; 31(6): 801–816.

64.

De Vos

Van der Stuyft

. Sociopolitical determinants of international health policy. Int J Health Serv 2015; 45(2): 363–377.

65.

Gimbel

Kohler

Mitchell

, et al. Creating academic structures to promote nursing’s role in global health policy. Int Nurs Rev 2017; 64(1): 117–125.

66.

Storm

. Towards a HiAP cycle: Health in All Policies as a practice-based improvement process. PhD Thesis, University of Amsterdam, Amsterdam, 2016.

67.

Nomura

Sakamoto

Glenn

, et al. Population health and regional variations of disease burden in Japan, 1990–2015: a systematic subnational analysis for the Global Burden of Disease Study 2015. Lancet 2017; 390(10101): 1521–1538.

68.

Starfield

Shi

. Policy relevant determinants of health: an international perspective. Health Policy 2002; 60(3): 201–218.

69.

Ducharme

. Clinical guidelines and policies: can they improve emergency department pain management? J Law Med Ethics 2005; 33(4): 783–790.

70.

LeFevre

. From authority-to evidence-based medicine: are clinical practice guidelines moving us forward or backward? Ann Fam Med 2017; 15(5): 410–412.

71.

Rodrigues

Choy

Bradley

, et al. Definitive radiation therapy in locally advanced non-small cell lung cancer: executive summary of an American Society for Radiation Oncology (ASTRO) evidence-based clinical practice guideline. Pract Radiat Oncol 2015; 5(3): 141–148.

72.

de Bernis

. Obstetric fistula: guiding principles for clinical management and programme development, a new WHO guideline. Int J Gynaecol Obstet 2007; 99(Suppl. 1): S117–S121.

73.

World Health Organization (WHO). WHO treatment guidelines for drug-resistant tuberculosis 2016 update. Geneva: WHO, 2016.

74.

Srivastava

Brewer

Mauser-Bunschoten

, et al. Guidelines for the management of hemophilia. Haemophilia 2013; 19(1): e1–e47.

75.

Brignole

Moya

de Lange

, et al. 2018 ESC guidelines for the diagnosis and management of syncope. Eur Heart J 2018; 39(21): 1883–1948.

76.

Danish Health Authority. About national clinical guidelines, 2016, https://www.sst.dk/en/national-clinical-guidelines/about-national-clinical-guidelines (accessed 5 February 2019).

77.

National Clinical Effectiveness Committee (NCEC). Framework for endorsement of national clinical guidelines July 2014. London, UK: NCEC, 2014.

78.

NICE. NICE guidance, 2019, https://www.nice.org.uk/guidance (accessed 21 April 2019).

79.

Woolf

Grol

Hutchinson

, et al. Potential benefits, limitations, and harms of clinical guidelines. BMJ 1999; 318(7182): 527–530.

80.

Bosse

Breuer

Spies

. The resistance to changing guidelines–what are the challenges and how to meet them. Best Pract Res Clin Anaesthesiol 2006; 20(3): 379–395.

81.

Dodek

Cahill

Heyland

. The relationship between organizational culture and implementation of clinical practice guidelines: a narrative review. J Parenter Enteral Nutr 2010; 34(6): 669–674.

82.

Harris

. Tort reform as carrot-and-stick. Harvard J Legis 2009; 46: 163–209.

83.

Cheng

. Fast track cardiac surgery pathways: early extubation, process of care, and cost containment. Anesthesiology 1998; 88(6): 1429–1433.

84.

Goode

. Evaluation of patient and staff outcomes with hospital based managed care. Thesis in partial fulfillment of the degree of PhD, University of Iowa, Iowa City, IA, 1993.

85.

Dagliati

Sacchi

Zambelli

, et al. Temporal electronic phenotyping by mining careflows of breast cancer patients. J Biomed Inform 2017; 66: 136–147.

86.

Hydo

. Designing an effective clinical pathway for stroke. Am J Nurs 1995; 95(3): 44–50.

87.

Jones

. Perceptions on the development of a care pathway for people diagnosed with schizophrenia on acute psychiatric wards. J Psychiatr Ment Health Nurs 2003; 10: 669–677.

88.

Huang

Zhu

. Customer-centered careflow modeling based on guidelines. J Med Syst 2012; 36(5): 3307–3319.

89.

Tastan

Hatipoglu

Iyigun

, et al. Implementation of a clinical pathway in breast cancer patients undergoing breast surgery. Eur J Oncol Nurs 2012; 16(4): 368–374.

90.

Morreale

Evaluation for a care-map for community acquired pneumonia hospital patients. Masters Dissertation, Queens University, BC, Canada, 1997.

91.

Sternberg

Influence of stroke clinical pathway on documentation. Thesis presented in partial fulfillment of the degree of Master of Science in Nursing, Clemson University, Clemson, SC, 2007.

92.

Ebell

. AHQR White Paper: use of clinical decision rules for point-of-care decision support. Med Decis Making 2010; 30: 712–721.

93.

Lockie

Dalton

Oakley

, et al. Triggers for head computed tomography following paediatric head injury: comparison of physicians’ reported practice and clinical decision rules. Emerg Med Australas 2013; 25(1): 75–82.

94.

Wang

Zhou

Zhang

, et al. Research and development of semantics-based sharable clinical pathway systems. J Med Syst 2015; 39(7): 73.

95.

McGinn

Guyatt

Wyer

, et al. Users’ guides to the medical literature: XXII: how to use articles about clinical decision rules (Evidence-Based Medicine Working Group). JAMA 2000; 284(1): 79–84.

96.

Norwitz

Belfort

Saade

, et al. Obstetric clinical algorithms: management and evidence. Hoboken, NJ: John Wiley & Sons, 2011.

97.

Nielsen

Sally

Mullins

, et al. Bicarbonate and mannitol treatment for traumatic rhabdomyolysis revisited. Am J Surg 2017; 213(1): 73–79.

98.

Lau

Yam

, et al. Development of a standard treatment protocol for severe acute respiratory syndrome. Lancet 2003; 361(9369): 1615–1617.

99.

Sunde

Pytte

Jacobsen

, et al. Implementation of a standardised treatment protocol for post resuscitation care after out-of-hospital cardiac arrest. Resuscitation 2007; 73(1): 29–39.

100.

Minambres

Perez-Villares

Chico-Fernandez

, et al. Lung donor treatment protocol in brain dead-donors: a multicenter study. J Heart Lung Transplant 2015; 34(6): 773–780.

101.

UK Government. Health matters: preventing Type 2 Diabetes, 2018, https://www.gov.uk/government/publications/health-matters-preventing-type-2-diabetes/health-matters-preventing-type-2-diabetes

102.

NICE. National strategy and policy to prevent Type 2 Diabetes, 2018, https://pathways.nice.org.uk/pathways/preventing-type-2-diabetes/national-strategy-and-policy-to-prevent-type-2-diabetes

103.

NHS England. Action for diabetes, 2014, https://www.england.nhs.uk/rightcare/wp-content/uploads/sites/40/2016/08/act-for-diabetes-31-01.pdf

104.

Abhilash

Paul

Varghese

, et al. Effect of long term intake of aspartame on antioxidant defence status in liver. Food Chem Toxicol 2011; 49(6): 1203–1207.

105.

Kleine

Whitfield

Boynton

. The glucocorticoid dexamethasone and the tumor-promoting artificial sweetener saccharin stimulate protein kinase C from T51B rat liver cells. Biochem Biophys Res Commun 1986; 135(1): 33–40.

106.

Stepien

Duarte-Salles

Fedirko

, et al. Consumption of soft drinks and juices and risk of liver and biliary tract cancers in a European cohort. Eur J Nutr 2016; 55(1): 7–20.

107.

International Diabetes Federation. IDF clinical practice recommendations for managing Type 2 Diabetes in primary care. Diabetes Res Clin Pract 2017; 132: 169–170.

108.

Davies

D’Alessio

Fradkin

, et al. Management of hyperglycaemia in type 2 diabetes, 2018. A consensus report by the American Diabetes Association (ADA) and the European Association for the Study of Diabetes (EASD). Diabetologia 2018; 61(12): 2461–2498.

109.

NICE. Type 2 diabetes in adults: management, 2019, https://www.nice.org.uk/guidance/ng28

110.

NICE. Diabetes in pregnancy: management from preconception to the postnatal period, 2015, https://www.nice.org.uk/guidance/ng3

111.

SIGN. SIGN 154: pharmacological management of glycaemic control in people with type 2 diabetes, 2017, https://www.sign.ac.uk/assets/sign154.pdf

112.

Barts Health NHS Trust. Diabetes – pregnancy, labour and puerperium. London: Barts Health NHS Trust, 2015.

113.

QMUL CEG. Type 2 diabetes: reducing hypoglycaemia, 2017, https://www.qmul.ac.uk/blizard/ceg/media/blizard/images/documents/ceg-documents/Type-2-diabetes-Reducing-hypoglycaemia,-Jan-2017.pdf

114.

NHS: London Clinical Networks. Clinical management: optimal pathway – How to deliver type 1 diabetes services, 2016, http://www.londonscn.nhs.uk/wp-content/uploads/2016/09/dia-t1-commissioning-pk-bk2-092016.pdf

115.

Homerton University Hospital. New patient clinic pathway, 2014, https://www.homerton.nhs.uk/clinics

116.

NHS Mid Essex. My personal diabetes health care plan and record, 2016, https://midessexccg.nhs.uk/livewell/information-guides/diabetes/1525-diabetes-handbook/file

117.

NHS Dudley. My personal diabetes handheld record and care plan, 2015, http://www.mysurgerywebsite.co.uk/website/M83041/files/Diabetes-My-Personal-Diabetes-Handheld-Record-and-Care-Plan.pdf

118.

PamBayesian. PamBayesian: patient managed decision-support using Bayesian networks, 2019, https://www.pambayesian.org/overview

119.

Bilici

Despotou

Arvanitis

. The use of computer-interpretable clinical guidelines to manage care complexities of patients with multimorbid conditions: a review. Digit Health 2018; 4: e2055207618804927. DOI: 10.1177/2055207618804927.

120.

De Clercq

Kaiser

Hasman

. Computer-interpretable guideline formalisms. Stud Health Technol Inform 2008; 139: 22–43.

121.

Mann

Williams

. Standards in medical record keeping. Clin Med 2003; 3: 329–332.

122.

McLachlan

. PamBayesian: the largest single barrier to Learning Health Systems. In: Presentation at the 2nd PamBayesian workshop event, London, 6 February 2019.

123.

Johnson

Edward

Giandinoto

. A systematic literature review of accuracy in nursing care plans and using standardised nursing language. Collegian 2018; 25(3): 355–361.

124.

Finch

Valuri

Ozanne-Smith

. Injury surveillance during medical coverage of sporting events-development and testing of a standardised data collection form. J Sci Med Sport 1999; 2(1): 42–56.

125.

Guerlain

LeBeau

Thompson

, et al. The effect of a standardized data collection form on the examination and diagnosis of patients with abdominal pain. In: Proceedings of the human factors and ergonomics society annual meeting (Vol. 45, No. 17). Los Angeles, CA: SAGE, pp. 1284–1288.

126.

Pedersen

Mikkelsen

Cronin-Fenton

, et al. Missing data and multiple imputation in clinical epidemiological research. Clinical Epidemiology 2017; 9: 157–166.

127.

Kinsman

Rotter

James

, et al. What is a clinical pathway? Development of a definition to inform the debate. BMC Med 2010; 8: 31.

128.

Buchert

Butler

. Clinical pathways: driving high-reliability and high-value care. Pediatr Clin North Am 2016; 63(2): 317–328.

129.

Thompson

deForest

Eccles

. Ensuring diagnostic accuracy in pediatric emergency medicine. Clinical Pediatr Emerg Med 2011; 12(2): 121–132.

130.

Yazbeck

. Reengineering of business functions of the hospital when implementing care pathways. Doctoral Dissertation, Faculty of Economics, University of Ljubljana, Ljubljana, 2014.

131.

Brennan

Brands

Caldwell

, et al. Surgical specimen handover from the operating theatre to laboratory – can we improve patient safety by learning from aviation and other high-risk organisations? J Oral Pathol Med 2018; 47(2): 117–120.

132.

Kripalani

LeFevre

Phillips

, et al. Deficits in communication and information transfer between hospital-based and primary care physicians: implications for patient safety and continuity of care. JAMA 2007; 297(8): 831–841.

133.

Leape

. The preventability of medical injury. In: Bogner

(ed.) Human error in medicine. New Jersey, USA: CRC Press, 2018, pp. 13–25.

134.

Naveh

Katz-Navon

Stern

. Readiness to report medical treatment errors: the effects of safety procedures, safety information, and priority of safety. Med Care 2006; 44(2): 117–123.

135.

Richter

McAlearney

Pennell

. Evaluating the effect of safety culture on error reporting: a comparison of managerial and staff perspectives. Am J Med Qual 2015; 30(6): 550–558.

136.

Yelland

Kahan

Dent

, et al. Prevalence and reporting of recruitment, randomisation and treatment errors in clinical trials: a systematic review. Clin Trials 2018; 15(3): 278–285.

137.

Christian

Gustafson

Roth

, et al. A prospective study of patient safety in the operating room. Surgery 2006; 139(2): 159–173.

138.

Valenstein

. Formatting pathology reports: applying four design principles to improve communication and patient safety. Arch Pathol Lab Med 2008; 132(1): 84–94.

139.

Giffin

Market memo: critical pathways produce tangible results. Health Care Strateg Manag 1994; 12(7): 1–6.

140.

Seaberg

Jackson

Clinical decision rule for knee radiographs. Am J Emerg Med 1994; 12(5): 541–543.

141.

Stiell

Greenberg

Wells

, et al. Derivation of a decision rule for the use of radiography in acute knee injuries. Ann Emerg Med 1995; 26(4): 405–413.

142.

Gordon

Critical pathways: a road to institutionalizing pain management. J Pain Symptom Manage 1996; 11(4): 252–259.

143.

Holocek

Sellards

Use of detailed clinical pathway for bone marrow transplant patients. J Pediatr Oncol Nurs 1997; 14(4): 252–257.

144.

Hill

The development of care management systems to achieve clinical integration. Adv Pract Nurs Q 1998; 4(1): 33–39.

145.

Denton

Wentworth

Yellowlees

, et al. Clinical pathways in mental health. Australas Psychiatry 1999; 7(2): 75–77.

146.

Dickinson

Noud

The Antenatal Ward Care Delivery Map: a team model approach. Aust Health Rev 2000; 23(3): 68–77.

147.

Philie

PC.

Management of bloodborne fluid exposures with a rapid treatment prophylactic caremap: one hospital’s 4-year experience. J Emerg nurs 2001; 27(5), 440–449.

148.

Quaglini

Stefanelli

Lanzola

, et al. Flexible guideline-based patient careflow systems. Artif Intell Med 2001; 22(1): 65–80.

149.

Lanzieri

Hobbs

Roy

, et al. Use of a clinical care map for the management of congestive heart failure in a community hospital. Congestive Heart Fail 2001; 7(1): 37–42.

150.

Micik

Borbasi

Effect of support programme to reduce stress in spouses whose partners ‘fall off’clinical pathways post cardiac surgery. Aust Crit Care 2002; 15(1): 33–40.

151.

Panzarasa

Madde

Quaglini

, et al. Evidence-based careflow management systems: the case of post-stroke rehabilitation. J Biomed Inform 2002; 35(2): 123–139.

152.

Powell

CV.

How to implement change in clinical practice. Paediatr Respir Rev 2003; 4(4): 340–346.

153.

Mingmei

Application of the Bayesian belief network model to evaluate variances in a clinical caremap: radical prostatectomy case study. Doctoral Dissertation, University of Ottawa, Canada, 2004.

154.

Van Herck

Vanhaecht

Sermeus

. Effects of clinical pathways: do they work? J Integr Care Pathways 2004; 8(3): 95–105.

155.

Brehaut

Stiell

Visentin

, et al. Clinical decision rules “in the real world”: how a widely disseminated rule is used in everyday practice. Acad Emerg Med 2005; 12(10): 948–956.

156.

Repasky

TM.

A frequently used and revised ED chest pain pathway. J Emerg Nurs 2005; 31(4): 368–370.

157.

Dunning

Daly

Lomas

, et al. Derivation of the children’s head injury algorithm for the prediction of important clinical events decision rule for head injury in children. Arch Dis Child 2006; 91(11): 885–891.

158.

Vanhaecht

Witte

Depreitere

, et al. Clinical pathway audit tools: a systematic review. J Nurs Manag 2006; 14(7): 529–537.

159.

Tay

Raja Latifah

Razak

IA.

Clinical pathways in primary dental care in Malaysia: clinicians’ knowledge, perceptions and barriers faced. Asia Pac J Public Health 2006; 18(2): 33–41.

160.

Gaddis

Greenwald

Huckson

Toward improved implementation of evidence-based clinical algorithms: clinical practice guidelines, clinical decision rules, and clinical pathways. Acad Emerg Med 2007; 14(11): 1015–1022.

161.

Mackey

Myles

Spooner

, et al. Changing the process of care and practice in acute asthma in the emergency department: experience with an asthma care map in a regional hospital. Can J Emerg Med 2007; 9(5): 353–365.

162.

Kwan

Care pathways for acute stroke care and stroke rehabilitation: from theory to evidence. J Clin Neurosci 2007; 14(3): 189–200.

163.

Richman

Vadeboncoeur

Chikani

, et al. Independent evaluation of an out-of-hospital termination of resuscitation (TOR) clinical decision rule. Acad Emerg Med 2008; 15(6): 517–521.

164.

Rotter

Kugler

Koch

, et al. A systematic review and meta-analysis of the effects of clinical pathways on length of stay, hospital costs and patient outcomes. BMC Health Serv Res 2008; 8(1): 265.

165.

Lougheed

Olajos-Clow

Szpiro

, et al. Multicentre evaluation of an emergency department asthma care pathway for adults. Can J Emerg Med 2009; 11(3): 215–229.

166.

Isern

Moreno

Computer-based execution of clinical guidelines: a review. Int J Med Inform 2008; 77(12): 787–808.

167.

Nakanishi

Sawamura

Sato

, et al. Development of a clinical pathway for long-term inpatients with schizophrenia. Psychiatry Clin Neurosci 2010; 64(1): 99–103.

168.

Lodewijckx

Decramer

Sermeus

, et al. Eight-step method to build the clinical content of an evidence-based care pathway: the case for COPD exacerbation. Trials 2012; 13(1): 229.

169.

Jayaraj

Whitty

Thomas

, et al. Prevention of Alcohol-Related Crime and Trauma (PACT): brief interventions in routine care pathway–a study protocol. BMC Public Health 2013; 13(1): 49.

170.

Jabbour

Curran

Scott

, et al. Best strategies to implement clinical pathways in an emergency department setting: study protocol for a cluster randomized controlled trial. Implement Sci 2013; 8(1): 55.

171.

Morrow

McLachlan

Forster

, et al. Redesigning postnatal care: exploring the views and experiences of midwives. Midwifery 2013; 29(2): 159–166.

172.

Enforcing careflows and treatment consents in electronic medical record systems. Doctoral Dissertation, George Mason University, 2014.

173.

Liu

Yang

, et al. Integrated clinical pathway management for medical quality improvement based on a semiotically inspired systems architecture. Eur J Inf Syst 2014; 23(4): 400–471.

174.

Royall

Brauer

Bjorklund

, et al. Development of a dietary management care map for metabolic syndrome. Can J Diet Pract Res 2014; 75(3): 132–139.

175.

Carter

Laurie

Dixon-Woods

The social license for research: why care.data ran into trouble. J Med Ethics 2015; 41(5): 404–409.

176.

Roopsawang

Belza

When a care map is not a true predictor of clinical outcomes. J Gerontol Nurs 2015; 41(10): 5–7.

177.

Gopalakrishna

Langendam

Scholten

, et al. Defining the clinical pathway in cochrane diagnostic test accuracy reviews. BMC Med Res Methodol 2016; 16(1): 153.

178.

Alonso-Coello

Schünemann

Moberg

, et al. GRADE Evidence to Decision (EtD) frameworks: a systematic and transparent approach to making well informed healthcare choices. 1: Introduction. Gac Sanit 2018; 32(2): 166.e1–166.e10.
