Protective earphones and human hearing system response to the received sound frequency signals

Introduction

Human hearing system, including outer ear, middle ear, inner ear, and related nerves, depends on sound. Outer ear has the duty to collect the sounds and transfer them to the middle ear via the ear canal and to the tympanic membrane (eardrum). Sound waves pass through malleus, incus, and stapes, reaching to the inner ear. Inner ear includes cochlea and semi-circular canals. Cochlea includes thousands of very thin hair cells in the spiral organ (organ of Corti). When the sound waves enter the inner ear, the hair cell helps in stimulating the sound waves. Hair cells transform the vibrations into electric signals, and waves are transferred to the brain via hearing nerves. Brain transforms the signals into understandable sounds. Confronting with sound damages spiral organ cells. The sensing hair cells are vibrated by acoustic input signals, and then the mechanical vibrations are transformed to an electric form to reach to the eighth brain nerve. Confronting with intense sounds (over 85 dBA) primarily damages outer hair cells that are responsible for the sounds with high frequencies (3–6 kHz). ¹

Ear canal performs like a resonator, turning up the sound. Ear canal resonance depends on its length. The shape and size of ear lobes and the curvature of ear canal affect frequency reactions of the eardrum.^2,3 Different parts of the base membrane have different widths. High-frequency signals are affected by resonance near the oval window and low frequencies are so affected near cochlea. ⁴ Generally, 16% to 24% hearing loss in adults is due to the noise at working places. ⁵ Human ear is more sensitive to high frequencies than low frequencies, but with age, people’s sensitivity to higher frequencies decreases. ⁶ Noise-induced hearing loss (NIHL) is the result of long-term exposure to noise that causes cumulative damage to hair cells of the cochlea. ⁷ It is bilateral and symmetrical, and it is usually affected by high frequencies (3, 4, and 6 kHz), extending then to lower frequencies (0.5, 1, or 2 kHz). ⁸ Hearing damage due to confronting with noise for some years is extended to both high and low frequencies. ¹ According to the U.S. Health and Human Services Ministry, when eliminating noise is not possible by engineering controls, proper use of hearing protection devices together with audiometric monitoring is effective in preventing NIHL. Effective hearing protection can be achieved by proper selection of different types of hearing aids, appropriate tests and compatibility, proper use, and continuous attention to maintaining them. ¹ Despite the fact that hearing system protection devices are not considered as the first protective action, they are regarded as a main measure for preventing hearing loss due to their low costs, availability, and effects. ⁹ Promoting the use of hearing protection devices prevents NIHL among workers who are exposed to excessive noise. ¹⁰ Earplugs are one kind of hearing protection devices that are placed inside the ear to block the ear canal, and they are produced either in molds or by ductile foams. Inappropriate fitting of hearing protectors may have negative effect on noise reduction rate. The result of Salmani research showed that training in the appropriate use of earplugs significantly affects the efficacy of earplugs. ⁹ The results of the study dealing with an analysis of noise damping rates by earplugs showed that in low frequencies and high frequencies (8 and 12 kHz), earplugs have high rate of damping. ⁸ The performances of hearing protection devices differ from each other in reducing and attenuating the noise. There are various methods for evaluating the performance of hearing protection devices in reducing noise. These methods are categorized into subjective and objective aspects. Standard no. ISO4869–3:2007 suggests the acoustical test fixtures (ATFS). This is an objective method. In this method, hearing tests are done in different frequencies with or without the protective earphone. The attenuation index is obtained out of the difference between open and blocked ears’ thresholds.^11,12

Hence, sound is one of the most important problems in industrial environments causing hearing loss in the workforce. In addition improper fitting of hearing protectors have negative effects on noise reduction. In this study, by simulating a model of ear canal and evaluating the rate of attenuation in different distances and different frequencies between the earplug and the microphone that is located in an ear as the simulator for receiving the sound, in different materials such as Teflon and cast iron, the effective frequencies on hearing loss and variations of the sound level in different frequencies and distances after placing the earplug are determined.

Methods

Results

The results of sound simulation in octave frequency signals showed that there was a significant difference between the received noise by microphone before and after placing the earplug on the model (P < 0.05). The result showed that by increasing the frequency, the rates of sound reduction in different conditions had also an increasing trend. By increasing the frequency, the rate of attenuation on the used earplug also showed an increasing trend. By increasing the distance of the microphone from the earplug, the sound level had an increasing trend from the distance of 12.8 mm to 25.5 mm, but it had a decreasing trend at the distance of 31.1 mm. This decreasing trend was quite prominent in frequencies under 500 Hz. The sound level in Teflon showed increasing and decreasing trends for different frequencies at the distance of 25.5 mm, reaching to its maximum rate at the frequency of about 4000 Hz. The peak frequency of 4000 Hz was observed in most of the existing states regarding the material, including metal at the distance of 22.8 mm, Teflon at 17.5 mm, Teflon at 25.5 mm, and combination of metal and Teflon at 25.5 mm. Among different conditions, the required rate has reached to its maximum value, i.e., 59 dB, in the metal canal at the related distance of 22.8 mm and in the frequency of 4000 Hz (Figure 1).

OPEN IN VIEWER

Figure 1.

Rate of sound attenuation (dB) in octave frequencies at different distances in simulated ear canal.

The obtained peak rates for all the situations coincided with each other at fixed frequency signals. The sound level in the Teflon canal at the distance of 25.5 mm was higher in comparison with other distances, for the low frequencies of 16, 31.5, 63, and 125 Hz (23.941, 27.257, 29.487, and 37.308 dB, respectively), being closer to the rate of sound attenuation of the protective earphone (Table 1).

OPEN IN VIEWER

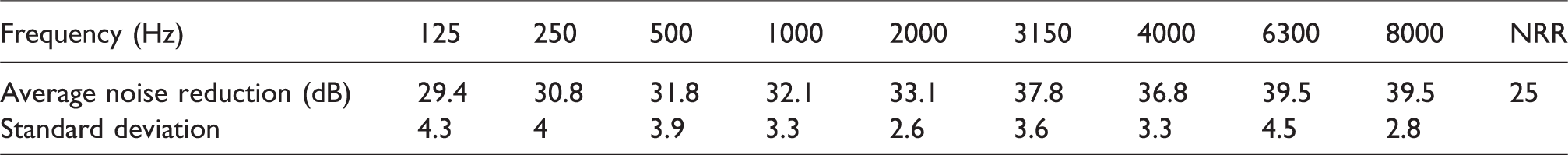

Table 1.

Average and standard deviation marked on the earplug (model: ELVEX NRR25).

Frequency (Hz)	125	250	500	1000	2000	3150	4000	6300	8000	NRR
Average noise reduction (dB)	29.4	30.8	31.8	32.1	33.1	37.8	36.8	39.5	39.5	25
Standard deviation	4.3	4	3.9	3.3	2.6	3.6	3.3	4.5	2.8

At the frequency of 250 Hz, the sound level in the canal with the combination of metal and Teflon was the highest at the distance of 25.5 mm (30.967). At frequencies of 500, 1000, and 2000 Hz, the rates of sound attenuation in the Teflon canal were higher at the distance of 31.5 mm as compared to other distances (39.777, 41.54, and 54.346 dB, respectively) (Table 2). There was no significant difference between the average noise reduction of frequencies in this study and the numbers entered in the catalogue of earplug at 25.5 mm, 17.5 mm, and 31.1 mm (P <0.05). The rate of the attenuated sound level in 4000 Hz frequency at the distance of 22.8 mm was higher in comparison with other distances (59.031 dB) (Figure 1). Finally, in the Teflon canal, the sound level obtained the maximum rate at the distance of 12.8 mm in 8000 Hz frequency (48.989 dB) (Table 1).

OPEN IN VIEWER

Table 2.

Rate of sound attenuation (dB) in octave frequencies at different distances in the simulated ear canal of Teflon and cast iron materials and the combination of the two materials.

	The material of channels
	Teflon
Frequency (Hz)	Space between earplug and microphone				Cast iron	Teflon and cast iron
	12.8 mm	17.5 mm	25.5 mm	31.1 mm	22.8 mm	25.5 mm
16	23.795	20.953	23.941	16.402	23.285	22.128
31.5	18.465	24.971	27.257	26.384	27.234	24.581
63	18.801	23.042	29.487	20.01	17.155	17.387
125	17.59	32.645	37.308	35.577	24.037	36.345
250	14.048	18.501	29.83	29.751	30.351	30.967
500	16.958	29.531	31.991	39.777	32.259	38.377
1000	29.485	38.154	37.543	41.54	27.567	35.358
2000	31.751	40.062	50.224	54.346	46.288	49.139
4000	39.826	49.551	51.606	42.769	59.031	49.215
8000	48.989	42.056	37.572	38.687	41.654	36.308

Discussion

The aim of the present study is determining effective frequency signals on hearing loss in human beings. In this research, the authors used the earplug manufactured according to standard. The result of noise reduction on the model showed that there is a significant difference between the noise before and after the placing the earplug, which means that the model can show the function of the earplug in attenuation of noise, and also it is indicative of being the standard of the earplug.

The results showed that the rates of sound level in Teflon canal at the distances of 17.5 mm and 25.5 mm, cast iron canal at the distance of 22.7 mm, and the canal with a combination of Teflon and cast iron at the distance of 25.5 mm reached their maximum at the frequency of 4000 Hz. The study by Agarwal showed that hearing loss had its highest rate due to confrontation with traffic noise at the frequency of 4000 Hz. ¹⁶ According to the study by Mirzakhani et al., regarding confrontation with noise and hearing loss among the key makers in the city of Tehran, hearing loss was observed mainly in the people at the frequencies of 1000 and 2000 Hz, with higher rates at 4000 and 8000 Hz frequencies. ¹⁷ Studies have shown that audiometric spaces in frequencies of 3, 4, or 6 kHz together with returning to the original state at the frequency of 8 Hz indicate hearing loss due to generated noise. ¹⁸ The base membrane at 4 kHz is usually affected by noise due to sound conduction from the ear bones. ¹⁶ Organ of Corti is more sensitive in specific frequency signals, and according to experience, the 4096 Hz frequency region is the vulnerable region in the ear, and this region tolerates the highest hearing damage in confrontation with noise. There are various and physiological and acoustical factors for that, which are stated in audiology books, factors related to the maximum threshold shift seen at the 4000 Hz region may be attributed to the physiological and anatomical differences of the basilar membrane, the direction and pattern of the travelling wave within the cochlea, deficiency in vascular flows in this region and reflection of sound wave energy in the canal, and the resonance characteristics of the external auditory^19,20 (this hard walled tube, closed at one end amplifies acoustic energy in the upper frequencies by about 10 decibels). ²¹ Other reasons are as follows: Changes triggered by acoustic overexposure can lead to temporary threshold shifts (TTS) in auditory sensitivity. Repeated exposures can cause a chronic increase in oxidative stress leading to the loss of outer hair cells, and a permanent threshold shift in the auditory region of 3000–6000 Hz. ²²

Acoustical factor of 4000 Hz notch is due to the transfer function of the ear. As any object facing a sound, the ear acts as a passive filter. A passive filter is a low pass: the high frequencies are more absorbed by the object, as high frequencies impose a higher pace of compression–decompression to the object. ²³ A contributing factor to this filter system is the contraction of the middle ear muscles which attenuate transmission of sound in the lower frequencies. ²⁰

Since sound level attenuations are different in different conditions in different distances of the simulated canal, the canal length can indicate the reason for the differences in related problems and harms in individuals. Results showed that the longer the distance between the earplug and the microphone, the sound level increased up to the distance of 25.5 mm, and after this distance, the sound level had a decreasing trend, especially for frequencies under 500 Hz. The results of this study dealt with the analysis of the damping rate of earplug in different distances of its placement in the ear canal showed that by decreasing the distance of the earplug in the ear, the rate of sound attenuation also decreases. This reduction has been more for the frequencies of 1000 Hz and less than that in comparison with higher frequencies than 2000 Hz. ³

The sound levels at different distances showed lower values at low-frequency signals. According to Lewis study, the sounds with low-frequency signals (e.g., the sound made by heavy artilleries) are less harmful than sounds with frequency signals over 1–6 kHz. ²⁴ The other reason for the problems of noise in different frequencies can be that hearing loss is almost always occurs primarily in the frequency signals range of 4–6 Hz, as observed in audiogram. ²⁴ Due to the shape of human outer ear canal and other reasons, human sensitivity is more at 1000–5000 Hz frequency signals. A worker confronting with 90 dB noise in that frequency range is exposed to more harm as compared to the person who is confronting with 90 dB sound in the frequency signal of 250 Hz. ²⁵ According to this study, the rates of sound attenuation were higher in all the distances in high-frequency signals. The results show that sound is stimulated in ear canals for about 10–15 dB in frequency signals range of 2–4 Hz, which is dangerous. Middle ear has two muscles connected to the bones that become stiff at the presence of sounds with high-frequency signals, and transfer the sounds with frequency of 1500 Hz and lower. The activity of middle ear manages protections against loud noise existing in the environment. Moreover, ear lobe and ear canal improve sound frequencies. ²⁶ Thus, human hearing system weakens some sound frequencies, having protecting role, and resonates the sound in some frequencies, having a destructive role.

Damages to cochlea starts at the beginning at frequencies ranging from 3000 to 4000 Hz. This is fixed in the first 10 years of confrontation, but it changes afterwards. The next region exposed to the impact is 6000 Hz, continued after 8000 and 2000 Hz, where the damage develops with slower speed. ²⁵ Different sound frequency signals cause various movements of the base membrane. Hence, different frequencies stimulate different parts of the base membrane. Sounds with frequency signals lower than 1 kHz are not affected by the ear lobe. Sounds with frequency signals higher than 1 kHz, especially vocal frequencies (2–3 kHz), are stimulated considerably. ⁴ Sound attenuation will show an ascending trend by increasing the sound frequency signal. The rate of reduction stated on earplugs also increase by increasing the frequency, and this increasing trend is observed in the two models of earplugs.

Hearing protection devices dampen the sounds with high-frequency signals more than the sounds with low-frequency signals. The reason for it is that the energy of sounds with low-frequency signals freely enters into the space between the ear canal wall and the earplug. There are three reasons for the dependency of the frequencies. The first reason is that all the frequency signals are dampened with half of the wavelength lower than the blocking diameter (e.g., ear protection devices). Thus, the sounds with low-frequency signals that have higher wavelengths easily pass from the blockage, while the sounds with high-frequency signals having lower wavelengths are dampened easier. The second reason is mass and weight. By heavier ear mass, the damping rate becomes more. The third reason is the resonance characteristic of the ear canal. ⁵

Conclusion

The results showed that the highest rate of noise reduction was at a frequency of 4000 HZ. There are many reasons for that. Organ of Corti is more sensitive in specific frequencies, and according to experience, the 4096 Hz frequency region is the vulnerable region in the ear, and this region tolerates the highest hearing damage in confrontation with noise. Also, the maximum sound reduction was observed at 25.5 mm at frequencies below 250 Hz. Due to the nature of the industrial noise and the workers exposure to the high noise level at different frequencies, the simulated model can be used to determine the performance of the protective earphones and test them at different frequencies and sound pressure levels.
