Intelligent parameter identification for bridge cables based on characteristic frequency equation of transverse dynamic stiffness

Abstract

Determining the cable force and other parameters of cables is important for condition assessment of cable-stayed structures. This study proposes a frequency characteristic equation of transverse dynamic stiffness for cables; this equation is suitable for measuring the vibrations to evaluate the primary factors that influence the accuracy of cable parameter identification. Further, a cable parameter identification method based on the particle swarm optimization algorithm is proposed. The method is suitable for a cable system of arbitrary length and with moderate sag especially when the measurement quality of the modal frequencies of cables is poor. Both numerical case studies and a cable vibration test proved that the proposed method can identify parameters with high accuracy for cables of any length and for cases requiring low-frequency measurement. Moreover, structural modal order information is not required. The extreme case is that only one order frequency can achieve highly accurate result in this way. The proposed method is suitable for parameter identification of short cables, hanger cables, and parallel strand cables, which are commonly applicable in engineering applications.

Keywords

Characteristic frequency equation transverse dynamic stiffness parameter identification cables vibration measurement

Introduction

Cable structure is one of most crucial aspects of modern structures, especially those that are large. The main part of cable structures contains hanger cables for large-span roofs and hanger cables for bridges. Usually, certain cable parameters are important indices that represent the condition of the structures. There are several types of cables with various geometrical shapes, most of which exhibit less sag.^1,2

For moderate sag cables, the vibration measurement methods used for parameter identification are relatively simple, common, easy to use, and cost effective. However, the identification quality is poor owing to the effects of boundary conditions, sag, and bending stiffness.³ Generally, vibration produces adverse effects in structures. The commonly used method for controlling vibration is the attached damper system.^4–6 The damper changes the vibration characteristics leading to a more complex cable system. Moreover, the existing vibration measurements can be applied only if the explicit formulation, which depicts the relationship between the fundamental frequency (or modal frequencies whose order is known) and the cable parameters, is known.^4,7 For the vibration measurement schemes with ambient excitation, it is difficult to identify the fundamental frequency and the order of the higher mode frequencies owing to the absence of certain order frequencies in the spectrogram. The strain in polyethylene (PE) sheathed cables reduces its durability. Thus, to decrease the strain in PE jackets, the gap between the steel strands and the outer region of the PE jackets is filled with a layer of mechanically weak material such as factice. However, because of the existence of the mechanically weak layer, the spectrogram measured from the outer surface of the PE sheathing is distorted, which results in missing orders of the modal frequencies. This in turn reduces the precision of the cable parameter identification method of the vibration measurement scheme.^8–10 Therefore, it is necessary to obtain a better parameter identification method for the type of cable with a mechanically weak layer.

As mentioned previously, the relationship between the modal frequencies and cable parameters forms the theoretical basis of conventional vibration measurement methods. The relationship can be expressed as an explicit equation for taut strings ignoring sag extensibility and bending stiffness, or an explicit equation considering bending stiffness for hinged taut cables. However, these types of equations will result in significant errors for a considerably common situation considering sag extensibility, bending stiffness, boundary conditions, etc.^3,11 Several studies have attempted to reduce these errors. Two approaches are available for solving this problem. One approach is to establish a considerably precise tension–frequency relationship. Ni et al.¹² established a tension–frequency relationship formula considering the effect of sag and bending stiffness. Zui et al.¹³ and Ren et al.¹⁴ derived an empirical equation based on the classification of sag–span ratio and bending stiffness. Ricciardi and Saitta¹⁵ proposed symmetric and antisymmetric dimensionless frequency formulae. Dan and Chen¹⁶ obtained the solution for the zero root of this equation using the Newton's method and evaluated the appropriate tension force. The disadvantage of these approaches is their low identification accuracy when used for short cables and the difficulty in obtaining the real order of measured frequency.

The other approach is to convert it into a system identification problem or to adopt the optimization method. Geier et al.¹⁷ and Kim and Park¹⁸ have conducted studies using this approach. The authors adopted the same type of approach to solve the parameter identification problem for a cable–damper system in 2015.¹⁹ In these studies, the order of the measured frequencies is necessary and should match the result of the finite element method analysis or theoretical analysis. Some other drawbacks are large calculating quantity, low efficiency, and unsuitability for real-time measurement, which limits its usage.

With respect to the previous efforts on studying transverse dynamic stiffness^20–23 and considering multiple cable parameters, this study aims to establish an intelligent identification method for cable parameters without the frequency order and overcome the drawbacks mentioned earlier. Based on the theoretical derivation, some numerical cases are analyzed, and a cable vibration test is conducted to evaluate the cable force and the moment of inertia of the cables of different lengths.

Cable frequency characteristic equation formulated using transverse dynamic stiffness

To obtain a vibration measurement scheme for an inclined cable, as shown in Figure 1, the inclined cable is clamped at ends A and B, with an accelerometer attached transversely at point C. The angle of cable inclination is $θ$ , the total chord-wise length is $l_{0}$ , the sag is $d$ , the tension force is $H$ , the cross-sectional bending stiffness is $I$ , the cross-sectional area is $A$ , and the elastic modulus is $E$ . The distance from the attached accelerometer to the lower end A is $l_{1}$ .

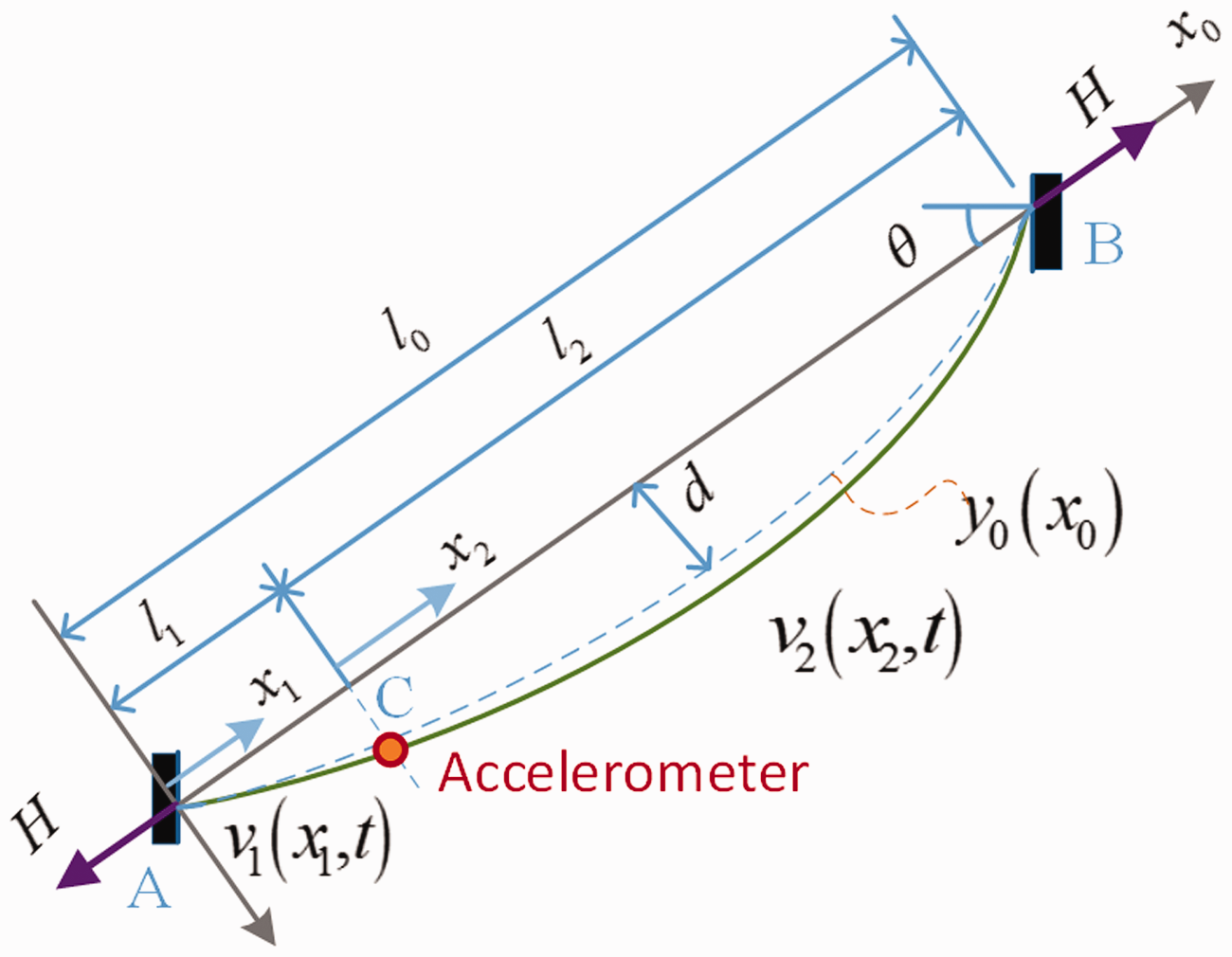

Figure 1.

Vibration measurement scheme for inclined cable.

The accelerometer divides the cable into two parts, whose vibrations can be expressed using the following equation of motion separately

E I \frac{\partial^{4} v_{j}}{\partial x_{j}^{4}} - H \frac{\partial^{2} v_{j}}{\partial x_{j}^{2}} - h_{j} \frac{d^{2} y_{0}}{d x_{0}^{2}} + m \frac{\partial^{2} v_{j}}{\partial t^{2}} = 0

(1)

where

v_{j} (x_{j}, t)

denotes the transverse displacement of the cable, and

j = 0, 1, 2

corresponds to the entire cable and cable segments 1 and 2, respectively. The static geometry configuration is

y_{0}

x_{0}

x_{1}

, and

x_{2}

denote the global coordinate of the entire cable and the local coordinates of the two segments, respectively;

h_{j}

denotes the additional tension force induced by the vibration of the jth segment cable. The dynamic stiffness matrix of the jth segment cable expressed in the four nodes degrees of freedom is

K^{(j)} = \frac{E I}{l_{0}^{3}} D^{(j)} \cdot {(C^{(j)} + I \cdot B^{(j)})}^{- 1}

(2)

where the formulation of matrices

B^{(j)}

C^{(j)}

, and

D^{(j)}

is similar to the ones proposed in Dan et al.²⁰ The equilibrium equation of the entire cable in dynamic stiffness can be expressed as follows

K^{(0)} a^{(0)} = F^{(0)}

(3)

In equation (3), vectors $a^{(0)}$ and $F^{(0)}$ denote the displacement and node force amplitudes, respectively; $α_{A}$ , $α_{c}$ , $α_{B}$ , $θ_{A}$ , $θ_{c}$ , $θ_{B}$ , $V_{A}$ , $V_{c}$ , $V_{B}$ , $M_{A}$ , $M_{c}$ , and $M_{B}$ denote the amplitudes of transverse dynamic displacement, amplitudes of dynamic rotation angle, amplitudes of transverse force, and the amplitudes of bending moment, for points A, B, and C, respectively

\begin{array}{l} a^{(0)} = {\begin{matrix} α_{A} & θ_{A} l_{0} & α_{C} & θ_{C} l_{0} & α_{B} & θ_{B} l_{0} \end{matrix}}^{T} \\ F^{(0)} = {\begin{matrix} V_{A} & M_{A} / l_{0} & V_{C} & M_{C} / l_{0} & V_{B} & M_{B} / l_{0} \end{matrix}}^{T} \end{array}

The global dynamic stiffness matrix $K^{(0)}$ can be obtained with the assembly of all the local dynamic stiffness matrices of the cable segments

K^{(0)} = I_{1}^{T} \cdot K^{(1)} \cdot I_{1} + I_{2}^{T} \cdot K^{(2)} \cdot I_{2}

(4)

Here, $I_{1}$ and $I_{2}$ are the matrix assembly operators and their values are

I_{1} = [\begin{matrix} 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 \end{matrix}], I_{2} = [\begin{matrix} 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \end{matrix}]

If the cable is fixed at both two ends, the vector for the displacement amplitude can be written as

a^{(0)} = {\begin{matrix} 0 & 0 & α_{C} & θ_{C} l_{0} & 0 & 0 \end{matrix}}^{T}

Assuming that no additional transverse force is applied at the position of the accelerometer, the vector for the node force amplitude can be expressed as

F^{(0)} = {\begin{matrix} V_{A} & M_{A} / l_{0} & 0 & 0 & V_{B} & M_{B} / l_{0} \end{matrix}}^{T}

As a result, the global stiffness matrix of the cable reduces to a 2 × 2 matrix, and the equilibrium equation for the free vibration of the cable becomes

{(K^{(0)})}^{*} {\begin{matrix} α_{c} \\ θ_{c} l_{0} \end{matrix}} = {\begin{matrix} 0 \\ 0 \end{matrix}}

(5)

where

{(\cdot)}^{*}

denotes the matrix

K^{(0)}

without the first, second, fifth, and sixth rows and columns.

Derived from equation (5), the following equation is valid only if the cable undergoes free vibration. Because if the displacement amplitude a(0) is not zero, the value of the determinant of (K^(0)*) must be zero. Moreover, a(0) being not zero is commonly true, because the cable always vibrates

f_{0} (p, ω) = \det (K^{(0) *}) = 0

(6)

Here, the collection of the cable parameters is $p$ , which consists of the mass per unit length $m$ , total length $l_{0}$ , the length between the accelerometer and lower hinged end $l_{1}$ , relative height ratio $μ_{1} = l_{1} / l_{0}$ , cross-sectional bending stiffness $I$ , cross-sectional area $A$ , angle of cable inclination $θ$ , elastic modulus $E$ , tension force $H$ , etc. $ω$ denotes the natural frequency of the cable.

Equation (6) is the frequency characteristic equation based on the transverse dynamic stiffness of the cable. If the natural frequency is known, the parameter $p$ can be obtained by solving this equation.

Parameter identification model based on particle swarm optimization (PSO) intelligent optimization algorithm

Optimization model

In practice, parameters $m$ , $A$ , $θ$ , $E$ , and $l_{0}$ are defined in the design process, and hence, identification is not required. The parameters that require to be determined are $H$ and $I$ . The set $p$ is divided into two parts $p = p_{1} \cup p_{2}$ , where $p_{1}$ is the subset of the known parameters and $p_{2} = {H, I}$ is the subset of the unknown parameters.

According to the derivation,²⁰ it is difficult to solve equation (6), because $f_{0} (p_{1}, p_{2}, ω_{0})$ is a sophisticated implicit function containing parameter $p_{2}$ . To solve the equation, we require transforming it into an optimization problem as follows

p_{2}^{o p t} = \max_{p_{2} \in Θ} (f_{I} (p_{1}, p_{2}, ω_{0}))

(7)

where

Θ

and

ω_{0}

denote the feasible regions of

p_{2}

in engineer and modal frequency of cable, respectively. The objective function can be expressed as follows

f_{I} (p_{1}, p_{2}, ω_{0}) = 1 / | f_{0} (p_{1}, p_{2}, ω_{0}) | = 1 / | \det (K^{(0) *}) |

(8)

It can be observed from equations (7) and (8) that the parameter $p_{2}^{o p t}$ , which maximizes $f_{I} (p_{1}, p_{2}, ω_{0})$ , is the root of equation (6).

PSO-based solution

Similar to the frequency characteristic equation of the cable observed in this study, the objective function $f_{I I} (p, ω)$ of the optimization model is a complex transcendental equation. It is difficult for the conventional optimization algorithm to solve this type of problem, but the intelligent optimization algorithm can be used in this case. PSO is selected among several types of algorithms, because it is easy to use and possess a satisfactory global search capability and high optimization efficiency.

Apart from the common PSO algorithm, some modified PSO algorithms demonstrate different performance. To obtain the most suitable algorithm for the cable parameter identification, we study the performances of four PSO algorithms—common type, Trelea type 1, Trelea type 2, and Clerc’s type 1.¹⁹

The basic formulations of the four PSO algorithms are the same, as shown in equation (9). However, the difference lies in the values of $w$ , $c_{1}$ , and $c_{2}$

{\begin{cases} v_{i}^{k + 1} = w v_{i}^{k} + c_{1} ξ (T_{i}^{k} - p_{i}^{k}) + c_{2} η (T_{g}^{k} - p_{i}^{k}) \\ p_{i}^{k + 1} = p_{i}^{k} + γ v_{i}^{k + 1} \end{cases}

(9)

where

p_{i}^{k}

denotes the parameter vector of the ith particle at step of kth search, and

v_{i}^{k}

is its updated speed. The best solution for the ith particle at the kth search and the best solution for all the particles at the same search are

T_{i}^{k}

and

T_{g}^{k}

, respectively. Moreover,

w

c_{1}

, and

c_{2}

denote the inertia weight, cognitive parameter, and social parameter, respectively.

ξ

and

η

are uniformly distributed random numbers between [0,1]. In addition,

γ

is the constraint factor of location update, set as 1 in this study. All the parameters are listed in Table 1.

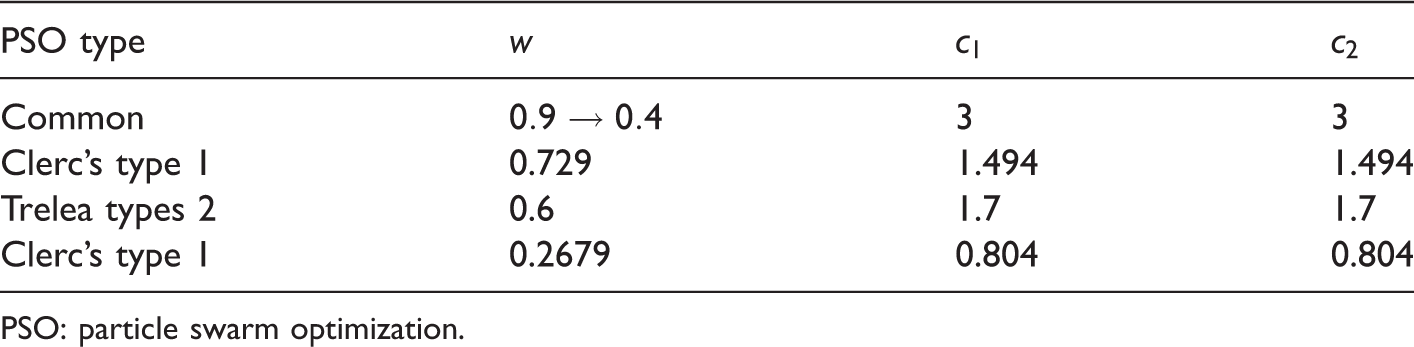

Table 1.

Parameter values of four PSO algorithms.

PSO type	$w$	$c_{1}$	$c_{2}$
Common	$0.9 \to 0.4$	3	3
Clerc’s type 1	0.729	1.494	1.494
Trelea types 2	0.6	1.7	1.7
Clerc’s type 1	0.2679	0.804	0.804

PSO: particle swarm optimization.

The parameters in equation (6) can be determined using the values listed in Table 2, and one of the modal frequencies can be obtained as 5.586 Hz using the calculation method observed in Dan et al.²¹ This modal frequency is regarded as the known frequency $ω_{0}$ and is substituted in equation (8). However, the tension force and the moment of inertia are regarded as parameters to be identified. To identify these parameters, the convergence curves of the two parameters at the search steps are obtained (refer Figure 2) using the four methods mentioned previously. The horizontal axis represents the iteration times exhibiting the convergence speed, and the vertical axis represents the identification results. The green line represents the objective value, and the distance between the green line and the other lines demonstrates the accuracy with which the results correspond to the objective value. With respect to precision and efficiency, as observed in Figure 2, Clerc’s type 1 is better than the other three methods; therefore, we consider this method in the following analysis.

Table 2.

Cable parameters.

Tension force H (N)	Cable length L (m)	Elastic modulus E (Pa)	Inertia moment I (m⁴)	Linear density m (kg)	Diameter D (m)
2.981e6	75．716	1.95e11	2.98e-6	45.7	0.075

Figure 2.

Convergence process of four PSO algorithms. (a) Tension force and (b) inertia moment.

As PSO is a random search algorithm, it is necessary to validate its error and stability. Considering the numerical model mentioned previously as an example, 100 independent identification processes are conducted using Clerc’s type 1 PSO optimal algorithm; two relative error scatter plots of the identification results are obtained, as shown in Figure 3. The relative error is defined as follows

E = \frac{p - p_{0}}{p_{0}} \times 100

(10)

Figure 3.

Scatter plot of identification error using Clerc’s type 1 PSO algorithm. (a) H and (b) I.

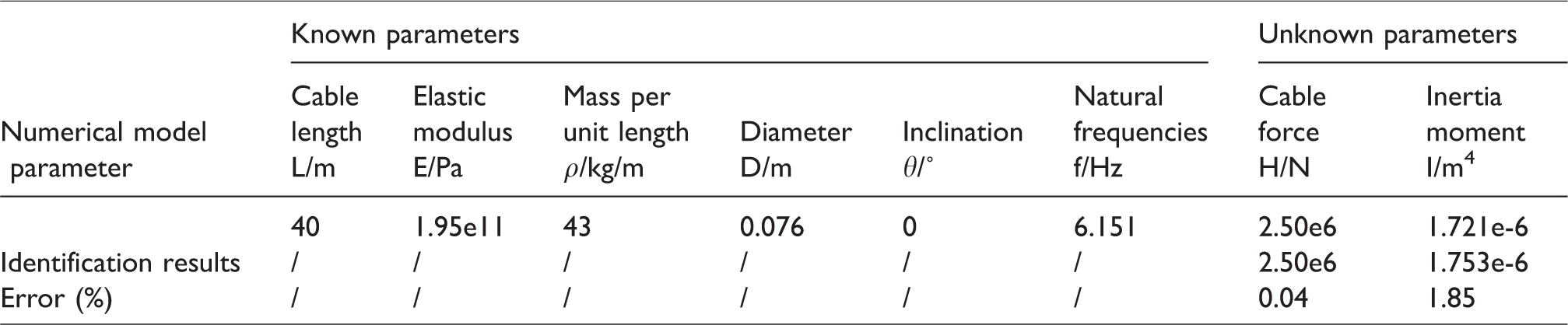

Table 3.

Parameters and identification results for short cables.

	Known parameters						Unknown parameters
Numerical model parameter	Cable length L/m	Elastic modulus E/Pa	Mass per unit length ρ/kg/m	Diameter D/m	Inclination $θ$ /°	Natural frequencies f/Hz	Cable force H/N	Inertia moment I/m⁴
	40	1.95e11	43	0.076	0	6.151	2.50e6	1.721e-6
Identification results	/	/	/	/	/	/	2.50e6	1.753e-6
Error (%)	/	/	/	/	/	/	0.04	1.85

Here, $p$ is the element of parameter collection to be identified and $p_{0}$ is the corresponding objective value or is referred to as the true value.

Observed from Figure 3, it is evident that Clerc’s type 1 algorithm can identify the tension force and the moment of inertia simultaneously. The precision of measurement of the tension force is high, and the highest relative error is under 0.2%; the average relative error is 0.065%, which implies that the method has satisfactory stability for tension force identification. Conversely, the relative error and discreteness in the moment of inertia are both relatively high. The highest relative error reaches 14%, and the average reaches 4.84%. Note that there are only 11% identified values, which are higher than 10%; hence, the identification quality of the moment of inertia is still acceptable for certain cases of engineering projects.

Numerical case study of cable parameter identification

The length of the cable evidently influences the identification precision for the stated identification methods. Generally, for short cables of less than 40 m, the identification quality is relatively poor than that for long cables owing to the effect of boundary condition and bending stiffness. In this section, first the quality of the identification method proposed in this study is investigated for different lengths of the cables. Subsequently, a comparison is made between this approach and the formulation methods in the vibration measurement test.

The numerical test procedure is as follows

calculate the frequencies of the given cables using the method in Dan et al.;²⁰

submit any three order frequencies and known cable parameters to propose the parameter identification model;

staring the PSO algorithm and the identification results obtained.

Comparison of quality of identification results for short, medium, and long cables

First, the applicability of the proposed approach for different lengths of the cables is studied. The range of parameters to be identified is set as follows: the cable force in [0.8H₀, 1.2H₀] and the moment of inertia in [0.88I₀, 1.12I₀]. The identified parameters of the three cables of different lengths are listed in Tables 4 to 6.

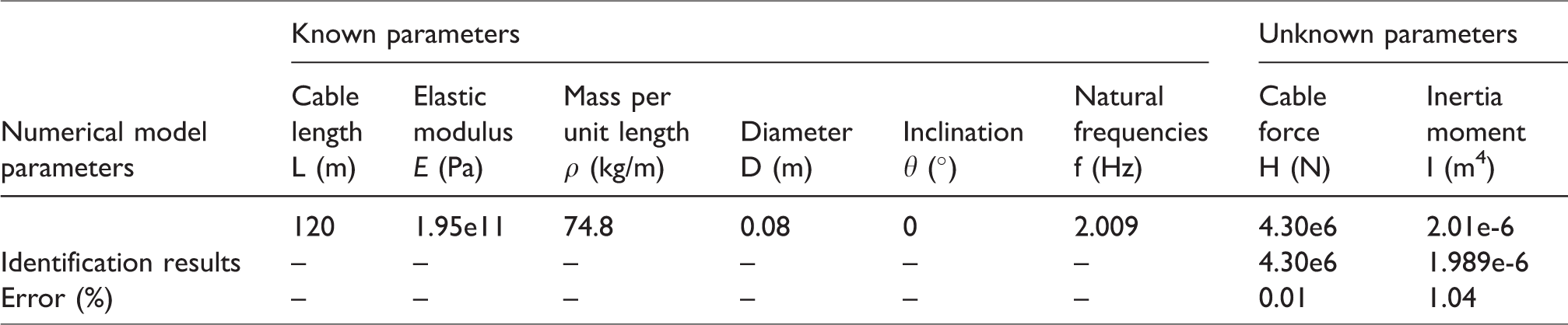

Table 4.

Parameters and identification results for medium cables.

Numerical model parameters	Known parameters						Unknown parameters
Numerical model parameters	Cable length L (m)	Elastic modulus E (Pa)	Mass per unit length ρ (kg/m)	Diameter D (m)	Inclination $θ$ (°)	Natural frequencies f (Hz)	Cable force H (N)	Inertia moment I (m⁴)
	120	1.95e11	74.8	0.08	0	2.009	4.30e6	2.01e-6
Identification results	–	–	–	–	–	–	4.30e6	1.989e-6
Error (%)	–	–	–	–	–	–	0.01	1.04

Table 5.

Parameters and identification results for long cables.

Numerical model parameters	Known parameters						Unknown parameters
Numerical model parameters	Cable length L (m)	Elastic modulus E (Pa)	Mass per unit length ρ (kg/m)	Diameter D (m)	Inclination $θ$ (°)	Natural frequencies f (Hz)	Cable force H (N)	Inertia moment I (m⁴)
	300	1.95e11	110	0.095	0	0.781	6e6	3e-6
Identification results	–	–	–	–	–	–	6e6	2.989e-6
Error (%)	–	–	–	–	–	–	0.00	0.37

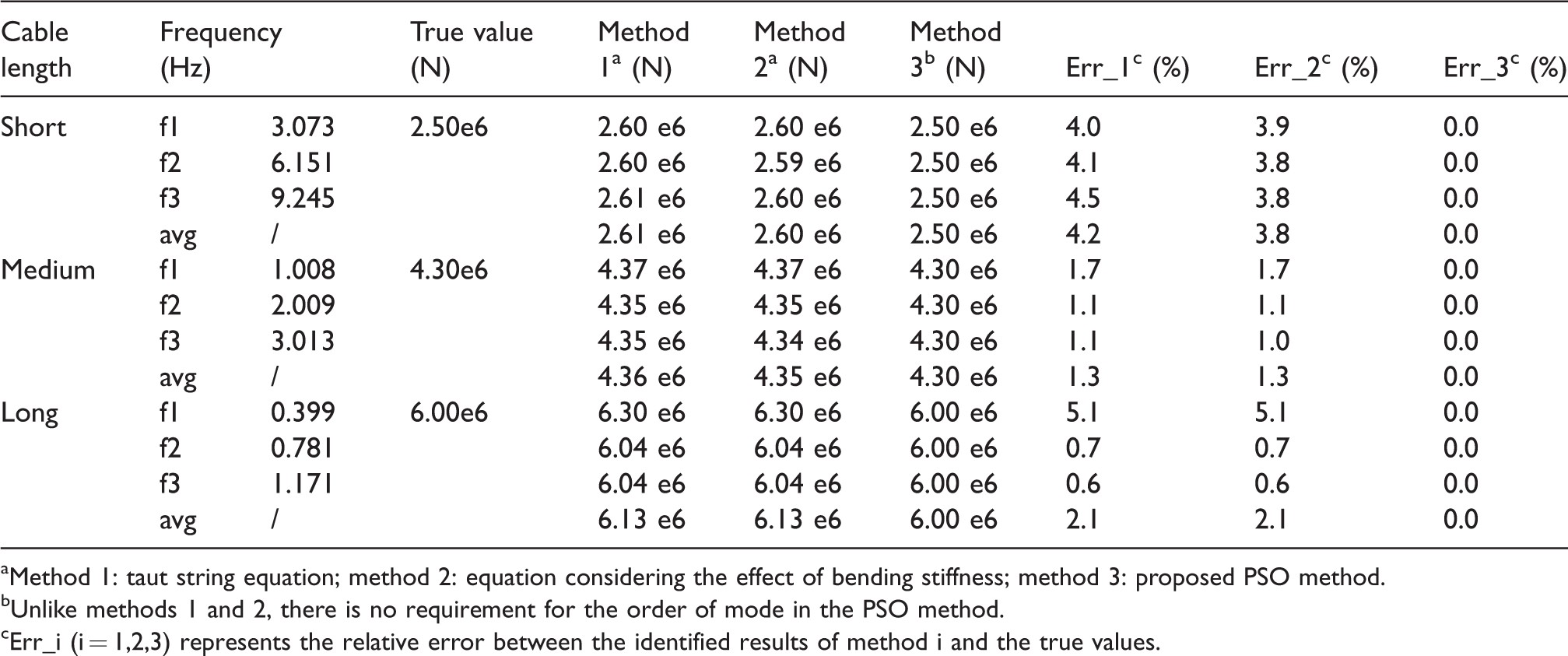

Table 6.

First three order frequencies and cable force identification results for the three methods.

Cable length	Frequency (Hz)		True value (N)	Method 1^a (N)	Method 2^a (N)	Method 3^b (N)	Err_1^c (%)	Err_2^c (%)
Short	f1	3.073	2.50e6	2.60 e6	2.60 e6	2.50 e6	4.0	3.9
	f2	6.151		2.60 e6	2.59 e6	2.50 e6	4.1	3.8
	f3	9.245		2.61 e6	2.60 e6	2.50 e6	4.5	3.8
	avg	/		2.61 e6	2.60 e6	2.50 e6	4.2	3.8
Medium	f1	1.008	4.30e6	4.37 e6	4.37 e6	4.30 e6	1.7	1.7
	f2	2.009		4.35 e6	4.35 e6	4.30 e6	1.1	1.1
	f3	3.013		4.35 e6	4.34 e6	4.30 e6	1.1	1.0
	avg	/		4.36 e6	4.35 e6	4.30 e6	1.3	1.3
Long	f1	0.399	6.00e6	6.30 e6	6.30 e6	6.00 e6	5.1	5.1
	f2	0.781		6.04 e6	6.04 e6	6.00 e6	0.7	0.7
	f3	1.171		6.04 e6	6.04 e6	6.00 e6	0.6	0.6
	avg	/		6.13 e6	6.13 e6	6.00 e6	2.1	2.1

^aMethod 1: taut string equation; method 2: equation considering the effect of bending stiffness; method 3: proposed PSO method.

^bUnlike methods 1 and 2, there is no requirement for the order of mode in the PSO method.

^cErr_i (i = 1,2,3) represents the relative error between the identified results of method i and the true values.

It can be observed from Tables 3 to 6 that the identification quality of the cable force is relatively satisfactory and the relative errors are 0.04, 0.01%, and approximately 0. However, the relative error in the moment of inertia is considerably higher than that of the cable force and decreases with the increase in the cable length. The maximum value is 1.85%, which is sufficient for practical engineering applications. Altogether, it can be concluded that the method is suitable for all cables of different lengths.

Comparison between the taut string equation and the equation considering the effect of bending stiffness

We compare the parameter identification error of the three typical lengths of the cables proposed in this study with respect to the taut string equation and the equation considering the effect of bending stiffness. The two equations are expressed as equations (11) and (12), respectively³

H = 4 m {(\frac{f_{n}}{n})}^{2} l_{0}^{2}

(11)

H = 4 m (\frac{f_{n}^{2}}{n^{2}}) l_{0}^{2} - E I π^{2} (\frac{n^{2}}{l_{0}^{2}})

(12)

where

f_{n}

denotes the nth natural frequency and n is the order of mode.

The first three order frequencies are used to evaluate the cable force using these three methods, and their average values are regarded as the final results. While applying the proposed method, the cable force is considered as the only parameter that requires to be identified, and other parameters are substituted as true values. The frequencies and identification results are listed in Table 6.

It can be observed from Table 6 that the cable force identification errors in methods 1 and 2 are higher than that of method 3, especially for short cables. Moreover, the errors in methods 1 and 2 attain maximum values of 4.0 and 3.8%, respectively. However, the errors in the medium and long cables are relatively low. The result of the analysis obtained using the second- and third-order frequencies is better than that obtained using the fundamental frequency, and the difference in the result for the long cables is approximately 4.4%. The results also indicate that the error in determining the cable force using the first two methods increases with the decrease in the cable length, and the order of modes is not only necessary for the identification, but also demonstrates considerable influence on the identification error, especially for the long cables.

The proposed method in this study exhibits the highest precision among the three methods, and the errors in all the cables are exceedingly low (near to zero). A notable difference of the proposed method compared with the first two methods is that it does not require the order of frequencies. This proves that the proposed method exhibits satisfactory identification quality regarding cable force parameters.

Verification via practical cable vibration test

To further verify the validity and applicability of the proposed method, two cable vibration tests (Figure 4), as observed in Li et al.,²⁴ are used to identify the cable force and the moment of inertia. The experimental cables are $ϕ 15.24$ galvanized stranded wire, consisting of 7 $ϕ 5$ high strong wires. The experimental equipment includes CF355 signal analyzer, YE5852 charge amplifier and piezoelectric charge accelerometers, 50 t strain tension pressure sensor, YJR-5A static resistance strain indicator, and signal line.

Figure 4.

Vibration tests photos of two cables. (a) The test cable and (b) data acquisition equipment.

The experimental procedure is as follows:²⁴

Use the center hole jack to stretch the steel cable. The tension of the jack is controlled by the precalibrated oil pressure gauge reading. Meanwhile, the strain gauge pressure sensor and strain gauge are used to measure the tension of the cable directly. The loading requirement is realized by controlling the change of tension value applied to the cable.

In order to ensure the acquisition of obvious low-order vibration signals, the accelerometer is installed with a clamp at about 3/8 cable’s strength from the cable end.

Due to the large damping of test components, it is difficult to distinguish the peak value of the spectrum only by the random vibration of the environment. Therefore, in the experiment, the method of tapping the cable body was used for artificial excitation.

After the signal collected by the accelerometer passes through the charge amplifier, it is passed to the signal analyzer, and the measured acceleration time curve and spectrum diagram are displayed on the screen.

The parameters of the test cable are listed in Table 7, and the measured frequencies of the four test conditions with different tension force $H_{0}$ are listed in Table 8.

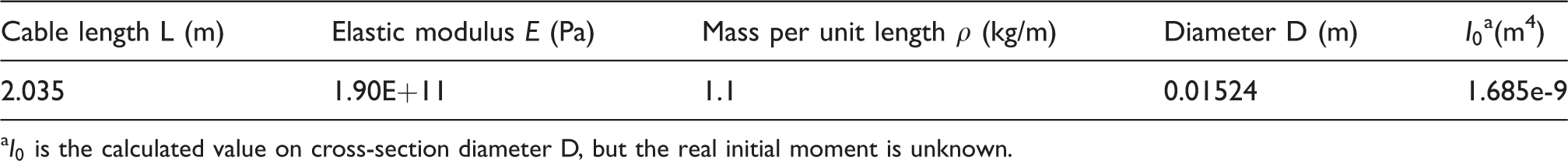

Table 7.

Parameters of test cable.

Cable length L (m)	Elastic modulus E (Pa)	Mass per unit length ρ (kg/m)	Diameter D (m)	$I_{0}$ ^a(m⁴)
2.035	1.90E+11	1.1	0.01524	1.685e-9

^a $I_{0}$ is the calculated value on cross-section diameter D, but the real initial moment is unknown.

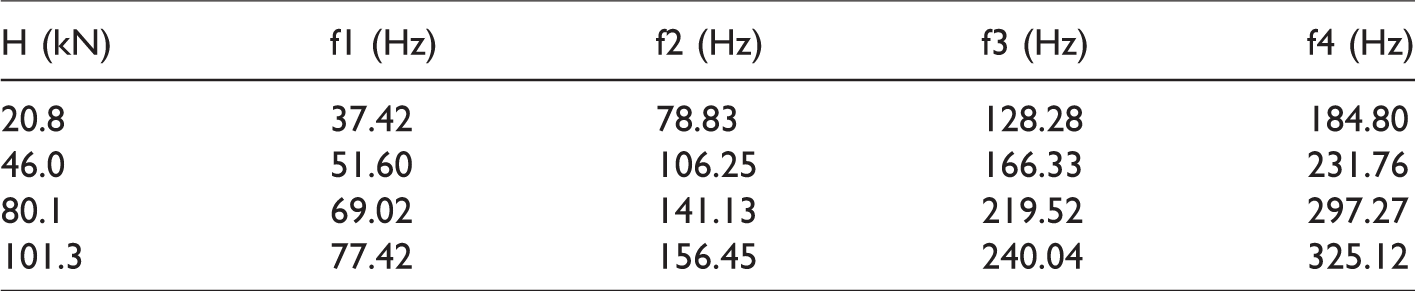

Table 8.

Measured natural frequency of test cable.

H (kN)	f1 (Hz)	f2 (Hz)	f3 (Hz)	f4 (Hz)
20.8	37.42	78.83	128.28	184.80
46.0	51.60	106.25	166.33	231.76
80.1	69.02	141.13	219.52	297.27
101.3	77.42	156.45	240.04	325.12

The measured frequencies are used to identify the two parameters using the proposed method. Moreover, the taut string equation and the equation considering the effect of bending stiffness are used to calculate the cable force. As the first two methods are deterministic algorithms, while the proposed method is not, we consider the measured frequencies to identify the cable force for all the three methods, and set the average cable force, identified by all the measured frequencies, as the final representative identification result.

Unlike the previous numerical case, the moment of inertia of the real cable cannot be exactly determined. An estimation approach for the moment of inertia is to select the moment of inertia of the equivalent circular cylinder, whose area is equal to the sum of the areas of steel strands, as a reference value, denoted using I₀. The moment of inertia of the real cable I₀ is lower than I₀, which can be determined within the range of 0.3I₀–0.7I₀.¹⁵ For method 2, the representative value for the bending stiffness is set as 0.5I₀. The search range of the moment of inertia for the proposed method is between [0.2I_0, 0.7I₀], and the search range of the cable force is between [0.8H₀,1.2 H₀], where H₀ is the actual tension force in the test.

The cable force identification results are determined via four measured frequencies of the four test conditions, which are listed in Table 9. The average values of the cable force and the moment of inertia are listed in Table 10.

Table 9.

Cable identification result of four frequencies.

Group	Method	Frequency	f1	f2	f3	f4	Avg.
1	1	Result	25.5	28.3	33.3	38.9	31.5
	1	Error (%)	22.60	36.06	60.10	87.02	51.44
	2	Result	25.1	26.8	29.9	32.8	28.6
	2	Error (%)	20.67	28.85	43.75	57.69	37.72
	3	Result	20.5	20.5	22.2	21.6	21.2
	3	Error (%)	−1.44	−1.44	6.73	3.85	1.92
2	1	Result	48.5	51.4	56	61.2	54.3
	1	Error (%)	5.43	11.74	21.74	33.04	18.04
	2	Result	48.1	49.9	52.6	55.1	51.4
	2	Error (%)	4.57	8.48	14.35	19.78	11.74
	3	Result	43.6	44.5	43.7	49.5	45.33
	3	Error (%)	−5.22	−3.26	−5.00	7.61	−1.47
3	1	Result	86.8	90.7	97.6	100.6	93.9
	1	Error (%)	8.36	13.23	21.85	25.59	17.23
	2	Result	86.4	89.2	94.1	94.5	91.1
	2	Error (%)	7.87	11.36	17.48	17.98	13.73
	3	Result	79.2	81.4	83.6	77.5	80.43
	3	Error (%)	−1.12	1.62	4.37	−3.25	0.41
4	1	Result	109.2	111.5	116.7	120.4	114.4
	1	Error (%)	7.80	10.07	15.20	18.85	12.93
	2	Result	108.8	110	113.2	114.3	111.6
	2	Error (%)	7.40	8.59	11.75	12.83	10.17
	3	Result	98.4	98.5	104.4	101.5	100.7
	3	Error (%)	−2.86	−2.76	3.06	0.20	−0.59

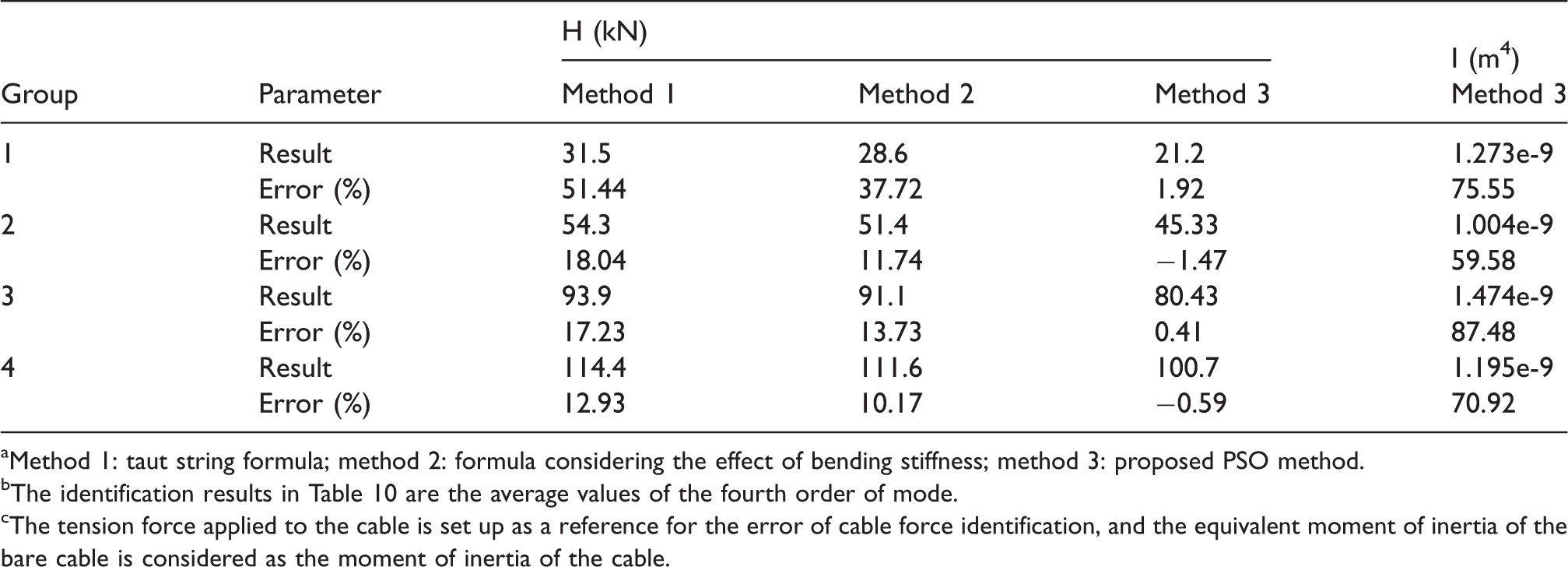

Table 10.

Final cable identification result.^a,b,c

Group	Parameter	H (kN)			I (m⁴)
Group	Parameter	Method 1	Method 2	Method 3	Method 3
1	Result	31.5	28.6	21.2	1.273e-9
1	Error (%)	51.44	37.72	1.92	75.55
2	Result	54.3	51.4	45.33	1.004e-9
2	Error (%)	18.04	11.74	−1.47	59.58
3	Result	93.9	91.1	80.43	1.474e-9
3	Error (%)	17.23	13.73	0.41	87.48
4	Result	114.4	111.6	100.7	1.195e-9
4	Error (%)	12.93	10.17	−0.59	70.92

^aMethod 1: taut string formula; method 2: formula considering the effect of bending stiffness; method 3: proposed PSO method.

^bThe identification results in Table 10 are the average values of the fourth order of mode.

^cThe tension force applied to the cable is set up as a reference for the error of cable force identification, and the equivalent moment of inertia of the bare cable is considered as the moment of inertia of the cable.

It can be observed from Tables 9 and 10 that the cable force identification of the first two methods is related to the frequency order of the mode and the cable tension level. In general, their errors are relatively high, and even the minimum error obtained owing to the identification of the first order of frequencies exhibits a considerable value of 4.57%. With the increase in the order of mode, the error increases rapidly to an unacceptable level in practice. In the real vibration test of the cable, both the fundamental frequency and the order of higher frequencies cannot be easily determined by the measured acceleration data; certain alternative method to estimate the fundamental frequencies or the orders of higher frequencies will induce additional error with respect to identification. Therefore, the performance of the first two equation-like methods is not satisfactory, especially in the case of short cables, which is exceedingly affected by the boundary condition and the bending stiffness.

However, the proposed method in this study exhibits a better performance for low and higher orders of modes. The error is within the acceptable range of engineering requirements and the identification error is independent of the frequency order. Moreover, if the mean of the parameters identified via the different frequencies is considered as the final representative value, the error can be decreased to 2%. The result reflects the fact that the average operation can reduce the error significantly for the PSO optimal algorithm.

For the identification of the moment of inertia, the error in this method is higher than that of Dan and Chen,¹⁶ while it is in accordance with the conclusion, in the same study, that the error changes with the cable force. However, as there is no standard explanation, we are unsure regarding the value that is relatively near to the real value. Further experimental studies for the moment of inertia identification are required.

Conclusions

The vibration method is a set of cable force detection methods that are supposed to be easy to use, low cost, and widely applicable to most cable-like structures. Due to the aforementioned factors, the quality of the cable force identification using the present methods is not satisfactory for practical use owing to its low precision and unneglectable errors. In certain exceptional cases, if not most, these methods are no longer applicable when the quality of the spectrum measured based on the cable vibration test is exceedingly poor.

To solve these problems, this study proposed a so-called PSO-based intelligent parameter identification technique. The primary characteristic of this intelligent optimal algorithm is the objective function, which is based on the frequency characteristic equation in the form of transverse dynamic stiffness. The frequency characteristic equation is a closed-form function, which considers the boundary conditions, bending stiffness, cable inclination, and sag. However, the order of mode, theoretically, is suitable for any length and any type of cables, especially for the parallel steel strands cable, whose mode frequencies and the corresponding mode orders are difficult to be determined.

The numerical case studies and the cable vibration test prove that the proposed method exhibits a high identification precision for tension force and an acceptable identification precision for moment of inertia for cables of any length. Compared to the existing methods, it possesses higher precision and lower requirements for frequency measurement. Moreover, the order of mode is not required, and there is no necessity to match the measured frequencies with the frequency calculated using the numerical model, e.g. FEM. Considering that the frequencies are the real mode frequencies of the cable, the quality of the identification result is relatively high, which is an exceptional feature of the proposed method.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study is funded by National Natural Science Foundation of China (51878490, 51508405), Science and Technology Commission of Shanghai Municipality (18DZ1201203, 17DZ1204300), and the Fundamental Research Funds for the Central Universities.

References

Irvine

HM.

Cable structures. New York: Dover Publications, 1992, p.259.

Gimsing

Georgakis

CT.

Cable supported bridges: concept and design. United Kingdom: John Wiley & Sons, 2012.

Kim

Park

Shin

, et al. A comparative study of the tension estimation methods for cable supported bridges. Int J Steel Struct 2007; 7: 77–84.

Michelle

Pablo

Diego

FL.

Low frequency experimental analysis of dry friction damping in cable isolators. J Low Freq Noise Vib Active Control 2015; 34: 513–524.

Xia

Mao

Wei

, et al. Application of genetic algorithm-support vector regression model to predict damping of cantilever beam with particle damper. J Low Freq Noise Vib Active Control 2017; 36: 138–147.

Xia

Wang

Hou

Non-linear dynamic analysis of double-layer semi-active vibration isolation systems using revised Bingham model. J Low Freq Noise Vib Active Control 2016; 35: 17–24.

Sim

S-H

et al. A wireless smart sensor network for automated monitoring of cable tension. Smart Mater Struct 2014; 23(2): 025006.

Chen

Behavior of wires in parallel wire stayed cable under general corrosion effects. J Constr Steel Res 2013; 85: 40–47.

Glaeser

Brand

Kuhn

, et al. Testing, monitoring and maintenance of parallel strand cables-example: Elbe bridge Schoenebeck. Beton-Und Stahlbetonbau 2014; 109: 463–472.

10.

Xiao

Tension force estimation for parallel strand cable based on parameter identification method. Jiangsu Daxue Xuebao 2015; 36: 583–587.

11.

Cho

Yim

Shin

, et al. Comparative field study of cable tension measurement for a cable-stayed bridge. J Bridge Eng 2012; 18: 748–757.

12.

Zheng

Dynamic analysis of large-diameter sagged cables taking in account flexural rigidity. J. Sound Vib 2002; 257: 301–319.

13.

Zui

Shinke

Namita

Practical formulas for estimation of cable tension by vibration method.

J Struct Eng, ASCE 1996; 122: 651–656.

14.

Ren

Chen

Empirical formulas to estimate cable tension by cable fundamental frequency. Struct Eng Mech 2005; 20: 363–380.

15.

Ricciardi

Saitta

A continuous vibration analysis model for cables with sag and bending stiffness. Eng Struct 2008; 30: 1459–1472.

16.

Dan

Chen

Cable force identification based on corrected numerical resolution of cable frequency functions. J Vib Meas Diagn 2014; 34: 247–253.

17.

Geier

Roeck

Flesch

Accurate cable force determination using ambient vibration measurements. Struct Infrastruct Eng 2006; 2: 43–52.

18.

Kim

Park

Estimation of cable tension force using the frequency-based system identification method. J Sound Vib 2007; 304: 660–676.

19.

Dan

Chen

A PSO driven intelligent model updating and parameter identification scheme for cable-damper system. Shock Vib 2015; 2015: 1–14.

20.

Dan

Huang

, et al. Research on the characteristics of transverse dynamic stiffness of an inclined shallow cable. J Vib Control 2016; 22: 812–825.

21.

Dan

Chen

Universal characteristic frequency equation for cable transverse component system and its universal numerical solution.

J Eng Mech ASCE 2016; 142: 04015105.

22.

Xia

Wang

Sun

Neutral axis-based health monitoring and condition assessment techniques for concrete box girder bridges. Int J Str Stab Dyn 2019; 19: 1940015.

23.

Xia

Nassif

Early-age cracking in high performance concrete decks of typical curved steel girder bridges. J Aerosp Eng 2017; 30: B4016003.

24.

Wei

Zhang

Theoretical and experimental study on cable tension estimation by vibration method accounting for rotational end restraints. J Build Struct 2009; 30: 220–226.
