A Nonlinear vibration analysis of forced response for a bladed-disk with dry friction dampers

Abstract

This paper focuses on the steady vibration characteristics of the bladed-disk subjected to the dry friction damping under periodic excitation. The multi-harmonic method and continuation procedure are combined to trace the solution of the nonlinear forced vibration problem. To obtain a stable and fast nonlinear solver, the analytical formulation of Jacobian matrix in frequency-domain is derived for elastic Coulomb friction model with variable normal force. Furthermore, the continuation method is generalized to trace the solution via different parameters, including not only commonly used excitation frequency but also other design parameters of interest. In numerical simulations, a two degrees of freedom system and a lumped parameter bladed-disk model with dry friction dampers are employed to validate the effectiveness and stability of the method. Meanwhile, the effects of damper design parameters on the responses are investigated, especially the effect of normal force is studied to find the optimal solution. The results indicate that the proposed analytical method can provide an accurate quantitative assessment for the optimum design of the bladed-disk dampers.

Keywords

Multi-harmonic balance method dry friction nonlinearity bladed-disk

Introduction

As the turbomachinery turns to higher power, higher rotation speed and larger flow, the blades of machine are subjected to more complex excitations, which makes the vibration mitigation becomes one of the biggest challenges for the blades design.

Friction dampers are widely used in modern steam and gas turbines for the simple structures and effective damping properties. However, due to the strong nonlinearity of the friction dampers including the contact and friction effects, it is difficult to predict the response of the bladed-disks even under a simple periodic excitation. The most widely applied techniques for these nonlinear dynamic problems are perturbation methods^1–4 such as Lindstedt-Poincaré method, Krylov-Bogoliubov-Mitropolsky method and multiple scales method. Nevertheless, almost all perturbation methods are based on the small parameters assumption and will result in some limitations of the methods in strong nonlinear systems, especially for large deformation and friction-contact coupled vibration of turbine blade-disks. To overcome the shortcoming of small parameters assumption in strong nonlinear systems, some novel analytical methods have been proposed in last two decades^5–14 such as the harmonic balance method (HBM), the homotopy perturbation method, a domain decomposition method, the variational iteration method and the energy-balance method. All these methods have been proved to be effective techniques in some nonlinear systems for large parameters.

The HBM, also known as Fourier-Galerkin method, has been thought as a robust and effective method to analyze the steady-state response of the strong nonlinear system in recently works. This method approximates the unknown periodic displacements with their Fourier coefficients. Then the nonlinear force, which is a function of displacement, velocity and acceleration, can also be expanded as Fourier form by the same number of harmonics analytically. The advantage of this method is that it can transform nonlinear problems from full time-domain into reduced frequency-domain, which implies less unknowns in the harmonic balance method. Meanwhile sufficient accuracy of the steady-state solutions can be achieved with few harmonic numbers for most nonlinear problems. For these reasons, HBM has received increased attention for the last couple of years.

In early works, mono-HBM,^15–17 a special form of HBM, also called approximate linear model was adopted, where the friction dampers are linearized to simplify stiffness and damping coefficients during the period time. Wu and Yuan^18–20 extended this method to a practical approach for design of blade dampers in industry. However, too few harmonics in approximation has been proved to result in low accuracy near resonance frequencies. Hence, more harmonic numbers must be considered and related researches can be found in literature.^8,9,21,22 It is noticed that the robustness and efficiency of a Newton-based iterative solver for HBM nonlinear equations is determined by the accuracy of the Jacobian matrix in the frequency-domain, which can be expressed as the derivative matrix of harmonic coefficients of nonlinear force respected to that of displacement. In previous studies, the Jacobian matrix for nonlinear force, especially for friction and contact forces, is calculated numerically or approximately, resulting in difficulty of convergence or even failure in some special regions. Therefore, it is necessary to derive the analytical formulation of the Jacobian matrix for the friction force in frequency-domain.

On the other hand, the mathematical model of the dry friction force is crucial for the accuracy and reliability of the results. Primary friction models can be divided into two primary categories: those based on Coulomb approach and those established on the bristle analogy. The classical models,²³ such as Dahl, LuGre, stick–slip model, elastoplastic model and the Gonthier model, are widespread engineering friction models. However, it should be emphasized that each model has its own unique parameters and scope of application. In recent years, some new mathematical models^24–26 for the description of micro-hysteresis, based on fractal theory, have also been developed for practical applications. It is worth mentioning that Hai-Yan Kong’s friction law provides a simple and effective calculation method based on fractal dimension.²⁷ Meanwhile, due to the precision improvement of numerical methods, experimental investigations^28–30 of friction parameters have also reached a very high level of accuracy. In the study of vibration for bladed-disk systems, the elastic Coulomb friction model is adopted as an approximate model, in which both the computational efficiency and accuracy are considered.^31,32

Strictly speaking, the normal force between friction interfaces is non-constant because of vibration and gas-flow impact. When the normal displacement is too large, the contact surfaces can even result in separation during the vibration cycle. The tangential friction performance will be completely different from that of constant normal force model. Yang et al.³³ developed the elastic Coulomb friction model considering contact and separation state of normal directions theoretically and investigated the vibration characteristics of a one-dimension system by mono-harmonic method. This mono-harmonic method was further extended to multi-harmonic method by Petrov and Ewins analytically.³⁴ Furthermore, the method was generalization in finite element analysis for high-fidelity bladed-disk.^35,36

In realistic design practice, there is usually a need to choose sets of parameters of interest that can provide minimum forced response or satisfy other requirements. Moreover, all the parameters of the bladed-disk design problem are subjected to some variations due to operating condition changes. For instance, there exists an optimal normal force on friction interface that can reduce the vibration level under gas-flow excitation condition. But, it is problematical to know how the vibration amplitude varies at some dangerous frequencies in the vicinity of the designed optimal value? And it seems impossible to obtain the variation through a large amount amplitude-frequency response curves. Therefore, the continuation procedure corresponding to excitation frequency should be generalized to an arbitrary parameter, which requires that the derivative forms of solutions with respect to these parameters be derived analytically, especially for multi-harmonic coefficients in frequency-domain.

In this paper, the multi-HBM in the frequency-domain is applied to solve the nonlinear forced vibration problem under period excitation, which allows the displacement and the force to be represented by sufficient harmonic components. Several continuation algorithms are employed to trace the solution of the nonlinear equation via different parameters, including not only commonly used excitation frequency but also some design parameters of interest.

To describe the contact and friction states of the dampers more accurately, one-dimension elastic Coulomb friction model is generalized to consider variable normal force or separation state. In order to obtain a stable and fast nonlinear solver for the multi-harmonic equation established above, a concise analytical formulation instead of the finite differential method in frequency-domain is derived in this paper, which includes the Jacobian matrix for nonlinear equations and the derivative vectors with respect to design parameters.

A two degrees of freedom system with dry friction damper is used to demonstrate the effectiveness and stability of proposed method. The result shows enough precision of this method compared with the time marching methods (TMMs). The effects of several parameters on the responses such as excitation level, stiffness coefficient of friction model and two components of normal force are investigated. At last, in order to investigate the optimal design of normal force between the shrouds of blade-disk, a lumped parameter model is applied to simulate a complex bladed-disk system with both root-disk and shroud-shroud dampers. The effects of normal force design value and its fluctuations on the forced response of bladed-disk are discussed.

Multi-harmonic balance equation

The dynamic equation of a bladed-disk system under forced excitations and nonlinear interactions can be written in the form

Kx + C \dot{x} + M \ddot{x} = f_{e} + f_{n} (x, \dot{x}, \ddot{x})

(1)

where x,

\dot{x}

\ddot{x}

are vectors of displacements, velocities and accelerations for all degrees of freedom (DOFs) in the bladed-disk structure, respectively. M, C and K are structural stiffness, damping and mass matrices.

f_{e}

is a vector of excitation forces and

f_{n} (x, \dot{x}, \ddot{x})

is the vector of nonlinear forces, for a general case considered here, which is explicitly dependent on x,

\dot{x}

\ddot{x}

. For the bladed-disk system, the excitation forces

f_{e}

in equation (1) mainly contain periodic components, which can be written as

f_{e} (t) = f_{e} (t + T)

, where T is the vibration period.

Then all the time variation vectors such as displacements x, nonlinear forces $f_{n}$ and excitation forces $f_{e}$ for the steady-state periodic regimes are expressed as Fourier series in equation (2), which can include enough harmonic components to satisfy the required accuracy.

x = \sum_{k = - N}^{N} {[X]}_{k} e^{k ω ti}, f_{e} = \sum_{k = - N}^{N} {[F_{e}]}_{k} e^{k ω ti}, f_{n} (x, \dot{x}, \ddot{x}) = \sum_{k = - N}^{N} {[F_{n}]}_{k} e^{k ω ti}

(2)

For multi-harmonic equations (N is the total number of harmonics), the frequencies of the harmonic components can be expressed as kω (satisfies T = 2π/ω). Let X, F _e and F _n denote the harmonic coefficients for x, f _n and f _e in frequency-domain, respectively. For example, the displacements vector X can be written as

X = {[{[X]}_{- N}^{T}, \dots, {[X]}_{k}^{T}, \dots, {[X]}_{N}^{T}]}^{T}, k \in [- N, N]

(3)

The –kth harmonic coefficient in equation (3) [X] _-k is the complex conjugate of kth harmonic term [X] _k , which represents real harmonic components of $x$ . They can be calculated using Fourier Series as

{[X]}_{0} = \frac{1}{T} \int_{0}^{T} x (t) d t, {[X]}_{k} = \frac{2}{T} \int_{0}^{T} x (t) e^{- k ω ti} d t (k \neq 0)

(4)

While the velocities and accelerations vectors can be expressed as functions of the vector X analytically.

\dot{x} = \sum_{k = - N}^{N} k ω i {[X]}_{k} e^{k ω ti}, \ddot{x} = \sum_{k = - N}^{N} - k^{2} ω^{2} {[X]}_{k} e^{k ω ti}

(5)

In accordance with the multi-HBM, the expansion from equations (2) and (5) are substituted into the motion equation (1). As a result, the time-domain equation (1) is transformed to the multi-harmonic balance equation in frequency-domain with respect to the solution vector X, as shown in equation (6). Where $\bar{K}$ is a block diagonal matrix, $\bar{K} = diag ([\bar{K}] - N, \dots, [\bar{K}] k, \dots, [\bar{K}] N), k \in [- N, N]$

\bar{K} \cdot X = F_{e} + F_{n} (X)

(6)

{[\bar{K}]}_{k} = K + k ω i C - k^{2} ω^{2} M

(7)

Continuation procedure

Classical Newton-Raphson method is usually adopted to solve equation (6). However, it always causes difficulty in convergence at resonance frequency points or even fail at turning points and bifurcation points. In order to enhance the stability of the nonlinear solver, it is of interest to trace the loci of the solutions by introducing a continuation parameter λ as shown in equation (8), rather than solving at only one single value of parameter. For example, the parameter λ can be chosen as the frequency of excitation frequency ω, the level of excitation force, or the nonlinear force parameter.

R (λ, X) = \bar{K} \cdot X - F_{n} - F_{e} = 0

(8)

The predicator-corrector technique is used in the sequential continuation procedure with the variation of parameter λ. The first step is the predictor, which is also called solution initialization, for speeding up the iterative convergence at a given step of the procedure. Tangent and secant predicators²² based on pre-converged solutions are thus used to initialize X⁽⁰⁾. Cheung³⁷ extended the secant predicator to a higher order extrapolation technique based on Lagrange extrapolation method as shown in equations (9) and (10).

X^{(0)} = \sum_{p = 1}^{m} \prod_{q = 1, q \neq p}^{m} (\frac{l_{m + 1} - l_{q}}{l_{p} - l_{q}}) X_{p}

(9)

l_{q} = \sum_{p = 1}^{q - 1} ‖ X_{p + 1} - X_{p} ‖, l_{m +1} = l_{m} + Δ l, q \in [2, m]

(10)

where X₁, X _p , X _m are last m converged solutions. It can be observed that the predicator degenerates into the classical secant predictor when m = 2.

The second step is the corrector, which is calculated using the iterative Newton-Raphson algorithm in this paper. The iterative process can be performed by incremental form of equation (8).

{\frac{\partial R}{\partial λ} |}_{λ^{(k)}, X^{(k)}} δ λ^{(k)} + {\frac{\partial R}{\partial X} |}_{λ^{(k)}, X^{(k)}} δ X^{(k)} + R (λ^{(k)}, X^{(k)}) = 0

(11)

where superscript k indicates the number of the previous iteration. Then an additional equation is required to supplement equation (12) in the corrector step.

G (λ^{(k)}, X^{(k)}, δ λ^{(k)}, δ X^{(k)}) = 0

(12)

The iterations are stopped when a prescribed accuracy $‖ R (λ^{(k)}, X^{(k)}) ‖ < err$ is achieved. The detailed formulation of equation (12) supplemented was proposed by many researchers such as Riks-Wempner’s normal plane corrector,³⁸ Crisfield’s arc-length corrector,³⁹ Fried’s orthogonal trajectory corrector,⁴⁰ and Moore-Penrose pseudo inverse corrector.⁴¹ But there is no single corrector that can provide a sufficiently robust convergence. The latter three correctors are combined to ensure the convergence stability in this paper.

Analytical formulation of nonlinear derivative terms

It should be noted that the Jacobian matrix and the derivative vector with respect to λ in equation (11) are required to be updated in every Newton-Raphson iteration. In some problems, the analytical expression of Jacobian matrix is too complex to be obtained or some calculations of the whole matrices require large computational cost. So there is a compromise way to calculate these terms numerically using finite differences with a perturbation, which was utilized in several previous works. However, it turned out that these methods of difference cannot provide a reliable convergence, especially for strongly nonlinear problems. These nonlinear derivative terms are derived by general formulations in this section.

First, the Jacobian matrix $\frac{\partial R}{\partial X}$ can be obtained by differentiating equation (8) with respect to X

\frac{\partial R}{\partial X} = \bar{K} - \frac{\partial F_{n}}{\partial X}

(13)

In order to compute the derivatives of Force Fourier coefficients [F _n ] _j with respect to displacement Fourier coefficients [X] _k , the chain rule is used as follows

{[\frac{\partial F_{n}}{\partial X}]}_{jk} = \frac{η}{π} \int_{0}^{2 π} (\frac{\partial f_{n}}{\partial x} \cdot \frac{\partial x}{\partial {[X]}_{k}} + \frac{\partial f_{n}}{\partial \dot{x}} \cdot \frac{\partial \dot{x}}{\partial {[X]}_{k}} + \frac{\partial f_{n}}{\partial \ddot{x}} \cdot \frac{\partial \ddot{x}}{\partial {[X]}_{k}}) e^{j τ i} d τ

(14)

where η = 0.5 for j＝0, else η = 1. In general, the derivatives of nonlinear forces with respect to the displacements in the time-domain can be expressed analytically, and other terms can be written as

\frac{\partial x}{\partial {[X]}_{k}} = e^{k τ i}, \frac{\partial ¨ x}{\partial {[X]}_{k}} = k ω i \cdot e^{k τ i}, \frac{\partial \ddot{x}}{\partial {[X]}_{k}} = - k^{2} ω^{2} \cdot e^{k τ i}

(15)

The continuation procedure allows solutions of a nonlinear equation to be traced when the parameter λ varied. There are different choices for λ to follow the solution curves under parameters variation, and three patterns as follows are discussed in this paper.

When λ is the frequency of excitation frequency, i.e. λ = ω, the expression of the derivative vector takes this form

\frac{\partial R}{\partial λ} = \frac{\partial \bar{K}}{\partial ω} \cdot X - \frac{\partial F_{n}}{\partial ω} - \frac{\partial F_{e}}{\partial ω}

(16)

The j-th block of the vector can be calculated by Fourier transformation

{[\frac{\partial F_{n}}{\partial ω}]}_{j} = \frac{η}{π} \int_{0}^{2 π} (\frac{\partial f_{n}}{\partial \dot{x}} \cdot \frac{\partial \dot{x}}{\partial ω} + \frac{\partial f_{n}}{\partial \ddot{x}} \cdot \frac{\partial \ddot{x}}{\partial ω}) e^{j τ i} d τ

(17)

\frac{\partial \dot{x}}{\partial ω} = \sum_{k} k X_{k} i \cdot e^{k τ i}, \frac{\partial \ddot{x}}{\partial ω} = \sum_{k} - 2 k^{2} X_{k} ω \cdot e^{k τ i}

(18)

2. When λ is a parameter of the nonlinear force vectors f _n , i.e. λ=p, the expression takes the form

\frac{\partial R}{\partial λ} = - \frac{\partial F_{n}}{\partial p}

(19)

Then nonlinear force f _n can be extended as an explicit function as $f_{n} (x, \dot{x}, \ddot{x}, p)$ , and the j-th block of the vector can be calculated by

{[\frac{\partial F_{n}}{\partial p}]}_{j} = \frac{η}{π} \int_{0}^{2 π} \frac{\partial f_{n}}{\partial p} e^{j τ i} d τ

(20)

3. When λ is a parameter of modifications of linear components, i.e. λ=q, for example, q can be the design parameters of the stiffness, mass, linear damping matrices or the parameters of excitation levels.

\frac{\partial R}{\partial λ} = - \frac{\partial \bar{K}}{\partial q} - \frac{\partial F_{e}}{\partial q}

(21)

It should be illustrated that all the nonlinear derivative terms in the numerical calculation only need to be computed on the nonlinear DOFs. For contact or dry friction problems, the vector F _n only depends on the relative displacements of few nodes on the contact surfaces. Therefore, regardless of whether it is a multi-DOFs model or a finite element model, the Jacobian matrix and the derivative vector are sparse enough compared with linear stiffness matrix $\bar{K}$ .

Dry friction model

The nonlinear restoring force between the contacting surfaces of a bladed-disk system, such as root-disk joints and shrouds contacts, is usually modeled by one-dimension elastic Coulomb friction model¹¹ as shown in Figure 1(a). The friction force can be expressed as a unified form

f_{n} = - k_{t} (x - z)

(22)

where x is the relative displacement of contact surfaces and z is an implicit variable in this friction model. During relative motion of the surfaces three states are possible: stick, slip or separation, which can be described by the implicit variable z.

{\begin{array}{l} \dot{z} (τ) = 0 & stick \\ \dot{z} (τ) = \dot{x} (τ) & slip \\ N (τ) = 0 & separation \end{array}

(23)

where τ is non-dimensional time and N is normal force between the contact surfaces.

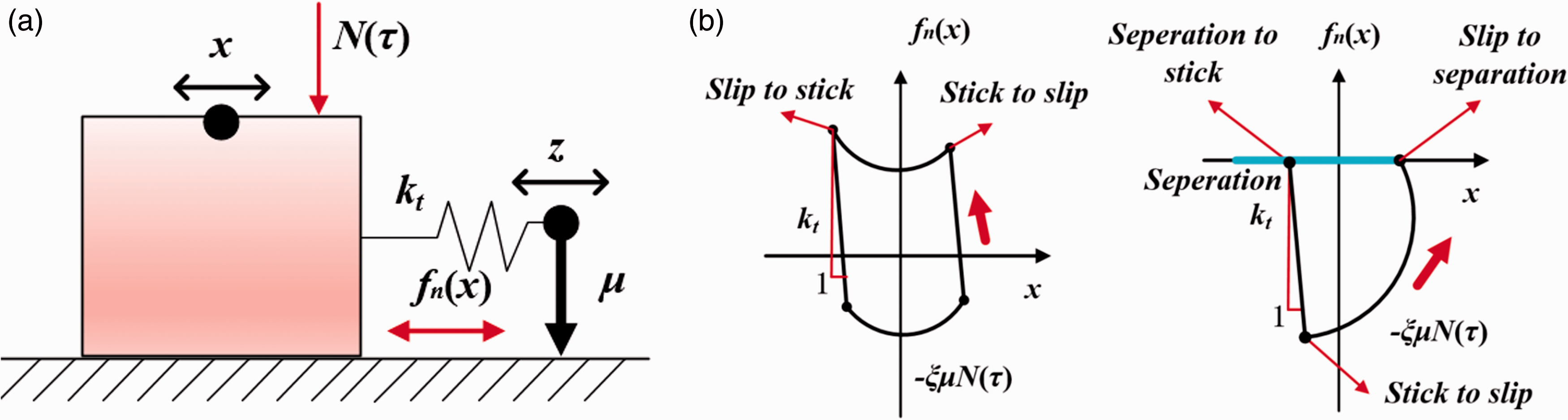

Figure 1.

The elastic Coulomb friction model with variable normal force. (a) Contact and friction interface model and (b) Contact and friction states transition.

Due to the vibration or excitation of dampers, the normal force N(τ) is inevitably non-constant in practical bladed-disks. For example, two patterns of hysteresis loop curve with variable normal force are exhibited in Figure 1(b), where the left part depicts the DOF in contact during the vibration period and the right part shows a case where separation occurs.

Considering equation (23), the friction force can be calculated by a semi-explicit form

f_{n} = {\begin{array}{l} - k_{t} [x - z (τ_{0})] & stick \\ - ξ N (τ) μ & slip \\ 0 & separation \end{array}

(24)

where μ and k_t are the friction and stiffness coefficient of the Coulomb model; ξ is a sign function of the friction force at the time instant of slip state initiation; z(τ₀) is the implicit variable at the beginning of the stick state. The Jacobian matrix of this friction model for slip and separation states can be calculated by Fourier transformation as shown in equation (17).

However, it should be emphasized that the term z(τ₀) in equation (24) is still implicit and history-dependent for stick state. Therefore, nonlinear force f_n depends on not only the relative displacement x but also an implicit variable z(τ₀). The component of Jacobian matrix for the nonlinear DOF in equation (14) should be modified as

{[\frac{\partial F_{n}}{\partial X}]}_{jk} = \frac{η}{π} \int_{0}^{2 π} (\frac{\partial f_{n}}{\partial X_{k}}) e^{j τ i} d τ = \frac{η}{π} \int_{0}^{2 π} (\frac{\partial f_{n}}{\partial x} \cdot \frac{\partial x}{\partial X_{k}} + \frac{\partial f_{n}}{\partial z} \cdot \frac{\partial z (τ_{0})}{\partial X_{k}}) e^{j τ i} d τ

(25)

where X_k is the k-th harmonic coefficient of relative displacement x. The derivative of nonlinear force with respect to X_k in time-domain can be calculated by this explicit form

\frac{\partial f_{n}}{\partial X_{k}} = {\begin{array}{l} - k_{t} e^{k τ i} + k_{t} \partial [z (τ_{0})] / \partial X_{k} & stick \\ 0 & slip \\ 0 & separation \end{array}

(26)

Therefore, only the term of stick state in equation (26) should be considered. It is evident that stick state can be transformed from two states (slip and separation). The first case is the separation to stick transition. Then the friction force at the beginning of stick state has to be equal to the value of the force at the end of separation in order to be continuous over a period, which means that z(τ₀) should satisfied equation (27).

k_{t} [x (τ_{0}) - z (τ_{0})] = 0

(27)

Substituting equation (27) into equation (26), we obtain

\frac{\partial f_{n}}{\partial X_{k}} = - k_{t} e^{k τ i} + k_{t} e^{k τ_{0} i}

(28)

The second case is the slip to stick transition, still considering the continuity condition of the friction force

k_{t} [x (τ_{0}) - z (τ_{0})] = ξ N (τ_{0}) μ

(29)

Then derivative term for stick state comes into

\frac{\partial f_{n}}{\partial X_{k}} = - k_{t} e^{k τ i} + k_{t} e^{k τ_{0} i} + [k_{t} \dot{x} (τ_{0}) - ξ \dot{N} (τ_{0}) μ] \cdot \frac{\partial τ_{0}}{\partial X_{k}}

(30)

Also note the differential of equation (29), in other words, the continuity equation of the velocity is

k_{t} \dot{x} (τ_{0}) = ξ \dot{N} (τ_{0}) μ

(31)

It is interesting that the same form can be obtained as equation (28) when equation (31) is substituted into equation (30), which indicates that the Jacobian matrix can be calculated only by the stick transition time over the period.

Similar to the above derivation process, $\frac{\partial f_{n}}{\partial p}$ in the time-domain can be calculated by the continuity equations of transition state over the vibration period. In this friction model, the nonlinear parameter p can be chosen for three cases as follows.

When p is the stiffness coefficient $p = k_{t}$ , then

\frac{\partial f_{n}}{\partial k_{t}} = {\begin{array}{l} - [x - x (τ_{0})] & stick \\ 0 & slip \\ 0 & seperation \end{array}

(32)

When p is the friction coefficient $p = μ$ , then

\frac{\partial f_{n}}{\partial μ} = {\begin{array}{l} - ξ N (τ_{0}) & stick \\ - ξ N (τ) & slip \\ 0 & seperation \end{array}

(33)

When p is a harmonic coefficient of normal force $N (τ)$ , then

\frac{\partial f_{n}}{\partial N_{k}} = {\begin{array}{l} - ξ μ e^{k τ_{0} i} & stick(slip \to) \\ - k_{t} \dot{x} (τ_{0}) e^{k τ_{0} i} / \dot{N} (τ_{0}) & stick(separation \to) \\ - ξ μ e^{k τ i} & slip \\ 0 & separation \end{array}

(34)

All these analytical integrals derived above, involving transformations between time domain to frequency domain, can be calculated by Fast Fourier Transform, which provides an efficient and exact calculation technique in numerical analysis.

Numerical studies

A two degrees of freedom model with dry friction damper

First, a two degrees of freedom system with a dry friction nonlinearity, as shown in Figure 2, is considered with k1 = 4π², k2 = 2π², c1 = 0.5, c2 = 0.5, m1 = 1 and m2 = 1. A nonlinearity friction damper located DOF 2 is considered here with default parameters k_t=30, μ = 0.3. The excitation force and the normal force for this test is expressed as

{\begin{array}{l} f_{e} (t) = f_{0} \cos (ω t) \\ N (t) = N_{0} + N_{1} \cos (ω t) \end{array}

(35)

Figure 2.

Oscillator with two degrees of freedom with a friction damper.

For all calculations, total harmonic number N = 11 is considered and the condition R < 10⁻⁹ is used as convergence criteria for iteration process. The forced responses of maximum displacement and harmonic spectrum at DOF 2 with f₀=100 N N₀=100 N and N₁=200 N are shown in Figure 3. Two special cases of the linear system are also plotted in this figure: first is the full-stuck of the friction damper DOF and second is the frictionless of this DOF. A closer look at the low frequency region reveals that the super-harmonic resonances keep at a higher level than first main harmonic, which clearly shows the necessity of multi-harmonic expansion.

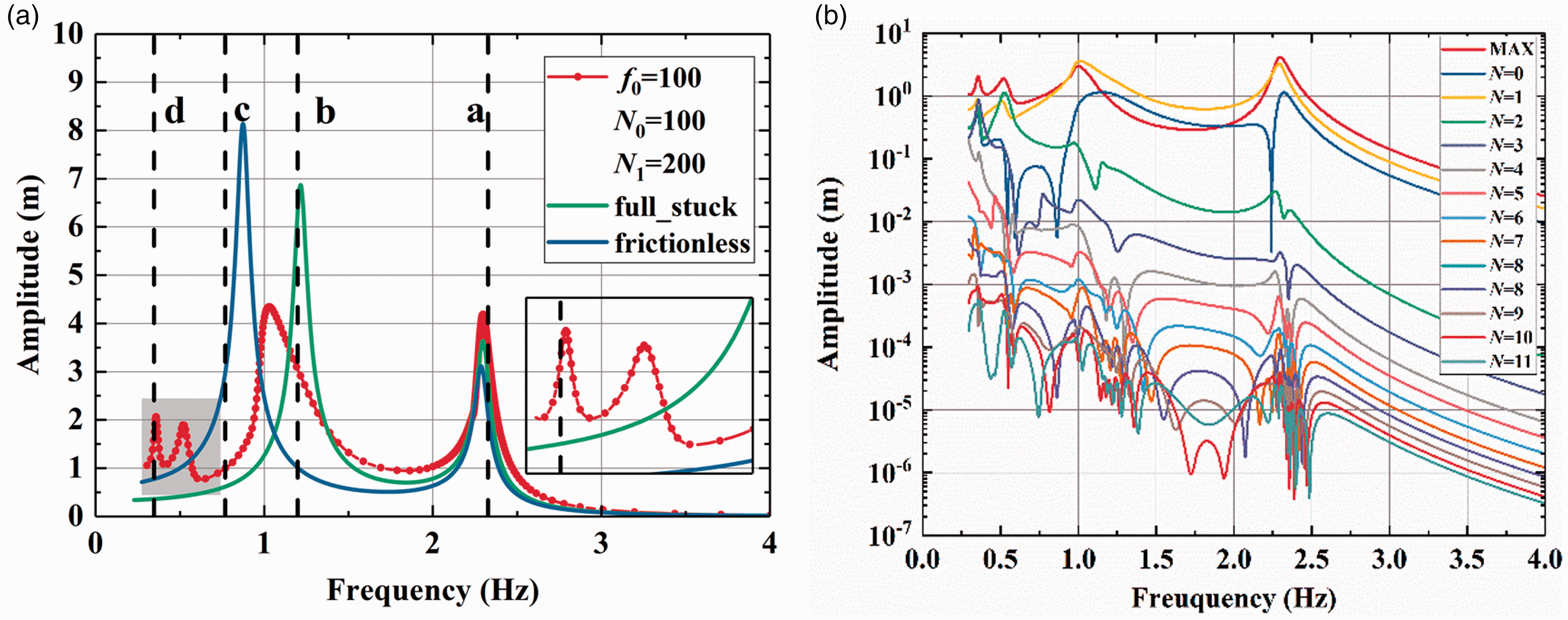

Figure 3.

Frequency-domain response results of DOF 2. (a) Frequency-domain forced response and (b) Amplitudes of harmonic components.

Furthermore, the comparisons between the multi-HBM and the TMM (Newmark method applied in this paper) at a, b, c and d points are presented in Figure 4 to validate the proposed method. The time-domain response curves and Hysteresis loops both show that the calculation results with two methods are agreed very well in these 4 points, while the points c and d show significant different harmonic components in two vibration periods. The existence of super-harmonic resonances at frequency 0.769 Hz and 0.346 Hz can be seen obviously in the time-domain curves as shown in Figure 4, it can also be observed in the harmonic spectrum that second and third harmonics are even higher than the first harmonic at low excitation frequency.

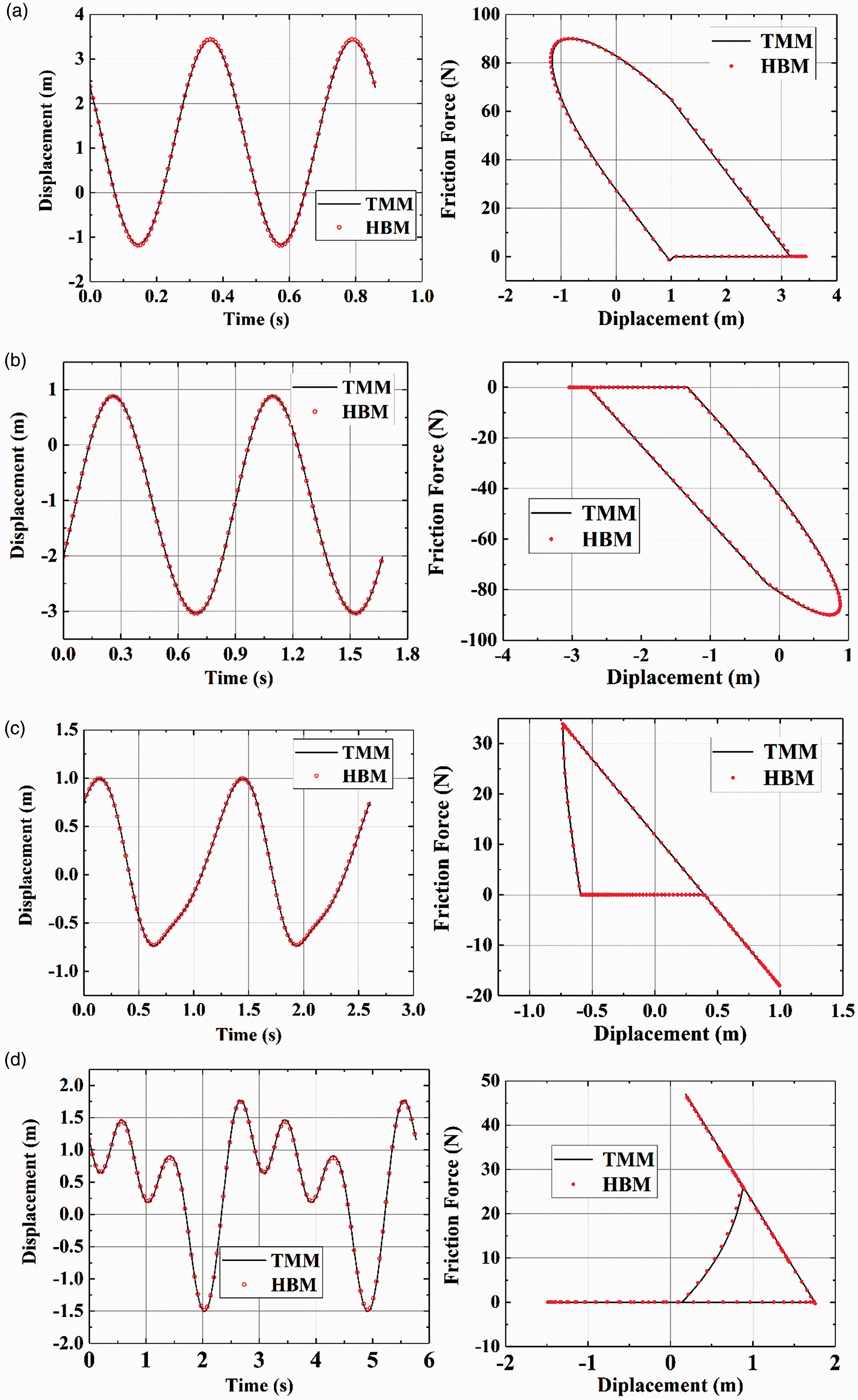

Figure 4.

Comparison of results by multi-HBM and TMM. Time-domain response curves and hysteresis loops at frequency (a) 2.328 Hz, (b) 1.198 Hz, (c) 0.769 Hz and (d) 0.346 Hz. TMM: time marching methods; HBM: harmonic balance method.

It is worth noting that the hysteresis loop of the friction DOF shows essentially different form from a general form of friction model with constant normal force, which is a parallelogram. The separation state can be identified by friction force with zero value constantly, and the stick state can be marked easily if the force and relative displacement are linear. When the friction damper keeps slip state, the hysteresis loop is usually a curve due to the valid normal force.

Next, the effects of different parameters on the vibration characteristics of this oscillator are discussed. Four cases are considered as follows in this numerical test.

Excitation levels f₀

The forced response amplitude with respect to excitation levels is investigated with N₀=100, N₁=30 in equation (35). The forced response in frequency-domain is presented in Figure 5 with different excitation levels f₀ ∈ [10, 500] N.

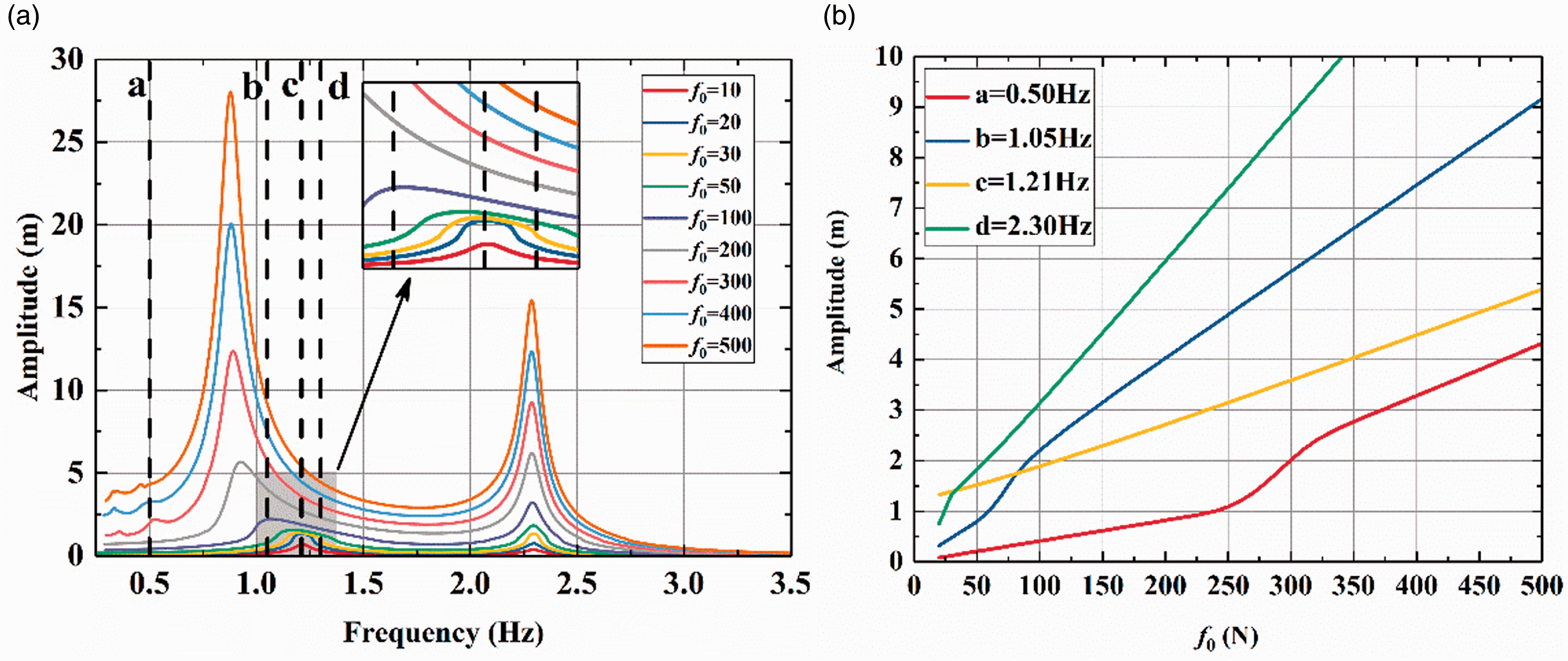

Figure 5.

Effect of excitation level f₀ on frequency responses. (a) Frequency-domain forced response and (b) Forced response at a, b, c and d frequency.

It can be obtained from Figure 5(a) that major resonance frequency decreases gradually with the increase of excitation level. At low excitation level (f₀ < 20 N), the resonance frequency which remains unchanged equals to that of the underlying linear system. When the excitation increases to a certain extent that it can activate the nonlinearity, i.e. introduce some slipping into the friction DOF, the resonance frequency will be closed to frictionless linear model. As a consequence, the resonance frequency gradually shifts from the linear full-stuck model toward the linear frictionless model.

Meanwhile, the force response at point a, b, c and d with respect to excitation level can be solved as shown in Figure 5 by selecting λ as the excitation level f₀. Due to the effect of dry friction damper, the response amplitude is not linearly depending on the excitation level.

Tangential stiffness k_t

In the same way, the response amplitude corresponding to some parameters of the friction model can be obtained, for example, tangential stiffness k_t. As shown in Figure 6, the resonance frequency increases with tangential stiffness k_t when all other parameters are fixed, but the resonance peak gradually decreases or even completely suppressed. However, it is usually difficult to determine the tangential stiffness of the friction surface accurately in practical designs. The above analysis can only provide qualitative conclusions.

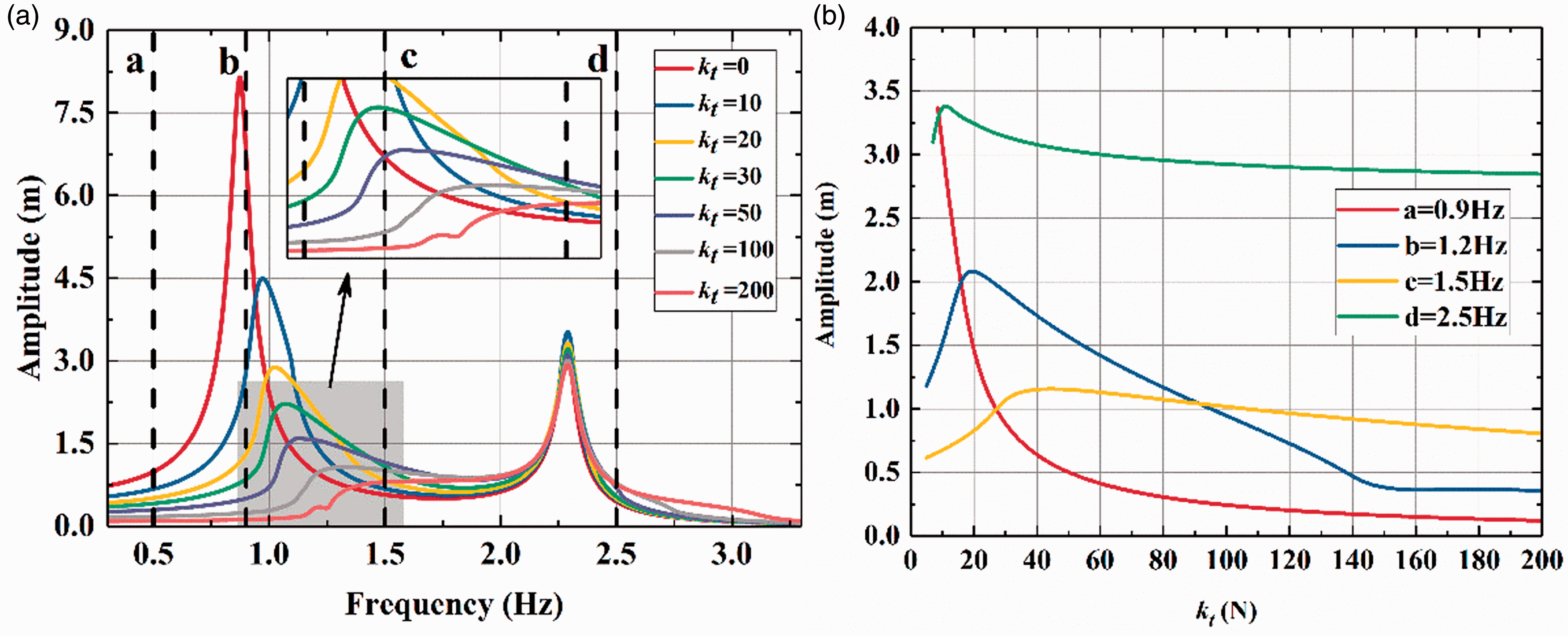

Figure 6.

Effect of tangential stiffness k_t on frequency responses. (a) Frequency-domain forced response and (b) Forced response at a, b, c and d frequency.

Normal force N₀

The optimal value of normal force is a key part in design of friction dampers. That is, the constant component N₀ of normal force for minimal vibration response in this case. Let the value of N₀ varies from 10 to 500 and N₁ is set as 0.3 N₀. The frequency response curve is shown in Figure 6, where the two black curves are two linear systems with stuck damper and frictionless damper, respectively. Similar to the increasement in excitation force, it shows that the resonance frequency does not vary with a large normal force, which can be also explained by the system that is equivalent to the linear system with damper in full-stuck state. When the normal force is not large enough to maintain the friction state in full-stuck, the damper comes into stick-slip transition states and the system will approach to the linear system with frictionless damper. It is shown that an optimal load is found when normal force reaches 100 N (dotted line), which results in a minimum forced response amplitude at the blade tip. An accurate quantitative relationship between the amplitude at each frequency point as shown in Figure 7 (a, b, c and d) with different N₀ can be obtained, providing a reference for optimization of normal force with regard to vibration mitigation.

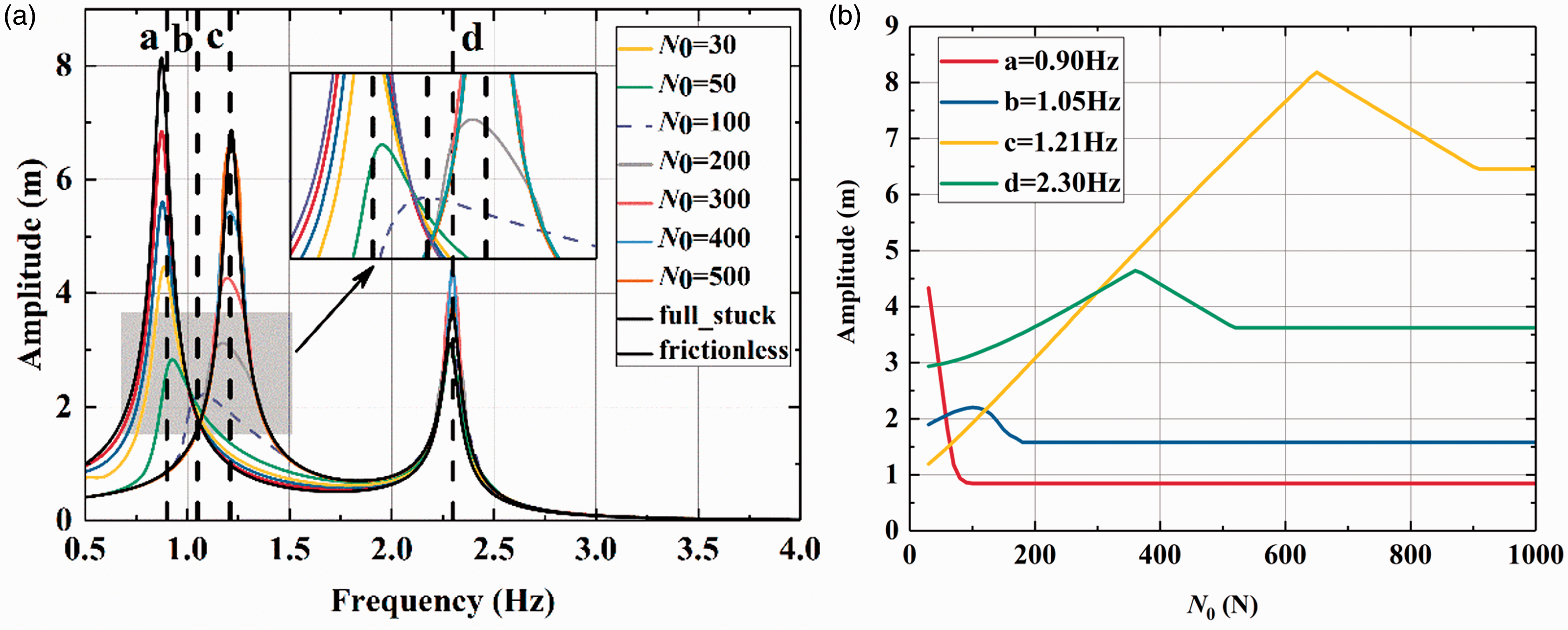

Figure 7.

Effect of normal force N₀ on frequency responses.(a) Frequency-domain forced response and (b) Forced response at a, b, c and d frequency.

Normal force fluctuation N₁

When the normal force N₀ keeps an optimal value, the vibration characteristic is studied under different fluctuation components N₁ caused by excitation or other periodic changes of working conditions. The normal force fluctuation N₁ is set from 0 to 500 N with N₀=100 N. It can be observed from the frequency response curve shown in Figure 8 that fluctuation components have little effect on the resonance frequency when N₁ keeps a small value. However, a large fluctuation will result in greater amplitude especially when N₁ > 50 N, while the increasement will slow down or even decrease as the fluctuation increases. Another interesting phenomenon is that when N₁ exceeds N₀, that is, the friction damper occurs separated, then super-harmonic responses will appear.

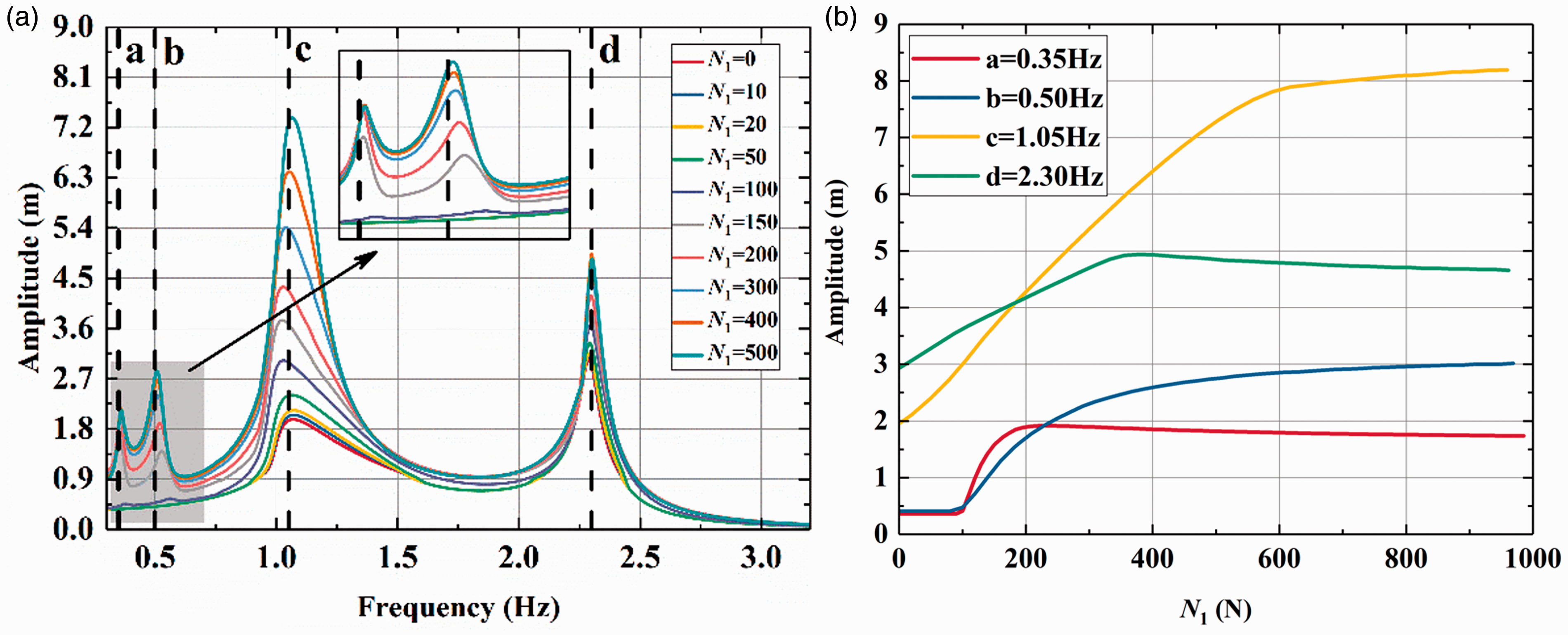

Figure 8.

Effect of normal force fluctuation N₁ on frequency responses. (a) Frequency-domain forced response and (b) Forced response at a, b, c and d frequency.

A lumped parameter model for a bladed-disk system

A lumped parameter model (LPM) as shown in Figure 9 simulating the bladed-disk model with high fidelity has been devised to explore complicated phenomena of a bladed-disk system. A total number of eight sectors are retained in this example, and each symmetric sector including the blade tip, middle, root and disk is simplified as 4 DOFs. The response of blade tips is mainly focal point in the bladed-disk. Two adjacent sectors are coupled by the disk DOFs, and the stiffness and damping of ground are both introduced to the boundary condition of system. Based on actual dimensions and material properties of bladed-disk, all the calculated values of mass, stiffness and damping in each section are summarized in Table 1.

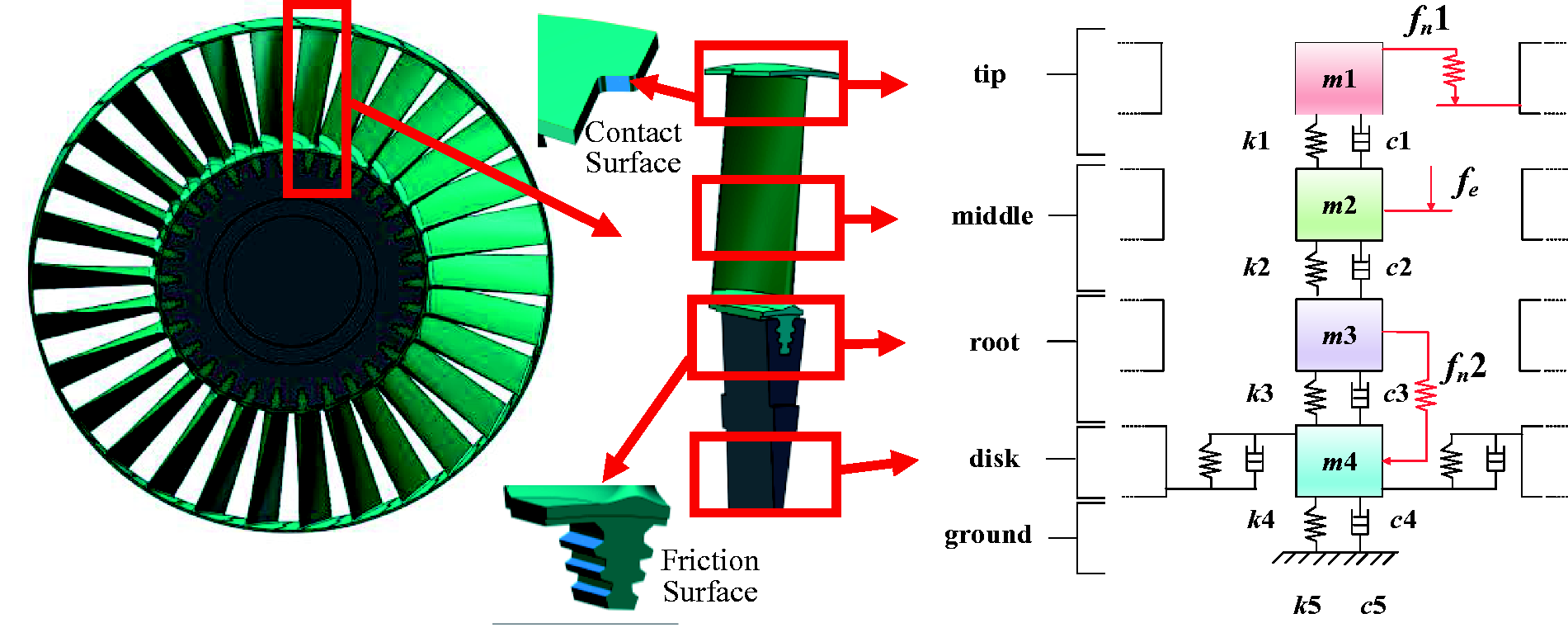

Figure 9.

LPM for a bladed-disk with two dry friction dampers.

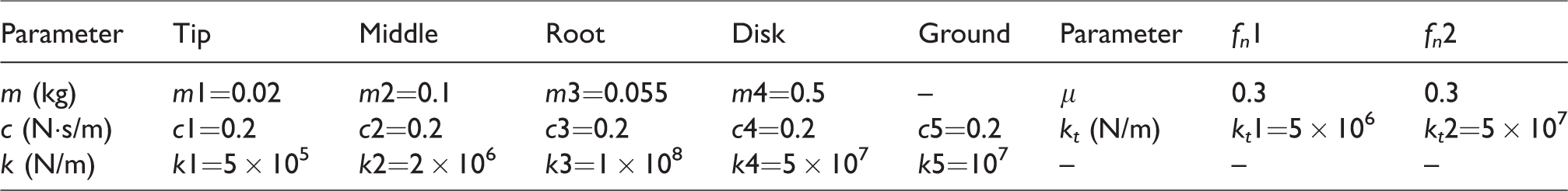

Table 1.

Parameters values of LPM.

Parameter	Tip	Middle	Root	Disk	Ground	Parameter	f_n1	f_n2
m (kg)	m1=0.02	m2=0.1	m3=0.055	m4=0.5	–	μ	0.3	0.3
c (N·s/m)	c1=0.2	c2=0.2	c3=0.2	c4=0.2	c5=0.2	k_t (N/m)	k_t1=5 × 10⁶	k_t2=5 × 10⁷
k (N/m)	k1=5 × 10⁵	k2=2 × 10⁶	k3=1 × 10⁸	k4=5 × 10⁷	k5=10⁷	–	–	–

In a turbomachine, the gas exciting force, which is the major external excitation for considered system, can be calculated as a circular periodic excitation simply. Therefore, the excitation f_e(t) can be described as a cosine traveling wave with i nodal diameters as equation (36), acting on the blade middle DOF, where f₀ is the excitation level coefficient, N_b is the total blade number and j is the index of blade.

f_{e} j (t) = f_{0} \cos (i ω t + \frac{2 π ij}{N_{b}})

(36)

Two dry friction force interfaces are considered in this study. The first one is between blade and disk interface, and the second is between two adjacent shrouds. The values of friction parameters are shown in Table 1. It should be indicated that normal force of blade-disk is mainly provided by the centrifugal force of blade, which can be regarded as a constant value during the period time. However, the contact and friction force between shrouds have obvious fluctuations or even separation in one cycle. The optimal normal force is especially important in the damper design. The influence of normal force N(t) between shrouds on system vibration is discussed as follows. Similar to excitation force, N(t) is also expressed as a traveling wave as equation (37)

N^{j} (t) = N_{0} + N_{1} \cos (i ω t + \frac{2 π ij}{N_{b}})

(37)

The natural frequencies in the first family modes for this symmetric bladed-disk are still considered for two special linear cases as above: full-stuck and frictionless interfaces of the shroud dampers. The first frequency family of the frictionless system distributes in the range of 575 Hz–587 Hz, while first-order nodal diameters frequencies are between 755 Hz and 785 Hz for the full-stuck system. The frequency range considered (500 Hz–900 Hz) for the forced response includes a major resonance at first-order nodal diameters.

A sufficient number of harmonics (N = 11) are kept to account for the stick–slip-separation transitions occurring at the interface when the nonlinearity is activated. It can be noted from Figure 10(b) that as harmonic number N rise from 1 to 11, the response curves can converge to the solution by TMM gradually. It should be pointed out that, as shown in Figure 10(a), the response of super-harmonics in the entire frequency model is not negligible and the mono-harmonic method (N = 1), which is widely used in engineering design, has obvious limitations.

Figure 10.

Forced response of the blade tip (f₀ =50 N, N₀=200 N, N₁=400 N). (a) Amplitudes of harmonic components and (b) Time-domain response at frequency 755 Hz. TMM: time marching method.

Next the vibration characteristics of the LPM bladed-disk under normal force design value N₀ and its fluctuation N₁ of the shroud surfaces are discussed.

The excitation amplitude value f₀ in equation (36) is fixed as 50 N, with an excitation on each blade middle m2 as shown in Figure 11. In the first case, different normal force values N₀ (80 N to 3000 N) are set as the contact load between shroud-shroud surfaces. As expected, there exists an optimal load about 200 N, which leads to a minimum of forced response of the blade tips. The effect of damping is significant that the resonance peak of the bladed-disk with the normal force of 200 N is 0.103 mm. As analyzed above for the 2-DOFs system, the resonance frequencies share the same value (755 Hz) for the shrouds dampers at a high normal force and the full-stuck linear system. Once the normal force is below 90 N, which means the friction interfaces will introduce more slipping, the resonance frequency will be close to frictionless linear system (575 Hz). Meanwhile, the amplitude will increase sharply at the resonance frequency.

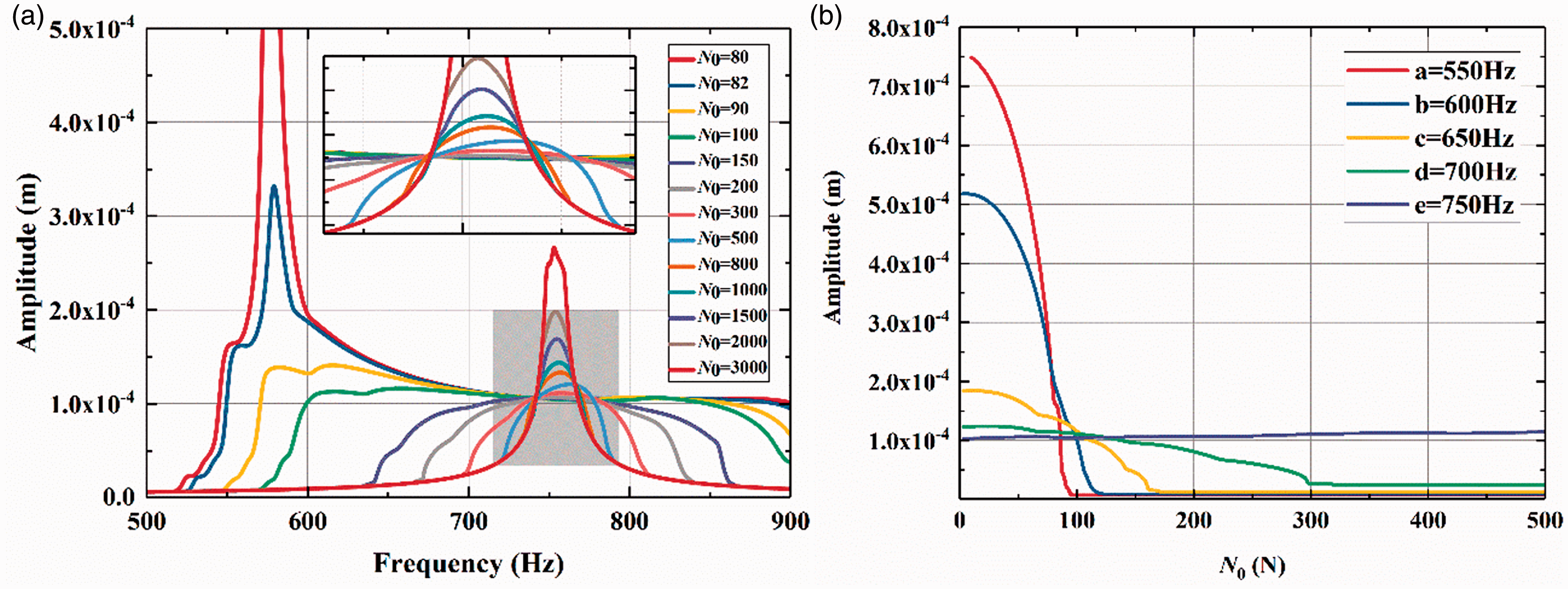

Figure 11.

Forced response curves under different normal force N₀. (a) Frequency-domain forced response and (b) Forced response at a, b, c and d frequency.

Moreover, it can be obtained that the vibration amplitude is insensitive to the constant component N₀ of normal force in the range of 100 N–1000 N; however, the resonance frequency range will significantly reduce with little amplitude increase, which means a safer vibration performance of the system at N₀=500 N in this frequency range. As the N₀ further increases, one can observe that the amplitude increases slowly and the resonance frequency range does not change much. As a consequence, a tighter design of shrouds than optimal normal force value is more conducive to vibration mitigation.

The effects of fluctuation component of normal force at N₀=200 N are also investigated with the fluctuation N₁ varying from 0 to 500 N. It should be noticed that the friction damper DOFs will appear separation during the periodic time when N ₁>N₀. When the fluctuation N₁ keeps a small level, as observed in Figure 12, the maximum amplitude in the frequency interval increases slowly with N₁. Besides, it can be noticed that the forced response is insensitive to normal force fluctuation when N₁<N₀.

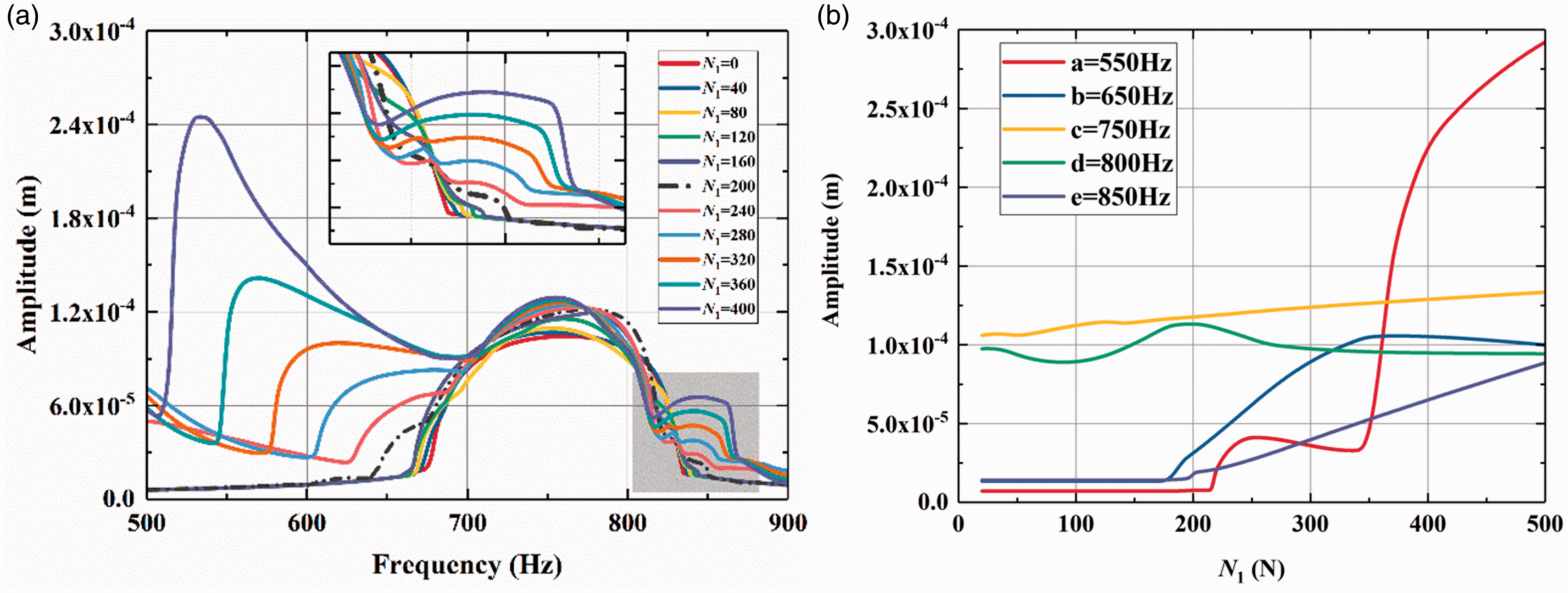

Figure 12.

Forced response curves under different normal force fluctuations N₁. (a) Frequency-domain forced response and (b) Forced response at a, b, c and d frequency.

As N₁ increases above N₀, which means the adjacent shrouds occur separated, one can observe completely different forms of response curve. Three peaks can be found in the frequency range, one of which is same as that with no separation of shrouds at 755 Hz. The remaining two resonance peaks are located at 750 Hz, the resonance peaks at lower frequency increase significantly with the increase of fluctuation value. Furthermore, a more elaborate analysis of the response amplitude at different frequencies corresponding to the normal force N₀ and N₁ is given in Figure 12(b).

To explore the effects of both frequency and normal force, the cloud maps, as shown in Figure 13, exhibit the relationship between the vibration amplitude and the excitation frequency, as well as positive pressure of these two variables. The blue curve shows the maximum response amplitude and the normal force in the frequency interval. For normal force N₁, the sharp increase in response to a small normal force can be observed clearly in the graph, however, the amplitude changes slightly when the normal force increases. Therefore, special attention should be paid to the resonance frequency interval in this situation. The dangerous resonant region is significantly reduced, while the amplitude increase is not obvious even if the normal force increases to a large extent. The optimal normal force requires two indicators: risk range of resonance frequency and the maximum response amplitude. As a consequence, this analysis method can not only predict the optimal normal force accurately but also evaluate its sensitivity in frequency-domain.

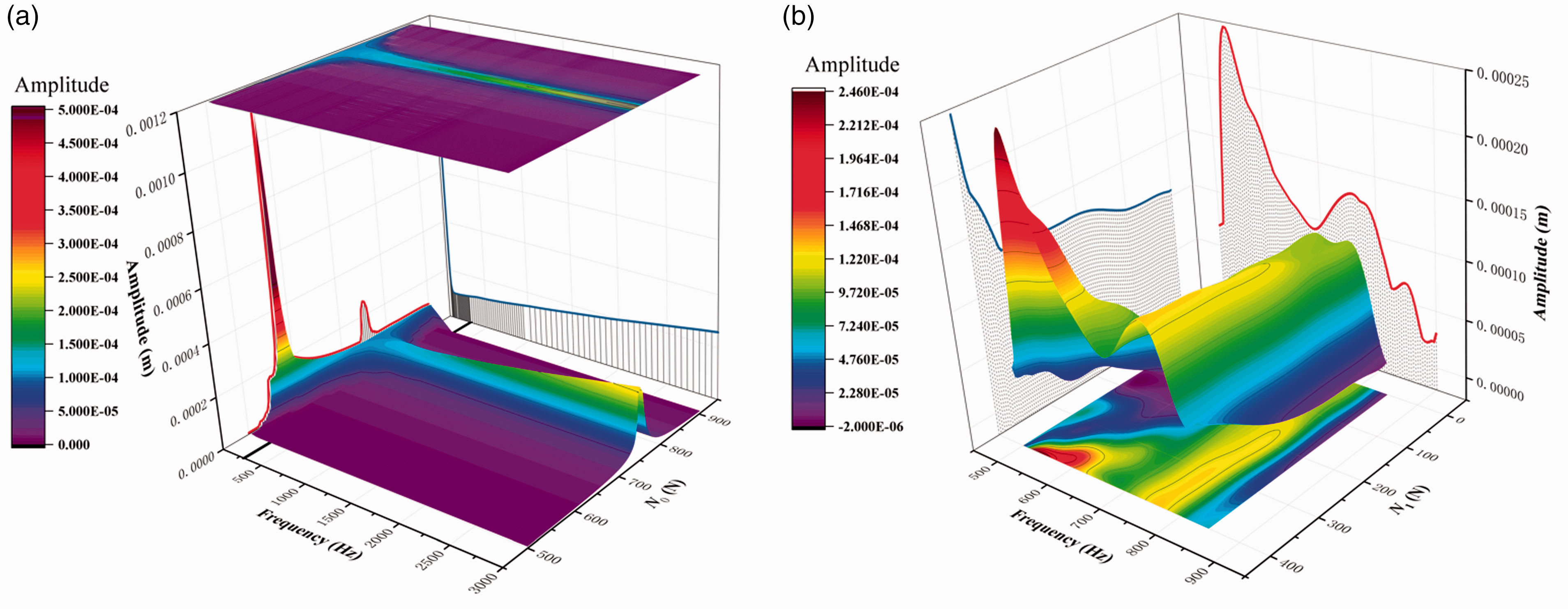

Figure 13.

Dependency of frequency-domain response level on different normal forces. (a) Response level with respect to normal force N₀ and (b) Response level with respect to normal force N₁.

Figure 13(b) reveals a worse effect of friction damping with fluctuation value increase of normal force. Both the resonance frequency range and the response amplitude will expand when N₁ is greater than N₀. Meanwhile, due to the expansion of the separation-states, the resonance peak will move to a lower frequency. Different from the phenomenon of more slip-states, resonance frequency is even lower than that of the natural first-order nodal diameter, which is closer to the first-order nodal circle (507 Hz) in slip-states of dampers. The results indicate that separation-states of the shrouds should be avoided in the design of the bladed-disk.

Conclusions

This paper focuses on the vibration characteristics of the bladed-disk subjected to the dry friction damping under periodic excitation. The multi-harmonic method in frequency-domain and continuation procedure is combined to trace the solution of the nonlinear forced vibration problem. In order to obtain a stable and fast nonlinear solver, a concise analytical formulation of Jacobian matrix for elastic Coulomb friction model with variable normal force is derived. Furthermore, the continuation method is generalized to trace the solution of the nonlinear equation through different parameters, including not only commonly used excitation frequency but also other design parameters of interest, such as the norm loads and the material properties.

In the numerical analysis, a two degrees of freedom system with a dry friction damper is used to demonstrate the effectiveness of the proposed method, which shows higher precision compared with the approximate linear model widely applied in engineering design. Meanwhile, the effects of several parameters on the response such as excitation level, elastic stiffness coefficient of friction model and two components of normal force are investigated. Finally, a lumped parameter model for a bladed-disk with both root-disk and shroud-shroud friction dampers is employed to investigate the optimal design of normal force. The proposed analysis method can provide an accurate quantitative assessment for the optimum design of the bladed-disk dampers.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Fowler

Introduction to perturbation techniques. New York: Wiley-Interscience, 1981.

Bahri

Berestycki

A perturbation method in critical point theory and applications. Trans Amer Math Soc 1981; 267: 1–32.

Awrejcewicz

Andrianov

Manevitch

LI.

Asymptotic approaches in nonlinear dynamics. Berlin: Springer, 1998.

Landa

PS.

Regular and chaotic oscillations. Berlin: Springer, 2001.

Constantin

The approximation of solutions for second order nonlinear oscillators using the polynomial least square method. Nonlinear Sci Appl 2017; 3: 234–242.

JH.

Some asymptotic methods for strongly nonlinear equations. Int J Mod Phys B 2006; 20: 1141–1199.

Cameron

Griffin

JH.

An alternating frequency/time domain method for calculating the steady–state response of nonlinear dynamic systems. J Appl Mech 1989; 56: 149–154.

Cardona

Coune

Lerusse

, et al. A multiharmonic method for non‐linear vibration analysis. Int J Numer Meth Eng 2010; 37: 1593–1608.

Younis

Panayotounakos

DE.

Analytical solution of the steady state response of suspension bridge tower-pier systems with distributed mass to harmonic base excitation. J Low Freq Noise Vibrat Active Control 2002; 21: 157–168.

10.

JH.

Homotopy perturbation method: a new nonlinear analytical technique. Appl Math Comput 2003; 135: 73–79.

11.

Dureisseix

Farhat

A numerically scalable domain decomposition method for the solution of frictionless contact problems. Int J Numer Meth Eng 2001; 50: 2643–2666.

12.

Gunzburger

Lee

HK.

An optimization-based domain decomposition method for the Navier–Stokes equations. Siam J Numer Anal 2000; 37: 1455–1480.

13.

XH.

Variational iteration method: new development and applications. Comput Math Appl 2007; 54: 881–894.

14.

Momani

Odibat

Comparison between the homotopy perturbation method and the variational iteration method for linear fractional partial differential equations. Compu Math Appl 2007; 54: 910–919.

15.

Csaba

, et al. Modelling of a microslip friction damper subjected to translation and rotation. In: ASME 1999 international gas turbine and aeroengine congress and exhibition. New York: American Society of Mechanical Engineers, 1999, pp. V004T03A012.

16.

Sanliturk

Imregun

Ewins

DJ.

Harmonic balance vibration analysis of turbine blades with friction dampers. J Vib Acoust 1997; 119: 96–103.

17.

Griffin

JH.

Friction damping of resonant stresses in gas turbine engine airfoils. J Eng Power 1980; 102: 329–333.

18.

Jun

Ruishan

Zhenwu

, et al. Experimental study on dry friction damping characteristics of the steam turbine blade material with nonconforming contacts. Adv Mater Sci Eng 2015; 2015: 1–15.

19.

Yuan

Zhou

Zhang

, et al. Fractal theory and contact dynamics modeling vibration characteristics of damping blade. Adv Math Phys 2014; 2014: 139–139.

20.

Zhao

Zhang

Sun

et al. Nonlinear dynamics analysis of mistuned turbine bladed disks with damped shrouds. Am Soc Mech Eng Power Division Power 2017: 3433: V002T11A011.

21.

Groll

Ewins

DJ.

The harmonic balance method with arc-length continuation in rotor/stator contact problems. J Sound Vibrat 2001; 241: 223–233.

22.

Ferreira

Serpa

AL.

Application of the arc-length method in nonlinear frequency response. J Sound Vibrat 2005; 284: 133–149.

23.

Pennestrì

Rossi

Salvini

, et al. Review and comparison of dry friction force models. Nonlinear Dyn 2016; 83: 1785–1801.

24.

Turner

Szlufarska

Friction laws at the nanoscale. Nature 2009; 457: 1116–1119.

25.

Liu

Shangguan

A friction contact stiffness model of fractal geometry in forced response analysis of a shrouded blade. Nonlinear Dyn 2012; 70: 2247–2257.

26.

Soldatenkov

IA.

Calculation of friction for indenter with fractal roughness that slides against a viscoelastic foundation. J Frict Wear 2015; 36: 193–196.

27.

Kong

JH.

A novel friction law. Therm Sci 2012; 16: 1529–1533.

28.

Charleux

Gibert

Thouverez

, et al. Numerical and experimental study of friction damping in blade attachments of rotating bladed disks. Int J Rotat Mach 2006; 71302: 1–13.

29.

Schwingshackl

Petrov

Ewins

DJ.

Measured and estimated friction interface parameters in a nonlinear dynamic analysis. Mech Syst Signal Process 2012; 28: 574–584.

30.

Tapia-González

Ledezma-Ramírez

DF.

Experimental characterisation of dry friction isolators for shock and vibration. J Low Freq Noise Vibrat Active Control 2017; 36: 83–95.

31.

Yang

Menq

CH.

Modeling of friction contact and its application to the design of shroud contact. J Eng Gas Turbines Power 1997; 119: 958–963.

32.

Alonso

Marquina

Coro

, et al. Static normal stress influence in friction damping of blade attachments. ASME Turbo Expo Power Land Sea Air 2009; 59596: 343–351.

33.

Yang

Chu

Menq

CH.

Stick-slip-separation analysis and non-linear stiffness and damping characterization of friction contacts having variable normal force. J Sound Vibrat 1998; 210: 461–481.

34.

Petrov

Ewins

DJ.

Analytical formulation of friction interface elements for analysis of nonlinear multi-harmonic vibrations of bladed discs. J Turbomach 2003; 125: 364–371.

35.

Petrov

Ewins

DJ.

Effects of damping and varying contact area at blade-disk joints in forced response analysis of bladed disk assemblies. J Turbomach 2006; 128: 403–410.

36.

Petrov

Zachariadis

Beretta

, et al. A study of nonlinear vibrations in a frictionally damped turbine bladed disk with comprehensive modeling of aerodynamic effects. J Eng Gas Turbines Power 2013; 135: 1239–1251.

37.

Cheung

Chen

Lau

SL.

Application of the incremental harmonic balance method to cubic non-linearity systems. J Sound Vibrat 1990; 140: 273–286.

38.

Wempner

GA.

Discrete approximations related to nonlinear theories of solids. Int J Solids Struct 1971; 7: 1581–1599.

39.

Crisfield

MA.

A fast incremental/iterative solution procedure that handles “snap-through”. Comput Struct 1981; 13: 55–62.

40.

Fried

Orthogonal trajectory accession to the nonlinear equilibrium curve. Comput Meth Appl Mech Eng 1984; 47: 283–297.

41.

Dhooge

Govaerts

Kuznetsov

YA.

MATCONT: a MATLAB package for numerical bifurcation analysis of ODEs. ACM Trans Math Softw 2003; 29: 141–164.

A Nonlinear vibration analysis of forced response for a bladed-disk with dry friction dampers

Abstract

Keywords

Introduction

Multi-harmonic balance equation

Continuation procedure

Analytical formulation of nonlinear derivative terms

Dry friction model

Numerical studies

A two degrees of freedom model with dry friction damper

Excitation levels f0

Tangential stiffness kt

Normal force N0

Normal force fluctuation N1

A lumped parameter model for a bladed-disk system

Conclusions

Footnotes

Declaration of conflicting interests

Funding

References

Excitation levels f₀

Tangential stiffness k_t

Normal force N₀

Normal force fluctuation N₁
