Accurate approximations of the nonlinear vibration of couple-mass-spring systems with linear and nonlinear stiffnesses

Abstract

An analytical technique has been developed based on the harmonic balance method to obtain approximate angular frequencies. This technique also offers the periodic solutions to the nonlinear free vibration of a conservative, couple-mass-spring system having linear and nonlinear stiffnesses with cubic nonlinearity. Two real-world cases of these systems are analysed and introduced. After applying the harmonic balance method, a set of complicated higher-order nonlinear algebraic equations are obtained. Analytical investigation of the complicated higher-order nonlinear algebraic equations is cumbersome, especially in the case when the vibration amplitude of the oscillation is large. The proposed technique overcomes this limitation to utilize the iterative method based on the homotopy perturbation method. This produces desired results for small as well as large values of vibration amplitude of the oscillation. In addition, a suitable truncation principle has been used in which the solution achieves better results than existing solutions. Comparing with published results and the exact ones, the approximated angular frequencies and corresponding periodic solutions show excellent agreement. This proposed technique provides results of high accuracy and a simple solution procedure. It could be widely applicable to other nonlinear oscillatory problems arising in science and engineering.

Keywords

Nonlinear stiffnesses harmonic balance method iterative method homotopy perturbation method couple-mass-spring systems two-degree-of-freedom oscillation systems Duffing equation

Introduction

In past century, the motion of an oscillating system with a multidegree of freedom was widely considered by researchers. An approximate method was proposed by Moochhala and Raynor¹ for the motions of unequal masses connected by (n + 1) nonlinear springs and anchored to rigid end walls. Huang² studied the harmonic oscillations of nonlinear two-degree-of-freedom (TDOF) systems. The free oscillations of conservative quasilinear systems with TDOF have been analysed by Gilchrist.³ Efstathiades⁴ investigated the existence and characteristic behaviour of combination tones in nonlinear systems with TDOF. Alexander and Richard⁵ considered the resonant dynamics of a TDOF system which was composed of a linear oscillator which was weakly coupled to a strongly nonlinear one, with an essential (nonlinearizable) cubic stiffness nonlinearity. A generalized Galerkin’s method has been used by Chen⁶ on the nonlinear oscillations of TDOF systems. Ladygina and Manevich⁷ applied the multiscale method for the free oscillations of a conservative system with TDOF having cubic nonlinearities (of symmetric nature) and close natural frequencies. A combination of a Jacobi elliptic function and a trigonometric function has been used by Cveticanin^8,9 to obtain an analytical solution for the motion of a two-mass system with TDOF in which the masses were connected with three springs.

Currently, TDOF systems are very important in physical and engineering disciplines. Many practical engineering vibration systems such as elastic beams supported by two springs and the vibration of a milling machine¹⁰ can be studied by considering them as TDOF systems. The TDOF oscillation systems consist of two second-order differential equations with cubic nonlinearities. The equations of motion for a mechanical system with associated linear and nonlinear springs were solved by the transformation into a set of differential algebraic equations using intermediate variables. The equations of motion for a TDOF system were transformed into the Duffing equation¹¹ as a result.

In general, finding an exact approximation for nonlinear equations is extremely difficult. This perception of difficulty has led to intensive research over many decades. Many analytical and numerical approaches are currently being investigated. Traditional perturbation methods are the most widely used analytical methods for approximating nonlinear equations. They are not effective for strongly nonlinear equations, however, and there have limitations. In the recent past, many new analytical techniques have been investigated to overcome these limitations. These include the Newton harmonic balance method (HBM),¹² He’s variational approach,¹³ the energy balance method,¹⁴ the max-min approach¹⁵ and He’s improved amplitude–frequency formulation method.^16–18 All have been used to derive approximate angular frequencies and corresponding periodic solutions to the TDOF system. In fact, to the best of our knowledge, of most of these methods, only the first-order approximation has ever been considered. This does not result in sufficient accuracy.

The HBM^19–22 provides a general technique for determining approximate periodic solutions to strongly nonlinear systems. Usually, a set of complicated higher-order nonlinear algebraic equations appear when the HBM is formulated. It is tremendously difficult to solve these equations analytically, especially in the case of large values of vibration amplitude of the oscillation. In this paper, a analytical technique has been developed to eradicate this limitation. In the proposed technique, an iterative method based on the homotopy perturbation method^23,24 has been used to solve the set of complicated high-order nonlinear algebraic equations that give desired results for small as well as large values of vibration amplitude of the oscillation. In addition, a suitable truncation principle has also been used to these nonlinear higher-order algebraic equations which make the solutions better than the existing ones saving many calculations. The higher-order approximations (mainly third-order approximations) have been applied to the nonlinear free vibration of a conservative, couple-mass-spring system having linear and nonlinear stiffnesses with cubic nonlinearity. Comparison of obtained results with those published and the corresponding exact solutions show that the obtained results are highly accurate. The advantage of the proposed method is that the solution procedure is very easy, direct, concise, and simple to implement compared to other existing methods.

This paper is organized as follows: In the next section, we provide the outline of the solution approach based on the HBM. In the subsequent section, we offer a detailed description of a two-mass system connected with linear and nonlinear stiffnesses and a two-mass system also connected with linear and nonlinear stiffnesses but fixed to a rigid body both geometrically and mathematically. Then, we apply the solution approach to the nonlinear free vibration of a conservative, couple-mass-spring system having linear and nonlinear stiffnesses with cubic nonlinearity. In the penultimate section, results are discussed in detail. Finally, concluding remarks are given in the last section.

The solution approach based on the HBM

Consider a second-order nonlinear differential equation as follows

\ddot{y} + ω_{0}^{2} y = - ε f (y) and the initial conditions y (0) = A_{0}, \dot{y} (0) = 0

(1)

where

f (y)

is a nonlinear function such that

f (- y) = - f (y)

ω_{0} \geq 0

and

ε

is a constant.

An N-th order periodic solution of equation (1) can be assumed to be

y = A_{0} (ρ \cos (ω t) + u \cos (3 ω t) + v \cos (5 ω t) + w \cos (7 ω t) + z \cos (9 ω t) + \dots)

(2)

where

A_{0}

ρ

and

ω

are constants. If

ρ = 1 - u - v - \dots

, then the solution of equation (2) readily satisfies the initial condition given in equation (1).

Substituting equation (2) into equation (1), the algebraic identity is obtained as

\begin{matrix} A_{0} [ρ (ω_{0}^{2} - ω^{2}) \cos (ω t) + u (ω_{0}^{2} - 9 ω^{2}) \cos (3 ω t) + v (ω_{0}^{2} - 25 ω^{2}) \cos (5 ω t) + \dots] \\ = - ε [F_{1} (A_{0}, u, v, \dots) \cos (ω t) + F_{3} (A_{0}, u, v, \dots) \cos (3 ω t) + F_{5} (A_{0}, u, v, \dots) \cos (5 ω t) + \dots] \end{matrix}

(3)

Comparing the coefficients of equal harmonic terms of equation (3), we obtain the following nonlinear algebraic equations

\begin{array}{l} A_{0} ρ (ω_{0}^{2} - ω^{2}) = - ε F_{1} (A_{0}, u, v, \dots), A_{0} u (ω_{0}^{2} - 9 ω^{2}) = - ε F_{3} (A_{0}, u, v, \dots) \\ A_{0} v (ω_{0}^{2} - 25 ω^{2}) = - ε F_{5} (A_{0}, u, v, \dots) \end{array}

(4)

With the help of the first equation, $ω^{2}$ is eliminated from the rest of equation (4). Subsequently, using $ρ = 1 - u - v - \dots$ , and then simplifying, the second and third equations of equation (4) can be reduced to

u = G_{1} (ε, A_{0}, u, v, \dots), v = G_{2} (ε, A_{0}, u, v, \dots), \dots

(5)

where

G_{1}

G_{2}

\dots

respectively exclude the linear terms of

u, v, \dots

Now applying the iterative method based on the homotopy perturbation method (see Appendix 1 for details), the values of $u$ and $v$ can be obtained from equation (5) as

u = u_{0} + u_{1} + u_{2} + u_{3} + \dots

(6)

v = v_{0} + v_{1} + v_{2} + v_{3} + \dots

(7)

where

u_{0}

and

v_{0}

are the initial approximations and the unknowns

u_{1}, u_{2}, u_{3}, \dots

and

v_{1}, v_{2}, v_{3}, \dots

are

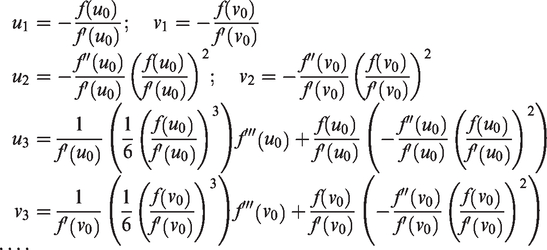

\begin{array}{l} u_{1} = - \frac{f (u_{0})}{f^{′} (u_{0})}; v_{1} = - \frac{f (v_{0})}{f^{′} (v_{0})} \\ u_{2} = - \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}; v_{2} = - \frac{f^{′′} (v_{0})}{f^{′} (v_{0})} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{2} \\ u_{3} = \frac{1}{f^{′} (u_{0})} (\frac{1}{6} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{3}) f^{′′′} (u_{0}) + \frac{f (u_{0})}{f^{′} (u_{0})} (- \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}) \\ v_{3} = \frac{1}{f^{′} (v_{0})} (\frac{1}{6} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{3}) f^{′′′} (v_{0}) + \frac{f (v_{0})}{f^{′} (v_{0})} (- \frac{f^{′′} (v_{0})}{f^{′} (v_{0})} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{2}) \\ \dots \end{array}

Finally, substituting the values of $u, v, \dots$ from equations (6) and (7) into the first equation of equation (4), the angular frequency $ω$ is determined. This completes the determination of all related unknowns for the proposed N-th order periodic solution as given in equation (2).

Formulation and mathematical modelling of the problems

A two-mass system connected with linear and nonlinear stiffnesses

The model of a two-mass system connected with linear and nonlinear stiffnesses is considered as shown in Figure 1⁹.

Figure 1.

The two-mass system connected by linear and nonlinear stiffnesses.

The equations of motion are defined as in Cveticanin⁹

m \ddot{u} + k_{1} (u - v) + k_{2} {(u - v)}^{3} = 0

(8a)

m \ddot{v} + k_{1} (v - u) + k_{2} {(v - u)}^{3} = 0

(8b)

with the initial conditions

u (0) = u_{0}, \dot{u} (0) = 0

(9a)

v (0) = v_{0,} \dot{v} (0) = 0

(9b)

where the double dots in equations (8a) and (8b) represent double differentiation with respect to time

t

k_{1}

and

k_{2}

are linear and nonlinear coefficients of the spring stiffness respectively. Dividing equations (8a) and (8b) by mass

m

, they can be written as

\ddot{u} + \frac{k_{1} (u - v)}{m} + \frac{k_{2} {(u - v)}^{3}}{m} = 0

(10a)

\ddot{v} + \frac{k_{1} (v - u)}{m} + \frac{k_{2} {(v - u)}^{3}}{m} = 0

(10b)

Introducing the intermediate variables $x$ and $y$ as follows¹¹

u : = x

(11a)

v - u : = y

(11b)

and transforming equations (10a) and (10b), becomes

\ddot{x} - β y - ε y^{3} = 0

(12a)

\ddot{y} + \ddot{x} + β y + ε y^{3} = 0

(12b)

where

β = \frac{k_{1}}{m}

and

ε = \frac{k_{2}}{m}

. Rearranging equation (12a) as follows

\ddot{x} = β y + ε y^{3}

(13)

Substituting equation (13) into equation (12b), it becomes

\ddot{y} + 2 β y + 2 ε y^{3} = 0

(14)

with initial conditions

y (0) = v (0) - u (0) = v_{0} - u_{0} = A_{0}, \dot{y} (0) = 0

(15)

Equation (14) is obviously similar to the well-known Duffing equation $\ddot{y} + δ y + σ y^{3} = 0$ with $δ = 2 β$ and $σ = 2 ε$ . In order to solve equation (14) using the proposed method, the approximate solutions of $y (t)$ can be substituted back into equation (13) as

\ddot{x} = β y + ε y^{3}

with the initial conditions

x (0) = u (0) = u_{0}, \dot{x} (0) = 0

and the intermediate variable

x (t)

is obtained by double integration.

A two-mass system connected with linear and nonlinear stiffnesses fixed to the body

Consider a two-mass system connected with linear and nonlinear springs and fixed to a rigid body at two ends as shown in Figure 2.⁸

Figure 2.

Two-mass system connected with the fixed bodies.

The equations of motion are defined as

m \ddot{u} + k_{1} u + k_{2} (u - v) + k_{3} {(u - v)}^{3} = 0

(16a)

m \ddot{v} + k_{1} v + k_{2} (v - u) + k_{3} {(v - u)}^{3} = 0

(16b)

with the initial conditions

u (0) = u_{0}, \dot{u} (0) = 0

(17a)

v (0) = v_{0,} \dot{v} (0) = 0

(17b)

where the double dots in equations (16a) and (16b) represent double differentiation with respect to time

t

k_{1}

and

k_{2}

are linear coefficients of the spring stiffness and

k_{3}

is its nonlinear coefficient of the spring stiffness. Dividing equations (16a) and (16b) by mass

m

, it can be written as

\ddot{u} + \frac{k_{1} u}{m} + \frac{k_{2} (u - v)}{m} + \frac{k_{3} {(u - v)}^{3}}{m} = 0

(18a)

\ddot{v} + \frac{k_{1} v}{m} + \frac{k_{2} (v - u)}{m} + \frac{k_{3} {(v - u)}^{3}}{m} = 0

(18b)

Similar to problem 1, transforming the above equations using the intermediate variables in equations (11a) and (11b), they become

\ddot{x} + α x - β y - ε y^{3} = 0

(19a)

\ddot{y} + \ddot{x} + α x + α y + β y + ε y^{3} = 0

(19b)

where

α = \frac{k_{1}}{m}

β = \frac{k_{2}}{m}

and

ε = \frac{k_{3}}{m}

. Rearranging equation (19a) as follows

\ddot{x} = β y + ε y^{3} - α x

(20)

Substituting equation (20) into equation (19b), it becomes

\ddot{y} + (α + 2 β) y + 2 ε y^{3} = 0

(21)

with initial conditions

y (0) = v (0) - u (0) = v_{0} - u_{0} = A_{0}, \dot{y} (0) = 0

(22)

Equation (21) is obviously similar to the well-known Duffing equation $\ddot{y} + δ y + σ y^{3} = 0$ with $δ = α + 2 β$ and $σ = 2 ε$ . In order to solve equation (21) using the proposed method, the approximate solutions of $y (t)$ can be substituted back into equation (20) to obtain

\ddot{x} + α x = β y + ε y^{3}

(23)

with the initial conditions

x (0) = u (0) = u_{0}, \dot{x} (0) = 0

(24)

Equation (23) is a linear non-homogeneous second-order ordinary differential equation and it can be solved readily using a standard method such as the Laplace transformation.

Applications

A two-mass system connected with linear and nonlinear stiffnesses

A second-order approximation for equation (14) can be assumed to be

y = A_{0} (ρ \cos (ω_{2} t) + u \cos (3 ω_{2} t))

(25)

Substituting equation (25) along with $ρ = 1 - u$ into equation (14) and then taking the coefficients of $cos (ω_{2} t)$ and $cos (3 ω_{2} t)$ equal to zero, the nonlinear algebraic equations can be obtained

2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{2}^{2} - 2 β u - 3 ε A_{0}^{2} u + ω_{2}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{2} - 3 ε A_{0}^{2} u^{3} = 0

(26)

\frac{ε A_{0}^{2}}{2} + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{2}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{2} + 4 ε A_{0}^{2} u^{3} = 0

(27)

Considerable calculation is saved and obtains improved results, if we use the truncation principle in equations (26) and (27). The higher-order terms of $u$ greater than second-order have no effect on the value of the unknowns $u$ and $ω_{2}$ . So, we may ignore greater than second-order terms of $u$ , but half of the second-order terms are considered. This is called the truncation principle.²² After using the truncation principle, equations (26) and (27) can be transformed into

2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{2}^{2} - 2 β u - 3 ε A_{0}^{2} u + ω_{2}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{4} = 0

(28)

\frac{ε A_{0}^{2}}{2} + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{2}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{4} = 0

(29)

Equation (28) can be easily written as

ω_{2}^{2} = (2 β + \frac{3 ε A_{0}^{2}}{2} - 2 β u - 3 ε A_{0}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{4}) / (1 - u)

(30)

Substituting $ω_{2}^{2}$ into equation (29) and then simplifying, the following nonlinear algebraic equation of $u$ is

f (u) : \frac{ε A_{0}^{2}}{2} - 16 β u - \frac{25 ε A_{0}^{2} u}{2} + 16 β u^{2} + \frac{93 ε A_{0}^{2} u^{2}}{4} - 18 ε A_{0}^{2} u^{3} = 0

(31)

Now applying the iterative method based on the homotopy perturbation method (see Appendix 1 for details) in equation (31), the value of $u$ becomes

u = u_{0} + u_{1} + u_{2} + u_{3} + \dots

(32)

where

u_{0}

is an initial approximation and the unknowns

u_{1}, u_{2}, u_{3}, \dots

are

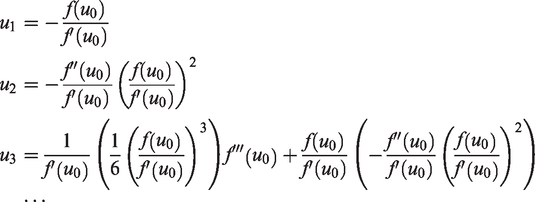

\begin{array}{l} u_{1} = - \frac{f (u_{0})}{f^{′} (u_{0})} \\ u_{2} = - \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2} \\ u_{3} = \frac{1}{f^{′} (u_{0})} (\frac{1}{6} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{3}) f^{′′′} (u_{0}) + \frac{f (u_{0})}{f^{′} (u_{0})} (- \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}) \\ \dots \end{array}

By substituting the value of $u$ into equation (30), the second-order approximate angular frequency $ω_{2}$ can be determined and equation (30) takes the following form

ω_{2} = \sqrt{(2 β + \frac{3 ε A_{0}^{2}}{2} - 2 β u - 3 ε A_{0}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{4}) / (1 - u)}

(33)

Thus, the second-order approximate solution of equation (14) is $y = A_{0} (ρ \cos (ω_{2} t) + u \cos (3 ω_{2} t))$ where $u$ and $ω_{2}$ are respectively given by equations (32) and (33).

In the similar way, the higher-order approximations have been obtained by using the proposed method. In this study, a third-order approximate solution can be considered to be

y = A_{0} (ρ \cos (ω_{3} t) + u \cos (3 ω_{3} t) + v \cos (5 ω_{3} t))

(34)

Substituting equation (34) along with $ρ = 1 - u - v$ into equation (14) and then taking the coefficients of $cos (ω_{3} t)$ , $cos (3 ω_{3} t)$ and $cos (5 ω_{3} t)$ equal to zero, the nonlinear algebraic equations can be obtained

\begin{array}{l} α + 2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{3}^{2} - α u - 2 β u - 3 ε A_{0}^{2} u + ω_{3}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{2} - 3 ε A_{0}^{2} u^{3} \\ - α v - 2 β v - \frac{9 ε A_{0}^{2} v}{2} + ω_{3}^{2} v + 9 ε A_{0}^{2} u v - 6 ε A_{0}^{2} u^{2} v + \frac{15 ε A_{0}^{2} v^{2}}{2} - 9 ε A_{0}^{2} u v^{2} - \frac{9 ε A_{0}^{2} v^{3}}{2} = 0 \end{array}

(35)

\begin{array}{l} \frac{ε A_{0}^{2}}{2} + α u + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{3}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{2} + 4 ε A_{0}^{2} u^{3} - 3 ε A_{0}^{2} u v \\ + 3 ε A_{0}^{2} u^{2} v - \frac{3 ε A_{0}^{2} v^{2}}{2} + \frac{9 ε A_{0}^{2} u v^{2}}{2} + ε A_{0}^{2} v^{3} = 0 \end{array}

(36)

\begin{array}{l} \frac{3 ε A_{0}^{2} u}{2} - \frac{3 ε A_{0}^{2} u^{2}}{2} + α v + 2 β v + 3 ε A_{0}^{2} v - 25 ω_{3}^{2} v - 9 ε A_{0}^{2} u v \\ + \frac{15 ε A_{0}^{2} u^{2} v}{2} - 6 ε A_{0}^{2} v^{2} + \frac{15 ε A_{0}^{2} u v^{2}}{2} + \frac{9 ε A_{0}^{2} v^{3}}{2} = 0 \end{array}

(37)

Considerable calculation is saved and improved results are obtained, if we use the truncation principle in equations (35) to (37). After implementing it in equations (35) to (37), the following equations are obtained

\begin{array}{l} α + 2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{3}^{2} - α u - 2 β u - 3 ε A_{0}^{2} u + ω_{3}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{2} - \frac{3 ε A_{0}^{2} u^{3}}{2} \\ - α v - 2 β v - \frac{9 ε A_{0}^{2} v}{2} + ω_{3}^{2} v + \frac{9 ε A_{0}^{2} u v}{2} = 0 \end{array}

(38)

\frac{ε A_{0}^{2}}{2} + α u + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{3}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{2} + 2 ε A_{0}^{2} u^{3} - \frac{3 ε A_{0}^{2} u v}{2} = 0

(39)

\frac{3 ε A_{0}^{2} u}{2} - \frac{3 ε A_{0}^{2} u^{2}}{2} + α v + 2 β v + 3 ε A_{0}^{2} v - 25 ω_{3}^{2} v - \frac{9 ε A_{0}^{2} u v}{2} = 0

(40)

Equation (38) can be easily written as

ω_{3}^{2} = (α + 2 β + \frac{3 ε A_{0}^{2}}{2} - α u - \frac{3 ε A_{0}^{2} u^{3}}{2} - 2 β v + \frac{9 ε A_{0}^{2} u v}{2} + \dots) / (1 - u - v)

(41)

Substituting $ω_{3}^{2}$ into equations (39) and (40) and then simplifying, the following nonlinear algebraic equations of $u$ and $v$ are obtained

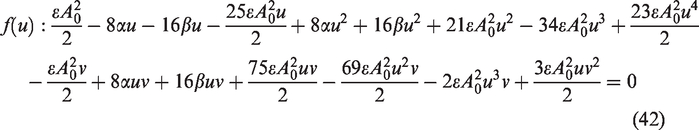

\begin{array}{l} f (u) : \frac{ε A_{0}^{2}}{2} - 8 α u - 16 β u - \frac{25 ε A_{0}^{2} u}{2} + 8 α u^{2} + 16 β u^{2} + 21 ε A_{0}^{2} u^{2} - 34 ε A_{0}^{2} u^{3} + \frac{23 ε A_{0}^{2} u^{4}}{2} \\ - \frac{ε A_{0}^{2} v}{2} + 8 α uv + 16 β uv + \frac{75 ε A_{0}^{2} u v}{2} - \frac{69 ε A_{0}^{2} u^{2} v}{2} - 2 ε A_{0}^{2} u^{3} v + \frac{3 ε A_{0}^{2} u v^{2}}{2} = 0 \end{array}

(42)

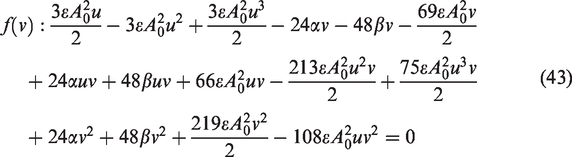

\begin{array}{l} f (v) : \frac{3 ε A_{0}^{2} u}{2} - 3 ε A_{0}^{2} u^{2} + \frac{3 ε A_{0}^{2} u^{3}}{2} - 24 α v - 48 β v - \frac{69 ε A_{0}^{2} v}{2} \\ + 24 α uv + 48 β uv + 66 ε A_{0}^{2} u v - \frac{213 ε A_{0}^{2} u^{2} v}{2} + \frac{75 ε A_{0}^{2} u^{3} v}{2} \\ + 24 α v^{2} + 48 β v^{2} + \frac{219 ε A_{0}^{2} v^{2}}{2} - 108 ε A_{0}^{2} u v^{2} = 0 \end{array}

(43)

Now applying the iterative method based on the homotopy perturbation method (see Appendix 1 for details) in equations (42) and (43), the values of $u$ and $v$ are obtained

u = u_{0} + u_{1} + u_{2} + u_{3} + \dots

(44)

v = v_{0} + v_{1} + v_{2} + v_{3} + \dots

(45)

where

u_{0}

and

v_{0}

are the initial approximations and the unknowns

u_{1}, u_{2}, u_{3}, \dots

and

v_{1}, v_{2}, v_{3}, \dots

are

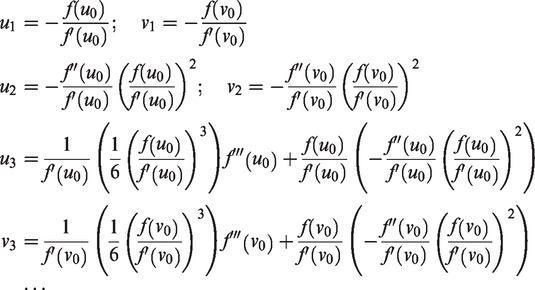

\begin{array}{l} u_{1} = - \frac{f (u_{0})}{f^{′} (u_{0})}; v_{1} = - \frac{f (v_{0})}{f^{′} (v_{0})} \\ u_{2} = - \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}; v_{2} = - \frac{f^{′′} (v_{0})}{f^{′} (v_{0})} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{2} \\ u_{3} = \frac{1}{f^{′} (u_{0})} (\frac{1}{6} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{3}) f^{′′′} (u_{0}) + \frac{f (u_{0})}{f^{′} (u_{0})} (- \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}) \\ v_{3} = \frac{1}{f^{′} (v_{0})} (\frac{1}{6} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{3}) f^{′′′} (v_{0}) + \frac{f (v_{0})}{f^{′} (v_{0})} (- \frac{f^{′′} (v_{0})}{f^{′} (v_{0})} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{2}) \\ \dots \end{array}

Now substituting the values of $u$ and $v$ into equation (41), the third-order approximate angular frequency $ω_{3}$ is the following

ω_{3} = \sqrt{(α + 2 β + \frac{3 ε A_{0}^{2}}{2} - α u - \frac{3 ε A_{0}^{2} u^{3}}{2} - 2 β v + \frac{9 ε A_{0}^{2} u v}{2} + \dots) / (1 - u - v)}

(46)

Thus, the third-order approximate periodic solution of equation (14) is $y = A_{0} (ρ \cos (ω_{3} t) + u \cos (3 ω_{3} t) + v \cos (5 ω_{3} t))$ where $u$ , $v$ and $ω_{3}$ are respectively given by equations (44) to (46).

Two-mass system connected with linear and nonlinear stiffnesses fixed to the body

A second-order approximation for equation (21) can be assumed to be

y = A_{0} (ρ \cos (ω_{2} t) + u \cos (3 ω_{2} t))

(47)

Substituting equation (47) along with $ρ = 1 - u$ into equation (21) and then taking the coefficients of $cos (ω_{2} t)$ and $cos (3 ω_{2} t)$ to be zero, the nonlinear algebraic equations can be obtained to be

α + 2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{2}^{2} - α u - 2 β u - 3 ε A_{0}^{2} u + ω_{2}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{2} - 3 ε A_{0}^{2} u^{3} = 0

(48)

\frac{ε A_{0}^{2}}{2} + α u + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{2}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{2} + 4 ε A_{0}^{2} u^{3} = 0

(49)

Considerable calculation is saved and improved results are obtained, if we use the truncation principle in equations (48) and (49). The higher-order terms of $u$ greater than second-order have no effect on the value of the unknowns $u$ and $ω_{2}$ . So, we may ignore greater than second-order terms of $u$ , but half of the second-order terms are considered. This is called the truncation principle.²² After using the truncation principle, equations (48) and (49) can be transformed into

α + 2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{2}^{2} - α u - 2 β u - 3 ε A_{0}^{2} u + ω_{2}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{4} = 0

(50)

\frac{ε A_{0}^{2}}{2} + α u + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{2}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{4} = 0

(51)

Equation (50) can be easily written as

ω_{2}^{2} = (α + 2 β + \frac{3 ε A_{0}^{2}}{2} - α u - 2 β u - 3 ε A_{0}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{4}) / (1 - u)

(52)

Substituting $ω_{2}^{2}$ into equation (51) and then simplifying, the following nonlinear algebraic equation of $u$ is

f (u) : \frac{ε A_{0}^{2}}{2} - 8 α u - 16 β u - \frac{25 ε A_{0}^{2} u}{2} + 8 α u^{2} + 16 β u^{2} + \frac{93 ε A_{0}^{2} u^{2}}{4} - 18 ε A_{0}^{2} u^{3} = 0

(53)

Now applying the iterative method based on the homotopy perturbation method (see Appendix 1 for details) in equation (53), the value of $u$ becomes

u = u_{0} + u_{1} + u_{2} + u_{3} + \dots

(54)

where

u_{0}

is an initial approximation and the unknowns

u_{1}, u_{2}, u_{3}, \dots

are

\begin{array}{l} u_{1} = - \frac{f (u_{0})}{f^{′} (u_{0})} \\ u_{2} = - \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2} \\ u_{3} = \frac{1}{f^{′} (u_{0})} (\frac{1}{6} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{3}) f^{′′′} (u_{0}) + \frac{f (u_{0})}{f^{′} (u_{0})} (- \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}) \\ \dots \end{array}

Substituting the value of $u$ into equation (52), the second-order approximate angular frequency $ω_{2}$ is determined from the following

ω_{2} = \sqrt{(α + 2 β + \frac{3 ε A_{0}^{2}}{2} - α u - 2 β u - 3 ε A_{0}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{4}) / (1 - u)}

(55)

Thus, the second-order approximate solution of equation (21) is $y = A_{0} (ρ \cos (ω_{2} t) + u \cos (3 ω_{2} t))$ where $u$ and $ω_{2}$ are respectively given by equations (54) and (55).

In the similar way, the higher-order approximations have been obtained by using the proposed method. In this study, a third-order approximate solution can be considered to be

y = A_{0} (ρ \cos (ω_{3} t) + u \cos (3 ω_{3} t) + v \cos (5 ω_{3} t))

(56)

Substituting equation (56) along with $ρ = 1 - u - v$ into equation (21) and then taking the coefficients of $cos (ω_{3} t)$ , $cos (3 ω_{3} t)$ and $cos (5 ω_{3} t)$ to be zero, the nonlinear algebraic equations become

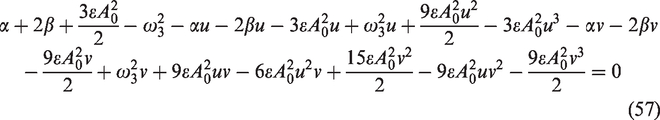

\begin{array}{l} α + 2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{3}^{2} - α u - 2 β u - 3 ε A_{0}^{2} u + ω_{3}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{2} - 3 ε A_{0}^{2} u^{3} - α v - 2 β v \\ - \frac{9 ε A_{0}^{2} v}{2} + ω_{3}^{2} v + 9 ε A_{0}^{2} u v - 6 ε A_{0}^{2} u^{2} v + \frac{15 ε A_{0}^{2} v^{2}}{2} - 9 ε A_{0}^{2} u v^{2} - \frac{9 ε A_{0}^{2} v^{3}}{2} = 0 \end{array}

(57)

\begin{array}{l} \frac{ε A_{0}^{2}}{2} + α u + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{3}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{2} + 4 ε A_{0}^{2} u^{3} - 3 ε A_{0}^{2} u v \\ + 3 ε A_{0}^{2} u^{2} v - \frac{3 ε A_{0}^{2} v^{2}}{2} + \frac{9 ε A_{0}^{2} u v^{2}}{2} + ε A_{0}^{2} v^{3} = 0 \end{array}

(58)

\begin{array}{l} \frac{3 ε A_{0}^{2} u}{2} - \frac{3 ε A_{0}^{2} u^{2}}{2} + α v + 2 β v + 3 ε A_{0}^{2} v - 25 ω_{3}^{2} v - 9 ε A_{0}^{2} u v \\ + \frac{15 ε A_{0}^{2} u^{2} v}{2} - 6 ε A_{0}^{2} v^{2} + \frac{15 ε A_{0}^{2} u v^{2}}{2} + \frac{9 ε A_{0}^{2} v^{3}}{2} = 0 \end{array}

(59)

Considerable calculation is saved and improved results are obtained, if we use the truncation principle in equations (57) to (59). After implementing this in equations (57) to (59), the following equations are obtained

\begin{array}{l} α + 2 β + \frac{3 ε A_{0}^{2}}{2} - ω_{3}^{2} - α u - 2 β u - 3 ε A_{0}^{2} u + ω_{3}^{2} u + \frac{9 ε A_{0}^{2} u^{2}}{2} \\ - \frac{3 ε A_{0}^{2} u^{3}}{2} - α v - 2 β v - \frac{9 ε A_{0}^{2} v}{2} + ω_{3}^{2} v + \frac{9 ε A_{0}^{2} u v}{2} = 0 \end{array}

(60)

\frac{ε A_{0}^{2}}{2} + α u + 2 β u + \frac{3 ε A_{0}^{2} u}{2} - 9 ω_{3}^{2} u - \frac{9 ε A_{0}^{2} u^{2}}{2} + 2 ε A_{0}^{2} u^{3} - \frac{3 ε A_{0}^{2} u v}{2} = 0

(61)

\frac{3 ε A_{0}^{2} u}{2} - \frac{3 ε A_{0}^{2} u^{2}}{2} + α v + 2 β v + 3 ε A_{0}^{2} v - 25 ω_{3}^{2} v - 9 ε A_{0}^{2} u v = 0

(62)

Equation (60) can be easily written as

ω_{3}^{2} = (α + 2 β + \frac{3 ε A_{0}^{2}}{2} - α u - \frac{3 ε A_{0}^{2} u^{3}}{2} - 2 β v + \frac{9 ε A_{0}^{2} u v}{2} + \dots) / (1 - u - v)

(63)

Substituting $ω_{3}^{2}$ into equations (61) and (62) and then simplifying, the following nonlinear algebraic equations of $u$ and $v$ are obtained

\begin{array}{l} f (u) : \frac{ε A_{0}^{2}}{2} - 8 α u - 16 β u - \frac{25 ε A_{0}^{2} u}{2} + 8 α u^{2} + 16 β u^{2} + 21 ε A_{0}^{2} u^{2} \\ - 34 ε A_{0}^{2} u^{3} + \frac{23 ε A_{0}^{2} u^{4}}{2} - \frac{ε A_{0}^{2} v}{2} + 8 α uv + 16 β uv + \frac{75 ε A_{0}^{2} u v}{2} \\ - \frac{69 ε A_{0}^{2} u^{2} v}{2} - 2 ε A_{0}^{2} u^{3} v + \frac{3 ε A_{0}^{2} u v^{2}}{2} = 0 \end{array}

(64)

\begin{array}{l} f (v) : \frac{3 ε A_{0}^{2} u}{2} - 3 ε A_{0}^{2} u^{2} + \frac{3 ε A_{0}^{2} u^{3}}{2} - 24 α v - 48 β v - \frac{69 ε A_{0}^{2} v}{2} + 24 α uv \\ + 48 β uv + 66 ε A_{0}^{2} u v - \frac{213 ε A_{0}^{2} u^{2} v}{2} + \frac{75 ε A_{0}^{2} u^{3} v}{2} + 24 α v^{2} + 48 β v^{2} \\ + \frac{219 ε A_{0}^{2} v^{2}}{2} - 108 ε A_{0}^{2} u v^{2} = 0 \end{array}

(65)

Now by applying the iterative method based on the homotopy perturbation method (see Appendix 1 for details) in equations (64) and (65), the values of $u$ and $v$ are obtained

u = u_{0} + u_{1} + u_{2} + u_{3} + \dots

(66)

v = v_{0} + v_{1} + v_{2} + v_{3} + \dots

(67)

where

u_{0}

and

v_{0}

are the initial approximations and the unknowns

u_{1}, u_{2}, u_{3}, \dots

and

v_{1}, v_{2}, v_{3}, \dots

are

\begin{array}{l} u_{1} = - \frac{f (u_{0})}{f^{′} (u_{0})}; v_{1} = - \frac{f (v_{0})}{f^{′} (v_{0})} \\ u_{2} = - \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}; v_{2} = - \frac{f^{′′} (v_{0})}{f^{′} (v_{0})} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{2} \\ u_{3} = \frac{1}{f^{′} (u_{0})} (\frac{1}{6} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{3}) f^{′′′} (u_{0}) + \frac{f (u_{0})}{f^{′} (u_{0})} (- \frac{f^{′′} (u_{0})}{f^{′} (u_{0})} {(\frac{f (u_{0})}{f^{′} (u_{0})})}^{2}) \\ v_{3} = \frac{1}{f^{′} (v_{0})} (\frac{1}{6} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{3}) f^{′′′} (v_{0}) + \frac{f (v_{0})}{f^{′} (v_{0})} (- \frac{f^{′′} (v_{0})}{f^{′} (v_{0})} {(\frac{f (v_{0})}{f^{′} (v_{0})})}^{2}) \\ \dots . \end{array}

Now substituting the values of $u$ and $v$ into equation (63), the third-order approximate angular frequency $ω_{3}$ becomes the following

ω_{3} = \sqrt{(α + 2 β + \frac{3 ε A_{0}^{2}}{2} - α u - \frac{3 ε A_{0}^{2} u^{3}}{2} - 2 β v + \frac{9 ε A_{0}^{2} u v}{2} + \dots) / (1 - u - v)}

(68)

Thus, the third-order approximate periodic solution of equation (21) is $y = A_{0} (ρ \cos (ω_{3} t) + u \cos (3 ω_{3} t) + v \cos (5 ω_{3} t))$ where $u$ , $v$ and $ω_{3}$ are respectively given by equations (66) to (68).

Results and discussions

To demonstrate and verify the accuracy of the proposed method, we present a comparison with already published results and the exact solutions. The second- and third-order approximate solutions are highly accurate, with a significantly improved percentage error for different values of parameters and initial amplitudes. Tables 1 to 4 give the comparison of the approximate results with those previously published^13–16 and also the exact solutions for different values of parameters $m$ , $k_{1}$ , $k_{2}$ , $k_{3}$ and initial conditions $u_{0}$ and $v_{0}$ . For the value of parameters $m = 10$ , $k_{1} = 5$ , $k_{2} = 5$ , $u_{0} = 10$ and $v_{0} = 20$ , the approximated maximum relative errors in Problem 1 are $0.0289 %$ and $0.0014 %$ for the second- and third-order analytical approximations, respectively. In Problem 2, almost similar relative errors are found for the value of parameters $m = 10$ , $k_{1} = 5$ , $k_{2} = 5$ , $k_{3} = 5$ , $u_{0} = 10$ and $v_{0} = 20$ which are much lower than the errors found using the existing methods including the variational approach,¹³ the energy balance method,¹⁴ the max-min approach^15,16 and He’s improved amplitude-formulation.¹⁶ Hence, excellent agreement with the exact solutions for the nonlinear Duffing equation is obtained.

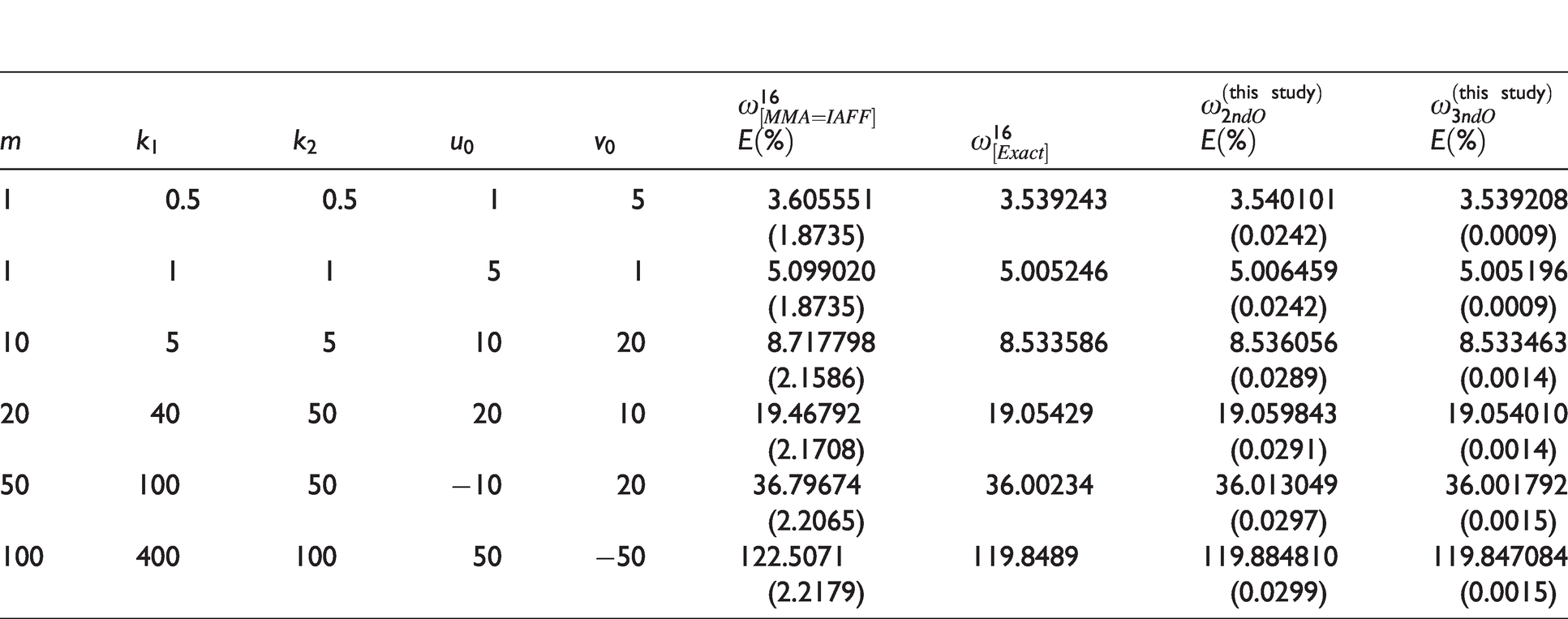

Table 1.

Comparison of the approximate angular frequencies with already published results and exact frequencies for various parameters of the system.

$m$	$k_{1}$	$k_{2}$	$u_{0}$	$v_{0}$	$ω_{[MMA = IAFF]}^{16}$ $E (%)$	$ω_{[Exact]}^{16}$	$ω_{2 n dO}^{(this study)}$ $E (%)$	$ω_{3 n dO}^{(this study)}$ $E (%)$
1	0.5	0.5	1	5	3.605551 (1.8735)	3.539243	3.540101 (0.0242)	3.539208 (0.0009)
1	1	1	5	1	5.099020 (1.8735)	5.005246	5.006459 (0.0242)	5.005196 (0.0009)
10	5	5	10	20	8.717798 (2.1586)	8.533586	8.536056 (0.0289)	8.533463 (0.0014)
20	40	50	20	10	19.46792 (2.1708)	19.05429	19.059843 (0.0291)	19.054010 (0.0014)
50	100	50	−10	20	36.79674 (2.2065)	36.00234	36.013049 (0.0297)	36.001792 (0.0015)
100	400	100	50	−50	122.5071 (2.2179)	119.8489	119.884810 (0.0299)	119.847084 (0.0015)

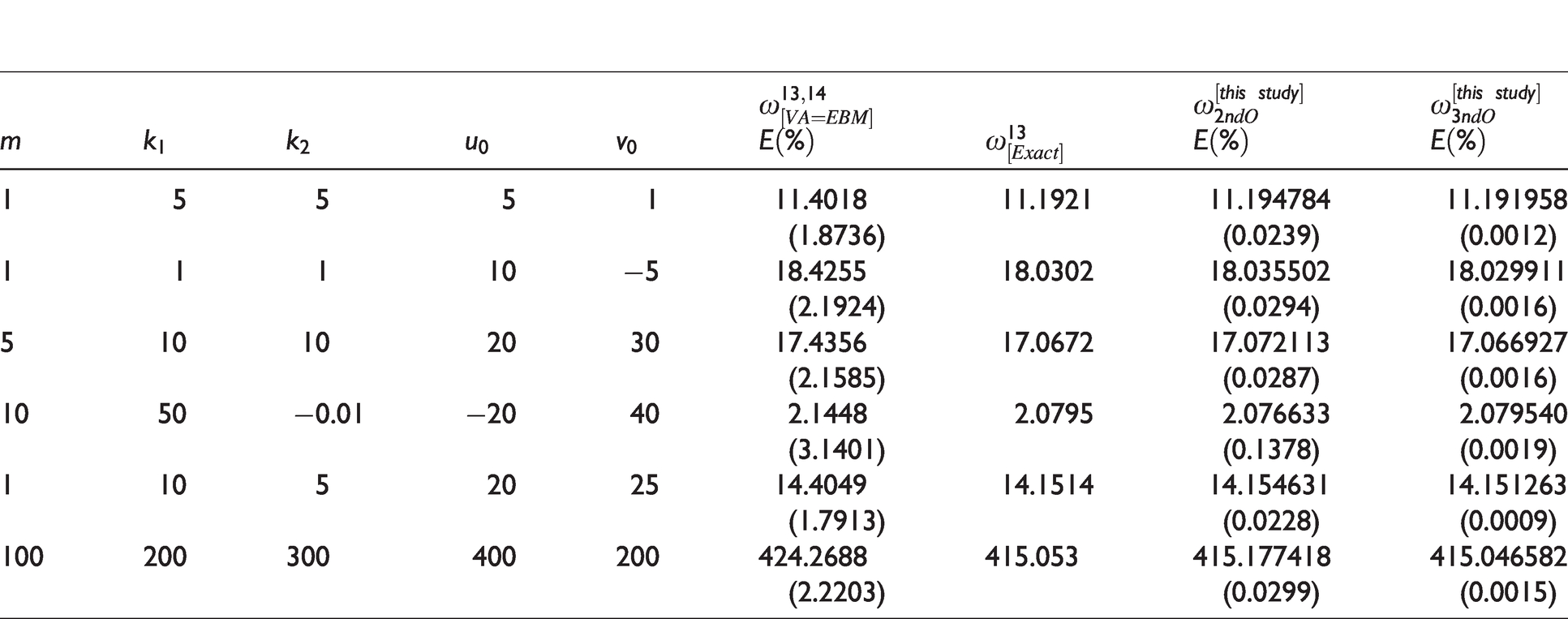

Table 2.

Comparison of the approximate angular frequencies with already published results and exact frequencies for various parameters of the system.

$m$	$k_{1}$	$k_{2}$	$u_{0}$	$v_{0}$	$ω_{[VA = EBM]}^{13, 14}$ $E (%)$	$ω_{[Exact]}^{13}$	$ω_{2 n dO}^{[t h i s s t u d y]}$ $E (%)$	$ω_{3 n dO}^{[t h i s s t u d y]}$ $E (%)$
1	5	5	5	1	11.4018 (1.8736)	11.1921	11.194784 (0.0239)	11.191958 (0.0012)
1	1	1	10	−5	18.4255 (2.1924)	18.0302	18.035502 (0.0294)	18.029911 (0.0016)
5	10	10	20	30	17.4356 (2.1585)	17.0672	17.072113 (0.0287)	17.066927 (0.0016)
10	50	−0.01	−20	40	2.1448 (3.1401)	2.0795	2.076633 (0.1378)	2.079540 (0.0019)
1	10	5	20	25	14.4049 (1.7913)	14.1514	14.154631 (0.0228)	14.151263 (0.0009)
100	200	300	400	200	424.2688 (2.2203)	415.053	415.177418 (0.0299)	415.046582 (0.0015)

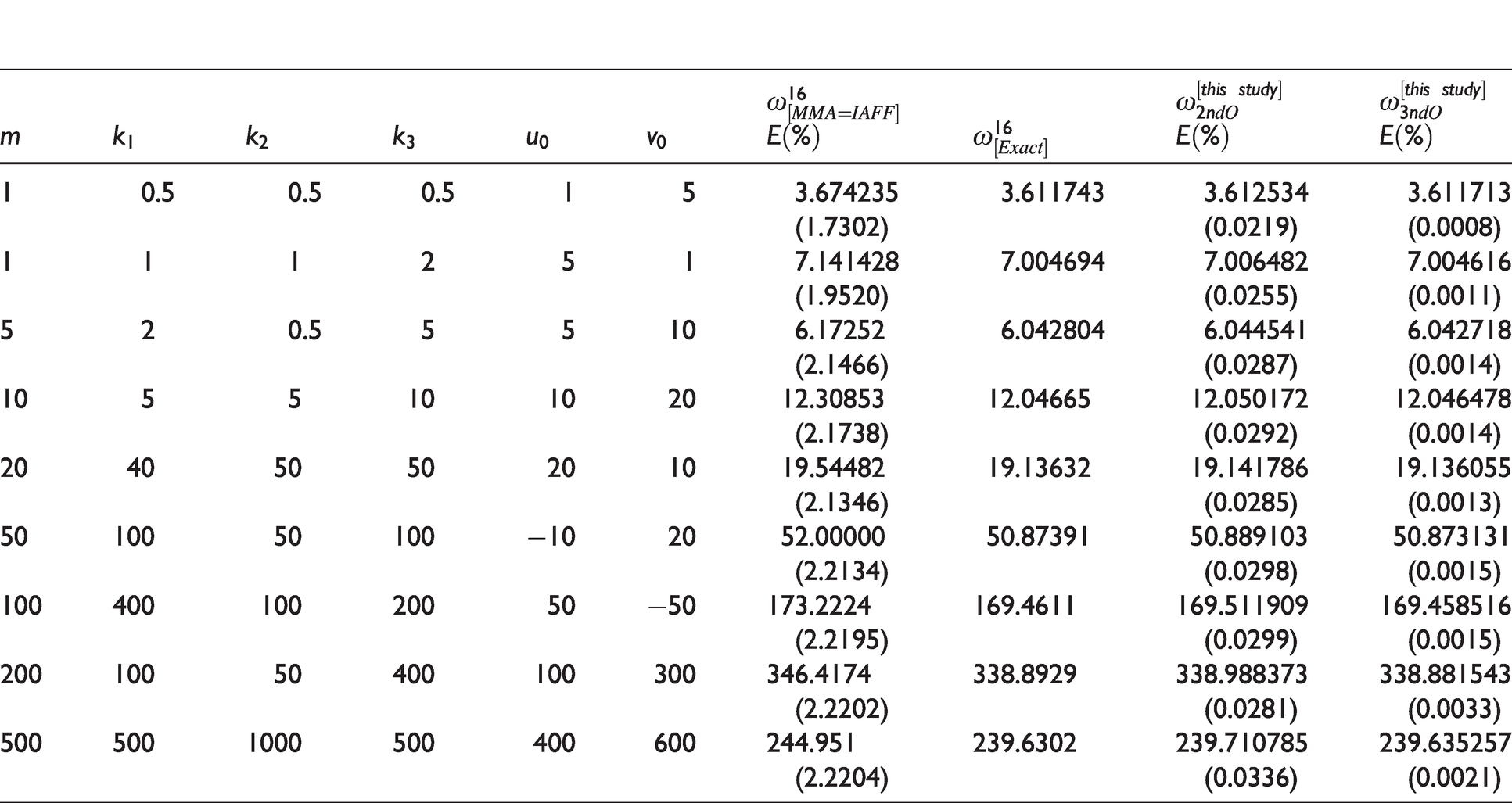

Table 3.

Comparison of the approximate angular frequencies with already published results and exact frequencies for various parameters of the system.

$m$	$k_{1}$	$k_{2}$	$k_{3}$	$u_{0}$	$v_{0}$	$ω_{[MMA = IAFF]}^{16}$ $E (%)$	$ω_{[Exact]}^{16}$	$ω_{2 n dO}^{[t h i s s t u d y]}$ $E (%)$	$ω_{3 n dO}^{[t h i s s t u d y]}$ $E (%)$
1	0.5	0.5	0.5	1	5	3.674235 (1.7302)	3.611743	3.612534 (0.0219)	3.611713 (0.0008)
1	1	1	2	5	1	7.141428 (1.9520)	7.004694	7.006482 (0.0255)	7.004616 (0.0011)
5	2	0.5	5	5	10	6.17252 (2.1466)	6.042804	6.044541 (0.0287)	6.042718 (0.0014)
10	5	5	10	10	20	12.30853 (2.1738)	12.04665	12.050172 (0.0292)	12.046478 (0.0014)
20	40	50	50	20	10	19.54482 (2.1346)	19.13632	19.141786 (0.0285)	19.136055 (0.0013)
50	100	50	100	−10	20	52.00000 (2.2134)	50.87391	50.889103 (0.0298)	50.873131 (0.0015)
100	400	100	200	50	−50	173.2224 (2.2195)	169.4611	169.511909 (0.0299)	169.458516 (0.0015)
200	100	50	400	100	300	346.4174 (2.2202)	338.8929	338.988373 (0.0281)	338.881543 (0.0033)
500	500	1000	500	400	600	244.951 (2.2204)	239.6302	239.710785 (0.0336)	239.635257 (0.0021)

Table 4.

Comparison of the approximate angular frequencies with already published results and exact frequencies for various parameters of the system.

$m$	$k_{1}$	$k_{2}$	$k_{3}$	$u_{0}$	$v_{0}$	$ω_{[VA = EBM]}^{13, 14}$ $E (%)$	$ω_{[Exact]}^{13}$	$ω_{2 n dO}^{[t h i s s t u d y]}$ $E (%)$	$ω_{3 n dO}^{[t h i s s t u d y]}$ $E (%)$
1	1	1	1	5	1	5.1961 (1.7287)	5.1078	5.108895 (0.0214)	5.107734 (0.0012)
1	1	1	5	5	10	13.8022 (2.1469)	13.5121	13.516005 (0.0289)	13.511928 (0.0012)
5	10	20	30	−10	10	60.0833 (2.2075)	58.7856	58.803142 (0.0298)	58.784751 (0.0014)
10	50	70	90	20	−40	220.4972 (2.2186)	215.7113	215.775905 (0.0299)	215.707977 (0.0015)
10	25	20	−0.05	−10	10	1.8708 (1.6021)	1.8413	1.840531 (0.0417)	1.841323 (0.0012)
100	200	300	400	−50	50	244.9653 (2.2198)	239.6455	239.717323 (0.0299)	239.641804 (0.0015)

In Tables 1 to 4, $m$ , $k_{1}$ , $k_{2}$ , $k_{3}$ , $u_{0}$ and $v_{0}$ respectively denote the various parameters of the systems. $ω_{[MMA = IAFF]}^{16}$ and $ω_{[VA = EBM]}^{13, 14}$ represent the already published results which have been obtained using the max-min approach,¹⁶ He’s improved amplitude–frequency formulation method,¹⁶ the variational approach¹³ and the energy balance method,¹⁴ respectively. $ω_{[Exact]}^{13}$ and $ω_{[Exact]}^{16}$ signify the exact solutions which are obtained in Hashemi Kachapi et al.¹³ and Bayat et al.¹⁶ $ω_{2 n dO}^{[t h i s s t u d y]}$ and $ω_{3 n dO}^{[t h i s s t u d y]}$ denote the second- and third-order approximate angular frequencies obtained by using the proposed method. $E (%)$ represents the percentage error which is obtained from the relation $| \frac{ω_{appr .} - ω_{Ex}}{ω_{Ex}} \times 100 |$ .

In order further to illustrate and verify the exactness of the approximate analytical solution, a comparison of the time history oscillatory displacement response for the two masses for different values of initial conditions and stiffnesses with fourth-order Runge–Kutta (considered to be exact) solutions are plotted in Figures 3 to 5 for Problem 1 and Figures 6 to 8 for Problem 2. The proposed method is simple, quite easy, and highly efficient and is valid for a wide range of vibration amplitudes of the oscillation. As can be seen in Figures 3 to 8, it is found that the proposed method has excellent agreement with the numerical solution. The proposed method is rapidly convergent and can also be easily generalized to two-degree-of-freedom oscillation systems by combining the transformation technique.

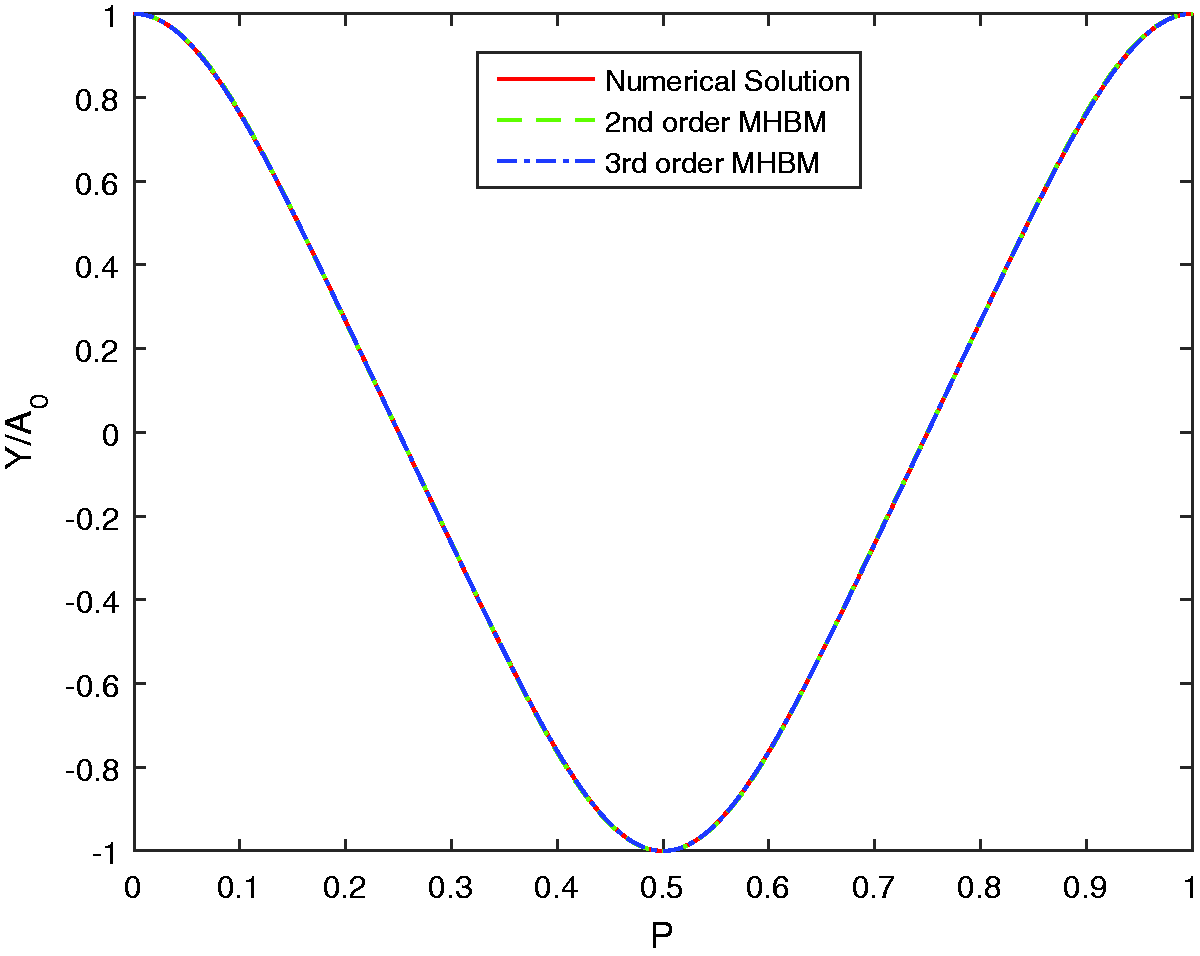

Figure 3.

Comparison of the approximate solution in equation (14) with the corresponding numerical one for various parameters $m = 1$ , $k_{1} = 0.5$ , $k_{2} = 0.5$ , $u_{0} = 1$ , $v_{0} = 5$ .

Figure 4.

Comparison of the approximate solution in equation (14) with the corresponding numerical one for various parameters $m = 100$ , $k_{1} = 400$ , $k_{2} = 100$ , $u_{0} = 50$ , $v_{0} = - 50$ .

Figure 5.

Comparison of the approximate solution in equation (14) with the corresponding numerical one for various parameters $m = 100$ , $k_{1} = 200$ , $k_{2} = 300$ , $u_{0} = 400$ , $v_{0} = 200$ .

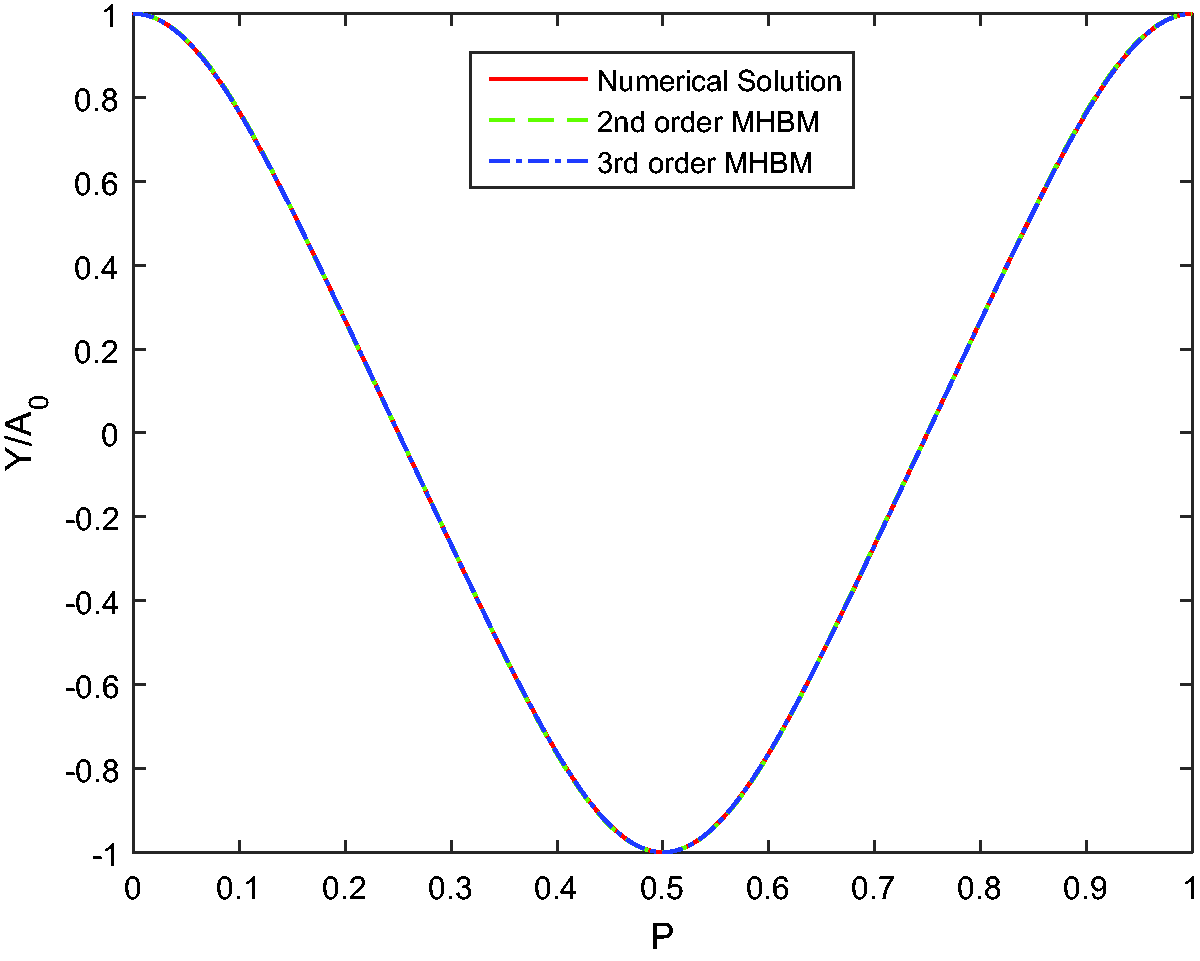

Figure 6.

Comparison of the approximate solution in equation (21) with the corresponding numerical one for various parameters $m = 1$ , $k_{1} = 0.5$ , $k_{2} = 0.5$ , $k_{3} = 0.5$ , $u_{0} = 1$ , $v_{0} = 5$ .

Figure 7.

Comparison of the approximate solution in equation (21) with the corresponding numerical one for various parameters $m = 500$ , $k_{1} = 500$ , $k_{2} = 1000$ , $k_{3} = 500$ , $u_{0} = 400$ , $v_{0} = 600$ .

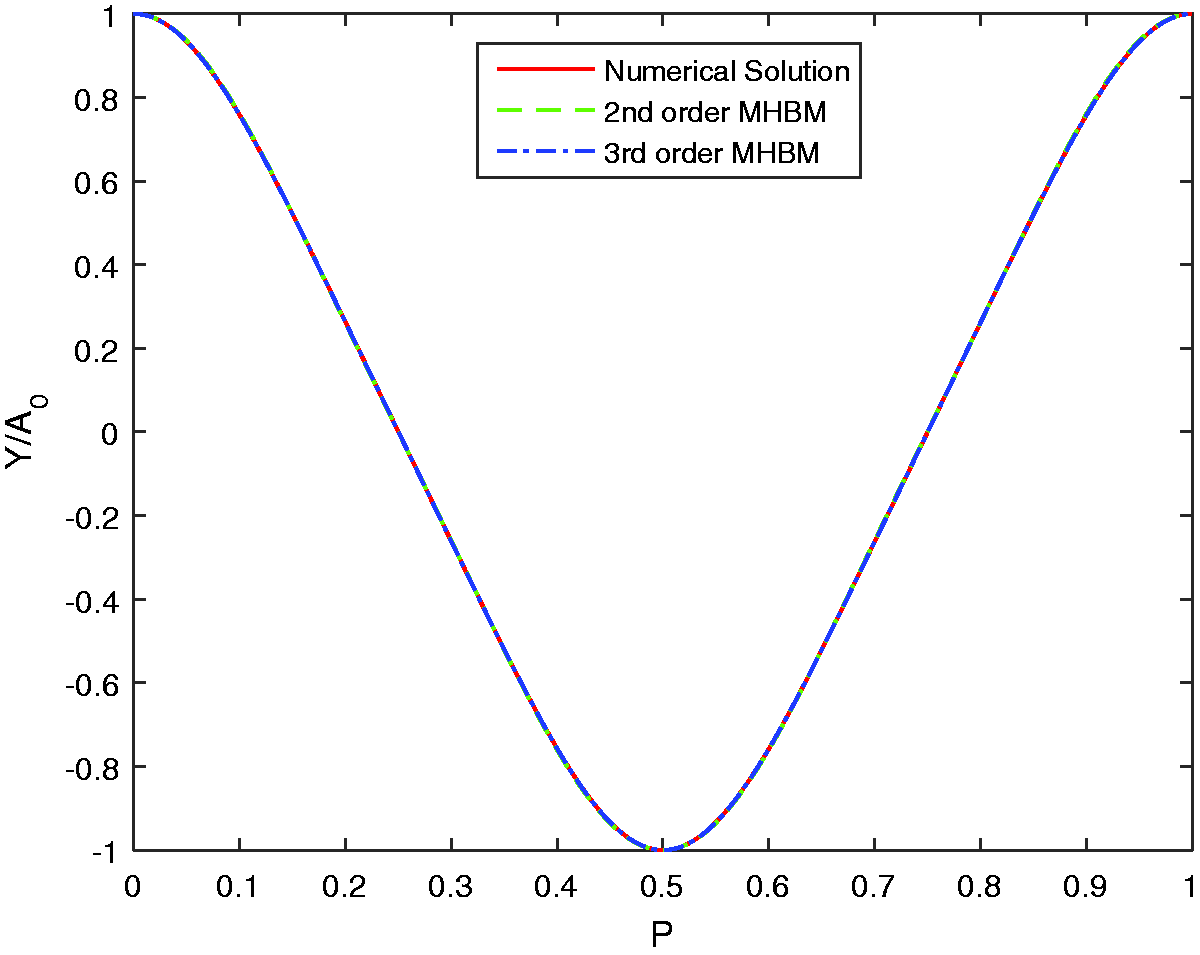

Figure 8.

Comparison of the approximate solution in equation (21) with the corresponding numerical one for various parameters $m = 100$ , $k_{1} = 200$ , $k_{2} = 300$ , $k_{3} = 400$ , $u_{0} = - 50$ , $v_{0} = 50$ .

Conclusion

We have developed an analytical technique based on the HBM to a set of second-order coupled differential equations with cubic nonlinearity. These govern the nonlinear free vibration of a conservative, couple-mass-spring system having linear and nonlinear stiffnesses. We obtained the approximate angular frequencies as well as the corresponding periodic solutions using this proposed method. As compared with published results and exact solutions, we have found excellent agreement. The exactness of the results shows that the proposed method can be easily and efficiently used for the analysis of strongly nonlinear vibration problems with high accuracy. Hence, we conclude that the proposed method has great potential and provides an efficient alternative to the previously existing methods for solving strongly nonlinear oscillatory systems.

Footnotes

Acknowledgement

The authors are grateful for the financial support from the Research Management Centre (RMC), International Islamic University Malaysia.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors received financial support from the Research Management Centre (RMC), International Islamic University Malaysia, for publication of this article.

ORCID iD

Md. Alal Hosen

References

Moochhala

Raynor

Free vibration of multi-degree-of-freedom non-linear systems. Int J Non-Linear Mech 1972; 7: 651–661.

Huang

TC.

Harmonic oscillations of nonlinear two-degree-of-freedom systems. J Appl Mech 1995; 22: 107–110.

Gilchrist

AO.

The free oscillations of conservative quasilinear systems with two degrees of freedom. Int J Mech Sci 1961; 3: 286–311.

Efstathiades

GJ.

Combination tones in single mode motion of a class of non-linear systems with two degrees of freedom. J Sound Vib 1974; 34: 379–397.

Alexander

Richard

HR.

Non-linear dynamics of a system of coupled oscillators with essential stiffness nonlinearities. Int J Non-Linear Mech 2004; 39: 1079–1091.

Chen

Applications of a generalized Galerkin’s method to non-linear oscillations of two-degree-of-freedom systems. J Sound Vib 1987; 119: 225–242.

Ladygina

Manevich

AI.

Free oscillations of a non-linear cubic system with two degrees of freedom and close natural frequencies. J Appl Math Mech 1993; 57: 257–266.

Cveticanin

Vibrations of a coupled two-degree-of-freedom system. J Sound Vib 2001; 247: 279–292.

Cveticanin

The motion of a two-mass system with non-linear connection. J Sound Vib 2002; 252: 361–369.

10.

Dimarogonas

Haddad

Vibration for engineers. Englewood Cliffs, New Jersey: Prentice-Hall, 1992.

11.

Telli

Kopmaz

Free vibrations of a mass grounded by linear and non-linear springs in series. J Sound Vib 2006; 289: 689–710.

12.

Lai

Lim

CW.

Nonlinear vibration of a two-mass system with nonlinear stiffnesses. Nonlinear Dyn 2007; 49: 233–249.

13.

Hashemi Kachapi

SHA

Dukkipatic

Hashemi

, et al. Analysis of the nonlinear vibration of a two-mass-spring system with linear and nonlinear stiffness. Nonlinear Anal 2010; 11: 1431–1441.

14.

Bayata

Shahidia

Bararib

, et al. Analytical evaluation of the nonlinear vibration of coupled oscillator systems. Z Naturforsch 2011; 66a: 67–74.

15.

Ganji

Bararib

Ganji

DD.

Approximate analysis of two-mass-spring systems and buckling of a column. Comp Math Appl 2011; 61: 1088–1095.

16.

Bayat

Pakar

Shahidi

Analysis of nonlinear vibration of coupled systems with cubic nonlinearity. Mechanics 2011; 17: 620–629.

17.

Wang

JY.

Amplitude-frequency relationship to a fractional Duffing oscillator arising in microphysics and tsunami motion. J Low Frequency Noise Vib Active Control 2018; DOI: 10.1177/1461348418795813.

18.

Ren

GF.

He’s frequency-amplitude formulation with average residuals for nonlinear oscillators. J Low Frequency Noise Vib Active Control 2018; DOI:10.1177/1461348418812327.

19.

Mickens

RE.

Truly nonlinear oscillations. Singapore: World Scientific Publishing, 2010.

20.

Mickens

RE.

A generalization of the method of harmonic balance. J Sound Vib 1986; 111: 515–518.

21.

Chowdhury

MSH

Hosen

Ali

, et al. An analytical technique to obtain higher-order approximate periods for nonlinear oscillator

\ddot{x} + (1 + {\dot{x}}^{2}) . x = 0. IIUM Eng J

2018; 19: 182–191.

22.

Hosen

Rahman

Alam

, et al. An analytical technique for solving a class of strongly nonlinear conservative systems. Appl Math Comp 2012; 218: 5474–5486.

23.

Javidi

Iterative methods to nonlinear equations. Appl Math Comp 2007; 193: 360–365.

24.

JH.

Homotopy perturbation method for nonlinear oscillators with coordinate-dependent mass. Results Phys 2018; 10: 270–271.
