Estimator-based H∞ control considering actuator time delay for active double-pantograph in high-speed railways

Abstract

When two electric multiple units are non-electrically connected together for improving the transport capacity in high-speed railways, double pantographs frequently operate simultaneously to decrease the current capacity on a single pantograph collector. In this case, the contact force between the trailing pantograph and the catenary severely fluctuates due to the wave propagation along the catenary triggered by the leading pantograph. Therefore, this paper proposes two estimator-based H∞ control strategies for active double-pantograph to decrease the contact force fluctuation considering the actuator time delay. To obtain the pantograph states, a robust recursive state estimation method is presented, which can effectively deal with randomly missing measurements. In addition, to overcome parametric uncertainties and non-differentiable actuator time delay, two robust multi-objective H∞ controllers involving linear matrix inequalities are introduced according to whether the time delay can be predetermined or not. The effectiveness and robustness of the control strategies are investigated through implementing a nonlinear double-pantograph-catenary system model. Simulation results show that, for both the leading pantograph and the trailing pantograph, the proposed control strategies can decrease the contact force fluctuation with high efficiency even though the actuator time delay exists.

Keywords

Contact force fluctuation active double-pantograph actuator time delay robust recursive state estimation multi-objective H∞control

Introduction

For greater economic and social benefits, the electrified railway industry is extensively expanding in many countries. To ensure the steady and safe operation, one of the crucial technical issues is to improve the current collection quality of electric multiple units (EMUs). This quality can be characterized by the contact force between the pantograph and the catenary in general.¹ In other words, the stationarity of contact force should be paid more attention to as the upgrade of running speed.

To improve the transport capacity, especially in China, two EMUs are frequently connected together, which results in a special working condition that double pantographs operate simultaneously due to the restriction of current capacity on the collector strips,² as shown in Figure 1. Under this circumstance, the impact of the leading pantograph (LP) on the catenary indirectly affects the trailing pantograph (TP) through the wave propagation. Therefore, the fluctuation of contact force between the TP and the catenary becomes more violent, which leads to many serious problems. To resolve this matter, the dynamic behaviors of double-pantograph-catenary system (DPCS) have been deeply investigated.^3–5 Many feasible measures were then proposed, such as applying different lift force on the LP and TP,³ adopting appropriate pantograph intervals,⁴ and optimizing or renovating the pantograph-catenary system (PCS),² but they are of limited usefulness or involve considerable economic costs. This paper attempts to overcome this challenge through active control of the double-pantograph based on our previous works,^6,7 which has been explored in the single-pantograph-catenary system.^8–19

Figure 1.

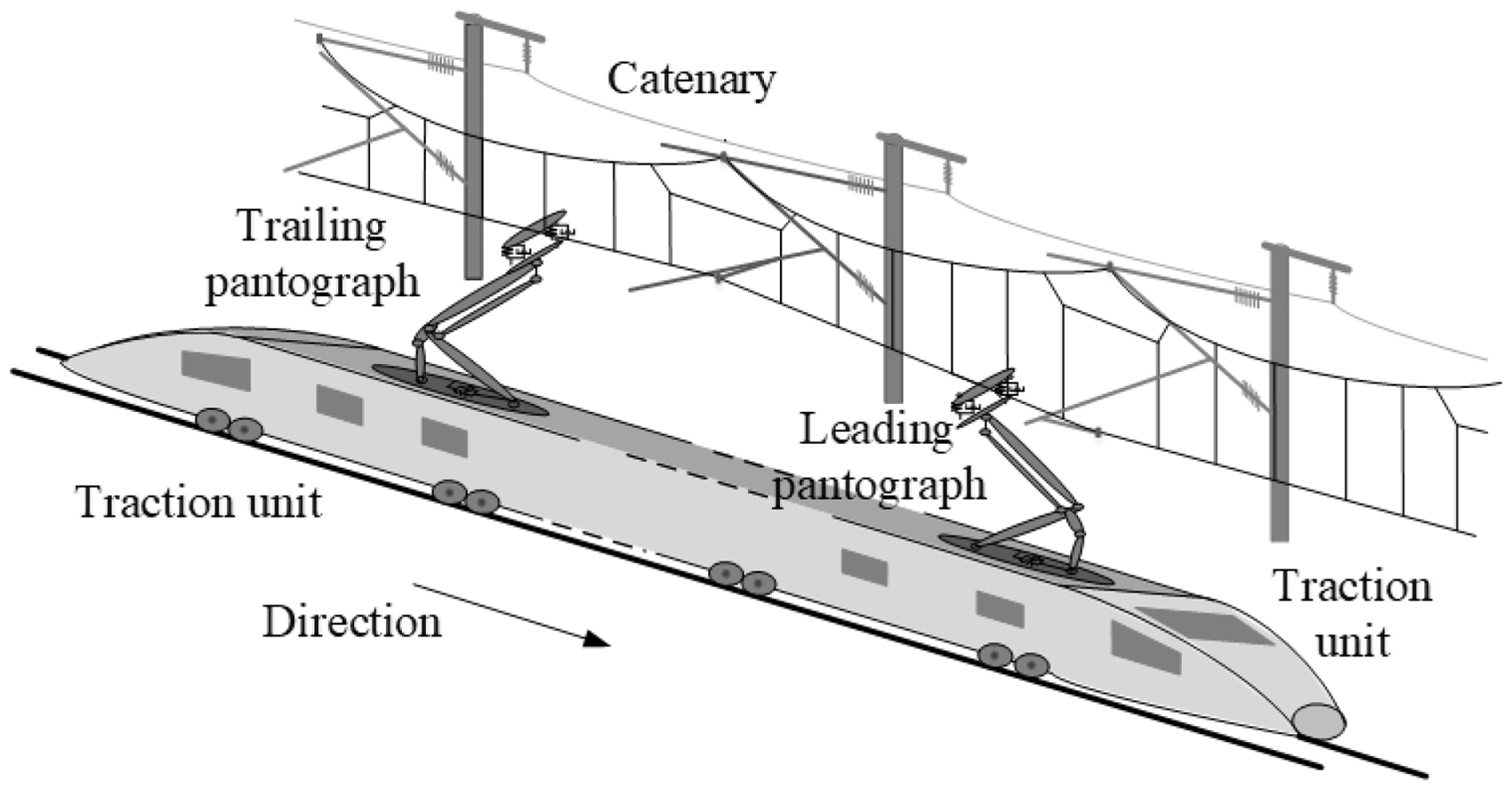

Sketch of double-pantograph-catenary system in high-speed railway.

In recent years, many controllers were developed for the active pantograph, such as Proportion Integration Differentiation (PID) control,^8–10 sliding mode control,^11,12 optimal control,^13,14 fuzzy control,¹⁵ model predictive control,¹⁶ adaptive and robust fault tolerant control,¹⁷ backstepping control,¹⁸ feedforward control,¹⁹ etc. However, the validations of these controllers^8–19 were only verified with single pantograph, which might be inefficient with double pantographs due to the more complex structure and higher nonlinearity of the system. Even though the influence of small time delay (5 ms) was slightly discussed,⁹ how to overcome greater actuator time delay was not mentioned before. This paper attempts to overcome these challenges. Actuator time delay is a realistic factor that affects the control efficiency in any systems. Generally, there are two possible ways to address this problem. The first one is integrating the actuator model with the controlled plant when designing a controller.²⁰ The second one is that, to explicitly deal with it, the time delay is regarded as a variable in the design process. Obviously, the latter is independent on different actuators, which is more generalized. Based on this principle, many controllers were proposed by considering the actuator time delay, such as sampled-data control,²¹ reliable fuzzy control,²² multi-objective control,²³ non-fragile static output feedback control,²⁴ etc. In this paper, based on the state feedback H∞ control framework, the time delay of active pantograph actuator is explicitly considered according to whether it can be predetermined or not. That is to say, the fixed time delay and the random time delay are separately taken into account. Meanwhile, besides the contact force fluctuation, the contact force limitation, as the second objective, is noticed in the proposed controllers, which has been overlooked in this topic.

To achieve the best performance of the state feedback control, the pantograph states must be accurately obtained, but it is of difficulty to be realized in a real DPCS plant. On one hand, sensors cannot be installed on the locomotive roof due to some security reasons. On the other hand, due to the complicated electromagnetic circumstance and severe physical environment, the measurements may contain noise and even randomly missing information. For instance, two force sensors, two acceleration sensors, three velocity sensors, and three displacement sensors are required to measure the states of a single collector pantograph. Therefore, inspired by the earlier studies,^25–29 the state estimation is introduced in observing the pantograph states. The sensor fault and data loss are also considered in the estimation algorithm. In addition, compared with actual systems, both pantograph and catenary models inevitably have some deviation that has a negative impact on estimation performance. Through the above analysis, a robust recursive state estimation method (RRSEM) is derived for pantographs considering both parametric uncertainties and randomly missing measurements.

Motivated by the above analyses, the main contributions of this paper are as follows: (1) Two estimator-based robust multi-objective state feedback control strategies for active double-pantograph in DPCS are proposed, (2) the actuator time delay is considered in the control strategies based on whether it can be predetermined, and (3) the effectiveness and robustness of the control strategies are investigated in detail with a nonlinear DPCS model.

The study ideas and their relations are shown in Figure 2. Firstly, a nonlinear DPCS model is constructed, and the problem is formulated based on a control-oriented model (COM). Secondly, a robust state estimator is introduced, And two robust controllers are presented, respectively. Then, five cases are carried out to investigate the performance of the control strategies. Some conclusions are drawn in the last section.

Figure 2.

Main ideas and their relations in this study.

Notation

The notations adopted in paper are fairly standard. For a matrix M, M^T and M⁻¹ denote its transpose and inverse, and M > 0 denotes M is real symmetric and positive definite. [M] _SYM denote M + M^T. For a variable a, $\dot{a}$ and $\ddot{a}$ denote its first-order and second-order derivative, respectively. Subscript $‘ k ’$ denotes the iteration number.

System model and problem formulation

To facilitate the problem formulation and effectiveness investigation, a nonlinear DPCS model is constructed firstly. Without the loss of generality, the SSS400+ pantograph widely used in China high-speed railway network is employed as both the LP and TP. According to the earlier studies,^8–19 the pantograph is regarded as a three-stage lumped model, as shown in Figure 3. m₁, m₂, and m₃ denote the equivalent masses of the collector, upper frame, and lower frame of the pantograph. k_i (i = 1, 2, 3) and c_i (i = 1, 2, 3) denote the damping and stiffness between mass m₁ and m₂, m₂ and m₃, and m₃ and the base, respectively. The equation of motion can be described with contact force F_pc, static lift force F_l, and control force u as follows

{\begin{array}{l} m_{1} {\ddot{x}}_{1} + c_{1} ({\dot{x}}_{1} - {\dot{x}}_{2}) + k_{1} (x_{1} - x_{2}) = F_{pc} \\ m_{2} {\ddot{x}}_{2} + c_{1} ({\dot{x}}_{2} - {\dot{x}}_{1}) + c_{2} ({\dot{x}}_{2} - {\dot{x}}_{3}) + k_{1} (x_{2} - x_{1}) + k_{2} (x_{2} - x_{3}) = 0 \\ m_{3} {\ddot{x}}_{3} + c_{2} ({\dot{x}}_{3} - {\dot{x}}_{2}) + c_{3} {\dot{x}}_{3} + k_{2} (x_{3} - x_{2}) + k_{3} x_{3} = F_{l} + u \end{array}

(1)

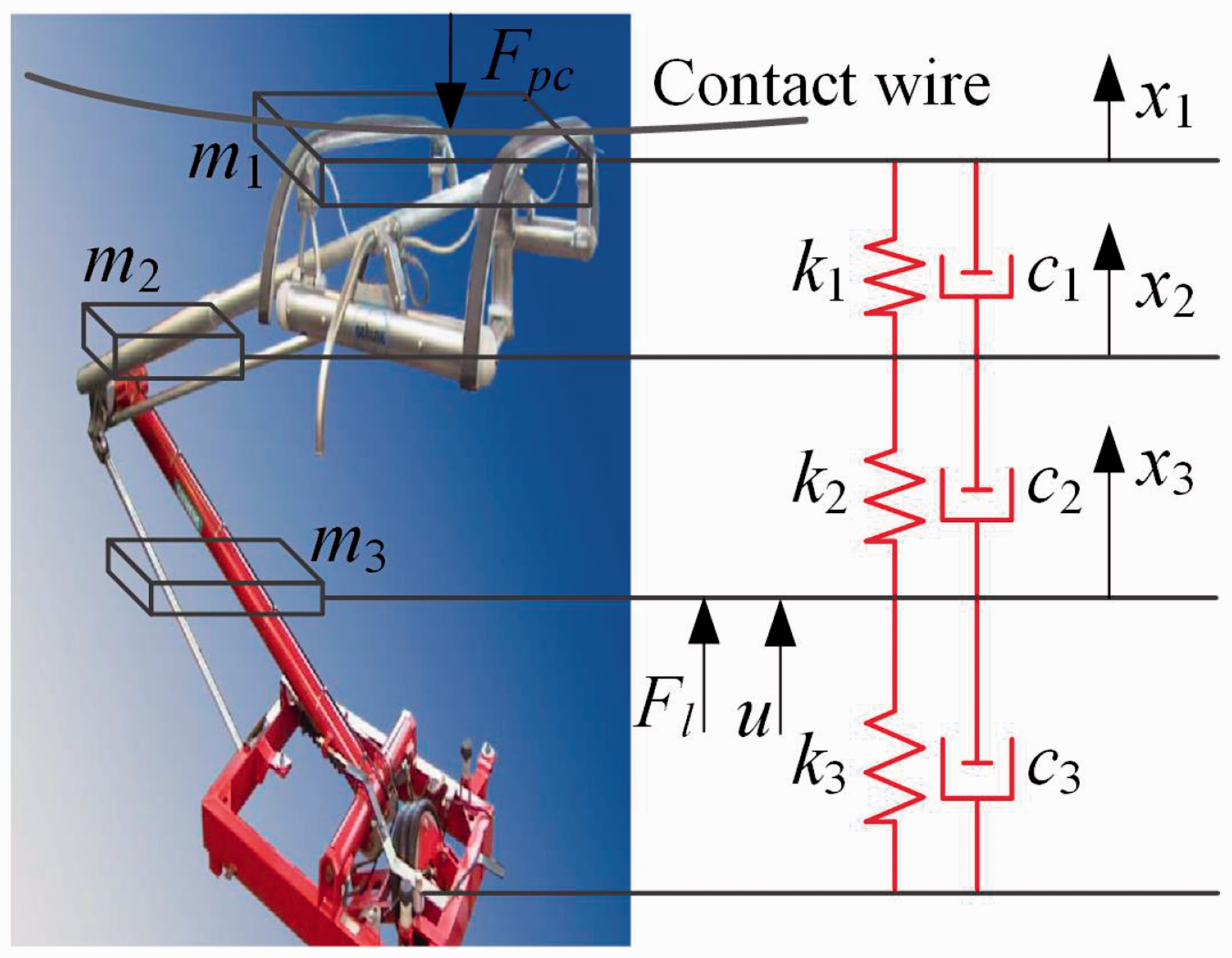

Figure 3.

SSS400+ pantograph and its three-level model.

The structure of a real elastic stitched catenary is very complex, as shown in Figure 4(a), which is mainly composed of the contact/messenger wire, stitch wire, and droppers, as shown in Figure 4(b). Its model is established by finite element method (FEM), in which the contact/messenger wire is modeled based on nonlinear cable elements and the droppers are modeled based on nonlinear truss elements, as shown in Figure 4(c) and (d). The structural dynamic of catenary can be given as

M_{c} {\ddot{x}}_{c} + C_{c} {\dot{x}}_{c} + K_{c} x_{c} = F_{c}

(2)

where K_c, M_c, and C_c denote the global stiffness matrix, lumped mass matrix, and damping matrix of the catenary, respectively.

{\ddot{x}}_{c}, {\dot{x}}_{c}

, and x_c denote the global acceleration, velocity, and displacement vector of each node of the catenary, respectively. F_c denotes the external force.

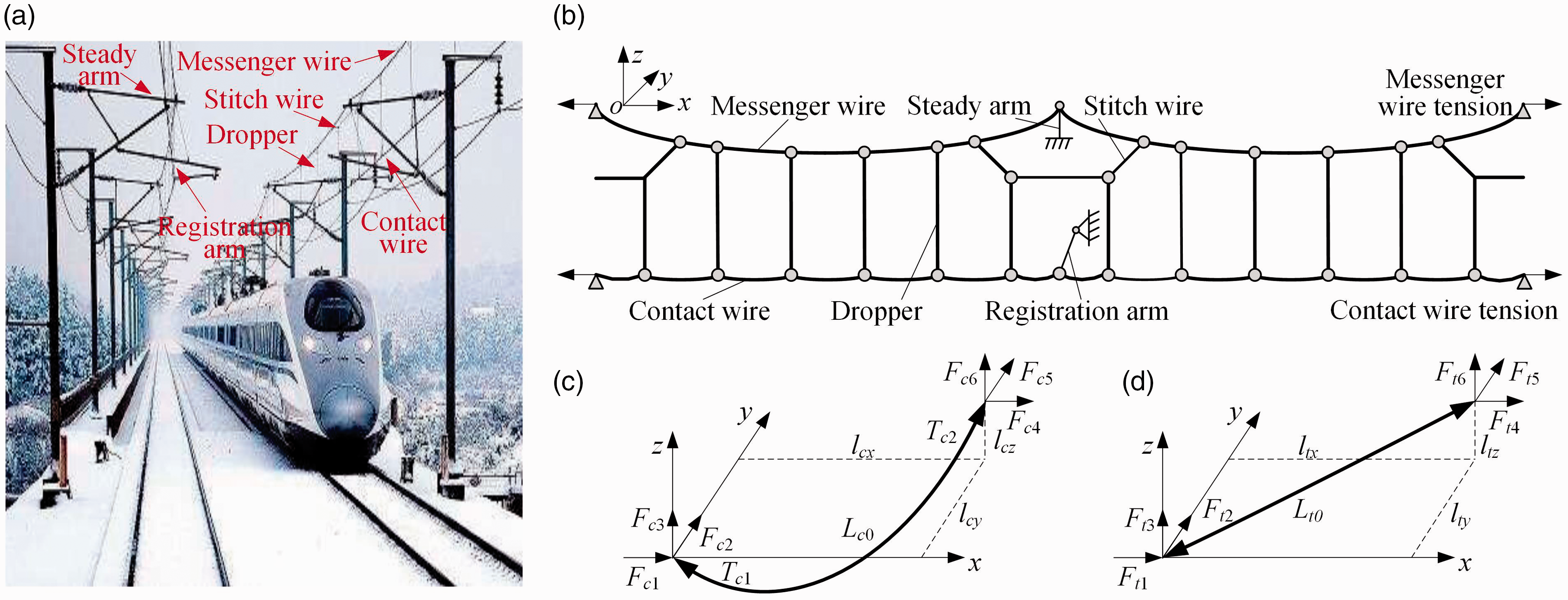

Figure 4.

Nonlinear catenary model. (a) Real catenary line, (b) its geometry structure, (c) cable element, and (d) truss element.

Combining equations (1) with (2), the DPCS model can be denoted as

M \ddot{x} + C \dot{x} + Kx = F

(3)

where

M = diag (M_{c}, M_{pl}, M_{pt}), C = diag (C_{c}, C_{pl}, C_{pt})

, and

K = diag (K_{c}, K_{pl}, K_{pt})

M_c, C_c and K_c can be deduced by equation (1). The subscripts “pl”and “pt” denote the parameters of LP and TP, respectively.

To validate the proposed modeling method, the European Standard EN 50318,³⁰ the SIEMENS simulation reports,³¹ and the recent benchmark initiative³² are adopted as references. The simulation results are shown in the studies by Wang et al.¹ and Song et al.,³³ which meet the ranges of the corresponding standards completely.

As shown in the study by Song et al.,³³ the system model based on the FEM is too complex to be used in controller design. Therefore, a COM is necessary in practice. The key point is that, as the main cause of contact force fluctuation, the unsmooth stiffness distribution along the contact wire should be exactly expressed. It can be described as

k (t) = \sum_{i = 1}^{8} a_{i} \exp (- {((vt - b_{i}) / c_{i})}^{2})

(4)

where v and t are the operation speed and running time, respectively. a_i, b_i, and c_i are fitting coefficients.

Then, combining equations (1) with (4), the contact force is denoted as

F_{pc} (t) = x_{1} k (t)

(5)

To decrease the contact force fluctuation without affecting its mean value, the controller can be designed for reducing the error between the real-time contact force F_pc(t) and its reference value F_r. Therefore, according to equations (1), (4), and (5), the state space model of PCS should be augmented as

{\begin{array}{l} \dot{\bar{x}} (t) = \bar{A} \bar{x} (t) + {\bar{B}}_{1} \bar{w} (t) + {\bar{B}}_{2} u (t) \\ {\bar{z}}_{1} (t) = {\bar{C}}_{1} \bar{x} (t) \end{array}

(6)

where

\bar{A} = [\begin{matrix} 0 & - C_{1} \\ 0 & A \end{matrix}], {\bar{B}}_{1} = [\begin{matrix} 10 \\ 0 B_{1} \end{matrix}], \bar{w} = [\begin{array}{l} F_{r} \\ w \end{array}], {\bar{B}}_{2} = [\begin{array}{l} 0 \\ B_{2} \end{array}], \bar{x} = [\int_{0}^{t} e (t) d t, x (t)], {\bar{C}}_{1} = [1, zeros (1, 6)], e (t) = F_{r} - F_{pc}, B_{1} = {[0, - 1 / m_{1}, zeros (1, 4)]}^{T}, C_{1} = [k_{span}, zeros (1, 5)], B_{2} = {[zeros (1, 5), - 1 / m_{3}]}^{T} .

A can be easily obtained through equations (1), (4), and (5). Instead of k(t), k_span is adopted in A and C₁ for reducing the computation cost, and it denotes the mean value of stiffness along one span. w denotes the system uncertainties and external disturbances.

Before designing controllers to decrease the contact force fluctuation, the following aspects should be considered.

Actuator time delay. No matter which actuator we choose, its time delay is always unavoidable from the viewpoint of application. To obtain a general conclusion, this problem is addressed according to the value of the time delay instead of indicating a specific actuator;

System uncertainties. It is worthy of note that system uncertainties may exist because the accuracy of parametric identification is not guaranteed. In addition, some external conditions, such as icing on link members, can also lead to model mismatch. In fact, parametric uncertainties must be considered in every model-based controller;

Maximum control force. An actuator cannot provide the infinite control force in reality. Thus, besides the main target, the control force should be limited in a reasonable range as an application study.

Based on the above analysis, equation (6) is rewritten as

{\begin{matrix} \dot{\bar{x}} (t) = \bar{A} (ε) \bar{x} (t) + {\bar{B}}_{1} (ε) \bar{w} (t) + {\bar{B}}_{2} (ε) u (t - τ) \\ {\bar{z}}_{1} (t) = {\bar{C}}_{1} (ε) \bar{x} (t) \end{matrix}

(7)

where τ and ε denote the actuator time delay and uncertain parameters, respectively. It is assumed that ε varies in a polytope of vertices ε₁, ε₂, … ,ε_r. That is to say,

\bar{A} (ε), {\bar{B}}_{1} (ε), {\bar{B}}_{2} (ε)

, and

{\bar{C}}_{1} (ε)

are given by

{\begin{array}{l} (\bar{A} (ε), {\bar{B}}_{1} (ε), {\bar{B}}_{2} (ε), {\bar{C}}_{1} (ε)) \in \sum_{i = 1}^{r} ε_{i} ({\bar{A}}_{i}, {\bar{B}}_{1 i}, {\bar{B}}_{2 i}, {\bar{C}}_{1 i}) \\ \sum_{i = 1}^{r} ε_{i} = 1; ε_{i} \geq 0, i = 1, 2, \dots, r \end{array}

(8)

Therefore, the whole problem can be described as to design a state feedback law

u (t) = K \bar{x} (t)

(9)

such that the closed loop system through combining equations (7) with (9) guarantees

\sup {‖ G (j ω) ‖}_{\infty} < γ

(10)

| u (t) | \leq u_{\max}

(11)

where K is the control gain matrix. G(ja) denotes the transfer function from

\bar{w} (t)

{\bar{z}}_{1} (t)

. u_max represents the maximum control force.

State estimation for the pantographs

In general, the process noise exists in any systems and the measured outputs are usually corrupted by measurement noise, such as sampling errors. If the process noise and the measurement noise are denoted as ω_k and v_k, respectively, the discrete state equation for state estimation can be written as

{\begin{array}{l} {\dot{x}}_{k} = A_{k} x_{k} + B_{k} u_{k} + ω_{k} \\ y_{k} = η_{k} C_{k} x_{k} + v_{k} \end{array}

(12)

where A_k, B_k, and C_k are related to A, B₂, and C₁ in equation (7). ω_k and v_k are assumed to be mutually uncorrelated zero mean white Gaussian noise with covariance matrixes

Q_{k} = E [ω_{k}, ω_{k}^{T}], R_{k} = E [v_{k}, v_{k}^{T}]

The added stochastic variable η_k in equation (12) is a Bernoulli distributed white sequence taking the value of 0 and 1 with

\begin{array}{l} Prob {η_{k} = 1} = E (η_{k}) = q_{k} \\ Prob {η_{k} = 0} = 1 - E (η_{k}) = 1 - q_{k} \end{array}

where η_k = 0 means that the states are not measured, or the failure commutation between the plant outputs and the state estimator. η_k = 1 has the opposite meaning.

The RRSEM proposed in the study by Zhou²⁹ is applicable for the system without inputs. Therefore, according to equation (10), the estimation algorithm is improved as follows

INPUT: $Q_{k}, R_{k}, {\hat{x}}_{0 | 0}, P_{0 | 0}, q_{k}, μ_{k}$

λ_{k} = (1 - μ_{k}) / μ_{k}

(13)

FOR k = 1, 2, … , n

S_{k} = {Θ {{[\begin{array}{l} C_{k + 1} (ε_{k + 1}) \frac{\partial A_{k} (ε_{k})}{\partial ε_{k, j}} \\ \frac{\partial C_{k + 1} (ε_{k + 1})}{\partial ε_{k + 1, j}} A_{k} (ε_{k}) \end{array}]}_{j = 1}^{n_{e}}} |}_{\begin{array}{l} ε_{k} = 0 \\ ε_{k + 1} = 0 \end{array}}

(14)

T_{k} = {Θ {{[\begin{array}{l} C_{k + 1} (ε_{k + 1}) \frac{\partial B_{k} (ε_{k})}{\partial ε_{k, j}} \\ \frac{\partial C_{k + 1} (ε_{k + 1})}{\partial ε_{k + 1, j}} B_{k} (ε_{k}) \end{array}]}_{j = 1}^{n_{e}}} |}_{\begin{array}{l} ε_{k} = 0 \\ ε_{k + 1} = 0 \end{array}}

(15)

{\hat{P}}_{k | k} = {(P_{k | k}^{- 1} + λ_{k} S_{k}^{T} S_{k})}^{- 1}

(16)

{\hat{Q}}_{k} = {[Q_{k}^{- 1} + λ_{k} T_{k}^{T} {(I + λ_{k} S_{k} P_{k | k} S_{k}^{T})}^{- 1} T_{k}]}^{- 1}

(17)

{\hat{B}}_{k} (0) = B_{k} (0) - λ_{k} A_{k} (0) {\hat{P}}_{k | k} S_{k}^{T} T_{k}

(18)

{\hat{A}}_{k} (0) = [A_{k} (0) - λ_{k} {\hat{B}}_{k} (0) {\hat{Q}}_{k} T_{k}^{T} S_{k}] [I - λ_{k} {\hat{P}}_{k | k} S_{k}^{T} S_{k}]

(19)

FOR ${\hat{x}}_{k + 1 | k + 1}$ , if η_k₊₁ = 0,

{\hat{x}}_{k + 1 | k + 1} = A_{k} (0) {\hat{x}}_{k | k} + B_{k} (0) u (k)

(20)

if η_k₊₁ = 1,

{\hat{x}}_{k + 1 | k + 1} = {\hat{A}}_{k} (0) {\hat{x}}_{k | k} + {\hat{B}}_{k} (0) u (k) + P_{k + 1 | k + 1} C_{k + 1}^{T} (0) R_{k + 1}^{- 1} [y_{k + 1} - C_{k + 1} (0) {\hat{A}}_{k} (0) {\hat{x}}_{k | k}]

(21)

FOR $P_{k + 1 | k + 1}$ , if η_k₊₁ = 0

P_{k + 1 | k + 1} = A_{k} (0) P_{k | k} A_{k}^{T} (0) + B_{k} (0) Q_{k} B_{k}^{T} (0)

(22)

if η_k₊₁ = 1

P_{k + 1 | k + 1} = {[{[A_{k} (0) {\hat{P}}_{k | k} A_{k}^{T} (0) + {\hat{B}}_{k} (0) {\hat{Q}}_{k} {\hat{B}}_{k}^{T} (0)]}^{- 1} + C_{k + 1}^{T} (0) R_{k + 1}^{- 1} C_{k + 1} (0)]}^{- 1}

(23)

END

where ${\hat{x}}_{0 | 0}$ and ${\hat{x}}_{k | k}$ denote the initial value of the estimated states and the real-time estimated states. $P_{0 | 0}$ denotes the initial value of the error covariance matrix. μ_k ∈ (0, 1) denote a design parameter that reflects a trade-off between nominal estimation accuracy and penalization on the first-order approximation. $' Θ'$ in equations (14) and (15) represents the operation of stacking vectors in the brackets. n_e equals to the system dimension.

Multi-objective controllers considering the actuator time delay

According to whether the actuator time delay can be predetermined or not, two robust controllers for active double-pantograph are presented in this section.

To analyze the advantages of the proposed controllers, a primary controller without considering actuator time delay is presented firstly, which is analyzed in the study by Lu et al.⁶

Controller I

Given the positive scalars γ and ρ, if there are appropriate dimension matrices P > 0 and W that satisfy

[\begin{matrix} {[\bar{A} P + {\bar{B}}_{2} W]}_{SYM} & * & * \\ {\bar{B}}_{1}^{T} & - γ eye (2) & * \\ {\bar{C}}_{1} P & zeros (1, 2) & - γ \end{matrix}] < 0

(24)

[\begin{matrix} - 1 & * \\ \sqrt{ρ} W^{T} & - u_{\max^{2}} P \end{matrix}] < 0

(25)

then a stabilizing controller exists, and the control targets described by equations (10) and (11) can be obtained.

This controller is easy to be proved through choosing a Lyapunov functional candidate as V(x) = x^T(t)Px(t). The detailed process is omitted here.

If the actuator time delay denoted as τ_pd can be predetermined, the following controller presented in the study by Gao et al.²¹ for active suspension can be improved and employed as follows.

Controller II

Given the positive scalars γ, τ_pd, and ρ, if there are real symmetric and positive definite matrices P > 0 and Q > 0, and matrices S_i and W that satisfy equation (25) and

[\begin{matrix} ​ Ξ_{1 i} ​ + ​ {[Ξ_{2 i}]}_{SYM} ​ + ​ Ξ_{3 i} & * & * & * \\ \sqrt{τ_{pd}} Γ_{1 i} & Q - 2 P & * & * \\ \sqrt{τ_{pd}} S_{i} & zeros (7, ​ 7) & - Q & * \\ Γ_{2 i} & zeros (1, ​ 7) & zeros (1, ​ 7) & - 1 ​ \end{matrix}] < 0

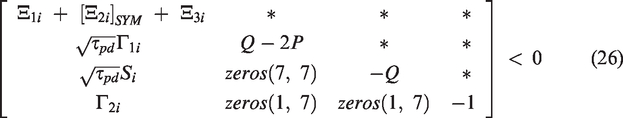

(26)

where

\begin{matrix} Ξ_{1 i} = [\begin{array}{l} {[{\bar{A}}_{i} P]}_{SYM} & * & * \\ W^{T} {\bar{B}}_{2 i}^{T} & zeros (7, 7) & * \\ {\bar{B}}_{1 i}^{T} & zeros (2, 7) & zeros (2, 2) \end{array}] \\ Ξ_{2 i} = [\begin{array}{l} S_{i} & - S_{i} & zeros (16, 2) \end{array}] \\ Ξ_{3 i} = diag (\begin{array}{l} zeros (16, 2) & zeros (16, 2) & - γ^{2} e ye (2) \end{array}) \\ Γ_{1 i} = [\begin{array}{l} {\bar{A}}_{i} P & {\bar{B}}_{2 i} W & {\bar{B}}_{1 i} \end{array}] \\ Γ_{2 i} = [\begin{array}{l} {\bar{C}}_{1 i} P & zeros (1, 7) & zeros (1, 2) \end{array}] \end{matrix}

then a stabilizing controller exists, and the control targets described by equations (10) and (11) can be obtained.

Proof: Choose a Lyapunov functional candidate for system (7) with $\bar{w} (t) = 0$ as

V (x) = x^{T} (t) P x (t) + \int_{- h}^{0} \int_{t + β}^{t} {\dot{x}}^{T} (α) Q \dot{x} (α) d α d β

(27)

then

\dot{V} (x) \leq χ^{T} [G_{1} + {[G_{2}]}_{SYM} + G_{3} + h \hat{S} Q^{- 1} {\hat{S}}^{T}] χ - \int_{t - d (t)}^{t} [χ^{T} \hat{S} + {\dot{x}}^{T} (α) Q] Q^{- 1} [{\hat{S}}^{T} χ + Q \dot{x} (α)] d α

(28)

where

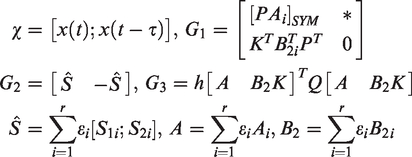

\begin{array}{l} χ = [x (t); x (t - τ)], G_{1} = [\begin{array}{l} {[P A_{i}]}_{SYM} & * \\ K^{T} B_{2 i}^{T} P^{T} & 0 \end{array}] \\ G_{2} = [\begin{array}{l} \hat{S} & - \hat{S} \end{array}], G_{3} = h {[\begin{array}{l} A & B_{2} K \end{array}]}^{T} Q [\begin{array}{l} A & B_{2} K \end{array}] \\ \hat{S} = \sum_{i = 1}^{r} ε_{i} [S_{1 i}; S_{2 i}], A = \sum_{i = 1}^{r} ε_{i} A_{i}, B_{2} = \sum_{i = 1}^{r} ε_{i} B_{2}_{i} \end{array}

Because Q > 0, the second part of $\dot{V} (x)$ is positive. By Schur complement, $G_{1} + {[G_{2}]}_{SYM} + G_{3} + h \hat{S} Q^{- 1} {\hat{S}}^{T} < 0$ is guaranteed by equation (26). Therefore, $\dot{V} (x) < 0$ , and the asymptotic stability is established. Similarly, through choosing the same Lyapunov functional candidate, the H∞ performance can be established.

In fact, an actuator operates on different conditions in an active pantograph. Thus, its actual time delay is difficult to be predetermined. A more probable outcome is that the range of the time delay is ascertained, which is denoted as $τ_{ud} (0 \leq τ_{ud} \leq \overset{⌢}{τ})$ . In this case, only its upper bound can be utilized in calculating the control gain matrix. The controller developed in the study by Gao et al.²³ can be improved for the active pantograph.

Controller III

Given the positive scalars γ, ρ, and $\overset{⌢}{τ}$ , if there are real symmetric and positive definite matrices P > 0, Q > 0, and V > 0, and matrices R, T, S, and W that satisfy equation (25) and

[\begin{array}{l} Σ_{1 i} & * & * \\ \sqrt{\overset{⌢}{τ} / m} Σ_{2 i} & Q - 2 P & * \\ Σ_{3 i} & zeros (1, 7) & - 1 \end{array}] < 0

(29)

where

\begin{array}{l} Σ_{1 i} = {[ϒ_{A}^{T} {\bar{A}}_{i} P ϒ_{A} + ϒ_{A}^{T} {\bar{B}}_{1 i} ϒ_{B 1} + ϒ_{A}^{T} {\bar{B}}_{2 i} W ϒ_{B 2} + Z ϒ_{Z}]}_{SYM} - m / \overset{⌢}{τ} ϒ_{Q}^{T} Q ϒ_{Q} + ϒ_{V 1}^{T} V ϒ_{V 1} - ϒ_{V 2}^{T} V ϒ_{V 2} - ϒ_{γ}^{T} γ^{2} ϒ_{γ} \\ Σ_{2 i} = [{\bar{A}}_{i} P zeros (7, 7 m - 7) {\bar{B}}_{2 i} W zeros (7, 6) {\bar{B}}_{1 i}] \\ Σ_{3 i} = [\begin{array}{l} {\bar{C}}_{1 i} P & zeros (1, 7 m + 8) \end{array}] \end{array}

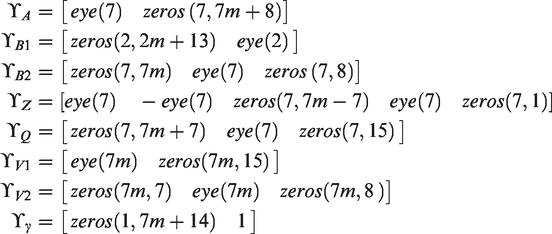

Z = {[\begin{array}{l} R^{T} & zeros (7, 7 m - 7) & S^{T} & zeros (7, 7) & T^{T} \end{array}]}^{T}

\begin{array}{l} ϒ_{A} = [\begin{array}{l} eye (7) & zeros \end{array} (7, 7 m + 8)] \\ ϒ_{B 1} = [\begin{array}{l} zeros (2, 2 m + 13) & eye (2) \end{array}] \\ ϒ_{B 2} = [\begin{array}{l} zeros (7, 7 m) & eye (7) & zeros \end{array} (7, 8)] \\ ϒ_{Z} = [eye (7) - eye (7) zeros (7, 7 m - 7) eye (7) zeros (7, 1)] \\ ϒ_{Q} = [\begin{array}{l} zeros (7, 7 m + 7) & eye (7) & zeros (7, 15) \end{array}] \\ ϒ_{V 1} = [\begin{array}{l} eye (7 m) & zeros (7 m, 15) \end{array}] \\ ϒ_{V 2} = [\begin{array}{l} zeros (7 m, 7) & eye (7 m) & zeros (7 m, 8 \end{array})] \\ ϒ_{γ} = [\begin{array}{l} zeros (1, 7 m + 14) & 1 \end{array}] \end{array}

then a stabilizing controller exists, and the control targets described by equations (10) and (11) can be obtained. The similar detailed proof can be found in the study by Gao et al.²³ Note that i = 1, 2,,a r has the same meaning with one in equation (8) in Controllers II and III.

In Controllers I, II, and III, to obtain a lower bound of the H∞ performance in equation (10), the scalar γ can be regarded as an optimization variable. That is to say, the optimal control gain matrix K can be obtained when

{\begin{array}{l} {\begin{array}{l} \min_{P > 0, W, ρ .} γ \\ Subject to (24) and (25) for Controller I \end{array} \\ {\begin{array}{l} \min_{P > 0, Q > 0, W, S_{i}, ρ, τ_{pd} .} γ \\ Subject to (25) and (26) for Controller II \end{array} \\ {\begin{array}{l} \min_{P > 0, Q > 0, V > 0, W, R, S, R, ρ, m, \overset{⌢}{τ} .} γ \\ Subject to (25) and (29) for Controller III \end{array} \end{array}

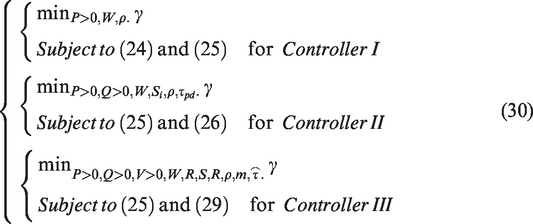

(30)

Then, combining the estimator results, the optimal active control force can be described as

(k) = W P^{- 1} [\int_{0}^{k} e (k) d k, {\hat{x}}_{k | k}]

(31)

Performance investigation

To investigate the effectiveness and robustness of the proposed control strategies, five cases are carried out based on different conditions. In these cases, the real physical parameters of SSS400+ pantograph and Wuhan-Guangzhou railway catenary in China are employed, as listed in Tables 1 and 2, respectively. The pantograph interval is set as 150 m (three spans). Considering the boundary effect, the contact force in the middle eight spans is selected for further analyses.

Table 1.

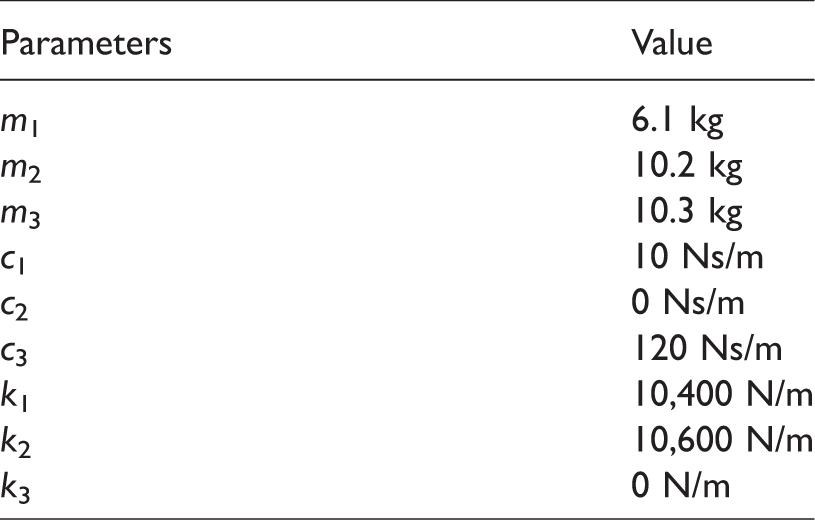

Physical parameters of SSS400+ pantograph.

Parameters	Value
m ₁	6.1 kg
m ₂	10.2 kg
m ₃	10.3 kg
c ₁	10 Ns/m
c ₂	0 Ns/m
c ₃	120 Ns/m
k ₁	10,400 N/m
k ₂	10,600 N/m
k ₃	0 N/m

Table 2.

Main parameters of catenary of Wuhan-Guangzhou high-speed railway line.

Item	Value
Span	50 m
Contact wire tension	30 kN
Mess. wire tension	21 kN
Stitch wire tension	3.5 kN
Encumbrance	1.6 m
Pre-sag	0
Stagger	±tag mm
Contact wire linear density	1.35 kg/m
Mess. wire linear density	1.065 kg/m
Stitch wire linear density	0.311 kg/m
Distance of computation	23 spans
Element length	0.2 m
Dropper intervals	4 m/8.4 m/8.4 m/8.4 m/8.4 m/8.4 m/4 m

Performance of the estimator for DPCS

Because the pantograph states are critical in the control process, this case independently investigates the performance of the estimator with implementing a nominal DPCS model. The main initial values of the estimator are set as $q_{k} = 0.8, μ_{k} = 0.9, {\hat{x}}_{0 | 0} = zeros (12, 1), R_{k} = diag ([10^{- 4} o nes (1, 6)]), Q_{k} = 10^{- 6} e ye (12)$ and $P_{0 | 0} = 10^{- 7} e ye (12)$ . Figure 5(a) to (c) shows the measured, the estimated, and the actual vertical displacements of mass 1–mass 3 of the LP at 380 km/h, respectively. Meanwhile, based on these measured states, the vertical velocity of each mass is estimated, as shown in Figure 5(d) to (f). Same states of the TP are shown in Figure 6. The root mean square errors (RMSEs) related to Figure 5(a) to (f) are only 0.0015, 0.0497, 0.0013, 0.0430, 0.0012, and 0.0244, respectively. For the TP, the RMSEs are only 0.0017, 0.0657, 0.0014, 0.0409, 0.0014, and 0.0308. Therefore, for both the LP and TP, the estimation algorithm can estimate the states with high efficiency even though the measurements randomly miss.

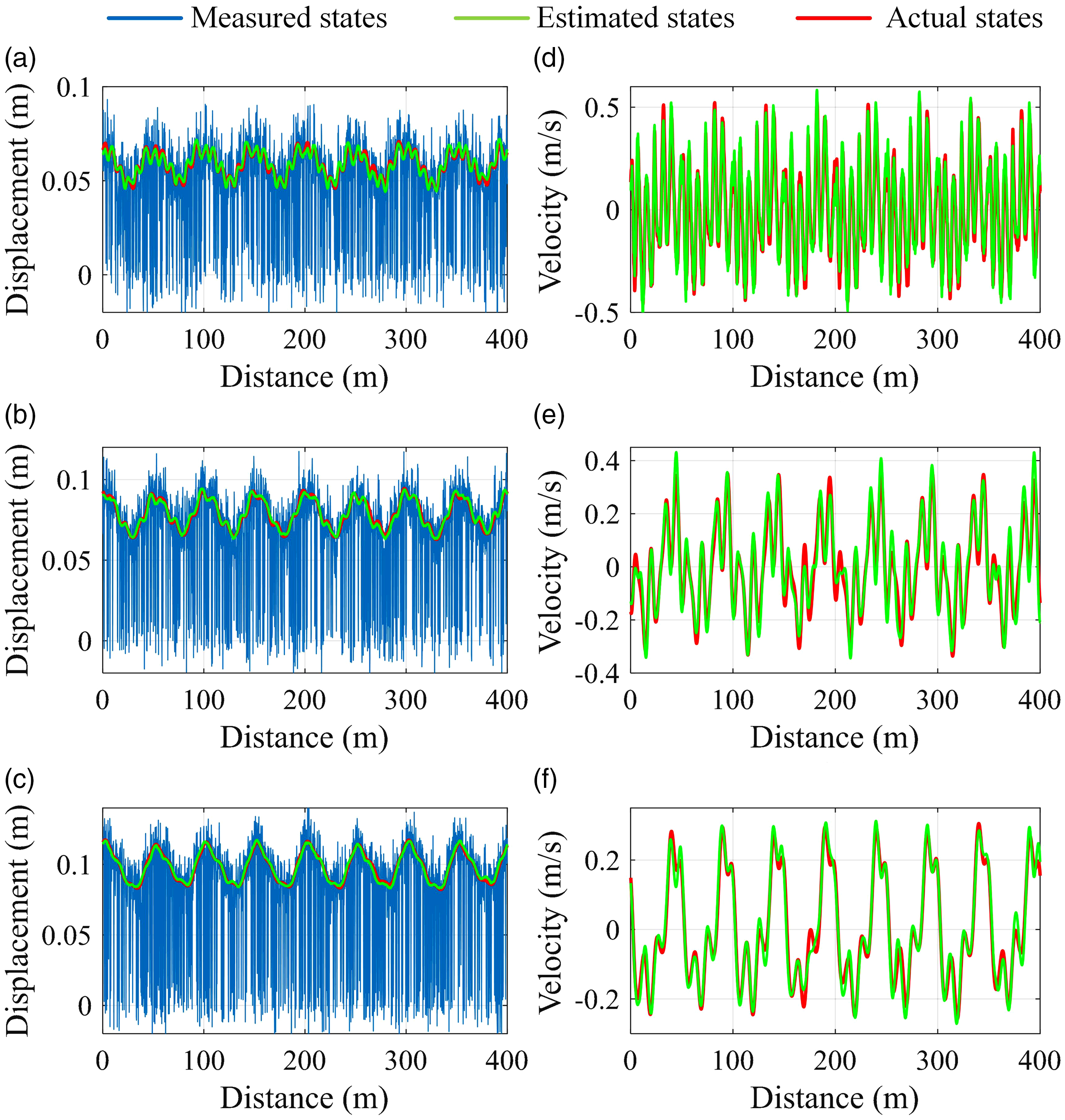

Figure 5.

Measured states, estimated states and actual states of the LP at 380 km/h. (a) to (c) Displacements of mass 1–mass 3. (d) to (f) Velocities of mass 1–mass 3.

Figure 6.

Measured states, estimated states and actual states of the TP at 380 km/h. (a) to (c) Displacements of mass 1–mass 3. (d) to (f) Velocities of mass 1–mass 3.

Performance investigation of controller II for nominal DPCS model and predetermined time delay

This case investigates the performance of the proposed control strategy II (combine the estimator with the Controller II) with implementing nominal DPCS model that subjects to predetermined actuator time delay. As a contrast, the control strategy I (combine the estimator with the Controller I) is also employed in this and the following cases. The contact force on the LP and TP at 360 km/h with actuator time delay 30 ms is shown in Figure 7. To further analyze the performance, the boxplots of contact force at 360 km/h and 340 km/h are shown in Figure 8(a) and (b), respectively. On each box, the central red line is the median value of contact force, together with the mean value marked by an asterisk, which can be used to evaluate the impact of the control strategy on the central tendency of contact force. The edges of boxes are the 25th and 75th percentiles, which are denoted as q₁ and q₃, respectively. The fringe red lines denote the extreme outliers of contact force that are greater than q₃ + 1.5 × (q₃ – q₁) or smaller than q₁ – 1.5 × (q₃ – q₁). Correspondingly, the black lines denote the mild outliers, which are within the range of [q₁ – 1.5 × (q₃ – q₁), q₁] or [q₃, q₃ + 1.5 × (q₃ – q₁)]. Both the boxes and black lines can be used to specify the fluctuation extent of the contact force. From Figures 7 and 8, it can be seen that the contact force fluctuation is decreased by the control strategy II even though the actuator time delay exists, and its performance is superior to control strategy I. In fact, the standard deviation (SD) of contact force on the LP and TP at 360 km/h is reduced by 6.5% and 10.2% by the latter, but it is reduced by 15.5% and 19.2% by former. In addition, the control force is limited within 100 N, which is our second target, as shown in Figure 9. Therefore, the proposed controller strategy II is effective to decrease the contact force fluctuation with predetermined time delay.

Figure 7.

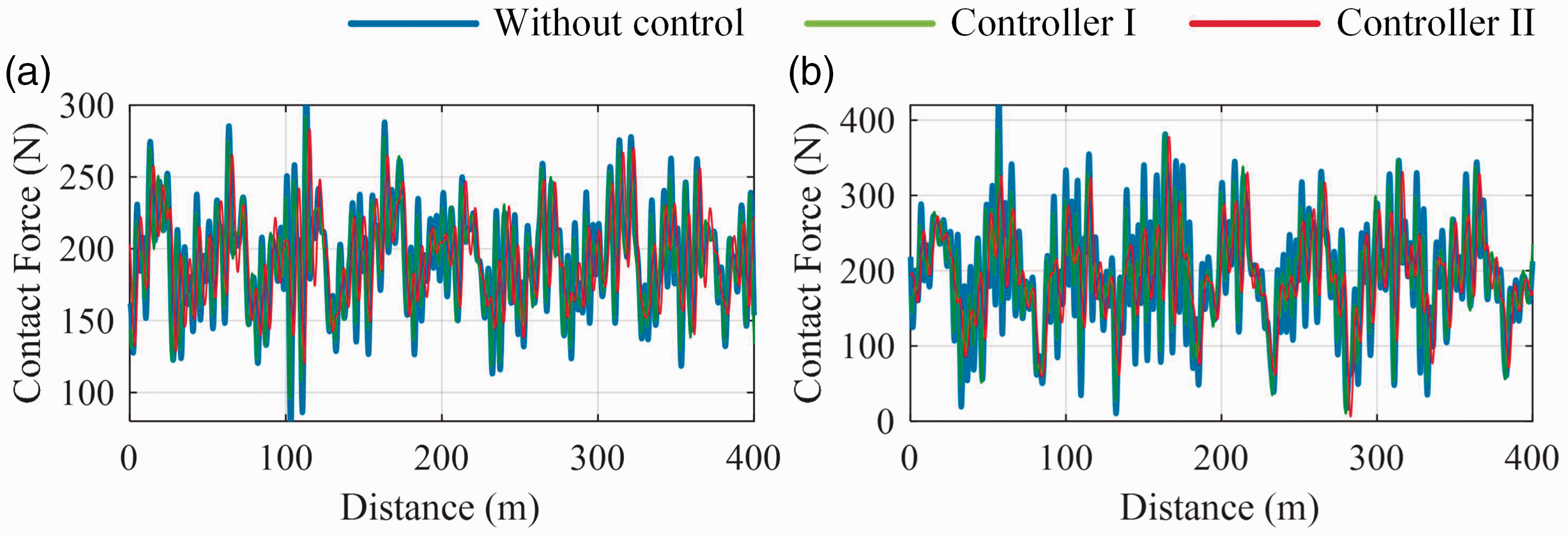

Contact force on the (a) LP and (b) TP at 360 m/h with predetermined actuator time delay 30 ms.

Figure 8.

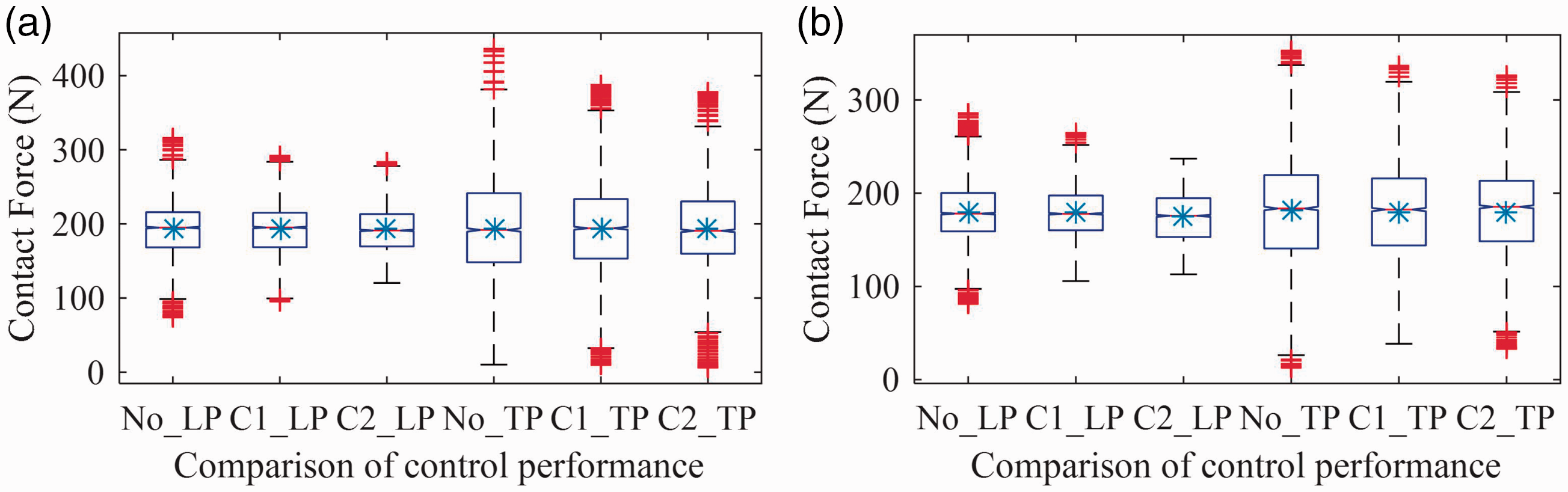

Boxplots of contact force under predetermined actuator time delay 30 ms at (a) 360 km/h and (b) 340 km/h. No_LP, C1_LP and C2_LP denote the LP is without control, with control strategy I and II, respectively. No_TP, C1_TP and C2_TP denote the TP is without control, with control strategy I and II, respectively. LP: leading pantograph; TP: trailing pantograph.

Figure 9.

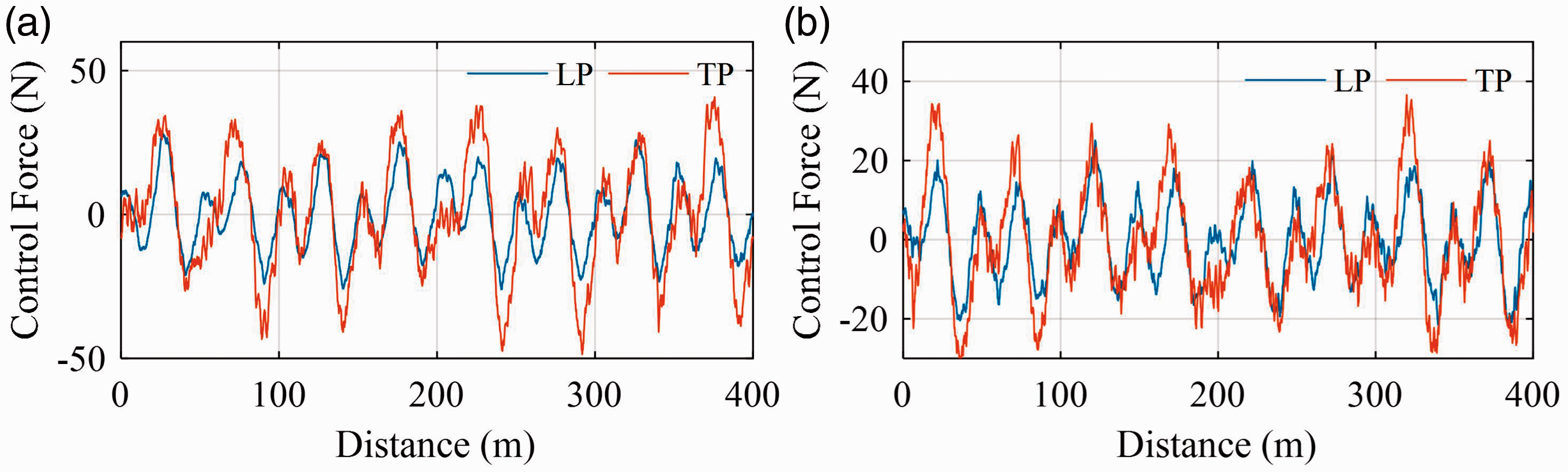

Control force by control strategy II at (a) 360 km/h and (b) 340 km/h.

Performance investigation of controller III for nominal DPCS model and random time delay

This case investigates the effectiveness of control strategy III (combine the estimator with the Controller III) when the actuator time delay is time varying in each iteration step. Figure 10 shows the contact force on the LP and TP at 340 km/h with random time delay 0∼30 ms. The corresponding SD is reduced by 17.5% and 19.9% by the control strategy III, but it is only reduced by 10.2% and 3.1% by control strategy III. The boxplots of contact force are shown in Figure 11. From Figures 10 and 11, it can be seen that the contact force fluctuation is decreased. In particular, the extreme outliers are obviously reduced. Meanwhile, the control force is limited within 100 N, as shown in Figure 12. Therefore, with a nominal model, the proposed control strategy III is effective to realize the target.

Figure 10.

Contact force on the (a) LP and (b) TP at 340 m/h with random actuator time delay 0∼30 ms.

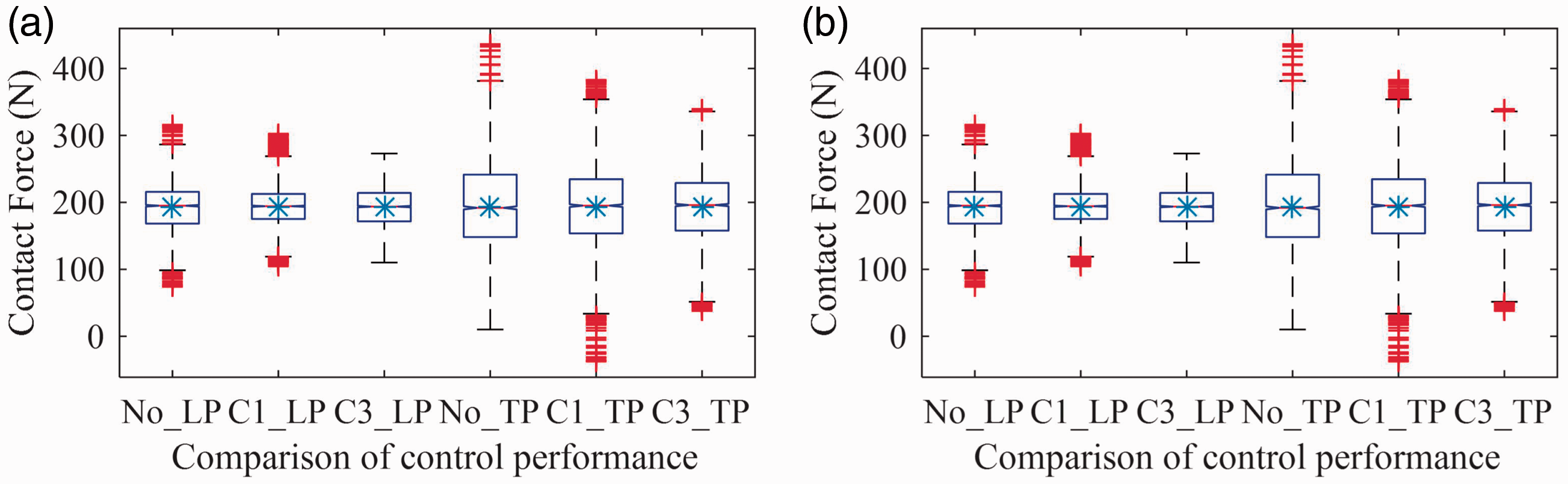

Figure 11.

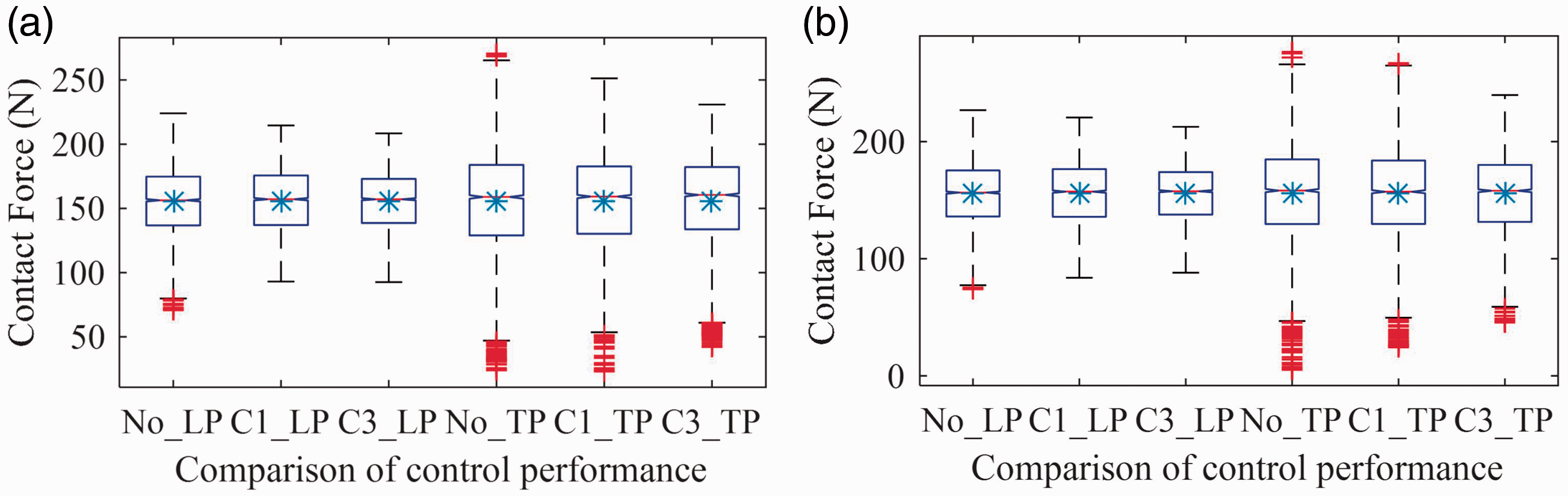

Boxplots of contact force under random actuator time delay 0∼30 ms at (a) 360 km/h and (b) 340 km/h. No_LP, C1_LP and C3_LP denote the LP is without control, with control strategy I and III, respectively. No_TP, C1_TP and C3_TP denote the TP is without control, with control strategy I and III, respectively. LP: leading pantograph; TP: trailing pantograph.

Figure 12.

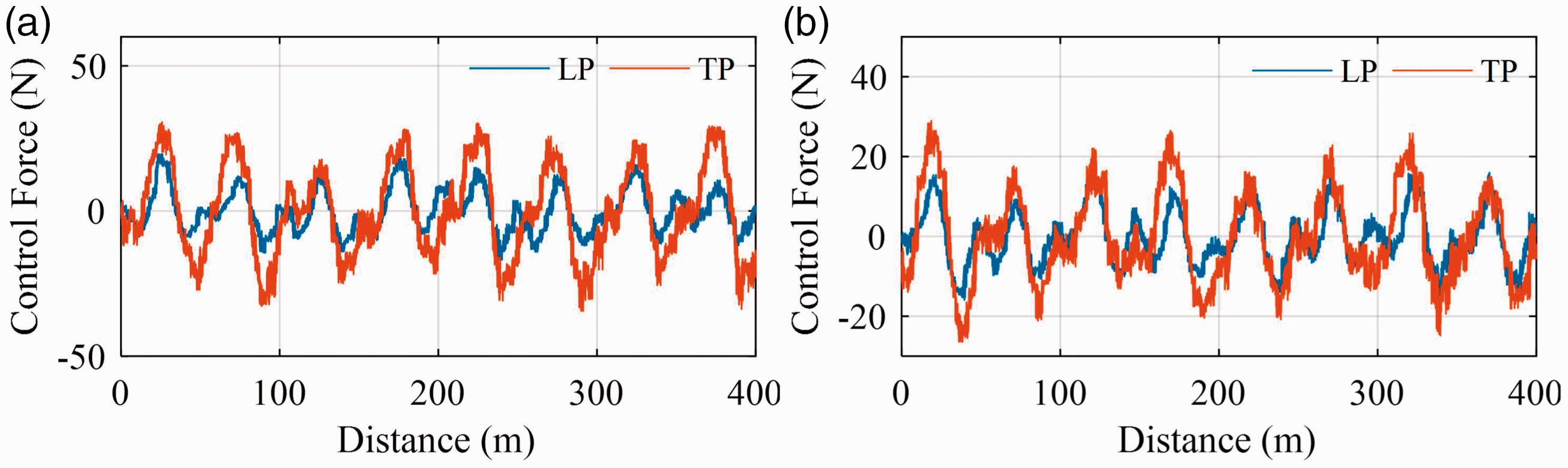

Control force by control strategy III at (a) 360 km/h and (b) 340 km/h. LP: leading pantograph; TP: trailing pantograph.

Robustness investigation of controller II for parametric uncertainties and predetermined time delay

The robustness of the control strategies is investigated on the condition of parametric uncertainties of the pantographs. Because the parameters related to the collector (m₁, c₁ and k₁) have a greater impact on the dynamic behaviors of the PCS than the others, we assume that these three parameters contain uncertainties in this and next case, which are expressed as ${\tilde{m}}_{1} = m_{1} (1 + p_{u}), {\tilde{c}}_{1} = c_{1} (1 + p_{u}), {\tilde{k}}_{1} = k_{1} (1 + p_{u})$ , where $| p_{u} | \leq 10 %$ . Therefore, the active LP or TP can be, respectively, represented by an eight-vertex polytopic system according to equation (8). Three examples are carried out with the predetermined actuator time delay 40 ms. As an extreme case, m₁, c₁, and k₁ are randomly changed in each iteration step in the first example. In the second and third example, they are set as two groups of random values ( $m_{1} = 6.17 kg, c_{1} = 9.69 Ns / m and k_{1} = 10661.03 N / m; m_{1} = 5.94 kg,$ $c_{1} = 10.29 Ns / m and k_{1} = 10306.02 N / m$ ) within the given range. The contact force in the first example is shown in Figure 13. For the LP and TP, the SD is reduced by 16.9% and 17.2% by the control strategy II, but it is only reduced by 4.9% and 5.7% by the control strategy I. The boxplots of contact force in the last two examples are shown in Figure 14. It can be seen that contact force fluctuation is decreased by the control strategy II even though the parametric uncertainties appear in each step and the time delay is up to 40 ms.

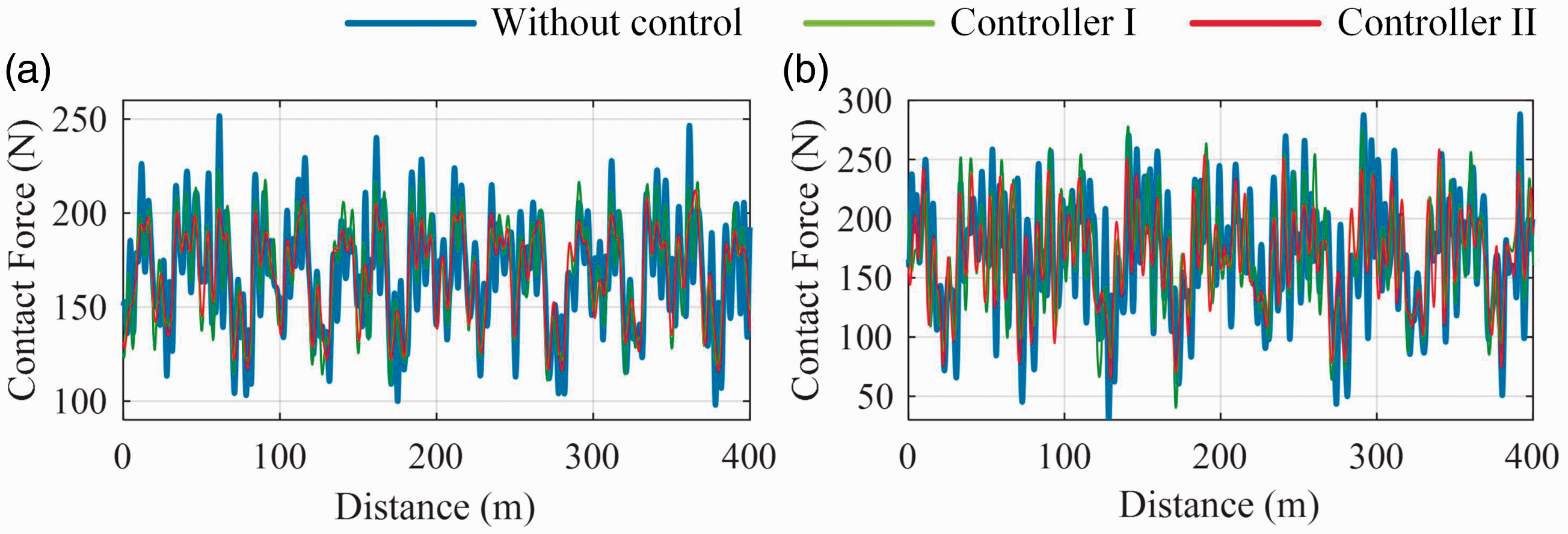

Figure 13.

Contact force in the example I on the (a) LP and (b) TP at 320 m/h with parametric uncertainties and predetermined actuator time delay 40 ms.

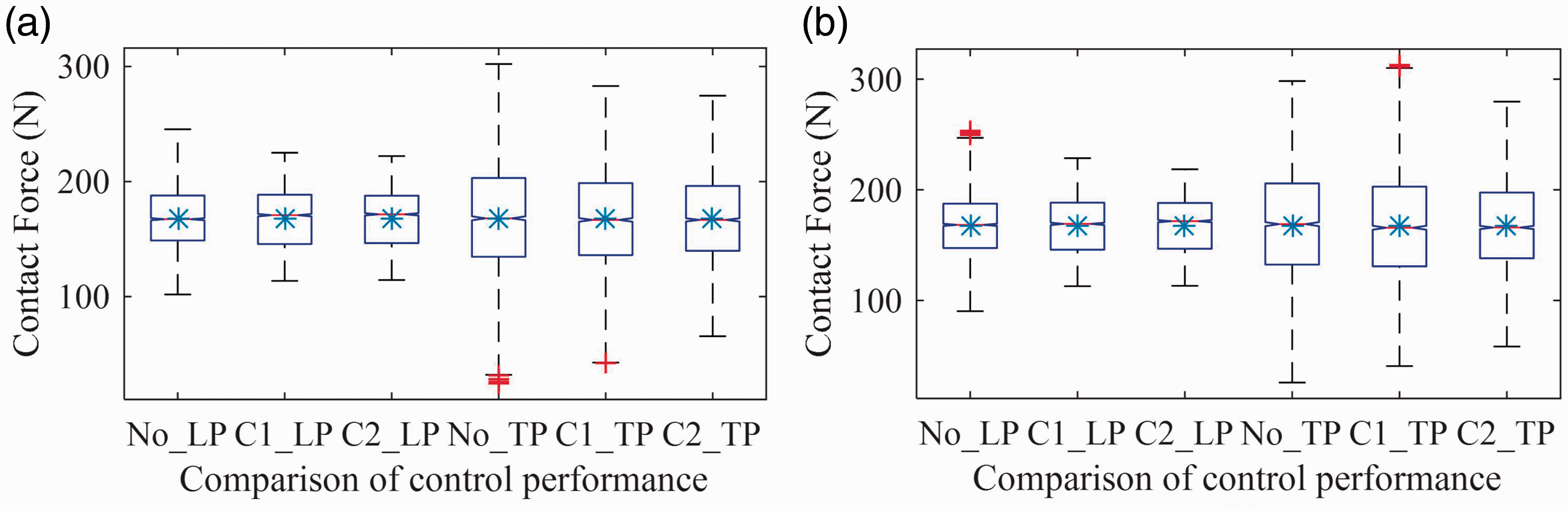

Figure 14.

Boxplots of contact force under parametric uncertainties and predetermined actuator time delay 40 ms at 320 km/h. (a) Example II and (b) example III. The meanings of X-axis labels are same with them in Figure 8. LP: leading pantograph; TP: trailing pantograph.

Robustness investigation of controller III for parametric uncertainties and random time delay

In this case, three examples are carried out for investigating the control strategy III by considering random actuator time delay and parametric uncertainties. In example I, m₁, c₁, and k₁ are randomly changed in each iteration step, which are similar with ones in the first example in case 4. In example II, m₁ = 5.80 kg, c₁ = 9.81 Ns/m, and k₁ = 10368.02 N/m. In example III, m₁ = 6.25 kg, c₁ = 10.27 Ns/m, and k₁ = 9898.33 N/m The time delay is set as 0∼40 ms in each step. Simulation results are shown in Figures 15 and 16. In the first example, the SD of the contact force on the LP and TP at 300 km/h is reduced by 14.8% and 18.8% by control strategy III, but it is only reduced by 6.9% and 7.1% by control strategy I. Meanwhile, in examples II and III, it can also be concluded that the contact force fluctuation is decreased from the results shown in Figure 16.

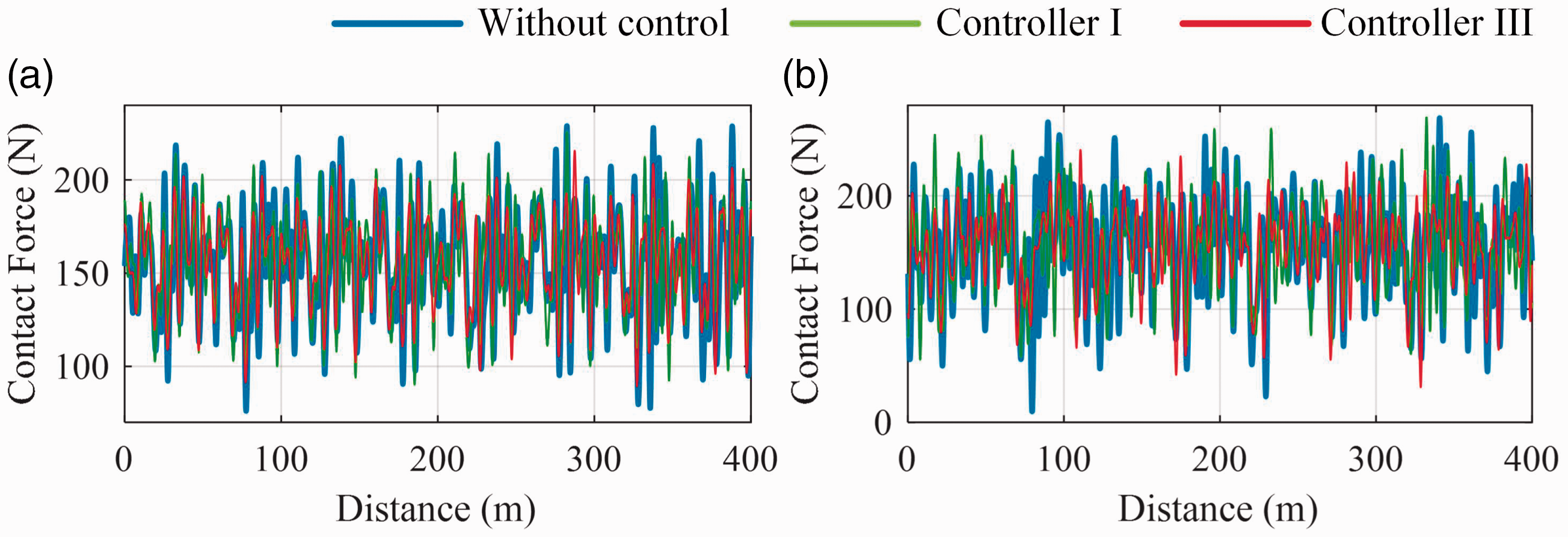

Figure 15.

Contact force in the example I on the (a) LP and (b) TP at 300 m/h with parameter uncertainties and random actuator time delay 0∼40 ms.

Figure 16.

Boxplots of contact force under parametric uncertainties and random actuator time delay 0∼40 ms at 300 km/h. (a) Example II and (b) example III. The meanings of X-axis labels are same with them in Figure 11. LP: leading pantograph; TP: trailing pantograph.

Conclusion

Aiming to decrease the contact force fluctuation through actively control the pantographs in DPCS considering actuator time delay, two controllers are proposed based on whether the time delay can be predetermined or not. To accurately obtain the pantograph states on the condition of randomly missing measurements, a robust recursive state estimation method is introduced firstly. The effectiveness and robustness of these two estimator-based control strategies are investigated in detail with implementing a nonlinear DPCS model. The results of the employed five cases show that the proposed control strategies are effective to realize the target in different conditions.

Compared with the former controllers designed for active pantograph, the proposed control strategies have two obvious advantages. (1) The actuator time delay is explicitly considered. Therefore, no matter which actuator is chosen, the control strategies are definitely useful to overcome the time delay. (2) The parametric uncertainties of the pantographs are addressed in state estimation and controller design procedure, which ensures the robustness of the proposed controller in the realistic work environment of DPCS.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the National Natural Science Foundation of China under Grant U1734202 and 5197718.

References

Wang

Liu

Song

, et al. Detection of contact wire irregularities using a quadratic time-frequency representation of the pantograph-catenary contact force. IEEE Trans Instrum Meas 2016; 65: 1385–1397.

Zhang

Zhou

, et al. Pantograph and catenary system with double pantographs for high-speed trains at 350 km/h or higher. J Mod Transport 2011; 19: 7–11.

Bucca

Carnevale

Collina

, et al. Adoption of different pantographs preloads to improve multiple collection and speed up existing lines. Veh Syst Dyn 2011; 50: 403–418.

Liu

Jönsson

Stichel

, et al. On the implementation of an auxiliary pantograph for speed increase on existing lines. Veh Syst Dyn 2016; 54: 1077–1097.

Pombo

Ambrosio

Multiple pantograph interaction with catenaries in high-speed trains. J Comput Nonlinear Dynam 2012; 7: 1–7.

Liu

Song

, et al. Estimator-based multiobjective robust control strategy for an active pantograph in high-speed railways. Proc IMechE Part F: J Rail and Rapid Transit 2017; 232: 1064–1077.

Liu

Zhang

, et al. Prior information-based finite frequency H∞ control for active double-pantograph in high-speed railway. IEEE Trans Veh Technol 2017; 66: 8723–8733.

Song

Ouyang

Liu

, et al. Active control of contact force for high-speed railway pantograph-catenary based on multi-body pantograph model. Mech Mach Theory 2017; 115: 35–59.

Sanchez

Jimenez

Carnicero

Active control strategy on a catenary-pantograph validated model. Veh Syst Dyn 2013; 51: 554–569.

10.

Song

Liu

Ouyang

, et al. Sliding mode control with PD sliding surface for high-speed railway pantograph-catenary contact force under strong stochastic wind field. Shock Vib 2017; 2017: 1–16.

11.

Facchinetti

Mauri

Hardware-in-the-loop overhead line emulator for active pantograph testing. IEEE Trans Ind Electron 2009; 56: 4071–4078.

12.

Pisano

Usai

Contact force estimation and regulation in active pantographs: an algebraic observability approach. Asian J Control 2011; 13: 761–772.

13.

Lin

Shieh

Liu

Optimal control for rail vehicle pantograph systems with actuator delays. IET Control Theory Appl 2015; 9: 1917–1926.

14.

Pappalardo

Patel

Tinsley

, et al. Contact force control in multibody pantograph/catenary systems. Proceedings Inst Mech Eng Pat K J Multibody Dyn 2016; 230: 307–328.

15.

Lin

Yeh

Kuo

, et al. Adaptive fuzzy sliding mode active vibration control for rail vehicle pantograph. In: IEEE international conference on fuzzy systems (FUZZ-IEEE), Vancouver, Canada, 24–29 July 2016, pp. 24–29. Piscataway, NJ: IEEE.

16.

Schirrer

Aschauer

Talic

, et al. Catenary emulation for hardware-in-the-loop pantograph testing with a model predictive energy-conserving control algorithm. Mechatronics 2017; 41: 17–28.

17.

Zhang

Mao

Jiang

, et al. Adaptive and robust fault-tolerant tracking control of contact force of pantograph-catenary for high-speed trains. IFAC-Papers OnLine 2015; 48: 740–745.

18.

Chater

Ghani

Giri

, et al. Output feedback control of pantograph-catenary system with adaptive estimation of catenary parameters. J Mod Transport 2015; 23: 252–261.

19.

Yamashita

Kobayashi

Usuda

, et al. Method to improve adaptation speed of control parameters for active control pantographs. Q Rep RTRI 2016; 57: 305–310.

20.

Sun

Pan

Gao

Filter-based adaptive vibration control for active vehicle suspensions with electrohydraulic actuators. IEEE Trans Veh Technol 2016; 65: 4619–4626.

21.

Gao

Sun

Shi

Robust sampled-data h control for vehicle active suspension systems. IEEE Trans Contr Syst Technol 2010; 18: 238–245.

22.

Wang

Chen

Robust non-fragile finite-frequency H∞ static output-feedback control for active suspension systems. Mech Syst Signal Pr 2017; 91: 41–56.

23.

Gao

Zhao

Sun

Input-delayed control of uncertain seat suspension systems with human-body model. IEEE Trans Contr Syst Technol 2010; 18: 591–601.

24.

Kong

Zhao

Yang

, et al. Non-fragile multi-objective static output feedback control of vehicle active suspension with time-delay. Veh Syst Dyn 2014; 52: 948–968.

25.

Bouheraoua

Wang

Atallah

Rotor position estimation of a pseudo direct-drive PM machine using extended Kalman filter. IEEE Trans Ind Appl 2017; 53: 1088–1095.

26.

Wang

Chen

Wang

, et al. An estimator-based distributed voltage-predictive control strategy for AC islanded microgrids. IEEE Trans Power Electron 2015; 30: 3934–3951.

27.

Wang

Chen

, et al. Distributed optimal control of reactive power and voltage in islanded microgrids. IEEE Trans Ind Appl 2017; 53: 340–349.

28.

Liu

Wang

, et al. Robust state estimation for double pantographs with random missing measurements in high-speed railway. In: IEEE international power electronics and motion control conference (PEMC), Varna, Bulgaria, 25–28 September 2016, pp. 1131–1136. Piscataway, NJ: IEEE.

29.

Zhou

Robust recursive state estimation with random measurement droppings. IEEE Trans Automat Contr 2016; 61: 156–171.

30.

BS EN 50318:2018. Railway applications-current collection systems-validation of simulation of the dynamic interaction between pantograph and overhead contact line.

31.

Reichmann

Dynamic performance of pantograph/overhead line interaction for 4 span overlaps TPS/OCS portion. SIEMENS 2006; 4–21.

32.

Bruni

Ambrosio

Carnicero

, et al. The results of the pantograph-catenary interaction benchmark. Veh Syst Dyn 2015; 53: 412–435.

33.

Song

Liu

Wang

, et al. Nonlinear modelling of high-speed catenary based on analytical expressions of cable and truss elements. Veh Syst Dyn 2015; 53: 1455–1479.
