An approximation technique for solving nonlinear oscillators

Abstract

Recently, an approximation technique was presented for solving strong nonlinear oscillators modeled by second-order differential equations. Due to the arising of an algebraic complicity, the method fails to determine suitable solution of some important nonlinear problems such as quadratic oscillator, cubical Duffing oscillator of softening springs, and pendulum equation. However, suitable solutions of these oscillators are found by rearranging only an algebraic equation related to amplitude and frequency. The determination of solutions is simpler than the original version.

Keywords

Differential transform method Duffing oscillator quadratic oscillator pendulum equation 34A34 34A99

Introduction

The classical perturbation methods^1–5 were developed to investigate weakly nonlinear problems modeled by

\ddot{x} + ω_{0}^{2} x + ε f (x, \dot{x}) = 0,

(1)

where

ε ≪ ω_{0}^{2}

. Herein,

ω_{0}

is known as the unperturbed frequency,

ε

is the constant, and

f

is a nonlinear function. Then classical methods^6–9 were modified to overcome this limitation and applied to solve strong nonlinear problems, where

ε = Ο (1)

. On the other hand, some analytical techniques such as the homotopy perturbation method (HPM),^10–15 variational iteration method (VIM),^16–19 generalized homotopy method,²⁰ harmonic balance method (HBM),^21,22 energy balance method (EBM),^23,24 and frequency–amplitude formula^25–27 were presented to solve equation (1) for

ε = Ο (1)

. Most of the above methods were developed based on trigonometric functions.

In 1986, Zhou²⁸ first introduced a semi-analytical method named differential transform method (DTM) in which the solution is chosen as a truncated Maclaurin series and applied to analyze linear and nonlinear electric circuit problems. Then some authors applied the DTM^29–34 to solve linear and nonlinear differential equations. But such truncated series solution does not nicely exhibit the periodic behavior which is characteristic of oscillator equations. It provides satisfactory results within a small region only. In order to improve the accuracy of the DTM, an alternative technique was used which modifies the series solution for nonlinear oscillatory systems. A modification of the DTM, based on the use of Padé approximants, was proposed by Shahed³⁵ for solving different types of nonlinear problems. Further, Momani et al.,³⁶ Nourazar et al.,³⁷ and Benhammouda et al.³⁸ modified the DTM by applying the Laplace–Padé resummation method. However, it is a laborious task.

Recently, Alam et al.³⁹ presented an analytical technique for solving equation (1). But the method³⁹ is useless for some nonlinear oscillators such as quadratic oscillator (in region $x < 0$ ), cubical oscillator of softening springs (i.e., Duffing equation, $\ddot{x} + ω_{0}^{2} x + ε x^{3} = 0$ , $ε < 0$ ), and pendulum equation. The aim of this article is to find suitable solutions for these situations. Moreover, the solution (concern of this article) provides desired results for a wide variety of nonlinear oscillators whether $f (- x, - \dot{x}) = - f (x, \dot{x})$ or not. Thus, the method also covers the cases of quadratic oscillator (in region $x > 0$ ), cubical oscillator of hardening springs (Duffing equation, $ε > 0$ ), etc.

The method

By variable transformation, $τ = ω t$ , equation (1) with initial conditions $[x (0) = 0, \dot{x} (0) = b]$ becomes

ω^{2} x^{″} + ω_{0}^{2} x + ε f (x, ω x^{'}) = 0; x (0) = 0, x^{'} (0) = \frac{b}{ω} = β,

(2)

where primes denote differentiation with respect to

τ

. In general, initial conditions are chosen as

x (0) = a, \dot{x} (0) = 0

, but in Ref. ³⁹, the former conditions were considered.

A polynomial type of solution of $φ = τ (π - τ)$ of equation (2) was found in a form³⁹

x (τ) = B_{1} (β, ω_{0}, ε, ω) φ (τ) + B_{2} (β, ω_{0}, ε, ω) {φ (τ)}^{2} + B_{3} (β, ω_{0}, ε, ω) {φ (τ)}^{3} + \dots,

(3)

when

f (- x, - \dot{x}) = - f (x, \dot{x})

. Solution equation (3) is also valid when

f (- x, - \dot{x}) = f (x, \dot{x})

. It is obvious that equation (3) satisfies the first initial condition given in equation (2). Usually, solution equation (3) is used for a semi-period of oscillation,

0 < τ \leq π

. For the next semi-period,

φ

and

β

are changed, respectively, by

φ = (τ - π) (2 π - τ)

π \leq τ \leq 2 π

, and

- β

. Substituting equation (3) into equation (2) and then equating coefficients of

{φ^{0}, φ}^{1}, φ^{2}, φ^{3}, \dots

, a set of linear algebraic equations of

B_{i}, i = 1, 2, 3, \dots

are obtained whose solution provides the noted unknown coefficients. The value of

x (τ)

has the maximum value (known as amplitude of oscillation, say

a > 0

) at

τ = π / 2

. Therefore, a relation between amplitude and frequency becomes

a = \frac{B_{1} (β, ω_{0}, ε, ω) π^{2}}{4} + \frac{B_{2} (β, ω_{0}, ε, ω) π^{4}}{16} + \frac{B_{3} (β, ω_{0}, ε, ω) π^{6}}{64} + \dots .

(4)

On the other hand, $x (τ)$ has the minimum value (say $- a *$ ) at $τ = 3 π / 2$ . In this case, $β$ can be replaced by $- β$ and $ω$ by $ω *$ . Therefore, equation (4) is replaced by

- a * = \frac{B_{1} (- β, ω_{0}, ε, ω *) π^{2}}{4} + \frac{B_{2} (- β, ω_{0}, ε, ω *) π^{4}}{16} + \frac{B_{3} (- β, ω_{0}, ε, ω *) π^{6}}{64} + \dots .

(5)

when

f (- x, - \dot{x}) = - f (x, \dot{x})

a * = a

, and equation (4) and equation (5) are identical. So,

ω = ω *

. However, a problem arises when

f (- x, - \dot{x}) = f (x, \dot{x})

. In this case,

a *

and

a

have different values. For this reason,

ω

and

ω *

have different values. Usually

a

is given and

a *

is determined. Therefore, an algebraic relation is required between

a

and

a *

. Moreover, equation (4) contains two unknown

β

and

ω

, and equation (5) contains

β

and

ω *

. Therefore, it requires another relation involving them.

Now multiplying both sides of equation (2) by $2 x^{'}$ and then integrating with respect to $τ$

{ω^{2} x^{'}}^{2} + G (x, ω_{0}, ε) = C,

(6)

where

G (x, ω_{0}, ε) = 2 \int {(ω}_{0}^{2} x + ε f (x)) d x

when

f

is a function of

x

only and

C

is an integration constant. It has already been mentioned that

x (τ)

is the maximum at

τ = π / 2

and minimum at

τ = 3 π / 2

. So,

x^{'}

vanishes at these limits. On the other hand,

x

as well as

G (x, ω_{0}, ε)

vanishes at

τ = 0

and

τ = π

. At these limits,

x^{'}

, respectively, becomes

β

and

- β

. Thus, the following relations are obtained from equation (6).

G (a, ω_{0}, ε) = ω^{2} β^{2} .

(7)

and

G (- a *, ω_{0}, ε) = ω^{2} β^{2} .

(8)

Comparing equation (7) and equation (8), the relation between

a

and

a *

is obtained as

G (- a *, ω_{0}, ε) = G (a, ω_{0}, ε) .

(9)

Finally, solving equation (4) and equation (7), $β$ and $ω$ are obtained. In a similar way, $β$ and $ω *$ are obtained solving equation (5) and equation (8).

Examples

Duffing (cubical) oscillator

Let us consider the Duffing oscillator

\ddot{x} + ω_{0}^{2} x + ε x^{3} = 0, x (0) = 0, \dot{x} (0) = b .

(10)

Substituting solution equation (3) into equation (10) and then equating the coefficients of $φ^{0}$ , $φ^{1}, φ^{2}, φ^{3}, \dots$ , the following algebraic equations are derived:

B_{1} - B_{2} π^{2} = 0,

{ω_{0}^{2} B}_{1} - 12 {ω^{2} B}_{2} + 6 π^{2} ω^{2} B_{3} = 0,

ε B_{1}^{2} + {ω_{0}^{2} B}_{2} - 30 {ω^{2} B}_{3} + 12 π^{2} ω^{2} B_{4} = 0, \dots

(11)

Solving equation (11), the unknown coefficients are derived as

B_{2} = \frac{B_{1}}{π^{2}}, B_{3} = - \frac{{ω_{0}^{2} B}_{1}}{6 π^{2} ω^{2}} + \frac{2 B_{2}}{π^{2}}, B_{4} = - \frac{{ω_{0}^{2} B}_{2}}{12 π^{2} ω^{2}} + \frac{5 B_{3}}{2 π^{2}} - \frac{ε B_{1}^{2}}{12 π^{2} ω^{2}}, \dots

(12)

Now, differentiating equation (3) with respect to

τ

and then substituting

τ = 0

(i.e., by utilization of the second initial condition), it becomes

x^{'} (0) = β = π B_{1}

(13)

Now, from equation (12) and equation (13), all unknown coefficients can be written in terms of

β

{B_{1} = \frac{β}{π}, B}_{2} = \frac{β}{π^{3}}, B_{3} = - \frac{ω_{0}^{2} β}{6 π^{3} ω^{2}} + \frac{2 β}{π^{5}}, B_{4} = \frac{5 β}{π^{7}} - \frac{ω_{0}^{2} β}{2 π^{5} ω^{2}}, \dots

(14)

Substituting these values of unknown coefficients (up to

B_{10}

) in equation (4), it becomes

a = \frac{β π}{4} (1 + \frac{1}{4} + \frac{1}{8} \dots + \frac{2431}{131072}) - \frac{β π^{3} ω_{0}^{2}}{384 ω^{2}} (1 + \frac{3}{4} + \frac{9}{16} + \dots + \frac{429}{2048})

+ (\frac{β π^{5} ω_{0}^{4}}{122880 ω^{4}} - \frac{β^{3} π^{5} ε}{20480 ω^{2}}) (1 + \frac{5}{4} + \dots + \frac{1001}{1024}) - (\frac{β π^{7} ω_{0}^{6}}{82575360 ω^{6}} - \frac{{11 β}^{3} π^{7} ω_{0}^{2} ε}{13762560 ω^{4}}) (1 + \frac{7}{4} + \dots + \frac{77}{32})

+ (\frac{β π^{9} ω_{0}^{8}}{95126814720 ω^{8}} - \frac{17 β^{3} π^{9} ω_{0}^{4} ε}{2642411520 ω^{6}} + \frac{β^{5} π^{9} ε^{2}}{125829120 ω^{4}}) (1 + \frac{9}{4}) .

(15)

a = \frac{215955 β π}{524288} - \frac{15751 β π^{3} ω_{0}^{2}}{1572864 ω^{2}} + \frac{459 β π^{5} ω_{0}^{4}}{8388608 ω^{4}} - \frac{1377 β^{3} π^{5} ε}{4194304 ω^{2}} + \frac{517 β^{3} π^{7} ε ω_{0}^{2}}{88080384 ω^{4}} - \frac{47 β π^{7} ω_{0}^{6}}{528482304 ω^{6}}

+ \frac{13 β π^{9} ω_{0}^{8}}{380507258880 ω^{8}} - \frac{221 β^{3} π^{9} ε ω_{0}^{4}}{10569646080 ω^{6}} + \frac{13 β^{5} π^{9} ε^{2}}{503316480 ω^{4}}

(16)

For this oscillator, equation (7) becomes

{ω^{2} β^{2} = ω}_{0}^{2} a^{2} + \frac{ε a^{4}}{2}

(17)

and it can be written as

β = \frac{a η}{ω}, w h e r e η = \sqrt{(ω_{0}^{2} + \frac{ε a^{2}}{2})}

(18)

By substitution of

ω = a η / β

in equation (16), it becomes

β = \frac{a}{(\frac{215955 π}{524288} + \frac{13 β^{4} π^{9} ε^{2}}{503316480 a^{4} η^{4}} - \frac{1377 β^{2} π^{5} ε}{4194304 a^{2} η^{2}} + \frac{517 β^{2} π^{7} ε ω_{0}^{2}}{88080384 a^{4} η^{4}} - \frac{15751 π^{3} ω_{0}^{2}}{1572864 a^{2} η^{2}} - \frac{221 β^{2} π^{9} ε ω_{0}^{4}}{10569646080 a^{6} η^{6}} + \frac{459 π^{5} ω_{0}^{4}}{8388608 a^{4} η^{4}} - \frac{47 π^{7} ω_{0}^{6}}{528482304 a^{6} η^{6}} + \frac{13 π^{9} ω_{0}^{8}}{380507258880 a^{8} η^{8}})}

(19)

When

a

is given, the value of

β

is obtained from equation (19) by an iterative procedure, starting with initial

β_{0} = a

. Therefore, the solution of Duffing oscillator equation (10) is obtained from equation (3) by substituting the values of

B_{1}, B_{2}, \dots, B_{10}

from equation (14).

Quadratic oscillator

Let us consider the quadratic oscillator

\ddot{x} + ω_{0}^{2} x + ε x^{2} = 0, x (0) = 0, \dot{x} (0) = b

(20)

For this oscillator, unknown coefficients have been obtained:

{B_{1} = \frac{β}{π}, B}_{2} = \frac{β}{π^{3}}, B_{3} = - \frac{ω_{0}^{2} β}{6 π^{3} ω^{2}} + \frac{2 β}{π^{5}}, B_{4} = - \frac{ω_{0}^{2} β}{2 π^{5} ω^{2}} + \frac{5 β}{π^{7}} - \frac{ε β^{2}}{12 π^{4} ω^{2}}, \dots

(21)

Substituting these values of unknown coefficients (up to

B_{9}

) in equation (4), it becomes

a = \frac{53381 β π}{131072} + \frac{β π^{9} ω_{0}^{4}}{95126814720 ω^{8}} - \frac{79 β π^{7} ω_{0}^{3}}{1321205760 ω^{6}} - \frac{β^{2} π^{8} ω_{0}^{2} ε}{20971520 ω^{6}} - \frac{5 β^{3} π^{9} ω_{0} ε^{2}}{1585446912 ω^{6}} + \frac{1471 β π^{5} ω_{0}^{2}}{3145 γ 7280 ω^{4}} + \frac{21 β^{2} π^{6} ω_{0} ε}{1048576 ω^{4}} + \frac{79 β^{3} π^{7} ε^{2}}{66060288 ω^{4}} - \frac{14893 β π^{3} ω_{0}}{1572864 ω^{2}} - \frac{103 β^{2} π^{4} ε}{65536 ω^{2}}

(22)

For this oscillator, equation (7) becomes

{ω_{0}^{2} a}^{2} + \frac{2 ϵ a^{3}}{3} = ω^{2} β^{2}

(23)

and it can be written as

β = \frac{a η}{ω}, w h e r e η = \sqrt{(ω_{0}^{2} + \frac{2 ε a}{3})}

(24)

By substitution of

ω = a η / β

in equation (22), it becomes

β = \frac{a}{(\frac{53381 π}{131072} + \frac{β^{8} π^{9} ω_{0}^{4}}{95126814720 a^{8} η^{8}} - \frac{79 β^{6} π^{7} ω_{0}^{3}}{1321205760 a^{6} η^{6}} + \frac{1471 β^{4} π^{5} ω_{0}^{2}}{31457280 a^{4} η^{4}} - \frac{14893 β^{2} π^{3} ω_{0}}{1572864 a^{2} η^{2}} - \frac{β^{7} π^{8} ε ω_{0}^{2}}{20971520 a^{6} η^{6}} + \frac{21 β^{5} π^{6} ε ω_{0}}{1048576 a^{4} η^{4}} - \frac{103 β^{3} π^{4} ε}{65536 a^{2} η^{2}} - \frac{5 β^{8} π^{9} ε^{2}}{1585446912 a^{6} η^{6}} + \frac{79 β^{6} π^{7} ε^{2}}{66060288 a^{4} η^{4}})}

(25)

When

a

is given, the value of

β

is obtained from equation (25) by an iterative procedure, starting with initial

β_{0} = a

. For the next semi-period, corresponding equation (24) and equation (25) become

β * = \frac{a * η *}{ω *}, w h e r e η * = \frac{\sqrt{ω_{0}^{2} - 2 ε a *}}{3}

(26)

{- β}^{*} = \frac{- a *}{(\frac{53381 π}{131072} + \frac{{(β *)}^{8} π^{9} ω_{0}^{4}}{95126814720 {(a *)}^{8} {(η *)}^{8}} - \frac{79 {(β *)}^{6} π^{7} ω_{0}^{3}}{1321205760 {(a *)}^{6} {(η *)}^{6}} + \frac{1471 {(β *)}^{4} π^{5} ω_{0}^{2}}{31457280 {(a *)}^{4} {(η *)}^{4}} - \frac{14893 {(β *)}^{2} π^{3} ω_{0}}{1572864 {(a *)}^{2} {(η *)}^{2}} + \frac{{(β *)}^{7} π^{8} ε ω_{0}^{2}}{20971520 {(a *)}^{6} {(η *)}^{6}} - \frac{21 {(β *)}^{5} π^{6} ε ω_{0}}{1048576 {(a *)}^{4} {(η *)}^{4}} + \frac{103 {(β *)}^{3} π^{4} ε}{65536 {(a *)}^{2} {(η *)}^{2}} - \frac{5 {(β *)}^{8} π^{9} ε^{2}}{1585446912 {(a *)}^{6} {(η *)}^{6}} + \frac{79 {(β *)}^{6} π^{7} ε^{2}}{66060288 {(a *)}^{4} {(η *)}^{4}})}

(27)

where

a * = (3 + 2 ε a - \sqrt{3 - 4 ε a - 4 a^{2} ε^{2}}) / 4 ε

When $a *$ is given, the value of $β^{*}$ is obtained from equation (27) by an iterative procedure, starting with initial $β_{0}^{*} = a *$ . Therefore, the solution of quadratic oscillator equation (20) is obtained from equation (3) by substituting the values of $B_{1}, B_{2}, \dots, B_{9}$ from equation (21).

Pendulum equation

Let us consider the pendulum equation

\ddot{x} + \sin x = 0, x (0) = 0, \dot{x} (0) = b

(28)

For this oscillator, unknown coefficients have been obtained:

{B_{1} = \frac{β}{π}, B}_{2} = \frac{β}{π^{3}}, B_{3} = - \frac{β}{6 π^{3} ω^{2}} + \frac{2 β}{π^{5}}, B_{4} = \frac{5 β}{π^{7}} - \frac{β}{2 π^{5} ω^{2}}, \dots

(29)

Substituting these values of unknown coefficients (up to

B_{10}

) in equation (4), it becomes

a = \frac{215955 β π}{524288} + \frac{13 β π^{9}}{380507258880 ω^{8}} - \frac{47 β π^{7}}{528482304 ω^{6}} + \frac{221 β^{3} π^{9}}{63417876480 ω^{6}} + \frac{459 β π^{5}}{8388608 ω^{4}} - \frac{517 β^{3} π^{7}}{528482304 ω^{4}} + \frac{247 β^{5} π^{9}}{126835752960 ω^{4}} - \frac{15751 β π^{3}}{1572864 ω^{2}} + \frac{459 β^{3} π^{5}}{8388608 ω^{2}} - \frac{47 β^{5} π^{7}}{528482304 ω^{2}} + \frac{13 β^{7} π^{9}}{380507258880 ω^{2}}

(30)

For this oscillator, equation (7) becomes

ω^{2} β^{2} = 2 (1 - \cos a)

(31)

and it can be written as

β = \frac{η}{ω}, η = \sqrt{2 (1 - \cos a)}

(32)

By substitution of

ω = η / β

in equation (30), it becomes

β = \frac{a}{(\frac{215955 π}{524288} + \frac{13 β^{8} π^{9}}{380507258880 η^{8}} - \frac{47 β^{6} π^{7}}{528482304 η^{6}} + \frac{221 β^{8} π^{9}}{63417876480 η^{6}} + \frac{459 β^{4} π^{5}}{8388608 η^{4}} - \frac{517 β^{6} π^{7}}{528482304 η^{4}} + \frac{247 β^{8} π^{9}}{126835752960 η^{4}} - \frac{15751 β^{2} π^{3}}{1572864 η^{2}} + \frac{459 β^{4} π^{5}}{8388608 η^{2}} - \frac{47 β^{6} π^{7}}{528482304 η^{2}} + \frac{13 β^{8} π^{9}}{380507258880 η^{2}})}

(33)

When

a

is given, the value of

β

is obtained from equation (33) by an iterative procedure, starting with initial

β_{0} = a

. Therefore, the solution of pendulum equation (28) is obtained from equation (3) by substituting the values of

B_{1}, B_{2}, \dots, B_{10}

from equation (29).

Results and discussion

In this section, solutions for various nonlinear oscillators obtained by the present method are compared with corresponding numerical solutions (4th-order Runge–Kutta method). First of all, solutions of the Duffing oscillator for different initial conditions are presented in Figures 1–5. From these figures, it is clear that present solutions agree with corresponding numerical solutions whether $ε < 0$ or $ε > 0$ . It is noted that a solution of the Duffing equation exists for all values of $a$ when $ε > 0$ . On the contrary, a periodic solution of this oscillator is found for some particular values of $a$ when $ε < 0$ (e.g., $a < 1$ when $ε = - 1$ ).

Figure 1.

Comparison of the solutions between the present method and the numerical method for the Duffing oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 0.659696900988258$ ] for $ω_{0} = 1$ and $ε = - 1$ , where $a = 0.8$ .

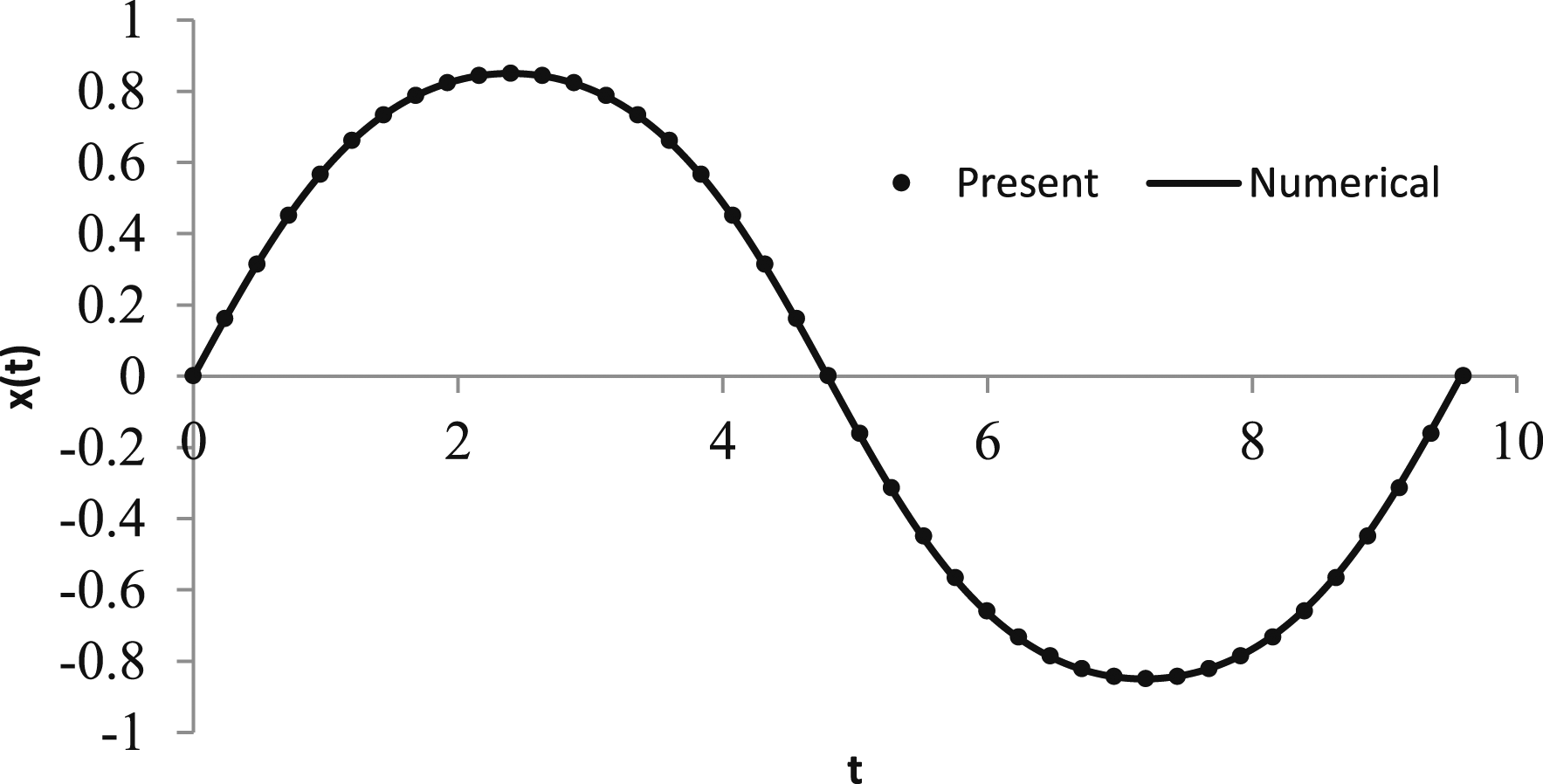

Figure 2.

Comparison of the solutions between the present method and the numerical method for the Duffing oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 0.679335612933695$ ] for $ω_{0} = 1$ and $ε = - 1$ , where $a = 0.85$ .

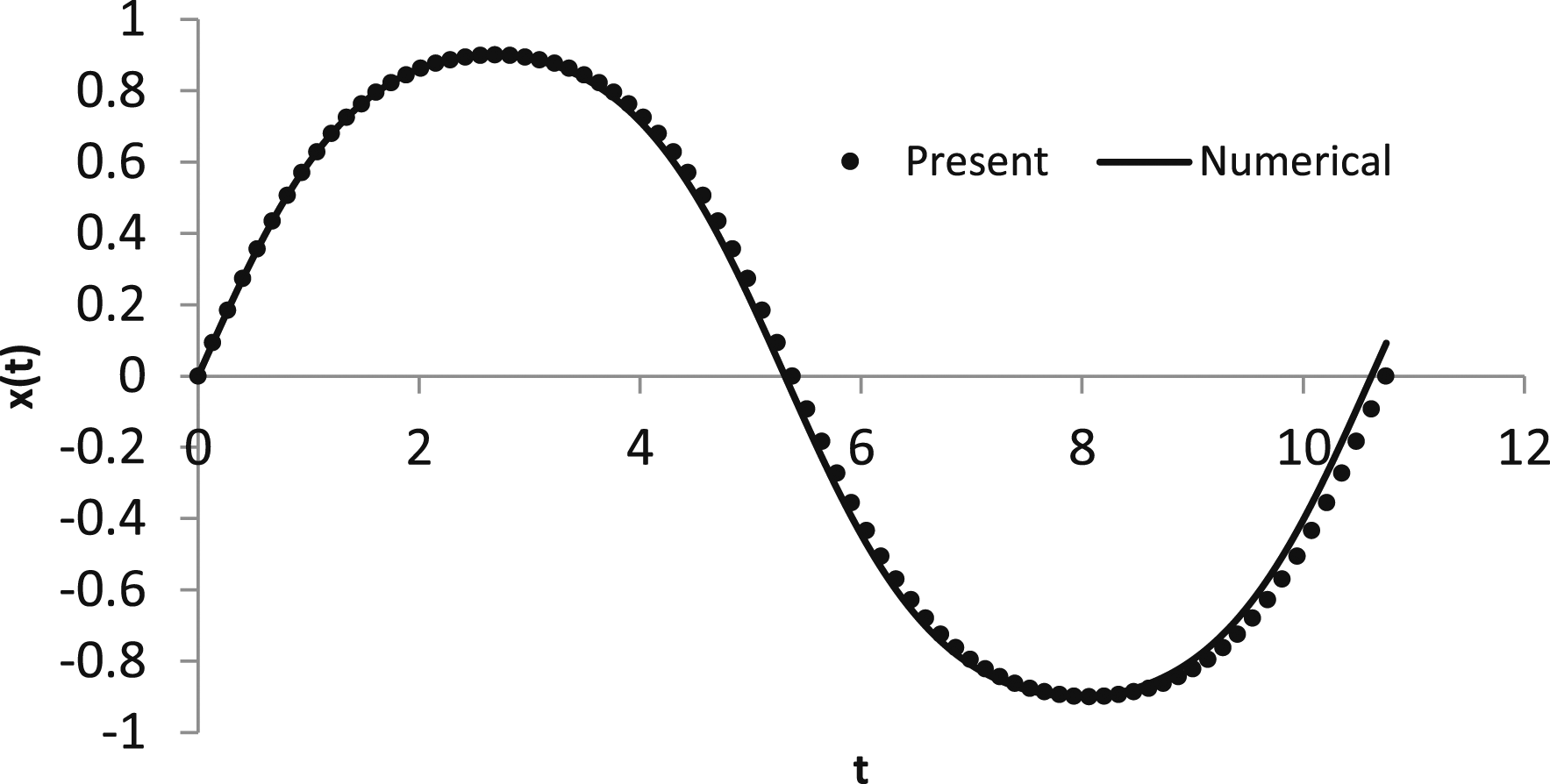

Figure 3.

Comparison of the solutions between the present method and the numerical method for the Duffing oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 0.6942261879243681$ ] for $ω_{0} = 1$ and $ε = - 1$ , where $a = 0.9$ .

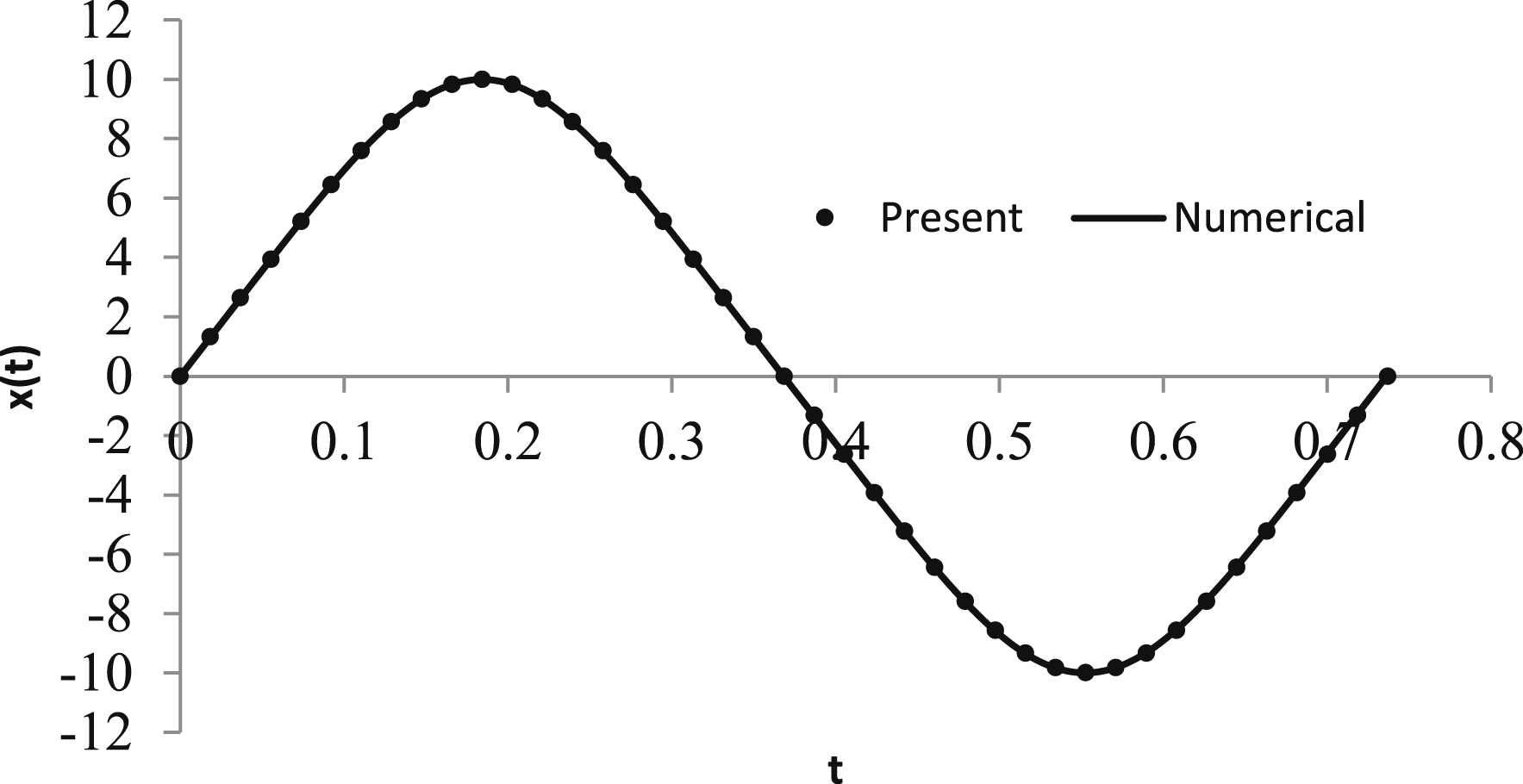

Figure 4.

Comparison of the solutions between the present method and the numerical method for the Duffing oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 71.4142842854285$ ] for $ω_{0} = 1$ and $ε = 1$ , where $a = 10$ .

Figure 5.

Comparison of the solutions between the present method and the numerical method for the Duffing oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 283.5489375751565$ ] for $ω_{0} = 1$ and $ε = 1$ , where $a = 20$ .

For the quadratic oscillator, the solutions agree with numerical solutions for different values of $a ε < 1 / 2$ . In Figures 6 and 7, respectively, for $a = 0.49$ and $a = 0.495$ , the solutions are presented together with corresponding numerical solutions when $ε = 1$ .

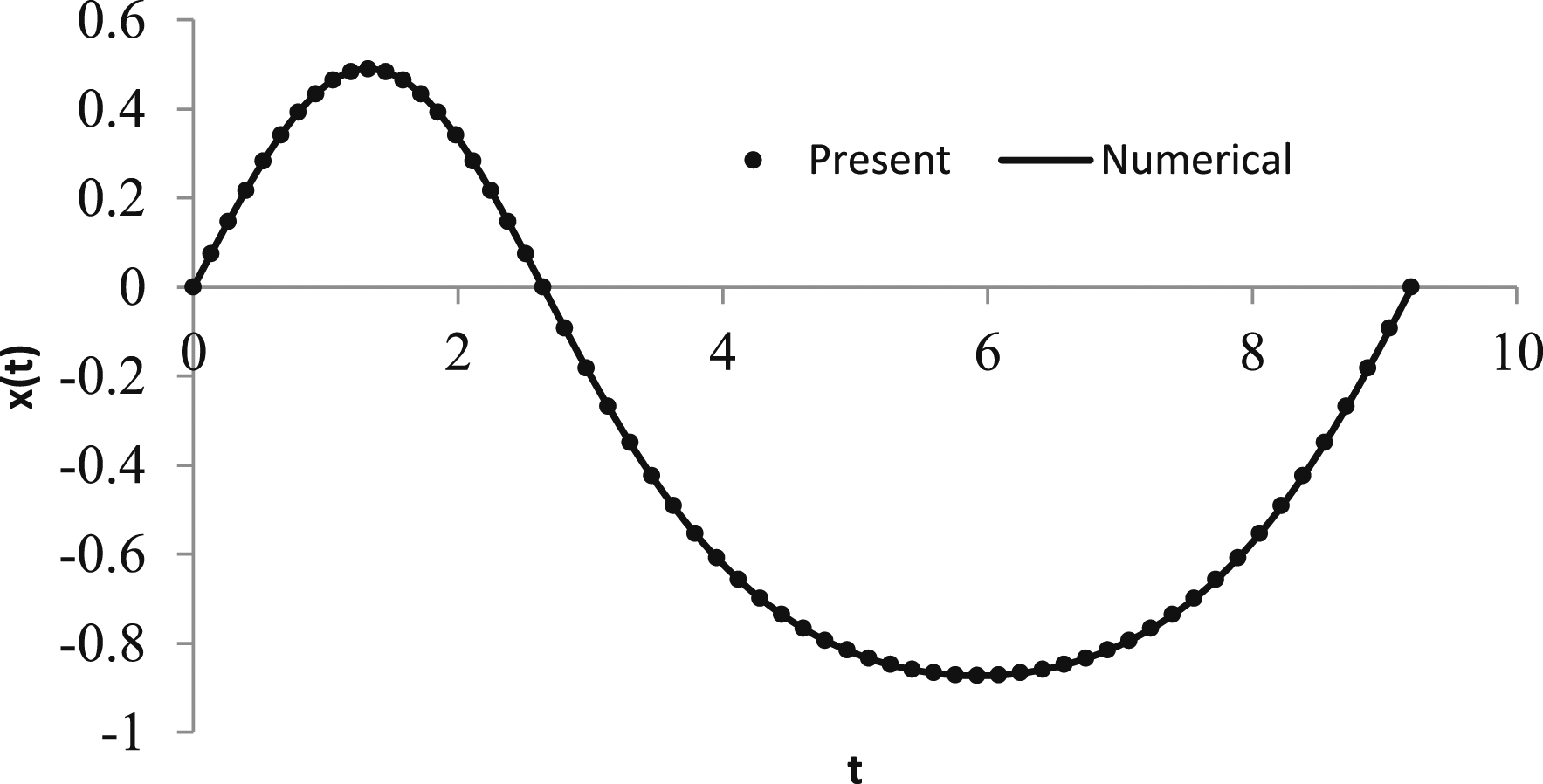

Figure 6.

Comparison of the solutions between the present method and the numerical method for the quadratic oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 0.564386983076919$ ] for $ω_{0} = 1$ and $ε = 1$ , where $a = 0.49$ .

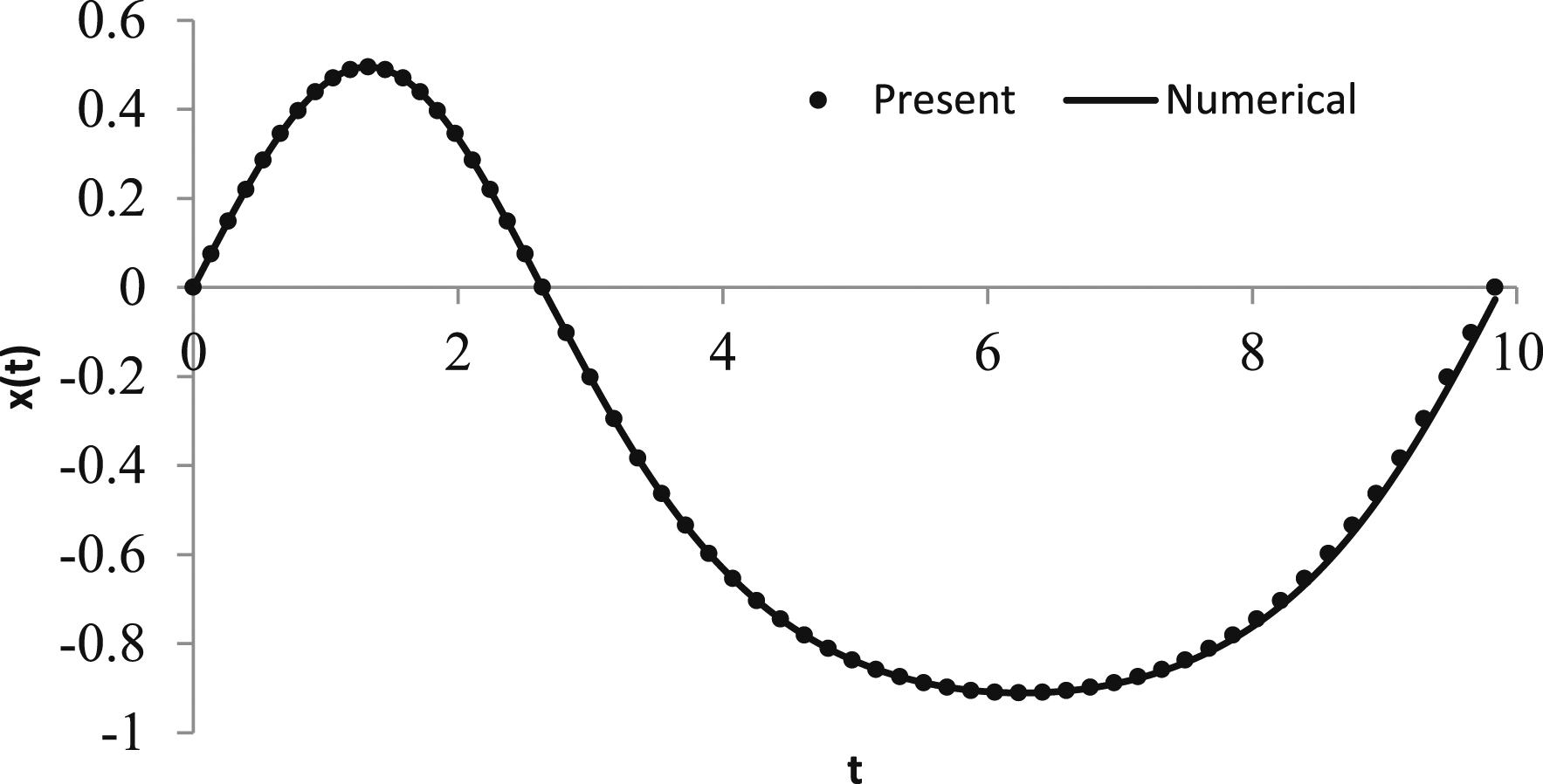

Figure 7.

Comparison of the solutions between the present method and the numerical method for the quadratic oscillator with the initial condition [ $x (0) = 0, \dot{x} (0) = 0.5708618484362044$ ] for $ω_{0} = 1$ and $ε = 1$ , where $a = 0.495 .$

In Figures 8 and 9, for $a = 2.0$ and $a = 2.25$ , solutions of the pendulum equation are presented together with numerical solutions. The periodic solution of this oscillator is found for all values of $a < π$ . But it requires a lot of terms of $φ$ when $a \approx 3$ . On the other hand, it requires many harmonic terms to obtain a desired result by the homotopy perturbation method or VIM or harmonic balance method, etc., when $a \approx 3$ .

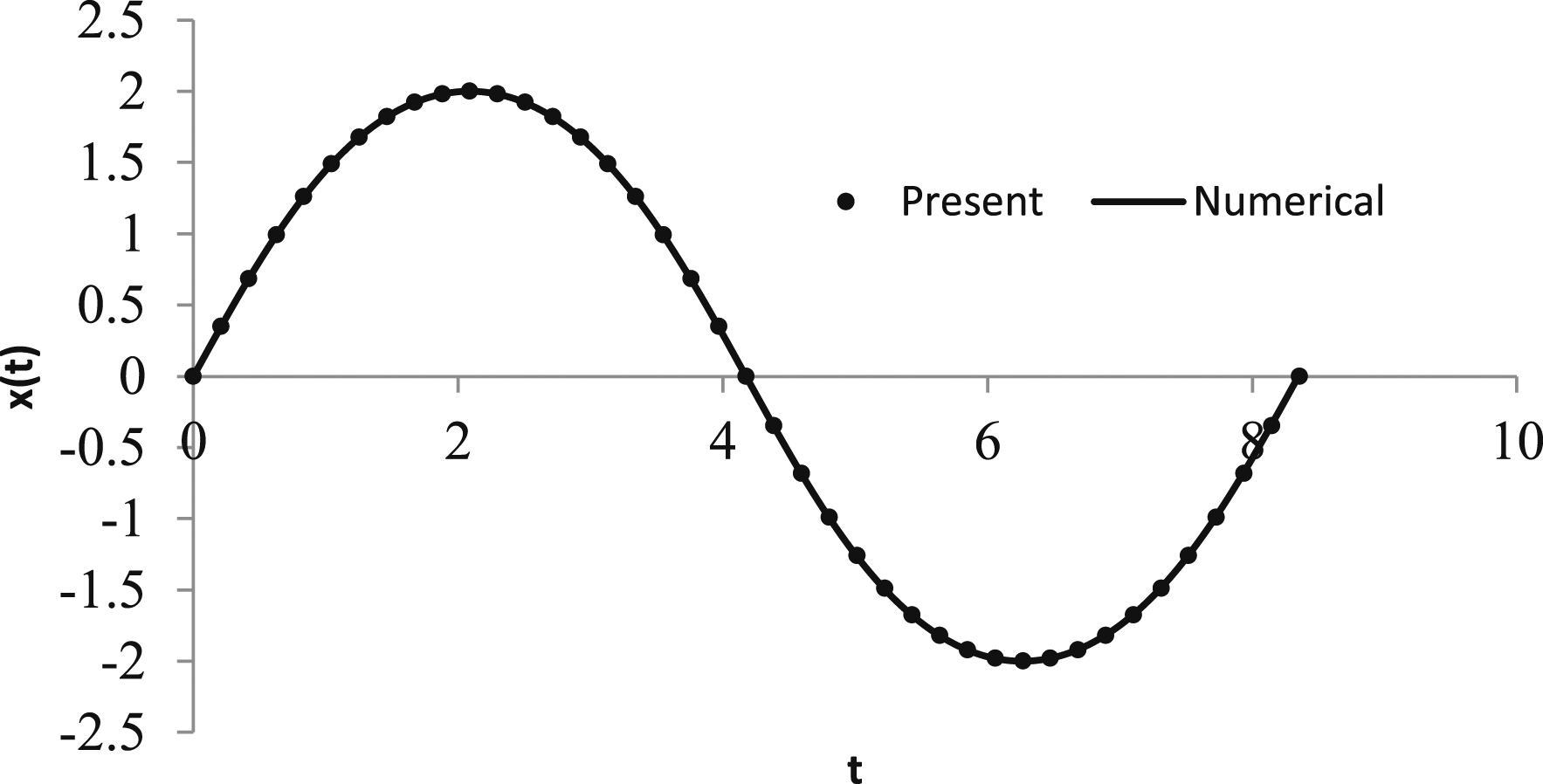

Figure 8.

Comparison of the solutions between the present method and the numerical method for the pendulum equation with the initial condition [ $x (0) = 0, \dot{x} (0) = 1.682941969615793$ ] for $a = 2.0$ .

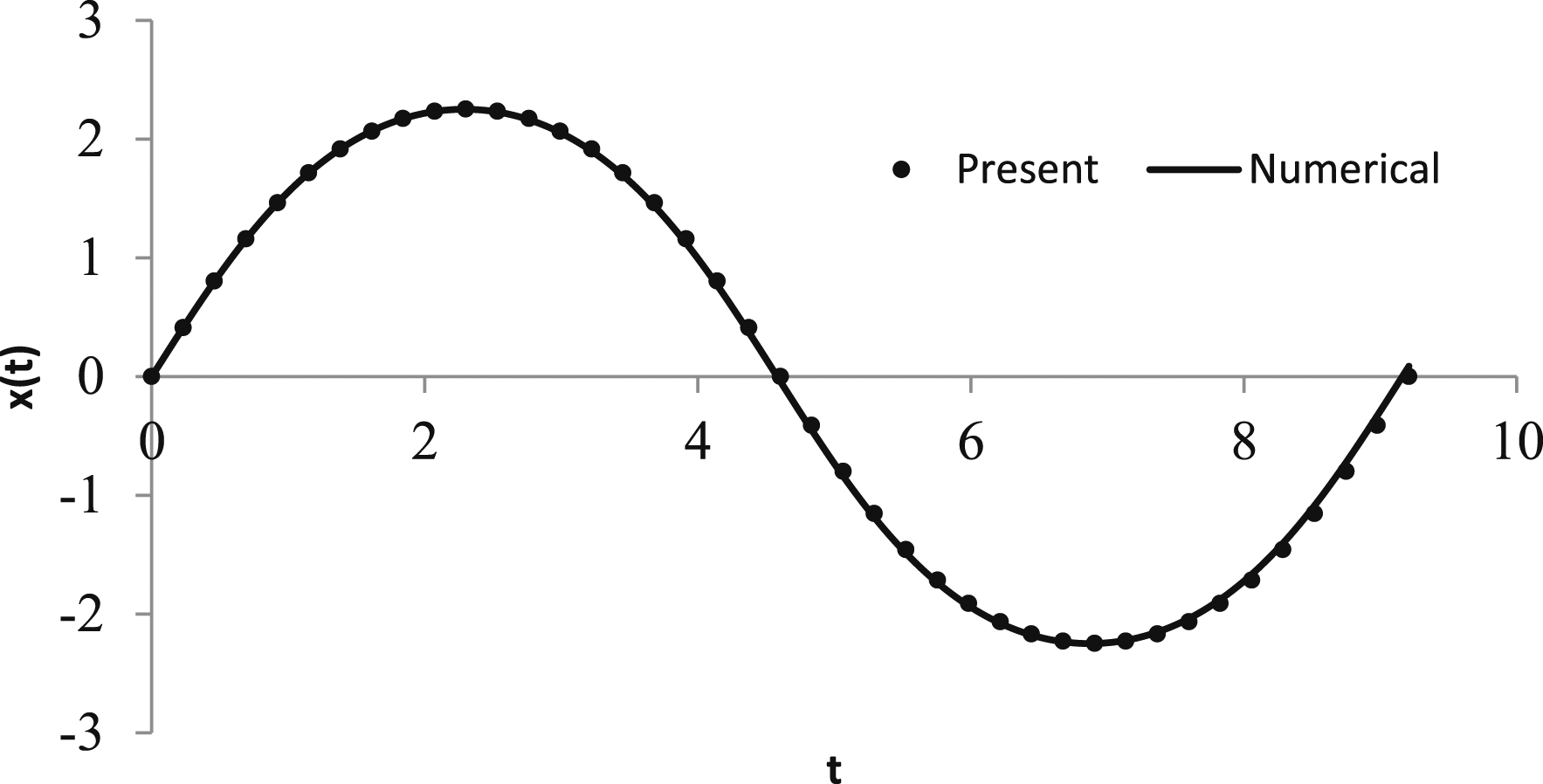

Figure 9.

Comparison of the solutions between the present method and the numerical method for the pendulum equation with the initial condition [ $x (0) = 0, \dot{x} (0) = 1.8045351881981904$ ] for $a = 2.25 .$

It is noted that the homotopy perturbation method, VIM, harmonic balance method, etc., are widely used tools for handling strong nonlinear oscillators. But every method has some limitations. The homotopy perturbation method provides good results for the Duffing oscillator; but it is useless for the quadratic oscillator when $a ε \approx 1 / 2$ (Appendix B). The advantage of the present method is that it nicely covers both oscillators.

Conclusion

An approximation technique is presented for solving various strongly nonlinear oscillators. The determination of a solution is simpler than its original version. The trial solution is completely algebraic and the coefficients of unknown variables are determined by solving a set of simple linear equations. The method is similar to the DTM, but it is much easier.

Footnotes

Acknowledgements

The authors are grateful to the honorable reviewers for their constructive comments to improve the quality of this article. The authors are also grateful to the Associate Editor for his assistance to prepare the revised manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

M Kamrul Hasan

Appendix A

Let us consider the Maclaurin expansion of $2 (1 - \sqrt{1 - ψ})$ (A.1)

S (ψ) = 2 (1 - \sqrt{1 - ψ}) = ψ + \frac{ψ^{2}}{4} + \frac{ψ^{3}}{8} + \frac{5 ψ^{4}}{64} + \frac{7 ψ^{5}}{128} + \frac{21 ψ^{6}}{512} + \dots

Then the Maclaurin expansion of

{(2 (1 - \sqrt{1 - ψ}))}^{r}

(where

r = 1, 2, \dots

) is (A.2)

S^{r} (ψ) = ψ^{r} + \frac{r ψ^{r + 1}}{2^{2} 0!} + \frac{r (r + 3) ψ^{r + 2}}{2^{4} 2!} + \frac{r (r + 4) (r + 5) ψ^{r + 3}}{2^{6} 3!} + \frac{r (r + 5) (r + 6) (r + 7) ψ^{r + 4}}{2^{8} 4!} + \dots

Substituting $ψ = 1$ , (A.3)

S^{r} (1) = 1 + \frac{r}{2^{2} 0!} + \frac{r (r + 3)}{2^{4} 2!} + \frac{r (r + 4) (r + 5)}{2^{6} 3!} + \frac{r (r + 5) (r + 6) (r + 7)}{2^{8} 4!} + \dots \leq 2^{r}

The value of infinite series,

S^{r} (1)

, is

2^{r}

. Now substituting the values of the series,

S^{r} (1) = 2^{r}

, in equation (15), it becomes (A.4)

a = \frac{β π}{2} - \frac{β π^{3} ω_{0}^{2}}{48 ω^{2}} + \frac{β π^{5} ω_{0}^{4}}{3840 ω^{4}} - \frac{β^{3} π^{5} ε}{640 ω^{2}} - \frac{β π^{7} ω_{0}^{6}}{645120 ω^{6}} + \frac{11 β^{3} π^{7} ϵ ω_{0}^{2}}{107520 ω^{4}} + \frac{β π^{9} ω_{0}^{8}}{185794560 ω^{8}} - \frac{17 β^{3} π^{9} ϵ ω_{0}^{4}}{5160960 ω^{6}} + \frac{β^{5} π^{9} ε^{2}}{245760 ω^{4}}

Appendix B

According to the homotopy perturbation technique,¹² equation (20) is written as (B.1)

\ddot{x} + (ω^{2} - ω_{1} p - ω_{2} p^{2} - ω_{3} p^{3} - \dots) x + p (ε x^{2}) = 0,

where

ω_{0}^{2} = ω^{2} - ω_{1} p - ω_{2} p^{2} - ω_{3} p^{3} - \dots

and

p

is the homotopy parameter.

This equation has a power series solution of $p$ as (B.2)

x = x_{0} + x_{1} p + x_{2} p^{2} + x_{3} p^{3} + \dots

and the following results are found

x_{0} = a_{0} \cos ω t, x_{1} = \frac{ε a_{0}^{2}}{6 ω^{2}} (- 3 + \cos 2 ω t), x_{2} = \frac{ε a_{0}^{3}}{48 ω^{4}} (\cos 3 ω t - \cos ω t)

(B.3)

x_{3} = \frac{ε a_{0}^{4}}{432 ω^{6}} (75 - 4 \cos 2 ω t + \cos 4 ω t), \dots

and (B.4)

ω_{1} = ω_{3} = \dots = 0; ω_{2} = - \frac{5 ε^{2} a_{0}^{2}}{6 ω^{2}}, ω_{4} = \frac{295 ε^{8} a_{0}^{4}}{864 ω^{6}}, \dots

where

a_{0} = (a + a *) / 2

.⁹ When

a < 1 / 2

is given,

a_{0}

is calculated and then frequency is obtained solving the following nonlinear equation (fourth approximation). (B.5)

ω^{2} = ω_{0}^{2} - \frac{5 ε^{2} a_{0}^{2}}{6 ω^{2}} + \frac{295 ε^{8} a_{0}^{4}}{864 ω^{6}}

For $ω_{0} = ε = 1$ , some frequencies (determined by equation (B.5)) are presented in the following table together with present and numerical results.

$a$	Numerical	By homotopy perturbation	% error	By the present method	% error
0.3	0.947782	0.948166	0.040516	0.947782	000000
0.35	0.921225	0.922771	0.167820	0.921224	0.000109
0.40	0.881904	0.888347	0.730578	0.881899	0.000567
0.45	0.815312	0.845792	3.73845	0.815276	0.004415
0.49	0.682362	0.817170	19.7561	0.682699	0.049387
0.495	0.635693	0.815140	28.2286	0.638797	0.488286

References

Nayfeh

. Perturbation method. New York: John Wiley & Sons, 1973.

Nayfeh

Mook

. Nonlinear oscillations. New York: John Wiley & Sons, 1979.

Krylov

Bogolyubov

. Introduction to nonlinear mechanics. Princeton, NJ: Princeton University, 1947.

Alam

. A unified Krylov-Bogoliubov-Mitropolskii method for solving nth order nonlinear systems. J Franklin Inst 2002; 339: 239–248.

Alam

Abul Kalam Azad

MAK

Hoque

. A general Struble's technique for solving an nth order weakly non-linear differential system with damping. Int J Non Lin Mech 2006; 41: 905–918.

Cheung

Chen

Lau

. A modified Lindstedt-Poincaré method for certain strongly non-linear oscillators. Int J Non Lin Mech 1991; 26: 367–378.

. Modified Lindstedt-Poincare methods for some strongly non-linear oscillations. Int J Non Lin Mech 2002; 37: 309–314.

Alam

Yeasmin

Ahamed

. Generalization of the modified Lindstedt-Poincare method for solving some strong nonlinear oscillators. Ain Shams Eng J 2019; 10: 195-201.

Yeasmin

Rahman

Alam

. The modified Lindstedt-Poincare method for solving quadratic nonlinear oscillators. J Low Freq Noise Vib Act Control 2021; 40(3): 1351–1368.

10.

. Homotopy perturbation technique. Comput Methods Appl Mech Eng 1999; 178: 257–262.

11.

Beléndez

Hernández

Beléndez

, et al. Application of He’s homotopy perturbation method to conservative truly nonlinear oscillators. Chaos, Solit Fractals 2008; 37: 770–780.

12.

Beléndez

. Homotopy perturbation method for a conservative

x^{1 / 3}

force nonlinear oscillator. Comput Math Appl 2009; 58: 2267-2273.

13.

Anjum

. Homotopy perturbation method for N/MEMS oscillators. Math Methods Appl Sci 2020: 1–15. DOI: 10.1002/mma.6583

14.

Anjum

. Two modifications of the homotopy perturbation method for nonlinear oscillators. J Appl Comput Mech 2020; 6: 1420–1425.

15.

Jiao

. Homotopy perturbation method for fractal Duffing oscillator with arbitrary conditions. Fractals 2022; 30(9). DOI: 10.1142/S0218348X22501651

16.

Khan

Vazquez-Leal

Hernandez-Martinez

, et al. Variational iteration algorithm-II for solving linear and non-linear ODEs. Int J Phys Sci 2012; 7(25): 3099–3102.

17.

Anjum

, et al. Variational iteration method for prediction of the pull-in instability condition of micro/nanoelectromechanical systems. Fizicheskaya Mezomekhanika 2023; 26: 5–14.

18.

Anjum

Rahman

, et al. An efficient analytical approach for the periodicity of nano/microelectromechanical systems’ oscillators. Math Probl Eng 2022; 2022: 9712199. DOI: 10.1155/2022/9712199

19.

Rehman

Hussain

Rahman

, et al. Modified laplace based variational iteration method for the mechanical vibrations and its applications. Acta Mech Automatica 2022; 16(2): 98–102.

20.

Vazquez-Leal

. Generalized homotopy method for solving nonlinear differential equations. Comput Appl Math 2014; 33(1): 275–288.

21.

Lim

. A new analytical approach to the Duffing-harmonic oscillator. Phys Lett 2003; 311: 365–373.

22.

Mehdipour

Ganji

Mozaffari

. Application of the energy balance method to nonlinear vibrating equations. Curr Appl Phys 2010; 10(1): 104–112.

23.

Yeasmin

Sharif

Rahman

Alam

. Analytic technique for solving the quadratic oscillator. Results Phys 2020; 18: 103303.

24.

Molla

MHU

Alam

. Higher accuracy analytical approximations to nonlinear oscillators with discontinuity by energy balance method. Results Phys 2017; 7: 2104–2110.

25.

Tian

. Frequency formula for a class of fractal vibration system. Reports in Mechanical Engineering 2022; 3(1): 55–61.

26.

. Simplified hamiltonian-based frequency-amplitude formulation for nonlinear vibration systems. Facta Univ – Ser Mech Eng 2022; 20(2): 445–455.

27.

Yang

, et al. Pull-down instability of the quadratic nonlinear oscillators. Facta Universitatis, series. Mech Eng 2023; 21(2). DOI: 10.22190/FUME230114007H

28.

Zhou

. Differential transformation and its applications for electrical circuits. China: Huazhong University Press, 1986. (in Chinese).

29.

Arikoglu

Ozkol

. Solution of fractional differential equations by using differential transform method. Chaos, Solit Fractals 2007; 34(5): 1473–1481.

30.

Demir

Sungu

. Numerical solution of a class of nonlinear Emden-Fowler equations by using differential transform method. J Arts Sci Sayı 2009; 12.

31.

Mirzaee

. Deferential transform method for solving linear and nonlinear systems of ordinary di;erential equations. Appl Math Sci 2011; 5(70): 3465-3472.

32.

Kenmogne

. Generalizing of differential transform method for solving nonlinear differential equations. J Appl Comput Math 2015; 4(1): 01–05.

33.

Matteo

DIA

Pirrotta

. Generalized differential transform method for nonlinear boundary value problem of fractional order. Commun Nonlinear Sci Numer Simul 2015; 29(1-3): 88–101.

34.

Opanuga

Edeki

Okagbueand

, et al. Numerical solution of two-point boundary value problems via differential transform method. Global J Pure Appl Math 2015; 11(2): 801–806.

35.

Shahed

. Application of differential transform method to non-linear oscillatory systems. Commun Nonlinear Sci Numer Simul 2008; 13: 1714–1720.

36.

Momani

Erturk

. Solutions of non-linear oscillators by the modified differential transform method. Comput Math Appl 2008; 55: 833–842.

37.

Nourazar

Mirzabeigy

. Approximate solutions of nonlinear Duffing oscillator with damping effect using modified differential transform method. Sci Iran B 2013; 20(2): 364–368.

38.

Benhammouda

Leal

Martinez

. Modified differential transform method for solving the model of pollution for a system of lakes. Discrete Dynam Nat Soc 2014: 12. 645726.

39.

Alam

Huq

Hasan

, et al. A new technique for solving a class of strongly nonlinear oscillatory equations. Chaos, Solit Fractals 2021; 152: 111362.
