Modeling analysis on the influence of the gyrostatic moment on the motion of a charged rigid body subjected to constant axial torque

Abstract

The 3D modeling analysis for the rotary motion of an asymmetric rigid body (RB) that gains a charge is presented. Under the effect of a gyrostatic moment (GM), an electromagnetic force field (EFF), time-varying body-fixed torques (TVBFTs), and constant axial torque (CAT), Euler’s equation of motion (EOM) is derived to describe the body’s EOM. The process is to derive the analytic solutions for the general attitude motion of the RB that is nearly symmetrical; therefore, a novel analytical solution for the angular velocities of the body has been approached. These new solutions are obtained by considering torques that vary over time and expressing them as integrals. Additionally, a novel closed-form evaluation mechanism for these integrals is offered. Specifically, the case of a constant torque around the spin axis and transverse torques represented by polynomial functions of time is explored. When dealing with an axisymmetric RB subject to a CAT, the solutions obtained from Euler’s EOM are exact. However, it is important to note that novel analytic solutions for the Eulerian angles are approximations, as they rely on the assumption of small angles. Nonetheless, these approximations have broad applicability to a wide range of practical problems. The method’s precision is demonstrated through the graphical simulation of the proposed solutions. Additionally, a computer program is utilized to create diagrams and phase plane curves, highlighting the contribution of various body parameters to the motion. These plots depict the contributions of various values regarding GM, charge, and CAT. Motion stability is also examined through phase diagrams. In addition to presenting novel solutions and outcomes for the problem, this study plays a vital role in multiple scientific and engineering fields as it has the potential to optimize mechanical systems, explain celestial motion, and improve spacecraft performance.

Keywords

Nonlinear dynamics rigid body dynamics rotary motion analytical solutions gyrostatic moment

Introduction

The study of the 3D rotary motion of RBs plays a crucial role in various fields, ranging from robotics and aerospace engineering to biomechanics and physics. Understanding the complex interactions and behaviors of RBs in 3D space is essential for designing efficient control systems, predicting structural stability, and optimizing performance in a wide range of applications. Many scholars have dedicated their attention to this subject, as evidenced by the extensive body of research conducted by experts.^1–29 In Refs. 1, 2,1,2 the problem’s EOM consists of three nonlinear differential equations (NDEs) that have been addressed into special cases with the four first integrals to assemble its solution. In Ref. 3,³ the presentation of equations illustrating Euler’s angles in various sequences has been provided. In Ref. 4,4 as a follow-up to the assessment honoring St Petersburg State University’s 300th anniversary, the authors examines the research accomplishments of the St Petersburg School of Mechanics in the area of RBs’ dynamics. Specialists from St Petersburg State University conduct fundamental theoretical studies in the subsequent part on the controlled and uncontrolled motions of a RB. In Ref. 5,5 a new approach is presented to depict the turn-tensor of an asymmetrical RB using the moment of momentum vector. The author highlights the similarity between the rotational behavior of an asymmetrical RB when subjected to a moment directed along its axis of symmetry and when influenced by a constantly directed moment. Additionally, an accurate solution is derived for the problem, considering the influence of linear viscous friction. In Ref. 6,⁶ an examination is conducted on the movement of an RB around a stationary point, influenced by a Newtonian force field (NFF). The motion is described using the Euler–Poisson equations. To find the precise solutions for these equations, it is generally necessary to have a fourth algebraic first integral. By determining the essential and comprehensive condition, the authors establish which functions can serve as the fourth first integral for governing EOM. In Ref. 7,⁷ two additional solvable problems in RB’s dynamics are introduced, elucidating the dynamics occurring within both a Euclidean plane and a pseudo-sphere. In Ref. 8,⁸ a study has successfully obtained closed-form analytic solutions for the 3D movement of a nearly symmetrical RB under the influence of TVBFTs. These solutions are expressed in the form of specific integrals. The research specifically focuses on two scenarios: one where there is a constant torque acting along the body’s spin axis, and another where transverse torques are represented as polynomial functions of time. In Ref. 9,⁹ the rotary movement of a charged RB is discussed, focusing on RB’s angular velocities solution. The RB in the study possesses a spherical cavity, which houses a viscous liquid that cannot be compressed. The study takes into account various factors such as the presence of a GM, constant body-fixed torques (CBFTs), and the impact of torque resulting from a resisting force caused by the liquid’s shape. In Ref. 10,¹⁰ the authors examine the resolution to address the dynamic movement of RBs featuring cavities filled with a viscous fluid and exposed to CBFTs. The objective is to analyze the RBs’ motion concerning their center of mass, in addition to their orientation and stabilization. To achieve this, the authors utilize the Krylov–Bogoliubov method, which proved effective even at low Reynolds numbers. In Ref. 11,¹¹ a novel mathematical approach is presented to address the conventional dynamic Euler’s NDEs. This approach specifically focuses on the movement of an RB that is unrestricted in its rotational motion around a fixed point. The foundation of this novel solution lies in a recently developed mathematical framework that deals with precise analytic solutions for Abel’s NDEs of the second type. In Ref. 12,¹² a novel micropolar continuum model, consisting of particles with two spins, is introduced. The first component has the capability of both translational and rotational degrees of freedom, whereas the second component is restricted to rotational degrees of freedom exclusively. An essential characteristic of this model is that neither of the components can be considered infinitesimally RBs. By making a simplifying assumption, the suggested EOMs can be transformed into equations similar to Maxwell’s equations (MEs). An additional simplifying assumption in this context leads to the derivation of an equivalent of the Lorentz force. In Ref. 13,¹³ the authors provide an overview of efforts to understand ME from a mechanical perspective. They discuss and compare three different interpretations: Early interpretations that relied on linear elasticity; Zhilin’s perspective, which sees the aether and electromagnetic waves as existing within a micropolar medium and propagating through it; and Ivanova’s viewpoint, which expands upon Zhilin’s ideas to include the concept of charge and the generation of charged particles and antiparticles within the micropolar framework. In Ref. 14,¹⁴ the concept of transforming images of physical quantities between different observers is discussed by researchers. This transformation helps to reveal inertial terms in the balances of linear momentum and spin. The paper also briefly reviews existing literature on this topic and explains the typical method of conducting such transformations. In Ref. 15,¹⁵ the researchers use mechanical comparisons to explain the magnetic and electric induction vectors, electric current density, and electric charge density. By applying these analogies, they derive a series of DEs that align with the first ME, the Gauss law for electric fields, and the charge conservation law. One point of contention in their findings is the potential revisions to the Maxwell–Faraday equation and the Gauss law for magnetic fields. The investigation of an RB in 3D space, possessing a smooth surface of any shape, as it moves within an unbounded liquid, under the influence of a predetermined external force and CBFT, has been discussed in Ref. 16.¹⁶ The author demonstrates that if the provided data are sufficiently regular and of small magnitude, and if the external force and CBFT gradually diminish over time, then a comprehensive and robust solution for the initial boundary value problem associated with this scenario is assumed to exist. Additionally, this solution tends to diminish and converge toward zero as time approaches infinity. In Ref. 17,¹⁷ a study exploring the rotational movement of an unsymmetrical RB when exposed to CBFTs and GM is presented. The analysis considers two situations involving CBFTs. In the first scenario, the torque is applied along either the minor or major axis, while in the latter, it affects the middle axis. In both instances, the authors present innovative analytical and simulation results. In Ref. 18,¹⁸ Euler’s EOM and the momentum equation for a charged particle, influenced by the Lorentz force in non-relativistic scenarios, witness the implementation of a novel solving procedure. An analytic algorithm is introduced to solve the momentum equation, which is simplified to three NDEs involving the particle’s velocity components. Additionally, groundbreaking partial analytical solutions are discovered for specific instances involving magnetic fields. In Ref. 19,¹⁹ an analysis is conducted on periodic solutions for a specific type of vibrating motion exhibited by a gyrostat that is attached to a spring. The gyrostat experiences the impact of a gyrostatic couple, in addition to the effects of NFF and EFF. Additionally, the results of this analysis include the derivation of solutions and the visualization of phase diagrams, which effectively portray the periodic nature and stability characteristics of these solutions. In Ref. 20,²⁰ an investigation focuses on the disturbed rotational movements of an RB, which bear resemblance to the scenario of a Lagrange top. This RB is subjected to gradually changing forces in the form of restoring and perturbing torques. By utilizing an asymptotic approach, the researchers are able to derive qualitative findings and provide a simplified description of the motion’s evolution through averaged equations. In,²¹ the authors introduce a solution to address the rotational movement of a symmetric charged RB that is connected to a spring and rotates around a fixed point. The RB is affected by an NFF as well as external torques such as perturbing, restoring and GM. These solutions are visually represented in graphs to demonstrate the beneficial effects of the RB’s parametric values on its behavior. Additionally, the impacts of applied moments, EFF, and the NFF are considered and analyzed. The RB’s rotation around a stationary point in a central NFF is examined in Ref. 22.²² It is thought that the RB’s ellipsoid of inertia is randomized and that the mass center does not always coincide with the point that is stationary. When the natural frequency value equals 13, another model of the RB under the influence of an NFF is examined in Ref. 23.²³ This singularity is discussed in Ref. 22²² and has to do with classifying various bodies based on their moments of inertia. A similar study for a nonsymmetric rotating RB in a central NFF is presented in Ref. 24.²⁴ Extending the authors’ solutions for the tilting problem of an RB’s center of mass under the impact of minor inner or outer torques is the primary goal in Ref. 25.²⁵ In Ref. 26,²⁶ the researchers extensively examine the stability of specific movements exhibited by a RB around its fixed point under the influence of EFF and NFF. The RB carries a rotor that continuously rotates at a constant angular velocity along an axis parallel to one of its principal axes. The researchers meticulously derived the EOMs and skillfully formulated them into a Lie–Poisson Hamilton system. To ascertain stability, the energy-casimir method is employed, yielding sufficient conditions. To visually portray the stability, the researchers graphically present the regions of linear stability and Lyapunov stability for specific parameter values. In Ref. 27,²⁷ the focus is on investigating the optimal deceleration of a dynamically asymmetric RB. To achieve this, the researchers utilize nondimensional variables, which allow them to establish a comprehensive system of EOM with multiple parameters. In Ref. 28,²⁸ a study is conducted on analyzing the rotary motion of a symmetric RB about a fixed point and influenced by a perturbing moment vector, GM, along with a variable restoring moment. By employing mathematical techniques, the averaged EOM is derived for both the first and second approximations. In,²⁹ the authors examine the inertia-driven movement of a system comprising two RBs connected by a cylindrical hinge. The first is arbitrary, while the second is the dynamically symmetrical rotor. In the absence of external forces, the system initially moves around the center of mass similar to an RB according to Euler’s principles. Once the rotor is released, it starts rotating in a manner that maintains a constant projection of its absolute angular velocity along the axis. When the relative rotational speed approaches zero, the latch can be engaged without any energy loss. Consequently, the original trajectory of the body changes. More investigation for the cases for a RB under external torques are conducted in Refs. 30–36.^30–36 The authors derive the analytical solutions for the RB motion under the effect of GM in Ref. 30 and 31.^30,31 While in Ref. 32,³² the authors present a detailed solution for all the parameters that could be conducted approaching also to the analytically of the solution. The solution for the governing EOM for a RB including a viscous incompressible fluid is derived in Ref. 33.³³ In Ref. 34,³⁴ under the influence of GM and magnetic field on the RB motion besides the action of the NFF in accordance with the Bobylev–Steklov conditions, the authors approach the analytical approximated solution for the RB’s EOM. The small parameter method of Poincare is used in Ref. 35³⁵ to approach the solution for both Euler and Poisson EOMs as the RB in such a case moves under the impact of GM inside the NFF. In addition to a solution for Euler’s angles concerning this problem. In Ref. 36,³⁶ the authors introduce a novel approach for solving the EOM for the trapped orbits of an infinitesimal mass within a space trap, moving in close proximity to a planet in the context of the elliptic restricted three-body problem (ER3BP). A unique solving method is employed to determine the coordinates of the infinitesimal mass and its orbit near the planet. In Ref. 37,³⁷ the authors propose that considering the strain measure in this way could offer new opportunities for understanding the mechanisms related to substance diffusion into solids. To address these challenges, they recommend including a source term in the strain measure’s balance equation. In Ref. 38,38 a study that examined the movement of a magnetized axisymmetric RB around its center of mass in a circular orbit while considering the gravitational and magnetic influences of the central body is presented. The EOMs are converted into equations describing the motion of a charged particle in the presence of both electric and magnetic fields. The stationary movements of the system are identified, and periodic movements close to these are created using the Lyapunov theorem of the holomorphic integral. An analysis of the analytical solution of a free rotatory movement driven by a motor with restricted capacity is carried out in Ref. 39.³⁹ The author’s major goal is to show that the main body’s movement closely approaches revolution around a stationary axis, given specific parameters and initial circumstances.

This paper presents a 3D modeling analysis that focuses on the rotary motion of an asymmetrically charged RB. The motion is influenced by various factors, including GM, EFF, TVBFTs, and CAT. To describe the RB’s motion, EOM is derived. The goal is to discover analytical solutions for the overall attitude movement of the nearly symmetrical RB, specifically focusing on the analytical solution for the body’s angular velocities. The analytic solutions are obtained by considering TVBFTs and expressing them as integrals. There is also a methodology provided for evaluating these integrals in a closed form. The analysis particularly explores the constant moment’s case about the axis of spinning and transverse moments represented by polynomials of time. When a symmetric axial RB is subjected to a CAT, the solutions derived from Euler’s EOM are exact. However, it is important to note that Eulerian angles’ solutions are approximated, as they rely on the assumption of small angles. Despite this limitation, these approximations have wide applicability to various practical problems. The accuracy of the method used is demonstrated through graphical simulations of the proposed solutions. In addition, a computer program is employed to generate diagrams and phase plane curves, which illustrate the impact of various body parameters on the body’s behavior. These diagrams specifically highlight the impact of GM, charge, and CAT values. Furthermore, the motion stability is examined through phase diagrams.

Analytical solution for the RB’s angular velocity

Analytical solution of a RB’s angular velocity is examined in this section. To consider such a model, double frames with an origin $O$ are presented; $O x_{1} y_{1} z_{1}$ is fixed, but $O x_{2} y_{2} z_{2}$ is rotational, presented in Figure 1. Let $\underline{ω} = (p, q, r)$ be the RB’s angular velocity and $D = (D_{1}, D_{2}, D_{3})$ represents the inertia tensor of the RB. The RB is affected by a GM vector which has the value of $\underline{λ} = (0, 0, λ_{3})$ , an EFF which is owing to the charged body due to a point charge $e$ of a strength $H$ at a distance $l$ from the origin $O$ which makes a constant angle $υ$ with the fixed axis $O z_{1}$ , the TVBFTs $M_{1} (t), M_{2} (t)$ , and the CAT $M_{3}$ .

Figure 1.

Presents the RB’s model.

Therefore, the Euler’s EOM^1,8,32 is given by

D_{1} \frac{d p}{d t} + (D_{3} - D_{2}) q r + (λ_{3} - e H l^{2} \cos υ) q = M_{1}, D_{2} \frac{d q}{d t} + (D_{1} - D_{3}) r p - (λ_{3} - e H l^{2} \cos υ) p = M_{2}, D_{3} \frac{d r}{d t} + (D_{2} - D_{1}) p q = M_{3} .

(1)

At present, there are no apparent solutions in the form of explicit analysis for this system of NDEs when considering arbitrary functions of the BFTs $M_{i}$ . In fact, no precise solutions have been discovered for this system, even in cases where the BFTs $M_{i}$ are constant, without resorting to simplifying assumptions.

Assuming that only $M_{3}$ is constant and that due to the near symmetry case $D_{1} \approx D_{2}$ of the RB^3,8 or $p q \approx 0$ , the derivation of the third equation in system (1) can be accomplished as follows

r (t) = \frac{M_{3}}{D_{3}} t + r_{0}, r_{0} = r (0) .

(2)

Utilizing equation (2) provides a way to separate the third-order system of NDEs in system (1). Hence, if equation (2) is considered valid, the focus can solely be on the first two equations in system (1), which now form a coupled, interconnected but linearly time-dependent set of DEs. Utilizing this adjustment in the new independent variable can help streamline this process as

τ (t) = r (t) .

(3)

and the modification of these variables is expressed in the forms

p_{1} = p \sqrt{d_{2}}, q_{1} = q \sqrt{d_{1}}, d_{1} = \frac{D_{3} - D_{2}}{D_{1}}, d_{2} = \frac{D_{3} - D_{1}}{D_{2}}, d = \sqrt{d_{1} d_{2}} .

(4)

System (2)’s first and second equations are written as follows:

\frac{d p_{1}}{d t} + d q_{1} τ + \frac{λ_{3} - e H l^{2} \cos υ}{\sqrt{ζ_{1}} D_{1}} \sqrt{d_{2}} q_{1} = \frac{M_{1}}{D_{1}} \sqrt{d_{2}}, \frac{d q_{1}}{d t} - d p_{1} τ - \frac{λ_{3} - e H l^{2} \cos υ}{\sqrt{ζ_{2}} D_{2}} \sqrt{d_{1}} p_{1} = \frac{M_{2}}{D_{2}} \sqrt{d_{1}} .

(5)

Defining the following new variables once more

B_{1} = \frac{M_{1} D_{3}}{M_{3} D_{1}} \sqrt{d_{2}}, B_{2} = \frac{M_{2} D_{3}}{M_{3} D_{2}} \sqrt{d_{1}}, ρ = \frac{d D_{3}}{M_{3}}, a = \frac{D_{3} \sqrt{d_{2}}}{M_{3} \sqrt{d_{1}}} (λ_{3} - e H l^{2} \cos υ), b = \frac{D_{3} \sqrt{d_{1}}}{M_{3} \sqrt{d_{2}}} (λ_{3} - e H l^{2} \cos υ) .

(6)

Using the new variable $τ$ as

\frac{d}{d t} = \frac{d}{d τ} \frac{d τ}{d t} = \frac{M_{3}}{D_{3}} \frac{d}{d τ}

(7)

As a result, system (5) turns into

\frac{d p_{1}}{d τ} + ρ τ q_{1} + a q_{1} = B_{1}, \frac{d q_{1}}{d τ} - ρ τ p_{1} - b p_{1} = B_{2} .

(8)

When $D_{1} \approx D_{2}$ in a nearly axisymmetric RB, $\frac{b}{a} \approx 1$ is the resulting relation. By multiplying the second equation of (8) by $i = \sqrt{- 1}$ and adding it to the first equation in a special case where $ρ τ (1 - a^{- 1}) = 1$ , one can obtain this result

\frac{d}{d τ} (p_{1} + i q_{1}) - i ρ τ a (p_{1} + i q_{1}) = B_{1} + i B_{2},

(9)

Or in the form

\frac{d Λ}{d τ} - i ρ τ a Λ = B,

(10)

where

B = B_{1} + i B_{2}, Λ = p_{1} + i q_{1} .

(11)

where

B = B (τ)

. Maintaining generality without reducing, it is assumed that the spin axis is the axis with the largest moment of inertia⁸

D_{3}

, and

D_{3} > D_{1} > D_{2}

Multiplying both sides of (10) by $e^{- \frac{i ρ a}{2} τ^{2}}$ implies

\frac{d}{d τ} (e^{- \frac{i ρ a}{2} τ^{2}} Λ) = e^{- \frac{i ρ a}{2} τ^{2}} B (τ) .

(12)

Integrating both sides of (12) concerning $τ$ yields

Λ (τ) = Λ_{0} e^{\frac{i ρ a}{2} τ^{2}} + e^{\frac{i ρ a}{2} τ^{2}} \int_{0}^{τ} B (s) e^{- \frac{i ρ a}{2} s^{2}} d s .

(13)

where

Λ_{10} = Λ_{1} (0)

. The sole challenge encountered during the estimation of the transverse angular velocities

p

and

q

lies in integrating the nonhomogeneous component of the solution caused by the forcing function

B (τ)

. Therefore,

I_{Λ} (0, τ; ρ) = \int_{0}^{τ} B (s) e^{- \frac{i ρ a}{2} s^{2}} d s .

(14)

In a particular scenario where the transverse torques, denoted as $M_{1}$ and $M_{2}$ , are presumed to adopt the form of polynomials as

M_{1} (τ) = \sum_{j = 0}^{k} M_{1 j} τ^{j}, M_{2} (τ) = \sum_{j = 0}^{k} M_{2 j} τ^{j} .

(15)

Considering $M_{1 j}$ and $M_{2 j}$ as constants, it is worth mentioning that some of these constants might have a value of zero. With this in mind, we can formulate the subsequent equations to represent the $B (τ)$ as

B (τ) = \sum_{j = 0}^{k} B_{j} τ^{j} .

(16)

where

B_{j}

are complex constants and are given by

B_{j} = B_{1 j} + i B_{2 j}, B_{1 j} = \frac{M_{1 j} D_{3}}{M_{3} D_{1}} \sqrt{d_{2}}, B_{2 j} = \frac{M_{2} D_{3}}{M_{3} D_{2}} \sqrt{d_{1}} .

(17)

Substituting into (14) implies

I_{Λ} (0, τ; ρ) = \sum_{j = 0}^{k} B_{j} \int_{0}^{τ} s^{j} e^{- \frac{i ρ a}{2} s^{2}} d s = \sum_{j = 0}^{k} B_{j} I_{j} (0, τ; ρ),

(18)

where

I_{j} (0, τ; ρ) = \int_{0}^{τ} s^{j} e^{- \frac{i ρ a}{2} s^{2}} d s, j = 0, 1, \dots, k .

(19)

Putting

s = {(- 1)}^{\frac{3 (j + 1)}{4}} {(\frac{a ρ}{2})}^{\frac{j + 1}{2}} x^{j + 1} \Rightarrow d s = (j + 1) {(- 1)}^{\frac{3 (j + 1)}{4}} {(\frac{a ρ}{2})}^{\frac{j + 1}{2}} x^{j} d x,

(20)

Equation (19) turns into

I_{j} (0, τ; ρ) = \frac{{(- 1)}^{- \frac{3 (j + 1)}{4}}}{(j + 1)} {(\frac{2}{a ρ})}^{\frac{j + 1}{2}} \int e^{x^{\frac{2}{j + 1}}} d x, j = 0, 1, \dots, k .

(21)

Since the special integral (incomplete gamma function) gives

\int e^{x^{\frac{2}{j + 1}}} d x = - {(- 1)}^{\frac{1 - j}{2}} \frac{(j + 1)}{2} Γ [\frac{j + 1}{2}, - x^{\frac{2}{j + 1}}] .

(22)

Therefore, equation (21) becomes

I_{j} (0, τ; ρ) = {(- 1)}^{- \frac{5 (j + 1)}{4}} {(2)}^{\frac{j - 1}{2}} {(a ρ)}^{- \frac{j + 1}{2}} [Γ (\frac{j + 1}{2}, 0) - Γ (\frac{j + 1}{2}, \frac{i ρ a τ^{2}}{2})] .

(23)

Hence, equation (13) transforms into

Λ (τ) = Λ_{0} e^{\frac{i ρ a}{2} τ^{2}} + e^{\frac{i ρ a}{2} τ^{2}} {\sum_{j = 1}^{k} B_{j} {(- 1)}^{- \frac{5 (j + 1)}{4}} {(2)}^{\frac{j - 1}{2}} {(a ρ)}^{- \frac{j + 1}{2}} [Γ (\frac{j + 1}{2}, 0) - Γ (\frac{j + 1}{2}, \frac{i ρ a τ^{2}}{2})]} .

(24)

which gives a solution for the transverse angular velocity components

p_{1}

and

q_{1}

by comparing the real and imaginary terms of equation (24). As a result

p_{1} = Re [Λ (τ)], q_{1} = I m [Λ (τ)] .

(25)

where

R e

and

I m

denote the real and imaginary terms, respectively.

To obtain the ultimate solution for $p$ and $q$ , one shall replace $τ$ with another variable in equations (24) and (25), thereby transforming them into terms of $t$ . Afterward, one will recall equation (4) and substitute the transformed equations into it.

Analytical solution for Euler’s angles

By employing a sequence of Euler angles denoted as $ψ, ϕ,$ and $θ$ , utilizing the 3-1-2 configuration, the kinematics conform to the subsequent set of DEs³ are

\frac{d ψ}{d t} = p \cos ϕ + r \sin ϕ, \frac{d ϕ}{d t} = q - (r \cos ϕ - p \sin ϕ) \tan ψ, \frac{d θ}{d t} = (r \cos ϕ - p \sin ϕ) \sec ψ .

(26)

A small angle approximation for $ψ$ and $ϕ$ ⁸ is essential for the stabilization of the body spinning, and supposing that $ϕ p$ is considerably smaller than $r$ . As a result of these simplifications, system (26) is simplified to

\frac{d ψ}{d t} = p + r ϕ, \frac{d ϕ}{d t} = q - r ψ, \frac{d θ}{d t} = r .

(27)

The solution to (27)’s third equation is

θ (t) = \int_{0}^{t} r (s) d s + θ (0) = \frac{M_{3}}{2 D_{3}} t^{2} + r_{0} t + θ_{0} .

(28)

where

θ_{0} = θ (0)

. Multiplying the second equation of (27) by

i

and summing with the first equation yields

\frac{d}{d t} (ψ + i ϕ) + i r (ψ + i ϕ) = p + i q .

(29)

Defining the variables listed below

E = ψ + i ϕ, N = p + i q .

(30)

As a result, equation (29) becomes

\frac{d E}{d t} + i r_{0} E = N .

(31)

Inserting the new independent variable $τ$ yields

\frac{d E}{d τ} + i α τ E = α N,

(32)

where

α = \frac{ρ}{d} = \frac{D_{3}}{M_{3}} .

(33)

Equation (32) embodies a linearly time-dependent DE. It operates within the complex plane, where the complex angle denoted as $E$ serves as a metric for quantifying the overall extent of the spin axis’s divergence. Consequently, the solution to this equation can be expressed as

E (τ) = E_{0} e^{- \frac{i α}{2} τ^{2}} + α e^{- \frac{i α}{2} τ^{2}} \int_{0}^{τ} e^{\frac{i α}{2} s^{2}} N (s) d s,

(34)

where

E_{0} = E (0)

that represents the initial condition for

ψ

and

ϕ

in the new independent variable. It’s easy to realize that

N (τ)

can be shown in terms of

Λ (τ)

to obtain

N (τ) = \frac{\sqrt{ζ_{1}} + \sqrt{ζ_{2}}}{2 ζ} Λ (τ) + \frac{\sqrt{ζ_{1}} - \sqrt{ζ_{2}}}{2 ζ} \tilde{Λ} (τ),

(35)

N (τ) = d_{3} Λ (τ) + d_{4} \tilde{Λ} (τ),

(36)

whereas

d_{3} = \frac{\sqrt{d_{1}} + \sqrt{d_{2}}}{2 d}, d_{4} = \frac{\sqrt{d_{1}} - \sqrt{d_{2}}}{2 d} .

(37)

where

\tilde{Λ} (τ)

is the complex conjugate of the function

Λ (τ)

. Equation (34) transforms into

E (τ) = E_{0} e^{- \frac{i α}{2} τ^{2}} + α e^{- \frac{i α}{2} τ^{2}} [d_{3} I_{E 1} (0, τ; α, ρ) + d_{4} I_{E 2} (0, τ; α, ρ)],

(38)

where

I_{E 1} (0, τ; α, ρ) = \int_{0}^{τ} e^{\frac{i α s^{2}}{2}} Λ (s) d s,

(39)

I_{E 2} (0, τ; α, ρ) = \int_{0}^{τ} e^{\frac{i α s^{2}}{2}} \tilde{Λ} (s) d s .

(40)

Hence, to derive the values of Euler’s angles, it is necessary to assess equations (39) and (40). It is important to remember that the solution for $Λ (τ)$ can be determined by evaluating these equations. Recalling

Λ (τ) = Λ_{0} e^{\frac{i ρ a}{2} τ^{2}} + e^{\frac{i ρ a}{2} τ^{2}} I_{Λ} (0, τ; ρ),

(41)

where

I_{Λ} (0, τ; ρ) = \sum_{j = 0}^{k} B_{j} I_{j} (0, τ; ρ),

(42)

and

I_{j} (0, τ; ρ) = \int_{0}^{τ} e^{- \frac{i ρ a}{2} s^{2}} s^{j} d s, j = 0, 1, 2, \dots, k .

(43)

By replacing the variables indicated in equations (41)–(43) with those given in equations (39) and (40), one obtains

I_{E 1} (0, τ; α, ρ) = [Λ_{0} - \sum_{j = 0}^{k} B_{j} I_{j} (0; ρ)] \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} d s + \sum_{j = 0}^{k} B_{j} \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} I_{j} (s; ρ) d s,

(44)

I_{E 2} (0, τ; α, ρ) = [{\tilde{Λ}}_{0} - \sum_{j = 0}^{k} {\tilde{B}}_{j} {\tilde{I}}_{j} (0; ρ)] \int_{0}^{τ} e^{\frac{i δ s^{2}}{2}} d s + \sum_{j = 0}^{k} {\tilde{B}}_{j} \int_{0}^{τ} e^{\frac{i δ s^{2}}{2}} {\tilde{I}}_{j} (s; ρ) d s,

(45)

where

\sim

denotes the conjugate of the respected variables while

β = α + a ρ

and

δ = α - a ρ

The calculation of the first integral in equation (44) is performed by

I_{E 3} (0, τ; β, ρ) = \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} d s,

(46)

Substituting

s = \sqrt[4]{- 1} \sqrt{\frac{β}{2}} x \Rightarrow d s = \sqrt[4]{- 1} \sqrt{\frac{β}{2}} d x,

(47)

into (46) implies

I_{E 3} (0, τ; β, ρ) = \sqrt[- 4]{- 1} \sqrt{\frac{π}{2 β}} \int_{0}^{\sqrt[- 4]{- 1} \sqrt{\frac{2}{β}} τ} \frac{2 e^{x^{2}}}{\sqrt{π}} d s,

(48)

Using the special integral (imaginary error function)

\int \frac{2 e^{x^{2}}}{\sqrt{π}} d s = er fi (x) .

(49)

Therefore, the solution for $I_{E 3}$ is given by

I_{E 3} (0, τ; β, ρ) = \sqrt[- 4]{- 1} \sqrt{\frac{π}{2 β}} er fi [\sqrt[4]{- 1} \sqrt{\frac{β}{2}} τ] .

(50)

By employing analogous procedures, the value of the first integral in equation (45) becomes equivalent to

I_{E 4} (0, τ; δ, ρ) = \int_{0}^{τ} e^{\frac{i δ s^{2}}{2}} d s = \sqrt[- 4]{- 1} \sqrt{\frac{π}{2 δ}} er fi [\sqrt[4]{- 1} \sqrt{\frac{δ}{2}} τ] .

(51)

Now, turning our attention to the second integral in equation (44), it is expressed as follows

L_{j} (0, τ; β, ρ) = \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} I_{j} (s; ρ) d s,

(52)

Using the recurrence formula for $I_{j} (s; ρ)$ yields

L_{j} (0, τ; β, ρ) = \frac{i}{ρ} \int_{0}^{τ} e^{\frac{i α s^{2}}{2}} s^{j - 1} d s - \frac{i (j - 1)}{ρ} L_{j - 2} (0, τ; β, ρ), j = 2, 3, \dots, k,

(53)

Since, one readily computes

\int_{0}^{τ} e^{\frac{i α s^{2}}{2}} s^{j - 1} d s = {(- 1)}^{- \frac{j}{4}} {(2)}^{\frac{j - 2}{2}} {(- α)}^{- \frac{j}{2}} {Γ [\frac{j}{2}, - \frac{i α τ^{2}}{2}] - Γ [\frac{j}{2}, 0]},

(54)

By employing the aforementioned recurring formula, one can simplify the assessment of the integral $L_{j} (0, τ; β, ρ)$ to evaluate the sequence’s first two anonymous terms provided by

L_{0} (0, τ; β, ρ) = \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} I_{0} (s; ρ) d s,

(55)

L_{1} (0, τ; β, ρ) = \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} I_{1} (s; ρ) d s,

(56)

The computation of the integral in equation (56) can be effortlessly determined using the following

I_{1} (s; ρ) = \int_{0}^{s} e^{\frac{i ρ a x^{2}}{2}} x d x = \frac{i}{ρ a} (e^{\frac{i ρ a s^{2}}{2}} - 1),

(57)

Hence,

L_{1} (0, τ; β, ρ) = \int_{0}^{τ} e^{\frac{i α s^{2}}{2}} d s - \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} d s = \int_{0}^{τ} e^{\frac{i α s^{2}}{2 β}} d s = \frac{\sqrt[4]{- 1}}{ρ a} \sqrt{\frac{π β}{2 α}} \erf [i \sqrt{\frac{i α}{2 β}} τ] .

(58)

Using equation (23) to evaluate $I_{0} (s; ρ)$ implies

I_{0} (s; ρ) = \frac{Γ [\frac{1}{2}, 0] - Γ [\frac{1}{2}, \frac{i ρ a s^{2}}{2}]}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}} .

(59)

Therefore, equation (55) becomes

L_{0} (0, τ; β, ρ) = \frac{1}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}} \{Γ [\frac{1}{2}, 0] \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} d s - \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} Γ [\frac{1}{2}, \frac{i ρ a s^{2}}{2}] d s\} = \sqrt{\frac{π}{4 β ρ a}} Γ [\frac{1}{2}, 0] er fi [\sqrt[4]{- 1} \sqrt{\frac{β}{2}} τ] - \frac{I_{E 5} (0, τ; β, ρ)}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}},

(60)

where

I_{E 5} (0, τ; β, ρ) = \int_{0}^{τ} e^{\frac{i β s^{2}}{2}} Γ [\frac{1}{2}, \frac{i ρ a s^{2}}{2}] d s .

(61)

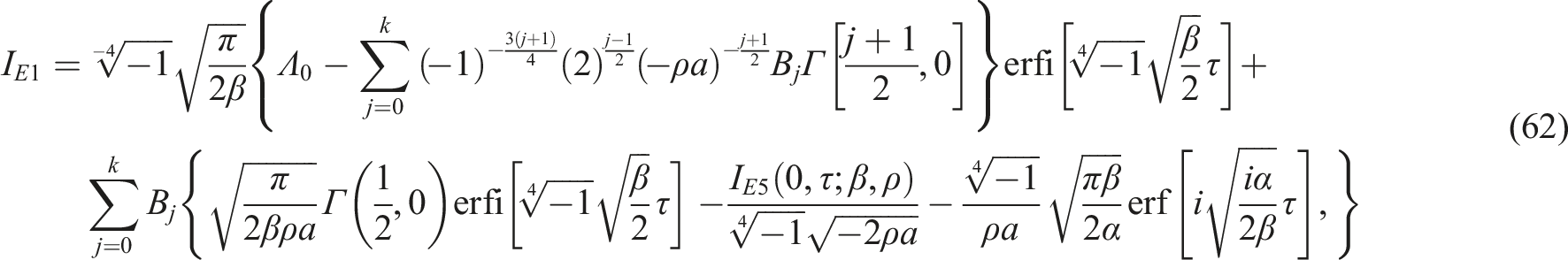

Hence, equations (44) and (45) take the forms

I_{E 1} = \sqrt[- 4]{- 1} \sqrt{\frac{π}{2 β}} {Λ_{0} - \sum_{j = 0}^{k} {(- 1)}^{- \frac{3 (j + 1)}{4}} {(2)}^{\frac{j - 1}{2}} {(- ρ a)}^{- \frac{j + 1}{2}} B_{j} Γ [\frac{j + 1}{2}, 0]} er fi [\sqrt[4]{- 1} \sqrt{\frac{β}{2}} τ] + \sum_{j = 0}^{k} B_{j} {\sqrt{\frac{π}{2 β ρ a}} Γ (\frac{1}{2}, 0) er fi [\sqrt[4]{- 1} \sqrt{\frac{β}{2}} τ] - \frac{I_{E 5} (0, τ; β, ρ)}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}} - \frac{\sqrt[4]{- 1}}{ρ a} \sqrt{\frac{π β}{2 α}} \erf [i \sqrt{\frac{i α}{2 β}} τ],}

(62)

I_{E 2} = \sqrt[- 4]{- 1} \sqrt{\frac{π}{2 δ}} [{\tilde{Λ}}_{0} - \sum_{j = 0}^{k} {(- 1)}^{- \frac{3 (j + 1)}{4}} {(2)}^{\frac{j - 1}{2}} {(- ρ a)}^{- \frac{j + 1}{2}} {\tilde{B}}_{j} Γ (\frac{j + 1}{2}, 0)] er fi [\sqrt[4]{- 1} \sqrt{\frac{δ}{2}} τ] + \sum_{j = 0}^{k} {\tilde{B}}_{j} - {\sqrt{\frac{π}{2 δ ρ a}} Γ (\frac{1}{2}, 0) er fi [\sqrt[4]{- 1} \sqrt{\frac{δ}{2}} τ] - \frac{{\tilde{I}}_{E 5} (0, τ; δ, ρ)}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}} \frac{\sqrt[4]{- 1}}{ρ a} \sqrt{\frac{π δ}{2 α}} \erf [i \sqrt{\frac{i α}{2 δ}} τ]} .

(63)

As a result, the final form of equation (38) is

E (τ) = E_{0} e^{- \frac{i α}{2} τ^{2}} + α e^{- \frac{i α}{2} τ^{2}} {\frac{d_{3}}{\sqrt[4]{- 1}} \sqrt{\frac{π}{2 β}} (Λ_{0} - \sum_{j = 0}^{k} {(- 1)}^{- \frac{3 (j + 1)}{4}} {(2)}^{\frac{j - 1}{2}} {(- ρ a)}^{- \frac{j + 1}{2}} B_{j} Γ [\frac{j + 1}{2}, 0]) \times erfi [\sqrt[4]{- 1} \sqrt{\frac{β}{2}} τ] + d_{3} \sum_{j = 0}^{k} B_{j} {\sqrt{\frac{π}{2 βρ a}} Γ [\frac{1}{2}, 0] erfi [\sqrt[4]{- 1} \sqrt{\frac{β}{2}} τ] - \frac{I_{Ε 5} (0, τ; β, ρ)}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}} - \frac{\sqrt[4]{- 1}}{ρ a} \sqrt{\frac{πβ}{2 α}} \erf [i \sqrt{\frac{i α}{2 β}} τ]} + d_{4} \sqrt[- 4]{- 1} \sqrt{\frac{π}{2 δ}} (9 {\tilde{Λ}}_{0} - \sum_{j = 0}^{k} {(- 1)}^{- \frac{3 (j + 1)}{4}} {(2)}^{\frac{j - 1}{2}} {(- ρ a)}^{- \frac{j + 1}{2}} {\tilde{B}}_{j} \times Γ [\frac{j + 1}{2}, 0]) erfi [\sqrt[4]{- 1} \sqrt{\frac{δ}{2}} τ] + d_{4} \sum_{j = 0}^{k} {\tilde{B}}_{j} (\sqrt{\frac{π}{2 δρ a}} Γ [\frac{1}{2}, 0] erfi [\sqrt[4]{- 1} \sqrt{\frac{δ}{2}} τ] - \frac{{\tilde{I}}_{E 5} (0, τ; δ, ρ)}{\sqrt[4]{- 1} \sqrt{- 2 ρ a}} - \frac{\sqrt[4]{- 1}}{ρ a} \sqrt{\frac{πδ}{2 α}} \erf [i \sqrt{\frac{i α}{2 δ}} τ])} .

(64)

Results’ discussion

The main purpose here is to showcase a visual simulation that illustrates the analytical solutions for various parameters, including angular velocities and Euler angles. Additionally, it offers an explanation of the stability characteristics of the motion. So, the following data is considered to reach these results as

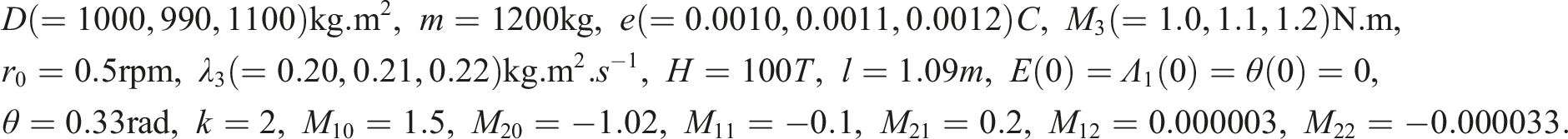

D (= 1000, 990, 1100) kg . m^{2}, m = 1200 kg, e (= 0.0010, 0.0011, 0.0012) C, M_{3} (= 1.0, 1.1, 1.2) N . m, r_{0} = 0.5 rpm, λ_{3} (= 0.20, 0.21, 0.22) kg . m^{2} . s^{- 1}, H = 100 T, l = 1.09 m, E (0) = Λ_{1} (0) = θ (0) = 0, θ = 0.33 rad, k = 2, M_{10} = 1.5, M_{20} = - 1.02, M_{11} = - 0.1, M_{21} = 0.2, M_{12} = 0.000003, M_{22} = - 0.000033 .

The subsequent subsections will present a study on the analytical solutions to the problem, which will be explored through three different scenarios:

The influence of the GM

To analyze the contribution of the GM on the motion, a simulation at various values of $λ_{3}$ for the GM vector is studied. For the influence on the angular velocities represented in a time interval $t \in [0, 10]$ mentioned in Figure 2, the increase in value of the GM has decreased the amplitude of the represented waves of $p$ and $q$ . Consequently, the wavelength has decreased while the frequency increased, as shown in Figure 2(a) and (b), respectively. As mentioned before for $r$ which is represented as only a linear function of time, Figure 2(c) demonstrates this result without any influence of the GM values. So, stabilizing the body’s motion inside its orbit is only a manipulation for the angular velocities $p$ and $q$ could be applied while $r$ remains unchangeable. The representation of the phase plan diagrams in Figure 3 has shown that the periodic solution for the angular velocities keeps its manner during the variation in the GM values. To demonstrate more validation for the derived solutions for the Euler’s angles, a graphical simulation is represented in a time interval $t \in [0, 1]$ seen in Figure 4. The increase in $λ_{3}$ value implies a decrease in the wave’s amplitude of both $ψ$ and $ϕ$ , with a slight decrease in the frequency of the waves, while $θ$ remains stationary during the variation of the GM.

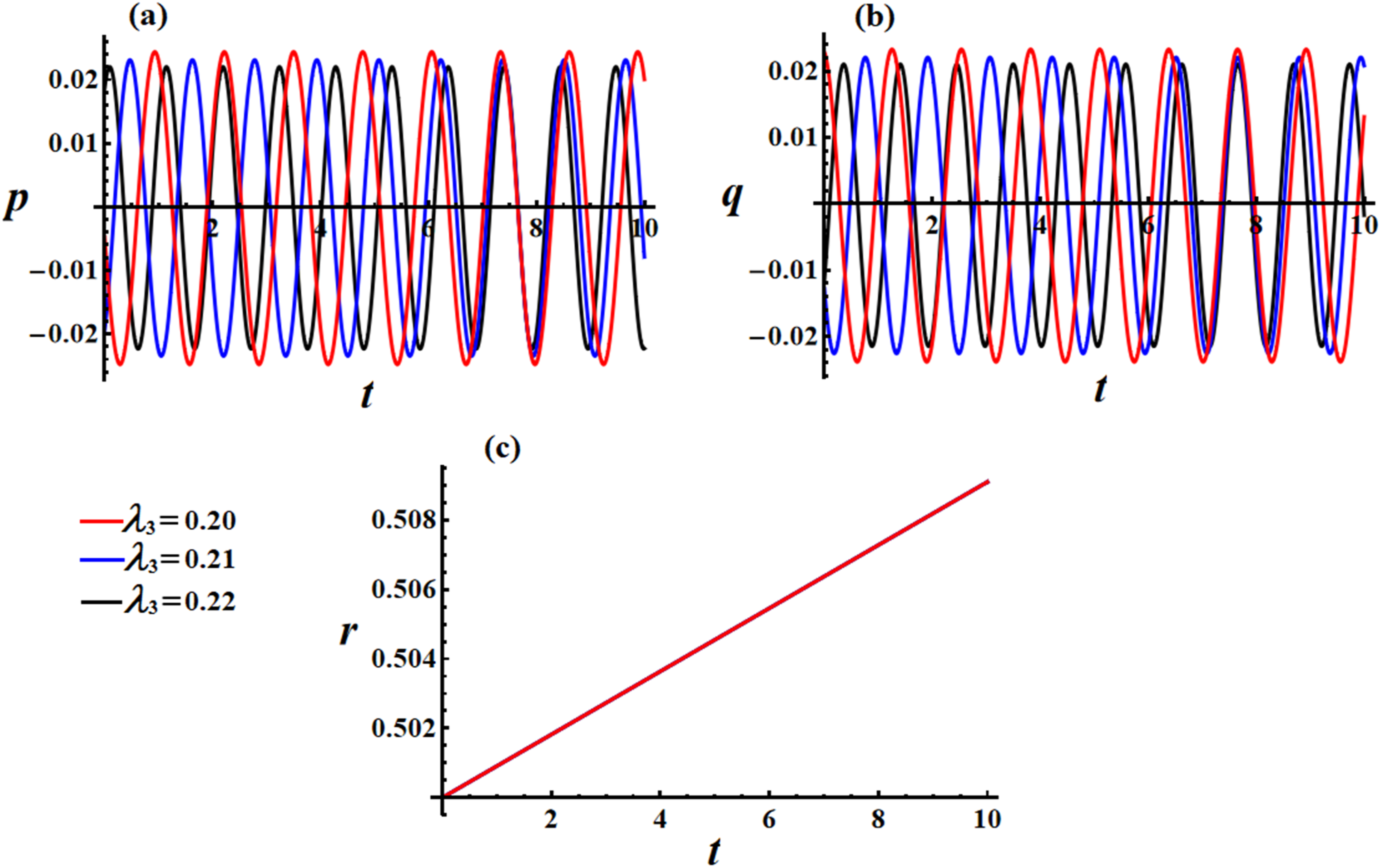

Figure 2.

Simulates analytical solution variation for the angular velocities $p, q,$ and $r$ at $λ_{3} (= 0.20, 0.21, 0.22) kg . m^{2} . s^{- 1}$ .

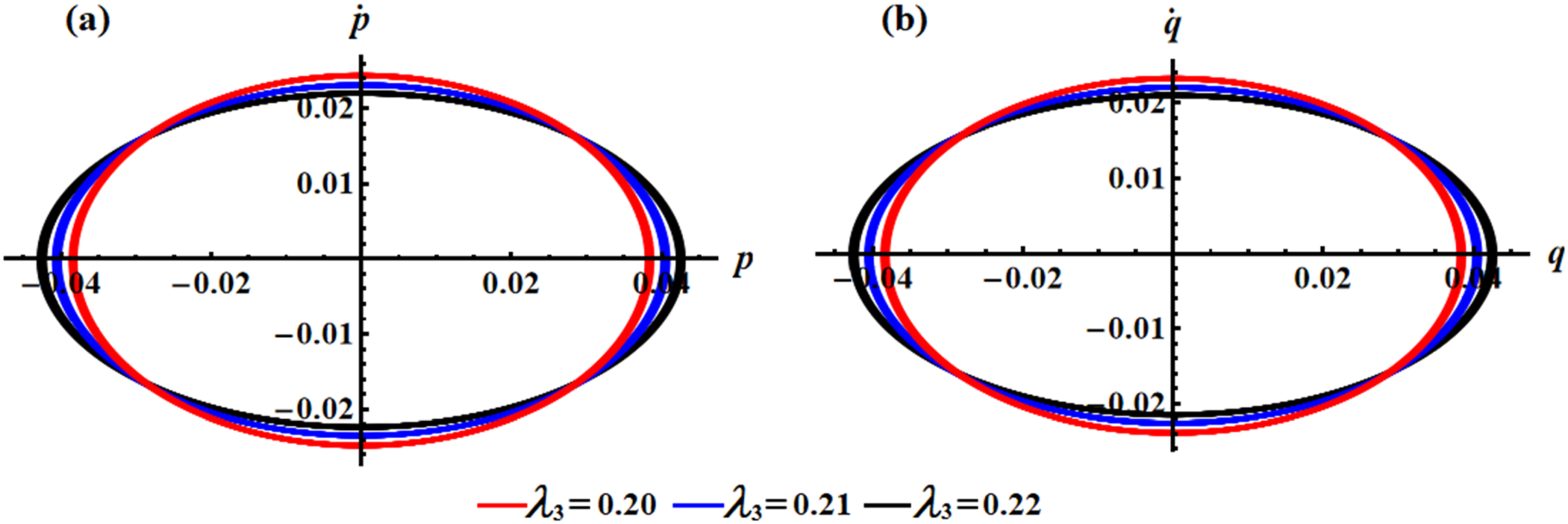

Figure 3.

Shows phase plane diagrams of Figure 2 for the angular velocities $p$ and $q$ .

Figure 4.

Plots the analytical solution variations for Euler’s angles $ψ, ϕ,$ and $θ$ at $λ_{3} (= 0.20, 0.21, 0.22) kg . m^{2} . s^{- 1}$ .

The influence of the EFF

To see the influence of the EFF on the motion, a representation with various values of $e$ is performed. For the effect on the angular velocities represented in Figure 5 inside a time interval $t \in [0, 10]$ , the increase in the charge’s value has increased the amplitude of the represented waves of $p$ and $q$ consequently, the wavelength has increased while the frequency decreased, as shown in Figure 5(a) and (b), respectively. As mentioned before for $r$ which is represented as only a linear function of time, Figure 5(c) demonstrates this result without any influence of the charge. So, stabilizing the body’s motion inside its orbit is only a manipulation for the angular velocities $p$ and $q$ could be applied while $r$ remains unchangeable as in the case of the GM but with an opposite effect. The representation of the phase plan diagrams in Figure 6 has shown that the periodic solution for the angular velocities keeps its manner during the variation in the charge’s values. To demonstrate more validation for the derived solutions for the Euler’s angles, a graphical simulation is represented in a time interval $t \in [0, 1]$ shown in Figure 7. The increase of $e$ value implies an increase in the wave’s amplitude of both $ψ$ and $ϕ$ in addition to an increase in the wavelength with a decrease in the frequency of the waves, while $θ$ remains stationary during the variation of the charge. Again, this could be useful in stabilizing a higher angular velocity of RBs moving in magnetic or electric fields.

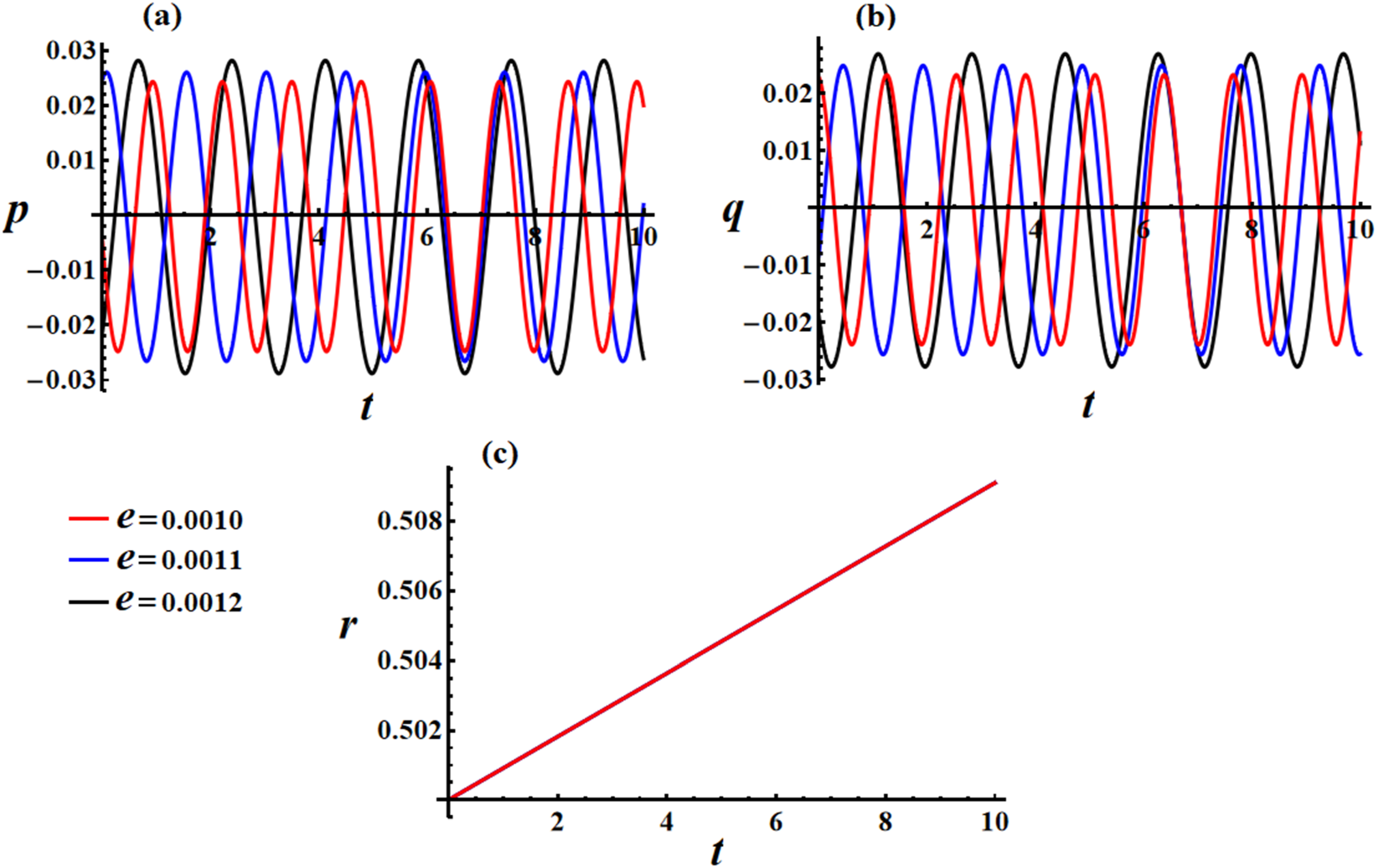

Figure 5.

Diagrams the angular velocities’ analytical solution at $e (= 0.0010, 0.0011, 0.0012) C$ .

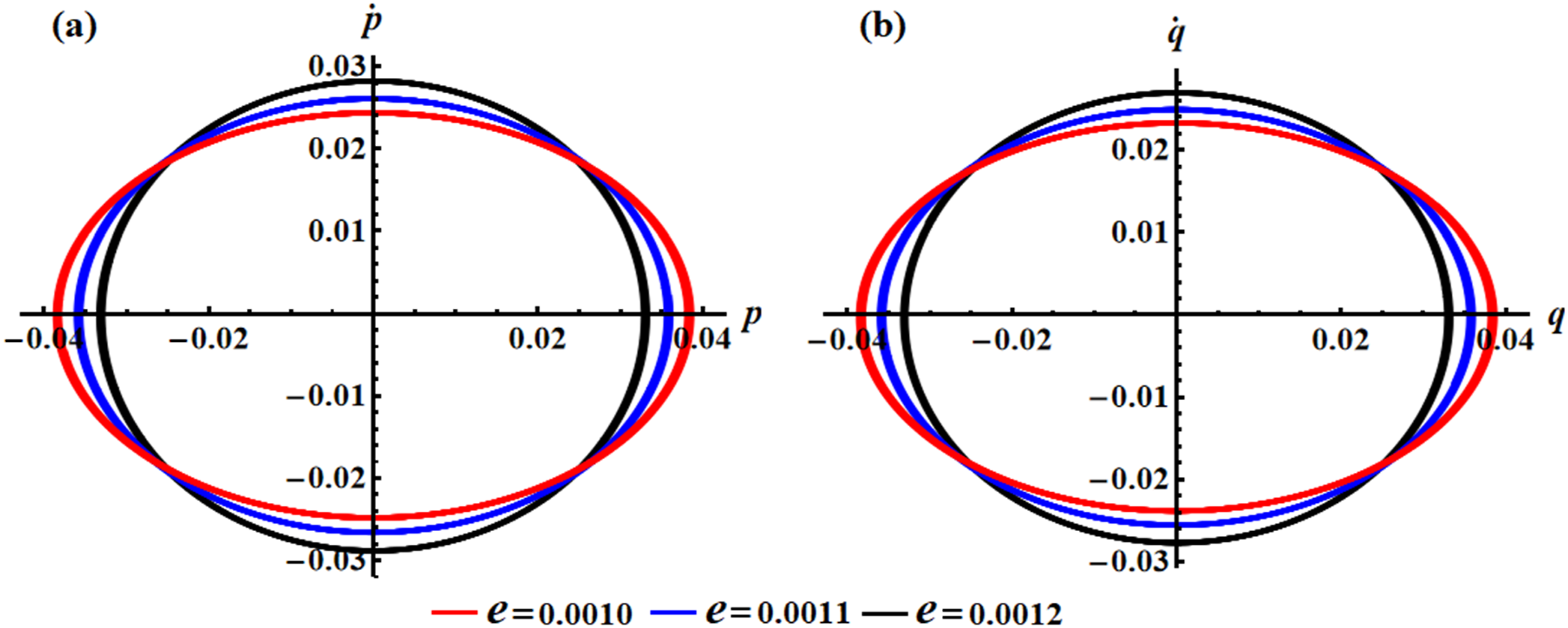

Figure 6.

Plots phase plane diagrams at the same values as Figure 5 for: (a) $p$ and (b) $q$ .

Figure 7.

Shows Euler’s angles analytical solution at $e (= 0.0010, 0.0011, 0.0012) C$ .

The influence of the axial torque

The last studied impact on the body motion is the influence of the axial torque, a graphical simulation at various values of the axial torque $M_{3}$ is investigated. For the influence on the axial torque represented in Figure 8 inside a time interval $t \in [0, 10]$ , the increase in value of the axial torque has decreased the frequency of the represented waves of $p$ and $q$ consequently, the wavelength has increased while the amplitude remains the same, as shown in Figure 8(a) and (b), respectively. Now for $r$ which is represented as only a linear function of time, Figure 8(c) shows an increase in values $r$ while the axial torque increases. So, stabilizing the body’s motion inside its orbit, could be performed by manipulation for the angular velocities $p, q$ and $r$ . The representation of the phase plan graphs in Figure 9 has shown that the periodic solution for the angular velocities keeps its manner during the variation in the $M_{3}$ values. To demonstrate more validation for the derived solutions for the Euler’s angles, a graphical simulation is represented in Figure 10 in a time interval $t \in [0, 1]$ . The increasing of $M_{3}$ value implies a decrease in the wave’s frequency of both $ψ$ and $ϕ$ with an increase in the wavelength of the waves while the amplitude remains stationary. For $θ$ , its value slightly increases with the increase of the axial torque. So, the contribution of the axial torque on the motion includes all angular velocity components and all Euler’s angles with a remarkable influence on the motion which could be used to control the variation on the motion trajectories.

Figure 8.

Diagrams the variation of the angular velocity components at $M_{3} (= 1.0, 1.1, 1.2) N . m$ .

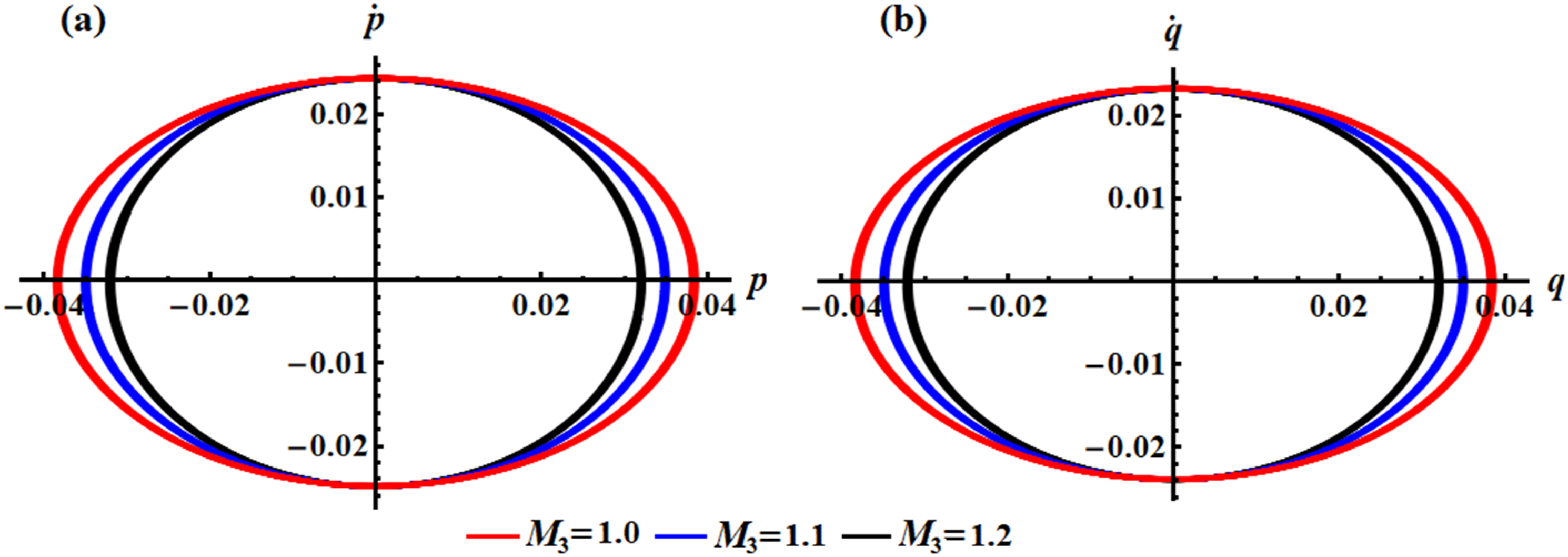

Figure 9.

Illustrates phase plane diagrams for angular velocity components $p$ and $q$ at the same values as Figure 8.

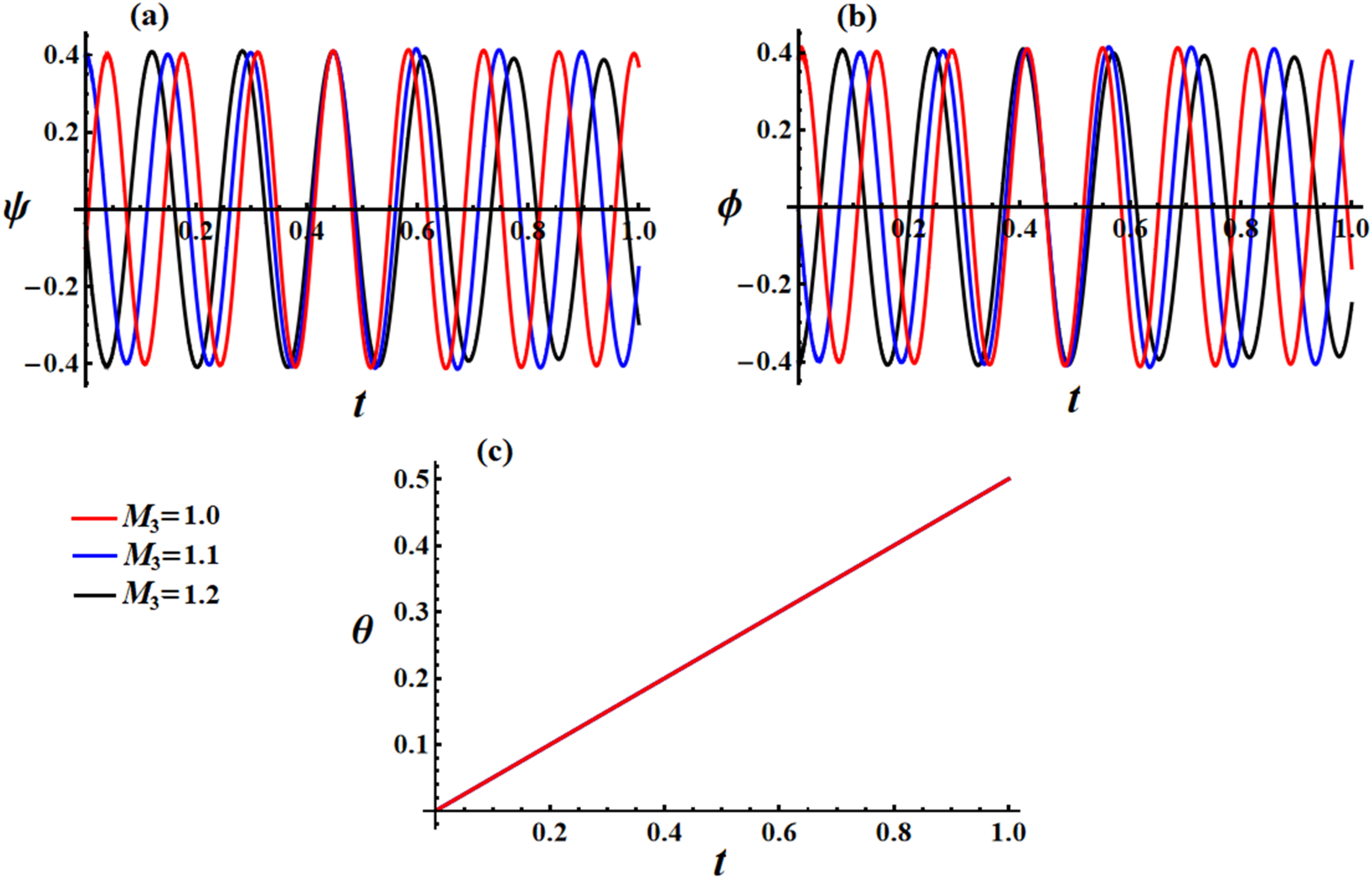

Figure 10.

Plots the variation of Euler’s angles at $M_{3} (= 1.0, 1.1, 1.2) N . m$ .

Conclusion

This paper investigates a novel analytical solution for the motion of a nearly symmetrical RB under the effect of EFF, GM, TVBFTs, and CAT. Euler’s EOM in addition to Euler’s angles has been derived in an appreciated form to describe the body motion and orientation. The new analytical solutions for both the body angular velocities and Euler’s angles have been approached. These novel solutions are obtained concerning TVBFTs along $O x_{2}$ and $O y_{2}$ with CAT along $O z_{2}$ and expressing them as integrals. Additionally, a new closed-form evaluation mechanism for these integrals is offered where transverse torques are represented by polynomial functions of time. The method’s precision is demonstrated through the graphical simulation of the proposed solutions. To deal with such a case, three scenarios in the simulation have been presented. Firstly, the contribution of the GM on the motion where it shows some important results that could be used in maintaining the motion of the body in cases where both $p$ and $q$ the angular velocities, $ψ$ and $ϕ$ the Euler’s angles are higher than usual while remaining stationary. Secondly, the impact of the EFF through various values of the charge that the body gained where the importance of this influence showed an opposite result as the GM that could deal with the case for $p, q$ and Euler’s angle $ψ$ and $ϕ$ are lower than usual while $r$ and $θ$ remain unchangeable. Thirdly, the influence of axial torque which now impacted all the body angular velocities and all Euler’s angles with a remarkable influence on the motion could be used to control the variation in the motion trajectories. The body stability is also examined through phase diagrams in the three scenarios showing that the periodicity of the solutions has the same closed-form manner. The significance of this study extends across various scientific and engineering domains, as it holds immense potential in enhancing mechanical systems, elucidating celestial motion, and enhancing spacecraft efficiency.

Footnotes

Author contributions

T.S. Amer: Investigation, methodology, data curation, conceptualization, validation, reviewing, and editing. H.F. El-Kafly: Resources, methodology, conceptualization, validation, formal analysis, visualization, and reviewing. A.H. Elneklawy: Methodology, conceptualization, data curation, validation, and writing—original draft preparation. W.S. Amer: Conceptualization, resources, formal analysis, validation, visualization, and reviewing.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

T.S. Amer

A.H. Elneklawy

W.S. Amer

Data availability statement

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.*

Appendix

References

Yehia

. Rigid body dynamics: a lagrangian approach. 1st ed. Cham, Switzerland: Springer Nature, 2023.

Leimanis

. The general problem of the motion of coupled rigid bodies about a fixed point. New York, NY: Springer-Verlag, 1965.

Wertz

. Spacecraft attitude determination and control. Dordrecht, The Netherlands: D. Reidel, 2000.

Tikhonov

. Rigid-body dynamics from the euler equations to the attitude control of spacecraft in the works of scientists from St. Petersburg state university. Part 2. Vestn St Petersbg Univ Math 2024; 57(2): 171–201.

Ivanova

. A new approach to the solution of some problems of rigid body dynamics. Z Angew Math Mech 2001; 81(9): 613–622.

Ismail

Amer

. A necessary and sufficient condition for solving a rigid body problem. Tech Mech 2011; 31(1–2): 50–57.

Elmandouh

. New integrable problems in the dynamics of particle and rigid body. Acta Mech 2015; 226(11): 3749–3762.

Longuski

Tsiotras

. Analytical solutions for a spinning rigid body subject to time-varying body-fixed torques, Part I: constant axial torque. J Appl Mech 1993; 60(4): 970–975.

Galal

Amer

Elneklawy

, et al. Studying the influence of a gyrostatic moment on the motion of a charged rigid body containing a viscous incompressible liquid. Eur Phys J Plus 2023; 138: 959.

10.

Leshchenko

Kozachenko

. Evolution of rotational motions in a resistive medium of a nearly dynamically spherical gyrostat subjected to constant body-fixed torques. MMM 2022; 4(2): 19–31.

11.

Panayotounakos

Rizou

Theotokoglou

. A new mathematical construction of the general nonlinear ODEs of motion in rigid body dynamics (Euler’s equations). Appl Math Comput 2011; 217(21): 8534–8542.

12.

Ivanova

. A new model of a micropolar continuum and some electromagnetic analogies. Acta Mech 2015; 226(3): 697–721.

13.

Müller

Ivanova

Vilchevskaya

. On attempts to interpret Maxwell’s equations mechanically-a review. In: Advanced structured materials. Cham, Switzerland: Springer Nature Switzerland, 2024, pp. 263–299.

14.

Müller

Ivanova

Vilchevskaya

. Momentum and spin balance in an inertial frame obtained by using the concept of images. Cham, Switzerland: Springer Nature Switzerland, 2024, pp. 217–261.

15.

Ivanova

Angew

. Modeling of electrodynamic processes by means of mechanical analogies. Math. Mech 2021; 101: 4.

16.

Galdi

. Large-time behavior of a rigid body of arbitrary shape in a viscous fluid under the action of prescribed forces and torques. J Math Fluid Mech 2023; 25: 43.

17.

Amer

Abady

Farag

. Stability analysis of an acted asymmetric rigid body by a gyrostatic moment and a constant body-fixed torque. Control 2023; 43(1): 325–341.

18.

Ershkov

Leshchenko

. Solving procedure for the dynamics of charged particle in variable (time-dependent) electromagnetic field. Z Angew Math Phys 2020; 71: 77.

19.

Ismail

Amer

. Advanced investigations of a restricted gyrostatic motion. Control 2023; 42(3): 1205–1221.

20.

Leshchenko

Ershkov

Kozachenko

. Evolution of motion of a rigid body similar to lagrange top under the influence of slowly time varying torques. Proc Inst Mech Eng Part C 2022; 236(22): 10879–10890.

21.

Amer

El-Sabaa

Sallam

, et al. Studying the vibrational motion of a rotating symmetrically charged solid body subjected to external forces and moments. Math Comput Simulat 2023; 210: 120–146.

22.

El-Barki

Ismail

. Limiting case for the motion of a rigid body about a fixed point in the Newtonian force field. Z Angew Math Mech 1995; 75(12): 821–829.

23.

Ismail

. The motion of fast spinning rigid body about a fixed point with definite natural frequency. Aero Sci Technol 1997; 1(3): 183–190.

24.

Ismail

. Motion of a rigid body in a Newtonian field of force exerted by three attracting centers. J Aero Eng 2011; 24(3): 318–328.

25.

Leshchenko

Ershkov

Kozachenko

. Evolution of rotational motions of a nearly dynamically spherical rigid body with a moving mass. Commun Nonlinear Sci Numer Simul 2024; 133: 107916.

26.

Elmandouh

Alsaad

. The stability of certain motion of a charged gyrostat in Newtonian force field. Adv Astron 2021; 2021: 1–11.

27.

Rachinskaya

Rumyantseva

. Optimal deceleration of a rotating asymmetrical body in a resisting medium. Int Appl Mech 2018; 54(6): 710–717.

28.

Amer

. The rotational motion of the electromagnetic symmetric rigid body. Appl Math Inf Sci 2016; 10(4): 1453–1464.

29.

Ivanov

. Attenuation control of gyrostat without energy supply. Int J Non Lin Mech 2023; 154: 104441.

30.

Galal

Amer

El-Kafly

, et al. The asymptotic solutions of the governing system of a charged symmetric body under the influence of external torques. Results Phys 2020; 18: 103160.

31.

Amer

El-Kafly

Elneklawy

, et al. Analyzing the spatial motion of a rigid body subjected to constant body-fixed torques and gyrostatic moment. Sci Rep 2024; 14: 5390.

32.

Amer

El-Kafly

Elneklawy

, et al. Analyzing the dynamics of a charged rotating rigid body under constant torques. Sci Rep 2024; 14: 9839.

33.

J-H

Amer

, et al. Dynamical analysis of a rotating rigid body containing a viscous incompressible fluid. Int J Numer Methods Heat Fluid Flow 2023; 33(8): 2800–2814.

34.

J-H

Amer

El-Kafly

, et al. Modelling of the rotational motion of 6-DOF rigid body according to the Bobylev-Steklov conditions. Results Phys 2022; 35: 105391.

35.

Amer

Galal

. Simulation of a subjected rigid body motion to an external force and moment. J Vib Eng Technol 2023; 12: 2775–2790.

36.

Ershkov

Rachinskaya

. Semi-analytical solution for the trapped orbits of satellite near the planet in ER3BP. Arch Appl Mech 2021; 91(4): 1407–1422.

37.

Ivanova

Jatar Montaño

. A new approach to solving the solid mechanics problems with matter supply. Continuum Mech Therm 2021; 33(4): 1829–1855.

38.

Abdel-Aziz

Yehia

El-Salam

FAA

, et al. Periodic motions of spinning rigid spacecraft under influence of gravitational and magnetic fields. Appl Math Mech 2006; 27(8): 1061–1069.

39.

Galal

. Free rotation of a rigid mass carrying a rotor with an internal torque. J Vib Eng Technol 2023; 11: 3627–3637.
