Acoustic-diffusion process of non-local vibrated polymer composite elastic medium subjected to laser thermal source

Abstract

This study investigates the complex interactions between acoustic pressure and mass diffusion in a non-local polymer composite thermoelastic medium subjected to a thermal laser source (laser pulse), analyzed using normal mode analysis. The focus is on understanding the coupled effects of thermal, mechanical, and chemical actions within the medium. The thermal laser source induces thermal waves that interact with the thermoelastic and diffusive properties of the material. The analysis reveals that acoustic pressure influences the mass diffusion process through a chemically potential mechanism, which in turn affects the overall thermoelastic response of the composite. The non-local theory accounts for the microstructural effects, more accurately representing the material behavior under thermal loading. Numerical simulations demonstrate the significance of non-local effects and chemical reactions on the coupled field interactions, highlighting their impact on the stability and performance of polymer composites in advanced engineering applications.

Keywords

thermoelasticity chemical potential mass diffusion acoustic wave non-local laser pulse

Introduction

For advanced engineering uses, it’s important to understand how acoustic pressure, chemical reactions that change mass diffusion, and the thermoelastic response of non-local polymer composite materials when they are exposed to a thermal laser source work together to get the best performance and durability. The use of a thermal laser causes localized heating, which generates acoustic waves that interact with the polymer matrix. Because thermal gradients and acoustic pressure can speed up or slow down chemical reactions inside the composite, this interaction changes how mass diffusion works. Due to these interactions, the non-local polymer composite, characterized by its spatially dependent thermal and mechanical properties, experiences complex thermoelastic behaviors. Understanding these dynamics is crucial for applications such as laser-based manufacturing, smart materials, and aerospace engineering, where precise control of thermal and mechanical responses is essential for enhancing material performance and reliability.

Biot,¹ Lord and Shulman,² Green and Naghdi,^3–5 and Tzou⁶ initiated a significant development in thermoelasticity over the years. The last-mentioned scientist made a significant contribution to the thermoelastic field by studying diffusion, a phenomenon that is crucial to many life processes. Now, there is great interest in studying this phenomenon due to its wide-ranging applications in various industries. Atwa et al.⁷ introduced a three-phase lag model and discussed the effect of diffusion with two-temperature theory. Atwa and Ibrahim⁸ discussed the rotation effectiveness on a thermoelastic plate, taking into account the diffusion phenomena. Li et al.⁹ studied the application of non-local theory on a diffusive material. Singh and Kumari¹⁰ discussed Rayleigh wave propagation with two-temperature, diffusion, and three-phase lags.

Current research focuses on the propagation of acoustic waves in thermoelastic media and the impact of various phenomena such as magnetic fields, rotation, and heat sources. These waves have a wide range of applications in many life-worlds, including medicine and communication technologies. Mandelis¹¹ studied the photoacoustic and thermal wave phenomena in semiconductors. In 12, Youssef talked about the state space on generalized thermoelasticity for an infinite material with a spherical cavity and variable thermal conductivity that is heated in a ramp-type way. Lotfy¹³ conducted a study on photo-thermal-elastic waves in a semiconductor material, examining the effects of pulse heat flux and thermal memory, and derived analytical solutions. Abbas et al.¹⁴ discussed the photothermal interactions in a semiconductor medium with a cylinder cavity. Lofty et al.¹⁵ studied the effect of rotating and magnetic fields on a semiconducting material during photo-excited processes.¹⁶ Photo-thermal excitation waves solved the thermal-piezoelectric problem of a semiconductor medium.¹⁷

One of the nonlinear absorption processes is the ultrashort laser pulse. Abbas¹⁸ conducted a study on the impact of a thermal source and mass diffusion in a transversely isotropic thermoelastic infinite medium. In 19, researchers conducted a finite element analysis of a nonlinear bioheat model in skin tissue, which was influenced by external thermal sources. Lofty et al.²⁰ conducted a study on the photothermal excitation process in a hyperbolic two-temperature theory for a magneto-thermo-elastic semiconducting medium. In 21, we studied the thermal-optical mechanical waves of an excited microelongated semiconductor layer in a rotational field. El-Sapa et al.²² studied the photothermal excitation process in semiconductor materials as a function of moisture diffusivity. It was first used by Ibrahim et al.²³ to study a four-phase lag model in a rotating diffusive thermoelastic plate with laser pulse emission. Hobiny et al.²⁴ confirmed the eigenvalue method for studying how living tissues react to heat and mechanical forces when they are exposed to laser light.

The non-locality thermoelasticity was introduced by Edelen et al.,^25–27 They introduced the total internal energy as a function of the strain. Zenkour et al.²⁸ discussed the thermoelasticity theory for the vibration of nanobeams induced by ramp-type heating. In 29, we studied thermomechanical interactions in a non-local thermoelastic model with two temperature- and memory-dependent derivatives. Said et al.³⁰ talked about what happens when you put initial stress and rotation on a thermoelastic medium made of fibers that aren’t localized and have a fractional derivative heat transfer. Lotfy et al.,^31–33 introduced a new model of non-local photoacoustic and plasmaelastic heating by laser pulsed excitation of nanoscale semiconductor medium and discussed the effects of rotation and hydrostatic pressure.

Thermoelastic models play a crucial role in the study of advanced materials subjected to mechanical and thermal loads, with applications spanning various engineering fields. In biomedical engineering, thermoelasticity is used to model tissue behavior in laser-based treatments and non-invasive diagnostic techniques such as photoacoustic imaging.³⁴ In aerospace engineering, polymer composites with thermoelastic properties are critical for designing heat-resistant materials used in thermal protection systems and structural components exposed to extreme temperature fluctuations.³⁵ Additionally, laser-induced thermoelastic effects are widely studied in laser-based manufacturing processes, where precise thermal control is necessary for microfabrication and additive manufacturing.³⁶ Recent advances in non-local thermoelasticity have further enhanced our understanding of material behavior at micro and nanoscale levels, enabling improved predictive models for polymer composite structures subjected to coupled thermal, acoustic, and diffusion effects.³⁷ These applications highlight the importance of developing accurate and comprehensive thermoelastic models, such as the one proposed in this study, to optimize material performance in modern engineering applications

This essay looks at what happens to non-local thermoelastic plates when they are heated up and cooled down, taking into account the effects of the diffusion parameter. Nowadays, there is a significant focus on studying the behavior of elastic mediums under various external effects. Here, we are very attentive to understanding the behavior of elastic plates, taking into consideration the propagation of diffusion with the emission of laser pulses. We establish the structural equations for the problem and solve the system exactly. We graphically show how the parameters affect the system through numerous comparisons. The insights gained can lead to advancements in fields such as material science, structural health monitoring, and acoustic engineering. By comprehensively analyzing how these variables impact wave behavior, we can better predict and control the responses of thermoelastic materials, paving the way for innovative applications and enhanced material performance.

The governing equations

Here, we will introduce the control system in Cartesian coordinates (Figure 1) of a non-local acoustic diffusive thermoelastic plate with a thermal source.

Figure 1.

The schema of the problem.

The equation of motions will be in the absence of body forces³⁸

ρ (1 - ε^{2} \nabla^{2}) {\ddot{u}}_{i} = σ_{i j, j}, (i, j = 1, 2)

(1)

The coupled heat conduction equation with concentration $C$ is³⁹

K T_{, i i} = (\frac{\partial}{\partial t} + τ_{0} \frac{\partial^{2}}{\partial t^{2}}) (ρ C_{E} T + β_{2} T_{0} u_{i, j} + a T_{0} C - ρ Q)

(2)

The laser pulse illuminated the plate surface is given by the heat input⁴⁰:

Q = I_{o} f (t) g (x) h (y) .

(3)

I_{o}

is defined as the energy lost on the surface, the temporary function

f (t)

is symbolized as

f (t) = \frac{t}{t_{o}^{2}} \exp (\frac{- t}{t_{o}}) .

(4)

Where

t_{o}

is the pulse time rising. The pulse is coordinated in

x

g (x) = \frac{1}{2 π r^{2}} \exp (\frac{- x^{2}}{r^{2}}) .

(5)

Where

r

is the radius of the beam in

z

direction, the heat precipitation due to laser pulse is exponentially decayed within the solids as

h (y) = γ \exp (- γ y)

(6)

The constitutive equations are³⁷:

(1 - ε^{2} \nabla^{2}) σ_{i j} = σ_{i j}^{'}, σ_{i j}^{'} = 2 μ e_{i j} + (λ e - β_{2} T - β_{1} C) δ_{i j},

(7)

P = - β_{1} e + b_{1} C - a (T - T_{0})

(8)

The coupled mass diffusion and temperature equation is⁴⁰

D_{c} β_{1} \nabla^{2} e + D_{c} a \nabla^{2} T + (\frac{\partial}{\partial t} + τ_{d} \frac{\partial^{2}}{\partial t^{2}}) C = D_{c} b_{1} \nabla^{2} C

(9)

The coupled thermoacoustic equation for polymer material is given by³⁹

\nabla^{2} φ (x, y, t) - \frac{1}{c_{s}^{2}} \ddot{φ} (x, y, t) = - I β \ddot{T} (x, y, t)

(10)

In this problem, an acoustic, homogenous, isotropic, elastic material with diffusion emitted by the laser pulse is studied. All quantities are assumed to be in the

x y -

plane. Hence, the displacement components are⁴¹

u_{x} = u (x, y, t), u_{y} = v (x, y, t) and u_{z} = 0

(11)

The equations of motion will be

ρ (1 - ε^{2} \nabla^{2}) \ddot{u} = μ \nabla^{2} u + (λ + μ) e_{, x} - β_{2} T_{, x} - β_{1} C_{, x}

(12)

ρ (1 - ε^{2} \nabla^{2}) \ddot{v} = μ \nabla^{2} v + (λ + μ) e_{, y} - β_{2} T_{, y} - β_{1} C_{, y}

(13)

To ease the solution, we identified the next dimensionless quantities

(x^{'}, y^{'}, u^{'}, v^{'}, ε^{'}) = C_{0} η (x, y, u, v, ε), (t^{'}, τ_{0}^{'}, {τ_{d}}^{'}) = c_{0}^{2} η (t, τ_{0}, τ_{d}), T^{'} = \frac{β_{2} T}{(2 μ + λ)}, σ_{i j}^{'} = \frac{σ_{i j}}{2 μ + λ}, C^{'} = \frac{β_{1} C}{2 μ + λ}, (P^{'}, φ^{'}) = \frac{(P, φ)}{P_{0}}, Q^{'} = \frac{β_{2}}{c_{E} η {c_{o}}^{2} (λ + 2 μ)} Q

(14)

Where

η = \frac{ρ C_{E}}{K}

\nabla^{2} = \frac{\partial^{2}}{\partial x^{2}} + \frac{\partial^{2}}{\partial y^{2}}

C_{0}^{2} = \frac{2 μ + λ}{ρ}

Defining two potential functions $Π (x, y, t)$ and $ψ (x, y, t)$ , that will be used to make the equations more simplified as

u = Π_{, x} + ψ_{, y}, v = Π_{, y} - ψ_{, x}

(15)

The equations controlling the system are five equations. The equation of motion is represented in equations (12) and (13), the coupled heat conduction equation (2), the coupled mass diffusion equation (9), and the acoustic heat processes equation (10).

These equations can be simplified with the aforesaid dimensionless and potential functions as the following (with the primes removed for simplicity):

(1 - ε^{2} \nabla^{2}) \ddot{Π} = \nabla^{2} Π - T - C

(16)

(1 - ε^{2} \nabla^{2}) \ddot{ψ} = A \nabla^{2} ψ

(17)

\nabla^{2} T = (\frac{\partial}{\partial t} + τ_{o} \frac{\partial^{2}}{\partial t^{2}}) [T + a_{1} \nabla^{2} Π + a_{2} C - a_{3} Q]

(18)

\nabla^{4} Π + a_{4} \nabla^{2} T + a_{5} (\frac{\partial}{\partial t} + τ_{d} \frac{\partial^{2}}{\partial t^{2}}) C - a_{6} \nabla^{2} C = 0

(19)

(\nabla^{2} - ε_{p} \frac{\partial^{2}}{\partial t^{2}}) φ + η_{p} \frac{\partial T}{\partial t} = 0

(20)

where

A = \frac{μ}{ρ c_{o}^{2}}, a_{1} = \frac{β_{2}^{2} T_{o}}{K η (2 μ + λ)}, a_{2} = \frac{a β_{2} T_{o}}{K β_{1} η}, a_{3} = ρ c_{E} c_{o}^{2}, a_{4} = \frac{a (2 μ + λ)}{β_{1} β_{2}}

a_{5} = \frac{2 μ + λ}{η D_{c} β_{1}^{2}}, a_{6} = \frac{b_{1} (2 μ + λ)}{β_{1}^{2}}, ε_{p} = \frac{c_{o}^{2}}{c_{s}^{2}}, η_{p} = \frac{I β c_{o}^{2} (2 μ + λ)}{β_{2} p_{o}}

Solution of the problem

Now, we will use the Normal mode method to solve the problem, as it is the best way to get the exact solution. So, the main variables will be defined in the following form:

[Π, ψ, φ, T, C] (x, y, t) = [Π^{*}, ψ^{*}, φ^{*}, T^{*}, C^{*}] (y) \exp (ω t + i b x)

(21)

Where

ω

is the frequency time, which is a complex number,

i = \sqrt{- 1}

b

is the wave number in the direction of

x

-axis and

Π^{*}, ψ^{*}, φ^{*}, T^{*}

and

C^{*}

are the amplitude of the given main quantities.

Now, the equations From (16)–(20) will be written, with the aid of equation (21) as

(A_{2} - A_{1} D^{2}) Π^{*} - T^{*} - C^{*} = 0

(22)

(A_{4} - A_{3} D^{2}) ψ^{*} = 0

(23)

(D^{2} - A_{5}) T^{*} - A_{6} (D^{2} - b^{2}) Π^{*} - A_{7} C^{*} = Q_{o} f (x, t) e^{- γ y}

(24)

a_{4} (D^{2} - b^{2}) T^{*} + {(D^{2} - b^{2})}^{2} Π^{*} + (A_{8} - a_{6} D^{2}) C^{*} = 0

(25)

(D^{2} - A_{9}) φ^{*} + A_{10} T^{*} = 0

(26)

Where,

A_{1} = ε^{2} ω^{2} + 1, A_{2} = ω^{2} + b^{2} A_{1}, A_{3} = ε^{2} ω^{2} + A, A_{4} = ω^{2} - A_{3} b^{2}

A_{5} = ω (1 + τ_{o} ω) + b^{2}, A_{2} = a ω (1 + τ_{o} ω), A_{7} = a_{2} ω (1 + τ_{o} ω)

A_{8} = a_{6} b^{2} + a_{5} ω (1 + τ_{d} ω), A_{9} = b^{2} + ε_{p} ω^{2}, A_{10} = η_{p} ω^{2}, Q_{o} = \frac{a_{3} I_{o} γ}{2 π r^{2} t_{o}},

and

f (x, t) = [(1 - \frac{t}{t_{o}}) + τ_{o} {(- 2 + \frac{t}{t_{o}})}^{2}] e^{- \frac{t}{t_{o}} - \frac{x^{2}}{r^{2}}}

Equations (22), (24)–(26) are dependent differential equations, and can be simplified as

(D^{8} - B_{1} D^{6} + B_{2} D^{4} - B_{3} D^{2} + B_{4}) φ^{*} = - l_{1} Q_{o} f (x, t) e^{- γ y}

(27)

(D^{8} - B_{1} D^{6} + B_{2} D^{4} - B_{3} D^{2} + B_{4}) T^{*} = - l_{2} Q_{o} f (x, t) e^{- γ y}

(28)

(D^{8} - B_{1} D^{6} + B_{2} D^{4} - B_{3} D^{2} + B_{4}) Π^{*} = - l_{3} Q_{o} f (x, t) e^{- γ y}

(29)

(D^{8} - B_{1} D^{6} + B_{2} D^{4} - B_{3} D^{2} + B_{4}) C^{*} = - l_{4} Q_{o} f (x, t) e^{- γ y}

(30)

Where,

B_{1} = \frac{(A_{5} + A_{2} a_{6} + A_{1} A_{5} a_{6} ‐ a_{4} A_{6} ‐ a_{6} A_{6} ‐ A_{7} + A_{1} a_{4} A_{7} + A_{1} A_{8} + A_{9} + A_{1} a_{6} A_{9} + 2 b^{2})}{(A_{1} a_{6} + 1)},

B_{2} = \frac{{\begin{cases} A_{2} A_{5} a_{6} + A_{2} a_{4} A_{7} + A_{2} A_{8} + A_{1} A_{5} A_{8} - A_{6} A_{8} + A_{5} A_{9} + A_{2} a_{6} A_{9} + A_{1} A_{5} a_{6} A_{9} - a_{4} A_{6} A_{9} - a_{6} A_{6} A_{9} \\ - A_{7} A_{9} + A_{1} a_{4} A_{7} A_{9} + A_{1} A_{8} A_{9} + b^{2} (2 A_{5} + 2 a_{4} A_{6} + a_{6} A_{6} + 2 A_{7} - A_{1} a_{4} A_{7} - 2 A_{9}) + b^{^} 4 \end{cases}}}{(A_{1} a_{6} + 1)},

B_{3} = \frac{{\begin{cases} A_{2} A_{5} A_{8} + A_{2} A_{5} a_{6} A_{9} + A_{2} a_{4} A_{7} A_{9} + A_{2} A_{8} A_{9} + A_{1} A_{5} A_{8} A_{9} - A_{6} A_{8} A_{9} + b^{2} (A_{2} a_{4} A_{7} - A_{6} A_{8} \\ + 2 A_{5} A_{9} - 2 a_{4} A_{6} A_{9} - a_{6} A_{6} A_{9} - 2 A_{7} A_{9} + A_{1} a_{4} A_{7} A_{9}) + b^{4} (A_{5} - a_{4} A_{6} - A_{7} + A_{9}) \end{cases}}}{(A_{1} a_{6} + 1)},

B_{4} = \frac{A_{2} A_{5} A_{8} A_{9} + b^{2} (A_{2} a_{4} A_{7} A_{9} ‐ A_{6} A_{8} A_{9}) + b^{4} (A_{5} A_{9} ‐ a_{4} A_{6} A_{9} ‐ A_{7} A_{9})}{(A_{1} a_{6} + 1)},

l_{1} = \frac{A_{10} A_{2} A_{8} + A_{10} b^{4} + γ^{4} (A_{10} + A_{1} A_{10} a_{6}) ‐ γ^{2} (A_{10} A_{2} a_{6} + A_{1} A_{10} A_{8} + 2 A_{10} b^{2})}{(A_{1} a_{6} + 1)},

l_{2} = \frac{A_{2} A_{8} + b^{4} + γ^{4} (1 + A_{1} a_{6}) - γ^{2} (A_{2} a_{6} + A_{1} A_{8} + 2 b^{2})}{1 + A_{1} a_{6}},

l_{3} = \frac{A_{8} + a_{4} b^{2} - γ^{2} (a_{4} + a_{6})}{1 + A_{1} a_{6}}

l_{4} = \frac{b^{2} (A_{2} a_{4} ‐ b^{2}) - γ^{4} (1 ‐ A_{1} a_{4}) - γ^{2} (A_{2} a_{4} ‐ 2 b^{2} + A_{1} a_{4} b^{2})}{1 + A_{1} a_{6}} .

Factorizing equations (27)–(30), we get

(D^{2} - s_{1}^{2}) (D^{2} - s_{2}^{2}) (D^{2} - s_{3}^{2}) (D^{2} - s_{4}^{2}) φ^{*} = - l_{1} Q_{o} f (x, t) e^{- γ y}

(31)

(D^{2} - s_{1}^{2}) (D^{2} - s_{2}^{2}) (D^{2} - s_{3}^{2}) (D^{2} - s_{4}^{2}) T^{*} = - l_{2} Q_{o} f (x, t) e^{- γ y}

(32)

(D^{2} - s_{1}^{2}) (D^{2} - s_{2}^{2}) (D^{2} - s_{3}^{2}) (D^{2} - s_{4}^{2}) Π^{*} = - l_{3} Q_{o} f (x, t) e^{- γ y}

(33)

(D^{2} - s_{1}^{2}) (D^{2} - s_{2}^{2}) (D^{2} - s_{3}^{2}) (D^{2} - s_{4}^{2}) C^{*} = - l_{4} Q_{o} f (x, t) e^{- γ y}

(34)

Then the solutions of equations (31)–(34) are

φ^{*} = \sum_{n = 1}^{4} M_{n} e^{- s_{n} y} - N_{1} l_{1} Q_{o} f (x, t) e^{- γ y}

(35)

T^{*} = \sum_{n = 1}^{4} H_{1 n} M_{n} e^{- s_{n} y} - N_{1} l_{2} Q_{o} f (x, t) e^{- γ y}

(36)

Π^{*} = \sum_{n = 1}^{4} H_{2 n} M_{n} e^{- s_{n} y} - N_{1} l_{3} Q_{o} f (x, t) e^{- γ y}

(37)

C^{*} = \sum_{n = 1}^{4} H_{3 n} M_{n} e^{- s_{n} y} - N_{1} l_{4} Q_{o} f (x, t) e^{- γ y}

(38)

where

N_{1} = \frac{1}{γ^{8} - B_{1} γ^{6} + B_{2} γ^{4} - B_{3} γ^{2} + B_{4}},

$H_{1 n} = \frac{s_{n}^{2} - A_{9}}{A_{10}},$

$H_{2 n} = \frac{(s_{n}^{2} + A_{7} - A_{5}) H_{1 n}}{(A_{6} - A_{1} A_{7}) s_{n}^{2} + A_{2} A_{7} - b^{2} A_{6}},$

$H_{3 n} = (A_{2} - A_{1} s_{n}^{2}) H_{2 n} - H_{1 n}, n : 1 \to 4 .$

Equation (23) is an independent differential equation, where its solution will take the form:

ψ^{*} = M_{5} e^{- s_{5} y}

(39)

where

s_{5} = \sqrt{\frac{A_{4}}{A_{3}}}

Using equation (21), equations (35)–(39), can be written as

φ = \sum_{n = 1}^{4} M_{n} e^{ω t + i b x - s_{n} y} - N_{1} l_{1} Q_{o} f_{1} (x, t) e^{- γ y}

(40)

T = \sum_{n = 1}^{4} H_{1 n} M_{n} e^{ω t + i b x - s_{n} y} - N_{1} l_{2} Q_{o} f_{1} (x, t) e^{- γ y}

(41)

Π = \sum_{n = 1}^{4} H_{2 n} M_{n} e^{ω t + i b x - s_{n} y} - N_{1} l_{3} Q_{o} f_{1} (x, t) e^{- γ y}

(42)

C = \sum_{n = 1}^{4} H_{3 n} M_{n} e^{ω t + i b x - s_{n} y} - N_{1} l_{4} Q_{o} f_{1} (x, t) e^{- γ y}

(43)

ψ = M_{5} e^{ω t + i b x - s_{5} y}

(44)

where

f_{1} (x, t) = f (x, t) e^{ω t + i b x} .

The displacement functions are

u = i b \sum_{n = 1}^{4} H_{2 n} M_{n} e^{ω t + i b x - s_{n} y} + (i b - \frac{2 x}{r^{2}}) N_{1} l_{3} Q_{o} f_{1} (x, t) e^{- γ y} - s_{5} M_{5} e^{ω t + i b x - s_{5} y}

(45)

v = - \sum_{n = 1}^{4} s_{n} H_{2 n} M_{n} e^{ω t + i b x - s_{n} y} + γ N_{1} l_{3} Q_{o} f_{1} (x, t) e^{- γ y} - i b M_{5} e^{ω t + i b x - s_{5} y}

(46)

The constitutive equations defined in equations (7) and (8), with the aid of dimensionless quantities defined in equation (14), can be written as

(1 - ε^{2} \nabla^{2}) σ_{x x} = \frac{\partial u}{\partial x} + α_{o} \frac{\partial v}{\partial y} - T - C

(47)

(1 - ε^{2} \nabla^{2}) σ_{y y} = \frac{\partial v}{\partial y} + α_{o} \frac{\partial u}{\partial x} - T - C

(48)

(1 - ε^{2} \nabla^{2}) σ_{x y} = A (\frac{\partial u}{\partial y} + \frac{\partial v}{\partial x})

(49)

P = - α_{1} e + α_{2} C + α_{3} T

(50)

where

α_{o} = \frac{λ}{2 μ + λ}, α_{1} = \frac{β_{1}}{p_{o}}, α_{2} = \frac{b_{1} (2 μ + λ)}{p_{o} β_{1}}, α_{3} = \frac{a (2 μ + λ)}{p_{o} β_{2}} .

Substitute from equations (40)–(46) in equations (47)–(50), we get:

σ_{x x} (x) = \frac{(\sum_{n = 1}^{4} H_{4 n} M_{n} e^{ω t + i b x - s_{n} y} + i b (α_{o} - 1) s_{5} M_{5} e^{ω t + i b x - s_{5} y} + J_{1} (x) Q_{o} f_{1} (x, t) e^{- γ y})}{((1 + ε^{2} b^{2}) - ε^{2} s_{n}^{2})}

(51)

σ_{y y} = \frac{(\sum_{n = 1}^{4} H_{5 n} M_{n} e^{ω t + i b x - s_{n} y} - i b (α_{o} - 1) s_{5} M_{5} e^{ω t + i b x - s_{5} y} + J_{2} (x) Q_{o} f_{1} (x, t) e^{- γ y})}{((1 + ε^{2} b^{2}) - ε^{2} s_{n}^{2})}

(52)

σ_{x y} = \frac{A (- 2 i b \sum_{n = 1}^{4} s_{n} H_{2 n} M_{n} e^{ω t + i b x - s_{n} y} + (b^{2} + s_{5}^{2}) M_{5} e^{ω t + i b x - s_{5} y})}{((1 + ε^{2} b^{2}) - ε^{2} s_{n}^{2})}

(53)

P = \sum_{n = 1}^{4} H_{6 n} M_{n} e^{ω t + i b x - s_{n} y} + J_{3} (x) Q_{o} f_{1} (x, t) e^{- γ y}

(54)

where,

H_{4 n} = - b^{2} H_{2 n} - H_{1 n} + α_{o} s_{n}^{2} H_{2 n} - H_{3 n}, H_{5 n} = s_{n}^{2} H_{2 n} - H_{1 n} - α_{o} b^{2} H_{2 n} - H_{3 n},

H_{6 n} = - α_{1} (s_{n}^{2} - b^{2}) H_{2 n} + α_{2} H_{3 n} + α_{3} H_{1 n}, J_{1} (x) = {[{(i b - \frac{2 x}{r^{2}})}^{2} - \frac{2}{r^{2}} - α_{o} γ^{2}] l_{3} + l_{2} + l_{4}} N_{1},

J_{2} (x) = {[α_{o} [{(i b - \frac{2 x}{r^{2}})}^{2} - \frac{2}{r^{2}}] - γ^{2}] l_{3} + l_{2} + l_{4}} N_{1}, J_{3} (x) = {[{(i b - \frac{2 x}{r^{2}})}^{2} - \frac{2}{r^{2}} - γ^{2}] l_{3} - α_{2} l_{4} - α_{3} l_{2}} N_{1},

Boundary conditions

To complete the solution and get the value of the variable, we introduce the following boundary conditions at $y = 0$ , and $I_{o} = 0$ .

\begin{array}{l} σ_{x x} (x, 0, t) = - p e^{ω t + i b x}, u (x, 0, t) = 0, \\ T (x, 0, t) = 0, \\ \frac{\partial C}{\partial t} (x, 0, t) = 0, \frac{\partial φ}{\partial t} (x, 0, t) = 0 . \end{array}}

(55)

Applying equation (55) on the mentioned physical quantities, we get the following:

\begin{array}{l} \sum_{n = 1}^{4} H_{4 n} M_{n} + i b (α_{o} - 1) s_{5} M_{5} = - p, \\ i b \sum_{n = 1}^{4} H_{2 n} M_{n} - s_{5} M_{5} = 0, \\ \sum_{n = 1}^{4} H_{1 n} M_{n} = 0, \\ \sum_{n = 1}^{4} s_{n} H_{3 n} M_{n} = 0, \\ \sum_{n = 1}^{4} s_{n} M_{n} = 0 . \end{array}}

(56)

Numerical results

For numerical calculations, and completing the comparisons between different parameters, the values of pertinent parameters in the case of copper are defined as^37,38: $T_{o} = 293 K, c_{E} = 383.1 J / (k g . K), α_{t} = 1.78 \times 1 0^{- 5} K^{- 1} ρ = 8954 k g / m^{3}, λ = 7.76 \times 1 0^{10} k g / (m . s^{2}), μ = 3.86 \times 1 0^{10} k g / (m . s^{2}), α_{c} = 1.98 \times 1 0^{- 4} m^{3} / k g, K = 300 W, D_{c} = 0.85 \times 1 0^{- 8} (k g . s) / m^{3}, a = 1.2 \times 1 0^{4} m^{2} / (s^{2} . K), τ_{d} = 0.02,, b_{1} = 0.9 \times 1 0^{6} m^{5} / (k g . s^{2}),$ $w_{o} = 2.5, ξ = 0.5, w = w_{o} + i ξ K^{*} = 2.97 \times 1 0^{13}, k = - 0.5, f_{o} = 1, τ_{o} = 0.01, C_{s} = 8430$

The last-mentioned constants belonging to copper (Cu) material will be used in completing the behavior study of the main physical quantities of non-local diffusive thermoelastic plates under the influence of the thermal source. Comparisons are made to show the effect of the non-local parameter, the time, the displacement, and the propagation of diffusion.

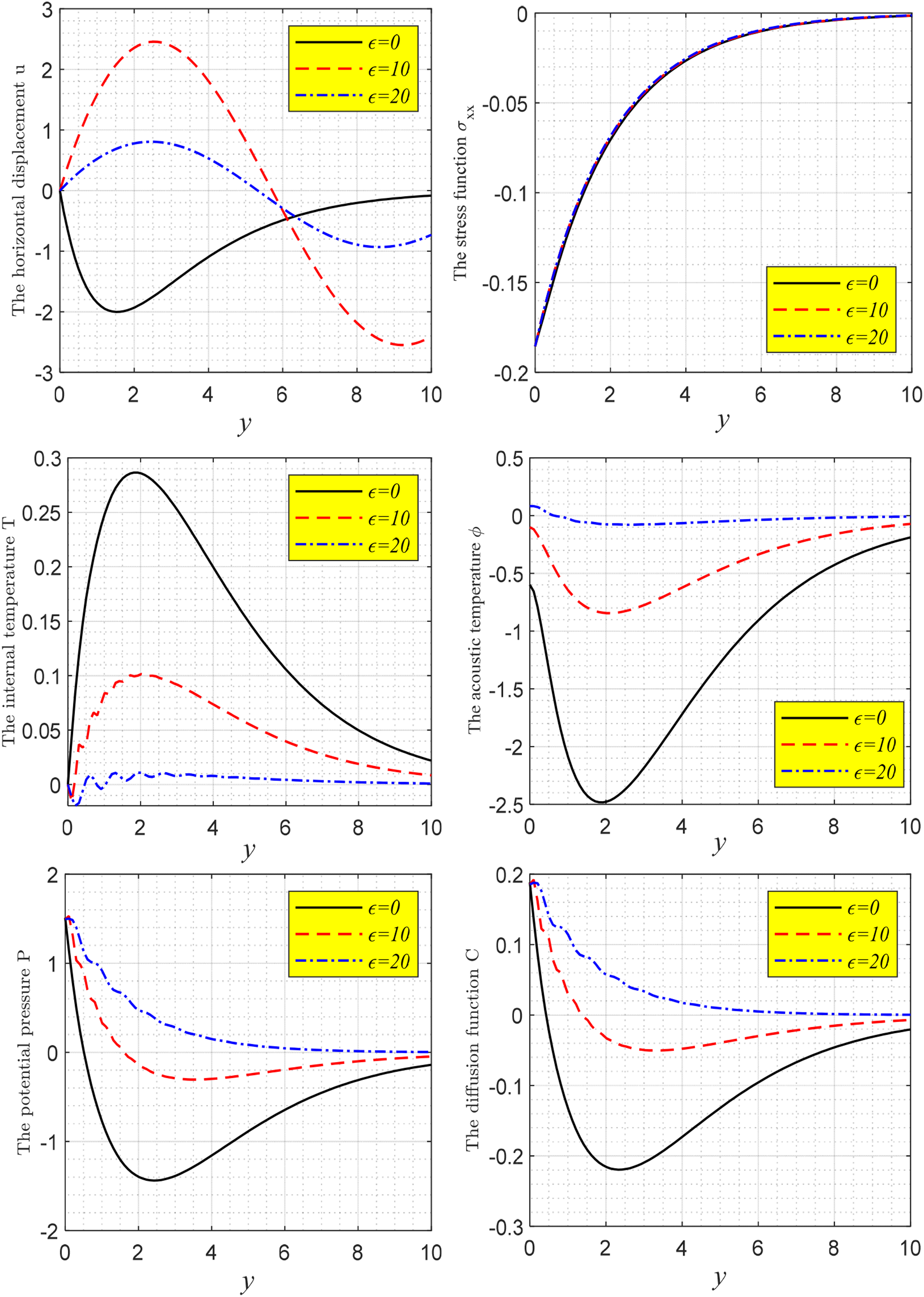

The second figure (Figure 2) shows how the non-local parameter is effective on the main quantities of the system in the presence of the effect of diffusion and the heat source. This figure illustrates how different values of the non-local parameter $ε = 0, ε = 10,$ and $ε = 20$ affect the propagation of acoustic waves, stress, temperature, and diffusion in the polymer composite medium. The results show that increasing $ε$ leads to a higher amplitude of acoustic temperature variations, with peak values increasing compared to the local case ( $ε = 0$ ). The horizontal displacement exhibits a shift in peak location due to microstructural effects, and the temperature distribution demonstrates an inverse relationship with non-locality, suggesting enhanced thermal dissipation. Comparisons are made when the horizontal distance $x = 1$ , and the time $t = 0.01$ . All quantities satisfy the boundary conditions and the curves finally reach zero. Figure 1 consists of six subfigures, the first subfigure shows the behavior of the horizontal displacement $u$ , the absence of the non-local parameter is very effective on the displacement. The three cases start from zero, which satisfies the boundary condition. In the absence of non-local parameters, the horizontal displacement starts to decrease having a negative value having the minimum value in the range $0 < y < 2$ , and when the non-local parameters have values not equal to zero, the curves start to have positive values to reach their maximum value in the range $2 < y < 3$ . This is the behavior of the function until $y ≃ 1.666$ , after that, the behavior of the horizontal displacement is directly proportional to the value of the non-local parameter. The second subfigure describes the behavior of the stress function $σ_{x x}$ . The curves start from a negative value satisfying the boundary conditions. The behavior of the stress function is not very effective with the change in the non-local parameter. The third subfigure displays the internal temperature $T$ . The value of the non-local parameter is affected inversely by the behavior of the temperature $T$ . The three curves of the internal temperature start from zero, which satisfies the boundary conditions. The subfigures placed from the fourth until the sixth display the behavior of the acoustic temperature $φ$ , the potential function $P$ , and the diffusive function $C$ , respectively. The distribution of the three quantities is directly proportional to the value of the non-local parameter $ε$ . All functions vanished at the end.

Figure 2.

The propagation of the quantities with different values of the non-local parameter.

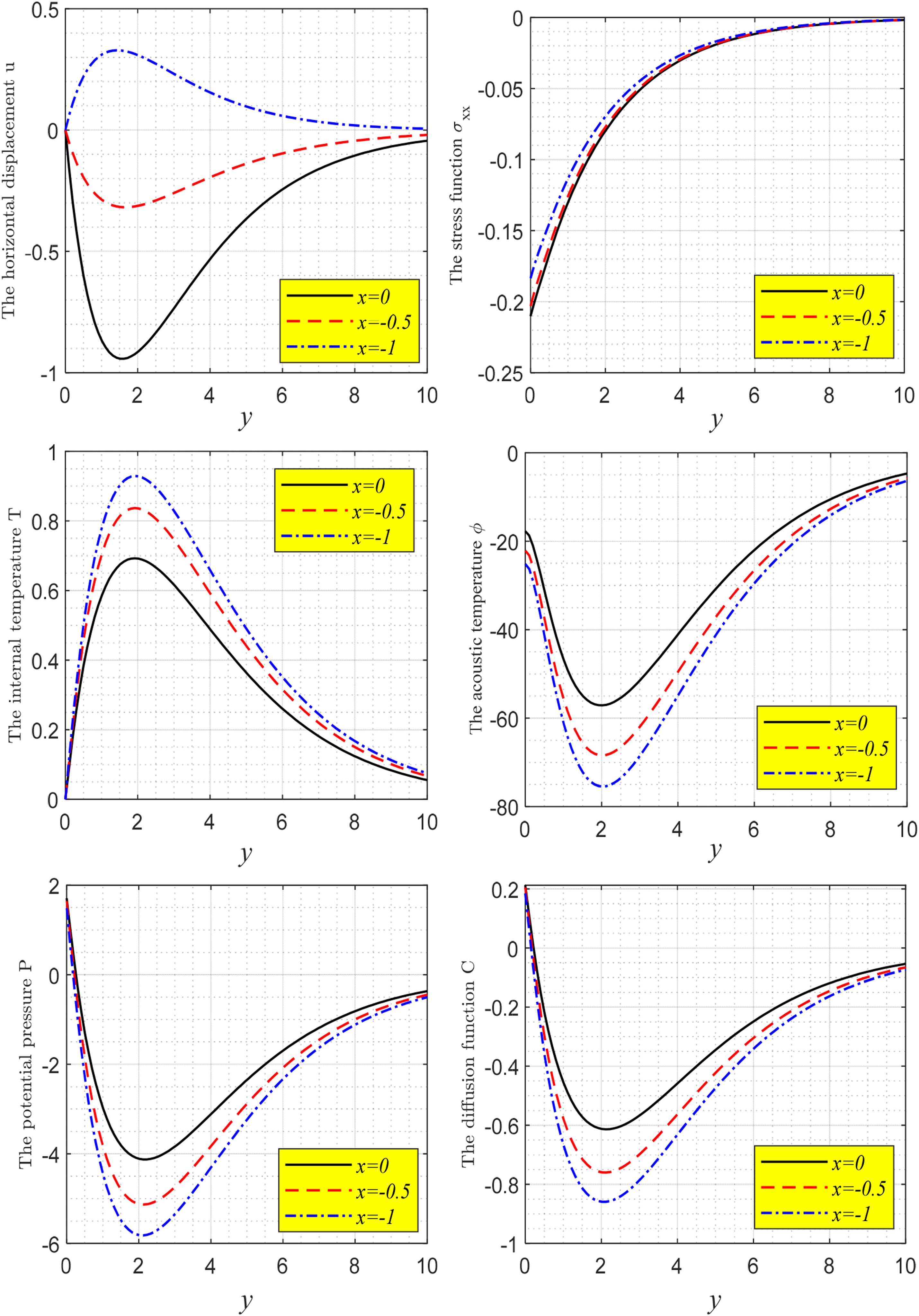

The third figure (Figure 3) observe the variation of the parameters with different values of $x (x = 0, x = 0.5, x = 1)$ taking into consideration the diffusion and emission of laser pulse. The plots in Figure 3 show how varying the horizontal coordinate $x$ $(x = 0, x = 0.5, x = 1)$ influences displacement, stress, temperature, and chemical potential. The results indicate that at higher $x$ -values, stress concentrations increase leading to enhanced wave reflections and stronger thermoelastic interactions. The temperature and acoustic fields exhibit distinct phase shifts, showing that wave energy distribution depends significantly on spatial positioning in the material. The physical quantities $u, σ_{x x}, T, φ, P$ , and $C$ are plotted on the vertical line, with the parameter $y$ which presented on the horizontal line at $t = 0.02 .$ All parameters satisfy the boundary conditions. In the first subtitle, the variation of the horizontal displacement is directly proportional to the value of $x$ . In case $(x = 0, x = 0.5)$ , the curves start to decrease to have a minimum value at $1 < y < 2$ , then increase to vanish. In this case $x = 1$ , the curve starts to increase having a maximum value in the same range of $y$ , then decreasing to vanish. The second subtitle observes the behavior of the stress function $σ_{x x}$ , which is directly proportional to the variation in values of $x$ . The third subtitle shows the behavior of the internal energy $T$ , which shows that the function is directly proportional to the value of $x$ . The curves started from zero decreased to get the maximum value at $1 < y < 3$ , and then increased to vanish. The fourth subtitle introduces the behavior of the acoustic temperature $φ$ with the change of $x$ . The curves started from negative values and started decreasing to reach their minimum value at $1 < y < 3$ , then increased until vanishing. The potential pressure variation $P$ , and the diffusion function $C$ , which plotted in the fifth and sixth subtitles, respectively. It is shown, that both of them are decreased with the increase of $x$ . The curves started from positive values, decreasing to get their minimum values at the range of $1 < y < 3$ .

Figure 3.

The propagation of the quantities with different values of the horizontal displacement (depth).

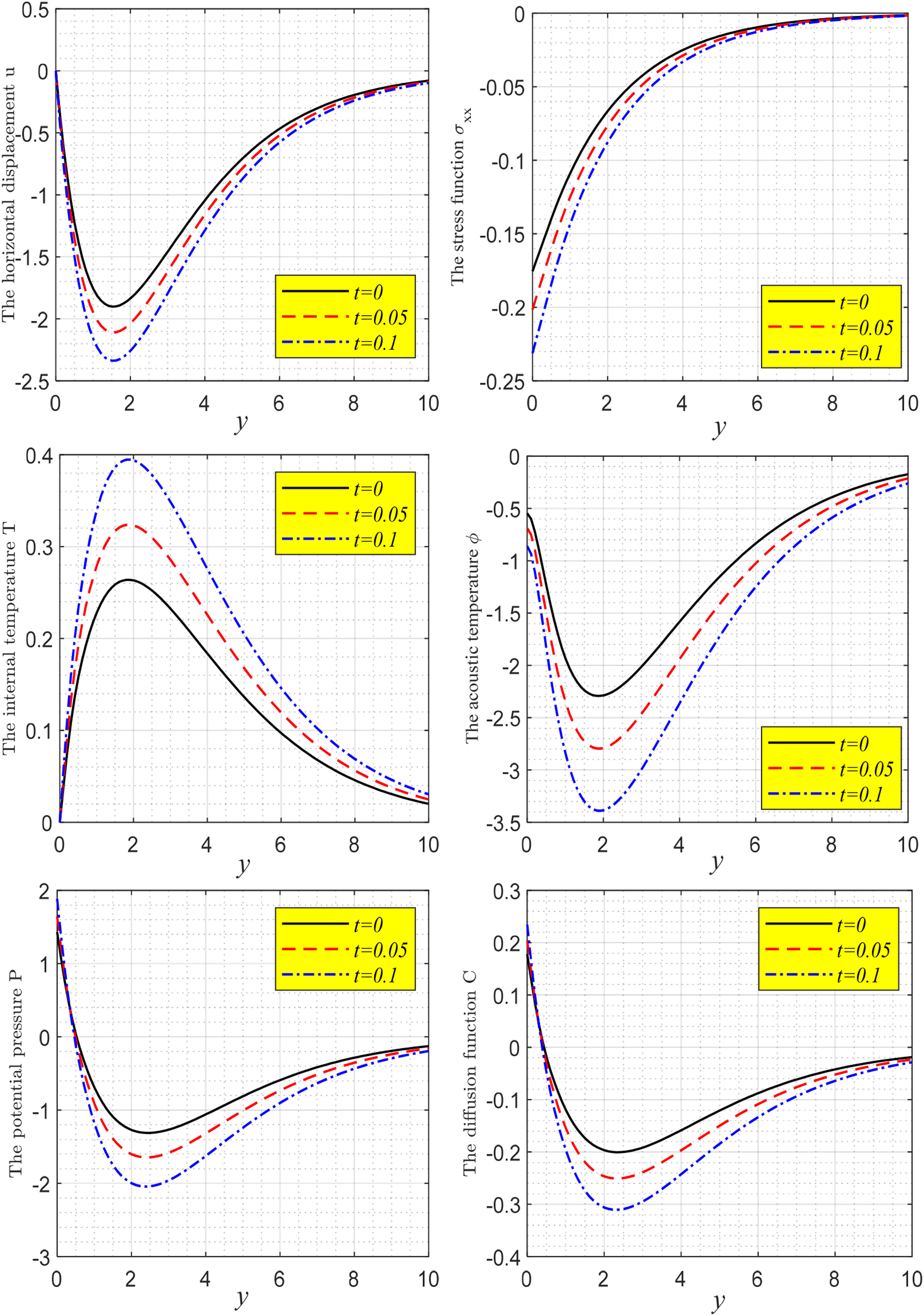

The fourth figure (Figure 4) shows the effect of time passing on the parameters having in mind the effect of the diffusion parameter and the existence of an external thermal source with the $y$ . The subfigures show that all functions satisfy the boundary conditions, and they all vanish at the end. This Figure 4 presents the time-dependent behavior of key physical quantities at t = 0, 0, 0.05, and 0.1. The results reveal that with increasing time, the amplitude of acoustic pressure decreases, suggesting energy dissipation effects. The stress field undergoes a gradual stabilization, while diffusion effects intensify, highlighting the influence of transient thermal and acoustic interactions. The displacement distribution is obtained in the first subtitle, starting from zero then decreasing to reach the minimum values at the range $1 < y < 2$ , then increasing, and finally fading. The behavior of the stress function $σ_{x x}$ plotted in the second subfigure. It is shown that the curves started from negative values, and then smoothly increased to reach zero. The next one shows that the internal energy of the thermoelastic plate is increasing with time. On the other side, the acoustic temperature $φ$ is decreased with increasing time. All of the potential functions $P$ , and the diffusion function $C$ started from positive values and then decreased to reach the minimum values at $1 < y < 3$ , and then increased to vanish.

Figure 4.

The propagation of the quantities with different times.

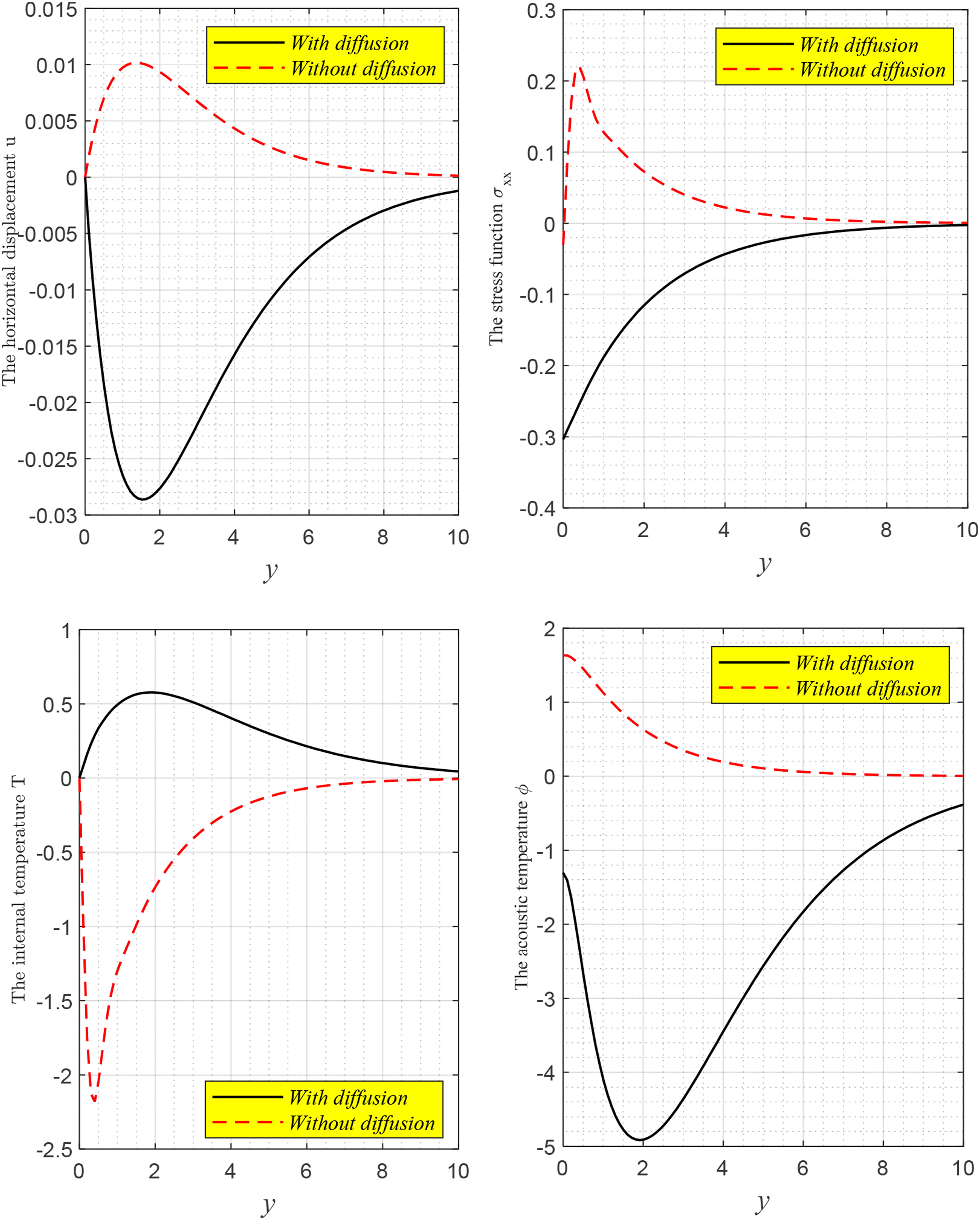

The fifth figure (Figure 5) indicates the variation of parameters with $y$ , in the presence and absence of diffusion in the existence of the source of heating. Comparing cases with and without diffusion, the plots demonstrate that diffusion significantly alters the propagation dynamics of acoustic waves and thermal fields. The acoustic temperature exhibits a sharper gradient in the presence of diffusion, with wave attenuation increases. The stress function follows a nonlinear trend, indicating a stronger coupling between mechanical and thermal fields when diffusion is considered. The first subtitle introduces the variation of the horizontal displacement $u$ . The displacement is very affected by the presence and absence of diffusion and the relation is irreversible. The second subtitle introduces the behavior of the stress function $σ_{x x}$ $y$ . In the absence of diffusion, the stress function behaves increased sharply to get its maximum value at the range of $0 < y < 1$ , and then decreases to vanish, while in case of the presence of diffusion, starts from a negative value, and rapidly increases to vanish. The third subtitle shows the behavior of the internal temperature $T$ with a variation of $y$ . In the absence of diffusion, the temperature is sharply decreased reaches its minimum value in the range $0 < y < 1$ , and then increases to vanish. In the presence of diffusion, the temperature is increased and reaches its maximum value in the range $1 < y < 3$ . The fourth subfigure introduced the behavior of the acoustic temperature $φ$ with variation of $y$ . The subfigure shows that the acoustic temperature in the two cases decreases with the increasing of $y$ , but in the presence of diffusion, the behavior of $φ$ is more sharply than the other one. All functions satisfy the boundary conditions and finally vanish.

Figure 5.

The propagation of the quantities in the absence and presence of diffusion.

The findings of this study have significant implications for various real-world applications, particularly in biomedical engineering, aerospace materials, and polymer composite design. In biomedical engineering, understanding the propagation of acoustic and thermal waves in non-local polymer composites can enhance the development of advanced medical imaging techniques, such as photoacoustic imaging, where laser-induced acoustic waves help visualize biological tissues. The role of diffusion and chemical potential in this study aligns with heat and mass transport mechanisms in biological tissues, which are critical in laser-based medical treatments and drug delivery systems.

In aerospace applications, materials exposed to extreme thermal and mechanical conditions, such as heat shields, turbine blades, and spacecraft structures, require precise control over thermoelastic responses. The study’s insights into non-local thermoelastic behavior and diffusion effects can guide the design of high-performance, heat-resistant polymer composites capable of withstanding thermal shock and acoustic vibrations in harsh environments.

Moreover, in polymer composite design, laser-assisted manufacturing techniques, including 3D printing and laser welding, rely on accurate modeling of thermal and mechanical interactions. The numerical results of this study provide a foundation for optimizing material processing conditions to enhance mechanical stability and diffusion properties in next-generation composite materials.

These applications highlight the broader impact of this study beyond theoretical advancements, demonstrating its relevance in improving modern engineering materials and technologies.

Comparison with previous studies and novel contributions

This study presents a novel framework that integrates non-local thermoelasticity, mass diffusion, and acoustic interactions under laser thermal excitation, advancing prior research in these fields. While previous works have independently explored non-local thermoelasticity,^25–27 laser-induced thermal diffusion,^14,18 and acoustic wave propagation in thermoelastic media,^10,11 the combined effects of these mechanisms remain largely unexamined. By incorporating chemical potential and mass diffusion into the non-local thermoelastic model, our work provides a more comprehensive understanding of wave propagation and stability in polymer composites. The findings offer new insights into the influence of non-locality on acoustic wave modulation and diffusive transport, which are critical for applications in aerospace materials, biomedical devices, and laser-assisted manufacturing. Through an exact analytical approach and detailed numerical analysis, this study not only bridges gaps in existing literature but also introduces a more realistic description of polymer composite behavior under laser heating. Below is a comparative Table 1 summarizing the key differences between the current study and previous research in non-local thermoelasticity, laser-induced diffusion, and acoustic interactions.

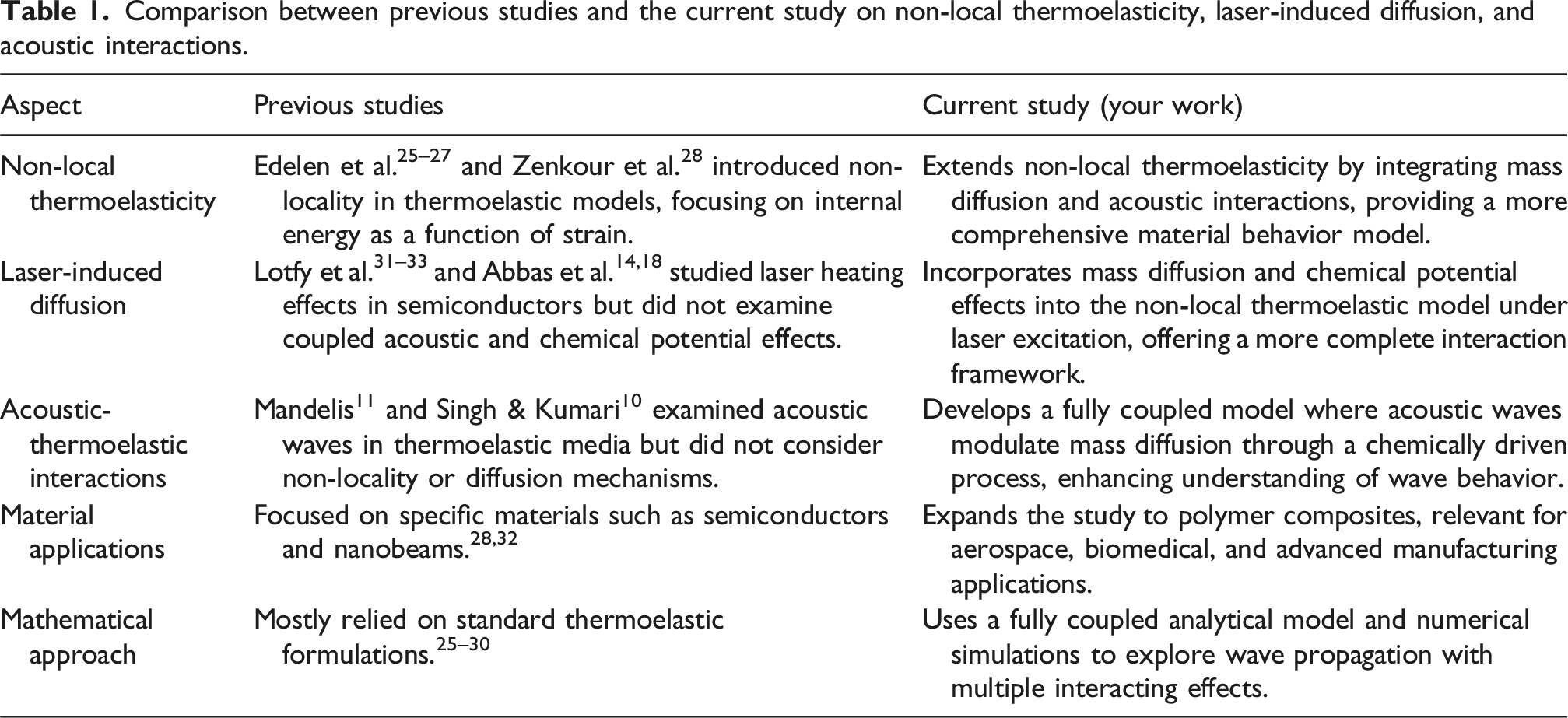

Table 1.

Comparison between previous studies and the current study on non-local thermoelasticity, laser-induced diffusion, and acoustic interactions.

Aspect	Previous studies	Current study (your work)
Non-local thermoelasticity	Edelen et al.^25–27 and Zenkour et al.²⁸ introduced non-locality in thermoelastic models, focusing on internal energy as a function of strain.	Extends non-local thermoelasticity by integrating mass diffusion and acoustic interactions, providing a more comprehensive material behavior model.
Laser-induced diffusion	Lotfy et al.^31–33 and Abbas et al.^14,18 studied laser heating effects in semiconductors but did not examine coupled acoustic and chemical potential effects.	Incorporates mass diffusion and chemical potential effects into the non-local thermoelastic model under laser excitation, offering a more complete interaction framework.
Acoustic-thermoelastic interactions	Mandelis¹¹ and Singh & Kumari¹⁰ examined acoustic waves in thermoelastic media but did not consider non-locality or diffusion mechanisms.	Develops a fully coupled model where acoustic waves modulate mass diffusion through a chemically driven process, enhancing understanding of wave behavior.
Material applications	Focused on specific materials such as semiconductors and nanobeams.^28,32	Expands the study to polymer composites, relevant for aerospace, biomedical, and advanced manufacturing applications.
Mathematical approach	Mostly relied on standard thermoelastic formulations.^25–30	Uses a fully coupled analytical model and numerical simulations to explore wave propagation with multiple interacting effects.

This table provides a clear comparison, emphasizing the novelty of your study.

Conclusion

This study investigates the complex interactions between non-local thermoelasticity, acoustic pressure, and mass diffusion in a polymer composite medium subjected to laser thermal excitation. By integrating chemical potential effects into the non-local thermoelastic framework, we provide a more comprehensive understanding of how thermal, mechanical, and diffusive processes interact under laser-induced conditions. The numerical analysis demonstrates that the non-local parameter significantly influences stress and strain distributions, revealing the impact of microstructural effects on wave propagation. Furthermore, the results highlight the role of diffusion in modifying the thermoelastic response, which is particularly relevant for applications in advanced manufacturing, aerospace engineering, and laser-based material processing.

The graphical results show that the horizontal displacement, internal temperature, and diffusive function are highly sensitive to changes in the non-local parameter, demonstrating the importance of incorporating non-local effects in material modeling. The findings also suggest that acoustic pressure modulates mass diffusion through a chemically driven process, a phenomenon that has not been extensively explored in previous studies. The analysis provides insights into optimizing polymer composite materials for high-performance applications where precise control of thermal and mechanical properties is essential.

While this study provides a detailed numerical analysis of non-local thermoelastic, acoustic, and diffusion interactions under laser excitation, it does not include validation against experimental data or benchmarking with existing models. Future work should focus on experimental investigations or comparative studies with well-established analytical solutions to further assess the accuracy and applicability of the proposed framework.

Footnotes

Acknowledgments

The authors extend their appreciation to Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2025R229), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

ORCID iD

Khaled Lotfy

Author contributions

KL: Conceptualization, Methodology, Software, EI: Writing—Original draft preparation. WA and KL: Supervision, Visualization, Investigation. AE: Software, Validation. All authors: Writing—Reviewing and Editing, Data curation.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors extend their appreciation to Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2025R229), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Use of AI tools declaration

The authors declare they have not used Artificial Intelligence (AI) tools in the creation of this article.

Data Availability Statement

The information applied in this research is ready from the author at request.*

Appendix

References

Biot

. Thermoelasticity and irreversible thermodynamics. J Appl Phys 1956; 27: 240–253.

Lord

Shulman

. A generalized dynamical theory of thermolasticity. J Mech Phys Solid 1967; 15: 299–306.

Green

Naghdi

. A re-examination of the basic postulates of thermodynamics. Proc Roy Soc Lond 1991; 432: 171–194.

Green

Naghdi

. On undamped heat waves in an elastic solid. J Therm Stress 1992; 15: 253–264.

Green

Naghdi

. Thermoelasticity without energy dissipation. J Elast 1993; 31: 189–208.

Tzou

. A unified field approach for heat conduction from macro- to micro-scales. J Heat Tran 1995; 117: 8–16.

Atwa

Ammar

Ibrahim

. The effect of two- temperature on thermoelastic medium with diffusion due to three phase- lag model. Applied Mathematics and Nonlinear Sciences 2017; 2(1): 259–270.

Atwa

Ibrahim

. Two temperature effect on a rotational thermoelastic medium with diffusion due to three-phase-lag model. J. Nano. Adv. Mat 2019; 7(1): 1–15.

Tian

. Nonlocal theory of thermoelastic diffusive materials and its application in structural dynamic thermo-elasto-diffusive responses analysis. Waves Random Complex Media 2020; 32(1): 174–203.

10.

Singh

Kumari

. Rayleigh wave propagation with two temperature and diffusion in context of three phase lag thermoelasticity. J Ocean Eng Sci 2022; 9: 317–325.

11.

Mandelis

. Photoacoustic and thermal wave phenomena in semiconductors. Elsevier, 1987.

12.

Youssef

. State-space on generalized thermoelasticity for an infinite material with a spherical cavity and variable thermal conductivity subjected to ramp-type heating. Journal of CAMQ, Applied Mathematics Institute 2005; 13: 369–390.

13.

Lotfy

. Analytical solutions of photo-thermal-elastic waves in a semiconductor material Due to pulse heat flux with thermal memory. Silicon 2019; 12: 263–273.

14.

Abbas

Saeed

Alhothuali

. Hyperbolic two-temperature photo- thermal interaction in a semiconductor medium with a cylindrical cavity. Silicon 2020; 13: 1871–1878.

15.

Lotfy

El- Bary

El-Sharif

. Ramp-type heating microtemperature for a rotator semiconducting material during photo-excited processes with magnetic field. Results Phys 2020; 19: 103338.

16.

Sharma

. Modelling of acoustic waves in semiconductor in contact with thermally conducting fluid. Madridge Journal of Nanotechnolgy and Nanoscience 2021; 5(1): 168–178.

17.

Khamis

Lotfy

El-Bary

, et al. Thermal-piezoelectric problem of a semiconductor medium during photo-thermal excitation. Random Complex Media 2021; 31(6): 2499–2513.

18.

Abbas

. The effect of thermal source with mass diffusion in a transversely isotropic thermoelastic infinite medium. Journal of Measurements in Engineering 2014; 2(4): 175–184.

19.

Marin

Hobiny

Abbas

. Finite element analysis of nonlinear bioheat model in skin tissue due to external thermal sources. Mathematics 2021; 9: 1459.

20.

Lotfy

Elidy

Tantawi

. Photothermal excitation process during hyperbolic two-temperature theory for magneto-thermo-elastic semiconducting medium. Silicon 2021; 13: 2275–2288.

21.

Saeed

Lotfy

Ahmed

. Thermal-optical mechanical waves of the excited microelongated semiconductor layer in a rotational field. MDPI 2022; 10: 4660.

22.

El-Sapa

Lotfy

Elidy

, et al. Photothermal excitation process in semiconductor materials under the effect moisture diffusivity. Silicon 2023; 15: 4171–4182.

23.

Ibrahim

El-Sapa

Chteoui

, et al. Four-phase lags in a generalized thermoelastic rotational diffusive plate with laser pulse emission. Mech Solid 2023; 58(6): 2412–2423.

24.

Hobiny

Abbas

. Eigenvalue approach for investigating thermal and mechanical responses on living tissues during laser irradiation with experimental verification. Phys Fluids 2024; 36(3): 031906.

25.

Edelen

Laws

. On the thermodynamics of systems with nonlocality. Arch Ration Mech Anal 1971; 43(1): 24–35.

26.

Edelen

Green

Laws

. Nonlocal continuum mechanics. Arch Ration Mech Anal 1971; 43(1): 36–44.

27.

Eringen

Edelen

. On nonlocal elasticity. Int J Eng Sci 1971; 10(3): 233–248.

28.

Zenkour

Abouelregal

Alnefaie

, et al. A refined nonlocal thermoelasticity theory for the vibration of nanobeams induced by ramp-type heating. Appl Math Comput 2014; 248(6): 169–183.

29.

Lata

Singh

. Thermomechanical interactions in a nonlocal thermoelastic model with two temperature and memory dependent derivatives. Coupled Systems Mechanics 2020; 9(5): 397–410.

30.

Said

Abd-Elaziz

Othman

. The effect of initial stress and rotation on a nonlocal fiber-reinforced thermoelastic medium with a fractional derivative heat transfer. ZAMM-J Appl Math Mech 2022; 102(1): 1–16.

31.

Lotfy

El-Bary

Daoud

, et al. A novel model of nonlocal photoacoustic and plasmaelastic heated by laser pulsed excitation of nanoscale semiconductor medium. Phys Fluids 2024; 36: 012021.

32.

Alshehri

Lotfy

Raddadi

, et al. A nonlocal photoacoustic effect with variable thermal conductivity of semiconductor material subjected to laser heat source. Results Phys 2024; 61: 107715.

33.

Khader

Marrouf

Esmail

, et al. Effect of non-local thermoelasticity on diffusion under hydrostatic pressure. J Braz Soc Mech Sci Eng 2024; 46: 201.

34.

Kumar

Pathania

Gupta

, et al. Thermoelastic modeling with dual porosity interacting with an inviscid liquid. J. Appl. Comput. Mech 2024; 10(1): 111–124.

35.

Choi

Qaiser

Hwang

. Mechanically pressed polymer-matrix composites with 3D structured filler networks for electromagnetic interference shielding application. FU Mech Eng 2024; 22(4): 601–614.

36.

Marin

Öchsner

Bhatti

. Some results in moore‐Gibson‐thompson thermoelasticity of dipolar bodies, (ZAMM) Zfur. Angew. Math. Mech 2020; 100: Art No. e202000090.

37.

Abouelregal

Alhassan

Althagafi

, et al. A two-temperature fractional DPL thermoelasticity model with an exponential Rabotnov Kernel for a Flexible cylinder with changeable properties. Fractal Fract 2024; 8: 182.

38.

Ailawalia

Sachdeva

Pathania

. Two-dimensional problem on laser pulse heating in thermoelastic microelongated solid. Archives of Thermodynamics 2019; 40: 69–85.

39.

Lata

Kaur

. Effect of two temperature and energy dissipation in an axisymmetric modified couple stress isotropic thermoelastic solid. Coupled Systems Mechanics 2022; 11(3): 199–215.

40.

Mondal

Sur

. Photo-thermo-elastic wave propagation in an orthotropic semiconductor with a spherical cavity and memory responses. Comp Med 2021; 31(6): 1835–1858.

41.

Alshehri

Lotfy

Mahdy

, et al. Photoacoustic impact of nanostructure magneto-semiconductor material with stability study. Results Phys 2024; 63: 107803.
