A-weighted convex combination step-size based active impulsive noise control for construction vehicle noise reduction

Abstract

Construction vehicles generate significant cabin noise, which includes both consistent and impulsive noise from engines and components. The noise imposes hearing loss threats to the operators during long operation hours. Active reduction is required for efficient impulsive noise minimization. Traditional approaches such as the filtered-x least mean square (FxLMS) algorithm, often prove inadequate in effectively controlling these impulsive noises, due to non-Gaussian characteristics. Robust algorithms for active impulsive noise control (AINC) systems are required for applications to construction equipment. The convex combined step-size (CCSS) based variable step-size (VSS) along with integrating the normalized least mean square (NLMS) into a modified FxLMS (MFxLMS) with an adaptive step-size update algorithm is used for reduction of the vehicle interior noise. The A-weighted filtering enhanced the noise reduction efficiency by incorporating human auditory characteristics. This filtering also minimized unnecessary control loadings at low frequency noise components. The performance of the proposed algorithm was evaluated through experiments conducted using a portion of the actual excavator cabin. The results demonstrated robust and excellent noise reduction performance against unexpected impulsive sounds.

Keywords

active noise control advanced control impulsive noise control construction vehicle acoustic comfort

Introduction

For heavy equipment workers, it is required to operate the construction machinery for long hours. To ensure safe working environment with improved acoustically comfortable space, the impulsive noise due to machinery operation should be reduced in a significant amount that cannot be achieved using conventional passive noise control methods. The successful noise control strategies evolved into research on active noise control (ANC) that generates an anti-noise to counteract unwanted sound, directly addressing the source of the noise.¹ Passive methods reduce noise through the use of high-density materials as barriers or by absorbing sound energy into porous materials that convert it into heat. This approach has been particularly beneficial in industries where noise design is critical, such as in automobiles.² Passive treatment efficiency falls off in controlling low-frequency impulsive noise, leading to the active exploration of ANC systems in engineering applications.^3,4

ANC aims to reduce unwanted noise by generating an anti-noise that disrupts the original sound, thereby lowering the overall level. This method offers potential benefits in various applications, especially for vehicles⁵ and buildings.^6,7 It also provides an effective means to noise reduction generated in construction sites.⁸ The substantial noise produced by frequently used heavy equipment like excavators, which often generate impulsive noise, poses significant health concern to operators.⁹ Consequently, the development of practical ANC methodology capable of effectively mitigating impulsive noise has become a critical task.

Among the equipment consistently used on construction sites, excavators are known for generating considerable noise and are a prime source of impulsive noise. Therefore, this research focuses on developing and applying a new ANC algorithm specifically tailored to reduce noise from excavators. For successful active impulsive noise control (AINC), the symmetric α-stable (SαS) distribution is an effective non-Gaussian model for the impulsive noise, suitable for representing noise with low probability but large amplitude.¹⁰ The characteristic function of the S $α$ S distribution is given by

φ (t) = e^{- {| t |}^{α}},

(1)

where

α

is the impulsiveness exponent, and ranges from

0 < α \leq 2

. In the special case when

α = 2

, the S

α

S distribution coincides with the normal distribution. The value of

α

determines the thickness of the tails of the distribution; a smaller

α

results in thicker tails, indicating the presence of strong impulsive noise.

The S $α$ S model has been widely used to represent impulsive noise due to its ability to characterize heavy-tailed amplitude distributions. As a fundamental assumption of the SαS model, the noise process is stationary with its statistical properties remaining constant. In practical applications, many realistic impulsive noise signals exhibits non-stationary characteristics. This implies that their statistical properties vary with time, making stationary SαS model insufficient for representing the transient noise. Future works are required to investigate the adaptive or time-varying noise models that allow the parameters to change with time. This process enhances the accuracy of representation of these non-stationary impulsive noises while retaining the heavy-tailed modeling capability of the S $α$ S approach.

These heavy-tailed distribution characteristics also make signals unsuitable for application with the FxLMS algorithm. Although FxLMS is advantageous for configuring ANC systems due to its excellent convergence performance and low computational cost, it is designed to minimize error in steady states, making it inappropriate for controlling impulsive noise with potentially infinite variance. This mismatch leads to significantly reduced control performance or divergence when using FxLMS for AINC.

In the recent years, various approaches were explored for AINC systems. These researches are included variable step-size (VSS),¹¹ affine projection sign algorithm (APSA),¹² and Volterra filter algorithm.¹³ Especially, Chien et al. developed a boosted multi-filter APSA scheme with a combined variable step-size (CBVSS-APSA) to improve convergence for application to impulsive noise. Another state-of-the-art method introduces a sparse quasi-Newton LMS with bias compensation and a variable mixing-norm cost function to address impulse noise and input noise simultaneously.¹⁴ These methods achieve effectiveness in general impulsive environments and excellent steady-state accuracy, respectively.

This study proposes a novel AINC algorithm specifically designed to effectively reduce impulsive noises, considering human auditory characteristics. The proposed method adaptively combines two step-sizes to achieve a balanced performance between rapid convergence and low steady-state misalignment. Specifically, two weighted filters incorporating the proportionate filtering approach based on these two step-sizes enhance noise control performance. Moreover, the integration of the A-weighted psychoacoustic model optimizes the noise reduction efficiency by emphasizing frequencies most sensitive to human hearing. This method significantly enhances the comfort and auditory health of operators by effectively managing noise generated from heavy machineries.

Experimental validation was performed using a heavy machinery (excavator cabin) environment, demonstrating that the proposed algorithm could serve as an effective alternative for active noise control, providing superior reduction performance and practical feasibility in impulsive noise environments. Second section delineates the architecture of the proposed algorithm. Third section outlines the experimental setup designed to record operational noise from construction machinery and details the real-time experiments conducted to verify the performance of the algorithm. Fourth section compares the experimental results with the control performance of existing algorithms, specifically addressing two important types of operational noise from excavators, and also evaluates the robustness of the proposed algorithm against impulsive signals. Fifth section discusses the efficacy of the enhanced AINC algorithm in noise control for heavy machinery, emphasizing its advanced capability in mitigating both impulsive and continuous noise and improving acoustic comfort.

Theoretical background for A-weighted AINC

FXLMS algorithm for ANC system

The FxLMS algorithm is the most frequently used due to its low computational complexity and serves as the foundation for most ANC algorithms.¹⁵ The block diagram of the FxLMS-based feedforward ANC algorithm is shown in Figure 1. The error signal can be expressed as follows:

e (n) = d (n) - s (n) * y (n),

(2)

where

*

represents convolution,

e

is the residual noise, and

s

is the finite impulse response (FIR) of the secondary path

S

, which is the path between the control speaker and the error microphone. The desired noise

d

is the input sample from the reference microphone passing through the primary path and can be represented as

d (n) = p (n) * x (n)

. The output sample of the control speaker

y (n)

is expressed as follows:

y (n) = w^{T} (n) x (n),

(3)

where

W (z)

is represented as an FIR filter

w (n) = {[w_{0} (n), w_{1} (n), \dots, w_{L - 1} (n)]}^{T}

with

L

being the tap length of the filter applied to the reference signal,

x (n) = {[x (n), x (n - 1), \dots, x (n - L + 1)]}^{T}

. The superscript

T

denotes the transpose operation. The LMS algorithm minimizes the cost function

e^{2} (n)

, and the weight vector

w (n)

is updated as follows:

w (n + 1) = w (n) + μ e (n) x_{f} (n),

(4)

where

x_{f} (n) = \hat{s} {(n)}^{T} x (n)

represents the reference signal

x (n)

filtered by the estimated secondary path

\hat{s} (n)

, which is also in the form of an FIR filter. The parameter

μ

is the fixed step-size.

Figure 1.

Fundamental block diagram of the FxLMS algorithm for active noise control.

FxLMS offers significant advantages in practical applications across various environments. However, challenges may arise when using the FxLMS algorithm in specific environments, particularly those involving impulsive noise. Impulsive noise, although occurring with low probability, has high amplitude and exhibits non-Gaussian characteristics. The random peaky samples in the reference signal $x (n)$ can cause the algorithm to diverge to infinity. Therefore, the FxLMS algorithm, based on the assumption of Gaussian distribution, is generally ineffective against non-Gaussian noise, particularly impulsive noise. In such environments, modeling impulsive noise using non-Gaussian stable distributions may be more effective for ANC applications.

Modified normalized FxLMS algorithm

The fundamental structure of the proposed algorithm for this paper is derived from the MFxLMS algorithm.¹⁶ Figure 2 shows the block diagram of the MFxLMS algorithm. As illustrated, this algorithm incorporated an additional weight filter and a secondary path filter by estimation. Here, $\hat{S}$ is used to calculate $\hat{d}$ , the estimate of $d$ in the quiet zone, by subtracting the control signal estimated from the error signal. The estimated response is used in the weight filter update calculations, and the updated weight filter is duplicated to compute the cancellation signal. The copied weight filter is utilized with the reference signal in the control input computation, providing rapid adaptation for the controller.

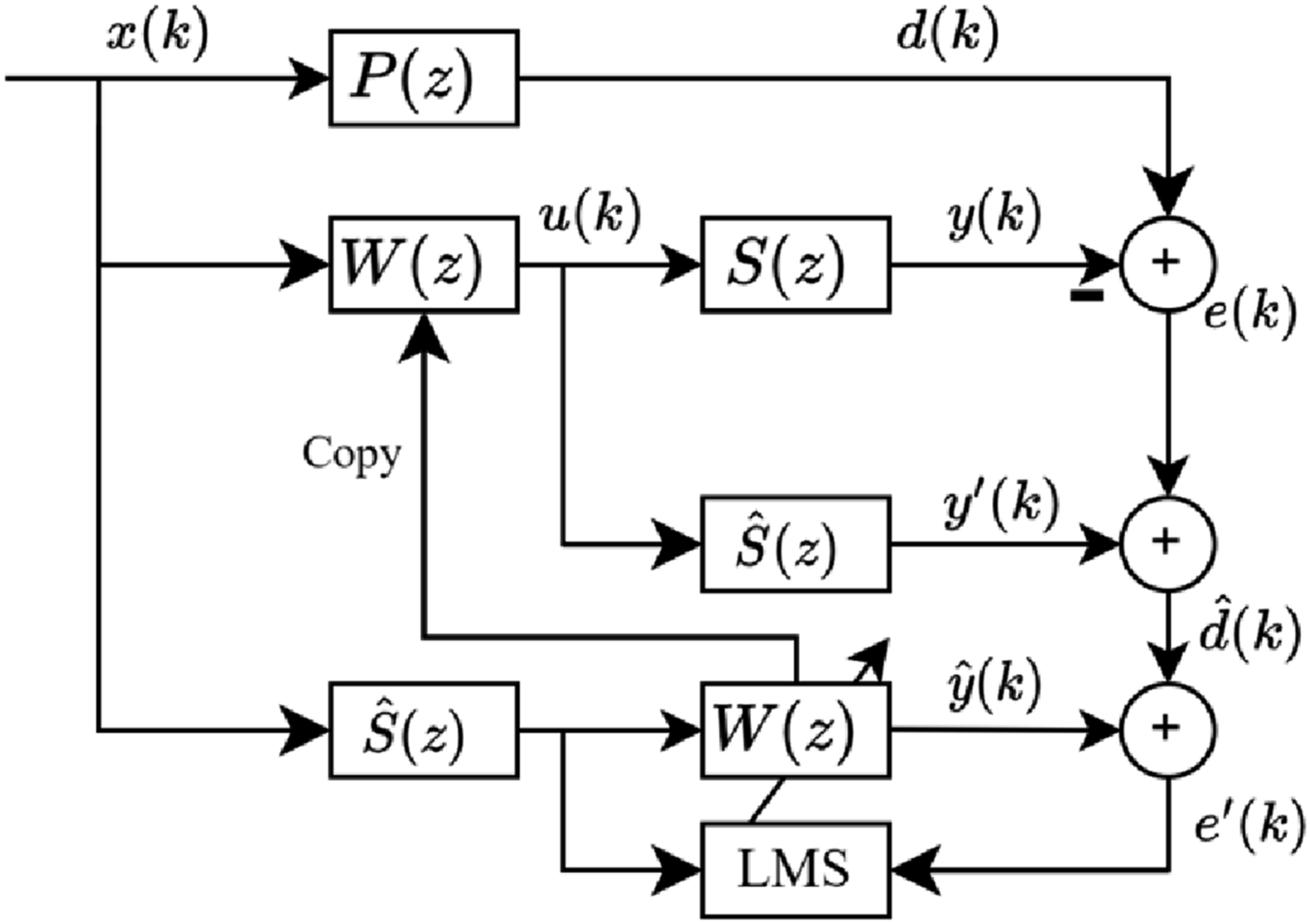

Figure 2.

Fundamental block diagram of the MFxLMS algorithm for active noise control.

This algorithm updates the weight vector using a step-size term in a normalized LMS,¹⁷ which is expressed as

w (n + 1) = w (n) + μ \frac{e (n) x_{f} (n)}{{‖ x_{f} ‖}^{2} + σ_{e}^{2} (n) + ϵ},

(5)

where

‖ x_{f} ‖

represents the Euclidean norm of

x_{f}

μ

is the fixed step-size, and

ϵ

is a small positive constant added to prevent the denominator from becoming zero.

σ_{e}^{2} (n)

represents the estimated variance of the residual error signal

e (n)

, which is an unknown value and should be estimated as follows:

σ_{e}^{2} (n) = β σ_{e}^{2} (n - 1) + (1 - β) e^{2} (n),

(6)

where

β (0 \leq β \leq 1)

is the forgetting factor, making

σ_{e}^{2}

a low-pass estimator. In accordance with the MFxLMS approach, the weight vector update equation should replace the error residue

e (n)

, with the modified error residue

e^{'} (n)

, leading to the following formulation as

σ_{e^{'}}^{2} (n) = β σ_{e^{'}}^{2} (n - 1) + (1 - β) {e^{'}}^{2} (n),

(7)

G (n) = \frac{e^{'} (n) x_{f} (n)}{{‖ x_{f} ‖}^{2} + σ_{e^{'}}^{2} (n) + ϵ},

(8)

w (n + 1) = w (n) + μ G (n) .

(9)

Through this process, the weight filter $w (n)$ is updated and then duplicated, enabling the ANC algorithm to operate. This block diagram explains the concept of the MFxLMS algorithm combined with the normalized LMS approach.

Proportionate filter via convex combination

The LMS algorithm is frequently employed in various fields with the objective of minimizing errors. However, it has the disadvantage of requiring the step-size to be set through multiple trials and errors. Traditional ANC methods, often based on LMS algorithms, share this drawback. The issue arises from the trade-off between speed of adaptation and misadjustment, which is mainly influenced by the step-size magnitude. A large step-size accelerates convergence but reduces accuracy, while a small step-size enhances accuracy but slows down convergence. To compensate for this trade-off and enhance performance, research has been conducted on VSS algorithms, such as Refs. 18 and 19. However, VSS algorithms can suffer from stability challenges when the step-size changes rapidly. A method that resolves these issues and is suitable for application to AINC is to combine two adaptive filters into a convex combination.^20–23 The weight vector of this algorithm can be expressed in two parts as follows:

w_{1} (n + 1) = w_{1} (n) + μ_{1} G (n),

(10)

w_{2} (n + 1) = w_{2} (n) + μ_{2} G (n),

(11)

where

μ_{1}

and

μ_{2}

are defined as the large and small step-sizes, respectively, with the range

{0 < μ_{2} < μ}_{1} \leq 1

. With these step-sizes, two weight filters

w_{1}

and

w_{2}

are calculated, one for rapid convergence and the other for steady-state reduction performance. The weight filter

w

, which possesses characteristics of both large and small step-sizes, is expressed as a convex combination of

w_{1}

and

w_{2}

w (n) = λ (n) w_{1} (n) + {[1 - λ (n)] w}_{2} (n),

(12)

where

λ (n)

is the variable mixing coefficient within the range

0 \leq λ (n) \leq 1

and is updated at the same cycle as the weight filter

w

. Substituting (10) and (11) into (12), expressed as

w (n + 1) = w (n) + μ (n) G (n),

(13)

where the variable step-size

μ (n)

is given by

μ (n) = λ (n) μ_{1} + [1 - λ (n)] μ_{2} .

(14)

This equation demonstrates that $μ (n)$ is a convex combination of $μ_{1}$ and $μ_{2}$ , and $λ (n)$ determines the convergence characteristics of the weight filter $w$ . The closer $λ (n)$ is to 1, the faster the convergence speed of $w$ ; conversely, the closer $λ (n)$ is to 0, the better the steady-state reduction performance of $w$ . The variable mixing coefficient $λ (n)$ is defined as follows²¹:

λ (n) = f [α (n)],

(15)

where

f [\cdot]

is the activation function, which provides a nonlinear output

λ (n)

based on the adaptive parameter

α (n)

. The function

f [\cdot]

is set to ensure

0 \leq λ (n) \leq 1

. To ensure that the process is robust to outliers such as impulse signals, a gradient descent method is applied to

α (n)

that minimizes the absolute value of the error signal

e (n)

, expressed as follows:

α (n) = α (n - 1) - μ_{α} \frac{\partial | e (n) |}{\partial α (n - 1)},

(16)

where

μ_{α}

is the fixed step-size for updating

α (n)

. Substituting

e (n) = d (n) - x_{f}^{T} (n) w (n)

into (16), is given by

α (n) = α (n - 1) + μ_{α} s g n [e (n)] x_{f}^{T} (n) \frac{\partial w (n)}{\partial α (n - 1)},

(17)

where

s g n [\cdot]

denotes the sign function. The partial derivative involving

w

and

α

is expanded using the chain rule as follows:

\frac{\partial w (n)}{\partial α (n - 1)} = \frac{\partial w (n)}{\partial μ (n - 1)} \frac{\partial μ (n - 1)}{\partial λ (n - 1)} \frac{\partial λ (n - 1)}{\partial α (n - 1)} .

(18)

Thus,

α

is updated according to (17) and (18) as below:

μ^{*} = μ_{α} s g n [e (n)] (μ_{1} - μ_{2}),

(19)

α (n) = α (n - 1) + μ^{*} x_{f}^{T} (n) G (n - 1) \frac{\partial λ (n - 1)}{\partial α (n - 1)} .

(20)

The derivative of $λ$ with respect to $α$ depends on the chosen activation function. Adjusting this function according to experimental conditions improves reduction performance.²⁴ By employing a sigmoidal activation function here, the partial derivative was represented as follows²⁵:

λ (n) = s g m [α (n)] = \frac{1}{1 + e^{- α (n)}},

(21)

\frac{\partial λ (n - 1)}{\partial α (n - 1)} = λ (n - 1) [1 - λ (n - 1)] .

(22)

Substituting (22) into (20), the update equation for $α$ is simplified to

α (n) = α (n - 1) + μ^{*} x_{f}^{T} (n) G (n - 1) λ (n - 1) [1 - λ (n - 1)],

(23)

This algorithm introduces a novel ANC method for impulsive noise and has demonstrated superior reduction performance verified through simulations.

A-weighted ANC for impulsive noise

If an A-weighting filter is not included, the system tends to normalize the frequency spectrum of incoming signals, including various noises, to approximate the flatness as like white noise. This method mainly reduces the low-frequency components of sound, which are particularly difficult for humans to perceive. Considering the environmental conditions described in this study, where the primary concern is noise that not only manifests predominantly in the low-frequency spectrum but also includes significant impulse noises that trigger responses across the entire frequency range, the absence of an A-weighting filter results in a reduction in perceived loudness that is not significantly noticeable. Consequently, without the A-weighting filter, the decrease in the perceived loudness of auditory disturbances for human users is not substantially noticeable, thus failing to achieve optimal control performance from the perspective of acoustic comfort.

In order to consider the sensitivity of human hearing, it is necessary to pre-filter with A-weighting in the form of FIR at each of the system I/Os. The level of A-weighting for each frequency is calculated as follows²⁶:

A (f) = 2.0 + 20 \log (R_{A} (f)),

(24)

where A-weighted filter R_A was defined as

R_{A} (f) = \frac{12200^{2} f^{4}}{(f^{2} + {20.6}^{2}) (f^{2} + 12200^{2}) {(f^{2} + {107.7}^{2})}^{0.5} {(f^{2} + {737.9}^{2})}^{0.5}} .

(25)

The diagram of the proposed algorithm incorporating A-weighting is shown in Figure 3. The reference signal and error signal, immediately after being acquired by the microphone, are filtered by the A-weighting pre-filter $H (z)$ expressed as follows:

x_{h} (n) = x (n) * h (n),

(26)

e_{h} (n) = e (n) * h (n),

(27)

where

h (n)

is the FIR of the A-weighting filter. The ANC update equations replaced the conventional error signal

e (n)

and reference signal

x (n)

with the pre-filtered error signal

e_{h} (n)

and pre-filtered reference signal

x_{h} (n)

, respectively. The updated equations are as follows:

G_{h} (n) = \frac{e^{'} (n) {x_{f}}_{h} (n)}{{‖ x_{f_{h}} ‖}^{2} + σ_{e^{'}}^{2} (n) + ϵ},

(28)

w (n + 1) = w (n) + μ (n) G_{h} (n),

(29)

where

{x_{f}}_{h} = \hat{s} {(n)}^{T} x_{h} (n)

, which is calculated by substituting

x_{h} (n)

for

x (n)

in equation (24). Similarly, the update equation for

α (n)

, as derived from (21), is modified as follows:

μ_{h}^{*} = μ_{α} s g n [e_{h} (n)] (μ_{1} - μ_{2}),

(30)

α (n) = α (n - 1) + μ_{h}^{*} x_{f_{h}}^{T} (n) G_{h} (n - 1) λ (n - 1) [1 - λ (n - 1)] .

(31)

Figure 3.

Block diagram of proposed algorithm.

This approach incorporated human auditory characteristics into the processing of acoustic signals within the proposed ANC system, making it particularly advantageous in environments where auditory comfort is paramount. By utilizing the A-weighting filter, the system prioritizes frequencies that are most perceptible to the human ear, thereby enhancing the overall effectiveness of noise reduction in practical applications. This characteristic is especially beneficial in settings such as construction sites, vehicle cabins, and industrial workplaces where reduction of noise levels comfortable for human hearing is critical. Proposed algorithm is summarized in Table 1.

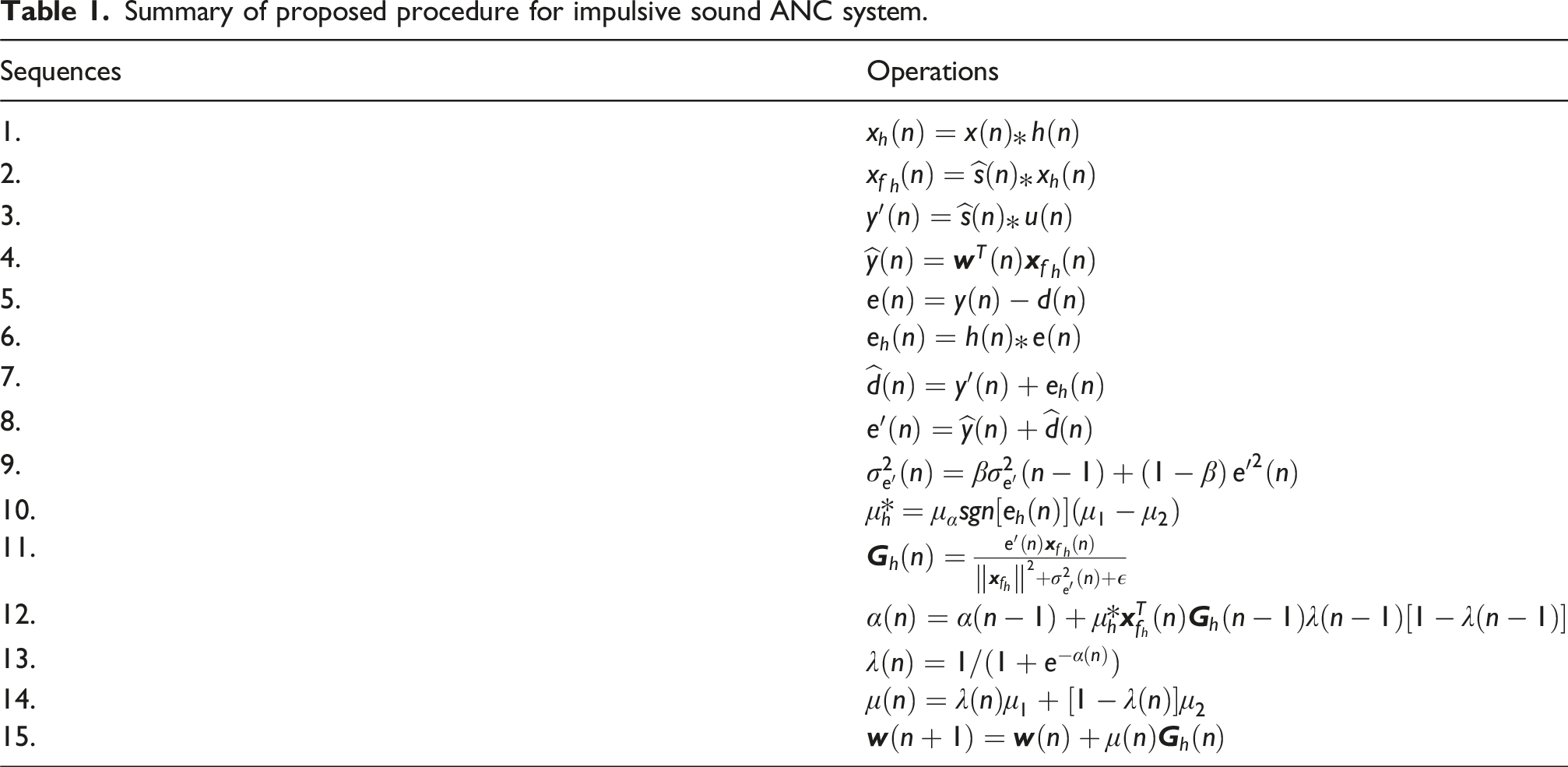

Table 1.

Summary of proposed procedure for impulsive sound ANC system.

Sequences	Operations
1.	$x_{h} (n) = x (n) * h (n)$
2.	${x_{f}}_{h} (n) = \hat{s} (n) * x_{h} (n)$
3.	$y^{'} (n) = \hat{s} (n) * u (n)$
4.	$\hat{y} (n) = w^{T} (n) {x_{f}}_{h} (n)$
5.	$e (n) = y (n) - d (n)$
6.	$e_{h} (n) = h (n) * e (n)$
7.	$\hat{d} (n) = y^{'} (n) + e_{h} (n)$
8.	$e^{'} (n) = \hat{y} (n) + \hat{d} (n)$
9.	$σ_{e^{'}}^{2} (n) = β σ_{e^{'}}^{2} (n - 1) + (1 - β) {e^{'}}^{2} (n)$
10.	$μ_{h}^{*} = μ_{α} s g n [e_{h} (n)] (μ_{1} - μ_{2})$
11.	$G_{h} (n) = \frac{e^{'} (n) {x_{f}}_{h} (n)}{{‖ x_{f_{h}} ‖}^{2} + σ_{e^{'}}^{2} (n) + ϵ}$
12.	$α (n) = α (n - 1) + μ_{h}^{*} x_{f_{h}}^{T} (n) G_{h} (n - 1) λ (n - 1) [1 - λ (n - 1)]$
13.	$λ (n) = 1 / (1 + e^{- α (n)})$
14.	$μ (n) = λ (n) μ_{1} + [1 - λ (n)] μ_{2}$
15.	$w (n + 1) = w (n) + μ (n) G_{h} (n)$

Experiments on actual construction machinery for ANC

Operation noise in actual construction machinery – Excavator

For verification of the active noise control performance, an excavator was used for the active noise control experiments. The noise emitted during operation was acquired using the commercial excavator. The sound was recorded at the sampling frequency of 8192 Hz via B & K Type 3160. As shown in Figure 4, the microphone was positioned between the noise source (engine) and the cabin to measure the primary noise.

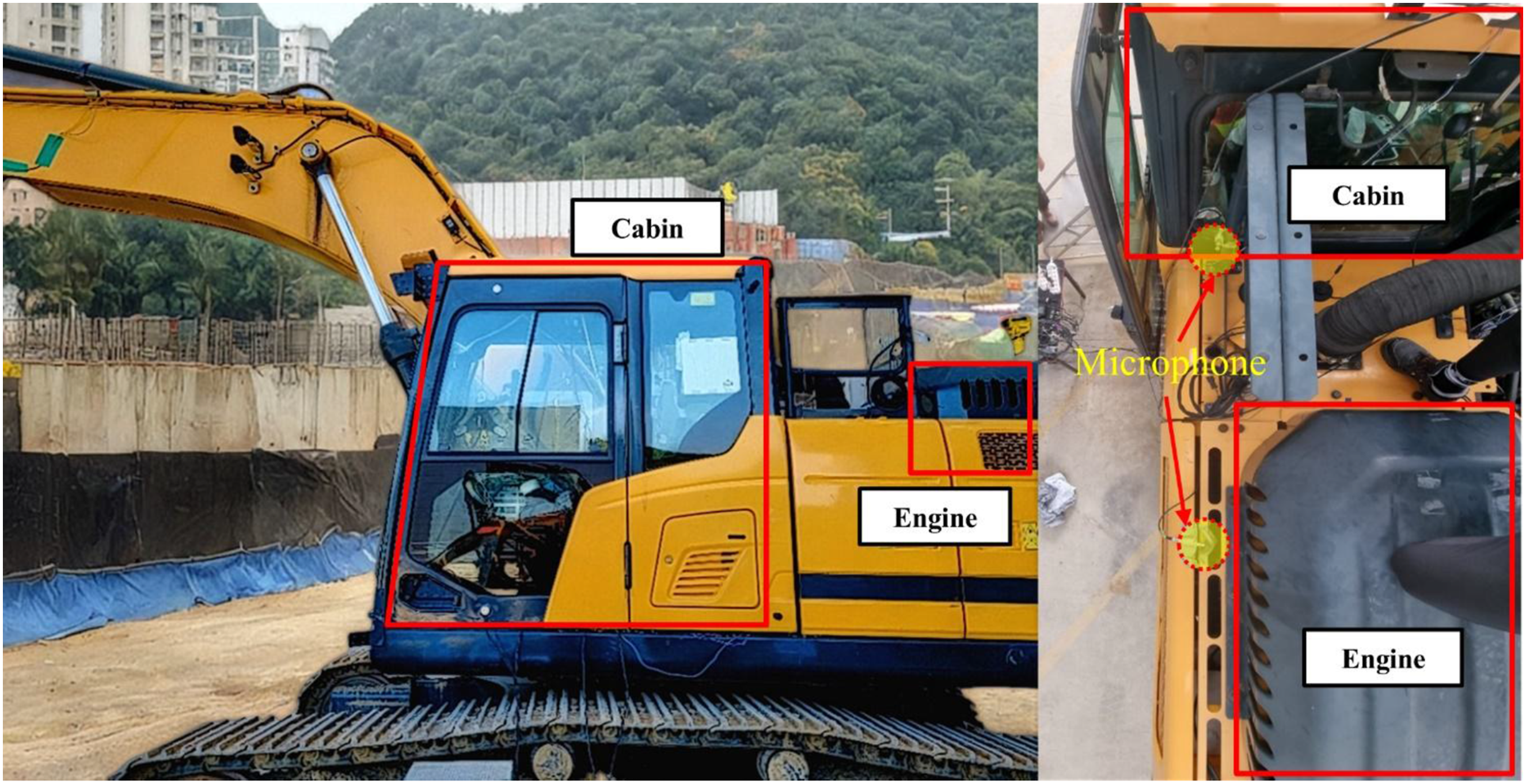

Figure 4.

Overall view of the excavator (left) and the location of the microphone for noise acquisition (right).

The actual excavator operating noises were measured during bucket operations. The idle engine sounds at 1800 r/min generated together with the impact sounds. The engine sounds were characterized by the harmonics of 15 Hz, corresponding to the rotation of the four-cylinder engine, and predominantly featured the noise spectrum below 500 Hz (Figure 5).

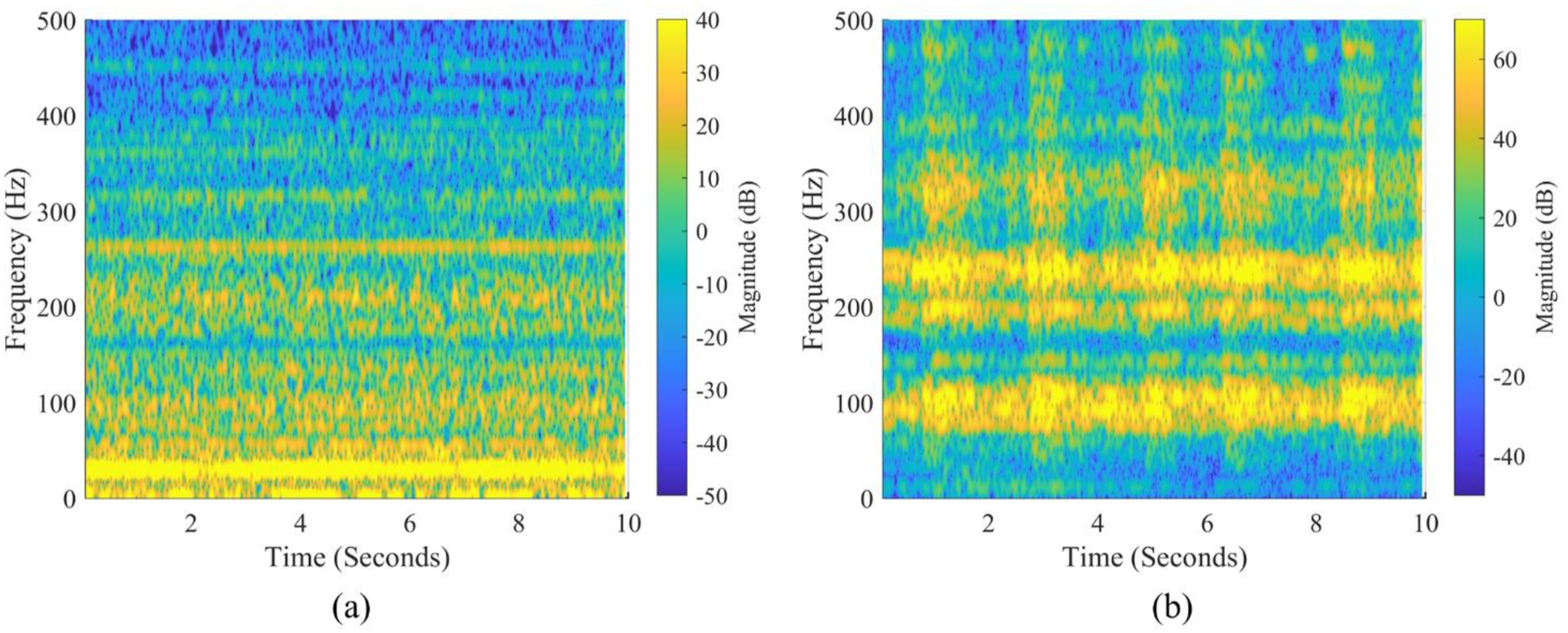

Figure 5.

Spectrograms of excavator sounds (a) at 1800 r/min idle engine operation and (b) bucket impact noise.

In contrast, the bucket impact noise occurs during operations such as soil emptying. This involved the bucket rotation around the arm linkage. When the bucket reached its maximum angle, it collided with the arm and produced impact noise. Since the bucket and the arm were made of metal, this resulted in impulsive noise from frictional contact. Therefore, bucket impact noise generates a high sound pressure level (SPL) over a wide frequency range within a very short period, with the main noise spectrum predominantly below 2000 Hz.

Laboratory experimental setup to simulate the excavator operating conditions

To experimentally validate the noise control performance inside the excavator cabin, a simulated operating environment was established as shown in Figure 6. The experiment was conducted using the cabin part of the excavator with a single access door. The dimensions of the cabin used in this experiment were 1100 × 1900 × 1750 mm.

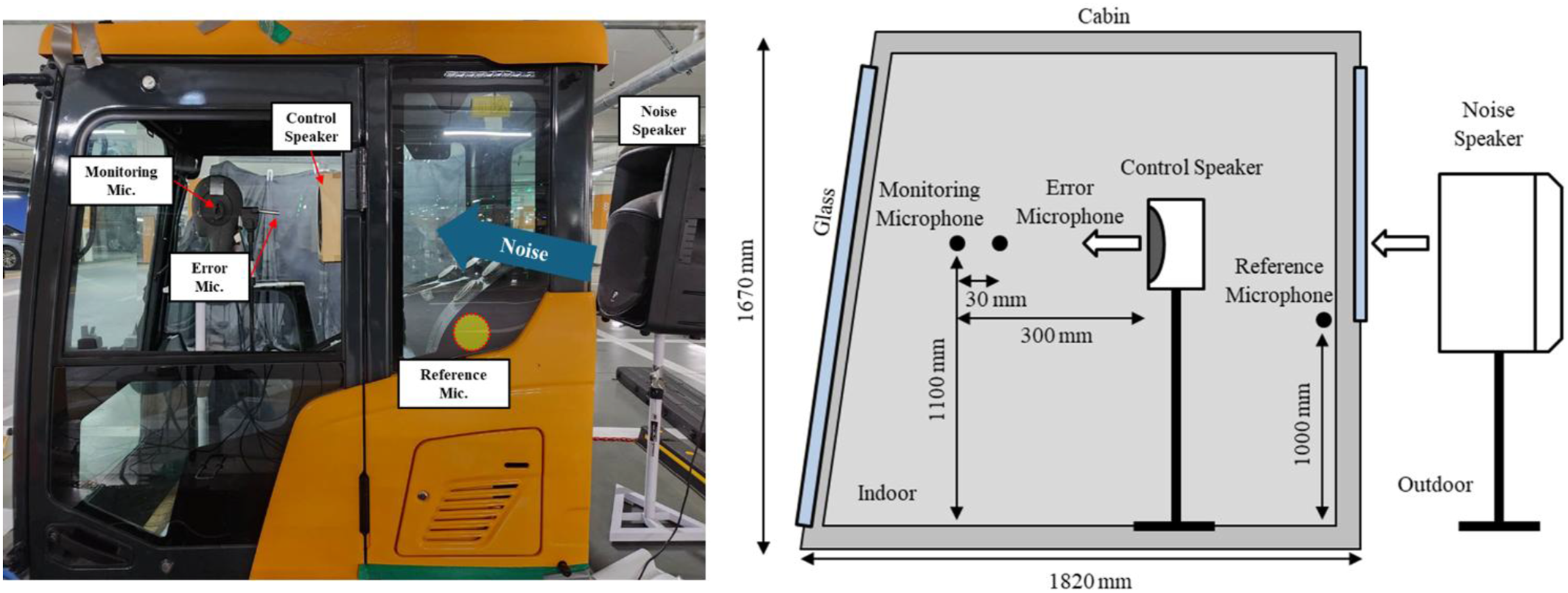

Figure 6.

The schematic of the experimental setup for real-time ANC at the excavator cabin. The internal cabin size was $1.82 \times 1.67 m$ . The secondary path, the distance between control speaker and error microphone, was 0. $270 m$ , and the heights of the reference microphone and error microphone were $1$ and $1.1 m$ , respectively.

A digital signal processor from dSPACE (MicroLabBox) was used to process the real-time control. The control speaker, MO-08B100, was chosen to effectively reduce noise concentrated in the lower frequency range below 500 Hz, which is main frequency bands of the excavator noise. For the excavator noise was produced by the external speaker (Mackie) to adequately replicate the low frequency and spectral characteristics of the actual excavator noise in the laboratory.

The sound measured by dummy (Head Acoustics HSM V) was used to simulate the noise experienced by the operator. The error and monitoring microphones were positioned 0.27 m and 0.300 m away from the control speaker, respectively. This simulated the microphone attached to the headrest of the driver seat. The ANC system forms a zone of quiet (ZoQ) around the error microphone within a radius $R$ and exhibits control performance, which is generally expressed by the following equation²⁷:

R = \frac{c}{20 f},

(32)

where

c =

340 m/s is the speed of sound. In these experiments, most of the noise occurs below 500 Hz, which corresponded to a minimum control radius of approximately 34 mm. Consequently, the monitoring microphone was sufficiently encompassed within the control radius. Therefore, while the reduction in noise at the monitoring microphone location may be slightly less than at the error microphone location (since it is well within the control radius for the majority of the significant noise bands), this difference is expected to be negligible. The setup illustrated in Figure 6 aims to reduce the amplitude at the error microphone. Consequently, the noise reduction measured in the monitoring microphone is less than the reduction in the error microphone. This hardware configuration was recommended for effective ANC system implementation applicable to excavator operations.

Secondary path modeling for cabin noises

The accuracy of secondary path estimation significantly affects the effectiveness of the noise cancellation signal, and thus the overall performance of the ANC system. The actual experiments presented challenges due to the instability and time-varying characteristics of these paths. Therefore, an approximation of the estimated paths was necessary.

In this study, the secondary path inside the cabin was estimated using a pseudo-random binary sequence (PRBS). The flat spectrum characteristic from random signals allowed the assessment of the transmission path across the entire frequency range. This process involved emitting a random sound through the secondary path and measuring the system response with an error microphone. The impulse response of the secondary path was then derived by calculating the correlation between the input and output responses. The results of the path estimation measurements conducted within these cabins are shown as Figure 7. PRBS-based secondary path modeling method assumes a static secondary path, which may lead to reduced accuracy under dynamic acoustic conditions. This method was selected in this study due to its low computational complexity, making it suitable for real-time online testing, and emphasizing a lightweight ANC system optimized for the stable cabin environment, which is less affected by external disturbances.

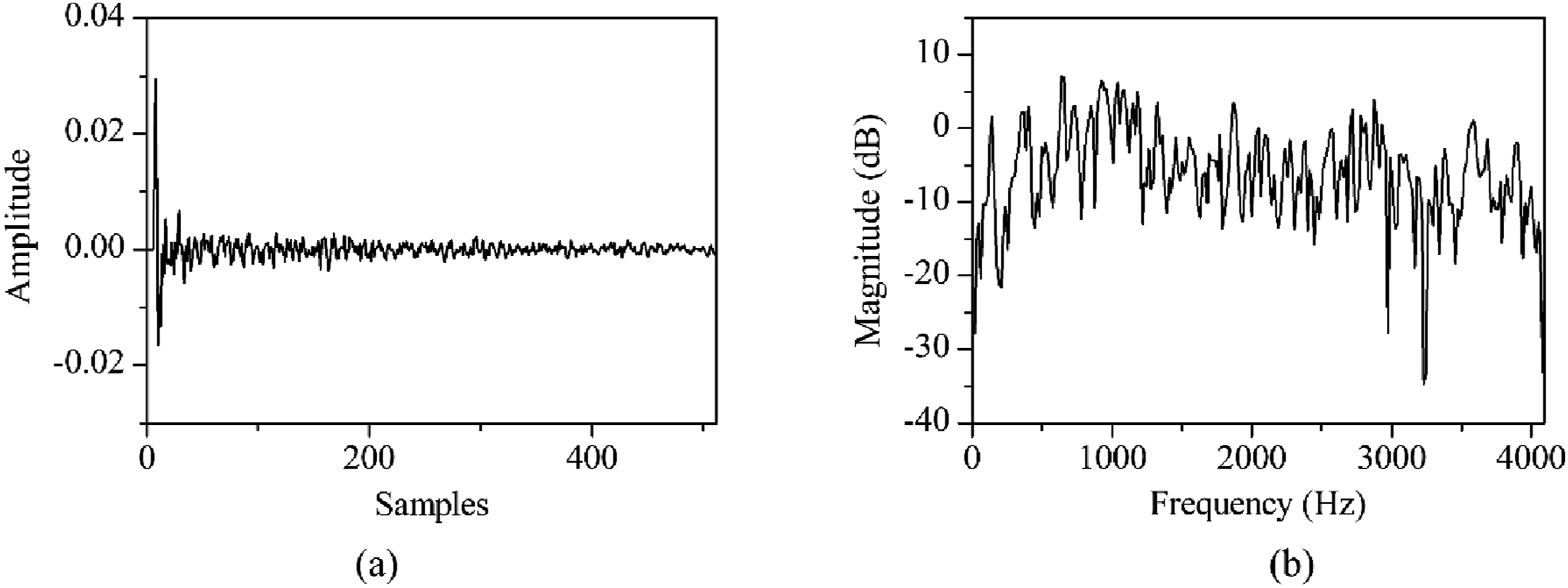

Figure 7.

(a) The time domain and (b) frequency domain responses of the secondary path estimation inside a excavator cabin by white noise generated by the loudspeaker.

Real-time ANC and performance evaluations

In order to validate the performance of the proposed A-weighted FxLMS algorithm, experiments were conducted. The bucket impact noise was controlled based on overall dB(A) up to 500 Hz. The overall noise level was calculated for use as the evaluation index:

L_{t} = 10 \cdot \log (\frac{1}{n} \sum 10^{\frac{L_{n}}{10}}) .

(33)

The impulsive noise control performance

Figures 8 and 9 show the noise level reduced by the ANC for the bucket impact noise.

Figure 8.

The sounds measured for the ANC experiments to evaluate and compare the performance of FxLMS and the proposed ANC algorithm on the bucket impact noise The results in the time domain to evaluate and compare the performance of FxLMS, with step-size $μ = 5 \times 10^{- 5}$ , and the proposed ANC algorithm with steady-state and impulse noise set to $μ_{1} = 1 \times 10^{- 3}$ and $μ_{2} = 5 \times 10^{- 5}$ , respectively, on (a) excavator engine idle noise and (b) bucket impact noise.

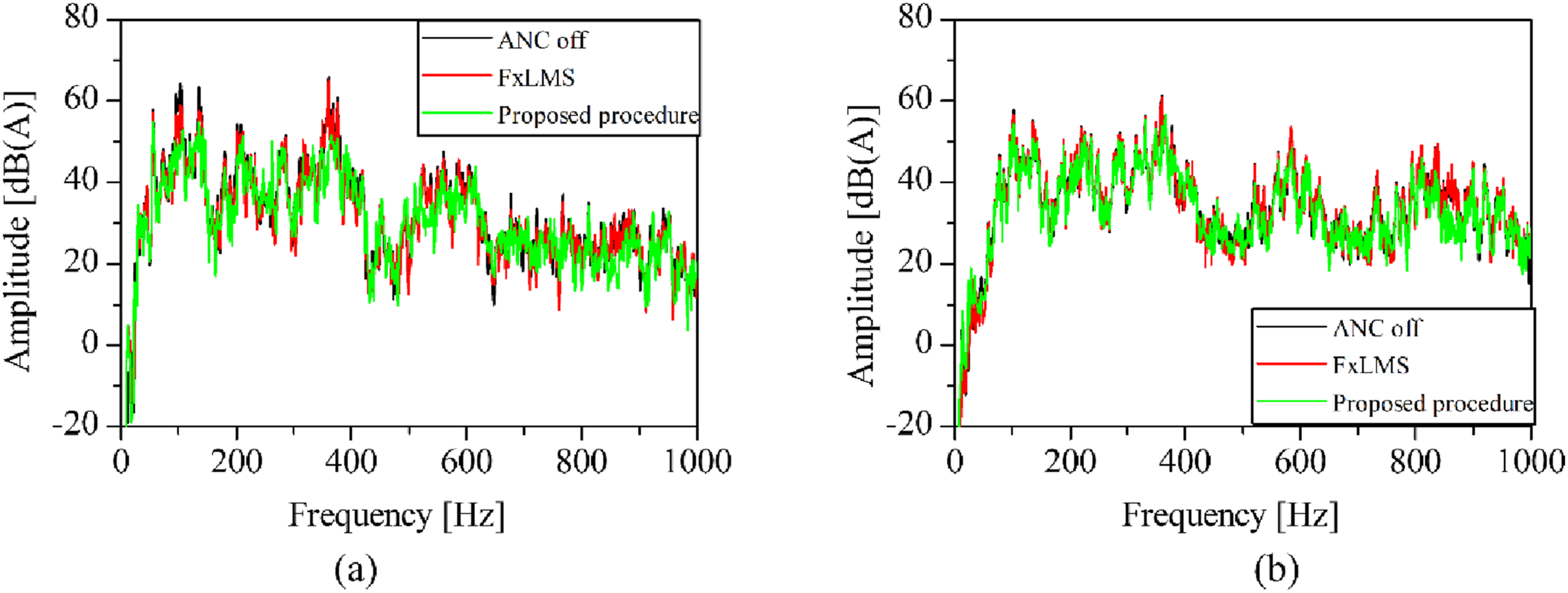

Figure 9.

PSD from ANC measurements of (a) the excavator idle engine noise and (b) bucket impact noise.

Figure 9 presents the ANC performance displayed as PSD. For idle engine noise, the harmonics corresponding to the engine’s RPM were clearly visible in the spectrum, with the sound energy concentrated in these harmonics, primarily below 650 Hz. The noise control performance using FxLMS showed effectiveness around the 100 Hz range but showed limited performance in the 300–400 Hz range. In contrast, the proposed algorithm demonstrated satisfactory noise reduction in both frequency ranges.

For bucket impact noise, the spectral shape is similar to that of idle engine noise, as the noise is generated by the bucket movement and the simultaneous engine operation. The difference was shown in the addition of the broadband noise, particularly in the 700–1000 Hz range. In this case, the FxLMS algorithm not only fails to control the newly arising noise bands but also loses control over the idle engine noise below 400 Hz. The proposed algorithm exhibited robust noise reduction capabilities even in the presence of sudden impulsive noises. This advantage of the proposed algorithm was further confirmed in Figure 8, where a significant reduction in amplitude for impulsive sounds was clearly observed. The overall dB(A) control performance is summarized in Table 1. In addition, the main bands of noise reduction are represented by the octave bands as shown in Figure 10. The reduction performance was observed in the frequency range from 100 to 1000 Hz, which is achieved by the use of the human perception characteristics during data processing (Table 2).

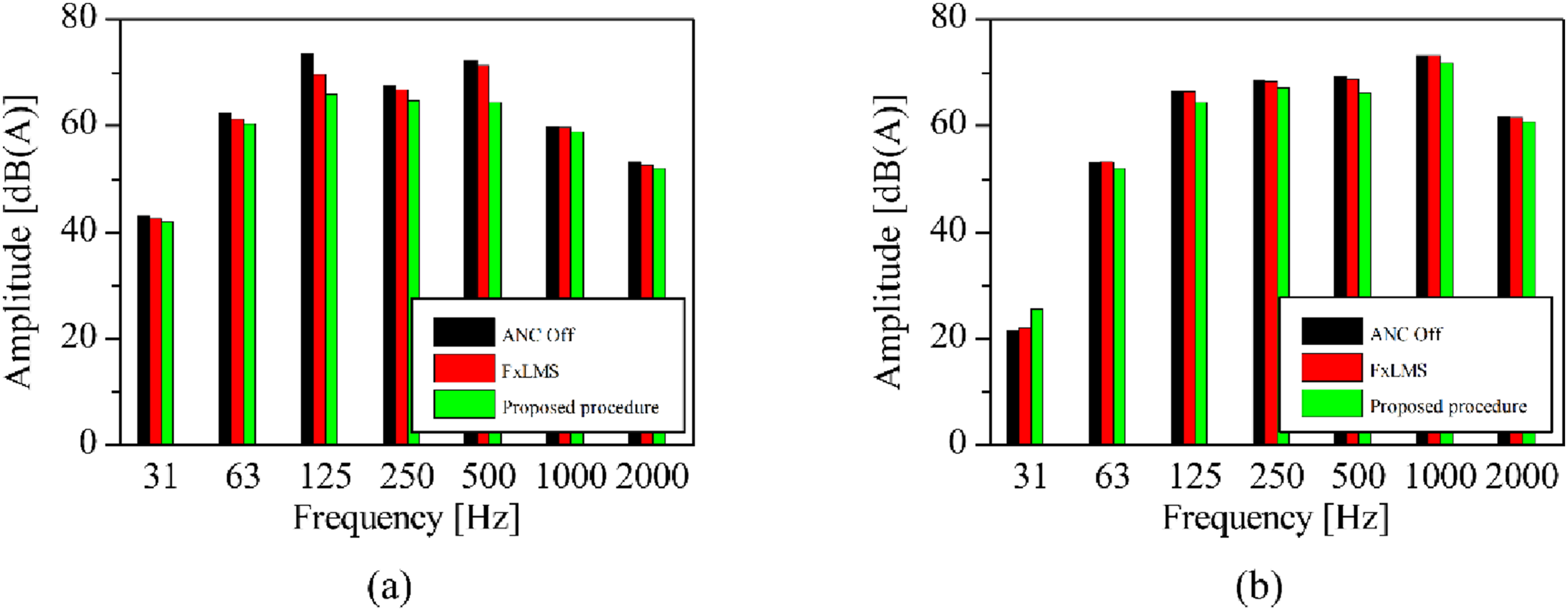

Figure 10.

Comparison of noise reduction performance distribution by frequency band for the results in octave bands for (a) idle engine noise and (b) bucket impact noise.

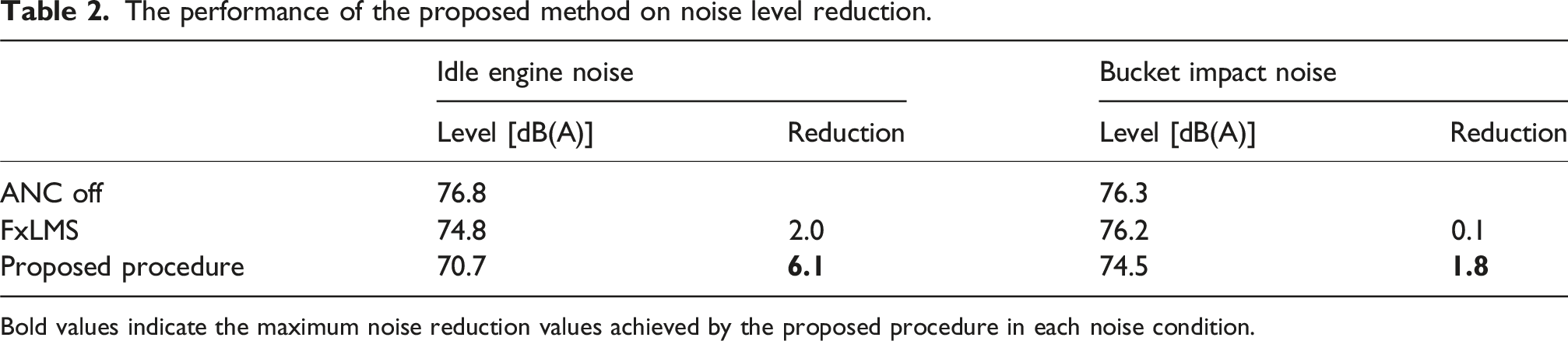

Table 2.

The performance of the proposed method on noise level reduction.

	Idle engine noise		Bucket impact noise
	Level [dB(A)]	Reduction	Level [dB(A)]	Reduction
ANC off	76.8		76.3
FxLMS	74.8	2.0	76.2	0.1
Proposed procedure	70.7	6.1	74.5	1.8

Bold values indicate the maximum noise reduction values achieved by the proposed procedure in each noise condition.

Robustness of control performance to unexpected interference

In actual excavator operating environments, unexpected noise or changes in the sound field within the cabin interfere with the ANC system performance. To simultaneously introduce both types of interference, the opening and closing of the cabin door was given during ANC operations. This change in the acoustic environment significantly impacts the secondary paths, potentially causing the control system to diverge. To simulate this situation, we evaluated the robustness of each algorithm by opening and closing the cabin door while controlling the idle engine noise (Figure 11).

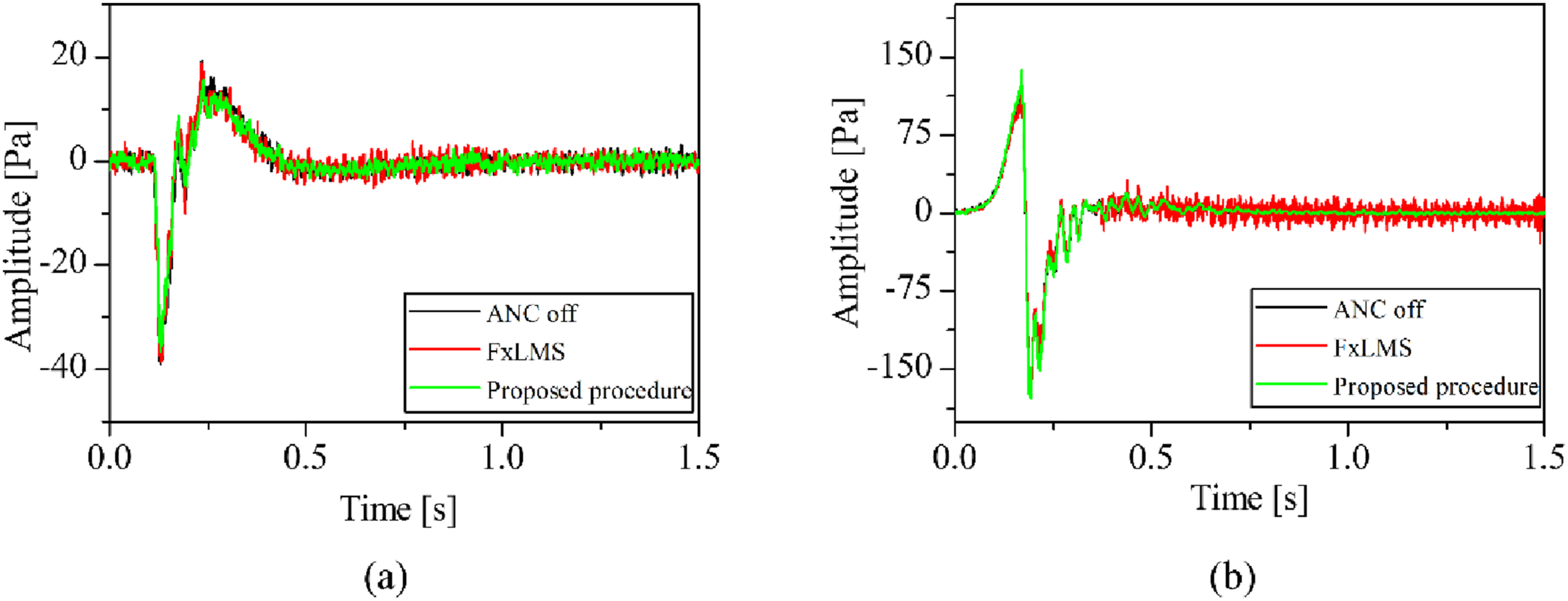

Figure 11.

The sounds measured during the ANC experiments to evaluate the robustness of the proposed algorithm for excavator engine idle noise under conditions of (a) cabin door open and (b) cabin door closed.

From opening and closing the door, the low frequency (<5 Hz) impulsive sounds were generated together with the idle engine noise. The time domain responses were compared, showing that the noise from closing the door was greater than that from opening. The FxLMS algorithm temporarily lost control immediately after the door was opened but regained convergence at 1.0 s. However, after the door was closed, the system diverged and completely lost control. In Figure 12, with the door opening, the system diverged at the 150 Hz and 300 Hz bands. With the door closing, divergence occurred across the entire frequency range. The proposed algorithm maintained stability in both scenarios and showed noise reduction performance in the entire frequency spectrum. With the FxLMS algorithm, noise levels increased due to divergence. With the proposed algorithm, noise reductions of 1.5 dB(A) and 4.5 dB(A) were achieved during transient situations of the door opening and closing, respectively. This improvement can be explained by the underlying control mechanism of the proposed method. Unlike the conventional FxLMS algorithm, which uses a fixed step-size and is highly sensitive to abrupt error fluctuations, the proposed approach adopts a convex combination structure that adapts step-size based on transient acoustic variations while maintaining stability in steady-state conditions. This structure enables dynamic adjustment of the adaptation rate in response to impulsive disturbances, effectively preventing divergence. Additionally, the incorporation of A-weighting emphasizes perceptually significant frequencies, further enhancing control stability and performance across the full spectrum. As a result, the algorithm demonstrates not only improved noise attenuation but also robust convergence behavior under non-stationary and high-impact acoustic events (Figure 13).

Figure 12.

Sound level of excavator engine idle noise measured under conditions of (a) cabin door open and (b) cabin door closed.

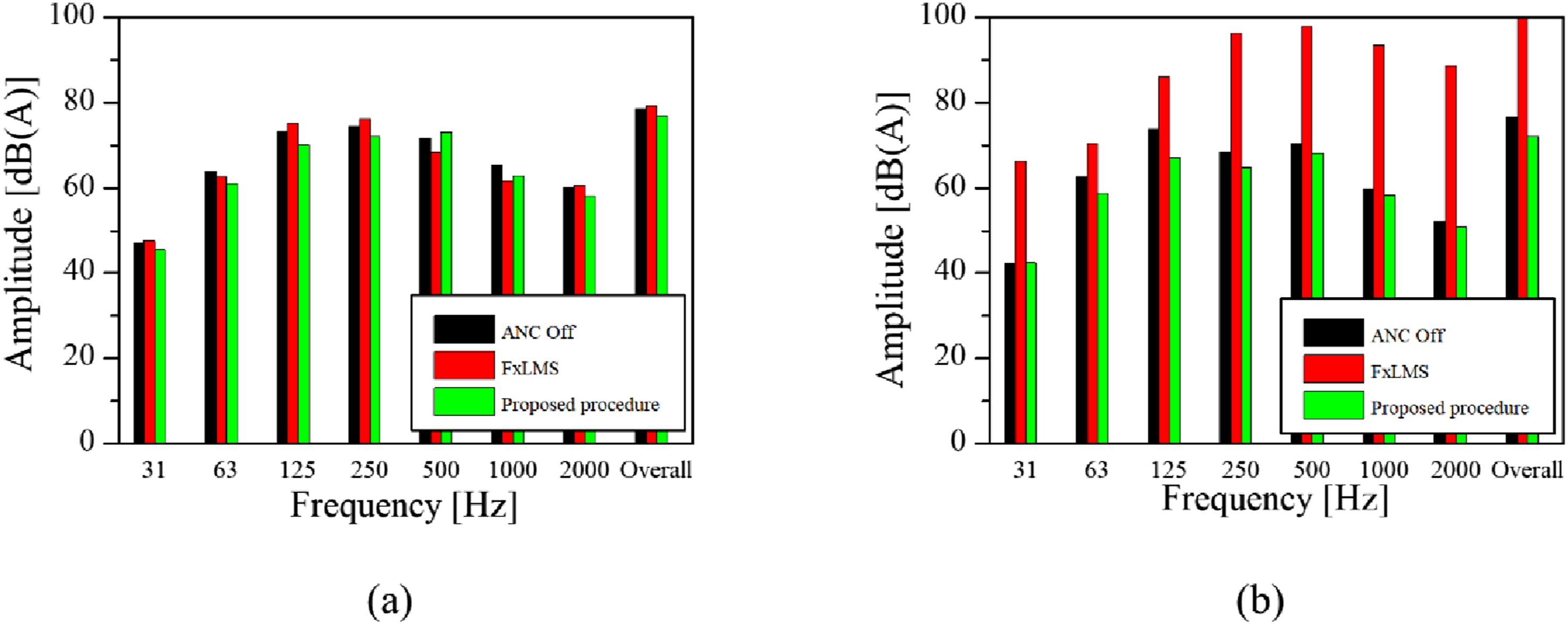

Figure 13.

Comparison of noise reduction performance distributions by 1/1 octave frequency band for (a) door opening and (b) door closing with the idle engine noise.

Discussion

The proposed algorithm effectively reduced impulsive noises while maintaining the stable convergence behavior. Compared to other methods such as affine projection and volterra filter-based approaches, it delivers robust performance with significantly reduced computational complexity. Although APSA involve intricate parameter adjustments with higher computational costs. Similarly, Volterra filtering effectively addresses nonlinearities and requires substantial computational resourcesx. Table 3 presents a comparison of computational complexity among recent AINC algorithms, including those based on Volterra filtering (A-HVF×-RMC-MCC) and affine projection methods (MFxAPLMCC), alongside the proposed AINC procedure. Here,

L

denotes the length of the weight vector,

M

is the length of the secondray path,

P

is the projection order for affine projection, and

H

represents the length of the A-weighting filter. While the A-HVF×-RMC-MCC method exhibits robust performance, its computational complexity significantly increases due to the quadratic terms of the weight vector length

L^{2}

and 6 divisions.²⁸ The affine projection based MFxAPLMCC algorithm needs numerous exponential computations, especially at higher projection orders (

P > 4

).²⁹ In contrast, when

H

is set equal to

M

, as determined in this study, the proposed algorithm exhibits a computational profile, characterized by fewer divide operations and significantly reduced computational demands. Consequently, this characteristic makes the proposed algorithm particularly applicable for real-time ANC implementations in heavy equipments.

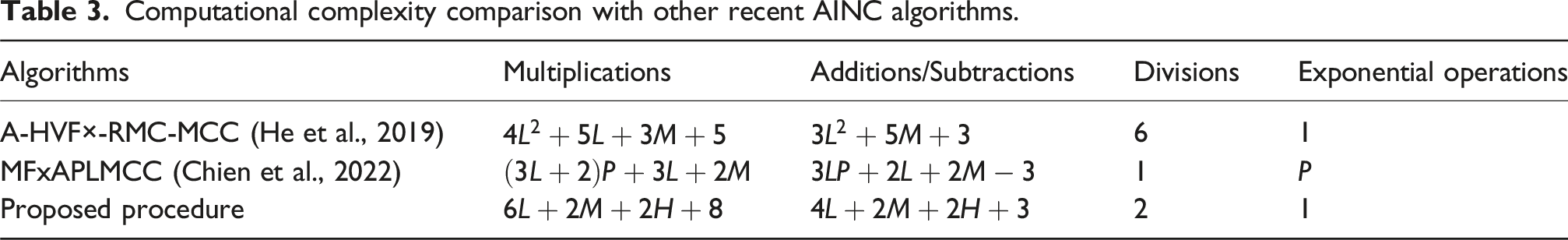

Table 3.

Computational complexity comparison with other recent AINC algorithms.

Algorithms	Multiplications	Additions/Subtractions	Divisions	Exponential operations
A-HVF×-RMC-MCC (He et al., 2019)	$4 L^{2} + 5 L + 3 M + 5$	$3 L^{2} + 5 M + 3$	6	1
MFxAPLMCC (Chien et al., 2022)	$(3 L + 2) P + 3 L + 2 M$	$3 L P + 2 L + 2 M - 3$	1	$P$
Proposed procedure	$6 L + 2 M + 2 H + 8$	$4 L + 2 M + 2 H + 3$	2	1

The PRBS-based secondary path modeling employed this research offers low computational complexity suitable for real-time applications. However, its assumption of a static secondary path presents limitations in dynamic acoustic environments. Therefore, it may not be suitable in unstable and transient environments (e.g., outdoor conditions). Real-time secondary path estimation methods would partially alleviate inaccuracies arising from environmental variations. Moreover, the proposed SαS model, although effective in representing heavy-tailed impulsive noise, assumes stationarity. Real-world impulsive noises often exhibit non-stationary characteristics, suggesting the need for adaptive or time-varying noise modeling in future works. Incorporating such adaptive techniques could further enhance the robustness and real-world applicability of the ANC system, maintaining simplicity while adapting intelligently to changing acoustic conditions.

One limitation of this study is that the evaluation of the proposed AINC method primarily focused on computational efficiency, without a direct comparison of control performance against other established AINC techniques, such as Volterra filtering or deep learning-based controllers.

Future research will involve a systematic performance comparison among various AINC algorithms under identical operating conditions. Such an investigation is expected to provide deeper insights into the trade-offs between control accuracy, robustness, and computational efficiency, and to further validate the proposed algorithm’s effectiveness in diverse acoustic environments.

Conclusions

This study presents effective control methodology for reduction of impulsive noise characterized by significant non-Gaussianity. The error between the actual secondary path and its estimation was minimized for efficient active control. Integration of a normalized LMS prevented divergence in response to large-magnitude single samples, after utilization of a Euclidean norm term to calculate the convergence coefficient. Additionally, this algorithm applied the VSS concept, suitable for volatile noise environments, by forming a mixed step-size through the convex combination of constant and transient step-size parameters. In addition, the A-weighted filtering concept was introduced to consider human auditory characteristics, thereby enhancing the algorithm performance. An experimental setup was built to simulate the actual in-cabin environments. The sound inside the cabin was measured using a head equipped with microphones inside its ears, to simulate actual environments for evaluation of noise reduction performance. The results demonstrated that the proposed ANC algorithm outperformed existing algorithms in both steady-state and impulsive noise scenarios, as evidenced by its superior performance in noise level measurements, particularly in controlling bucket impact noise. The robustness of the proposed algorithm was highlighted as it maintained stability even in situations where unwanted noise intrusions or changes in the secondary path destabilized the ANC system. These advancements indicated significant potential for enhancing noise control and user convenience in heavy machinery like excavators.

Footnotes

ORCID iD

Junhong Park

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, Forestry (IPET) through Development of 110 kW class large tractor based on eco-friendly hydrogen fuel cell (No. 322047051HD0e0), funded by Ministry of Agriculture, Food and Rural Affairs (MAFRA) and HD Hyundai XiteSolution Co., Ltd.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Basner

Babisch

Davis

, et al. Auditory and non-auditory effects of noise on health. Lancet 2014; 383(9925): 1325–1332.

Tiseo

. Passive-active noise control of an acoustic duct. J Theor Appl Mech 2011; 49(4): 1135–1149.

Yin

K-L

de Lamare

, et al. A survey on active noise control in the past decade—Part I: linear systems. Signal Process 2021; 183: 108039.

Yin

K-L

de Lamare

, et al. A survey on active noise control in the past decade–Part II: nonlinear systems. Signal Process 2021; 181: 107929.

Jia

Zheng

Zhou

, et al. A hybrid active noise control system for the attenuation of road noise inside a vehicle cabin. Sensors 2020; 20(24): 7190.

Lam

Shi

Gan

W-S

, et al. Active control of broadband sound through the open aperture of a full-sized domestic window. Sci Rep 2020; 10(1): 10021–10027.

Wen

Gan

W-S

Wang

. Investigation on the performance of an active noise control window system mounted on the top-hung window of a residential room. Appl Acoust 2023; 206: 109323.

Sun

Liu

, et al. A new feedforward and feedback hybrid active noise control system for excavator interior noise. Appl Acoust 2022; 197: 108872.

Themann

Masterson

. Occupational noise exposure: a review of its effects, epidemiology, and impact with recommendations for reducing its burden. J Acoust Soc Am 2019; 146(5): 3879–3905.

10.

Shao

Nikias

. Signal processing with fractional lower order moments: stable processes and their applications. Proc IEEE 1993; 81(7): 986–1010.

11.

Jin

Chen

, et al. An active impulsive noise control algorithm with a post-adaptive filter and variable step size. J Acoust Soc Am 2021; 150(5): 3238–3250.

12.

Chien

Y-R

SS-D

D-Y

. Combined boosted variable step-size affine projection sign algorithm for environments with impulsive noise. Digit Signal Process 2023; 140: 104110.

13.

Tan

Jiang

. Adaptive Volterra filters for active control of nonlinear noise processes. IEEE Trans Signal Process 2001; 49(8): 1667–1676.

14.

Chien

Y-R

Hsieh

H-E

Qian

. Robust bias compensation method for sparse normalized quasi-Newton least-mean with variable mixing-norm adaptive filtering. Mathematics 2024; 12(9): 1310.

15.

Morgan

. An analysis of multiple correlation cancellation loops with a filter in the auxiliary path. IEEE Trans Acoust 1980; 28(4): 454–467.

16.

Elliott

. Signal processing for active control. Elsevier, 2000.

17.

Douglas

. A family of normalized LMS algorithms. IEEE Signal Process Lett 1994; 1(3): 49–51.

18.

Aboulnasr

Mayyas

. A robust variable step-size LMS-type algorithm: analysis and simulations. IEEE Trans Signal Process 1997; 45(3): 631–639.

19.

Kwong

Johnston

. A variable step size LMS algorithm. IEEE Trans Signal Process 1992; 40(7): 1633–1642.

20.

Arenas-Garcia

Figueiras-Vidal

Sayed

. Mean-square performance of a convex combination of two adaptive filters. IEEE Trans Signal Process 2006; 54(3): 1078–1090.

21.

Huang

Zhang

Pang

. A novel combination scheme of proportionate filter. Signal Process 2018; 143: 222–231.

22.

Martinez-Ramon

Arenas-García

Navia-Vazquez

, et al. (eds) An adaptive combination of adaptive filters for plant identification. 2002 14th international conference on digital signal processing proceedings DSP 2002 (Cat No 02TH8628). IEEE, 2002.

23.

Tahir

. On active impulsive noise control (AINC) systems. Circ Syst Signal Process 2020; 39(9): 4354–4377.

24.

Lee

Cho

Park

(eds) Improved combined step-size normalized sign algorithm with novel variable mixing factors. In: 2021 21st International Conference on Control, Automation and Systems (ICCAS). IEEE, 2021.

25.

Haykin

. Neural networks and learning machines, 3/E. Pearson Education India, 2009.

26.

Bies

Hansen

Howard

, et al. Engineering noise control. CRC Press, 2023.

27.

Elliott

Joseph

Bullmore

, et al. Active cancellation at a point in a pure tone diffuse sound field. J Sound Vib 1988; 120(1): 183–189.

28.

. An efficient algorithm for nonlinear active noise control of impulsive noise. Appl Acoust 2019; 148: 366–374.

29.

Chien

Y-R

C-H

Tsao

H-W

. Affine-projection-like maximum correntropy criteria algorithm for robust active noise control. IEEE/ACM Trans Audio Speech Lang Process 2022; 30: 2255–2266.
