Top-down transformation choice

Abstract

Simple models are preferred over complex models, but over-simplistic models could lead to erroneous interpretations. The classical approach is to start with a simple model, whose shortcomings are assessed in residual-based model diagnostics. Eventually, one increases the complexity of this initial overly simple model and obtains a better-fitting model. I illustrate how transformation analysis can be used as an alternative approach to model choice. Instead of adding complexity to simple models, step-wise complexity reduction is used to help identify simpler and better interpretable models. As an example, body mass index (BMI) distributions in Switzerland are modelled by means of transformation models to understand the impact of sex, age, smoking and other lifestyle factors on a person's BMI. In this process, I searched for a compromise between model fit and model interpretability. Special emphasis is given to the understanding of the connections between transformation models of increasing complexity. The models used in this analysis ranged from evergreens, such as the normal linear regression model with constant variance, to novel models with extremely flexible conditional distribution functions, such as transformation trees and transformation forests.

Keywords

Transformation analysis Conditional transformation model conditional distribution function conditional quantile function distribution regression stratified linear transformation model body mass index

1 Introduction

Let's face it. The work of statisticians is considered boring in the public eye. Nobody publishes page turners on the thrilling aspects of data analysis, yet the quest for a good model can be as exciting as detective work. One of my favourite paperback characters is LAPD detective Harry Bosch in the crime novels of Michael Connelly. Like Harry, who follows the traces left by the murderer on the crime scene to form a theory about the culprit, the experienced data analyst follows the traces left by the data-generating process in the residuals of an over-simplistic model. Unlike Harry, who of course always succeeds in arresting the murderer, the statistician can never be sure whether the correct or even an approximately useful model was found. In the quests for a suspect or for a good model, parsimonious explanations are preferred by Occam's razor. Therefore, in residual-based model diagnostics, the data analyst starts with a very simple model, whose complexity is increased by step-wise refinement until all signs of lack of fit disappear from the residuals. I refer to such a procedure as ‘bottom-up model choice’ because one moves from simple to more complex models. In this tutorial, I consider moving in the opposite direction, that is, from complex to simple models, for distributional regression. This ‘top-down approach’ to model choice begins with the most complex model that one can come up with that explains both signal and noise without overfitting the data. In a regression setup, such a model would describe as accurately as possible the conditional distribution of the response given the explanatory variables. Once such a model is established as a benchmark for comparison with simpler models, one can start to reduce model complexity step-wise. In the crime novel scenario, the top-down data analyst takes the role of an eyewitness at the scene. What one ‘sees’ in this process is, of course, still a portrayal and not the real thing. There is no way to ‘see’ the correct model. In top-down model choice, however, the trajectories through model space will be guided by assessments of vital models. In bottom-up model choice, by contrast, the horizon is limited by the amount of information that one can find in traces in deceased models.

In this tutorial, I focus on top-down model choice in continuous regression problems. Conceptually, a regression model is a family of conditional distributions for some response Y, given a specific configuration of explanatory variables X = x. The model describes both signal and noise, that is, the variability explained by the explanatory variables and the unexplained variability. Unfortunately, this point of view only applies to relatively simple models that assume a certain parametric distribution, whose parameters partially depend on the explanatory variables. The so-called ‘non-parametric regression models’ (Fahrmeir et al., 2013) often restrict their attention to the signal $𝔼 (Y | X = x) = m (x),$ with non-linear conditional mean function m, while treating the noise, that is, all higher moments of the conditional distribution, as a nuisance or essentially ignoring it. Such procedures, for example random forests (Breiman, 2001), are extremely powerful when estimating complex conditional mean functions. However, one cannot infer the entire conditional distribution using random forests or similar methods. This renders top-down model choice impossible because reductions in complexity require switching between different model classes or even crossing the borders between the parametric and non-parametric empires. The comparison of two models from different classes is difficult, and thus it is difficult to decide whether the simpler model is more appropriate than the more complex one.

The implementation of top-down model choice is much simpler when the most complex and the most simple model are members of the same family. Conditional transformation models from the transformation family of distributions (Hothorn et al., 2014, 2017) include many important established off-the-shelf regression models. In addition, tailored models can be created, in vivo with our brains and in silico using open-source software, which allow smooth transitions between models of different complexity. In a nutshell, the class of conditional transformation models

ℙ (Y \leq y ∣ X = x) = F_{Y} (y | x) = F (h (y ∣ x))

assumes that the conditional distribution function F_Y of Y given

X = x

can be written as the composition of an a priori specified continuous cumulative distribution function (CDF) F and some conditional transformation function

h (y ∣ x)

. The latter function monotonically increases in its first argument for each

x

. It is important to note that the entire conditional distribution, and not just its mean, is modelled by

h

. In this sense, and unlike common regression models, there is no decomposition into signal (the conditional mean) and noise (the remaining higher moments) in this class of transformation models. Changing model complexity means changing the complexity of the conditional transformation function

h

, and I thus refer to top-down model choice in conditional transformation models as top-down transformation choice.

Model complexity in the class of conditional transformation models is linked to smooths $h (y ∣ x)$ of varying complexity with respect to $y$ . These conditional transformation functions may vary with the explanatory variables $x$ in arbitrary ways, including interactions and non-linearities. In this article, I consider model choice as an art rather than an exact science. No formal algorithm leading to an ‘optimal’ model will be presented. Instead, I argue that the possibility of modelling a cascade of decreasingly complex conditional distribution functions in the same model class gives us new possibilities to investigate goodness of fit or lack thereof. A fair amount of subjectivity will remain in this process, as is always the case in classical model diagnostics. I shall be less concerned with the technical subtleness of parameter estimation in the models discussed here and refer the reader to more formal results published elsewhere. Instead, I illustrate practical aspects of top-down transformation choice by a tour de force through transformation models describing the impact of lifestyle parameters, such as smoking or physical activity, on the body mass index (BMI) distribution in the Swiss population.

I will proceed by introducing the Swiss Health Survey (SHS) and the variables dealt with in Section 2. In a very simple setup, I first illustrate a bottom-up route, starting with a normal linear model and ending with a more complex non-normal transformation model, for describing the BMI distribution of females and males at various levels of smoking (Section 3). I then try to reduce the complexity again until an interpretable model that fits the data roughly as well as the most complex model can be found. In addition to a consideration of sex and smoking, I consider age and some lifestyle variables in a more realistic setup of top-down transformation choice in Section 4.

2 Body mass index in the Swiss Health Survey

The SHS is a population-based cross-sectional survey. It has been conducted every five years since 1992 by the Swiss Federal Statistical Office (Bundesamt für Statistik, 2013). For this tutorial, I restricted the sample to 16 427 individuals aged between 18 and 74 years from the 2012 survey. Study samples were obtained by stratified random sampling using a database with all private household landline telephone numbers. Data were collected by telephone interviews and self-administered questionnaires. Height and weight were self-reported in telephone interviews. Observations with extreme values of height and weight were excluded (highest and lowest percentile by sex). Smoking status was categorized into never, former, light (1 − 9 cigarettes per day), moderate (10 − 19) and heavy smokers (>19). Never smokers stated that they did not currently smoke and never regularly smoked longer than six months; former smokers had quit smoking, but have smoked for more than six months during their life course. One cigarillo or pipe counted as two cigarettes, and one cigar counted as four cigarettes. The following lifestyle variables were included and assessed by telephone interview and self-administered questionnaire: fruit and vegetable consumption, physical activity, alcohol intake, level of education, nationality and place of residence. Fruit and vegetable consumption was combined in one binary variable that comprised the information on whether both fruits and vegetables were consumed daily or not. The variable describing physical activity was defined as the number of days per week a subject started to sweat during leisure time physical activity and was categorized as >2 days, 1–2 days and none. Alcohol intake was included using the continuous variable gram per day. Education was included as highest degree obtained and was categorized into mandatory (International Standard Classification of Education, ISCED 1–2), secondary (ISCED 3–4) and tertiary (ISCED 5–8) (UNESCO Institute for Statistics, 2012). Nationality had the two categories Swiss and foreign. Language reflected cultural and regional differences within Switzerland, and the three categories German/Romansh, French and Italian were taken into account. Sampling weights of this representative survey were considered for the estimation of all models reported in this tutorial. More detailed information about this study and an analysis using simple transformation models is given in Lohse et al. (2017).

3 Sex- and smoking-specific BMI distributions

I start with the very simple situation where the conditional distribution of BMI depends on sex and smoking only. Smoking was assessed on five different levels (never smoked, former smokers, light smokers, medium smokers and heavy smokers). Therefore, I am interested in the conditional distribution of BMI in these 10 groups of participants. Figure 1 presents the empirical CDFs, that is, the non-parametric maximum likelihood estimators for the underlying continuous distributions, for each of the 10 combinations of sex and smoking. At the same time, the plot also represents the uncompressed raw data. With a high enough resolution, one could recover the original BMI values and the corresponding sampling weights from such an image. Consequently, goodness of fit can be assessed by overlaying the empirical CDFs with their model-based counterparts in this simple setup. I will try to find a suitable parametric model this way. In addition to this rather informal approach, I will study the increase of the log-likelihoods as model complexity is increased. In the classical bottom-up approach, one would start with a very simple model assuming conditional normal distributions. The next section discusses possible choices in this model class.

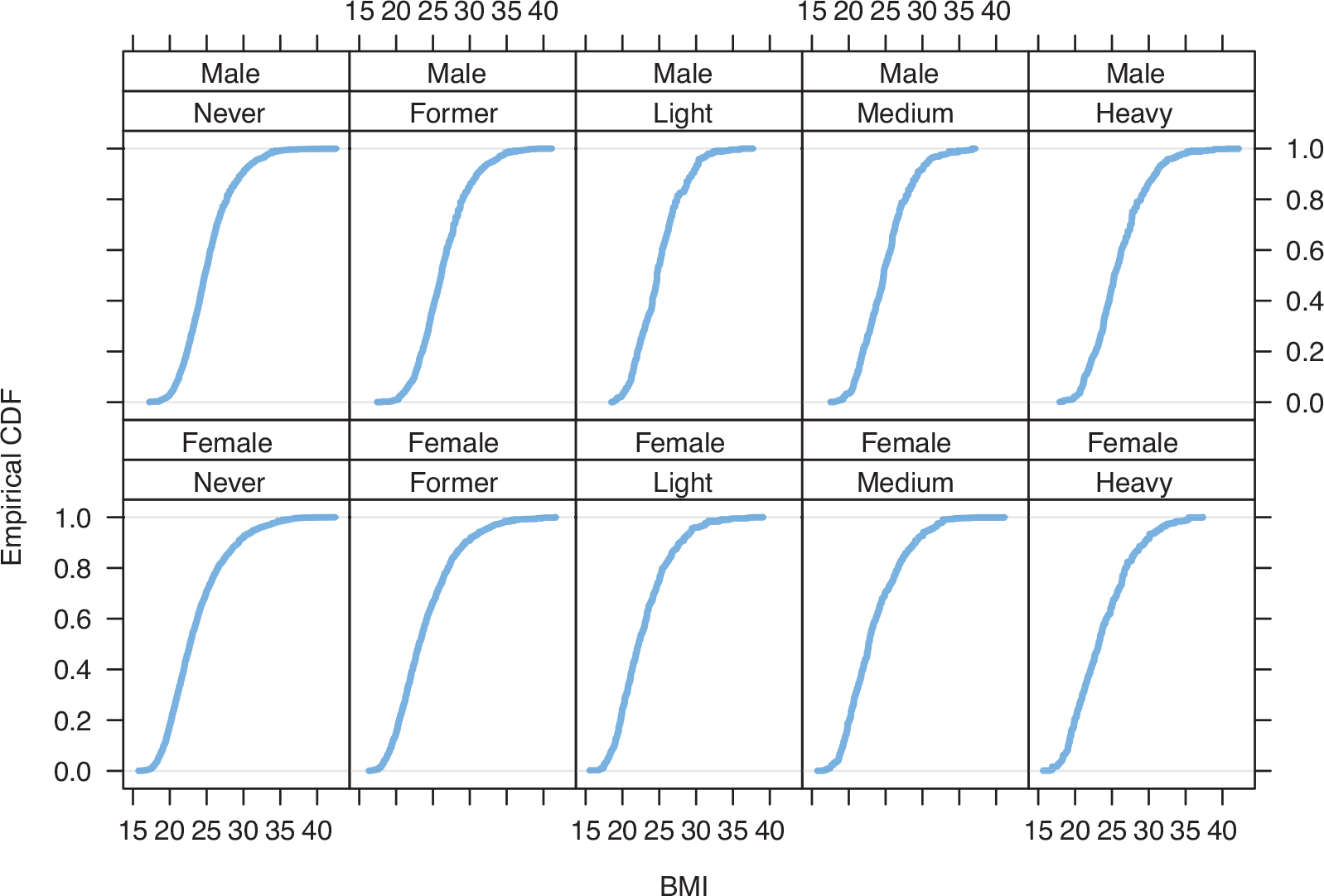

Figure 1:

The empirical cumulative distribution function (CDF) of BMI given sex and smoking. For each combination of sex and smoking, the weighted empirical CDF taking sampling weights into account is presented

3.1 Normal models

The normal cell-means model with constant variance

BMI ∣ sex, smoking \sim N (μ (sex : smoking), σ^{2})

(3.1)

assumes normal distributions with a common variance for all conditional BMI distributions. Means are allowed to vary between the groups defined by sex and smoking. The notation μ(sex : smoking) indicates that the conditional mean is specific to each combination of sex and smoking in this cell-means model, that is, there are a total of 10 parameters μ(sex : smoking). With a residual standard error of

\hat{σ} = 3.73

, a log-likelihood of −47 010.46 was obtained, and the estimated cell-means, with 95% confidence intervals, are shown in Table 1.

Table 1:

Normal cell-means model (3.1) with constant variance. Estimated means of BMI for each combination of sex and smoking, with 95% confidence intervals are shown

	Sex
Smoking	Female	Male
Never	23.57 (23.47–23.68)	25.18 (25.06–25.30)
Former	23.94 (23.76–24.12)	26.46 (26.30–26.62)
Light	22.85 (22.59–23.11)	25.00 (24.73–25.27)
Medium	23.45 (23.18–23.72)	25.00 (24.75–25.26)
Heavy	23.72 (23.36–24.08)	25.90 (25.65–26.15)

Figure 2:

Normal cell-means model (3.1) with constant variance. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

How well does this model fit the data? I want to answer this question by graphically comparing the conditional distribution functions obtained from this model to the corresponding empirical conditional distributions, and thus the raw data. The model-based conditional CDFs

ℙ (BMI \leq y ∣ sex, smoking) = F_{BMI} (y ∣ sex, smoking) = Φ (\frac{y - μ (sex : smoking)}{σ})

overlay the empirical CDFs in Figure 2. While not being completely out of line, the considerable differences between the empirical and model-based distribution functions certainly leave room for improvement. An obvious increase in the complexity allows for group-specific variances in the model

BMI ∣ sex, smoking \sim N (μ (sex : smoking), σ (sex : smoking)^{2}) .

(3.2)

The log-likelihood in this 20-parameter model increased to −44 801.19, and the corresponding conditional distribution functions in Figure 3 were closer to the empirical CDFs. For males, the model-based normal distributions were very close to the empirical conditional BMI distributions. For females, however, there still was a considerable discrepancy between model and data, especially in the lower tails. The BMI distributions of females deviated from normality much more than the BMI distributions of males (note that I am not saying that males are normal and females are not!). It is clear that one has to move to a non-normal error model, at least for females, and the transformation models discussed in the following are a convenient way to do so.

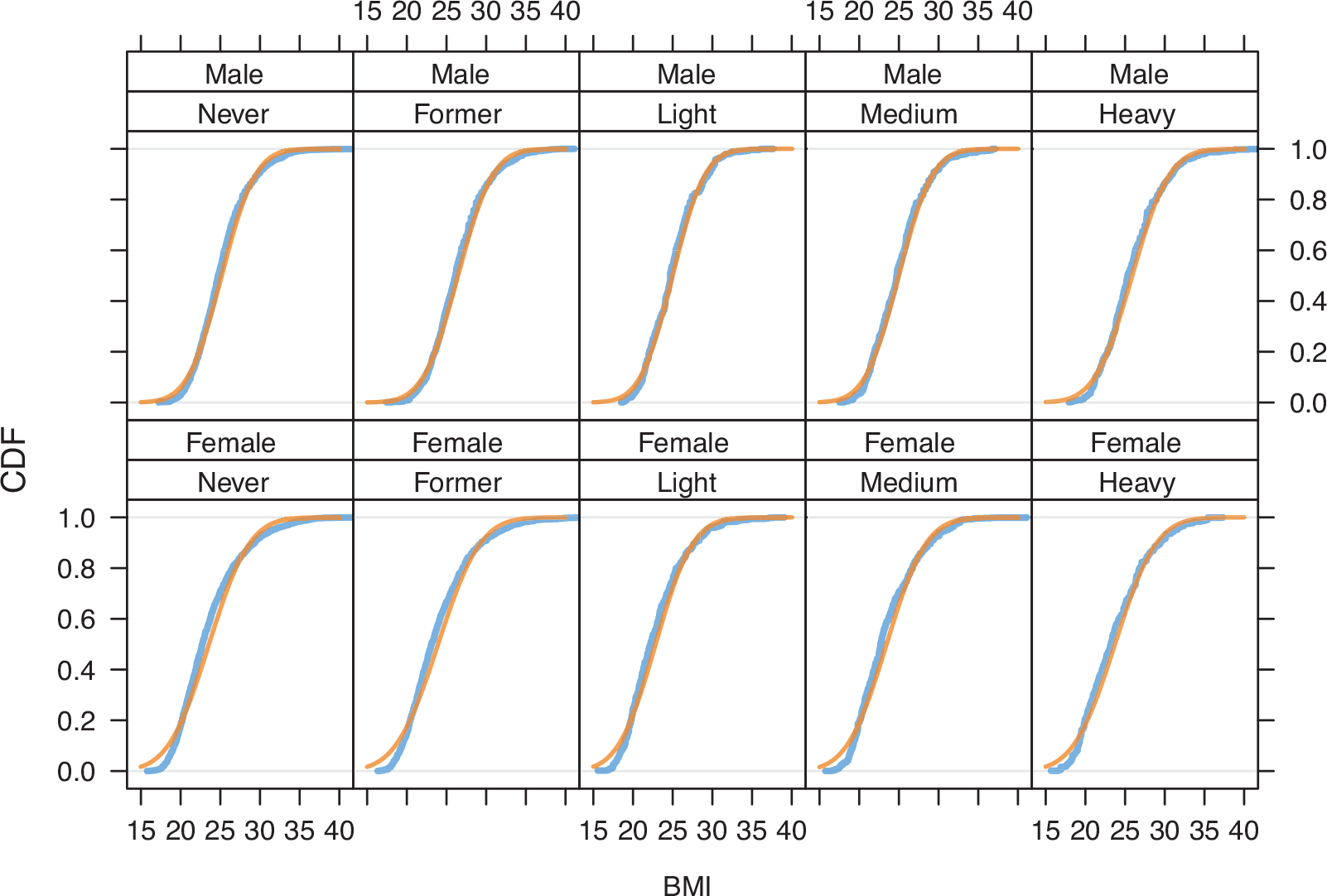

Figure 3:

Normal cell-means model (3.2) with heterogeneuous variance. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

The normal models are a special case of transformation models and thus the latter class is a very natural extension of the former. To see the connection, consider the conditional distribution function

\begin{matrix} ℙ (BMI \leq y ∣ sex, smoking) & = & Φ (\frac{y - μ (sex : smoking)}{σ (sex : smoking)}) \\ = & Φ (ϑ (sex : smoking) y - β (sex : smoking)) \\ = & Φ (h (y ∣ sex : smoking)), \end{matrix}

where

h

is a linear function of

y

with parameters

ϑ (sex : smoking) = σ (sex : smoking)^{- 1}

and

β (sex : smoking) = μ (sex : smoking) / σ (sex : smoking)

. In more complex models, we will use the parameter ϑ (or parameter vector ϑ for basis-transformed response values a(y)) for modelling transformations

h

of the response

y

. Shift parameters describing effects of explanatory variables only, that is, no response-varying effects, will be denoted by β or β later on. The aforementioned re-parameterization shows, quite unsurprisingly, that a normal model features a linear transformation function

h

. Consequently, non-normal conditional distributions can be obtained by allowing a non-linear transformation function for each combination of sex and smoking in the transformation models presented in the next section.

3.2 Non-normal transformation models

The core concept of a transformation model is a potentially non-linear monotonically increasing transformation function $h (y ∣ sex : smoking)$ , here for each combination of sex and smoking. For computational convenience, I parameterized the transformation functions $h$ in terms of Bernstein polynomials (Farouki, 2012). For each of the 10 groups, I modelled the transformation function $h$ by a Bernstein polynomial $a_{Bs, 5} {(y)}^{⊤} ϑ$ of order 5, where $a_{Bs, 5} (y) \in ℝ^{6}$ are the corresponding basis functions of BMI. A monotonically increasing Bernstein polynomial of order 5 features 6 monotonically increasing parameters ϑ. Maximum likelihood estimation was performed (Hothorn et al., 2017) using the mlt (Hothorn, 2017a, b) add-on package to the R system for statistical computing (R Core Team, 2017). With the corresponding 60 total parameters, the maximum log-likelihood of the model

ℙ (BMI \leq y ∣ sex, smoking) = Φ (a_{Bs, 5} {(y)}^{⊤} ϑ (sex : smoking))

(3.3)

was −43 564.30; the notation

ϑ (sex : smoking)

indicates that the parameters were estimated for each combination of sex and smoking. One can hardly differentiate the resulting model-based conditional distribution functions from the empirical cumulative BMI distribution functions in Figure 4. Because a separate transformation function was estimated for each combination of sex and smoking, this model can be referred to as a transformation model stratified by sex and smoking. Based on this model, one can understand non-normality as deviation of the transformation function from a linear function. Figure 5 shows the sex- and smoking-specific transformation functions of model (3.3) along with the linear transformation functions obtained from the normal cell-means model (3.2) with heterogeneous variances. In the centre of the distributions, the two curves overlap, but the tails are not described well by the normal distribution. The differences between the two curves are more pronounced for females, corresponding to the larger deviations from normality observed earlier.

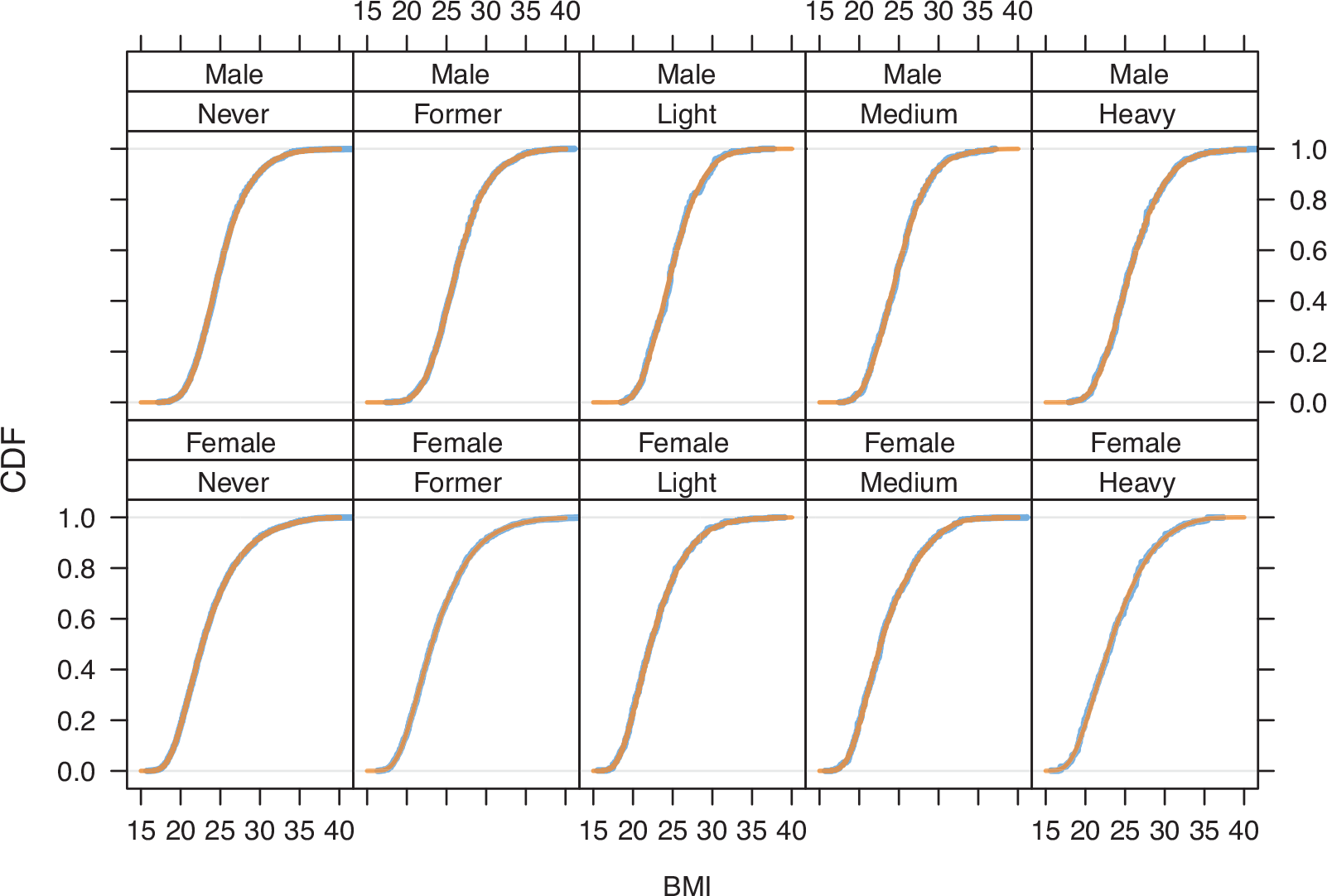

Figure 4:

Transformation model (3.3) stratified by sex and smoking. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

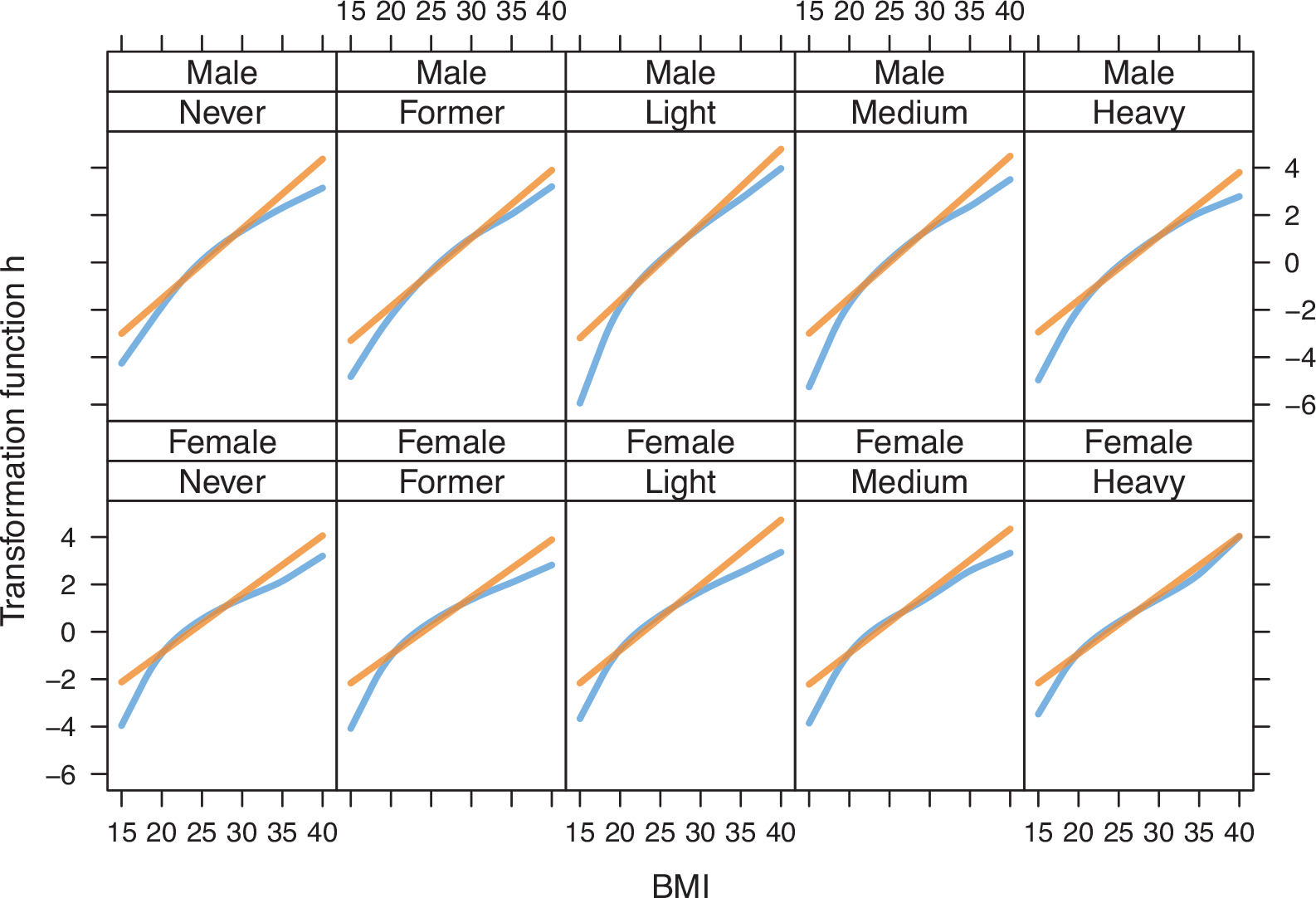

Figure 5:

Transformation model (3.3) stratified by sex and smoking. Deviations from normality indicated by the non-linear transformation functions (blue) compared to the linear transformation functions (yellow) obtained from the normal cell-means model (3.2) with heterogeneous variances are shown

One nice feature of model (3.3) is the possibility to easily derive characterizations of the distribution other than the distribution function. Density, quantile, hazard, cumulative hazard or other characterizing functions can be derived from (3.3), and Figure 6 depicts the densities for males and females at the various levels of smoking. The right skewness of the distribution, and thus deviation from normality, was more pronounced for females. The BMI distributions for females put more weight on smaller BMI values for females than for males. Except for heavy smokers, the effects of smoking seemed to be rather small.

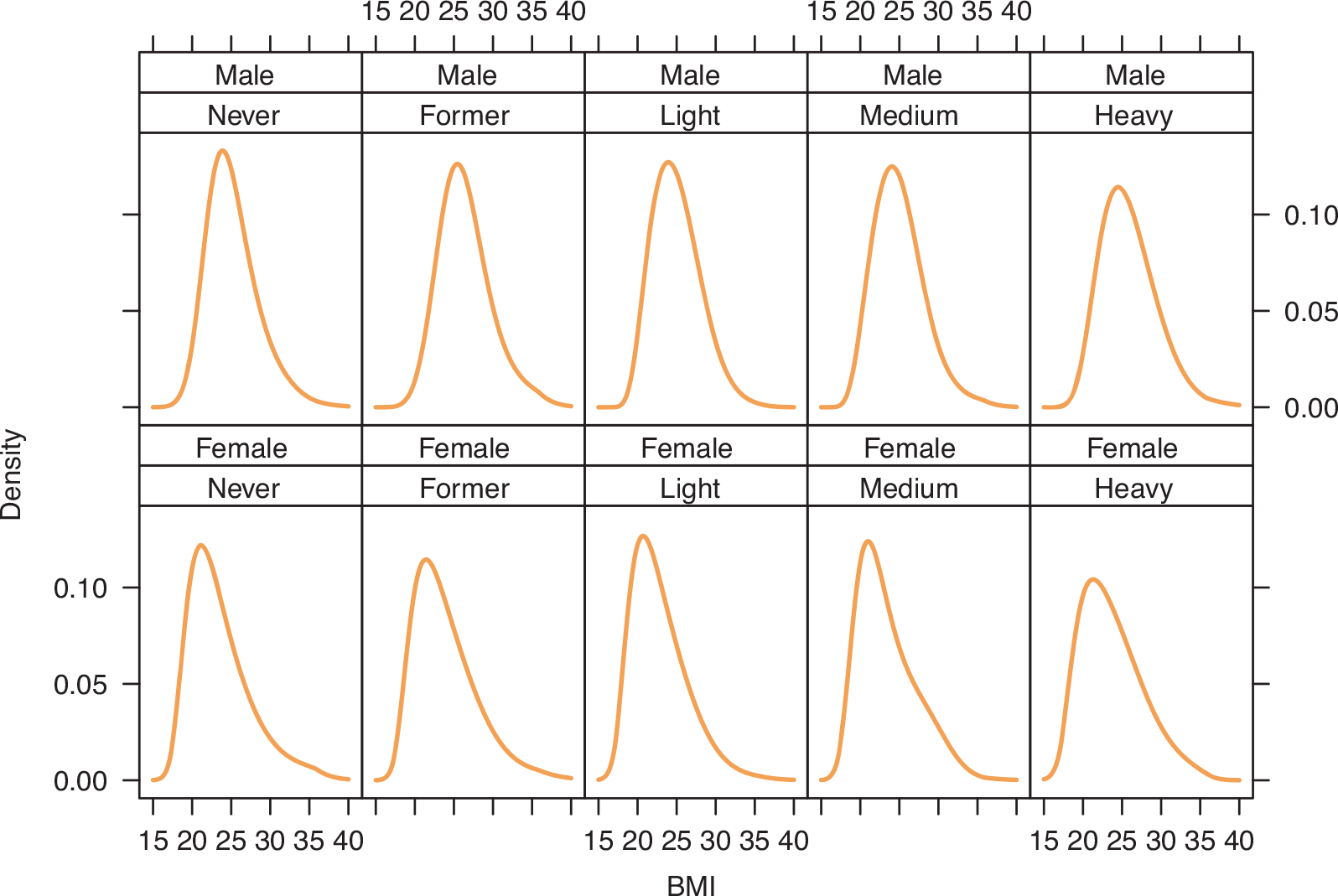

Figure 6:

Transformation model (3.3) stratified by sex and smoking. The model-based conditional densities of BMI given sex and smoking are shown

The model fit of this stratified transformation model is now satisfactory, as it essentially smoothly interpolates the empirical distribution functions and thus the data in Figure 4. This most complex model describes the data well, but, unfortunately, it is difficult to learn anything from this model. That is, one wants to understand the differences between the conditional distributions in terms of simple parameters and not complex non-linear functions. A simpler model is needed. A top-down approach to transformation choice might help to identify a model with simpler and interpretable transformation functions, but any necessary compromises to the model fit should not be too demanding.

Because the BMI distributions differed most between males and females, I first simplify the model by conditioning on smoking and stratifying by sex, that is, I introduce sex-specific transformations $h (y ∣ sex)$ and sex-specific smoking effects $β$ , the latter being constant for all arguments $y$ of the conditional distribution function, in the model

ℙ (BMI \leq y ∣ sex, smoking) = Φ (h (y ∣ sex) - β (sex : smoking)) .

(3.4)

This model features two transformation functions

h (y ∣ male)

and

h (y ∣ female)

. For never smokers (the reference category), these two transformation functions describe the conditional BMI distributions, that is,

ℙ (BMI \leq y ∣ sex, never smoked) = Φ (h (y ∣ sex)) .

For the remaining smoking categories, one sex-specific parameter

β (sex : smoking)

describes how the conditional BMI distribution of a smoker differs from the conditional BMI distribution of a person who never smoked by a simple shift term

β

. Because of the ‘linear’ shift term, this model could be referred to as a stratified linear transformation model. This is, as often in statistics, a misnomer because the transformation

h (y ∣ sex)

of the response, that is, of the BMI values

y

, is non-linear.

The log-likelihood for this model with 20 parameters was found to be −43 602.03, a moderate reduction compared to the log-likelihood of the most complex transformation model (−43 564.30). Figure 7 shows only minor differences between the empirical and model-based conditional distribution functions. Thus, it seems that a more parsimonious model was found without paying too high a price in terms of log-likelihood reduction.

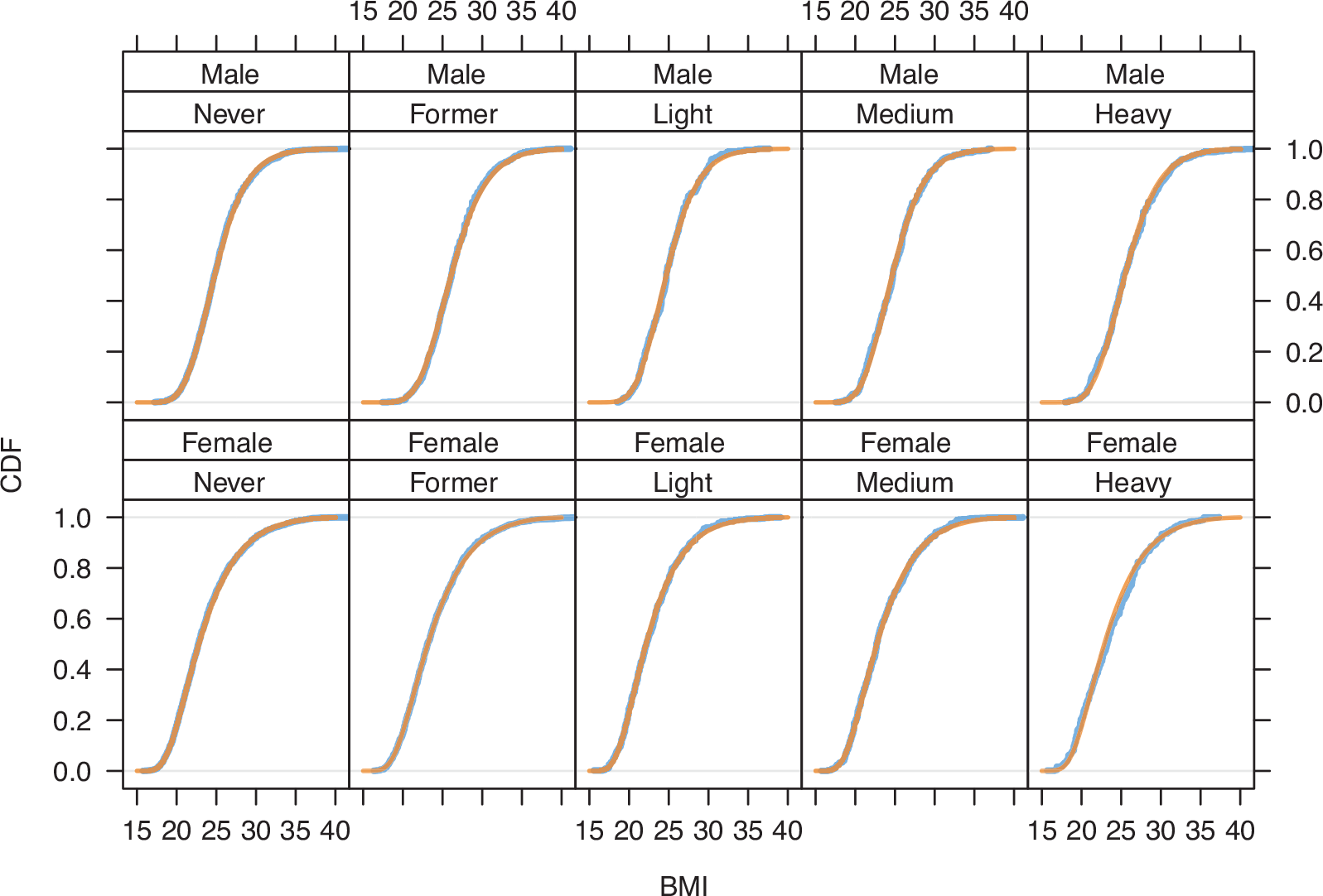

Figure 7:

Linear transformation model (3.4) with sex and smoking-specific shift, stratified by sex. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

The conceptual problem with this model, however, is lack of interpretability of the shift term $β (sex : smoking)$ . In contrast to the means μ in the normal models (3.1) and (3.2), there is no direct interpretation of β in terms of moments of the conditional distribution described by this model. This issue can be addressed by changing the CDF $F = Φ$ of the standard normal to the CDF $F = expit$ of the standard logistic

ℙ (BMI \leq y ∣ sex, smoking) = expit (h (y ∣ sex) - β (sex : smoking)) .

(3.5)

When the cut-off

y

is fixed, this is a logistic regression model for the binary outcome

BMI \leq y

BMI > y

. The transformation function

h (y ∣ sex)

is now a sex-specific intercept, and

β (sex : smoking)

are the sex-specific log-odds ratios for the event

BMI \leq y

compared to the baseline category (never smokers). Because this shift term does not depend on

y

, the model assumes proportionality of the smoking odds with respect to the cut-off

y

. Stratification by sex allows non-proportional smoking odds with respect to sex. In fact, the sex-specific conditional distributions of males and females can still differ in very general ways because two separate Bernstein polynomials

h (y ∣ sex) = a_{Bs, 5}^{⊤} ϑ (sex)

describe the conditional distributions for males and females. The model can be seen as a stratified proportional odds model for continuous responses or a continuous form of logistic regression analyses, jointly performed for all possible cut-off points

y

under the assumption of constant parameters

β (sex : smoking)

. Similar models, however without stratification, were studied by Manuguerra and Heller (2010) using parametric intercept functions

h

and recently by Liu et al. (2017) treating the intercept function as a nuisance parameter in non-parametric maximum likelihood estimation. Lohse et al. (2017) provide a comparison of parameter estimation in the presence of interval-censored BMI observations.

The parameterization $h (y ∣ sex) - β (sex : smoking)$ with a negative shift term seems unconventional from a logistic regression point of view, but it simplifies interpretation. With model (3.5), $𝔼 (h (y ∣ sex, smoking)) = β (sex : smoking)$ , and thus positive shift parameters β indicate a shift of the BMI distribution towards higher BMI values. Corresponding odds ratios $\exp (β)$ larger than one mean that BMI distributions are shifted to the right, compared to the BMI distribution in the reference category.

Unfortunately, there was some further reduction in the log-likelihood (−43 639.74), and interpretability does not come for free. However, the model-based and empirical conditional BMI distribution functions look very much the same as presented in Figure 7 (additional plot not shown). The sex-specific BMI-independent odds ratios of smoking, compared to never smoking, are given in Table 2. Former smokers had, on an average, a larger BMI compared to never smokers, and the effect was stronger for males. A similar effect was observed for male heavy smokers. Female light smokers showed a BMI distribution shifted to the left, compared with female never smokers.

Table 2:

Linear transformation model (3.5) with sex and smoking-specific shift, stratified by sex. Odds ratios to the baseline category never smoking along with 95% confidence intervals for males and females are shown. Odds ratios larger than one indicate a shift of the BMI distribution to the right

	Sex
Smoking	Female	Male
Never	1	1
Former	1.19 (1.08–1.31)	1.95 (1.77–2.14)
Light	0.75 (0.65–0.85)	0.95 (0.82–1.09)
Medium	0.98 (0.85–1.12)	0.93 (0.81–1.06)
Heavy	1.10 (0.92–1.32)	1.43 (1.25–1.63)

Maintaining interpretability, one could go further and assume equal smoking effects for males and females in the model

ℙ (BMI \leq y ∣ sex, smoking) = expit (h (y ∣ sex) - β (smoking)) .

The log-likelihood was again reduced (−43 669.50) for this model with 16 parameters. In addition, the odds ratios presented in Table 2 indicate severe differences in the smoking effects between males and females; therefore, I refrain from looking at this or even simpler models and stop the top-down transformation choice here. Of course, this very simple example only worked because it was possible to compare models and raw data directly on the scale of the conditional BMI distribution functions for two categorical explanatory variables, sex and smoking. In the second part, I will consider additional, and also numeric, explanatory variables in a more realistic setup.

4 Conditional BMI distributions

My aim is to estimate the conditional BMI distribution given sex, smoking, age and the lifestyle variables alcohol intake, education, physical activity, fruit and vegetables consumption, residence and nationality as explanatory variables $x$ . In the conditional transformation model

ℙ (BMI \leq y ∣ sex, smoking, age, x) = expit (h (y ∣ sex, smoking, age, x)),

the conditional transformation function

h

depends on these variables in a yet unspecified way. Top-down transformation choice ideally allows one to start without too many headaches, that is, an algorithm for fitting this model to handle the potentially many explanatory variables of mixed type allows relatively complex non-linear transformation functions. Such a model can be written as

ℙ (BMI \leq y ∣ sex, smoking, age, x) = expit (a_{Bs, 5} {(y)}^{⊤} ϑ (sex, smoking, age, x)),

assuming that each conditional distribution is parameterized in terms of a Bernstein polynomial of order 5. The parameters ϑ of this polynomial, however, depend on the explanatory variables in a potentially complex way, featuring interactions and non-linearities. Tree and forest algorithms (Hothorn and Zeileis, 2017) allow such ‘conditional parameter functions’ ϑ (sex, smoking, age, x), and thus the corresponding conditional BMI distributions, to be estimated in a black-box manner without the necessity to a priori specify any structure of ϑ (sex, smoking, age, x). I will first use trees and forests to understand the complexity of the impact of the explanatory variables on the BMI distribution. Later on, I will apply a top-down approach to transformation choice to obtain simpler transformation models that allow more straightforward interpretation.

4.1 Transformation trees and forests

A transformation tree (Hothorn and Zeileis, 2017) starts with an unconditional transformation model

ℙ (BMI \leq y) = expit (a_{Bs, 5} {(y)}^{⊤} ϑ)

(4.1)

and a corresponding maximum likelihood estimator

\hat{ϑ}

. The algorithm proceeds by assessing correlations between the score contributions evaluated at

\hat{ϑ}

and the explanatory variables sex, smoking, age and

x

. A binary split is implemented in the most discriminating cut-off point of the variable showing the highest correlation to any score. The procedure is repeated until a certain stop criterion applies. The result is a partition of the data. The algorithm is sensitive to distributional changes, that is, the conditional BMI distributions in the subgroups of this partition may vary with respect to the mean BMI and also with respect to higher BMI moments. In each subgroup, the unconditional model (4.1) was used to estimate ϑ (sex, smoking, age, x) for this subgroup. Because each observation in this subgroup is then associated with a dedicated parameter vector

\hat{ϑ} (sex, smoking, age, x)

, the log-likelihood for the tree model could be evaluated as the sum of the likelihoods in the subgroups. The log-likelihood of the tree presented in Figure 8 is −43 079.42. The first split is in sex, so in fact two sex-specific models are given here. Three age groups (≤ 34, (34, 51], > 51) for females and three age groups (≤ 25, (25, 36], > 36) for males are distinguished. Education contributed to understanding the BMI distribution of females and males. Location, scale and shape of the conditional BMI distributions varied considerably. The variance increased with age and higher-educated people tended to have lower BMI values. These are interesting insights, but the model is of course very rough.

Figure 8:

Transformation tree. The conditional BMI distributions (depicted in terms of their densities) are given in each subgroup corresponding to the terminal nodes of the tree. Variables: education (edu) at levels mandatory (I), secondary (II) and tertiary (III); alcohol intake (agramtag)

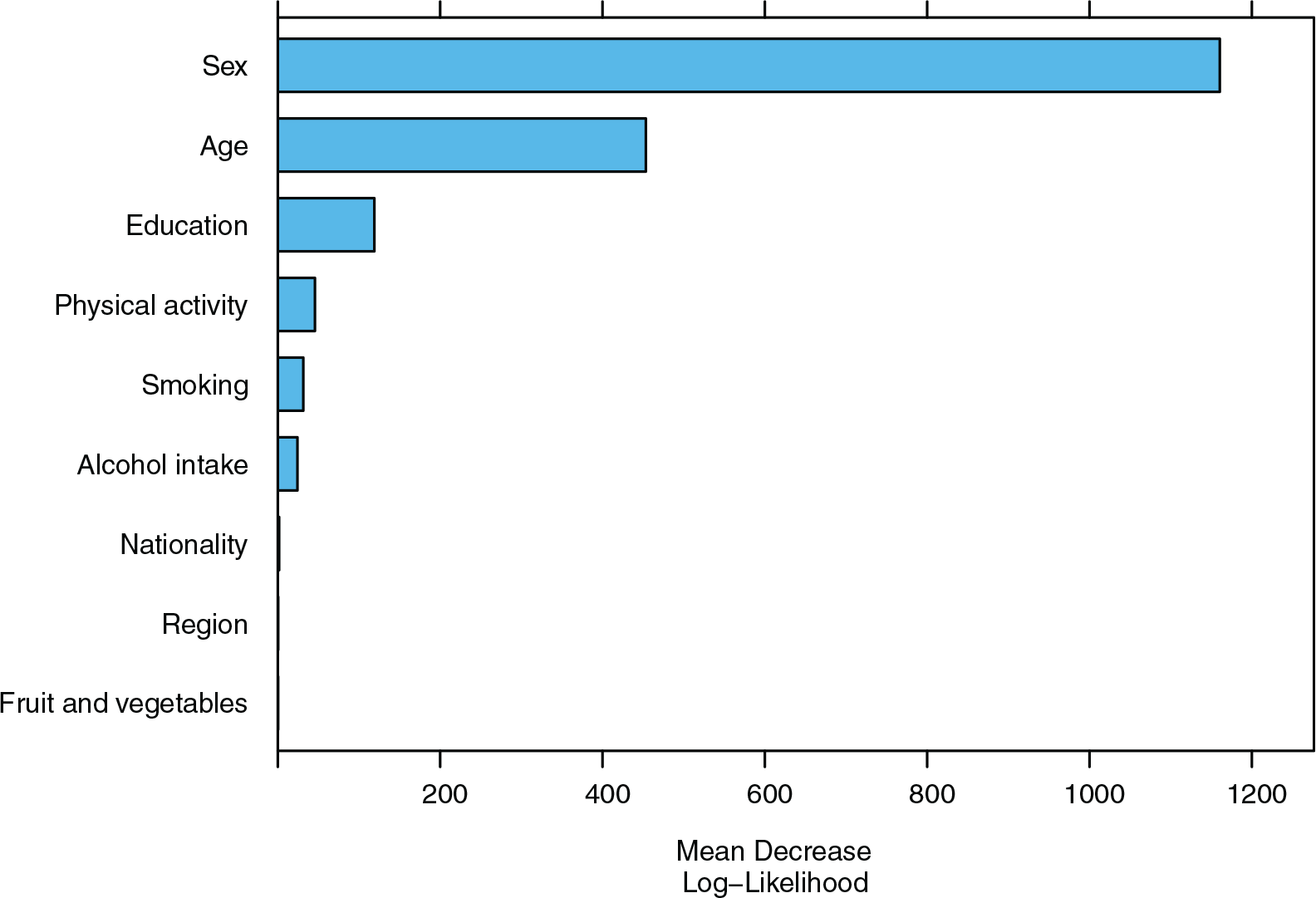

Figure 9:

Transformation forest. Likelihood-based permutation variable importance for all variables in the forest. The $x$ -axis shows the mean decrease in the log-likelihood caused by permuting one variable before computing the in-sample tree log-likelihood

A transformation forest (Hothorn and Zeileis, 2017) allows less rough conditional parameter functions $ϑ (sex, smoking, age, x)$ to be estimated. There are no longer any restrictions regarding the conditional parameter functions. In this sense, a transformation forest is the ‘most complex model one can think of’ as mentioned in the introduction. The random forest class of models is considered to be very accurate, insensitive to hyperparameter tuning and without a tendency to overfit. In the following, I shall use this method to obtain a benchmark for better interpretable transformation models following the top-down model selection approach.

The generic random forest algorithm essentially relies on multiple transformation trees fitted to subsamples of the data, with a random selection of variables to be considered for splitting in each node. Unlike the original random forest (Breiman, 2001), a transformation model can be understood as a procedure assigning a parametric model to each observation. For subject $i$ , the forest conditional distribution function is

\hat{ℙ} (BMI \leq y | {sex}_{i}, {smoking}_{i}, {age}_{i}, x_{i}) = expit (a_{Bs, 5} {(y)}^{Τ} \hat{ϑ} ({sex}_{i}, {smoking}_{i}, {age}_{i}, x_{i})) .

In this sense, a transformation forest ‘predicts’ a fully parametric model for each subject, albeit with a very flexible conditional parameter. The conditional parameter

\hat{ϑ} ({sex}_{i}, {smoking}_{i}, {age}_{i}, x_{i})

was obtained from a locally adaptive maximum likelihood estimator based on so-called nearest neighbour weights (Hothorn and Zeileis, 2017). A considerable improvement in the transformation forest log-likelihood (−42 520.18) was observed. In fact, this is the largest log-likelihood I was able to achieve. Thus, this transformation forest is the best fitting model for the BMI data.

On the downside, this black-box model makes it very difficult to understand the impact of the explanatory variables on the conditional BMI distribution. The likelihood-based permutation variable importance (Figure 9) indicated that only sex, age, education, physical activity and smoking have an impact on BMI, where again sex seems to be the most important variable. Age was a more important factor than education or physical activity, and thus the only numeric variable one needs to consider. The association between sex, smoking, age and BMI as described by the transformation forest is given in terms of a partial dependency plot of conditional deciles in Figure 10. In general, the median BMI increases with age, as does the BMI variance. For males, there seemed to be a level-effect whose onset depends on smoking category. Females tended to higher BMI values, and the variance was larger compared to males. There seemed to be a bump in BMI values for females, roughly around 30 years. This corresponds to mothers giving birth to their first child around this age. It is important to note that the right skewness of the conditional BMI distributions in Figure 10 renders conditional normal distributions inappropriate, even under variance heterogeneity.

This complex model would be sufficient if one was only interested in the estimation of conditional BMI distributions for persons with specific configurations of the sex, smoking, age and the remaining explanatory variables. The variable importances can be used to rank variables according to their impact on the conditional BMI distributions but cannot replace effect measures, let alone an assessment of their variability. Communication with subject-matter scientists and publication of results in subject-matter journals require simplification of these models. Top-down transformation choice can help to find models of appropriate complexity, as will be seen in the next section.

Figure 10:

Transformation forest. Partial dependency of sex, smoking and age. Conditional decile curves for BMI depending on age, separately for all combinations of sex and smoking, are shown

4.2 Conditional transformation model

The analysis using transformation trees and especially transformation forests revealed strong effects of sex and age; the latter variable was not considered in our analysis presented in Section 3. A more structured model roughly as powerful as the transformation forest must therefore allow the conditional distribution of BMI to change with both sex and age in very general ways. The remaining variables were less important, and one can hopefully cut some corners here by assuming simple linear main effects for these variables. I start the top-down search for a simpler model with a conditional transformation model of the form

ℙ (BMI \leq y | sex, smoking, age, x) = expit (h (y, age | sex) - β (sex : smoking) - x^{⊤} β) .

(4.2)

The transformation function

h (y, age ∣ sex)

implements a sex-specific bivariate smooth-surface function of BMI and age, which was of course monotonic in its first argument. The surface function for males explains age-induced changes in the conditional distribution of BMI. In contrast to transformation forests, the assumption was made that the function is smooth in both

y

and age, and not only in

y

. I parameterize this function as a tensor product of two Bernstein polynomials of order 5, one for BMI and one for age, with sex-specific 36-dimensional parameter vector ϑ (sex), in other words as

{(a_{Bs, 5} (y) \otimes a_{Bs, 5} (age))}^{⊤} ϑ (sex) .

Except for

smoking

, the remaining variables entered only as the linear shift term

x^{⊤} β

of main effects. In light of its fifth rank in the permutation variable importance (Figure 9), it may seem a bit inconsequent to treat smoking differently than the other variables. However, the stratified analysis in Section 3 suggested the need for sex-specific smoking effects, and I thus include the interaction term β (sex : smoking) also in this model. The expit function around the transformation function ensures interpretability of all regression coefficients β on the log-odds scale.

With 89 parameters, the log-likelihood −42 778.14 of model (4.2) was only slightly smaller than the log-likelihood of the transformation forest (−42 520.18). In a certain sense, this conditional transformation model can be seen as an approximation of the black-box transformation forest. The effects of sex, smoking and age, with all remaining variables being constant, are again best visualized using the conditional decile functions (Figure 11). The decile functions are now smooth in age due to the parameterization of the age effect in terms of Bernstein polynomials. For males, the BMI increased with age; the BMI reduction in males older than 65 years was not visible in the decile curves of the transformation forests (Figure 10). The slope was largest for young men up to 25 years, followed by a linear increase until the age of 65. The male BMI distribution was right skewed, with only a small increase in the variance towards older people. For females, a bump in the BMI distribution was again identified around the age of 30, corresponding to pregnancies and breast-feeding times. The effect seemed more pronounced in higher deciles. Right skewness and a variance increase towards older women can be inferred from this figure.

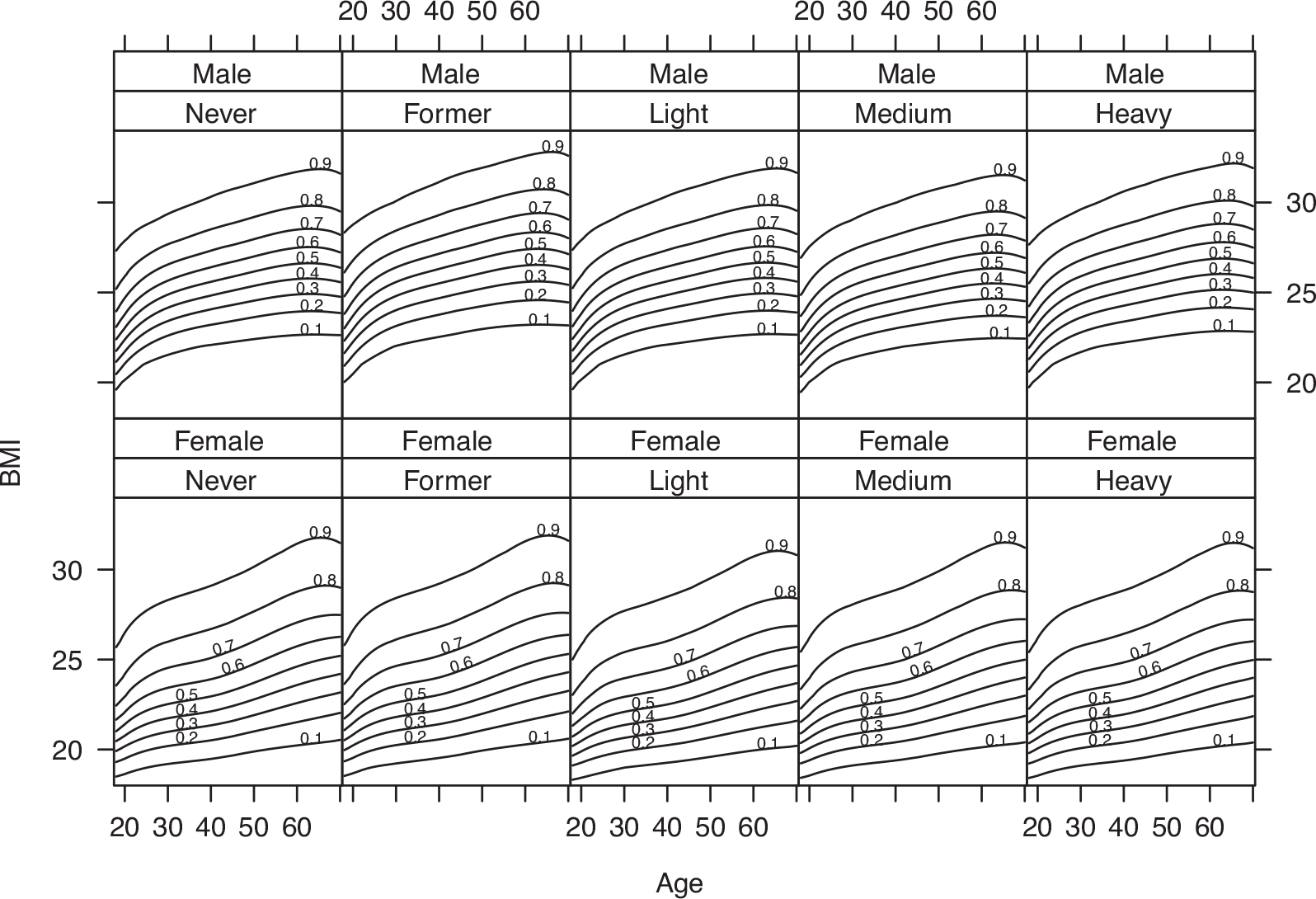

Figure 11:

Conditional transformation model (4.2). Conditional decile curves for BMI depending on age, separately for all combinations of sex and smoking, are shown

The main advantage of this complexity reduction is the interpretability of the regression coefficients β (sex : smoking) and β in terms of BMI-independent log-odds ratios. The sex-specific smoking effects and the effects of the remaining variables as odds ratios are given in the left column of Table 3. Further simplification can be achieved by replacing the bivariate surface function of $y$ and age by a sex-specific, BMI-varying linear effect of age in the distribution regression model presented in the next section.

4.3 Distribution regression

The term ‘distribution regression’ (Chernozhukov et al., 2013) is commonly used to describe response-varying coefficients. In survival analysis, the term ‘time-varying coefficients’ is more typical. Here, a BMI-varying coefficient of age is a means of simplifying the conditional transformation model (4.2). In the simpler model, I assume a smoothly varying but sex-specific coefficient of age $β (y | sex)$ . The transformation function $h (y ∣ sex)$ is again the simple transformation of BMI given sex introduced in model (3.4). The model reads

ℙ (BMI \leq y | sex, smoking, age, x) = expit (h (y | sex) - β (y | sex) age - β (sex : smoking) - x^{⊤} β) .

(4.3)

The log-likelihood −42 888.10 decreased considerably in this model with 41 parameters. The effects of smoking and the remaining variables (except age) are given in the middle column of Table 3 as odds ratios. When the dependency of BMI deciles on sex, smoking and age were depicted (Figure 12), the linear structure regarding age was obvious. The age-varying slopes and the pregnancy bump could not be identified by this simpler model. Right skewness and variance heterogeneity for females remained visible. The variance increase in older males now seemed questionable. For my taste, the replacement of two bivariate functions by two univariate functions does not really help model interpretation, as one would have to plot these two functions in any case. The severe reduction of the log-likelihood indicated that the effect of age is better described in a conditional transformation model of the form (4.2). Nevertheless, I will go one step further and connect the stratified linear transformation model (3.5) with a model of the same form featuring age and the lifestyle variables

x

in addition to sex and smoking.

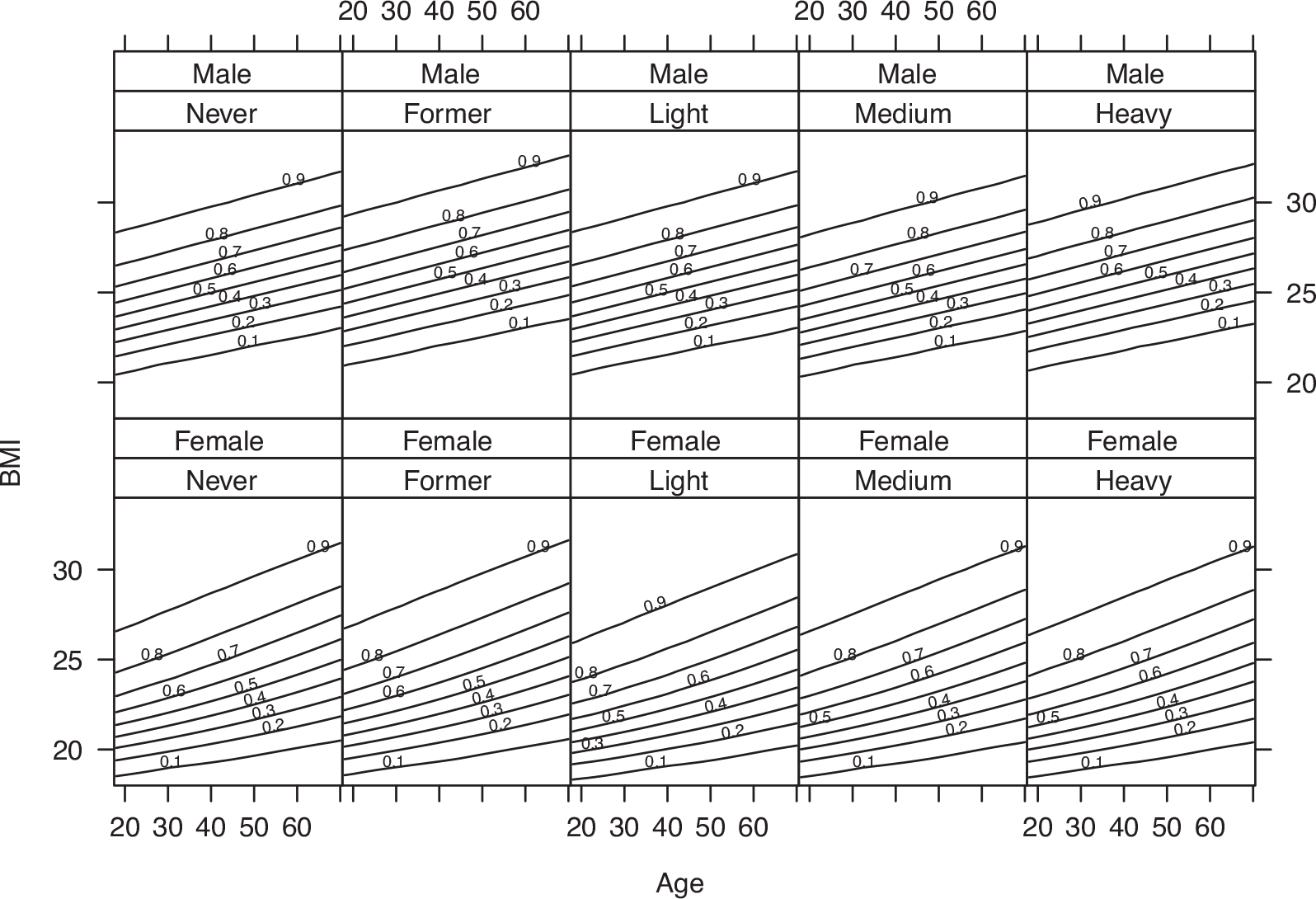

Figure 12:

Distribution regression model (4.3). Conditional decile curves for BMI depending on age, separately for all combinations of sex and smoking, are shown

4.4 Stratified linear transformation model

I extend the stratified linear transformation model (3.5) with a sex-specific age effect and a linear predictor $x^{⊤} β$ of the remaining variables

ℙ (BMI \leq y | sex, smoking, age, x) = expit (h (y | sex) - β (sex : smoking) - β (sex : age) - x^{⊤} β) .

(4.4)

The log-likelihood was further reduced to −42 900.36. In this model, the sex differences in the age effects were completely gone, as the odds ratios for a one-year increase were 1.03 (1.03 − 1.04) for males and 1.03 (1.03 − 1.04) for females. In light of the more complex structure of the age effect identified by the more complex models, one would incorrectly draw the conclusion of equal age effects for males and females based on this oversimplified model. The effects of the remaining parameters are given in the right column of Table 3.

Table 3:

Transformation models (4.2–4.4). Odds ratios with 95% confidence intervals. Values larger than one indicate a shift of the BMI distribution to the right (compared to the baseline category or a one-unit increase in a numeric variable)

	Model (4.2)	Model (4.3)	Model (4.4)
Smoking (Females)
Never	1	1	1
Former	1.04 (0.95–1.15)	1.06 (0.96–1.16)	1.06 (0.96–1.16)
Light	0.81 (0.70–0.92)	0.81 (0.71–0.93)	0.81 (0.71–0.93)
Medium	0.92 (0.80–1.06)	0.94 (0.82–1.08)	0.94 (0.82–1.08)
Heavy	0.91 (0.76–1.09)	0.93 (0.78–1.12)	0.94 (0.78–1.12)
Smoking (Males)
Never	1	1	1
Former	1.44 (1.31–1.59)	1.47 (1.33–1.62)	1.47 (1.33–1.61)
Light	1.02 (0.88–1.17)	1.01 (0.88–1.16)	1.01 (0.88–1.16)
Medium	0.87 (0.76–1.00)	0.90 (0.79–1.03)	0.91 (0.79–1.04)
Heavy	1.13 (0.99–1.30)	1.21 (1.06–1.39)	1.22 (1.07–1.40)
Alcohol intake (g/d)	1.00 (1.00–1.00)	1.00 (1.00–1.00)	1.00 (1.00–1.00)
Fruit and vegetables
High	1	1	1
Low	1.07 (1.01–1.13)	1.08 (1.02–1.14)	1.08 (1.02–1.14)
Physical activity
High	1	1	1
Moderate	1.11 (1.04–1.19)	1.15 (1.08–1.23)	1.16 (1.08–1.23)
Low	1.25 (1.16–1.34)	1.30 (1.21–1.40)	1.30 (1.21–1.40)
Education
Mandatory (I)	1	1	1
Secondary (II)	0.72 (0.66–0.79)	0.79 (0.73–0.87)	0.80 (0.73–0.87)
Tertiary (III)	0.48 (0.43–0.52)	0.56 (0.51–0.61)	0.56 (0.51–0.62)
Nationality
Swiss	1	1	1
Foreign	1.17 (1.09–1.25)	1.23 (1.15–1.31)	1.24 (1.16–1.32)
Region
German speaking	1	1	1
French speaking	0.89 (0.83–0.94)	0.88 (0.83–0.94)	0.88 (0.83–0.94)
Italian speaking	0.81 (0.72–0.93)	0.81 (0.71–0.92)	0.81 (0.71–0.92)

The three columns presented in Table 3 refer to the same parameters, estimated by three models differing only with respect to the complexity of the age effect. The effects of smoking, alcohol intake, education, physical activity, fruit and vegetables consumption, residence and nationality were remarkably constant. Alcohol intake had no impact on the BMI in this study, and right shifts in BMI distributions were associated with low fruit and vegetable consumption, moderate and low physical activity, short education, being a foreigner or living in the German-speaking part of Switzerland. These conclusions can be drawn from all three models in the same way. The effects of smoking were less pronounced than the effects obtained in our initial analysis that ignored age and the lifestyle variables (Table 2). Light smokers had lower BMIs than never smokers; the remaining effects are questionable.

5 Discussion

The core of top-down transformation choice is a family of decreasingly complex, yet fully comparable, conditional transformation models. Model parameterization and interpretation in the family of transformation models are always based on the conditional distribution function

F_{BMI} (y ∣ sex, smoking, age, x) = F (h (y \leq y ∣ sex, smoking, age, x)) .

Unlike most classical models featuring explicit parameters for conditional means or conditional variances, transformation models describe conditional distributions explicitly and moments implicitly. What might seem as a disadvantage is in fact, as I hope I could convince the readers of, a very attractive feature of transformation models for regression analysis. In this tutorial, I exclusively defined and interpreted models for conditional distributions. The corresponding distribution functions were used to compare transformation models with the empirical CDF (Figures 2, 3, 4 and 7). The conditional transformation function

h

was used to assess deviations from normality in Figure 5. Conditional densities

f_{BMI} (y ∣ sex, smoking, age, x) = F_{BMI}^{'} (BMI \leq y ∣ sex, smoking, age, x)

are depicted in Figure 6 and those for each terminal node of the transformation tree are shown in Figure 8. Densities defined the log-likelihood

\sum_{i = 1}^{16, 427} w_{i} \log (f_{BMI} (y_{i} ∣ {sex}_{i}, {smoking}_{i}, {age}_{i}, x_{i}))

based on all 16,427 BMI measurements

y_{i}

with sampling weights

w_{i}

. Conditional quantile functions

Q_{BMI} (p ∣ sex, smoking, age, x) = F_{BMI}^{- 1} (p ∣ sex, smoking, age, x)

helped to visualize age effects in Figures 10, 11 and 12. Effect measures for sex, smoking and lifestyle variables in Tables 2 and 3 were obtained as ratios of conditional odds functions

O_{BMI} (y ∣ sex, smoking, age, x) = \frac{F_{BMI} (y ∣ sex, smoking, age, x)}{1 - F_{BMI} (y ∣ sex, smoking, age, x)} .

Varying model complexity only affects the flexibility of these functions that characterize conditional distributions, but not the corresponding interpretations.

A unique feature of conditional transformation models is the ability to formulate, estimate, compare, evaluate, interpret and understand models seemingly as far apart as a normal linear model with constant variance and a transformation forest in the same theoretical framework. Straightforward answers to some questions that have plagued data analysis for decades, for example ‘Is it appropriate to assume normal errors?’ or ‘How should the response be transformed prior to analysis?’, are easily obtained from conditional transformation models.

One practical and interesting question relates to the impact of the order $M$ of the Bernstein polynomial $a_{Bs, M} {(y)}^{⊤} ϑ .$ The choice $M = 1$ implements a linear function, and with $F = Φ$ , conditional normal distributions are obtained. For $M \to \infty$ , $a_{Bs, M} {(y)}^{⊤} ϑ .$ converges uniformly to the true and unknown transformation function $h (y)$ in a model $ℙ (Y \leq y) = F (h (y))$ . Because $h$ is a monotonic function, too-erratic behaviour cannot occur, even for very large $M$ , and overfitting is not an issue (see Hothorn, 2017b, for numerical examples). In the model (3.3), increasing the order from $M = 5$ to $M = 10$ led to a very small increase in the log-likelihood from −43 564.30 to −43 547.16. In the extreme case of very large $M$ , the conditional distribution function $F (a_{Bs, M} {(y)}^{⊤} ϑ)$ closely interpolates the empirical CDF. The latter estimator is consistent, as is the transformation model (Hothorn et al., 2017).

This tutorial did not address any issue regarding model estimation or model inference. Details about maximum likelihood estimation in conditional transformation models can be found in Hothorn et al. (2017). Locally adaptive maximum likelihood estimation for transformation trees and transformation forests has been introduced in Hothorn and Zeileis (2017). More elaborate discussions of model parameterization in conditional transformation models and of connections to other models can be found in Hothorn et al. (2014) and Hothorn et al. (2017). Applications of conditional transformation models can be found in Hothorn et al. (2013), Möst et al. (2014) and Möst and Hothorn (2015). An introduction to the mlt add-on package (Hothorn, 2017a) for maximum likelihood estimation in conditional transformation models, including models for ordinal or censored and truncated responses, is available in Hothorn (2017b).

6 Reproducibility

Data from the Swiss Health Survey 2012 can be obtained from the Swiss Federal Statistics Office (E-mail: sgb12@bfs.admin.ch). Data is available for scientific research projects, and a data protection application form must be submitted. More information can be found here http://www.bfs.admin.ch/bfs/de/home/statistiken/gesundheit/erhebungenSupplementary

The code used for producing the results presented in this paper can be evaluated on a smaller artificial data set sampled from the transformation forest by running demo(”BMI”) from the trtf package (Hothorn, 2018).”

Acknowledgments

I thank the students participating in the course ‘STA660 Advanced R Programming’ that I taught in the spring semester of 2017 for producing the code underlying Figure 8 as part of their homework assignments. Parts of this article were written during a research sabbatical at Universität Innsbruck, financially supported by the Swiss National Science Foundation (grant number IZSEZ0_177091).

References

Breiman

(2001) Random forests. Machine Learning , 45, 5–32. doi:10.1023/A:1010933404324

Bundesamt für Statistik (2013) Die Schweizerische Gesundheitsbefragung 2012 in Kürze: Konzept, Methode, Durchführung [The Swiss Health Survey 2012 in Short: Concept, Method, Implementation] . Bern. URL http://www.bfs.admin.ch

Chernozhukov

Fernández-Val

Melly

(2013) Inference on counterfactual distributions. Econometrica , 81, 2205–2268. doi:10.3982/ECTA10582.

Fahrmeir

Kneib

Lang

Marx

(2013) Regression: Models, Methods and Applications . New York, NY: Springer-Verlag.

Farouki

(2012) The Bernstein polynomial basis: A centennial retrospective. Computer Aided Geometric Design , 29, 379–419. doi:10.1016/j.cagd.2012.03.001.

Hothorn

(2018) trtf: Transformation Trees and Forests . R package version 0.3-0. URL https://CRAN.R-project.org/package=trtf

Hothorn

(2017a) mlt: Most Likely Transformations . R package version 0.2-1. URL https://CRAN.R-project.org/package=mlt

Hothorn

(2017b) Most Likely Transformations: The mlt Package . R package vignette version 0.2-0. URL https://CRAN.R-project.org/package=mlt.docreg

Hothorn

Zeileis

(2017) Transformation forests. Technical report, arXiv 1701.02110. URL https://arxiv.org/abs/1701.02110

10.

Hothorn

Kneib

Bühlmann

(2013) Conditional transformation models by example. In Proceedings of the 28th International Workshop on Statistical Modelling, edited by VMR Muggeo, V Capursi, G Boscaino and G Lovison. Pages 15–26. Universitá Degli Studi Di Palermo. ISBN 978-88-96251-47-8.

11.

Hothorn

Kneib

Bühlmann

(2014) Conditional transformation models. Journal of the Royal Statistical Society: Series B (Statistical Methodology) , 76, 3–27. doi:10.1111/rssb.12017

12.

Hothorn

Möst

Bühlmann

(2017) Most likely transformations. Scandinavian Journal of Statistics . URL https://arxiv.org/abs/1508.06749

13.

Hothorn

Zeileis

(2017) Transformation forests (Technical report, arXiv 1701.02110). URL https://arxiv.org/abs/1701.02110

14.

Liu

Shepherd

Harrell

(2017) Modeling continuous response variables using ordinal regression. Statistics in Medicine . doi:10.1002/sim.7433

15.

Lohse

Rohrmann

Faeh

Hothorn

(2017) Continuous outcome logistic regression for analyzing body mass index distributions. F1000Research , 6, 1933. doi:10.12688/f1000research.12934.1

16.

Manuguerra

Heller

(2010) Ordinal regression models for continuous scales. The International Journal of Biostatistics , 6. doi:10.2202/1557-4679.1230

17.

Möst

Hothorn

(2015) Conditional transformation models for survivor function estimation. International Journal of Biostatistics . doi:10.1515/ijb-2014-0006

18.

Möst

Schmid

Faschingbauer

Hothorn

(2014) Predicting birth weight with conditionally linear transformation models. Statistical Methods in Medical Research . doi:10.1177/0962280214532745

19.

R Core Team (2017) R: A Language and Environment for Statistical Computing . >R Foundation for Statistical Computing, Vienna, Austria. URL http://www.R-project.org/

20.

UNESCO Institute for Statistics (2012) International Standard Classification of Education: ISCED 2011 . Montreal. URL http://www.uis.unesco.org/Education/Documents/isced-2011-en.pdf

Top-down transformation choice

Abstract

Keywords

1 Introduction

2 Body mass index in the Swiss Health Survey

3 Sex- and smoking-specific BMI distributions

Figure 1:

The empirical cumulative distribution function (CDF) of BMI given sex and smoking. For each combination of sex and smoking, the weighted empirical CDF taking sampling weights into account is presented

Normal cell-means model (3.1) with constant variance. Estimated means of BMI for each combination of sex and smoking, with 95% confidence intervals are shown

Normal cell-means model (3.1) with constant variance. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

Normal cell-means model (3.2) with heterogeneuous variance. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

Transformation model (3.3) stratified by sex and smoking. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

Transformation model (3.3) stratified by sex and smoking. Deviations from normality indicated by the non-linear transformation functions (blue) compared to the linear transformation functions (yellow) obtained from the normal cell-means model (3.2) with heterogeneous variances are shown

Transformation model (3.3) stratified by sex and smoking. The model-based conditional densities of BMI given sex and smoking are shown

Linear transformation model (3.4) with sex and smoking-specific shift, stratified by sex. The empirical (blue) and model-based (yellow) CDF of BMI given sex and smoking are shown

Linear transformation model (3.5) with sex and smoking-specific shift, stratified by sex. Odds ratios to the baseline category never smoking along with 95% confidence intervals for males and females are shown. Odds ratios larger than one indicate a shift of the BMI distribution to the right

4.1 Transformation trees and forests

Transformation tree. The conditional BMI distributions (depicted in terms of their densities) are given in each subgroup corresponding to the terminal nodes of the tree. Variables: education (edu) at levels mandatory (I), secondary (II) and tertiary (III); alcohol intake (agramtag)

Transformation forest. Likelihood-based permutation variable importance for all variables in the forest. The x -axis shows the mean decrease in the log-likelihood caused by permuting one variable before computing the in-sample tree log-likelihood

Transformation forest. Partial dependency of sex, smoking and age. Conditional decile curves for BMI depending on age, separately for all combinations of sex and smoking, are shown

Conditional transformation model (4.2). Conditional decile curves for BMI depending on age, separately for all combinations of sex and smoking, are shown

Distribution regression model (4.3). Conditional decile curves for BMI depending on age, separately for all combinations of sex and smoking, are shown

Transformation models (4.2–4.4). Odds ratios with 95% confidence intervals. Values larger than one indicate a shift of the BMI distribution to the right (compared to the baseline category or a one-unit increase in a numeric variable)

6 Reproducibility

Acknowledgments

References

Transformation forest. Likelihood-based permutation variable importance for all variables in the forest. The $x$ -axis shows the mean decrease in the log-likelihood caused by permuting one variable before computing the in-sample tree log-likelihood
