Semiparametric regression for discrete time-to-event data

Abstract

Abstract:

Time-to-event models are a popular tool to analyse data where the outcome variable is the time to the occurrence of a specific event of interest. Here, we focus on the analysis of time-to-event outcomes that are either intrinsically discrete or grouped versions of continuous event times. In the literature, there exists a variety of regression methods for such data. This tutorial provides an introduction to how these models can be applied using open source statistical software. In particular, we consider semiparametric extensions comprising the use of smooth nonlinear functions and tree-based methods. All methods are illustrated by data on the duration of unemployment of US citizens.

Keywords

Discrete time-to-event data Hazard models semiparametric regression survival analysis

1 Introduction

The objective of many statistical analyses is to model a duration time until a specific event occurs. This is usually referred to as time-to-event or survival analysis. In biostatistics, for example, one often examines the time to death or the progression of a disease. In economics and the social sciences, popular examples include the modelling of the duration of unemployment or the time to retirement. Generally, in regression models for time-to-event data, the event time itself is the response variable, and one wants to investigate the association of the response with several explanatory variables. Most often it is assumed in these analyses that the survival time is given by a random variable measured on a continuous scale. This case has been studied extensively in the literature; see, for example, Kalbfleisch and Prentice (2002) and Klein and Moeschberger (2003). However, in practice, measurements of time are often discrete. Durations, for example, are often measured in days, years or months. Moreover, there are situations where the exact event time may not be known, but only an interval during which the event of interest took place.

Here, we consider the application of regression models for discrete time-to-event data, which are characterized by an ordinal response variable taking the numbers $1, 2, \dots, k$ , with $k$ equal to the number of event times. These numbers either refer to a situation where event times are intrinsically discrete (such as the time to pregnancy, which in clinical applications is usually measured by the number of menstrual cycles) or when continuous event times have been grouped. In the latter case, the numbers $t = 1, 2, \dots, k$ refer to mutually exclusive time intervals $[0, a_{1})$ , $[a_{1}, a_{2})$ , $\dots$ , $[a_{k - 1}, \infty)$ , with fixed boundaries $a_{1}, \dots, a_{k - 1}$ . Generally, a great advantage of discrete time-to-event models is that they can be viewed as regression models with binary response, giving rise, for example, to the application of logistic regression or probit regression (Willett and Singer, 1993).

A comprehensive treatment of the statistical methodology for discrete time-to-event data has recently been given by Tutz and Schmid (2016). Similar to Gaussian regression, a large part of this methodology has been designed to estimate predictor-response relationships using a linear combination of the explanatory variables. In addition, Tutz and Schmid (2016) discuss several (less well known) approaches for semiparametric discrete time-to-event modelling. The aim of this tutorial is to provide an in-depth explanation of how these semiparametric models can be fitted and implemented using the R software for statistical computing (R Core Team, 2017). In particular, we will explain how smooth nonlinear functions and tree-based methods can be incorporated into discrete time-to-event models.

A frequently observed phenomenon in time-to-event analysis is censoring. Generally, a duration time is termed ‘censored’, if its total length has not been fully observed. In this article, we consider the most common type of censoring, the so-called type-I or right censoring, which means that the beginnings of the duration times are observed for all individuals in a study, whereas the respective ends are only observed for part of the individuals. Hence, for some of the individuals, it is only known that the event occurred later than the observed time.

All models discussed in this article will be illustrated by means of a publicly available dataset on the duration of unemployment. The data comprise observations obtained from $n = 3 343$ US citizens and were collected between 1986 and 1992 as part of the January Current Population Surveys Displaced Workers Supplements (DWS). The original dataset is available as part of the R add-on package Ecdat (Croissant, 2016). The response variable that will be considered here is the time to re-employment in any kind of job, which includes full-time, part-time or other kind of jobs. Due to the study design, the observed unemployment durations are discrete, as they were measured in two-week intervals. In this article, we will analyse the data over a period of 40 weeks comprising 21 possible event times $t = 1, 2, \dots, 21$ , where $t = 21$ refers to event times $> 40$ weeks. Explanatory variables that will be included in our analyses are the age of the US citizen in years (age), an indicator on whether an unemployment insurance claim was submitted (ui), the eligible replacement rate (reprate, defined by the weekly benefit amount divided by the amount of weekly earnings in the lost job), the eligible disregard rate (disrate, defined as the amount up to which recipients of unemployment insurance who accept part-time work can earn without any reduction in unemployment benefits divided by the weekly earnings in the lost job), the log weekly earnings in the lost job in US$ (logwage) and the tenure in the lost job in years (tenure). The summary statistics of the six explanatory variables are presented in Table 1. Due to missing values in the variables, some observations were excluded from the data, arriving at a sample containing the data of $3 210$ citizens.

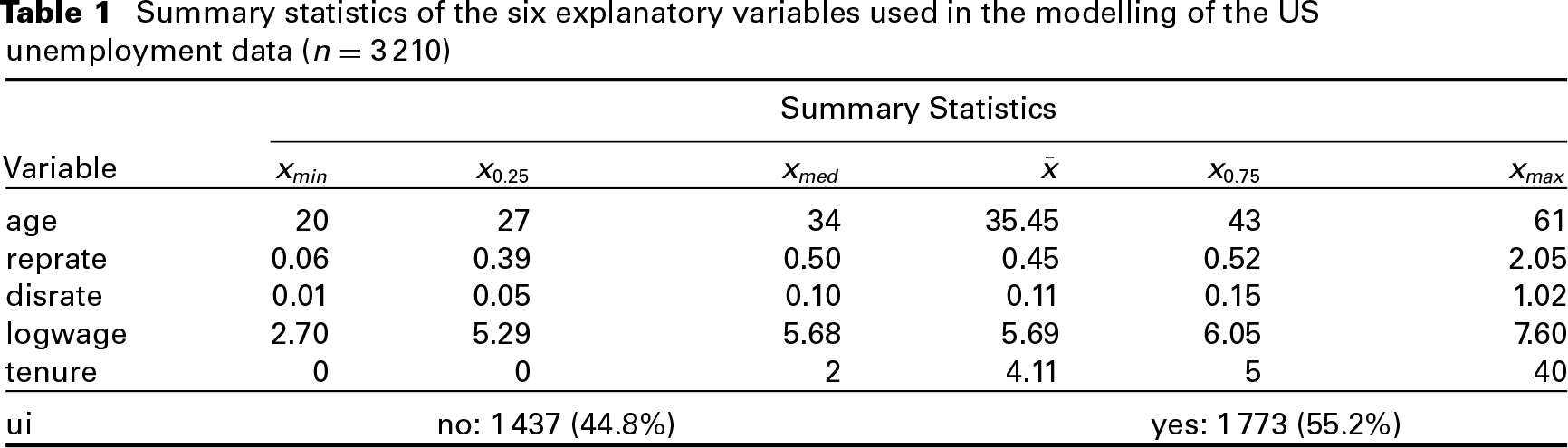

Table 1:

Summary statistics of the six explanatory variables used in the modelling of the US unemployment data ( $n = 3 210$ )

	Summary Statistics
Variable	$x_{\min}$	$x_{0.25}$	$x_{med}$	$\bar{x}$	$x_{0.75}$	$x_{\max}$
age	20	27	34	35.45	43	61
reprate	0.06	0.39	0.50	0.45	0.52	2.05
disrate	0.01	0.05	0.10	0.11	0.15	1.02
logwage	2.70	5.29	5.68	5.69	6.05	7.60
tenure	0	0	2	4.11	5	40
ui	no: 1 437 ( $44.8 %$ )			yes: 1 773 ( $55.2 %$ )

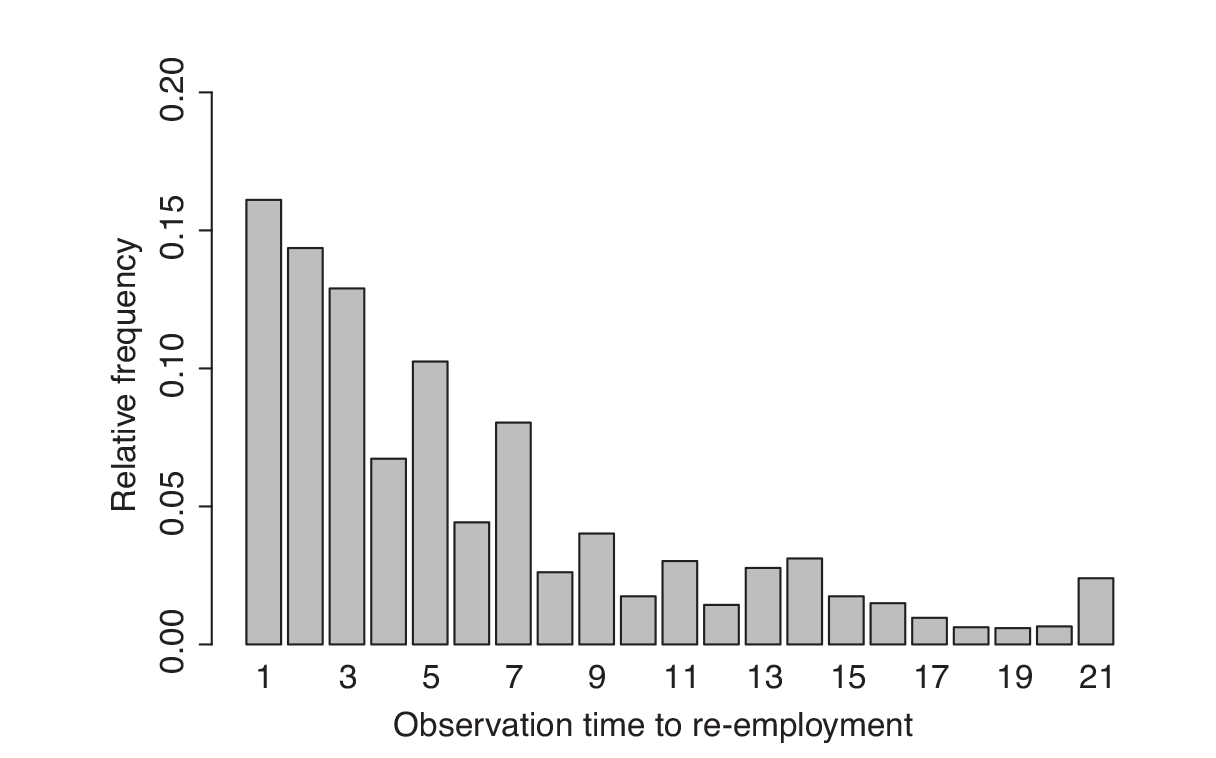

Figure 1:

Observed time to re-employment (measured in two-week intervals) in the US unemployment data. The median observation time in the data is 4, corresponding to a time period of eight weeks

The observed times to re-employment are visualized in Figure 1. If an individual is still jobless at the end of the survey (i.e., after 40 weeks) or dropped out of the study before finding a job, it is subject to right censoring. In this case, its observation time corresponds to the censoring time, otherwise to the true time of re-employment.

The analysis in this tutorial shows how the relationship between the chance of re-employment and the explanatory variables can be estimated in a flexible way, using tailored semiparametric models.

The rest of this tutorial is organized as follows: Section 2 provides the basic theoretical framework and an introduction to parametric as well as semiparametric discrete time-to-event modelling. Details on model fitting and data preparation are given in Section 3. Section 4 presents measures that are useful for assessing the goodness of fit of discrete time-to-event models. In Section 5, we illustrate the methods by presenting a detailed analysis of the US unemployment data, showing how the various regression models can be applied by use of the R language for statistical computing. Furthermore, we provide guidance on model choice and compare the models in terms of their prediction accuracy. Section 6 discusses additional aspects related to discrete time-to-event modelling and puts the methods considered in this article into perspective.

The R code to reproduce all the numerical results is provided as electronic supplement to this tutorial.

2 Notation and basic concepts

Given $n$ observations, let, in the following, $T_{i}$ denote the event time and $C_{i}$ the censoring time of individual i, $i = 1, \dots, n$ . $T_{i}$ and $C_{i}$ are assumed to be independent random variables taking discrete values in ${1, \dots, k}$ . In addition, one observes a vector of $p$ time-constant explanatory variables $i = (x_{i 1}, \dots, x_{ip})^{⊤}$ . For right-censored data, the observation time is defined by ${\tilde{T}}_{i} = min (T_{i}, C_{i})$ , that is, ${\tilde{T}}_{i}$ corresponds to the true event time, if $T_{i} < C_{i}$ , and to the censoring time otherwise. If originally continuous data have been grouped, the discrete event times $1, \dots, k$ refer to time intervals $[0, a_{1}), [a_{1}, a_{2}), \dots, [a_{k - 1}, \infty)$ , where $T_{i} = t$ means that the event occurred in time interval $[a_{t - 1}, a_{t})$ . For example, in our application on unemployment durations, where time was measured in two-week intervals, $T_{i} = 3$ implies that re-employment of individual $i$ took place between four and six weeks after the start of the study.

The main tool to model discrete time-to-event data is the hazard function, which captures the dynamics of the survival process at each time point. For a given vector of time-constant explanatory variables x_i, the hazard function is defined by

λ (t | x_{i}) = P (T_{i} = t | T_{i} \geq t, x_{i}), t = 1, \dots, k,

(2.1)

describing the conditional probability of an event at time

t

, given that the individual survived until

t

. The corresponding survival function is given by

S (t | x_{i}) = P (T_{i} > t | x_{i}) = \prod_{s = 1}^{t} (1 - λ (s |_{i})), t = 1, \dots, k,

(2.2)

denoting the probability that an event occurs later than at time

t

, or, alternatively, the probability of surviving interval

[a_{t - 1}, a_{t})

An important consequence of the definition of the hazard function in (2.1) is that for a fixed time $t$ , the hazard $λ (t | i)$ drives a binary variable that distinguishes between the event taking place at time $t$ or not, conditional on $T_{i} \geq t$ . Therefore, a model for the discrete hazard function can be derived from regression modelling strategies for a binary response data. This allows to use established tools and reliable software packages that have been developed for this class of models.

2.1 Parametric discrete hazard models

A general class of binary response models applied to the discrete hazard function is defined by

λ (t |_{i}) = h (γ_{0 t} + x_{i}^{⊤}),

(2.3)

where

h (\cdot)

is a strictly monotone increasing distribution function. A common assumption is that the model contains a time-varying intercept and a set of covariate effects that are fixed over time. Hence, the linear predictor of the model,

η_{it} = γ_{0 t} +_{i}^{⊤}

, comprises the intercepts

γ_{0 t}

t = 1, \dots, k - 1

, and a vector of regression coefficients

= (γ_{1}, \dots, γ_{p})^{⊤}

independent of

t

. Note that there is no intercept parameter for

t = k

, as the hazard function in (2.1) is fully determined by

h (\cdot)

and the coefficients

γ_{01}, \dots, γ_{0, k - 1},^{⊤}

. The hazard of the last interval is not explicitly modelled, but by definition is given by

λ (k | |_{i}) = 1

The most popular version of model (2.3) is the logistic discrete hazard model or proportional continuation ratio model, which is specified by the equation

λ (t |_{i}) = \frac{exp (γ_{0 t} +_{i}^{⊤})}{1 + exp (γ_{0 t} +_{i}^{⊤})} .

(2.4)

By definition, the proportional continuation ratio model uses the logistic distribution function for

h (\cdot)

. It can be shown that an alternative representation of the model is

log (\frac{P (T_{i} = t |_{i})}{P (T_{i} > t |_{i})}) = γ_{0 t} +_{i}^{⊤} .

(2.5)

The ratio

P (T_{i} = t |_{i}) / P (T_{i} > t |_{i})

compares the probability of an event at time

t

to the probability of an event later than

t

. It is also known as continuation ratio; see, for example, Agresti (2013). One has to note, that the odds in (2.5) are equivalent to the odds under the condition

T_{i} \geq t

. This representation of the model allows for an easy interpretation of the effects see the application in Section 5.2.

Generally, the number of parameters in model (2.4) depends on the number of time points, as there is a separate intercept for each $t$ . The set of intercepts $γ_{01}, \dots, γ_{0, k - 1}$ defines the hazard that is always present for any given set of covariates. This hazard is usually referred to as baseline hazard, and the intercepts $γ_{0 t}$ correspond to the log continuation ratio when all covariates are zero.

2.2 Semiparametric extensions

The parametric model introduced in the previous section is linear in, implying that each covariate has a linear effect on the transformed hazard. In practice, this linearity assumption may be too restrictive, as predictor-response relationships are often characterized by nonlinear functional forms. Furthermore, so far it has been assumed that the baseline hazard is represented by a separate intercept coefficient for each $t$ . This can lead to numerical problems, especially when the number of time points (and, hence, the number of intercept parameters) is large relative to the sample size, implying that the event counts at some of these time points may become small. In the following, we will consider popular semiparametric alternatives for the definition of $η_{it}$ that address these issues. We first consider additive hazard models and subsequently tree-based methods, which can also be embedded into the framework of binary response models.

To avoid numerical problems in the estimation of the baseline hazard, it is often convenient to consider an additive model with predictor

η_{it} = f_{0} (t) +_{i}^{⊤},

(2.6)

where

f_{0} (t)

is a smooth (possibly nonlinear) function of time. By relating the values of the baseline hazard at neighbouring time points via

f_{0} (t)

, the number of parameters involved in model fitting effectively reduces, and low event counts at some time points become less problematic. A common way to specify the smooth function in

t

is to use splines, which are represented by a weighted sum of

M

basis functions. One possible representation of

f_{0} (t)

is by

B

-spline basis functions. These are polynomials of fixed degree

d

differing from zero in

d + 1

adjacing intervals. For a comprehensive introduction to

B

-splines, see De Boor (1978). Very flexible spline functions can be obtained by choosing a relatively large number of basis functions

M

and at the same time using a penalty term to prevent estimates becoming too rough (‘wiggly’). This approach, on which we will focus in this article, is called P-splines and was first proposed by Eilers and Marx (1996).

An extension of the semiparametric model (2.6) that weakens the linearity assumption on the effects of the covariates is given by the additive model

η_{it} = f_{0} (t) + \sum_{j = 1}^{p} f_{j} (x_{ij}),

(2.7)

where the

f_{j} (\cdot)

are unknown smooth functions. That is, the effects of the covariates (or subsets of the covariates) are determined by smooth, possibly nonlinear, functions. A common approach is again to use

P

-splines and to expand each function separately by a weighted sum of

B

-spline basis functions depending on the covariates.

Possible further extensions of model (2.7) are, for example, the use of smooth time-varying effects of the form $f_{j} (x_{ij}) \cdot t$ or $f_{j} (x_{ij}, t)$ . This kind of models is extensively discussed in Bender et al. (2018). The tutorial by Bender et al.(2018) illustrates the use of generalized additive mixed models for semiparametric continuous time-to-event modelling and is also part of this special issue.

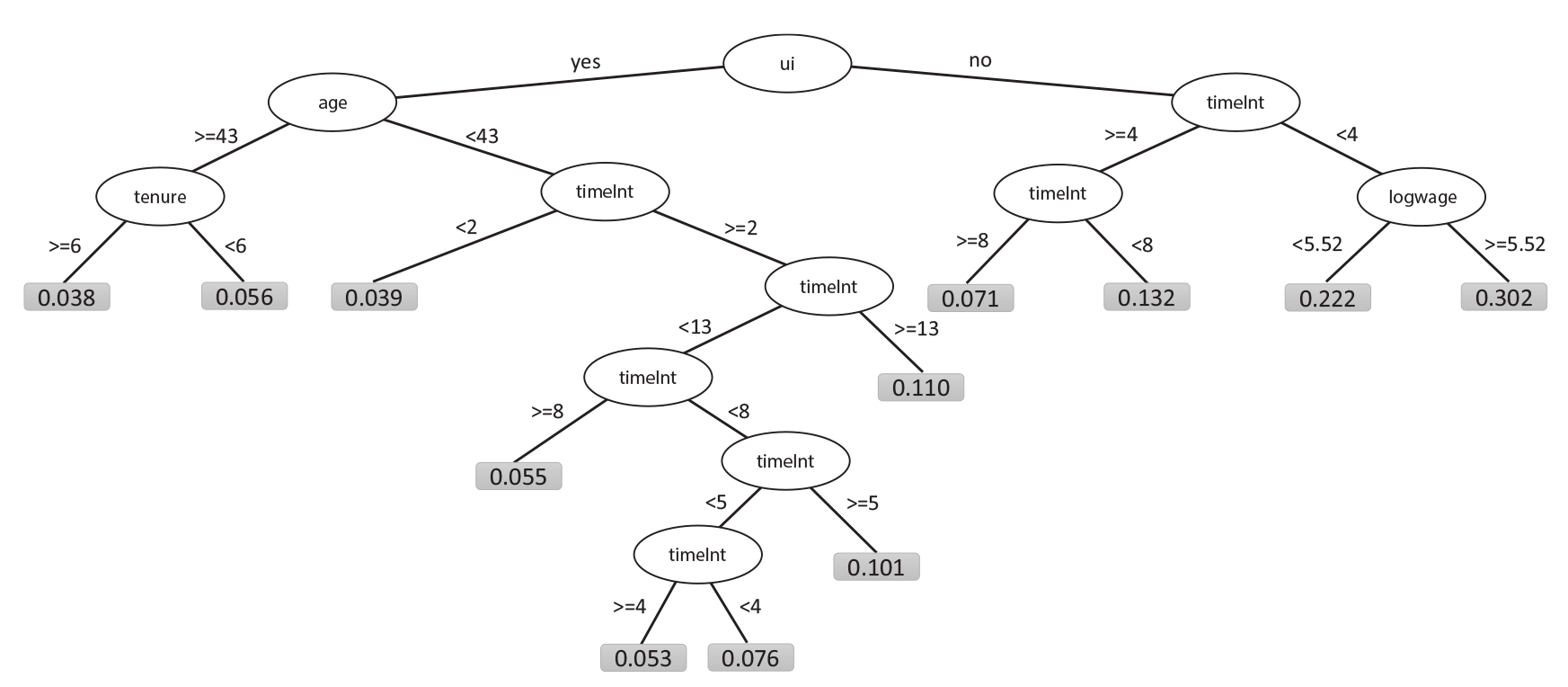

In the semiparametric models with predictors (2.6) and (2.7), it is assumed that the predictor is given by an additive function of time and a linear (or additive) function of the covariates. Although these models are very flexible, they may not capture the structure of the data very well, if interactions between covariates are present. For example, it is quite conceivable that the effect of a covariate on the hazard depends on the values of a second covariate, implying the presence of an interaction between the two covariates. The problem when incorporating interactions in parametric or additive models is that the relevant interactions have to be known and specified before model fitting. Furthermore, parametric and additive models are hard to handle if the interaction terms involve more than two covariates. An alternative regression approach that addresses these problems is recursive partitioning, which is also known as tree modelling. The most popular tree method is classification and regression trees (CART), as proposed and described in detail by Breiman et al. (1984). The basic CART method is conceptually very simple: The covariate space is partitioned recursively into a set of rectangles, and in each rectangle a simple model (for example, a covariate-free model) is fitted. A user-friendly introduction to the basic concepts of tree modelling is found in Hastie et al. (2009). Recently, Schmid et al.(2016) proposed a recursive partitioning method that is specifically designed to model discrete time-to-event data. The main principle is to fit a discrete hazard model of the form

λ (t | x_{i}) = f (t, x_{i}),

(2.8)

where

f (t, x_{i})

is represented by a classification tree with binary outcome. Each split of this tree is determined by either

t

(treated as an ordinal variable) or one of the covariates. As a result, each terminal node of the tree refers to an estimate of the hazard function for a specific covariate combination and a specific time interval

[t_{1}, t_{2}] \subset [1, k]

. For details on the calculation of the corresponding estimates, see Section 5.3.

3 Estimation and data preparation for additive hazard models

To derive the log-likelihood function for discrete hazard models, it is useful to introduce a binary variable indicating whether the target event was observed or not:

Δ_{i} = \{\begin{matrix} 1, ​ if ​ T_{i} \leq C_{i}, \\ 0, ​ if ​ T_{i} > C_{i} . \end{matrix}

(3.1)

Thus,

Δ_{i}

becomes 1, if the exact true time is observed; otherwise,

Δ_{i} = 0

. In the case where continuous time-to-event data are grouped,

Δ_{i} = 1

and

{\tilde{T}}_{i} = t

implies an event in interval

[a_{t - 1}, a_{t})

and

T_{i} = {\tilde{T}}_{i} = t

. Similarly,

Δ_{i} = 0

and

{\tilde{T}}_{i} = t

implies

C_{i} = {\tilde{T}}_{i} = t

and survival beyond

a_{t}

, that is,

T_{i} > {\tilde{T}}_{i} = t

Note that when continuous time-to-event data are grouped or rounded, additional assumptions are implicitly imposed on the censoring mechanism. To see this, consider the case where both the continuous event time $T_{cont, i}$ and the continuous censoring time $C_{cont, i}$ are within the same interval, say, $[a_{t - 1}, a_{t})$ . Then, by definition, $T_{i} = C_{i} = t$ , ${\tilde{T}}_{i} = t$ , and $Δ_{i} = 1$ , leading to the usual interpretation that an event was observed in interval $[a_{t - 1}, a_{t})$ . At the same time, however, this interpretation implicitly assumes $T_{cont, i} \leq C_{cont, i}$ , that is, the continuous event time $T_{cont, i} \in [a_{t - 1}, a_{t})$ is not allowed to be larger than the continuous censoring time $C_{cont, i} \in [a_{t - 1}, a_{t})$ . Without this assumption, the scenario where both $T_{cont, i}, C_{cont, i} \in [a_{t - 1}, a_{t})$ and $T_{cont, i} > C_{cont, i}$ would result in ${\tilde{T}}_{i} = t$ and $Δ_{i} = 1$ but no observed event in $[a_{t - 1}, a_{t})$ . This assumption on the nature of the censoring mechanism is often referred to as ‘censoring at the end of the interval'.

With data $({\tilde{T}}_{i}, Δ_{i},_{i}), i = 1, \dots, n$ , the contribution of the $i$ -th observation to the likelihood function is given by

L_{i} = P (T_{i} = {\tilde{T}}_{i})^{Δ_{i}} P (T_{i} > {\tilde{T}}_{i})^{1 - Δ_{i}} P (C_{i} \geq {\tilde{T}}_{i})^{Δ_{i}} P (C_{i} = {\tilde{T}}_{i})^{1 - Δ_{i}} .

(3.2)

A crucial assumption that is usually made to simplify the likelihood function (3.2) is that the censoring process does not depend on the parameters determining the event times

T_{i}

. A consequence of this assumption is that the terms involving the censoring times can be ignored in the maximization of the likelihood function for the time-to-event process. Omitting the terms involving

C_{i}

in (3.2) and inserting the definitions of the hazard function (2.1) and the survival function (2.2), one obtains (expect for some constants)

L_{i} \propto λ ({\tilde{T}}_{i} | x_{i})^{Δ_{i}} (1 - λ ({\tilde{T}}_{i} | x_{i}))^{1 - Δ_{i}} \prod_{j = 1}^{{\tilde{T}}_{i} - 1} (1 - λ (j | x_{i})) .

(3.3)

Note that, by definition of

Δ_{i}

in (3.1), one always obtains

Δ_{i} = 1

and

λ ({\tilde{T}}_{i} | x_{i}) = 1

. if

{\tilde{T}}_{i}

is equal to the last time point

k

. For maximum likelihood estimation, it is therefore convenient to re-code observations with

{\tilde{T}}_{i} = k

as follows:

{\tilde{T}}_{i} = k, Δ_{i} = 1, x_{i} \to ​ {\tilde{T}}_{i} = k - 1, Δ_{i} = 0, x_{i},

(3.4)

making use of the fact that the value of the likelihood contribution in (3.3) will not be altered by this transformation.

With some algebra, it can be shown that the likelihood function (3.3) is equal to the likelihood of a binary response model with outcome variables

(y_{i 1}, \dots, y_{i {\tilde{T}}_{i}}) = \{\begin{matrix} (0, \dots, 0, 1), ​ if ​ Δ_{i} = 1 \\ (0, \dots, 0, 0), ​ if ​ Δ_{i} = 0 . \end{matrix}

(3.5)

For individuals where the exact event time is observed, one defines the observation vector

(0, \dots, 0, 1)

of length

{\tilde{T}}_{i}

. For censored individuals, the observation vector contains only zeros. According to this definition, one has

{\tilde{T}}_{i}

binary observations for each individual

i

, resulting in a total of

{\tilde{T}}_{1} + \dots + {\tilde{T}}_{n}

observations. Using these definitions, the log-likelihood of the proportional continuation ratio model becomes

ℓ \propto \sum_{i = 1}^{n} \sum_{s = 1}^{{\tilde{T}}_{i}} y_{is} log (λ (s | x_{i})) + (1 - y_{is}) log (1 - λ (s | x_{i})) .

(3.6)

The main advantage of this representation of the log-likelihood is that it allows to use software for fitting binary response models. For example, it follows from (3.6) that fitting a continuation ratio model is equivalent to fitting a logistic regression model with predictor (2.6) or (2.7). In this model, the values of the binary responses

y_{is}

can be interpreted as binary decisions for the transition from interval

[a_{s - 1}, a_{s})

[a_{s}, a_{s + 1})

. For instance, in the application on unemployment duration, one observes

y_{is} = 0

for each two-week interval as long as the individual

i

is not re-employed yet.

The models with smooth components (2.6) and (2.7) can be fitted by maximizing a penalized likelihood of the form

ℓ_{p} = ℓ - δ J,

(3.7)

where

δ \in ℝ^{+}

is a penalty parameter and

J \in ℝ^{+}

is the penalty term already mentioned in Section 2.2, putting restrictions on the weights of the

B

-spline basis functions and preventing estimates from becoming too rough. When using

P

-splines,

J

is a difference penalty on adjacent

B

-spline coefficients. A common procedure is to use cubic B-splines (

d = 3

) with second order differences. Then, for example, the penalty term for the estimation of the smooth baseline hazard

f_{0} (t)

in model (2.6) contains only the parameters

γ_{01}, \dots, γ_{0 M}

, corresponding to

f_{0} (t)

and has the form

J = \sum_{m = 3}^{M} {(Δ^{2} γ_{0 m})}^{2} = \sum_{m = 3}^{M} {(γ_{0 m} - 2 γ_{0, m - 1} + γ_{0, m - 2})}^{2} .

(3.8)

For further details, see Eilers and Marx (1996).

The degree of smoothness is determined by the tuning parameter $δ$ . The larger the value of $δ$ , the smoother is the resulting function, and vice versa. When several smooth functions are included in the model, one uses a difference penalty for each spline effect, based on the differences of adjacent $B$ -spline coefficients for the corresponding covariate. The smoothness of the individual spline estimates can be determined by the same or separate penalty parameters $δ_{j}$ .

Before fitting proportional continuation ratio models with software for binary outcome data, one has to generate the required binary observations presented in (3.5). This is done by the generation of an augmented data matrix. For the setup of the matrix, one has to distinguish between censored and non-censored individuals. For an individual whose event was observed ( $Δ_{i} = 1$ ) at time ${\tilde{T}}_{i}$ , the augmented data matrix is given by

(\begin{matrix} 0 & ThickSpace 1 & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \\ 0 & ThickSpace 2 & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \\ 0 & ThickSpace 3 & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \\ ⋮ & ThickSpace ⋮ & ThickSpace ⋮ & ThickSpace & ThickSpace ⋮ \\ 1 & ThickSpace {\tilde{T}}_{i} & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \end{matrix}) .

(3.9)

For an individual that is censored (

Δ_{i} = 0

) at time

{\tilde{T}}_{i}

, the augmented data matrix is given by

(\begin{matrix} 0 & ThickSpace 1 & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \\ 0 & ThickSpace 2 & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \\ 0 & ThickSpace 3 & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \\ ⋮ & ThickSpace ⋮ & ThickSpace ⋮ & ThickSpace & ThickSpace ⋮ \\ 0 & ThickSpace {\tilde{T}}_{i} & ThickSpace x_{i 1} & ThickSpace \dots & ThickSpace x_{ip} \end{matrix}) .

(3.10)

The first column in the augmented data matrices corresponds to the binary responses

y_{i 1}, \dots, y_{i {\tilde{T}}_{i}}

. The second column is the time interval running from

1

{\tilde{T}}_{i}

. When fitting a model with fixed intercept parameters

γ_{0 t}

, this column has necessarily to be coded as a nominal factor, for example, via dummy variables. The remaining part of the data contains the covariates. When the covariates are constant over time, the values in each row of columns

3

(p + 2)

are the same, that is, covariate vector

x_{i}

is repeated row-wise. This is also the case in the US unemployment data. Otherwise, when time-varying covariates are considered, the observed time series are entered in the respective columns of the augmented data matrices. For each individual, the augmented data matrix has

{\tilde{T}}_{i}

rows, and the whole data matrix, which is obtained by ‘glueing’ the individual augmented matrices together, has

\sum_{i = 1}^{n} {\tilde{T}}_{i}

rows.

In R, the augmented data matrix can be generated by applying the function dataLong() in the R package discSurv Welchowski and Schmid (2017). The general interface of the function is

>dataLong(dataSet, timeColumn, censColumn, timeAsFactor = TRUE).

The function requires the original data of class data.frame in ‘non-augmented’ short format (argument dataSet), the column name of the observed discrete event times (argument timeColumn) and the column name of the binary event indicator as defined in Equation (3.1) (argument censColumn). The variable required by timeColumn can either be numeric or coded as an ordinal or nominal factor. If timeAsFactor = TRUE, the time column in the augmented data matrix will be returned as a nominal factor. The variable required by censColumn can either be a numerically coded 0/1 vector or a labelled factor variable. Note that dataLong() assumes that the covariates are constant over time. If this is not the case, the function dataLongTimeDep() should be used instead to generate the augmented data matrix. For details on the required format of the raw data matrix, we refer to the documentation in discSurv.

The augmented data matrix returned by dataLong() contains the binary responses as defined in Equation (3.5) in the form of a numerically coded 0/1 vector named y. Further details on the output are given by the application in Section 5.1.

4 Goodness-of-fit measures

In this tutorial, we consider two diagnostic tools that are useful to investigate discrete hazard models in terms of their goodness of fit. By appropriate visualizations, both tools can be used to check whether a model is well calibrated, that is, to check how well the fitted probabilities agree with their corresponding observed proportions. Note that these graphical checks do not constitute ‘formal’ calibration tests, in the sense that they neither rely on asymptotics nor on distributional results.

First, one can generate a calibration plot. The idea is to compare the estimated hazards $\hat{λ} (t |_{i}), i = 1, \dots, n, t = 1, \dots, {\tilde{T}}_{i}$ , of the model to the relative frequencies of observed events ( $y_{it} = 1$ ) in predefined subsets of the augmented set of observations. More specifically, one splits the data into subsets $D_{k}, k = 1, \dots, K$ , defined by the percentiles of the estimated hazards. Common choices for $K$ are $K = 10$ or $K = 20$ . Then the relative frequency of observed events (‘empirical hazard’) is calculated in each subset by

\sum_{i, t : \hat{λ} (t |_{i}) \in D_{k}} \frac{y_{it}}{| D_{k} |},

(4.1)

where

| D_{k} |

corresponds to the number of observations in subset

D_{k}

. If the fit of the model is satisfactory, the empirical hazard measure in (4.1) should be close to the average of the estimated hazards in

D_{k}

for all

k

, that is, close to the mean of

\hat{λ} (t |_{i}) \in D_{k}, ​ k = 1, \dots, K

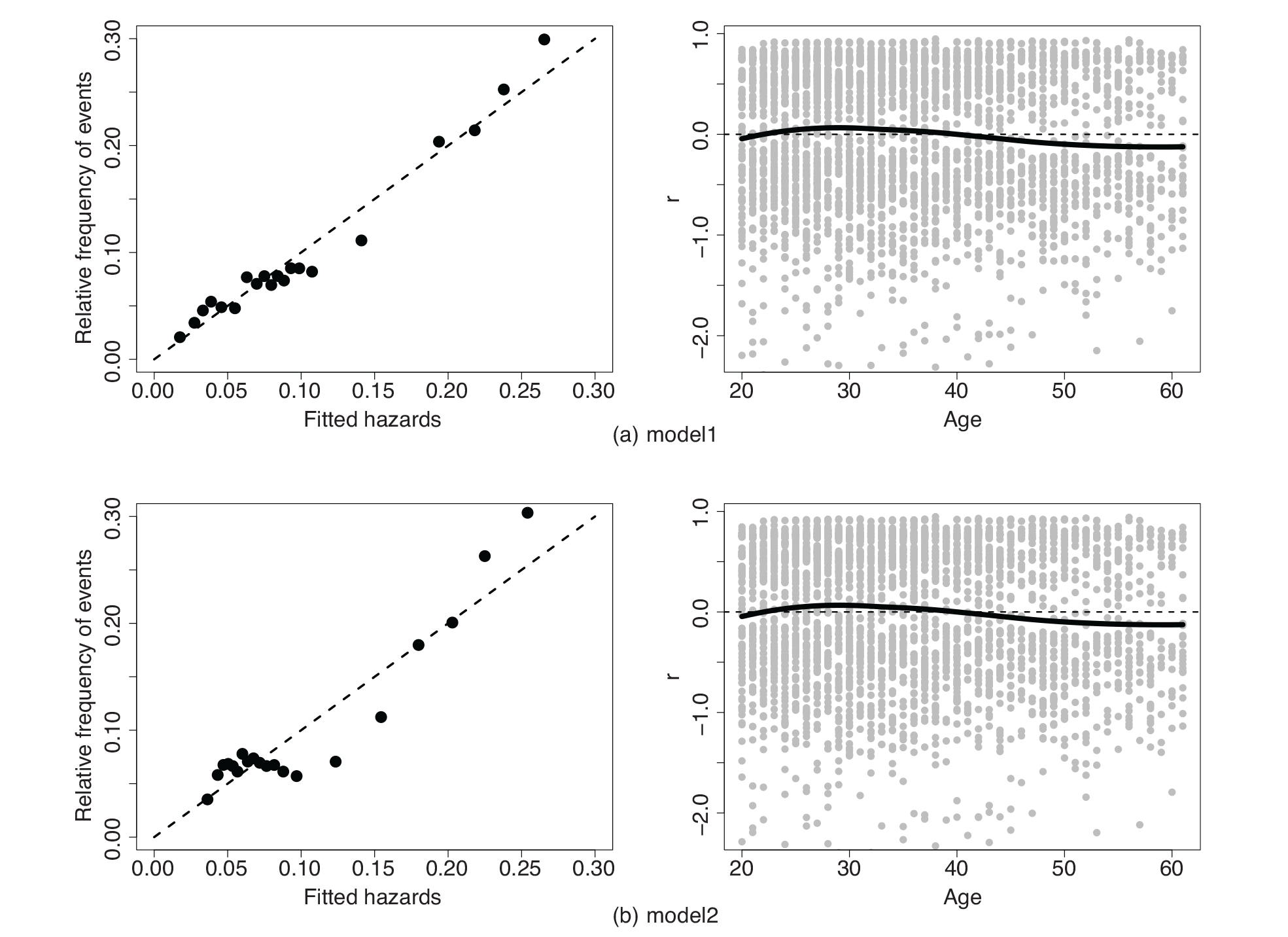

. Examples of calibration plots are shown in Figure 3 in the application.

Second, we consider martingale residuals, which allow for assessing the importance of single covariates $x_{j}$ . The idea of the martingale residuals is to compare for each individual the observed number of events with the expected number of events up to ${\tilde{T}}_{i}$ . Using the binary response variables $y_{i 1}, \dots, y_{i \tilde{T_{i}}}$ the residuals are defined as

r_{i} = \sum_{t = 1}^{{\tilde{T}}_{i}} (y_{it} - \hat{λ} (t | x_{i})), i = 1, \dots, n .

(4.2)

For a well-fitting model that includes all relevant predictors, the difference between

y_{it}

and

\hat{λ} (t |_{i})

should be ‘random’ and therefore uncorrelated with the covariate values. To assess the importance of a covariate graphically, one can plot the residuals against the covariate values. Martingale residuals can be computed by the function martingaleResid() contained in the discSurv package. Examples are shown in Figure 3 in the application.

5 Application: Duration of unemployment

In the following, discrete hazard regression modelling is illustrated by means of a step-by-step analysis of the US unemployment data. Throughout this section, we use the logistic link function, that is, we consider the fitting of a proportional continuation ratio model.

5.1 Preprocessing of the data

To fit a logistic discrete hazard model of the form (2.4), the original data matrix first has to be transformed to an augmented data matrix, as described earlier. The dataset UnempDur, which (after application of the preprocessing steps outlined in the Introduction) is a slightly modified version of the data frame available in the R package Ecdat, has the following form:

>head(UnempDur)

spell age ui reprate disrate logwage tenure status

1 5 41 no 0.179 0.045 6.89568 3 1

2 13 30 yes 0.520 0.130 5.28827 6 1

4 3 26 yes 0.448 0.112 5.97889 3 1

5 9 22 yes 0.320 0.080 6.31536 0 1

6 11 43 yes 0.187 0.047 6.85435 9 0

8 3 32 no 0.373 0.093 6.16121 0 1

The first column named spell is the observed time to re-employment of individual $i$ and contains the values of ${\tilde{T}}_{i}, i = 1, \dots, n$ . As mentioned earlier, these values correspond to the lengths of the spells (measured in two week intervals), whose distribution is displayed in Figure 1. The last column named status indicates whether the exact event time of individual $i$ has been observed (status $= 1$ ) or if the individual is subject to right censoring (status $= 0$ ); it corresponds to the random variable $Δ_{i}$ defined in equation (3.1). Summarizing the status column yields a censoring rate of 0.391:

> table(UnempDur$status)/nrow(UnempDur)

0 1

0.3909657 0.6090343

Columns two to seven of the data frame UnempDur contain the explanatory variables described in Table 1. All covariates are constant over the time of the survey.

When using dataLong() to obtain the augmented data matrix, one has to pass the column names spell and status to the arguments timeColumn and censColumn, respectively:

>library(discSurv)

>UnempDurLong < ’ dataLong(UnempDur, timeColumn = ”spell”,

+ censColumn = ”status”).

The augmented data matrix UnempDurlong has 10 columns with the following names:

>names(UnempDurLong)

[1] ”obj” ”timeInt” ”y” ”spell” ”age” ”ui”

[7] ”reprate” ”disrate” ”logwage” ”tenure” ”status”

The new columns are obj, which is an identifier of the individuals, timeInt, which contains the discrete time values (i.e., the second column of the augmented matrices in (3.9) and (3.10), stored as a nominal factor) and y, which contains the binary response variables $y_{i 1}, \dots, y_{i \tilde{T_{i}}} \in {0, 1}$ . The head of the augmented data matrix is given by

>UnempDurLong[UnempDurLongobj==1,]

obj timeInt y spell age ui reprate disrate logwage tenure status

1 1 1 0 5 41 no 0.179 0.045 6.89568 3 1

1.1 1 2 0 5 41 no 0.179 0.045 6.89568 3 1

1.2 1 3 0 5 41 no 0.179 0.045 6.89568 3 1

1.3 1 4 0 5 41 no 0.179 0.045 6.89568 3 1

1.4 1 5 1 5 41 no 0.179 0.045 6.89568 3 1,

showing that the first individual (obj $= 1$ ) had an event after 10 weeks (spell $= 5$ and status $= 1$ ). Accordingly, the augmented data matrix for the first individual has five rows, where each row corresponds to one time interval (timeInt $= 1, \dots, 5$ ). The corresponding vector of responses is $y = (0, 0, 0, 0, 1)$ . The values of the covariates remain constant over time and are therefore the same in each row.

As a second example, consider the augmented data matrix of the 12th individual (obj $= 12$ ). This individual is censored after six weeks (spell $= 3$ and status $= 0$ ). Hence, the corresponding data matrix has three rows with response $y = (0, 0, 0)$ :

>UnempDurLong[UnempDurLong obj==12,]

obj timeInt y spell age ui reprate disrate logwage tenure status

14 12 1 0 3 40 yes 0.52 0.13 4.95583 0 0

14.1 12 2 0 3 40 yes 0.52 0.13 4.95583 0 0

14.2 12 3 0 3 40 yes 0.52 0.13 4.95583 0 0.

5.2 Regression modelling

A parametric proportional continuation ratio model with a linear predictor is estimated in R by passing the augmented data matrix UnempDurLong to glm() with the usual specifications:

>model1 < ’ glm(formula = y timeInt ’ 1 +

+ age + reprate + disrate + logwage + tenure + ui,

+ data = UnempDurLong, family = binomial(link = ”logit”)).

The left-hand side of the formula argument contains the binary response vector y. In addition to the names of the six covariates, the right-hand side contains the discrete time variable as a nominal factor without intercept (timeInt ’ 1). The family argument binomial(link = ”logit”) is the same as for ‘usual’ logistic regression models with binary outcome.

The more complex model with smooth baseline hazard (Equation (2.6)) is estimated by use of the R package mgcv Wood (2017). A detailed introduction to the estimation procedures is found in Wood (2011). The corresponding function gam() essentialy has the same interface as glm():

>library(”mgcv”)

>UnempDurLong$timeIntNum < ’ as.numeric(UnempDurLongtimeInt)

>model2 < ’ gam(formula = y s(timeIntNum, bs = ”ps”, k = 5, m = 2) +

+ age + reprate + disrate + logwage + tenure + ui,

+ data = UnempDurLong, family = binomial(link = ”logit”)).

Before passing the nominal factor timeInt to gam(), it has to be transformed to a continuous variable (timeIntNum). Then a smooth baseline hazard is specified by use of the function s() on the right-hand side of the model formula. Required arguments are the type of spline smoother bs, the dimension of the basis k (which corresponds to the number of basis functions $M = k - 1$ ) and the order of the penalty m. Here, we use $P$ -splines with cubic basis functions (bs = ”ps”) and a second order difference penalty (m $= 2$ ). The chosen dimension (k $= 5$ ) results in four cubic basis functions. Based on these specifications, the optimal smoothing parameter $δ$ , see Equation (3.7), is computed by generalized cross-validation see Wood (2006). Its estimate is stored in the argument sp. In case of the US unemployment data, sp is estimated as:

>model2sp

s(timeIntNum)

0.08562284.

Generally, the mgcv package implements a large variety of alternative spline estimators and methods for smoothing parameter optimization. In principle, all of these methods may be used for discrete hazard modelling, in the same way as they would be used in logistic regression (or, more generally, in additive models with a binary response).

The estimated baseline hazards of model1 and model2 are shown in Figure 2. The discrete baseline hazard obtained for model1 is visualized by black dots. From these estimates, a reasonable interpretation is hard to derive. On the other hand, the smooth baseline hazard obtained for model2, visualized by grey squares, is more meaningful. It is seen that the conditional probability of re-employment decreases until week 20 and subsequently increases up to week 32 before it diminishes again. The reason for this might be that in many US states, workers are eligible for up to 26 weeks of benefits from the state-funded unemployment compensation programme.

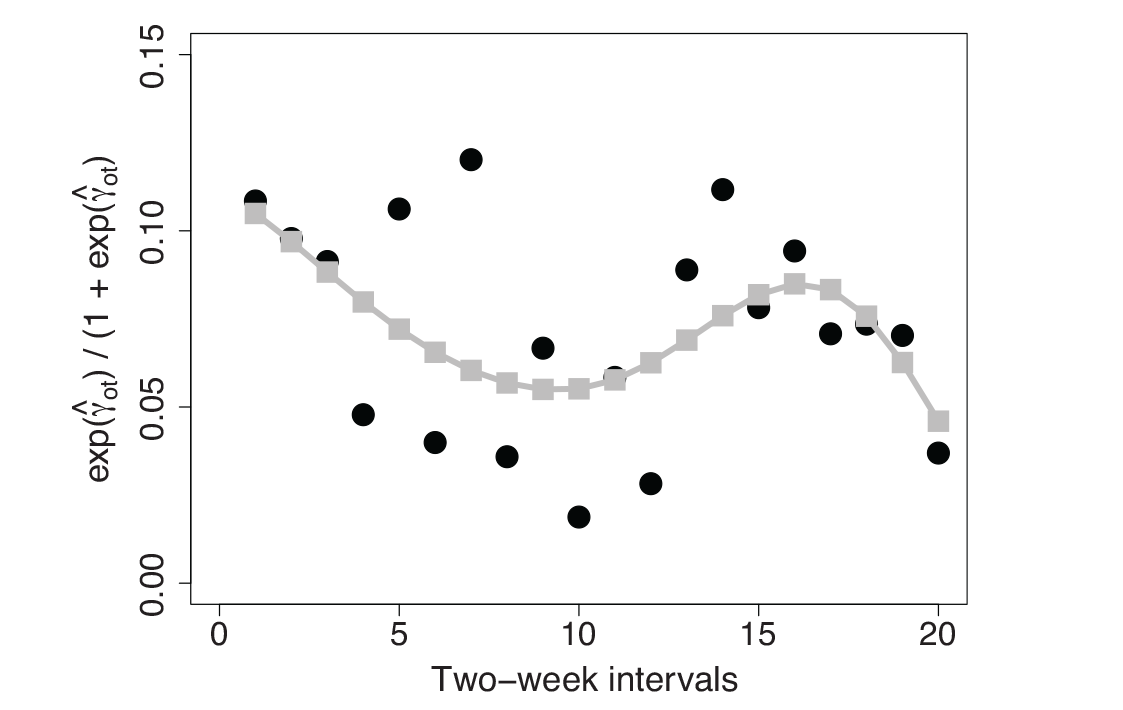

Figure 2:

Analysis of the US unemployment data. The figure shows the estimated discrete baseline hazard of model1 (black dots) and the smooth baseline hazard of model2 (grey squares)

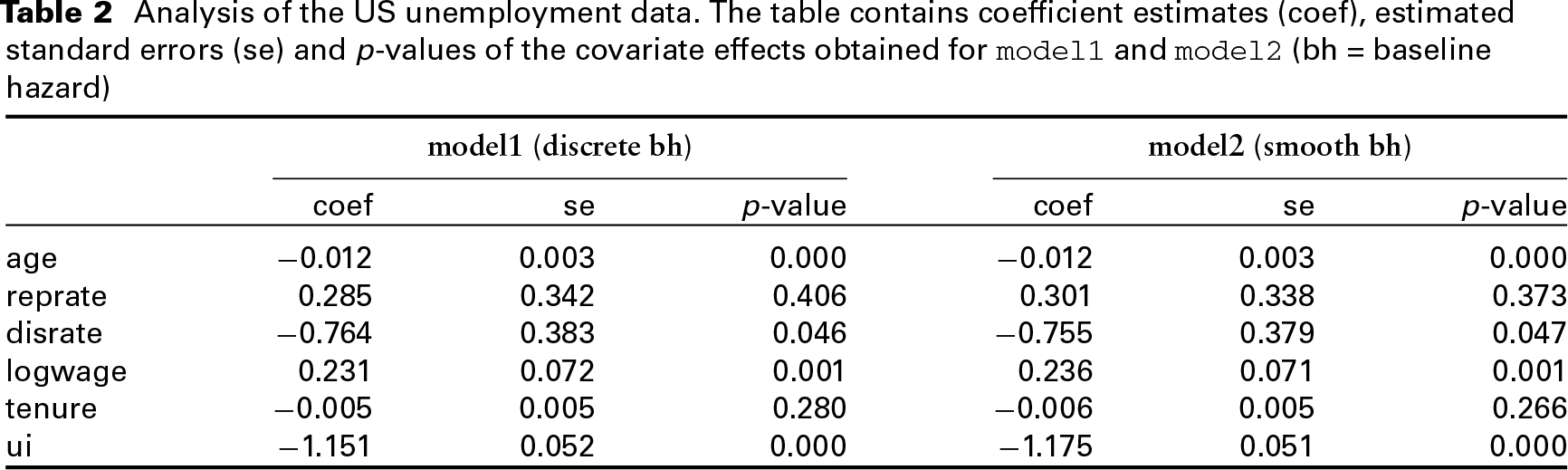

Table 2:

Analysis of the US unemployment data. The table contains coefficient estimates (coef), estimated standard errors (se) and p-values of the covariate effects obtained for model1 and model2 (bh = baseline hazard)

	model1 (discrete bh)			model2 (smooth bh)
	coef	se	$p$ -value	coef	se	$p$ -value
age	$-$ 0.012	0.003	0.000	$-$ 0.012	0.003	0.000
reprate	0.285	0.342	0.406	0.301	0.338	0.373
disrate	$-$ 0.764	0.383	0.046	$-$ 0.755	0.379	0.047
logwage	0.231	0.072	0.001	0.236	0.071	0.001
tenure	$-$ 0.005	0.005	0.280	$-$ 0.006	0.005	0.266
ui	$-$ 1.151	0.052	0.000	$-$ 1.175	0.051	0.000

Table 2 shows the estimates of the coefficients, the corresponding estimated standard errors, and the $p$ -values of the covariate effects obtained for model1 and model2. Apart from the eligible replacement rate (reprate) and the tenure in the lost job, (tenure), the covariates are significantly associated with the time to re-employment. According to the signs of the estimates of both models, the chance of getting re-employed decreases with increasing values of age, increasing disregard rate and with the filing of an unemployment claim. On the other hand, the higher the earnings in the lost job, the better the chance of re-employment. Table 2 also shows that the differences in coefficient estimates between the two models are small. By use of Equation (2.5), the effects can be interpreted in an easy way. For example, let us compare citizens who submitted an unemployment insurance claim (ui $= 1$ ) to those who did not (ui $= 0$ ). Based on the estimate of model1 ( ${\hat{γ}}_{ui} = - 1.151$ ), one obtains that the probability of re-employment at (any) time $t$ , compared to the probability of re-employment later than $t$ , decreases for citizens who submitted an unemployment insurance claim by the factor $exp ({\hat{γ}}_{ui}) = 0.316$ . The chance of re-employment is therefore much smaller in this group. One might speculate that due to benefits from the state-funded unemployment, the motivation to search for a new job is lower.

Figure 3:

Analysis of the US unemployment data. The two panels show the calibration plot (left) and the martingale residuals against the values of age (right) obtained for model1 (a) and model2 (b) without age, respectively. The trend lines were obtained by local polynomial regression

The goodness-of-fit measures for model1 and model2 are presented in Figure 3. The left figures show the calibration plots (average fitted hazards against the relative frequencies of events). It is seen that the values of model1 are closer to the 45 degree line than those of model2, indicating a better model fit. The right figures show the martingale residuals, defined in (4.2), against the values of the covariate age for the fit of model1 and model2 without age. The black lines correspond to the estimated trend obtained by a local polynomial regression using the R function loess(). The functional form of the trend lines (compared to the zero line) shows a nonlinear effect on the martingale residuals for both models. This indicates that the covariate age is an influential variable (cf. Table 2) with a possibly nonlinear effect on the response.

Therefore, as a possible extension, we consider a model where the baseline hazard as well as the covariate age are both modelled as smooth $P$ -spline functions:

>model3 < ’ gam(formula = y s(timeIntNum, bs = ”ps”, k = 5, m = 2) +

+ s(age, bs = ”ps”, k = 25, m = 2) +

+ reprate + disrate + logwage + tenure + ui,

+ data = UnempDurLong, family = binomial(link = ”logit”)).

As seen from the R code, the estimation of the smooth function of covariate age in model3 is based on 24 cubic basis functions (dimension k $= 25$ ). The estimated penalty parameter $\hat{δ}$ for age, stored in sp, is:

>model3sp[”s(age)”]

s(age)

56 860.2.

From the resulting function shown in Figure 4, it is seen that the association between the time to re-employment and age is definitely not linear. Its form is very similar to the loess trend shown in Figure 3. The value on the $y$ -axis of the figure corresponds to the contribution of age to the predictor $η_{it}$ of the model. The chance of re-employment has a peak between 20 years and 30 years, and subsequently decreases.

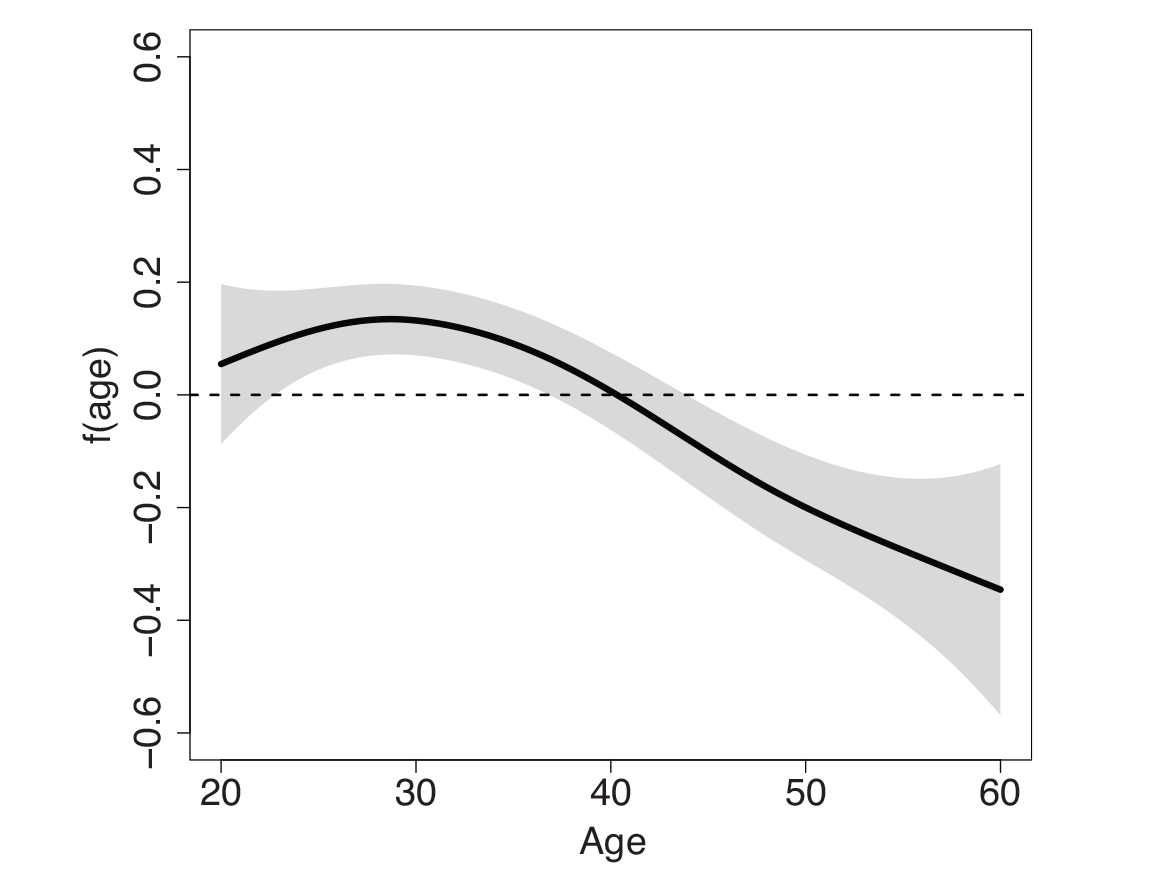

Figure 4:

Analysis of the US unemployment data. The plot shows the estimated P-spline function for the covariate age in model3

5.3 Tree-based modelling

Finally, we fit a recursive partitioning model of the form (2.8). Again, we consider a procedure that is based on the augmented data matrix with binary outcomes $y_{i 1}, \dots, y_{i \tilde{T_{i}}}$ .

When growing trees, one has to take two main decisions: First, one has to choose an appropriate criterion for performing the splits. Criteria that have already been used in the early days of tree construction are impurity measures. For discrete survival trees, a natural measure of node impurity is the Brier score, which evaluates the average squared difference between the binary outcome values $y_{it}$ and the respective hazard estimate $\hat{λ} (t |_{i})$ in each node (see Schmid et al. , 2016). It can be shown that using the Brier score is equivalent to the traditional Gini impurity measure. For a single node $m$ , the Gini impurity is given by

G_{m} = 2 π_{m} (1 - π_{m}),

(5.1)

where

π_{m}

is the proportion of ones in node

m

(see Breiman 1996). This equivalence implies that the traditional CART algorithm based on the Gini criterion can be used for the construction of the tree. The latter is done by using the function rpart() of the eponymous R package rpart (Therneau et al., 2015).

Second, one has to determine the optimal size of the tree. For the discrete survival tree, an appropriate tuning parameter controlling tree size is the minimal number of observations in each terminal node (‘minimal node size’). Optimizing this number avoids overfitting, as the number of terminal nodes is prevented from becoming too large and, at the same time, the node sizes are prevented from becoming too small. Growing the largest possible tree with exactly one observation in each terminal node, for example, is not desirable, as the estimated hazards would all be either $0$ or $1$ in this case. Accordingly, splitting is stopped when further splitting in any of the current nodes would result in an additional node containing less observations than the minimal node size. Given a sequence of tree estimates depending on the minimal node size, the optimal tree (i.e., the tree with ‘optimal’ minimal node size) is determined by either minimization of an information criterion (such as AIC or BIC, see in the following) or maximization of the predictive log-likelihood. The latter strategy means to repeatedly draw subsamples from the original non-augmented data (for example, by cross-validation, bootstrapping or subsampling without replacement) and to calculate the log-likelihood for the omitted observations. One determines the optimal tree as the one for which the predictive log-likelihood (averaged across the subsamples) becomes maximal. The R function survivalTree() automatically generates the augmented data matrix by dataLong(), estimates the discrete survival tree by rpart() and returns the optimal one according to the specified performance criterion. The function is part of the electronic supplement of this article.

Once the optimal minimal node size has been determined, the estimate of $λ (t |_{i})$ is given by the relative frequency of events (proportion of ones) in each node, possibly after applying some sort of correction procedure like the Laplace correction (see in the following).

To fit a tree model to the US unemployment data, we call the survivalTree function using the following arguments:

> source(”survivalTree.R”)

> model4 < ’ survivalTree(formula = y timeInt + age +

+ reprate + disrate + logwage + tenure + ui,

+ data = UnempDur, tuning = ”BIC”,

+ timeColumn = ”spell”, censColumn = ”status”,

+ minimal_ns = seq(100, 1500, by = 10),

+ trace = TRUE).

The formula required for the tree model is analogous to the one specified for a model with linear predictor. Note that internally the time variable timeInt is coded as a numeric vector. This is in analogy to model2 and model3 with smooth baseline hazards. The original data frame UnempDur (in non-augmented format) is passed to the data argument. In addition, one has to specify the timeColumn and CensColumn arguments used in dataLong(). The performance criterion is specified by the argument tuning. For tuning, we use the Bayesian information criterion (BIC) defined by

BIC : = - 2 ℓ + log (\tilde{n}) n_{s},

where

ℓ

is the log-likelihood (3.6),

\tilde{n}

is the number of rows of the augmented data matrix and

n_{s}

denotes the number of splits as a measure of the complexity of the tree. Other possible arguments for tuning are ”AIC” (Akaike's information criterion) and ”ll” (predictive log-likelihood method). When using ”ll”, survivalTree() performs a five-fold cross-validation based on subsamples without replacement. To ensure that each subsample contains a sufficient number of observations per observed event time, the subsamples are stratified by spell. The survivalTree function searches for the best model among the sequence of models with minimal node sizes minimal_ns. If minimal_ns is not specified, the sequence of minimal node sizes is set to

1, \dots, ⌊ \tilde{n} / 2 ⌋

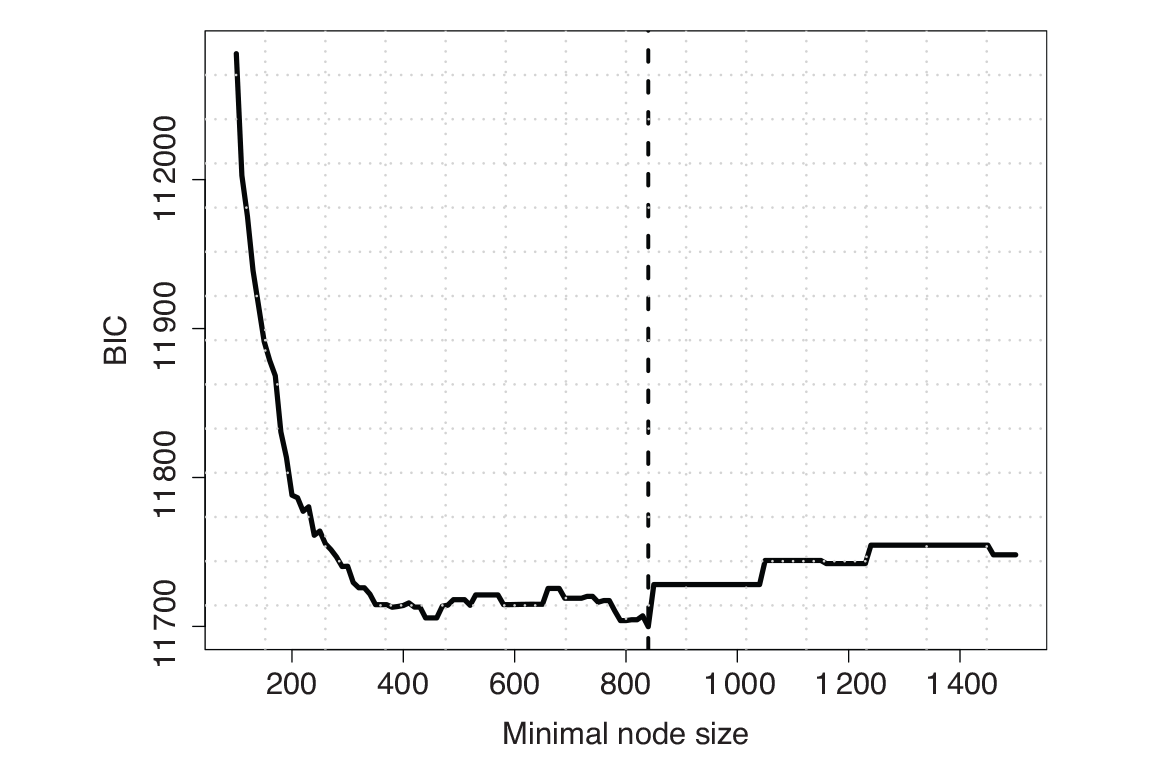

Figure 5:

Analysis of the US unemployment data. The plot shows the BIC values for the sequence of survival trees that was obtained by fitting model4 with minimal node sizes ranging from 100 to 1 500. The minimal BIC value (obtained for node size 840) is marked by the vertical dashed line

The BICs obtained for model4 with minimal node sizes $100, \dots, 1 500$ (in steps of 10) are shown in Figure 5. If an increase of the minimal node size does not change the number of splits and therefore does not influence the resulting tree, the BIC remains the same. This is the case, for example, between minimal node sizes $900$ and $1 000$ . According to the BIC, the optimal tree model has minimal node size 840, marked by the dashed line in Figure 5. This results in a tree with 11 splits or 12 terminal nodes. The estimated tree is shown in Figure 6. Figure 6:

Analysis of the US unemployment data. The graph visualizes the survival tree obtained from fitting model4 with BIC-optimal minimal node size 840. The numbers at the terminal nodes refer to the estimated hazards. All estimated hazards were additionally post-processed by application of the Laplace correction, which was suggested by Ferri et al. (2003) to correct for estimates near the boundaries 0 and 1 in nodes with very few observations. The Laplace correction is automatically performed by survivalTree()

The most important covariate, which was chosen in the first split of the tree, is ui. As already derived from the parametric models, the submission of an unemployment insurance claim (ui = ‘yes’) has a negative effect on the ‘chance’ of re-employment. Within the group of citizens who submitted an insurance claim, the chance is lowest for citizens aged $43$ years, or older and with a tenure in the lost job of at least 6 years (leftmost node in Figure 6). For citizens younger than $43$ years, all further splits are performed with regard to the discrete time variable (timeInt). This confirms the results from Figure 2 in that the chance of re-employment is highly time-dependent. With the high hazard estimate of $0.110$ after 26 weeks (timeInt $> = 13$ ) of unemployment in this group, the tree estimate also indicates similar tendencies that were already seen in Figure 2 after 20 weeks. The best opportunities of re-employment are observed for citizens without an unemployment insurance claim, within the first six weeks (timeInt $< 4$ ) of unemployment, and with log weekly earnings of at least $5.52 $$ (rightmost node in Figure 6). For this subgroup, the estimated hazard rate is $0.302$ . The two covariates reprate and disrate were not selected in any of the splits and are therefore exluded from the model. This is in contrast to model1 and model2 (see Table 2), where disrate showed a significant effect on the hazard.

5.4 Comparison and model choice

In the previous sections, we presented the results of the analysis of the US unemployment data, having used three different parametric models and a tree-based model. In addition to the goodness-of-fit measures defined in Section 4, the interpretability of the model coefficients and the performance with regard to predicting events of future observations can be used as criteria for model choice.

Regarding the interpretation of the covariate effects, there is an important difference between the parametric models and the tree-based model. After the first split in the tree, all nodes represent interactions between either the covariates or between the covariates and time. For example, the second split in the left node (ui = ‘yes’) in the covariate age implies an interaction between the covariates ui and age (see Figure 6). In contrast to the interaction effects, it is usually difficult to detect and quantify main effects using tree modelling (e.g., by age). On the other hand, in the parametric models, the main covariate effects can easily be interpreted. For example, according to our analysis, covariate age has a negative linear effect (see Table 2) or smooth effect (see Figure 4) on the chance of re-employment. Higher order interactions (e.g., between ui, age and tenure) are usually hard to model by the parametric models, as they—unlike trees—do not include a data-driven selection of interaction terms during model fitting. This implies that interactions either need to be known or that a large number of parametric models (including/excluding the various interaction terms) need to be fitted and compared.

A common measure for the prediction accuracy of the models is the deviance D = -2ℓ, evaluated on $(γ_{i s}, \hat{λ} (s | x_{i})), i = 1, \dots, n^{'},$ , of an independent test dataset comprising $n^{'}$ observations. Because D is small if the log-likelihood ℓ is large, one should prefer the model with minimal D. To further compare the models, we drew 100 subsamples without replacement of size n = 2 568 (i.e., 80% of the original sample), estimated the four models on each of the 100 subsamples and computed the predictive deviances from the remaining 100 test sets of $n^{'} = 642$ observations each. Subsampling was stratified by spell to ensure a sufficient number of observations per observed event. From the results in Figure 7, it is seen that model1 with discrete baseline hazard performed better than model2 and model3 with smooth baseline hazard. This was already indicated by the calibration plots in Figure 3. The tree-based model (rightmost boxplot) had a smaller predictive deviance on average than the parametric models and may hence be considered the best-performing model for the US unemployment data.

Figure 7:

Analysis of the US unemployment data. The boxplots show the predictive deviance values of the four models based on 100 subsamples without replacement of size n = 2 568 each The models were evaluated on the remaining 100 test sets of $n^{'}$ = 642 observations each. For a better comparison, the median of the tree-based model is marked by a dashed line

6 Concluding remarks

In this tutorial, we have described a basic set of tools to fit semiparametric regression models with a discrete time-to-event outcome. All presented models are very general, in that they are applicable to any type of censored discrete response, regardless of whether the data-generating process is defined by an intrinsically discrete process or by the rounding/grouping of continuous event times. Furthermore, the presented methods are applicable in basically any field of research, as for example, in the social sciences, biostatistics, epidemiology and many more. The US unemployment data considered in this article is therefore only one of many possible examples. Further applications are presented in Tutz and Schmid (2016).

It is important to realize that all models considered in this tutorial can be fitted easily by use of standard software for binary regression modelling. This has the great advantage that established tools for estimation and inference can be used, that are already available. The most important functions in R are glm(), gam() (of the mgcv package) and rpart() (of the eponymous package). In addition to the P-spline and CART methodologies considered here, many other options for semiparametric discrete time-to-event modelling exist in R. For example, mgcv provides a variety of alternative spline modelling tools such as cardinal splines and smoothing splines, which can be used for discrete hazard modelling by specifying the bs argument in gam() accordingly. Further extensions also include time-varying coefficient models as considered in Bender et al. (2018) for continuous data. Similarly, there is an alternative tree modelling approach developed by Bou-Hamad et al. (2009) that operates directly on the non-augmented time-to-event data. This procedure is implemented in the R package DStree (Mayer et al., 2014).

The basic functionalities required for applying the aforementioned software packages are all implemented in the discSurv package. Next to the functions used in this tutorial, discSurv provides additional functions to calculate, for example, measures for model evaluation like the concordance index (Schmid et al., 2017), and alternative tools for residual analysis.

We finally note that there exists a number of additional modelling options that are beyond the scope of this tutorial. These include, among many others, (a) regularized estimation via boosting or penalized optimization of the log-likelihood, which is useful for variable selection in higher-dimensional settings, (b) random effects and finite mixture modelling, which account for unobserved heterogeneity in the data and (c) competing-risks models, which extend the models considered in this tutorial by allowing for more than one target event. For details on further methodology, including semiparametric extensions, see Tutz and Schmid (2016). In particular, a basic introduction into boosting for regression modelling is given by Mayr and Hofner, (2018) as part of this special issue.

Footnotes

Acknowledgments

The work of MS was supported by the German Research Foundation (DFG), grant SCHM 2966/1-2.

References

Agresti

(2013) Categorical Data Analysis, 3rd edition. New York, NY: John Wiley & Sons.

Bender

Groll

Scheipl

(2018) A tutorial on the estimation of time-varying coefficient models in event data analysis. Statistical Modelling , 18(299–321).

Bou-Hamad

Larocque

Ben-Ameur

Mâsse

Vitaro

Tremblay

(2009) Discrete-time survival trees. Canadian Journal of Statistics , 37, 17–32.

Breiman

(1996) Technical note: Some properties of splitting criteria. Machine Learning , 24, 41–47.

Breiman

Friedman

Olshen

Stone

(1984) Classification and Regression Trees . Monterey, CA: Wadsworth.

Croissant

(2016) Ecdat: Data sets for econome- trics. R package version 0.3-1. URL http://CRAN.R-project.org/package=Ecdat

De Boor

(1978) A Practical Guide to Splines New York, NY: Springer.

Eilers

Marx

(1996) Flexible smoothing with B-splines and penalties. Statistical Science , 11, 89–102.

Ferri

Flach

Hernández-Orallo

(2003) Improving the AUC of probabilistic es- timation trees. In Nada

Lavrač

Dragan

Gamberger

Hendrik

Blockeel

Ljupčo

Todorovski

European Conference on Machine Learning , 121–132. Berlin Heidelberg: Springer.

10.

Hastie

Tibshirani

Friedman

(2009) The Elements of Statistical Learning, 2nd edition. New York, NY: Springer.

11.

Kalbfleisch

Prentice

(2002) The Survival Analysis of Failure Time Data, 2nd edition. New Jersey: Wiley Inter-Science.

12.

Klein

Moeschberger

(2003) Survival Analysis: Statistical Methods for Censored and Truncated Data. New York, NY: Springer.

13.

Mayer

Larocque

Schmid

(2014) DStree: Recursive partitioning for discrete- time survival trees . R package version 1.0. URL https://CRAN.R-project.org/package=DStree

14.

Mayr

Hofner

(2018) Boosting for statistical modelling: A non-technical introduction. Statistical Modelling 18 365–384.

15.

R Core Team (2017) R: A Language and Environment for Statistical Computing. Vienna: R Foundation for Statistical Comp- uting. URL https://www.R-project.org/

16.

Schmid

Küchenhoff

Hoerauf

Tutz

(2016) A survival tree method for the analysis of discrete event times in clinical and epidemiological studies. Statistics in Medicine , 35, 734–751.

17.

Schmid

Tutz

Welchowski

(2017) Discrimination measures for discrete time- to-event predictions. Econometrics and Statistics .

18.

Therneau

Atkinson

Ripley

(2015) rpart: Recursive Partitioning and Regression Trees. R package version 4.1-10. URL https://CRAN.R-project.org/package=rpart

19.

Tutz

Schmid

(2016) Modeling Discrete Time-to-event Data. New York, NY: Springer.

20.

Welchowski

Schmid

(2017) discSurv: Discrete Time Survival Analysis. R package version 1.1.7 URL http://CRAN.R-project.org/package=discSurv

21.

Willett

Singer

(1993) Investigating onset, cessation, relapse, and recovery: Why you should, and how you can, use discrete-time survival analysis to examine event occurrence. Journal of Consulting and Clinical Psychology , 61, 952–965.

22.

Wood

(2006) Generalized Additive Models: An Introduction with R . Florida: CRC press.

23.

Wood

(2017) mgcv: Mixed GAM Computation Vehicle with GCV/AIC/REML Smoothness Estimation. R package version 1.8-15. URL https://CRAN.R-project.org/package= mgcv

24.

Wood

(2011) Fast stable restricted maximum likelihood and marginal likelihood esti- mation of semiparametric generalized linear models. Journal of the Royal Statistical Society: Series B (Statistical Methodology) , 73, 3–36.

Semiparametric regression for discrete time-to-event data

Abstract

Abstract:

Keywords

1 Introduction

Table 1:

Summary statistics of the six explanatory variables used in the modelling of the US unemployment data ( n = 3 210 )

Observed time to re-employment (measured in two-week intervals) in the US unemployment data. The median observation time in the data is 4, corresponding to a time period of eight weeks

5.1 Preprocessing of the data

5.2 Regression modelling

Figure 2:

Analysis of the US unemployment data. The figure shows the estimated discrete baseline hazard of model1 (black dots) and the smooth baseline hazard of model2 (grey squares)

Analysis of the US unemployment data. The table contains coefficient estimates (coef), estimated standard errors (se) and p-values of the covariate effects obtained for model1 and model2 (bh = baseline hazard)

Analysis of the US unemployment data. The two panels show the calibration plot (left) and the martingale residuals against the values of age (right) obtained for model1 (a) and model2 (b) without age, respectively. The trend lines were obtained by local polynomial regression

Analysis of the US unemployment data. The plot shows the estimated P-spline function for the covariate age in model3

Analysis of the US unemployment data. The plot shows the BIC values for the sequence of survival trees that was obtained by fitting model4 with minimal node sizes ranging from 100 to 1 500. The minimal BIC value (obtained for node size 840) is marked by the vertical dashed line

Figure 7:

Footnotes

Acknowledgments

References

Summary statistics of the six explanatory variables used in the modelling of the US unemployment data ( $n = 3 210$ )
