A primer on coupled state-switching models for multiple interacting time series

Abstract

State-switching models such as hidden Markov models or Markov-switching regression models are routinely applied to analyse sequences of observations that are driven by underlying non-observable states. Coupled state-switching models extend these approaches to address the case of multiple observation sequences whose underlying state variables interact. In this article, we provide an overview of the modelling techniques related to coupling in state-switching models, thereby forming a rich and flexible statistical framework particularly useful for modelling correlated time series. Simulation experiments demonstrate the relevance of being able to account for an asynchronous evolution as well as interactions between the underlying latent processes. The models are further illustrated using two case studies related to (a) interactions between a dolphin mother and her calf as inferred from movement data and (b) electronic health record data collected on 696 patients within an intensive care unit.

Keywords

hidden Markov model Time series Markov-switching regression animal movement disease progression

1 Introduction

Hidden Markov models (HMMs) are flexible statistical models for sequential data in which the observations are assumed to depend on an underlying latent state process. They have successfully been applied in various areas, starting with speech recognition in the 1970s (Baker, 1975) and nowadays including fields such as psychology (Visser et al., 2002), finance (Bulla and Bulla, 2006), medicine (Langrock et al., 2013) and ecology (Michelot et al., 2016). When modelling multiple observed variables using HMMs, it is usually assumed to have either (a) a single state process underlying the observed variables (e.g., the speed and tortuosity of an animal's movement are both driven by its behavioural mode) or (b) variable-specific but independent state processes (e.g., multiple animals separated in space will have independent behavioural modes; Langrock et al., 2012). However, there are also scenarios in which neither of these assumptions is valid. For example, multiple individuals may interact due to spatial proximity, the underlying volatilities of different financial markets may affect each other, and body functions may be coupled through physiological mechanisms. In such cases, each process of interest will have its own sequence of underlying states, but the different state processes are coupled.

Coupled hidden Markov models (CHMMs) extend the basic HMM framework by assuming distinct but correlated state sequences that underlie the observed variables, hence ‘coupling’ the state processes. Since their first appearance in Brand (1997), they have been further developed and applied, for example, to classify electroencephalography data (Michalopoulos and Bourbakis, 2014), to model interactions of suspects in forensics (Brewer et al., 2006) and to detect bradycardia events from electrocardiography data (Ghahjaverestan et al., 2016). CHMMs can be considered as established tools within the engineering literature, where they are commonly applied in classification tasks, for example, emotion recognition from audio–visual signals (Lin et al., 2012) or gesture recognition from hand tracking data (Brand et al., 1997). As a full probabilistic model for sequential data, CHMMs can however also be useful for other inferential purposes, including forecasting future observations as well as general inference on the data-generating process.

In this work, we argue that the full potential of CHMMs for such statistical modelling challenges to date has not been recognised, as evidenced by the fact that these models have only very rarely been used in such a context; some notable exceptions are Sherlock et al. (2013), Johnson et al. (2016) and Touloupou et al. (2020). We set out to fill this gap by introducing the CHMM formulation, in particular discussing the various simplifying assumptions that one may or may not want to make, and by presenting inferential tools available for CHMMs. Furthermore, we discuss the inclusion of covariates and introduce a coupled Markov-switching regression (CMSR) model which allows the observed variables to depend on covariates. Simulation studies are used to highlight practical issues that are relevant when modelling multiple interacting processes, thereby showcasing the potential benefits of the CHMM framework compared to more basic model formulations. Finally, we illustrate the practical use of CHMMs in two case studies. First, we consider a simple CHMM for studying the behaviour of a dolphin mother and calf pair. Second, we apply a CMSR model to electronic health record data collected by the University of California in Los Angeles (UCLA) to model the evolution of important vital signs over time, controlling for age and sex of the patients. A detailed model comparison for both case studies as well as data and R code for the dolphin case study and the simulation study are provided in the supplementary material.

2 Hidden and coupled hidden Markov models

2.1 Hidden Markov models

2.1.1 Basic model formulation and inference

An HMM is a doubly stochastic process comprising an observable time series ${Y_{t}}_{t = 1}^{T}$ and an underlying latent state sequence ${S_{t}}_{t = 1}^{T}$ . In the basic model formulation, the state sequence is a first-order Markov chain, that is, $Pr (S_{t} | S_{t - 1}, \dots, S_{1}) = Pr (S_{t} | S_{t - 1})$ with $S_{t} \in {1, 2, \dots, N}$ . The state transition probabilities are summarised in the transition probability matrix (TPM) $Γ = (γ_{ij})$ , with $γ_{ij} = Pr (S_{t} = j | S_{t - 1} = i)$ , $i, j = 1, \dots, N$ . In case of stationarity, the initial distribution, $δ = (Pr (S_{1} = 1), \dots, Pr (S_{1} = N))$ , is the solution to $δ Γ = δ$ subject to $\sum_{i = 1}^{N} δ_{i} = 1$ and $δ_{i} \geq 0$ , $i = 1, \dots, N$ . Given $S_{t}$ , the observation $Y_{t}$ is assumed to be conditionally independent of past observations and states — $Y_{t}$ is thus generated by one of $N$ state-dependent distributions, $f_{1}, \dots, f_{N}$ , as selected by $S_{t}$ .

The HMM likelihood can be written as $L = δ P_{1} Γ P_{2} \cdot \dots \cdot Γ P_{T} 1^{'}$ , where $P_{t}$ is an $N \times N$ diagonal matrix with entries $f_{i} (y_{t})$ , $i = 1, \dots, N$ , and $1$ is an $N$ -dimensional row vector of ones. This expression is a consequence of applying the forward algorithm, which comes at a computational cost of order $O ({TN}^{2})$ . The maximum likelihood estimate can be identified using either numerical likelihood optimisation or the expectation-maximisation (EM) algorithm (Zucchini et al., 2016). Alternatively, Bayesian inference via Markov chain Monte Carlo methods can be used (Rydén, 2008).

2.1.2 HMMs for multivariate time series

We now consider multivariate time series ${Y_{t}}_{t = 1}^{T}$ , with $Y_{t} = (Y_{t}^{(1)}, \dots, Y_{t}^{(M)})$ . The state-dependent distributions within an HMM are then multivariate, for example, $M$ -dimensional normal distributions. However, in practice the $M$ variables often have different scales of measurement, rendering it difficult to formulate a suitable joint distribution. It is then often assumed that given the current state $S_{t}$ , all $M$ variables are conditionally independent of each other: $f (Y_{t} | S_{t}) = \prod_{m = 1}^{M} f (Y_{t}^{(m)} | S_{t})$ . Under this contemporaneous conditional independence assumption, a suitable class of univariate distributions is chosen separately for each of the $M$ variables.

Since such multivariate HMMs assume the observed processes to be driven by a single state sequence, the $M$ variables evolve in lockstep regarding underlying state switches (Brand, 1997). This is often adequate, for example, when modelling an individual animal's movement, where a change of the behavioural state would be reflected in both speed and tortuosity (Beumer et al. 2020), or in financial time series modelling, where the volatility of multiple shares might be captured by a single underlying state reflecting the nervousness of the market (Maruotti et al., 2019). In contrast, if the $M$ variables considered were to evolve completely independently of each other, then it would be adequate to simply fit univariate HMMs separately to each of the $M$ time series. CHMMs as detailed in the subsequent section, focus on scenarios that fit neither of these two extremes, and instead are such that each of the different variables observed depends on its own underlying state variable, but such that the state variables interact and influence each other.

2.2 Coupled hidden Markov models

Consider $M$ distinct time series ${Y_{t}^{(m)}}_{t = 1}^{T}$ , each depending on an underlying state sequence ${S_{t}^{(m)}}_{t = 1}^{T}$ , $m = 1, \dots, M$ . For notational simplicity, we restrict the presentation to the case where each of the $M$ observed processes is univariate, but the extension to multivariate processes is straightforward. CHMMs link the different time series via the state process by allowing the underlying states $S_{t}^{(m)}$ to interact: in addition to assuming that $S_{t - 1}^{(m)}$ affects $S_{t}^{(m)}$ , we allow also $S_{t - 1}^{(m^{'})}$ to affect $S_{t}^{(m)}$ for $m^{'} \neq m$ . The dependence structure between the state variables is thus reflected in the transition probabilities of the CHMM. The observed variables are again assumed to be conditionally independent given the states. Next we discuss possible assumptions regarding the exact dependence structure of the state processes within a CHMM, which differ in terms of their flexibility and hence the dimensionality of the parameter space (i.e., model complexity). To simplify notation, we assume the state space for each state variable to be of the same dimension, $N$ , that is, $| S^{(m)} | = N$ for $m = 1, \dots, M$ ; the extension to the more general case is straightforward.

2.2.1 Cartesian product model

Instead of modelling each state variable $S_{t}^{(m)}$ separately, they can be summarised in the $M$ -dimensional state vector $S_{t} = (S_{t}^{(1)}, \dots, S_{t}^{(M)})$ . The CHMM can then be defined as an HMM with the multivariate state sequence ${S_{t}}_{t = 1}^{T}$ . The corresponding state space $S$ is built by the Cartesian product of all individual state spaces, i.e. $S = S^{(1)} \times \dots \times S^{(M)}$ , with $| S | = N^{M}$ and the transition probabilities then referring to the state vectors, that is, $Pr (S_{t} | S_{t - 1}) = Pr ((S_{t}^{(1)}, \dots, S_{t}^{(M)}) | (S_{t - 1}^{(1)}, \dots, S_{t - 1}^{(M)}))$ (see Figure 1 for an illustration for the case $M = 2$ ). This model formulation is attractive because there is no need to develop new estimation and inference methods: All techniques available for basic HMMs can easily be transferred.

Figure 1:

Dependence structure of the Cartesian product CHMM with $M = 2$ distinct time series

The Cartesian product formulation comprises two important special cases: (a) independent state processes, corresponding to separately fitting HMMs to each of the M sequences; and (b) multiple observed variables that depend on only a single state sequence, that is, a multivariate HMM. Importantly, it additionally captures the dependence structures in-between these extreme situations. However, this flexibility is associated with a state space that grows exponentially with the number of state variables

M

and a corresponding TPM of dimension

N^{M} \times N^{M}

. The computational costs for the likelihood evaluation are of order

O (N^{2 M} T)

and thus can be high even for moderate

M

and

N

. For instance, for

M = 3

and

N = 3

, we would have

| S | = 3^{3} = 27

and a TPM of dimension

27 \times 27

(with only

702

of the

729

entries to be estimated, due to the row constraints). This high number of parameters will often lead to numerical problems in the optimisation (e.g., local maxima) and may increase the risk of overfitting. Prior knowledge about the system being modelled, for example with regard to impossible transitions or transitions that can reasonably be grouped together (with shared parameters), can substantially reduce the number of parameters to be estimated (Sherlock et al., 2013).

We note here that the use of the label ‘coupled HMM’ is not consistent in the literature, and that the Cartesian product model is not always regarded as a CHMM (see, for example, Brand, 1997; Brand et al., 1997; Nefian et al., 2002). Other authors use the Cartesian product formulation as a framework for estimation of other coupled models (see, for example, Rezek et al. 2000; Ghosh et al. 2017). In this contribution, the label CHMM refers to all models that couple several HMMs via the state process, and we regard the Cartesian product model as one way to specify such a CHMM.

2.2.2 CHMM with contemporaneous conditional independence assumption

The Cartesian product model contains instantaneous correlations between the states, that is, the transition probabilities $Pr (S_{t} | S_{t - 1})$ cannot be factorized into simpler expressions. Alternatively, the state variables $S_{t}^{(m)}$ , $m = 1, \dots, M$ , can be assumed to be contemporaneously conditionally independent given the state vector $S_{t - 1}$ :

Pr (S_{t} | S_{t - 1}) = \prod_{m = 1}^{M} Pr (S_{t}^{(m)} | S_{t - 1});

(2.1)

see Figure 2.

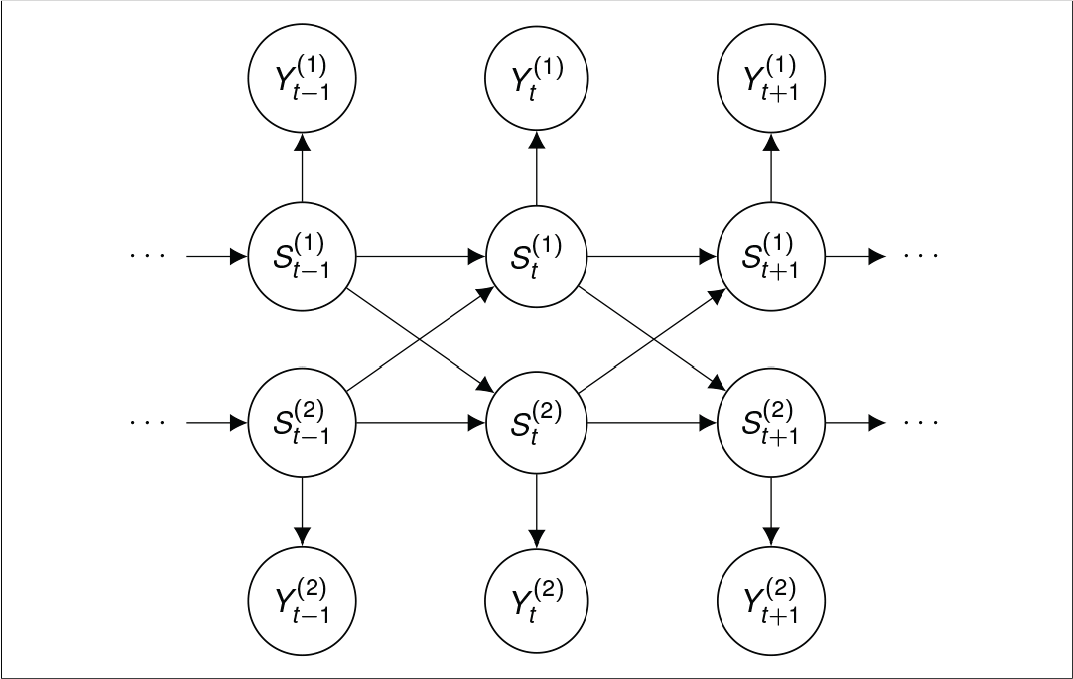

Figure 2:

CHMM structure with contemporaneous conditional independence assumption for $M = 2$ time series

This model formulation involves ${MN}^{M + 1}$ transition probabilities describing the state dynamics (e.g., for $M = 3$ and $N = 3$ , this results in $243$ transition probabilities, $162$ of them to be estimated due to sum constraints). Naturally, this assumption reduces the flexibility of the model: for example, it cannot accommodate patterns where the $M$ state variables tend to switch states simultaneously. For parameter estimation, this CHMM formulation can be converted into a Cartesian product CHMM, thereby opening up the way for all standard HMM machinery. The resulting model would again have a state space of dimension $N^{M}$ , but with restrictions on the transition probabilities due to the states’ contemporaneous conditional independence. For this model formulation, it is particularly convenient to use a Bayesian framework, within which the states of each sequence are sampled conditionally on the states of the other sequences, for example, using Gibbs sampling (Sherlock et al., 2013; Touloupou et al., 2020).

2.2.3 CHMMs with explicit modelling of variable-to-variable effects

In the CHMM representations discussed above, there is no parameter explicitly representing direct variable-to-variable effects, which makes interpretation difficult (Brand, 1997). Saul and Jordan (1999) offer a remedy to this caveat by combining the contemporaneous conditional independence assumption (2.1) with a mixture representation for the marginal transition probabilities:

\begin{matrix} Pr (S_{t}^{(m)} | S_{t - 1}) & = \sum_{m^{'} = 1}^{M} w^{(m)} (m^{'}) Pr (S_{t}^{(m)} | S_{t - 1}^{(m^{'})}), \end{matrix}

with

0 \leq w^{(m)} (m^{'}) \leq 1

and

\sum_{m^{'} = 1}^{M} w^{(m)} (m^{'}) = 1

. The mixture weight

w^{(m)} (m^{'})

here reflects the strength of the effect of state

S_{t - 1}^{(m^{'})}

S_{t}^{(m)}

— independent state processes would result in

w^{(m)} (m) = 1

for all

m = 1, \dots, M

, and

w^{(m)} (m^{'}) = 0

for all

m^{'} \neq m

. This model is similar in spirit to the mixture transition duration higher-order Markov chain model suggested by Raftery (1985). It involves

M^{2} N^{2}

marginal transition probabilities describing the interactions in the state processes, in addition to

M^{2}

weights (e.g., for

M = 3

and

N = 3

, this results in

90

parameters,

60

of them to be estimated). Estimation and further inference can again be conducted based on a Cartesian product representation, or alternatively, to avoid the associated large state space, using EM (Saul and Jordan, 1999).

The CHMM originally proposed by Brand (1997) is described by a factorisation based on contemporaneously conditionally independent state variables:

Pr (S_{t}^{(m)} | S_{t - 1}) = \prod_{m^{'} = 1}^{M} Pr (S_{t}^{(m)} | S_{t - 1}^{(m^{'})}) .

This parameterisation reduces the number of transition parameters to

M^{2} N^{2}

, but it does not yield properly defined transition probabilities for the state vector

S_{t}

as it does not guarantee that

\sum_{S_{titiinbi}} Pr (S_{t} | S_{t - 1}) = 1

. As a consequence, there is no unique conversion to the Cartesian product model, and it is difficult to obtain valid inference. Therefore, we caution against the use of this model formulation.

In a Bayesian framework, Sherlock et al. (2013) propose to directly model the influence of state $S_{t - 1}^{(m^{'})}$ on $S_{t}^{(m)}$ , $m^{'} \neq m$ , by using it as a covariate for the state transition probabilities $Pr (S_{t}^{(m)} | S_{t - 1}^{(m)})$ . This is possible only as the complete state sequences are drawn within a Gibbs sampler, and the latent states then treated as if they were known within the posterior conditional distribution. Furthermore, in the applied setting described in Sherlock et al. (2013), namely the modelling of interactions between diseases in a host, the relation between the states and the observations is deterministic and the structure of the TPMs is known, which greatly facilitates model building and estimation.

2.3 Coupled Markov-switching regression

We now turn to models which account for the influence of covariates. For example, the transition probabilities of the state process of an HMM can be expressed as a function of covariates using an appropriate link function such as the multinomial logit (Zucchini et al., 2016). While this approach can in principle be applied to CHMMs, it will often be infeasible as even a basic CHMM typically involves a high number of transition probabilities, such that model complexity can be prohibitive. The incorporation of covariates into the observation process — often referred to as Markov-switching regression (MSR; Langrock et al., 2017) — is more promising for the CHMM setting. MSR models were first introduced for econometric time series, in which case they can be used, for example, to investigate if covariate effects differ between periods of high and low economic growth, respectively (Hamilton, 2008). The MSR framework can be transferred to the CHMM setting by relating the $M$ observed variables to (variable-specific) covariates, for example as follows:

Y_{t}^{(m)} | S_{t}^{(m)} = i \sim N (μ_{m, i, t}, σ_{m, i}^{2}),

μ_{m, i, t} = β_{0, m, i} + β_{1, m, i} \cdot x_{1, t}^{(m)} + \dots + β_{p, m, i} \cdot x_{p, t}^{(m)},

m = 1, \dots, M

t = 1, \dots, T

. Covariates at time

t

used for the

m

th observed time series are denoted as

x_{l, t}^{(m)}

l = 1, \dots, p

, and

β_{l, m, i}

denotes the associated regression coefficients given that

S_{t}^{(m)} = i

. In this example model, each of the

M

variables is conditionally normally distributed, with state- and variable-specific (constant) variance and a state- and variable-specific linear predictor determining the mean. In combining CHMMs and MSR models, this CMSR model takes into account not only the possible interactions in the state processes underlying the

M

observed variables, but also the influences of covariates on the observation process. For parameter estimation, the state- and covariate-dependent observation distributions can simply be plugged into the HMM-likelihood function, such that once again the basic HMM machinery remains applicable. The example model given above can easily be generalized to allow for other distributional families for the observed variables (cf. Langrock et al. 2017).

3 Simulation study

We provide simulation experiments to illustrate the consequences of neglecting or misspecifying the dependence structure in the state process. More specifically, we simulate data from a CHMM as the true data-generating process — that is, multiple time series with interacting underlying state processes — and demonstrate the consequences of either completely neglecting the interaction (by fitting separate univariate HMMs) or incorrectly assuming full synchronicity (by fitting a multivariate HMM).

The data-generating process we consider is a Cartesian product CHMM with $M = 2$ observed variables and $N = 2$ states per variable. The variables $Y_{t}^{(1)}$ and $Y_{t}^{(2)}$ are thus driven by the underlying bivariate state sequence $S_{t} = (S_{t}^{(1)}, S_{t}^{(2)})$ with $S_{t}^{(1)}, S_{t}^{(2)} \in {1, 2}$ , such that the Cartesian product state space is of dimension $| S | = 4$ . To simplify notation, we fix the order of the states to $(1, 1)$ (state 1 of the process $S_{t}$ ), $(1, 2)$ (state 2), $(2, 1)$ (state 3) and $(2, 2)$ (state 4), and refer to this order when defining the TPM and the corresponding stationary distribution. The TPM is chosen such that the random variables evolve synchronously most of the time, that is, the model is only slightly different from a multivariate HMM:

Γ = (\begin{matrix} 0.90 & 0.02 & 0.02 & 0.06 \\ 0.09 & 0.80 & 0.02 & 0.09 \\ 0.09 & 0.02 & 0.80 & 0.09 \\ 0.06 & 0.02 & 0.02 & 0.90 \end{matrix}) .

The corresponding stationary distribution,

δ = (0.41, 0.09, 0.09, 0.41)

, indicates that the process is in either of the two states corresponding to synchronicity, that is,

(1, 1)

(2, 2)

82 %

of the time. For the state-dependent distributions, we assume

Y_{t}^{(1)} | S_{t}^{(1)} \sim \{\begin{matrix} N (2, 2.25) & if S_{t}^{(1)} = 1 \\ N (6, 2.25) & if S_{t}^{(1)} = 2 \end{matrix}, Y_{t}^{(2)} | S_{t}^{(2)} \sim \{\begin{matrix} N (2, 2.25) & if S_{t}^{(2)} = 1 \\ N (5, 2.25) & if S_{t}^{(2)} = 2 \end{matrix}

From the CHMM described above, we generate a training dataset of size

T = 1 000

, and an additional test set comprising 100 observations. The following models are fitted to the simulated data: two separate univariate 2-state HMMs, a multivariate 2-state HMM and a

2 \times 2

Cartesian product CHMM, in each case with state-dependent normal distributions. All models are fitted using numerical maximisation of the likelihood. Subsequently, we compare the true and estimated parameters of the state-dependent distributions (estimation accuracy, Section 3.1), the number of correctly decoded states based on the Viterbi algorithm (classification performance, Section 3.2) and the conditional log-likelihood of the test set given the training data (forecasting performance, Section 3.3). We repeat these steps

1 000

times and compare the results across simulation runs.

3.1 Estimation accuracy

Figure 3 displays the state-dependent densities as obtained in the 1 000 runs, for each of the three model formulations considered. Under the correct CHMM specification, but also under the incorrect model specification using two separate univariate HMMs, the true state-dependent densities were generally well recovered in the estimation. In other words, even when neglecting the correlation of the two state processes the estimation is fairly accurate at the level of the observation process.

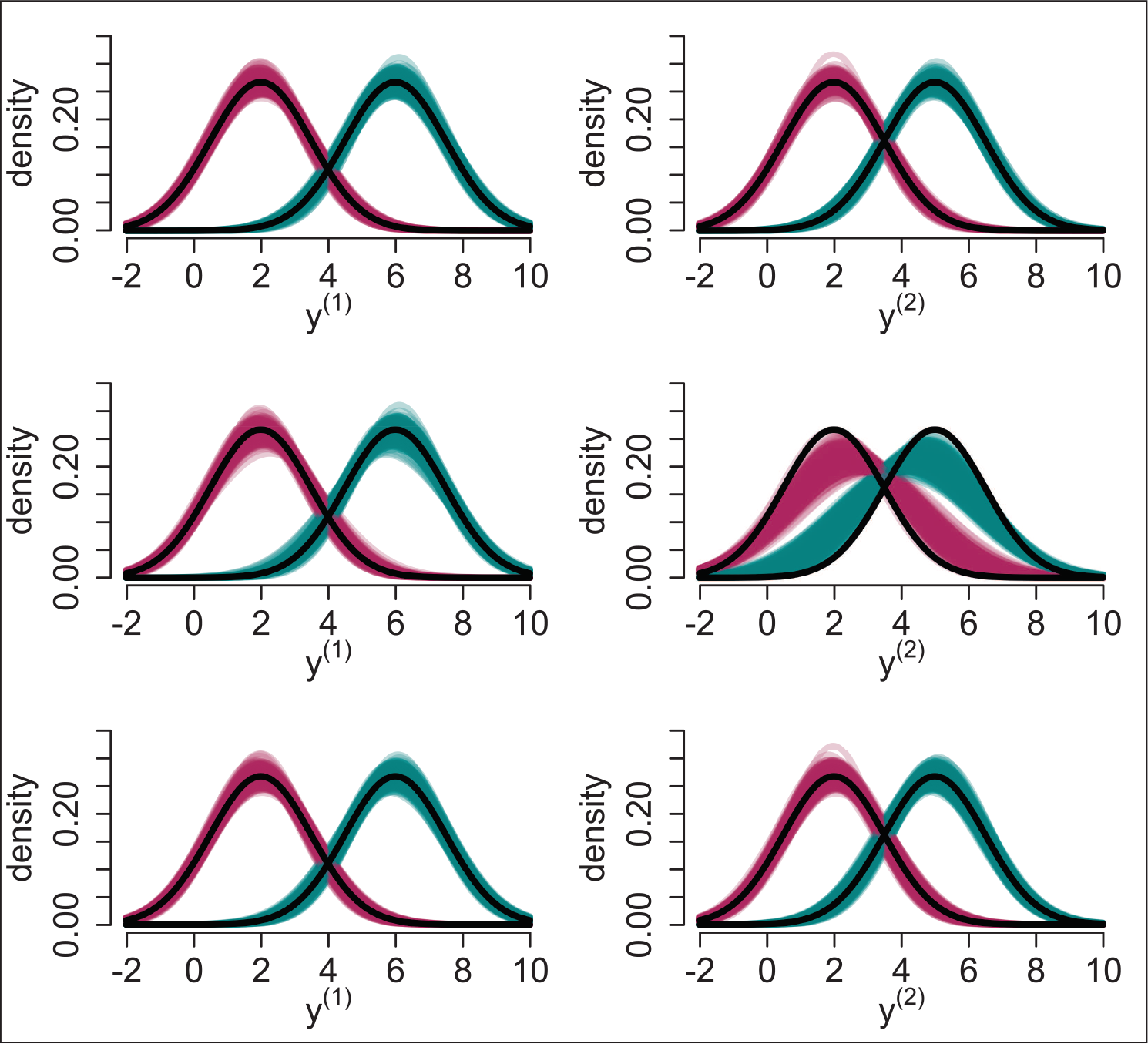

Figure 3:

Estimated state-dependent densities obtained in 1 000 simulation runs. The upper panel displays the results of the fitted CHMMs, the middle panel corresponds to the multivariate HMMs and the bottom panel to the estimated univariate HMMs. The thick lines show the true underlying densities

However, the situation is fundamentally different when the correlation of the two state sequences is effectively overestimated, that is, when using the multivariate HMM formulation, which amounts to assuming the state processes to be completely synchronous. Whenever the simulated state variables

S_{t}^{(1)}

and

S_{t}^{(2)}

differ, the multivariate HMM with its single underlying state process cannot correctly identify the state combination anymore — it effectively distinguishes the pairs

(1, 1)

and

(2, 2)

. At those instances, the implicit state allocation is dominated by the

Y_{t}^{(1)}

process with its more clearly distinct state-dependent distributions. As a consequence, true state pairs

(1, 2)

and

(2, 1)

are effectively modelled as

(1, 1)

and

(2, 2)

pairs, respectively, such that the estimators of the state-dependent distributions of the

Y_{t}^{(2)}

process are heavily biased (towards a middle ground).

3.2 Classification

The comparison of the classification performance is based on the globally decoded Viterbi state sequences as obtained for both the training and test data, respectively. Table 1 displays the average percentage of falsely decoded states across all simulation runs under the univariate, multivariate and CHMMs, respectively. The multivariate HMM has the largest classification error as it cannot correctly identify the state pair if $S_{t}^{(1)} \neq S_{t}^{(2)}$ . The CHMM outperforms the univariate HMMs as the latter do not take into account the interaction dynamics between the two state processes, which help to inform the decoding.

Table 1:

Average percentage of falsely decoded states in the Viterbi sequence

,Dataset	CHMM	Multi. HMM	Uni. HMMs
Training dataset	5.7	19.7	8.1
Test dataset	6.0	19.7	8.3

3.3 Forecasting performance

To compare the forecasting performance, we consider the conditional log-likelihood of the test set given the training data, $L (Y_{test}, \hat{θ} | Y_{training})$ . The CHMM had the largest conditional log-likelihood in 85.4% of all runs (this number increases to $99.8 %$ when increasing the sample size of the training set to $5 000$ and the size of the test set to $500$ ).

In summary, our simulations show that misspecifications of the dependence structure in the state process have various undesirable consequences. Erroneously mistaking two separate, highly correlated state sequences for a single state sequence led to substantially biased estimators, a high classification error and poor forecasting performance. Distinguishing two such state sequences but failing to account for their correlation negatively affected the forecasting and classification performance.

4 Case studies

We illustrate the application of CHMMs in two case studies. First, we analyse movements of a dolphin mother and its calf using a Cartesian product CHMM. Subsequently, we apply a CMSR model to data on vital signs of patients hospitalised in the intensive care unit (ICU), controlling for sex and age. Parameters were estimated via numerical likelihood maximisation using the R function nlm (R Core Team, 2018).

4.1 Movements of dolphin mother and calf

HMMs are routinely used to analyse animal movement data, with the model's state process interpreted as a proxy for an animal's behavioural modes (e.g., resting, foraging or relocating) determining the observed movement patterns (Langrock et al., 2012). Here we consider movement data from a bottlenose dolphin mother and calf pair which was simultaneously tagged with 3D accelerometers and magnetometers for $\sim 18$ hours. Our analysis focuses on the tortuosity of the movement across $10$ -second intervals, that is, a measure of how tortuous the dead-reckoned track of the animal is. This results in $T = 6 546$ tortuosity observations per animal. The values lie in the interval $[0, 1)$ with $0$ corresponding to straight-line movement.

It is certain that the two animals interact, that is, that the behaviour of mother and calf influence each other. To account for these interactions, instead of fitting two univariate HMMs separately to both individuals, we consider CHMMs within which the two animals’ separate behavioural state sequences are correlated. To avoid restrictive assumptions regarding the interaction, we use a Cartesian product CHMM with bivariate state vectors — indeed the AIC favoured this ‘full’ CHMM over the alternative model formulations that involve more restrictive assumptions (an AIC-based model comparison is provided in the Online Supplementary Material). Tortuosity was modelled using state-dependent beta distributions. The observed zeros ( $2.5 %$ for the mother, $0.2 %$ for the calf) were shifted by very small positive random numbers to avoid additional parameters corresponding to point masses on zero — this procedure is clearly not generally advisable and is used here only to simplify the modelling exercise in this case study. We expect that tortuosity in general might reflect multiple different behavioural regimes, from directed resting and travel behaviours to more tortuous back-and-forth scanning movements during biosonar-based foraging, to high tortuosity circling and rapid turning behaviours in connection with prey capture. Thus, for each of the two individuals we considered $N = 3$ states.

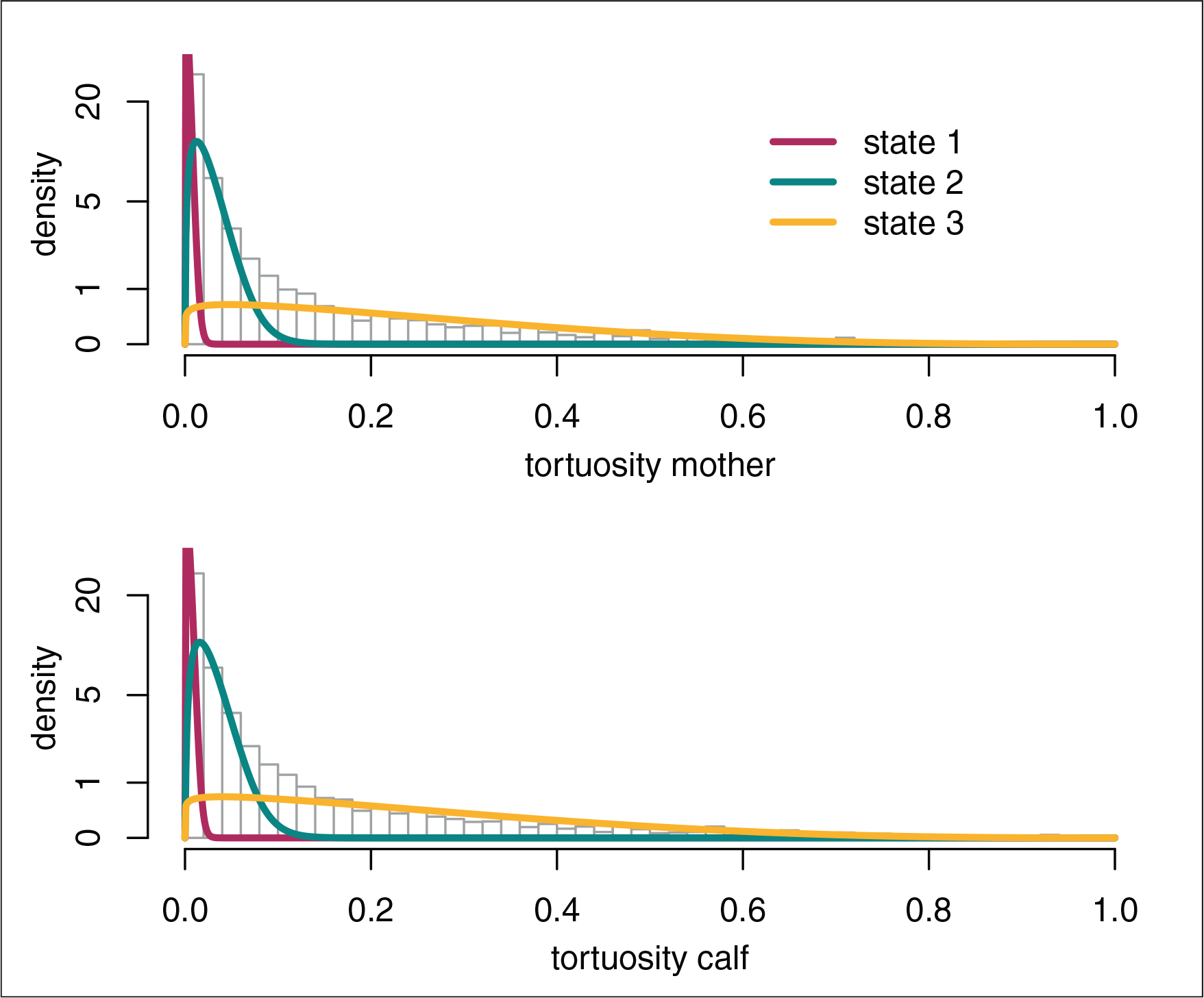

Figure 4:

Estimated state-dependent distributions for tortuosity of the dolphin mother and calf, respectively, weighted by the stationary distribution of the bivariate Markov chain

The estimated state-dependent beta distributions are displayed in Figure 4. For both animals, the model identifies similar movement patterns, with state 1 capturing low tortuosity values (approximate straight-line movement; means $0.004$ and $0.005$ for mother and calf, respectively), state 2 accommodating any moderately large tortuosity values ( $0.026$ and $0.029$ ) and state 3 associated with the most tortuous movements ( $0.228$ and $0.231$ ). According to the fitted CHMM, the movement patterns evolve almost synchronously, with the bivariate states $(1, 1)$ , $(2, 2)$ and $(3, 3)$ clearly dominating the state process (Table 2). According to the Viterbi-decoded state sequence, the dolphins occupied different behavioural modes in only $4 %$ of all 10-second intervals considered. The corresponding observations are highlighted in Figure 5, indicating the calf's movement to occasionally be more tortuous than the mother's movement towards the end of the time series (potentially related to the calf foraging independently of the mother).

Figure 5:

Tortuosity time series of dolphin mother and calf. Viterbi-decoded states differing between mother and calf are highlighted

Table 2:

Steady-state (stationary) probabilities of the state process as implied by the estimated TPM

State	(1,1)	(1,2)	(1,3)	(2,1)	(2,2)	(2,3)	(3,1)	(3,2)	(3,3)
Probability	0.339	0.013	0.002	0.004	0.404	0.015	0.001	0.004	0.218

The identification of such differences can be used as a starting point for further biological inference. For example, environmental covariates could be incorporated for further investigations into the role and the causes of different state combinations. Overall, the results suggest that the movement behaviour of mother and calf is well adapted to each other.

4.2 Electronic health record data

In our second case study, we analyse electronic health record (EHR) data of patients hospitalised in the ICU of the Ronald Reagan UCLA Medical Center. We use a subset of the data also considered in Alaa and van der Schaar (2018) and Alaa et al. (2018). ICU patients usually suffer from severe illnesses and injuries and are intensively observed by the nurses and physicians. However, as the patients undergo an increased risk, it is important to understand the progression of diseases and to identify early indications of a forthcoming deterioration. Modelling and analysing the physiological processes over time could help to detect critical developments early and support the decision-making of the physicians. State-switching time series models provide an intuitive and convenient framework for modelling the evolution of a system over time, and hence to quantify the risk of an impending deterioration of a patient's health state.

The data contain hourly measurements of four major vital signs: heart rate (in beats per minute, bpm), respiratory rate (in breaths per minute, bpm), systolic and diastolic blood pressure (in millimetre of mercury, mmHg). We did not consider diastolic blood pressure as it is strongly correlated with systolic blood pressure (Pearson correlation of 0.58). The dataset further contains information about sex, age, admission type and location for each patient. The medical diagnosis, however, is omitted. In order to reduce the substantial patient heterogeneity caused by the underlying diseases, in this case study we consider only the patients who undergo dialysis, and restrict our analysis to patients with known sex and age who stayed in the ICU for more than $24$ hours. This results in a sample size of $T = 110 964$ hourly observations from $696$ hospitalized patients (44% female; age 17–89 with a median of 62; 1–80 days in ICU with a median of 4 days).

The observed vital signs do not evolve synchronously over time—for example, an increase in the heart rate is not necessarily accompanied by a change in blood pressure (cf. Figure 6).

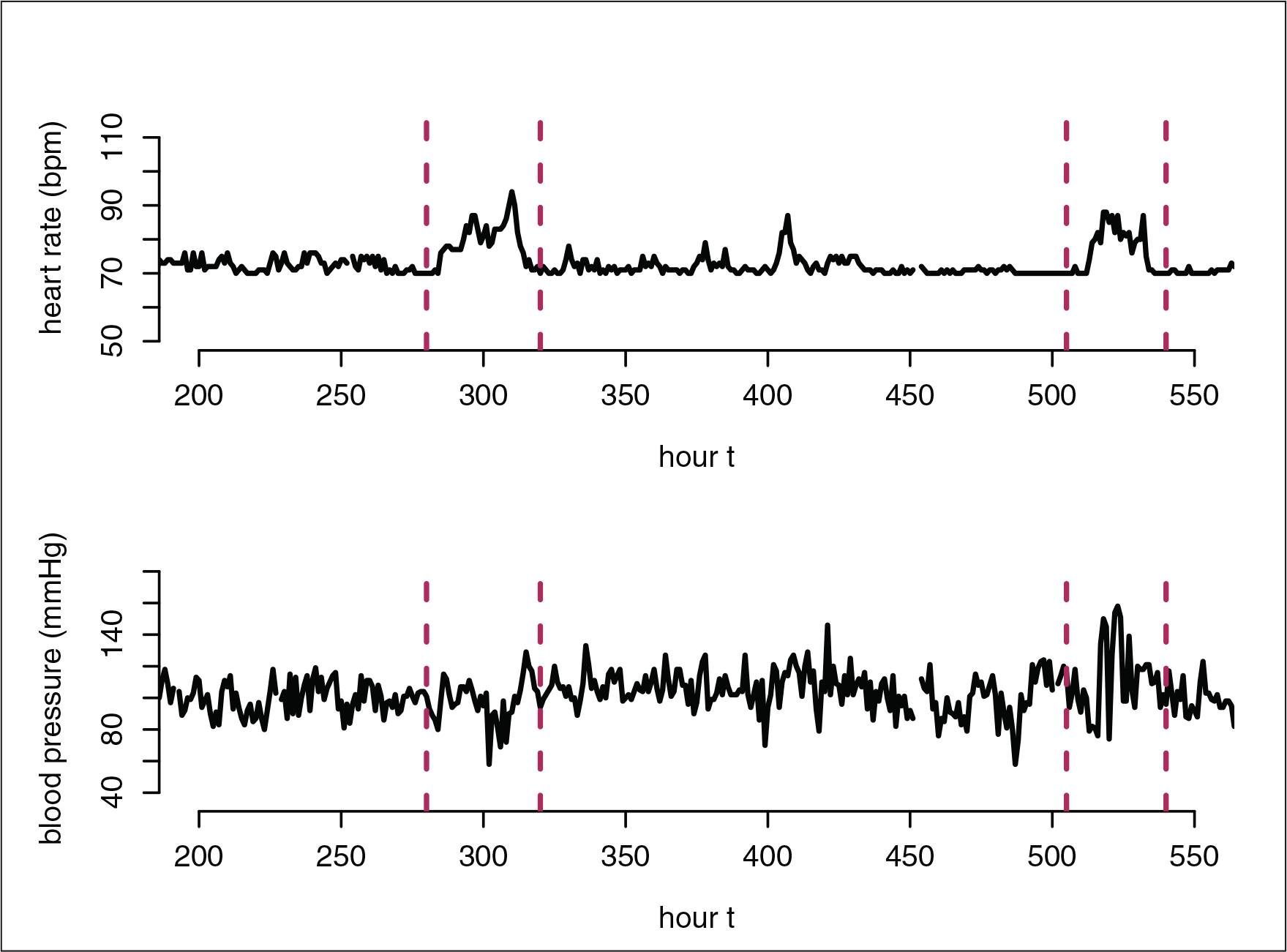

Figure 6:

Example time series for heart rate and systolic blood pressure, respectively. The dashed lines highlight intervals with an elevated heart rate that does not seem in synchronity with the evolution of the observed systolic blood pressure

To account for such asynchronous evolution of the vital signs and the associated state of body functions, we consider a Cartesian product CMSR model with three states per vital sign, thus 27 state combinations in total. The model formulations with more restrictive dependence assumptions were again inferior in terms of the AIC (a more detailed comparison is provided in the Online Supplementary Material). All vital signs are modelled using state-dependent normal distributions, with the corresponding means additionally depending on the covariates sex and (standardized) age:

μ_{m, i} = β_{0, m, i} + β_{1, m, i} \cdot I_{{female}} + β_{2, m, i} \cdot age,

for vital sign

m = 1, 2, 3

, corresponding to heart rate, respiratory rate and systolic blood pressure, respectively, and corresponding state

i = 1, 2, 3

(the patient index is omitted to simplify notation).

Figure 7 illustrates the estimated state-dependent distributions for male patients with the median age $62$ . For each of the three vital signs, states 1, 2 and 3 effectively correspond to low, medium and high values, respectively. Some of the vital signs’ underlying states allow for a direct interpretation: for example, the third systolic blood pressure state captures high values which may indicate some form of hypertension, the third respiratory rate state captures abnormally rapid breathing. However, for other states, the interpretation is less clear. Figure 2 in the Online Supplementary Material shows an example Viterbi state classification under the model, illustrating that the model captures meaningful patterns.

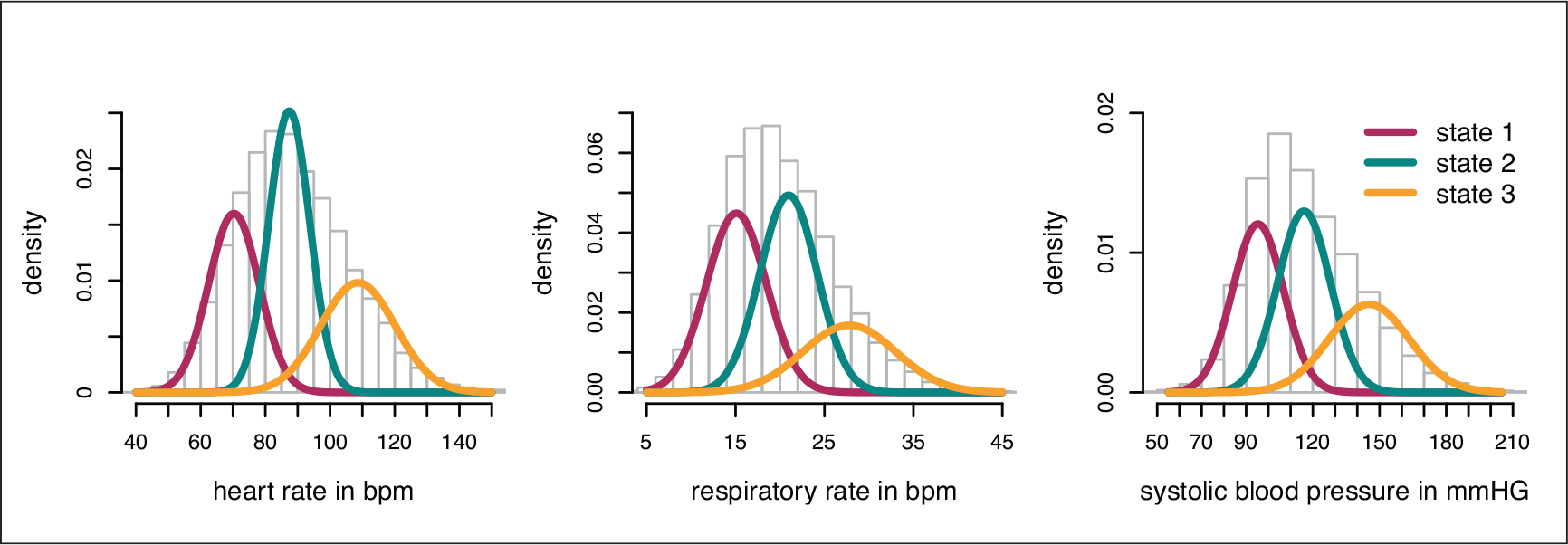

Figure 7:

Estimated state-dependent distributions for heart rate, respiratory rate and systolic blood pressure, respectively, for 62-year-old males

Table 3 gives the estimates of the parameters associated with the state-dependent process, showing only small effects of the covariates considered. According to the model, we would expect to observe slightly lower heart rates, respiratory rates and systolic blood pressures for older patients. In case of respiratory rate and systolic blood pressure this is an unexpected result, which may be due to the exceptional circumstance of the patients considered being treated in the ICU.

Table 3:

Estimated parameters (and standard errors) associated with the state-dependent distributions for heart rate, respiratory rate and systolic blood pressure, respectively

	Heart rate ( $m = 1$ )	Resp. rate ( $m = 2$ )	Blood press. ( $m = 3$ )
$β_{0, m, 1}$	70.40 (0.09)	15.09 (0.04)	95.50 (0.12)
$β_{1, m, 1}$ (female)	$-$ 0.08 (0.12)	$-$ 0.09 (0.05)	0.31 (0.15)
$β_{2, m, 1}$ (age)	$-$ 1.31 (0.06)	0.09 (0.03)	$-$ 1.60 (0.11)
$σ_{m, 1}$	7.85 (0.03)	3.38 (0.02)	11.53 (0.05)
\hline $β_{0, m, 2}$	87.64 (0.08)	20.97 (0.05)	116.30 (0.15)
$β_{1, m, 2}$ (female)	$-$ 0.09 (0.12)	$-$ 0.22 (0.06)	0.46 (0.13)
$β_{2, m, 2}$ (age)	$-$ 2.57 (0.05)	$-$ 0.02 (0.04)	$-$ 2.51 (0.10)
$σ_{m, 2}$	6.35 (0.03)	3.23 (0.02)	11.85 (0.06)
\hline $β_{0, m, 3}$	108.97 (0.12)	27.82 (0.07)	145.63 (0.20)
$β_{1, m, 3}$ (female)	$-$ 0.62 (0.15)	0.18 (0.10)	1.87 (0.22)
$β_{2, m, 3}$ (age)	$-$ 3.42 (0.08)	$-$ 0.23 (0.04)	$-$ 3.28 (0.10)
$σ_{m, 3}$	11.57 (0.05)	5.22 (0.03)	18.02 (0.09)

The estimated effects of the sex are relatively small.

The diagonal elements of the estimated $27 \times 27$ TPM, that is, the probabilities to remain in the current state, lie between $0.830$ and $0.922$ , indicating persistence in all bivariate states. The off-diagonal elements as displayed in Figure 8 illustrate the estimated state dynamics. Most transition probabilities are estimated close to zero, with only infrequent abrupt switches from ‘low value’ states to ‘high value’ states. In some instances, the heart rate's state variable seems to dominate the process. For instance, given state vector $(1, 2, 2)$ , the process is more likely to switch to state $(1, 1, 2)$ than $(2, 2, 2)$ , and given state $(2, 1, 1)$ , transitions to state $(2, 1, 2)$ or $(2, 2, 1)$ are more likely than a switch to $(1, 1, 1)$ — these could be indications that the other state variables tend to adapt to the heart rate's state variable. Overall, according to the stationary distribution, the most probable state combination is $(2, 2, 2)$ , hence the ‘medium value’ state for all vital signs. Figure 8:

Off-diagonal elements of the estimated transition probability matrix. The diagonal entries lie between $0.830$ and $0.922$

The main advantage of the full Cartesian product CMSR model is that it allows us to derive a completely data-driven dependence structure of how the multivariate state process evolves over time. While our model is still somewhat simplistic, for example, with regard to the conditional independence assumption, it offers an idea of the type of inference that can be gleaned on the joint evolution of heart rate, respiratory rate and blood pressure. Such results could be used for example to develop risk scores based on the probabilities to switch to deterioration states or to cluster the different courses of diseases based on the patients’ Viterbi sequences.

5 Discussion

CHMMs constitute a natural extension of basic HMMs to address scenarios with multiple time series whose underlying state processes interact. The explicit modelling of dependencies between the state variables can increase estimation accuracy, may decrease state classification error and generally provide new opportunities for meaningful inference related to the correlation between processes. The potential of CHMMs has already been recognised in particular in engineering, where these models have been applied in various classification and signal processing tasks such as action recognition (Brand et al., 1997), audio–visual speech recognition (Nefian et al., 2002), bearing fault recognition (Zhou et al., 2016), and EEG, ECG and PCG classification (Michalopoulos and Bourbakis, 2014; Oliveira et al., 2002). Due to technological advances for example in animal tracking and in EHRs (as illustrated in Section 4), and generally the rapid growth in the amount of multi-stream data collected, we anticipate CHMMs to gain popularity also in other statistical modelling tasks such as forecasting or general inference on data-generating processes. In addition to the application areas showcased in the present article, CHMMs could for example be useful to model the spread of infection in individual-based epidemic models (Touloupou et al., 2020), for exploiting dependencies between different economic markets in financial risk management (Cao et al., 2019) or to accommodate the spatio-temporal correlation of meteorological and geophysical time series (Stoner and Economou, 2019).

The main barrier to CHMMs becoming much more widely used in applied statistics is the models’ complexity arising from a curse of dimensionality: the number of model parameters very rapidly increases as the number of state variables or the number of states per variable increases, leading to high computational costs and numerical problems. Without imposing constraints on the model structure, CHMM-based analyses thus risk being limited to scenarios with only moderate numbers of variables and states. One possible way forward may be $ℓ_{1}$ regularisation as suggested by Bolton et al. (2017), who use penalised estimation to arrive at a sparse dependence structure. We also expect alternative non-standard dependence structures for modelling interactions to become of increasing interest. For example, for interacting animals, it would be conceptually appealing (and mathematically convenient) to formulate models that are built around a global (‘herd-level’) sequence of states $G_{1}, \dots, G_{T}$ , such that at any time $t$ the $M$ individual states $S_{t}^{(m)}$ , $m = 1, \dots, M$ , are drawn from a distribution determined by $G_{t}$ (see Figure 9 for an illustration with $M = 2$ ). Figure 9:

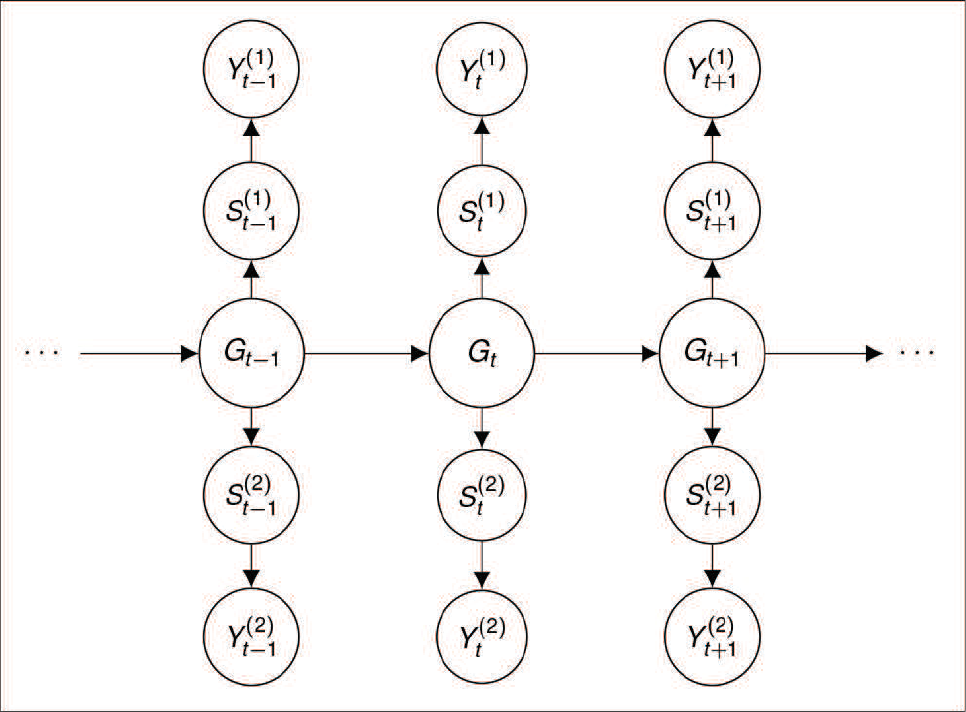

Possible hierarchical model with a global state $G_{t}$ determining the individual states $S_{t}^{(1)}$ and $S_{t}^{(2)}$ , which in turn determine the distribution of the observed variables, $Y_{t}^{(1)}$ and $Y_{t}^{(2)}$

Such a model would not suffer from the curse of dimensionality, yet the global state process would still induce correlation between individuals, with the individuals’ state processes occasionally deviating from the dominant group pattern (similar in spirit to, e.g., Zhang et al., 2006; Langrock et al., 2014). Mathematically, this model is simply an HMM with state-dependent mixture distributions, such that inference would be straightforward. The investigation of such alternative dependence structures as well as efficient and robust inferential approaches for conventional CHMMs are promising avenues for future research.

Footnotes

Acknowledgments

The authors received no financial support for the research, authorship, and/or publication of this article.
