Assessment of the wear behavior and interlaminar shear properties of modified nano-TiO 2 /jute fiber/epoxy multiscale composites

Abstract

The main objective of the present work was to study the effects of nano-TiO₂ on the dry-sliding wear properties and interlaminar shear strength of jute fiber/epoxy composite. The surface of TiO₂ nanoparticles was functionalized by using a amin-terminated silane-coupling agent. Fourier-transform infrared spectroscopy and thermogravimetric analysis were used to characterize the modified TiO₂ (M-TiO₂). The multiscale composites were fabricated using hand layup technique by dispersing various amounts of the M-TiO₂ nanoparticles (0.5, 1, 3, and 5 wt.%) in the matrix. Among these specimens, the 3 wt.% M-TiO₂-filled composite showed the best properties. The results of the short-beam shear test demonstrated that the addition of 3 wt.% M-TiO₂ increased the interlaminar shear strength of the composite by 43%. The addition of 3 wt.% M-TiO₂ significantly decreased the wear rate and coefficient of friction of the jute fiber/epoxy composite by 80% and 48%, respectively. The wear and fracture mechanisam were also examined by scanning electron microscopy. The findings of this work confirmed that the addition M-TiO₂ is a suitable choice for the potential applicability as a nanofiller for the fiber-reinforced polymeric composites.

Keywords

Fiber-reinforced composites jute fiber epoxy interlaminar shear strength wear

Introduction

Fiber-reinforced polymers (FRPs) are the typical candidates for engineering applications in various industries such as automotive, aerospace, and defense [1,2]. Nowadays, natural fibers are finding ever-increasing usage for various applications with growing concern about the environmental issues [3 –5]. Out of the various natural fibers, jute fibers have attracted signiﬁcant interest for the fabrication of FRPs due to their high specific strength, high specific modulus, low production cost, nontoxic nature, and availability [6]. Numerous works have been conducted on the influence of jute ﬁbers on the mechanical properties of polymer–matrix composites [7 –11]. For instance, thermal and compressive properties of jute fabrics/vinyl ester composite were evaluated by Sudha and Thilagavathi [7]. The influence of fiber surface modification on the mechanical properties of jute fiber/epoxy composite was explored by Dilfi et al. [8]. Mishra and Biswas [9] investigated the three-body abrasive wear behavior of jute fiber/epoxy composite. Mechanical and thermomechanical behaviors of jute fiber/epoxy composite were studied by Mir et al. [10]. Raghavendra et al. [11] compared the tensile and wear properties of jute fiber reinforced epoxy with the glass and neat epoxy composites.

Recently, there has been a growing interest in using the nanofillers to further improve the mechanical properties of FRPs. It is well established that the mechanical properties of nanofiller-filled FRP are usually higher than that of the neat one [12 –16]. For example, in the work of Ramakrishnan et al. [12], they found that the specimen reinforced with 5 wt.% of jute fiber and 5 wt.% of nanoclay showed the highest tensile and flexural strengths. Sezgin et al. [13] reported the positive effect of multiwalled carbon nanotubes (MWCNTs) on the mechanical and thermomechanical properties of textile-reinforced composites. Abdi et al. [14] found that the tensile and flexural properties of basalt fiber/epoxy composite were improved with the addition of silanized CaCO₃ nanoparticles. Jamali et al. [15] reported that basalt fiber/epoxy composite filled with 0.4 wt.% graphene oxide (GO) had the maximum values of tensile, flexural, and compressive strengths. The mechanical properties of carbon nanoﬁbers (CNF)/carbon fabric/epoxy composite were explored by Zhou et al. [16]. They found that with the introduction of 2 wt.% CNF, the tensile and ﬂexural strengths of carbon fabric/epoxy enhanced by 11% and 22.3%, respectively.

The recent works have shown that the addition of nanofillers can significantly improve the wear properties of FRPs [17 –25]. Feiz and Khosravi [17] evaluated the effect of nanoclay on the dry-sliding wear properties of E-glass chopped strand mat/epoxy composite and 81% of the wear rate reduction was obtained with the addition of nanoclay. Ren et al. [18] reported that the 2 wt.% graphene-filled Nomex fabric/phenolic composite had the optimal wear properties. Das and Biswas [19] observed that Al₂O₃-enhanced coir fiber-reinforced epoxy composite had higher wear resistance compared to the neat specimen. Bobbili and Madhu [20] found that wear rate and friction coefficient of E-glass/epoxy composite were reduced by the MWCNTs addition. Also, a remarkable enhancement in the wear resistance of basalt fiber/epoxy composite was observed by the CNF addition, as reported in the work by Anjabin and Khosravi [21]. Jiang et al. evaluated the wear properties of polyphenylene sulfide composites filled with sub-micro TiO₂ particles and short carbon fibers. The best result was obtained for the composite with 15 vol.% short carbon fibers and 5 vol.% TiO₂ [23].

It has been reported that surface modification promotes the interfacial bonding between the nanofillers and polymeric matrix and largely improve the mechanical and wear properties of resultant product [26,27]. One promising approach for surface modification of nanofillers is silanization [28,29]. Silane-coupling agents have the ability to form a covalent bond between the organic matrix and inorganic nanofillers [30 –32]. The positive role of silanization in improving the various properties of nanocomposites has been well reported in the literature [33,34].

Commercial nano-TiO₂ has been employed in various applications [35,36]. According to the literature, there have been few reports investigating the nano-TiO₂-reinforced FRP systems. Singh et al. [37] investigated the flexural, impact, ILSS, and wear properties of TiO₂-filled E-glass fiber/vinyl ester composites. Mechanical, thermal, and water absorption properties of nano-TiO₂/flax fiber/epoxy composite were studied by Prasad et al. [38]. Nayak et al. [39] evaluated the mechanical and thermal properties of nano-TiO₂/glass FRP composites. Mode I and Mode II interlaminar fracture toughness of nano-TiO₂/ﬂax ﬁber/epoxy composites were studied by Prasad et al. [40]. In the present work, the wear behavior and interlaminar shear properties of multiscale nano-TiO₂/jute fiber/epoxy composites have been investigated as a function of TiO₂ loading. In addition, scanning electron microscopy (SEM) was employed in order to examine the fracture and worn surfaces of specimens.

Experimental

Materials

Near spherical titanium oxide nanopowders (TiO₂, Rutile, 99.9%) with an average particle size of 30 nm and an average specific surface of 47.5 m²/g (35–60 m²/g) were provided by US Research Nanomaterials, Inc (USA). The transmission electron microscope (TEM) image of the TiO₂ nanoparticles is shown in Figure 1. Jute fibers (∼14 µm) with a plain weave pattern (surface density: 350 g/m²) were supplied by Taizhou (China). Epone 828 epoxy resin and triethylenetetramine hardener were utilized as matrix. The silane-coupling agent (3-aminopropyltrimethoxysilane: APTMS) with a linear formula of H₂N(CH₂)₃Si(OCH₃)₃ was supplied by Sigma–Aldrich (USA). The main reason for selecting an amino-terminated silane coupling agent was due to this fact that the amino groups can easily react with the epoxide groups of matrix and a covalent bond can form.

Figure 1.

TEM image of the TiO₂ nanoparticles.

Modification of TiO₂

To improve the interfacial bonding between the TiO₂ nanoparticles and epoxy matrix, the nanoparticles were functionalized. The most common method for surface modification is silanization. Herein, 3 mL of APTMS was added in a solvent made of 95% ethanol and 5% deionized water. Then, 3 g of TiO₂ was added to the solution and the resultant mixture was sonicated for 15 min. After fixing the pH to ∼4 using 37% concentrated HCl, the mixture was transferred to an erlen and refluxed at 80°C for 8 h. In the final step, the modified powders were washed by the ethanol and then the powders were dried at 100°C for 24 h [14,33].

Specimen fabrication

Initially, the defined amounts of modified TiO₂ (M-TiO₂) and epoxy resin were mixed mechanically at 2000 r/min for 20 min. The mixture was then sonicated for 30 min using a Ti-6Al-4V probe at 150 W (Ultrasonic Homogenizer 400 W, 24 kHz, TOPSONICS Co., Iran). During the sonication, the mixture container was kept into an ice-water bath to prevent the temperature rise. After degassing, the hardener was added in the ratio of 10:100 by weight of the epoxy resin and mixed manually for 5 min. The multiscale composites were fabricated by hand layup technique with subsequent cold-pressing. Five plies of jute fabric were impregnated into the polymeric matrix and cured at room temperature. Specimens containing 0.5, 1, 3, and 5 wt.% M-TiO₂ (with respect to the matrix) were prepared. For comparison, a neat jute fiber/epoxy composite was also fabricated as control specimen.

Short-beam shear and dry-sliding wear tests

The short-beam shear test was conducted according to the ASTM D 2344 standard. The specimens were tested using a KOOPA universal testing machine (TB10T) at a crosshead speed of 1 mm/min on three repetitions. The span-to-depth ratio of 6:1 was selected. The values of ILSS were calculated and reported as a function of M-TiO₂ loading.

Dry-sliding wear tests were conducted at room temperature using a pin-on-disc machine. The counterpart was a 52100 steel pin with a diameter of 5 mm. The tests were done on 23.4 mm diameter track with 408 r/min corresponding to 0.5 m/s sliding velocity. The applied load and total sliding distance were kept constant at 20 N and 1000 m, respectively. The wear rate was obtained by the volumetric loss divided by (sliding distance × applied load) [21]. The reported values for the wear test results are the average of at least three experiments.

Characterization

Fourier transform infrared (FTIR) spectra of the modified and unmodified powders were recorded using a PerkinElmer FTIR spectrophotometer between 400 and 4000 cm⁻¹ wavenumbers. Also, thermogravimetric analysis (TGA) was conducted using a Netzsch TG 209 F1Iris thermo-analyzer. The temperature range was from 25°C to 900°C and a heating rate of 20°C/min under nitrogen atmosphere was employed. SEM examinations were carried out on the fractured and worn surfaces of the specimens with a KYKY 3039 M microscope. The specimens were coated with a thin layer of gold before examination.

Results and discussion

FTIR spectroscopy

FTIR spectra of the as-received TiO₂ and M-TiO₂ are shown in Figure 2. For the as-received TiO₂, the observed band at 3200–3400 cm⁻¹ is due to the stretching vibration of the hydroxyl group (–OH) of the TiO₂ nanoparticles [41,42]. The bands which are visible at wavenumbers lower than 1100 cm⁻¹ are due to the vibrations of Ti–O and Ti–O–Ti bonding of titania [43,44]. Moreover, the band at 1628 cm⁻¹ corresponds to the bending mode of Ti–OH [43]. On the contrary, FTIR spectrum of M-TiO₂ shows an additional band at 940 cm⁻¹ which is attributed to the stretch vibration band of Ti–O–Si [45]. The observed bands at 2888 cm⁻¹ and 2921 cm⁻¹ correspond to the symmetrical and asymmetrical stretching vibrations of the C–H (methylene) group [44,46,47]. Absorptions at 1000–1300 cm⁻¹ are corresponded to the Si–O group [34]. The new bands at 1504 cm⁻¹ (related to the bending vibration of N–H groups) and 3360 cm⁻¹ (related to the stretching vibrations of NH₂ group) [14,34] are observable on the FTIR spectrum of the M-TiO₂. These observations clearly indicate the successfull grafting of APTMS onto the TiO₂ surface.

Figure 2.

FTIR spectra of the (a) TiO₂ and (b) M-TiO₂ powders.

A schematic illustration of the reaction between the M-TiO₂ and epoxy matrix is depicted in Figure 3. Once the APTMS-grafted TiO₂ is dispersed within the epoxy resin, the epoxide group of the matrix reacts with the amino end of the silane agent and as a result, a strong covalent bonding is formed between them.

Figure 3.

A schematic illustration of the reaction between the M-TiO₂ and epoxy matrix.

Thermal analysis

Figure 4 shows the TGA curves for the as-received TiO₂ and M-TiO₂. For the as-received TiO₂, the weight loss in the range of 25–200°C is due to the removal of physically adsorbed water from the surface of the particles. Moreover, the observed weight loss after 200°C is related to the water formed from the OH condensation onto the surface of TiO₂ [45]. With reference to the TGA graph of the M-TiO₂, a sharp weight lost between 300°C and 700°C is due to the thermal decomposition of APTMS chains. The loading of APTMS was estimated around 7–8% of total weight of powder.

Figure 4.

TGA curves for the TiO₂ and M-TiO₂ powders.

Short-beam shear test results

Short-beam shear test was conducted on the neat and multiscale specimens to measure their ILSS. The effect of the M-TiO₂ loading on ILSS of the multiscale M-TiO₂/jute fiber/epoxy composites is depicted in Figure 5. As shown in Figure 5, enhancing the M-TiO₂ loading up to 3 wt.% causes an increase in the value of ILSS. The highest enhancement in the ILSS is 43% which observed at 3 wt.% M-TiO₂. This enhancement is probably due to improvement in the jute fiber/epoxy interfacial bonding and also matrix mechanical properties [34], when the matrix is reinforced with M-TiO₂ (see Figure 6). M-TiO₂ particles act as interlocking agents between the jute fibers and polymeric matrix and as a result, the frictional slippage between them is restricted. As it is well documented, to obtain a considerable ILSS improvement, a strong fiber/matrix bonding is needed [17,33]. However, by more enhancing of M-TiO₂, the ILSS is decreased which is probably due to the formation of M-TiO₂ agglomerations at this loading.

Figure 5.

ILSS values of the M-TiO₂/jute fiber/epoxy composites at different M-TiO₂ loadings.

Figure 6.

SEM images of the fracture surfaces of (a) neat jute fiber/epoxy composite, (b) 3 wt.% M-TiO₂-loaded jute fiber/epoxy composite, and (c) 5 wt.% M-TiO₂-loaded jute fiber/epoxy composite.

SEM analysis was conducted on the fracture surfaces of the neat jute fiber/epoxy and M-TiO₂/jute fiber/epoxy multiscale composites after the short-beam shear test. Figure 6 presents SEM images of the fracture surfaces of the neat jute fiber/epoxy and multiscale composites reinforced with 3 wt.% and 5 wt.% M-TiO₂. The fracture surface of the neat composite (Figure 6(a)) shows that the epoxy matrix is detached from the jute fibers due to the weak adhesion. This means that the dominant failure mechanism for this specimen is fiber–matrix debonding. According to the fracture surface of the 3 wt. % M-TiO₂-loaded composite (Figure 6(b)), it can be seen that the jute fibers are covered by the matrix, indicative of enhanced interfacial bonding. In the case of the 5 wt.% M-TiO₂-filled composite, an undesirable fiber–matrix adhesion is observable on the fracture surface (Figure 6(c)) due to the presence of M-TiO₂ agglomerations at the interface region. Figure 7 compares the matrix fracture surface of the neat and 3 wt.% M-TiO₂-filled specimens. Compared to the neat matrix (Figure 7(a)), the fracture surface of the 3 wt.% M-TiO₂-filled matrix shows regular shear steps (Figure 7(b)) which is due to the presence of M-TiO₂ in the matrix. This implies that the crack propagation was resisted by M-TiO₂ nanoparticles. On the contrary, the smooth fracture surface of the neat epoxy matrix indicates a typical brittle fracture behavior [34].

Figure 7.

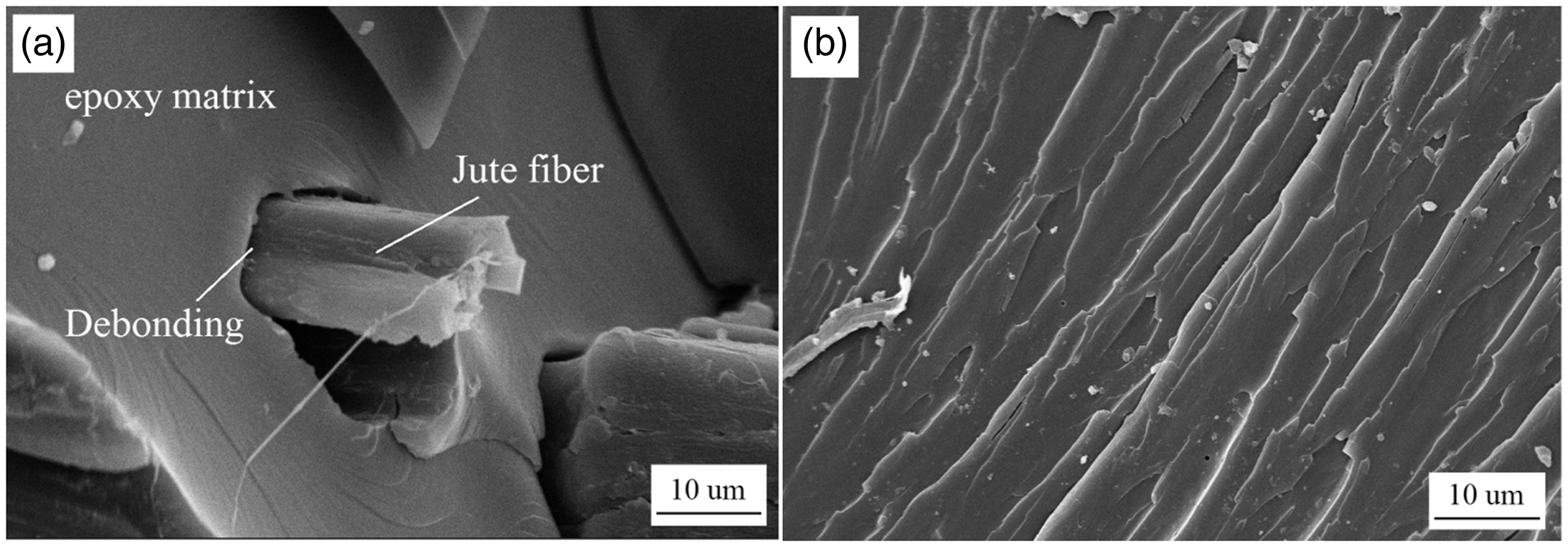

SEM images of the matrix fracture surface of the (a) neat matrix and (b) 3 wt.% M-TiO₂-loaded matrix.

Figure 8 clearly shows the presence of TiO₂ agglomerations on the surface of the 5 wt.% M-TiO₂-filled specimen. So, it should be reminded that the eﬃciency of the considered route for dispersion of M-TiO₂ was less at higher loadings, and another technique should be selected to achieve a homogeneous dispersion. These agglomerations act as crack initiation zones and their presence in the interfacial region facilitate debonding of the jute fibers from the matrix [14,17].

Figure 8.

Ti X-ray mapping on the surface of 5 wt.% M-TiO₂-loaded specimen.

Wear test results

Figure 9 shows the variation in the wear rate of the M-TiO₂/jute fiber/epoxy composites as a function of M-TiO₂ loading. It can be seen that M-TiO₂ loading has a great influence on the wear rate of the composites and the 3 wt.% M-TiO₂-filled specimen exhibits the lowest wear rate. Compared to the neat jute fiber/epoxy specimen, the wear rate of the multiscale composite with 3 wt.% M-TiO₂ shows an 80% decrease. The possible reason may be related to the positive role of M-TiO₂ in improving the mechanical properties of the polymeric matrix and fiber/matrix interfacial bonding [15,17,21]. The hard TiO₂ particles prevent the large fragmentation of polymeric matrix [48]. When the matrix of a fibrous composite is filled with M-TiO₂ particles, a more fraction of applied load is tolerated by the matrix and as a result, the stress concentration on the fiber surface is reduced. This means that the required stress for the fiber fracture increases. Similar results have been also reported [18,49,50]. In the case of the 5 wt.% M-TiO₂-filled specimen, the wear rate of the composite is enhanced. At higher loading of nanofillers, a poor interfacial bonding between the jute fibers and polymeric matrix due to the formation of nanofiller agglomerates will signiﬁcantly increase the wear rate of the composites. This is in line with the results of the other works [17,21].

Figure 9.

Wear rate of the M-TiO₂/jute fiber/epoxy at different M-TiO₂ loadings.

The values of mean COF were obtained from the COF-sliding distance curves and the results as a function of M-TiO₂ loading is shown in Figure 10. As it is seen, the addition of the M-TiO₂ decreases the COF of the jute fiber/epoxy composites up to 3 wt.% M-TiO₂. Evidently, the composite having 3 wt.% M-TiO₂ has the lowest COF (48% lower than the neat specimen). This behavior is mainly resulted from the fiber/matrix adhesion characteristics. As stated in the previous paragraph, the presence of M-TiO₂ within the matrix can improve the jute fiber/matrix interfacial bonding. For a comparison purpose, the mean COF for the neat epoxy was obtained 0.52. The COF of the multiscale M-TiO₂/jute fiber/epoxy was enhanced when 5 wt.% M-TiO₂ was filled, which resulted from the weakened fiber/matrix interfacial bonding. This effect is ascribed to that the particles are tending to agglomerate when their content is excessed from a critical level. When the composites with the agglomerated nanoparticles are subjected to wearing, these agglomerations can be fractured easily without providing effective barrier.

Figure 10.

Mean COF of the M-TiO₂/jute fiber/epoxy at different M-TiO₂ loadings.

After the wear test, the worn surfaces of the specimens were examined by SEM. Figure 11 shows SEM images of the worn surfaces of the neat jute fiber/epoxy composite and multiscale composites reinforced with 3 wt.% and 5 wt.% M-TiO₂. Compared to the neat specimen (Figure 11(a)), the worn surface of the 3 wt.% M-TiO₂-loaded specimen (Figure 11(b)) shows a considerably less-damaged surface. The worn surface of the 3 wt.% M-TiO₂-filled specimen is very smooth and fiber pulling out and ﬁber breakage are not observed, which corresponds to its enhanced wear properties. For this specimen, an enhanced jute fiber/matrix interfacial bonding is observable. On the contrary, the worn surface of the 5 wt.% M-TiO₂-filled specimen (Figure 11(c)) demonstrates the signs of jute ﬁber pulling out and fiber breakage, which corresponds to its declined wear properties in comparison to the other specimens.

Figure 11.

SEM images of the worn surfaces of (a) neat jute fiber/epoxy composite, (b) 3 wt.% M-TiO₂-loaded jute fiber/epoxy composite, and (c) 5 wt.% M-TiO₂-loaded jute fiber/epoxy composite.

Conclusions

In this study, wear behavior and interlaminar shear properties of the multiscale nano-TiO₂/jute fiber/epoxy composites were investigated. The reaction of TiO₂ and APTMS silane compound was conﬁrmed by FTIR and TGA analyses. Short-beam shear test results of the 3 wt.% M-TiO₂-filled jute fiber/epoxy composite exhibited a maximum enhancement in the ILSS by 43% in comparison to the neat specimen. Dry-sliding wear test results of the 3 wt.% M-TiO₂-filled jute fiber/epoxy composite exhibited a maximum reduction of 80% in the wear rate and a decrease of 48% in the coefficient of friction as compared to the neat specimen. SEM examinations of the fracture and worn surfaces verified the improved jute fiber–matrix interfacial bonding in the case of the M-TiO₂-filled specimens.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Hamed Khosravi

References

Jariwala

Jain

A review on mechanical behavior of natural fiber reinforced polymer composites and its applications. J Reinf Plast Compos 2019; 38: 441–453.

Alam

Mamalis

Robert

, et al. The fatigue of carbon fiber reinforced plastics—a review. Compos Part B Eng 2019; 166: 555–579.

Dixit

Goel

Dubey

, et al. Natural fiber reinforced polymer composite materials—a review. Polym from Renew Res 2018; 8: 71–78.

Sathishkumar

Navaneethakrishnan

Shankar

, et al. Characterization of natural fiber and composites—a review. J Reinf Plast Compos 2013; 32: 1457–1476.

Tiber

Balcıoglu

HE.

Flexural and fracture behavior of natural fiber knitted fabric reinforced composites. Polym Compos 2019; 40: 217–228.

Singh

Inder Preet Singh

Singh

, et al. A brief review of jute fibre and its composites. Mater Today Proc 2018; 5: 28427–28437.

Sudha

Thilagavathi

Analysis of electrical, thermal and compressive properties of alkali-treated jute fabric reinforced composites. J Indust Text 2017; 47: 1407–1423.

Dilfi KF

Balan

Bin

, et al. Effect of surface modification of jute fiber on the mechanical properties and durability of jute fiber-reinforced epoxy composites. Polym Compos 2018; 39: E2519–E2528.

Mishra

Biswas

Evaluation of three body abrasive wear behavior of bidirectional jute fiber reinforced epoxy composites. J Indust Text 2013; 44: 781–797.

10.

Mir

Zitoune

Collombet

, et al. Study of mechanical and thermomechanical properties of jute/epoxy composite laminate. J Reinf Plast Compos 2009; 29: 1669–1680.

11.

Raghavendra

Ojha

Acharya

, et al. Jute fiber reinforced epoxy composites and comparison with the glass and neat epoxy composites. J Compos Mater 2013; 48: 2537–2547.

12.

Ramakrishnan

Krishnamurthy

Rajasekar

, et al. An experimental study on the effect of nano-clay addition on mechanical and water absorption behavior of jute fiber reinforced epoxy composites. J Indust Text 2019; 49: 597–620.

13.

Sezgin

Mishra

Militky

, et al. Mechanical, thermo-mechanical and thermal characteristics of multi-walled carbon nanotubes-added textile-reinforced composites. J Indust Text Epub ahead of print 09 April 2019. DOI: 10.1177/1528083719840631.

14.

Abdi

Eslami-Farsani

Khosravi

Evaluating the mechanical behavior of basalt fibers/epoxy composites containing surface-modified CaCO₃ nanoparticles. Fibers Polym 2018; 19: 635–640.

15.

Jamali

Khosravi

Rezvani

, et al. Mechanical properties of multiscale graphene oxide/basalt fiber/epoxy composites. Fibers Polym 2019; 20: 138–146.

16.

Zhou

Pervin

Jeelani

, et al. Improvement in mechanical properties of carbon fabric-epoxy composite using carbon nanofibers. J Mater Proc Technol 2008; 198: 445–453.

17.

Feiz

Khosravi

Multiscale composites based on a nanoclay-enhanced matrix and E-glass chopped strand mat. J Reinf Plast Compos 2019; 38: 591–600.

18.

Ren

Zhang

Zhu

, et al. Influence of functional graphene as filler on the tribological behaviors of nomex fabric/phenolic composite. Compos Part A Appl Sci Manuf 2013; 49: 157–164.

19.

Das

Biswas

Erosion wear behavior of coir fiber-reinforced epoxy composites filled with Al₂O₃ filler. J Indust Text 2016; 47: 472–488.

20.

Bobbili

Madhu

Sliding wear behavior of E-glass-epoxy/MWCNT composites: an experimental assessment. Eng Sci Technol Int J 2016; 19: 8–14.

21.

Anjabin

Khosravi

Property improvement of a fibrous composite using functionalized carbon nanofibers. Polym Compos 2019; 40(11): 4281–4288.

22.

Ponnuruthiyil Shaji

Shaik

Golla

BR.

Mechanical, wear, and dielectric behavior of TiO₂ reinforced high-density polyethylene composites. J Appl Polym Sci 2019; 136: 47610.

23.

Jiang

Gyurova

Schlarb

, et al. Study on friction and wear behavior of polyphenylene sulfide composites reinforced by short carbon fibers and Sub-micro TiO₂ particles. Compos Sci Technol 2008; 68: 734–742.

24.

Srivastava

Tiwari

RK.

Synthesis of epoxy-TiO₂ nanocomposites: a study on sliding wear behavior, thermal and mechanical properties. Int J Polym Mater 2012; 61: 999–1010.

25.

James

Davanageri

Rangaswamy

, et al. The study of wear behavior of glass/epoxy composites reinforced with titanium dioxide and graphite filler materials. AIP Conf Proc 2019; 2080: 020011.

26.

Park

Kim

Seo

, et al. Effects of a silane treatment on the mechanical interfacial properties of montmorillonite/epoxy nanocomposites. Mater Sci Eng A 2009; 526: 74–78.

27.

Zhang

Wang

, et al. Compressive properties of nano-calcium carbonate/epoxy and its fiber composites. Compos Part B Eng 2013; 45: 919–924.

28.

Zhou

Wang

, et al. Silane functionalization of graphene oxide and its use as a reinforcement in bismaleimide composites. J Mater Sci 2015; 50: 5402–5410.

29.

Pourhashem

Rashidi

Vaezi

, et al. Excellent corrosion protection performance of epoxy composite coatings filled with amino-silane functionalized graphene oxide. Surf Coat Technol 2017; 317: 1–9.

30.

Kango

Kalia

Celli

, et al. Surface modification of inorganic nanoparticles for development of organic-inorganic nanocomposites-A review. Progress Polym Sci 2013; 38: 1232–1261.

31.

Karimi

Arabi

Afarani

MS.

Synthesis of carbon nanotube-cadmium selenide luminescent nanocomposites using electrophoretic deposition technique. J Mater Sci: Mater Electron 2017; 28: 1247–1252.

32.

Karimi

Arabi

Najafi

, et al. CNT–CdSe QDs nanocomposites: synthesis and photoluminescence studies. J Mater Sci: Mater Electron 2018; 29: 13499–13507.

33.

Jamali

Rezvani

Khosravi

, et al. On the mechanical behavior of basalt fiber/epoxy composites filled with silanized graphene oxide nanoplatelets. Polym Compos 2018; 39: E2472–E2482.

34.

Amirbeygi

Khosravi

Tohidlou

Reinforcing effects of aminosilane-functionalized graphene on the tribological and mechanical behaviors of epoxy nanocomposites. J Appl Polym Sci 2019; 136: 47410.

35.

Sorkhe

Aghajani

Taghisadeh Tabrizi

Synthesis and characterization of Cu–TiO₂ nanocomposite produced by thermochemical process. Powder Metall 2016; 59: 107–111.

36.

Abbasian

Omidvar-Askary

Microstructural and mechanical investigation of high alumina refractory castables containing nano-titania. Ceram Int 2019; 45: 287–298.

37.

Singh

Siddhartha Gupta

Evaluation of mechanical and erosive wear characteristics of TiO₂ and ZnO filled bi-directional E-glass fiber based vinyl ester composites. Silicon 2018; 10: 309–327.

38.

Prasad

Joseph

Sekar

Investigation of mechanical, thermal and water absorption properties of flax fibre reinforced epoxy composite with nano TiO₂ addition. Compos Part A Appl Sci Manuf 2018; 115: 360–370.

39.

Nayak

Mahato

Ray

BC.

Water absorption behavior, mechanical and thermal properties of nano TiO₂ enhanced glass fiber reinforced polymer composites. Compos Part A Appl Sci Manuf 2016; 90: 736–747.

40.

Prasad

Sekar

Varghese

, et al. Enhancing mode I and mode II interlaminar fracture toughness of flax fibre reinforced epoxy composites with nano TiO₂. Compos Part A Appl Sci Manuf 2019; 124: 105505.

41.

Hosseini

Majidi

Abbasian

AR.

Photocatalytic desulfurization of dibenzothiophene by NiCo₂O₄ nanospinel obtained by an oxidative precipitation process modeling and optimization. J Sulfur Chem 2017; 39: 119–129.

42.

Hosseini

Davodian

Abbasian

AR.

Remediation of phenol and phenolic derivatives by catalytic wet peroxide oxidation over Co-Ni layered double nano hydroxides. J Taiwan Inst Chem Eng 2017; 75: 97–104.

43.

Xiang

Jiang

Zhang

Surface modification of TiO₂ nanoparticles with silane coupling agent for nanocomposite with poly(butyl acrylate). Plast Rub Compos 2015; 44: 148–154.

44.

Zhao

Milanova

Warmoeskerken

, et al. Surface modification of TiO₂ nanoparticles with silane coupling agents. Coll Surf A Physicochem Eng Asp 2012; 413: 273–279.

45.

Xuan

Han

Wang

, et al. Effect of surface-modified TiO₂ nanoparticles on the anti-ultraviolet aging performance of foamed wheat straw fiber/polypropylene composites. Materials 2017; 10: 456.

46.

Abbasian

Shafiee Afarani

One-step solution combustion synthesis and characterization of ZnFe2O4 and ZnFe1.6O4 nanoparticles.

Appl Phys A 2019; 125: 806.

47.

Khosravi

Eslami-Farsani

Enhanced mechanical properties of unidirectional basalt fiber/epoxy composites using silane-modified Na⁺-montmorillonite nanoclay. Polym Test 2016; 55: 135–142.

48.

Anjum

Ajit Prasad

Suresha

Role of silicon dioxide filler on mechanical and dry sliding wear behaviour of glass-epoxy composites. Adv Tribol 2013; 2013: 1–10.

49.

Kumaresan

Chandramohan

Senthilkumar

, et al. Dynamic mechanical analysis and three-body wear of carbon-epoxy composite filled with SiC particles. J Reinf Plast Compos 2012; 31: 1435–1448.

50.

Guo

Rong

Jia

, et al. Sliding wear performance of nano-SiO₂/short carbon fiber/epoxy hybrid composites. Wear 2009; 266: 658–665.

Assessment of the wear behavior and interlaminar shear properties of modified nano-TiO 2 /jute fiber/epoxy multiscale composites

Abstract

Keywords

Introduction

Experimental

Materials

Modification of TiO2

Specimen fabrication

Short-beam shear and dry-sliding wear tests

Characterization

Results and discussion

FTIR spectroscopy

Thermal analysis

Short-beam shear test results

Wear test results

Conclusions

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References

Modification of TiO₂
