Polyvinyl fibers as outperform candidature in the solid polymer electrolytes

Abstract

Solid polymer electrolytes (SPEs) are the best choice to replace liquid electrolytes in supercapacitors, fuel cells, solar cells and batteries. The main challenge in this filed is the ionic conductivity and thermal stability of SPEs which is still not up to mark, therefore more investigations are needed to address these issues. In this study, PVA/salt based SPEs was fabricated using both solution cast and electro-spinning methods to probe the effect of different salts such as (NaCl, KCl and KI) and their concentrations on the ionic conductivity. Scanning electron microscopy (SEM) x and Fourier Transform Infra-Red (FTIR) have been employed to study the morphology as well as the different functional groups of SPEs, respectively. It was noted that small addition of NaCl, KCl and KI salts in SPEs dramatically increased the ionic conductivity to 5.95×10⁻⁶, 5.31×10⁻⁶ and 4.83×10⁻⁶ S/cm, respectively. Importantly, the SPEs obtained with NaCl via electro-spinning have higher ionic conductivity (5.95×10⁻⁶ S/cm) than their casted SPEs (1.87×10⁻⁶ S/cm). Thermal stability was also studied at two different temperatures i.e. 80 °C and 100 °C. The weight loss percentage of electrospun SPEs have zero percent weight loss than the solution based SPEs. The combined results clearly indicated that the nature of salt, concentration and fabrication process play a vital role in the ionic conductivity. Also, the NaCl salt with low molecular weight at low concentrations shows an enhanced ionic conductivity.

Keywords

Solid polymer electrolyte polyvinyl alcohol sodium chloride potassium chloride potassium iodide electrospinning thermal stability ionic conductivity

Introduction

In recent years, solid polymer electrolytes (SPEs) are markedly investigated owing to their peculiar properties and promising practical and industrial applications, particularly in energy storage devices and fuel cell developments [1 –3]. Among the various methods employed to fabricate SPEs, electro-spinning technique is highly favored due to ease of procedures, production of very thin fibers with large surface areas, ease of functionalization, and superior mechanical properties for improved efficiency [4,5]. Given that polymer nanofibers membrane has the capability for ion exchange, it can be used as electrolyte as well as separator [6]. Polyvinyl alcohol (PVA) is vital for the design of SPE and plays a leading role in the PVA-based SPE using different salt concentrations. In this respect, PVA offers excellent mechanical resistance, flexibility, high ion solvation capability and prominent ionic flow [7,8]. Furthermore, different salts such as NaCl, KI, or KCl can used, given that every salt has its own property and imparts different ionic conductivity, electrical conductivity, together with optical, thermal and mechanical properties [9 –11]. SPEs have proactive application because of its advantage of low-cost production, durability, light weight and resistance to deteriorate. Importantly, SPEs are considered as conducting polymers having metallic properties due to their extended π-electron (polarons) along the chain [12,13]. Numerous research work has been conducted on the development of smart materials for rechargeable batteries and energy applications [14 –16]. SPEs have several applications which is depend upon the nature of work [17,18].

Currently, researchers are developing many conducting polymers for different applications such as electromagnetic shielding, ant statistic coating, compact capacitors and smart windows [19 –21]. The dry SPEs procedures have moved through a variety of development stages such as to plasticized, rubbery to micro-composite polymer electrolytes [22 –24]. These electrolytes are interesting alternatives to substitute liquid electrolytes. However, these electrolytes are poor in ionic conductivity and thermal stability [25 –27]. Therefore, it is highly needed to use new strategies for enhancing the ionic conductivity and thermal stability of SPEs. The hypothesis of present study is to tune the structural features and composition of PVA based SPEs using different salts and different synthetic approaches that can contribute towards the increase in the thermal stability and ionic conductivity. Significantly, the use of NaCl, KCl and KI salts is rarely investigated in literature and herein, we report, for the first time, the use of these salts into nanofiberes in the design of SPEs [28,29]. Another driving force for undertaking this research work is to analyze the effect of using different salts and varying concentrations on the electrochemical properties of SPEs material as well as the effect of various synthesis procedures and approaches on the ionic conductivity and thermal stability of SPEs.

Experimental

Fabrication of SPEs

Polyvinyl alcohol (PVA), sodium chloride (NaCl), potassium chloride (KCl) and potassium iodide (KI) were of analytical grade and purchased from Sigma Aldrich Karachi Pakistan. And they were used without further any treatment. The synthesis of SPEs werefollowed by two methods i.e solution cast and electrospinning method. In solution cast method, PVA (2 g) together with NaCl, KCl and KI (0.1 g, 0.2 g and 1 g) were dissolved in 18 ml of deionized water. Same process was repeated without the use of salt. The solution was poured in the petri dish and left for drying till complete solidification takes place. After solidification the samples were peeled from the petri dish. The sample was then symbolized as PVA-C, PVA-NaCl-C (20:1), PVA-NaCl-C (10:1), PVA-NaCl-C (2:1), PVA-KCl-C (20:1), PVA-KCl-C (10:1), PVA-KCl-C (2:1), PVA-KI-C (20:1), PVA-KI-C (10:1) and PVA-KI-C (2:1).While, in the electrospinning method, 2 g of PVA was dissolved in 18 ml of deionized water with and without addition of salt having concentration of 0.1 g and 1 g. The solution was filled into 20 ml syringe and positioned horizontally in syringe pump. In electro-spinning setup, two terminals power supply unit is utilized to deliver the electrostatic force for the formation of nanofibers. One terminal is attached with the tip of needle and other is connected with aluminum foil (fiber collector) in order to complete electric circuit. The distance between the syringe and collector was maintained at 7 cm and the flow rate of polymer solution and voltage were setup according to sound fabrication of nanofibers. The electro-spun samples were then air dried for 48 hours. After drying, the samples were peeled from the aluminum foil. These samples were labelled as PVA-E, PVA-NaCl-E (20:1), PVA-NaCl-E (2:1), PVA-KCl-E (20:1), PVA-KCl-E (2:1), PVA-KI-E (20:1) and PVA-KI-E (2:1).

Characterization of the prepared SPEs materials

Scanning electron microscopy (SEM) images were recorded on scanning electron microscope JSM-6380L JEOL operated at an accelerating voltage of 20 kV. Fourier transform infrared (FTIR) spectroscopy was obtained on a (Thermo Scientific Nicolet iS10 in region of 3500-750 cm⁻¹) at room temperature. Thermal stability of SPEs was determined by weight loss techniques. In this technique, the initial weight (Wi) of samples was determined and these samples were placed into oven at 80 °C and 100 °C for 2 hours. After that final weight (Wf) was determined. Percentage weight loss was determined by using the following formula:

% Weight Loss = \frac{(Wi - Wf)}{Wi} \times 100

Electrochemical impedance investigation

All of the electrochemical impedance measurements were carried out at room temperature on a (VERSASTAT 4-500 Princeton Applied Research) using a two-electrode system at frequency 1×10⁻⁶ to 4×10⁵ Hz. These two terminals of electrode were connected with two stainless steel plates of 2.5×2.5 cm area dimension. The SPEs samples were taken in similar dimensions and hold in between two stainless steel plates then load is applied. The ionic conductivity (σ) in S/cm was determined by following formula: $σ = \frac{t}{R A}$

Where t is the thickness of sample in mm, R is bulk resistance of sample in ohms which is obtained from EIS and A in cm² is contact area between sample and stainless-steel plates [30].

Result and discussion

Material characterization

The FTIR spectraof solution cast samples including pure PVA and PVA complexed with different salts such as KCl, KI and NaCl, respectively are shown in Figure 1(a). In pure PVA, the major peak of intermolecular hydrogen bond (O-H Stretching) observed at range of 3223–3422cm⁻¹ [31], while in case of PVA with added KCl, KI and NaCl is shifted to 3250–3344 cm⁻¹, 3237–3367 cm⁻¹ and 3230–3376 cm⁻¹, respectively [32]. Another peak occurs at 2924 cm⁻¹ in pure PVA, assigned to C-H stretching of alkyl group is shifted to 2923 cm^−12,921 cm⁻¹ and 2918 cm⁻¹ in the presence of KCl, KI and NaCl, respectively. Moreover, the C = O peak is detected in pure PVA at 1719 cm⁻¹, which is almost similar in range but the size of peak may vary in PVA salt complex. In pure PVA, O-H bending peak is shifted from 1434 cm⁻¹ to 1426 cm^−11,424 cm⁻¹ and 1420 cm⁻¹ and whereas C-O stretching peak is shifted from 1054 cm⁻¹ to1068 cm^−11,060 cm⁻¹ and 1065 cm⁻¹ in case of added KCl, KI and NaCl, respectively [33]. The FTIR study has confirmed that the salts are chemically loaded on the PVA. The interaction between salts and PVA is mainly governed by electrostatic force.

Figure 1.

FTIR spectrum (a) cast sample (b) electrospun sample.

The FTIR spectrum of electro-spun samples of pure PVA and complexed PVA with various salts like KCl, KI and NaCl, respectively are shown in Figure 1(b). The major changes that have been noted in spectrum included the O-H stretching peak appeared at 3174–3313 cm⁻¹ range and shifted to 3234–3285 cm⁻¹ and 3153–3263 cm⁻¹ by the addition of KCl, KI and NaCl, respectively. Interestingly, the C = O stretching peak that observed at 1734 cm⁻¹ in pure PVA is higher than the solution samples, possibly due to differences in the morphology of PVA in the two cases (solution vs. electro-spun). In case of complexed PVA, the C = O stretching band is shifted to 1701 cm¹,1681 cm⁻¹ and 1686 cm⁻¹ whereas the O-H bending peak detected at 1406 cm⁻¹ is shifted to 1413 cm^−11,406 cm⁻¹ and 1401 cm⁻¹ in the presence of KCl, KI and NaCl, respectively. Moreover, the C-O stretching peak appeared in pure PVA at 1057 cm⁻¹ is shifted in complexed PVA to 1063 cm^−11,056 cm⁻¹ and 1057 cm⁻¹ for KCl, KI and NaCl, respectively [34,35]. Taken together, these IR data clearly indicate that addition of different salts may facilitate the electrostatic interaction between the opposite charged ions of the salts with PVA.

It is reported that when salt is added in PVA then O-H bending and stretching peak range decreases. It occurs due to decrease in decomposition temperature of PVA with addition of salt. Therefore, the backbone of PVA which is O-H group is complexed with cations of salt [36].

The Scanning electron micrographs (SEM) of SPEs based on PVA with different salts like KCl, KI and NaCl at different concentrations, prepared by solution cast method are shown in Figure 2. Initial inspection of the obtained SEM images revealed that the particles appear as a surface structure with uniform distribution [37,38]. The size of PVA particles is around 3–5 microns. It is evident from the Figure 2(a) that both pristine PVA and PVA-based SPE samples have homogeneous phase with the later containing low amount of salts (20:1). This is most likely due to complete dissolution of added salts at low concentration in PVA and hence formed homogeneous phase. However, the PVA samples having higher percentage of salts with either (10:1) or (2:1) ratio, showed a precipitation phase. It is worthy to mention that if the amount of added salt exceeded the solubility limit, then salt is precipitated out from the PVA. Therefore, the precipitation phase is obtained at higher concentration of salt in PVA and it affects the ionic conductivity [39]. Virtually, the precipitation of salts in PVA caused a bigger size aggregates, which could reach tens of microns and the particles are not uniform.

Figure 2.

SEM images of various samples (a) PVA-C, (b) PVA-NaCl-C (20:1), (c) PVA-NaCl-C (10:1) (d) PVA-NaCl-C (2:1), (e) PVA-KCl-C (20:1), (f) PVA- KCl-C (10:1), (g) PVA-KCl-C (2:1), (h) PVA-KI-C (20:1), (i) PVA-KI-C (10:1), (j) PVA-KI-C (2:1).

SEM images obtained forSPEs fabricated by electrospinning method are shown in Figure 3. Pristine PVA exhibited smooth and thin fibers [40] as shown in Figure 3(a), however addition of salt to PVA increases the diameter of fibers and results in agglomeration [41,42] as illustrated in Figure 3(b) to (g). Thus, it can be noted that electro-spun method has provided fiber like morphology with a 10 to 50 microns in length. This means that afterloading the salts, the morphology was markedly altered due to the swelling as the salt ions were carried by the nanofibers, thereby causing expansion of the generated fibers.

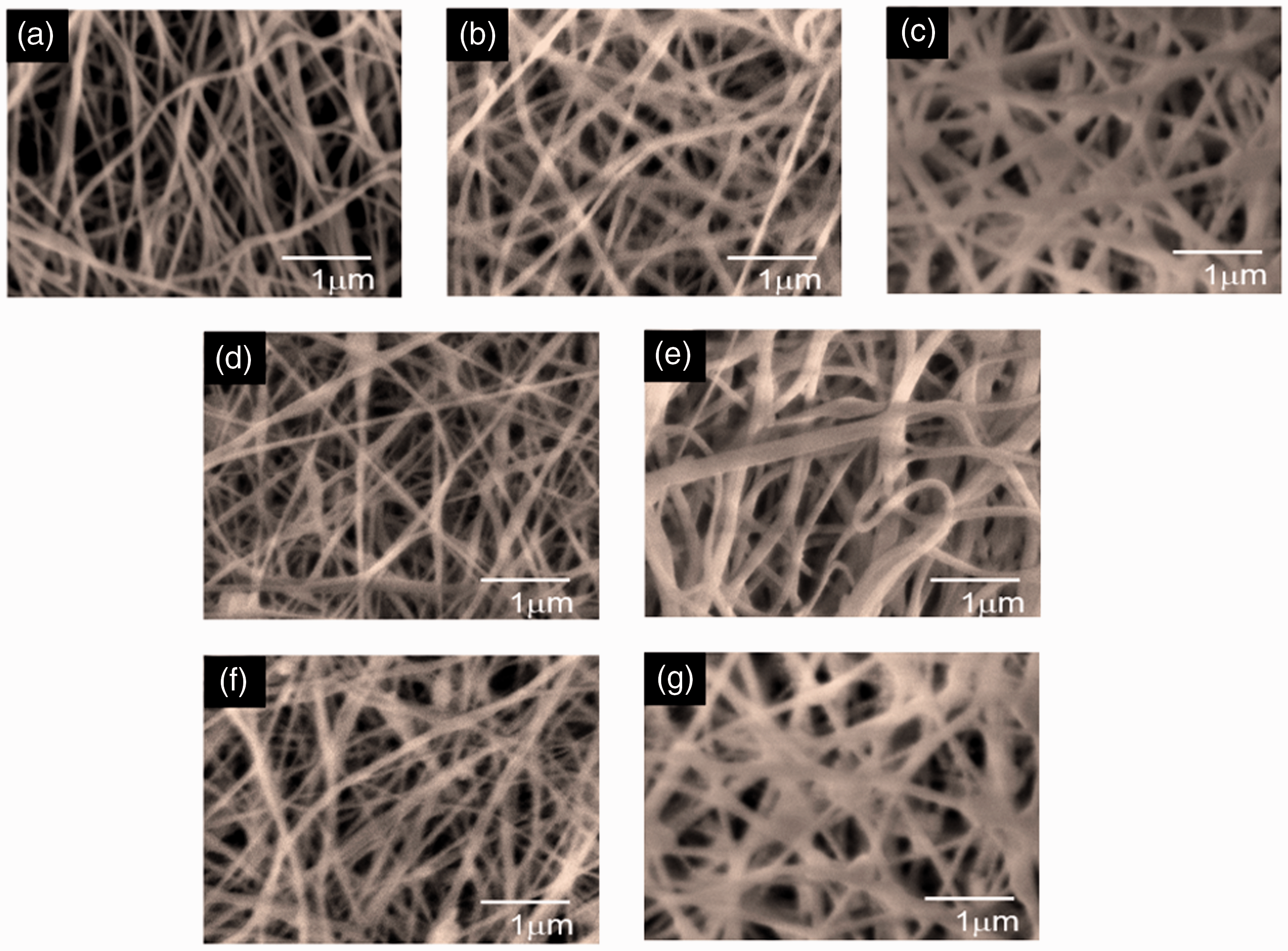

Figure 3.

SEM images of various samples (a) PVA-E, (b) PVA-NaCl-E (20:1), (c) PVA-NaCl-E (2:1), d) PVA-KCl-E (20:1), (e) PVA-KCl-E (2:1), (f) PVA-KI-E (20:1), (g) PVA-KI-E (2:1).

The thermal stability of SPEs based on PVA-Salt is determined by weight loss method at 80 °C and 100 °C. The cast samples represent the weight loss in which pure PVA has high weight loss percentage while the samples having salt at different concentrations showed less percentage of weight loss as shown in Figure 4. It is evident that as the salt percentage increases the weight loss decreases. The weight loss decreases as the series of NaCl<KCl<KI. It is anticipated that decrease in weight loss is dependent on the melting point of the salt. Zero weight loss is seen in case of electro-spun samples with and without salt at the two used temperatures as shown in Figure 5. It is predicted that these samples would show good thermal stability at the working condition as SPEs. The electro-spun samples are much drier and free of moisture thus they have shown superior thermal stability than the solution based samples.

Figure 4.

Weight loss of cast samples at (a) 80 °C, 9b) 100 °C.

Figure 5.

Weight loss of electrospun samples at (a) 80 °C, (b) 100 °C.

Electrochemical impedance investigations

The electrochemical impedance spectroscopy (Bode Plot) of SPEs based on PVA-Salt fabricated via solution cast method are shown in Figure 6. The obtained data implied that pure PVA has low ionic conductivity of about 5.59x10⁻⁷ S/cm at 10⁶ Hz frequency. As illustrated in Figure 6(a) small addition of NaCl caused the ionic conductivity to increase to 1.87×10⁻⁶ S/cm, however, further increase in the salt concentration decreases the ionic conductivity to 1.58×10⁻⁶ S/cm and 1.4×10⁻⁶ S/cm in case of PVA-NaCl (10:1) and PVA-NaCl (2:1), respectively.

Figure 6.

EIS Bode Plot of cast samples at various concentration with salts (a) NaCl (b) KCl (c) KI.

Similar trend is evident in case of KCl and KI where their addition to a certain limit enhances the ionic conductivity, while further increase in salt concentration caused decrease in the ionic conductivity. It is clearly established from the SEM images that higher concentrations of all salts caused precipitation on the polymer surface, which is responsible for the decrease in the ionic conductivity after certain concentration.

The PVA-NaCl (20:1) SPE shows high ionic conductivity as compare to SPEs fabricated using KCl and KI. This is because salts having lower molecular weight can contribute faster in ionic conductivity [43].

The electrochemical impedance spectroscopy (Bode Plot) of SPEs based on PVA-Salt fabricated via electrospinning method are shown in Figure 7. It can be noted that ionic conductivity of pure PVA nanofibers is about 7.48×10⁻⁷ S/cm. Small addition of salt dramatically increases the ionic conductivity to 5.95×10⁻⁶ S/cm, 5.31×10⁻⁶ S/cm and 4.83×10⁻⁶ S/cm in case of PVA-NaCl (20:1), PVA-KCl (20:1) and PVA-KI (20:1), respectively. However, as expected higher salt concentrations deceased the ionic conductivity owing to formation of agglomeration of fibers when excess salt is present.

Figure 7.

EIS Bode Plot of electrospun samples at various concentration with salts (a) NaCl (b) KCl (c) KI

The combined results clearly established that the trend of ionic conductivity of PVA-salt SPEs based nanofibers follows the order: NaCl>KCl>KI, which is highly dependent upon the molecular mass of the salt. Moreover, the decline in the ionic conductivities occurs when the concentration of added salt exceeds the solubility limit. This is likely due to the ionic pairing or ion association. Further it produced ion triplets which decreases the ionic conductivity [44,45]. Importantly, a high conductivity is found for the electrospun samples than the solution based samples due to their high surface area to volume ratio [46,47]. The electrospun samples exhibited a well-defined morphology which accelerated the charge transport.

Conclusions

In summary, SPEs based on PVA-salt, containing different salts such as NaCl, KI and KCl at various concentrations, were successfully fabricated using both solution cast and electrospinning methods. SEM micrographs of solution cast SPEs based on PVA-salt provide information that pure PVA has a homogenized phase. Small addition of desired salt does not disturb the homogeneity whereas addition of salt beyond the solubility limits induced fast precipitation on the surface. While in electro-spun sample, thin fibers of pure PVA are produced; as the percentage of salt increases then agglomerated fibers are obtained. The change in O-H stretching and bending in FTIR spectra confirmed the interaction-complexation of PVA with deliberately added salt. The electro-spun samples have high thermal stability, while the cast samples exhibited less thermal stability. Furthermore, The EIS (Bode Plot) of casted and electro-spun SPEs confirms that the addition of salt at lower concentration enhances the ionic conductivity. The electro-spun samples have good ionic conductivity (5.95×10⁻⁶ S/cm) as compare to casted samples (1.87×10⁻⁶ S/cm) and NaCl is more favorable than other salts as a result of its lower molecular weight. Taken together, the obtained results implied that SPEs synthesized using electrospinning approach might be very promising SPEs and can be used for scale up production in diverse applications. This study could lead to the design and fabrication of low cost, non-toxic and outperform nonprecious electrolytes.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research work was accomplished in Department of Metallurgy and Materials Engineering and Advanced Research Laboratory, MUET, Jamshoro, Sindh, Pakistan. We extend our sincere appreciation to the Researchers Supporting Project number (RSP-2020/79) at King Saud University, Riyadh, Saudi Arabia.

ORCID iDs

Aqeel Bhutto

Zafar Hussain Ibupoto

References

Joshi

Vedarajan

Sheelam

, et al. An all solid-state Li ion battery composed of low molecular weight crystalline electrolyte. RSC Adv 2020; 10: 8780–8789.

Boaretto

Meabe

Martinez-Ibañez

, et al. Review – polymer electrolytes for rechargeable batteries: from nanocomposite to nanohybrid. J Electrochem Soc 2020; 167: 070524.

Tian

Tong

Sheng

, et al. Printable magnesium ion quasi-solid-state asymmetric supercapacitors for flexible solar-charging integrated units. Nat Commun 2019; 10: 4913.

Austen Angell

Concepts and conflicts in polymer electrolytes: the search for ion mobility. Electrochimica Acta 2019; 313: 205–210.

Lobregas

MOS

Camacho

DH.

Gel polymer electrolyte system based on starch grafted with ionic liquid: synthesis, characterization and its application in dye-sensitized solar cell. Electrochimica Acta 2019; 298: 219–228.

Jiang

Yan

, et al. Development of the PEO based solid polymer electrolytes for all-solid state lithium ion batteries. Polymers 2018; 10: 1237.

Rajendran

Sivakumar

Subadevi

Effect of salt concentration in poly(vinyl alcohol)-based solid polymer electrolytes. J Power Sources 2003; 124: 225–230.

Augustine

Malik

Singhal

, et al. Electrospun polycaprolactone/ZnO nanocomposite membranes as biomaterials with antibacterial and cell adhesion properties. J Polym Res 2014; 21: 347.

Huang

Cui

Qiao

, et al. An in-situ polymerized solid polymer electrolyte enables excellent interfacial compatibility in lithium batteries. Electrochimica Acta 2019; 299: 820–827.

10.

Yao

Ding

, et al. Review on polymer-based composite electrolytes for lithium batteries. Front Chem 2019; 7: 522.

11.

Ahmed Ali Ahmed

Mohammed Al-Hussam

Mohammed Abdulwahab

, et al. The impact of sodium chloride as dopant on optical and electrical properties of polyvinyl alcohol. AIMS Mater Sci 2018; 5(3): 533–542.

12.

Borodin

Smith

GD.

Mechanism of ion transport in amorphous poly(ethylene oxide)/LiTFSI from molecular dynamics simulations. Macromolecules 2006; 39: 1620–1629.

13.

Patel

Chandrappa

Bhattacharyya

AJ.

Increasing ionic conductivity of polymer–sodium salt complex by addition of a non-ionic plastic crystal. Solid State Ion 2010; 181: 844–848.

14.

Yang

Wang

Zhang

, et al. High-performance solid composite polymer electrolyte for all solid-state lithium battery through facile microstructure regulation. Front Chem 2019; 7: 388.

15.

Nie

Jiang

, et al. Aerosol-Spray pyrolysis toward preparation of nanostructured materials for batteries and supercapacitors. Small Methods 2018; 2: 1700272.

16.

Ghosh

Jeong

Polaki

SR.

A review on metal nitrides/oxynitrides as an emerging supercapacitor electrode beyond oxide. Korean J Chem Eng 2018; 35: 1389–1408.

17.

Haider

Kang

I-K.

A comprehensive review summarizing the effect of electrospinning parameters and potential applications of nanofibers in biomedical and biotechnology. Arab J Chem 2018; 11: 1165–1188.

18.

Grazioli

Verners

Zadin

, et al. Electrochemical-mechanical modeling of solid polymer electrolytes: impact of mechanical stresses on Li-ion battery performance. Electrochimica Acta 2019; 296: 1122–1141.

19.

Sill

von Recum

HA.

Electrospinning: applications in drug delivery and tissue engineering. Biomaterials 2008; 29: 1989–2006.

20.

David

Aravamuthan

Millard

, et al. Mixed fiber composite structures: method of preparation, articles therefrom, and uses therefor. Patent Australia 1989, AU656515B2.

21.

Millard

Bruce

John

, et al. Mixed fiber composite structures: method of preparation, articles therefrom and uses therefor. Patent Canada 1989, CA2060320C.

22.

Yue

Zhang

, et al. All solid-state polymer electrolytes for high-performance lithium ion batteries. Energy Storage Mater 2016; 5: 139–164.

23.

Moffat

Kwei

AS-P

Spalazzi

, et al. Novel nanofiber-based scaffold for rotator cuff repair and augmentation. Tissue Eng Part A 2009; 15: 115–126.

24.

Shajahan

Ahn

Nair

, et al. Praseodymium doped ceria as electrolyte material for IT-SOFC applications. Mater Chem Phys 2018; 216: 136–142.

25.

Long

Wang

Xiao

, et al. Polymer electrolytes for lithium polymer batteries. J Mater Chem A 2016; 4: 10038–10069.

26.

Aziz

Woo

Kadir

MFZ

, et al. A conceptual review on polymer electrolytes and ion transport models. J Sci Adv Mater Devices 2018; 3: 1–17.

27.

Mulmi

Park

Kim

Lee

, et al. Surfactant-assisted polymer electrolyte nanocomposite membranes for fuel cells. J Membr Sci 2009; 344: 288–296.

28.

Wei

Ren

Wang

, et al. Improving the conductivity of solid polymer electrolyte by grain reforming. Nanoscale Res Lett 2020; 15: 122.

29.

Xie

, et al. A sandwich-type composite polymer electrolyte for all-solid-state lithium metal batteries with high areal capacity and cycling stability. J Membr Sci 2020; 596: 117739.

30.

Vinotha

SenthilKumar

Muruganand

, et al. Fabrication of electrospun PVAKCl nanofibers as electric double layer capacitor and electrochemical analysis for application as solid polymer electrolyte. International Journal of Pure and Applied Mathematics 2018; 119: 1145–1153.

31.

Bala

Sharma

Tripathi

, et al. Investigations of Al:CdS/PVA nanocomposites: a joint theoretical and experimental approach. Mater Chem Phys 2014; 146: 523–530.

32.

Pavani

Ravi

Bhavani

, et al. Characterization of poly(vinyl alcohol)/potassium chloride polymer electrolytes for electrochemical cell applications. Polym Eng Sci 2012; 52: 1685–1692.

33.

Abarna

Hirankumar

Vibrational, electrical, dielectric and optical properties of PVA-LiPF6 solid polymer electrolytes. Mater Sci-Pol 2019; 37: 331–337. DOI:10.2478/msp-2019-0037

34.

Kim

K-O

Akada

Kai

, et al. Cells attachment property of PVA hydrogel nanofibers incorporating hyaluronic acid for tissue engineering. J Biomater Nanobiotechnology 2011; 02: 353–360.

35.

Kharaghani

Lee

Ishikawa

, et al. Comparison of fabrication methods for the effective loading of Ag onto PVA nanofibers. Text Res J 2019; 89: 625–634.

36.

Çavuş

Durgun

Poly(vinyl alcohol) based polymer gel electrolytes: investigation on their conductivity and characterization. Acta Phys Pol A 2016; 129: 621–624.

37.

Ahmad

Sheha

Preparation and physical properties of (PVA)0.7(NaBr)0.3(H3PO4)xM solid acid membrane for phosphoric acid – fuel cells. J Adv Res 2013; 4: 155–161.

38.

Ghosal

Chandra

, et al. Electrospinning over solvent casting: tuning of mechanical properties of membranes. Sci Rep 2018; 8: 5058.

39.

Suresha

Harish

Avinash

, et al. Influence of salt and biopolymers on dielectric and AC conductivity of PVA. AIP Conf Proc 2019; 2115: 030271.

40.

Chen

D-G

, et al. Structure-tunable Janus fibers fabricated using spinnerets with varying port angles. Chem Commun (Camb) 2015; 51: 4623–4626. doi:10.1039/C5CC00378D

41.

Matabola

Moutloali

RM.

The influence of electrospinning parameters on the morphology and diameter of poly(vinyledene fluoride) nanofibers – effect of sodium chloride. J Mater Sci 2013; 48: 5475–5482.

42.

Pillay

Dott

Choonara

, et al. A review of the effect of processing variables on the fabrication of electrospun nanofibers for drug delivery applications. J Nanomater 2013; 2013: 1–22.

43.

Sunitha

Kabbur

SKM

Pavan

, et al. Lithium ion conduction in PVA-based polymer electrolyte system modified with combination of nanofillers. Ionics 2020; 26: 823–829.

44.

Mohapatra

Thakur

Choudhary

RNP.

Effect of nanoscopic confinement on improvement in ion conduction and stability properties of an intercalated polymer nanocomposite electrolyte for energy storage applications. J Power Sourc 2009; 191: 601–613.

45.

Angammana

Jayaram

SH.

Analysis of the effects of solution conductivity on electrospinning process and fiber morphology. IEEE Trans Ind Appl 2011; 47: 1109–1117.

46.

Reneker

Fong

Polymeric nanofibers: introduction. In: DH

Reneker

Fong

(eds) Polymeric nanofibers. Vol 918. Washington: American Chemical Society, 2006, pp.1–6.

47.

Matsumoto

Tanioka

Functionality in electrospun nanofibrous membranes based on fiber’s size, surface area, and molecular orientation. Membranes (Basel) 2011; 1: 249–264.
