Numerical modeling on off-axial fatigue behavior and failure characterization of 3D braided composites

Abstract

Fatigue is an important factor leading to the structural failure of 3D braided composites during the service. In this paper, a meso-scale finite element analysis (FEA) model based on continuum damage mechanics (CDM) is developed to study the fatigue damage behavior and predict the fatigue life of 3D braided composites subjected to off-axial tension loadings. Stress analysis, failure criteria and material properties degradation scheme in the meso-scale model are implemented by a user-material subroutine UMAT based on ABAQUS/Standard solver. The damage initiation and propagation of 3D braided composites under diverse off-axial fatigue loadings are simulated and analyzed in detail and the corresponding off-axial fatigue lives are obtained from the predicted S-N curves. The proposed FE modeling provides a suitable reference for the numerical research on the off-axial fatigue problems in other textile composites.

Keywords

3D braided composites fatigue off-axial loading progressive damage analysis FE modeling

Introduction

3D braided composites have been increasingly applied in the aerospace, automotive and other high-tech industries in the past two decades because of their excellent comprehensive mechanical properties. As the primary load-bearing structures, 3D braided composites in service are usually subjected to severe alternating cyclic loadings, which could eventually result in fatal fatigue failure in the composite structures. Due to the lack of effective fatigue prediction model and damage analysis approach, lots of experiments are needed in the design stage and a larger safety factor is adopted to cover the fatigue risk. Under such circumstances, the advantage of high weight-reduction efficiency of 3D braided composites cannot be fully realized in practical application. Therefore, it is of great significance to establish a robust numerical analysis model within the FE frame to predict the fatigue performance and damage behavior of 3D braided composites.

Progressive fatigue damage model (PFDM) proposed by Shokrieh and Lessard^1,2 is a common FE frame and independent of the specific composite structures. It is capable of predicting the residual stiffness, residual strength and fatigue life and simulating the damage evolution thus has significant advantages and broad potential applications. For textile composites, it mainly involves the meso-scale model, constitutive relation of constituents, fatigue failure criteria and material properties degradation scheme. Currently, PFDM have been adopted and further developed by many researchers to predict the fatigue life and damage evolution of different textile composites under on-axial loading conditions. Xu et al.^3,4 proposed a unit-cell based FE model to predict the damage initiation and evolution of 2D textile composites in tension-tension fatigue loading. The algorithm of multi-axial fatigue was applied to matrix-dominated fatigue while the fiber-dominated fatigue was separately considered. Zhang et al.⁵ and Hao et al.⁶ developed a meso-scale FE model to simulate the damage evolution process of 3D braided composites under fatigue tension loadings. The fatigue damage accumulation during cyclic loading was involved in the developed model for predicting the fatigue life more accurately. Guo et al.⁷ adopted FPDM to assess the fatigue failure behavior of 3D woven composites, in which the damage irreversibility and compressive crack closure effect were considered. Fiber bundle unit-cell model and braided unit-cell model were established by Wang et al.⁸ to predict the fatigue life of 2D braided composites including diverse damage modes. However, due to the difficulty of determining various damage variables, the implementation of the proposed model was relatively challenging. Other similar FE models for investigating the fatigue life and damage evolution of typical textile composites can be found in Refs.^9–14

The above works concentrated on the on-axial tension and compression fatigue behaviors of textile composites while the study on off-axial fatigue performance has not been reported up to now. Actually, off-axial loading is a most general scene of loading condition in service. The researchers mainly conducted experimental and numerical studies to analyze the static behaviors of textile composites under off-axial loadings. Cai et al.¹⁴ experimentally studied the off-axial mechanical properties of unidirectional and woven composites. It was indicated that the woven composites present apparent nonlinear stress-strain behaviors under off-axial tension loadings. Zhou et al.¹⁵ and Wang et al.¹⁶ analyzed the off-axial progressive damage behaviors of woven composites based on unit-cell simulation. Besides, Zhang et al.^17,18 presented a meso-scale FE model to discuss the void defects and interface properties on the off-axial tension behavior of 3D braided composites. These off-axial statics analysis works have confirmed that the off-axial behavior of textile composites have significant difference compared with those under on-axial loadings. The off-axial load-bearing capacity cannot be directly characterized by on-axial loading tests and the damage modes and failure mechanism are much more complicated. Consequently, for the safe application under fatigue situation, it is very necessary to further study the effect of off-axial fatigue loading on the mechanical properties, damage evolution and fatigue life of textile composites.

Establishing the meso-scale fatigue damage model, predicting the fatigue life and analyzing the failure mechanism are the basis for improving the performance potential and application level of composite structures. In this paper, a meso-scale FE model based on PFDM frame is developed to study the damage evolution and fatigue life of 3D braided composites under various off-axial fatigue tension loadings. The obtained numerical results show that the proposed modeling strategy can provide an effective approach for investigating the similar off-axial fatigue issues in other textile composites.

Progressive fatigue damage model

PFDM consists of three major parts: stress analysis, fatigue failure criteria and material properties degradation scheme. In the present unit-cell model of 3D braided composites, the resin matrix is regarded as isotropic material; braiding yarn is considered as transversely isotropic unidirectional composites in the local L-T-Z coordinate where L, T and Z axes designate the longitudinal and two transverse directions.

Fatigue failure criteria

3D Hashin failure criteria¹⁹ and maximum stress criteria are adopted as the fatigue failure criteria of braiding yarns and resin matrix, respectively.

For braiding yarns, the expressions of 3D Hashin failure criteria can be given as follows:

Yarn tensile fatigue failure in L direction ( $σ_{L} \geq 0$ )

ϕ_{L t} = {(\frac{σ_{L}}{F_{L}^{t} (n, σ, κ)})}^{2} + χ {(\frac{σ_{L T}}{S_{L T} (n, σ, κ)})}^{2} + χ {(\frac{σ_{L Z}}{S_{L Z} (n, σ, κ)})}^{2} \geq 1

(1)

Yarn compressive fatigue failure in L direction ( $σ_{L} < 0$ )

ϕ_{L c} = {(\frac{σ_{L}}{F_{L}^{c} (n, σ, κ)})}^{2} \geq 1

(2)

Yarn tensile and shear fatigue failure in T and Z direction ( $σ_{T} + σ_{Z} \geq 0$ )

ϕ_{T (Z) t} = {(\frac{σ_{T} + σ_{Z}}{F_{T}^{t} (n, σ, κ)})}^{2} + (\frac{1}{S_{T Z}^{2} (n, σ, κ)}) (σ_{T Z}^{2} - σ_{T} σ_{Z}) + {(\frac{σ_{L T}}{S_{L T} (n, σ, κ)})}^{2} + {(\frac{σ_{L Z}}{S_{L Z} (n, σ, κ)})}^{2} \geq 1

(3)

Yarn compressive and shear fatigue failure in T and Z direction ( $σ_{T} + σ_{Z} < 0$ )

\begin{array}{l} ϕ_{T (Z) c} = {(\frac{σ_{T} + σ_{Z}}{2 S_{T Z} (n, σ, κ)})}^{2} + (\frac{σ_{T} + σ_{Z}}{F_{T}^{c} (n, σ, κ)}) [{(\frac{F_{T}^{c}}{2 S_{T Z} (n, σ, κ)})}^{2} - 1] + \frac{1}{S_{T Z}^{2} (n, σ, κ)} (σ_{T Z}^{2} - σ_{T} σ_{Z}) \\ + {(\frac{σ_{L T}}{S_{L T} (n, σ, κ)})}^{2} + {(\frac{σ_{L Z}}{S_{L Z} (n, σ, κ)})}^{2} \geq 1 \end{array}

(4)

In the above equations, $χ$ is the shear failure coefficient and it is utilized to determine the contribution of shear stresses on the yarn tensile fatigue failure in L direction. $F_{L}^{t} (n, σ, κ)$ and $F_{L}^{c} (n, σ, κ)$ are the longitudinal tensile and compressive residual strengths of braiding yarn; $F_{T}^{t} (n, σ, κ)$ and $F_{T}^{c} (n, σ, κ)$ are the transverse tensile and compressive residual strengths; $S_{L T} (n, σ, κ)$ , $S_{L Z} (n, σ, κ)$ and $S_{T Z} (n, σ, κ)$ are the LT, LZ and TZ shear residual strengths, respectively. The degradation of all the residual strength properties of braiding yarn is controlled by $n$ , $σ$ and $κ$ , which are the number of cycles, stress state and stress ratio, respectively.

The tensile and compressive fatigue failure of matrix are defined by maximum stress criteria, namely

ϕ_{M t} = | \frac{σ_{1}^{t}}{F_{m}^{t} (n, σ, κ)} | \geq 1

(5)

ϕ_{M c} = | \frac{σ_{3}^{c}}{F_{m}^{c} (n, σ, κ)} | \geq 1

(6)

where

σ_{1}^{t}

and

σ_{3}^{c}

are the maximum tensile and compressive stresses of matrix;

F_{m}^{t} (n, σ, κ)

and

F_{m}^{c} (n, σ, κ)

are the tensile and compressive residual strengths of matrix.

Damage constitutive model of constituents

The damage state of braiding yarn and matrix can be described by Murakami damage model,²⁰ namely

σ = C (D) ε

(7)

where C(D) is the stiffness matrix of damaged material and it can be expressed explicitly by²¹

C (D) = {\begin{matrix} b_{L}^{2} C_{11} \\ b_{L} b_{T} C_{12} & b_{T}^{2} C_{22} & sym \\ b_{L} b_{Z} C_{13} & b_{T} b_{Z} C_{23} & b_{Z}^{2} C_{33} \\ 0 & 0 & 0 & b_{T Z} C_{44} \\ 0 & 0 & 0 & 0 & b_{Z L} C_{55} \\ 0 & 0 & 0 & 0 & 0 & b_{L T} C_{66} \end{matrix}}

(8)

Here, $b_{L} = 1 - D_{L}$ , $b_{T} = 1 - D_{T}$ , $b_{Z} = 1 - D_{Z}$ , $b_{T Z} = {(2 b_{T} b_{Z} / (b_{T} + b_{Z}))}^{2}$ , $b_{Z L} = {(2 b_{Z} b_{L} / (b_{Z} + b_{L}))}^{2}$ , $b_{L T} = {(2 b_{L} b_{T} / (b_{L} + b_{T}))}^{2}$ ; D_L, D_T and D_Z are the principal damage variables in the three coordinate directions; C_ij is the component of initial stiffness matrix.

For braiding yarn, the three principal damage variables are determined by

D_{L} = \max (d_{L t}, d_{L c})

(9)

D_{T} = \max (d_{T t}, d_{T c})

(10)

D_{Z} = \max (d_{Z t}, d_{Z c})

(11)

where

d_{Ι}

(Ι = L t, L c, T t, T c, Z t, Z c)

are the damage variables of yarn specific mode.

For matrix, the damage variables are determined by

D_{M} = D_{L} = D_{T} = D_{Z} = \max (d_{M t}, d_{M c})

(12)

where

d_{M t}

and

d_{M c}

are the damage variables of matrix tensile and compressive mode.

Material properties degradation scheme

For fatigue modeling, two material properties degradation schemes are considered: linear progressive reduction and gradual properties degradation. Once the fatigue failure criterion of certain mode is satisfied, the linear progressive reduction will be performed. Moreover, the gradual properties degradation is always implemented during the whole fatigue cycles until fatal failure.

Linear progressive reduction

Linear progressive reduction is employed for each damage mode, namely²²

d_{Ι} = \frac{δ_{Ι, e q}^{f} (δ_{Ι, e q} - δ_{Ι, e q}^{0})}{δ_{Ι, e q} (δ_{Ι, e q}^{f} - δ_{Ι, e q}^{0})} (Ι = L t, L c, T t, T c, Z t, Z c, M t, M c)

(13)

where

δ_{Ι, e q}^{0}

and

δ_{Ι, e q}^{f}

are the equivalent displacements of initial and final damage of specific mode, which are defined by

δ_{Ι, e q}^{0} = \frac{δ_{Ι, e q}}{\sqrt{ϕ_{Ι}}}

(14)

δ_{Ι, e q}^{f} = \frac{2 G_{Ι}}{(\frac{σ_{Ι, e q}}{\sqrt{ϕ_{Ι}}})}

(15)

where,

ϕ_{Ι}

is the fatigue failure index of corresponding failure mode;

G_{Ι}

is the critical fracture energy;

δ_{Ι, e q}

and

σ_{Ι, e q}

are the equivalent displacement and stress, which are expressed by

δ_{Ι, e q} = l \sqrt{ε_{i i}^{2} + α_{Ι} \sum_{j = 1, j \neq i}^{3} ε_{i j}^{2}} (i = 1,2,3)

(16)

σ_{Ι, e q} = \frac{l (〈 σ_{i i} 〉 〈 ε_{i i} 〉 + \sum_{j = 1, j \neq i}^{3} σ_{i j} ε_{i j})}{δ_{Ι, e q}} (i = 1,2,3)

(17)

Here l is the characteristic length of element; < > symbolizes the Macaulay operator.

Gradual properties degradation

Under fatigue loading, the strength and stiffness of material degrade gradually and eventually leading to the attainment of fatigue failure criteria. It should be pointed out that since the mechanical properties of 3D braided composites are mainly determined by braiding yarns and the necessary fatigue data of matrix are not available, the gradual properties degradation is not applied for pure resin matrix in this simulation.

In this work, the residual strength and stiffness models for unidirectional composite are used for braiding yarn. However, this simplified assumption may introduce some computational errors in the simulation model, for example, the twisting and bending state of braiding yarn cannot be well considered here.

The residual strength $R (n, σ, κ)$ and stiffness $E (n, σ, κ)$ of braiding yarn are expressed as¹

R (n, σ, κ) = {[1 - {(\frac{\log (n) - \log (0.25)}{\log (N) - \log (0.25)})}^{β}]}^{1 / ϕ} (R_{s} - σ) + σ

(18)

E (n, σ, κ) = {[1 - {(\frac{\log (n) - \log (0.25)}{\log (N) - \log (0.25)})}^{λ}]}^{1 / η} (E_{s} - \frac{σ}{ε_{f}}) + \frac{σ}{ε_{f}}

(19)

In the above equations, $R_{s}$ and $E_{s}$ are the static strength and stiffness; $ε_{f}$ and $σ$ are the critical strain at failure and maximum applied stress; $n$ and $N$ are the number of cycles and fatigue life; $ϕ$ and $β$ are the curve fitting parameters for strength degradation; $λ$ and $η$ are the curve fitting parameters for stiffness degradation.

In order to make the gradual properties degradation appropriate to any stress ratio and stress state, the normalized fatigue life model is applied.

Under longitudinal and transverse fatigue loadings, one has²³

u = \frac{\ln (\frac{a}{f})}{\ln [(1 - g) (c + g)]} = A + B \log N

(20)

Under shear fatigue loading, one has²³

u = \log \frac{\ln (\frac{a}{f})}{\ln [(1 - g) (1 + g)]} = A + B \log N

(21)

In the above equations, $a = σ_{a} / σ_{t}$ , $g = σ_{m} / σ_{t}$ , $c = σ_{c} / σ_{t}$ ; $σ_{a} = (σ_{\max} - σ_{\min}) / 2$ is the alternating stress; $σ_{m} = (σ_{\max} + σ_{\min}) / 2$ is the mean stress; $σ_{\max}$ and $σ_{\min}$ are the maximum and minimum applied stresses; $σ_{t}$ and $σ_{c}$ are the tensile and compressive strengths; $u$ and $f$ are the curve fitting parameters.

Finite element modeling strategy

Meso-scale FE model

As shown in Figure 1(a) meso-scale unit-cell model of 3D braided composites developed by Xu et al.²⁴ is adopted to simulate the fatigue damage behavior. The cross-section shape of braiding yarns is assumed as octagon containing an inscribed ellipse. The relationship between the major and minor radii of ellipse, a and b is determined by

a = \sqrt{3} b \cos γ

(22)

where

γ

is the interior braiding angle and it can be determined by the braiding angle α on the surface of composite specimen as

\tan γ = \sqrt{2} \tan α

(23)

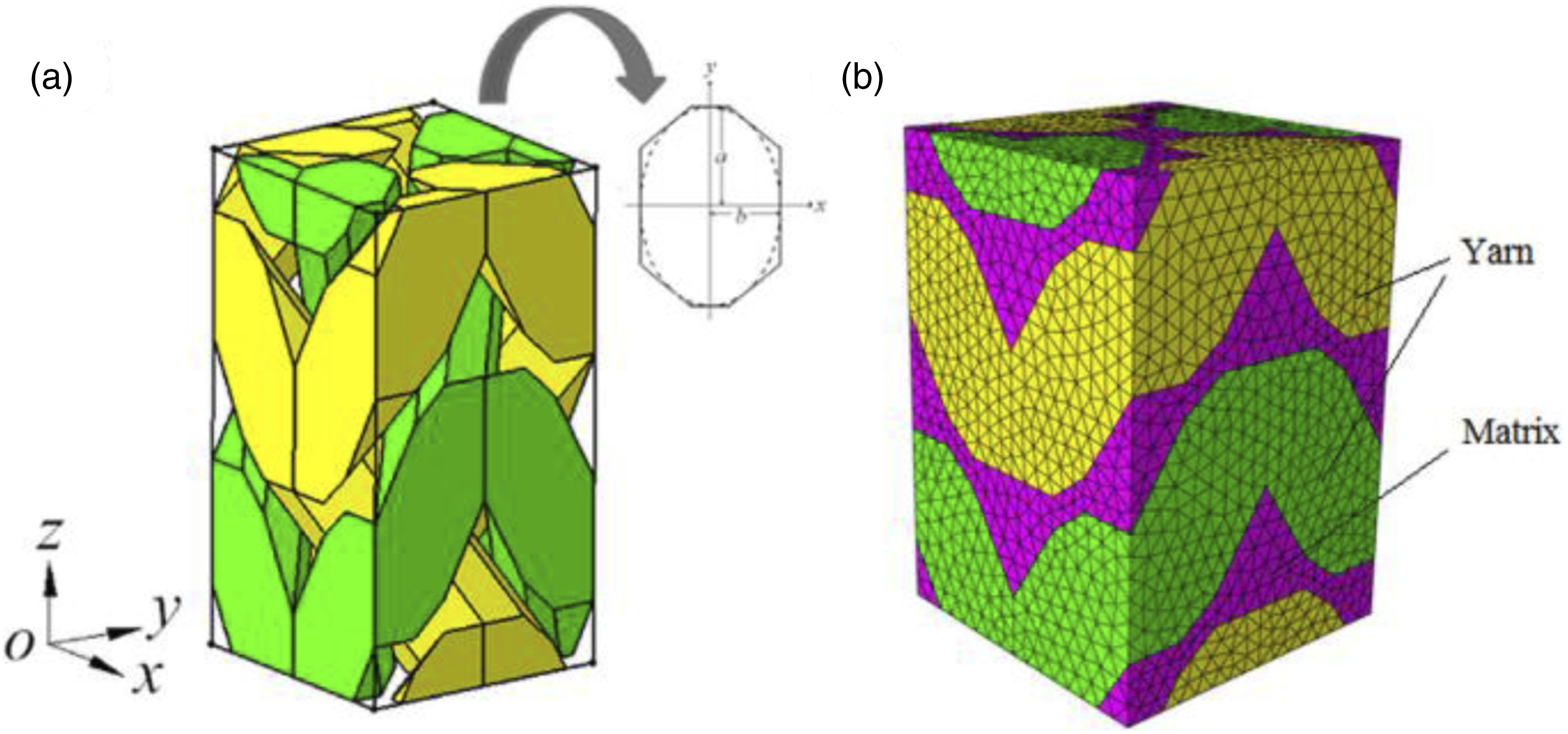

Figure 1.

Meso-scale FE model of 3D braided composites (a) Unit-cell structural model (b) FE mesh.

According to the geometry relation, we have

W = T = 4 \sqrt{2} b

(24)

h = \frac{8 b}{\tan γ}

(25)

S_{b} = 8 (\sqrt{3} - 1) b^{2} \cos γ

(26)

V_{f} = \frac{V_{b}}{V} κ_{b} = \frac{\frac{4 h S_{b}}{\cos γ}}{W \times T \times h} κ_{b} = (\sqrt{3} - 1) κ_{b}

(27)

In the above equations, W, T, h, V are the width, thickness, height and volume of the unit-cell models, respectively; $S_{b}$ and $κ_{b}$ are the cross-sectional area and fiber packing factor of braiding yarn; $V_{f}$ is the fiber volume fraction of 3D braided composites.

In order to facilitate the application of periodic boundary conditions, periodic meshing of unit-cell is necessary. Because of the complicated microstructure of 3D braided composites, it is a challenging task to generate periodic mesh. 3D solid tetrahedral element (C3D4) is selected to discretize the unit-cell model due to the excellent geometry adaptability and the surface mesh mapping method is adopted in the meshing process to facilitate the formation of periodic mesh, as displayed in Figure 1(b). Herein, the co-nodes mesh is adopted in the yarn/yarn and yarn/matrix interfaces.

In this simulation, the fatigue residual stiffness and strength models in the main directions of unidirectional composite are employed to characterize the fatigue behavior of braiding yarn in 3D braided composite. The material properties of braiding yarn and matrix are provided in Table 1, and the PFDM parameters of unidirectional composite cited from Ref.² are summarized in Table 2.

Table 1.

Material properties of carbon fiber and resin matrix.¹⁷

	E₁₁ (GPa)	E₂₂ (GPa)	G₁₂ (GPa)	G₂₃ (GPa)	μ ₁₂	X_T (MPa)	X_C (MPa)	S (MPa)	G_L (N/mm)	G_T (N/mm)	G_m (N/mm)
T300	230	40	24	14.3	0.26	3528	2470	—	8.0	1.5	—
Matrix	3.5	—			0.35	60	241	60	—		1.0

Table 2.

PFDM parameters of unidirectional composite.²

	Residual stiffness parameters			Residual strength parameters		Fatigue life parameters
	λ	η	εf	φ	β	A	B
Longitudinal tension	14.57	0.3024	0.0136	10.03	0.473	1.3689	0.1097
Longitudinal compression	—			49.06	0.025	—
Transverse tension	14.77	0.1155	0.0068	9.6287	0.1255	0.999	0.096
Transverse compression	—			67.36	0.0011	—
In-plane shear	0.7	11	0.101	0.16	9.11	0.099	0.186
Out-of-plane shear	—			0.2	12	0.299	0.111

Both the force and displacement modes can be acted as applied load to employ the periodic boundary conditions. In this work, to achieve accurate loading level in the simulation, the force loading mode is adopted in both the static strength prediction and fatigue damage analysis. Nodal displacement constraint equations of related surfaces, edges and corners are established to implement the periodic boundary conditions on the unit-cell model. And the process that how to apply the periodic boundary conditions to unit-cell model can be found in our previous work.²⁵

The macroscopic mechanical properties of 3D braided composites are obtained by unit-cell homogenization.

The average stresses ${\bar{σ}}_{i j}$ and strains ${\bar{ε}}_{i j}$ in the unit-cell are determined by

{\bar{σ}}_{i j} = \frac{1}{V} \int_{V} σ_{i j} d V, {\bar{ε}}_{i j} = \frac{1}{V} \int_{V} ε_{i j} d V

(28)

Implementation of fatigue failure modeling

Basic assumptions

Two main assumptions²⁶ have been made to simulate the fatigue loading in the meso-scale FE model for improving the computational efficiency and saving the computer resource. (a) During each loading cycle, damage development in the unit-cell only happens at maximum and minimum fatigue stresses. (b) For the chosen cycle jumps, only gradual degradation of the material properties is involved.

According to the first assumption, only the maximum fatigue loading is needed to be applied with stress ratio R=0.1. The second assumption is made to contain the gradual properties degradation in a specific cycle jump and then perform a new failure analysis. In this work, the fatigue analysis is evaluated at cycles $N = 10^{0.1 i}$ , where $i$ is a natural number.

Fatigue failure analysis process

User-defined material subroutine UMAT in ABAQUS/Standard is adopted to conduct the progressive fatigue damage simulation. Static strength prediction and fatigue failure analysis are the two computational modules in the meso-scale modeling. The flow chart of the whole simulation is illustrated in Figure 2.

Figure 2.

Flow chart of progressive damage analysis process (a) Static strength prediction (b) Fatigue failure analysis.

As shown in Figure 2(a), in each load increment, the stress analysis and failure analysis are performed at Gauss integration points of the elements. Once the failure criterion is satisfied, the linear progressive reduction is executed by updating the damage variable of specific damage mode. The stress analysis needs to be performed repeatedly before the final static failure. The static analysis is finished when the eventual failure happens and the static strength can be obtained from the predicted stress-strain curve.

As displayed in Figure 2(b), the stress analysis is performed based on the maximum fatigue stress level. If an element reaches the failure criteria, the linear progressive reduction considering specific damage mode will be conducted. Once the final fatigue failure criterion is satisfied, the current number of cycles is assumed as the fatigue life of 3D braided composites and the fatigue analysis stops. If there is no fatigue failure in the element, it is necessary to determine whether the fatigue limit is reached. If the number of cycles is smaller than the fatigue limit, the gradual properties degradation of yarn element is implemented and the selected cycle jump is applied to perform a new analysis again. If the fatigue limit is reached before the final fatigue failure, the fatigue life at the present stress level is defined as the fatigue limit and the fatigue analysis ends.

Final failure criterion

An appropriate final criterion which determines the ultimate failure of the unit-cell model is needed in the simulation. Under either static or fatigue loading condition, the fatal failure happens when 3D braided composites cannot bear further loading because of extensive damage. In the static analysis, the static strength is defined as the inflection point of the predicted stress-strain curve. On the other hand, in the fatigue analysis, it is considered that the final fatigue failure occurs when the composite structure can no longer bear the fixed force loading or the finite element computation cannot be convergent.

Off-axial loading and stress state analysis

As demonstrated in Figure 3(a), the unidirectional composite is subjected to off-axial tension loading. Here, the off-axis and on-axis coordinate systems can be regarded as global and local coordinates and represented by 1–2 and X-Y, respectively. As presented in Figure 3(b), the off-axial loading is only applied to the unit-cell model of 3D braided composite in the XY plane. Since only the plane stress transformation is involved, the on-axial multidirectional stress can be transformed from the off-axial unidirectional stress through stress transformation matrix, which can be expressed as

A = [\begin{matrix} l_{1}^{2} & m_{1}^{2} & 2 l_{1} m_{1} \\ l_{2}^{2} & m_{2}^{2} & 2 l_{2} m_{2} \\ l_{1} l_{2} & m_{1} m_{2} & l_{1} m_{2} + l_{2} m_{1} \end{matrix}]

(29)

where l_i and m_i are the cosine values of the angles between corresponding axes of local and global coordinates.

Figure 3.

Unidirectional laminate under uniaxial off-axial tension loading.

Then, the stress in the global coordinate system can be converted to the stress in the local coordinate system by

\bar{σ} = A σ

(30)

Numerical results and discussion

Two 3D braided composites specimens, named as 4DS1 and 4DS2, with typical braiding angles are developed in this section. The meso-scale FE model of specimen 4DS1 with small braiding angle of 19.2° consists of 31, 943 nodes and 129, 686 C3D4 elements, while that of specimen 4DS2 with large braiding angle of 36.6° consists of 11, 143 nodes and 40, 811 C3D4 elements. Herein, through comparative analysis, it has been verified that such mesh density can guarantee the convergence of computation. The detailed structural parameters of the unit-cell models of these two specimens are listed in Table 3.

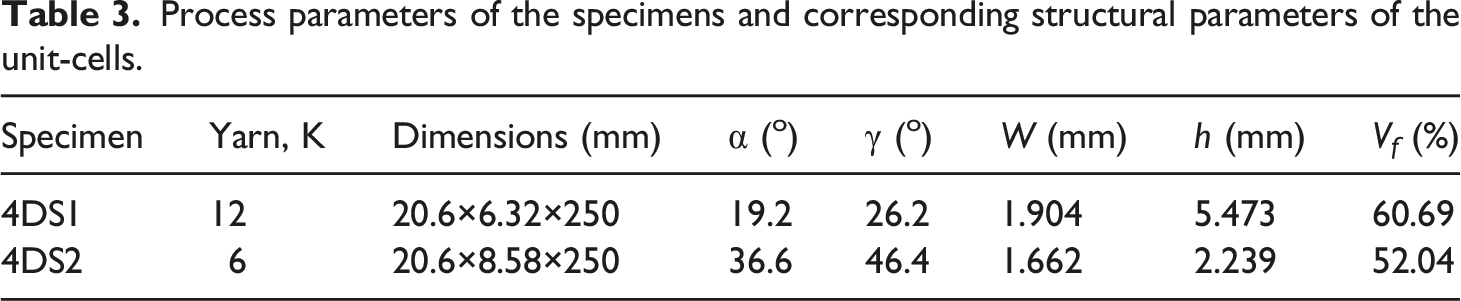

Table 3.

Process parameters of the specimens and corresponding structural parameters of the unit-cells.

Specimen	Yarn, K	Dimensions (mm)	α (^o)	γ (^o)	W (mm)	h (mm)	V_f (%)
4DS1	12	20.6×6.32×250	19.2	26.2	1.904	5.473	60.69
4DS2	6	20.6×8.58×250	36.6	46.4	1.662	2.239	52.04

Prediction of static strength

For the convenience of description, the on-axial loading is considered as a special off-axial loading with off-axis angle 0°. The stress-strain curves of the unit-cell models of two specimens under different off-axial static tension loadings are provided in Figure 4. Our previous work²⁷ has demonstrated that the stress at the inflection point of the predicted stress-strain curve under force loading mode can be regarded as the static strength of specimen. For the two specimens with different braiding angles, the variation law of off-axial tensile strength with the increase of off-axis angle is completely different. For specimen 4DS1, the off-axial tensile strength decreases gradually when the off-axis angle increases from 0° to 45°. In 0° case, the tensile strength of specimen 4DS1 is 435.86 MPa, which is about 4.58 times of that in 45° case. For specimen 4DS2, when the off-axis angle increases from 0° to 30°, the off-axis tensile strength increases gradually. And then, when it continuously increases to 45°, the off-axial tensile strength decreases slightly. In 30° case, the off-axial tensile strength of specimen 4DS2 is 160.00 MPa, which is about 1.38 times of that in 0° case. The different variation laws of off-axial tensile strength of the two specimens indicate that the braiding angle has great influence on the static properties of 3D braided composites. The specific off-axial tensile strengths of the two specimens are summarized in Table 4.

Figure 4.

Stress-strain curves of 3D braided composites under off-axial static tension loadings (a) Specimen 4DS1 (b) Specimen 4DS2.

Table 4.

Off-axial tension strengths of specimen 4DS1 and 4DS2.

Specimen	Off-axis angle (°)	Tensile strength (MPa)	Experiment
Specimen	Off-axis angle (°)	Prediction	Experiment
4DS1	0	435.86	422.99
	15	385.00	—
	30	209.99	—
	45	95.22	—
4DS2	0	115.68	100.8
	15	124.21	—
	30	160.00	—
	45	154.00	—

For specimen 4DS1, the failure mode changes significantly with the increase of off-axis angle. Under 0° and 15° off-axial static loadings, the main failure mode of braiding yarn is L tensile failure. However, the damage extent of yarn L tensile failure under 15° loading is significantly smaller than that under 0° loading, but the yarn transverse tensile shear and compressive shear failure modes emerge obviously in 15° case. The main failure mode of braiding yarn in 30° and 45° cases is transverse tensile shear failure, which is mainly distributed on the surface of yarns with a larger inclination angle between the fiber direction and off-axial loading direction. Figure 5(a) illustrates the distribution of yarn Z tensile shear failure of specimen 4DS1 under 30° static tension. Under all the off-axial static loading states from 0° to 45°, matrix cracking is one of the main damage modes at ultimate failure and concentrates in the yarn/matrix contact zone.

Figure 5.

Damage distribution of yarn Z tensile shear failure under off-axial static tension loadings (a) Specimen 4DS1 in 30° case (b) Specimen 4DS2 in 45° case.

Much yarn L tensile failure occurs in specimen 4DS2 under 0° static loading but only a small amount of yarn T compressive shear failure and Z tensile shear failure can be observed in the yarn/yarn contact zone. During the increase of off-axis angle from 15° to 45°, the quantity of yarn L tensile failure decreases gradually while yarn T compressive shear failure and Z tensile shear failure expand gradually from the yarn/yarn contact zone to the whole yarn along the fiber direction. Yarn L tensile failure is limited in 45° case and the main damage mode is the yarn transverse tensile failure, which mainly occurs in the braiding yarns with a larger inclination angle between the fiber direction and off-axial loading direction. The distribution of yarn Z tensile shear failure of specimen 4DS2 under 45° off-axial static loading is presented in Figure 5(b). Similar to specimen 4DS1, matrix cracking appears extensively at ultimate failure under all the off-axial loading cases.

Fatigue properties of braiding yarn

The fatigue resistance of braiding yarn is the critical factor for the fatigue resistance of 3D braided composites.^28,29 The braiding yarns in 3D braided composites are mainly subjected to longitudinal tensile stress, transverse compressive stress and shear stress under tensile fatigue loadings. Therefore, in order to effectively simulate the fatigue behavior of 3D braided composites, it is necessary to accurately predict the fatigue life of braiding yarn under coupled stress states. Since it is very difficult to directly study the fatigue behavior of braiding yarn in 3D braided composites, the fatigue properties of unidirectional composite under the same loading condition are generally obtained for the replacement. As exhibited in Figure 6, the variation law of S-N relations of unidirectional composite is attained when the three fatigue stresses are individually loaded.³⁰ It can be found that the effect of transverse compressive stress on the fatigue life of braiding yarn is very limited when unidirectional composite is subjected to these fatigue loads individually. Therefore, only the effects of longitudinal tensile stress and shear stress on the fatigue life of braiding yarn are considered in the following numerical analysis.

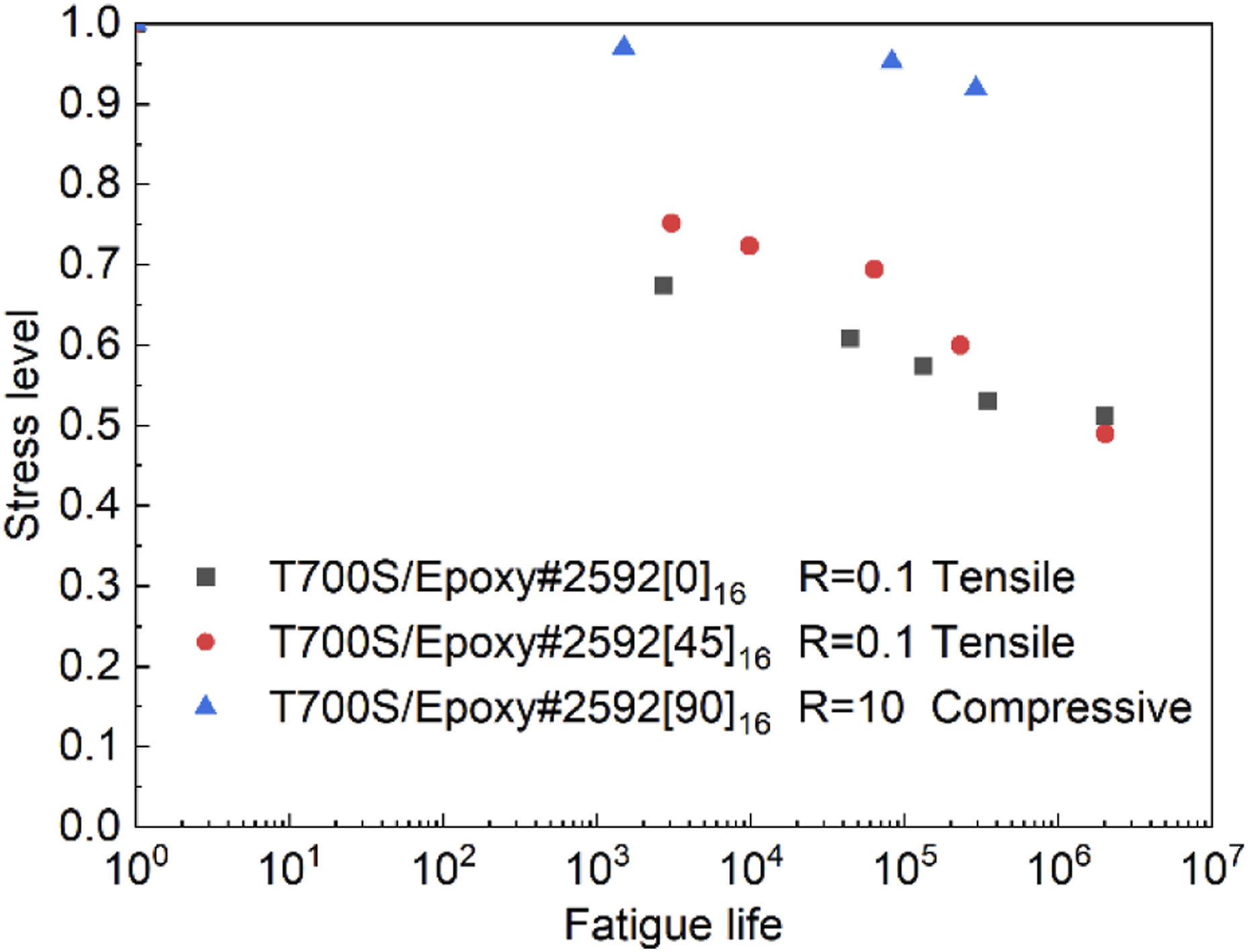

Figure 6.

Off-axial S-N relationships of unidirectional composite for different stress ratios.

Under off-axial tension loading, with the increase of off-axis angle, the damage mode of composite changes gradually from the fiber damage mode to matrix damage mode and the transition angle is generally small. For example, the transition angle of graphite/epoxy AS4/3501–6 composite is 9.3°.^1,2 Due to the absence of off-axial fatigue data for off-axis angle below 9.3°, a detailed analysis is carried out based on the fatigue data of unidirectional composite with off-axis angle 10°³⁰ The unidirectional off-axial tensile stress is transformed into longitudinal tensile stress, transverse tensile stress and longitudinal shear stress. Then, the fatigue life corresponding to the stress in each direction is predicted separately and the results are summarized in Table 5. The fatigue life related to longitudinal tensile stress is not given because all the results are greater than 10^8. It is shown that the longitudinal shear stress has a critical effect on the final fatigue failure of the unidirectional composite in 10° case. Moreover, this phenomenon is more obvious when the off-axis angle is less than 9.3°. Consequently, in the subsequent discussion on the fatigue behavior of 3D braided composites, the fatigue life predicted by longitudinal shear stress is directly taken as the fatigue life of yarn element.

Table 5.

Predicted fatigue life of unidirectional composite under individual stress level.

Stress level (off-axis specimen) %	T, %ransverse tensile		In-plane shear		Experimental fatigue life³⁰
Stress level (off-axis specimen) %	Stress level ( $σ_{Y Y} / Y_{T}$ )	Uniaxial life $N_{Y Y}$	Stress level ( $σ_{X Y} / S_{X Y}$ )	Uniaxial life $N_{X Y}$	Experimental fatigue life³⁰
58.24	32.56%	4439295	90.26%	148	10^1
52.65	30.235	10520943	83.44%	610	10^2
48.49	27.24%	33917410	75.81%	3184	10^3
44.33	24.25%	>10^8	67.21%	23,094	10^4
39.79	20.93%	>10^8	58.12%	226,317	10^5
36.71	18.60%	>10^8	51.14%	1563830	10^6

On-axial fatigue behavior

On-axis S-N curves

The numerical predictions are carried out every 5% stress level interval until the fatigue life exceeds 10^6 or the maximum stress level is below 40%. The predicted S-N curves of 3D braided composites under on-axial tension-tension fatigue loading (stress ratio R = 0.1) are shown in Figure 7. It can be found that the fatigue life gradually increases with the decrease of maximum fatigue stress, and the variation law of specimen 4DS1 and 4DS2 is nearly similar. The fatigue life of specimen 4DS2 is always smaller than that of specimen 4DS2 under the same stress level, which is related to the larger braiding angle of specimen 4DS2. The trends of the predicted on-axial S-N curves here is very similar to that of experimental curves of 3D five-directional braided composites reported by Liu et al.²⁸

Figure 7.

Predicted S-N curves of 3D braided composite specimens under on-axial fatigue tension loadings.

On-axial fatigue damage evolution

The on-axial fatigue damage evolutions of specimen 4DS1 with 55% stress level and specimen 4DS2 with 50% stress level are analyzed here, as demonstrated in Figure 8 and Figure 9. For specimen 4DS1, the main failure modes are yarn L tensile fatigue failure, T compressive shear fatigue failure and matrix cracking. As shown in Figures 8(a) and (b), yarn L tensile fatigue failure and T compressive shear fatigue failure occur at the beginning of fatigue cycles with the same damage locations. However, yarn L tensile fatigue failure almost propagates over the entire yarn after the whole cycles, while T compressive shear fatigue failure is only concentrated in the yarn/yarn contact area. As shown in Figure 8(c), matrix cracking initiates when n = 7.94e4 and propagates rapidly after massive damage of braiding yarn. That is because in this condition resin matrix will bear greater load redistribution. Consequently, yarn L tensile fatigue failure and T compressive shear fatigue failure are the critical factors leading to the final fatigue failure of specimen 4DS1 under on-axial fatigue loading conditions.

Figure 8.

Damage evolution of specimen 4DS1 under fatigue tension loading (a) Yarn L tensile fatigue failure (b) Yarn T compressive shear fatigue failure (c) Matrix cracking.

Figure 9.

Damage evolution of specimen 4DS2 under fatigue tension loading (a) Yarn L tensile fatigue failure (b) Yarn T compressive shear fatigue failure (c) Matrix cracking.

For specimen 4DS2, the main failure modes include yarn L tensile fatigue failure, yarn T compressive shear fatigue failure, matrix cracking and yarn Z tensile shear fatigue failure. As exhibited in Figures 9(a) and (b), yarn L tensile fatigue failure and yarn T compressive shear fatigue failure initiate at the beginning of fatigue cycles but the damage locations are different. Unlike specimen 4DS1, the damage propagation range and ultimate damage extent of yarn L tensile fatigue failure and yarn T compressive shear fatigue failure are very similar. Such large propagation range of yarn T compressive shear fatigue failure can be attributed to the larger yarn/yarn contact zones of specimen 4DS2. As can be seen from Figure 9(c), matrix cracking initiates very late when n = 2.51e5 and the propagation of matrix cracking is very limited before the large amount of yarn damage. Matrix cracking is also caused by the greater amount of load redistribution after yarn damage. Therefore, yarn L tensile fatigue failure and T compressive shear fatigue failure are the main triggers for the final fatigue failure of specimen 4DS2 under on-axial loading.

Off-axial fatigue behavior

Off-axial S-N curves

Based on the predicted off-axial static strengths of 3D braided composites, the fatigue behavior of specimens 4DS1 and 4DS2 with different off-axis angles are simulated. The predicted S-N curves of 3D braided composites under off-axial tension-tension fatigue loading (stress ratio R=0.1) are displayed in Figure 10. The variation trend of fatigue life increases with the decrease of stress level of specimen 4DS1 is basically similar under 0, 15 and 30° off-axial fatigue loadings. However, specimen 4DS1 reaches the fatigue limit with a small change of stress level in 45° case, which may be attributed to the greater off-axis angle. This trend is also suitable to specimen 4DS2 but it is not such obvious due to the large braiding angle of specimen 4DS2.

Figure 10.

Predicted S-N curves of 3D braided composite specimens under off-axial fatigue tension loadings (a) Specimen 4DS1 (b) Specimen 4DS2.

Off-axial fatigue damage evolution

The off-axial fatigue damage evolutions of specimens 4DS1 and 4DS2 are similar to those under on-axial fatigue loadings. Meanwhile, the main fatigue damage modes of braiding yarn at different off-axial loadings are similar to the static damage modes at corresponding off-axis angles. Compared with the damage distribution of braiding yarn in one direction, the overall damage distribution of all yarns can better reflect the off-axial fatigue failure characteristics.

For specimen 4DS1, the main fatigue damage modes of braiding yarn are almost the same in 15° and 0° loading cases, which are yarn L tensile fatigue failure and T compressive shear fatigue failure. The difference is that there is a certain extent of yarn Z compressive shear fatigue failure. In the case of 30° off-axial loading, yarn L tensile fatigue failure is still the main reason for the final fatigue failure, and it is mainly concentrated on the braiding yarns those are close to the direction of off-axial tension loading, as exposed in Figure 11(a). On the other hand, on the braiding yarns that deviate from the off-axial loading direction, it is mainly yarn Z tensile shear fatigue failure, as shown in Figure 11(b).

Figure 11.

Final damage distribution of braiding yarns under 30°off-axial fatigue tension loading at 60% stress level (a) Yarn L tensile fatigue failure (b) Yarn T tensile shear fatigue failure.

In 45° case, yarn L tensile fatigue failure is very limited, and the main failure mode is transverse tensile shear fatigue failure. The extent of tensile shear failure and its propagation speed in T and Z direction are similar, as shown in Figure 12. Here only the propagation process of yarn Z tensile shear failure is given. It is worth noting that for 45° off-axial fatigue loading, the transverse tensile shear fatigue clearly develops in the yarn/yarn contact zone before fatigue analysis but the propagation rate is very slow. At final fatigue failure, it is still the braiding yarns those are oriented away from the off-axial loading direction show serious damage. Matrix cracking is also one of the main factors for final failure under diverse off-axial fatigue loading conditions. Besides, with the increase of off-axis angle, the failure area gradually shrinks to the yarn/yarn contact zone.

Figure 12.

Damage evolution of Yarn Z tensile shear fatigue failure of specimen 4DS1 under 45° off-axial fatigue tension loading at 80% stress level (a) n = 1 (b) n = 316 (c) n = 1.25e5 (d) n = 1.58e6

For specimen 4DS2, the main fatigue failure modes of braiding yarn in 15°, 30° and 45° off-axial loading conditions are similar to that in 0° case. There are a large quantity of yarn L tensile fatigue failure, T compressive shear fatigue failure and Z tensile shear fatigue failure, and the propagation of these failure modes are very close. Figure 13 shows the propagation process of yarn Z tensile shear fatigue failure in specimen 4DS2 under 30° off-axial loading with 40% stress level. It can be seen that yarn Z tensile shear fatigue failure occurs before the fatigue analysis starts, but the damage range and extent are very limited. With the continuous fatigue cycles, yarn Z tensile shear fatigue failure propagates slowly along the fiber direction and the overall damage extent gradually increases until the end of fatigue cycles. Matrix cracking in specimen 4DS2 under different off-axial fatigue loading is very similar to that under on-axial fatigue loading.

Figure 13.

Damage evolution of Yarn Z tensile shear fatigue failure of specimen 4DS2 under 30° off-axial fatigue tension loading at 40% stress level (a) n = 1 (b) n = 7.94e3 (c) n = 1.00e5 (d) n = 1.99e5

Conclusion

In this paper, the PFDM is applied to numerically study the off-axial fatigue properties of 3D braided composites. The meso-scale damage propagation is simulated in detail, the fatigue life is predicted and the damage mechanism is analyzed thoroughly. Several main conclusions can be drawn as follows:

(1) The ultimate fatigue failure of 3D braided composites originates from the fatigue failure of braiding yarn. In the on-axis fatigue case, the main damage mode of braiding yarn is L tensile fatigue failure while in the off-axial fatigue cases, the fatigue damage mode of braiding yarn is mainly controlled by the longitudinal shear stress and the main mode is the transverse tensile shear fatigue failure.

(2) The off-axial fatigue life of 3D braided composites shows obvious nonlinear characteristics with the stress level. Besides, the braiding angle has a significant effect on the off-axial S-N curves of 3D braided composites.

(3) The final damage distribution of 3D braided composites under off-axial fatigue loading is significantly different in braiding yarns with different orientation. The yarn L tensile fatigue failure is generally concentrated in the braiding yarn with a small inclination angle between the fiber direction and off-axial loading direction. On the other hand, the transverse tensile shear fatigue failure is generally concentrated on the braiding yarns with a larger inclination angle between the fiber direction and off-axial loading direction.

The proposed unit-cell based FE model can effectively predict the fatigue damage propagation of braiding yarns in 3D braided composites. However, the limitation is that the fatigue damage simulation of matrix is not accurate enough. In this simulation, matrix cracking appears very late in the whole fatigue cycles when the matrix has to bear a larger load redistribution after yarn damage. In the available experiments of other textile composites,^31-33 matrix cracking may appear in the early cycles. The defect effect³⁴ is not included in the present meso-scale FE model. In the follow-up work, the fatigue properties of matrix and defect effect should be considered to more accurately simulate the fatigue properties of 3D braided composites. Besides, the off-axial fatigue experiments should be conducted to obtain more experimental data for comparison and verification purpose.

Since the PFDM is a common frame and the developed FE modeling strategy is transferable, it provides a suitable reference for the numerical research on the off-axial fatigue problems in other textile composites.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (11832014), Natural Science Foundation of Jiangsu Province (BK20180855) and Research Fund of State Key Laboratory of Mechanics and Control of Mechanical Structures (MCMS-E-0219Y01).

ORCID iD

Chao Zhang

References

Shokrieh

Lessard

. Progressive fatigue damage modeling of composite materials, Part I: Modeling. J Compos Mater 2000; 34: 1056–1080.

Shokrieh

Lessard

. Progressive fatigue damage modeling of composite materials, Part II: Material characterization and model verification. J Compos Mater 2000; 34: 1081–1116.

Lomov

Verpoest

, et al. A progressive damage model of textile composites on meso-scale using finite element method: Fatigue damage analysis. Comput Structures 2015; 152: 96–112.

Lomov

Verpoest

, et al. A comparative study of twill weave reinforced composites under tension-tension fatigue loading: Experiments and meso-modelling. Compos Structures 2016; 135: 306–315.

Zhang

Curiel-Sosa

Bui

. Meso-scale progressive damage modeling and life prediction of 3D braided composites under fatigue tension loading. Compos Structures 2018; 201: 62–71.

Hao

Yuan

Yao

, et al. Computational analysis of fatigue behavior of 3D 4-directional braided composites based on unit cell approach. Adv Eng Softw 2015; 82: 38–52.

Guo

Wen

Zhang

, et al. A mesoscale fatigue progressive damage model for 3D woven composites. Int J Fatigue 2021; 152: 106455.

Wang

Lin

Geng

, et al. Multi-scale damage mechanics method for predicting fatigue life of plain-braided C/SiC composites. Compos Structures 2020; 254: 112860.

Song

Wen

Cui

, et al. Weft direction tension-tension fatigue responses of layer-to-layer 3D angle-interlock woven composites at room and elevated temperatures. Int J Fatigue 2020; 139: 105770.

10.

Cheng

Tan

Xiong

. Progressive damage modelling and fatigue life prediction of plain-weave composite laminates with low-velocity impact damage. Compos Structures 2021; 273: 114262.

11.

Xiong

Zhu

Luo

, et al. Fatigue-driven failure criterion for progressive damage modelling and fatigue life prediction of composite structures. Int J Fatigue 2021; 145: 106110.

12.

Brod

Dean

Rolfes

. Numerical life prediction of unidirectional fiber composites under block loading conditions using a progressive fatigue damage model. Int J Fatigue 2021; 147: 106159.

13.

Dong

Gao

Zhang

, et al. Multi-scale modeling and experimental study of fatigue of plain-woven SiC/SiC composites. Aerospace Sci Technology 2021; 114: 106725.

14.

Cai

Zhou

Wang

, et al. Experimental investigation on mechanical properties of unidirectional and woven fabric glass/epoxy composites under off-axis tensile loading. Polym Test 2017; 58: 142–152.

15.

Zhou

Yang

. Progressive damage analysis and strength prediction of 2D plain weave composites. Composites Part B 2013; 47: 220–229.

16.

Wang

Zhao

, et al. Experimental and numerical investigation on mechanical behaviors of woven fabric composites under off-axial loading. Int J Mech Sci 2018; 141: 157–167.

17.

Zhang

, et al. Investigation on off-axial tensile properties of 3D braided composites considering void defects. J Ind Textiles 2022; 51: 5389S–5408S. DOI: 10.1177/15280837211068204

18.

Zhang

Mao

, et al. Numerical analysis of off-axial tensile behavior of 3D five-directional braided composites containing interface. Compos Inter 2022; 29: 1–15. DOI: 10.1080/09276440.2022.2030085

19.

Hashin

. Failure criteria for unidirectional fiber composite. J Appl Mech 1980; 47: 329–334.

20.

Murakami

Mechanical modeling of material damage. J Appl Mech 1988; 55: 280–286.

21.

Zako

Uetsuji

Kurashiki

. Finite element analysis of damaged woven fabric composite materials. Compos Sci Technology 2003; 63: 507–516.

22.

Lapczyk

Hurtado

. Progressive damage modeling in fiber-reinforced materials. Composites Part A 2007; 38(11): 2333–2341.

23.

Adam

Fernando

Dickson

, et al. Fatigue life prediction for hybrid composites. Int J Fatigue 1989; 11(4): 233–237.

24.

Qian

. Microstructure analysis and multi-unit cell model of three dimensionally four-directional braided composites. Appl Compos Mater 2015; 22: 29–50.

25.

Zhang

Curiel-Sosa

Bui

. Comparison of periodic mesh and free mesh on the mechanical properties prediction of 3D braided composites. Compos Structures 2017; 159: 667–676.

26.

Papanikos

Tserpes

Pantelakis

. Modeling of fatigue damage progression and life of CFRP laminates. Fatigue Fracture Eng Mater Structures 2003; 26: 37–47.

27.

Zhang

Mao

Curiel-Sosa

, et al. Meso-scale finite element simulations of 3D braided textile composites: Effects of force loading mode. Appl Compos Mater 2018; 25: 823–841.

28.

Liu

Zhang

Qiu

, et al. On-axis fatigue behaviors and failure characterization of 3D5D braided composites with yarn-reduction using X-ray computed tomography. Composites Sci Technology 2020; 203: 108585.

29.

Bradley

Soutis

, et al. 2D and 3D imaging of fatigue failure mechanisms of 3D woven composites. Composites Part A: Appl Sci Manufacturing 2015; 77: 37–49.

30.

Kawai

Itoh

. A failure-mode based anisomorphic constant life diagram for a unidirectional carbon/epoxy laminate under off-axis fatigue loading at room temperature. J Compos Mater 2014; 48(5): 571–592.

31.

Rudov-Clark

Mouritz

. Tensile fatigue properties of a 3D orthogonal woven composite. Composites Part A 2008; 39(6): 1018–1024.

32.

Blanc

Soutis

, et al. Evolution of damage during the fatigue of 3D woven glass-fibre reinforced composites subjected to tension-tension loading observed by time-lapse X-ray tomography. Composites Part A 2016; 82: 279–290.

33.

Liu

Zhang

Mao

, et al. Full-field progressive fatigue damage of 3D5D braided composites with yarn-reduction: visualization, classification, and quantification. Composites Sci Technology 2022; 218: 109214.

34.

Liu

Sun

, et al. Investigations of defect effect on dynamic compressive failure of 3D circular braided composite tubes with numerical simulation method. Thin-Walled Structures 2021; 160: 107381.
