Dynamic prediction model of segmented combined electromagnetic launch weft insertion for super-wide width industrial fabrics

Abstract

Stable, reliable and high-speed weft insertion is an urgent challenge for high-speed industrial textile weaving devices. More stable and large electromagnetic forces can be provided by the segmented combined electromagnetic launch weft insertion, compared to the conventional electromagnetic launch weft insertion, which facilitates the realization of high-speed weft insertion. For digital electromagnetic launch weft insertion textile devices, it is necessary to respond quickly to the signals fed back by the sensors. Therefore, a fast and high-precision dynamical model capable of characterizing the kinematic properties of the weft inserter is extremely essential for control, which is conducive to the stable and reliable operation of the device. In this paper, we consider the electromagnetic force, weft yarn tension, air resistance, pipe wall friction, and gravity during the movement of the weft inserter, and establish a dynamic prediction model of segmented combined electromagnetic launch weft insertion (DPMSCEI) for control. Combining simulations and experiments to evaluate the performance of DPMSCEI validates the effectiveness and professionalism of DPMSCEI in solving electromagnetic weft insertion dynamics.

Keywords

Segmented combined electromagnetic launch weft insertion dynamic prediction model super-wide width industrial fabrics MAXWELL

Introduction

Super-wide industrial fabrics can be used in aerospace,¹ water conservancy and coastal defense,^2,3 building environmental protection engineering⁴ and other fields that require large-area industrial fabrics due to their integral molding. Compared with ordinary width fabrics, the integrally formed super-wide industrial fabrics have higher overall strength consistency and more stable performance when used in large areas.⁵ The use of different functional materials for weaving allows super-wide industrial fabrics to have different characteristics and adapt to different domains. Super-wide industrial fabrics prepared by using superior-strength industrial yarn⁶ is beneficial to strengthening the protection of dams, mountains and coasts, and reducing the damage caused by floods, typhoons and other disasters. The use of conductive yarns is beneficial to the preparation of large-area electronic smart skins⁷ and large-area flexible sensors⁸ in aerospace and other fields.

The difficulty in weaving super-wide industrial fabrics lies in the requirement that the loom can provide a sufficient weft insertion speed. For example, the loom with a spindle speed of 220 r/min is required to weave a fabric with a 12 m door width to achieve a weft insertion speed of 126 m/s.⁵ At present, the weft insertion speeds of rapier looms, air-jet and water-jet looms, and projectile looms can reach 20 m/s, 66.67 m/s and 25.83 m/s, respectively.⁹ The existing loom weft insertion method is difficult to achieve super-wide weft insertion.⁵

With the rapid development of electromagnetic launch technology and pulse power control technology of electromagnetic launch system,¹⁰ some researchers have seen the possibility of using electromagnetic force as power source to drive and complete weft insertion. In 1975, a patent for the first electromagnetic weft insertion scheme based on a conventional shuttle loom was proposed.¹¹ Since then, the electromagnetic weft insertion can be divided into two research directions from the perspective of the material used in the weft inserter. One is to use the permanent magnet as the carrier to drive the weft inserter to complete the weft insertion^9,12 and the other is to use the high magnetic conductivity material as the carrier to complete the weft insertion based on the magnetoresistive electromagnetic launch principle. Since the demagnetization of the permanent magnet material weft inserter will affect the weft insertion performance during use,¹³ we focus on the magnetoresistive electromagnetic launch weft insertion. The current research on magnetoresistive electromagnetic launch weft insertion can be divided into three aspects. The first aspect is to verify the feasibility of applying electromagnetic launch technology to weft insertion.¹¹ The second aspect is to study the influence of device structure parameters,¹⁴ trigger position, excitation size and additional parameters on electromagnetic force.^13,15 The single-stage¹⁵ and multi-stage electromagnetic launch weft insertion¹⁶ are configured with the exit velocity as the main evaluation index. The third aspect is to establish a surrogate model between the exit speed and additional parameters through machine learning and optimize the weft insertion performance through the surrogate model. Emad Owlia proposed an electromagnetic weft insertion system based on an adaptive neuro-fuzzy interface system, which is 26 times faster than the finite element analysis method.¹⁷ The team then used genetic algorithms to optimize the model.¹⁸

The above research lays a foundation for the application of electromagnetic launch weft insertion. The application of super-wide width electromagnetic launch weft insertion requires further improvements in the electromagnetic force of the weft inserter. However, the commonality of the above schemes is that, to facilitate the control of the coil power supply, the length of the acceleration coil and the weft inserter at each stage are designed to be consistent. A segmented combined electromagnetic launch weft insertion scheme is proposed to provide a more stable and larger electromagnetic force¹⁹ which provides a specific solution for the super-wide width electromagnetic launch weft insertion.

For digital textile devices, it is necessary to respond quickly to signal feedback from sensors. Moreover, a control system requires further improvement to efficiently predict the position, attitude and velocity of the weft inserter during movement. The weft insertion speed control system of air-jet loom based on fuzzy logic is studied.²⁰ The control system of rapier loom based on fuzzy neural network and vector control optimization is studied.^21,22 A fast, high-precision dynamic model that characterizes the motion characteristics of the electromagnetic launch weft inserter is critical for control.²³ The research on the weft insertion prediction model of super-wide width electromagnetic launch for control consists of three parts: prediction model theory, control model hardware and software development, and prediction model validation.

In the first part, the prediction model theory needs to consider as many external forces as possible in the weaving process to bring the model predictions closer to reality. Electromagnetic force plays a dominant role in electromagnetic launch weft insertion. An accurate model for the calculation of the electromagnetic force is extremely valuable for prediction model of electromagnetic launch weft insertion. Gradient magnetic fields are seen to be more suitable for analyzing electromagnetic forces.²⁴ Shaohua Guan focused on analyzing the influence of system parameters on the launch performance of electromagnetic induction coil launchers.²⁵ The electromagnetic force calculation model of magnetoresistive electromagnetic launch is widely used.^26,27 Vangheluwe L proposed a numerical simulation model that can calculate the tension curve of weft yarn during weft insertion.²⁸ Traces of dynamic single cycle warp and weft tension for three looms used in the experimental programme are described.²⁹ Parker G W analyzed the relationship between air resistance and weft insertion speed during weft insertion.³⁰ On this basis, we considered the electromagnetic force, weft tension, air resistance, pipe wall friction and gravity of weft inserter in the weaving process, and established a dynamic prediction model of segmented combined electromagnetic launch weft insertion (DPMSCEI) for the prodction of super-wide width industrial fabrics.

In the second part, a suitable control model hardware and software platform facilitates the application of control model theory. A high-response hardware circuit with DC-DC regulation is designed to realize the control of the magnetic levitation sley for electromagnetic weft insertion.³¹ A PLC control system is designed to control the electromagnetic weft insertion mechanism.³² Combined the segmented combined electromagnetic launch weft insertion scheme,¹⁹ we use STM32F103ZET6 as the controller to control the power on and off of the coils, construct the required gradient magnetic field, and realize the reciprocating electromagnetic launch weft insertion.

The third part is the validation of the prediction model. The wide application of the low-frequency electromagnetic field finite element analysis software MAXWELL^33-35 provides convenience for us to quickly verify the performance of the model. MAXWELL is used and recognized in the field of electromagnetic launch weft insertion simulation.³⁶ We validate the performance of DPMSCEI using both simulations and experiments.

In this paper, we present the principle of super-wide width electromagnetic launch weft insertion, the working principle and the underlying calculation process of DPMSCEI. The performance of DPMSCEI is evaluated through simulations and experiments, and the effectiveness of DPMSCEI in solving the electromagnetic weft insertion dynamics is verified. DPMSCEI is able to determine the acceleration exit velocity and the parameter configuration of the acceleration device based on the user-defined loom spindle velocity and the width of the door width to implement the electromagnetic launch weft insertion. By adjusting the circuit parameters to control the electromagnetic force, DPMSCEI is beneficial to the dynamic feedback control of the high-speed loom. The built-in temperature rise algorithm can calculate the heat production of the device and facilitate the subsequent heat dissipation and reliability analysis of the device. After the application of segmented combined electromagnetic launch weft insertion technology in unidirectional weft insertion weaving is mature and stable, it can be developed towards multi-phase weft insertion looms³⁷ to further improve weft insertion reliability and fabric adaptability.

Super-wide width electromagnetic launch weft insertion

Figure 1 is a schematic diagram of the super-wide width electromagnetic launch weft insertion. The weft inserter reaches the target weft insertion speed under the action of the multi-stage energized coils and inserts the weft yarn through the shed formed by the warp. After the weft insertion is complete, the scissors at the ends of the fabric cut the weft yarn. Then the weft yarn is broken and rewinded. Finally, the weft inserter brakes and completes weft insertion. The weft transfer clamp transfers the weft yarn to the weft inserter. Under the action of the multi-stage energized coils, the weft inserter reaches the target weft insertion speed for the next weft insertion. The super-wide weft insertion is achieved by the reciprocal motion of weft inserter.

Figure 1.

Schematic diagram of the super-wide width electromagnetic launch weft insertion.

There are two technical key points:

(i) How to achieve high-speed weft insertion?

(ii) How to generate controllable weft insertion force?

Aiming at these two points, the principle of segmented combined electromagnetic launch weft insertion is used to accelerate the weft inserter. The DPMSCEI of weft inserter is established by analyzing the force of weft inserter in acceleration process and free flight process. The dynamic feedback control of the high-speed loom is achieved by tuning the circuit parameters to control the electromagnetic force.

Design goal of super-wide width electromagnetic launch weft insertion

The super-wide width electromagnetic launch weft insertion presented in this paper refers to the main parameters of the existing projectile loom. The maximum spindle speed $n$ of the PU projectile loom is between 220–330 r/min, and the maximum door width $A$ is between 2200 mm–5450 mm.³⁸ In this paper, aiming at the loom with the highest spindle speed $n$ of 220 r/min, the goal is to achieve the weft insertion with the maximum door width $A$ of 13 m. The weft insertion time accounts for 1/3 of the spindle speed of the loom, in other words, the weft inserter needs to complete weft insertion within 0.091 s, and the weft inserter needs to be accelerated to at least 146 m/s.

Principle of segmented combined electromagnetic launch weft insertion

A higher stability of the electromagnetic force can be provided by the segmented combined electromagnetic launch weft insertion compared to the conventional electromagnetic launch weft insertion, which facilitates the implementation to the realization of high-speed weft insertion. Figure 2(a) shows the variation trend of the electromagnetic force on the weft inserter when the weft inserter and a single energized coil are in different relative positions. According to the previous research, the force tendency of the magnetoresistive electromagnetic launch projectile is first accelerated and then decelerated, with a reverse pull occurring when the center of the projectile reaches the center of the coil.

Figure 2.

The principle of segmented combined electromagnetic launch weft insertion (a) The electromagnetic force distribution tendency of the weft inserter at different relative positions of the energized coil (b) The traditional electromagnetic launch weft insertion method (2 coils) and the segmented combined electromagnetic launch weft insertion method (12 coils) and electromagnetic force comparison.

The key point of segmented combined electromagnetic launch weft insertion is to divide a single energized coil into several energized coils and adopt a specific energization sequence, so that the weft inserter is constantly under the relative positions with larger electromagnetic force during the movement, as shown in Figure 2(b). This weft insertion method is beneficial for achieving fast and steady acceleration at short distances and in narrow spaces.

Dynamic prediction model of segmented combined electromagnetic launch weft insertion

The working principle of DPMSCEI can be divided into four parts, as shown in Figure 3. The first part is to determine the acceleration exit speed $v_{T a r g e t}$ required to achieve the weft insertion for different loom spindle speeds and width requirements.⁵ The second part is to determine the energization sequence of coils according to the structure of coils and the weft inserter. Using segmented combined electromagnetic launch weft insertion can provide greater and more stable electromagnetic force for the weft inserter. The third part is the temperature rise model considering the coil structure, which can calculate the temperature rise of the system and facilitate the subsequent heat dissipation and reliability analysis of the device. The fourth part is the dynamical analysis of the weft inserter for predicting the dynamical parameters of the weft inserter at different times under different excitations.

Figure 3.

DPMSCEI calculation schematic diagram.

Judgment logic of energization sequence

The key to segmental combination is to construct a specific traveling wave gradient magnetic field according to the position of the weft inserter and changing the energization sequence of the coils, so that the electromagnetic force on the weft inserter remains near a larger value.

To determine the energization sequence of the coils, the system first needs to judge the number of energized coils each time and the relative position of the energized coils where the weft inserter is located. In this paper, the modified infrared sensor modules are used to detect the position of the weft inserter.

In practice, the length of the weft inserter $L$ may not be exactly the same as the length of the energized coils. Changing the coil structure, the total number of coils $N_{s u m}$ , the length of weft inserter $L$ and the length of the air gap $L_{g a p}$ will have an effect on the energization order of coils. Judgment logic of energization sequence of coils is designed to facilitate control. For different structures, different lengths of coil $L_{c o i l}$ , weft inserter $L$ and air gap $L_{g a p}$ , the number of energized coils $N e$ need to meet the following conditions to facilitate the sensors to detect and feedback signals:

1. The total length of the energized coils and the air gap do not exceed the length of the weft inserter.

N e \times (L_{c o i l} + L_{g a p}) - L_{g a p} \leq L

(1)

2. The number of energized coils is set to even. This setup is for the sensors to detect that the start terminal of the weft inserter is located at the center of the energized coils, so that the weft inserter is always subjected to a larger pulling force during the movement. The system determines the number of energized coils based on the following formula.

n e = f l o o r (\frac{L + L_{g a p}}{2 \times (L_{c o i l} + L_{g a p})})

(2)

Where

f l o o r

represents the function of rounding down.

n e

is introduced to ensure that

N e

is even.

Number of energized coils:

N e = 2 \times n e

(3)

According to the infrared sensor detection principle, the system determines the judgment logic of energization sequence under different sensor feedback signals based on the following formula.

{\begin{cases} 1 . I n i t i a l i z a t i o n : \\ n u b m e r_{c o i l} = z e r o s (1 : N_{s u m}) \\ 2 . x < (n e + 1) \times (L_{c o i l} + L_{g a p}) : \\ n u b m e r_{c o i l} = n u b m e r_{c o i l} (1 : N e) = 1 \\ 3 . x \geq (n e + 1) \times (L_{c o i l} + L_{g a p}) & & x < (N_{s u m} - n e) \times (L_{c o i l} + L_{g a p}) : \\ n u b m e r_{c o i l} = n u b m e r_{c o i l} (j + 1 : j + N e) = 1 \\ 4 . x \geq (N_{s u m} - n e) \times (L_{c o i l} + L_{g a p}) & & x < N_{s u m} \times (L_{c o i l} + L_{g a p}) - L_{g a p} : \\ n u b m e r_{c o i l} = n u b m e r_{c o i l} (N_{s u m} - N e + 1 : N_{s u m}) = 1 \\ 5 . x \geq N_{s u m} \times L_{c o i l} + (N_{s u m} - 1) \times L_{g a p} : \\ n u b m e r_{c o i l} = z e r o s (1 : N_{s u m}) \end{cases}

(4)

For $n u b m e r_{c o i l} (j + 1 : j + N e) = 1$ , $j$ is the smallest integer in $[1, N_{s u m} - N e]$ that satisfies $x \geq (n e + j) \times (L_{c o i l} + L_{g a p}) & & x < (n e + j + 1) \times (L_{c o i l} + L_{g a p})$ .

$n u b m e r_{c o i l} (1 \times N_{s u m})$ represents the state vector of the coils. If the element value in the state vector is 1, the coil corresponding to the serial number should be energized. If the element value in the state vector is 0, the coil corresponding to the serial number should not be energized.

Temperature rise model

The electromagnetic launch weft insertion we studied is based on the principle of magnetoresistive electromagnetic launch. In the system, mechanical, electrical, magnetic and thermal are coupled with each other. Wires of different wire gauges have different capacities for carrying current. Therefore, a more detailed modeling of the relationship between coil structure, resistance and wire gauge, coil turns arrangement can be used to evaluate the launch performance of electromagnetic transmission coils and the effect on temperature rise with different wire gauges and filling factors.

Structural parameters of electromagnetic launch weft insertion coil are listed as follows: coil inner radius $R_{1}$ (m); coil outer radius $R_{2}$ (m); single coil length $L_{c o i l}$ (m); coil current $I$ (A); coil filling factor $C$ ; American wire gauge $A W G$ ; conductivity of wire $σ = 5.8 \times 10^{7} S / m$ . The coil temperature rise model considering the wire gauge can be composed of equations (5)–(15). The relationship between wire gauge and wire diameter can be referred to Egleston et al.³⁹

Coil cross-sectional area:

A_{C o i l} = L \times (R_{2} - R_{1})

(5)

Wire diameter:

D_{W i r e} = 0.0082 \times {0.8931}^{A W G}

(6)

Wire cross-sectional area:

A_{W i r e} = \frac{π}{4} D_{W i r e}^{2}

(7)

The average length of a wire circle:

L_{M e a n T u r n} = π \times (R_{1} + R_{2})

(8)

Bare wire diameter:

D_{B a r e W i r e} = 0.00826 \times {1.123}^{(- A W G)}

(9)

Bare wire section:

A_{B a r e W i r e} = \frac{π}{4} D_{B a r e W i r e}^{2}

(10)

Number of turns:

N_{T u r n s} = f l o o r (C \times \frac{A_{C o i l}}{A_{W i r e}}) = f l o o r [\frac{4 C}{π} \times \frac{L \times (R_{2} - R_{1})}{{(0.0082 \times {0.8931}^{A W G})}^{2}}]

(11)

Ampere-turns:

A T = I \times N_{T u r n s}

(12)

Coil resistance:

R_{C o i l} = \frac{N_{T u r n s} \times L_{M e a n T u r n}}{σ \times A_{B a r e W i r e}}

(13)

According to Ohm’s law, the ohmic loss of the super-wide width electromagnetic launch weft insertion DC coil acceleration system can be expressed as follows.

Q_{o h m i c l o s s} = I^{2} R t

(14)

The temperature rise of the coil can be expressed as follows.

Δ T = \frac{Q_{o h m i c l o s s}}{m_{c o i l} c} = \frac{Q_{o h m i c l o s s}}{ρ A_{B a r e W i r e} N_{T u r n s} L_{M e a n T u r n} c}

(15)

$c = 385 J / (k g \cdot ° C)$ represents the specific heat capacity of pure copper, and $ρ = 8933 k g / m^{3}$ represents the density of pure copper.

Mechanical model

The weft inserter is mainly affected by electromagnetic force, air resistance, weft tension, pipe wall friction and gravity during its movement. The difficulty of DPMSCEI lies in the prediction of the electromagnetic force on the weft inserter under the mode of segmented combined electromagnetic launch weft insertion.

Electromagnetic force $F_{E M}$

Hypothesis: Using the idea of differentiation, the weft inserter is divided into multiple microsegments. The uniform magnetization is satisfied in each microsegment. The magnetic field intensity at the cross-section of each microsegment is uniformly distributed during the motion of the weft inserter. The distribution of the magnetic field at the axis can be used to characterize the distribution of the magnetic field at the cross-section. The magnetization time of the weft inserter and yokes are ignored. The effect of the magnetization history on the magnetization properties is ignored. Eddying effect, magnetic flux leakage and end effect are ignored.

We model the electromagnetic force in terms of the characteristics of the segmented and combined super-wide width electromagnetic launch weft insertion. Electromagnetic forces are the most prominent driving force in the weft inserter through electromagnetic launch, which directly affects the weft inserter performance of the loom. The sources of the magnetic field in the space are energized coils that perform switching according to a certain logic. The magnetic field excited by the energized coils in space magnetizes the yokes and weft inserter made of ferromagnetic material. Ferromagnetic materials can be divided into hard magnetic materials and soft magnetic materials. The design of electromagnetic launch weft inserter is bidirectional weft insertion, and the material of the weft inserter is soft magnetic material with low coercive force, low remanence and high magnetic permeability, as shown in Figure 3. According to the molecular current viewpoint in the magnetization theory, under the action of the torque of the magnetization field, the magnetic moments of the circulating molecules of each molecule are arranged along the direction of the field to a certain extent. Figure 4(g) shows the magnetizing current direction of the weft inserter. As shown in Figure 4(a), combined with Ampere’s force formula $d F = I d L \times B$ , the electromagnetic force on the weft inserter can be obtained. The weft inserter is simplified by the method shown in Figure 4(b).

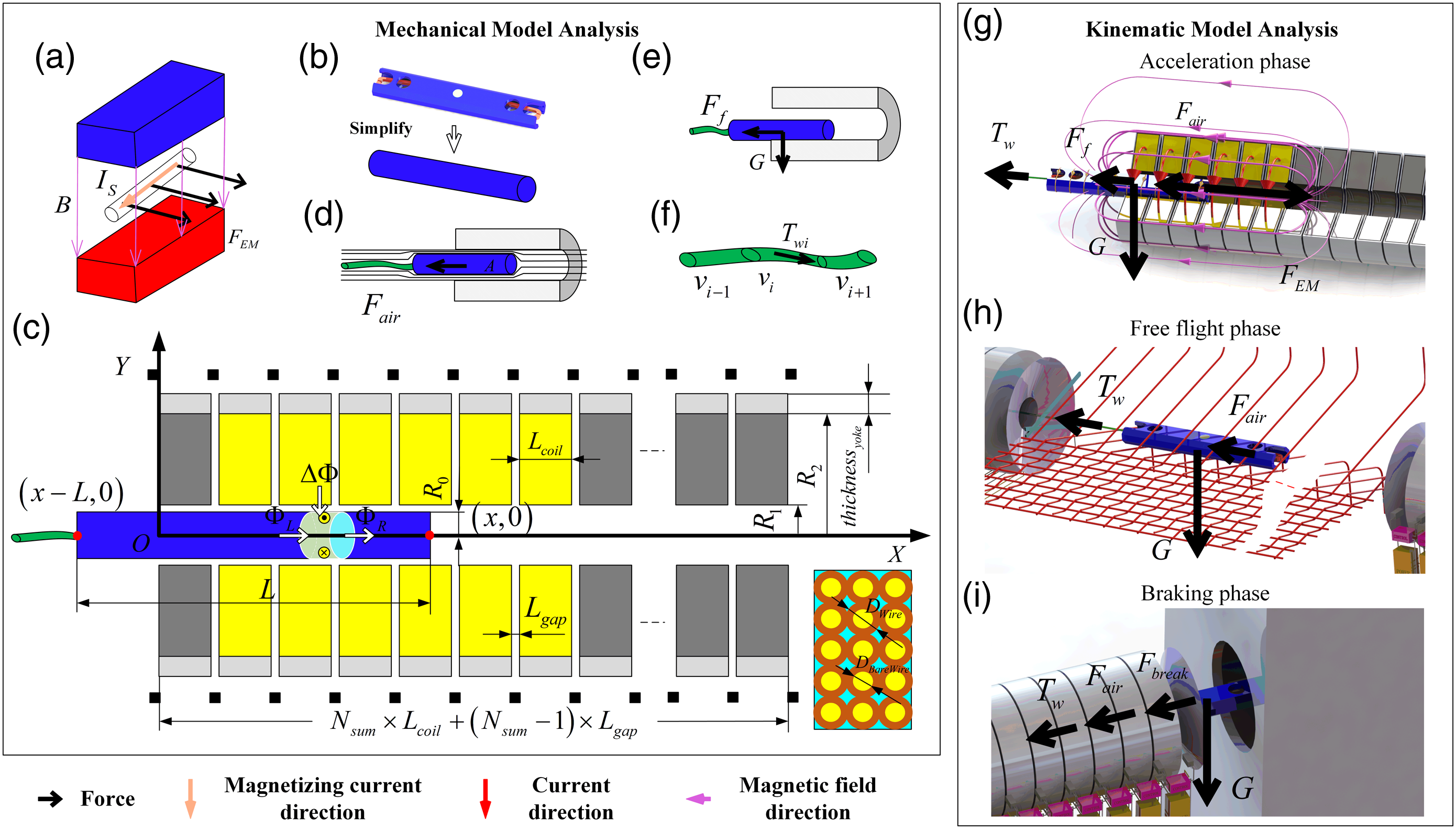

Figure 4.

Mechanical and kinematic model analysis of weft inserter (a) Analysis of the calculation principle of electromagnetic force (b) The simplification of the weft inserter (c) Analysis of the calculation principle of electromagnetic force under the segmented combined electromagnetic launch method (d) The air resistance (e) The pipe wall friction (f) The weft tension (g) The forces of the weft inserter during acceleration phase (h) The forces of the weft inserter during free flight phase (i) The forces of the weft inserter during braking phase.

Magnetic flux continuity theorem: The net magnetic flux through any closed surface is equal to zero. Combined with Figure 4(c), there is

Δ Φ = Φ_{R} - Φ_{L}

(16)

The electromagnetic force on any microsegment of the simplified weft inserter can be expressed as:

F = B I L \sin θ = \frac{Δ Φ}{L_{c} \times l_{p}} (M l_{p}) L_{c} = M \times Δ Φ

(17)

Where $L_{c}$ represents the circumference of the cylinder. According to the theory of electromagnetism, the magnitude of the magnetizing current on each microsegment cylinder surface of the weft inserter at this moment is the same, that is, it is uniformly distributed. The magnetization $M$ is numerically equal to the linear density of the magnetizing current $j_{S}$ . The derivation is as follows.

After magnetization, the direction of the molecular magnetic moment $P_{m}$ in the weft inserter is consistent and $\sum P_{m}$ is numerically equal to $\sum P_{m}$ .

M = \frac{\sum P_{m}}{Δ V} = \frac{I_{S} (π {R_{0}}^{2})}{l_{p} (π {R_{0}}^{2})} = \frac{I_{S}}{l_{p}} = j_{S}

(18)

Under the above conditions, the magnitude of the magnetization current can be expressed as: $I = M l_{p}$ . $M$ is the magnetization intensity, and $l_{p}$ is the length of the ferromagnetic material in the microsegment.

The magnetic field intensity and magnetic flux density at the axis of a single multilayer tightly wound solenoid coil¹⁹ can be expressed as:

\begin{array}{l} H (X) = \frac{N I}{2 L_{c o i l} (R_{2} - R_{1})} \\ [X \ln \frac{R_{2} + \sqrt{{R_{2}}^{2} + X \cdot X}}{R_{1} + \sqrt{{R_{1}}^{2} + X \cdot X}} - (X - L_{c o i l}) \ln \frac{R_{2} + \sqrt{{R_{2}}^{2} + (X - L_{c o i l}) \cdot (X - L_{c o i l})}}{R_{1} + \sqrt{{R_{1}}^{2} + (X - L_{c o i l}) \cdot (X - L_{c o i l})}}] \end{array}

(19)

\begin{array}{l} B (X) = \frac{μ_{0} N I}{2 L_{c o i l} (R_{2} - R_{1})} \\ [X \ln \frac{R_{2} + \sqrt{{R_{2}}^{2} + X \cdot X}}{R_{1} + \sqrt{{R_{1}}^{2} + X \cdot X}} - (X - L_{c o i l}) \ln \frac{R_{2} + \sqrt{{R_{2}}^{2} + (X - L_{c o i l}) \cdot (X - L_{c o i l})}}{R_{1} + \sqrt{{R_{1}}^{2} + (X - L_{c o i l}) \cdot (X - L_{c o i l})}}] \end{array}

(20)

Where

X

represents the vector composed of positions of points on the weft inserter. Each element in

X

belongs to

[x - L, x]

x

represents the position of the front end of the weft inserter (changes with the direction of movement), and

L

represents the length of the weft inserter.

The magnetic field intensity of each microsegment when the weft inserter is in position can be expressed as:

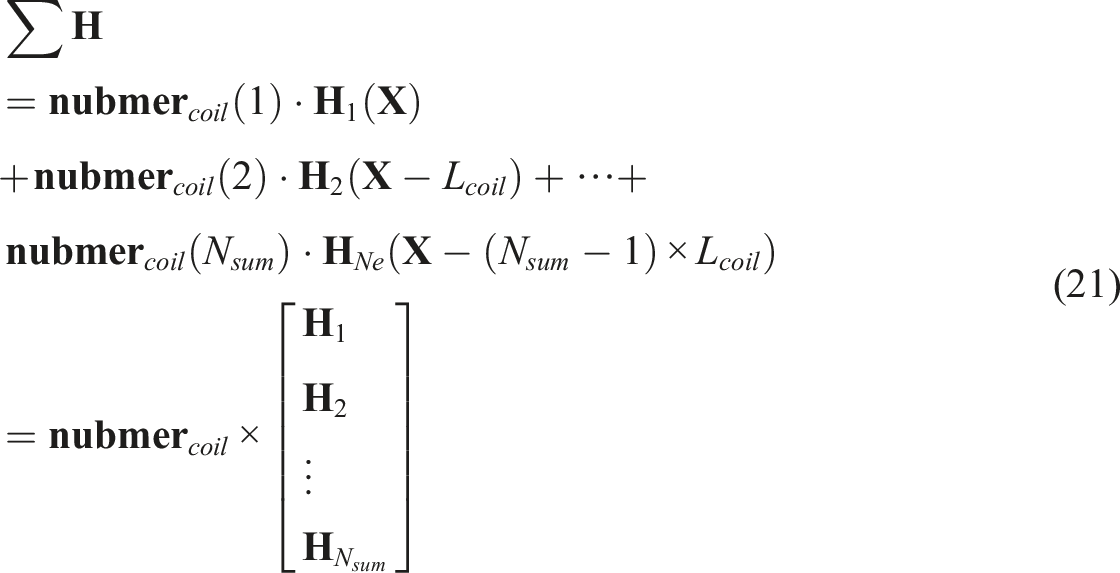

\begin{array}{l} \sum H \\ = n u b m e r_{c o i l} (1) \cdot H_{1} (X) \\ + n u b m e r_{c o i l} (2) \cdot H_{2} (X - L_{c o i l}) + \dots + \\ n u b m e r_{c o i l} (N_{s u m}) \cdot H_{N e} (X - (N_{s u m} - 1) \times L_{c o i l}) \\ = n u b m e r_{c o i l} \times [\begin{array}{l} H_{1} \\ H_{2} \\ ⋮ \\ H_{N_{s u m}} \end{array}] \end{array}

(21)

Since we choose soft magnetic materials, we neglet the effect of the magnetization history, which is the hysteresis loop, on magnetization properties in the theoretical calculations and use the B-H curve for calculations. The magnetization of the material is expressed by the following formula.

M = \frac{B}{μ_{0}} - H

(22)

Combined with the B-H curve of the material, as shown in Figure 3, the magnetization intensity and magnetic flux density of the weft inserter under different magnetic field intensities can be obtained. In this way, the magnetic flux gradients at the left and right ends of each microsegment can be resolved.

The electromagnetic force on the weft inserter can be further expressed as:

F_{E M} = \int M (x + d x) S (B (x + d x) - B (x))

(23)

Air resistance $F_{a i r}$

The weft inserter is affected by air resistance during its movement, as shown in Figure 4(d), (g)–(i). Referring to the resistance of the car during driving and the bullets flying, the air resistance suffered by the weft inserter can be expressed as:

F_{a i r} = \frac{1}{2} C_{d} \times A_{c r o s s — s e c t i o n} \times ρ_{a i r} \times v^{2}

(24)

Where

C_{d}

represents the air resistance coefficient, which can be expressed as 0.295 with reference to the bullet air resistance coefficient. We set the air resistance coefficient of the weft inserter to 0.3.

A_{c r o s s - \sec t i o n}

represents the windward area of the weft inserter, which is set to the cross-sectional area of the weft inserter.

ρ_{a i r}

represents the density of air. The air density is different at different ambient temperatures, and the relationship can be expressed as:

\frac{ρ_{0}}{ρ_{a i r}} = \frac{100}{p} \cdot \frac{T + 273}{20 + 273}

(25)

Where

ρ_{0} = 1.205 k g / m^{3}

is the air density at 20°C, 100 kPa.

T

and

p

represent the ambient temperature and atmospheric pressure during weft insertion, respectively.

Weft tension $T_{w}$

The high weft insertion rate of the loom will cause yarn breakage, and the limit weft tension that different weft yarns can bear is different. For the high-speed weft insertion process, high-speed viscoelastic behavior of the yarn is particularly crucial.

The model of weft tension is:²⁸

T_{w} (ε) = \int_{0}^{ε} λ {[v (ε^{'})]}^{2} d ε^{'} - F_{l o w - s p e e d} (ε)

(26)

The calculation result of the weft tension is around 1N.²⁸ In the model of this paper, we initially set the weft tension as $T_{w} = 1 N$ , as shown in Figure 4(f). After additional in-depth experimental research on the weft tension, the module of weft tension in DPMSCEI can be corrected.

Pipe wall friction $F_{f}$

During the acceleration process of the weft inserter, we need to design the air gap as small as possible to make the weft inserter receive greater electromagnetic force due to the characteristics of magnetoresistive electromagnetic launch. The existence of this design premise makes it possible to automatically adjust the position and attitude of the weft inserter in the magnetoresistive electromagnetic launch weft insertion, however the pipe wall friction will become one of the important forces that hinder the acceleration of the weft inserter. Since the radial air gap in the acceleration pipe is very small, it is assumed that the radial electromagnetic force on the weft inserter is not considered. Pipe wall friction, as shown in Figure 4(e), can be expressed as: $F_{f} = μ N \approx μ m g$ , where $μ$ is the friction coefficient between the weft inserter and the pipe.

Considering that the weft insertion of the loom is a high-speed reciprocating motion, continuous work will increase the sliding friction coefficient between the weft inserter and the pipe wall. DPMSCEI can calculate the sliding friction coefficient between the weft inserter and the pipe wall in real time according to the speeds of the weft inserter detected by the sensors, combined with $μ = \frac{{v_{1}}^{2} - {v_{2}}^{2}}{2 g x}$ , and correct the friction coefficient in DPMSCEI.

Where $v_{1}$ represents the velocity at one point in the axial direction of the weft inserter when it is only subjected to the friction force of the pipe wall. $v_{2}$ represents another speed in the axial direction of the weft inserter that is only subjected to the pipe wall friction. $x$ means the displacement of weft inserter movement when $v_{1}$ decelerates to $v_{2}$ .

Gravity $G$

During the 0.091s of weft insertion by the weft inserter, according to $y = \frac{1}{2} g t^{2}$ , the weft inserter will drop 40.58 mm under the action of gravity. Existing projectile looms can automatically compensate this height to complete weaving. In this paper, the PU projectile loom is used as the prototype to design the pipe with bell mouth structure at the inlet and outlet of the weft inserter to assist in guiding the return of the weft inserter, as shown in Figure 1.

Kinematic model

The movement process of the weft inserter is mainly divided into three phases: Acceleration, free flight and braking. The DPMSCEI we established can determine the exit speed that the weft inserter needs to achieve after acceleration according to the weft insertion requirements that the weft inserter needs to meet during the free flight stage. The configuration of parameters such as coil structure, number of coils and current excitation in the acceleration phase are then determined.

Acceleration phase

As shown in Figure 4(g), the weft inserter is mainly affected by electromagnetic force, air resistance, pipe wall friction, weft tension and gravity during the acceleration stage. Its motion process satisfies:

{\begin{matrix} \dot{x} = v \\ \ddot{x} = a = \frac{F_{E M} - F_{a i r} - T_{w} - F_{f}}{m} \\ F_{a i r} = f (\dot{x}) \\ F_{E M} = f (x) \end{matrix}

(27)

Free flight phase

As shown in Figure 4(h), the weft inserter is mainly affected by gravity, air resistance, and weft tension during the free flight stage. Its motion process satisfies:

{\begin{matrix} \dot{x} = v \\ \ddot{x} = a = - \frac{F_{a i r} + T_{w}}{m} \\ F_{a i r} = f (\dot{x}) \end{matrix}

(28)

Braking phase

As shown in Figure 4(i), the weft inserter is mainly affected by weft tension, air resistance, braking force and gravity during the braking stage. Its motion process satisfies:

{\begin{matrix} \dot{x} = v \\ \ddot{x} = a = - \frac{F_{a i r} + T_{w} + F_{b r e a k}}{m} \end{matrix}

(29)

We use the spring + sucker scheme to achieve weft inserter braking and energy recovery. The main principle is that the weft inserter relies on the spring for braking and energy recovery after the weft insertion is completed. The braking and energy recovery device converts the kinetic energy of the weft inserter into potential energy and then into kinetic energy while realizing the weft inserter reversing. The main function of the sucker is to provide time for weft handover.

The weft inserter will obtain an initial weft insertion speed after braking with the energy recovery device designed by us. DPMSCEI can also use the speed detected by the sensors as the initial value, combined with the current system structure parameter configuration, to predict the exit speed of the weft inserter under different current excitations. The current excitation that meets the target exit speed can be determined, which provides a theoretical basis for the dynamic feedback control of super-wide width electromagnetic launch weft insertion.

Super-wide width electromagnetic launch weft insertion scheme predicted by DPMSCEI

In this paper, aiming at the loom with the highest spindle speed of 220 r/min, the goal is to achieve the weft insertion with the maximum door width of 13 m.

The SIMULINK module in MATLAB R2018b is used to model and solve equation (24), equation (26) and equation (28) for the free flight phase of the weft inserter with the boundary condition of 0.091 s for the 13 m weft inserter motion described in Section Design goal of super-wide width electromagnetic launch weft insertion, as shown in Figure 5. Where $T_{w} = 1 N$ , $m = 0.04 k g$ , and $x = 13 m$ , the initial velocity of the weft insertion needs to be at least 146 m/s.

Figure 5.

Screenshot of SIMULINK model and solution interface in free flight phase.

The number of coils and the values of coils current excitation are configured according to the target exit velocity of the weft inserter calculated above. The SIMULINK module in MATLAB R2018b is used to solve the dynamical model of the weft inserter in the acceleration phase introduced in equations (16)–(26) and equation (27), as shown in Figure 6.

Figure 6.

Screenshot of SIMULINK model and solution interface in acceleration stage.

Different parameters can be configured according to the dynamical model described above to obtain the scheme of super-wide width electromagnetic launch weft insertion shown in Table 1. The structural parameters of each acceleration unit are: Number of turns

N = 150

, coil inner radius

R_{1} = 8 m m

, coil outer radius

R_{2} = 30.5 m m

, coil length

L_{c o i l} = 14 m m

, air gap

L_{g a p} = 1 m m

, yoke thickness

t h i c k n e s s_{y o k e} = 5 m m

, weft inserter length

L = 90 m m

, weft inserter radius

R_{0} = 7.5 m m

. The material of the yoke and weft inserter is steel1008.

Table 1

Super-wide width electromagnetic launch weft insertion scheme (width 13 m, loom spindle speed 220 r/min).

	Input		Output
No.	Number of coils	Current (A)	Exit velocity (m/s)	Acceleration time (s)	Acceleration distance (m)	Maximum coil energization time (s)	Maximum temperature rise (°C)
1	58	100	115.7	0.0156	0.87	0.0065	0.1885
2	58	120	127.0	0.0142	0.87	0.0059	0.2464
3	60	150	144.0	0.0129	0.90	0.0053	0.3458
4	70	120	140.0	0.0155	1.05	0.0059	0.2464
5	70	150	156.0	0.0139	1.05	0.0053	0.3458
6	80	100	136.0	0.0182	1.20	0.0065	0.1885
7	80	120	149.2	0.0166	1.20	0.0059	0.2464
8	80	150	167.0	0.0148	1.20	0.0053	0.3458
9	90	100	144.5	0.0192	1.35	0.0065	0.1885
10	90	110	151.6	0.0184	1.35	0.0062	0.2176
11	90	120	158.4	0.0176	1.35	0.0059	0.2464

The configuration is based on the above structural parameters, the length of the weft inserter $L = 90 m m$ , and the length of a single coil $L_{c o i l} = 14 m m$ . According to the judgment logic of energization sequence introduced in equations (1)–(4), it is calculated that 6 coils need to be energized at the same time each time. Therefore, the sixth coil is energized for the longest time during the entire acceleration process. The longest coil energization time is the time corresponding to the sixth valley in the force diagram. According to equation (15), the maximum temperature rise for one acceleration of the system can be calculated. The dynamic balance between system heat generation and system heat dissipation is conducive to realizing the thermal stability of the device. Therefore, for a loom with a loom spindle of 220 r/min, the acceleration parameter configuration with 90 acceleration coil modules used in this paper on one side and a single excitation of 110A is adopted. Theoretically, it is recommended to dissipate 0.2176°C for the system every 273 ms during continuous operation.

Experiment

In order to verify the reliability of the DPMSCEI we have established, a corresponding finite element simulation model has been developed to compare and verify the feasibility of the super-wide width electromagnetic launch weft insertion scheme. For safety, a small segmented combined acceleration platform is built to verify the accuracy of DPMSCEI and simulation models at low power.

Finite element simulation

Ansoft Maxwell EM is a low-frequency electromagnetic field simulation software for industrial applications, which has significant advantages in calculating electromagnetic forces. We use the 2D transient solver in the cylindrical coordinate system in Maxwell2020 for analysis. The principle of calculation adopted by Maxwell for solving the electromagnetic force on the weft inserter is based on the following formula:

F = \frac{d W_{m}}{d s} = \frac{\partial}{\partial s} [\int_{V} (\int_{0}^{H} B \cdot d H) d V]

(30)

In the formula,

d s

represents the virtual displacement, and

W_{m}

represents the total magnetic field energy of the system.

Equipment used: DESKTOP-455SV06

Processor: Intel(R) CPU E-52620 v4 2 2.10 GHz

RAM: 32.0 GB

The setting of simulation parameters are set up as an example with 90 coils and 110A DC excitation. The Solution Type is chosen to be Magnetic-Transient. Geometry Mode is chosen to be Cylindrical About Z. A geometric model of a single coil is constructed with

R_{1} = 8 m m

R_{2} = 30.5 m m

and

L_{c o i l} = 14 m m

. A geometric model of a single yoke is constructed with

t h i c k n e s s_{y o k e} = 5 m m

and length = 14 mm. Yoke and coil are in direct contact. Select two objects, coil and yoke, and select the Along Line command to array. The number of arrays is 90 and the array distance is 15 mm. Moreover, all coil and yoke geometric models are renamed according to coil_1 and yoke_1. The geometric model of the weft inserter is constructed with

R_{0} = 7.5 m m

and length

L = 90 m m

. The geometric model of the Band with a radius of 7.75 mm and a length of 1600 mm is built. The Band needs to contain all the areas where the weft inserter moves and cannot come into contact with other stationary objects. Select Create Region and set + R offset to 50%, -R offset to 50%, +Z offset to 5%, -Z offset to 5%. The material of all coils is set to copper. The material of all yokes is set to steel1008. The material of the weft inserter is set to steel1008. The material of Band and Region is set to vacuum. Select the three edges of the Region except the axis of symmetry and set them as Balloon Boundaries. Select the object Band and select the command Assign band. In the motion setup, set the Motion Type to Translation, the Motion Direction to the Positive Direction Of The Z-axis, and the motion range to 0–1400 mm. Select Consider Mechanical Transient, set Initial Velocity = 1 m/s (the initial velocity is not set to 0 mainly to trigger the displacement sensor), Mass = 0.04 kg. Assign Datasets, according to the principle introduced in equations (1)–(4), calculate the energization sequence of each coil with 6 energized each time for 90 coils. Create 90 datasets named ds1–ds90, and Table 2 lists all the data of ds10. Add excitations to all coils, taking coil_1 as an example, select the coil_1 geometry, assign Excitation-coil, set the Number of Conductors to 150. Select the Add Winding command, set the Parameters Type to Current, select Stranded, and set Current to pwl(ds1,position). Add coil_1 to winding_1. The same operation sets the excitation for 90 coils. Select the Band object. Select Assign Mesh Operation - On Selection - Length Based. Maximum Number Of Additional Elements is set to 6000. Select the Add Solution Setup command, refer to the result of DPMSCEI, and set the Stop Time to 19 ms and the Time Step to 0.1 ms. Set Eddy Effects. Analyze all. In the post-processing, the electromagnetic force and running speed of the weft inserter at different times and positions can be checked.

Table 2.

Data in ds10.

Number	X	Y
1	0	0
2	0.105	0
3	0.105001	110
4	0.195	110
5	0.195001	0
6	1.5	0

Limitations: Consider that we use position-based timing of coil energization. As the speed of the weft inserter gradually increases, the real timing changes in the energized coils simulation are greatly affected by the analysis step size. A shorter analysis step can more sensitively judge the energization state of each coil, which is conducive to calculating a more accurate electromagnetic force. However, a shorter analysis step will greatly increase the amount of simulation data, and the model of segmented combined super-wide width electromagnetic launch weft inserter is very large. Such a setting will make it impossible for the computer we use to solve it.

Single stage electromagnetic force measurement

The key point of DPMSCEI is the accurate calculation of the electromagnetic force on the weft inserter. We need to focus on measuring and examining the electromagnetic forces, as shown in Figure 7(a)–(c).

Figure 7.

Experimental scene and principle (a) Single-stage electromagnetic force measuring device (b) Photo of relative position measurement between weft inserter and coil (c) Relative position measurement principle between weft inserter and coil (d) Segmented combined electromagnetic launch weft insertion experimental model (e) Single coil control loop (f) The principle of the weft inserter speed measurement.

Equipment used: American Huazhi PTT electronic analytical balance/0.001 g, WANPTEK-GPS3010 A power supply, coil, weft inserter, SR5100 diode, student scale/1 mm, bracket, and several wires.

Measuring principle of electromagnetic force: The weft inserter is placed on the American Huazhi PTT electronic analysis balance. According to $F_{E M} = g \times (m_{0} - m_{i})$ , the electromagnetic force on the current position of the weft inserter can be calculated. $m_{0}$ indicates the reading of Huazhi PTT electronic analytical balance when the coil is not energized. $m_{i}$ indicates the reading of American Huazhi PTT electronic analytical balance when the coil is energized. $g$ represents the acceleration due to gravity. Changing the height of the bracket, adjusting the position of the coil and repeating the measurement and recording can obtain the electromagnetic force on the weft inserter when the coil and the weft inserter are in different relative positions.

Measuring principle of distance: The Mi 12 mobile phone is used to shoot, and the shooting boundary is made parallel to the frame of the Huazhi PTT electronic analytical balance. Read the dimensions of the upper and lower ends of the coil and the lower end of the weft inserter in the photo that is flush with the scale. The length of the coil and the weft inserter are known, and the relative position between the weft inserter and the coil can be converted by using $x = L_{c o i l} + L - \frac{L_{c o i l}}{x_{3} - x_{2}} (x_{3} - x_{1})$ .

Limitations: Only suitable for measuring electromagnetic forces smaller than the gravity of the weft inserter.

Weft inserter speed measurement

Weft insertion speed is an essential index to measure the weft insertion of super-wide width electromagnetic launch. We need to focus on the measurement and inspection of the weft inserter speed. Figure 7(d) shows the scene of the weft insertion experimental platform for segmented combined electromagnetic launch we built. The difficulty in constructing such a platform is to control the on and off states of all the coils according to the position of the weft inserter. Figure 7(e) shows the control circuit for a single coil, and the control circuit for multiple coils is an array of control circuits for a single coil.

The experimental platform of the electromagnetic weft insertion control part is mainly composed of an upper machine PC, a serial communication module, a single-chip microcomputer STM32F103ZET6, infrared sensor modules, drive circuit modules, control circuit modules, and electromagnetic coil modules. The upper machine communicates with the STM32F103ZET6 chip through the R232 serial port. The weft inserter triggers different infrared sensors. The single-chip microcomputer pin captures the corresponding signal and outputs high and low levels to a specific pin to control the on and off of the drive circuit modules, as shown in Figure 7(f).

Equipment used: STM32F103ZET6, infrared sensor modules

The principle of the weft inserter speed measurement: Infrared sensor module control pin outputs a high level when there is an object in the infrared sensor module and a low level otherwise. STM32F103ZET6 is used to capture the duration of the high level of the output terminal of the infrared sensor. Combined with the length of the weft inserter, the speed of the weft inserter can be calculated.

Results and discussion

Simulation results of segmented combined electromagnetic launch weft insertion scheme

Figure 8(a) and (b) are the results of sample of 10–100 and sample of 58–100 calculated by Maxwell, which is used to compare the performance of the traditional electromagnetic launch weft insertion method (sample of 10–100) and the segmented combined electromagnetic weft insertion method (sample of 58–100). The sample of 10–100 indicates 10-level coils, and the excitation for coils is 100 A. For sample of 10–100, each coil length is 84 mm. The number of turns is 900. The gap between adjacent coils is 3 mm. The total length of the sample of 10–100 is 840 mm. The sample of 58–100 indicates 58-level coils, and the excitation for coils is 100 A. For sample of 58–100, each coil length is 14 mm. The number of turns is 150. The gap between adjacent coils is 1 mm. The total length of the sample of 10–100 is 812 mm. The sample of 10–100 has a higher energy density input than a sample of 58–100. From Figure 8(a), it can be seen that the peak value and fluctuation of electromagnetic forces generated by the sample of 10–100 are larger than that of the sample of 58–100. The sample of 58–100 is more stable. The electromagnetic force with large fluctuations is more likely to produce fabric defects for weaving equipment. Combining with Figure 8(b), it can be observed that the input energy of the 58–100 sample is smaller, and the speed of the weft inserter after acceleration is larger. The segmented combined scheme is beneficial to improve the utilization rate of energy and improve the fabric quality at the same time.

Figure 8.

(a) The electromagnetic force of the weft inserter of sample of 10–100 and sample of 58–100 at different positions (b) The velocity of the weft inserter of sample of 10–100 and sample of 58–100 at different positions (c) The energization sequence of all coils in sample of 90–110 (d) The temperature rise of all coils in sample of 90–110 (e) The magnetic flux density at different time positions in the sample of 90–110 (f) The magnetic flux density gradient at different time positions in the sample of 90–110.

Since the segmented combined scheme currently uses infrared sensor modules for position detection, air gaps between the coils are required. Compared to the traditional electromagnetic weft insertion scheme, segmented combined scheme produces more magnetic flux leakage, which makes the peak electromagnetic force smaller than the traditional scheme. By using thinner infrared sensors to reduce the air gap between adjacent coils, the unit energy density of the acceleration device and the acceleration exit speed of weft inserter can be improved. Or using time-lapse artificial neural networks to predict the position of the projectile inside the coil instead of using infrared sensors.⁴⁰ Although the segmented combined scheme is weakened as the speed increases to improve the energy utilization rate, a more stable electromagnetic force is also a requirement for high-level textile equipment.

In order to more precisely analyze the characteristics of the segmented combined super-wide width weft insertion, we select the sample of 90–110 for analysis based on the weft insertion velocity requirements. Figure 8(c) is the energization sequence of 90 coils obtained by using the segmented combined control logic. It can be seen from Figure 8(c) that the energization time of the 6th coil is the longest. This is due to the fact that sample of 90–110 needs 6 coils to be energized each time, and the time taken to pass through post coils is reduced when the weft inserter is accelerated by the acceleration device. According to the segmented combined control logic of DPMSCEI, the serial number of the coil with the longest energization time is the calculated number of each energization. Figure 8(d) shows the temperature rise due to the heat generated by each coil after one acceleration calculated using equation (15). The temperature rise is mainly concentrated in the first 6 coils, with the 6th coil producing the largest amount of heat. Figure 8(e) shows the magnetic flux density at different times along the axis of the accelerator. Figure 8(f) shows the magnetic flux density gradient at different times along the axis of the accelerator. The red part in Figure 8(f) is the part where the gradient magnetic field is greater than 0, which is the position of the weft inserter during the movement. The electromagnetic force is positively correlated with the gradient magnetic field. The gradient magnetic field greater than 0 is conducive to generating positive electromagnetic force and promoting the acceleration of the weft inserter.

Figure 9 shows the magnetic induction line diagram and magnetic flux density cloud diagram of the model established by Maxwell at 2 ms, 14 ms, 18 ms, and 18.2 ms for samples of 90–110 respectively, and shows the position and speed of the weft inserter at these times.

Figure 9.

(a) The magnetic induction line diagram of the model at 2 ms for sample of 90–110 (b) The magnetic flux density cloud diagram of the model at 2 ms for sample of 90–110 (c) The magnetic induction line diagram of the model at 14 ms for sample of 90–110 (d) The magnetic flux density cloud diagram of the model at 14 ms for sample of 90–110 (e) The magnetic induction line diagram of the model at 18 ms for sample of 90–110 (f) The magnetic flux density cloud diagram of the model at 18 ms for sample of 90–110 (g) The magnetic induction line diagram of the model at 18.2 ms for the sample of 90–110 (h) The magnetic flux density cloud diagram of the model at 18.2 ms for the sample 90–110.

Electromagnetic force verification of super-wide width electromagnetic launch weft insertion scheme

Section Super-wide width electromagnetic launch weft insertion scheme predicted by DPMSCEI describes the super-wide width electromagnetic launch weft insertion scheme calculated using DPMSCEI (width 13 m, loom spindle speed 220 r/min). Considering safety, we use the professional low-frequency electromagnetic field commercial calculation software Maxwell to verify the super-wide width electromagnetic launch weft insertion scheme calculated by DPMSCEI.

Figure 10(a) shows three sets of results of the electromagnetic force during the acceleration process of the weft inserter calculated using DPMSCEI and Maxwell. Figure 10(b) shows the relative error calculated using the two methods. The relative error between the two methods in the initial state is 14%, which is mainly due to the fact that DPMSCEI ignores the end effect. The relative error is stable within −4% as the main magnetic flux of the coil has a much larger effect on the weft inserter than the end effect after the weft inserter enters the coil.

Figure 10.

(a) Three sets of results of electromagnetic force in the acceleration process of weft inserter calculated by DPMSCEI and Maxwell (b) Relative error of electromagnetic force in the acceleration process of weft inserter calculated by DPMSCEI and Maxwell.

Table 3 shows the results calculated using the T-test function in MATLAB for the above three groups of samples. The significance level of the T-test performed is set to

α = 0.05

. Three sets of results H = 0 indicate that the electromagnetic force calculated by DPMSCEI and Maxwell is from the same distribution at a significant level of 5%.

p < 0.05

represents the difference, with p values in Table 3 greater than 0.05.

Table 3.

T-test results.

Sample	p	ci
58–100	0.2972	[−11.5845,3.5457]
80–120	0.4600	[−26.3475,11.7459]
90–110	0.5273	[−22.5307,11.5611]

After the weft inserter enters the acceleration device, the relative error of the electromagnetic force on the weft inserter during the acceleration process calculated by DPMSCEI and Maxwell is stable within −4%. It can be seen from Table 4 that using DPMSCEI can increase the running speed of electromagnetic force calculation by more than 8000% compared with Maxwell.

Table 4.

Comparison of DPMSCEI and Maxwell running speed.

No.	Sample	Time (Maxwell)	Time (DPMSCEI)	Improvement, %
1	80–120	01:13:49	00:00:55	8517.31
2	90–110	01:20:40	00:00:60	8066.67
3	58–100	01:59:18	00:00:34	366388.24
4	9–4.2857	01:38:09	00:00:52	11325.00

Electromagnetic force verification

Model data: The length of the weft inserter is 101 mm, the diameter of the weft inserter is 8 mm, the inner diameter of the coil is 14 mm, the outer diameter of the coil is 30 mm, the length of the coil is 90 mm, the number of turns is 250, and the constant current source is 1.5 A.

Figure 11(a) shows the electromagnetic force of the weft inserter and the accelerating coil at different relative positions using Maxwell and actual measurement. Figure 11(b) shows the relative error of Maxwell and actual measurement results.

Figure 11.

(a) The electromagnetic force of the weft inserter and the accelerating coil at different relative positions obtained by using Maxwell and actual measurement (b) The relative error of the electromagnetic force calculated by Maxwell and actual measurement results.

Speed verification of DPMSCEI at low power

Model data: Yoke thickness is 0.2 mm, weft inserter length is 101 mm, weft inserter diameter is 8 mm, PV pipe inner diameter is 14 mm, total acceleration zone length is 210 mm, coil inner diameter is 14.5 mm, outer diameter is 20 mm, single coil length is 13 mm, resistance is 5.6 $Ω$ , inductance is 1.9 mh, the number of turns is 256, the air gap between adjacent coils is 10 mm, and the constant voltage source is 24 V.

We use the energized logic introduced in equations (1)–(4). The exit velocity of the weft inserter calculated by Maxwell is 5.0532 m/s. This scheme does not consider the force other than the electromagnetic force during the weft insertion process. The exit velocity of the weft inserter calculated by DPMSCEI is 4.965 m/s. This scheme considers the electromagnetic force, weft tension, pipe wall friction and air resistance during the movement of the weft inserter. Table 5 shows the exit velocities measured with DPMSCEI and Maxwell.

Table 5.

Comparison of DPMSCEI, Maxwell and measured weft insertion device exit speed.

No.	Measured exit speed (m/s)	Relative error $\frac{M e a s u r e d - M a x w e l l}{M a x w e l l} \times 100 %$	Relative error $\frac{M e a s u r e d - D P M S C E I}{D P M S C E I} \times 100 %$
1	4.652245	−7.934675057	−6.299194361
2	4.912798	−2.778477005	−1.051399799
3	5.001250	−1.028061426	0.730110775
4	5.041339	−0.234722552	1.537542800
5	4.998500	−1.082482387	0.674723061
6	5.030687	−0.445519671	1.323001007
7	5.039052	−0.279981002	1.491480363
8	5.052547	−0.012922505	1.763282981
9	5.018317	−0.690315048	1.073856999
10	5.032966	−0.400419536	1.368902316
11	5.037783	−0.305093802	1.465921450
12	5.022854	−0.600530357	1.165236657
13	5.046682	−0.128987572	1.645156093
14	5.003002	−0.993390327	0.765397784
15	4.996253	−1.126949260	0.629466264
16	5.023359	−0.590536690	1.175407855
17	4.961794	−1.808873585	−0.064572004
18	5.000000	−1.052798227	0.704934542
19	4.995504	−1.141771551	0.614380665
20	5.003252	−0.988442967	0.770433031
21	4.949025	−2.061564949	−0.321752266

Conclusion

A higher stability of the electromagnetic force can be provided by the segmented combined electromagnetic launch weft insertion, which is beneficial to the super-wide width weft insertion.

In contrast to the model established by the electromagnetic field simulation software MAXWELL, DPMSCEI is able to take into account factors such as gravity, weft yarn tension, air resistance, and pipe wall friction on the weft inserter during the weft insertion process, which is conducive to establishing a more complete weft insertion power control model. DPMSCEI has faster response speed and high prediction accuracy. Compared to MAXWELL, the response speed can be increased by up to 8000%, and the prediction accuracy for the relative error of the electromagnetic force is stable within −4%. The relative error with respect to the measured value is within 2% compared to the speed during the acceleration process predicted by DPMSCEI. DPMSCEI can control the magnitude of the electromagnetic force by adjusting circuit parameters, which is beneficial to the dynamic feedback control of high-speed looms.

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant No. 51541503, 50775165, 51775389), Hubei Key Laboratory of Digital Textile Equipment (Grant No. DTL2022027), State Key Laboratory of New Textile Materials and Advanced Processing Technologies (Grant No. FZ2020008) and China Scholarship Council (Student ID: 202210810002).

ORCID iD

Qiao Xu

References

Cherston

Veysset

Sun

, et al. Large-area electronic skins in space: vision and preflight characterization for first aerospace piezoelectric e-textile. In: Huang

(ed). Sensors and Smart Structures Technologies for Civil, Mechanical, and Aerospace Systems 2020. Bellingham, WA: SPIE: International Society for Optics and Photonics, 2020, p. 113791Q. DOI: 10.1117/12.2557942

Lawson

. Geotextile containment for hydraulic and environmental engineering. Geosynthetics International 2008; 15(6): 384–427. DOI: 10.1680/gein.2008.15.6.384

Heerten

. Geotextiles in coastal engineering—25 years experience. Geotext Geomembr 1984; 1(2): 119–141. DOI: 10.1016/0266-1144(84)90010-4

Daria

Krzysztof

Jakub

. Characteristics of biodegradable textiles used in environmental engineering: a comprehensive review. J Clean Prod 2020; 268: 122129. DOI: 10.1016/j.jclepro.2020.122129

Qiao

Shunqi

Xiaoyu

, et al. Analysis of the magnetic field and electromagnetic force of a non-striking weft insertion system for super broad-width looms, based on an electromagnetic launcher. Text Res J 2019; 89(21-22): 4620–4631. DOI: 10.1177/0040517519839371

Liu

Sun

Zhou

, et al. Carbon nanotube yarns with high tensile strength made by a twisting and shrinking method. Nanotechnology 2010; 21(4): 045708. DOI: 10.1088/0957-4484/21/4/045708

Wang

Lin

Liu

, et al. Bashir catheter-directed thrombolysis for acute pulmonary embolism. JACC Cardiovasc Interv 2022; 15(5): 2453–2454. DOI: 10.1177/14759217211056831

Someya

Sekitani

Iba

, et al. A large-area, flexible pressure sensor matrix with organic field-effect transistors for artificial skin applications. Proc Natl Acad Sci U S A 2004; 101(27): 9966–9970. DOI: 10.1073/pnas.0401918101

Jordan

Kemper

Renkens

, et al. Magnetic weft insertion for weaving machines. Text Res J 2018; 88(14): 1677–1685. DOI: 10.1177/0040517517705626

10.

Sun

Liu

. Summary of research on control technology of pulsed power supply in electromagnetic launch system. In: Liang

, et al. (eds) The proceedings of the 16th Annual Conference of China Electrotechnical Society. ISBN 978-981-19-1870-4. Singapore: Springer Nature Singapore, 2022, pp. 1242–1253.

11.

Jusko

Grieshaber

. Weft insertion system for weaving looms: U.S. Patent 3,902,535[P]. 1975-9-2.

12.

Luo

Zhang

Tian

, et al. Study of a electromagnetic weft insertion in textile machine. Manuf Eng Autom II, Advanced Materials Research 2012; 591: 498–501. Trans Tech Publications Ltd. DOI: 10.4028/www.scientific.net/AMR.591-593.498

13.

Mirjalili

. Using electromagnetic force in weft insertion of a loom. Fibres Text East Eur Nr 2005; 3(51): 67–70.

14.

Owlia

Mirjalili

. The effect of launcher parameters on the projectile velocity in laboratory electromagnetic weft insertion system. J Text Inst 2021; 112(8): 1232–1239. DOI: 10.1080/00405000.2020.1808384

15.

Mei

, et al. Structural design and optimization of dc excitation coil for electromagnetic launch weft insertion. J Text Inst 2022; 0(0): 1–9. DOI: 10.1080/00405000.2022.2149688

16.

Zhao

Zou

, et al. Electromagnetic analysis and finite element simulation of the multi-stage reconnection electromagnetic launch. High Voltage Eng 2008; 34(1).

17.

Owlia

Mirjalili

. Simulation of the electromagnetic weft insertion system by adaptive neuro fuzzy interface system. J Text Inst 2021; 112(9): 1359–1366. DOI: 10.1080/00405000.2020.1815409

18.

Owlia

. Optimization of the projectile velocity in electromagnetic weft insertion system by genetic algorithm. J Text Inst 2022; 114(0): 364–370. DOI: 10.1080/00405000.2022.2037830

19.

Cui

Mei

, et al. Structural performance optimization design of continuously accelerating electromagnetic weft insertion system. Appl Sci 2022; 12(7): 3611. DOI: 10.3390/app12073611

20.

Colak

Kodaloglu

. Velocity control of weft insertion on air jet looms by fuzzy logic. Fibres Text East Eur 2004; 12(3): 47.

21.

Xiao

Shi

Liu

, et al. Design of an embedded rapier loom controller and a control strategy based on srm. IEEE Access 2022; 10: 21914–21928. DOI: 10.1109/ACCESS.2022.3153066

22.

Xiao

Wang

Han

, et al. Research and embedded implementation of let-off and take-up dynamic control based on fuzzy neural network and vector control optimization. IEEE Access 2022; 10: 17768–17780. DOI: 10.1109/ACCESS.2022.3149838

23.

Seyam

AFM

. Innovation in weaving at itma 2019. J Text Apparel Technol Manag, 2019; 1.

24.

Friedman

Abraham

Paetkau

, et al. Use of a varying turn-density coil (vtdc) to generate a constant-gradient magnetic field and to demonstrate the magnetic force on a permanent magnet. Can J Phys 2013; 91(3): 226–230. DOI: 10.1139/cjp-2012-0405

25.

Guan

, et al. Analysis of the influence of system parameters on launch performance of electromagnetic induction coil launcher. Energies 2022; 15(20): 7803. DOI: 10.3390/en15207803

26.

Bresie

Andrews

. Design of a reluctance accelerator. IEEE Trans Magn 1991; 27(1): 623–627. DOI: 10.1109/20.101106

27.

Orbach

Oren

Golan

, et al. Reluctance launcher coil-gun simulations and experiment. IEEE Trans Plasma Sci 2019; 47(2): 1358–1363. DOI: 10.1109/TPS.2018.2885710

28.

Vangheluwe

Sleeckx

Kiekens

(1995) Numerical simulation model for optimisation of weft insertion on projectile and rapier looms. Mechatronics 5(2): 183–195. DOI: 10.1016/0957-4158(95)00005-P

29.

Holcombe

Griffith

Postle

. A study of weaving systems by means of dynamic warp and weft tension measurement. Indian J Fibre Text Res 1980; 5.

30.

Parker

. Projectile motion with air resistance quadratic in the speed. Am J Phys 1977; 45(7): 606–610. DOI: 10.1119/1.10812

31.

Zhou

Zhang

, et al. Modelling and analysis on the mechanism of electromagnetic driven weft insertion. IOP Conf Ser: Mater Sci Eng 2019; 629(1): 012012. DOI: 10.1088/1757-899X/629/1/012012

32.

Luo

Zhang

. Study of a new electromagnetic weft insertion mechanism based on the plc. Mech Electr Eng III, Appl Mech Mater 2012; 130: 1426–1429. Trans Tech Publications Ltd. DOI: 10.4028/www.scientific.net/AMM.130-134.1426

33.

Martyanov

Neustroyev

. Ansys maxwell software for electromagnetic field calculations. East Eur Sci J 2014; 5.

34.

Aishwarya

Brisilla

. Design of energy-efficient induction motor using ansys software. Results Eng 2022; 16: 100616. DOI: 10.1016/j.rineng.2022.100616

35.

Arslan

Gürdal

. Communication of matlab gui and ansys maxwell: An education tool for tubular linear generator. J Fundam Appl Sci 2019; 11(1): 117–141.

36.

Owlia

Mirjalili

Shahnazari

. Design and modeling of an electromagnetic launcher for weft insertion system. Text Res J 2019; 89(5): 834–844. DOI: 10.1177/0040517518755793

37.

Gandhi

. The fundamentals of weaving technology. In: Woven textiles. Cambridge, UK: Woodhead Publishing, 2020, pp. 167–270. DOI: 10.1016/B978-0-08-102497-3.00005-2

38.

Kim

Jeong

Cho

, et al. Core-shell type polymeric nanoparticles composed of poly(L-lactic acid) and poly(N-isopropylacrylamide). Int J Pharm 2000; 211(1): 1–8.

39.

Egleston

Metcalf

Weeks

. Report on a standard wire gauge. J Franklin Inst 1878; 105(2): 103–109. DOI: 10.1016/0016-0032(78)90417-9

40.

Cetin

Ozbay

Dalcali

, et al. An experimental study on sensorless determination of the projectile position by artificial neural network in magnetic launcher systems. IEEE Trans Plasma Sci 2021; 49(12): 3970–3979. DOI: 10.1109/TPS.2021.3123064

Dynamic prediction model of segmented combined electromagnetic launch weft insertion for super-wide width industrial fabrics

Abstract

Keywords

Introduction

Super-wide width electromagnetic launch weft insertion

Design goal of super-wide width electromagnetic launch weft insertion

Principle of segmented combined electromagnetic launch weft insertion

Dynamic prediction model of segmented combined electromagnetic launch weft insertion

Judgment logic of energization sequence

Temperature rise model

Mechanical model

Electromagnetic force F E M

Air resistance F a i r

Weft tension T w

Pipe wall friction F f

Gravity G

Kinematic model

Acceleration phase

Free flight phase

Braking phase

Super-wide width electromagnetic launch weft insertion scheme predicted by DPMSCEI

Experiment

Finite element simulation

Single stage electromagnetic force measurement

Weft inserter speed measurement

Results and discussion

Simulation results of segmented combined electromagnetic launch weft insertion scheme

Electromagnetic force verification of super-wide width electromagnetic launch weft insertion scheme

Electromagnetic force verification

Speed verification of DPMSCEI at low power

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References

Electromagnetic force $F_{E M}$

Air resistance $F_{a i r}$

Weft tension $T_{w}$

Pipe wall friction $F_{f}$

Gravity $G$
