Risk Factors for Early Recurrence After Radical Resection of Hepatocellular Carcinoma Based on Preoperative Contrast-Enhanced Ultrasound and Clinical Features

Abstract

Objectives

To investigate risk factors for the early recurrence (ER) of hepatocellular carcinoma (HCC) after radical resection based on preoperative contrast-enhanced ultrasound (CEUS) and clinical features to provide guidance for clinical treatment.

Methods

The retrospective analysis selected 130 HCC patients who underwent radical tumor resection from October 2019 to November 2021. All patients underwent preoperative routine ultrasound examination and CEUS, and the pathology was confirmed as HCC after surgery. The patients were divided into two groups based on whether there is an ER, namely the ER group and the non-ER group. The general clinical, routine and CEUS data of patients were collected, and the factors were selected by using the least absolute shrinkage and selection operator (LASSO) regression. Multivariate logistic regression was used to screen the independent influencing factors of ER. Then a nomogram model was established to predict the risk of ER, and the application value of nomogram through internal validation was evaluated.

Results

Multivariate logistic regression identified several independent factors influencing ER after radical HCC resection. Significant factors included early wash-out phase (95%CI = 0.003-0.206, P = 0.001), liver cirrhosis (95%CI = 2.835-221.224, P = 0.004), incomplete envelope (95%CI = 5.247-1056.130,P = 0.001), multiple lesions (95%CI = 1.110-135.424,P = 0.041), Albumin <40 g/L (95%CI = 2.496-127.223,P = 0.004), and Golgi Protein 73 (GP73) ≥ 85 ng/mL (95%CI = 1.594-30.002, P = 0.010), with all P-values <0.05. The nomogram prediction model constructed based on the results of multivariate logistic regression, demonstrated a ROC curve AUC of 0.879, a sensitivity of 93.5%, a specificity of 66.7%, and a C-index of 0.602, indicating superior diagnostic efficiency compared to independent influencing factors. The ER nomogram prediction model confirmed good discrimination and calibration in internal validation.

Conclusion

The CEUS-Clinical combined model effectively monitors the risk of ER in high-risk populations following radical resection of HCC, timely interventions to improve patient prognosis.

Keywords

contrast-enhanced ultrasound hepatocellular carcinoma early recurrence nomogram model resection

Advances in Knowledge

This study employed CEUS as a non-invasive diagnostic examination aid in assessing the risk of ER after surgical resection of HCC, enhancing the model's reliability and stability.

Issue Section: Research article

Introduction

The latest statistics of global tumor epidemiology indicate that hepatocellular carcinoma (HCC) is one of the most common fatal malignant tumors worldwide, with its incidence and mortality rank among the top five in China.^1,2 Hepatectomy and liver transplantation are the primary treatment options for patients with HCC.³ However, due to the shortage of liver donors, radical surgical resection has a wider range of clinical applications. With the continuous improvement of medical technology, postoperative complications and mortality have shown a downward trend over the years, while the postoperative early recurrence (ER) rate remains high.⁴ Therefore, the severe problems that clinicians and patients are faced with are the high ER rate after radical HCC resection and the difficulty of secondary surgery..⁵ ER refers to the rediscovery of HCC lesions within two years after radical HCC resection.⁶ Chan AWH et.al. suggested that tumor characteristics such as tumor diameter more than 5 cm, incomplete envelope, microvascular invasion are independent risk factors of ER.⁴ Accurately predicting the risk of ER before surgeryis crucial for reducing the ER rate following radical HCC resection.

Conventional ultrasound examination and improved ultrasound technology have been more widely used in the diagnosis and treatment of liver cancer due to their advantages of non-invasive, economical and radiation-free.⁷ However, conventional ultrasound may ignore tumor heterogeneity information and provide relatively few characteristic indicators. Compared with conventional ultrasound, contrast-enhanced ultrasound (CEUS) detects some clues as to residual active lesion such as rapid wash-in and wash-out characteristics of CEUS in HCC with high LI-RADS grading, rapid portal phase signal regression, and low differentiation are associated with ER after radical HCC resection.⁸

Most previous studies combined clinical features to construct liver cancer risk assessment models, such as the PAGE score based on age, sex, and the platelet count in the Caucasus region; THRI model based on PAGE score adding cirrhosis etiology in the Toronto area; and the Korean model added albumin levels based on PAGE scores.^9–11 The clinical research of the combination of CEUS and clinical factors to predict ER after radical HCC resection has not been reported. Therefore, we conducted a retrospective study based on serological level and tumor characteristics shown by preoperative ultrasound and CEUS to explore potential risk factors for ER after radical HCC resection. This will help improve treatment plans and patient prognosis.

Materials and methods¹²

Patients

A total of 189 patients who underwent radical HCC resection initially from October 2019 to November 2021 was retrospectively selected. Preoperative diagnosis of HCC was based on the criteria of the American Association for the Study of Liver Diseases.¹³ All patients received routine ultrasound and CEUS before operation. Inclusion criteria were: (1) initial tumor detection; (2) completion of preoperative CEUS and abdominal computed tomography (CT) examination; (3) patients were received surgical treatment within 2 weeks after CEUS without adjuvant therapy before and after surgery; (4) postoperative pathology confirmed HCC; (5) Child-Pugh grade ranked A to B. Exclusion criteria were: (1) absence of clinical and CEUS data; (2) failed to achieve R0 resection (the lesion was completely removed, no tumor cells could be found on the incision margin under the microscope and the naked eye or microscope); (3) patients suffering from other neoplastic diseases; (4) patients lost follow-up or died.

According to the exclusion criteria, this study included 130 patients who were divided into ER group (31 cases) and non-ER group (99 cases) based on ER (Figure 1). This study has been approved by the Ethics Committee (approval no.2023-SR-818), and all patients signed written informed consent prior to CEUS examination.

Figure 1.

Inclusion and exclusion criteria flow charts.

Data Collection

The basic information of patients: including body mass index (BMI), age, sex, and fasting serological indicators [Golgi Protein 73 (GP73), Alpha-Fetoprotein (AFP), Albumin, Platelet (PLT)] 3 days before surgery, pathological grade (level I, level II, level III, level IV).

Conventional ultrasound and CEUS data collection: we used MyLabTwice ultrasound diagnostic instrument by Esaote, Italy (belly convex CA541 probe, frequency 3∼5 MHz). When the number of lesions more than one, the tumor with the biggest diameter was selected as the object of observation. The examination and diagnosis were conducted by a senior sonographer with over 5 years of experience. The maximum transverse section of the tumor was obtained from the two-dimensional image. We recorded the number of tumors (solitary, multiple:2-3), lesion location, depth, maximum ultrasound diameter (divided into ≥5 cm and < 5 cm), the envelope (complete: the tumor had boundary echo and showed smooth and complete; incomplete: no boundary echo or fuzzy rough, irregular shape); basic liver manifestations (cirrhosis or no cirrhosis). Color Doppler flow imaging showed the blood supply inside the tumor, and the blood flow was graded according to the Adler semi-quantitative method. SonoVue, produced by Barcco, Italy, was used as contrast media and mixed with 5 ml of normal saline solution before intravenous injection. An additional 5 ml of normal saline solution were added after injection, and the patient was instructed to breathe calmly or hold their breath during the examination. The images of the lesion were recorded dynamically after 3 min of contrast agent injection. According to CEUS LI-RADS guidelines issued by the American College of Radiology in 2017, the following indicators are collected: the LI-RADS grading (LI-RADS 3, LI-RADS 4, LI-RADS 5, LI-RADS M), wash-out period (refers to the time when the lesion is observed to begin to clear from the liver parenchyma after contrast agent injection), arterial/ portal/ delayed phase enhancement intensity (high/ equal/ low enhancement), degree of clearance (mild, remarkable) (Figure 2).

Figure 2.

Male patient, 65-year-old, preoperative 2D ultrasound revealed solitary lesion in the left lobe of the liver, with complete capsule and no evidence of liver cirrhosis, and CEUS indicated late wash-out phase.

Postoperative Monitoring and Evaluation

In the first month after surgery and every 3 months thereafter, the review includes AFP levels and liver ultrasonography. If any abnormalities are detected in the above examinations, abdominal dynamic enhanced CT or magnetic resonance imaging (MRI) scan will be further conducted to confirm the diagnosis of recurrence. The follow-up period starts from the date of surgery and the end point was tumor recurrence or two years after surgery. Early recurrence of HCC was defined as the reappearance of HCC lesions within 2 years after radical HCC resection, with new lesions identified through CEUS, enhanced CT, or enhanced MRI showing typical imaging findings of HCC. The data was reviewed on February 14, 2024.

Statistical Analysis

R 4.3.2 and MedCalc18.2.1 were used as statistical software. Factors were selected by using the least absolute shrinkage and selection operator (LASSO) regression. Based on the characteristics of non-zero coefficient in LASSO regression model, multivariate logistic regression was applied to screen the independent influencing factors of postoperative ER in order to construct CEUS-Clinical joint risk prediction nomogram model. The C-index and calibration curve were used to evaluate the discrimination and calibration of the nomogram. To quantify the discriminability of the nomogram model, the original data row Bootstrap method (repeated sampling 1000 times) was included for internal validation to calculate the C-index, and DCA curve was plotted to determine the clinical usability of the nomogram. Furthermore, MedCalc18.2.1 was used to compare with each independent influencing factor. P < 0.05 was considered to be statistically significant.

Results

Patient Characteristics

In this study, 31 patients (23.8%) had the status of ER after surgery, and 99 patients (76.2%) were not subjected to have ER after surgery. The clinical and CEUS characteristics of the patients are presented in Tables 1–3.

Table 1.

Comparison of Clinical Characteristics Between the ER Group and non-ER Group

Characteristic	non-ER group (n = 99)	ER group (n = 31)	Total
Gender
male	74	24	98
female	25	7	21
Age/(year)
＜60	50	20	70
≥60	49	11	60
GP73/(ng/mL)
＜85	73	14	87
≥85	26	17	43
AFP/(ng/mL)
＜7	47	4	51
≥7	52	27	79
Albumin/(g/L)
≥40	69	19	88
＜40	30	12	42
PLT/(×10⁹/L)
＜125	59	13	72
≥125	40	18	58

Table 2.

Comparison of routine ultrasound and CEUS characteristics between the ER group and non-ER group

Characteristic	non-ER group (n = 99)	ER group (n = 31)	Total
Lesion number
solitary	13	4	17
multiple	86	27	113
Maximum diameter/(cm)
<5	58	17	75
≥5	41	14	55
Envelope status
complete	96	24	120
incomplete	3	7	10
Liver cirrhosis
Yes	42	4	46
No	57	27	84
Blood flow signals
level 0	63	23	86
level 1	22	4	26
level 2	13	4	17
level 3	1	0	1
LI-RADS grading
3	1	0	1
4	89	24	113
5	6	7	13
M	30	0	3
Wash-out phase
early	8	14	22
late	91	17	108
Arterial phase enhancement
low	4	1	5
equal	20	9	29
high	75	21	96
Portal phase enhancement
low	89	27	116
equal	10	3	13
high	0	1	1
Delayed phase enhancement
low	96	29	125
equal	3	2	5
Degree of clearance
mild	88	27	115
remarkable	99	31	15

Table 3.

Statistic of BMI, Lesion Location and Pathological Grade Between the ER Group and non-ER Group

Characteristic	non-ER group (n = 99)	ER group (n = 31)
BMI/(kg/m²)	23.86 (21.30, 26.94)	23.35 (21.69, 25.03)
Lesion location
left lobe	27	3
right lobe	68	25
both	4	3
Depth/(mm)	57.20 (39.13, 75.24)	37.40 (25.53, 71.28)
pathological grade
level I	5	0
level II	62	9
level III	31	19
level IV	1	3

Features Selection

Among the clinical and CEUS features of patients, 13 factors showed non-zero coefficients in LASSO regression (Figure 3), including Albumin, PLT, GP73 and AFP level, age, gender, lesion number, envelope status, liver cirrhosis, LI-RADS grading, wash-out phase, arterial phase enhancement, portal phase enhancement. The results of multivariate logistic regression analysis indicated that cirrhosis during the early wash-out phase (95%CI = 0.003-0.206, P = 0.001), liver cirrhosis (95%CI = 2.835-221.224, P = 0.004), incomplete envelope (95%CI = 5.247-1056.130, P = 0.001), multiple lesions (95%CI = 1.110-135.424, P = 0.041), Albumin < 40 g/L (95%CI = 2.496-127.223, P = 0.004), and GP73 ≥ 85 ng/mL (95%CI = 1.594-30.002, P = 0.010) were independent influencing factors of ER after radical HCC resection (Table 4).

Figure 3.

Selection of feature parameters. a: Select the optimal parameter (λ) in the LASSO model by the minimum criteria using 5-fold cross-validation. Plot the partial likelihood deviation (binomial deviation) against the logarithm (λ). Draw a vertical dashed line at the entry value corresponding to a standard error (1 + SE) of the minimum quasi difference and minimum standard deviation. b: Plot a coefficient curve for 17 characteristics in LASSO. Use a logarithmic(λ) sequence and draw a vertical line at the value selected through 5-fold cross-validation, resulting in 13 features with non-zero coefficients.

Table 4.

Multivariate Logistic Regression Analysis of Independent Risk Factors for ER After Radical Resection of HCC

Characteristic	B	95%CI	P value
Early wash-out phase	−3.666	0.003–0.206	0.001
Liver cirrhosis	3.221	2.835–221.224	0.004
Incomplete envelope	4.310	5.247–1056.133	0.001
Multiple lesions	2.506	1.110–135.424	0.041
Albumin＜40 g/L	2.880	2.496–127.223	0.004
GP73 ≥ 85 ng/mL	1.934	1.594–30.002	0.010

Nomogram Model Construction and Clinical Validation

The results of the multivariate logistic regression analysis revealed that wash-out phase, liver cirrhosis, envelope status, lesions number, Albumin, and GP73 level were independent influencing factors. A nomogram was constructed using above 6 factors to predict the probability of ER occurrence. Each predictor was proportionally assigned to a score based on its OR value from the primary multivariate logistic regression analysis, and its total score was used to determine patient's risk of developing ER (Figure 4). The C-index of the predicted nomogram model was 0.602, with AUC of 0.879, a sensitivity of 93.5%, a specificity of 66.7%, indicating superior diagnostic efficiency compared to independent influencing factors (Table 5). In the internal validation, the nomogram obtained a high C-index after 1000 Bootstrap preharvest, indicating a good degree of differentiation. There is no significant deviation between the predicted probability and the probability of actual occurrence of the calibration chart. DCA results demonstrate that the nomogram predicts ER with the net benefit generated, making it valuable for clinical decision-making (Figure 5).

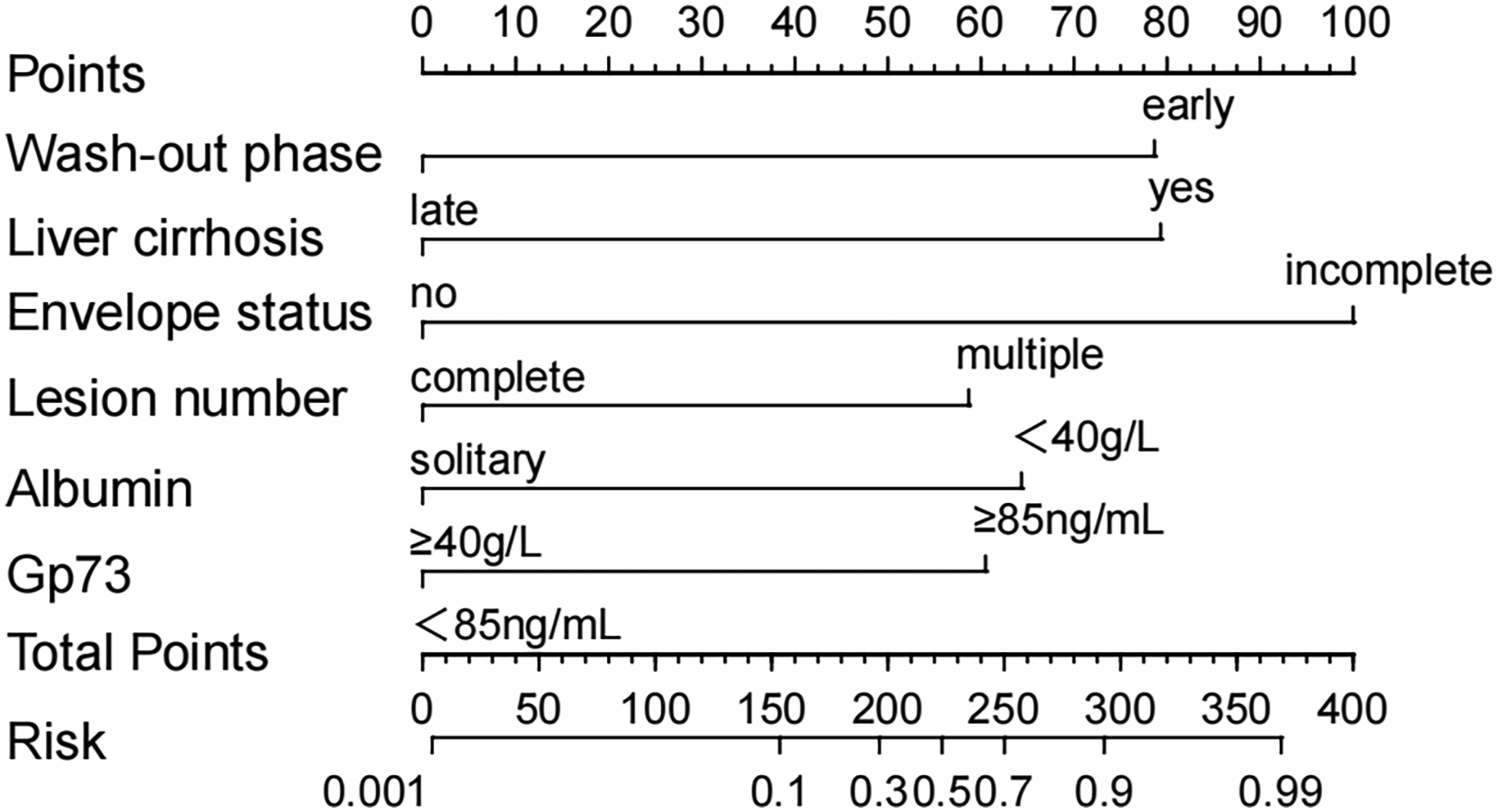

Figure 4.

A nomogram model for predicting the risk of er after radical HCC resection.

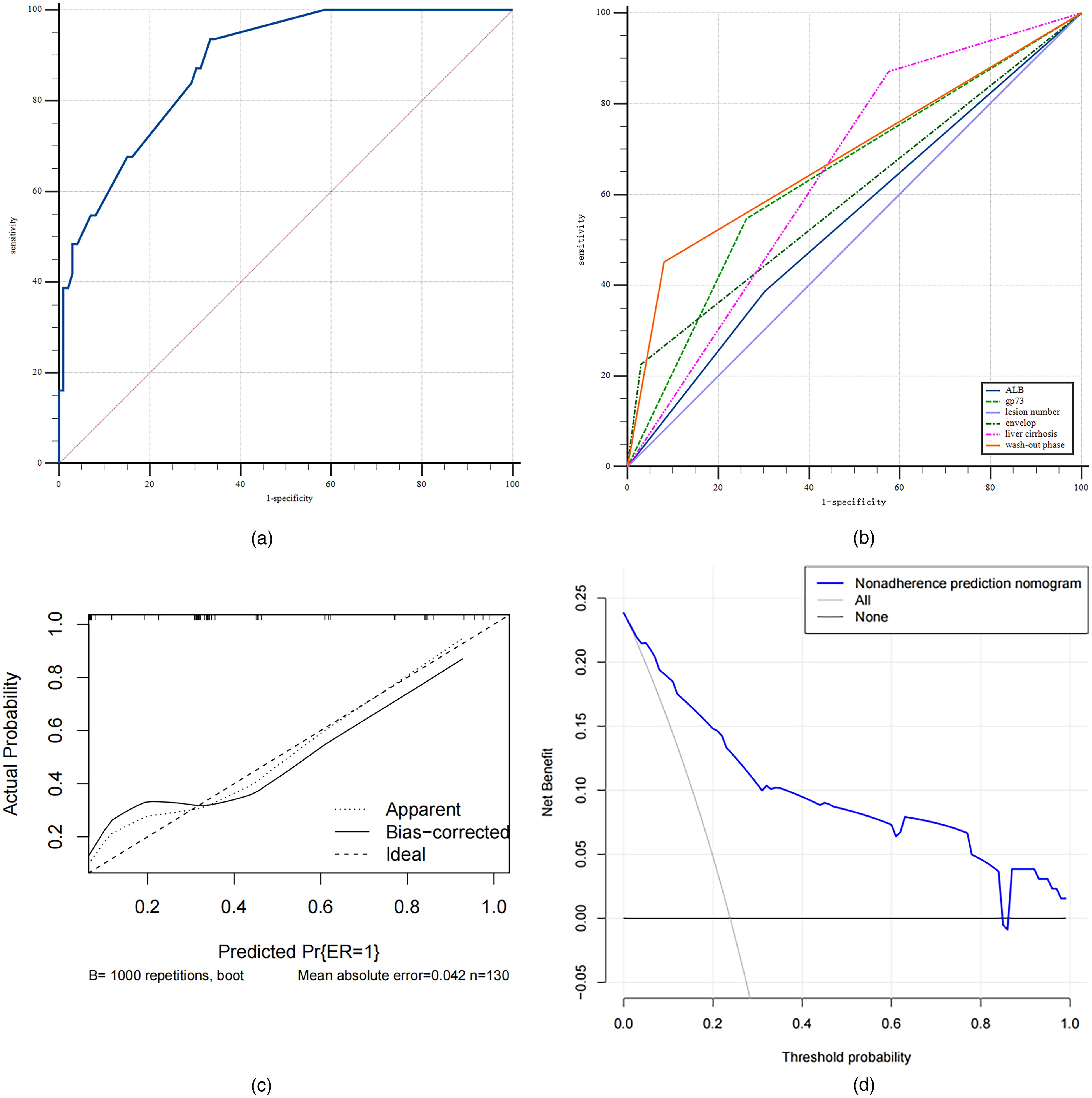

Figure 5.

Clinical validation of the nomogram model. a-b: AUC of ROC curve of CEUS-Clinical model and each individual risk factor. c: The calibration diagram shows that the probability of ER predicted by the nomogram is in good agreement with the actual results. d: The DCA curve shows that the nomogram model produces a net benefit in predicting ER occurrence.

Table 5.

Comparison of the Nomogram Model with the AUC for Each Independent Influencing Factor

Characteristic	AUC	SE	95%CI	P value
CEUS-Clinical model	0.879	0.0312	0.811–0.930	<0.001
Wash-out phase	0.685	0.0475	0.598–0.764	<0.001
Liver cirrhosis	0.648	0.0395	0.559–0.729	<0.001
Envelope status	0.598	0.0391	0.508–0.683	<0.001
Lesion number	0.501	0.0350	0.412–0.590	<0.001
Albumin	0.542	0.0502	0.452–0.630	<0.001
GP73	0.643	0.0506	0.554–0.725	<0.001

Discussion

Currently, there is no international consensus on the predictive model of ER risk stratification after surgical resection of HCC. Most HCC relapse scoring software, such as SLICER score and PLAN-B model, did not have a comprehensive understanding of primary HCC lesions due to the lack of imaging examination.¹⁴ Therefore, clinicians lack accurate judgment of patient prognosis, resulting in affecting further treatment. Although AJCC and TNM stages, as the postoperative prediction model for recurrence, are widely recognized, they over-rely on microvascular invasion which can only be obtained through surgical pathology.¹⁵ At present, most studies evaluate the prognosis of HCC patients after HCC resection through CT and MRI examination, and few clinical studies have reported the application of CEUS to predict the recurrence of HCC after treatment.¹⁶ Although the diagnostic efficacy of enhanced CT and MRI is slightly higher, CEUS provides a low-risk profile for allergies, nephrotoxicity and other side effects. Therefore, this study aims to evaluate the application value of CEUS combined with clinical features in the risk of ER after surgical resection of HCC. The results appear that CEUS combined model has good performance in predicting ER of HCC before operation.

The study by Wang demonstrated that “wash-out phase” is an independent risk factor for ER after HCC surgery. Our findings are consistent with these results.¹⁷ SonoVue contrast agent is a pure blood pool contrast agent, and its clearance is associated with the microcirculation perfusion of the lesion. Hepatic arterial blood supply is dominated and portal vein blood supply is minor in low/undifferentiated HCC, resulting in faster removal of contrast agents from hepatic veins and thus faster clearance than in highly differentiated and moderately differentiated HCC. Our study revealed that most HCC patients with ER had low pathological differentiation (according to postoperative pathology, grade III and IV accounted for 71.0% of pathological differentiation in this study, Table 3), abundant internal hepatic arterial blood supply, rapid regression of contrast agents in HCC, and short clearance time. Meanwhile, non-ER patients have a high degree of pathological differentiation (according to postoperative pathology, grade I and II accounted for 67.7% of pathological differentiation in this study, Table 3), and the portal vein remains the primary blood supply to the tumor due to insufficient angiogenesis. Additionally, there is a significant presence of liver blood sinuses within the tumor in non-ER patients, which exhibits slow regression or even persist into the portal and delayed stages, leading to prolonged clearance time. For patients with high BMI, CEUS may be affected by the depth of the lesion, but relevant studies have demonstrated that CEUS can be used with a deep scanning ultrasound probe, and the diagnostic efficacy of evaluating the lesion by detecting the wash-out time is significant.¹⁸ Therefore, SonoVue has a great performance for the non-invasive diagnosis and prognosis for early postoperative recurrence of HCC. If the LI-RADS grade is high and the early wash-out phrase occurs, it indicates high-risk lesions.

The results of routine ultrasound indicated that multiple lesions, incomplete tumor envelope and presence of liver cirrhosis were independent risk factors for ER after radical resection of HCC. Preoperative ultrasound examination of the liver can accurately determine the number and location of the tumor, providing visual representation of tumor, as well as dynamic and repeated observation of the location, depth, shape, boundary, size, number and envelope of the tumor. HCCs located at the right hepatic dome, near the caudate lobe or inferior vena cava, or on the surface of the left lateral segment are more likely to be missed on routine ultrasound. Therefore, CEUS should be employed to target these suspected areas. For patients with high BMI or when tumors are situated at greater depths, an intercostal scan with the patient in a prone position may be beneficial.¹⁹ Most studies generally suggest that the prognosis of HCC patients is related to the number of tumors or biological behavior. Multiple HCC lesions are more likely to have satellite or occult metastases due to their extensive involvement. Even after surgical resection of the primary lesion, there is persistent growth and emergence of new lesions, resulting in ER.²⁰ When the number of HCC lesions exceeds 3, ablation, chemotherapy or targeted therapy should be considered. The completeness of the tumor envelope is associated with the extent of invasion. An incomplete margin suggests more aggressive biological behavior of the tumor cells, including rapid growth and increased invasion. When the outward growth of the tumor breaks through the envelope, it leads to invasion of the surrounding healthy liver tissue and portal system, thus increasing the probability of recurrence. The most common cause of cirrhosis in East Asia is hepatitis B virus infection. According to the World Health Organization, cirrhosis originates in an environment of chronic inflammation and liver tissue damage. It changes the structure of the liver and blood vessels, gradually forming stunted nodules that have the potential to turn into malignant tumors.²¹

Some small lesions may go unnoticed by imaging in HCC patients, resulting in ER after surgical resection. High levels of GP73 and AFP serve as biological markers indicating high invasive capacity in HCC. This study demonstrates that GP73 and AFP are high risk factors for ER, with GP73 being an independent risk factor after radical HCC resection. GP73 also called Golgi phosphoprotein-2, is a trans-membrane protein frequently active in liver cancer cells, holds greater diagnostic value for HCC prognosis compared to other tumor types.²² The dynamic changes in GP73 reflect the impact of HCC resection and TACE, serving as a predictor for ER or liver disease progression.²³ When the tumor recurred, there is a notable increase in the surface expression of epithelial cell-associated GP73, leading to significantly elevated serum levels which can be utilized as a novel serum tumor marker for detecting ER. Additionally, Liu et al revealed GP73 competed with prolyl hydroxylase-2 in the inhibitory pathway through fundamental studies that, which is anticipated to become a novel target for anti-angiogenic immunotherapy in patients with HCC.²⁴ The higher AFP level, the more aggressive the tumor is. Preoperative serum AFP level correlates with the likelihood of tumor infiltration into blood vessels to form MVI, thus playing a crucial role in differentiating tumor differentiation and predicting prognosis.²⁵ Thus, clinical investigators are actively seeking and validating the combination of AFP vaccine and immune checkpoint inhibitors to slow the progression of HCC.²⁶ Clinicians can assess treatment efficacy by monitoring trends in AFP levels: patients with preoperative AFP >1000 ng/mL face heightened risk for ER. The level of prothrombin induced by vitamin K absence or antagonist-II (PIVKA-II) is extensively correlated with pathological features representing tumor cell distribution and adverse prognosis.²⁷ Des-Gamma-Carboxyprothrombin (DCP) is associated with early HCC recurrence after liver transplantation.²⁵ Subsequent studies will integrate potential biological markers such as AFP-L3, PIVKA-II, and DCP to enhance the efficacy of clinical models in predicting ER after surgical resection or liver transplantation.

The study demonstrates that Albumin is an important component of the mPAGE-B, aMAP, and PLAN-B models. Serum Albumin levels have been levels have been improved to have prognostic significance in HCC. Furthermore, the previous finding suggests that Albumin is an independent risk factor for ER after surgical resection of HCC.²⁸ As a functional protein synthesized by the liver, for one thing, Albumin reflects the differentiated function of hepatocyte. For another, its expression level is negatively correlated with the invasive parameters of HCC. Low levels of Albumin indicate poor differentiation and higher aggressiveness of HCC, while normal levels signify well-differentiated, slow growth. Therefore, Albumin not only serves as an important prognostic factor for HCC patients but also has the potential to modulate the biological behavior of HCC.

Limitations

This was a single-center retrospective analysis conducted in China with most patients having chronic hepatitis B, leading to unavoidable selection bias. Future research will involve multi-center studies and external data validation to confirm the universality and stability of these results. Additionally, future work will focus on developing radiomics or combining other imaging methods to more comprehensively predict recurrence risk and MVI occurrence.

Conclusions

In conclusion, this study established a comprehensive model based on preoperative CEUS in assessing the risk of ER after surgical resection of HCC, which is expected to be used as a reference to effectively screen out high-risk recurrence groups and develop more accurate individualized treatment plans for patients.

Footnotes

Abbreviations

Acknowledgment

The authors wish to thank the medical writers, proof-readers and editors, for their assistance in preforming the ultrasounds used in this publication.

Data Availability

The datasets generated and analyzed during the current study are available from the corresponding author on reasonable request.

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Xinhua Ye

Statement of Ethical Approval

This study was approved by the Ethics Committee of the First Affiliated Hospital of Nanjing Medical University (Jiangsu Provincial People's Hospital) on December 19, 2023, with the approval no.2023-SR-818, and all patients signed written informed consent prior to CEUS examination.

References

Heimbach

Kulik

Finn

, et al. AASLD Guidelines for the treatment of hepatocellular carcinoma. Hepatology (Baltimore, Md.). 2018;67(1):358-380.

Wang

Yan

Fan

, et al. Overview and countermeasures of cancer burden in China. Science China. Life Sci. 2023;66(11):2515-2526.

Sapisochin

Bruix

. Liver transplantation for hepatocellular carcinoma: Outcomes and novel surgical approaches. Nature Reviews. Gastroenterol Hepatol (N Y). 2017;14(4):203-217.

Chan

AWH

Zhong

Berhane

, et al. Development of pre and post-operative models to predict early recurrence of hepatocellular carcinoma after surgical resection. J Hepatol. 2018;69(6):1284-1293.

Gruttadauria

Barbera

Conaldi

, et al. Clinical and molecular-based approach in the evaluation of hepatocellular carcinoma recurrence after radical liver resection. Cancers (Basel). 2021;13(3):518.

Nevola

Ruocco

Criscuolo

, et al. Predictors of early and late hepatocellular carcinoma recurrence. World J Gastroentero. 2023;29(8):1243-1260.

Burrowes

Caine

, et al.

Nodules identified on surveillance ultrasound for HCC: CEUS or MRI as the initial test?

J Ultrasound Med: Off J Am Inst Ultrasound Med. 2023;42(6):1181-1190.

Terzi

Iavarone

Pompili

, et al. Contrast ultrasound LI-RADS LR-5 identifies hepatocellular carcinoma in cirrhosis in a multicenter restropective study of 1,006 nodules. J Hepatol. 2018;68(3):485-492.

Papatheodoridis

Dalekos

Sypsa

, et al. PAGE-B predicts the risk of developing hepatocellular carcinoma in Caucasians with chronic hepatitis B on 5-year antiviral therapy. J Hepatol. 2016;64(4):800-806.

10.

Sharma

Kowgier

Hansen

, et al. Toronto HCC risk index: A validated scoring system to predict 10-year risk of HCC in patients with cirrhosis. J Hepatol. 2017;S0168-8278(17):32248-1.

11.

Kim

Lampertico

Nam

, et al. An artificial intelligence model to predict hepatocellular carcinoma risk in Korean and Caucasian patients with chronic hepatitis B. J Hepatol. 2022;76(2):311-318.

12.

von Elm

Altman

Egger

Pocock

Gøtzsche

Vandenbroucke

. The strengthening the reporting of observational studies in epidemiology (STROBE) statement: Guidelines for reporting observational studies. Ann Intern Med. 2007;147(8):573-577.

13.

Singal

Llovet

Yarchoan

, et al. AASLD Practice guidance on prevention, diagnosis, and treatment of hepatocellular carcinoma. Hepatology (Baltimore. Md.). 2023;78(6):1922-1965.

14.

Beumer

Buettner

Galjart

, et al. Systematic review and meta-analysis of validated prognostic models for resected hepatocellular carcinoma patients. Eur J Surg Oncol: J Eur Soc Surg Oncol Br Assoc Surg Oncol. 2022;48(3):492-499.

15.

She

Liu

, et al. Advances in post-operative prognostic models for hepatocellular carcinoma. J Zhejiang Univ Sci B. 2023;24(3):191-206.

16.

Yim

Kim

Min

Lee

Kang

Lee

. Diagnosis of recurrent HCC: Intraindividual comparison of gadoxetic acid MRI and extracellular contrast-enhanced MRI. Abdominal Radiol (New York). 2019;44(7):2366-2376.

17.

Wang

Liao

Xie

. Predictive value of conventional ultrasound and contrast-enhanced ultrasound in early recurrence of hepatocellular carcinoma after surgical resection. Ultrasound Med Biol. 2016;42(5):1042-1048.

18.

Merrill

Samuel

Gupta

Wilson

. A novel technology for resolution of CEUS imaging problems in patients with high BMI and fatty liver. J Ultrasound Med: Off J Am Inst Ultrasound Med. 2023;42(11):2603-2614.

19.

Lee

Park

Byun

Kim

. Impact of ultrasonographic blind spots for early-stage hepatocellular carcinoma during surveillance. Plos One. 2022;17(9):e274747.

20.

Dong

Peng

, et al. Heterogeneous immunogenomic features and distinct escape mechanisms in multifocal hepatocellular carcinoma. J Hepatol. 2020;72(5):896-908.

21.

Dietrich

Nolsøe

Barr

, et al. Guidelines and good clinical practice recommendations for contrast-enhanced ultrasound (CEUS) in the liver-update 2020 WFUMB in cooperation with EFSUMB, AFSUMB, AIUM, and FLAUS. Ultrasound Med Biol. 2020;46(10):2579-2604.

22.

Liu

Zhu

Yang

, et al. GP73 Facilitates hepatitis B virus replication by repressing the NF-κB signaling pathway. J Med Virol. 2020;92(12):3327-3335.

23.

Gatselis

Tornai

Shums

, et al. Golgi protein-73: A biomarker for assessing cirrhosis and prognosis of liver disease patients. World J Gastroentero. 2020;26(34):5130-5145.

24.

Liu

Zhou

Sun

Shen

Zeng

. Golgi Protein 73 promotes angiogenesis in hepatocellular carcinoma. Research (Washington, D.C.). 2024;17(7):0425.

25.

Norman

Kotwani

Shui

Yao

Mehta

. AFP-L3 and DCP strongly predict early hepatocellular carcinoma recurrence after liver transplantation. J Hepatol. 2023;79(6):1469-1477.

26.

Deng

, et al. Combination of AFP vaccine and immune checkpoint inhibitors slows hepatocellular carcinoma progression in preclinical models. J Clin Invest. 2023;133(11):e163291.

27.

Feng

Wei

Ren

. PIVKA-II serves as a potential biomarker that complements AFP for the diagnosis of hepatocellular carcinoma. Bmc Cancer. 2021;21(1):401.

28.

Johnson

Berhane

Kagebayashi

, et al. Assessment of liver function in patients with hepatocellular carcinoma: A new evidence-based approach-the ALBI grade. J Clin Oncol: Off J Am Soc Clin Oncol. 2015;33(6):550-558.
