Normobaric hyperoxia inhibits the progression of lung cancer by inducing apoptosis

Experimental design and NBO treatment

Male C57BL/6J mice (7–8 weeks old) were purchased from DBL (Chungcheongbuk-do, Korea). The Lewis lung carcinoma (LLC) cell line was obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA) and injected at 5 × 10⁵ cells/mouse through the tail vein. Immediately after LLC cell injection, mice were placed within their cages in a Plexiglass chamber, in which an atmosphere of 95% O₂ was constantly monitored using an oxygen analyzer (BioSpherix Ltd, Redfield, NY, USA). The temperature within the chamber was maintained at 22 ± 1°C and the relative humidity was 60 ± 5%. Mice were exposed to a 24-h NBO/normoxia cycle for two weeks and weighed weekly during the experiment. Controls were exposed to normoxia for the identical time frame. All animal experimental protocols were approved by the Animal Subjects Committees of the Catholic University of Korea (SPH-20100813–004).

Lung tumor analysis

The gross morphology and number of lung tumor nodules were recorded after sacrificing the mice. Size was measured with Thorpe calipers, and tumor volume was calculated using the formula: (d ¹  × d² × d³) × 0.5236, where dⁿ represents the three orthogonal diameters. The lung tissues were inflated and fixed by 10% formalin at 25 cmH₂O pressure prior to histological analysis. Hematoxylin and eosin (H&E)-stained slides of tumor tissues were scanned with a Panoramic MIDI slide scanner (3DHISTECH Ltd, Budapest, Hungary).

Mean linear intercept

Mean linear (Lm) was assessed in 10 non-overlapping fields of lung parenchyma per animal at 200× magnification. A transparent sheet with 10 equally distributed horizontal lines is laid over the printed digitized image of an H&E-stained section and the intercepts with the tissue structures are counted. The total length of the grid lines was then divided by the number of intersections to provide the mean linear intercept in micrometer.

Bronchoalveolar lavage fluid sampling

Immediately after blood collection, bronchoalveolar lavage (BAL) fluid was collected by lavage of the lung through the trachea. The trachea was cannulated with silicone tubing attached to a 23-gauge needle on a tuberculin syringe. The total number of cells in the BAL fluid was counted using a hemocytometer. The BAL fluid was cytospined (5 min at 750 × g) and stained with Diff-Quick (Sysmex, Tokyo, Japan) for differential counts. The cells were differentiated into macrophages, lymphocytes, neutrophils, and eosinophils by general leukocyte morphology. The percentage of each cell type was calculated by counting 500 leukocytes on randomly selected regions of the slides under a light microscope.

TUNEL assay

Apoptotic cell deaths in sections of mouse lungs were detected by TUNEL assay using an in situ apoptosis detection kit (Promega, Madison, WI, USA) as instructed by the manufacturer. Briefly, 4-µm-thick sections of paraffin-embedded tissue were deparaffinized and hydrated in graded alcohol solutions. After incubating with a proteinase K and washing in PBS, equilibration buffer and terminal deoxynucleotidyl transferase were added to all slides followed by incubation at 37°C for 1 h. The slides were immersed in saline sodium citrate and counterstained, followed by several washes with distilled water. On the slides, lung cells with brown nuclear labeling were considered as TUNEL positive. Staining was evaluated using Olympus light microscope under 200× magnification.

Cell culture and morphological observations

A549 (human alveolar adenocarcinoma) cells and BEAS-2B (human bronchial epithelial cells) were obtained from the ATCC. Control cells were incubated in room air, whereas cells in the hyperoxia-exposure group were incubated in a hypoxia chamber (Oxycycler; BioSpherix, Parish, NY, USA) with an 85% O₂/5% CO₂ gas mixture for 24 h. Cell morphological changes were observed and photographed under a phase-contrast inverted microscope (TS-100F, Nikon, Tokyo, Japan).

Cell viability assay

Cell viability was determined by the 3–(4,5-dimethylthiazol-2-yl)-2,5 diphenyltetrazolium bromide (MTT) assay. Cells were cultured for 24 h and then exposed to an 85% O₂ condition for 24 h. Then, the MTT solution was added and incubated for 4 h at 37°C. The purple formazan was dissolved in dimethyl sulfoxide (DMSO) and absorbance was measured at 570 nm. Cell viability was calculated as the percentage of absorbance of cells in the hyperoxia group compared with that of cells in the control group.

Lactate dehydrogenase activity

Lactate dehydrogenase (LDH) activity was evaluated spectrophotometrically in the culture media after exposure to hyperoxia using an LDH cytotoxicity kit according to the manufacturer’s instructions. LDH release was determined as the percentage of LDH in medium compared with the total LDH in each well using the following equation: (test sample − low control)/(high control − low control) × 100.

Colony-forming ability assay

The colony formation assay was performed as described previously. ²⁰ Briefly, after exposure to hyperoxia, the cells were re-plated in a six-well plate in complete culture medium under room air. After 14 days, the colonies that formed were stained with a crystal violet cell stain solution (Cell Biolabs, San Diego, CA, USA).

Wound-healing and invasion assay

Cell migration was determined by a scratch wound-healing motility assay. Cells were cultured for 24 h and then exposed to the 85% O₂ condition for 24 h. After the exposure, cells were cultured in complete medium to a nearly confluent cell monolayer. The cell monolayer was scratched to create a linear ‘‘wound’’ 1 mm in width. A defined area of the wound was photographed using the phase-contrast inverted microscope before exposure to hyperoxia. After exposure, the cells that migrated into the zero line of the linear “wound” were identified by image analysis. Cell invasive ability was examined by the Transwell migration assay. A Transwell membrane (8-um pore size) coated with Matrigel was used. After exposure to hyperoxia, the cells were seeded in the Matrigel-coated upper wells. After a 24-h incubation, the cells that had invaded the lower surface were stained with crystal violet.

Reverse transcription polymerase chain reaction

Total RNA was extracted from lung tissue or cells using TRIzol (Invitrogen, Carlsbad, CA, USA). First-strand cDNA was synthesized from total RNA using the Super Script II first-strand synthesis system (Invitrogen). Quantitative real-time polymerase chain reaction (PCR) was performed with the QuantiFast SYBR Green PCR kit (Qiagen, Valencia, CA, USA). The threshold cycle (Ct) value for each gene was normalized to the Ct value of β-actin. Relative mRNA expression was calculated using the 2^−ΔΔCT method. Semi-quantitative RT-PCR amplification was performed using caspase-3/-9, p53, Bax, Bcl-2, and β-actin primers. The PCR reaction was started at 94°C for 5 min, followed by 25–30 cycles at 94°C for 30 s at the annealing temperature of each primer, 72°C for 30 s, and a final extension step at 72°C for 10 min. Equal volumes of PCR product were separated by 2% agarose gel electrophoresis.

Western blotting and zymography

Cells were cultured for 24 h and then exposed to the 85% O₂ condition for 24 h. Equal amounts of extracted total cell protein (30 µg/sample) were separated using 8–15% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and then transferred to poly(vinylidene) fluoride (PVDF) membranes. The membranes were blocked with 5% skim milk and incubated at 4°C overnight with a 1:1000 dilution of anti-Bax, anti-Bcl2, anti-caspase-3/-9, anti-poly (ADP-ribose) polymerase (PARP), anti-p53, anti-extracellular regulated kinase (ERK), anti- c-Jun N-terminal kinase (JNK), and anti-β-actin antibody (Cell Signaling Technology, Danvers, MA, USA). After washing, the membranes were incubated with secondary antibody for 2 h. The signals were detected using an enhanced chemiluminescence Western blot detection kit and visualized by exposure to X-ray film. Collagenolytic activity in hyperoxia-exposed cells was measured by gelatin zymography and 8% SDS-PAGE containing 0.1% gelatin. After electrophoresis, the gels were washed with 2.5% Triton X-100 followed by an overnight incubation at 37°C in zymography reaction buffer. The gels were stained with Coomassie Brilliant Blue R-250 and then destained.

Flow cytometry

Progression of the cell cycle, apoptosis, and intracellular reactive oxygen species (ROS) levels were assessed with the Muse™ Cell Analyzer (Merck-Millipore, Darmstadt, Germany) according to the manufacturer’s instructions. The cells were cultured for 24 h and then exposed to the 85% O₂ condition for 24 h. The cell cycle analysis was carried out using the Muse® Cell Cycle kit (Merck-Millipore). Apoptosis was measured using Muse^™ Annexin-V and the Dead Cell kit (Merck-Millipore). Intracellular ROS generation was measured by the dichlorofluorescein diacetate (DCF-DA) method using the Muse® Oxidative Stress kit (Merck-Millipore).

Enzyme-linked immunosorbent assay

The concentrations of albumin (Abcam, Cambridge, UK), superoxide dismutase (SOD) (Dojindo Laboratories, Rockville, MD, USA), myeloperoxidase (MPO), the ratio of reduced glutathione (GSH)/oxidized glutathione (GSSG), and lipid peroxidation (MDA) (Bioassay Systems, Hayward, CA, USA) were measured in BAL fluid or tissue lysate with ELISA kits, according to the manufacturer’s instructions.

Statistical analysis

All data are expressed as means ± standard deviations. Statistical comparisons between groups were performed using the parametric independent t-test if the dependent variable was continuous and had a normal distribution. Otherwise, the Mann–Whitney U test was used. A P-value <0.05 was considered significant. All statistical analyses were performed GraphPad Prism software (ver. 5.0 for Windows; GraphPad Software, La Jolla, CA, USA).

Tumor growth inhibition and histological changes in vivo

Figure 1(a) shows the H&E-stained histopathological lung tissue sections in the normal and LLC-bearing mouse groups. No significant morphological changes were detected in the lung tissue of the normal mice exposed to hyperoxia. The lung tumors were histologically classified as hyperplasia, adenoma, or adenocarcinoma based on previously established criteria. ²¹ The LLC-induced lung tumors were histologically classified as lung adenomas or adenocarcinomas. Importantly, the histological analyses demonstrated that multiple large tumor nodules were evident in the LLC control group, whereas the number and size of nodules in the 24 h hyperoxia-exposed LLC group decreased significantly compared with those in the LLC control group (both P < 0.01). However, no significant morphological changes were observed in the normal lung region of the LLC-bearing mouse groups following hyperoxia exposure, as in the control groups. Results on tumor incidence and total tumor volume in the LLC mouse group are illustrated in Figure 1(b) and (c). To find the effects of hyperoxia on normal lung tissue, airspace size was estimated by mean linear intercept in normal mouse group (Figure 1(d)). There was no significant difference of mean linear intercept with 24 h NBO treatment in normal mouse group. Mean body weight during the two weeks did not differ between the groups (data not shown).

OPEN IN VIEWER

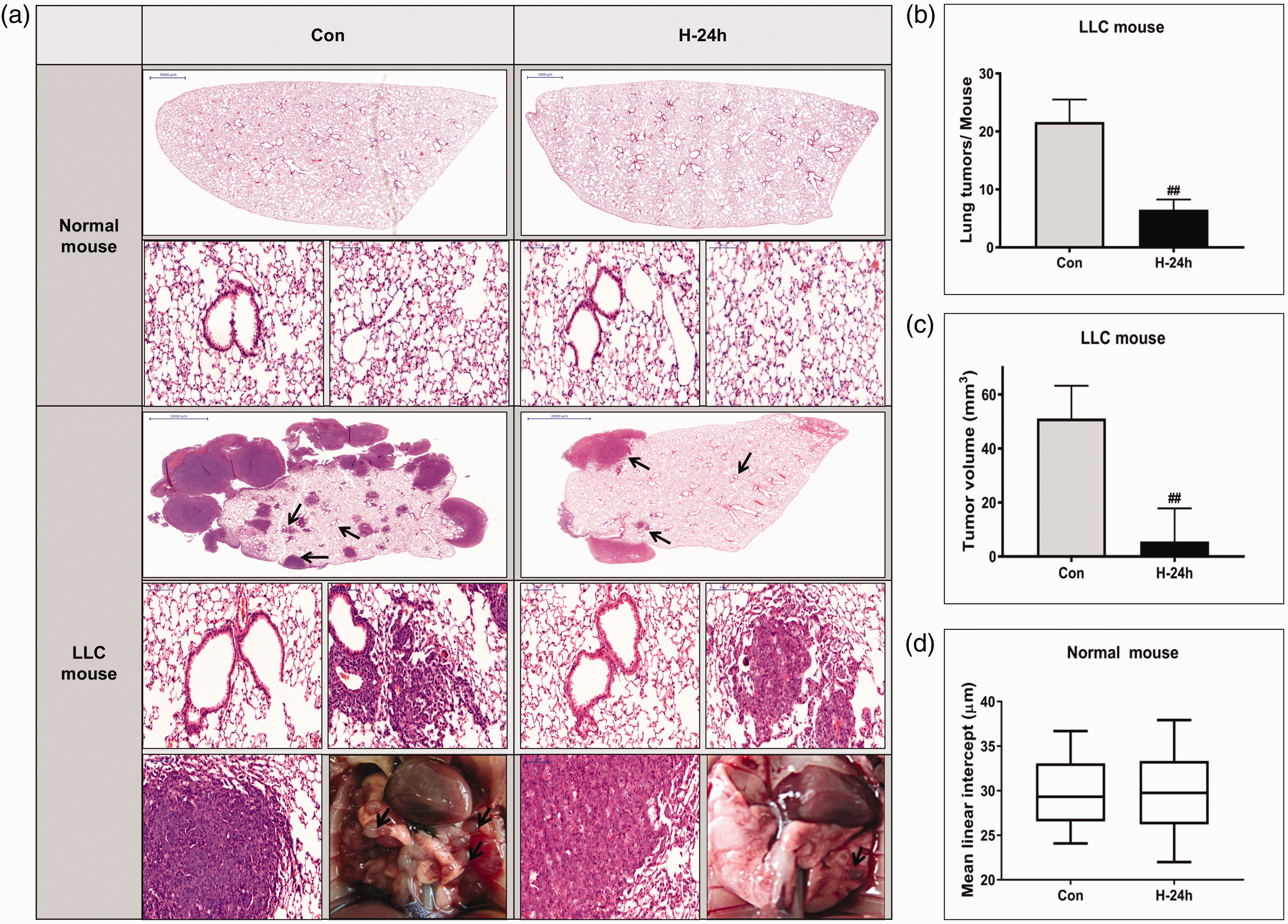

Figure 1.

Tumor growth inhibition and histological changes in vivo. (a) Photographs of the dissected tumors and representative images of hematoxylin and eosin (H&E)-stained lung sections. The two top panels show images of whole lung sections and higher magnification of the same samples (magnification, ×400) in normal mice. The three bottom panels show images of whole lung section, higher magnification of the rectangle in the whole lung section (magnification, ×400) and gross lung examination in Lewis lung carcinoma (LLC) mice. Lung tumors are indicated by arrows in the gross lung examination at the bottom panel. Lung tumor development was evaluated according to (b) the size and number of tumors in each group at the study endpoint and (c) tumor volume. (d) Airspace size was estimated by determining the mean linear intercept in normal mouse. The data represent the mean ± SD. ^##P < 0.01 compared with LLC + NBO, 0 h. (A color version of this figure is available in the online journal.)

Effect of NBO on inflammation, antioxidative enzyme activities, and apoptosis in vivo

The total number of inflammatory cells was counted in BAL fluid from mice in each group to quantify the inflammatory response. Although the numbers of neutrophils and lymphocytes tended to increase slightly after 24 h of hyperoxia in both the normal and LLC mouse groups, no significant differences were observed (Figure 2(a)). The total numbers of cells and macrophages increased significantly in the 24 h hyperoxia-exposed LLC group compared with those in the LLC control group (both P < 0.001). Albumin in BAL fluid was measured as a marker of pulmonary epithelial permeability changes and lung damage to identify the occurrence of hyperoxia-induced toxicity (Figure 2(b)). The albumin level in the LLC group tended to be higher than that in the normal group, but the difference was not significant. No significant difference in the effect of hyperoxic treatment was observed between the normal and LLC mouse groups. In addition, the activity of MPO as a proinflammatory enzyme was measured in lung tissue (Figure 2(c)). The MPO level decreased significantly after the hyperoxic treatment in the LLC mouse group (P < 0.05). However, no difference was observed in the normal mouse group.

OPEN IN VIEWER

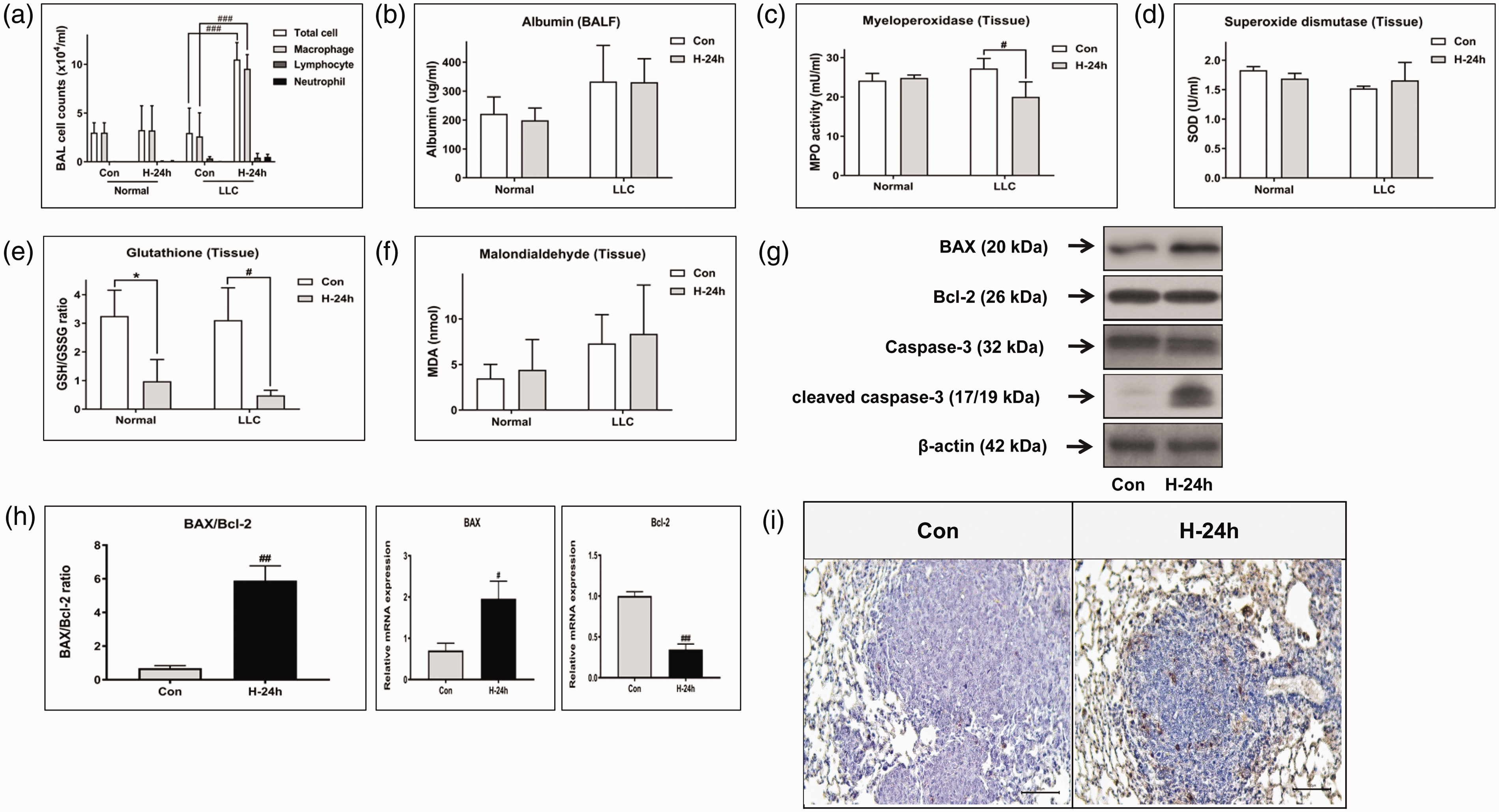

Figure 2.

Effect of NBO on inflammation, antioxidant enzyme activities and apoptosis in vivo. (a) Total and differential cells in bronchoalveolar lavage (BAL) fluid. The levels of (b) albumin and (c) myeloperoxidase (MPO) were measured as indicators of inflammation and lung injury in BAL fluid and lung tissue, respectively. The levels of (d) superoxide dismutase (SOD), (e) the ratio of reduced glutathione (GSH)/oxidized glutathione (GSSG), and (f) lipid peroxidation (MDA), as indicators of oxidative stress, were measured in the total lung homogenate. (g) The expression of apoptosis-related genes, such as caspase-3, Bax, and Bcl-2, was examined in total protein by Western blotting. (h) Bax and Bcl-2 mRNA expression was examined by real-time polymerase chain reaction. (i) TUNEL-stained lung sections from control and NBO-treated Lewis lung carcinoma (LLC) mice are shown. ^#P < 0.05, ^##P < 0.01 and ^###P < 0.001 compared with LLC + NBO, 0 h. *P < 0.05 compared with control + NBO, 0 h. (A color version of this figure is available in the online journal.)

We investigated whether exposure to hyperoxia affects the activity of pulmonary enzymes usually involved in antioxidant defense. The level of SOD in lung homogenate was not different between the study groups (Figure 2(d)). The ratio of GSH/GSSG, which represents consumption of GSH resulting from the accumulation of ROS, decreased significantly after hyperoxia in both groups (both P < 0.05, Figure 2(e)). The MDA level in lung homogenates tended to increase with exposure to the hyperoxic treatment in both groups (Figure 2(f)). We determined whether exposure to hyperoxia can play an anti-tumor role by activating the mitochondrial-dependent apoptosis signaling pathway. Total Bax and cleaved caspase-3 protein levels, as direct evidence of increased apoptosis, increased in the hyperoxia-exposed LLC mice group, whereas the Bcl-2 protein level decreased (Figure 2(g)). The real-time RT-PCR results showed a significant increase in the Bax/Bcl-2 mRNA ratio compared with that in the control group of LLC-bearing mice (P < 0.01, Figure 2(h)). In addition, hyperoxia-exposed LLC mice group showed more TUNEL-positive lung cancer cells than control group (Figure 2(i)).

Effect of NBO on cell morphological changes and growth inhibition in vitro

The microscopic image of A549 cells after 24 h of hyperoxia revealed a pleomorphic appearance with atypical nuclei and numerous mitotic figures (Figure 3(a)). In contrast, BEAS-2B cells showed a conserved cell pattern after 24 h of hyperoxia. Cell toxicity increased significantly in both BEAS-2B and A549 cells (P < 0.01 and P < 0.001, respectively, Figure 3(c)). Colony-forming ability decreased significantly in BEAS-2B and A549 cells (P < 0.05 and P < 0.01, respectively, Figure 3(d) and (e)). However, A549 cells tended to show more toxicity and less colony-forming ability after hyperoxia exposure compared with those of BEAS-2B cells. In addition, only A549 cells showed a significant decrease in cell viability after the 24 h hyperoxia exposure (P < 0.001, Figure 3(b)).

OPEN IN VIEWER

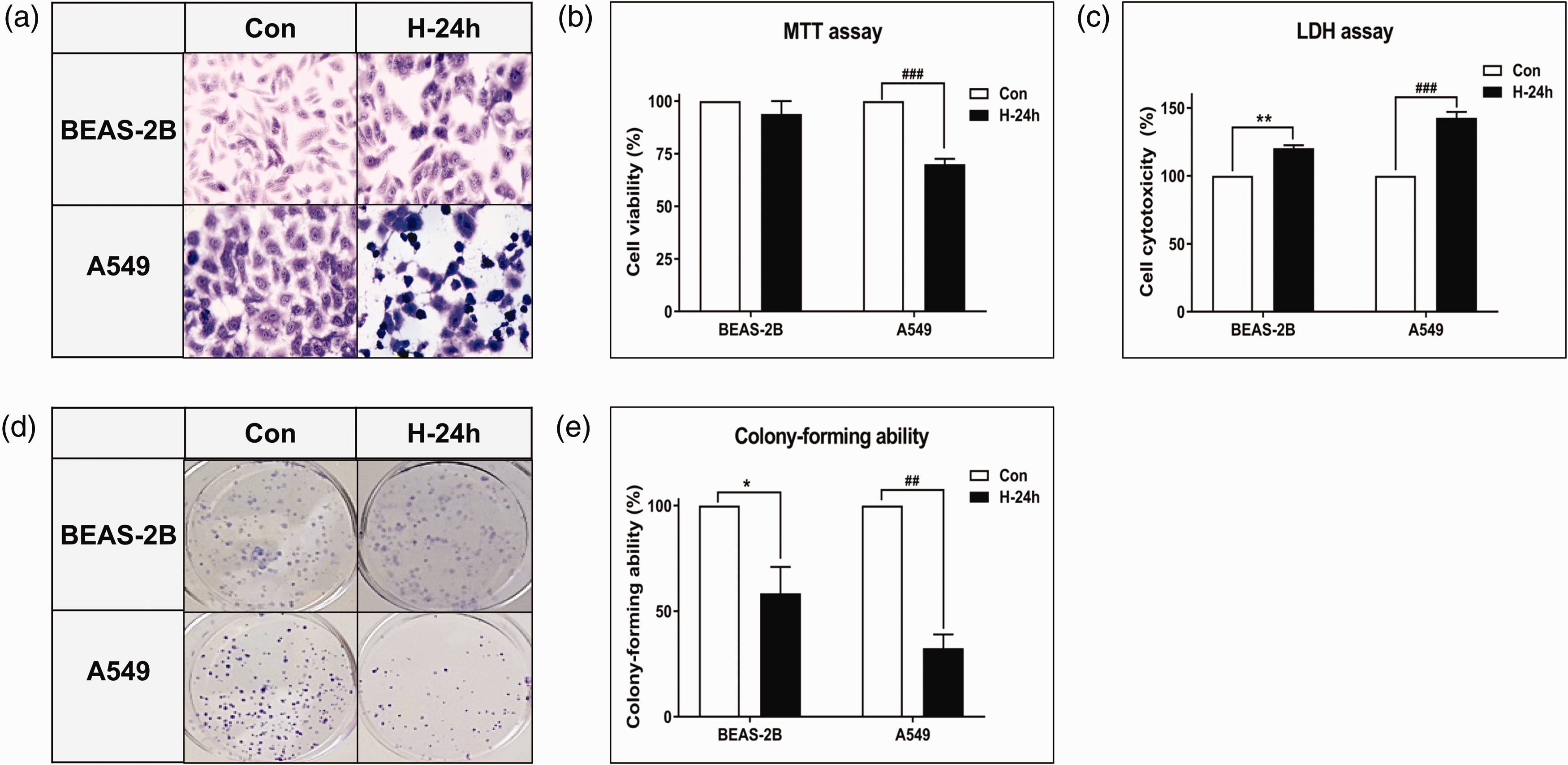

Figure 3.

Effect of NBO on morphological changes and growth inhibition in vitro. (a) Cells were stained with Wright and Giemsa (original magnification 400×). After the hyperoxic treatment, A549 cells had a pleomorphic appearance with atypical nuclei and numerous mitotic figures. Comparison of (b) cell viability and (c) cell toxicity after exposure to hyperoxia in BEAS-2B and A549 cells. Cell viability and toxicity after 24 h hyperoxia exposure were expressed as a percentage of untreated control samples. (d) Colony growth ability. Immediately after exposure to hyperoxia, the cells were re-plated in a six-well plate at a density of 500 cells. The cells were then cultured for 7–14 days in a room-air incubator, and cell colonies were stained. (e) The formed colonies were quantified. Data represent the mean ± SD number of colonies as a percentage of untreated control samples. These results are representative of three independent experiments. *P < 0.05 and **P < 0.01 compared with BEAS-2B + NBO, 0 h. ^##P < 0.01 and ^###P < 0.001 compared with A549 + NBO, 0 h. (A color version of this figure is available in the online journal.)

NBO inhibits lung cancer cell migration and invasion in vitro

The wound-healing and Matrigel cell invasion assays were performed to evaluate the ability of NBO to inhibit cell migration and invasion. Cell migration and invasion decreased in both assays after the 24 h hyperoxia exposure of A549 cells (Figure 4(a) and (b)). Quantification of the migrated and invaded cells showed the same results (both P < 0.001, Figure 4(c) and (d)). We also measured matrix metalloproteinase (MMP)-9 and MMP-2, which are associated with tumor migration and invasion. A549 cells showed decreased levels of MMP-9 and MMP-2 after the 24 h hyperoxia exposure (Figure 4(e)).

OPEN IN VIEWER

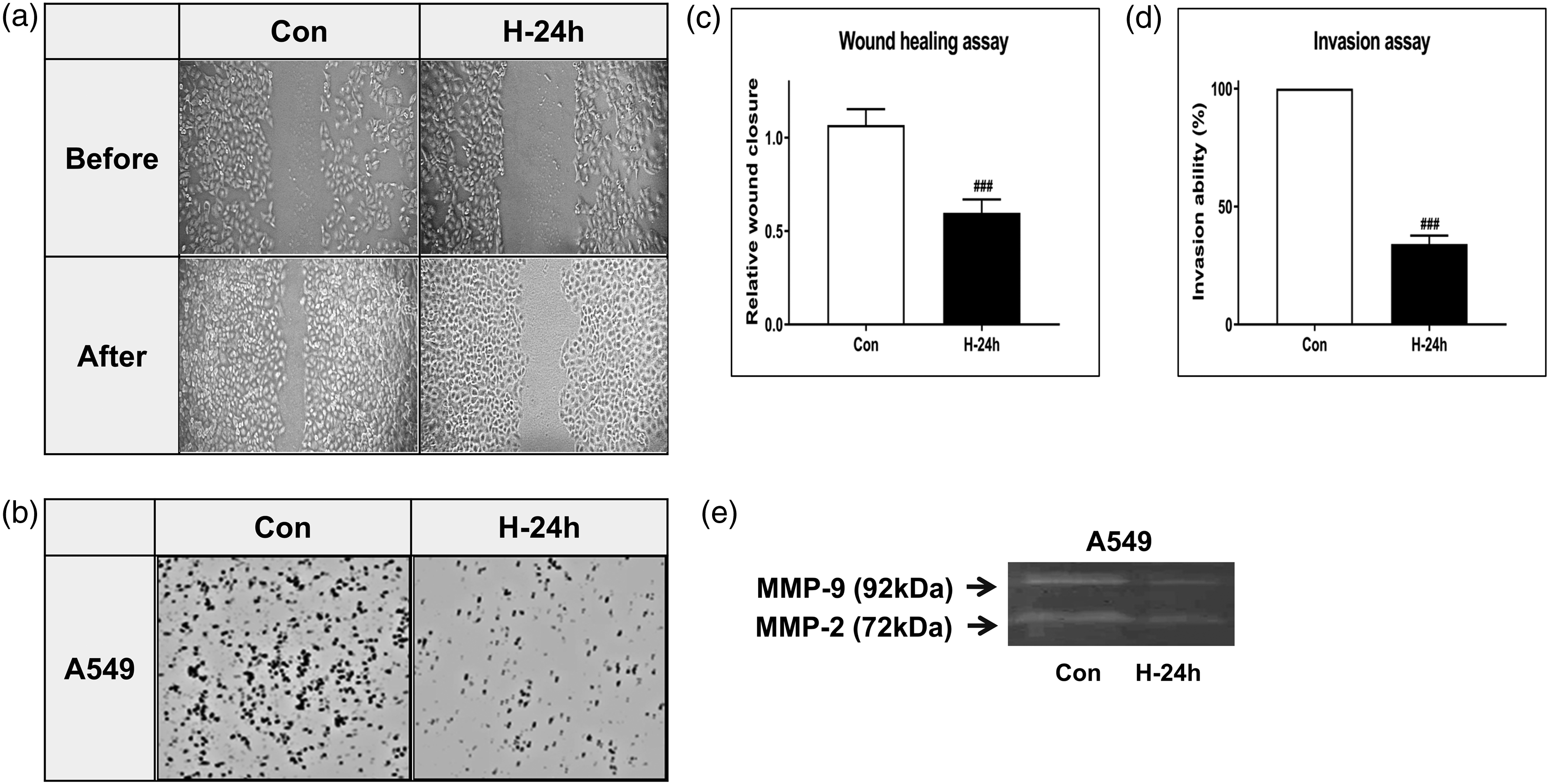

Figure 4.

NBO inhibits lung cancer cell migration and invasion. (a) The wound-healing assay was used to detect the migration ability of A549 cells. Representative photographs showing the same area at 0 h and after 24 h of hyperoxia (85% O₂) exposure. (b) The Matrigel assay was used to detect the invasion ability of A549 cells. Random fields were scanned for the presence of cells on the lower side of the membrane. (c) Migrated cells and (d) Matrigel invaded cells were quantified. Data represent the mean ± SD. ^###P < 0.001 compared with A549 + NBO, 0 h. (e) Gelatin zymography analysis for matrix metalloproteinase (MMP)-2 and MMP-9. After 24 h of hyperoxia (85% O₂), the cells were subjected to gelatin zymography to investigate the MMP-2/-9 activity. Triplicate experiments were performed.

Effect of NBO on ROS, cell cycle distribution, and apoptosis

Relative ROS levels increased significantly in A549 cells after 24 h of hyperoxia exposure (P < 0.01), whereas BEAS-2B cells showed no significant changes (Figure 5(a)). The percentage of cells in the G0/G1 phase decreased significantly in BEAS-2B and A549 cells after hyperoxia exposure (both P < 0.001, Figure 5(b)). However, the cell apoptosis ratio was significantly higher after 24 h of hyperoxia exposure only in A549 cells (P < 0.05, Figure 5(c))

OPEN IN VIEWER

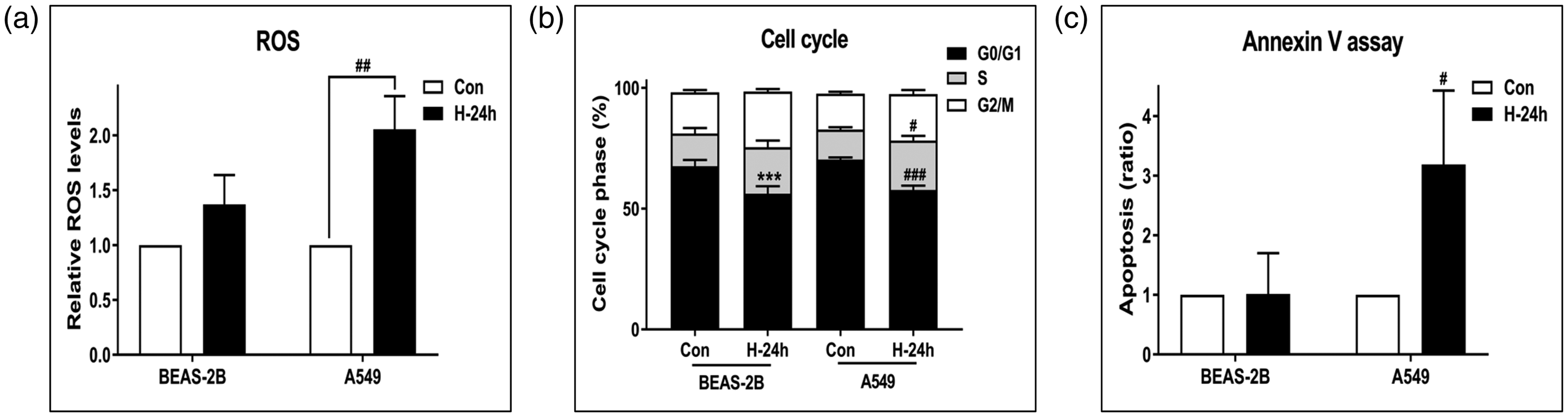

Figure 5.

Effect of NBO on reactive oxygen species (ROS), cell cycle distribution, and apoptosis. Cells were treated with room air or hyperoxia (85% O₂) for 24 h. Then, cells were analyzed for (a) ROS (b), cell cycle distribution, and (c) apoptosis using the Muse™ Cell Analyzer. The amount of ROS was measured according to dichlorofluorescein diacetate (DCFH-DA) intensity. Cell populations at the G1, S, and G2/M phases were determined using the Muse® Cell Cycle kit. Apoptosis was performed by the method of Kloesch et al. (with slight modifications) using the Muse® Annexin-V and Dead Cell kit. Error bars represent the standard deviation, and each result was determined as the average of three independent experiments. ***P < 0.001 compared with BEAS-2B + NBO, 0 h. ^#P < 0.05, ^##P < 0.01 and ^###P < 0.001 compared with A549 + NBO, 0 h.

Effect of NBO on apoptosis and MAPK signaling pathways

The expression of apoptosis- and cell survival-related genes, such as PARP, caspases, p53, p21, Bax, and Bcl-2, were examined for mRNA and total protein (Figure 6(a) and (b)). The mRNA expression of caspase-3, caspase-9, Bax, and p53 tended to increase after hyperoxia exposure. The protein levels of cPARP, cleaved caspase-9, cleaved caspase-3, Bax, p-p53, and p21 also increased in A549 cells after hyperoxia exposure. In contrast, Bcl-2 decreased in both mRNA expression and protein level after hyperoxia exposure. To ascertain if there was a role for the MAPK pathway in hyperoxia-induced apoptosis, the expression levels of proteins such as ERK and JNK were examined (Figure 6(c)). Phosphorylation of ERK decreased in A549 cells with 24 h hyperoxia exposure. In contrast, p-JNK increased after 24 h hyperoxia exposure.

OPEN IN VIEWER

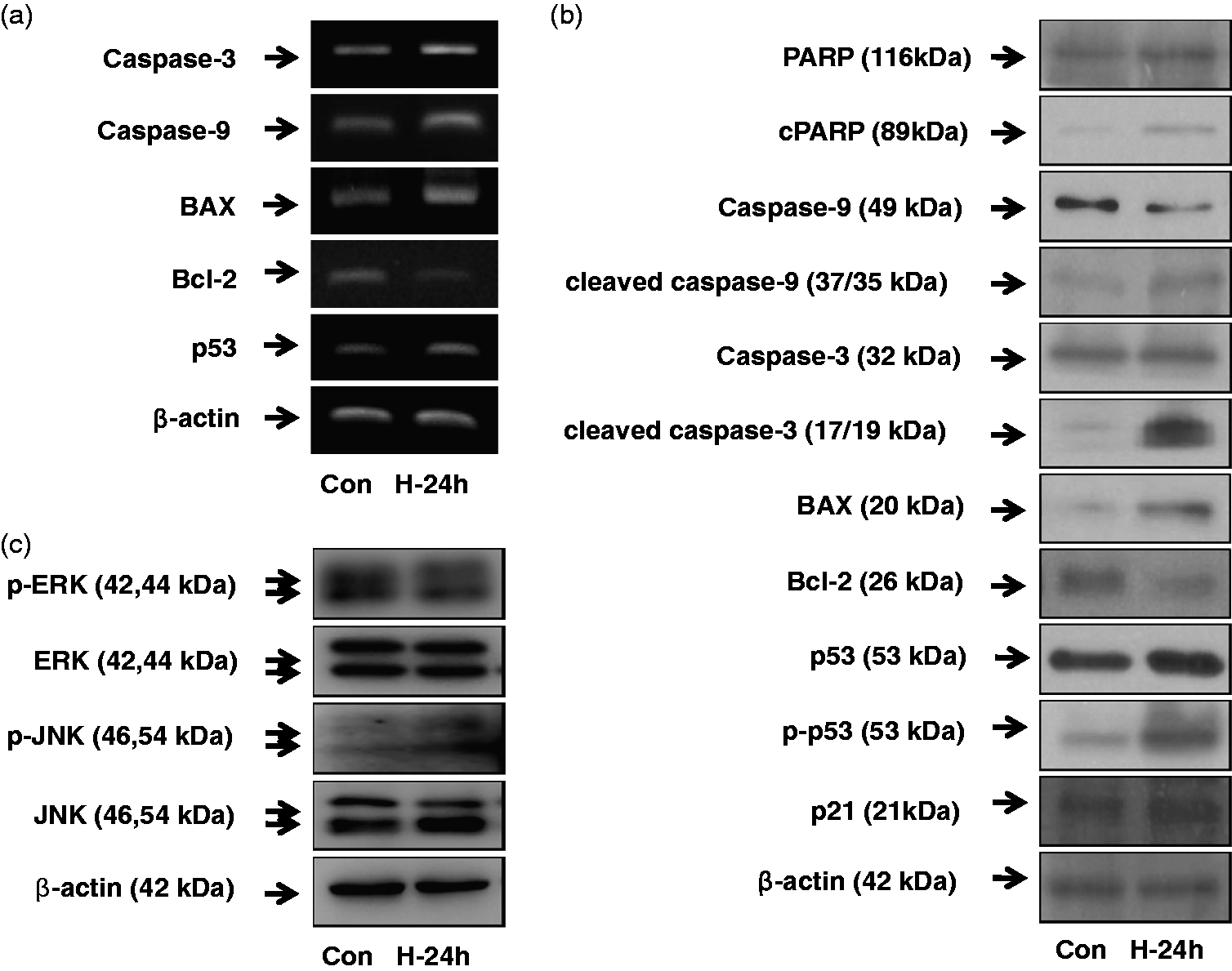

Figure 6.

Effect of NBO on apoptosis and mitogen-activated protein kinase (MAPK) signaling pathways. Cells were treated with room air or hyperoxia (85% O₂) for 24 h. Then, A549 cells were harvested and RNA was isolated using Trizol. (a) mRNA expression of caspase-3, -9, Bax, Bcl-2 and p53 was examined by reverse transcription polymerase chain reaction (RT-PCR). PCR products were resolved on a 2% agarose gel. (b) The expression levels of apoptosis and cell survival-related genes, such as poly (ADP-ribose) polymerase (PARP), caspases, p53, p21, Bax and Bcl-2 were examined in total protein by Western blotting. (c) Protein levels of extracellular regulated kinase (ERK) and c-Jun N-terminal kinase (JNK) were examined in total protein by Western blotting.
