Vagal milieu or electrophysiologic substrate? The link between atrial fibrillation and obstructive sleep apnea

Impact Statement

This comprehensive review elucidates the close relationship between the presence of obstructive sleep apnea and atrial fibrillation incidence and recurrence. It reviews their common and dependent etiologies and modifiable variables that will impact the prevention and management strategies of atrial fibrillation.

Introduction

Atrial fibrillation (AF) is the most common cardiac arrhythmia. It is expected to affect 12.1 million people in the United States by 2030.^1,2 Chronic underlying conditions that affect the heart and lungs predispose patients to develop AF, particularly coronary artery disease, valvular disease, heart failure, pulmonary hypertension, and obstructive sleep apnea (OSA). AF is associated with increased incidence of thromboembolic events, cerebrovascular events, and hospitalizations.

OSA is a common respiratory illness that is strongly associated with AF^3,4 with incidence of AF 88% higher in patients with OSA. ⁵ In a study of 2911 males, participants with greater severity of sleep-disordered breathing (SDB) had increased odds of AF (odds ratio [OR] = 2.15, 95% confidence interval [CI], 1.12–1.82), and the severity of hypoxia was associated with complex ventricular ectopy (P < 0.001). ⁶ Furthermore, the prevalence of AF in OSA patient is likely an underestimate, given that many patients with AF have undiagnosed OSA. Certain predictors such as plasma visfatin concentration are associated with the diagnosis of OSA in patients with AF. ⁷ In rat model, cumulative exposure to transient OSA-related conditions increases AF susceptibility. ⁸ There is a correlation between OSA and increased cardioembolic risk of a cerebrovascular accident in patients with AF,^9,10 this is even greater when there are increased indices of hypoxia during sleep. ¹¹

Several pathophysiological mechanisms have been proposed to elucidate the development of AF in OSA, which include hypoxia-induced arrhythmogenesis, structural remodeling, autonomic imbalance, and SDB and arrhythmogenesis.^12,13 This is summarized in Figure 1. Some studies have proposed that the current treatment of OSA via reoxygenation promotes conduction abnormalities, resulting in AF vulnerability. This review of the link between OSA and AF will discuss the current proposed pathophysiological mechanisms associated with the occurrence of AF in OSA, prevalence of AF in OSA, role of ablative therapy in untreated OSA, and current treatment modalities for AF.

OPEN IN VIEWER

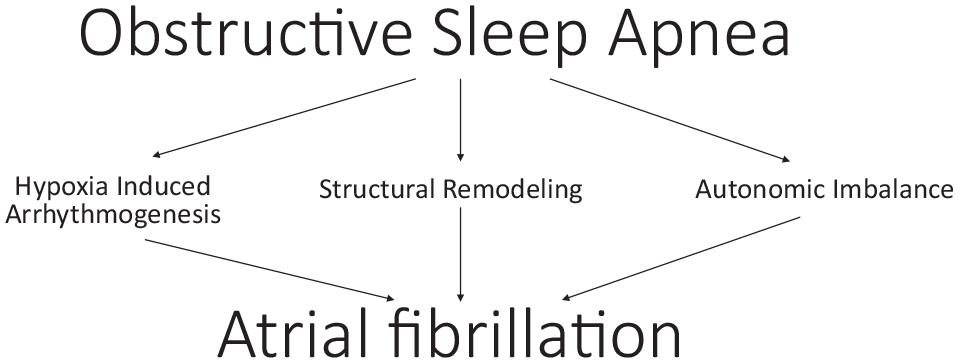

Figure 1.

Pathophysiological mechanisms causing atrial fibrillation in patients with obstructive sleep apnea.

Hypoxia-induced arrhythmogenesis

Several mechanisms by which hypoxia induces a propensity toward arrhythmogenesis have been proposed. Studies in animals and humans have been performed and suggest that hypoxia induces expression of factors that contribute to structural remodeling and conduction abnormalities. For patients investigated for OSA, there is an association of nocturnal hypoxemia and pulse rate variability, which are independent predictors of incidental AF. ¹⁴ Hypoxic conditions created by OSA favor the upregulation of hypoxia-induced factor-1a (HIF-1a), which is the transcription factor of hypoxic-induced vascular endothelial growth factor (VEGF). HIF-1a/VEGF both share a potential role in the increased expression of matrix metalloproteinase-9 (MMP-9), particularly in patients with paroxysmal/persistent AF, thus suggesting a possible significant role in atrial structural remodeling.^{15 –17} However, an emerging theory has been proposed that the Warburg effect, a form of tumor cell metabolism under hypoxic conditions, plays a significant role in transcription of HIF-1a leading to increased expression of VEGF and upregulation of inflammatory cells, resulting in the progression of AF through fibrosis and development conduction abnormalities. ¹⁸ In other studies, hypoxia contributed to alterations in cardiac conduction via shortening action potentials, prolongation, and heterogeneity of refractory periods, early afterdepolarizations, and increased pulmonary vein (PV) firings. However, the correction of the hypoxia resulted in increased vulnerability to AF. ¹⁹ In a study by Lin et al., ²⁰ hypoxia shortened the action potential duration and reduced PV firing, but reoxygenation induced PV burst firings. In another study, hydrogen peroxide caused increased PV burst firings and early afterdepolarizations, suggesting that oxidative stress favors PV arrhythmogenesis. ²¹ Connexin-43 is a major gap junction protein with expression reversibly reduced by hypoxia with increased correlation of AF in rats, and interestingly, cardiac sympathetic denervation which increases the connexin-43 expression in these hypoxic mouse models reduces AF occurrence. ²²

Stretch-induced structural remodeling

Structural remodeling of the atria in OSA-causing AF has been previously investigated. Intrathoracic pressure shifts, because of repetitive apnea episodes, is a proposed mechanism of structural remodeling, leading to atrial dilation and remodeling near the PV. ²³ Negative tracheal pressures, up to −100 mbar, were shown to shorten atrial effective refractory period (AERP) and enhance susceptibility to AF in anesthetized pigs. ²⁴ Moreover, OSA is a risk factor for diastolic dysfunction, which also contributes to manifestations of AF by interfering with cardiac structure. In a study assessing how obesity promotes AF in rats, obstructive apnea-induced AF due to diastolic dysfunction in obese rats compared to lean rats, suggesting another arrhythmogenic substrate for AF. ²⁵

Atrial fibrosis is the primary substrate for the development of AF.^26,27 The long-term effects of repeated apnea phases demonstrated increased duration of AF in chronic OSA rats compared to control rats, inducibility in 82.4% (P < 0.05) of chronic AF rats, and significant conduction slowing. ²³ This study was one of the initial studies to introduce the role connexin-43 may have in conduction abnormalities. Recurrent apneas promote atrial fibrosis via local and systemic inflammation (IL-6) and selective reduction in collagen degradation (MMP-2). ²⁸ Furthermore, it has been proposed that the organization of interstitial collagen rather than the amount of collagen present seems to contribute to changes in conduction velocity. Krul et al in 2015 investigated conduction velocities in 35 left atrial (LA) appendages during pulmonary vein isolation (PVI) for AF and concluded that the thickness of the collagen fibrils was associated with increased longitudinal conduction velocities and activation times. ²⁹ Other studies show these findings in the left atrium are not similar for the right atrium where no observable histological differences in human right atrial tissue was seen for individuals at high or low risk of OSA. ³⁰ OSA causes fibrosis in the atrium which was seen by late gadolinium enhancement technique of cardiac magnetic resonance, and this was an independently associated predictor of AF in patients with OSA. ³¹

Autonomic imbalance

Autonomic changes have been implicated in the development of AF. Alterations in sympathetic tone during apnea episodes stimulate sympathetic activation via chemoreceptors and/or decreased parasympathetic tone that has been demonstrated through impaired vagal input, diminished baroreflex sensitivity, and impairment of the parasympathetic components of heart rate variability. ³²

Severe intermittent hypoxemia, acidosis, and hypercapnia can result in sympathetic activation leading to heart rate and blood pressure elevation. ¹⁷ Conversely, hypoxemia in setting of apnea can also trigger a vagal response ³³ and the negative intrathoracic pressure stimulates the parasympathetic nervous system. ³⁴ The ANS imbalance may precipitate electrical changes in the atrium that predisposes to AF.^19,35

A study reported that there was increased sympathetic activity, in the form of blood pressure elevation, in patients with OSA during wakefulness and during sleep; however, the use of CPAP improved these findings. ³⁶

Since then, many studies have investigated the association between OSA and hypertension, which is a known risk factor for AF possibly through stretch-induced changes contributing to diastolic dysfunction.^{37 –39} The neural activity of the left stellate ganglion was enhanced in OSA compared to control dog model and this was thought to accelerate LA neural remodeling to increase AF. ⁴⁰ Superior left ganglionic plexus ablation was shown to suppress AF in chronic OSA mouse model by inhibition of its sympathovagal hyperactivity. ⁴¹ Low-level vagus nerve stimulation has also been shown to suppress acute OSA and suppressing AF. ⁴²

SDB events and arrhythmogenesis

SDB is defined by repeated episodes of apnea and hypopnea during slumber ⁴³ and has been shown to increase the risk of AF incidence. ⁴⁴ In addition, studies have revealed a temporal association between nocturnal AF episodes and individual apneic events.^45,46 One mechanism of apnea-related arrhythmogenesis involves the wide fluctuations of intrathoracic pressures during airway obstruction. More specifically, inspiratory effort on the collapsed upper airway during sleep generates negative intrathoracic pressures resulting in wider atrial transmural pressure gradients and atrial wall distension.^45,46 Orban et al simulated this phenomenon using the Mueller maneuver (inhalation with mouth and nostrils closed) in 20 healthy adults and demonstrated a decrease in LA volume during the maneuver with a subsequent compensatory increase above baseline following release. ⁴⁷ Over time, continual obstructive events cause recurrent atrial wall stretching and can result in structural and functional atrial remodeling. ⁴⁸ Furthermore, atrial dilatation has been shown to further promote electrophysiologic changes. This was demonstrated by Linz et al who applied negative tracheal pressure during tracheal occlusion in pigs and observed shortened atrial refractory periods with amplified AF inducibility. ²⁴ Large, prospective studies have also shown increased risk of new-onset AF in patients with larger LA diameters.^49,50

During an apneic episode, upper airway obstruction impairs gas exchange and leads to hypoxia, an independent risk factor for AF incidence. ⁴⁴ Upon resolution of obstruction, reoxygenation ensues and may result in cardiac structural oxidative injury due to reactive oxygen species ⁵¹ which are associated with arrhythmogenesis. ⁵² In addition, Stevenson et al studied the electrophysiologic effects of episodic hypoxia and hypercapnia using sheep under autonomic blockade. Hypercapnia resulted in prolongation of the AERP and increased right atrial conduction times; the propensity for AF was notably decreased during hypercapnia likely by its effect on the refractory period. However, upon restoring eucapnia, an increase in AF susceptibility was observed as the AERP had recovered while atrial conduction time remained slow for 2 h following normalization of blood gas levels. ¹⁹

Overall, the pathophysiologic interplay between AF and SDB is best described by the changes in intrathoracic pressure, hypoxia, and hypercapnia thereby promoting atrial structural and electrical remodeling and thus arrhythmogenesis.

Prevalence of comorbid OSA and AF

Publications of the relationship between OSA and cardiac arrhythmias date to 1983. Guilleminault et al observed 400 patients with OSA under 24 h electrocardiogram (ECG) monitoring and demonstrated resolution of some arrhythmias following tracheostomy. ⁵³ Since that time, studies have continually indicated a robust association between OSA and AF.^{54 –56} The Sleep Heart Health Study reported four times higher risk of AF in patients with severe OSA as compared to those without OSA (adjusted odds ratio: 4.02; 95% CI, 1.03–15.74). ⁴⁵ In addition, a retrospective analysis of 3542 adults with no prior AF history demonstrated several strong predictors of AF incidence, including BMI, OSA, and OSA severity. ⁴⁴ The probability of AF recurrence following ablation is threefold higher in those with OSA. ⁵⁷ Another study revealed that the odds of OSA were doubled in those with AF even after risk factor adjustment. ⁵⁸ Furthermore, in a study involving 150 patients with AF, 74% of patients demonstrated SDB with 42.7% having OSA. ⁵⁹ In conclusion, while the mechanisms of association between OSA and AF are complex, multiple studies have demonstrated the increased prevalence of comorbid OSA and AF.

Relation of OSA and AF to congestive heart failure

Congestive heart failure (CHF) is associated with OSA and AF. They have similar risk factors, such as hypertension, advanced age, and obesity. OSA affects CHF by compromising filling and emptying of the left ventricle by intrathoracic pressure variation and by sympathetic stimulation. ⁶⁰ The increased venous and extravascular fluid volume leads to SDB disorder which includes OSA. ⁶¹ Current recommendation suggests CPAP therapy improves CHF in patients with OSA diagnoses. ⁶²

CHF plays a major role in the etiology and morbidity of AF. CHF over time could lead to atrial remodeling through direct atrial enlargement from increased ventricular volume and pressure and indirectly through substrates, such as the reactive oxygen species from CHF and SDB. ⁶³ These atrial changes increase the probability of AF occurrence. CHF increases the risk of stroke in AF. AF can directly lead to worsening of CHF symptoms by eliminating the atrial contraction component of left ventricular filling and lead to short-term and long-term worsening of ventricular myocardial function due to tachycardia from rapid ventricular response. A holistic management of CHF, OSA, AF, and their modifiable risk factors is essential to optimize each individual condition. In addition to monitoring body fluid content for CHF management, and detection of cardiac arrhythmias, such as AF, some cardiac implantable electronic devices have algorithms to detect advanced OSA ⁶⁴ which could aid in detection and management of sleep apnea.

The relationship of therapy of OSA and AF

Diagnosing and treating OSA is an important part of the workup prior to considering catheter-based PVI for the treatment of AF.^65,66 One meta-analysis showed a 25% overall greater risk of AF recurrence with patients with OSA compared to patients without OSA. ⁶⁵ Although a study showed no statistically significant reduction in the burden of AF with CPAP therapy, ⁶⁷ most other studies showed a correlation with therapy for OSA associated with AF recurrence with an increase in AF recurrence after catheter ablation for untreated OSA ⁶⁸ and a decrease in AF recurrence after PVI for patients treated with CPAP. ⁶⁹ Additional studies showed a positive correlation with treatment of OSA with CPAP and a reduction in recurrence of AF, irrespective of patient undergoing PVI. ⁷⁰

The Sauer Heart Rhythm study ⁷¹ looked more into issues with the actual procedure itself. Specifically, the effectiveness of PVI for the treatment of AF and the possibility of recurrence of PV conduction post procedure due to acute PV reconnection and the associated long-term clinical outcomes. The study showed acute return of PV conduction after a successful ablation occurred more in the older populations, patients with non-paroxysmal AF, hypertension, a large atrium, and OSA and less dependent on the power and duration of the energy delivered, or even the specific catheter tip used during the procedure (4 vs 8 mm catheter).

There is a reduced risk of AF recurrence after PVI for patients with OSA who use CPAP for at least greater than 4 h a night. ⁷⁰ The study showed that patients with OSA have increased blood pressures, pulmonary artery pressures, right ventricular volumes, LA sizes, and left ventricular masses, all of which improved following CPAP treatment. The lower blood pressure, ventricular mass, and left atrium size following treatment decreased the risk of AF recurrence after PVI. ⁷² There is limited benefit for patients with OSA going through PVI for AF if not treated with CPAP. ⁷³

Other risk factors for AF recurrence within a 12-month period include early recurrence of AF, defined as recurrent AF within 0- to 3-month blanking period, and an LA diameter of greater than 40 mm. ⁷² OSA continues to be identified as a risk factor for the persistent AF group undergoing cryoballoon ablation.

Cardiac arrhythmias can be decreased after three months of CPAP therapy for patients with untreated OSA, with the severity of OSA being correlated to the prevalence of cardiac arrhythmias. ⁷⁴ Weight control, in addition to CPAP compliance and early AF intervention, reduces the risk of AF recurrence in OSA patients. ⁷⁵ One of the risk factors for OSA is obesity and weight loss can temporarily reduce AF burden. ⁷⁶ Ongoing weight loss can be associated with a significant reduction of AF prevalence and the actual maintenance of sinus rhythm. ⁷⁶ OSA needs to be diagnosed and treated for patients with AF. History-taking with various standard OSA symptoms and demographic questionnaires (such as Epworth Sleepiness Scale, Berlin Questionnaire, Sleep Apnea Clinical Score, STOP-Bang, MOODS, and OSA50) is known to have accuracy in screening for OSA in those who would need more specific sleep study testing in the general population, but the accuracy of this is reduced in those with cardiac conditions, such as AF. These questionnaires will be a good starting point to identify patients with AF who have OSA but more objective test, such as the home sleep apnea testing, is encouraged for those with AF to rule out OSA.^{77 –80} Metoprolol has been shown to prevent AF in animal models with chronic OSA by inhibiting atrial structural, sympathetic nervous and metabolic remodeling^81,82 studies to demonstrate this effect in humans will be valuable. OSA has been associated with increased incidence of extra-PV triggers of AF, and elimination of these triggers reduces arrhythmia recurrence. ⁸³ A strong association exists between OSA and cardiovascular conditions including AF, ⁸⁴ in which prompt diagnosis and management of OSA lead to better outcomes.

Conclusions

The link between OSA and AF is a combination of sympathetic and parasympathetic drivers and electrophysiologic substrate modification. This strong relationship includes common etiologies, increased prevalence of AF in patients with untreated OSA, and improved prognosis when OSA is treated independent of PVI therapy for AF. These factors should be strongly considered in patients with risk factors of OSA presenting with an initial episode or recurrence of AF. For patients who have an unacceptable burden of AF episodes despite repeat ablations and antiarrhythmic therapy, diagnosis and management of OSA should be optimized before further rhythm control or proceeding to other measures of control, such as invasive neuromodulation or atrioventricular node ablation with permanent pacemaker implantation.
