Enhanced frame expansion via configuring filterbank topology for rapid processing of multi-sensor vibration data with applications to turbo-machinery fault diagnosis

Abstract

Multi-sensor deployment is usually utilized in recent structural health monitoring of rotating machinery. Conventional wavelet transform is widely applied in relevant data processing tasks. However, wavelet transform still suffers from deficiencies such as lacking of frequency adjustability and shift variance property. In this article, an enhanced frame expansion is constructed via filterbank topology approach, which addresses these problems but at the same time can be implemented via fast numerical algorithm. In this scheme, different discrete complex wavelet frames are deployed at different processing stages within the filterbank structure. Enhanced frame expansion is obtained via integration of multiple translation-invariant frames. The derived timescale analyzing properties of enhanced frame expansion, whose wavelet functions form approximate Hilbert transform pairs, were investigated. It is also verified that the enhanced frame expansion satisfies the necessary constraints of complex-valued wavelet frame and other beneficial merits. Another major advantage presented by the enhanced frame expansion, which is different from complex-valued wavelet frame, dwells in its nondyadic frequency-scale paving. Moreover, the constructed enhanced frame expansion is also of low computational burden due to its inheriting of tree structure filterbank. The proposed enhanced frame expansion is applied to vibration feature extraction from multi-sensor data of a turbo-machinery. The processing results from the displacement signal as well as the acceleration signal indicate the rub-impact fault.

Keywords

Fault diagnosis frame expansion filterbank topology turbo-machinery multi-sensor deployment

Introduction

Over the past few decades, structural health monitoring (SHM) has become a hot topic attracting wide and significant attentions. Schematic illustration of a typical and popular SHM system for rotating machinery can be demonstrated in Figure 1. Thanks to the development of the advanced time–frequency analysis, many new techniques have been added into and are playing an important role in this field, especially in machinery fault diagnosis.^1–5 In conventional monitoring cases, utilizations of single-sensor data are emphasized, and therefore, related signal-processing techniques are often equipped with severe computational burden. In recent applications, owing to the complexity of mechanical systems, multi-sensors are often deployed to monitoring the dynamical processes. Therefore, a major concern lies in how to effectively extract hidden fault information with high efficiency. In other words, since multi-sensor data are collected and recorded, there is a new demand of effective signal-processing approaches which are implemented at low computational cost.

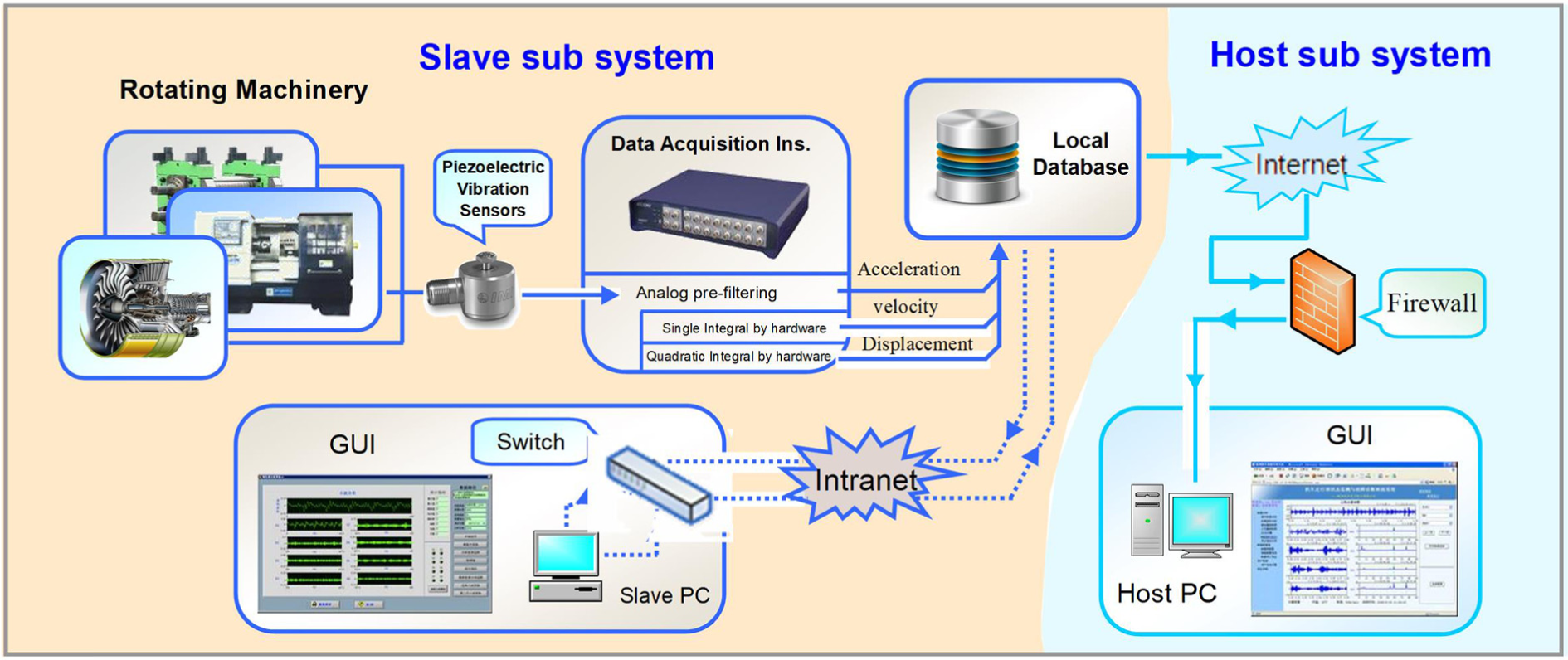

Figure 1.

Illustration of the remote vibration monitoring and diagnostic system.

Wavelet analysis has been popular in all kinds of scientific and engineering fields due to its multi-resolution analyzing capability.^6,7 Apart from the classical orthonormal bases constructed by Daubechies, there are currently other wavelet families such as “Symmlet,”“Coiflet,” as well as the second-generation wavelet bases constructed via lifting scheme.^8,9 They are investigated by many researchers and have gained enormous contribution to the current condition-based monitoring and reliability analysis.^10,11 However, it has been always neglected that there are some intrinsic deficiencies existing in the current discrete wavelet bases available. For one thing, most of them are all dyadic bases. That is to say, the frequency-scale paving generated by such bases are fixed in dyadic manner. Moreover, their frequency resolution is fixed, thus not flexible to be adjusted. However, they are shift variant, which make them less effective in extracting repetitive impulsive vibration contents. As a result, they possess inferior fault detecting ability when the spectra of the potential faults are located in transition areas of dyadic frequency-scale paving. These deficiencies cannot be perfectly resolved by developing new bases which are still dyadic ones. Complex-valued wavelet frame (CWF) is a relative new enhancement to critically sampled discrete wavelet transforms (CSDWTs).¹⁰ Although it does not give an ultimate solution to the deficiencies mentioned above, the ideas it introduced can be beneficial.

In recent years, the development of overcomplete wavelet frame (WF) has become a major trend in the field of signal decomposition. Chen et al.¹¹ investigated the extraction of gearbox fault features using an overcomplete rational dilation wavelet transform. He et al.^12,13 proposed an improved ensemble super wavelet (SW) decomposition strategy based on the tunable Q-factor wavelet transform (TQWT). Cai et al.¹⁴ utilized TQWT to separate signal components according to their differences in oscillatory behavior. It is noted in He et al.¹³ that the concept of SW is proposed for the first time with a clarified definition. The SW is defined as a hybrid wavelet system that incorporates more than one complete wavelet basis with specified analyzing purposes. In essence, the successful applications of these overcomplete WFs lie in parameterization of the mother wavelet transform. It means that a highly redundant wavelet dictionary is utilized and causes severe burden in computational cost. Perhaps, artificial interfering is required during signal processing. Therefore, the critical demand becomes how to achieve good trade-off between redundancy and efficiency, especially when processing massive data from an array of sensors.

In this article, we propose a new strategy for constructing overcomplete WF via adjusting configurations of filterbank topology. Different from the current CSDWTs, the enhanced frame expansion (EFE) constructed is derived from fusing of multiple complex WFs. That is the reason we use different CWFs at different decomposition stages. The CWF used at the first stage originates from a real-valued wavelet tight frame that consists of one scaling function and two distinct wavelet functions. And the one used at other decomposition stages are discrete complex wavelet bases constructed using a joint time–frequency domain–based method. To make the multiple CWFs compatible, we devise a hybrid implementing filterbank topology to conduct the relevant numerical computation. As a result, EFE can not only bring about extra improvements compared with CSDWT but also equipped with comparatively low computation burden. We demonstrate that the constructed EFE is nearly shift invariant, and the frequency scaling paving of its wavelet subbands are quite different from those of the dyadic ones. Therefore, EFE is especially suitable to process multi-sensor data of modern vibration-based condition monitoring.

We apply this EFE algorithm to analyze vibration data of a turbo-machinery. In this case study, to detect the current states of the machine, five eddy current vibration transducers, installed on the bearing houses of a turbo-machinery, were deployed at different locations for sensing the structural vibrations containing fault information. Some of them recorded displacement signals, and the others collected acceleration signals. In the displacement signal, there are abundant harmonic components that can be revealed in the lower frequency band, which helps to identify developed dynamical imbalance. EFE was used to investigate the nonstationary components of the vibration signals. Via multi-level decomposition, EFE successfully decomposed the impact signals belonging to different modes. On the basis of the information from different sensors, we get a final conclusion that rub-impact fault occurred. The correctness of the conclusion is verified after checking the coaxiality of gear transmission chain. As comparison, the signal was analyzed by other popular signal decomposition technique. It is shown that the results of EFE are superior to those of the comparison methods.

Fundamentals of overcomplete frame expansion

Basis expansion aims at decomposing a signal into a linear combination of predetermined function dictionaries.^15,16 A motivation of basis expansion lies in its convenience in identifying salient characteristics from another domain rather than the original domain. Let the function be demoted by $ϕ$ and its dual by $ϕ^{*}$ . The coordinates of the original signal can be expressed as

X = {\tilde{ϕ}}^{*} x

(1)

where the notation “*” represents the complex conjugate operation. Moreover, in the above equation, $\tilde{ϕ}$ is a linear operator describing the basis change, and it contains the dual basis vectors as its column. In general, such operator can be implemented via inner product transformation indicated by

〈 x, y 〉 = \sum_{i \in I} x_{i}^{*} y_{i}

(2)

where $I = {1, 2, \dots, L}$ and $L$ is the length of the input signal.

To synthesize the original signal, the following formula is introduced

x = ϕ X

(3)

where $ϕ$ is also an operator describing changes between domain. For an orthogonal expansion, the number of vectors in both $ϕ$ and $\tilde{ϕ}$ is identical to the length of the input signal. That is to say

\tilde{ϕ} = ϕ and ϕ ϕ^{*} = Identit y_{n}

(4)

while for a biorthogonal case, there exists relationships

{\tilde{ϕ}}^{*} = ϕ^{- 1}

(5)

In comparison, in a overcomplete expansion, the number of vectors in $ϕ$ is greater than the length of the signal.

Constructing of elements of the proposed fast frame expansion

Conventionally, a wavelet basis is realized via the celebrated Mallat’s algorithm that employs one unique scaling function and one unique wavelet function, both of which are uniformly applied among all decomposition stages. Rather than inheriting the conventional strategy, we attempt to integrate multiple WFs at different decomposition stages and attempt to construct a new complete wavelet analysis system via novel configuration of filterbank structure.

To facilitate the following mathematical derivations, a few notations are clarified first. Let the Z transform of a discretized signal $x (n)$ be defined as

X (z) = Z {x} = \sum_{n = - \infty}^{+ \infty} x [n] z^{- n}

(6)

Furthermore, the Hilbert transform of a continuous signal $x (t)$ can also be explicitly expressed as

H {x (t)} : = \frac{1}{π} \int_{- \infty}^{+ \infty} \frac{x (τ)}{t - τ} d τ

(7)

WF at the first decomposition stage

The WF we use at the first decomposition stage is a real-valued WF consisting of one scaling function and two distinct wavelet functions ${ϕ_{1} (t), ψ_{1, 1} (t), ψ_{1, 2} (t)}$ . The corresponding filters of ${ϕ_{1} (t), ψ_{1, 1} (t), ψ_{1, 2} (t)}$ are expressed as ${h_{0} (n), h_{1} (n), h_{2} (n)}$ . Considering the extra designing freedom of $h_{0} (n)$ , it is possible to make $h_{0} (n)$ both compactly supported and symmetric. As a whole, the solution for ${h_{0} (n), h_{1} (n), h_{2} (n)}$ can be obtained using the following procedure which is proposed as

Step 1. Set the least vanishing moment of $h_{0} (n)$ .

Step 2. Construct the prototype filter of $h_{0} (n)$ using linear combinations of maximally flat low-pass filters whose transfer functions are

F (m, z) = \frac{1 + z^{- 1}}{2} {(1 - x)}^{m} \sum_{k = 0}^{1} (\begin{matrix} m + k - 0.5 \\ k \end{matrix}) x^{k}

(8)

where M is the order of the filter and the variable $x$ is defined by

x = - \frac{1}{4} (z^{- 1} - 2 + z)

(9)

Let the prototype filter of the scaling function be defined as

H_{0}^{(1)} (z) = \sqrt{2} z^{- L} [c_{1} \cdot F (m_{1}, z) + c_{2} \cdot F (m_{2}, z)]

(10)

with the constraints of

c_{1} + c_{2} = 1

(11)

And

\begin{matrix} 0 < c_{1} < 1 \\ 0 < c_{2} < 1 \end{matrix}

(12)

where L is a positive integer that makes $H_{0}^{(1)} (z)$ causal, $M_{1}$ and $M_{2}$ are also positive integers greater than the predetermined least vanishing moment, and $a \in (0, 1)$ . When $h_{1} [n]$ and $h_{2} [n]$ are reversal filters¹⁷ defined via $Z$ transform

H_{2} (z) = z^{- Length {h_{1} (n)} + 1} H_{1} (z^{- 1})

(13)

where the operator $Length {\cdot}$ calculates the number of coefficients of the input vector or serial, and they can be factorized as

\begin{matrix} H_{00} (z) = z^{- ℓ} \sqrt{2} U (z) V (z) \\ H_{10} (z) = U^{2} (z) \\ H_{11} (z) = - V^{2} (z) \end{matrix}

(14)

where the filter length $ℓ$ can be set as

ℓ = \frac{L}{4} + \frac{1}{2}

(15)

and the factored filters $U (z)$ and $V (z)$ satisfy that

U (z) U (z^{- 1}) + V (z) V (z^{- 1}) = 1

(16)

Step 3. Impose perfect reconstruction (PR) condition and two-scale relationship on $H_{0} (z)$ .Using the poly-phase form, the PR condition of the real WF can be expressed as

\begin{matrix} 2 H_{00} (z) H_{00} (z^{- 1}) + {[\sum_{i = 0}^{1} {(- 1)}^{i + 1} H_{1 i} (z) H_{1 i} (z^{- 1})]}^{2} = 1 \\ 2 H_{10} (z^{- 1}) H_{11} (z) + z^{1 - L / 2} H_{00}^{2} (z^{- 1}) = 0 \end{matrix}

(17)

where L is the length of $h_{0} (n)$ . Substituting equation (17) into the PR constraint, we derive a polynomial with respect to $x$ . That is $R (x) = x^{2} P (x)$ , where $P (x)$ is a quadratic polynomial.

Step 4. Determine the variable of a by setting the discriminant of $P (x)$ to be zero. The value of a is chosen as the smaller one of the roots of $P (x)$ . Then, the filter set ${h_{0} (n), h_{1} (n), h_{2} (n)}$ is solved. The temporal responses and the spectra of ${h_{0} (n), h_{1} (n), h_{2} (n)}$ are shown in Figure 2. It is shown in Figure 2 that the temporal responses of ${h_{1} (n), h_{2} (n)}$ are a pair of reversal filters. That is to say

h_{1} (n) = h_{2} (L - n)

(18)

where $L$ denotes the length of $h_{1} (n)$ . The length of $h_{1} (n)$ is identical to that of $h_{2} (n)$ . Both of the two wavelet functions share the same frequency response.

Step 5. Adjust the coefficients of $h_{i} (n)$ via equation (11)

\begin{matrix} h_{0} [n] = h_{0}^{P} [n] \\ h_{1} [n] = \frac{h_{1}^{P} [n] + h_{2}^{P} [n - 2]}{\sqrt{2}} \\ h_{2} [n] = \frac{h_{1}^{P} [n] - h_{2}^{P} [n - 2]}{\sqrt{2}} \end{matrix}

(19)

such that they have distinct frequency response.

Figure 2.

(a) The impulse response of $ϕ^{(1)} (t)$ , (b) the magnitude spectrum of $ϕ^{(1)} (t)$ , (c) the impulse response of $ψ_{1}^{(1)} (t)$ , (d) the magnitude spectrum of $ψ_{1}^{(1)} (t)$ , (e) the impulse response of $ψ_{2}^{(1)} (t)$ , and (f) the magnitude spectrum of $ψ_{2}^{(1)} (t)$ .

Choosing $m_{1} = 2$ and $m_{2} = 3$ , we can obtain the corresponding functions as shown in Figure 3. As can be observed from Figure 3, the temporal responses of ${h_{1} (n), h_{2} (n)}$ changed remarkably from those in Figure 2. Obviously, the magnitude spectra of $h_{1} (n)$ and $h_{2} (n)$ are totally different. The nominal passing band of the filters ${h_{0} (n), h_{1} (n), h_{2} (n)}$ are $[0, π / 3]$ , $[π / 3, 2 π / 3]$ , and $[2 π / 3, π]$ , respectively. But at the same time, the impulse responses of ${ϕ^{(1)}, ψ_{1}^{(1)}, ψ_{2}^{(1)}}$ are of low oscillation; therefore, they are able to provide better matching capability to transient impulses in the vibration signals from mechanical systems.

Figure 3.

Wavelet element at other decomposition stages $(J \geq 2)$

In the proposed EFE, we employ a joint time–frequency domain method¹⁸ to construct the wavelet tight frame at other decomposition stages. This complex-valued wavelet tight frame contains two dyadic critically sampled wavelet bases that operate separately on the same input signal. While the two wavelet functions in the two filtering branches, $ψ^{ℜ e} (t)$ and $ψ^{ℑ m} (t)$ , should form an approximate Hilbert transform stated as above, which is defined as

ψ^{ℑ m} (t) = \frac{1}{π} \int_{- \infty}^{+ \infty} \frac{ψ^{ℜ e} (t - τ)}{τ} d τ

(20)

where $τ$ is the passenger variable used in the integral transform. In this article, the joint time–frequency domain–based method is adopted to design the SWF basis. In the routine, the designing of the two wavelet functions is reduced to the design of a prototype filter $h_{p} (n)$ , whose coefficients are defined as

{\begin{matrix} h_{p} [2 m] = h^{ℜ e} [m], \\ h_{p} [2 m - 1] = h^{ℑ m} [m] \end{matrix} .

(21)

where ${h_{0}^{ℜ e} [m]}$ and ${h_{0}^{ℑ m} [m]}$ are filters associated with $φ^{ℜ e} (t)$ and $φ^{ℑ m} (t)$ ; L denotes the length of both $h^{ℜ e} (m)$ and $h^{ℑ m} (m)$ ; the integer variable $m = 1, 2, \dots, L$ . The prototype filter $h_{p}$ is a low-pass filter in each filter branch. The $Z$ transform of ${h_{p} [n]}_{n = 0}^{2 L - 1}$ can be written as

H_{p} (z) = H^{ℜ e} (z^{2}) + z^{- 1} H^{ℑ m} (z^{2})

(22)

For an orthogonal SWF, the coefficients of $z^{4 k} (k \in Z and k \neq 0)$ terms are zero, and the magnitude gain of $H_{p} (z)$ in the frequency interval $[π / 3, π]$ should be close to zero. To construct a dual tree complex wavelet basis (DCWB), three parameters should be determined. They are the filter length ( $L$ ), the number of zeros of $H_{p} (z)$ at $z = e^{j π} (Q)$ and the number of zeros of $H_{p} (z)$ at $z = e^{\pm j π / 2} (P)$ . The following is the description of the procedure to construct the DCWB:

Step 1. Determine the magnitude spectrum of $H_{M} (z)$ , as shown in equation (23), so as to guarantee good frequency resolution

{\begin{matrix} \cos \frac{{(\frac{π}{4} \cdot ω)}^{4}}{\frac{π}{4}} ω \in [0, \frac{π}{4}] \\ \cos (\frac{π}{4} {2 - {[\frac{2 - ω}{(\frac{π}{4})}]}^{4}}) ω \in (\frac{π}{4}, \frac{π}{2}) \\ 0 ω \in [\frac{π}{4}, π] \end{matrix}

(23)

Step 2. Impose the Hilbert-pair constraint to the phase spectrum of $H_{M} (z)$ and obtain its impulse response coefficients through inverse fast Fourier transform.

Step 3. Truncate the $h_{M} (n)$ to a shorter and symmetric version $h_{m} (n)$ whose length is $2 L$ . Then add zeros at $ω = π / 2$ and $ω = π$ according to predefined number of Q and P, shown as

h_{p}^{(0)} = H_{T} H_{T}^{- 1} h_{m}

(24)

where $H_{T}$ is the Toeplitz matrix corresponding to the vector represented via $Z$ transform

Z {H_{T} (1, :)} = Π_{m = 1}^{Q} (1 + z^{- 2}) Π_{n = 1}^{P} (1 + z)

(25)

where the notation “*” stands for convolution operator and (1, :) represents the first row vector of $H_{T}$ in the MATLAB programming language.

Step 4. Improve the orthogonality of DCWB in the time domain. In order to make the design basis orthogonal, the filter $h_{P} (n)$ must fulfill that

\begin{matrix} {h_{p} [n] * h_{p} [- n]} [4 k] = δ [k] \\ F h_{p} \approx 0 \end{matrix}

(26)

where $F$ is the Fourier coefficient matrix calculating the frequency response of $h_{p}$ in the frequency range $[π / 3, π]$ . Based on the linearization approximation

\begin{matrix} h_{P}^{(k)} * h_{P}^{(k)} = (h_{P}^{(k - 1)} + Δ h_{P}^{i}) * (h_{P}^{(k - 1)} + Δ h_{P}^{k}) \\ \approx h_{P}^{(k - 1)} * (h_{P}^{(k - 1)} + 2 Δ h_{P}^{k}) \end{matrix}

(27)

the nonlinear equation (27) can be reduced to a linear iteration problem as

[\begin{matrix} 2 β_{k + 1} C_{k} \\ T_{k} F \end{matrix}] H_{T} Δ h_{P}^{(k + 1)} = [\begin{matrix} β_{k + 1} (c - C_{k} h_{P}^{(k)}) \\ - T_{k} {Fh}_{P}^{(k)} \end{matrix}]

(28)

where $c = [0, \dots, 0, 1]^{T}$ . Following this procedure, the DCWB of length 24 is shown in Figure 4. It can be observed from Figure 4 that the complex-valued scaling function and the complex-valued wavelet function are of smooth envelope.

Figure 4.

(a) Envelope of the complex scaling function, (b) envelope of the complex scaling function, (c) 3D plot of the complex wavelet function, and (d) 3D plot of the complex wavelet function.

Construction of EFE via filterbank topology configuration approach

Filterbank topology configuration approach

In this section, a filterbank topology configuration approach is utilized to take advantage of the constructed SW frame elements. The wavelet function (WTF) used at the first decomposition stage is a real one, while the one used at the others is complex valued. As such, a specialized filterbank is devised to implement the wavelet decomposition. The analysis phase and synthesis phase of the devised filterbank are shown in Figure 5. However, to generalize the real-valued WTF into a complex-valued one such that the two WTFs can be compatible, the filters used at the imaginary part of the filterbank structure at the first decomposition stage are taken as

\begin{matrix} G_{0}^{(1)} (z) = z^{- 1} H_{0}^{(1)} (z) \\ G_{1}^{(1)} (n) = z^{- 1} H_{1}^{(1)} (z) \\ G_{2}^{(1)} (n) = z^{- 1} H_{2}^{(1)} (z) \end{matrix}

(29)

Figure 5.

(a) Analysis part of the implementing filterbank and (b) synthesis part of the implementing filterbank.

While in the implementing filterbank, the filters used in the synthesis part are obtained by flipping the coefficients of their corresponding filters in the analysis part, that is

\tilde{H} (z) = z^{- (Length {h (n)} - 1)} H (z^{- 1})

(30)

where the operator $Length {\cdot}$ computes the length of impulsive response of a filter and $h$ can be any filter in the analysis part of the implementation filterbank.

However, because the filter response of ${h_{2} (n)}$ is distinct from that of ${h_{1} (n)}$ , their corresponding wavelet series are reconstructed independently. Therefore, a $J$ stage EFE decomposition will result in one approximation scale and J + 1 wavelet scales. While in CSDWTs, a J stage CSDWT decomposition only results in J + 1 subscales in total.

With the constructed WFs, a specialized implementing filterbank is developed to derive the nonconventional timescale WF. Recalling the structure of the filterbank shown in Figure 5, the redundancy factor of the constructed EFE is ranged in the real-valued interval $[2, 3]$ . Although the computed redundant factor is a little bit bigger compared with the dual tree complex wavelet bases, it is still acceptable and highly efficient in engineering applications. The temporal response and the frequency response of each wavelet subband of the EFE are displayed in Figure 6.

Figure 6.

(a) The resulting scaling function, (b) the resulting wavelet function, and (c) the frequency responses of the EFE.

Observing the impulse responses of the resulting scaling function as well as the resulting wavelet function, which are shown in Figure 6(a) and (b), we can find they are almost symmetric and finitely supported at any decomposition stage. And in the Fourier domain (Figure 6(c)), the three wavelet subbands located in the highest frequency range show significant differences from those of dyadic ones.

To further illustrate the differences between the time–frequency properties of constructed EFE and those of the conventional CSDWT, the temporal responses and frequency responses of a CSDWT basis (Daubechies’ DB8 wavelet basis) is shown in Figure 7. As can be seen, the scaling function and the wavelet function are not symmetric at all, and more oscillations are found in the waveforms. The essential differences lie in the different timescale paving due to filterbank structure.

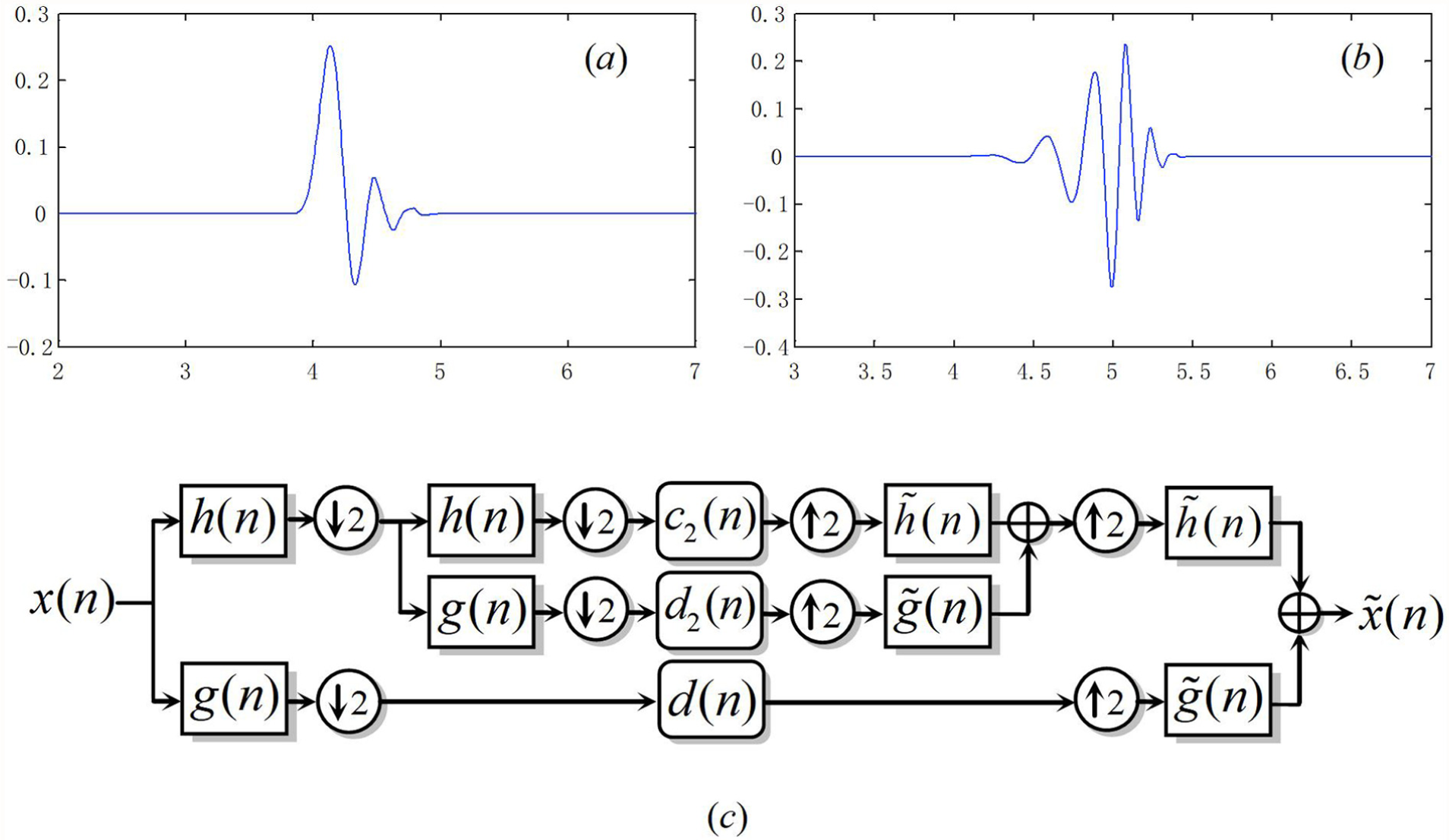

Figure 7.

(a) The wavelet function of DB8 basis, (b) the scaling function of DB8 basis, and (c) the filterbank structure of CSDWT.

Other properties of the constructed EFE

In this subsection, we move on to investigate the time–frequency properties of the constructed EFE. As a special case of overcomplete frame expansion, EFE is no longer orthogonal. Some major advantages of EFE can be summarized as below:

Sharp resolution in the time domain

As can be seen in Figure 8, a three-stage EFE decomposition can generate five wavelet subbands, and the temporal waveforms of each subband are displayed, respectively. A shorter support indicates associated higher frequency subband in the spectral domain. It is observed that all the impulse responses are of low oscillation, therefore very suitable for extracting transient signature in the recorded vibration signal. Comparing impulsive responses in Figure 8 with those in Figure 7, we confirm that there are improvements of temporal resolution in the EFE via filterbank topology configuring scheme.

Figure 8.

The impulse response of each wavelet subband of EFE in a three-stage decomposition.

PR

In Figure 8, let $\hat{x} (n)$ be the summation of all decomposed wavelet subbands. The error between $\hat{x} (n)$ and the original Dirac impulse is computed at less than $10^{- 10}$ . This means only numerical truncation errors are introduced in the reconstruction process. As wavelet systems realized via Mallat’s tree-structured filterbank are linear ones and any digital signal can be regarded as linear combinations of Dirac sequences, this perfect inevitability applies for all discretized signals.

Nearly linear phase property

The impulsive responses in Figure 8 are almost symmetric and ensure small distortion in each wavelet subband after applying signal branch reconstruction.

Nearly shift-invariant property

In order to test the shift-invariant property of the constructed EFE, we employ discretized Dirac sequences with unit amplitude as the input of EFE decomposition. That is to say, the functions, $u (n - k)$ , in which $k \in Z$ , are utilized. As a result, the wavelet responses of all subbands are displayed in Figure 9.

Figure 9.

Shift-invariant property of EFE using Dirac sequences as the input.

Fast numerical implementation

Inheriting tree-structured iterated filterbank scheme, the computational burden of EFE can be almost the same as common complex-valued wavelet tight frame. This property ensures high-efficient processing of multi-sensor measurements in vibration-based condition monitoring.

Numerical simulation

The proposed EFE is a good alternative to classical CSDWT in mechanical fault feature extraction. In this section, EFE is compared with CSDWT (DB8 basis) and ensemble empirical mode decomposition (EEMD)^19,20 in multicomponent signal decomposition. EEMD is also a popular adaptive signal analysis tool. It is reported that EEMD shows similar octave band decomposition manner which is similar to wavelet transform. The simulated signal $x (t)$ is composed of three single-side damping and oscillatory components

x (t) = \sum_{i = 1}^{4} c_{i} \cdot x_{i} (t)

Equivalently, the compound signal $x (t)$ can be expressed as

x (t) = 0.7 \cdot x_{1} (t) + 1.5 \cdot x_{2} (t) + 1.8 \cdot x_{3} (t) + 0.6 \cdot x_{4} (t)

where the coefficients $c_{i}$ and the original signals are shown in Table 1. The sampling frequency and the sampling length of the simulated signal is 2000 and 1024, respectively. The four components of $x (t)$ indicate components of deterministic harmonic, frequency modulation, and amplitude modulation phenomena. Such components are very common in vibration signals of large complex mechanical systems in various health states.

Table 1.

Parameters of the four components in the simulation signal $x (t)$ .

i	$c_{i}$	$x_{i} (t)$	Physical meaning
1	0.7	$\cos (2 π \cdot 950 \cdot t)$	Sinusoidal vibrations of low frequency
2	1.8	$\cos (2 π \cdot 470 \cdot t + \cos (2 π \cdot 25 \cdot t))$	Frequency modulation phenomenon
3	1.5	$\cos (2 π \cdot 310 \cdot t) \cdot [1 + 0.4 \cos (2 π \cdot 15 \cdot t)]$	Amplitude modulation phenomenon
4	0.6	$\cos (2 π \cdot 168 \cdot t)$	Sinusoidal vibrations of high frequency

The time-domain wave and its associated Fourier spectrum of the simulation signal $x (t)$ are given in Figure 10(a). The colored areas in Figure 10(b) show the pass band of each wavelet subband, and the four components in the simulation signal are supposed to be separated into four distinct subbands. $x_{1} (t)$ and $x_{4} (t)$ are harmonic contents which are different in frequency, while $x_{2} (t)$ is an frequency modulation content, and $x_{3} (t)$ is a amplitude modulation content. The time-domain waves of all the decomposed component are shown in Figure 11.

Figure 10.

(a) Time-domain wave and (b) Fourier spectrum of the simulation signal.

Figure 11.

Time-domain waves of four simulation components.

By performing four-stage EFE decomposition on the simulation signal, we obtain the wavelet subbands, and they are shown in Figure 12. It can be observed that the signal in each subband is very similar to their original signal. Only the low oscillatory harmonic component shows attenuation in amplitude. This phenomenon actually comes from the fact that the frequency of low oscillatory harmonic is located in transition band of two adjacent wavelet subbands.

Figure 12.

Decomposition results by the proposed EFE.

As comparison, the simulation signal is also processed by DB8 orthonormal wavelet basis and EEMD. The decomposition results of DB8 basis is shown in Figure 13. It can be seen that the signal in each wavelet subband shows evident distortion with different severity, especially the extracted low oscillatory harmonic display false modulation effect.

Figure 13.

Decomposition results by DB8 orthonormal basis.

The four intrinsic mode functions (IMFs) by EEMD are plotted in Figure 14. The decomposition results by EEMD show severe mode cracking. None of the IMFs recover the feature of the four signal contents. The spectra of the four IMFs are also given in Figure 15, and it can be seen that features of ${x_{i} (t)}_{i = 1, 2, 3, 4}$ mix in IMF1, while in other IMFs, the features are severely distorted. In the analysis of the simulation signal, EEMD shows poor performance in separating four distinct signal contents.

Figure 14.

Four IMFs of the simulation signal using EEMD.

Figure 15.

Fourier spectrum of the four IMFs derived by EEMD.

In order to make a quantitative analysis of results in Figures 11 –14, an indicator of correlation coefficient (CC), which can make precise assessment of the similarity between two series $x$ and $y$ , is employed here. Numerically, the definition of CC is written as

CC {x, y} = \frac{\sum (x - \bar{x}) (y - \bar{y})}{{({\sum (x - \bar{x})}^{2} {\sum (y - \bar{y})}^{2})}^{1 / 2}}

(31)

where $\bar{x}$ and $\bar{y}$ denotes the mean value of two series. It can be inferred form Table 2 that the CCs derived from EFE are greater to that of DB8 basis, indicating that the decomposition results by EFE is superior.

Table 2.

Correlation coefficients between the actual component and the estimated component.

	$CC {x_{1}, {\hat{x}}_{1}}$	$CC {x_{2}, {\hat{x}}_{2}}$	$CC {x_{3}, {\hat{x}}_{3}}$	$CC {x_{4}, {\hat{x}}_{4}}$
EFE	0.8313	0.9090	0.9175	0.9813
CSDWT	0.5433	0.5555	0.1510	0.1133
EEMD	0.3140	0.0882	0.0215	0.0103

EFE: enhanced frame expansion; CSDWT: critically sampled discrete wavelet transform; EEMD: ensemble empirical mode decomposition.

In Table 2, the CCs between the actual components and the estimated components are computed and enumerated. For any of ${x_{i} (t)}_{i = 1, 2, 3, 4}$ , EFE produces the highest CC values. This indicates that EFE obtains best performance in separate the distinct modes. Figure 16 shows the CCs of wavelet subbands by the above two bases to the original signal ${x_{i} (t)}_{i = 1, 2, 3, 4}$ .

Figure 16.

Correlation coefficients of two wavelet bases to the original signal contents.

From the above results, it is remarkable that the performance of EEMD is inferior to that of basis expansion methods. Although EEMD is reported to be an effective self-adaptive signal-processing technique driven by the input data, it is difficult to control its time–frequency properties. When the added noise is not carefully manipulated, the results may be not so good.

Engineering application to turbo-machinery condition monitoring

Turbo-machinery is a type of major equipment extensively used in many modern industries, such as power generation, oil refining, and even aircraft manufacturing.^21,22 Owing to hard working conditions, mechanical faults have threatened the performance and safety operations of turbo-machinery.^23–26 In the above literature, it is seen that multi-sensor deployment is very popular to interpret the faulty information contained in the vibration measurements. The rub-impact fault is a common malfunction in engineering mechanical systems.^27,28 However, related mechanical signatures of rub-impact fault are quite diversified and difficult to be analyzed. In this section, the constructed EFE was applied to rub-impact analysis of an engineering turbo-machinery.

Figure 17 shows the structural sketch of a flue gas turbine unit for heavy oil catalytic cracking units in oil refineries. The unit is composed of a flue gas turbine, a fan, a gearbox, an electric motor, couplings, and bearings. The transmission ratio of the gearbox is 120/31. The rotating speed of the flue gas turbine and the fan is running at 5850 r/min. Accordingly, the rotating frequency of the motor can be calculated at 25.19 Hz.

Figure 17.

Structural sketch of the engineering flue gas turbine unit.

In order to prevent major mechanical downtime, a condition monitoring system was developed for this turbo-machinery. Because the machine is large in volume, single-channel sensor does not meet the demand, and incipient fault features may be omitted, and a multi-sensor measurement strategy is designed. Sensors were mounted on the bearing housing of the shaft. Displacement signals were taken from the measuring points of 1–5 bearings by eddy current transducers and digitized at a uniform sampling frequency of 2000 Hz. The vibration signal of the measuring point 5, and its Fourier spectrum is illustrated in Figure 18.

Figure 18.

(a) The time-domain waveform of the measured displacement signal and (b) the Fourier spectrum of the displacement signal.

A seemingly fluctuant sine waveform can be observed. However, there was no explicit information which indicates the hidden fault of the flue gas turbine unit. In the Fourier spectrum, the magnitudes of the second order and third order of the working frequencies are quite large. This phenomenon usually indicates the occurrence of severe dynamic imbalance. In Figure 19, the Hilbert envelope spectrum of the original vibration signal is computed, from which it can be seen a dominant component of the working frequency is found.

Figure 19.

The envelope spectrum of the original vibration signal.

To further investigate the implicit information of the displacement signal, the constructed EFE is employed to perform a four-level decomposition on the displacement signal, with the result shown in Figure 20.

Figure 20.

Wavelet subbands of the displacement signal decomposed by EFE.

From Figure 20, it can be seen that the working frequency of the low-speed shaft (A5) and the working frequency of the low-speed shaft (D5) are reasonably decomposed. While in D1–D3, many impulsive contents are detected. Let X denote the working frequency of the high-speed shaft (X = 97.5 Hz). The D3 wavelet subband in Figure 20 is reproduced in Figure 21, from which a series of repetitive impulses occurring at the rate X/3 are quite evident.

Figure 21.

D3 wavelet subband of the displacement signal (decomposed by EFE).

However, in the Hilbert envelope spectrum of the D3 wavelet subband (Figure 22), we find the frequency peaks spaced at the interval of X/3 with the initial one X/3. With the acquired information, we can claim with confidence that there are indeed decaying vibration impulses in the signal. The frequency of X/3 is an important symptom of rub-impact fault in rotating machinery, especially at the early stage.²¹ Consequently, the extracted 1/3 fractional harmonic component implies that the rub-impact fault had been developed in the flue gas turbine unit.

Figure 22.

Hilbert envelope spectrum of the D3 wavelet subband in Figure 20.

To investigate the causes of the rub-impact fault, we noticed that in the flue gas turbine, the fan, and the gearbox were connected using a diaphragm coupling. They were not properly aligned when the system was assembled. In order to compensate the misalignment of the shafting, the diaphragms were slightly sliding and dislocated between each other during operation. This tiny change led to the rub-impacts in the diaphragm coupling B during operations of the unit.

As comparison, the CWF basis of length 24 and the DB8 orthonormal basis were also used to process the displacement signal and their subbands, whose theoretical passing band are similar to D3 generated by the EFE, are shown in Figure 23. It can be seen that neither of the two contrasting methods provided comparable processing result as that of the constructed EFE.

Figure 23.

(a) D2 wavelet subband of the displacement signal decomposed by the CWF basis of length 24 and (b) the D2 wavelet subband of the displacement signal decomposed by DB8 basis.

In Figure 24, we apply EEMD to decompose the original vibration signal, and four IMFs of nontrend components are plotted. The results failed in revealing the transient feature space at the frequency of X/3. Moreover, it can be observed that mode crack is still a problem in IMF1 which is of the highest frequency band among all scales.

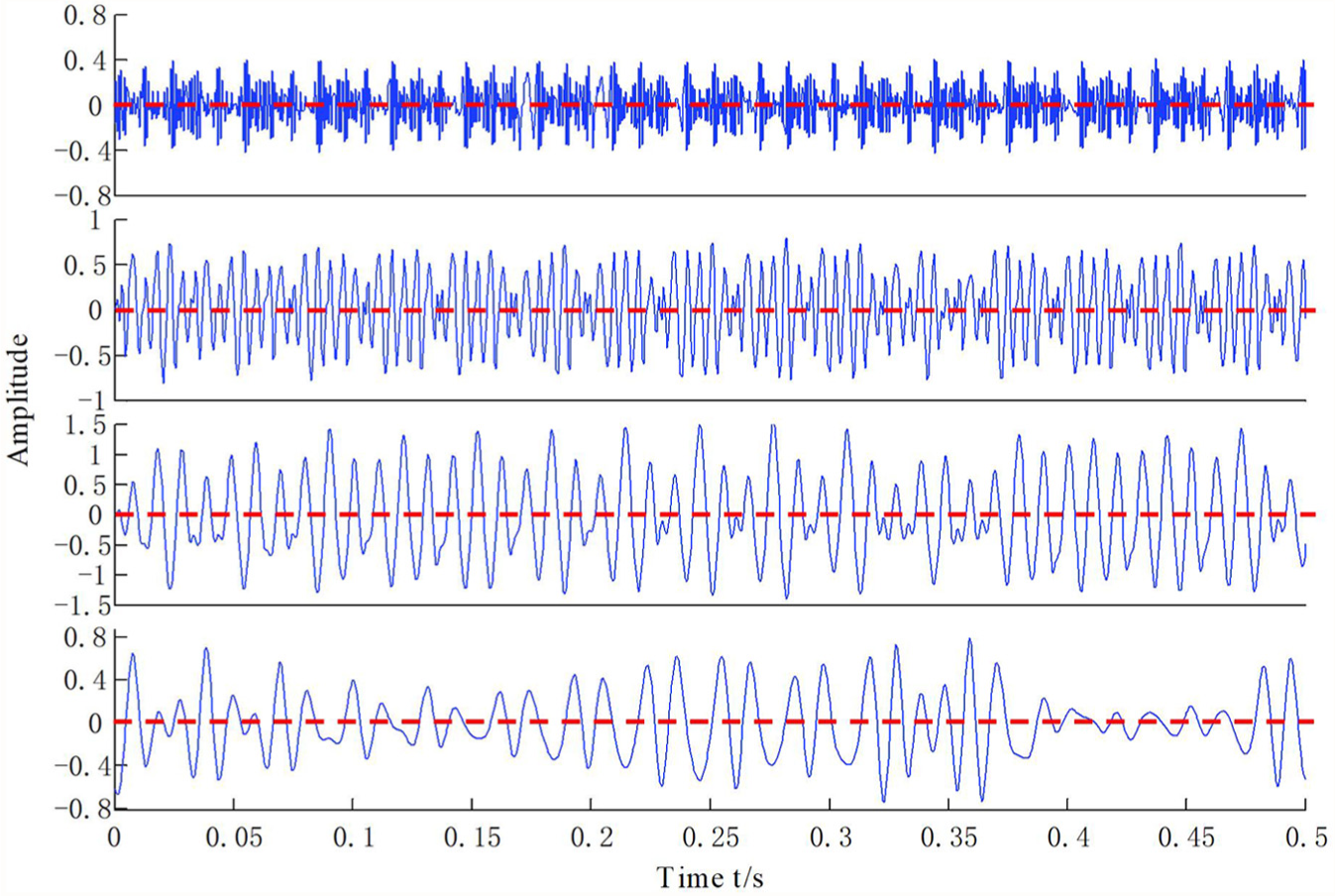

Figure 24.

IMFs generated by applying EEMD to the original vibration signal.

Conclusion

In this article, a novel hybrid wavelet tight frame representation methodology, named as EFE, is constructed via configuration of filterbank topology for improving the intrinsic deficiencies that exist in the critically sampled wavelet transforms. The construction of the EFE is inspired by the ideas introduced in the CWF. Multiple WFs are integrated in the EFE, and a specialized implementing filterbank is devised to make the multiple CWFs compatible with each other. It is shown that the constructed EFE inherits the feasible merits of the CWF and is still of low computation burden. Moreover, the time–frequency properties of the EFE are quite different from those of the CSDWTs. The proposed EFE was applied to analyze the vibration signal of an engineering flue gas turbine unit and successfully detected the incipient rub-impact fault signatures, especially the sub-harmonic symptoms, at the early fault stage. The processing result is compared with those of the CWF and the DB8 wavelet transform as well as EEMD, and it was found that the result of the proposed method is superior. The most important advantage of EFE lies in its high-efficient numerical implementation, which makes it especially suitable for rapid processing multi-sensor data of vibration-based condition monitoring.

Footnotes

Acknowledgements

The authors would like to thank School of Mechanical Engineering, Xian Jiaotong University, for providing the necessary experimental conditions.

Handling Editor: Zhi-Bo Yang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was financially supported by the Natural Science Foundation of China (grant no. 51605403), the Natural Science Foundation of Fujian Province, China (grant no. 2016J01261), the Natural Science Foundation of Guangdong Province, China (grant no. 2015A030310010), the Ministry of Industry and Information Technology (MIIT) 2016 related to comprehensive and standardized trial and new model application of intelligent manufacturing (grant no. Yu Luo Industrial Manufacturing [2016]07744), and the Fundamental Research Funds for the Central Universities (grant no. 20720160078).

References

Wang

Xiang

et al . Compressed sparse time–frequency feature representation via compressive sensing and its applications in fault diagnosis. Measurement 2015; 68: 70–81.

Yang

Radzienski

Kudela

et al . Damage detection in beam-like composite structures via Chebyshev pseudo spectral modal curvature. Compos Struct 2017; 168: 1–12.

Yang

Chen

Xie

et al . The hybrid multivariate analysis method for damage detection. Struct Control Hlth 2016; 23(1): 123–143.

Yan

Gao

Chen

. Wavelets for fault diagnosis of rotary machines: a review with applications. Signal Process 2014; 96: 1–15.

Ding

et al . Repetitive transients extraction algorithm for detecting bearing faults. Mech Syst Signal Pr 2017; 84: 227–244.

Lebedeva

. On a connection between nonstationary and periodic wavelets. J Math Anal Appl 2017; 451(1): 434–447.

Chen

et al . Transform principle of inner product for fault diagnosis. J Vib Eng 2007; 20(5): 528–533.

Chen

et al . Reliability estimation for cutting tools based on logistic regression model using vibration signals. Mech Syst Signal Pr 2011; 25(7): 2526–2537.

Dziedziech

Staszewski

Uhl

. Wavelet-based frequency response function: comparative study of input excitation. Shock Vib 2014; 2014: 502762.1–502762.11.

10.

Selesnick

Baraniuk

Kingsbury

. The dual-tree complex wavelet transform. IEEE Signal Proc Mag 2005; 22(6): 123–151.

11.

Chen

Zhang

Sun

et al . Fault feature extraction of gearbox by using overcomplete rational dilation discrete wavelet transform on signals measured from vibration sensors. Mech Syst Signal Pr 2012; 33: 275–298.

12.

Wang

et al . Tunable Q-factor wavelet transform denoising with neighboring coefficients and its application to rotating machinery fault diagnosis. Sci China Technol Sc 2013; 56(8): 1956–1965.

13.

et al . Automatic fault feature extraction of mechanical anomaly on induction motor bearing using ensemble super-wavelet transform. Mech Syst Signal Pr 2015; 54–55: 457–480.

14.

Cai

Chen

. Sparsity-enabled signal decomposition using tunable Q-factor wavelet transform for fault feature extraction of gearbox. Mech Syst Signal Pr 2013; 41(1–2): 34–53.

15.

Kovacevic

Chebira

. Life beyond bases: the advent of frames (part I). IEEE Signal Proc Mag 2007; 24(4): 86–104.

16.

Kovacevic

Chebira

. Life beyond bases: the advent of frames (part II). IEEE Signal Proc Mag 2007; 24(5): 115–125.

17.

Selesnick

Abdelnour

. Symmetric wavelet tight frames with two generators. Appl Comput Harmon A 2004; 17(2): 211–225.

18.

Chen

Zhang

et al . Detecting of transient vibration signatures using an improved fast spatial–spectral ensemble kurtosis kurtogram and its applications to mechanical signature analysis of short duration data from rotating machinery. Mech Syst Signal Pr 2013; 40(1): 1–37.

19.

Wang

Makis

. Fault severity recognition of aviation piston pump based on feature extraction of EEMD paving and optimized support vector regression model. Aerosp Sci Technol 2017; 67: 105–117.

20.

Lei

Lin

et al . A review on empirical mode decomposition in fault diagnosis of rotating machinery. Mech Syst Signal Pr 2013; 35(1–2): 108–126.

21.

Sun

Yao

et al . Health state monitoring of bladed machinery with crack growth detection in BFG power plant using an active frequency shift spectral correction method. Materials 2017; 10(8): E925.

22.

Wang

Pang

Zheng

et al . Failure analysis of high nickel alloy steel seal ring used in turbomachinery. Eng Fail Anal 2017; 80: 49–56.

23.

Zhou

Wang

Chen

et al . Sound generation by non-synchronously oscillating rotor blades in turbomachinery. J Sound Vib 2015; 355: 150–171.

24.

Shakya

Darpe

Kulkarni

. Bearing diagnosis using proximity probe and accelerometer. Measurement 2016; 80: 190–200.

25.

Sun

Yao

Zeng

et al . An intelligent gear fault diagnosis methodology using a complex wavelet enhanced convolutional neural network. Materials 2017; 10: 790.

26.

Ding

et al . Sparsity-based algorithm for detecting faults in rotating machines. Mech Syst Signal Pr 2016; 72: 46–64.

27.

Chen

Wen

. The application of stochastic resonance theory for early detecting rub-impact fault of rotor system. Mech Syst Signal Pr 2003; 17: 883–895.

28.

Chu

. Experimental observation of nonlinear vibrations in a rub-impact rotor system. J Sound Vib 2005; 283: 621–643.

Enhanced frame expansion via configuring filterbank topology for rapid processing of multi-sensor vibration data with applications to turbo-machinery fault diagnosis

Abstract

Keywords

Introduction

Fundamentals of overcomplete frame expansion

Constructing of elements of the proposed fast frame expansion

WF at the first decomposition stage

Wavelet element at other decomposition stages ( J ≥ 2 )

Construction of EFE via filterbank topology configuration approach

Filterbank topology configuration approach

Other properties of the constructed EFE

Sharp resolution in the time domain

PR

Nearly linear phase property

Nearly shift-invariant property

Fast numerical implementation

Numerical simulation

Engineering application to turbo-machinery condition monitoring

Conclusion

Footnotes

Acknowledgements

Declaration of conflicting interests

Funding

References

Wavelet element at other decomposition stages $(J \geq 2)$
