Quantum solution for secure information transmission of wearable devices

Introduction

As the name implies, wearable devices are kinds of portable small and micro-type electronic equipment which can be directly worn on the user’s body or integrated into the user’s clothes, like intelligent glasses, smart watch, smart bracelet, and smart shoes for daily life and sports health as well as insulin pump, cardiac pacemaker, and other wearable medical devices. In 2012, “Google Glass” was launched, indicating that wearable devices actually enter into the people’s daily life. Afterwards, wearable devices have been developing prosperously in the fields of global communication electronic products and personal intelligent terminals. In China, Baidu, Mi, 360, and other large information technology (IT) companies and small and medium-sized innovative enterprises have also kept up with the pace of international development, and they have launched Baidu Eye, smart sports shoes, smart sports bracelet, and other wearable devices.^1,2 It is generally agreed in academic circles that wearable devices will certainly be the development direction of future electronic products, and become the subverter of smartphone, tablet PC, and other existing information terminals. In the future, wearable devices will be further linked to the Things of Internet on the rise, and people can control the smart office, smart home, and smart car through the devices they wear, so as to realize the control of real world, making our work and life more convenient and comfortable.

However, the information security problem of wearable devices cannot be ignored. The more powerful the functions of wearable devices are, the more worrying the information security problem of wearable devices will be. If the information security lacks reliable guarantee, living habits, health information, or personal privacy may be leaked resulting in some hidden dangers such as theft of property, personal identity tracking, telecommunication fraud, and induction of other criminal acts. At the worst, wearable medical devices like cardiac pacemaker may be hijacked, to directly endanger the patient’s life safety. Nowadays, wearable devices are just in the start-up stage, and their system architecture and product characteristics are significantly different from the traditional information equipment. Reports on wearable devices being attacked are few, because hackers need to spend some time on technology tracking and crack research. With the quick development of intelligent wearable devices, however, the transient safe period will soon pass so that the information security problem will be highlighted gradually. In the future, it is very likely to become a critical weakness restricting further development and wide application of wearable devices.^3,4

Considering the importance of the information security of wearable devices, we certainly can adopt the currently mature cryptography of computer networks. ⁵ However, the modern cryptogram system based on the intractability of complexity questions via mathematical calculation has its inherent defects: from a mathematical perspective, as this system is based on mathematical calculation complexity theory, with the continuous improvement of network computing power, it will be broken through or gradually become unsafe; from a physical perspective, the classical cipher system of current computer networks adopt the classic attribute of electronics or photonics to load information, and even a simple eavesdropping attack cannot be detected, which is another inherent defect it has.

Now, quantum cryptography has left the laboratory and is being continuously developed and perfected in actual applications. A quantum cryptosystem can just make up the defects of classical cryptography above. The security of quantum cryptography is not based on the mathematical computational complexity problem, but is guaranteed by the physical properties of the quantum states. Therefore, it has nothing to do with the attacker’s computing conditions (computing power or computing resources), which is called “unconditional security” of quantum cryptography. In addition, the attacker’s behavior will be discovered as it may cause disturbance to the quantum state of information carrier. This is the detect ability of quantum cryptography to eavesdropping attack. ⁶

At present, we have not seen the report of using quantum cryptography to solve the information transmission security problem of wearable devices, but some researchers have studied the application of quantum cryptography in the wireless sensor network. ⁷ Inspired by this idea, based on quantum security communication principle and combined with the special requirements of wearable devices for information security technology, this article gives a safe transmission scheme used for protecting the sensitive information of wearable devices.

Basic principle

Measuring basis and quantum measurement

In this article, two kinds of quantum measurements are needed: single-quantum bit measurement and double-quantum bit Bell combined measurement. In single-quantum bit measurement, basis B X = { | + 〉 , | − 〉 } or B Z = { | 0 〉 , | 1 〉 } may be adopted, and this is in general two groups of non-orthogonal single-quantum bit measuring bases. According to the quantum measurement principle, if the quantum state is just one eigenstate of the used measuring basis, the measuring result will certainly collapse to such an eigenstate; if the quantum state is not the eigenstate of the used measuring basis, the measuring result will collapse to one of the eigenstates with a certain probability at random. For example, quantum bit is now in the state | + 〉, if measuring basis B X is adopted, the measuring result will be certainly | + 〉; if measuring basis B Z is adopted, as | + 〉 = 1 2 ( | 0 〉 + | 1 〉 ) is not the eigenstate of B Z , the measuring result will collapse to state | 0 〉 or | 1 〉 with a probability of 50%, respectively, and the measuring result is random.

In the double-quantum bit system, the commonly used one group of complete orthogonal basis is Bell-basis, marked as { | Φ + 〉 , | Φ − 〉 , | ψ + 〉 , | ψ − 〉 } , in which,

| ψ − 〉 = 1 2 ( | 01 〉 − | 10 〉 )

(1)

| ψ + 〉 = 1 2 ( | 01 〉 + | 10 〉 )

(2)

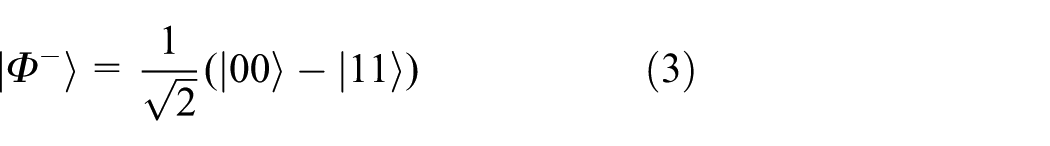

| Φ − 〉 = 1 2 ( | 00 〉 − | 11 〉 )

(3)

| Φ + 〉 = 1 2 ( | 00 〉 + | 11 〉 )

(4)

The double-quantum bit quantum measurement conducted on two-particle quantum system by use of one group of orthogonal complete measuring basis is called the Bell-basis combined measurement.

The four types of quantum states (Bell state) given in formulas (1)–(4) cannot be expressed as the tensor product formal of the single-quantum bit basis vector {|0〉,|1〉}. These quantum states are the maximally entangled states in the double-quantum bit system, which is also called as EPR (Einstein–Podolsky–Rosen) entangled pairs, playing a very important role in quantum privacy communication,

Quantum teleportation

The rough process of “quantum teleportation” ⁸ can be described thus: to transmit the unknown quantum state of an information photon, the information of such photon can be divided into classical information and quantum information, and then transmitted to the receiver in the remote, respectively, via classical channel and quantum channel. The receiver will, based on the classical information, adopt corresponding unitary transformation of the photon in its hands, to recover the quantum state to transmit, therefore, realizing the remote transmission of quantum state. It is required to notice that, the information photon is still in the hands of the receiver, however, the original quantum state of such photon has already been damaged in the process of Bell-basis combined measurement of teleportation, so quantum teleportation does not violate the no-cloning theorem of unknown quantum state. The unknown quantum state to transmit information photon in the hands of sender Alice is set as

| φ 〉 1 = a | 0 〉 + b | 1 〉 , | a | 2 + | b | 2 = 1

(5)

Information photon 1 is in the state | φ 〉 , and Alice and quantum information receiver Bob are connected via quantum channel and classical channel. Quantum channel may be EPR entangled state of photons 2 and 3

| ψ − 〉 23 = 1 2 ( | 01 〉 − | 10 〉 ) 23

(6)

Photon 2 is at the place of Alice, and photon 3 is at the place of Bob; at this time, the mixed state of the three photons is expressed as

| ψ 〉 123 = | φ 〉 1 ⊗ | ψ − 〉 23 = ( a | 0 〉 + b | 1 〉 ) 1 ⊗ [ 1 2 ( | 01 〉 − | 10 〉 ) 23 ] = 1 2 [ | ψ − 〉 12 ( − a | 0 〉 − b | 1 〉 ) 3 + | ψ + 〉 12 ( − a | 0 〉 + b | 1 〉 ) 3 + | Φ − 〉 12 ( b | 0 〉 + a | 1 〉 ) 3 + | Φ + 〉 12 ( − b | 0 〉 + a | 1 〉 ) 3 ] = 1 2 ∑ i = 1 4 | β i 〉 12 | ψ i 〉 3

(7)

In the formula

| β 1 〉 = | ψ − 〉 12 , | ψ 1 〉 = − a | 0 〉 − b | 1 〉 ; | β 2 〉 = | ψ + 〉 12 , | ψ 2 〉 = − a | 0 〉 + b | 1 〉 ; | β 3 〉 = | Φ − 〉 12 , | ψ 3 〉 = b | 0 〉 + a | 1 〉 ; | β 4 〉 = | Φ + 〉 12 , | ψ 4 〉 = − b | 0 〉 + a | 1 〉

Alice conducts Bell-basis combined measurement on photons 1 and 2, and sends the measuring result to Bob via classical channel. According to the principle of quantum measurement collapse, it can be known from formula (7) that photon 2 in the hands of Bob will instantly collapse to the corresponding quantum state given in Table 1 after measurement. According to the third column in Table 1, Bob adopts the corresponding quantum transformation, to restore the transmission of the unknown quantum state a of photon 1 on photon 3, and also the original quantum state | φ 〉 of information photon 1 has been destroyed in Bell-basis measurement, that is

U i | ψ i 〉 3 = | φ 〉 3 = a | 0 〉 + b | 1 〉 , i = 1 , 2 , 3 , 4

(8)

OPEN IN VIEWER

Table 1.

Corresponding quantum states and quantum operations of Alice and Bob.

Alice’s Bell measuring result of photons 1 and 2	State of photon 3 at the place of Bob after measurement	Operation needed for Bob to get the quantum state to transmit
| ψ − 〉 12	−a|0〉 − b|1〉	U 1 = ( − 1 0 0 − 1 )
| ψ + 〉 12	−a|0〉 + b|1〉	U 2 = ( − 1 0 0 1 )
| Φ − 〉 12	b|0〉 + a|1〉	U 3 = ( 0 1 1 0 )
| Φ + 〉 12	−b|0〉 + a|1〉	U 4 = ( 0 1 − 1 0 )

Quantum teleportation has the following three features: (1) the transmission of quantum state is realized instantly, (2) there is no need to know where the opposite side is during the transmission, and (3) the transmission process will not be obstructed by any barrier. Based on such features, very important sensitive information may be loaded on the quantum state in the wearable devices for quantum communication. In this way, if the attacker intercepts and decodes the classical information, it is meaningless, for that such attacker only knows the quantum operation of photon 3 that Bob will take for the purpose of recovering the quantum state to transmit, and this is unrelated to the information loaded on the quantum state.

Quantum security communication in wearable devices

It is set that, the transmission of important sensitive information M = { m ( i ) } is needed between the wearable device user Alice and base station (BS), and the situational model is shown in Figure 1. M is sensitive information regarding the user’s important privacy or security, and its disclosure may cause a serious consequence, like endangering the patient’s life safety, therefore, unconditional security shall be guaranteed for the transmission of such information between the user and the BS. We will take the means of quantum privacy communication to guarantee its unconditional security, and the scheme design thinking is shown as below: sensitive information is loaded on the quantum state which will be transmitted by teleportation, then sensitive information will be obtained by use of quantum measurement of correct basis, to protect the security of sensitive information through quantum no-cloning theorem, random collapse characteristic of quantum measurement, and other quantum theories and characteristics. As teleportation needs the transmission of classical information, quantum key is used for encryption, to prevent tampering, and this classical information guides the receiver to take correct unitary transformation for the purpose of recovering the quantum state to transmit. This classical information is unrelated to sensitive information, it does not fear eavesdropping, and is not tampered.

OPEN IN VIEWER

Figure 1.

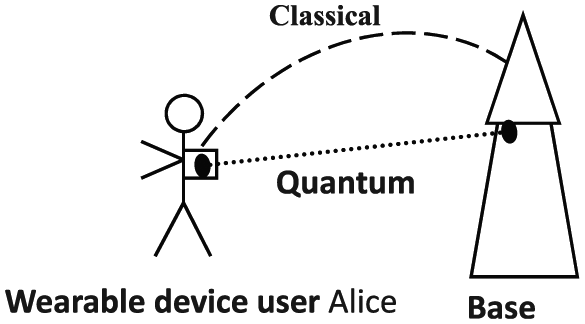

Quantum security communication model of wearable device and BS.

Sending of sensitive information

Step1: preparation of information photon. The user prepares N-qubit information photon 1 sequence according to the sensitive information M = { m ( i ) ; i = 1 , 2 , ⋯ , N } , and the rules are as follows

{ m ( i ) = 0 , → | φ 〉 1 = | 0 〉 m ( i ) = 1 , → | φ 〉 1 = | 1 〉

(9)

or,

{ m ( i ) = 0 , → | φ 〉 1 = | + 〉 m ( i ) = 1 , → | φ 〉 1 = | − 〉

(10)

The two sides of communication may negotiate to determine to adopt formula (9) or (10). For example, the two sides agree to determine the rules of preparation with the key value k(n) of odd number bit n = 2 i − 1 of shared key K_AB, and formula (9) will be adopted for k ( n ) = 0  , and formula (10) for k ( n ) = 1  .

Step 2: Sending of information quantum state. The user Alice will conduct Bell-basis combined measurement to two photons corresponding to information photon 1 sequence in her hands and photon 2 sequence from BS. The measuring result is one of four Bell states { | ψ − 〉 , | ψ + 〉 , | Φ − 〉 , | Φ + 〉 } , and each measuring result is coded as 2-bit classical information according to the following rules

| ψ − 〉 12 → 00 ; | ψ + 〉 12 → 01 ; | Φ − 〉 12 → 10 ; | Φ + 〉 12 → 11

(11)

Step 3: Alice encrypts the Bell-basis measuring results of photon sequences 1 and 2 by use of the shared key K_AB (2 N-bit), and then sent to BS.

Security analysis

Security of quantum key distribution protocol: the security of QKD protocol is based on the principle of quantum mechanics rather than strong one-way encryption mathematical function, so it has “unconditional security” in theory. As for the BB84 protocol, GLLP theory ¹⁵ has proven that it can resist any attack; as for the decoy pulse QKD protocol, some scholars have given the security certificate of experimental hypothesis for realistic conditions.^16,17

Since the unconditional security of key distribution is guaranteed with quantum key distribution technology, why not use these keys to directly encrypt sensitive information via one-time pad (OTP), to reach the purpose of unconditional security, rather than taking the additional means of teleportation and non-orthogonal basis quantum measurement. We hold that, according to OTP, a random and non-reusable key of the same length as the message should be used, and transmitting a sensitive message requires a new key. To guarantee the unconditional security of key distribution, one operation of quantum key distribution is needed in every communication, and the efficiency is very low. In this scheme, a shared quantum key is used for encrypting classical information, the key can be reused, and we also adopt the existing quantum encryption method^18,19 to guarantee the unconditional security of classical information transmission.

Security of quantum state transmission: according to no-cloning theorem of unknown quantum state, whether it is the quantum state of information photon 1 prepared by the user Alice to transmit, or the quantum state recovered by BS through quantum U conversion, the attacker cannot reach the purpose of information eavesdropping by copying it. In the process of quantum teleportation, the classical information transmitted via classical channel is only the information of quantum unitary operation the receiver shall adopt to photon 3 in the receiver’s hands for recovering the quantum state to transmit, and it is unrelated to the sensitive information loaded on quantum state. In addition, such classical information is encrypted by shared key K_AB of quantum key distribution in the transmission process, and the attacker cannot decode and tamper it, and K_AB can also be reused.

Using the above scheme, we can solve the unconditional security of the sensitive information transmission between the wearable device and the BS, and even hackers with powerful computing power cannot steal the sensitive information of the users. Therefore, our quantum solution is safe and effective on the transmission of sensitive information of wearable devices.

Conclusion

Currently, wearable devices are increasing, having a promising development future, which are expected to become mainstream electronic products indispensable in the daily life of people after smartphone; however, their security is likely a critical weakness for their development. This article, considering the demand characteristics of wearable devices for information security, develops a prospective discussion on the transmission of sensitive information in wearable devices by use of the advantage that quantum information security technology has unconditional security without complex mathematical encryption algorithm.

Next, we will further optimize the scheme to study the perfect combination of the quantum secure communication technology and the wearable device. Of course, in terms of the current quantum information technology, quantum information transmission equipment is still difficult to apply to wearable devices because of its large volume and high cost. But just like computers, the original giant is getting smaller and smaller. With the development of quantum information technology, the application of quantum information transmission equipment to wearable devices is not an impossible thing.
