Design of winding pattern of filament-wound composite pressure vessel with unequal openings based on non-geodesics

Abstract

In this article, we proposed a new approach to design the winding patterns of filament-wound composite pressure vessel with unequal polar openings with non-geodesics. To ensure the continuity of winding angles between trajectories along the cylinder and the dome, the non-geodesics for cylindrical part were used. The developed winding patterns of the vessels were simulated using the MATLAB software to verify the feasibility of the acquired trajectories. To demonstrate the performance in designing the winding path for big polar ratios, we analyzed vessels with polar pole ratios of 1:2–1:4, respectively. The developed winding patterns have successfully achieved uniform fiber distributions along the mandrel without severe overlap, except for the polar pole regions. To avoid the severe overlap between filament bands, we further studied the relationship among the winding pattern, bandwidth, and the number of tangent points, and derived a suitable bandwidth based on the winding pattern. These simulated results proved the effectiveness of the developed method in design of winding pattern with unequal polar openings.

Keywords

Composite pressure vessel filament winding winding pattern graphic visualization

Introduction

Filament winding is a technology for producing composite parts by winding reinforcing filaments on the mandrel surface of a desired shape.^1–3 Products manufactured by filament winding technology have an excellent strength-to-weight and stiffness-to-weight ratio and can be used as high-pressure vessels in solid rocket motors, fuel tanks of fighters, liquefied natural gas tanks, torpedo launchers, and so on.^4–8 In fabrication, the continuous fibers can be oriented to match the direction of major stress in composite vessels to improve the carrying capacity. However, these applications in the aerospace field are very sensitive to weight. To lower the launch costs, it is urgent to reduce the weight of each subsystem in the rocket. To produce the lightweight solid rocket, digital design of the winding pattern is the first step, and plays a key role in weight reduction. In a filament winding system, fiber tows under tension can be wound on the mandrel surface in designed patterns to form a uniform composite structure.⁹ As a result, the winding pattern determines winding angle distribution, which has a considerable effect on the mechanical properties of composite vessels.^10–12 Therefore, an optimized winding pattern can improve the carrying capacity, and simultaneously reduce the weight.^11,13–15

The method of winding pattern design can be split into two ways: by using an analytical or a discrete method. For the analytical method, the winding patterns are calculated by differential equations.^16,17 In the early stage, due to the conciseness, geodesics were widely used in the composite industry.¹⁸ However, the geodesic winding parameters are unique when the mandrel geometry is determined, which restricts the design scope of winding patterns. To broaden the designability, the non-geodesics winding is more and more used in the filament winding on complex parts^19,20,21 By employing the friction between the filament bundles and its supporting surface, the non-geodesics significantly enlarge the available winding path. Koussios^22,23 derived the basic equation for non-geodesic filament winding on generic shells of revolution, which laid the foundation for winding patterns design. For filament winding of complex shape mandrels, a unified approach²⁴ was developed to simulate the filament winding process. However, this method is more suitable for convex and concave geometries. The spline method²⁵ for winding pattern design was proposed for non-axisymmetric winding in the composite industry. Zu et al.^26,27 proposed the winding pattern design of pressure vessels, and further improved the dome section performance. The discrete method subdivided the whole revolved surface into a sequence of sections to calculate the fiber trajectories. An algorithm was proposed for non-axisymmetric structures comprising rectangular facets that compute the filament paths.²⁸ However, this method is limited to a polygonal cross-section mandrel. To overcome the defect, Fu et al.²⁹ used a triangular mesh termed as the stereolithography (STL) model to calculate winding paths for both axisymmetric and non-axisymmetric mandrels. Furthermore, Fu et al.^9,30 developed some different methods for generation of winding path for abnormal mandrel based on STL model, including the method of winding path generation based on the inverse process of stability analysis and that based on the principal stress. In the principal stress field method, variable winding directions as close as possible to the major principal stress directions of the product are calculated to generate filament-winding paths that can endure the maximum load and satisfy the requirements of the winding manufacture. In the method of winding path generation based on the inverse process of stability analysis, according to the inverse process of stability analysis, the next path point satisfied the stability conditions. This method can be applied to both axisymmetric and non-axisymmetric mandrel models represented by triangular patches. However, these methods require a lot of calculation effort and are not suitable for fast winding pattern designs of filament–wound composite pressure vessel with two unequal polar poles in the early stages.²⁵

Overall, most of these methods focused on the subpart sections or the full part of the mandrel for winding pattern design and overlooked the transition zones of fiber trajectories between the dome and the cylinder. In essence, the transition zones played an important role in designing the winding pattern for a vessel, especially in the solid rocket motor case field with a big polar pole ratio. For example, the ideal winding angle of a helicoidally geodesic path over the cylindrical body is $55^{o}$ . However, based on the requirement of continuity in the filament winding process, $55^{o}$ could not be obtained. In reality, the solid rocket motor case usually has too much different unequal openings due to the requirement of the general structure design, so the non-geodesic transition between trajectories along the cylinder and the dome must be considered.²⁴ Therefore, the more different the two polar poles, the more difficult the winding pattern design is.²¹

The purpose of the present article is to develop a digital method to design the winding patterns of a filament–wound composite pressure vessel under the limitation of unequal polar openings and the requirement of continuity in winding. Furthermore, to obtain a suitable bandwidth in winding, we proposed a model to find the relationship among the winding patterns, bandwidth, and the number of tangent points. This article is arranged as follows: in section “Differential equations for winding angle and rotating angle of mandrel,” we reviewed differential equations of non-geodesics, which are the fundamentals of the winding pattern design. In section “Winding pattern design for composite pressure vessel,” we demonstrated the detailed method to design the winding pattern of a vessel with unequal polar poles. In section “Computer implementation of the designed winding pattern,” the detailed procedures of computer implementation of the designed winding pattern were given to verify the feasibility of the designed winding pattern. In sections “Results and discussion” and ”Conclusion,” some results and discussions were conducted.

Differential equations for winding angle and rotating angle of mandrel

Winding angle equation

For the winding pattern design, it is necessary to have a unified equation to describe both geodesic and non-geodesic winding. The following equation is effective²⁷

\frac{d α}{d z} = λ [\frac{- r ″ r \cos^{2} α + \sin^{2} α}{A^{3} r \cos^{2} α + A r \sin^{2} α}] - \frac{r'}{r} \tan α

(1)

where $r$ is the radial coordinate, $z$ the axial coordinate, $α$ the winding angle, and $λ$ the slippage coefficient, respectively, as shown in Figure 1. When $λ = 0$ , equation (1) becomes the well-known Clairaut equation. In the other case ( $λ \neq 0$ ), the fiber path will deviate from the geodesic, which is termed as the non-geodesic winding. One should note that there is no analytical solution of equation (1) for $λ = 0$ . Therefore, the winding angle along the axial direction could be computed by the Runge–Kutta method based on some constraint conditions.

Figure 1.

Geometrical relationship of filament trajectory on a revolution surface. (a) Fiber trajectory on a revolution surface. (b) Geometrical relationship between $φ$ and r. (c) Geometrical relationship between R and $d θ$ . (d) Geometrical relationship for $α$ , ds, $r d θ$ , and $d \bar{s}$ .

The rotation angle of mandrel

Figure 1 shows the geometrical relationship of filament trajectory on a revolved surface. A-P-B is the fiber path, R cylindrical radius, and $θ$ angular coordinate in the circumferential direction. $φ$ is the angle between radial direction and the curvature radius direction at point P. The relationship between ds and $d φ$ is

d s = r_{1} d φ

(2)

where $r_{1}$ is the curvature of radius at point P. According to the geometrical relationship of $d r$ and $d φ$ depicted in Figure 1(b), we have

d r = d s \cos φ = r_{1} d φ \cos φ

(3)

By the geometrical relationship of $d \bar{s}$ , $d s$ and $r d θ$ depicted in Figure 1(d), combining equations (2) and (3), $d θ$ gives

d θ = \frac{\tan α d r}{r \cos φ}

(4)

Using the trigonometric function relationship, the cosine value of angle $φ$ can be derived as

\cos φ = \frac{1}{\sqrt{1 + \tan^{2} φ}} = \frac{1}{\sqrt{1 + r'^{2}}}

(5)

where $r'$ is the first derivative of r with respect to z. By substituting equation (5) into equation (4), the first-order differential equation of angular coordinate $θ$ is obtained as

\frac{d θ}{d r} = \frac{\tan α \sqrt{1 + r'^{2}}}{r}

(6)

Simultaneous solution of the system of differential equations (1) and (6) will finally yield the winding angle and angular coordinate distribution along the axial direction, so the fiber trajectory on the revolution surface will be determined using the angular coordinate.

The filament winding process requires perfect tangent placement of the roving when passing the polar pole of the dome to make filament continuous to a next wound circuit. Therefore, the winding angle at the polar opening should equal 90°. It should be emphasized that a slightly reduced value for $α$ at tangent point of polar pole is desirable (herein $α = 0.4999 π$ ) to avoid singularity in the numerical solution procedure of equation (1). The slippage coefficient belongs to a feasible interval ${- μ μ}$ , where µ is the friction coefficient between the filament bundle and its supporting surface.

Winding pattern design for composite pressure vessel

To design the winding pattern for a vessel, it is necessary to study the pathways for both the dome and cylindrical sections. This section will give the distribution of the fiber paths for different $λ$ on its supporting surface such as dome surface and cylinder surface, then draw forth how to design a winding pattern for a whole vessel.

Fiber pathways on dome section

Figure 2(a) shows the winding angle curves along the axial direction on the dome surface with different slippage coefficients $λ$ and dome heights $H$ . The semi-minor axis and the semi-major axis are 330 and 385 mm, respectively, and the heights of the ellipsoidal dome are 200, 230, 250, and 260 mm. Generally speaking, the absolute value of the slip coefficient does not exceed 0.35. Here, the employed $λ$ are −0.3,−0.2, 0, 0.1, 0.2, and 0.3. This range of lambda is selected to demonstrate the effect of slippage coefficient on the distribution of fiber trajectories and winding angle curves of the dome section. Furthermore, filament trajectories could be determined using the development method according to the given $λ$ . Thus, it is easy to change $λ$ to design a winding pattern while the mandrel profile is given. While the axial coordinate z is fixed, the winding angle decreases with decrease in $λ$ . When the $λ$ is negative, the winding angle decreases monotonously with the increase in axial coordinate z. By contrast, while the $λ$ becomes positive, with increase of z, the development of the winding angle along the axial direction can be split into three sections: quick section, slow down section, and slow up section. There is a remarkable difference between the maximum and the minimum winding angles in the dome–cylinder conjunction corresponding to $λ = 0.3$ and $λ = - 0.3$ , and this provides the scope for winding pattern of a vessel.

Figure 2.

Winding angle and pathways distribution on ellipsoidal dome with various $λ$ and dome heights. (a) Winding angle distribution. (b) Fiber trajectories distribution.

Figure 2(b) plots the fiber trajectories distribution with different dome heights and slippage coefficients on an ellipsoidal dome. To compare the distribution of these pathways, the initial points that are located at the dome–cylinder conjunction of all these trajectories are set to the same point. For $λ = 0$ , the paths are geodesics and for $λ \neq 0$ the paths stand for non-geodesics. Fiber trajectories corresponding to different slippage coefficient signs are distributed on both sides of geodesics. The deviation of the trajectory from the geodesics increases with the absolute value of the slippage coefficient of the non-geodesics.

Fiber pathways for cylinder section

For the cylinder section, considering the meridian equation is $r = R$ , equations (1) and (6) can be rewritten as

L = L_{0} + \frac{R}{λ} (\frac{1}{\sin α_{0}} - \frac{1}{\sin α})

(7)

\frac{d θ}{d z} = \frac{\tan α}{R}

(8)

where $α_{0}$ and $α$ are the initial winding angle and termination winding angle for cylindrical non-geodesics, and $L_{0}$ and $L$ are the initial axial coordinate and final axial coordinate. By solving equation (7), $α$ can be obtained, and $θ$ can be determined by equation (8). Here, we acquire the pathway coordinate data.

Figure 3 shows the fiber trajectories on the cylindrical surface with various $λ$ . This cylinder radius and height are 100 and 300 mm, respectively. Figure 3(a) and (b) shows positive $λ$ paths and negative $λ$ paths. For comparative analysis of these trajectories, the start points of these paths are fixed at one point and their start angles are fixed as $60^{o}$ . In Figure 3, positive $λ$ means the increase in winding angle, and negative $λ$ means a decrease. Different $λ$ at the cylindrical section determines its winding pattern and its winding angle change, while the initial point is selected. This law provides the possibility of designing various winding patterns for a vessel.

Figure 3.

Fiber trajectories on cylindrical section with different slippage coefficients $λ$ . (a) Fiber trajectories with positive slippage coefficient. (b) Fiber trajectories with negative slippage coefficient.

Winding pattern design for a vessel with unequal polar openings

Figure 4(a) illustrates the winding pattern scheme for a vessel with unequal openings. The vessel is divided into three parts: left dome, cylinder, and right dome. Each part has two possibilities: geodesic and non-geodesic. Owing to this division, there are eight winding schemes for the vessel. Previously, the winding pattern design for a vessel usually adopted a constant winding angle for the cylindrical section. Nevertheless, this is not always feasible, especially when the radius of the polar pole is much bigger than another one. Consequently, it is necessary to employ variational winding angle for the cylinder section to design the winding pattern for a vessel with two unequal openings, and this scenario is more complicated.

Figure 4.

Winding pattern schemes for a vessel with unequal openings. (a) Winding pattern scheme for a vessel. (b) Winding pattern scheme for its cylinder section.

There are five patterns for the cylindrical section, as shown in Figure 4(b). The five scenarios are (1) left non-geodesic, middle geodesic, and right non-geodesic; (2) left non-geodesic and middle geodesic; (3) left geodesic and right non-geodesic; (4) geodesic for entire cylinder section; and (5) non-geodesic for whole cylinder section.

To ensure fiber stability and full coverage on the mandrel, four conditions must be satisfied, as follows: (1) all tangent points of a circuit evenly divide the cross-section; (2) the circumferential distance between adjacent rovings at a proper situation is the bandwidth; (3) the winding angle is contiguous; and (4) the slippage coefficient $λ$ is less than the static coefficient of friction µ.

The dome end angle interval is defined as the winding angle interval at the dome–cylinder conjunction when the $λ$ ranges from − µ to µ. In terms of the intersection between the left dome end angle interval and the right one, there are two cases: (1) intersection for the two intervals and (2) no intersection for the two intervals. Figure 5 illustrates the scheme of winding pattern design of both the dome end angle intervals having no intersection. $x_{1}$ represents the x-axis of the left dome and is the axial distance between a point of the left dome and the left polar pole. $x_{2}$ represents the x-axis of the right dome and is the axial distance between a point of the right dome and the right polar pole. Five sections are employed to plan the winding patterns. Five parameters $α_{1}, H_{1}, H_{2}, α_{2}, α_{3}$ are adopted to ensure the winding angle continuity and fiber stability in the cylinder section. $α_{1}$ is a constant angle in the middle section of the cylinder which is designated by the user. $H_{1}$ and $H_{2}$ denote the non-geodesic region lengths for both sides of the cylinder section. $α_{2}$ represents the winding angles at the left dome–cylinder conjunction. $α_{3}$ represents winding angles at the right dome–cylinder conjunction.

Figure 5.

Winding pattern design of both sides of dome end angle intervals having no intersection.

For convenience, let $α_{L e f t M a x}$ and $α_{L e f t M i n}$ stand for the maximum and minimum winding angles for the left sides of cylinder section, respectively. Let $α_{R i g h t M a x}$ and $α_{R i g h t M i n}$ be the maximum and minimum winding angles for the right sides of cylinder section, respectively. In sum, the procedure of the winding pattern design for both sides of the dome end angle intervals having no intersection is given as follows:

1. $α_{1}$ is in the first design section

In this case, $α_{1}$ belongs to an interval $[\begin{matrix} α_{L e f t M a x} & 90^{o} \end{matrix})$ . While $α_{1}$ is given, $H_{1 m i n}$ and $H_{2 m i n}$ are determined subsequently. $H_{1 m i n}$ and $H_{2 m i n}$ are left minimum non-geodesic length and right minimum non-geodesic length under a certain $α_{1}$ . For $H_{1} < H_{1 m i n}$ or $H_{2} < H_{2 m i n}$ , it is unable to find a feasible winding angle. $H_{i m i n}$ $(i \in 1, 2)$ can be given as

H_{i m i n} = \frac{R}{μ} (\frac{1}{\sin α_{i m a x}} - \frac{1}{\sin α_{1}})

(9)

while $α_{i m a x}$ is equal to $α_{L e f t m a x}$ , $H_{i m i n}$ corresponds to $H_{1 m i n}$ and when $α_{i m a x}$ is equal to $α_{R i g h t m a x}$ $H_{i m i n}$ corresponds to $H_{2 m i n}$ . In other words, $H_{i m i n}$ is the minimum value of $H_{i}$ $(i \in 1, 2)$ . To obtain $H_{1}, H_{2}, α_{2}, α_{3}$ , $H_{i m i d}$ $(i \in 1, 2)$ must be computed. $H_{i m i d}$ $(i \in 1, 2)$ represents the length of non-geodesic district of cylinder section which start with $α_{i m i n}$ $(i \in left, Right)$ and end with $α_{1}$ by maximum slippage coefficient . . . $H_{i m i d}$ can be written as

H_{i m i d} = \frac{R}{μ} (\frac{1}{\sin α_{i m i n}} - \frac{1}{\sin α_{1}})

(10)

$α_{2} and α_{3}$ are influenced by the relationship between $H_{i} and H_{i m i d}$ . If $H_{i} > H_{i m i d}$ , $α_{2} and α_{3}$ belong to $[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix}]$ and $[\begin{matrix} α_{R i g h t M i n} & α_{R i g h t M a x} \end{matrix}]$ . While $H_{i m i n} < H_{i} < H_{i m i d}$ , $α_{2} a n d α_{3}$ belong to $[\begin{matrix} α_{L e f t 1} & α_{L e f t M a x} \end{matrix}]$ and $[\begin{matrix} α_{R i g h t 1} & α_{R i g h t M a x} \end{matrix}]$ , where $α_{L e f t 1}$ and $α_{R i g h t 1}$ are determined by

α_{i 1} = \arcsin (\frac{1}{\frac{μ H_{i}}{R} + \frac{1}{\sin α_{1}}})

(11)

where $H_{i}$ is $H_{1}$ , $α_{i 1}$ corresponds to $α_{L e f t 1}$ and when $H_{i} = H_{2}$ , $α_{i 1}$ corresponds to $α_{R i g h t 1}$ . After $α_{1}, H_{1}, H_{2}, α_{2}, and α_{3}$ are determined, the winding angle in entire cylindrical section is decided concurrently.

2. $α_{1}$ is in the second design section

For this scenario, $α_{1}$ belongs to an interval $[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix})$ . Left non-geodesic district does not exist and hence $H_{1} = 0$ , $α_{2} = α_{1}$ . The computational method of $H_{2}$ and $α_{3}$ is identical to the one when $α_{1}$ is in the first design section.

3. $α_{1}$ is in the third design section

In this case, $α_{1}$ is restrained to an interval $[\begin{matrix} α_{R i g h t M a x} & α_{L e f t M i n} \end{matrix})$ and both sides of the cylindrical section have non-geodesic regions. The computing method of $H_{2}$ and $α_{3}$ is the same as when $α_{1}$ is in the first design section. After $α_{1}$ is given, $H_{1 m i n}$ can be expressed as

H_{1 m i n} = - \frac{R}{μ} (\frac{1}{\sin α_{L e f t M i n}} - \frac{1}{\sin α_{1}})

(12)

$H_{1 m i d}$ can be written as

H_{1 m i d} = - \frac{R}{μ} (\frac{1}{\sin α_{L e f t M a x}} - \frac{1}{\sin α_{1}})

(13)

If $H_{1} > H_{1 m i d}$ , then $α_{2}$ belongs to interval $[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix}]$ . However, for $H_{1 m i n} < H_{1} < H_{1 m i d}$ , $α_{2}$ ranges from $α_{L e f t M i n}$ to $α_{L e f t 1}$ , where $α_{L e f t 1}$ is calculated as

α_{L e f t 1} = \arcsin (\frac{1}{\frac{- μ H_{1}}{R} + \frac{1}{\sin α_{1}}})

(14)

4. α₁ is in the fourth design section

Under these circumstances, the value range of $α_{1}$ is $[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix})$ . The right non-geodesic district does not exist and hence $H_{2} = 0$ , $α_{3} = α_{1}$ . The computational method of $H_{1}$ and $α_{2}$ is identical to that when $α_{1}$ is in the third design section.

5. $α_{1}$ is in the fifth section

$α_{1}$ belongs to an interval $[\begin{matrix} 0^{o} & α_{R i g h t M i n} \end{matrix})$ for this case and both sides of the cylinder section have a non-geodesic area. A similar process related to $α_{1}$ in the third design section is carried out to calculate $H_{1}$ , $α_{2}$ and $H_{2}$ , $α_{3}$ . In order for better understanding, Table 1 gives the condition summary when both the dome end angle intervals have no intersection.

Table 1.

Condition summary with dome end angle intervals having no intersection.

$α_{1}$	$α_{1} \in [\begin{matrix} α_{L e f t M a x} & 90^{o} \end{matrix})$ the first design section		$α_{1} \in [\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix})$ the second design section
	$H_{1}$		$H_{1} = 0$
	$H_{1 m i n} < H_{1} < H_{1 m i d}$	$H_{1} > H_{1 m i d}$	–	–
$α_{2}$	$[\begin{matrix} α_{L e f t 1} & α_{L e f t M a x} \end{matrix}]$	$[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix}]$	$α_{1}$	$α_{1}$
	$H_{2}$		$H_{2}$
	$H_{2 m i n} < H_{2} < H_{2 m i d}$	$H_{2} > H_{2 m i d}$	$H_{2 m i n} < H_{2} < H_{2 m i d}$	$H_{2} > H_{2 m i d}$
$α_{3}$	$[\begin{matrix} α_{R i g h t 1} & α_{R i g h t M a x} \end{matrix}]$	$[\begin{matrix} α_{R i g h t M i n} & α_{R i g h t M a x} \end{matrix}]$	$[\begin{matrix} α_{R i g h t 1} & α_{R i g h t M a x} \end{matrix}]$	$[\begin{matrix} α_{R i g h t M i n} & α_{R i g h t M a x} \end{matrix}]$
$α_{1}$	$α_{1} \in [\begin{matrix} α_{R i g h t M a x} & α_{L e f t M i n} \end{matrix})$ the third design section		$α_{1} \in [\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix})$ the fourth design section
	$H_{1}$		$H_{1}$
	$H_{1 m i n} < H_{1} < H_{1 m i d}$	$H_{1} > H_{1 m i d}$	$H_{1 m i n} < H_{1} < H_{1 m i d}$	$H_{1} > H_{1 m i d}$
$α_{2}$	$[α_{L e f t M i n} α_{L e f t 1}]$	$[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix}]$	$[α_{L e f t M i n} α_{L e f t 1}]$	$[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix}]$
	$H_{2}$		$H_{2} = 0$
	$H_{2 m i n} < H_{2} < H_{2 m i d}$	$H_{2} > H_{2 m i d}$	–	–
$α_{3}$	$[\begin{matrix} α_{R i g h t 1} & α_{R i g h t M a x} \end{matrix}]$	$[\begin{matrix} α_{R i g h t M i n} & α_{R i g h t M a x} \end{matrix}]$	$α_{1}$	$α_{1}$
$α_{1}$	$α_{1} \in [\begin{matrix} 0^{o} & α_{R i g h t M i n} \end{matrix})$ the fifth design section
	$H_{1}$
	$H_{1 m i n} < H_{1} < H_{1 m i d}$		$H_{1} > H_{1 m i d}$
$α_{2}$	$[α_{L e f t M i n} α_{L e f t 1}]$		$[\begin{matrix} α_{L e f t M i n} & α_{L e f t M a x} \end{matrix}]$
	$H_{2}$
	$H_{2 m i n} < H_{2} < H_{2 m i d}$		$H_{2} > H_{2 m i d}$
$α_{3}$	$[α_{R i g h t M i n} α_{R i g h t 1}]$		$[\begin{matrix} α_{R i g h t M i n} & α_{R i g h t M a x} \end{matrix}]$

For the case when both sides of the dome end angle intervals have no intersection and $α_{R i g h t M i n}$ is less than zero, all the four design sections are considered separately to calculate the winding patterns. The computing method of parameters $α_{1} H_{1}$ , $α_{2}$ are identical to that when both sides of the dome end angle intervals have no intersection and little difference exists in obtaining $H_{2}$ , $α_{3}$ . For the fourth design section, $H_{2} = 0$ and $α_{3} \in (\begin{matrix} 0 & α_{R i g h t M a x} \end{matrix}]$ . For any other design sections, the design method of $H_{2}$ and $α_{3}$ are similar. Due to $α_{R i g h t M i n}$ being less than zero, the value of $H_{2 m i d}$ is infinite. Therefore, it is doable to wind when $H_{2} > H_{2 m i d}$ . After $H_{2}$ is given, $α_{3}$ belongs to an interval $[\begin{matrix} α_{R i g h t 1} & α_{R i g h t M a x} \end{matrix}]$ . $α_{R i g h t 1}$ is computed as

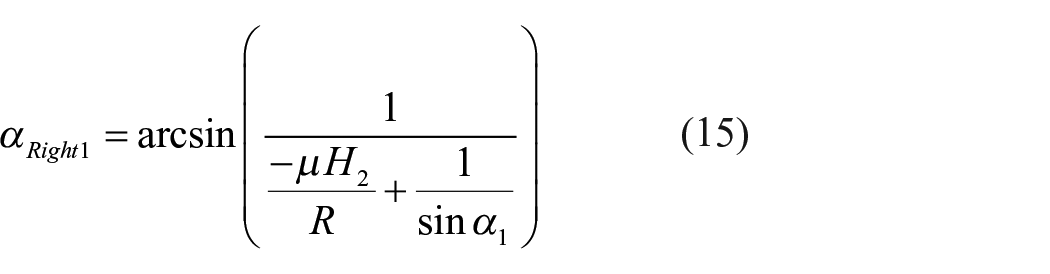

α_{R i g h t 1} = \arcsin (\frac{1}{\frac{- μ H_{2}}{R} + \frac{1}{\sin α_{1}}})

(15)

When both sides of dome end angle intervals have an intersection as shown in Figure 6, a similar process is carried out to design the winding pattern. Under this scenario, the third design section has a constant winding angle in its cylindrical section. But in any other design sections, it is unable to use the geodesic pattern in the cylindrical section to wind. To satisfy the non-slipping condition and winding angle continuum condition, it is necessary to adopt the proposed method of winding pattern design.

Figure 6.

Winding pattern design of both sides of dome end angle intervals having intersection.

Computer implementation of the designed winding pattern

Before filament winding, simulations prove a tool to verify whether the predesigned path is appropriate at a low cost. Here, we show the simulated winding process using the computer. The proposed algorithm for the filament winding pattern simulation was implemented using the MATLAB software platform in a Windows 7 environment. To avoid producing a gap that leaves the mandrel exposed, the method of full coverage of filament band on mandrel needs to be developed.

Searching slippage coefficients

A key factor in this design is the determination of a pair of slippage coefficients for both the dome parts, to provide non-geodesic winding with unequal polar openings. The filament winding process requires perfect tangent placement of the rovings when passing the polar areas of the dome structure, to make it continuous to the next wound circuit. As a result, by application of the non-geodesic roving trajectories, the requirement must be met. The winding angle at the polar area should reach $90^{o}$ . Moreover, to ensure the continuous variation of winding angle when passing the dome–cylinder conjunction, the winding angle of dome and cylinder section at the dome–cylinder conjunction must have the same value. Thus the following constraints at the location of the dome–cylinder conjunction can be given as

α_{c y l i n d e r} = α_{d o m e}

(16)

To prevent slipping of the rovings on the supporting surface, the slippage coefficient $λ$ should meet the stability condition as follows

| λ | \leq μ

(17)

where µ is the friction coefficient between the fiber bundle and the supporting surface. Here the slippage coefficient is given by a piecewise function

\begin{array}{l} λ = λ_{1} L e f t d o m e \\ λ = λ_{2} R i g h t d o m e \end{array}

(18)

The target is to find a pair of slippage coefficients $(λ_{1}, λ_{2})$ that guarantee the winding angle $90^{o}$ at exactly both the polar openings and winding angle continuous at the dome–cylinder conjunction. The final feasible results $(λ_{1}, λ_{2})$ are determined up to a desired level of accuracy ε and must lie in a predetermined feasible friction interval ${- μ μ}$ . When the slippage coefficient is negative, it means that the sign of geodesic curvature is different from that of the normal curvature. The flowchart for the searching slippage coefficients is depicted in Figure 7.

Figure 7.

Flowchart of searching slippage coefficients.

The process of computer implementation

During the filament winding process, the fibers are wound on the mandrel surface in a continuous manner and are tangent to the opening at its polar radius. Therefore, the mandrel angular $θ$ monotonically increases from zero to a value when the winding is over. The winding coordinate system is defined as shown in Figure 8. The fiber trajectories are created using its Cartesian coordinates. The Cartesian coordinates of the fiber paths can be given as

\begin{array}{l} x = r (z) \cos (θ) \\ y = r (z) \sin (θ) \\ z = z (θ, α) \end{array}

(19)

where $r (z)$ is the radius of the mandrel at the location on z-axis, and $α$ is the winding angle.

Figure 8.

Schematic diagram of computer implementation of designed winding pattern.

To visualize the designed winding patterns, the process of fiber paths implementation for a wound cycle is separated into six portions: cylindrical winding section, right dome up section, right dome down section, cylindrical back winding section, left dome up section, and left dome down section, as shown in Figure 8. After a cycle winding, the mandrel angular $θ$ is updated by the end value of the previous cycle winding. Repeat the cycle winding until a certain number, then the mandrel could be in full coverage. The detailed description of the method of computer implementation for the designed winding pattern is depicted in Figure 9.

Figure 9.

Flowchart of computer implementation of designed winding pattern.

Full coverage

To ensure the mandrel is uniformly covered by fibers, the number of wound circuits (a wound circuit is defined as the winding process in which continuous fibers start at a certain point on the mandrel surface and wind several cycles before returning to the starting point.) must be acquired. In a filament winding system, fiber tows under tension are wound onto the mandrel surface side by side in designed patterns to form a uniform composite shell that is precisely manipulated by computer numerical control. Consequently, the circumferential distance between each circuit path at the proper situation should be a bandwidth to avoid producing a gap that leaves the mandrel exposed. The distance is defined by a pitch angle $δ$ as

δ = \min [\frac{b}{π D (z) c o s α (z)}]

(20)

where b is the width of the filament band, D is the diameter of the mandrel at the location on the z-axis, and $α (z)$ is the winding angle. While getting the minimum pitch angle for the whole mandrel, the number of the wound circuit and cycle of the mandrel is uniformly covered with fibers as

\begin{array}{l} C i = \frac{2 π r (z) c o s α (z)}{b \cdot n} \\ C y = n \cdot c e i l (C i) \end{array}

(21)

where n is the number of tangents; and Ci and Cy are the number of circuits and cycles when the mandrel is uniformly covered by filaments. Ci is a real number but Cy is an integer number. The circumferential width of the individual filament band placed on the mandrel is not necessarily an integer multiple of the cross-sectional circumference of the mandrel. As a result, the overlap of filament bands may exist in the last wound circuit, as shown in Figure 10. It demonstrates the process of a mandrel uniformly covered by fibers, which includes the first circuit, the sixth circuit, and the final circuit winding, and the results show that the mandrel can be coated uniformly with filament bands, which indicates the effectiveness of the proposed method.

Figure 10.

Non-geodesic winding pattern simulation for the first, sixth, and final wound circuits with the number of tangents at 3.

In order to quantify the cover factor and overlap of filament band, C_f and Lap are defined as cover factor and overlap factor of filament band. C_f represents the cover degree of filament band after a layer of finished winding. Combining equation (21), cover factor C_f is expressed as

C_{f} = \frac{C_{y} \times b}{\cos α \times π \times R} \times 100 %

(22)

Combining equation (22), the overlap factor of filament band is obtained as

L a p = C_{f} - 100 %

(23)

The relationship among the number of tangent points, roving bandwidth, and winding pattern

Once the mandrel geometry and winding parameters of composite vessel are determined, the winding pattern is simultaneously given and the critical roving width is a desirable parameter for manufacturing the vessel. When the real bandwidth is less than the critical roving width, a gap will appear between two adjacent rovings in some area of the vessel. By contrast, while the real bandwidth is greater than the critical roving width, the overlap of rovings exists between adjacent yarns in all areas of the wound product. Here, let $θ_{n}$ denote the practical angular of the mandrel for a cycle of pay-out eye. The parameter $θ_{n}^{'}$ is defined the angle of a mandrel for a pay-out eye cycle without considering the bandwidth. The parameter $Δ θ$ represents the tiny angle of a mandrel for a pay-out eye cycle caused by a bandwidth. The relationship for $θ_{n}$ , $θ_{n}^{'}$ , and $Δ θ$ is given as

θ_{n} = θ_{n}^{'} \pm Δ θ = θ_{n}^{'} \pm \frac{b \times 360^{0}}{π \cdot D \cdot \cos α \cdot n}

(24)

For a mandrel, the angle of the mandrel for a pay-out eye cycle is a constant while the winding pattern is determined. The critical bandwidth is related to the angle $θ_{n}^{'}$ , tiny angle $Δ θ$ , and the number of tangent points n. The number of tangent point n is a key parameter. Once the number of tangent points is determined, the angle $θ_{n}^{'}$ and $Δ θ$ then are two constants. Hence, there are two uncorrelated parameters in the angle $θ_{n}^{'}$ , the angle $Δ θ$ , and n. The constraint condition that angle $Δ θ$ is limited to a predetermined value is adopted to calculate $θ_{n}^{'}$ , $Δ θ$ , and n. Figure 11(a) depicts a cross-section for a wound circuit for $θ_{n} = {453.74}^{o}$ and $Δ θ < 15^{o}$ . Small circles in Figure 11(a) and (b) stand for a roving and the number represents the order of roving wound on the mandrel. Figure 11(b) shows the cross-section of a wound circuit for $θ_{n} = {453.74}^{o}$ and $Δ θ < 10^{o}$ . It is observed from Figure 11 that the angle between the start point and the nth point equals that between the first point and the (n + 1)th point. In Figure 11(a), the number of tangent points is 4 for $Δ θ = {14.9}^{o}$ . In Figure 11(b), the number of tangent points is 23 for $Δ θ = {3.89}^{o}$ . The smaller the angle $Δ θ$ , the greater the number of tangent points is. The detailed flowchart of calculating bandwidth and the number of tangents is given in Figure 12.

Figure 11.

Schematic diagram for the number of tangents: (a) 4 tangents. (b) 23 tangents.

Figure 12.

Flowchart of the calculation method of critical bandwidth and the number of tangents.

Results and discussion

The simulation system has the ability of designing the winding pattern for a vessel with unequal polar openings. The simulation system has the ability of rotation, panning, zooming, and view switching, which enable the designer to observe the winding process by dragging the mouse. If there are any abnormal phenomena during the filament winding process, the engineer can stop and adjust the winding pattern until the filament bands cover the mandrel uniformly. Therefore, the simulation is convenient and effective in producing a composite vessel.

To validate the ability of generating winding patterns of the developed simulation system for vessels with different ratio of polar poles, Figure 13 displays non-geodesic winding patterns for revolution shells with different ratios of polar openings for $1 : 2 ~ 1 : 4$ . As followed from this picture, for each ratio of polar pole, the proposed method always has the ability to cover the mandrel uniformly with fibers even if the ratio of polar poles is greater at 1:4. Figure 13 also indicates that as the number of the tangent point increases, the number of the wound circuit decreases after the mandrel is coated with an individual layer. When the tangent number of points is 3, 5, and 6, respectively, the wound circuits are 37, 21, and 19, respectively. There may have been overlap of filament bands in the last wound circuit, as observed in Figure 13. This is caused when the circumferential width of the individual filament band placed on the mandrel is not an integer multiple of the cross-sectional circumference of the mandrel, and for this scenario the overlap is unavoidable.

Figure 13.

Non-geodesic winding patterns for revolution shells with different ratios of polar openings.

For the sake of displaying winding patterns for different design sections for a certain vessel, a revolution shell is selected and the geometrical parameters are depicted in Figure 14. The semi-minor axis and the semi-major axis are 330 and 385 mm, respectively, fiber bandwidth $b = 20 mm$ , thickness of a filament band $t = 0.2 mm$ , a helical geodesic winding, and the maximum friction coefficient µ is set as 0.3. The calculation result indicates that for this shell there are four design sections of winding pattern.

Figure 14.

Dimensional parameters of a revolution shell.

Figure 15 gives the winding angle curves along the axial direction for four design sections of winding pattern of the vessel. When $α_{1}$ is in the first design section, as the axial coordinate z increases the winding angle of the left dome decreases and then increases. In its cylindrical section, both the sides have a non-geodesic region. The winding angle increases to $60^{o}$ , then keeps this value and finally decreases. As for the right dome, the winding angle decreases, then increases to $90^{o}$ , which satisfies the requirement of being tangent at its polar radius. When $α_{1}$ is in the second design section, the variations of winding angle in the left and right domes are similar to those when $α_{1}$ is in the first design section. In the cylindrical section for this case, non-geodesic exists only on the right side of the cylinder section, and for any other position the winding angle is a constant $40^{o}$ . While $α_{1}$ is in the third design section, for the left dome section, the winding angle decreases monotonously. No non-geodesic region exists in its cylindrical section, in other words, it is geodesic winding for the cylindrical section. For the right dome, the winding angle decreases, and then increases to $90^{o}$ . In the last case while $α_{1}$ is in the fourth design section, the winding angle decreases in the left dome. The non- geodesic winding area lies in the left part of the cylindrical section. As can be seen from the figure, the winding angle is continuous along the axial direction and the slippage coefficient at any position of the shell is less than the predetermined value 0.3, which accounts for the feasibility of the proposed method of winding pattern design.

Figure 15.

Winding angle curves with respect to z axis for $α_{1}$ in different design sections.

Table 2 shows that numerous tangent points and bandwidths for each design section of winding pattern could be selected. For the first and second design sections, as the tiny angle $Δ θ$ is a certain value, so the number of tangents and critical bandwidth are invariable for different $Δ θ_{m a x}$ . By contrast, for the third and fourth design sections, $Δ θ$ decreases as $Δ θ_{m a x}$ decreases, thus the number of tangents and critical bandwidth are variable. As the tiny angle $Δ θ$ decreases, the number of tangent point increases and the critical bandwidth decreases. In other words, the more the number of tangent points, the more the number of wound circuits when the mandrel is covered uniformly with a single layer. In general, it was found that composite vessel strength was significantly affected by the laminate stacking sequence, winding angle (associated with winding pattern), winding tension, winding-tension gradient, and winding time.^31,32 Thus, it is tough work to find the optimal winding pattern under the given vessel geometry and this will be the future work.

Table 2.

The number of tangent point and bandwidth for different design sections of winding pattern.

$Δ θ_{m a x}$	$α_{1}$
	First design section			Second design section			Third design section			Fourth design section
	n	b / mm	$Δ θ /^{o}$	n	b / mm	$Δ θ /^{o}$	n	b / mm	$Δ θ /^{o}$	n	b / mm	$Δ θ /^{o}$
$15^{o}$	6	13.54	4.03	19	21.38	4.15	11	84.53	13.40	18	69.20	10.49
$10^{o}$	6	13.54	4.03	19	21.38	4.15	21	45.16	7.15	23	43.50	6.60
$5^{o}$	6	13.54	4.03	19	21.38	4.15	53	5.74	0.91	41	25.70	3.89

$n$ is the number of tangent point, b is the critical bandwidth, $Δ θ$ represents the tiny angle of a mandrel caused by a bandwidth, $Δ θ_{m a x}$ is the maximum limitation of $Δ θ$ .

Conclusion

In this article, the method of winding pattern design of filament wound composite pressure vessel with unequal openings was proposed using geodesics and non-geodesics, which also satisfy the winding principles. A model was established to determine the relationship among the number of tangent points, bandwidth, and winding pattern, which aim to ensure the fiber stability and full coverage on the mandrel to satisfy the winding process requirements. The winding patterns for composite pressure vessel were simulated on the MATLAB software platform to verify the feasibility of the trajectory deign. The simulation results indicate that the mandrel was coated with fibers uniformly and no severe overlap regions except the polar pole regions exist on the mandrel surface, which proved the effectiveness of the method. The method introduced in this article can be used in the early stages of designing a composite pressure vessel, especially in a solid fuel rocket case.

Footnotes

Appendix 1 Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research is supported by the Joint Fund of Advanced Aerospace Manufacturing Technology Research (Project No. U1837601).

ORCID iD

Kaite Guo

References

Peters

ST.

Composite filament winding. Materials Park, OH: ASM International, 2011.

Koussios

Filament winding: A unified approach. Delft: Delft University Press, 2004.

Zhang

, et al. Design and production of filament-wound composite square tubes. Compos Struct 2018; 191: 202–208.

Velosa

Nunes

Antunes

, et al. Development of a new generation of filament wound composite pressure cylinders. Compos Sci Technol 2009; 69(9): 1348–1353.

Vasiliev

Krikanov

Razin

AF.

New generation of filament-wound composite pressure vessels for commercial applications. Compos Struct 2003; 62(3–4): 449–459.

Michael

LS.

Trends, advances and innovations in filament winding. Reinf Plast 2006; 50(2): 28–33.

Michael

Challenges for composites into the next millennium—a reinforcement perspective. Compos Part A: Appl S 2001; 32(7): 901–910.

Wang

Kolios

Nishino

, et al. Structural optimisation of vertical-axis wind turbine composite blades based on finite element analysis and genetic algorithm. Compos Struct 2016; 153: 123–138.

Yun

Jung

Filament winding path generation based on the inverse process of stability analysis for non-axisymmetric mandrels. J Compos Mater 2017; 51(21): 2989–3002.

10.

Kim

Kang

Hong

, et al. Optimal design of filament wound structures under internal pressure based on the semi-geodesic path algorithm. Compos Struct 2005; 67(4): 443–452.

11.

Hernández-Moreno

Douchin

Collombet

, et al. Influence of winding pattern on the mechanical behavior of filament wound composite cylinders under external pressure. Compos Sci Technol 2008; 68(3–4): 1015–1024.

12.

Leh

Magneville

Saffré

, et al. Optimisation of 700 bar type IV hydrogen pressure vessel considering composite damage and dome multi-sequencing. Int J Hydrogen Energ 2015; 40(38): 13215–13230.

13.

Almeida

JHS

Jr Ribeiro

Tita

, et al. Stacking sequence optimization in composite tubes under internal pressure based on genetic algorithm accounting for progressive damage. Compos Struct 2017; 178: 20–26.

14.

Meijer

Ellyin

A failure envelope for±60 filament wound glass fibre reinforced epoxy tubulars. Compos Part A: Appl S 2008; 39(3): 555–564.

15.

Bakaiyan

Hosseini

Ameri

Analysis of multi-layered filament-wound composite pipes under combined internal pressure and thermomechanical loading with thermal variations. Compos Struct 2009; 88(4): 532–541.

16.

Kim

C-U

Hong

C-S

Kim

C-G

, et al. Optimal design of filament wound type 3 tanks under internal pressure using a modified genetic algorithm. Compos Struct 2005; 71(1): 16–25.

17.

Francescato

Gillet

Leh

, et al. Comparison of optimal design methods for type 3 high-pressure storage tanks. Compos Struct 2012; 94(6): 2087–2096.

18.

Hojjati

Ardebili

Hoa

Design of domes for polymeric composite pressure vessels. Compos Eng 1995; 5(1): 51–59.

19.

Lossie

Brussel

HV.

Design principles in filament winding. Compos Manuf 1994; 5(1): 5–13.

20.

De Carvalho

Lossie

Vandepitte

, et al. Optimization of filament-wound parts based on nongeodesic winding. Compos Part A: Appl S 1995; 6: 79–84.

21.

Koussios

Beukers

Design of filament-wound isotensoid pressure vessels with unequal polar openings. Compos Struct 2010; 92(9): 2307–2313.

22.

Koussios

Bergsma

Mitchell

Non-geodesic filament winding on generic shells of revolution. Proc IMechE, Part L: J Materials Design and Applications 2005; 219: 25–35.

23.

Koussios

Beukers

Stathis

. Manufacturability of composite pressure vessels: application of non-geodesic winding. In: Proceedings of the 16th international conference on composite materials, Kyoto, Japan, 8–13 July 2007.

24.

Vargas Rojas

Chapelle

Perreux

, et al. Unified approach of filament winding applied to complex shape mandrels. Compos Struct 2014; 116: 805–813.

25.

Liang

Bao

Splines in the parameter domain of surfaces and their application in filament winding. Comput Aided Design 2007; 39: 268–275.

26.

Koussios

Beukers

Design of filament wound circular toroidal hydrogen storage vessels based on non-geodesic fiber trajectories. Int J Hydrogen Energ 2010; 35: 660–670.

27.

Koussios

Beukers

Design of filament wound domes based on continuum theory and non-geodesic roving trajectories. Compos Part A: Appl S 2010; 41: 1312–1320.

28.

Mazumdar

Hoa

SV.

Algorithm for filament winding of non-axisymmetric tapered composite components having polygonal cross-section on two-axes filament-winding machine. Compos Part B: Eng 1994; 4: 343–359.

29.

Yun

Kim

, et al. Real-time graphic visualization of filament band winding for fiber-reinforced cylindrical vessels. J Compos Mater 2016; 50(16): 2165–2175.

30.

Yun

Jung

, et al. Generation of filament-winding paths for complex axisymmetric shapes based on the principal stress field. Compos Struct 2017; 161: 330–339.

31.

Cohen

Influence of filament winding parameters on composite vessel quality and strength. Compos Part A: Appl S 1997; 28(12): 1035–1047.

32.

Banerjee

Sun

Mantell

, et al. Model and experimental study of fiber motion in wet filament winding. Compos Part A: Appl S 1998; 29(3): 251–263.
