Numerical thermal featuring in γAl 2 O 3 -C 2 H 6 O 2 nanofluid under the influence of thermal radiation and convective heat condition by inducing novel effects of effective Prandtl number model (EPNM)

Abstract

The investigation of thermal transport in the nanofluid attained much interest of the researchers due to their extensive applications in automobile, mechanical engineering, radiators, aerodynamics, and many other industries. Therefore, a nanofluid model is developed for γAl₂O₃-C₂H₆O₂ by incorporating the novel effects of Effective Prandtl Number Model (EPNM), thermal radiations, and convective heat condition. The model discussed numerically and furnished the results against the governing flow quantities. It is examined that the nanofluid velocity alters significantly due to combined convection and stretching parameter. Induction of thermal radiation in the model significantly contributed in the temperature of nanofluids and high temperature is observed by strengthen thermal radiation (Rd) parameter. Further, convection from the surface (convective heat condition) provided extra energy to the fluid particles which boosts the temperature of γAl₂O₃-C₂H₆O₂. The comparison of nanofluid (γAl₂O₃-C₂H₆O₂) temperature with base fluid (C₂H₆O₂) revealed that γAl₂O₃-C₂H₆O₂ has high temperature and would be fruitful for future industrial applications. Moreover, the study is validated with previously reported literature and found reliability of the study.

Keywords

thermal radiation thermal performance EPNM

Introduction

The investigation of thermal performance in the nanofluids attained much fame among the researcher’s community from the last few decades. The nanofluids are newly introduced fluids that have much ability to transfer heat in comparison with conventional liquids. The regular liquids have not enough thermal transport characteristics, therefore, these fluids are limited to industrial applications. Usually, huge amount of heat is acquired to accomplish the cycle of industrial products and the conventional liquids have not enough ability to produce such amount of heat. Therefore, the nanofluids are then extensively applicable in various industries and engineering side as well.

Primarily, nanofluids are the mixture of nano-sized nanoparticles in the host liquids which dissolve stably and thermally in equilibrium. An intermixture of various metals and oxides composed by the metals significantly alter the heat transport characteristics of the nanofluids. Due to their superior heat transport capability, the nanofluids strengthen their roots in every aspect of life. Their applications include from small level, that is, kitchen appliances to the peak of nanotechnology, that is, aerodynamics, manufacturing of air bus parts, parts of super computers, paint industries, detection of cancer cells in human body (using Ag and TiO₂ nanoparticles), civil engineering, biomedical engineering and many more. Due to the rising applications of the nanofluids, researchers focused to explore the heat transport characteristics from various aspects of fluid dynamics.

The dynamics of nanoliquid past a vertically placed stretchable sheet reported by Thammanna et al.¹ They examined heat transfer, shear stresses, and the local heat transport mechanism under the influences of imposed Lorentz forces, thermal radiation, and mixed convection. The dimensionless model was obtained by inducing the similarity transforms with appropriate differentiation w.r.t to space coordinates. They found that the convectively heated surface significantly alters heat transport mechanism in the nanoliquids. Recently, Shahzad et al.² explored the dynamics of nanofluid saturated by magnetite nanomaterial. Further, they considered the porosity and mixed convection effects in the constitutive model and discussed the results against them. Reduction in the heat transfer due to rotational parameter is reported in the analysis.

The inspection of heat transfer on Oldroyd B fluid past a stretched surface addressed in.³ They impinged influences of nonlinear thermal radiation and internal heat source to explore fascinating results for heat transfer of the fluid. The flow model was obtained by adopting boundary layer approximation theory and then solved the corresponding model numerically. Augmentation in the local thermal performance of the fluid is reported due to nonlinear thermal radiation impinged in the energy equation. The study of magnetized 3D flow past a stretchable surface by taking nonlinear thermal radiations into account is described in.⁴ They revealed that by altering the volumetric fraction of the nanoparticle, heat transport in the nanofluid rises over the desired domain. Further, the role of convective surface parameter on the heat transfer is examined in the study and found that convective parameter boosts the temperature and is better for thermal enhancement in the nanofluid.

Recently, Sreedevi et al.⁵ addressed unsteady flow of hybrid nanoliquid by incorporating the influences of Lorentz forces. They extended the existing work for heat and mass transport in addition to chemical reaction and slip effects over a radiated stretchable surface. The hybrid mixture was made by adding hybrid nanomaterial composed by carbon nanotubes and silver particles in the host liquid. Augmentations in the temperature of hybrid nanoliquid were examined against both steady and unsteady flows. Moreover, numerical computation for local heat transport mechanism is provided by varying the flow quantities. Another significant analysis of the heat transfer over a porous stretching cylinder is described in.⁶ The work was carried out for Cu-H₂O nanofluid and solved the colloidal flow model via Keller box technique. The thermal behavior of the fluid examined graphically against the parameters involved in the model. Further, they concluded that the temperature improved due to elevating Reynolds number in the presence of internal heat source.

In 2019, Elgazery⁷ performed the thermal analysis in the nanofluids by considering permeability effects of the surface. They analyzed the behavior of thermal transport in the nanoliquids composed by different tiny particles namely TiO₂, Cu, Ag, and Al₂O₃ with water as a host liquid. To enhance the novelty of the study, slanted magnetic field and non-uniform internal heat source are plugged in the constitutive model. The reduction in the fluid velocity and augmentation in the shear stresses are examined due to imposed slanted magnetic field. The heat transfer over a melting curved stretched surface by taking first order chemical reaction is addressed in Ref.⁸ The study revealed that the hybrid nanoliquid has high thermal performance as compared to that of conventional nanoliquid over a curved surface.

The significant recent studies for potential class of fluids for microbial analysis of spinning microbes in blood, heat transport mechanism in Williamson nanofluid, entropy optimization and thermal performance in ZnO-SAE50, MHD influences in the presence of internal heat generation/absorption over perpendicular porous surface, Darcy Forchheimer flow (DFF) over inclined disk, multiphase fluid behavior of the nanofluid, comparative temperature variations in nano and hybrid nanofluids under mixed convection influences and MHD flow with chemical species over an inclined surface were reported in,^9–16 respectively.

Recently, Patel¹⁷ examined internal heat source and thermal radiation effects on electrical conducting fluid in porous media. Thereafter, heat and mass transport mechanism in MHD Casson fluid over oscillatory surface with ramped surface temperature, thermal performance of two different nanofluids, cross diffusion gradients and combined convection effects on MHD Carreau fluid, dynamics of micropolar fluid in vertical walls, influences of molecular diameter and freezing temperature on thermal behavior of the nanofluid, multiple shape effects of nanoparticles on the temperature of nanofluids, soret, and heat generation phenomena in porous media and combined convection effects on the heat and mass transport were reported in.^18–26

From the above cited literature, it is noted that no one made attempted to analyze thermal enhancement in the nanofluids by considering EPNM in the constitutive model. The novelty and research question that will be addressed in conducted study are as follows:

How EPNM contributes in temperature of γ-Al₂O₃/C₂H₆O₂ nanofluid.

In which type of nanofluid (γ-Al₂O₃/C₂H₆O₂) heat transport mechanism is rapid.

Role of thermal radiations in the temperature enhancement of γ-Al₂O₃/C₂H₆O₂ nanofluid.

How the temperature can be improved in γ-Al₂O₃/C₂H₆O₂ nanofluids by engaging convective heat condition.

Among γ-Al₂O₃/C₂H₆O₂ nanofluids, which one has high thermal performance under above mentioned physical effects (thermal radiations and convective heat condition).

Mathematical modeling

Problem statement and geometry

The flow of C₂H₆O₂ saturated by γ-nanomaterial of aluminum oxide is considered over a convectively heated vertically situated surface. The surface is radiated and has ability to stretching along the coordinate axes. The velocity components ${\overset{\lor}{u}}_{w} = \hat{a} {(x + y)}^{n}$ and ${\overset{\lor}{v}}_{w} = \hat{b} {(x + y)}^{n}$ are taken along x and y-axes, respectively. It is assumed that the γ-nanomaterial and water are thermally in equilibrium and no slip exists between them. Further, to improve the temperature enhancement, EPNM is ingrained in the energy equation. The flow configuration of said nanofluid is elaborated in Figure 1.

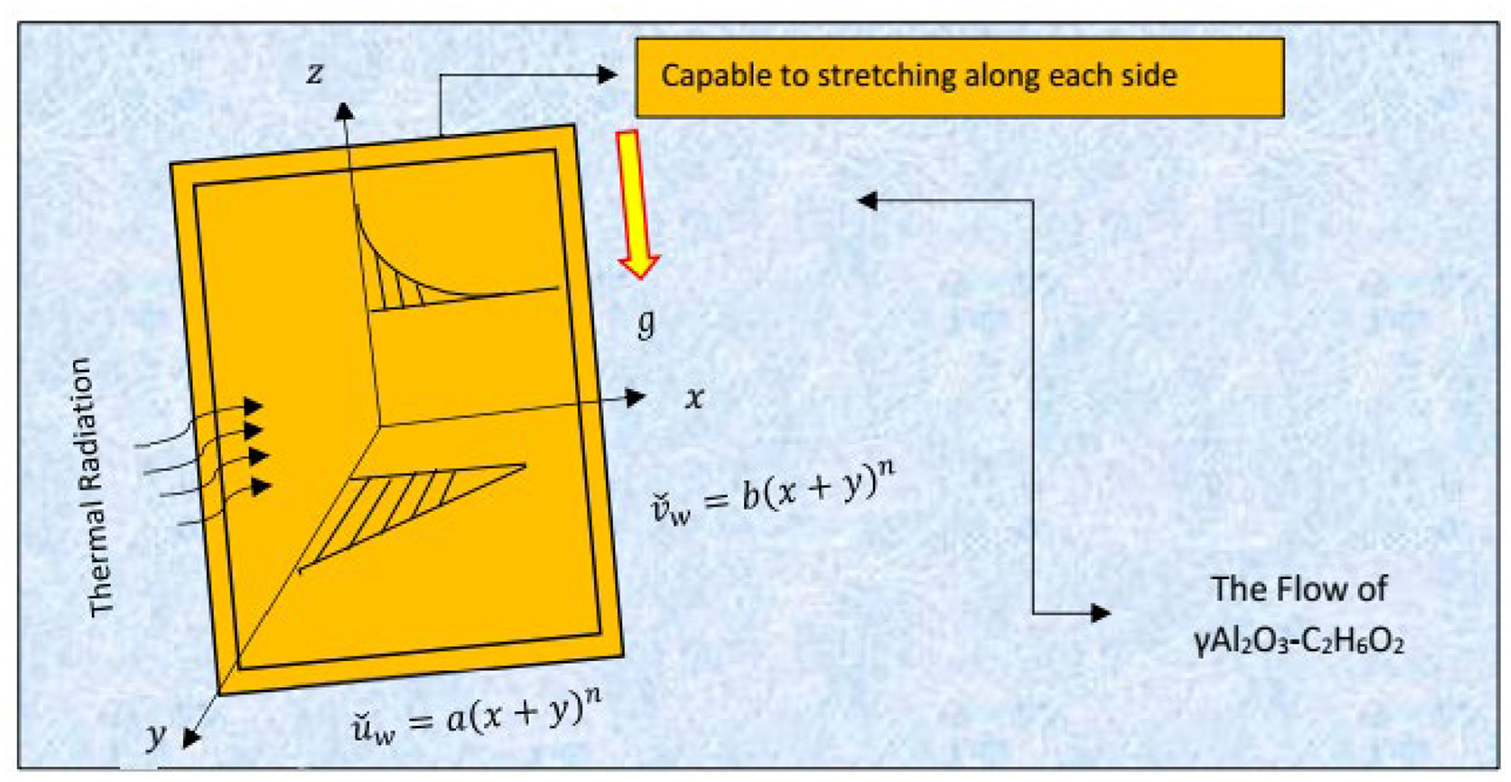

Figure 1.

The flow sketch of γAl₂O₃-C₂H₆O₂ nanofluid.

Thermophysical correlations

In order to enhance thermal performance of the nanofluid, the following thermophysical correlations and effective Prandtl number model (EPNM) for γAl₂O₃-C₂H₆O₂ are used^27–31:

{(\hat{ρ C_{p}})}_{nf} = {(\hat{ρ C_{p}})}_{f} [(1 - ϕ) + \frac{ϕ {(\hat{ρ C_{p}})}_{p}}{{(\hat{ρ C_{p}})}_{f}}],

(1)

{\hat{ρ}}_{nf} = [(1 - ϕ) + \frac{ϕ {\hat{ρ}}_{p}}{{\hat{ρ}}_{f}}] {\hat{ρ}}_{f},

(2)

{(\hat{ρ β})}_{nf} = {(\hat{ρ β})}_{f} [(1 - ϕ) + \frac{ϕ {(\hat{ρ β})}_{p}}{{(\hat{ρ β})}_{f}}],

(3)

{\hat{μ}}_{nf} = {\hat{μ}}_{f} (306 ϕ^{2} - 0.19 ϕ + 1) .

(4)

{\hat{k}}_{nf} = {\hat{k}}_{f} (28.905 ϕ^{2} + 2.8273 ϕ + 1)

(5)

{\hat{\Pr}}_{nf} = \Pr_{f} (254.3 ϕ^{2} - 3.0 ϕ + 1)

(6)

Table 1 describing thermophysical values for the nanofluid:

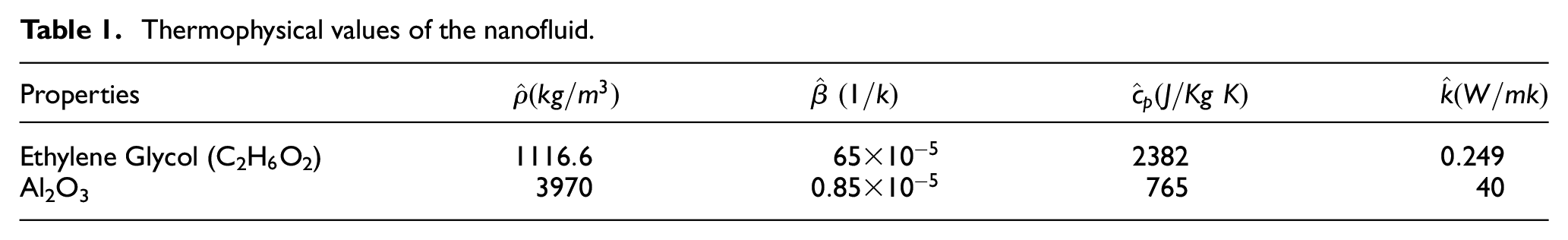

Table 1.

Thermophysical values of the nanofluid.

Properties	$\hat{ρ} (kg / m^{3})$	$\hat{β} (1 / k)$	${\hat{c}}_{p} (J / Kg K)$	$\hat{k} (W / mk)$
Ethylene Glycol (C₂ $H_{6} O$ ₂)	$1116.6$	$65 \times 10^{- 5}$	$2382$	$0.249$
Al₂O₃	$3970$	$0.85 \times 10^{- 5}$	$765$	$40$

Development of the flow model

By following the flow configuration of the nanofluid, we have the below dimensional version by incorporating the influences of mixed convection and thermal radiations¹ in which equation (1) is the continuity equation for incompressible fluid, equations (8–10) obtained in the view of Prandtl Boundary Layer Approximation Theory (PBLAT), equation (11) is the energy equation and thermal radiation effects calculated by using Roseland approximation:

\frac{\partial \overset{\lor}{u}}{\partial x} + \frac{\partial \overset{\lor}{v}}{\partial y} + \frac{\partial \overset{\lor}{w}}{\partial z} = 0,

(7)

{\hat{ρ}}_{nf} (\overset{\lor}{u} \frac{\partial \overset{\lor}{u}}{\partial x} + \overset{\lor}{v} \frac{\partial \overset{\lor}{u}}{\partial y} + \overset{\lor}{w} \frac{\partial \overset{\lor}{u}}{\partial z}) - {\hat{μ}}_{nf} \frac{\partial^{2} \overset{\lor}{u}}{\partial z^{2}} = 0

(8)

{\hat{ρ}}_{nf} (\overset{\lor}{u} \frac{\partial \overset{\lor}{v}}{\partial x} + \overset{\lor}{v} \frac{\partial \overset{\lor}{v}}{\partial y} + \overset{\lor}{w} \frac{\partial \overset{\lor}{v}}{\partial z}) - {\hat{μ}}_{nf} \frac{\partial^{2} \overset{\lor}{v}}{\partial z^{2}} = 0

(9)

{\hat{ρ}}_{nf} (\overset{\lor}{u} \frac{\partial \overset{\lor}{w}}{\partial x} + \overset{\lor}{v} \frac{\partial \overset{\lor}{w}}{\partial y} + \overset{\lor}{w} \frac{\partial \overset{\lor}{w}}{\partial z}) - {\hat{μ}}_{nf} \frac{\partial^{2} \overset{\lor}{w}}{\partial z^{2}} = 0

(10)

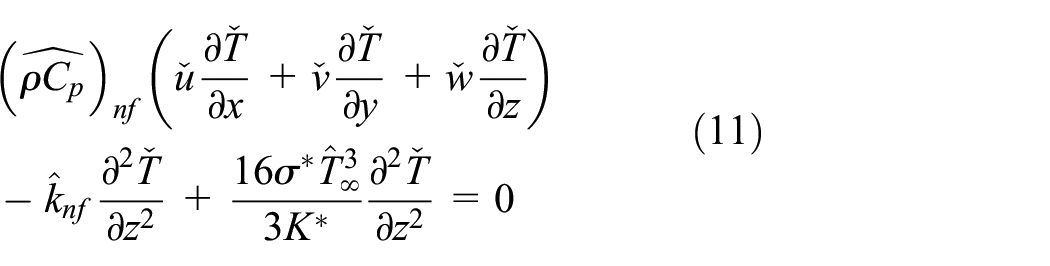

\begin{matrix} {(\hat{ρ C_{p}})}_{nf} (\overset{\lor}{u} \frac{\partial \overset{\lor}{T}}{\partial x} + \overset{\lor}{v} \frac{\partial \overset{\lor}{T}}{\partial y} + \overset{\lor}{w} \frac{\partial \overset{\lor}{T}}{\partial z}) \\ - {\hat{k}}_{nf} \frac{\partial^{2} \overset{\lor}{T}}{\partial z^{2}} + \frac{16 σ^{*} {\hat{T}}_{\infty}^{3}}{3 K^{*}} \frac{\partial^{2} \overset{\lor}{T}}{\partial z^{2}} = 0 \end{matrix}

(11)

The conditions at convectively heated surface and far from it are given in the following version, respectively:

\begin{matrix} \overset{\lor}{u} = {\overset{\lor}{u}}_{w} + σ_{v}^{*} (2 - σ_{v}^{*}) λ_{0} \frac{\partial \overset{\lor}{u}}{\partial z}, \\ \overset{\lor}{v} = {\overset{\lor}{v}}_{w} + σ_{v}^{*} (2 - σ_{v}^{*}) λ_{0} \frac{\partial \overset{\lor}{v}}{\partial z}, \overset{\lor}{w} = 0, \\ {\hat{k}}_{nf} \frac{\partial \overset{\lor}{T}}{\partial z} = {\overset{\lor}{h}}_{f} (\overset{\lor}{T} - {\overset{\lor}{T}}_{f}) \end{matrix}

and

\overset{\lor}{u} \to 0, \overset{\lor}{v} \to 0, \overset{\lor}{T} \to {\overset{\lor}{T}}_{\infty} .

In which ${\overset{\lor}{u}}_{w}$ and ${\overset{\lor}{v}}_{w}$ , are the stretching velocities along the coordinate axes, respectively. Furthermore, ${\overset{\lor}{h}}_{f}$ , and $λ_{0}$ representation the thermal transport and the velocity coefficients, respectively. These coefficients are taken of variable type and mathematical described by the following formulas:

$λ_{0} = {\overset{\lor}{λ}}_{0} {(x + y)}^{0.5 (1 - n)}$ and ${\overset{\lor}{h}}_{f} = \overset{\lor}{c} {(x^{1 - n})}^{- 0.5}$ , respectively and the terms ${\overset{\lor}{λ}}_{0}$ and $\overset{\lor}{c}$ are constants.

Invertible transformations

The following suitable invertible transformations are defined to carry out the nondimensionalization process of the model:

\begin{matrix} \overset{\lor}{u} = \overset{\lor}{a} {(x + y)}^{n} F', \overset{\lor}{v} = \overset{\lor}{a} {(x + y)}^{n} G' \\ \overset{\lor}{w} = - {(\overset{\lor}{a} ν_{f})}^{0.5} {(x + y)}^{0.5 (n - 1)} [0.5 (n + 1) (F + G) + 0.5 (n - 1) η (F' + G')] \\ \overset{\lor}{T} = {\overset{\lor}{T}}_{\infty} + ({\overset{\lor}{T}}_{f} - {\overset{\lor}{T}}_{\infty}) β, η = {(\frac{a}{ν_{f}})}^{0.5} {(x + y)}^{0.5 (n - 1)} z \end{matrix}},

(12)

γAl₂O₃-C₂H₆O₂ model

With the help of thermophysical correlations of the nanofluid, invertible transformations, and suitable differentiation, the following model is obtained:

\begin{matrix} \frac{(306 ϕ^{2} - 0.19 ϕ + 1)}{(1 - ϕ + ϕ \frac{ϕ {\hat{ρ}}_{p}}{{\hat{ρ}}_{f}})} F^{″'} - n (F' + G') F' \\ + \frac{(n + 1)}{2} (F + G) F ″ + \frac{(1 - ϕ) + \frac{ϕ {(\hat{ρ β})}_{p}}{{(\hat{ρ β})}_{f}}}{(1 - ϕ + ϕ \frac{ϕ {\hat{ρ}}_{p}}{{\hat{ρ}}_{f}})} λ β = 0 \end{matrix}

(13)

\begin{matrix} \frac{(306 ϕ^{2} - 0.19 ϕ + 1)}{(1 - ϕ + ϕ \frac{ϕ {\hat{ρ}}_{p}}{{\hat{ρ}}_{f}})} G^{″'} - n (F' + G') G' \\ + 0.5 (n + 1) (F + G) G ″ = 0 \end{matrix}

(14)

\begin{matrix} (1 + \frac{Rd}{28.905 ϕ^{2} + 2.8273 ϕ + 1}) β ″ \\ + \Pr_{f} \frac{(254.3 ϕ^{2} - 3 ϕ + 1) (1 - ϕ + ϕ \frac{ϕ (\hat{ρ} c_{p})}{({\hat{ρ c_{p})}}_{f}})}{(306 ϕ^{2} - 0.19 ϕ + 1)} \\ (\frac{n + 1}{2}) (F + G) β' = 0 \end{matrix}

(15)

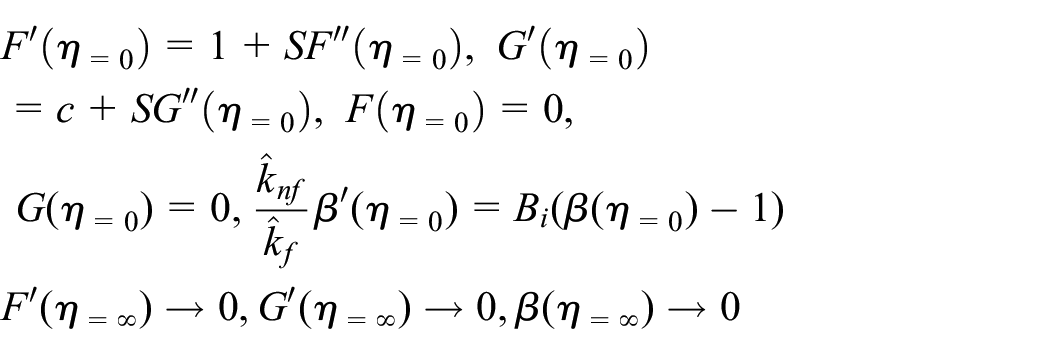

The supporting dimensionless form of the flow conditions over the surface $(η = 0)$ and far from the surface $(η_{\to \infty})$ are transformed in the following version:

\begin{matrix} F' (η_{= 0}) = 1 + S F ″ (η_{= 0}), G' (η_{= 0}) \\ = c + S G ″ (η_{= 0}), F (η_{= 0}) = 0, \\ G (η_{= 0}) = 0, \frac{{\hat{k}}_{nf}}{{\hat{k}}_{f}} β' (η_{= 0}) = B_{i} (β (η_{= 0}) - 1) \\ F' (η_{= \infty}) \to 0, G' (η_{= \infty}) \to 0, β (η_{= \infty}) \to 0 \end{matrix}

The governing flow quantities appeared in the model are thermal radiation parameter $(Rd = \frac{16 σ^{*} {\overset{\lor}{T}}_{\infty}^{3}}{3 {\overset{\lor}{k}}_{f} k^{*}})$ , stretching ratio number ( $c = \frac{\overset{ˇ}{b}}{\overset{ˇ}{a}}$ ), velocity slip $(S = \frac{2 - σ_{v}}{σ_{v}} λ_{0} {(\frac{\overset{\lor}{a}}{ν_{f}})}^{0.5})$ and Biot parameter $(B_{i} = \frac{c^{*}}{{\overset{\lor}{k}}_{f}} {(\frac{ν_{f}}{\overset{\lor}{a}})}^{0.5})$ due to convectively heated surface.

It is imperative to organize the formula to investigate the behavior of the shear stresses and the local thermal performance in the nanofluid past a vertical convectively heated surface. Therefore, the following formulas are developed to inspect aforementioned quantities of engineering interest: The behavior of shear stresses and local thermal transport rate at the surface is described by the following equations:

\begin{matrix} {\overset{\lor}{C}}_{Fx} = \frac{{\overset{\lor}{μ}}_{nf}}{{\overset{\lor}{ρ}}_{f} {\overset{\lor}{u}}_{w}^{2}} {(\frac{\partial \overset{\lor}{u}}{\partial z} + \frac{\partial \overset{\lor}{w}}{\partial x})}_{z = 0}, \\ {\overset{\lor}{C}}_{Fy} = \frac{{\overset{\lor}{μ}}_{nf}}{{\overset{\lor}{ρ}}_{f} {\overset{\lor}{u}}_{w}^{2}} {(\frac{\partial \overset{\lor}{v}}{\partial z} + \frac{\partial \overset{\lor}{w}}{\partial y})}_{z = 0} \\ Nu = \frac{(x + y)}{{\overset{\lor}{k}}_{f} ({\overset{\lor}{T}}_{f} - {\overset{\lor}{T}}_{\infty})} (- {\overset{\lor}{k}}_{nf} {(\frac{\partial \overset{\lor}{T}}{\partial z})}_{z = 0} + {\overset{\lor}{q} r}_{w}) \end{matrix}

By impinging the feasible differentiation and effective values of the nanofluid, the following version is obtained:

\begin{matrix} {\overset{\lor}{C}}_{Fx} {Re}_{x}^{0.5} = (306 ϕ^{2} - 0.19 ϕ + 1) F ″ (η_{= 0}) \\ {\overset{\lor}{C}}_{Fy} {Re}_{v}^{0.5} = (306 ϕ^{2} - 0.19 ϕ + 1) G ″ (η_{= 0}) \\ N u_{x} {Re}_{x}^{0.5} = - (28.905 ϕ^{2} + 2.8273 ϕ + 1) \\ (1 + \frac{4}{3} Rd) β' (η_{= 0}) . \end{matrix}

The local Reynolds number in the above mathematical expressions are defined as ${Re}_{x}^{0.5} = \frac{{\overset{\lor}{u}}_{w} (x + y)}{ν_{f}}$ and ${Re}_{y}^{0.5} = \frac{{\overset{\lor}{v}}_{w} (x + y)}{ν_{f}}$ , respectively.

Mathematical analysis of γAl₂O₃-C₂H₆O₂ model

Many physical phenomena arising in engineering and Fluid mechanics are modeled via nonlinear coupled system of differential equations which does not possess closed or exact form of the solution. Therefore, solution of the model is a key tool to observe and analyze the characteristics of the model. In such scenario we prefer numerical techniques rather than the exact mathematical techniques that do not work significantly over an infinite region and for highly coupled nonlinear models. Thus, a numerical algorithm based on shooting technique is adopted to handle the model. Primarily, this method works for a system of first order initial value problem. Therefore, we need to transform our colloidal model into the desired system firstly. The whole mathematical procedure described in Figure 2. The flow chart of mathematical analysis is given below.

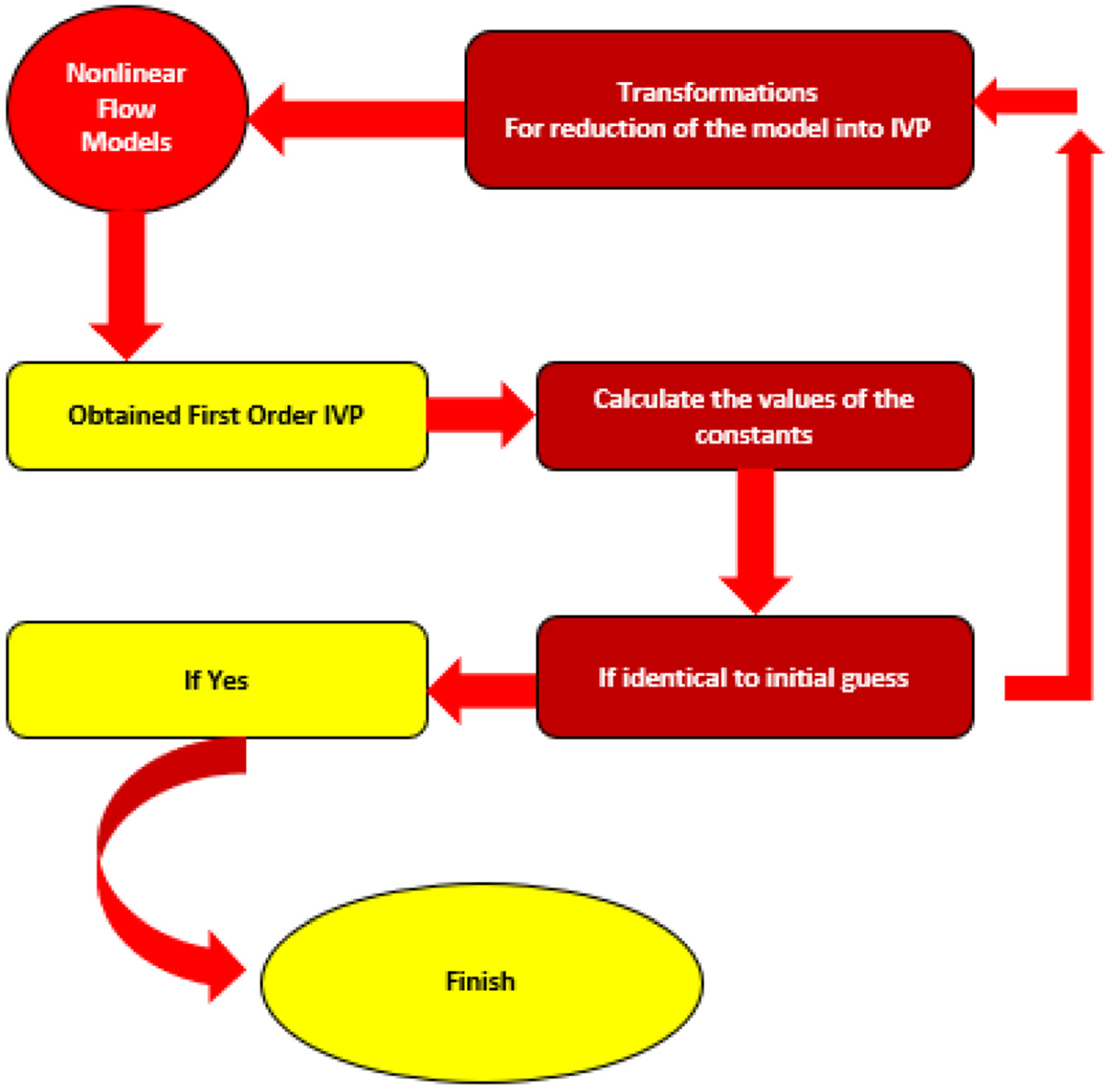

Figure 2.

Flow chart for mathematical analysis.

For this, the following transformations are adjusted:

\begin{matrix} F (η) = {\overset{\lor}{A}}_{1}^{*}, F' (η) = {\overset{\lor}{A}}_{2}^{*}, F ″ (η) = {\overset{\lor}{A}}_{3}^{*}, \\ F^{″'} (η) = {\overset{\lor}{A}}_{3}^{*}', G (η) = {\overset{\lor}{B}}_{4}^{*}, \\ G' (η) = {\overset{\lor}{B}}_{5}^{*}, G ″ (η) = {\overset{\lor}{B}}_{6}^{*}, G ″' (η) = {\overset{\lor}{B}}_{6}^{*}', \\ β (η) = \overset{\lor}{C_{7}^{*}}, β' (η) = {\overset{\lor}{C}}_{8}^{*}, β ″ (η) = {\overset{\lor}{C}}_{9}^{*}', \end{matrix}

(16)

By plugging these transformations in the model, the version is obtained:

\begin{matrix} \frac{(306 ϕ^{2} - 0.19 ϕ + 1)}{(1 - ϕ + ϕ \frac{ϕ {\hat{ρ}}_{p}}{{\hat{ρ}}_{f}})} {\overset{\lor}{A}}^{*}_{3}' - n ({\overset{\lor}{A}}_{2}^{*} + {\overset{\lor}{B}}_{5}^{*}) {\overset{\lor}{A}}_{2}^{*} \\ + \frac{(n + 1)}{2} ({\overset{\lor}{A}}_{1}^{*} + {\overset{\lor}{B}}_{4}^{*}) {\overset{\lor}{A}}_{3}^{*} = 0 \end{matrix}

(17)

\begin{matrix} \frac{(306 ϕ^{2} - 0.19 ϕ + 1)}{(1 - ϕ + ϕ \frac{ϕ {\hat{ρ}}_{p}}{{\hat{ρ}}_{f}})} {\overset{\lor}{B}}_{6}^{*'} - n ({\overset{\lor}{A}}_{2}^{*} + {\overset{\lor}{B}}_{5}^{*}) {\overset{\lor}{B}}_{5}^{*} \\ + 0.5 (n + 1) ({\overset{\lor}{A}}_{1}^{*} + {\overset{\lor}{B}}_{4}^{*}) {\overset{\lor}{B}}_{6}^{*} = 0 \end{matrix}

(18)

\begin{matrix} (1 + \frac{Rd}{28.905 ϕ^{2} + 2.8273 ϕ + 1}) {\overset{\lor}{C}}_{9}^{*'} \\ + P r_{f} \frac{(254.3 ϕ^{2} - 3 ϕ + 1) (1 - ϕ + ϕ \frac{ϕ ({\hat{ρ c}}_{p})}{{(\hat{ρ} c_{p})}_{f}})}{(306 ϕ^{2} - 0.19 ϕ + 1)} \\ (\frac{n + 1}{2}) ({\overset{\lor}{A}}_{1}^{*} + {\overset{\lor}{B}}_{4}^{*}) {\overset{\lor}{C}}_{8}^{*} = 0 \end{matrix}

(19)

The code is run in Mathematica 10.0 and plotted the results against various flow quantities embedded in the model.

Graphical results with discussion

γAl₂O₃-C₂H₆O₂ axial and transverse motion

The governing flow parameters play significant role in the nanofluid motion. This subsection deals with the axial and transverse motion of the nanofluid by altering the velocity slip parameter (S) and the surface stretching parameter (c). The effects of these parameters are elaborated in Figure 3(a) and (b), respectively.

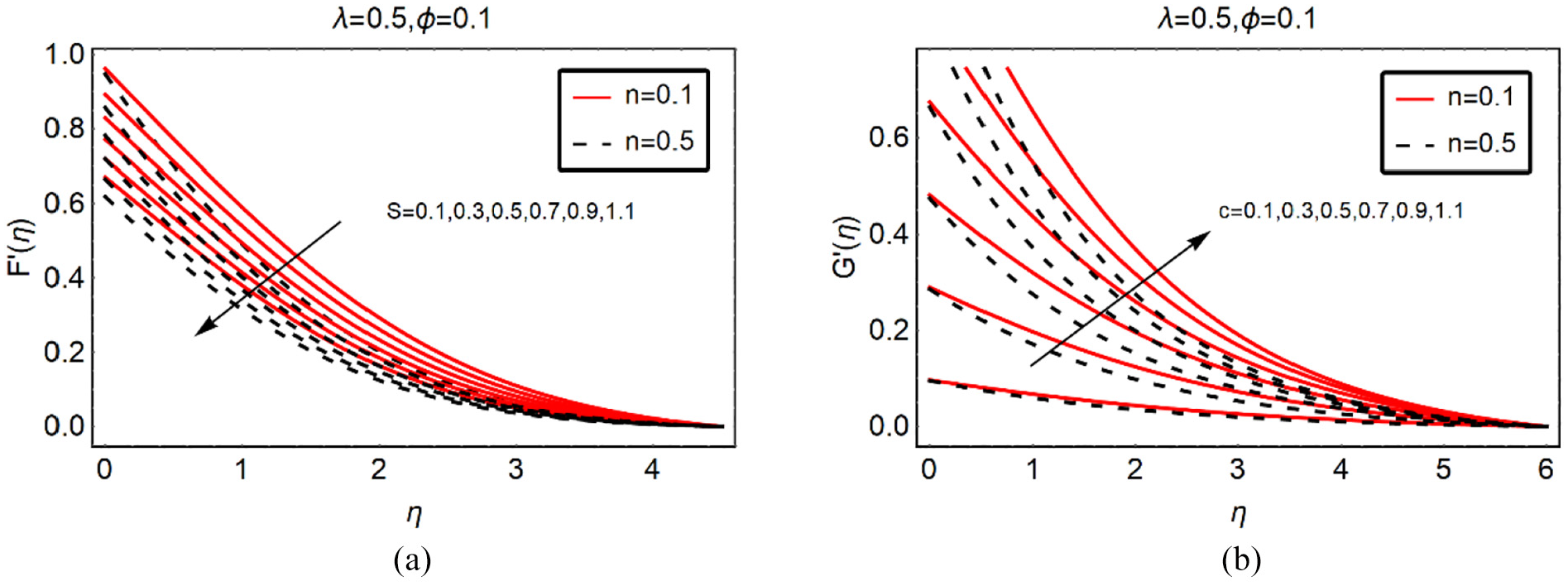

Figure 3.

$F' (η)$ against (a) S and $G' (η)$ against (b and c).

The fluid motion pattern against the velocity slip effects is decorated in Figure 3(a). It is noted that the axial velocity drops by increasing the strength of slip parameter. Near the surface, axial motion declines abruptly and far from the sheet, the fluid motion becomes stable and finally vanishes asymptotically. Further, most rapid decrement is observed against $n = 0.5$ .

The transverse velocity of the nanofluid due to stretching parameter c is highlighted in Figure 3(b). The transverse fluid motion abruptly rises against the stronger stretching parameter. Physically, stretching surface provides larger flowing area over the surface due to which the fluid particles move faster. Because of this reason, the fluid transverse velocity is maximum near the surface. As for as we move away from the surface, the stretching effects drops and increment in the fluid motion becomes slow-down in uniform manner.

γAl₂O₃-C₂H₆O₂ thermal distribution

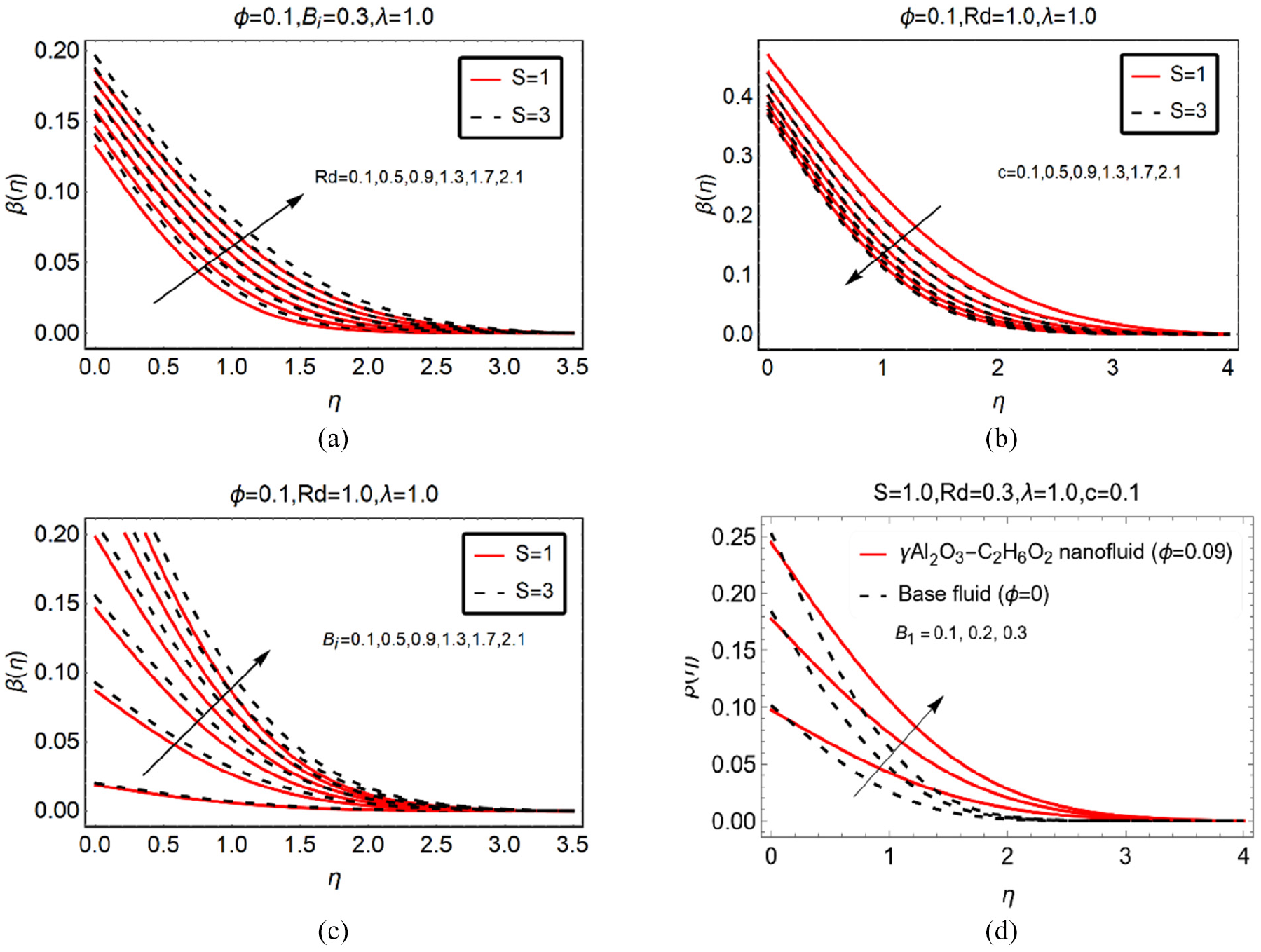

Figure 4 elaborates the temperature distribution in nanofluid against thermal radiations, stretching, and Biot parameters, respectively. From Figure 4(a), it is analyzed that addition of thermal radiations in the constitutive model is better for thermal enhancement in the nanofluid. Physically, internal energy of the nanofluid rises due to imposed thermal radiations (Rd) effects which lead to increment in the temperature $β (η)$ . At the surface, these effects are very prominent due to stronger thermal radiations influences. On the other side, Figure 4(b) portrayed that by increasing the strength of stretching parameter c, the nanofluid thermal performance drops over the region of interest.

Figure 4.

$β (η)$ against (a) Rd and (b) c, (c) B_i and (d) comparative result for nanofluid and base fluid.

The temperature behavior due to convectively heated surface (Biot effects) is captured in Figure 4(c). As, Biot number is the ratio of convective heat transfer to conductive heat transfer which involves thermal conductivity of the geometry (k_s). The energy transfer in the surface due to conduction mode and then it transfers energy to the particles adjacent to the surface. As a result, the temperature of the particles upsurges and density of the particles become lighter due to which the particles escape away from the surface. The maximum temperature at the surface is due to the stronger convection and it decays asymptotically. Figure 4(d) depicts the comparative temperature profile for nanofluid and base fluid. It is observed that for nanofluid, the temperature is optimum than base fluid.

Quantities of engineering concern

Figures 5 and 6 representing the trends in shear stresses along x and y-axes, respectively. The behavior of shear stresses for both nanofluid as well conventional fluid is decorated against varying n and the slip parameter S. From Figure 5, it is analyzed that the shear stresses at the surface declines for both fluids. However, maximum decreasing trends observed for nanofluid. By increasing the strength of slip parameter, declines in the shear stresses becomes slow. On the other hand, the shear stresses along y-direction varies oppositely for conventional and nanofluid, respectively. These trends captured in Figure 5(b) in which S varies horizontally.

Figure 5.

The shear stresses against n (a) C_Fx and (b) C_Fy.

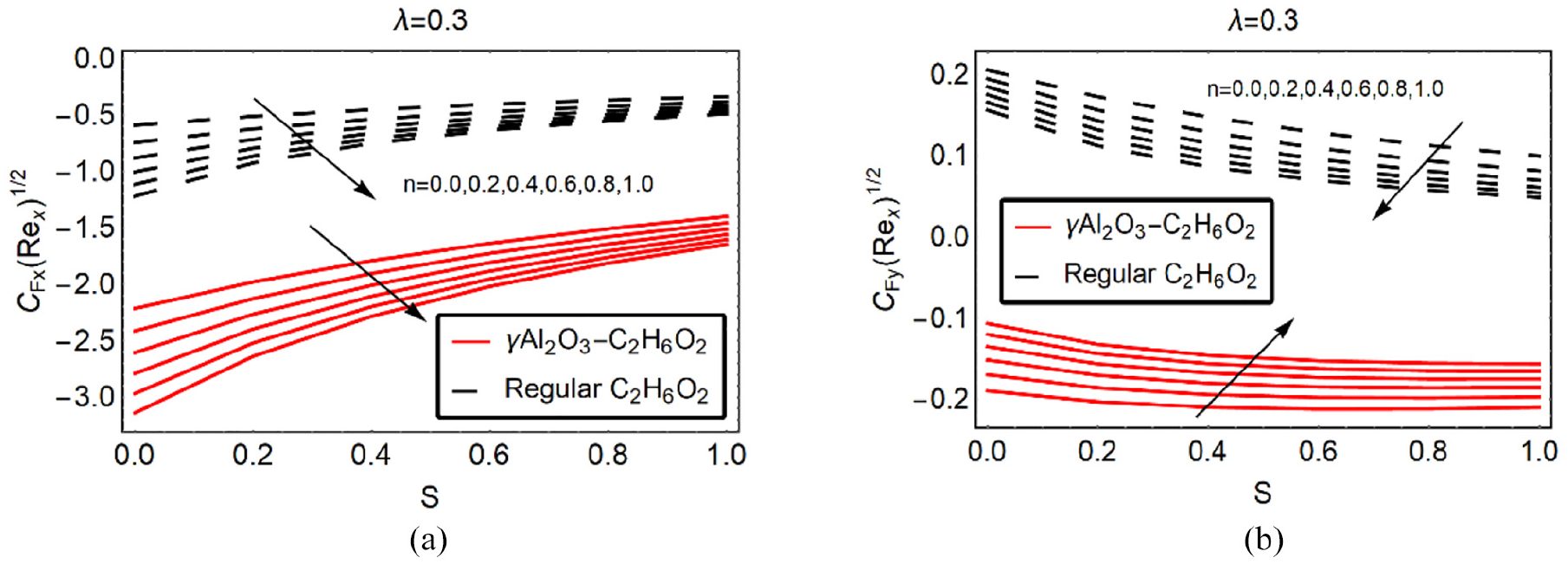

Figure 6.

The shear stresses against S (a) C_Fx and (b) C_Fy.

Figure 6(a) highlights that the shear stresses for varying the velocity slip effects are rises for both sort of fluids. However, maximum increasing trends are observed by altering n horizontally. The velocity slip parameter opposes the shear stresses along y-direction and for smaller values of n and S, the decrement is slow. These trends are captured in Figure 6(b).

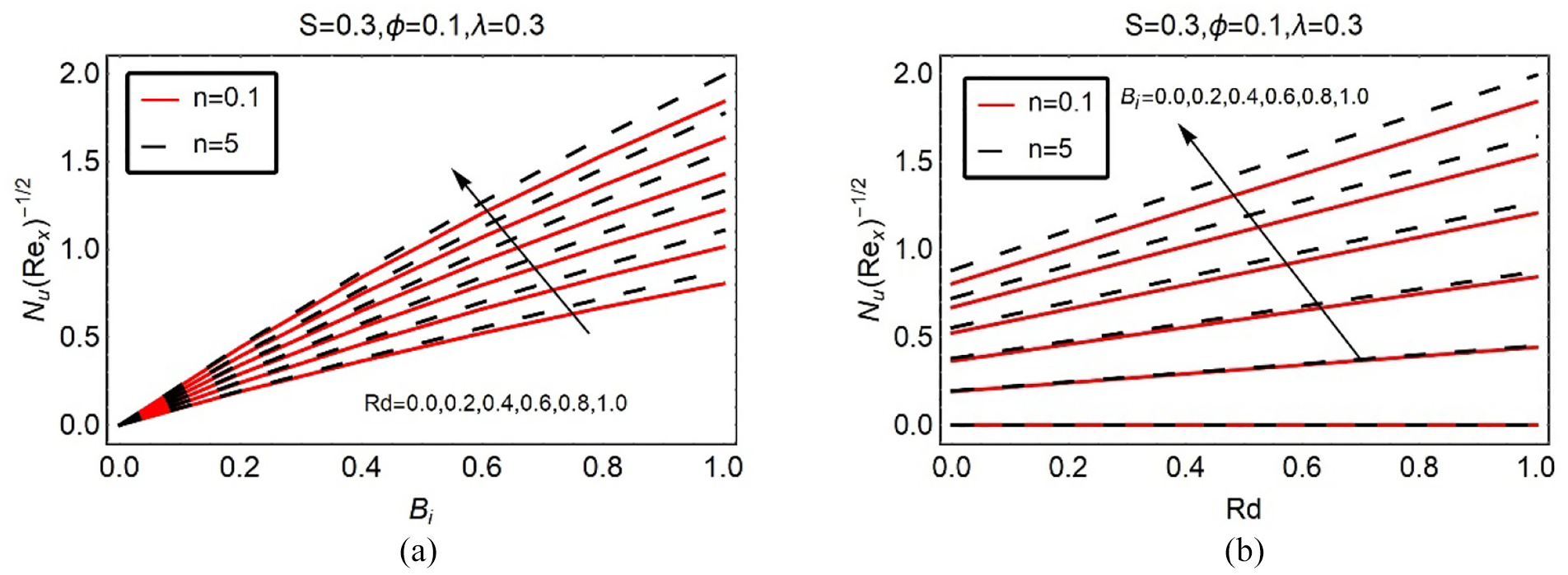

The impacts of thermal radiations and Biot number on the local thermal performance (local Nusselt number) of the nanofluid are elucidated in Figure 7(a) and (b), respectively. As, Nusselt number is described the relation between convective heat transfer to conductive heat transfer by considering thermal conductivity of the nanofluid. Therefore, dominant convection and high thermal conductivity of the nanofluid play significant role in Nusselt number variations. From the captured results it is explore that the local heat transport rises by impinging thermal radiation in the energy model in the presence of convectively heated surface. Thermal radiations and convective surface transfer the energy to the fluid particles which boosts the local heat transfer rate in the nanofluid.

Figure 7.

The local heat transport rate against (a) Rd and (b) B_i.

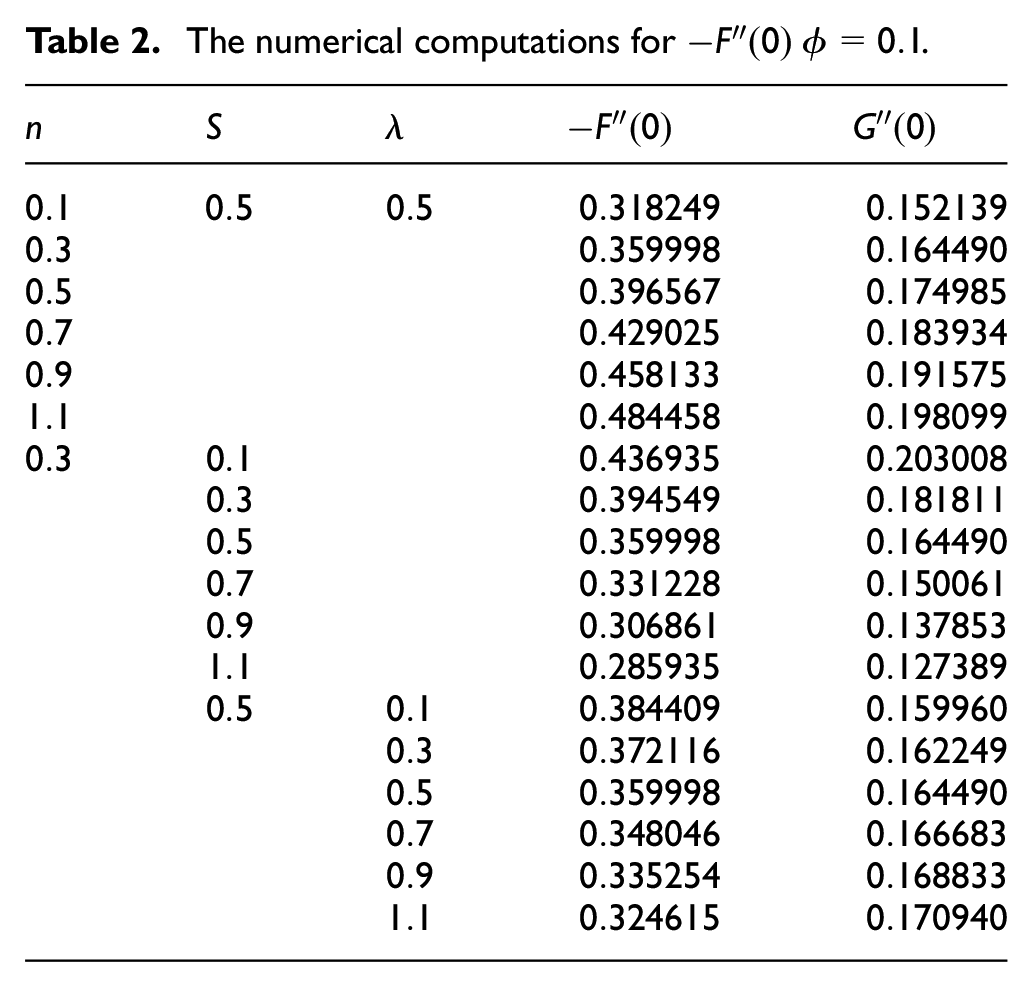

Table 2 presenting the numerical computation against different parameters for $F ″ (0)$ and $G ″ (0)$ over the desired domain region.

Table 2.

The numerical computations for $- F ″ (0)$ $ϕ = 0.1$ .

$n$	$S$	$λ$	$- F ″ (0)$	$G ″ (0)$
$0.1$	$0.5$	$0.5$	$0.318249$	$0.152139$
$0.3$			$0.359998$	$0.164490$
$0.5$			$0.396567$	$0.174985$
$0.7$			$0.429025$	$0.183934$
$0.9$			$0.458133$	$0.191575$
$1.1$			$0.484458$	$0.198099$
$0.3$	$0.1$		$0.436935$	$0.203008$
	$0.3$		$0.394549$	$0.181811$
	$0.5$		$0.359998$	$0.164490$
	$0.7$		$0.331228$	$0.150061$
	$0.9$		$0.306861$	$0.137853$
	$1.1$		$0.285935$	$0.127389$
	$0.5$	$0.1$	$0.384409$	$0.159960$
		$0.3$	$0.372116$	$0.162249$
		$0.5$	$0.359998$	$0.164490$
		$0.7$	$0.348046$	$0.166683$
		$0.9$	$0.335254$	$0.168833$
		$1.1$	$0.324615$	$0.170940$

Validation of the study

It is important to authenticate the study with previously published literature for replication of the study. Therefore, the study is compared with literature results under certain assumptions. The comparative results are given in Table 3 and it is revealed that the results showing an excellent agreement with the results of Thammanna et al.¹ which validate the study. Further, assumptions for validation highlighted in Table 3.

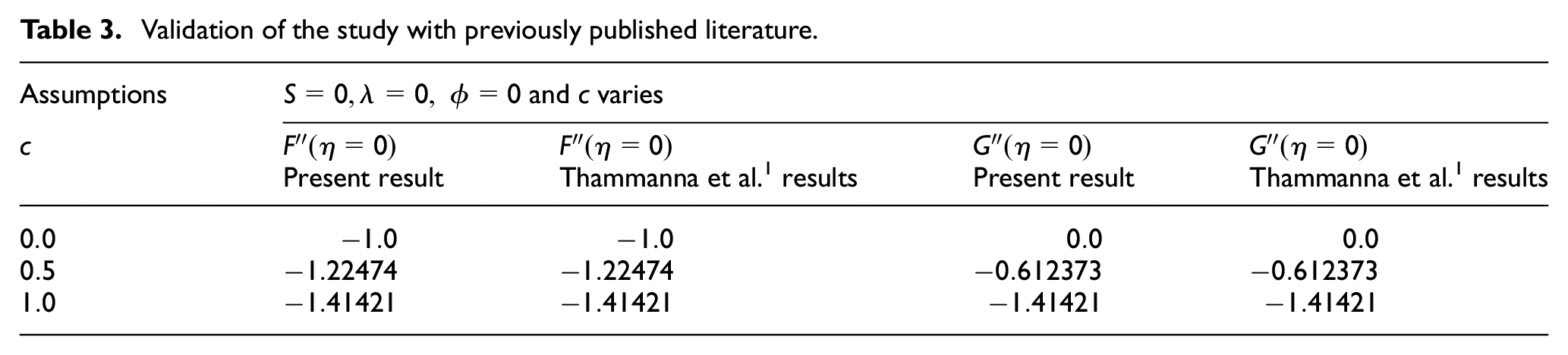

Table 3.

Validation of the study with previously published literature.

Assumptions	$S = 0, λ = 0, ϕ = 0$ and $c$ varies
$c$	$F ″ (η = 0)$ Present result	$F ″ (η = 0)$ Thammanna et al.¹ results	$G ″ (η = 0)$ Present result	$G ″ (η = 0)$ Thammanna et al.¹ results
$0.0$	$- 1.0$	$- 1.0$	$0.0$	$0.0$
$0.5$	$- 1.22474$	$- 1.22474$	$- 0.612373$	$- 0.612373$
$1.0$	$- 1.41421$	$- 1.41421$	$- 1.41421$	$- 1.41421$

Concluding remarks

The heat transport analysis in γAl₂O₃-C₂H₆O₂ over a convectively heated surface oriented vertically is conducted. For novelty of the analysis, thermal radiations and EPNM are impinged in the constitutive model. From the presented analysis it is observed that the nanofluid motion enhances due to stretching parameter significantly. Thermal radiations and convective flow condition playing vital role in thermal enhancement of the nanofluid in the existence of EPNM. The significant influences of convectively heated surface are captured for thermal enhancement. Therefore, the studied nanofluid has high thermal transport mechanism in the presence of EPNM, thermal radiations, and slip condition over a convectively heated surface and would be better for industrial applications.

Footnotes

Appendix

Handling Editor: Chenhui Liang

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Adnan

References

Thammanna

Gireesha

Mahanthesh

Partial slip and Joule heating on magnetohydrodynamic radiated flow of nanoliquid with dissipation and convective condition. Results Phys 2017; 7: 2728–2735.

Shahzad

Jamshed

Sajid

, et al. Heat transfer analysis of MHD rotating flow of Fe3O4 nanoparticles through a stretchable surface. Commun Theor Phys 2021; 73: 075004.

Mahanthesh

Gireesha

Shehzad

, et al. Nonlinear three-dimensional stretched flow of an Oldroyd-B fluid with convective condition, thermal radiation, and mixed convection. Appl Math Mech Vol 2017; 38: 969–980.

Mahanthesh

Gireesha

Gorla

RSR

. Nonlinear radiative heat transfer in MHD three-dimensional flow of water based nanofluid over a non-linearly stretching sheet with convective boundary condition. J Nigerian Math Soc 2016; 35: 178–198.

Sreedevi

Sudarsana Reddy

Chamkha

Heat and mass transfer analysis of unsteady hybrid nanofluid flow over a stretching sheet with thermal radiation. SN Appl Sci 2020; 2. DOI: 10.1007/s42452-020-3011-x.

Singh

Pandey

Kumar

Melting heat transfer assessment on magnetic nanofluid flow past a porous stretching cylinder. J Egypt Math Soc 2021; 29. DOI: 10.1186/s42787-020-00109-0.

Elgazery

NS.

Nanofluids flow over a permeable unsteady stretching surface with non-uniform heat source/sink in the presence of inclined magnetic field. J Egypt Math Soc 2019; 27. DOI: 10.1186/s42787-019-0002-4.

Hussain

Muhammad

Anwar

MS.

Effects of first-order chemical reaction and melting heat on hybrid nanoliquid flow over a nonlinear stretched curved surface with shape factors. Adv Mech Eng 2021; 13: 4.

Rana

Arifuzzaman

Islam

, et al. Swimming of microbes in blood flow of nano-bioconvective Williamson fluid. Therm Sci Eng Prog 2021; 25. DOI: 10.1016/j.tsep.2021.101018.

10.

Rana

BMJ

Arifuzzaman

Rabbi

SRE

, et al. Energy and magnetic flow analysis of Williamson micropolar nanofluid through stretching sheet. Int J Heat Technol 2019; 37: 487–496.

11.

Adnan, Khan

Ahmed

Thermal enhancement and entropy investigation in dissipative ZnO-SAE50 under thermal radiation: a computational paradigm. Waves Random Complex Media. Epub ahead of print 28 March 2022. DOI: 10.1080/17455030.2022.2053243.

12.

Arifuzzaman

Khan

Mehedi

, et al. Chemically reactive and naturally convective high speed MHD fluid flow through an oscillatory vertical porous plate with heat and radiation absorption effect. Eng Sci Technol Int J 2018; 21: 215–228.

13.

Adnan Ashraf

Khan

, et al. Thermal transport investigation and shear drag at solid-liquid interface of modified permeable radiative-SRID subject to Darcy-Forchheimer fluid flow composed by γ-nanomaterial. Sci Rep 2022; 12: 3564.

14.

Reza-E-Rabbi

Ahmmed

Arifuzzaman

, et al. Computational modelling of multiphase fluid flow behaviour over a stretching sheet in the presence of nanoparticles. Eng Sci Technol Int J 2020; 23: 605–617.

15.

Khan

U, Adnan

Haleema

Thermal performance in nanofluid and hybrid nanofluid under the influence of mixed convection and viscous dissipation: numerical investigation. Waves Random Complex Media 2022; 1–19. DOI: 10.1080/17455030.2022.2036389.

16.

Reza-E-Rabbi

Khan

Arifuzzaman

, et al. Numerical simulation of a non-linear nanofluidic model to characterise the MHD chemically reactive flow past an inclined stretching surface. Part Differ Equat Appl Math 2022; 5. DOI: 10.1016/j.padiff.2022.100332.

17.

Patel

HR.

Effects of heat generation, thermal radiation and hall current on MHD Casson fluid flow past an oscillating plate in porous medium. Multiphase Sci Technol 2019; 31: 87–107.

18.

Kataria

Patel

Heat and mass transfer in magnetohydrodynamic (MHD) Casson fluid flow past over an oscillating vertical plate embedded in porous medium with ramped wall temperature. Propulsion Power Res 2018; 7: 257–267.

19.

Adnan Khan

Ahmed

, et al. A novel analysis of heat transfer in the nanofluid composed by nanodimaond and silver nanomaterials: numerical investigation. Sci Rep 2022; 12: 1284.

20.

Khan

Adnan, Ullah

, et al. Comparative thermal transport mechanism in Cu-H₂O and Cu-Al₂O₃/H₂O nanofluids: numerical investigation. Waves Random Complex Media 2022; 1–16. DOI: 10.1080/17455030.2021.2023783.

21.

Patel

HR.

Cross diffusion and heat generation effects on mixed convection stagnation point MHD Carreau fluid flow in a porous medium. Waves Random Complex Media 2021; 1–16. DOI: 10.1080/01430750.2021.1931960.

22.

Patel

HR.

Thermal radiation effects on MHD flow with heat and mass transfer of micropolar fluid between two vertical walls. Waves Random Complex Media 2021; 42: 1281–1296.

23.

Adnan, Ashraf

Khan

, et al. Impact of freezing temperature (Tfr) of Al₂O₃ and molecular diameter (H₂O)_d on thermal enhancement in magnetized and radiative nanofluid with mixed convection. Sci Rep 2022; 12. DOI: 10.1038/s41598-021-04587-9.

24.

Khan

Ahmed

Mohyud-Din

, et al. Thermal improvement in magnetized nanofluid for multiple shapes nanoparticles over radiative rotating disk. Alex Eng J 2022; 61: 2318–2329.

25.

Patel

HR.

Soret and heat generation effects on unsteady MHD Casson fluid flow in porous medium. Waves Random Complex Media 2022; 1–24. DOI: 10.1080/17455030.2022.2030500.

26.

Patel

SD.

Heat and mass transfer in mixed convection MHD micropolar fluid flow due to non-linear stretched sheet in porous medium with non-uniform heat generation and absorption. Waves Random Complex Media 2022; 1–31. DOI: 10.1080/17455030.2022.2044542.

27.

Adnan, Khan

Ahmed

, et al. Al₂O₃ and γAl₂O₃ nanomaterials based nanofluid models with surface diffusion: applications for thermal performance in multiple engineering systems and Industries. Comput Mater Contin 2021; 66: 1563–1576.

28.

Khan

Adnan, Ahmed

, et al. Surface thermal investigation in water functionalized Al₂O₃ and γAl₂O₃ nanomaterials-based nanofluid over a sensor surface. Appl Nanosci. Epub ahead of print 26 August 2020. DOI: 10.1007/s13204-020-01527-3.

29.

Adnan, Khan

Ahmed

, et al. Enhanced heat transfer in H₂O inspired by Al₂O₃ and γAl₂O₃ nanomaterials and effective nanofluid models. Adv Mech Eng 2021; 13. DOI: 10.1177/16878140211023604.

30.

Rashidi

Vishnu Ganesh

Abdul Hakeem

, et al. Influences of an effective Prandtl number model on nano boundary layer flow of γ Al2O3–H2O and γ Al2O3–C2H6O2 over a vertical stretching sheet. Int J Heat Mass Transf 2016; 98: 616–623.

31.

Khan

Adnan Ahmed

, et al. γ-nanofluid thermal transport between parallel plates suspended by micro-cantilever sensor by incorporating the effective Prandtl model: applications to biological and Medical Sciences. Molecules 2020; 25. DOI: 10.3390/molecules25081777.

Numerical thermal featuring in γAl 2 O 3 -C 2 H 6 O 2 nanofluid under the influence of thermal radiation and convective heat condition by inducing novel effects of effective Prandtl number model (EPNM)

Abstract

Keywords

Introduction

Mathematical modeling

Problem statement and geometry

Thermophysical correlations

Development of the flow model

Invertible transformations

γAl2O3-C2H6O2 model

Mathematical analysis of γAl2O3-C2H6O2 model

Graphical results with discussion

γAl2O3-C2H6O2 axial and transverse motion

γAl2O3-C2H6O2 thermal distribution

Quantities of engineering concern

Validation of the study

Concluding remarks

Footnotes

Appendix

Declaration of conflicting interests

Funding

ORCID iD

References

γAl₂O₃-C₂H₆O₂ model

Mathematical analysis of γAl₂O₃-C₂H₆O₂ model

γAl₂O₃-C₂H₆O₂ axial and transverse motion

γAl₂O₃-C₂H₆O₂ thermal distribution
