Precision polishing force control technology of abrasive belt-wheel polishing servo control system based on HGO-SMC

Abstract

Due to cylinder friction, valve dead zone effect, flow nonlinearity, and measurement noise exist in pneumatic system. In the actual machining, it is difficult to achieve precise control of the pneumatic servo polishing system using the traditional PID algorithm, so the machining accuracy of the blades cannot be guaranteed. A sliding mode control (SMC) method based on high gain observer (HGO) is proposed. The HGO observes the output signal of the system and feeds the estimated signal back to the SMC to ensure that the observation error is uniform ultimate boundedness. Simulation and experiments show that compared with the PID algorithm, the steady-state error of HGO-SMC can be reduced by 66.4%. Compared with SMC(sgn), the high-frequency chattering of HGO-SMC can be reduced by 72.5%. Moreover, the polishing processing experiment shows that HGO-SMC can improve the form and position accuracy by 52.6% and reduce the surface roughness by 55.6%, compared with the original PID control algorithm of the polishing machine tool.

Keywords

SMC HGO dynamics modeling pressure control blade polishing

Introduction

Blades are complex curved surface parts, which are widely used in aerospace, ships, and other fields.^1–4 The working environment of the blade is extremely complex. It is required to bear strong mechanical centrifugal force and aerodynamic force, overcome extremely strong heat load and vibration load, and have strong corrosion resistance and abrasion resistance. Since there are still some machining tool marks on the surface of the blade after finishing, the quality is far from meeting the use requirements, which seriously affects the fatigue strength and service life of the blade. Generally, the polishing process is used to ensure that the surface roughness, residual stress, and surface structure of the blade meet the actual engineering needs.^5–8 The difficulty in the polishing process of curved surface parts is to maintain a stable pressure on the contact point and remove the residue evenly. Therefore, the selection and control of polishing force is very important.

The polishing force control system is a nonlinear aerodynamic system susceptible to interference. Using traditional PID control strategy can not achieve high-precision control of blade polishing force. In the process of blade polishing, polishing force is a very critical process parameter, which has been paid more and more attention by researchers, especially the control strategy of polishing force. Due to the non-linear problems such as the dead zone characteristic of proportional valve, cylinder friction, and gas compressibility in pneumatic system, a second-order linear PID self anti-interference controller is proposed, which can skip the dead zone after compensation through linear PID feedback control law.⁹ In literature,¹⁰ a gravity compensation algorithm is proposed to eliminate the interference of workpiece gravity on the constant force polishing control system. The hybrid force/position active flexible control algorithm of robot is established, the force control model based on least square parameter identification is proposed, and the constant control of polishing force is realized based on Fuzzy PID control strategy. In literature,¹¹ a pneumatic polishing force control system is designed to achieve reliable and stable polishing force control. The polishing force is controlled in real time by the PWM signal generated by PLC. The PID control algorithm with moving average filter is designed in the PLC, which improves the dynamic performance of the system. In literature,¹² under the condition of strong vibration interference, the motor encoder and joint torque sensor are used to detect and control the robot polishing contact force. The extended state observer is used to estimate the contact force in real time, and the adaptive filter is designed by combining the notch filter and tracking differentiator.

In literature,¹³ in order to ensure the stability of the robot polishing contact force, a robot impedance control parameter learning algorithm based on reinforcement learning is proposed. By combining the dynamic matching method and the linearization method to predict the output distribution of the state, the impedance parameters of the optimal strategy are obtained. In literature,¹⁴ during the robot abrasive belt polishing process, the adaptive weighted particle swarm optimization algorithm is used to optimize the input shaper and realize parameter self-tuning. The controller achieves a smooth transition between blade grinding and polishing processes, effectively shortening the system stabilization time and reducing the maximum overshoot. In literature,¹⁵ due to the problems of low output force, poor control accuracy, and slow dynamic response of the force control end effector of industrial robots, a pneumoelectric force-controlled end-effector coordinated control method based on impedance control is proposed. Compared with the pneumatic end effector, the end effector has the advantages of high precision of polishing force control, fast dynamic response, and small overshoot. In literature,¹⁶ in order to ensure the active flexible motion of robot, a hybrid control strategy of polishing robot based on adaptive impedance control is proposed to reduce the impact caused by machining contact. Simulation and experimental results show that the control strategy can ensure that the motion curve is consistent with the surface topography of the workpiece, enabling more accurate position tracking and polishing force tracking. In literature,¹⁷ in order to improve the polishing quality of complex surfaces by polishing robot and ensure the constant polishing force in the process of machining, a real-time adjustment of spindle speed according to the vector direction of the machined surface is proposed. After finishing polishing trajectory planning, the robot corrects the trajectory along the normal vector direction of the machined surface by combining the feedback signal of the sensor and the PI controller, and indirectly realizes polishing force control. In literature,¹⁸ based on the dynamic input-output model of the pneumatic polishing force control system, and for the non minimum phase system, a new integral sliding mode controller is proposed, which is composed of equivalent control and switching control. Simulation and experiments show that the proposed controller can effectively suppress the external disturbance and model uncertainty of nonlinear pneumatic system. Compared with the traditional PID controller and RST controller, the control accuracy of polishing force has been significantly improved.

Due to the obvious dead time characteristics, friction characteristics, and relay characteristics of the strong nonlinear control system, the traditional PID control strategy is difficult to achieve the desired control effect.^19–22 Due to the sliding mode control algorithm has strong robustness, fast response, and no need for system online identification, which has a good control effect for nonlinear systems. However, when the state trajectory reaches the sliding mode surface, it will cross back and forth on both sides of the sliding mode surface and then approach the equilibrium point, resulting in high-frequency buffeting.^23–27 Switching gain reduction, dynamic sliding mode, filtering, and saturation function can effectively reduce high-frequency chattering of sliding mode control, but it increases the steady-state control error and improves the design difficulty of the controller.^28–30

In recent years, many researchers have applied intelligent control technology to practical projects and achieved good control effect. In literature,³¹ an adaptive fuzzy sliding mode controller based on Kalman filter is proposed. An adaptive fuzzy logic algorithm is designed to approximate the parameters of the sliding mode controller to avoid real-time high-frequency chattering, and Lyapunov theory is used to prove the stability of the system. In literature,³² an internal model control based on inverse system theory is proposed to overcome multivariable coupling, nonlinearity, and pure delay of the system. The simulation results show that the combination of internal model control and PID has stronger robustness, higher control accuracy, and easier adjustment of control parameters. In literature,³³ in order to reduce the influence of unknown parameters on the control system, neural network technology is used to approximate the unknown nonlinear term in the controller design process. Lyapunov theory is applied to ensure that all signals in the closed loop system are uniformly ultimately bounded, and the system attitude is synchronized with the desired trajectory. In literature,³⁴ a nonsingular terminal sliding mode control based on genetic algorithm and particle swarm optimization algorithm is proposed to solve the vibration problem of nonlinear fully coupled systems, which can overcome the uncertainty of system variables and external disturbances.

In this paper, the force of polishing structure is analyzed and the polishing force calculation model is established. An adaptive sliding mode control based on high gain observer is designed, which does not require the system state to be measurable, and can estimate the system state through the high gain observer to ensure that the observation error is uniformly ultimately bounded.

Rest parts of this paper are organized as follows: the CNC polishing machine tool structure is introduced in Section “CNC polishing machine.” In Section “Mathematical model of polishing force calculation,” mathematical model of polishing force calculation is established. Nonlinear dynamics model of polishing force control system is established in Section “Nonlinear dynamics model of polishing force control system.” HGO-SMC is designed in Section “HGO-based SMC.” Simulation and experimental analysis of the proposed HGO-SMC is carried out in Section “Simulation and experimental analysis.” Section “Conclusion” is the conclusion.

CNC polishing machine

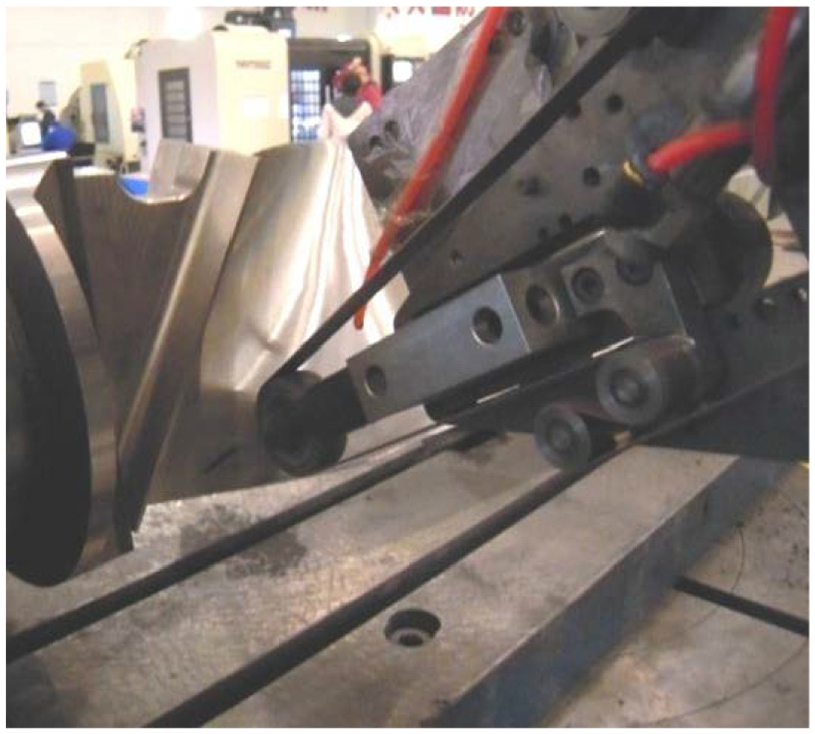

In order to carry out abrasive belt polishing process experiment, we have developed a five-axis CNC polishing experimental platform. The main structure of the machine tool is shown in Figure 1, which includes machine bed, column, spindle mechanism, five servo motion axes, and auxiliary equipment. The control system of the polishing machine is mainly composed of numerical control system, servo control system, and industrial control computer. The numerical control system is used to calculate the relative motion trajectory of abrasive belt-wheel and the blade, the servo control system is used to realize the precision control of five motion axes, and the industrial control computer is mainly used for the parameter control of abrasive belt-wheel. The motion parameters of the CNC polishing machine is shown in Table 1, and schematic diagram of polishing force control system is shown in Figure 2.

Figure 1.

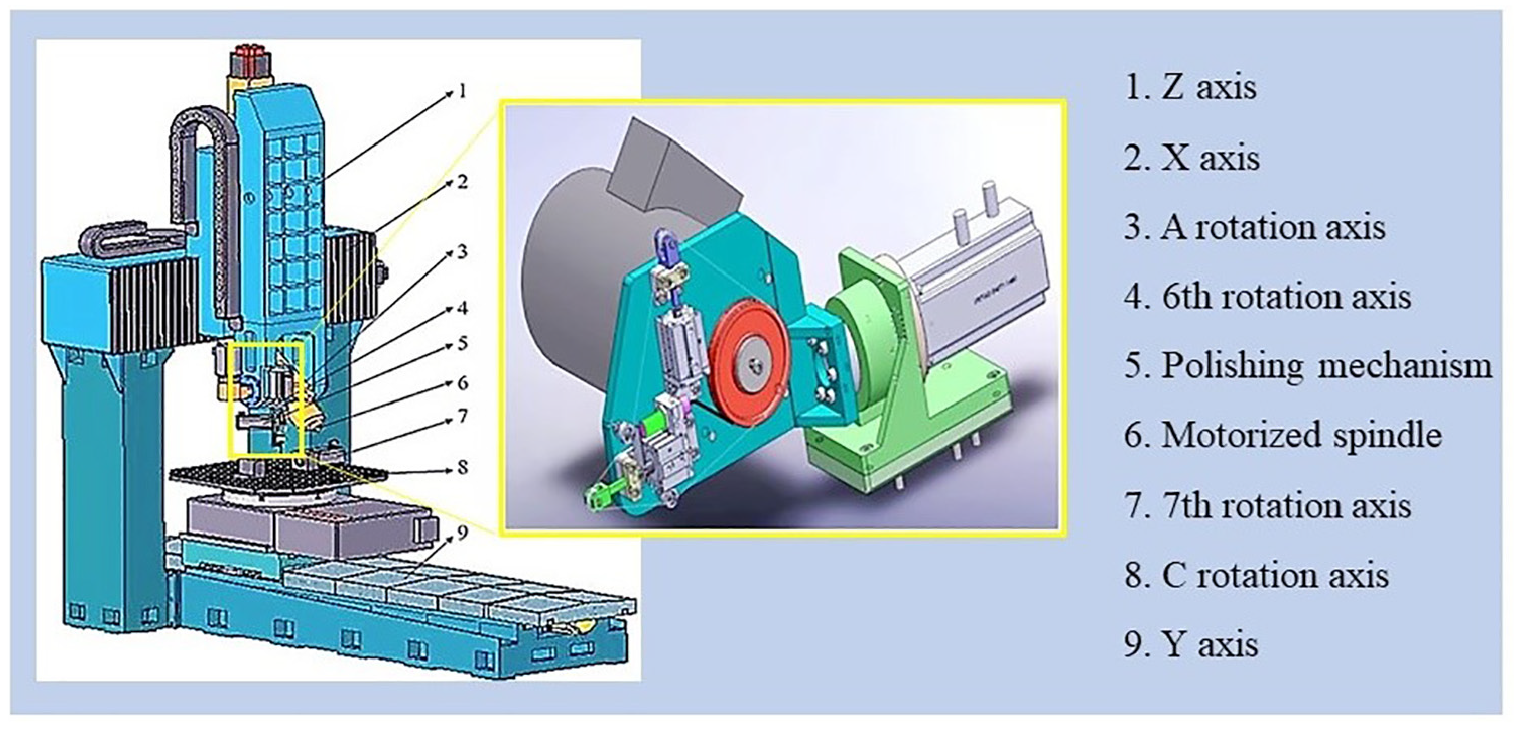

CNC polishing experimental platform.

Table 1.

Motion parameters of CNC.

Polishing machine components	Parameters
Structure of machine tool/drive	Gantry/seven-five axis
Construction dimension of machine tool (mm)	3300 × 3150 × 1800
Spindle speed (r/min)	24,000
Linear axes stroke X, Y, Z (mm)	1000 × 1600 × 1000
Rotation axis of abrasive belt-wheel A (°)	−5 to 95
Rotation axis of fixture for blade C (°)	360

Figure 2.

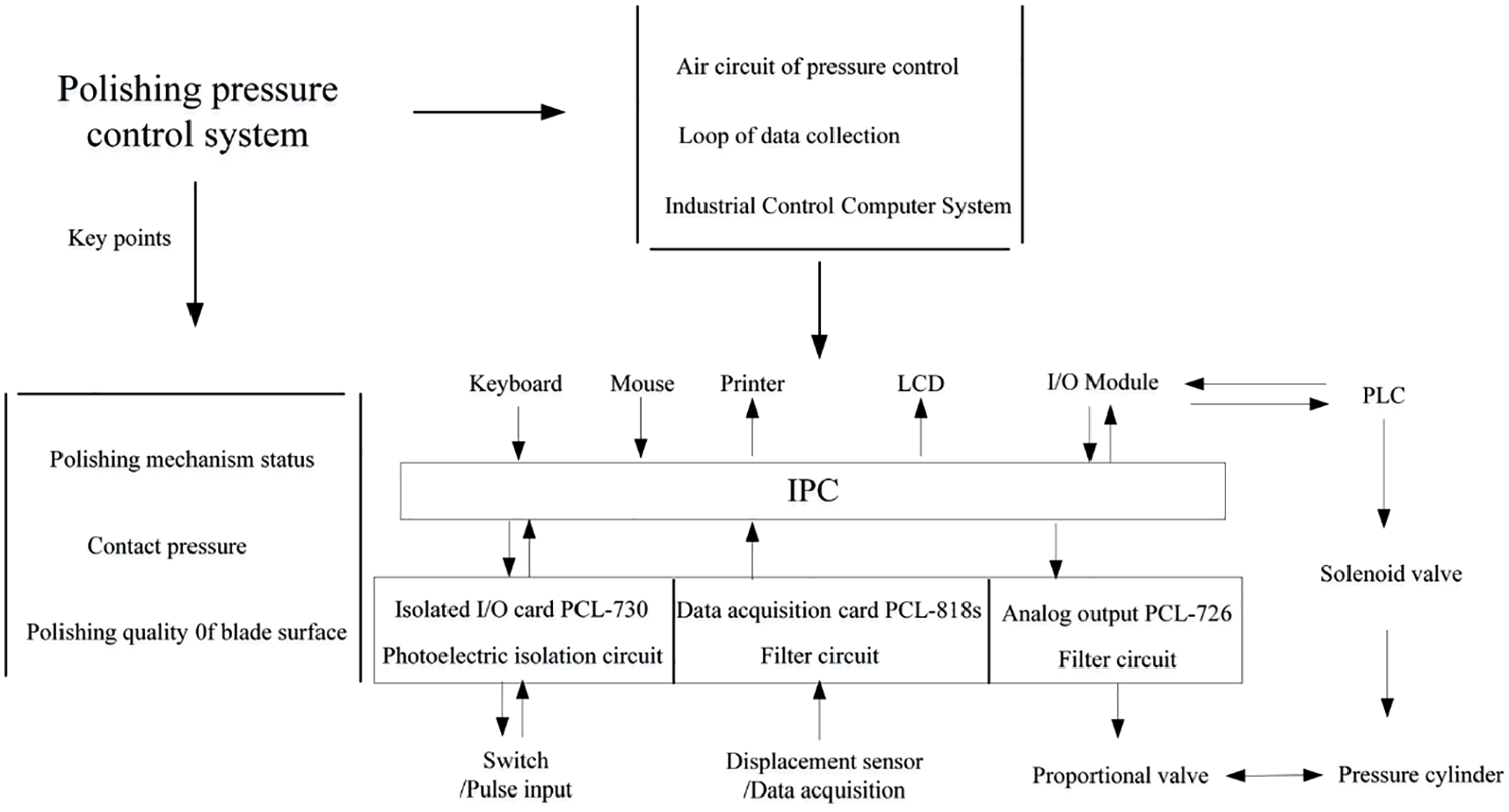

Schematic diagram of CNC polishing experimental platform.

Mathematical model of polishing force calculation

The polishing structure and stress of the abrasive belt-wheel series is shown in Figure 3. The abrasive belt-wheel series is composed of drive wheel, contact wheel, and abrasive belt. The driving wheel is mounted on the frame of the polishing structure and can rotate and move in the vertical direction relative to the frame. The contact wheel is rigidly connected with the polishing structure and can only rotate around the center. The whole polishing structure is installed on the CNC machine tool and can only move up and down under the pressure of the polishing cylinder. The air cylinder and hydraulic motor act on the driving wheel to make the abrasive belt tension, and the contact wheel is driven by the abrasive belt

Figure 3.

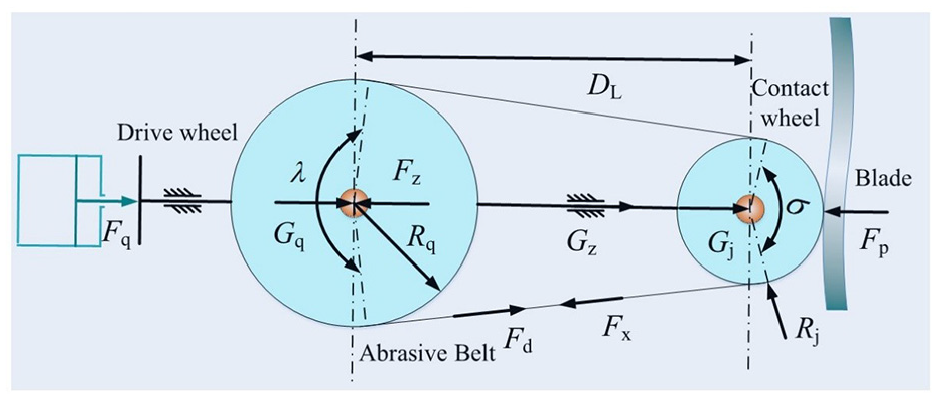

Stress of the abrasive belt-wheel series.

During blade polishing, mechanical relationship of the whole polishing structure can be expressed as follows:

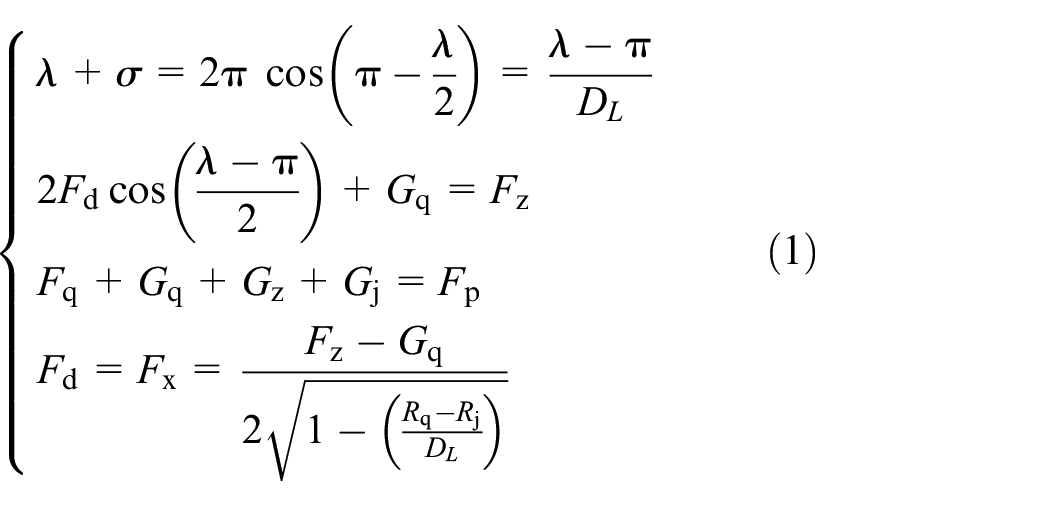

{\begin{matrix} λ + σ = 2 π \cos (π - \frac{λ}{2}) = \frac{λ - π}{D_{L}} \\ 2 F_{d} \cos (\frac{λ - π}{2}) + G_{q} = F_{z} \\ F_{q} + G_{q} + G_{z} + G_{j} = F_{p} \\ F_{d} = F_{x} = \frac{F_{z} - G_{q}}{2 \sqrt{1 - (\frac{R_{q} - R_{j}}{D_{L}})}} \end{matrix}

(1)

where $R_{q}$ is the radius of the drive wheel, $R_{j}$ is the radius of the contact wheel, $G_{q}$ is the mass of the drive wheel, $G_{z}$ is the total mass of the polished structure, $G_{j}$ is the mass of contact wheel, $λ$ is effective wrap angle of abrasive belt surrounds the drive wheel, $σ$ is effective wrap angle of the abrasive belt surrounds the contact wheel, $F_{q}$ is pressure applied by the cylinder, $F_{z}$ is tension applied by the cylinder, $F_{p}$ is the polishing force of the grinding area, $D_{L}$ is the center distance between the driving wheel and the contact wheel. $F_{d}$ and $F_{x}$ are abrasive belt tension of left and right sides of center line, respectively.

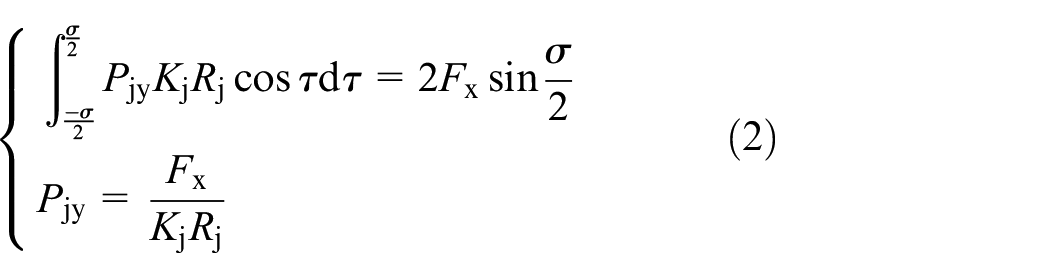

To study the deformation of the contact wheel caused by the belt tension, which is necessary to analyze the actual force on the contact part between the contact wheel rubber and the abrasive belt.³⁵ The radial contact pressure between the abrasive belt and the contact wheel can be derived by the equilibrium equation (2).

{\begin{matrix} \int_{\frac{- σ}{2}}^{\frac{σ}{2}} P_{jy} K_{j} R_{j} \cos τ d τ = 2 F_{x} \sin \frac{σ}{2} \\ P_{jy} = \frac{F_{x}}{K_{j} R_{j}} \end{matrix}

(2)

where $K_{j}$ is contact wheel width, $P_{jy}$ is radial contact pressure between abrasive belt and contact wheel, $τ$ is microelement angle.

Deformation problem of contact wheel caused by abrasive belt tensioning can be considered as deformation of a plane elastic thick walled cylinder under non-uniform contact stress. Stress boundary condition can be expressed as follows:

{\begin{matrix} σ_{g_{1}} - i δ_{g_{1} τ} = \sum_{t = - \infty}^{+ \infty} {g'}_{t} e^{it τ} (g_{1} = R_{j} - d_{x}) \\ σ_{g_{2}} - i δ_{g_{2} τ} = \sum_{t = - \infty}^{+ \infty} {g_{t}}^{''} e^{it τ} (g_{2} = R_{j}) \\ ψ' (η) + \bar{ψ' (η)} - e^{2 i τ} [η ψ ″ (η) + φ' (η)] = (R_{j} - d_{x}) e^{i τ} \\ ψ' (η) + \bar{ψ' (η)} - e^{2 i τ} [η ψ ″ (η) + φ' (η)] = R_{j} e^{i τ} \end{matrix}

(3)

where $σ_{g}$ is radial stress at boundary, $δ_{g τ}$ is shear stress at boundary, $i$ is imaginary unit, $g$ is radial distance, $η$ is complex variable, $g'_{t}$ and ${g_{t}}^{''}$ are Fourier coefficient.

When the abrasive belt is under tension, the stress in the rubber layer of the contact wheel can be written as follows:

{\begin{matrix} σ_{g} = 2 Re ψ' (η) - Re [\bar{η} ψ ″ (η) + φ' (η)] \cos (2 τ) + Im [\bar{η} ψ ″ (η) + φ' (η)] \sin (2 τ) \\ σ_{τ} = 2 Re ψ' (η) + Re [\bar{η} ψ ″ (η) + φ' (η)] \cos (2 τ) - Im [\bar{η} ψ ″ (η) + φ' (η)] \sin (2 τ) \\ δ_{g τ} = Re [\bar{η} ψ ″ (η) + φ' (η)] \sin (2 τ) + Im [\bar{η} ψ ″ (η) + φ' (η)] \cos (2 τ) \end{matrix}

(4)

It is not only necessary to consider the deformation of rubber contact wheel caused by tension but also study main body deformation position of contact wheel, abrasive belt, and blade. Assuming that all contact parts are isotropic elastic materials, the contact problem can be simplified as a spring system, as shown in Figure 4. When the contact stress acts on the spring system, the strain relationship between each layer can be expressed as follows:

ε_{j} : ε_{x} : ε_{s} : ε_{y} = \frac{1}{E_{j}} : \frac{1}{E_{x}} : \frac{1}{E_{s}} : \frac{1}{E_{y}}

(5)

where $ε_{j}$ and $E_{j}$ are wheel hub strain and elastic modulus, $ε_{x}$ and $E_{x}$ are rubber layer strain and elastic modulus, $ε_{s}$ and $E_{s}$ are abrasive belt strain and elastic modulus, and $ε_{y}$ and $E_{y}$ are strain and elastic modulus, respectively.

Figure 4.

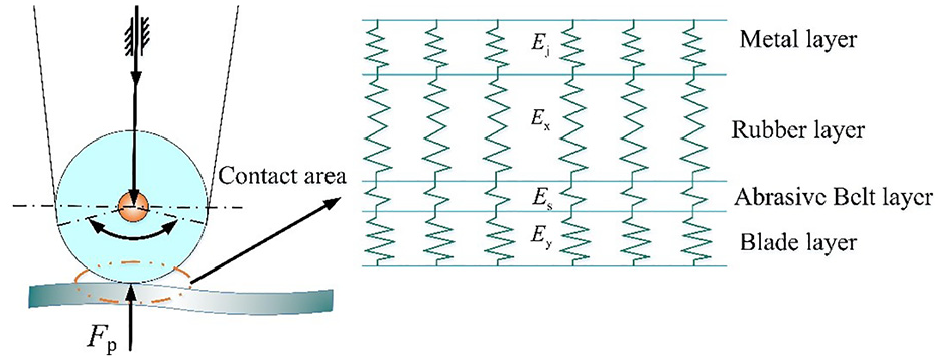

Schematic diagram of contact part simplified as a spring system.

Mooney-Rivlin is the most widely used constitutive model for nonlinear elastomers such as rubber, the stress-strain equation can be written as follows:

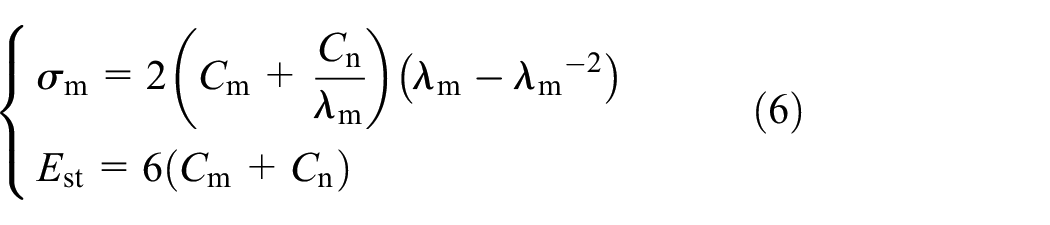

{\begin{matrix} σ_{m} = 2 (C_{m} + \frac{C_{n}}{λ_{m}}) (λ_{m} - {λ_{m}}^{- 2}) \\ E_{st} = 6 (C_{m} + C_{n}) \end{matrix}

(6)

Where $C_{m}$ and $C_{n}$ are positive definite coefficient, $E_{st}$ is initial elastic modulus of material, $λ_{m}$ and $σ_{m}$ are strain and stress, respectively.

Deformation analysis of contact part is shown in Figure 5, the contact wheel radius at point Q can be expressed as follows:

P_{a} (y) = R_{j} - R_{cf} \sqrt{1 - {(\frac{y}{R_{cf}})}^{2}} + \sqrt{{R_{cf}}^{2} - {(\frac{K_{j}}{2})}^{2}}

(7)

where $y$ is the coordinate of $Q$ point, $R_{cf}$ is curvature Radius of Contact wheel concave.

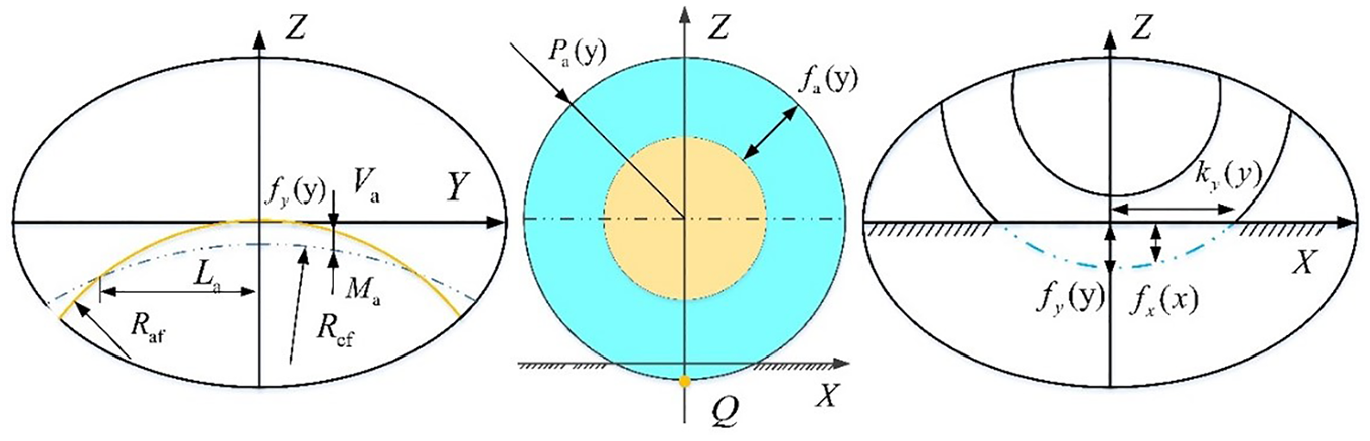

Figure 5.

Schematic diagram of deformation analysis of contact part.

According to the thickness of the outer rubber, the thickness of the rubber layer at point Q can be calculated by equation (8).

f_{a} (y) = P_{a} (y) - (R_{j} - x_{d})

(8)

The deformation thickness of the rubber layer in the Y-axis direction can be calculated by equation (9).

{\begin{matrix} y_{xb} (y, C_{h}) = \sqrt{{R_{af}}^{2} - y^{2}} - [\sqrt{{R_{cf}}^{2} - y^{2}} - (R_{cf} - R_{af} + C_{h})] \\ C_{h} = \sqrt{{R_{cf}}^{2} - b^{2}} - \sqrt{{R_{af}}^{2} - b^{2}} - R_{cf} + R_{af} (0 \leq y = b \leq \frac{K_{j}}{2}) \\ b_{y} (y, C_{h}) = \sqrt{2 y_{xb} (y, C_{h}) P_{a} (y)} \end{matrix}

(9)

where $C_{h}$ is deformation thickness of rubber central layer, $y_{xb}$ is deformation thickness of rubber layer in Y-axis direction, $b_{y}$ is distance from contact boundary to Y-axis.

The deformation thickness of the rubber layer in the x-axis direction can be calculated by equation (10).

x_{xb} (x, y, C_{h}) = y_{xb} (y, C_{h}) - \frac{x^{2}}{2 P_{a} (y)}

(10)

The contact stress can be calculated by equation (11)

P_{jc} (x, y, C_{n}) = \frac{E_{st}}{1 - {t_{m}}^{2}} \frac{x_{xb} (x, y, C_{h})}{f_{a} (y)}

(11)

The pressure on a single section can be expressed as follows:

\begin{matrix} d_{F_{p}} = 2 \int_{0}^{y_{xb} (y, C_{h})} \frac{E_{st}}{1 - {t_{m}}^{2}} \frac{x_{xb} (x, y, C_{h})}{f_{a} (y)} d x d y \\ = \frac{7}{3} \frac{E_{st} \sqrt{P_{a} (y)} \sqrt[3]{y_{xb} (y, C_{h})}}{(1 - {t_{m}}^{2}) f_{a} (y)} d y \end{matrix}

(12)

Total contact pressure can be written as follows:

\begin{matrix} F_{p} (C_{n}) = 2 \int_{0}^{b (C_{n})} d_{F_{p}} \\ = 2 \int_{0}^{b (C_{n})} \frac{7}{3} \frac{E_{st} \sqrt{P_{a} (y)} \sqrt[3]{y_{xb} (y, C_{h})}}{(1 - {t_{m}}^{2}) f_{a} (y)} d y \end{matrix}

(13)

Equation (13) is the calculation model of the polishing force, which indicates that the polishing force applied on the blade profile should be time-varying. The time-varying polishing force is used for blade machining, which requires higher control accuracy, dynamic characteristics, and robustness of the polishing force control system.

Nonlinear dynamics model of polishing force control system

The polishing force control system is shown in Figure 6, which is mainly composed of air compressor, electromagnetic reversing valve, proportional valve, cylinder, pressure sensor, IPC, D/A conversion device, power amplifier, and servo driver. The IPC is used as a system controller to calculate and process feedback signals and send control signals to the actuator. The system can indirectly adjust the gas flow into the cylinder by controlling the proportional valve, so that the polishing force can be controlled in real time.

Figure 6.

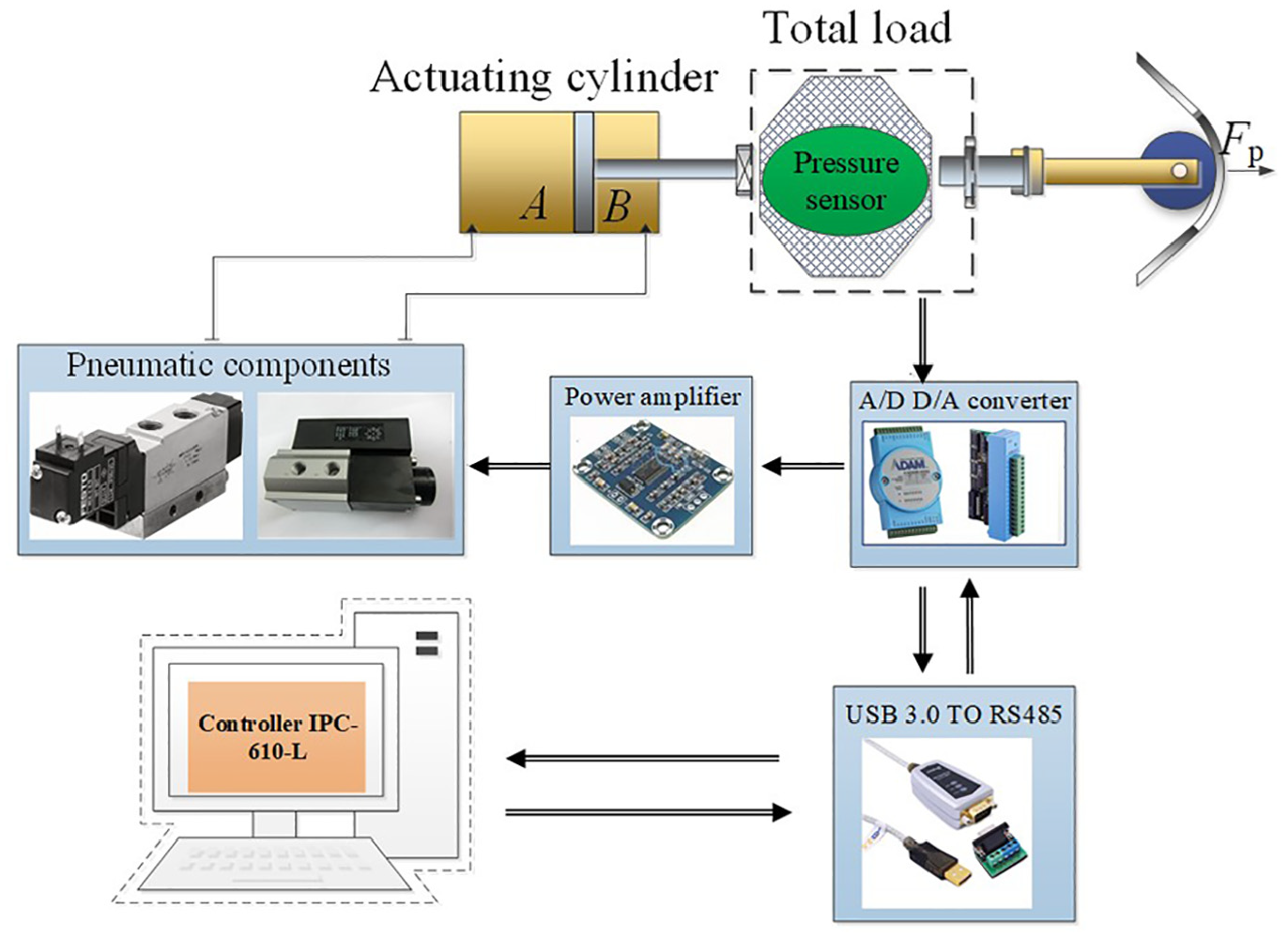

Schematic diagram of polishing force control system.

If cylinder, piston, and load are considered as a whole, the balance equation can be established as follows:

F_{p} = P_{1} S_{1} - P_{2} S_{2} - λ {\overset{\cdot}{x}}_{b} - m_{p} {\overset{\cdot\cdot}{x}}_{b} - F_{m} - δ_{m} x_{b}

(14)

where $m_{p}$ is the mass of the load, $F_{m}$ is friction, $λ$ is viscous damping coefficient, $x_{b}$ is the displacement of the piston, $δ_{m}$ is load stiffness, $P_{1}$ and $P_{2}$ are pressure of left and right chambers of cylinder, $S_{1}$ and $S_{1}$ are effective area of left and right chambers of cylinder.

According to Newton’s second law, the balance equation of proportional valve spool can be obtained.

m_{v} {\overset{\cdot\cdot}{x}}_{v} + b_{v} {\overset{\cdot}{x}}_{v} + k_{v} x_{v} = k_{u} u_{i} - A_{v} P_{1} - k_{i} x_{g} - f_{c} sgn ({\overset{\cdot}{x}}_{v})

(15)

where $m_{v}$ is mass of proportional valve spool, $b_{v}$ is viscous damping coefficient, $x_{v}$ is spring compression, $k_{u}$ is voltage-force coefficient of proportional valve, $u_{i}$ is control input voltage, $A_{v}$ is effective sectional area of valve spool, $x_{g}$ is spring pre-compression, $f_{c}$ is coulomb friction.

In general, the ideal gas in the pneumatic system can be calculated by the Sanville equation and can be linearized into equation (16).

{\begin{matrix} Q_{q 1} = κ_{q 1} x_{f} - κ_{c 1} P_{1} \\ Q_{q 2} = κ_{q 2} x_{f} - κ_{c 2} P_{2} \\ {κ_{q 1} = \frac{\partial Q_{q 1}}{\partial x_{f}} |}_{x_{s}} {κ_{q 2} = \frac{\partial Q_{q 2}}{\partial x_{f}} |}_{x_{s}} \\ {κ_{s 1} = \frac{\partial Q_{q 1}}{\partial P_{1}} |}_{P_{1 s}} {κ_{s 2} = \frac{\partial Q_{q 2}}{\partial P_{2}} |}_{P_{2 s}} \end{matrix}

(16)

where $x_{f}$ is spool position of proportional valve, $x_{s}$ is spool initial position of proportional valve, $Q_{q 1}$ is gas mass flow of left chamber of cylinder, $Q_{q 2}$ is gas mass flow of right chamber of cylinder, $P_{1}$ is pressure of left chamber of cylinder, $P_{2}$ is pressure of right chamber of cylinder, $P_{1 s}$ is the pressure of the left chamber of the cylinder at the initial time, $P_{2 s}$ is the pressure of the right chamber of the cylinder at the initial, $κ_{q 1}$ , $κ_{s 1}$ , $κ_{q 2}$ , and $κ_{s 2}$ are linearization coefficient of flow equation.

Assume that the cylinder is at a constant temperature, equation (17) can be derived from the first law of thermodynamics and the mass flow conservation equation.

{\begin{matrix} V_{1} {\overset{\cdot}{P}}_{1} = Q_{q 1} T_{w} R_{i} τ - {\overset{\cdot}{x}}_{b} S_{1} P_{1} τ_{i} \\ V_{2} {\overset{\cdot}{P}}_{2} = Q_{q 2} T_{w} R_{i} τ - {\overset{\cdot}{x}}_{b} S_{2} P_{2} τ_{i} \end{matrix}

(17)

where $V_{1}$ and $V_{2}$ are volume of left and right chambers of cylinder, $T_{w}$ is operation temperature of pneumatic system, $τ_{i}$ is isentropic coefficient of gas, $R_{i}$ is ideal gas constant.

According to (16) and (17), then

{\begin{matrix} Q_{q 1} h_{2} + Q_{q 2} h_{1} = (h_{2} κ_{q 1} + h_{1} κ_{q 2}) x_{f} - h_{2} κ_{c 1} P_{D} \\ - (h_{2} h_{1} κ_{ca} + h_{1} κ_{cb}) P_{2} \\ = \frac{h_{2} [V_{1 s} {\overset{\cdot}{P}}_{D} + (h_{2} + h_{1}) P_{1 s} S_{1} {\overset{\cdot}{x}}_{b}]}{R_{i} T_{w} τ} \\ h_{1} = S_{2} / S_{1}, h_{2} = V_{2 s} / V_{1 s}, h_{1} l_{2 s} = h_{2} l_{1 s} \\ P_{D} = P_{1} - h_{1} P_{2}, A_{1} P_{1 s} = A_{2} P_{2 s} \end{matrix}

(18)

where $h_{1}$ is area ratio of left and right chambers of cylinder, $h_{2}$ is area ratio of left and right chambers of cylinder at the initial time, $V_{1 s}$ and $V_{2 s}$ are volume of left and right chambers of cylinder at the initial time, $l_{1 s}$ and $l_{2 s}$ are initial length of the left and right chambers of the cylinder.

By Laplace transformation of equations (14)–(18), the transfer function of polishing force control system can be derived as follows:

{\begin{matrix} G (s) = \frac{F_{p} (s)}{U (s)} = \frac{ρ_{DA} K_{0} (\frac{1}{{ξ_{m}}^{2}} + 1)}{s^{2} + (2 ψ ξ_{0} + ρ_{DA} ρ_{f} ρ_{AD} K_{0}) s + ψ_{0} ρ_{DA} ρ_{AD} K_{0}} \\ K_{0} = \frac{(h_{2} κ_{q 1} + h_{1} κ_{q 2}) R_{i} T_{w}}{(h_{2} + h_{1}) S_{1} P_{1 s} (\frac{1}{ρ_{f}} + \frac{1}{ρ_{p}})} \\ ρ_{p} = τ P_{1 s} S_{1} (\frac{1}{L_{1 s}} + \frac{1}{L_{2 s}}) \end{matrix}

(19)

where $ρ_{DA}$ is digital to analog conversion coefficient, $ρ_{AD}$ is analog to digital conversion coefficient, $ρ_{f}$ is feedback coefficient of sensor, $ψ_{0}$ is damping ratio of the system, $ξ_{m}$ is natural frequency of load, $ρ_{P}$ is pneumatic stiffness, $ξ_{0}$ is natural frequency formed by stiffness and load, $K_{0}$ is open loop gain.

HGO-based SMC

The high-gain observer can estimate the state asymptotically according to the measurement results, and can be designed separately from the state feedback controller. Equation (19) can be written as follows:

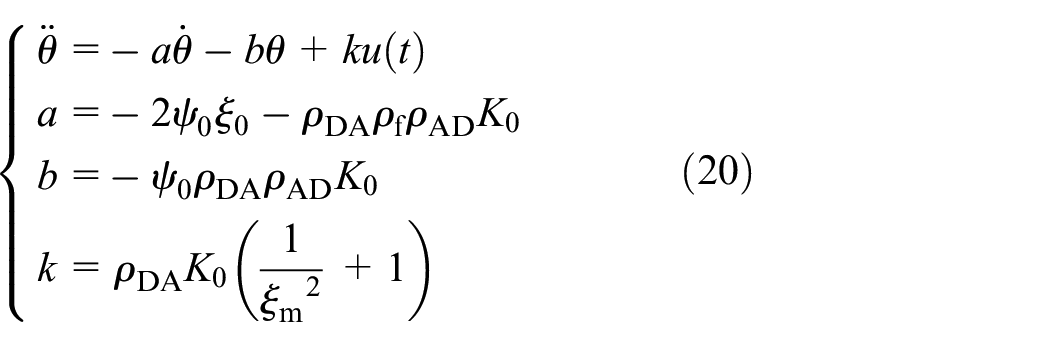

{\begin{matrix} \overset{\cdot\cdot}{θ} = - a \overset{\cdot}{θ} - b θ + ku (t) \\ a = - 2 ψ_{0} ξ_{0} - ρ_{DA} ρ_{f} ρ_{AD} K_{0} \\ b = - ψ_{0} ρ_{DA} ρ_{AD} K_{0} \\ k = ρ_{DA} K_{0} (\frac{1}{{ξ_{m}}^{2}} + 1) \end{matrix}

(20)

where $θ$ is polishing force signal, $u (t)$ is control input.

Since $\overset{\cdot}{θ}$ cannot be measured, we can only design the controller through $θ$ . Equation (20) can be transformed into the state-space equation as follows:

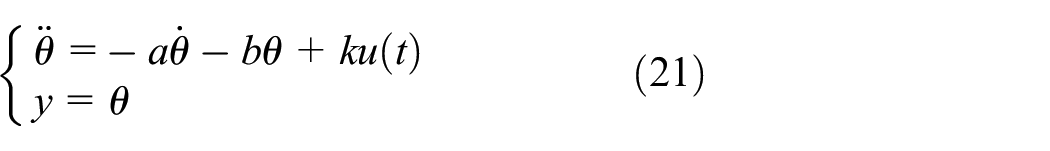

{\begin{matrix} \overset{\cdot\cdot}{θ} = - a \overset{\cdot}{θ} - b θ + ku (t) \\ y = θ \end{matrix}

(21)

For a second-order system, it is complicated to design the controller only by output. $\overset{\cdot}{θ}$ can be estimated by the following observers.

{\begin{matrix} \overset{\cdot}{\hat{θ}} = \hat{\overset{\cdot}{θ}} + \frac{a_{1}}{ε} (θ - \hat{θ}) \\ \overset{\cdot}{\hat{\overset{\cdot}{θ}}} = - a \overset{\cdot}{θ} - b θ + ku (t) + \frac{a_{2}}{ε^{2}} (θ - \hat{θ}) \end{matrix}

(22)

Where $a_{1}$ and $a_{2}$ are positive real numbers.

Set $h_{1} = \frac{a_{1}}{ε}, h_{2} = \frac{a_{2}}{ε^{2}}$ , equation (22) can be written as follows:

{\begin{matrix} \overset{\cdot}{\hat{θ}} = \hat{\overset{\cdot}{θ}} + h_{1} (θ - \hat{θ}) \\ \overset{\cdot}{\hat{\overset{\cdot}{θ}}} = - a \overset{\cdot}{θ} - b θ + ku (t) + h_{2} (θ - \hat{θ}) \end{matrix}

(23)

When $\tilde{Γ} = Γ - \hat{Γ}, Γ = [θ, \overset{\cdot}{θ}]$

According to equations (21) and (23), the following can be obtained:

{\begin{matrix} \dot{\tilde{θ}} = - h_{1} \tilde{θ} + \tilde{\dot{θ}} \\ \dot{\tilde{\dot{θ}}} = - h_{2} \tilde{θ} - a \tilde{\dot{θ}} \\ y = \tilde{θ} \end{matrix}

(24)

Then

{\begin{matrix} | s = ce + \overset{\cdot}{e} I - A | = [\begin{matrix} s - h_{1} - 1 \\ h_{2} s - a \end{matrix}] = 0 \\ p > 0, h_{1} = 2 p - a > 0 \\ h_{2} = p^{2} \end{matrix}

(25)

Set the value of $h_{1}$ and $h_{2}$ , so that the matrix $A$ satisfies Hurwitz stability criterion

According to equations (24) and (25), the exponential convergence of $\tilde{x}$ can be obtained.

‖ \tilde{Γ} (t) ‖ \leq φ_{0} ‖ \tilde{Γ} (t_{0}) ‖ e^{- σ_{0} (t - t_{0})}

(26)

where ϕ₀ and σ₀ are positive constant.

The characteristic equation of matrix $A$ can be written as follows:

{\begin{matrix} | sI - A | = [\begin{matrix} s - h_{1} - 1 \\ h_{2} s - a \end{matrix}] = 0 \\ h_{1} + a = 2 p \\ h_{2} = p^{2} \end{matrix}

(27)

where $p > 0, h_{1} = 2 p - a > 0$

According to equations (22)–(27), then

{\begin{matrix} \tilde{\overset{\cdot}{θ}} = \overset{\cdot}{θ} - \hat{\overset{\cdot}{θ}} \\ \overset{\cdot}{\tilde{\overset{\cdot}{θ}}} = \overset{\cdot\cdot}{θ} - \overset{\cdot}{\hat{\overset{\cdot}{θ}}} \\ = - a \overset{\cdot}{θ} - b θ + ku (t) - (- a \hat{\overset{\cdot}{θ}} - b θ + ku (t) + h_{2} (y - \hat{θ})) \\ = - a \tilde{\overset{\cdot}{θ}} - h_{2} \tilde{θ} \end{matrix}

(28)

For equation (20), the sliding mode function is designed as follows:

{\begin{matrix} s = ce + \overset{\cdot}{e} \\ \hat{s} = c \hat{e} + \hat{\overset{\cdot}{e}} \end{matrix}

(29)

where $c > 0, \hat{e} = θ_{d} - \hat{\overset{\cdot}{θ}}, \hat{\overset{\cdot}{e}} = {\overset{\cdot}{θ}}_{d} - \hat{\overset{\cdot}{θ}}, e = θ_{d} - θ$ .

If u (t) = \frac{1}{k} ({\overset{\cdot\cdot}{θ}}_{d} + a \hat{\overset{\cdot}{θ}} + b θ + η \hat{s} + c \overset{\cdot}{\hat{e}})

The Lyapunov function of SMC is designed as follows:

V_{s} = \frac{1}{2} s^{2}

(30)

Due to

{\begin{matrix} \overset{\cdot\cdot}{e} = {\overset{\cdot\cdot}{θ}}_{d} - \overset{\cdot\cdot}{θ} = {\overset{\cdot\cdot}{θ}}_{d} + a \hat{\overset{\cdot}{θ}} + b θ - ku (t) \\ \overset{\cdot}{s} = c \overset{\cdot}{e} + \overset{\cdot\cdot}{e} = c \overset{\cdot}{e} + {\overset{\cdot\cdot}{θ}}_{d} + a \overset{\cdot}{θ} + b θ - ku (t) \end{matrix}

(31)

Then

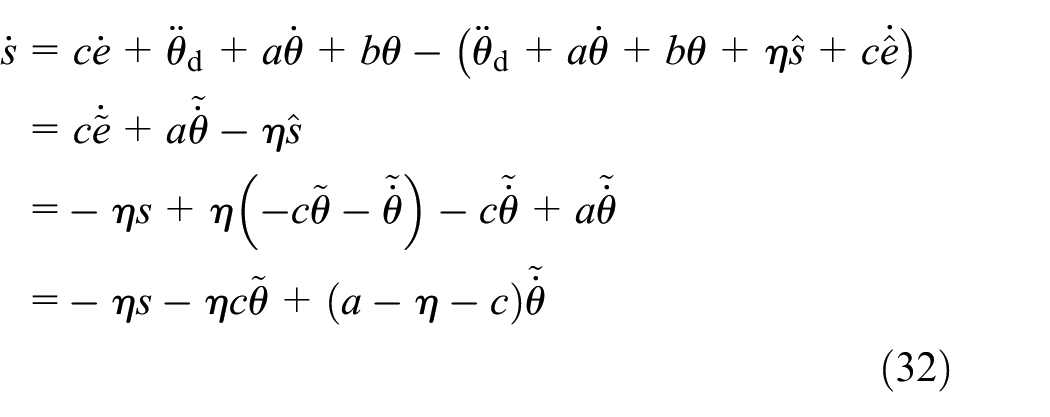

\begin{matrix} \overset{\cdot}{s} = c \overset{\cdot}{e} + {\overset{\cdot\cdot}{θ}}_{d} + a \overset{\cdot}{θ} + b θ - ({\overset{\cdot\cdot}{θ}}_{d} + a \overset{\cdot}{θ} + b θ + η \hat{s} + c \overset{\cdot}{\hat{e}}) \\ = c \overset{\cdot}{\tilde{e}} + a \tilde{\overset{\cdot}{θ}} - η \hat{s} \\ = - η s + η (- c \tilde{θ} - \tilde{\overset{\cdot}{θ}}) - c \tilde{\overset{\cdot}{θ}} + a \tilde{\overset{\cdot}{θ}} \\ = - η s - η c \tilde{θ} + (a - η - c) \tilde{\overset{\cdot}{θ}} \end{matrix}

(32)

where $\tilde{θ} = θ - \hat{θ}, \tilde{\overset{\cdot}{θ}} = \overset{\cdot}{θ} - \hat{\overset{\cdot}{θ}}, \tilde{e} = e - \hat{e} = - \tilde{θ}, \tilde{\overset{\cdot}{e}} = - \tilde{\overset{\cdot}{θ}}, \tilde{s} = - c \tilde{θ} - \tilde{\overset{\cdot}{θ}}$

And

{\overset{\cdot}{V}}_{s} = - η s^{2} + s (a - η - c) \tilde{\overset{\cdot}{θ}} = - η s^{2} + k_{1} s \tilde{θ} + k_{2} s \tilde{\overset{\cdot}{θ}}

(33)

where $k_{1} = - η c, k_{2} = a - η - c$

Since $k_{1} s \tilde{θ} \leq \frac{1}{2} s^{2} + \frac{1}{2} {k_{1}}^{2} {\tilde{θ}}^{2}, k_{2} s \tilde{\overset{\cdot}{θ}} \leq \frac{1}{2} s^{2} + \frac{1}{2} {k_{2}}^{2} {\tilde{\overset{\cdot}{θ}}}^{2}$ , then

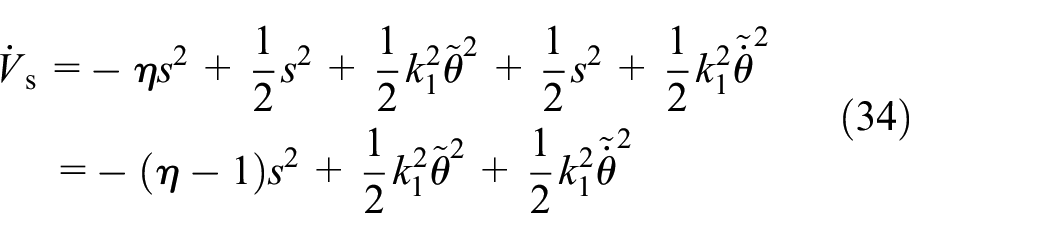

\begin{matrix} {\overset{\cdot}{V}}_{s} = - η s^{2} + \frac{1}{2} s^{2} + \frac{1}{2} k_{1}^{2} {\tilde{θ}}^{2} + \frac{1}{2} s^{2} + \frac{1}{2} k_{1}^{2} {\tilde{\overset{\cdot}{θ}}}^{2} \\ = - (η - 1) s^{2} + \frac{1}{2} k_{1}^{2} {\tilde{θ}}^{2} + \frac{1}{2} k_{1}^{2} {\tilde{\overset{\cdot}{θ}}}^{2} \end{matrix}

(34)

The Lyapunov function of the closed-loop system is as follows:

V = V_{s} + V_{0}

(35)

where $V_{0} = \frac{1}{2} {\tilde{Γ}}^{T} \tilde{Γ} = \frac{1}{2} {\tilde{Γ}}^{2} + \frac{1}{2} {\tilde{\overset{\cdot}{Γ}}}^{2}, {\overset{\cdot}{V}}_{0} = {\tilde{Γ}}^{T} \overset{\cdot}{\tilde{Γ}} = {\tilde{Γ}}^{T} A \overset{\cdot}{\tilde{Γ}}$ , $\overset{\cdot}{V}$ is also exponentially convergent.

Since the observer converges exponentially, then

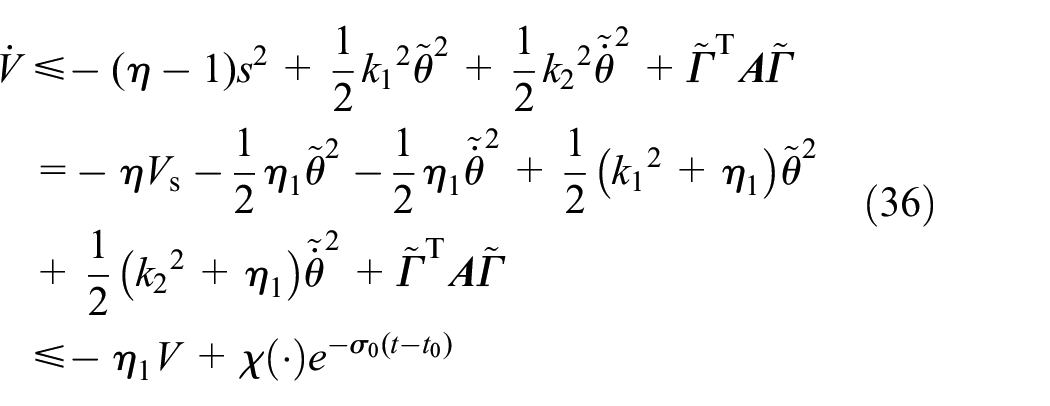

\begin{matrix} \overset{\cdot}{V} \leq - (η - 1) s^{2} + \frac{1}{2} {k_{1}}^{2} {\tilde{θ}}^{2} + \frac{1}{2} {k_{2}}^{2} {\tilde{\overset{\cdot}{θ}}}^{2} + {\tilde{Γ}}^{T} A \tilde{Γ} \\ = - η V_{s} - \frac{1}{2} η_{1} {\tilde{θ}}^{2} - \frac{1}{2} η_{1} {\tilde{\overset{\cdot}{θ}}}^{2} + \frac{1}{2} ({k_{1}}^{2} + η_{1}) {\tilde{θ}}^{2} \\ + \frac{1}{2} ({k_{2}}^{2} + η_{1}) {\tilde{\overset{\cdot}{θ}}}^{2} + {\tilde{Γ}}^{T} A \tilde{Γ} \\ \leq - η_{1} V + χ (\cdot) e^{- σ_{0} (t - t_{0})} \end{matrix}

(36)

where $η_{1} = 2 (η - 1) > 0$ , $σ_{0} > 0, {[θ, \overset{\cdot}{θ}]}^{T}$ , $χ (\cdot)$ is K-class function of $‖ \tilde{Γ} (t_{0}) ‖$

Theorem 1 for $V : [0, \infty) \in R$ , the solution of inequality equation $\overset{\cdot}{V} \leq - aV + f, \forall t \geq t_{0} \geq 0$ is as follows:

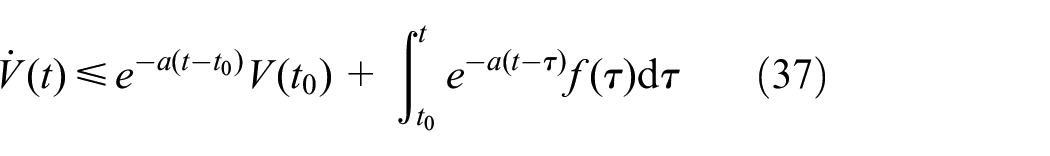

\overset{\cdot}{V} (t) \leq e^{- a (t - t_{0})} V (t_{0}) + \int_{t_{0}}^{t} e^{- a (t - τ)} f (τ) d τ

(37)

where a is arbitrary constant.

According to equations (36) and (37), then

\begin{matrix} \overset{\cdot}{V} (t) \leq e^{- η_{1} (t - t_{0})} V (t_{0}) + χ (\cdot) \int_{t_{0}}^{t} e^{- η_{1} (t - τ)} e^{- σ_{0} (τ - t_{0})} d τ \\ = e^{- η_{1} (t - t_{0})} V (t_{0}) + e^{- η_{1} t + σ_{0} t_{0}} \int_{t_{0}}^{t} e^{η_{1} t} e^{- σ_{0} τ} d τ \\ = e^{- η_{1} (t - t_{0})} V (t_{0}) + \frac{χ (\cdot)}{η_{1} - σ_{0}} (e^{- σ_{0} (τ - t_{0})} - e^{- η_{1} (τ - t_{0})}) \end{matrix}

(38)

So $lim_{t \to \infty} \overset{\cdot}{V} (t) \leq 0$ since $V (t) \geq 0$ if $t \to \infty$ , $V (t) = 0$ , $V (t)$ is exponential convergence, and the convergence accuracy depends on η.

According to the above equation, the overall control diagram of the polishing force system is shown in Figure 7.

Figure 7.

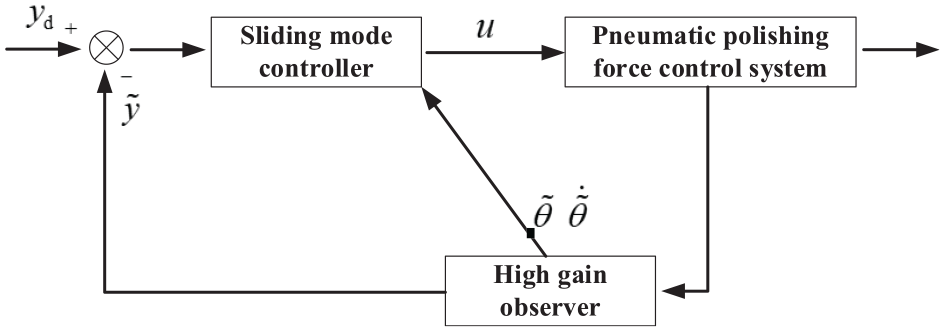

Control diagram of the polishing force system.

Simulation and experimental analysis

Using MATLAB and C++ to compile the simulation program, which is based on HGO-SMC and dynamic model of pressure control system. Set polishing force tracking control signal $r_{s} (t) = 80 \sin (π t)$ and square wave response signal $r_{f} (t) = 80 square (π t)$ .

Simulation results of square wave response are shown in Figures 8 to 12, and Simulation results of sinusoidal response are shown in Figures 13 to 17. The simulation results of square wave response and sine response of PID algorithm are shown in Figures 8 and 13, and the average value of control error is 5.04 N. Compared with other four control algorithms, PID algorithm has the largest control error.

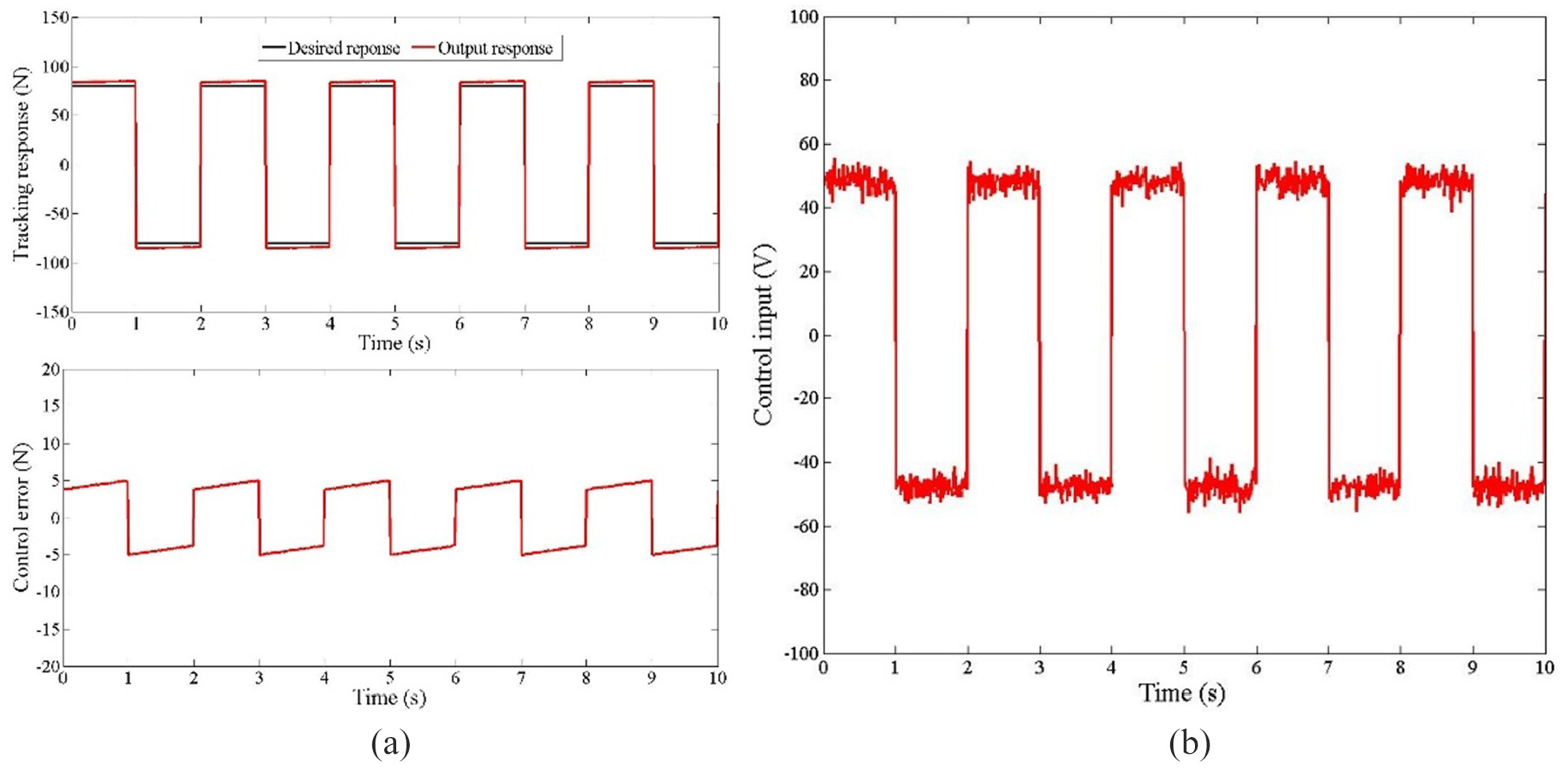

Figure 8.

Square response simulation with PID: (a) control error and tracking response and (b) control input.

Figure 9.

Square response simulation with SMC (sgn): (a) control error and tracking response and (b) control input.

Figure 10.

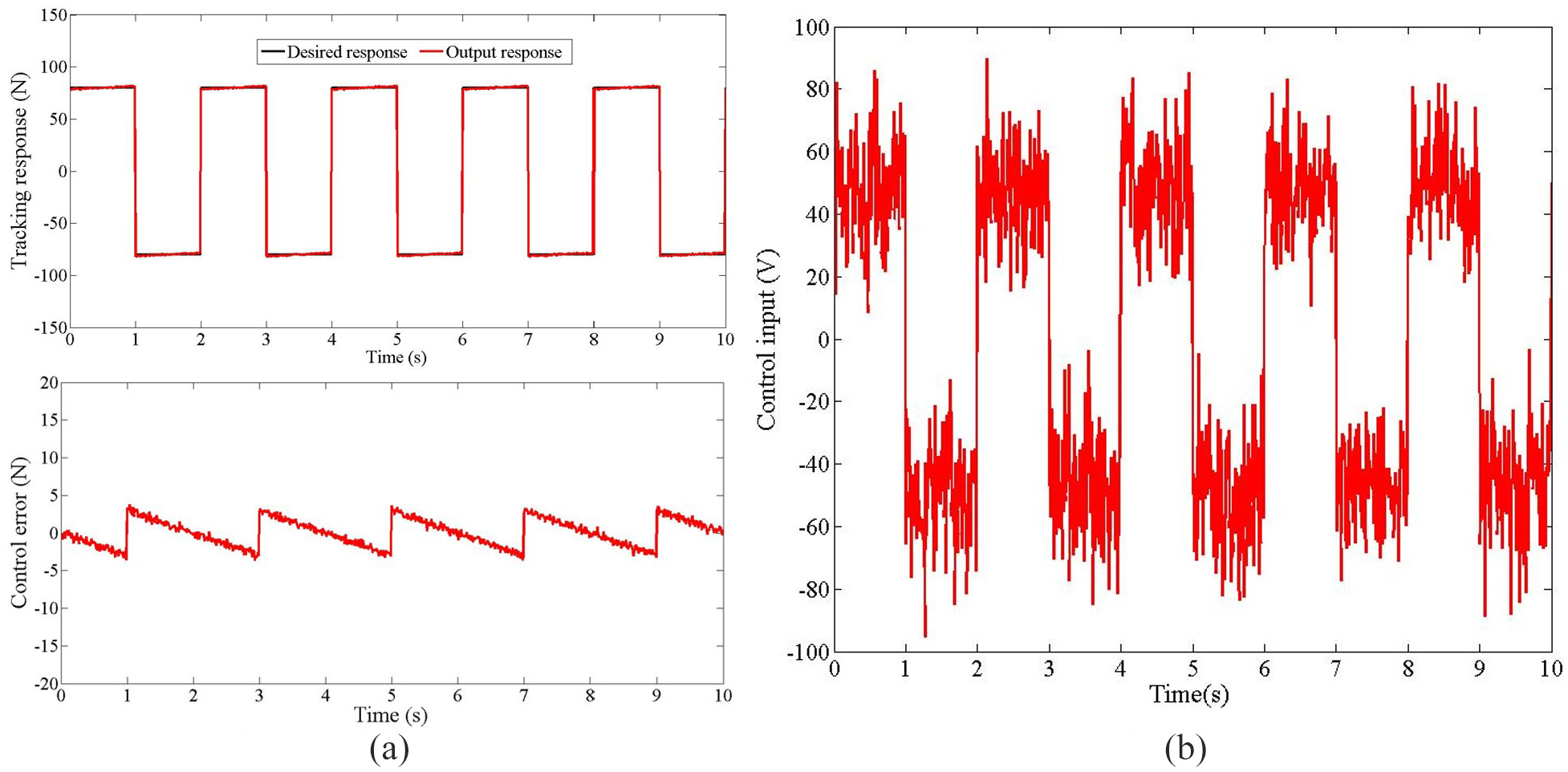

Square response simulation with SMC (sat φ = 0.02): (a) control error and tracking response and (b) control input.

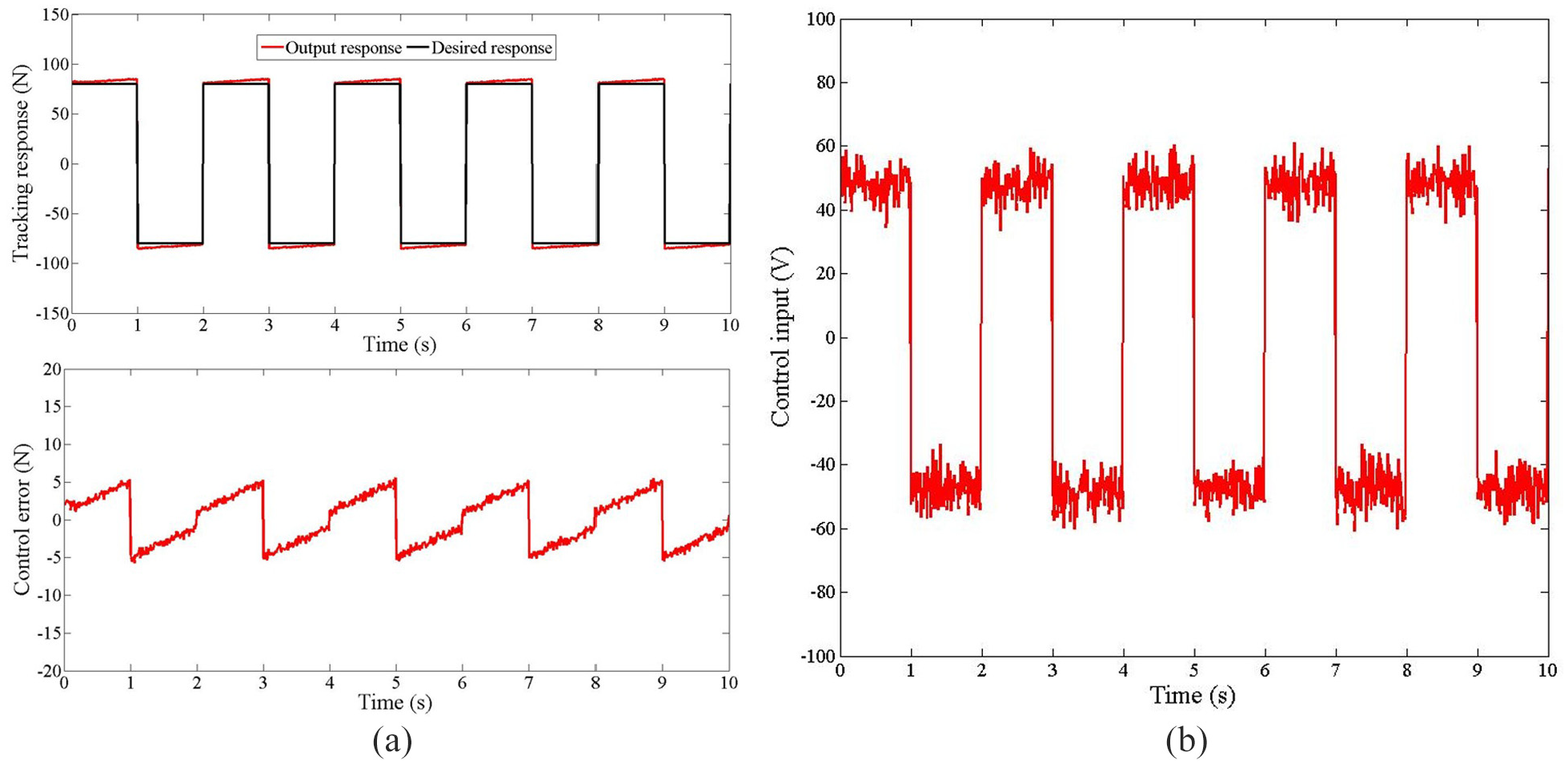

Figure 11.

Square response simulation with SMC (sat φ = 0.05): (a) control error and tracking response and (b) control input.

Figure 12.

Square response simulation with HGO-SMC: (a) control error and tracking response and (b) control input.

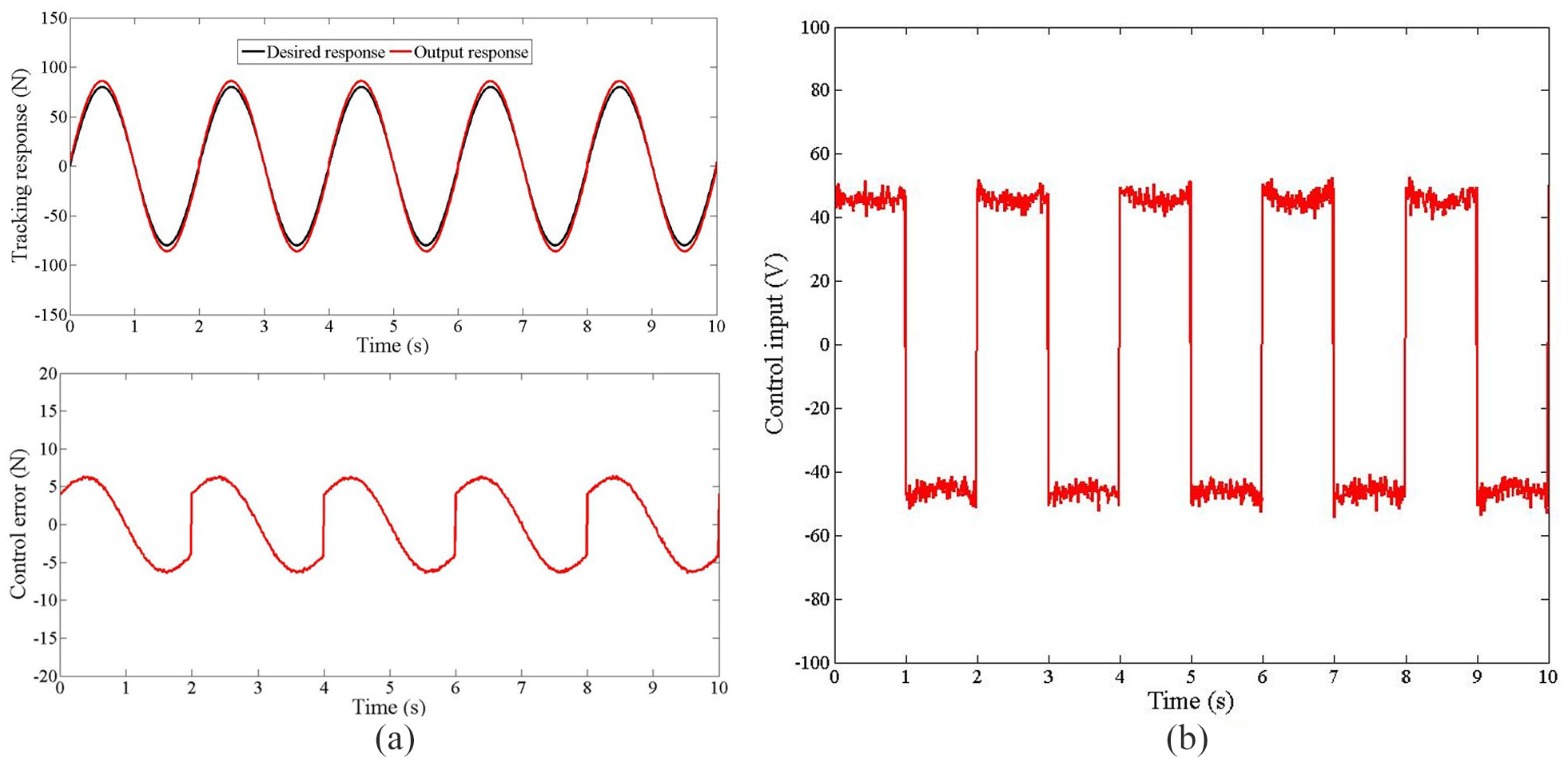

Figure 13.

Sine response simulation with PID: (a) control error and tracking response and (b) control input.

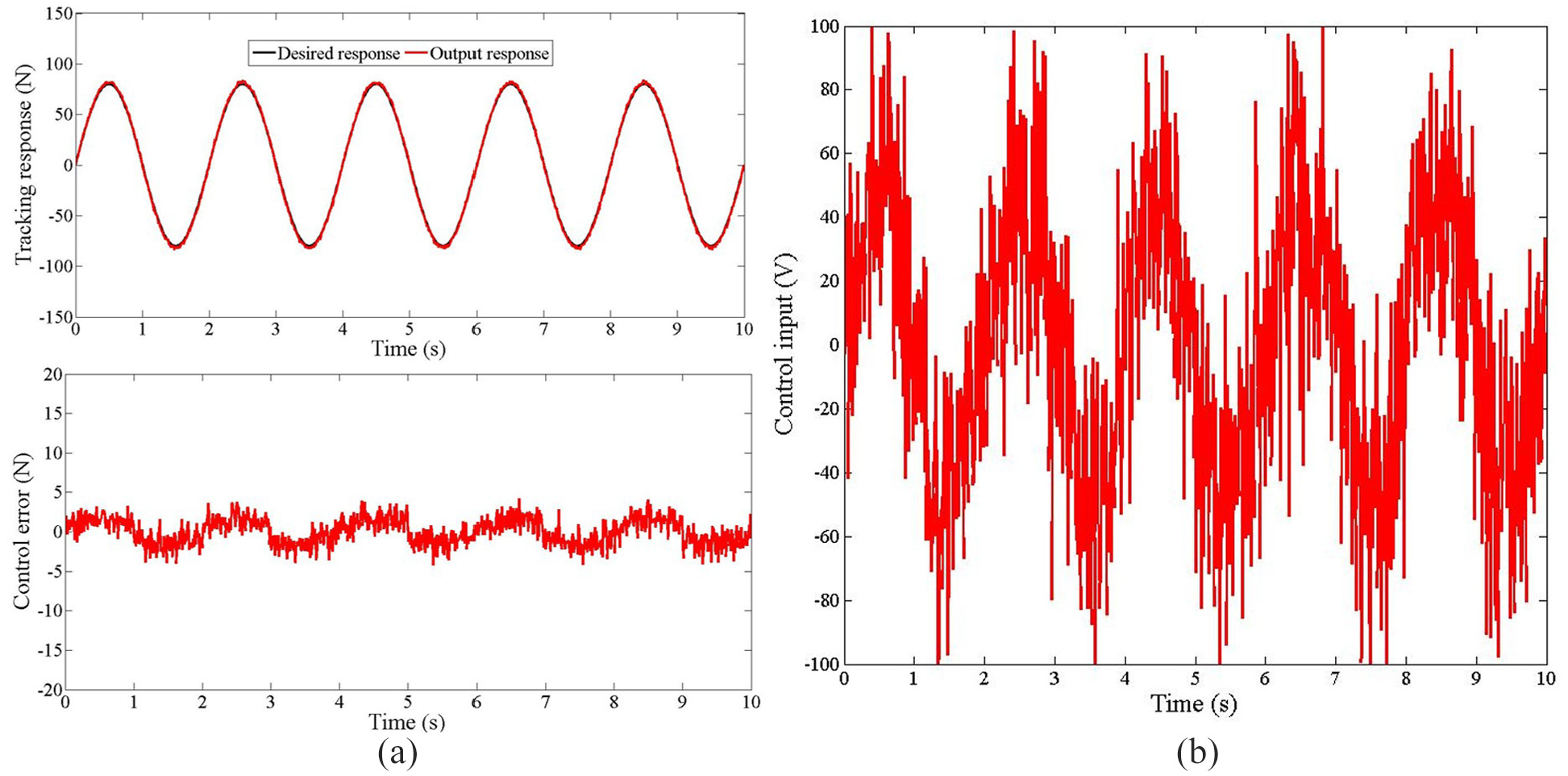

Figure 14.

Sine response simulation with SMC (sgn): (a) control error and tracking response and (b) control input.

Figure 15.

Sine response simulation with SMC (sat φ = 0.02): (a) control error and tracking response and (b) control input.

Figure 16.

Sine response simulation with SMC (sat φ = 0.05): (a) control error and tracking response and (b) control input.

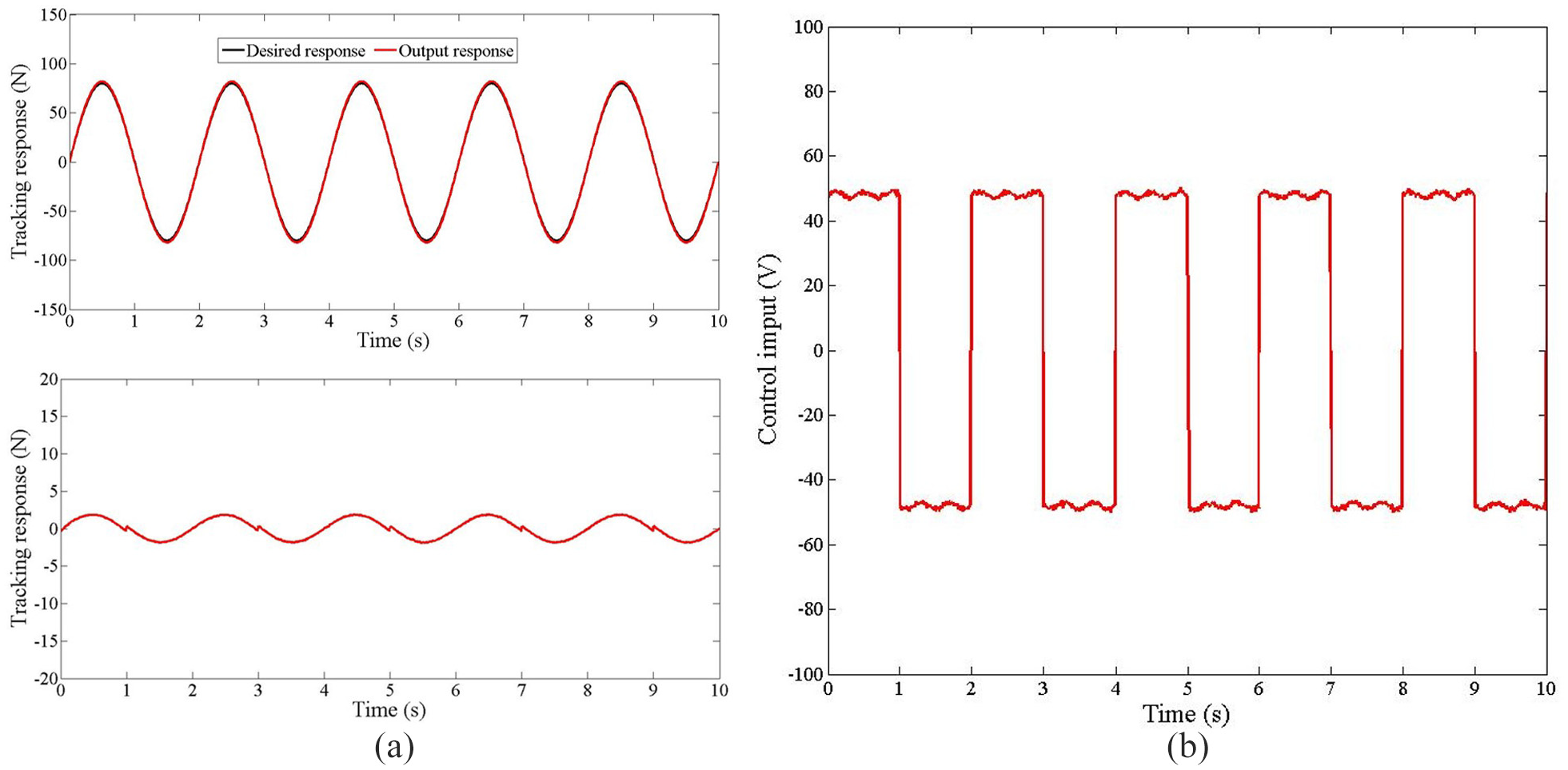

Figure 17.

Sine response simulation with HGO-SMC: (a) control error and tracking response and (b) control input.

The simulation results of square wave response and sinusoidal response of the SMC with sgn algorithm are shown in Figures 9 and 14, with an average control error of 2.48 N. Compared with PID control algorithm, the control error of SMC with sgn algorithm is obviously reduced. However, from the aspect of control input, SMC with sgn algorithm is easy to generate high-frequency chattering, which not only affects the accuracy of control, increases energy consumption, causes system oscillation or instability, and damages controller components. SMC with sat(s) algorithm is proposed to reduce high-frequency chattering caused by SMC with sgn. Figures 10 and 15 show the simulation results of square wave response and sinusoidal response of the SMC with sat(0.02) algorithm, with an average control error of 3.385 N. SMC with sat(0.02) algorithm effectively reduces high-frequency chattering, but the average control error does increase. Figures 11 and 16 show the simulation results of square wave response and sinusoidal response of the SMC with sat(0.05) algorithm, with an average control error of 3.97 N. Compared with SMC with sat(0.02) algorithm, SMC with sat(0.05) algorithm has larger control error and smaller high-frequency chattering. According to the simulation results, when the boundary layer of SMC with sat(s) is thicker, the control error of the system increases and the high-frequency chattering decreases. Figures 12 and 17 show the simulation results of square wave response and sinusoidal response of the HGO-SMC algorithm, with an average control error of 1.225 N. Compared with PID, SMC with sgn, SMC with sat(0.02), and SMC with sat(0.05), the control errors of HGO-SMC algorithm are reduced by 75.7%, 50.6%, 63.8%, and 69.1% respectively, and the high-frequency chattering of the system is also significantly reduced.

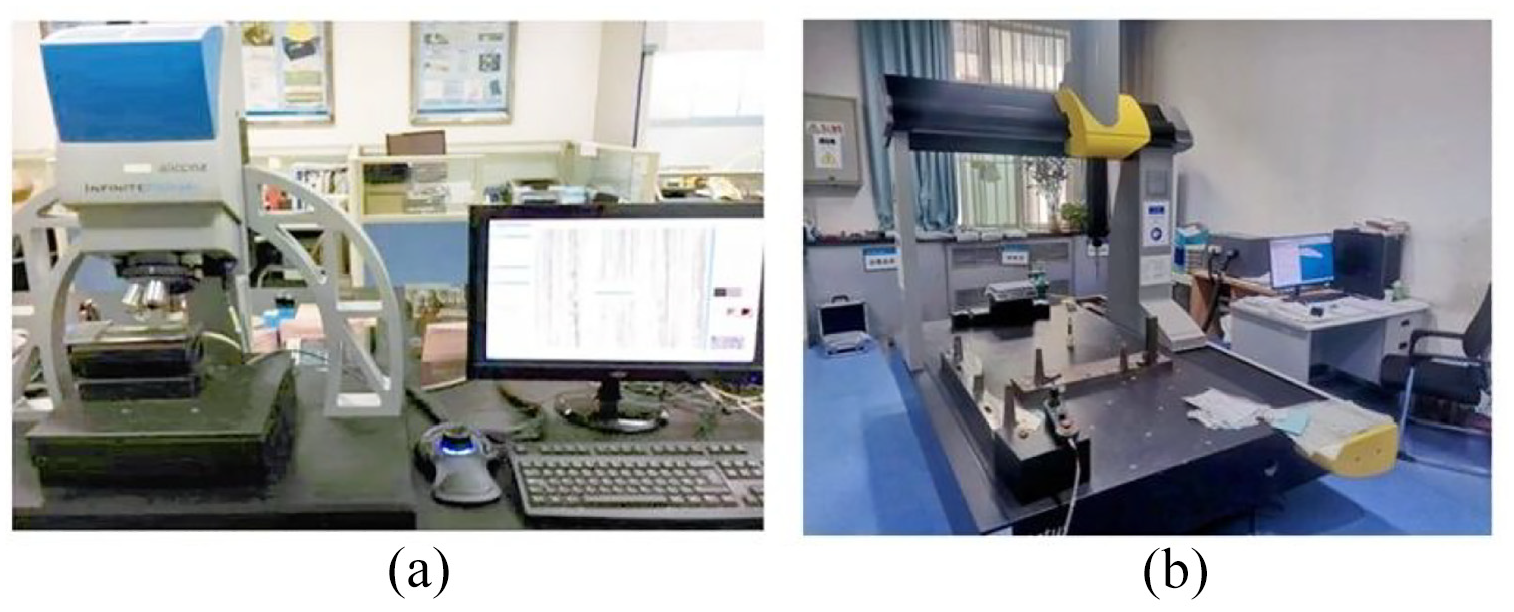

The polishing experiment uses Advantech IPC- 610L as the controller, and the control program is written based on C++ language, including SMC program based on HGO, D/A program, sampling time sequence, and pressure sensor measurement program. Advantech PCL818L data acquisition card, PCL730 isolated digital I/O card, PCL726D/A analog output card are used for data acquisition, conversion, and output. Display, process, and analyze the collected data through LabWindows/CVI. After feedback, the IPC sends out command signals to control the pneumatic servo system, and finally realizes the real-time adjustment of polishing force.

Experimental results of square wave response are shown in Figures 18 to 22, and experimental results of sinusoidal response are shown in Figures 23 to 27. Figures 18 and 23 show the experimental results of square wave response and sinusoidal response of the PID algorithm, with an average control error of 5.51 N. Figures 18 and 23 show the experimental results of square wave response and sinusoidal response of the SMC with sgn algorithm, with an average control error of 3.025 N.

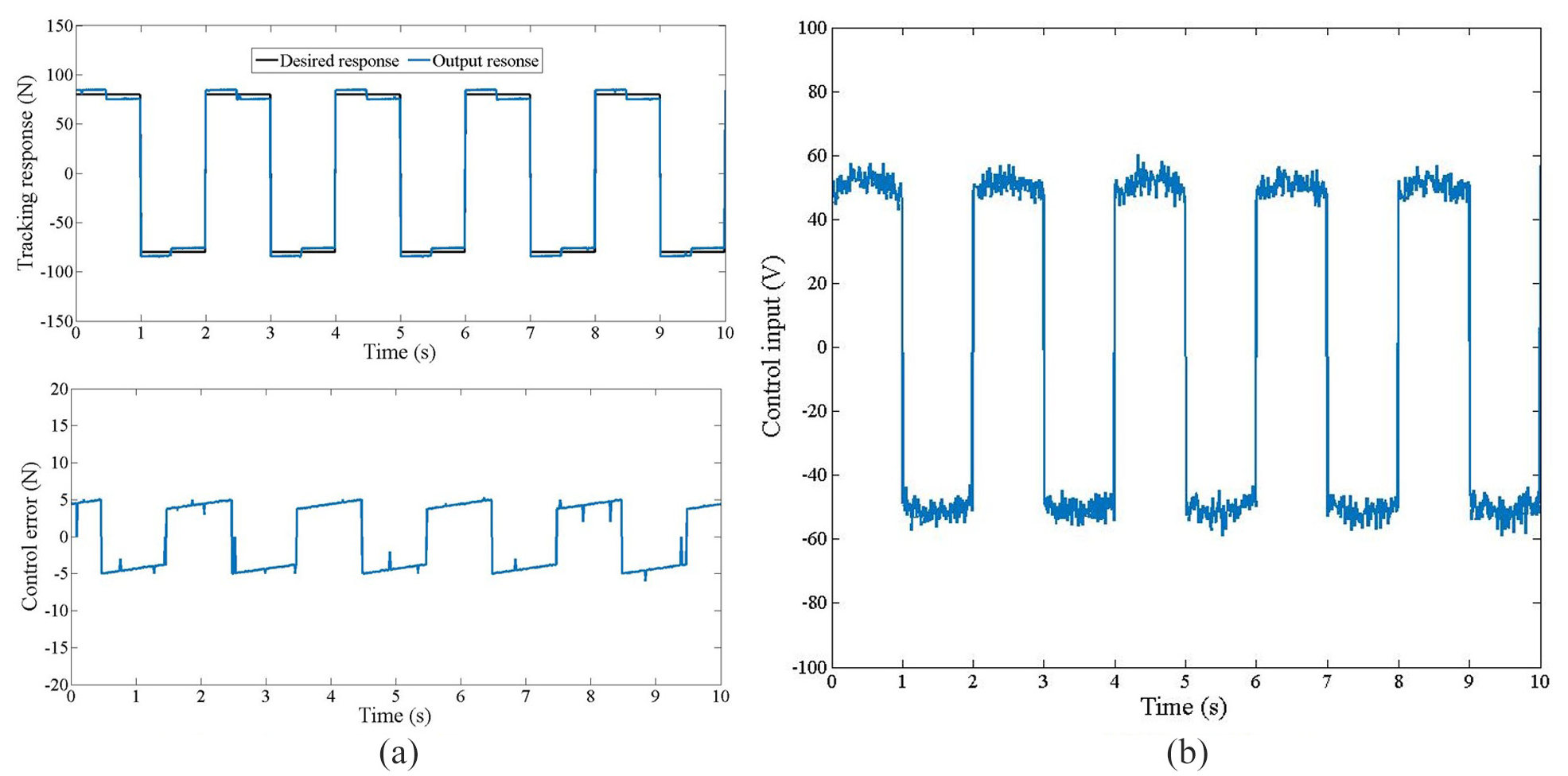

Figure 18.

Square response experiment with PID: (a) control error and tracking response and (b) control input.

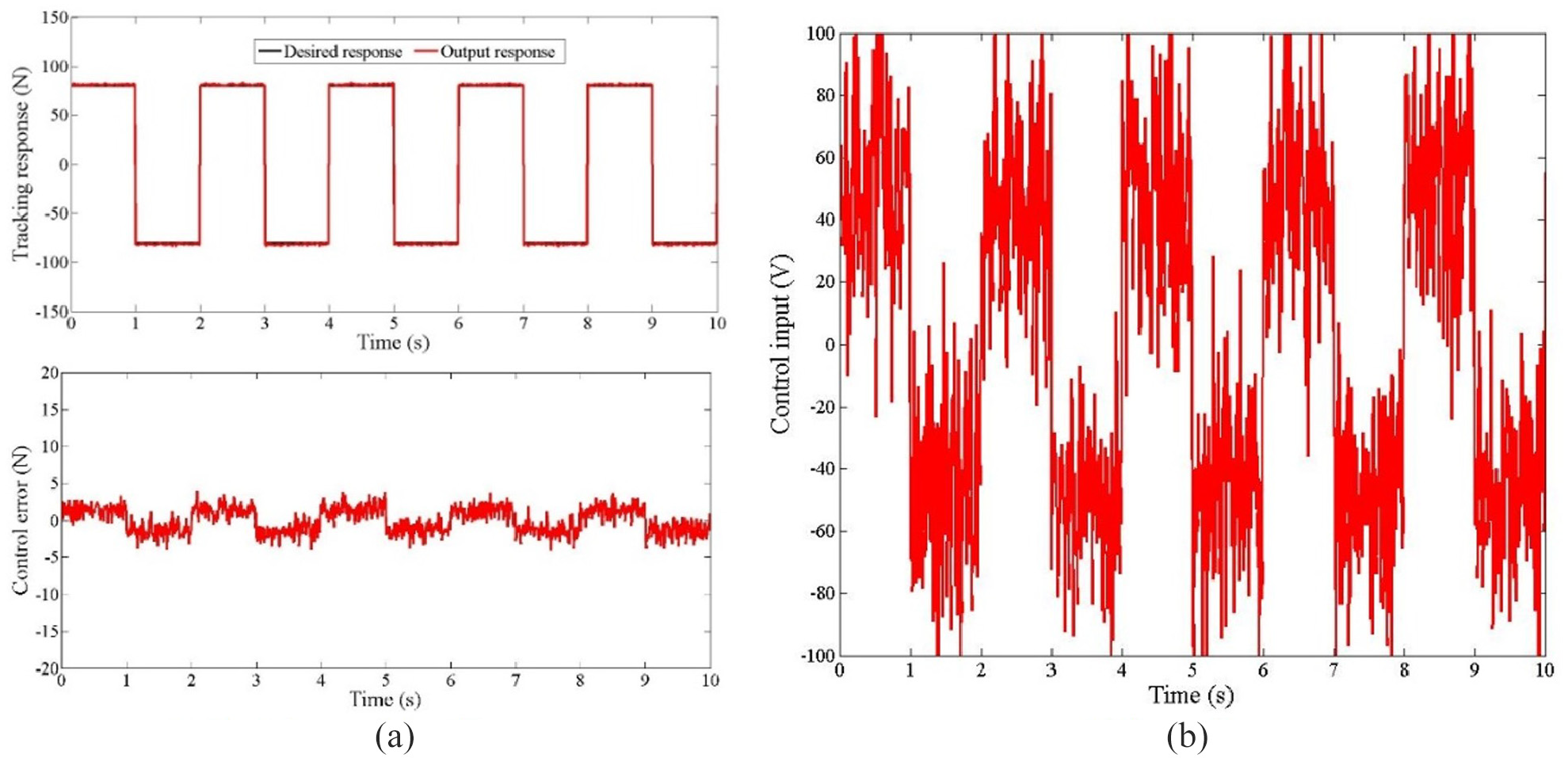

Figure 19.

Square response experiment with SMC (sgn): (a) control error and tracking response and (b) control input.

Figure 20.

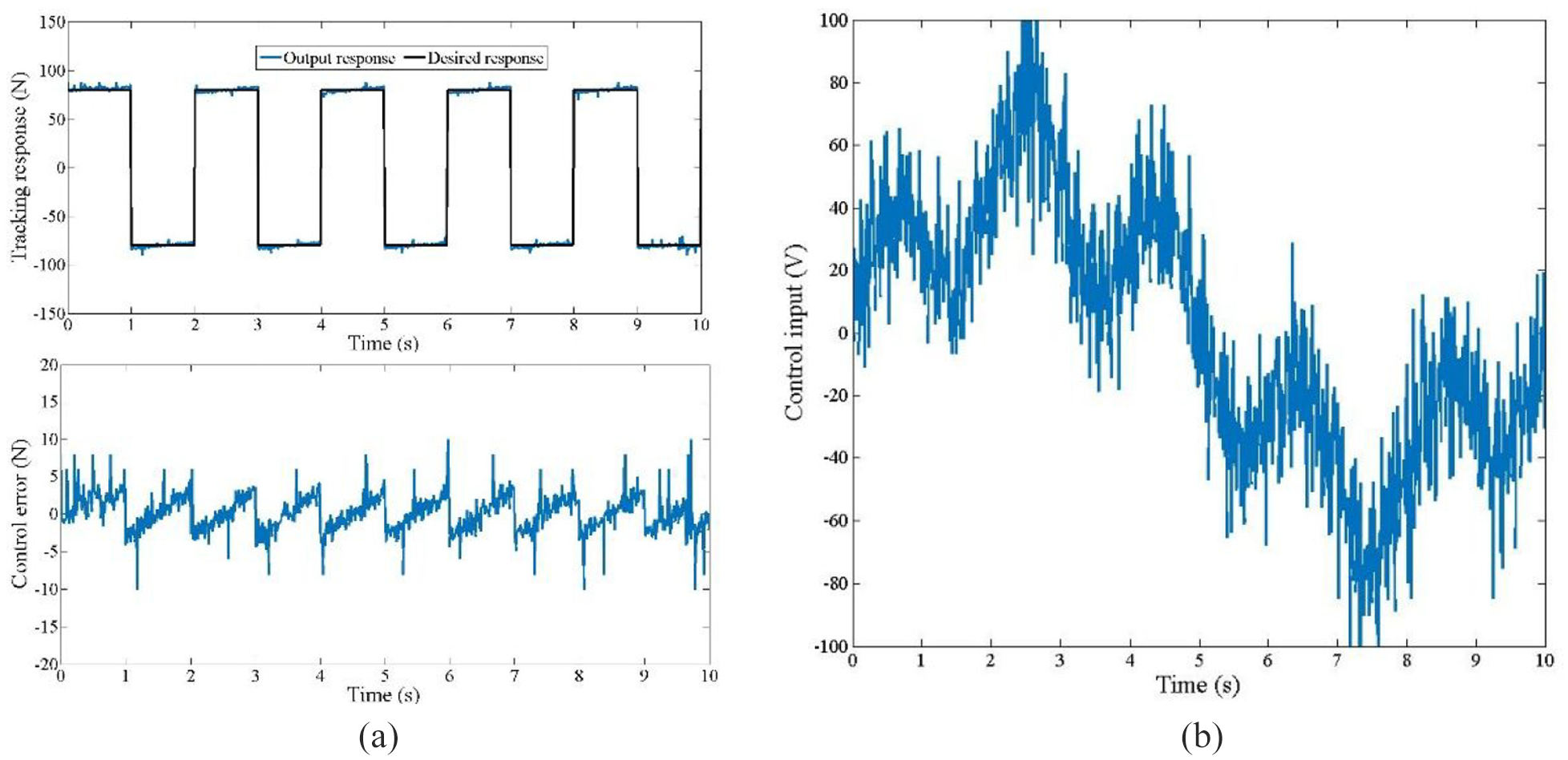

Square response experiment with SMC (sat φ = 0.02): (a) control error and tracking response and (b) control input.

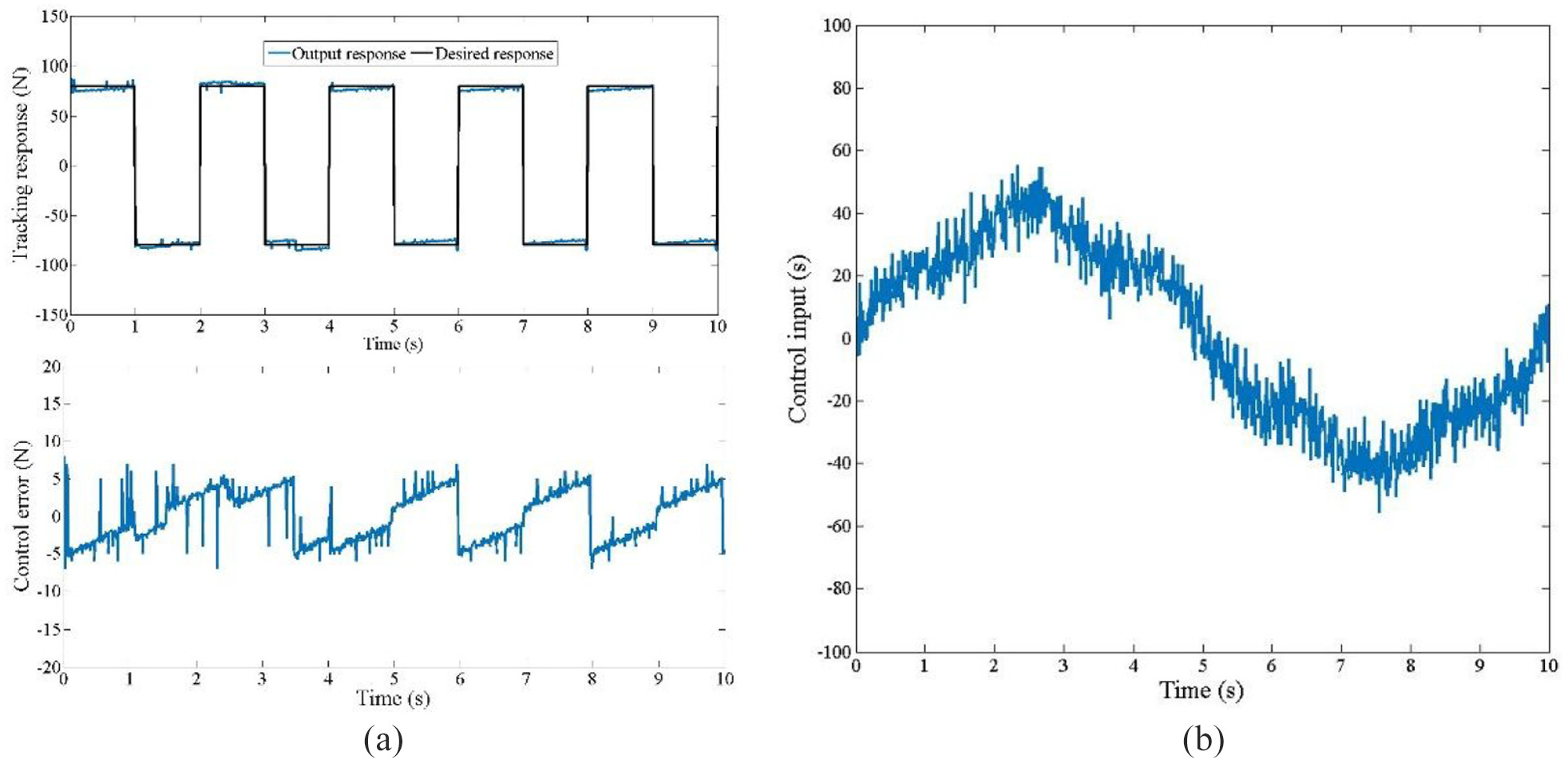

Figure 21.

Square response experiment with SMC (sat φ = 0.05): (a) control error and tracking response and (b) control input.

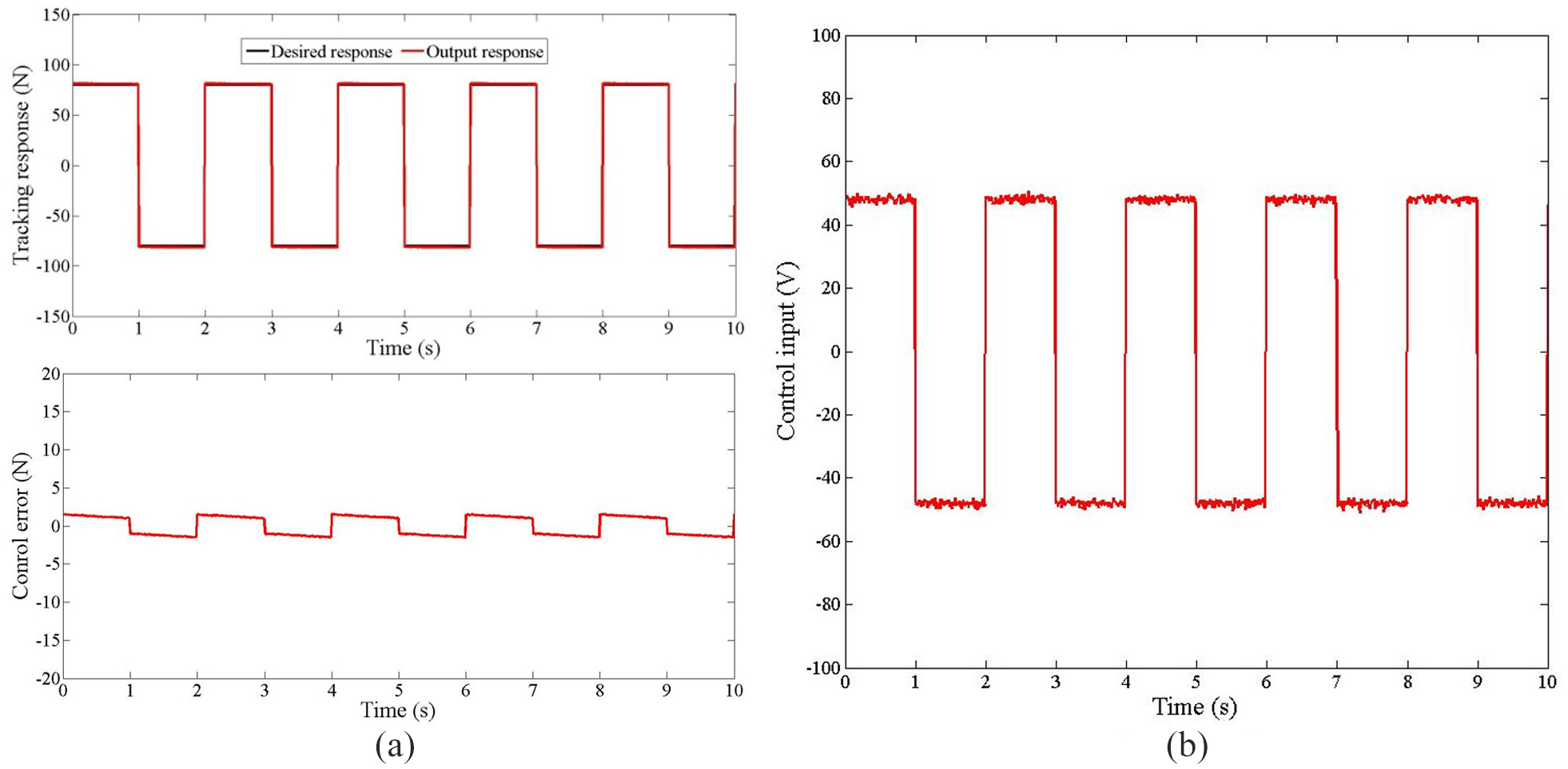

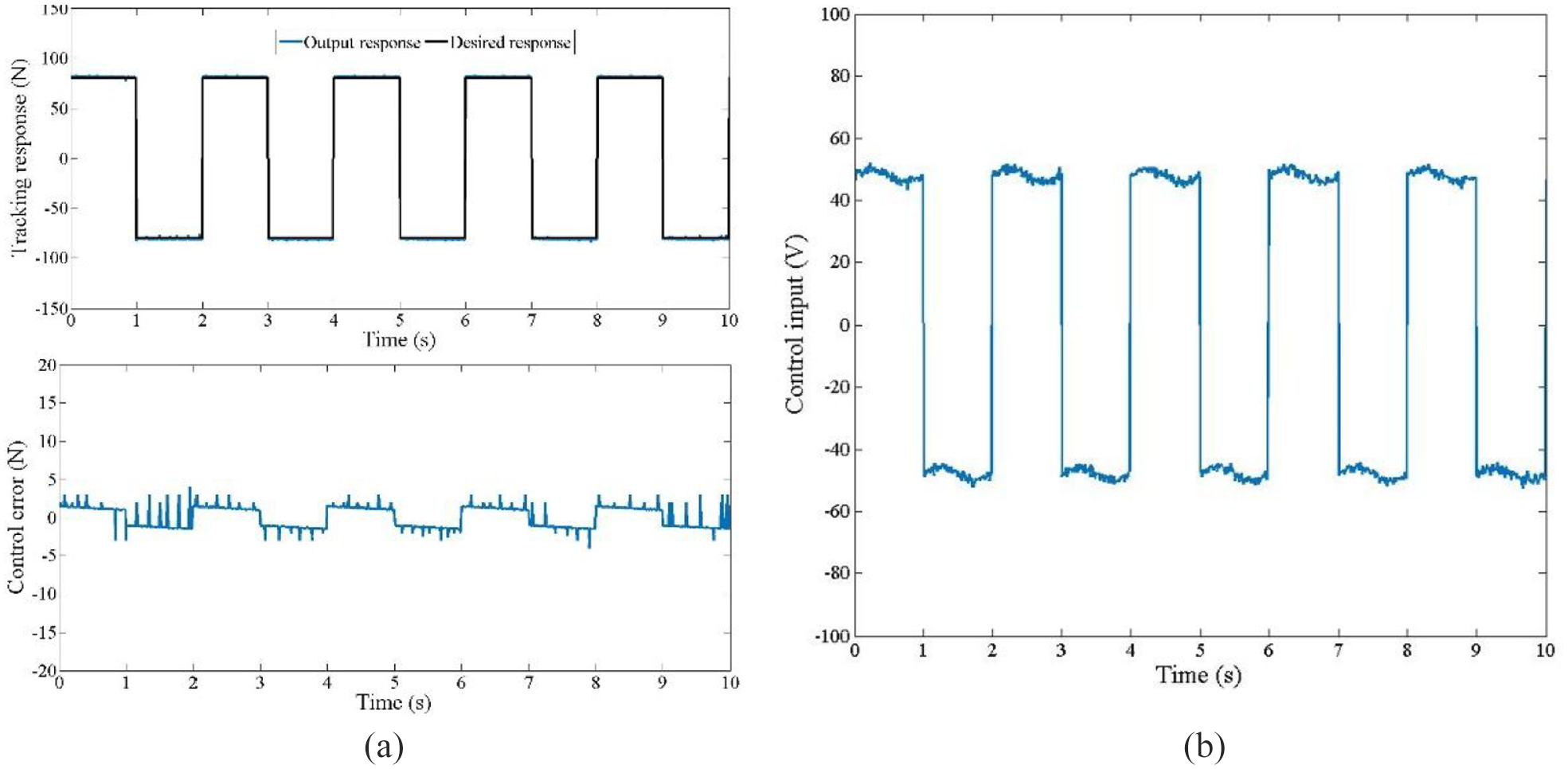

Figure 22.

Square response experiment with HGO-SMC: (a) control error and tracking response and (b) control input.

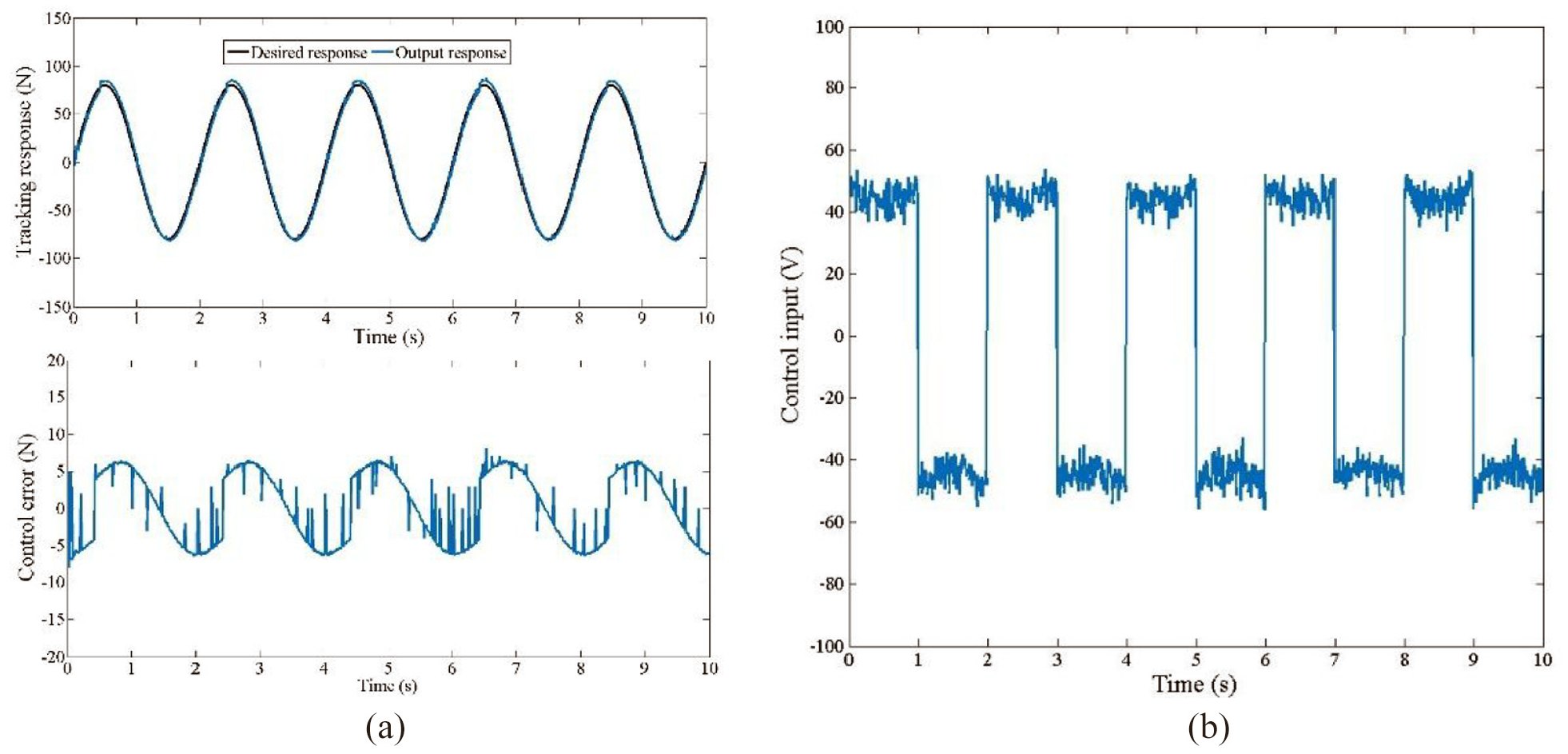

Figure 23.

Sine response experiment with PID: (a) control error and tracking response and (b) control input.

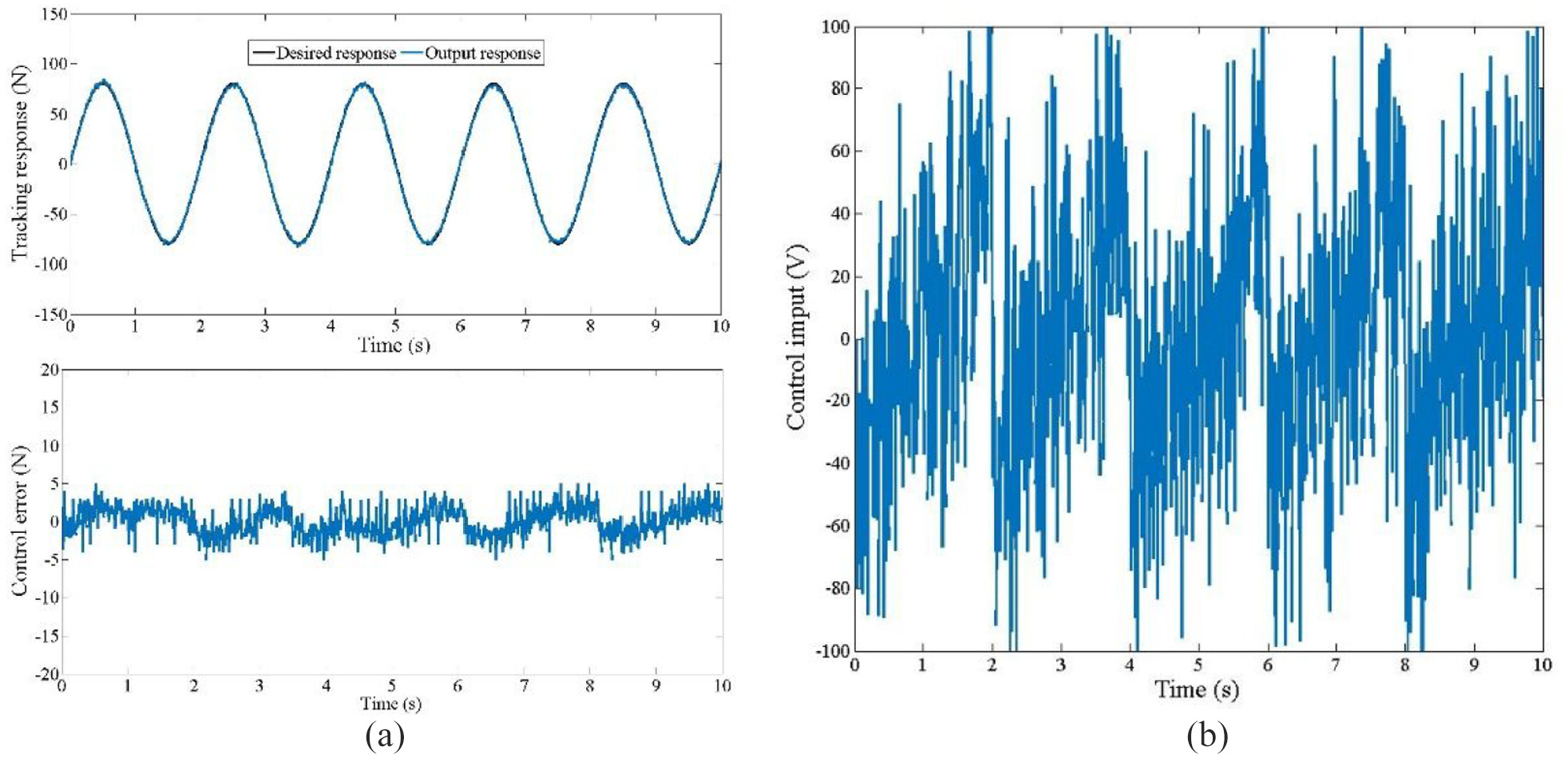

Figure 24.

Sine response experiment with SMC (sgn): (a) control error and tracking response and (b) control input.

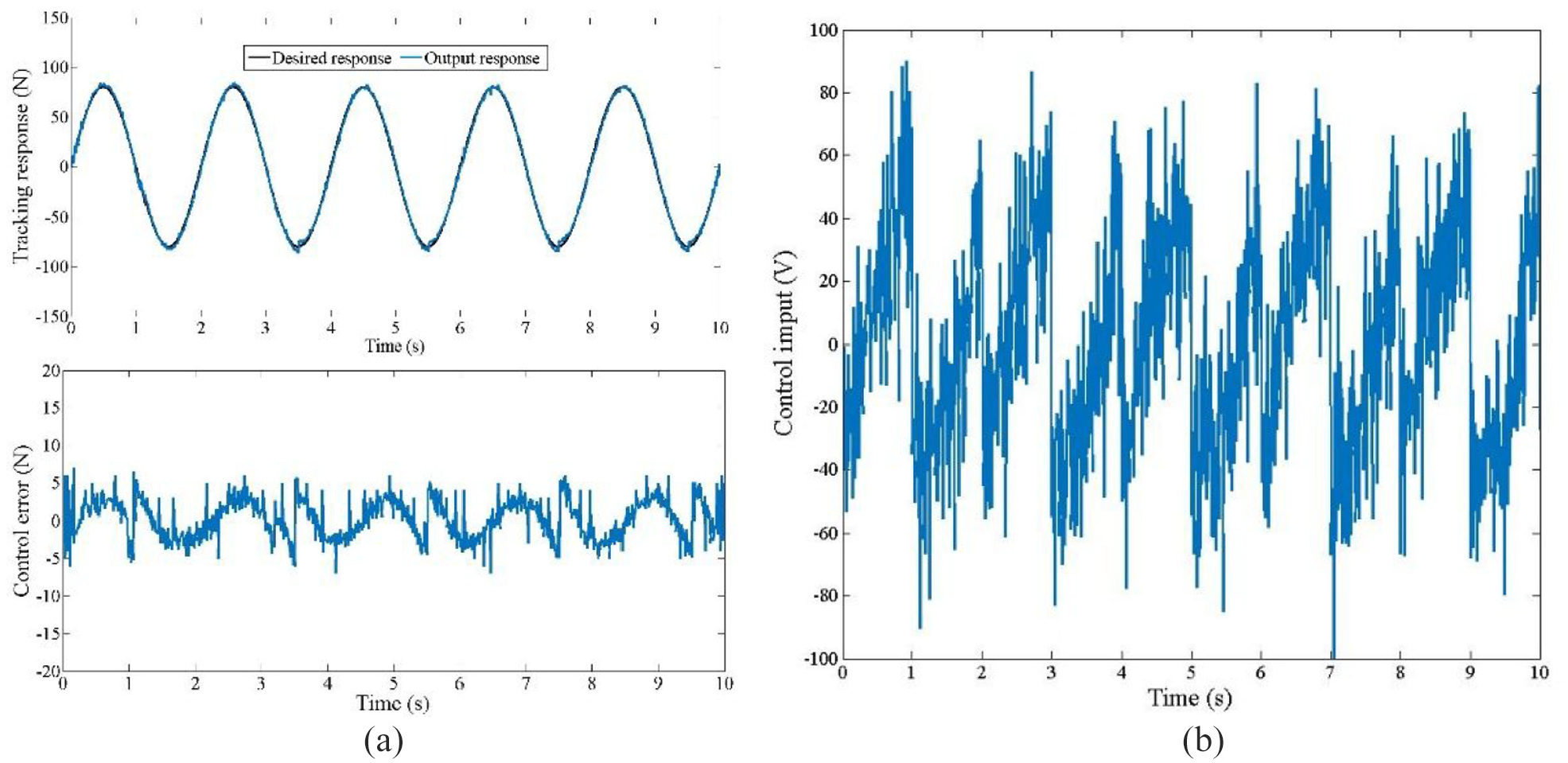

Figure 25.

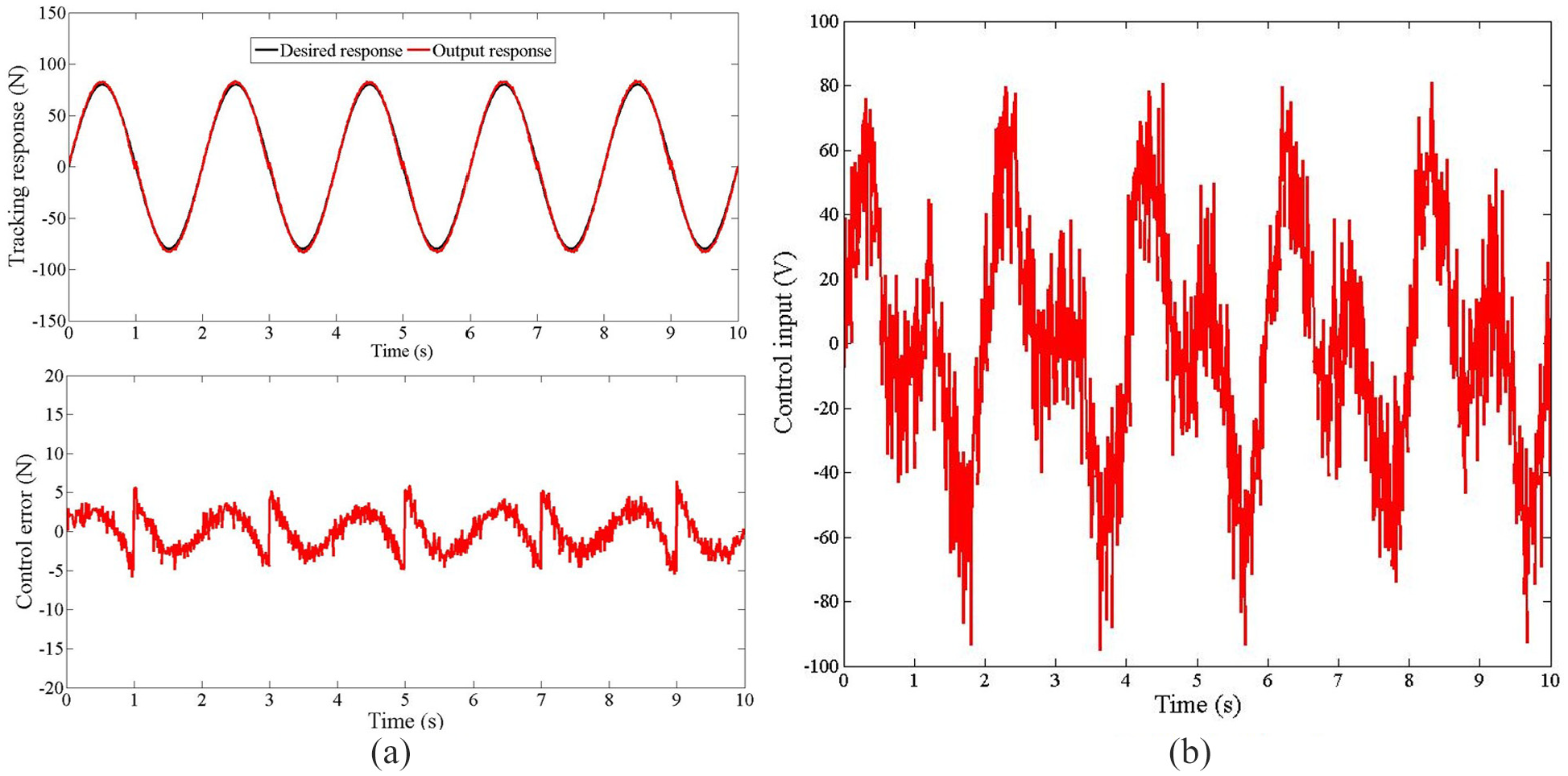

Sine response experiment with SMC (sat φ = 0.02): (a) control error and tracking response and (b) control input.

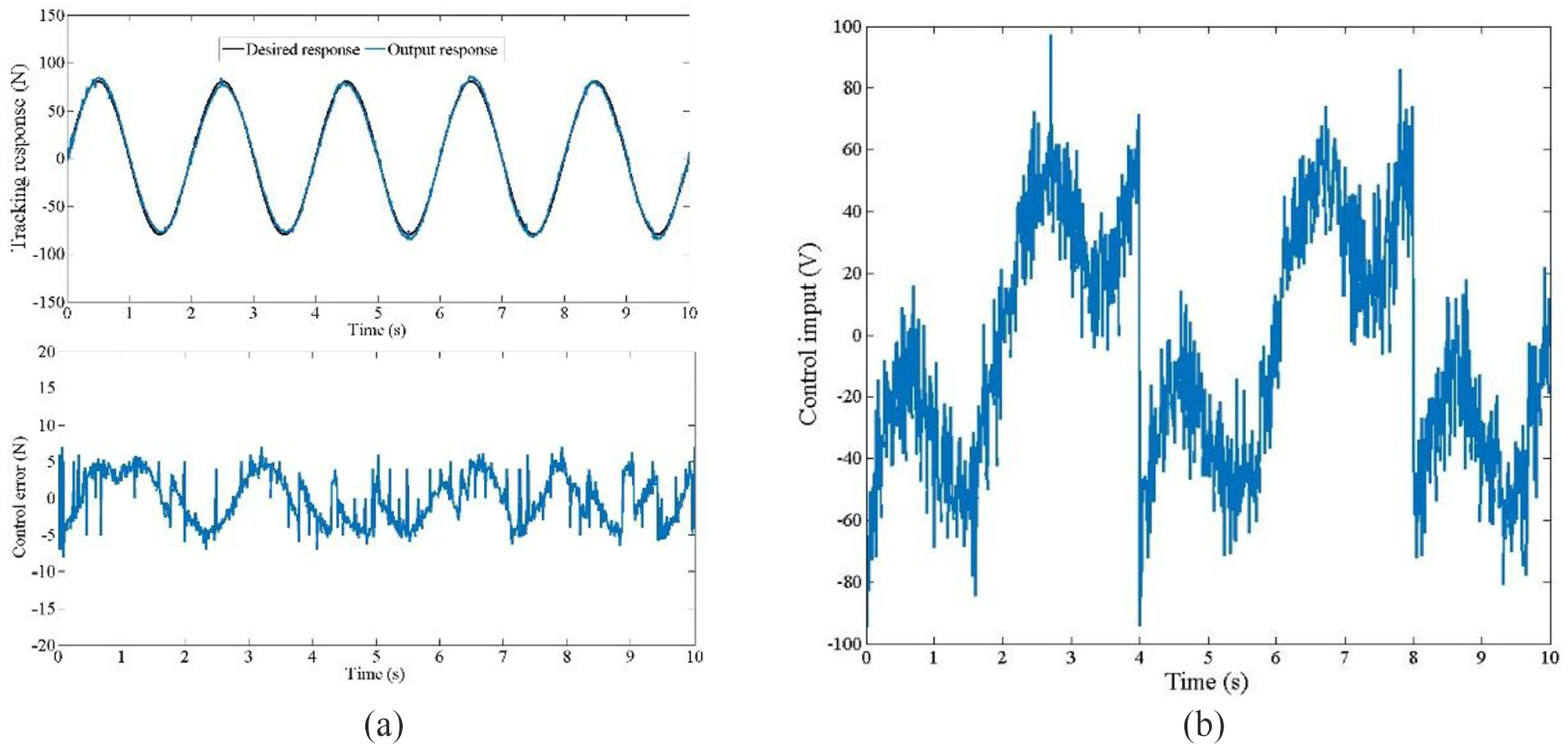

Figure 26.

Sine response experiment with SMC (sat φ = 0.05): (a) control error and tracking response and (b) control input.

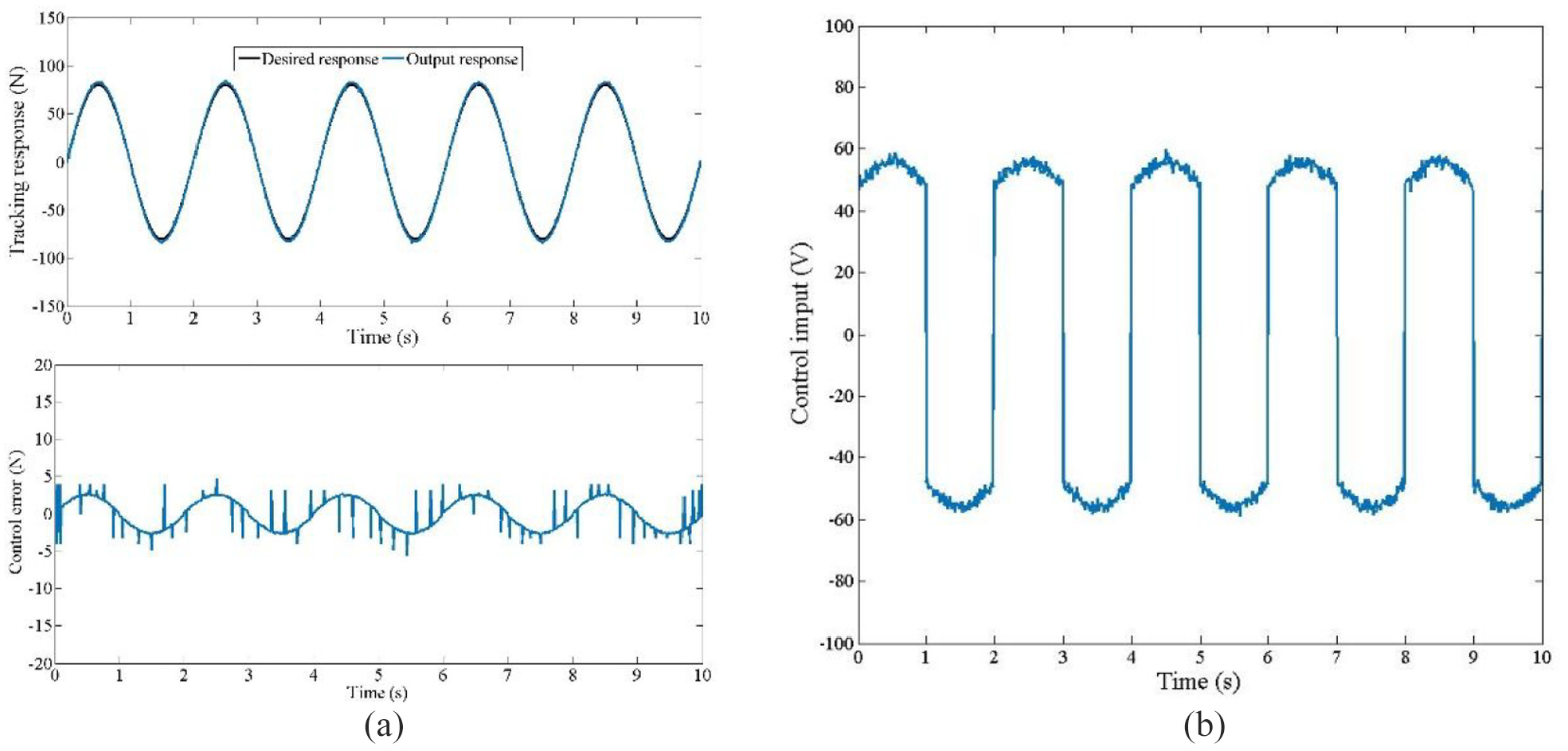

Figure 27.

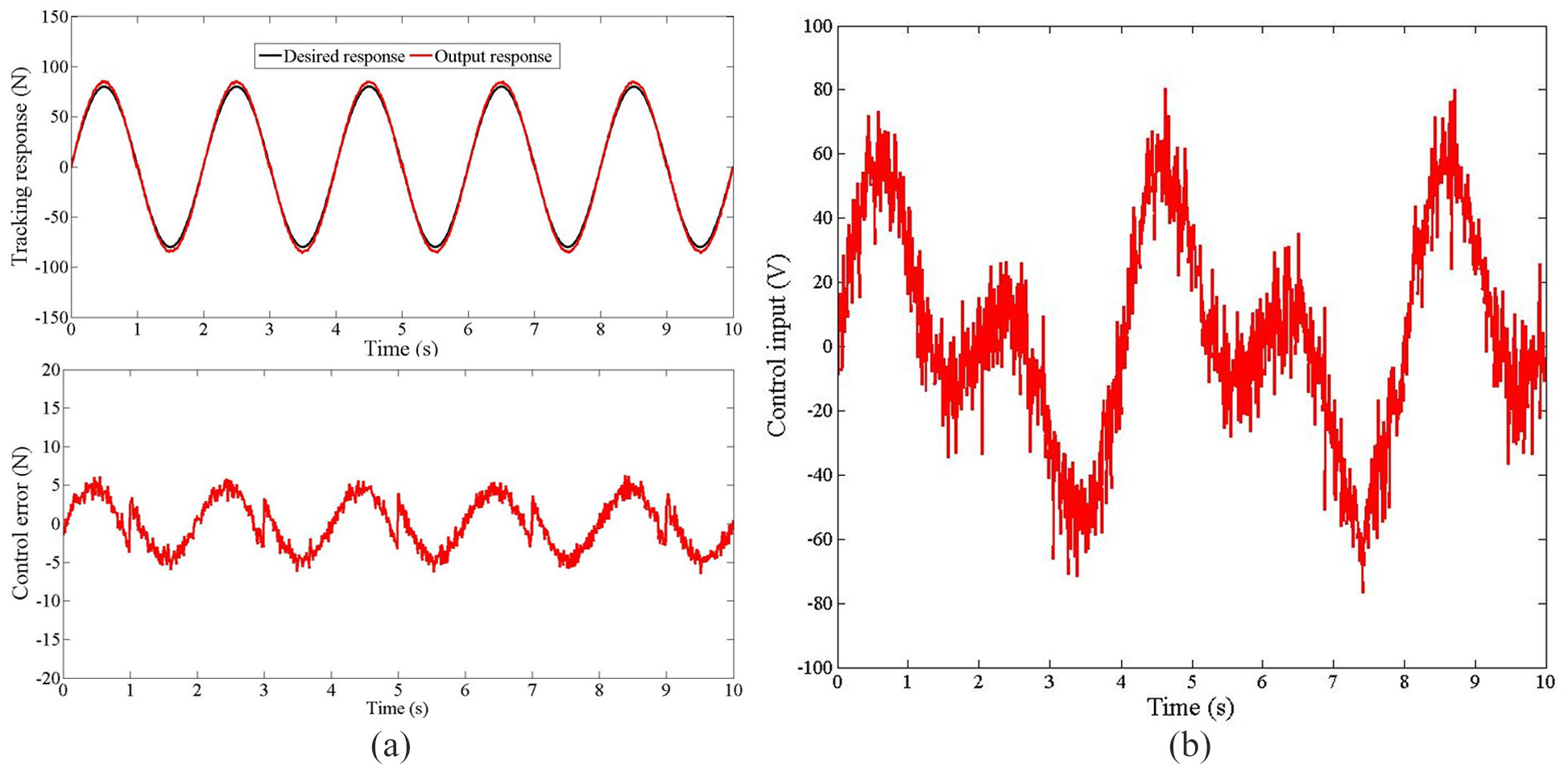

Sine response experiment with HGO-SMC: (a) control error and tracking response and (b) control input.

Figures 20 and 25 show the experimental results of square wave response and sinusoidal response of the SMC with sat(0.02) algorithm, with an average control error of 3.72 N. Figures 21 and 26 show the experimental results of square wave response and sinusoidal response of the SMC with sat(0.05) algorithm, with an average control error of 3.345 N. Figures 22 and 27 show the experimental results of square wave response and sinusoidal response of the HGO-SMC algorithm, with an average control error of 1.85 N. Compared with PID, SMC with sgn, SMC with sat(0.02), and SMC with sat(0.05), the control errors of HGO-SMC algorithm are reduced by 66.4%, 38.9%, 50.3%, and 44.7% respectively. To further verify the robustness of HGO-SMC, a 20 N interference signal was applied at t = 2.5 s. Figure 28 show that HGO-SMC has strong anti-interference ability.

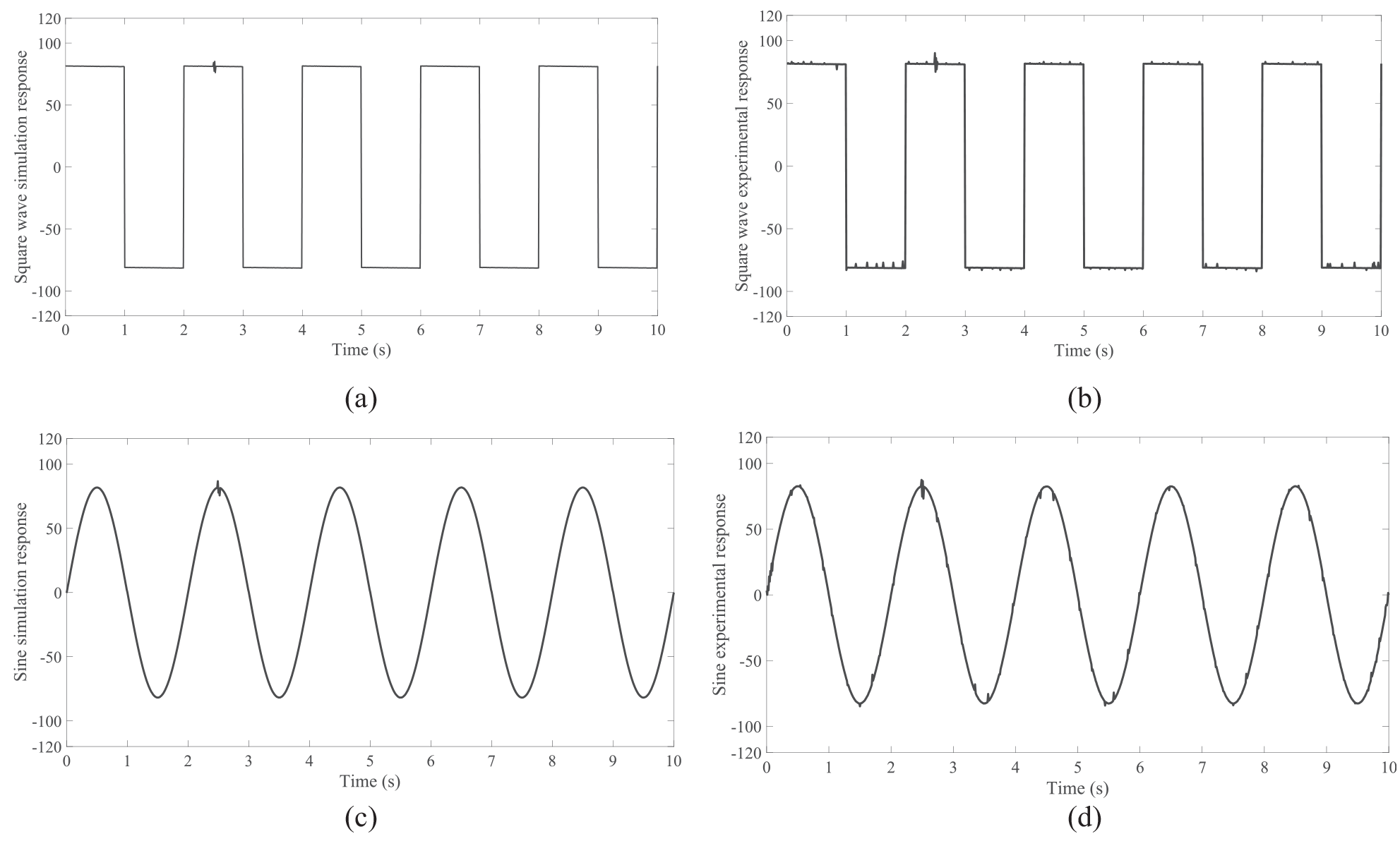

Figure 28.

HGO-SMC anti-interference verification: (a) square wave anti-interference simulation response, (b) square wave anti-interference experimental response, (c) sine anti-interference simulation response, and (d) sine anti-interference experimental response.

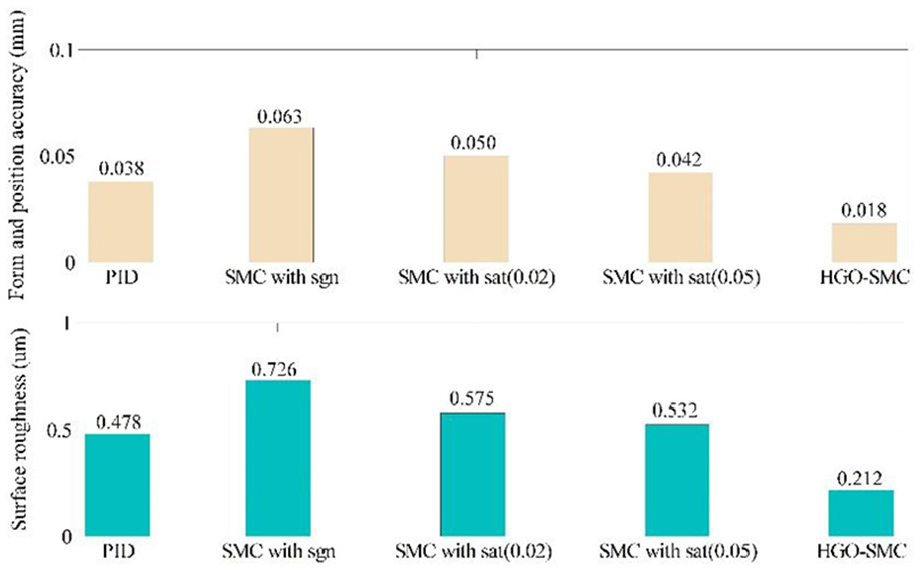

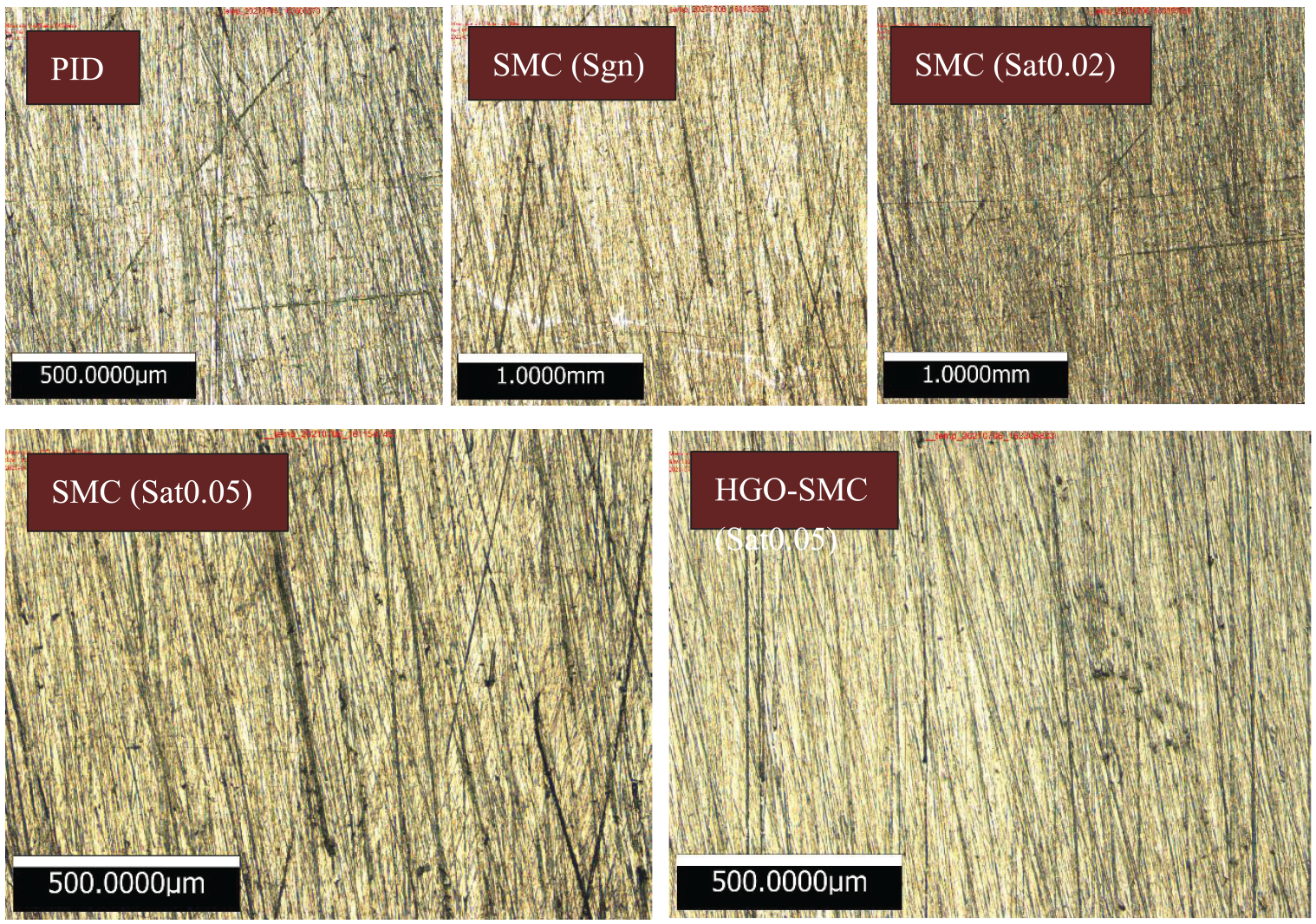

Analyzing the experimental results of square wave response and sinusoidal response, it can be found that the experimental results and simulation results of different control algorithms have the same change trend. According to the change of control error and high-frequency chattering in Tables 2 and 3, it can be seen that HGO-SMC has the best control effect.

Table 2.

Comparison of simulation results of different control algorithms.

	Response	PID	SMC			HGO-SMC
			Sgn(s)	Sat(0.02)	Sat(0.05)	HGO-SMC
Control error (N)	Square	5.24	2.26	3.22	3.84	1.33
	Sin	4.84	2.70	3.55	4.10	1.12
Chattering average (V)		2.1	12.5	9.7	6.8	2.8

Table 3.

Comparison of experimental results of different control algorithms.

	Response	PID	SMC			HGO-SMC
			Sgn(s)	Sat(0.02)	Sat(0.05)	HGO-SMC
Control error (N)	Square	5.76	3.14	3.62	4.43	1.50
	Sin	5.26	2.91	3.82	4.26	2.20
Chattering average (V)		2.6	13.4	10.4	7.7	4.3

In order to further verify the feasibility and effectiveness of HGO-SMC algorithm in the actual polishing process, different control algorithms are used for polishing experiments, and the blade surface polishing quality is observed. The power and maximum speed of the abrasive belt drive motor are 1.48 kW and 3000 r/min respectively. Linear velocity and width of abrasive belt are 9 m/s and 20 mm respectively. The surface roughness of the test piece before polishing is 0.8–1.0 μm, and the grinding depth is 0.05 mm. Hermes baes fabric, SiC abrasive, synthetic resin adhesive, and abrasive belt joint are selected to polish Ti-6Al-4V engine blades with a linear length of 800 mm and a rotary diameter of 300 mm. Abrasive belt polishing experiment of blade is shown in Figure 29.

Figure 29.

Abrasive belt polishing experiment of blade.

As shown in Figure 31(a), Infinite Focus G4 automatic zoom 3D surface measuring instrument for blade surface roughness measurement,³⁶ which can perfectly combine the topography measurement and roughness measurement in the same system, with the highest vertical resolution of 10 nm. During the roughness measurement, randomly measure five points on the blade surface and calculate the average value as the final measurement result. Micro analysis of blade surface is shown in Figure 30.

Figure 30.

Micro analysis of blade surface.

The 3D coordinate measuring machine is used to measure form and position accuracy error of the blade as shown in Figure 31(b). Divide the polished blade into five sections and measure the error of the blade profile, and the test results are obtained after scanning and data processing, as shown in Figure 32.^37,38 Three measuring points are sampled at different sections of the blade basin and back, and the normal error of the measuring points is used to represent the form and position accuracy error of the polished blade.

Figure 31.

Blade surface quality inspection equipment: (a) 3D surface measuring instrument and (b) 3D coordinate measuring machine.

Figure 32.

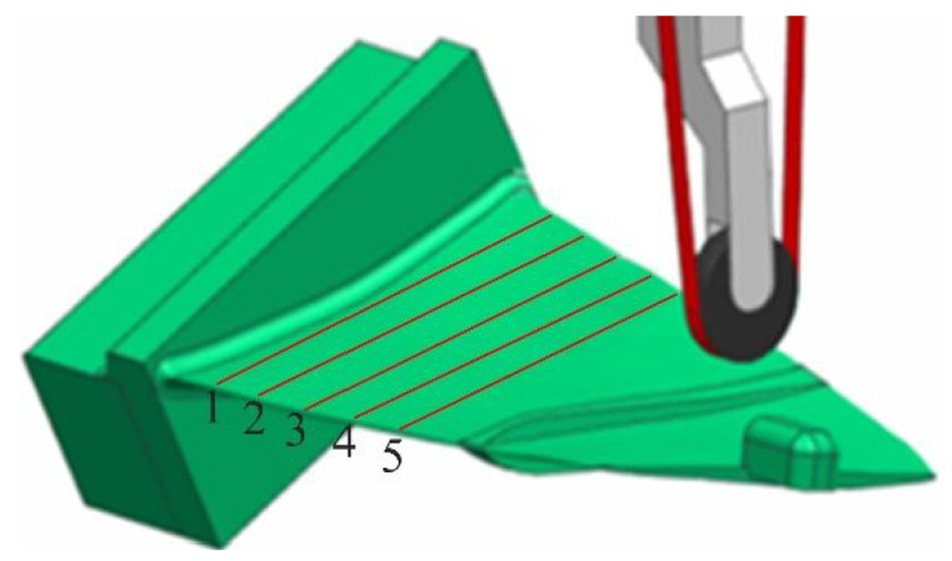

Schematic diagram of blade shape and position accuracy inspection.

The surface roughness and form and position accuracy errors of polishing experiments are shown in Figure 33. The experimental results show that the HGO-SMC algorithm can effectively reduce the surface roughness and improve the form and position accuracy, which can also ensure that the polishing force control system can control the polishing force in real time, stably and accurately.

Figure 33.

Comparison of properties of blade polishing.

Conclusion

In this paper, force analysis of polishing structure, abrasive belt-wheel and contact surface is carried out, and the prediction model of polishing force applied is established.

Analyzing the prediction model of polishing force, it can be know that the polishing force should be time-varying. Therefore, higher requirements are put forward for the control precision, robustness, and sensitivity of the polishing force controller. When the derivative of polishing force cannot be measured, a sliding mode control algorithm based on high gain observer is proposed to achieve stable control of polishing force. The high gain observer can feedback the estimated value of the first derivative to the sliding mode controller.

The simulation and experimental results show that the HGO-SMC control algorithm has stronger robustness, higher control accuracy, smaller steady-state error, and stronger interference suppression compared with PID, SMC with sgn, SMC with sat(0.02), and SMC with sat(0.05). HGO-SMC can also effectively ensure the polishing quality of the blade surface, reduce the surface roughness, and improve the form and position accuracy.

Footnotes

Handling Editor: Sharmili Pandian

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by the National Natural Science Foundation of China (Grant No.52105483); the Major Special Projects of Aero-engine and Gas Turbine (2017-VII-0002-0095).

ORCID iD

Qi Hong

References

Wan

Liu

Chang

, et al. The machining surface localization of free-form blade considering form tolerance. Int J Adv Manuf Technol 2018; 95: 4469–4483.

Wang

Zhang

, et al. A novel none once per revolution blade tip timing based blade vibration parameters identification method. Chin J Aeronaut 2020; 33: 1953–1968.

Liu

, et al. Numerical simulation of a UAV impacting engine fan blades. Chin J Aeronaut 2021; 34: 177–190.

Zhang

Wan

, et al. Tool path planning for five-axis flank milling of free-form surfaces. Int J Adv Manuf Technol 2020; 108: 73–90.

Zhu

Chen

Zhang

A novel model reconstruction strategy for polishing turbine blade based on position optimization of sectional curve. Int J Adv Manuf Technol 2022; 119: 5011–5023.

Liu

Riemer

, et al. Anhydrous based shear-thickening polishing of KDP crystal. Chin J Aeronaut 2018; 34: 90–99.

Yao

Lin

, et al. Surface integrity and fatigue behavior when turning gamma-TiAl alloy with optimized PVD-coated carbide inserts. Chin J Aeronaut 2018; 31: 826–836.

Zhang

Liu

Yang

SQ.

Trajectory planning of robot-assisted abrasive cloth wheel polishing blade based on flexible contact. Int J Adv Manuf Technol 2022; 119: 8211–8225.

Zhang

SZ.

Active disturbance rejection control for constant force control of pneumatic system. Chin Hydraul Pneum 2022; 46: 83–89. (in Chinese)

10.

Qin

ZJ.

Research on belt polishing combined with robot force/position hybrid active compliance control. Manuf Autom 2019; 41: 122–126. (in Chinese)

11.

Dong

Shi

Liu

, et al. Research of pneumatic polishing force control system based on high speed on/off with PWM controlling. Robot Comput Integr Manuf 2021; 70: 102133.

12.

Don

Ren

, et al. Contact force detection and control for robotic polishing based on joint torque sensors. Int J Adv Manuf Technol 2020; 107: 2745–2756.

13.

Ding

Zhao

Min

XP.

Impedance control and parameter optimization of surface polishing robot based on reinforcement learning. Proc IMechE, Part B: J Engineering Manufacture 2022; 237: 216–228.

14.

Wang

Zhao

, et al. Force impact suppression of contact transition state in robot grinding and polishing of industrial blades. Proc IMechE, Part C: J Mechanical Engineering Science 2022; 236: 7387–7397.

15.

Zhang

Yang

Deng

, et al. Modeling and force control of a pneumoelectric end-effector for robotic continuous contact operations. Int J Adv Manuf Technol 2022; 121: 1219–1234.

16.

Zhou

Wang

, et al. A hybrid control strategy for grinding and polishing robot based on adaptive impedance control. Adv Mech Eng 2021; 13: 16878140211004034.

17.

Ding

Min

, et al. Research and application on force control of industrial robot polishing concave curved surfaces. Proc IMechE, Part B: J Engineering Manufacture 2019; 233: 1674–1686.

18.

Fan

Hong

Zhao

, et al. The integral sliding mode control of a pneumatic force servo for the polishing process. Precis Eng 2019; 55: 154–170.

19.

Simorgh

Razminia

Shiryaev

VI.

System identification and control design of a nonlinear continuously stirred tank reactor. Math Comput Simul 2020; 173: 16–31.

20.

Pereira

RDO

Veronesi

Visioli

, et al. Implementation and test of a new autotuning method for PID controllers of TITO processes. Control Eng Pract 2017; 58: 171–185.

21.

Karami

Tavakolpour

Norouzi

Optimal nonlinear PID control of a micro-robot equipped with vibratory actuator using ant colony algorithm: simulation and experiment. J Intell Robot Syst 2020; 99: 773–796.

22.

Weng

Gao

XW.

Data-driven sliding mode control of unknown MIMO nonlinear discrete-time systems with moving PID sliding surface. J Franklin Inst 2017; 354: 6463–6502.

23.

Sharifi

Ahmadyan

Ebrahimi

Designing of incorporating fuzzy-sliding mode controller based on strategy moving sliding surface for two-link robot manipulator. J Frankl Inst 2012; 9: 3475–3480.

24.

Boiko

IM.

Chattering in sliding mode control systems with boundary layer approximation of discontinuous control. Int J Syst Sci 2013; 44: 1–8.

25.

Muhammad

Qudrat

Safeer

Maximum power extraction from a standalone photo voltaic system via neuro-adaptive arbitrary order sliding mode control strategy with high gain differentiation. Appl Sci 2022; 12: 2773.

26.

El-Sousy

FFM

. Adaptive dynamic sliding-mode control system using recurrent RBFN for high-performance induction motor servo drive. IEEE Trans Industr Inform 2013; 9: 1922–1936.

27.

Velasco

Barambones

Calvo

, et al. Sliding mode control with dynamical correction for time-delay piezoelectric actuator systems. Materials 2019; 13: 132.

28.

Ahmad

Uppal

Azam

, et al. Chattering free sliding mode control and state dependent Kalman filter design for underground gasification energy conversion process. Electronics 2023; 12: 876.

29.

Huang

Liao

Chen

, et al. The design of quasi-sliding mode control for a permanent magnet synchronous motor with unmatched uncertainties. Comput Math Appl 2012; 64: 1036–1043.

30.

Wang

Jia

Dong

A new exponential reaching law of sliding mode control to improve performance of permanent magnet synchronous motor. IEEE Trans Magn 2013; 49: 2409–2412.

31.

Luo

Zhao

, et al. Adaptive fuzzy sliding mode controller with predictive control for redundant manipulators with variable payload. J Syst Simul 2018; 30: 994–1001. (in Chinese)

32.

Chen

Zhu

Zhong

, et al. Internal model control for the AMB high-speed flywheel rotor system based on modal separation and inverse system method. IET Electr Power Appl 2019; 13: 349–358.

33.

Sun

, et al. Neural-network-based sliding-mode control for multiple rigid-body attitude tracking with inertial information completely unknown. Inf Sci 2017; 400: 91–104.

34.

Azimi

Moradi

Robust optimal solution for a smart rigid-flexible system control during multimode operational mission via actuators in combination. Multibody Syst Dyn 2021; 52: 313–337.

35.

Wang

Liu

, et al. Prediction of depth of cut for robotic belt grinding. Int J Adv Des Manuf Technol 2017; 91: 699–708.

36.

Zhu

DH.

Application of novel force control strategies to enhance robotic abrasive belt grinding quality of aero-engine blades. Chin J Aeronaut 2019; 32: 2368–2382.

37.

Huai

Shi

YY.

An adaptive flexible polishing path programming method of the blisk blade using elastic grinding tools. J Mech Sci Technol 2019; 33: 3487–3495.

38.

Chen

Zhang

DH.

Compensation for absolute positioning error of industrial robot considering the optimized measurement space. Int J Adv Robot Syst 2020; 17: 1729881420921644.
