Heat transfer analysis of Walter’s-B flow over a vertical plate by using fractional operator

Abstract

The present study deals with the unsteady Walter’s-B fluid with hybrid fractional derivative namely constant proportional Caputo type with singular kernel. In this paper, we find new analytical solutions of a well-known problem of the fluid dynamics known as Stokes’ first problem. Using dimensional variables governing equations convert into dimensionless form. To solve the model analytically, one uses the Laplace transform approach. Analytical and numerical evaluations of the inverse Laplace transform have been conducted. The influence of several embedded flow properties, including the magnetic parameter, Grashof number, dimensionless time, Prandtl number, Schmidt number, and fractional parameter is analyzed graphically. More specifically, compared to the classical model, the fractional model provides a wider range of integral curves and better represents the flow behavior. The temperature and velocity of the fluid decrease with increasing fractional parameters during short intervals of time, but exhibit the reverse pattern over longer durations. Skin friction, the Sherwood number, and the Nusselt number are numerical quantities linked to engineering that are statistically computed and provided in tabular form.

Keywords

Free convection magnetic field Walter’s-B fluid Stehfest’s algorithm Laplace transform CPC derivative

Introduction

Recent advancements have greatly expanded the understanding and modeling of non-Newtonian fluids, particularly viscoelastic fluids like Walter’s-B fluid. These fluids, characterized by their unique combination of elasticity and viscosity, are critical in various engineering and industrial applications. Researchers have extensively applied fractional calculus to capture the complex behavior of these fluids, using modern fractional derivative definitions to improve accuracy. Innovations in modeling techniques, such as the use of the constant proportional Caputo operator, have allowed for more precise simulations of heat and mass transfer under various conditions, including the presence of magnetic fields and oscillating boundaries. This study builds on these developments by investigating the transient behavior of Walter’s-B fluid with the constant proportional Caputo operator, offering new insights into the dynamics of viscoelastic fluid flow.

The method used to transfer thermal energy from one place to another is known as heat transfer. Each time there is a thermal change, heat transfer takes place; it can happen immediately, like in a saucepan, or gradually, similar to clay materials. Over time, heat transfers from a warmer to a colder state. Consequently, heated items cool to room temperature, and cold ones warm to room temperature. Continuous heat exchange keeps the same temperature across the whole system. There are three ways in which heat is carried: conduction, convection, and radiation. Convection is the process of heat moving through a fluid as a result of molecular movement.^1–5

Researchers have lately been interested in viscoelastic fluids, a subtype of non-Newtonian fluids. Perhaps for this reason, researchers are using it in many branches of engineering and science, particularly the chemical industry. Viscoelastic fluids are characterized as having both elasticity and viscosity. Many academics and industry professionals are interested in Walter’s-B fluid model, a well-known viscoelastic model that is presented by Walter’s.⁶ The flow behavior of many industrial liquids, such as paints, polymer solutions, and hydrocarbons, may be accurately predicted using the labeled fluid model. It is challenging to appropriately handle the governing equations of Walter’s-Bflow because they are substantially more nonlinear than those of Newtonian fluid flow. Additionally, the elastic properties and extensional behavior are considered in this model. The Walter’s-B fluid model has inspired several remarkable approaches which are mentioned in Ramzan et al.,⁷ Nisa et al.,⁸ and Javaherdeh et al.⁹ But from all of this research, fundamental derivatives and traditional Walter’s-B fluid models are used. Prior to now, fractional models have been used in viscoelastic materials like glassy states and polymers.¹⁰

Fractional calculus holds theintegration of functions and derivatives of non-integer order, and for this quality, the entire and generalized form of classical calculus is considered to be fractional calculus. Fractional calculus has an approximately 300-year history, but due to its abstract nature, it initially received little attention from academics and mathematicians. Fractional calculus is currently an important research field as a result of the shift over the last several decades from mathematics to various other areas. Nearly all fields of engineering, research, and industry have used fractional calculus, particularly the fractional derivative.¹¹ Abbas et al.¹² looked at the free convective non-Newtonian flows over flat, thermal surfaces as significant natural phenomenathat may also occur in many mechanical and physical situations during human-made engineering processes. The current study examines the mass and heat transfer associated with natural convection magnetohydrodynamic Jeffrey fluid flow across an infinite vertical plate. Abbas et al.¹³ used the Prabhakar operator to study the heat and mass transmission of the Brinkman fluid down a vertical conduit. Abbas et al.¹⁴ studied the biological convection flow of fractionalized second-grade liquid up a vertical conduit using Fourier and Fick’s equations Abbas et al.¹⁵ used the CaputoFabrizio derivative approach to investigate the applicability of the transfer of heat and mass to Casson fluid with convection in a microchannel. According to Abbas et al.,¹⁶ a CPC operator was used to investigate the Soret impact on MHD Casson fluid across an accelerating plate. Concerning the heat and mass transmission mechanism in carbon nanotubes, Abbas et al.¹⁷ looked into a CPC fractional model with slip effects on velocity. An analysis of fluid with fractional derivatives under active and passive control was covered by Al Agha et al.¹⁸ According to Abbas et al.,¹⁹ a second-grade ternary nanofluid with a Caputo fractional derivative was seen flowing across a vertical infinite plate.

According to Hayat et al.,²⁰ Laplace transform analysis was used to characterize the hydromagnetic oscillation flows of a second-grade spinning fluid surrounded by a permeable plate Siddheshwar and Mahabaleswar²¹ explored the viscoelastic liquid of MHD fluid and heat transport in elastic sheets with radiation and heat source. Walter’s-B flow of heat transfer properties across an unfolding non-isothermal sheet were analyzed by Ghasemi et al.²² Prakash et al.²³ examined the heat transfer properties of MHD flow over a porous material of dirty viscoelastic fluid taking into consideration the variable viscosity.

The rheological equation for viscoelastic fluids was classically modeled by Ali et al.²⁴ The viscoelastic fluid model is the most effective at explaining the intricate flow behavior of many including paints, hydrocarbons, and resin solutions. Navier-Stokes (NS) equations for Newtonian fluid flow, the Walter’s-B model creates extremely non-linear equations that are difficult to control. This model also introduces the extensional behavior of polymers as well as their elastic characteristics.²⁵ Qaiser et al.²⁶ numerically studied mixed convection flow of a Walters-B nanofluid over a stretching surface with Newtonian heating and mass transfer. Singh et al.²⁷ examined Walters’-B fluid hydromagnetic natural convection flow over a vertical surface with surface characteristics that changed over time. Mahat et al.²⁸ looked at the relationship between thermal radiation and viscous Walters’-B nanofluid flowin a cylinder with a circle under convection and continuous heat flux. Because of the way that heat and mass transfer cause porosity to stretch and contract, Anusha et al.²⁹ looked at how Navier slip affected the thermal Walter’s-B fluid. Many industrial processes involve the transfer of heat fluid. The transfer heat characteristics of Walte’s-Bflow over a vertical plate can be directly applicable to the design and optimization of heat exchangers used in industries such as chemical processing, power generation, HVAC (heating, ventilation, and air conditioning), and food processing.

Anupama et al.³⁰ looked into the impacts of heat and mass transmission by two non-Newtonian fluids (hyperbolic tangent and Walters B fluids) into the boundary layer through an upward-facing, semi-infinite porous plate. Saini et al.³¹ provided a computational study of the interplay between mixed convective, porous media, and Newtonian heating processes when Walter’s B fluid flow is electrically conducted via a nonlinear permeable stretched sheet. Ayegbusi et al.³² investigated the dynamics of micropolar – water B fluids flow simultaneously under the influence of heat radiation and Soret-Dufour processes.

The discussed literature reveals several research gaps in the field of Walter’s-B fluid studies. Notably, the fractional behavior of mathematical models has not been solved before. Furthermore, there is a lack of studies on fractional models that incorporate fractional derivatives, concentration, and magnetic effects. This gap highlights the need for comprehensive research to better understand the complex dynamics and interactions in Walter’s-B fluid under these conditions.

Inspired by previous research, this study investigates Walters-B fluid with a Caputo-Fabrizio operator under Newtonian heating in the presence of a transverse magnetic field along an oscillating vertical plate. Extending the concept of Abdullah et al.,³³ the Walters-B fluid model is formulated using constant proportional Caputo fractional derivatives. The classical model is transformed into a dimensionless form and further into a fractional model using modern fractional derivative definitions. Analytical solutions to the governing equations are obtained via the Laplace transform method, satisfying all initial and boundary conditions. Verified results are achieved through Stehfest’s and Tzou’s numerical methods for inverse Laplace. The study examines the effects of various parameters, including the order of constant proportional, mass, Caputo fractional order, Grashof numbers, Prandtl parameter, and magnetic number using Mathcad software.

Novelties:

Introduction of a novel CPC fractional derivative model for Walters-B fluid flow, enhanced with a power law kernel.

Analytical solutions using the Laplace transform method for accurate fluid behavior representation.

Comprehensive parametric analysis linking theoretical findings with practical engineering applications, such as skin friction, Sherwood number, and Nusselt number calculations.

Formulation of problem

Assumptions of the present Walter’s-B fluid model:

The flow has one dimension and is unidirectional.

The heat dissipation is ignored.

The flow is incompressible.

Plate is considered of infinite length.

Non-Newtonian and free convective flow

Strong magnetic field $B_{o}$ operates in a transverse direction to the direction of flow.

The MHD convectional free flow of a Walter’s-B liquid moving over a vertical plate is described as incompressible and unstable in the problem description. The plate is parallel to the x^*-axis, whereas the y^*-axis is perpendicular to it. The liquids and plate initially stay stationary at a constant concentration $Φ_{\infty}$ and a temperature $Θ_{\infty} . Φ_{w} and Θ_{w}$ are the respective temperature and concentration levels that increase after starting $(t^{★} = 0^{+})$ as shown in Figure 1.³³

Figure 1.

Flow geometry.

Governing equations are^34,35

\begin{matrix} ρ \frac{\partial w^{★}}{\partial t^{★}} = μ \frac{\partial^{2} w^{★}}{\partial y^{★ 2}} - β \frac{\partial^{3} w^{★}}{\partial t^{★} \partial y^{★ 2}} - σ B_{o} w^{★} + ρ g β_{T} (Θ - Θ_{\infty}) \\ + ρ g β_{c} (Φ - Φ_{\infty}), \end{matrix}

(1)

ρ C_{p} \frac{\partial Θ}{\partial t^{★}} = K \frac{\partial^{2} Θ}{\partial y^{★ 2}},

(2)

\frac{\partial Φ}{\partial t^{★}} = D \frac{\partial^{2} Φ}{\partial y^{★ 2}},

(3)

subject to IBCs³⁴

w^{★} (y^{★}, 0) = 0, Θ (y^{★}, 0) = Θ_{\infty}, Φ (y^{★}, 0) = Φ_{\infty},

(4)

w (0, t^{★}) = U_{0} H (t^{★}), Θ (0, t^{★}) = Θ_{s}, Φ (0, t^{★}) = Φ_{s},

(5)

\begin{matrix} w^{★} (y^{★}, t^{★}) \to 0, Θ (y^{★}, t^{★}) \to Θ_{\infty}, Φ (y^{★}, t^{★}) \to Φ_{\infty}, \\ as y^{★} \to \infty . \end{matrix}

(6)

using variables that are not dimensional³⁴

\begin{matrix} U_{ND} = \frac{w^{★}}{U_{0}}, τ = \frac{U_{o}^{2} t^{★}}{ν}, ξ = \frac{U_{o} y^{★}}{ν}, θ = \frac{Θ - Θ_{\infty}}{Θ_{s} - Θ_{\infty}}, \\ ϕ = \frac{Φ - Φ_{\infty}}{Φ_{s} - c_{\infty}} . \end{matrix}

(7)

Using equation (7), we obtain the dimensionless equations and conditions

\frac{\partial U_{ND}}{\partial τ} = \frac{\partial^{2} U_{ND}}{\partial ξ^{2}} - β_{o} \frac{\partial^{3} U_{ND}}{\partial τ \partial ξ^{2}} + Gr θ + Gm ϕ - F U_{ND},

(8)

\frac{\partial θ}{\partial τ} = \frac{1}{\Pr} \frac{\partial^{2} θ}{\partial ξ^{2}},

(9)

\frac{\partial ϕ}{\partial τ} = \frac{1}{Sc} \frac{\partial^{2} ϕ}{\partial ξ^{2}},

(10)

U_{ND} = 0, θ = 0, ϕ = 0,

(11)

U_{ND} = H (τ), θ = 1, ϕ = 1,

(12)

U_{ND} \to 0, θ \to 0, ϕ \to 0, as ξ \to \infty .

(13)

where the unit step function = $H (τ), β_{o} = \frac{B_{o} u_{o}^{2}}{ρ ν^{2}}$ is the Walter’s-B flow parameter, $Gm = \frac{ν g β_{c} (C_{s} - C_{\infty})}{u_{o}^{3}}$ is the mass Grashof number, $Gr = \frac{ν g β_{T} (T_{s} - T_{\infty})}{u_{o}^{3}}$ is the thermal Grashof number, $F = \frac{ν σ B_{o}^{2}}{ρ u_{o}^{2}}$ is the magnetic force, $Sc = \frac{ν}{D}$ is the Schmidt number, and $\Pr = \frac{μ C_{p}}{k}$ is the Prandtl number.

Solution of fractional model

Fractional thermal diffusion

Thermal balance equation

ρ C_{p} \frac{\partial Θ}{\partial t^{★}} = - \frac{\partial B (y^{★}, t^{★})}{\partial y^{★}},

(14)

using Fourier’s law³⁶

B (y^{★}, t^{★}) = - K_{β} {{}^{CPC}D}_{t}^{β} [\frac{\partial Θ}{\partial y^{★}}], 0 < β \leq 1 .

(15)

Equation (14), with equation (15) substituted, and the dimensionless connection from equation (7) are obtained

\frac{\partial θ}{\partial τ} = \frac{1}{\Pr} {{}^{CPC}D}_{t}^{β} [\frac{\partial^{2} θ}{\partial ξ^{2}}], 0 < β \leq 1 .

(16)

Equation (16) solved by applying the Laplace transform technique

\frac{d^{2} \bar{θ}}{d ξ^{2}} - \frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]} \bar{θ} = 0 .

(17)

Equation (17) solution subject to condition

\bar{θ} (0, s) = \frac{1}{s}, \bar{θ} (\infty, s) = 0 .

(18)

The energy solution for equation (17) is written in the form:

\bar{θ} (ξ, s) = c_{1} e^{- \sqrt{\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]}} ξ} + c_{2} e^{\sqrt{\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]}} ξ} .

(19)

Equation (19) is the temperature solution that satisfies the necessary boundary constraints in equation (18)

\bar{θ} (ξ, s) = \frac{1}{s} e^{- \sqrt{\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]}} ξ} .

(20)

In suitable form

\begin{matrix} \bar{θ} (ξ, s) = \frac{1}{s} + \sum_{m = 1}^{\infty} \sum_{n = 0}^{\infty} \frac{{(- \sqrt{\Pr} ξ)}^{m} {[K_{1} (β)]}^{n} Γ (\frac{m}{2} + 1)}{m! n! {[K_{o} (β)]}^{n - \frac{m}{2}} s^{1 - \frac{β m}{2} + n} Γ (\frac{m}{2} + 1 - n)} . \end{matrix}

(21)

Inverting Laplace transform on above equation, we get

\begin{matrix} θ (ξ, τ) = 1 \\ + \sum_{m = 1}^{\infty} \sum_{n = 0}^{\infty} \frac{{(- \sqrt{\Pr} ξ)}^{m} {[K_{1} (β)]}^{n} τ^{- \frac{β m}{2} + n} Γ (\frac{m}{2} + 1)}{m! n! {[K_{o} (β)]}^{n - \frac{m}{2}} Γ (\frac{m}{2} + 1 - n) Γ (1 - \frac{β m}{2} + n)} . \end{matrix}

(22)

Fractional concentration

The equation of concentration is

\frac{\partial Φ}{\partial t^{★}} = - \frac{\partial Z (y^{★}, t^{★})}{\partial y^{★}},

(23)

using Fick’s law³⁷

Z (y^{★}, t^{★}) = - D_{γ} {{}^{CPC}D}_{t}^{γ} [\frac{\partial Φ}{\partial y^{★}}], 0 < γ \leq 1 .

(24)

Substituting equation (24) in equation (23), and using dimensionless relation from equation (7), we get

Sc \frac{\partial ϕ}{\partial τ} = {{}^{CPC}D}_{t}^{γ} [\frac{\partial^{2} ϕ}{\partial ξ^{2}}], 0 < γ \leq 1 .

(25)

Applying Laplace transform on above equation, we get

\frac{d^{2} \bar{ϕ} (ξ, τ)}{d ξ^{2}} - \frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]} \bar{ϕ} (ξ, s) = 0 .

(26)

Satisfy

\bar{ϕ} (0, s) = \frac{1}{s}, \bar{ϕ} (\infty, s) = 0,

(27)

The mass solution for equation (26) is written in the form:

\bar{ϕ} (ξ, s) = c_{1} e^{- \sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (γ)}{s} + K_{o} (γ)]}} ξ} + c_{2} e^{\sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (γ)}{s} + K_{o} (γ)]}} ξ} .

(28)

This expression represents the concentration solution of equation (28) that satisfies the boundary conditions of equation (27)

\bar{ϕ} (ξ, s) = \frac{1}{s} e^{- \sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (γ)}{s} + K_{o} (γ)]}} ξ} .

(29)

In suitable form

\begin{matrix} \bar{ϕ} (ξ, s) = \frac{1}{s} + \sum_{m = 1}^{\infty} \sum_{n = 0}^{\infty} \frac{{(- \sqrt{Sc} ξ)}^{m} {[K_{1} (γ)]}^{n} Γ (\frac{m}{2} + 1)}{m! n! {[K_{o} (γ)]}^{n - \frac{m}{2}} s^{1 - \frac{γ m}{2} + n} Γ (\frac{m}{2} + 1 - n)} . \end{matrix}

(30)

Taking inverse Laplace transform on both sides

\begin{matrix} ϕ (ξ, τ) = 1 \\ + \sum_{m = 1}^{\infty} \sum_{n = 0}^{\infty} \frac{{(- \sqrt{Sc} ξ)}^{m} {[K_{1} (γ)]}^{n} τ^{- \frac{β m}{2} + n} Γ (\frac{m}{2} + 1)}{m! n! {[K_{o} (γ)]}^{n - \frac{m}{2}} Γ (\frac{m}{2} + 1 - n) Γ (1 - \frac{γ m}{2} + n)} . \end{matrix}

(31)

Fractional velocity

Momentum equation Walter’s-B fluid containing the concentration and temperature term is given

\begin{matrix} ρ \frac{\partial w^{★}}{\partial t^{★}} = \frac{\partial N (y^{★}, t^{★})}{\partial y^{★}} - β_{o} \frac{\partial^{3} w^{★}}{\partial t^{★} \partial y^{★ 2}} - σ B_{o} w^{★} \\ + ρ g β_{T} (Θ - Θ_{\infty}) + ρ g β_{c} (Φ - Φ_{\infty}), \end{matrix}

(32)

where

N (y^{★}, t^{★}) = μ \frac{\partial w^{★}}{\partial y^{★}} .

(33)

Using dimensionless relation given equation (7) in equation (32), we have

\frac{\partial U_{ND}}{\partial τ} = \frac{\partial^{2} U_{ND}}{\partial ξ^{2}} - β_{o} \frac{\partial^{3} U_{ND}}{\partial τ \partial ξ^{2}} + Gr θ + Gm ϕ - F U_{ND},

(34)

Taking Laplace transform on above equation, we get

\begin{matrix} \frac{d^{2} {\bar{U}}_{ND} (ξ, s)}{d ξ^{2}} - \frac{(s + F)}{(1 - β_{o} s)} {\bar{U}}_{ND} (ξ, s) = - \frac{Gr}{(1 - β_{o} s)} \bar{θ} (ξ, s) \\ - \frac{Gm}{(1 - β_{o} s)} \bar{ϕ} (ξ, s) . \end{matrix}

(35)

Solution of equation (35) subject to condition

{\bar{U}}_{ND} (0, s) = \frac{1}{s}, {\bar{U}}_{ND} (\infty, s) = 0,

(36)

The solution for the velocity fractional differential equation (35), together with $\bar{θ} (ξ, s)$ and $\bar{ϕ} (ξ, s)$ are taken from equations (20) and (29), is written as:

\begin{matrix} {\bar{U}}_{ND} (ξ, s) = c_{5} e^{- \sqrt{\frac{(s + F)}{(1 - β_{o} s)}} ξ} + c_{6} e^{\sqrt{\frac{(s + F)}{(1 - β_{o} s)}} ξ} \\ + \frac{Gr}{(1 - β_{o} s)} \frac{1}{[\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]} - \frac{(s + F)}{(1 - β_{o} s)}]} \cdot [- \frac{e^{- \sqrt{\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]}} ξ}}{s}] \\ + \frac{Gm}{(1 - β_{o} s)} \frac{1}{[\frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]} - \frac{(s + F)}{(1 - β_{o} s)}]} \cdot [- \frac{e^{- \sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]}} ξ}}{s}] . \end{matrix}

(37)

This expression provides the velocity solution of equation (37) that satisfies the boundary conditions of equation (36)

\begin{matrix} {\bar{U}}_{ND} (ξ, s) = \frac{1}{s} e^{- \sqrt{\frac{(s + F)}{(1 - β_{o} s)}} ξ} \\ + \frac{Gr}{(1 - β_{o} s)} \frac{1}{[\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]} - \frac{(s + F)}{(1 - β_{o} s)}]} \cdot [\frac{e^{- \sqrt{\frac{(s + F)}{(1 - β_{o} s)}} ξ}}{s} - \frac{e^{- \sqrt{\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]}} ξ}}{s}] \\ + \frac{Gm}{(1 - β_{o} s)} \frac{1}{[\frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]} - \frac{(s + F)}{(1 - β_{o} s)}]} \cdot [\frac{e^{- \sqrt{\frac{(s + F)}{(1 - β_{o} s)}} ξ}}{s} - \frac{e^{- \sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]}} ξ}}{s}] . \end{matrix}

(38)

Due to the complexity of inverting equation (38), Tzou’s and Stehfest’s algorithms were employed to recover the velocity field from its transformed state. The resulting inversion is presented in Figure 2.

Figure 2.

Inversion velocity with Stehfest’s and Tzous’s algorithm.

Result and discussion

The present study highlights various significant results concerning the behavior of Walter-B fluid under the influence of different parameters. The interpretations and results of the study are presented below with a focus on improving the clarity and depth of the analysis.

Grashof Number (Gr) and modified Grashof Number (Gm)

The Grashof number is crucial as it illustrates the balance between buoyant forces due to spatial variations and viscous resistance forces within the fluid. Figures 3 and 4 show velocity distributions for various values of Gr and Gm. As both Gr and Gm increase, buoyancy effects become more pronounced, resulting in higher fluid velocity. This indicates that thermal buoyancy significantly impacts the momentum of the fluid flow.

Figure 3.

Velocity distribution of some value of Gr.

Figure 4.

Velocity distribution of some value of Gm.

Prandtl Number (Pr)

The dimensionless Prandtl number represents the ratio of momentum diffusivity to thermal diffusivity, effectively indicating the relative thicknesses of the thermal and velocity boundary layers. As shown in Figure 5, higher Pr values correspond to a thicker velocity boundary layer compared to the thermal boundary layer, leading to reduced fluid velocity. This behavior demonstrates that fluids with higher Prandtl numbers resist thermal diffusion more effectively, which in turn influences the flow velocity.

Figure 5.

Velocity distribution of some value of Pr.

Schmidt number (Sc)

The Schmidt number (Sc) is indicative of the ratio of viscous forces to mass diffusivity. In Figure 6, an increase in Sc results in decreased fluid velocity, as higher Schmidt numbers enhance viscous effects, thereby reducing the velocity profile. This finding is crucial for understanding mass transfer processes in fluid flows, especially in applications involving chemical species transport.

Figure 6.

Velocity distribution of some value of Sc.

Walters-B fluid parameter ( $β_{o}$ )

Figure 7 illustrates the effect of the Walter’s-B fluid parameter on velocity. As the value of $β_{o}$ increases, the velocity field diminishes. This parameter characterizes the non-Newtonian behavior of the fluid, indicating that higher values of $β_{o}$ enhance the fluid’s resistance to deformation, thus reducing the flow velocity.

Figure 7.

Velocity distribution of some value of $β_{o}$ .

Magnetic parameter (M)

The influence of the magnetic parameter (M) on fluid velocity is depicted in Figure 8. Increasing M strengthens the Lorentz force, which opposes the fluid motion and consequently reduces the velocity. This phenomenon is significant in magnetohydrodynamic (MHD) applications where magnetic fields are used to control fluid flow.

Figure 8.

Velocity distribution of some value of F.

Constant proportional caputo (CPC) operator

The impact of the CPC operator on velocity and temperature profiles is illustrated in Figures 9 –11. Increases in the CPC fractional derivative parameter result in decreased fluid velocity and temperature. This behavior suggests that the CPC operator introduces memory effects into the fluids response, affecting both momentum and thermal diffusion.

Figure 9.

Velocity distribution of some value of fractional parameter.

Figure 10.

Temperature distribution of some value of fractional parameter.

Figure 11.

Concentration distribution of some value of fractional parameter.

Temperature distribution and Prandtl number (Pr)

The temperature distribution for different Prandtl numbers is shown in Figure 12. As Pr increases, the rate of thermal diffusion across the boundary layer slows down, leading to a decrease in temperature distribution. This finding is essential for designing thermal systems where precise temperature control is required.

Figure 12.

Temperature distribution of some value of Pr.

Concentration profile and Schmidt number (Sc)

Figure 13 presents the effects of the Schmidt number on the concentration profile. An increase in Sc leads to a decrease in mass concentration, which can be attributed to enhanced viscous forces that limit the spread of the solute.

Figure 13.

Concentration distribution of some value of Sc.

Validation of inversion algorithms

Figure 2 validates the effectiveness of the Stehfest and Tzou algorithms for inverting the Laplace transforms, demonstrating their reliability in analyzing velocity distributions.

The study reveals several important insights into the behavior ofWalters-B fluid under various physical and fractional parameters. Enhancing the presentation of these results involves clearer graphical representations and more detailed explanations of the underlying physical phenomena. These improvements will aid in better understanding and application of the findings in practical scenarios such as biomedical engineering, petroleum extraction, cooling systems, polymer processing, and environmental engineering.

When a unit step function is applied to the flow of Walter’s-B fluid under unsteady conditions, it introduces a sudden perturbation that allows for the analysis of the fluid’s transient response. This includes observing the overshoot, settling time, and the time to reach a new steady state, highlighting the memory effects captured by fractional derivatives, which offer a more accurate depiction of the fluid’s dynamic behavior compared to ordinary derivatives.

Physical significance of parameters

Unit step function

Time $(t)$ : Represents the moment of change in the system, switching from 0 to 1 at $t = 0$ .

Step value $u (t)$ : Indicates the activation of a process, transitioning from off (0) to on (1) at a specific time.

Walters-B fluid

Shear rate $(\overset{\cdot}{γ})$ : Influences the fluids viscous and elastic responses, representing the deformation rate.

Relaxation time $(λ)$ : Measures the fluid’s time to recover after deformation, indicating elasticity.

Viscosity $(η)$ : Represents the fluids resistance to flow, varying with shear rate.

Elastic modulus $(G)$ : Indicates the fluid’s ability to store and release elastic energy.

Unsteady state

Time $(t)$ : Key variable representing the changing nature of system properties.

Velocity field $(v (t))$ : Shows how the fluids speed and direction change over time.

Pressure field $(p (t))$ : Reflects the dynamic distribution of pressure within the fluid over time.

Temperature field $(T (t))$ : Indicates the variation of temperature in the fluid over time due to heat transfer processes.

Physical values for rheological parameters in Walter’s-B fluid (Hypothetical)

Since Walter’s-B fluid is a fictional material, we can’t definitively assign specific physical values. However, based on the context of heat transfer analysis over a vertical plate and the use of fractional calculus, here are some possible ranges for its rheological parameters:

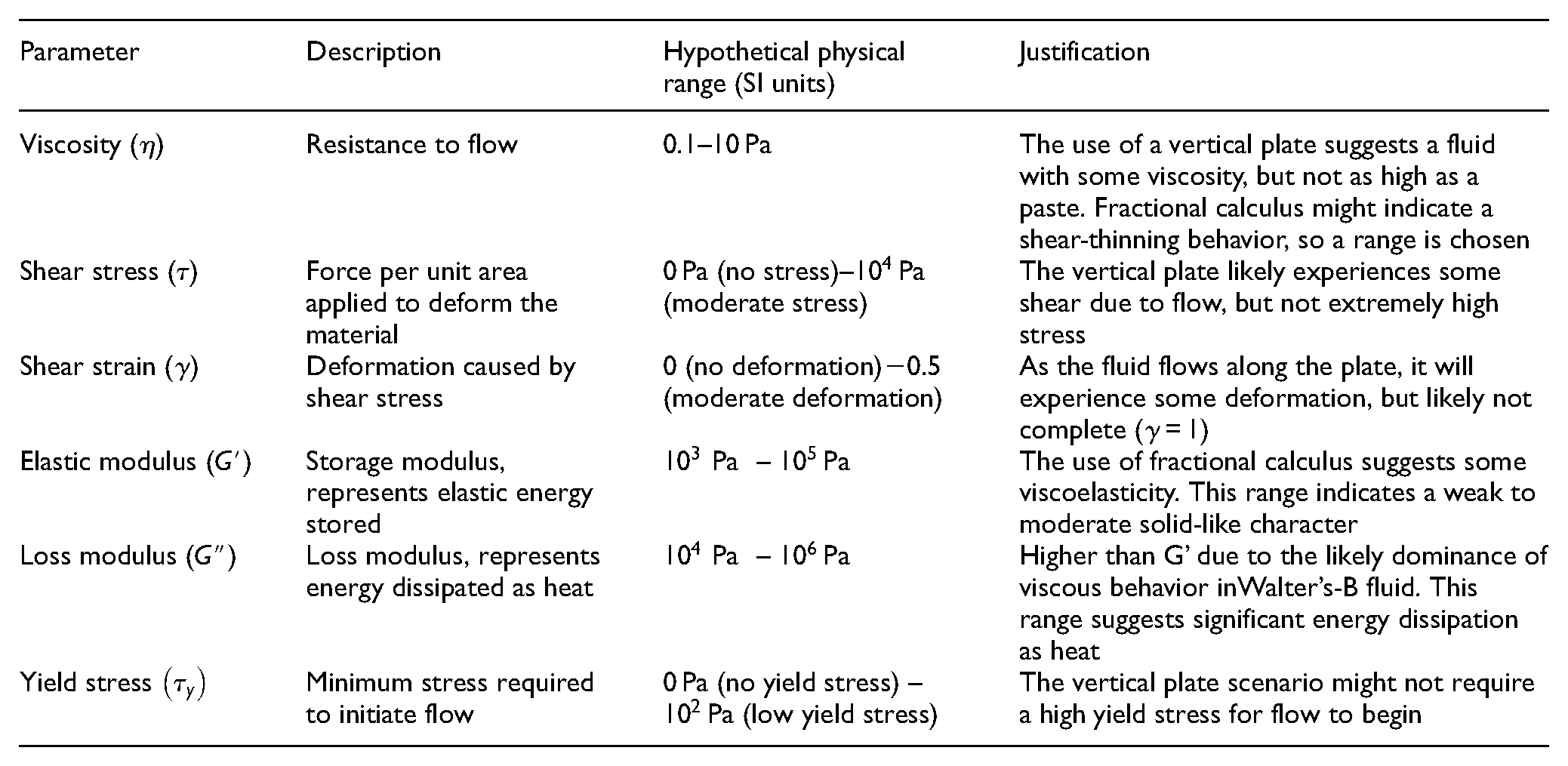

Parameter	Description	Hypothetical physical range (SI units)	Justification
Viscosity ( $η$ )	Resistance to flow	0.1–10 Pa	The use of a vertical plate suggests a fluid with some viscosity, but not as high as a paste. Fractional calculus might indicate a shear-thinning behavior, so a range is chosen
Shear stress ( $τ$ )	Force per unit area applied to deform the material	0 Pa (no stress)– $10^{4}$ Pa (moderate stress)	The vertical plate likely experiences some shear due to flow, but not extremely high stress
Shear strain ( $γ$ )	Deformation caused by shear stress	0 (no deformation)−0.5 (moderate deformation)	As the fluid flows along the plate, it will experience some deformation, but likely not complete ( $γ$ = 1)
Elastic modulus (G′)	Storage modulus, represents elastic energy stored	$10^{3} Pa$ – $10^{5}$ Pa	The use of fractional calculus suggests some viscoelasticity. This range indicates a weak to moderate solid-like character
Loss modulus (G″)	Loss modulus, represents energy dissipated as heat	$10^{4} Pa$ – $10^{6}$ Pa	Higher than G’ due to the likely dominance of viscous behavior inWalter’s-B fluid. This range suggests significant energy dissipation as heat
Yield stress $(τ_{y})$	Minimum stress required to initiate flow	0 Pa (no yield stress) – $10^{2}$ Pa (low yield stress)	The vertical plate scenario might not require a high yield stress for flow to begin

Skin friction

Skin friction is defined as

\begin{matrix} Sk = - {\frac{\partial U_{ND} (ξ, τ)}{\partial ξ}}_{ξ = 0} = - \frac{\partial}{\partial ξ} L^{- 1} {[{\tilde{U}}_{ND} (ξ, s)]}_{ξ = 0} = - L^{- 1} [{\frac{\partial U_{ND} (ξ, s)}{\partial ξ}}_{ξ = 0}] \\ = L^{- 1} [\frac{1}{s} \sqrt{\frac{(s + F)}{(1 - β_{o} s)}} + \frac{Gr}{(1 - β_{o} s)} \frac{1}{[\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]} - \frac{(s + F)}{(1 - β_{o} s)}]} \cdot [\frac{\sqrt{\frac{(s + F)}{(1 - β_{o} s)}}}{s} - \frac{\sqrt{a}}{s}] \\ + \frac{Gm}{(1 - β_{o} s)} \frac{1}{[\frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]} - \frac{(s + F)}{(1 - β_{o} s)}]} \cdot [\frac{\sqrt{\frac{(s + F)}{(1 - β_{o} s)}}}{s} - \frac{\sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (β)}{s} + K_{o} (γ)]}}}{s}]] \end{matrix}

(39)

Also show that the effect of fractional parameter on skin friction as shown in Table 1.

Table 1.

Skin friction.

$β, γ$	$τ = 1.00$	$τ = 2.00$	$τ = 3.00$	$τ = 4.00$
0.2	2.276	2.303	22.524	2.741
0.4	2.280	2.309	2.532	2.751
0.6	2.285	2.317	2.541	2.761
0.8	2.291	2.324	2.550	2.772
1.0	2.297	2.332	2.560	2.782

Nusselt number

Using the Nusselt number as a definition, the local coefficient of the heat transfer rate is

\begin{matrix} Nu = - \frac{\partial Θ (ξ, τ)}{\partial ξ} |_{ξ = 0} = - \frac{\partial}{\partial ξ} L^{- 1} [\tilde{Θ} (ξ, s)] |_{ξ = 0} \\ = - L^{- 1} [\frac{\partial \tilde{Θ} (ξ, s)}{\partial ξ} |_{ξ = 0}] = L^{- 1} [\frac{1}{s} \sqrt{\frac{\Pr s^{1 - β}}{[\frac{K_{1} (β)}{s} + K_{o} (β)]}}] . \end{matrix}

(40)

Also show that the effect of fractional parameter on Nusselt number as shown in Table 2.

Table 2.

Nusselt number.

$β$	$τ = 1.00$	$τ = 2.00$	$τ = 3.00$	$τ = 4.00$
0.2	2.156	2.183	2.204	2.221
0.4	2.160	2.189	2.212	2.231
0.6	2.165	2.197	2.221	2.241
0.8	2.171	2.204	2.230	2.252
1.0	2.177	2.212	2.240	2.262

Sherwood number

The following relation defines the local coefficient of the mass transfer rate in terms of the Sherwood number.

\begin{matrix} Sh = - \frac{\partial Φ (ξ, τ)}{\partial ξ} |_{ξ = 0} = - \frac{\partial}{\partial ξ} L^{- 1} [\tilde{Φ} (ξ, s)] |_{ξ = 0} \\ = - L^{- 1} [\frac{\partial \tilde{Φ} (ξ, s)}{\partial ξ} |_{ξ = 0}] = L^{- 1} [\frac{1}{s} \sqrt{\frac{Sc s^{1 - γ}}{[\frac{K_{1} (γ)}{s} + K_{o} (γ)]}}] . \end{matrix}

(41)

Also show that the effect of fractional parameter on Sherwood number as shown in Table 3.

Table 3.

Sherwood number.

$γ$	$τ = 1.00$	$τ = 2.00$	$τ = 3.00$	$τ = 4.00$
0.2	2.073	2.102	2.123	2.142
0.4	2.079	2.110	2.133	2.152
0.6	2.085	2.119	2.143	2.164
0.8	2.092	2.128	2.154	2.177
1.0	2.100	2.138	2.166	2.189

Conclusion

Free convection Walter’s-B flow across a vertical flat plate has been modeled using a fractional time derivative. Laplace transform is applied to produce exact and semi-analytically solutions for velocity, concentration, and temperature after applying the Constant Proportional Caputo fractional derivatives. Following is an overview of the study’s key findings:

Fluid velocity rises when rising the value of Gr, Gm, $β$ , and $γ$ .

Increases in F, Pr, and Sc values cause a decrease in fluid velocity.

Temperature fluid decay when rising the value of Pr and $β$ .

Fluid concentration decays when the value of Sc and $γ$ increase.

Fractionalized Newtonian fluid: If Walters-B fluid is ignored, then the fluid becomes fractionalized Newtonian fluid. In this situation, the behavior of the non-Newtonian fluid reduces to that of the Newtonian fluid.

The behavior of the non-Newtonian fluid reduces into the Newtonian fluid in this situation, and the velocity equation (52) is turned out as follows, assuming that the Jeffrey fluid parameters $λ 1$ and $λ$ are taken as zero, that is, 1 = = 0.

Real applications in industries and technologies:

Biomedical Engineering: Understanding the behavior of non-Newtonian fluids like Walters-B fluid is crucial for biomedical applications, such as drug delivery systems, where precise control of fluid flow can enhance treatment effectiveness.

Petroleum Industry: The modeling of non-Newtonian fluids helps in the extraction and transportation of crude oil, which often exhibits non-Newtonian characteristics. The use of magnetic fields can improve the efficiency of these processes by controlling the flow properties.

Cooling Systems: Insights into heat and mass transfer can be applied to design more efficient cooling systems for electronic devices and nuclear reactors, where precise thermal management is essential.

Polymer Processing: In the manufacturing of plastics and polymers, the flow behavior of non-Newtonian fluids significantly impacts the quality and properties of the final product. This research can aid in optimizing processing conditions.

Environmental Engineering: The findings can be applied to environmental remediation processes, such as the cleanup of oil spills, where controlling the flow of non-Newtonian fluids can improve the effectiveness of the cleanup efforts.

These applications demonstrate the broad relevance and potential impact of the research in enhancing various industrial processes and technological advancements.

Limitations of the problem

The Walters-B model, while providing a reasonable approximation for certain fluid behaviors, is a simplified representation and may not accurately capture the complexities of real fluids, especially those with strong shear-thinning or shear-thickening properties. The study is restricted to two-dimensional flow, limiting its applicability to real-world scenarios where three-dimensional effects are significant. The assumption of constant fluid properties might not hold true for a wide range of temperature and pressure conditions, potentially affecting the accuracy of the results. The study does not consider the effects of thermal radiation, which can be significant in high-temperature applications. Without experimental data, the accuracy of the numerical results cannot be fully verified.

Future recommendations

The current work could be extended by exploring the behavior of Jeffrey fluids using different nanoparticles on a porous plate. Additionally, the problem could be addressed by employing the MittagLeffler kernel associated with the YangAbdelCattani fractional derivative. Alternatively, the Prabhakar type MittagLeffler fractional derivative might be utilized to tackle the same issue.

Footnotes

Appendix

Handling Editor: Sharmili Pandian

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was funded by the Researchers Supporting Project No. (RSP2024R363), King Saud University, Riyadh, Saudi Arabia.

Data availability

No data associated in the manuscript.

ORCID iDs

Shajar Abbas

Mushtaq Ahmad

Zaib Un Nisa

References

Noreen

Waheed

, et al. Heat stream in electroosmotic bio-fluid flow in straight microchannel via peristalsis. Int Commun Heat Mass Transf 2021; 123: 105180.

Ramesh

Tripathi

Bhatti

, et al. Electro-osmotic flow of hydromagnetic dusty viscoelastic fluids in a microchannel propagated by peristalsis. J Mol Liq 2020; 314: 113568.

Ansu

Sharma

Tyagi

, et al. A cycling study for reliability, chemical stability and thermal durability of polyethylene glycols of molecular weight 2000 and 10000 as organic latent heat thermal energy storage materials. Int J Energy Res 2020; 44: 2183–2195.

Akbar

Tripathi

Begand

, et al. Exact analysis of electro-osmotic flow of Walters-B fluid with non-singular kernel. J Phys 2016; 95: 1–10.

Tripathi

Prakash

Tiwari

, et al. Thermal, microrotation, electromagnetic field and nanoparticle shape effects on Cu-cuo/blood flow in microvascular vessels. Microvasc Res 2020; 132: 104065.

Walter’s

Non-Newtonian effects in some elastico-viscous liquids whose behaviour at small rates of shear is characterized by A general linear equation of state. Q J Mech Appl Math 1962; 15: 63–76.

Ramzan

Nisa

Nazar

Effect of diffusion-thermo on MHD flow of Maxwell fluid with heat and mass transfer. Front Heat Mass Transfer 2022; 19: 1–9.

Nisa

Shah

Tlili

, et al. Natural convection flow of second grade fluid with thermal radiation and damped thermal flux between vertical channels. Alex Eng J 2019; 58: 1119–1125.

Javaherdeh

Mirzaei Nejad

Moslemi

Natural convection heat and mass transfer in MHD fluid flow past a moving vertical plate with variable surface temperature and concentration in a porous medium. Eng Sci Technol 2015; 18: 423–431.

10.

Hussanan

Ismail

Khan

, et al. Unsteady boundary layer MHD free convection flow in a porous medium with constant mass diffusion and Newtonian heating. Eur Phys J Plus 2014; 129: 1–16.

11.

Asjad

Faridi

Abualnaja

, et al. The fractional comparative study of the non-linear directional couplers in non-linear optics. Results Phys 2021; 27: 104459.

12.

Abbas

Nazar

Nisa

, et al. Heat and mass transfer analysis of MHD Jeffrey fluid over a vertical plate with CPC fractional derivative. Symmetry 2022; 14: 2491.

13.

Abbas

Ahmad

Nazar

, et al. Heat and mass transfer through a vertical channel for the Brinkman fluid using Prabhakar fractional derivative. Appl Therm Eng 2023; 232: 121065.

14.

Abbas

Gilani

SFF

Nazar

, et al. Bio-convection flow of fractionalized second grade fluid through a vertical channel with Fourier’s and Fick’s laws. Mod Phys Lett B 2023; 37: 2350069.

15.

Abbas

Nisa

Nazar

, et al. Application of heat and mass transfer to convective flow of Casson fluids in a microchannel with Caputo–Fabrizio derivative approach. Arab J Sci Eng 2024; 49: 1275–1286.

16.

Abbas

Ahmad

Nazar

, et al. Soret effect on MHD Casson fluid over an accelerated plate with the help of constant proportional Caputo fractional derivative. ACS Omega 2024; 9: 10220–10232.

17.

Abbas

Nazar

Gillani

SFF

, et al. A CPC fractional model of the heat and mass transport mechanism in carbon nanotubes with slip effects on velocity. Mod Phys Lett B 2024; 38: 2450100.

18.

Al Agha

Zidan

Ramzan

, et al. Analysis of active and passive control of fluid with fractional derivative. Numer Heat Transf A Appl 2024; 9: 1–19.

19.

Abbas

Ahmad

Nazar

, et al. Flow of a second grade ternary nanofluid over a vertical plate with Caputo fractional derivative. Scientific Reports.

20.

Hayat

Hutter

Nadeem

, et al. Unsteady hydromagnetic rotating flow of a conducting second grade fluid. J Appl Math Phys 2004; 55: 626–641.

21.

Siddheshwar

Mahabaleswar

US.

Effects of radiation and heat source on MHD flow of a viscoelastic liquid and heat transfer over a stretching sheet. Int J Non Linear Mech 2005; 40: 807–820.

22.

Ghasemi

Bayat

Viscoelastic MHD flow of Walter’s liquid B fluid and heat transfer over a non-isothermal stretching sheet. Int J Phys Sci 2011; 6: 5022–5039.

23.

Prakash

Kumar

Dwivedi

YK.

Heat transfer in MHD flow of dusty viscoelastic (Walters Liquid Model-B) stratified fluid in porous medium under variable viscosity. Pramana-Journal of Physics 2012; 79: 1457–1470.

24.

Ali

Khan

Mustapha

, et al. Unsteady magnetohydrodynamic oscillatory flow of viscoelastic fluids in a porous channel with heat and mass transfer. J Phys Soc Jpn 2012; 81: 1–8.

25.

Ali

Khan

Shafie

Conjugate effects of heat and mass transfer on MHD free convection flow over an inclined plate embedded in a porous medium. PLoS One 2013; 8: 65223.

26.

Qaiser

Zheng

Riaz Khan

Numerical assessment of mixed convection flow of Walter’s-B nanofluid over a stretching surface with Newtonian heating and mass transfer. Therm Sci Eng Prog 2021; 22: 100801.

27.

Singh

Seth

Begum

, et al. Hydromagnetic free convective flow of Walters-B fluid over a vertical surface with time varying surface conditions. World J Eng 2020; 17: 295–307.

28.

Mahat

Saqib

Khan

, et al. Thermal radiation effect on viscoelastic Walter’s-B nanofluid flow through a circular cylinder in convective and constant heat flux. Case Stud Therm Eng 2022; 39: 102394.

29.

Anusha

Mahabaleshwar

Hatami

Navier slip effect on the thermal-flow of Walters’ liquid B flow due to porous stretching/shrinking with heat and mass transfer. Case Stud Therm Eng 2021; 28: 101691.

30.

Anupama

Yaragani

Reddy

, et al. Impact of magnetohydrodynamics on hyperbolic and Walters-B non-Newtonian fluids. J Adv Res Fluid Mech Therm Sci 2024; 113: 82–94.

31.

Saini

Hanumagowda

Raju

SSK

, et al. Nonlinear heat radiation and mass transfer characteristics on MHD Walters B fluid flow through a porous medium over a stretching sheet. Partial Differ Equ Appl Math 2024; 10: 100699.

32.

Ayegbusi

Doungmo Goufo

Tchepmo

, et al. Dynamics of micropolar-Walters B fluids under the influence of thermal radiation and Soret–Dufour mechanisms. World J Eng 2024; 21: 754–766.

33.

Abdullah

Butt

Raza

Heat transfer analysis of Walters’-B fluid with Newtonian heating through an oscillating vertical plate by using fractional Caputo–Fabrizio derivatives. Mech Time Depend Mater 2019; 23: 133–151.

34.

Al-Mdallal

Abro

Khan

Analytical solutions of fractional Walter’s B fluid with applications. Complexity 2018; 2018: 10.

35.

Khan

Ali

Ali Shah

Interaction of magnetic field with heat and mass transfer in free convection flow of a Walter’s-B fluid. Eur Phys J Plus 2016; 131: 77.

36.

Hristov

. Derivatives with non-singular kernels from the Caputo-Fabrizio Definition and beyond: appraising analysis with emphasis on diffusion models. In: Bhalekar

(ed.) Frontiers in fractional calculus. 1st ed.Vol. 1. Sharjah, United Arab Emirates: Bentham Science Publishers, 2017, pp.270–342.

37.

Povstenko

Fractional thermoelasticity, solid mechanics and its applications. Cham: Springer International Publishing, 2015. pp.219.

Heat transfer analysis of Walter’s-B flow over a vertical plate by using fractional operator

Abstract

Keywords

Introduction

Formulation of problem

Solution of fractional model

Fractional thermal diffusion

Fractional concentration

Fractional velocity

Result and discussion

Grashof Number (Gr) and modified Grashof Number (Gm)

Prandtl Number (Pr)

Schmidt number (Sc)

Walters-B fluid parameter ( β o )

Magnetic parameter (M)

Constant proportional caputo (CPC) operator

Temperature distribution and Prandtl number (Pr)

Concentration profile and Schmidt number (Sc)

Validation of inversion algorithms

Physical significance of parameters

Unit step function

Walters-B fluid

Unsteady state

Physical values for rheological parameters in Walter’s-B fluid (Hypothetical)

Skin friction

Nusselt number

Sherwood number

Conclusion

Limitations of the problem

Future recommendations

Footnotes

Appendix

Declaration of conflicting interests

Funding

Data availability

ORCID iDs

References

Walters-B fluid parameter ( $β_{o}$ )
