Dynamic reliability prediction of bridge member based on Bayesian dynamic nonlinear model and monitored data

Abstract

Bridge monitoring systems provide a huge number of stress data used for reliability prediction. In this article, the dynamic measure of structural stress over time is considered as a time series, and considering the limitation of the existing Bayesian dynamic linear models only applied for short-term performance prediction, Bayesian dynamic nonlinear models are introduced. With the monitored stress data, the quadratic function is used to build the Bayesian dynamic nonlinear model. And two methods are proposed to handle with the built Bayesian dynamic nonlinear model and the corresponding probability recursion processes. One method is to transform the built Bayesian dynamic nonlinear model into Bayesian dynamic linear model with Taylor series expansion technique; then the corresponding probability recursion processes are completed based on the transformed Bayesian dynamic linear model. The other one is to directly handle with the built Bayesian dynamic nonlinear model and the corresponding probability recursion processes with Markov chain Monte Carlo simulation method. Based on the predicted stress information (means and variances) of the above two methods, first-order second moment method is adopted to predict the structural reliability indices. Finally, an actual engineering is provided to illustrate the application and feasibility of the above two methods.

Keywords

Bridges monitored data reliability prediction Bayesian dynamic nonlinear models Markov chain Monte Carlo simulation first-order second moment method

Introduction

Bridges subjected to time-dependent loading and strength deterioration processes will experience the changes due to internal and external factors. Some of these changes would not only affect the serviceability and the ultimate capacity of structures¹ but also make serious impacts on the remaining reliability of the existing bridges. Therefore, it is of great importance to know the dynamic reliability of the critical bridge members.²

Bridge monitoring systems provide a huge amount of the monitored data, such as stress, strain, and deflection. Proper handling of the continuously provided monitored data is one of the main difficulties in the field of structural health monitoring (SHM).^3,4 A sound number of studies about SHM information are mainly focused on the modal parameter identification, structural damage detection technology, data modeling, and so on.^5–7 For research of the bridge reliability prediction and assessment, there are some achievements, such as the reliability assessment of long span truss bridge,² the reliability updating of a concrete bridge structure based on condition assessment with uncertainties,⁸ the structural performance prediction based on the monitoring data,^9,10 reliability assessment of masonry arch bridges,¹¹ structural real-time reliability prediction based on combinational Bayesian dynamic linear model (BDLM),¹² and Bayesian forecasting of structural bending capacity of aging bridges based on dynamic linear model.¹³ However, based on the bridges’ health monitored data, the research on dynamically and reasonably predicting and assessing the structural reliability should be further studied.

In this article, considering the limitation of BDLM, Bayesian dynamic nonlinear model (BDNM) is introduced to combine the monitored stress with bridge member’s reliability prediction. With monitored stress data and the quadratic function, the BDNM is first built, and then two methods are proposed to deal with the built BDNM and the corresponding probability recursion processes. One method is to transform the built BDNM into BDLM with Taylor series expansion technique and then the probability recursion processes are completed based on the transformed BDLM; the other one is to directly handle with the built BDNM and the probability recursion processes with Markov chain Monte Carlo (MCMC) simulation method. Based on the predicted stress information (means and variances) of the above two methods, the first-order second moment (FOSM) method is adopted to predict the structural reliability indices. Finally, an actual bridge is provided to illustrate the application and feasibility of the above two methods.

BDNM

BDNM can incorporate all the useful monitored information into the model to update the prediction.¹⁴ They comprise a state equation, a monitored equation, and the priori information, where the state equation showing the changes in the system with time and reflecting the inner dynamic changes in the system and random disturbances is nonlinear. The observation equation expressing the relationship between the monitored data and the current state parameters of the system is linear. For the long-term prediction of the monitored data, the BDNMs have better prediction precision than BDLM which is mainly for short-term prediction of the monitored data, so the BDNMs are adopted to predict the performance data (stress and reliability indices) of the bridge in this article.

The built BDNM based on the quadratic function

With long-term health monitoring data, the fitted quadratic function shown in equation (1) can be approximately and reasonably adopted to build the state equation. And then based on the built state equation and the monitored equation which is shown in equation (13), the BDNMs are built.

State equations based on the quadratic function

For the long-term monitored data, the h(t) (fitted quadratic function) is commonly well-fitted to show the changing trend of the monitored data; therefore, the h(t) can be approximately and reasonably considered as the changing curves of the state variables, which are expressed as

h (t) = a t^{2} + b t + c

(1)

θ_{t} = h (t) = a t^{2} + bt + c

(2)

θ_{t + 1} = h (t + 1) = a (t + 1)^{2} + b (t + 1) + c

(3)

where a, b, and c are all the regression coefficients of the monitored data. t is the time, the unit of which is day. $θ_{t}$ is the state data at time t.

Based on equation (2), the following equation can be obtained

a t^{2} + bt + c - θ_{t} = 0

(4)

The solutions of equation (4) are

t_{2}^{1} = \frac{- b \pm \sqrt{b^{2} - 4 a (c - θ_{t})}}{2 a}

(5)

Based on equation (3), the following equation can be obtained

a t^{2} + (2 a + b) t + a + b + c - θ_{t + 1} = 0

(6)

The solutions of equation (6) are

t_{2}^{1} = \frac{- b - 2 a \pm \sqrt{{(2 a + b)}^{2} - 4 a (a + b + c - θ_{t + 1})}}{2 a}

(7)

The transformed state equation based on quadratic function

With equations (5) and (7), for $t \geq 0$ , considering the consistency and equality of the solutions, there are

\frac{- b \pm \sqrt{b^{2} - 4 a (c - θ_{t})}}{2 a} = \frac{- b - 2 a \pm \sqrt{{(2 a + b)}^{2} - 4 a (a + b + c - θ_{t + 1})}}{2 a}

(8)

After equation (8) is simplified, the transferred approximate state equation can be obtained as follows:

If $a > 0$ , then the state equations are

θ_{t + 1} = θ_{t} + a + \sqrt{b^{2} - 4 ac + 4 a θ_{t}}, t \leq - \frac{b}{2 a}

(9)

and

θ_{t + 1} = θ_{t} + a - \sqrt{b^{2} - 4 ac + 4 a θ_{t}}, t > - \frac{b}{2 a}

(10)

If $a < 0$ , then the state equations are

θ_{t + 1} = θ_{t} + a - \sqrt{b^{2} - 4 ac + 4 a θ_{t}}, t \leq - \frac{b}{2 a}

(11)

and

θ_{t + 1} = θ_{t} + a + \sqrt{b^{2} - 4 ac + 4 a θ_{t}}, t > - \frac{b}{2 a}

(12)

Equations (9)–(12) show that there exist two different cases for the approximate state equations, namely, equations (9) and (10) and equations (11) and (12). The case, which is more reasonable, accurate, and applicable, depends on the regressive coefficients (a, b, and c) and state parameter $θ_{t}$ .

The built BDNM

Based on section “The transformed state equation based on quadratic function,” the built BDNMs in this article are as follows:

The monitored equation is

y_{t + 1} = θ_{t + 1} + ν_{t + 1}, ν_{t + 1} ~ N [0, V_{t + 1}], t = 1, 2, \dots, T

(13)

If $a > 0$ , then the state equations are

θ_{t + 1} = θ_{t} + a + \sqrt{b^{2} - 4 ac + 4 a θ_{t}} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t \leq - \frac{b}{2 a}

(14)

and

θ_{t + 1} = θ_{t} + a - \sqrt{b^{2} - 4 ac + 4 a θ_{t}} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t > - \frac{b}{2 a}

(15)

If $a < 0$ , then the state equations are

θ_{t + 1} = θ_{t} + a - \sqrt{b^{2} - 4 ac + 4 a θ_{t}} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t \leq - \frac{b}{2 a}

(16)

and

θ_{t + 1} = θ_{t} + a + \sqrt{b^{2} - 4 ac + 4 a θ_{t}} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t > - \frac{b}{2 a}

(17)

The initial state information

(θ_{t} | D_{t}) ~ N [m_{t}, C_{t}]

(18)

where a, b, and c are constants; $θ_{t}$ is the state parameter indicating the level of the monitored data at time t.

For BDNM, $v_{t + 1}$ and $ω_{t + 1}$ are, respectively, the monitored errors and state errors. It is assumed that error sequences $v_{t + 1}$ and $ω_{t + 1}$ are internally independent, mutually independent, and independent of $(θ_{t} | D_{t})$ .

With equations (13)–(18), the updating relationship between the monitored data and state parameters can be obtained as

(y_{t + 1} | θ_{t + 1}) ~ N [θ_{t + 1}, V_{t + 1}], N [θ_{t} + a \pm \sqrt{b^{2} - 4 ac + 4 a θ_{t}}, W_{t + 1}]

(19)

It can be seen from equation (19) that the modeling processes of BDNM can be divided into two key steps. The first step is to obtain the priori probability distribution function (PDF) of $θ_{t + 1}$ at time t + 1 based on the state equation and the posteriori PDF of $θ_{t}$ at time t; the second step is to obtain the posteriori PDF of $θ_{t + 1}$ at time t + 1 based on the priori PDF of state parameters at time t + 1 and monitored data y_t+₁ at time t + 1.

In this article, two methods are provided to deal with the built BDNM and the corresponding probability recursion processes. One method is to transform the built BDNM into BDLM with Taylor series expansion technique and the other one is directly to handle with the built BDNM and the probability recursion processes with MCMC simulation method.

Transformed BDLM and the corresponding probability recursion processes based on the built BDNM with Taylor series expansion technique

In this section, the Taylor series expansion technique is adopted to transfer the built BDNM into BDLM. Usually, quadratic function of the monitored extreme stress data can better fit the changing trend of the monitored data for long-term prediction, and the trend data mean the state data of the monitored data. The fitted quadratic function can be transformed into linear state equation with Taylor series expansion technique:

1. Linearization of nonlinear state equations

With Taylor series expansion technology, the nonlinear equations shown in equations (14)–(17) are transformed into approximate linear equation, namely

θ_{t + 1} = E_{0} + G_{t} (θ_{t} - m_{t}) + 0 (θ_{t} - m_{t})

(20)

If a > 0, then

E_{0} = m_{t} + a + \sqrt{b^{2} - 4 a c + 4 a m_{t}}, t \leq - \frac{b}{2 a}

(21)

and

E_{0} = m_{t} + a - \sqrt{b^{2} - 4 a c + 4 a m_{t}}, t > - \frac{b}{2 a}

(22)

G_{t} = \frac{\partial θ_{t + 1}}{\partial θ_{t}} |_{θ_{t} = m_{t}} = \frac{\partial g_{t} (θ_{t})}{\partial θ_{t}} |_{θ_{t} = m_{t}} = 1 + \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a θ_{t}}} |_{θ_{t} = m_{t}} = 1 + \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a m_{t}}}, t \leq - \frac{b}{2 a}

(23)

and

G_{t} = \frac{\partial θ_{t + 1}}{\partial θ_{t}} |_{θ_{t} = m_{t}} = \frac{\partial g_{t} (θ_{t})}{\partial θ_{t}} |_{θ_{t} = m_{t}} = 1 - \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a θ_{t}}} |_{θ_{t} = m_{t}} = 1 - \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a m_{t}}}, t > - \frac{b}{2 a}

(24)

If a < 0, then

E_{0} = m_{t} + a - \sqrt{b^{2} - 4 ac + 4 a m_{t}}, t \leq - \frac{b}{2 a}

(25)

and

E_{0} = m_{t} + a + \sqrt{b^{2} - 4 ac + 4 a m_{t}}, t > - \frac{b}{2 a}

(26)

\begin{matrix} G_{t} = \frac{\partial θ_{t + 1}}{\partial θ_{t}} |_{θ_{t} = m_{t}} = \frac{\partial g_{t} (θ_{t})}{\partial θ_{t}} |_{θ_{t} = m_{t}} \\ = 1 - \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a θ_{t}}} |_{θ_{t} = m_{t}} \\ = 1 - \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a m_{t}}}, t \leq - \frac{b}{2 a} \end{matrix}

(27)

and

\begin{matrix} G_{t} = \frac{\partial θ_{t + 1}}{\partial θ_{t}} |_{θ_{t} = m_{t}} = \frac{\partial g_{t} (θ_{t})}{\partial θ_{t}} |_{θ_{t} = m_{t}} \\ = 1 + \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a θ_{t}}} |_{θ_{t} = m_{t}} \\ = 1 + \frac{2 a}{\sqrt{b^{2} - 4 ac + 4 a m_{t}}}, t > - \frac{b}{2 a} \end{matrix}

(28)

where $E_{0}$ and $G_{t}$ are both constants; $m_{t}$ is the mean value of $θ_{t}$ at time t.

Furthermore, by combining equations (20)–(28), the transformed approximate linear state equation is

θ_{t + 1} = G_{t} θ_{t} + E_{0} - G_{t} m_{t} + ω_{t + 1}

(29)

2. Transformed BDLM

The transformed BDLMs are as follows:

The monitored equation is approximately similar to equation (13).

The state equation

θ_{t + 1} = G_{t} θ_{t} + E_{0} - G_{t} m_{t} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t = 1, 2, \dots, T

(30)

The initial information

(θ_{t} | D_{t}) ~ N [m_{t}, C_{t}]

(31)

3. The probability recursion processes of transformed BDLM

BDLMs are applicable to the prediction of the future state parameters.¹⁴ With Bayesian method, the recursively updating processes of the transformed BDLM^12,15 are as follows:

(a) The posteriori distribution at time t

For mean m_t and variance matrix C_t, i = 1, 2, …, s, there is

(θ_{t} | D_{t}) ~ N [m_{t}, C_{t}]

(32)

(b) The priori distribution at time t + 1

(θ_{t + 1} | D_{t}) ~ N [a_{t + 1}, R_{t + 1}]

(33)

where $a_{t + 1} = E_{0}$ and $R_{t + 1} = G_{t + 1} C_{t} G'_{t + 1} + W_{t + 1}$ .

(y_{t + 1} | D_{t}) ~ N [f_{t + 1}, Q_{t + 1}]

(34)

where $f_{t + 1} = E (y_{t + 1} | D_{t}) = a_{t + 1}$ and $Q_{t + 1} = var (y_{t + 1} | D_{t}) = R_{t + 1} + V_{t + 1}$ .

According to the definition of highest posterior density (HPD) region,¹⁴ the predicted interval of the monitored data with a 95% confidential interval at time t + 1 is

[f_{t + 1} - 1.645 \sqrt{Q_{t + 1}}, f_{t + 1} + 1.645 \sqrt{Q_{t + 1}}]

(35)

where $f_{t + 1} - 1.645 \sqrt{Q_{t + 1}}$ is the lower limit value and $f_{t + 1} + 1.645 \sqrt{Q_{t + 1}}$ is the upper limit value.

(d) The posteriori distribution at time t + 1

(θ_{t + 1} | D_{t + 1}) ~ N [m_{t + 1}, C_{t + 1}]

(36)

where $m_{t + 1} = a_{t + 1} + A_{t + 1} e_{t + 1}$ , $C_{t + 1} = R_{t + 1} - A_{t + 1} Q_{t + 1} A'_{t + 1}$ , $A_{t + 1} = R_{t + 1} / Q_{t + 1}$ , $e_{t + 1} = y_{t + 1} - f_{t + 1}$ (one-step prediction error), $A_{t + 1}$ is the adaptive coefficient, and $A'_{t + 1}$ is the transpose of $A_{t + 1}$ .

The probability recursion processes based on the built BDNM with MCMC simulation method

The built BDNMs are shown in equations (13)–(18). With the monitored stress data, the probability function of the initial state parameters can be obtained with section “Determination of the main probability parameters of BDNM.” For example, the PDF of $θ_{t}$ at time t is $π (θ_{t} | D_{t})$ . With MCMC simulation method,¹⁶ a group of convergent samples from $π (θ_{t} | D_{t})$ can be obtained as $A_{t} = [θ_{t}^{(1)}, θ_{t}^{(2)}, θ_{t}^{(3)}, \dots, θ_{t}^{(n)}]$ . $A_{t}$ can be converted into the priori sample of $θ_{t + 1} | D_{t}$ : $B_{t + 1} = [ξ_{t + 1}^{(1)}, ξ_{t + 1}^{(2)}, ξ_{t + 1}^{(3)}, \dots, ξ_{t + 1}^{(n)}]$ through Algorithm 1.

Algorithm 1

With MCMC simulation method, draw a group of convergent sample ${ω_{t + 1}^{(1)}, ω_{t + 1}^{(2)}, ω_{t + 1}^{(3)}, \dots, ω_{t + 1}^{(n)}}$ from $ω_{t + 1} ~ N [0, W_{t + 1}]$ .

For every sample $θ_{t}^{(i)}$ , $1 \leq i \leq n$ , let $ξ_{t + 1}^{(i)} = g_{t + 1} (θ_{t}^{(i)}) + ω_{t + 1}^{(i)}$ based on equation (14), (15), (16), or (17), and then convergent sample $B_{t + 1}$ of priori probability distribution for state variable $θ_{t + 1}$ at time t + 1 can be obtained as $B_{t + 1} = [ξ_{t + 1}^{(1)}, ξ_{t + 1}^{(2)}, ξ_{t + 1}^{(3)}, \dots, ξ_{t + 1}^{(n)}]$ .

For $B_{t + 1}$ , when monitored data $y_{t + 1}$ at time t + 1 are obtained, with the MCMC simulation method, $B_{t + 1}$ can be converted into convergent sample $A_{t + 1} = [θ_{t + 1}^{(1)}, θ_{t + 1}^{(2)}, θ_{t + 1}^{(3)}, \dots, θ_{t + 1}^{(n)}]$ of posteriori PDF for state variable $θ_{t + 1}$ at time t + 1; the detailed steps are shown in Algorithm 2.

Algorithm 2

For every sample $ξ_{t + 1}^{(i)}$ , $1 \leq i \leq n$ ,

Let $x_{0} = ξ_{t + 1}^{(i)}$ .

Draw a sample $z_{1}$ from $f (y_{t + 1} | x_{0})$ , namely, $z_{1} ~ f (y_{t + 1} | x_{0})$ .

$x_{1} = z_{1}$ is accepted with the probability $a (x_{0}, z_{1}) = min (1, ((p (z_{1} | D_{t})) / (p (x_{0} | D_{t}))))$ , or else $x_{1} = x_{0}$ . Namely, $x_{1} = {\begin{matrix} z_{1}, if u \leq r \\ x_{0}, if u \geq r \end{matrix}$ , where u follows uniform distribution: U[0, 1].

The same procedure is repeated M times, then let $θ_{t + 1}^{(i)} = x_{M}$ .

Steps (1)–(4) are repeated N times; convergent sample $A_{t + 1} = [θ_{t + 1}^{(1)}, θ_{t + 1}^{(2)}, θ_{t + 1}^{(3)}, \dots, θ_{t + 1}^{(n)}]$ of posteriori probability distribution for state variable $θ_{t + 1}$ at time t + 1 can be obtained.

The distribution parameters of one-step prediction distribution are

E (y_{t + 2} | D_{t + 1}) \approx \frac{1}{M} \sum_{k = 1}^{M} θ_{t + 1}^{k}

(37)

D (y_{t + 2} | D_{t + 1}) = D (A_{t + 1}) + V_{t + 1} + W_{t + 1}

(38)

where $E (y_{t + 2} | D_{t + 1})$ is the mean value; $D (y_{t + 2} | D_{t + 1})$ is the variance value.

In Algorithm 2, according to the Metropolis–Hastings (M-H) algorithm of MCMC simulation method, $f (y | x_{0})$ is adopted as $N (x_{0}, σ^{2})$ , and $σ^{2}$ is approximately estimated with the variance of $B_{t + 1}$ . Commonly, $p (θ_{t + 1} | D_{t + 1})$ is unknown. By Bayesian theory, $p (θ_{t + 1} | D_{t + 1}) \propto p (y_{t + 1} | θ_{t + 1}, D_{t}) p (θ_{t + 1} | D_{t})$ can be obtained and $\tilde{p} (θ_{t + 1} | D_{t})$ is constructed to approximately simulate $p (θ_{t + 1} | D_{t})$ ; then through the monitored equation or state equation, the approximate PDF $\tilde{p} (y_{t + 1} | θ_{t + 1}, D_{t})$ of $p (y_{t + 1} | θ_{t + 1}, D_{t})$ is obtained; finally, $\tilde{p} (θ_{t + 1} | D_{t + 1})$ is approximately $p (θ_{t + 1} | D_{t + 1})$ , namely, $\tilde{p} (θ_{t + 1} | D_{t + 1}) \propto \tilde{p} (y_{t + 1} | θ_{t + 1}, D_{t}) \tilde{p} (θ_{t + 1} | D_{t})$ .

Determination of the main probability parameters of BDNM

For the BDNM, the main probability parameters are V_t+₁, W_t+₁, m_t, and C_t. The method of determining the main probability parameters is as follows.

In this article, the interval period of model updating is 1 day. V_t+₁ is estimated with the variance of differences between the fitted trend data and monitored extreme stress data. According to the research,^15,17,18W_t+₁ can be solved with

W_{t + 1} = \frac{- G_{t + 1} C_{t} {G'}_{t + 1} + C_{t}}{δ}

(39)

where $G'_{t + 1}$ is the transpose of $G_{t + 1}$ . $δ$ is the discount factor, which often falls between 0.95 and 0.98.

$m_{t}$ is the mean value of the state variable at time t, and $C_{t}$ is the variance of the state variable at time t. They can be estimated with the smoothly processed or resampled monitored data at time t and before time t.

If the initial state data follow the lognormal distribution, then the state data can be transformed into a quasi-normal distribution¹⁷ with equations (40) and (41); the distribution parameters are, respectively, $μ'$ (mean value) and $σ'$ (standard deviation)

σ' = \frac{ϕ (- 1.645)}{g (x_{0})}

(40)

μ' = x_{0} + 1.645 σ'

(41)

where g( ) is the actual fitted PDF of the sample data (lognormal probability density function), and the actual PDF (lognormal PDF) is G( ) and G(x₀) = 0.05.

Reliability prediction based on the built BDNM and FOSM

FOSM

In this article, the FOSM method^19,20 is adopted to predict the reliability indices. Suppose there are random variables R (generalized resistance) and S (generalized load effects including dead load effects and live load effects) which are internally independent and mutually independent, the mean value and standard variance of which are, respectively, as follows: $μ_{R}$ , $σ_{R}$ and $μ_{S}$ , $σ_{S}$ .

The limit state function is

g (R, S) = R - S

(42)

With FOSM method, the computation formula of the reliability indices can be obtained with

β = \frac{μ_{R} - μ_{S}}{\sqrt{σ_{R}^{2} + σ_{S}^{2}}}

(43)

Reliability prediction formulas, respectively, based on the transformed BDLM and the built BDNM with FOSM method

The limit state function of the second lateral span beam of some bridges is

g (R, S, C, M) = R - S - C - γ_{M} M

(44)

where R is the steel yield strength, S is the stress caused by the dead weight of steel, C is the stress caused by the dead weight of the concrete, M is the monitored extreme stress predicted with the transformed BDLM or the built BDNM, and $γ_{M}$ is a factor assigned to the data provided by the sensors.

Prediction formula of reliability indices based on the transformed BDLM with FOSM method

With FOSM method, based on equations (43) and (44) and the transformed BDLM, the predicted reliability index $β_{BDLMs}$ is

β_{BDLMs} = \frac{μ_{R} - μ_{S} - μ_{C} - γ_{M} \times μ_{BDLMs}}{\sqrt{σ_{R}^{2} + σ_{S}^{2} + σ_{C}^{2} + {(γ_{M} \times σ_{BDLMs})}^{2}}}

(45)

where $μ_{BDLMs}$ and $σ_{BDLMs}$ are the mean and standard deviation of M, respectively, which can be obtained with equation (34). $μ_{R}$ and $σ_{R}$ are the mean and standard deviation of R, respectively. $μ_{S}$ and $σ_{S}$ are the mean and standard deviation of S, respectively. $μ_{C}$ and $σ_{C}$ are the mean standard deviation of C, respectively. $γ_{M}$ is a factor assigned to the data provided by the sensors.

Reliability prediction formula based on the built BDNM with FOSM method

With FOSM method, based on equations (43) and (44) and the built BDNM, the predicted reliability index $β_{BDNMs}$ is

β_{BDNMs} = \frac{μ_{R} - μ_{S} - μ_{C} - γ_{M} \times μ_{BDNMs}}{\sqrt{σ_{R}^{2} + σ_{S}^{2} + σ_{C}^{2} + {(γ_{M} \times σ_{BDNMs})}^{2}}}

(46)

where $μ_{BDNMs}$ and $σ_{BDNMs}$ are the mean and standard deviation of M, respectively, which can be obtained with equations (37) and (38). $μ_{R}$ and $σ_{R}$ are the mean and standard deviation of R, respectively. $μ_{S}$ and $σ_{S}$ are the mean and standard deviation of S, respectively. $μ_{C}$ and $σ_{C}$ are the mean and standard deviation of C, respectively. $γ_{M}$ is a factor assigned to the data provided by the sensors.

Application to an existing bridge

The I-39 Northbound Bridge, described in Frangopol and colleagues^9,10 in detail, was built in 1961. It is a five-span continuous steel plate girder bridge. The total length of the bridge is 188.81 m. The explicit details about the aim and the results of the monitoring program for the whole bridge are given in Frangopol and colleagues.^9,10 The extreme stress data at the beam bottom in the middle part of the second lateral span from the whole bridge are monitored for 83 days, and the corresponding limit state function is shown in equation (44). The monitored data displayed the variability of the stresses caused by traffic, temperature, shrinkage, creep, and structural changes. The stresses from the dead weight of the steel structure and the concrete deck are not included in the measured data. The day-by-day monitored extreme stress data are shown in Figures 2, 4, 6, and 7.

In this example, with equations (13)–(46), the trend data of the monitored data are directly fitted as

m_{t} = - 0.001147 t^{2} + 0.05514 t + 24.93

(47)

where $m_{t}$ is the approximate state value at time t.

To obtain the distribution parameters of the initial state information, the monitored stress data of the 83 days are smoothly processed or resampled, and then the initial information (the resampled data) of the monitored data is approximately solved. Through Kolmogorov–Smirnov (K-S) test for the initial information, the initial priori PDF is the lognormal probability density distribution or normal probability density distribution as shown in Figure 1.

Figure 1.

The initial priori probability density functions and the initial information.

BDNM based on the monitored data

With equations (13)–(18), the built BDNM is as follows.

The monitored equation is

y_{t + 1} = θ_{t + 1} + ν_{t + 1}, ν_{t + 1} ~ N [0, V], t = 1, 2, \dots, T

(48)

The state equations are

θ_{t + 1} = θ_{t} - 0.001147 + \sqrt{0.1174 - 0.0046 θ_{t}} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t \leq 24

(49)

and

θ_{t + 1} = θ_{t} - 0.001147 - \sqrt{0.1174 - 0.0046 θ_{t}} + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t > 24

(50)

The initial state information

m_{t} | D_{t} ~ N [24.5052, 4.663 5^{2}] or LN [3.1811, 0.188 6^{2}]

(51)

where y_t+₁ are the monitored extreme stress data at time t + 1. m_t+₁ is the state value of the monitored extreme stress at time t + 1. $ν_{t + 1}$ is the observational error. $ω_{t + 1}$ is the state error, which means the uncertainty of state variable. V = 29.04 which can be approximately obtained with the monitored stress data, and $δ = 0.98, W_{t} = - C_{t - 1} + C_{t - 1} / δ$ according to the actual engineering experience of the authors. $LN [\cdot]$ is the lognormal density function, and $C_{t}$ can be obtained with equation (51).

Equation (51) shows that the initial information follows the normal distribution or lognormal distribution. So the following four cases are discussed to predict the monitored stress data:

Case 1. The initial state information follows the normal distribution, and then the BDNMs are built based on the normal distribution to predict the monitored extreme stresses with MCMC simulation method described in section “The probability recursion processes based on the built BDNM with MCMC simulation method.”

Case 2. The initial state information follows the lognormal distribution; first, the lognormal distribution must be transformed into a quasi-normal distribution,¹⁷ and then the BDNMs are built based on the quasi-normal distribution to predict the monitored extreme stresses with MCMC simulation method described in section “The probability recursion processes based on the built BDNM with MCMC simulation method.”

Case 3. The arithmetic mean of the one-step prediction mean values, respectively, obtained with case 1 and case 2 is considered as the predicted extreme stresses of the third case.

Case 4. The fourth case is to build combinatorial BDNM with BDNM obtained with case 1 and case 2; the modeling processes of combinatorial BDNM are described in Jiang et al.²¹ in detail.

From Figure 2, it is noticed that the predicted stress data of the four cases all fit the changing rules of the monitored extreme data, but as far as the prediction precisions of the four cases shown in Figure 3 are concerned, the combinatorial prediction precision is the best. So the combinatorial prediction model of the monitored stresses is adopted to predict the structural reliability indices.

Figure 2.

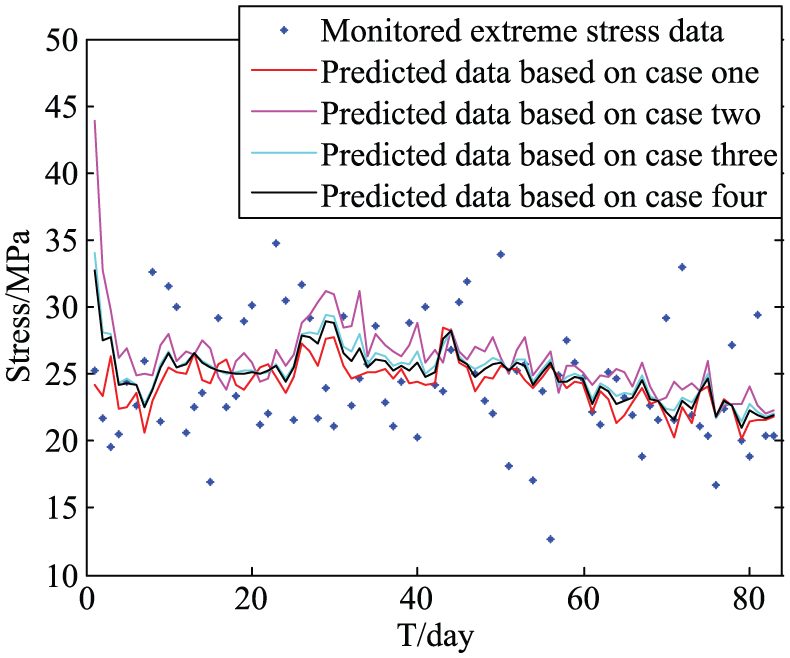

Monitored and predicted data based on the four cases of the built BDNM.

Figure 3.

Prediction precision based on the four cases of the built BDNM.

BDLM based on the monitored data

Based on section “Transformed BDLM and the corresponding probability recursion processes based on the built BDNM with Taylor series expansion technique” and equations (48)–(51), the built approximate BDLMs are as follows:

The monitored equation

y_{t + 1} = m_{t + 1} + ν_{t + 1}, ν_{t + 1} ~ N [0, 29.04]

(52)

The transformed approximately linear state equation

m_{t + 1} = 0.967 m_{t} + 0.88 + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t \leq 24

(53)

and

m_{t + 1} = 1.033 m_{t} - 0.88 + ω_{t + 1}, ω_{t + 1} ~ N [0, W_{t + 1}], t > 24

(54)

The initial state information

m_{t} | D_{t} ~ N [24.5595, 4.665 0^{2}] or LN [3.1811, 0.188 6^{2}]

(55)

where $δ = 0.98, W_{t + 1} = - C_{t} + C_{t} / δ$ according to the actual engineering experience of the authors. $LN [\cdot]$ is the lognormal density function, and $C_{t}$ can be obtained with equation (55).

Equation (55) shows that the initial state information follows the normal distribution or lognormal distribution. So the following four cases are discussed to predict the monitored extreme stresses:

Case 1. The initial state information follows the normal distribution, and then the transformed BDLMs are built based on the normal distribution to predict the stress data.

Case 2. The initial state information follows the lognormal distribution; first, the lognormal distribution must be transformed into a quasi-normal distribution,^17,18 and then the BDLM is built based on the quasi-normal distribution to predict the stress data.

Case 3. The arithmetic mean of the one-step prediction mean values, respectively, obtained with case 1 and case 2 is considered as the predicted extreme stresses of the third case.

Case 4. The fourth case is to build combinatorial BDLM with BDLM obtained with case 1 and case 2; the modeling processes of combinatorial BDLM are described in Jiang et al.²¹ and Liu et al.²²

From Figure 4, it is noticed that the predicted stress data of the four cases all fit the changing rules of the monitored stress data, but as far as the prediction precisions of the four cases shown in Figure 5 are concerned, the combinatorial prediction precision is the best. So the combinatorial prediction model (case 4) of the monitored extreme stress is adopted to predict the structural reliability indices.

Figure 4.

Predicted extreme stresses based on the four cases of the transformed BDLM.

Figure 5.

Prediction precision based on the four cases of the transformed BDLM.

Reliability prediction based on the BDNM (case 4) and transformed BDLM (case 4)

In Figures 3 and 5, we can know that the combinatorial prediction model is the best. So the combinatorial prediction model of the stresses is adopted to predict the structural reliability indices. The predicted results, which are shown in Figures 6 –8, can show the changing trends and the ranges of the monitored reliability indices. The design specifications are as follows.⁹

$μ_{R} = 380 MPa$ and $σ_{R} = 380 \times 0.07 = 26.6 MPa$ , $μ_{S} = 116.3 MPa$ and $σ_{S} = 116.3 \times 0.04 = 4.65 MPa$ , and $μ_{C} = 108.8 MPa$ and $σ_{C} = 108.8 \times 0.04 = 4.35 MPa$ of the stresses of the structural dead weight yield

\begin{matrix} β_{p} = \frac{μ_{R} - μ_{S} - μ_{C} - γ_{M} \times μ_{M}}{\sqrt{σ_{R}^{2} + σ_{S}^{2} + σ_{C}^{2} + {(γ_{M} \times σ_{M})}^{2}}} \\ = \frac{380 - 116.3 - 108.8 - 1.15 μ_{M}}{\sqrt{{26.6}^{2} + {4.65}^{2} + {4.35}^{2} + {(1.15 \times σ_{M})}^{2}}} \\ = \frac{155 - 1.15 \times μ_{M}}{\sqrt{{27.351}^{2} + {(1.15 \times σ_{M})}^{2}}} \end{matrix}

(56)

assigned to the bottom of the girder in the middle of the second lateral span which is shown in Frangopol and colleagues,^9,10 where $μ_{M}$ and $σ_{M}$ are the mean and standard deviation, respectively, of the monitored extreme stresses predicted with the transformed BDLM (case 4) and the built BDNM (case 4).

Figure 6.

Reliability indices based on case 4 of BDNM.

Figure 7.

Reliability indices based on case 4 of the transformed BDLM.

Figure 8.

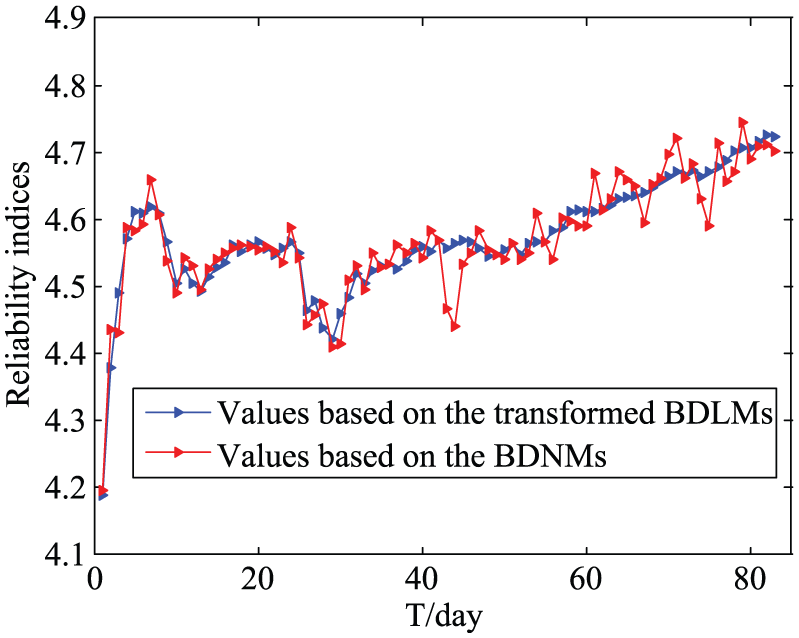

Comparison of reliability indices obtained with the built BDNM (case 4) and the transformed BDLM (case 4).

Conclusion

The article first builds the BDNM based on the quadratic function and the monitored data, and then two methods are proposed to handle with the probability recursion processes; finally, based on the predicted stress data, the structural reliability indices are predicted with FOSM method. The following conclusions can be reached: from the prediction results shown in Figures 2 –8, the prediction value and predicted range of the stress and reliability indices all fit the changing rules of the corresponding performances with the proposed two methods in this article, and the prediction precisions are both better and better with the updating of the monitored data.

Footnotes

Acknowledgements

The authors would like to thank the editor and the anonymous reviewers for their constructive comments and valuable suggestions to improve the quality of the article.

Academic Editor: Jun Li

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (project no. 51608243), the Natural Science Foundation of Gansu Province of China (project no. 1606RJYA246), and the Fundamental Research Funds for the Central Universities (lzujbky-2015-300, lzujbky-2015-301).

References

Zou

YJ.

The role of structural health monitoring in bridge assessment and management. Master’s Thesis, Lehigh University, Bethlehem, PA, 2011.

Catbas

Susoy

Frangopol

DM.

Structural health monitoring and reliability estimation: long span truss bridge application with environmental monitoring data. Eng Struct 2008; 30: 2347–2359.

Qin

Health monitoring of long-span bridges. China J Highw Transp 2000; 13: 37–42 (in Chinese).

Miu

CQ.

Health monitoring system for the Runyang Yangtse river bridge. J Southeast Univ 2003; 33: 544–548 (in Chinese).

Huang

Beck

. Robust Bayesian compressive sensing for signals in structural health monitoring. Comput-Aided Civ Inf 2014; 29: 160–179.

Hao

Damage detection of shear connectors under moving loads with relative displacement measurements. Mech Syst Signal Pr 2015; 60–61: 124–150.

Hao

JV.

Structural damage identification with power spectral density transmissibility: numerical and experimental studies. Smart Struct Syst 2015; 15: 15–40.

Law

Updating the reliability of a concrete bridge structure based on condition assessment with uncertainties. Eng Struct 2010; 32: 286–296.

Frangopol

Strauss

Kim

Use of monitoring extreme data for the performance prediction of structures: general approach. Eng Struct 2008; 30: 3644–3653.

10.

Strauss

Frangopol

Kim

Use of monitoring extreme data for the performance prediction of structures: Bayesian updating. Eng Struct 2008; 30: 3654–3666.

11.

Casas

JR.

Reliability-based assessment of masonry arch bridges. Constr Build Mater 2011; 25: 1621–1631.

12.

Fan

DG.

Real-time reliability forecast of bridge structures based on multiple Bayesian dynamic linear models. J S China Univ Tech 2013; 41: 67–72 (in Chinese).

13.

Fan

. Bayesian forecasting of structural bending capacity of aging bridges based on dynamic linear model. Life-cycle and sustainability of civil infrastructure systems. In: Proceedings of the 3rd international symposium on life-cycle civil engineering. IALCCE 2012, Vienna, 3–6 October 2012, pp.268–274. Leiden, Netherlands: Taylor & Francis - Balkema.

14.

West

Harrison

Bayesian forecasting and dynamic models. 2nd ed. New York: Springer, 1997.

15.

Petris

Petrone

Campagnoli

Dynamic linear models with R. New York: Springer, 2009.

16.

Zhang

Wan

Sato

Advanced Markov Chain Monte Carlo approach for finite element calibration under uncertainty. Comput-Aided Civ Inf 2013; 28: 522–530.

17.

Wang

Performance prediction and reliability management of concrete structures based on information updating. Beijing, China: School of Civil Engineering, Tsinghua University, 2006 (in Chinese).

18.

Wang

Liu

XL.

Evaluation and Bayesian dynamic prediction of deterioration of structural performance. Struct Infrastruct E (Maintenance, management, life-cycle design and performance) 2010; 6: 663–674.

19.

Ang

AH-S

Tang

. Probability concepts in engineering planning and design, vol. II. New York: John Wiley & Sons, 1984.

20.

Melchers

RE.

Structural reliability, analysis and prediction. Chichester: Ellis Horwood, 1987.

21.

Jiang

Liu

Zhang

XL.

Combinatorial forecast of Bayesian dynamic linear models. J Shandong Univ Sci Technol 2002; 21: 16–17 (in Chinese).

22.

Liu

Fan

XP.

Reliability updating and prediction of bridge structures based on proof loads and monitored data. Constr Build Mater 2014; 66: 795–804.
