Optimization of fiber-orientation distribution in fiber-reinforced composite injection molding by Taguchi,back propagation neural network,and genetic algorithm

Abstract

Fiber orientation induced by injection molding of short-fiber-reinforced composites causes anisotropy in material properties and produces warping. Fiber-orientation distribution is very important to research for mold design and quality to produce sound molded parts. In this study, three kinds of methods are used to solve the optimization problem. Fiber-orientation distribution is described by fiber-orientation tensor variation. The objective function is a minimum problem of the fiber-orientation tensor variation. Parameters such as fiber content, fiber aspect ratio, melting temperature, injection pressure, holding pressure, and filling time are considered as design variables. Based on orthogonal experiment design, Moldflow software is used in the fiber-reinforced acrylonitrile butadiene styrene composite injection molding. The effects of process parameters for the plastic part are studied using the signal-to-noise ratio. The most important design parameter influencing fiber-orientation tensor variation is determined by finite element analysis results based on the analysis of variance. The optimization model is established on the basis of the back propagation neural network. The Taguchi, the particle swarm optimization, and genetic algorithm–particle swarm optimization hybrid algorithm are used to find the minimum fiber-orientation tensor variation value. Results show that the quality index of the fiber-orientation tensor variation in the part is improved.

Keywords

Optimization injection molding Taguchi method back propagation neural network genetic algorithm–particle swarm optimization hybrid algorithm

Introduction

In the injection molding product production, in order to enhance the performance of the products, the most common method is the addition of short fibers such as glass and carbon fibers in the polymer-based. The existence of the fiber will ultimately affect the products’ elastic modulus, tensile strength, thermal conductivity, electrical conductivity, optical properties, and so on. In the injection molding filling, the fiber is suspended in the melt because of the deformation and effect of flow field, and the orientation will orient along a certain direction and change with different positions and different time. Ultimately, the fiber orientation of the products will present in a complex condition, which leads to the anisotropy of mechanical properties.¹ Therefore, the research of fiber orientation has important significance.

In recent years, extensive research on the fiber orientation has been conducted using the numerical simulation. Hung and Shen² predicted the fiber orientation based on Jeffery’s model during injection molding using the finite element method. Aurich and Mennig³ presented a thorough experimental study of flax fiber orientation. Comparison of the measured and calculated modulus in tension shows good agreement. Chang et al.⁴ presented an effective methodology for the optimization injection molding process parameters of short-glass-fiber-reinforced polycarbonate composites. A computer-aided engineering (CAE) flow simulation software was used to simulate the injection molding process and to predict the fiber orientation. On the basis of the CAE analysis, the optimum process parameters are obtained for the thickest shear layer.

As previously mentioned, an extensive research on the fiber orientation has been conducted using the numerical simulation method. Advanced methods are highly demanded to model and optimize the injection molding process with the purpose of manufacturing high-quality plastic parts. Many researchers have been devoted to the optimization research by their experience to apply a trial-and-error method or the Taguchi approach. Although the methods are time-consuming and costly, it is important to evaluate design parameters. Kuram et al.⁵ researched that the glass-fiber-reinforced nylon 6 was reprocessed in the five processing cycles using Taguchi method. The result showed that the method can improve effectively on mechanical properties. Huang et al.⁶ presented a hybrid swarm intelligence with Taguchi-genetic algorithm (GA) to optimize the inverse kinematics. Wang et al.⁷ investigated the injection molding process parameters for manufacturing a brake booster valve body. The optimal parameters are determined by the Taguchi method integrating with the CAE to improve the compressive property of the valve body. KC et al.⁸ researched the optimization of process parameters of sisal-glass fiber hybrid biocomposite in injection molding by Taguchi method. The results show the optimization parameters meet the dimensional requirements of automotive parts. Chen et al.⁹ proposed an effective methodology integrating the finite element and Taguchi methods to determine the optimal design conditions in injection molding for short-fiber-reinforced polycarbonate composites. The effects of four main parameters—the filling time, melt temperature, mold temperature, and injection speed—on the fiber orientation were investigated and discussed. It is found that the dominant parameter is the filling time.

In addition, many researchers are committed to building the relationship model between the objective function and the influence factors by artificial neural network, Kriging model, and response surface methodology. Kurtaran et al.¹⁰ established a predictive model in injection molding using the artificial neural network. It is validated that neural network model is valid for predictive capability. Zhang et al.¹¹ employed the response surface methodology to obtain the relationship model between the objective function and independent variables. Compared with the reference model, the performance of the optimized model was significantly improved. Ozcelik and Erzurumlu¹² optimized process conditions to minimize the warpage of the part in injection molding using analysis of variance (ANOVA), artificial neural network, and GA. Chow et al.¹³ researched the global optimization of absorption chiller system. The neural network was used to model the system characteristics. The results confirmed that this methodology could be effective.

In recent research, the global optimization approach has become a new trend in optimizing the process parameters. GAs and particle swarm optimization (PSO) have been widely used to solve optimization problems. To minimize the warpage on the thin shell plastic part,¹⁴ an effective GA was used to obtain the optimum process parameters. Chen et al.¹⁵ proposed the hybrid GA-PSO to solve the optimization problem in plastic injection. The final optimal combination of process parameters was obtained by the hybrid GA-PSO. The confirmation results show that the proposed method not only enhances the stability but also reduces the costs of and time spent in the injection molding.

As Taguchi method is a robust parameter design technology, the neural network has become a powerful and practical method for modeling highly complex nonlinear systems. GA and PSO have the broaden application in various optimization research fields. Therefore, these methods have been successfully applied in system modeling and process optimization. This study uses the statistical method for the first time. In order to determine the best levels for design parameters, the Taguchi design of experiment (DOE) technique is used to obtain the optimal injection molding conditions. The ANOVA is used to find out the main control factors of the injection molding process. The neural network method is used to establish the relationship model. Finally, PSO and GA-PSO are, respectively, used in the parameter optimization of fiber-reinforced composite injection molding.

Relative theory

The back propagation neural network

Back propagation neural network (BPNN) has the powerful ability of nonlinear interpolation to obtain the mathematical mapping reflecting the internal law of the experimental data. Thus, neural network has been widely used in engineering applications for prediction and optimization. In this study, BPNN is used to establish the relationship model between the design parameters and the fiber-orientation tensor variation. The algorithm process of the BPNN is divided into BPNN training and BPNN for prediction.

Before making prediction with the BPNN, it should be trained first. By training, the network will own the ability of associative memory and prediction. The BPNN is a multilayered architecture made up of one or more hidden layers placed between the input and output layers.

Based on the input variable x, connection weights w_sj between input layer and hidden layer, hidden layer threshold a, and the outputs H of hidden layer are calculated as follows

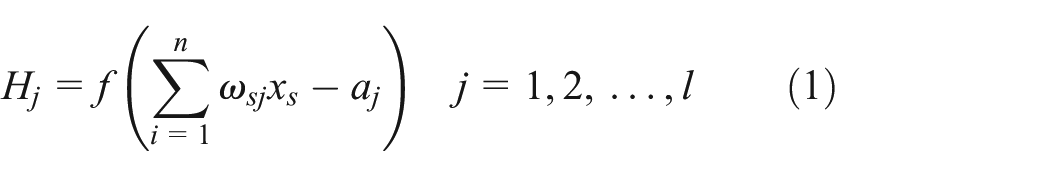

H_{j} = f (\sum_{i = 1}^{n} ω_{sj} x_{s} - a_{j}) j = 1, 2, \dots, l

(1)

where l is the node number of hidden layer of neural network and f is the activation function. The activation function is expressed as follows

f (x) = \frac{1}{1 + e^{- x}}

(2)

According to the hidden layer outputs H, connection weight w_jt, and threshold value b, the predictive outputs O of the BPNN are calculated as follows

O_{t} = \sum_{j = 1}^{l} H_{j} w_{jt} - b_{t} t = 1, 2, \dots, m

(3)

The PSO algorithm

PSO algorithm inspires from population behavior characteristics and is used to solve optimization problems. Each particle in the algorithm represents a potential solution of the problem and corresponds with a fitness which is determined by the fitness function. The particle’s velocity determines the direction and distance, and the speed is dynamically adjusted by themselves and movement experience of other particles, so as to realize the optimization of individual in the solution space.

We assume that a searching space of D dimension has the species composed of n particles X = (X₁, X₂, …, Xn), where the ith particle is expressed as a D dimension vector X_i = [x_i₁, x_i₂, …, x_iD]^T, representative of position of the ith particle in D dimension of search space, which also represents a potential solution of a problem. According to the objective function, the position of each particle X_i corresponding fitness values can be calculated. The speed of the ith particle can be expressed as V_i = [V_i₁, V_i₂, …, V_iD]^T, and its individual extremum is P_i = [P_i₁, P_i₂, …, P_iD]^T and populations of the global extremum is P_g = [P_g₁, P_g2, …, P_gD]^T.

In the process of each iteration, the particle updates the velocity and position by individual extremum and global extremum updates. Updating formula is as follows

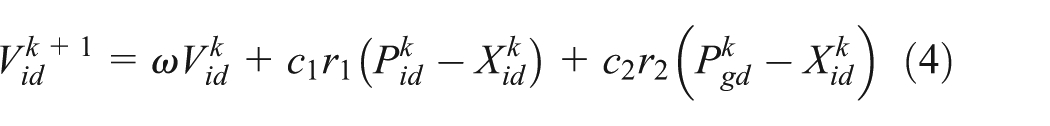

V_{id}^{k + 1} = ω V_{id}^{k} + c_{1} r_{1} (P_{id}^{k} - X_{id}^{k}) + c_{2} r_{2} (P_{gd}^{k} - X_{id}^{k})

(4)

X_{id}^{k + 1} = X_{id}^{k} + V_{id}^{k + 1}

(5)

where V_id and X_id represent the current velocity and the position of the ith particle, w is the inertia weight, and k and k + 1 refer to the recent and the next iterations. d = 1, 2, …, D; i = 1, 2, …, n. c₁ and c₂ represent “trust” parameters indicating how much confidence the current particle has in itself and how much confidence it has in the swarm; r₁ and r₂ are two random numbers between 0 and 1.

The GA-PSO algorithm

The PSO algorithm has fast convergence and strong versatility; however, there are some deficiencies, such as easy to premature, low precision, and low efficiency of the later iterations. However, the GA uses selection, crossover, and mutation operators in the process of function optimization to enhance the global optimization ability, accelerate the speed of evolution algorithm, and improve the precision of convergence. But this mechanism leads to increase in the convergence time of the algorithm. In order to make the two kinds of algorithms effectively combine, the search mechanism of the GA is introduced to form the initial particle swarm. Thus, the GA-PSO optimization algorithm is proposed.

When the particle swarm algorithm stagnates or embeds local optimal solution, the algorithm is tested and genetic operation is carried on to the particles, namely, genetic PSO algorithm. Genetic operation commonly uses selection, crossover, and mutation operations, and in this article, the crossover and mutation operations are chosen to high particle searchability. In the process of crossover operation, the position and speed of the particle that possesses the highest fitness value keep unchanged. Crossover operation of the velocity and position is expressed in the following equation

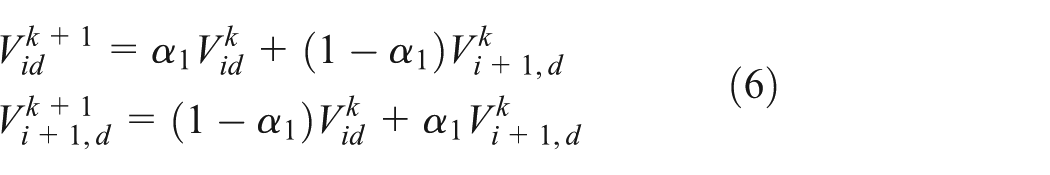

\begin{matrix} V_{id}^{k + 1} = α_{1} V_{id}^{k} + (1 - α_{1}) V_{i + 1, d}^{k} \\ V_{i + 1, d}^{k + 1} = (1 - α_{1}) V_{id}^{k} + α_{1} V_{i + 1, d}^{k} \end{matrix}

(6)

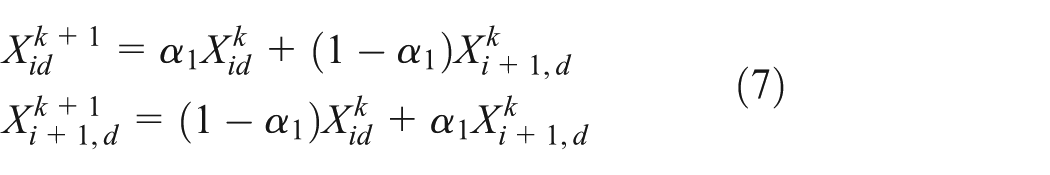

\begin{matrix} X_{id}^{k + 1} = α_{1} X_{id}^{k} + (1 - α_{1}) X_{i + 1, d}^{k} \\ X_{i + 1, d}^{k + 1} = (1 - α_{1}) X_{id}^{k} + α_{1} X_{i + 1, d}^{k} \end{matrix}

(7)

where $α_{1}$ is a random number between 0 and 1.

After crossover operation is completed, the mutation is carried on. The articles that have no searchability are randomly initialized at a certain probability so as to break the equilibrium state which the particle hovers near the local optimal solution and improve the population diversity.

The GA-PSO algorithm steps can be outlined as follows:

Step 1. Initialize each particle in the population randomly and set the initial position and speed.

Step 2. Calculate the fitness value of each particle and initialize the individual optimal value and the global optimum value of the particle swarm.

Step 3. Update the local and global optimal values of the individual according to the particle’s fitness value.

Step 4. Update the particle velocity and position.

Step 5. Determine whether the particles fall into local optimum. If yes, return to step 3. Otherwise, enter step 6 to continue the operation.

Step 6. Check whether the end condition is satisfied. If the current iteration number reaches the maximum number of times, then stop the iteration and output the optimal value.

Experimental design

Problem description

Figure 1 shows the simulation model of a plastic part with mesh geometry. Its length, width, and height are 146, 190, and 10 mm, respectively. The geometry of the plastic part is discretized using the “fusion” grid. The global grid side length is 6.45 mm, and the string is 0.1 mm. The number of triangle units is 3520. The material is acrylonitrile butadiene styrene (ABS) (manufacturers for the UMG ABS Ltd, brand UMG ABS GF20). The thermoplastic material for conducting the finite element analysis is selected from the Moldflow software. Its properties are given in Table 1.

Figure 1.

Base and mesh geometry together.

Table 1.

Properties of the part material.

Solid density (g/cm³)	1.1839
Melt density (g/cm³)	1.0819
Recommended mold temperature (°C)	50
Recommended melt temperature (°C)	240
Material characteristics	ABS
Elastic modulus (MPa)	7000
Shear modulus (MPa)	2573
Poisson’s ratio	0.36

ABS: acrylonitrile butadiene styrene.

Fiber-orientation tensor variation measurement

Fiber-orientation tensor results show the probability of fiber orientation along the first main direction (i.e. flow direction). Specifying the high probability of fiber orientation along the first main direction is signified by the range value that is close to 1, whereas the low probability is close to zero value. The results of the fiber-orientation tensor along the first principal direction are useful for research.

In the fiber-reinforced composite injection molding process, fiber orientation significantly influences the mechanical property of molding products and produces the products’ current anisotropic properties. It is very important to research the fiber-orientation distribution. In this study, the fiber-orientation distribution is denoted by the fiber-orientation tensor variation (the difference between the maximum and the minimum fiber-orientation tensor). When the fiber-orientation tensor variation is smaller, fiber-orientation distribution is more homogeneous.

Therefore, the fiber-orientation tensor variation in the plastic part is selected as the objective function, and the objective is the minimum problem.

Orthogonal design

In this study, Taguchi’s experiment design is used to identify the optimal settings of process conditions and the effect of the process parameters on the fiber-orientation tensor variation. It is composed of the parameters of the fiber-reinforced composite injection molding process. Each experimental factor is researched at three levels between the lowest and highest values. Fiber content ranges from 10% to 30%, fiber aspect ratio ranges from 10 to 50, melting temperature ranges from 220°C to 260°C, injection pressure ranges from 60 to 80 MPa, holding pressure ranges from 40 to 60 MPa, and filling time ranges from 1 to 3 s. Six variable factors with three levels are studied, as shown in Table 2.

Table 2.

Factor and level set.

Level	Factor
	Fiber content (%)	Fiber aspect ratio	Melting temperature (°C)	Injection pressure (MPa)	Holding pressure (MPa)	Filling time (s)
	A	B	C	D	E	F
1	10	10	220	60	40	1
2	20	30	240	70	50	2
3	30	50	260	80	60	3

According to the orthogonal experiment design, the number of experimental trials is 27. The signal-to-noise ratio (S/N) for each experiment is computed by

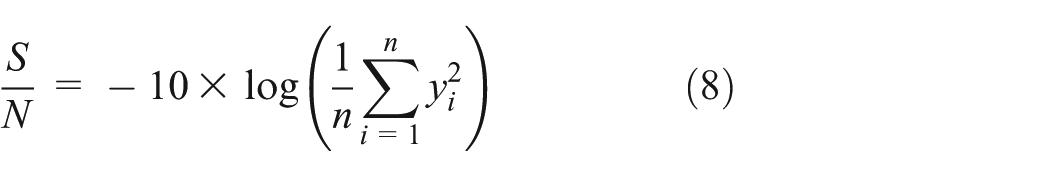

\frac{S}{N} = - 10 \times \log (\frac{1}{n} \sum_{i = 1}^{n} y_{i}^{2})

(8)

where n is the number of fiber-orientation tensor variation data sets, which is equal to 27, and y_i is the fiber-orientation tensor variation value for the ith data set.

Results and discussion

Taguchi method

The Taguchi method is used during the design of parameters for product control and procedure optimization to find the best results. Thus, the Taguchi method is used to determine the effect of the process parameters on the fiber-orientation tensor variation. For each of the 27 experimental trials, the finite element results for the fiber-orientation tensor variation and the S/N results are shown in Table 3. The S/N is an important quality indicator that designers use to evaluate the effect of process parameters on the products’ quality index. As the objective of the research is to minimize the fiber-orientation tensor variation, the S/N ratio related to the smaller-the-better quality characteristic is selected when calculating the S/N ratio. The response table of the S/N ratio and diagram are given in Table 4 and Figure 2, respectively. The table is used to determine the optimal control factor settings in minimizing the fiber-orientation tensor variation. Table 4 presents the S/N response values at three levels and the effect of each factor on the S/N ratio. Figure 2 illustrates the effects of control factors by showing S/N values at three level settings for each factor.

Table 3.

Results of the $L_{27}$ experiment.

No.	A	B	C	D	E	F	Fiber-orientation tensor variation	S/N value (dB)
1	10	10	220	60	40	1	0.5108	5.835
2	10	10	220	60	50	2	0.6114	4.273
3	10	10	220	60	60	3	0.6045	4.372
4	10	30	240	70	40	1	0.5368	5.404
5	10	30	240	70	50	2	0.6077	4.326
6	10	30	240	70	60	3	0.6131	4.249
7	10	50	260	80	40	1	0.5057	5.922
8	10	50	260	80	50	2	0.5143	5.776
9	10	50	260	80	60	3	0.5072	5.896
10	20	10	240	80	40	2	0.5083	5.878
11	20	10	240	80	50	3	0.6102	4.291
12	20	10	240	80	60	1	0.5181	5.712
13	20	30	260	60	40	2	0.6202	4.149
14	20	30	260	60	50	3	0.6294	4.021
15	20	30	260	60	60	1	0.5054	5.927
16	20	50	220	70	40	2	0.6117	4.269
17	20	50	220	70	50	3	0.6083	4.318
18	20	50	220	70	60	1	0.5112	5.828
19	30	10	260	70	40	3	0.6245	4.080
20	30	10	260	70	50	1	0.5061	5.915
21	30	10	260	70	60	2	0.5074	5.893
22	30	30	220	80	40	3	0.507	5.900
23	30	30	220	80	50	1	0.5059	5.919
24	30	30	220	80	60	2	0.6107	4.283
25	30	50	240	60	40	3	0.6152	4.220
26	30	50	240	60	50	1	0.5064	5.910
27	30	50	240	60	60	2	0.6196	4.158

S/N: signal-to-noise ratio.

Table 4.

Response table of the S/N ratio.

Level	Factors
Level	A	B	C	D	E	F
1	5.1170	5.1398	4.9997	4.7628	5.074	5.8191
2	4.9326	4.9087	4.9053	4.9212	4.9721	4.7783
3	5.143	5.1441	5.2876	5.5086	5.1464	4.5951
Effect	0.2104	0.2354	0.3823	0.7458	0.1743	1.2240
Rank	5	4	3	2	6	1

S/N: signal-to-noise ratio.

Figure 2.

Response diagram of the S/N ratio.

In Table 4, the best set of combination parameters can be determined by selecting the level with the highest value for each factor. The analysis of the results shows that the optimal process parameter combinations for the fiber-orientation tensor variation are A3, B3, C3, D3, E3, and F1. These variations correspond to a fiber content of 30%, a fiber aspect ratio of 50, a melting temperature of 260°C, an injection pressure of 80 MPa, a holding pressure of 60 MPa, and a filling time of 1 s for the fiber-orientation tensor variation.

ANOVA

The purpose of ANOVA is to determine the statistically significant parameters influencing the fiber-orientation tensor variation in the designed experimental study. The ANOVA results for fiber-orientation tensor variation are given in Table 5. As shown in Table 5, the F-values of factors D and F are all greater than F_{0.05, 2, 23} = 3.42. Therefore, the injection pressure and filling time are important parameters. In particular, the filling time is the most influential factor for fiber-orientation tensor variation in injection molding, followed by the injection pressure and melting temperature. Chen et al.¹⁵ studied optimization of the injection molding process for short-fiber-reinforced composites and found that the filling time is the most influential factor. This result is consistent with the results of this study. Moreover, the fiber content and holding pressure are not effective factors of minimum fiber-orientation tensor variation.

Table 5.

ANOVA for fiber-orientation tensor variation.

Factors	Degree of freedom	Sum of squares	Mean Square	F-value	p value
A	2	0.00099	0.000497	0.294	0.74965
B	2	0.00137	0.000683	0.404	0.67542
C	2	0.00279	0.001393	0.824	0.45894
D	2	0.01163	0.005816	3.439	0.06095
E	2	0.00059	0.000294	0.174	0.84204
F	2	0.03281	0.016407	9.701	0.00227
Residual	14	0.02368	0.001691
Total	26	0.07386

ANOVA: analysis of variance.

BPNN model for fiber-orientation distribution variation

Based on the above-mentioned results, the fiber content and the holding pressure do not significantly affect the fiber-orientation tensor variation. Therefore, factors, such as fiber aspect ratio, melting temperature, injection pressure, and filling time, are selected as the design parameters in establishment of BPNN model for fiber orientation tensor variation because they potentially affect the fiber-orientation tensor variation. The objective is to optimize the process parameters such that the fiber-orientation tensor variation is minimized. The neuron number of the input layer of BPNN is determined by the number of design variables selected, and the neuron number of the output layer is determined by the number of the objective indexes. Thus, the number of input parameters is 4 and the output parameters is 1, that is, the node number of the input layer is 4, and the node number of the output layer is 1. The node number of the hidden layer is determined with train trials, and the final value obtained is 10. Therefore, the artificial neural network configuration is 4-10-1. In this study, a four-layer BPNN model with two hidden layers is used. The configuration of BPNN is shown in Figure 3.

Figure 3.

Configuration of the BPNN model.

To obtain the training sample library containing enough samples, the way of circulation exchange is used to extend the 27 data sets of orthogonal design in Table 3 to 81 training sample data sets.

Among the 81 samples in the previous section, 61 samples are used to train the BPNN. Then, the remaining 20 samples are used to test the BPNN performance. In Figure 4, the difference of the BPNN forecast and the Moldflow simulation value is shown. The predictive value of the established BPNN is in good agreement with the simulation results. The developed BPNN model gives a satisfactory approximation and can be used as an efficient predictive tool for fiber-orientation tensor variation.

Figure 4.

Comparison of fiber-orientation tensor variation with (a) FE analyses and (b) neural network for training data set.

Optimization through PSO and GA-PSO

Based on the established relationship model using BPNN, the PSO and GA-PSO are, respectively, used to figure out the minimum fiber-orientation tensor variation. The optimum value of fiber aspect ratio (B), melting temperature (C), injection pressure (D), and filling time (F) toward minimum fiber-orientation tensor variation can be efficiently obtained by formulating it as an optimization problem, which can be stated as follows

Find : B, C, D, and F

(9a)

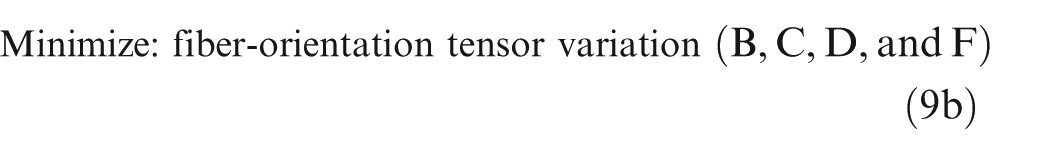

Minimize : fiber-orientation tensor variation (B, C, D, and F)

(9b)

\begin{matrix} Subjected to constraints : \\ fiber-orientation tensor variation < 0.52 \end{matrix}

(9c)

In order to figure out the optimal solution, PSO and GA-PSO are used to solve the minimum problem. In this study, a population size of 20, the dimension of the particle is 2, and generation number of 100 are employed. The evolution of the generations is shown in Figure 5.

Figure 5.

Fitness curve with (a) PSO algorithm and (b) GA-PSO algorithm.

Based on PSO algorithm, the figure shows that after 50 iterations, the optimal fitness value is 0.4725. However, based on GA-PSO algorithm, the figure shows that after 10 iterations, the optimal fitness value is 0.4307. The corresponding optimized parameter combinations are, respectively, given in Table 6.

Table 6.

Result verification.

Parameter	Fiber aspect ratio	Melting temperature (°C)	Injection pressure (MPa)	Filling time (s)	Fiber-orientation tensor variation
Recommended parameter	25	240	65	1	0.5462
Taguchi method	50	260	80	1	0.5368
PSO optimization	30	250	60	1	0.5289
GA-PSO optimization	18	224	65	1	0.5051

GA: genetic algorithm; PSO: particle swarm optimization.

Verification of the optimization result

The confirmation experiment is very important in parameter design. The numerical experiments have been performed based on the optimized process parameters by GA and GA-PSO method. The calculated fiber-orientation tensor distribution is shown in Figure 6(c) and (d). The difference between the maximum value and the minimum value is 0.5289 and 0.5051. The minimum value of the fiber-orientation tensor variation is 0.5289 and 0.5051. Therefore, the GA-PSO enhanced the global optimization ability of PSO algorithm to speed up the evolution of the algorithm, and the convergence precision is improved.

Figure 6.

Fiber-orientation tensor distribution: (a) recommended parameter, (b) Taguchi method, (c) PSO optimization, and (d) GA-PSO optimization.

When the minimum fiber-orientation tensor variation of the part is considered, the fiber-orientation tensor variation (0.5462 before the optimization) is reduced to 0.5051. This value is larger than the BPNN-predicted result under the optimization parameters but smaller than all the samples. The fiber-orientation tensor distribution before optimization is shown in Figure 6(a). The corresponding parameters and result are shown in Table 6. At the same time, the confirmation experiment is conducted based on the Taguchi method. The result demonstrates that the fiber-orientation tensor variation is 0.5368 based on the optimum process parameters obtained by Taguchi method, which is smaller than the value before optimization; however, the variation is larger than the value obtained by GA and GA-PSO method. The fiber-orientation tensor distribution is shown in Figure 6(b). The result shows that the fiber-orientation tensor distribution of the fiber-reinforced composite injection molded part has been improved under the optimized process conditions using GA-PSO.

Conclusion

In this study, an efficient optimization methodology using BPNN and GA-PSO is developed to optimize the fiber-orientation distribution in short-fiber-reinforced ABS composite injection molding. A plastic part under the design parameters is used as the example. On the basis of the Taguchi experiment design and Moldflow numerical simulation, the S/N ratio is used to determine the optimal set of process parameters. ANOVA is used to determine the significance of each factor in the experimental study. This method determines the significance of each factor to minimize the fiber-orientation tensor variation. The dominant process parameter of injection molding is the filling time, followed by the injection pressure and melting temperature. An efficient predictive model for fiber-orientation tensor variation is established based on the most important process parameters (fiber aspect ratio, melting temperature, injection pressure, and filling time) using BPNN to reduce the computational cost of the optimization process. GA-PSO reduces the fiber-orientation tensor variation, and satisfactory results are achieved. The results showed that fiber aspect ratio of 18, melting temperature of 224°C, injection pressure of 65 MPa, and filling time of 1 s provide the minimum fiber-orientation tensor variation. Furthermore, this study indicates that the optimization methodology can also improve the other parts manufactured in fiber-reinforced composite injection molding.

Footnotes

Academic Editor: David R Salgado

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Fundamental Research Funds for the Central Universities (WUT: 2017III020) and Science and Technology Research Project of Jiangxi Provincial Department of Education (No. GJJ160711).

References

Yang

YK.

Optimization of injection molding process for mechanical properties of short glass fiber and polytetrafluoroethylene reinforced polycarbonate composites: a case study. J Reinf Plast Comp 2006; 25: 1279–1290.

Hung

Shen

YK.

Numerical simulation of fiber orientation in injection mold filling. Int Commun Heat Mass 1995; 22: 791–802.

Aurich

Mennig

Flow-induced fiber orientation in injection molded fit fiber reinforced polypropylene. Polym Composite 2001; 22: 680–689.

Chang

Hwang

Doong

JL.

Manufacturing process optimization of short glass fiber reinforced polycarbonate composites in injection molding. J Reinf Plast Comp 2000; 19: 301–321.

Kuram

Tasci

Altan

et al . Investigating the effects of recycling number and injection parameters on the mechanical properties of glass-fibre reinforced nylon 6 using Taguchi method. Mater Design 2013; 49: 139–150.

Huang

CH.

A hybrid swarm intelligence of artificial immune system tuned with Taguchi-genetic algorithm and its field-programmable gate array realization to optimal inverse kinematics for an articulated industrial robotic manipulator. Adv Mech Eng 2016; 8: 1–10.

Wang

Kim

Song

JI.

Optimization of plastic injection molding process parameters for manufacturing a brake booster valve body. Mater Design 2014; 56: 313–317.

Faruk

Agnelli

JAM

et al . Sisal-glass fiber hybrid biocomposite: optimization of injection molding parameters using Taguchi method for reducing shrinkage. Compos Part A 2016; 83: 152–159.

Chen

et al . Optimization of the injection molding process for short-fiber-reinforced composites. Mech Compos Mater 2011; 47: 359–368.

10.

Kurtaran

Ozcelik

Erzurumlu

Warpage optimization of a bus ceiling lamp base using neural network model and genetic algorithm. J Mater Process Tech 2005; 169: 314–319.

11.

Zhang

Gong

et al . Optimization design for turbodrill blades based on response surface method. Adv Mech Eng 2016; 8: 1–12.

12.

Ozcelik

Erzurumlu

Comparison of the warpage optimization in the plastic injection molding using ANOVA, neural network model and genetic algorithm. J Mater Process Tech 2006; 171: 437–445.

13.

Chow

Zhang

Lin

et al . Global optimization of absorption chiller system by genetic algorithm and neural network. Energ Buildings 2002; 34: 103–109.

14.

Kurtaran

Erzurumlu

Efficient warpage optimization of thin shell plastic parts using response surface methodology and genetic algorithm. Int J Adv Manuf Tech 2006; 27: 468–472.

15.

Chen

Nguyen

Chiu

et al . Optimization of the plastic injection molding process using the Taguchi method, RSM, and hybrid GA-PSO. Int J Adv Manuf Tech 2016; 83: 1–14.

Optimization of fiber-orientation distribution in fiber-reinforced composite injection molding by Taguchi,back propagation neural network,and genetic algorithm–particle swarm optimization

Abstract

Keywords

Introduction

Relative theory

The back propagation neural network

The PSO algorithm

The GA-PSO algorithm

Experimental design

Problem description

Fiber-orientation tensor variation measurement

Orthogonal design

Results and discussion

Taguchi method

ANOVA

BPNN model for fiber-orientation distribution variation

Optimization through PSO and GA-PSO

Verification of the optimization result

Conclusion

Footnotes

Declaration of conflicting interests

Funding

References
