Prescribed performance-based low-computational cost fuzzy control of a hypersonic vehicle using non-affine models

Abstract

A novel adaptive fuzzy control approach with low computational costs is addressed for the longitudinal non-affine model of a generic hypersonic vehicle subject to parametric uncertainties, capable of guaranteeing that altitude and velocity tracking errors exhibit prescribed performance. A new performance function is devised to impose preselected bounds on the transient and steady-state tracking error performance, and then a transformed error is constructed, which converts the original “constrained” system into an equivalent “unconstrained” one for the simplicity of control designs. Furthermore, a simplified fuzzy controller is exploited for the altitude subsystem, eliminating the issue of “explosion of complexity” that is associated with back-stepping control. For the velocity subsystem, a prescribed performance-based proportional–integral controller is utilized. The special contributions of the proposed control strategy are that it can guarantee altitude and velocity tracking errors with desired transient and steady-state performance, and meanwhile the computational load is quite low. Finally, numerical simulation results are presented to verify the efficiency of the design.

Keywords

Fuzzy control non-affine model hypersonic vehicles prescribed performance

Introduction

Hypersonic vehicles (HVs) have been regarded as a reliable solution to making access to near space affordable, as witnessed by the NASA’s successful flight tests of the scramjet-powered X-43A and X-51A.^1–3 Due to the tightly integrated airframe and varying flight environments, the HV’s motion model is uncertain, nonlinear, non-affine, and coupled, which yields unprecedented challenges for control system designs.^4–6 Moreover, because of the hypersonic flight, excellent transient performance and low computational loads are needed for HV’s control systems to achieve satisfactory controlling accuracy.^7–9

Recently, most control methodologies presented to date have been limited in their scope to the longitudinal dynamics of HVs.^10–12 To handle the issue of robustness against parametric uncertainties, a robust L_∞-gain controller is developed for the longitudinal motion model of an HV subject to uncertain coefficients and external disturbances via a fuzzy system-based disturbance observer approach, providing robust tracking of velocity and altitude commands.¹³ In a study by Wang et al.,¹⁴ a recursive terminal sliding mode control (SMC) strategy is proposed for generic HVs with measurement noises and disturbances by developing a sliding mode disturbance observer to enhance the robustness performance, which also eliminates the conservative shortcomings of traditional robust control. However, traditional SMC schemes are inadequate to deal with the flexibility effects of HVs due to the high-frequency chattering. Therefore, a high-order SMC method is studied for an HV to achieve continuous control inputs and suppress the chattering.¹⁵ By synthesizing nonlinear disturbance observers and back-stepping designs, several improved tracking controllers are exploited for HVs with mismatched uncertainties.^11,16

If the control system does not depend on accurate models, its stability robustness with respect to uncertainties and disturbances will be satisfactory.¹⁰ Thus, neural networks and fuzzy systems are applied to approximate unknown dynamics, while intelligent control approaches with sufficient robustness are investigated for HVs.^17–21 For the attitude dynamics of an HV described by Takagi–Sugeno (T-S) fuzzy models, a fault-tolerant controller is proposed and adaptive laws are designed for the optimal parameter vectors of T-S fuzzy systems for the sake of guaranteeing estimation precision.¹⁷ By supposing that the signs of control gains are known in advance, several neural systems are utilized to estimate the unknown nonlinearities of an HV, and online learning laws are developed for the desired weight vectors of neural networks using parameter projection technologies, based on which a global neural controller is constructed for an HV.¹⁹ Differently, neural networks are employed to approximate the addressed back-stepping controllers instead of unknown functions, while a direct neural control law is presented for an HV and the singular problem is averted.²²

In spite of the recent progress in the control of HVs, many issues still exist: (1) the previous studies can only ensure the control system with stead-state performance by limiting tracking errors to bounded values when the time t→+∞, but efforts in guaranteeing its transient performance are lacking; (2) the methodologies mentioned above are derived from affine models of HVs, which may be inappropriate for actual HVs considering the fact that HVs’ models are completely non-affine; and (3) the existing fuzzy and neural control approaches containing too many online learning parameters that arose from complicated adaptive laws lead to computational burden, making them inapplicable for hypersonic flight control. In view of the above discussions, this article investigates a novel fuzzy control strategy with prescribed performance for the non-affine model of an HV to steer altitude and velocity to follow their reference trajectories, while guaranteeing tracking errors with desired transient and steady-state performance. The main contributions are summarized as follows:

A new fuzzy prescribed performance control scheme independent on accurate initial tracking errors is addressed for an HV to ensure the tracking errors with satisfactory stead-state, especially transient, performance.

Unlike the current affine control methods, the exploited non-affine model-based controller avoids model simplifications.

Only one fuzzy system is employed to approximate the lumped uncertainty, and also only one learning parameter is required, which leads to a low-computational load design.

A Nussbaum-type function is utilized to remove the strict assumptions that the signs of unknown control gains have to be known in advance.

The rest of this article is organized as follows. In section “HV model and preliminaries,” the HV model and preliminaries are presented. The controller is designed in section “Controller design” and the simulation results are depicted in section “Simulation results.” Finally, section “Conclusion” shows the conclusions.

HV model and preliminaries

HV model

Consider the longitudinal dynamic model of an HV, formulated as²³

\overset{\cdot}{V} = T \cos (θ - γ) / m - D / m - g \sin γ

(1)

\overset{\cdot}{h} = V \sin γ

(2)

\overset{\cdot}{γ} = L / (mV) + T \sin (θ - γ) / (mV) - (g / V) \cos γ

(3)

\overset{\cdot}{θ} = Q

(4)

\overset{\cdot}{Q} = (M + {\tilde{ψ}}_{1} {\overset{\cdot\cdot}{η}}_{1} + {\tilde{ψ}}_{2} {\overset{\cdot\cdot}{η}}_{2}) / I_{yy}

(5)

\begin{array}{l} k_{1} {\overset{\cdot\cdot}{η}}_{1} = - 2 ζ_{1} ω_{1} {\dot{η}}_{1} - ω_{1}^{2} η_{1} + N_{1} \\ - {\tilde{ψ}}_{1} M / I_{yy} - {\tilde{ψ}}_{1} {\tilde{ψ}}_{2} {\overset{\cdot\cdot}{η}}_{2} / I_{yy} \end{array}

(6)

\begin{array}{l} k_{2} {\overset{\cdot\cdot}{η}}_{2} = - 2 ζ_{2} ω_{2} {\dot{η}}_{2} - ω_{2}^{2} η_{2} + N_{2} \\ - {\tilde{ψ}}_{2} M / I_{yy} - {\tilde{ψ}}_{2} {\tilde{ψ}}_{1} {\overset{\cdot\cdot}{η}}_{1} / I_{yy} \end{array}

(7)

where V, h, γ, θ, and Q represent the velocity, altitude, flight path angle, pitch angle, and pitch rate, respectively; η₁ and η₂ are the flexible states. The thrust force T, the drag force D, the lift force L, the pitching moment M, the first generalized force N₁, and the second generalized force N₂ are defined as²³

\begin{matrix} T \approx β_{1} (h, \bar{q}) Φ α^{3} + β_{2} (h, \bar{q}) α^{3} + β_{3} (h, \bar{q}) Φ α^{2} + β_{4} (h, \bar{q}) α^{2} \\ + β_{5} (h, \bar{q}) Φ α + β_{6} (h, \bar{q}) α + β_{7} (h, \bar{q}) Φ + β_{8} (h, \bar{q}) \end{matrix}

D \approx \bar{q} {SC}_{D}^{α^{2}} α^{2} + \bar{q} {SC}_{D}^{α} α + \bar{q} {SC}_{D}^{δ_{e}^{2}} δ_{e}^{2} + \bar{q} {SC}_{D}^{δ_{e}} δ_{e} + \bar{q} {SC}_{D}^{0}

M \approx z_{T} T + \bar{q} S \bar{c} C_{M, α}^{α^{2}} α^{2} + \bar{q} S \bar{c} C_{M, α}^{α} α + \bar{q} S \bar{c} C_{M, α}^{0} + \bar{q} S \bar{c} c_{e} δ_{e}

L \approx \bar{q} {SC}_{L}^{α} α + \bar{q} {SC}_{L}^{δ_{e}} δ_{e} + \bar{q} {SC}_{L}^{0}, N_{1} = N_{1}^{α^{2}} α^{2} + N_{1}^{α} α + N_{1}^{0}

N_{2} = N_{2}^{α^{2}} α^{2} + N_{2}^{α} α + N_{2}^{δ_{e}} δ_{e} + N_{2}^{0}, \bar{q} = \bar{ρ} V^{2} / 2

\bar{ρ} = {\bar{ρ}}_{0} \exp (- (h - h_{0}) / h_{s})

In the above HV model, the control inputs Φ and δ_e, representing the fuel equivalence ratio and elevator angular deflection, respectively, occur implicitly in equations (1)–(7) through T, D, L, M, N₁, and N₂. For more detailed definitions of the other variables and coefficients, the reader could refer to Parker et al.²³ or Notation.

The pursued design goal is to let h and V track their commands h_ref and V_ref, respectively, despite model uncertainties by exploiting fuzzy approximation-based prescribed performance controllers Φ and δ_e. Meanwhile, altitude and velocity tracking errors are limited within preselected bounds to guarantee transient and stead-state performance.

Remark 1

Noting the fact that the flexible states η₁ and η₂ are unmeasured, only the rigid body states V, h, γ, θ, and Q are used for control design. For η₁ and η₂ that are treated as unknown uncertainties according to current studies,^8–12 the addressed controller’s robustness will handle them via fuzzy approximation.

Remark 2

From equations (1)–(5) and the definitions of T, D, L, M, N₁, and N₂, it is obvious that the HV model is completely non-affine in the control inputs. Hence, this model is inappropriate to be simplified as an affine one by removing some significant features of the model under strict assumptions. For this reason, the subsequent control designs are processed using the originally non-affine model of an HV without any simplification.

Preliminaries

The following preliminaries are used to initialize the subsequent developments.

Definition 1

The function $ℏ (ϑ)$ should be called as a Nussbaum-type function if the following properties hold²⁴

{\begin{matrix} lim_{β_{0} \to \infty} \sup \frac{1}{β_{0}} \int_{0}^{β_{0}} ℏ (ϑ) d ς = + \infty \\ lim_{β_{0} \to \infty} \inf \frac{1}{β_{0}} \int_{0}^{β_{0}} ℏ (ϑ) d ς = - \infty \end{matrix}

(8)

Lemma 1

Define $ℏ (ϑ)$ and $Y_{0} (t) \geq 0$ on $[0, t_{f})$ . If the following inequality holds²⁴

Y_{0} (t) \leq \sum_{0} + \int_{0}^{t} (λ_{0} ℏ (ϑ) + 1) \overset{\cdot}{ϑ} (τ) d τ

(9)

where $\sum_{0}$ is a suitable constant and $λ_{0}$ is nonzero, then Y₀(t), $ℏ (ϑ)$ , and $\int_{0}^{t} (λ_{0} ℏ (ϑ) + 1) \overset{\cdot}{ϑ} (τ) d τ$ are all bounded on $[0, t_{f})$ .

Lemma 2 (Implicit function theorem)

Assume that $H (ϖ, σ) : R^{l} \times R^{r} \to R^{l}$ is continuously differentiable at each $(ϖ, σ)$ of an open set $Y_{H} \subset R^{l} \times R^{r}$ . Define $(ϖ_{0}, σ_{0})$ as a point in $Y_{H}$ for which $H (ϖ_{0}, σ_{0}) = 0$ and the Jacobian matrix $(\partial H / \partial ϖ) (ϖ_{0}, σ_{0})$ is nonsingular.²⁵ Then, there are neighborhoods $U \subset R^{l}$ of $ϖ_{0}$ and $G \subset R^{r}$ of $σ_{0}$ such that for each $σ \in G$ the equation $H (ϖ, σ) = 0$ has a unique solution $ϖ \in U$ . Furthermore, the solution can be expressed as $ϖ = g_{0} (σ)$ , where $g_{0} (\cdot)$ is a continuously differentiable function at $σ = σ_{0}$ .

Lemma 3 (Mean value theorem)

Suppose that $f (x_{0}, y_{0}) : R^{n} \times R \to R$ is differentiable at each point of an open set $R^{n} \times (a, b)$ and continuous at both endpoints y₀ = a and y₀ = b. Then there must exist a point $y_{0}^{*} \in (a, b)$ such that²⁶

f (x_{0}, b) - f (x_{0}, a) = \frac{\partial f (x_{0}, y_{0}^{*})}{\partial y_{0}^{*}} (b - a)

(10)

Lemma 4 (Young’s inequality)

For $\forall μ_{1}, μ_{2} \in R$ , we obtain²⁷

μ_{1} μ_{2} \leq \frac{ε_{0}^{p_{0}}}{p_{0}} {| μ_{1} |}^{p_{0}} + \frac{1}{q_{0} ε_{0}^{q_{0}}} {| μ_{2} |}^{q_{0}}

(11)

with $ε_{0} > 0$ , $p_{0} > 1$ , $q_{0} > 1$ , $(p_{0} - 1) (q_{0} - 1) = 1$ .

It is proved that the fuzzy system can be used to approximate a continuous function $β (υ)$ on a compact set $Ω_{υ}$ , where $υ = [υ_{1}, υ_{2}, \dots, υ_{n}]^{T}$ .²⁸ When utilizing singleton fuzzification, center-average defuzzification, and product inference with the following fuzzy rules “IF υ₁ is $Ψ_{1}^{i}$ and υ₂ is $Ψ_{2}^{i}$ and … and υ_n is $Ψ_{n}^{i}$ , THEN Y is $H^{i}$ (i = 1, 2, …, N),” then the output of fuzzy system is given by

Y (υ) = \frac{\sum_{j = 1}^{N} ϕ_{j} Π_{i = 1}^{n} ϖ_{Ψ_{i}^{j}} (υ_{i})}{\sum_{j = 1}^{N} [Π_{i = 1}^{n} ϖ_{Ψ_{i}^{j}} (υ_{i})]}

(12)

where $Ψ_{i}^{i}$ and $H^{i}$ are fuzzy sets, the fuzzy membership function $ϖ_{Ψ_{i}^{j}} ()$ is chosen as a Gaussian function, and $ϕ_{j}$ is the point that lets $ϖ_{Ψ_{i}^{j}} (ϕ_{j})$ reach its maximum value. Define $p_{j} (υ) = Π_{i = 1}^{n} ϖ_{Ψ_{i}^{j}} (υ_{i}) / \sum_{j = 1}^{N} [Π_{i - 1}^{n} ϖ_{Ψ_{i}^{j}} (υ_{i})]$ , $P (υ) = [p_{1} (υ), p_{2} (υ), \dots, p_{N} (υ)]^{T} \in R^{N}$ , and $\bar{ϕ} = [ϕ_{1}, ϕ_{1}, \dots, ϕ_{N}]^{T} \in R^{N}$ . Then we have

Y (υ) = ϕ^{T} P (υ)

(13)

Lemma 5

For a continuous function $β (υ)$ defined on a compact set $Ω_{υ}$ , there exist a constant $ε_{M} > 0$ and a fuzzy logic system such that²⁸

sup_{υ \in Ω_{υ}} | β (υ) - ϕ^{T} P (υ) | \leq ε_{M}

(14)

Controller design

Altitude controller design

This subsection shows the design process of prescribed performance controller for the altitude subsystem (2)–(5) such that h tracks its reference trajectory h_ref with altitude tracking error satisfying the preselected transient performance.

Define altitude tracking error $\tilde{h} = h - h_{ref}$ and transformed error $ε_{h} (t) = \ln ((μ_{h} (t) + 1) / (1 - μ_{h} (t)))$ , where $μ_{h} (t) = \tilde{h} / ρ_{1} (t)$ . The performance function $ρ_{1} (t)$ is devised as

ρ_{1} (t) = \frac{1}{e^{l_{1} t + τ_{1}} - 1} + ρ_{1 \infty}

(15)

where $l_{1}$ , $τ_{1}$ , and $ρ_{1 \infty}$ are positive constants to be chosen.

Notice that $ρ_{1} (0) = (1 / (e^{τ_{1}} - 1)) + ρ_{1 \infty} > ρ_{1 \infty}$ , $lim_{τ_{1} \to 0} ρ_{1} (0) \to + \infty$ and $lim_{t \to + \infty} ρ_{1} (t) = ρ_{1 \infty}$ . Thus, for any unknown but bounded $\tilde{h} (0)$ , we always obtain that $ρ_{1} (0) < \tilde{h} (0) < ρ_{1} (0)$ holds by choosing infinitely small $τ_{1}$ , which infers that the proposed prescribed performance does not need accurate initial tracking error $\tilde{h} (0)$ any more.

Theorem 1

If the transformed error $ε_{h} (t)$ is bounded, the altitude tracking error $\tilde{h}$ will be limited within $- ρ_{1} (t) < \tilde{h} < ρ_{1} (t)$ .

Proof 1

The boundedness of $ε_{h} (t)$ leads to that there exists a positive constant $ε_{h M}$ satisfying $| ε_{h} (t) | \leq ε_{h M}$ . The inverse transformation of $ε_{h} (t)$ is

e^{ε_{h} (t)} = \frac{μ_{h} (t) + 1}{1 - μ_{h} (t)}

(16)

Then, we further have

- 1 < \frac{e^{- ε_{h M}} - 1}{1 + e^{- ε_{h M}}} \leq μ_{h} (t) \leq \frac{e^{ε_{h M}} - 1}{1 + e^{ε_{h M}}} < 1

(17)

Since $μ_{h} (t) = \tilde{h} / ρ_{1} (t)$ , it yields

- 1 < \tilde{h} / ρ_{1} (t) < 1

(18)

That is, $- ρ_{1} (t) < \tilde{h} < ρ_{1} (t)$ . This completes the proof.□

Remark 3

It is concluded from Theorem 1 that both the transient and stead-state performance of $\tilde{h}$ can be guaranteed when designing appropriate $l_{1}$ , $τ_{1}$ , and $ρ_{1 \infty}$ , as depicted in Figure 1.

Figure 1.

Graphical presentation of the prescribed performance for $\tilde{h}$ .

We choose the reference trajectory of γ as

γ_{d} = \arcsin [\frac{- k_{h 0} ε_{h} (t) + {\overset{\cdot}{h}}_{ref} + {\overset{\cdot}{ρ}}_{1} (t) \tilde{h} / ρ_{1} (t)}{V}]

(19)

where $k_{h 0} > 0$ is a design parameter and ${\overset{\cdot}{ρ}}_{1} (t) = l_{1} e^{l_{1} t + τ_{1}} / (e^{l_{1} t + τ_{1}} - 1)^{2}$ .

If γ→γ_d, the corresponding dynamics for $ε_{h} (t)$ is derived as

k_{h 0} {\overset{\cdot}{ε}}_{h} (t) + ε_{h} (t) = 0

(20)

It is clear that $ε_{h} (t)$ is bounded and the prescribed performance on $\tilde{h}$ is achieved based on Theorem 1. Then, the subsequent design goal is to let γ→γ_d.

In what follows, a low-computational load fuzzy control law will be developed to make γ→γ_d.

Define $x_{1} = γ, x_{2} = θ, x_{3} = Q$ . Then the rest of altitude subsystem (i.e. equations (3)–(5)) can be rewritten as the following non-affine formulation

{\begin{matrix} {\overset{\cdot}{x}}_{1} = f_{1} (x_{1}, x_{2}, δ_{e}) \\ {\overset{\cdot}{x}}_{2} = x_{3} \\ {\overset{\cdot}{x}}_{3} = f_{3} (x_{1}, x_{2}, x_{3}, Φ, δ_{e}) \end{matrix}

(21)

where the continuous functions $f_{1} (x_{1}, x_{2}, δ_{e})$ and $f_{3} (x_{1}, x_{2}, x_{3}, Φ, δ_{e})$ are completely unknown.

Defining $z_{1} = x_{1} = γ$ , $z_{2} = {\overset{\cdot}{z}}_{1} = f_{1} (x_{1}, x_{2}, δ_{e})$ and applying equation (21), we obtain the time derivative of $z_{2}$

\begin{matrix} {\overset{\cdot}{z}}_{2} = \frac{\partial f_{1} (x_{1}, x_{2}, δ_{e})}{\partial x_{1}} {\overset{\cdot}{x}}_{1} + \frac{\partial f_{1} (x_{1}, x_{2}, δ_{e})}{\partial x_{2}} {\overset{\cdot}{x}}_{2} + \frac{\partial f_{1} (x_{1}, x_{2}, δ_{e})}{\partial δ_{e}} {\overset{\cdot}{δ}}_{e} \\ = \frac{\partial f_{1} (x_{1}, x_{2}, δ_{e})}{\partial x_{1}} f_{1} (x_{1}, x_{2}, δ_{e}) + \frac{\partial f_{1} (x_{1}, x_{2}, δ_{e})}{\partial x_{2}} x_{3} \\ + \frac{\partial f_{1} (x_{1}, x_{2}, δ_{e})}{\partial δ_{e}} {\overset{\cdot}{δ}}_{e} \\ \overset{Δ}{=} ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e}) \end{matrix}

(22)

Furthermore, defining $z_{3} = {\overset{\cdot}{z}}_{2} = ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})$ and using equations (21) and (22), the time derivative of $z_{3}$ is calculated as

\begin{matrix} {\overset{\cdot}{z}}_{3} = \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial x_{1}} {\overset{\cdot}{x}}_{1} + \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial x_{2}} {\overset{\cdot}{x}}_{2} \\ + \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial x_{3}} {\overset{\cdot}{x}}_{3} + \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial δ_{e}} {\overset{\cdot}{δ}}_{e} \\ = \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial x_{1}} f_{1} (x_{1}, x_{2}, δ_{e}) + \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial x_{2}} x_{3} \\ + \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial x_{3}} f_{3} (x_{1}, x_{2}, x_{3}, Φ, δ_{e}) \\ + \frac{\partial ℏ_{1} (x_{1}, x_{2}, x_{3}, δ_{e})}{\partial δ_{e}} {\overset{\cdot}{δ}}_{e} \\ \overset{Δ}{=} F_{h} (x, Φ, δ_{e}) \end{matrix}

(23)

with $x = [x_{1}, x_{2}, x_{3}]^{T} \in R^{3}$ .

Thus, a pure feedback non-affine model is derived from equation (21)

{\begin{matrix} {\overset{\cdot}{z}}_{1} = z_{2} \\ {\overset{\cdot}{z}}_{2} = z_{3} \\ {\overset{\cdot}{z}}_{3} = F_{h} (x, Φ, δ_{e}) \end{matrix}

(24)

where $F_{h} (x, Φ, δ_{e})$ is continuous and unknown.

Assumption 1

It is assumed that $(\partial F_{h} (x, δ_{e})) / (\partial δ_{e}) \neq 0$ .

Remark 4

Assumption 1 imposes the global controllability condition on equation (24) and also is the satisfying condition of Lemma 2. Unlike other works^22,29 needing that the control gain $(\partial F_{h} (x, δ_{e})) / \partial δ_{e}$ has to be positive, the addressed controller does not require such strict assumption via a Nussbaum-type function-based approach.

Remark 5

It is apparent that compared with equation (21) the formulation of equation (24) is simpler. On the basis of equation (24), there is no need of complicated recursive design process of back-stepping, while a lower complexity design than the one of Bu et al.²² is achieved.

Define the tracking error e and error function E as

{\begin{matrix} e = γ - γ_{d} = z_{1} - γ_{d} \\ E = {(\frac{d}{d t} + r)}^{3} \int_{0}^{t} e d τ \\ = \overset{\cdot\cdot}{e} + 3 r \overset{\cdot}{e} + 3 r^{2} e + r^{3} \int_{0}^{t} e d τ \end{matrix}

(25)

with $r > 0$ .

The time derivative of E is given by

\begin{matrix} \overset{\cdot}{E} = \overset{\dots}{e} + 3 r \overset{\cdot\cdot}{e} + 3 r^{2} \overset{\cdot}{e} + r^{3} e \\ = F_{h} (x, δ_{e}) - {\overset{\dots}{γ}}_{d} + 3 r \overset{\cdot\cdot}{e} + 3 r^{2} \overset{\cdot}{e} + r^{3} e \\ = F_{h} (x, δ_{e}) - F_{h} (x, δ_{e}^{*}) \\ + [F_{h} (x, δ_{e}^{*}) - {\overset{\dots}{γ}}_{d} + 3 r \overset{\cdot\cdot}{e} + 3 r^{2} \overset{\cdot}{e} + r^{3} e] \end{matrix}

(26)

Based on Lemma 2 and Assumption 1, we know that there exists a $δ_{e}^{*}$ such that $F_{h} (x, δ_{e}^{*}) - {\overset{\dots}{γ}}_{d} + 3 r \overset{\cdot\cdot}{e} + 3 r^{2} \overset{\cdot}{e} + r^{3} e = 0$ . Then, equation (26) becomes

\overset{\cdot}{E} = F_{h} (x, δ_{e}) - F_{h} (x, δ_{e}^{*})

(27)

Using Lemma 3 leads to

F_{h} (x, δ_{e}) - F_{h} (x, δ_{e}^{*}) = G_{h} (x, δ_{e}^{*}) (δ_{e} - δ_{e}^{*})

(28)

where $G_{h} (\cdot) = G_{h} (x, δ_{e}^{*}) = \frac{\partial F (x, ℓ)}{\partial ℓ} \neq 0, ℓ = θ_{h} δ_{e} + (1 - θ_{h}) δ_{e}^{*}, θ_{h} \in [0, 1]$ .

Based on equations (27) and (28), we have

\overset{\cdot}{E} = G_{h} (x, δ_{e}^{*}) (δ_{e} - δ_{e}^{*}) = G_{h} (x, δ_{e}^{*}) δ_{e} - G_{h} (x, δ_{e}^{*}) δ_{e}^{*}

(29)

For the unknown term $δ_{e}^{*}$ , a fuzzy system is applied to approximate it

δ_{e}^{*} = {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) + ε_{1 M}

(30)

where $X_{1} = [γ, θ, Q]^{T} \in R^{3}$ is the input vector and $ε_{1 M} > 0$ is the approximation error and its existence is ensured by Lemma 5.

Define $φ_{1} = ‖ {\bar{ϕ}}_{1} ‖^{2}$ and choose the following control law

{\begin{matrix} δ_{e} = ℏ (ϑ) [k_{h} E + \frac{E {\hat{φ}}_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1})}{2}] \\ ℏ (ϑ) = \exp (ϑ^{2}) \cos (\frac{π ϑ}{2}) \\ \overset{\cdot}{ϑ} = k_{h} E^{2} + \frac{E^{2} {\hat{φ}}_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1})}{2} \end{matrix}

(31)

where $k_{h}$ is a design parameter and ${\hat{φ}}_{1}$ represents the estimation of $φ_{1}$ . The adaptive law for ${\hat{φ}}_{1}$ is selected as

{\overset{\cdot}{\hat{φ}}}_{1} = \frac{κ_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1})}{2} - 2 {\hat{φ}}_{1}

(32)

with $κ_{1} > 0$ .

Theorem 2

Consider the closed-loop system consisting of non-affine plant (equation (24)), controller (equation (31)), and adaptive law (equation (32)) under Assumption 1. Then, all the signals involved are bounded.

Proof

Consider the following Lyapunov function

W = \frac{E^{2}}{2 | G_{h} (x, δ_{e}^{*}) |} + \frac{{\tilde{φ}}_{1}^{2}}{2 κ_{1}}

(33)

with ${\tilde{φ}}_{1} = {\hat{φ}}_{1} - φ_{1}$ .

Taking the time derivative of equation (33), we obtain

\overset{\cdot}{W} = \frac{E \overset{\cdot}{E}}{| G_{h} (x, δ_{e}^{*}) |} - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} + \frac{{\tilde{φ}}_{1} {\overset{\cdot}{\hat{φ}}}_{1}}{κ_{1}}

(34)

Substituting equations (29), (30), and (32) into equation (34) yields

\begin{matrix} \overset{\cdot}{W} = \frac{E G_{h} (x, δ_{e}^{*}) (δ_{e} - δ_{e}^{*})}{| G_{h} (x, δ_{e}^{*}) |} - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} \\ + \frac{{\tilde{φ}}_{1}}{κ_{1}} [\frac{κ_{1}}{2} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - 2 {\hat{φ}}_{1}] \\ = \frac{E G_{h} (x, δ_{e}^{*}) (δ_{e} - {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) + ε_{1 M})}{| G_{h} (x, δ_{e}^{*}) |} \\ - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} + \frac{1}{2} {\tilde{φ}}_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - \frac{2 {\hat{φ}}_{1} {\tilde{φ}}_{1}}{κ_{1}} \\ = χ δ_{e} E - χ E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) + χ E ε_{1 M} - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} \\ + \frac{1}{2} {\tilde{φ}}_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - \frac{2 {\hat{φ}}_{1} {\tilde{φ}}_{1}}{κ_{1}} \end{matrix}

(35)

with $χ = G_{h} (x, δ_{e}^{*}) / | G_{h} (x, δ_{e}^{*}) | \in {- 1, 1}$ .

Considering equation (31) and ${\tilde{φ}}_{1} = {\hat{φ}}_{1} - φ_{1}$ , equation (35) becomes

\begin{matrix} \overset{\cdot}{W} = χ ℏ (ϑ) [k_{h} E + \frac{1}{2} E {\hat{φ}}_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1})] E - χ E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) \\ + χ E ε_{1 M} - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} - \frac{2 {\hat{φ}}_{1} {\tilde{φ}}_{1}}{κ_{1}} \\ + \frac{1}{2} ({\hat{φ}}_{1} - φ_{1}) E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) \\ = χ ℏ (ϑ) [k_{h} E^{2} + \frac{1}{2} E^{2} {\hat{φ}}_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1})] - χ E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) \\ + χ E ε_{1 M} - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} + \frac{1}{2} {\hat{φ}}_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) \\ - \frac{1}{2} φ_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - \frac{2 {\hat{φ}}_{1} {\tilde{φ}}_{1}}{κ_{1}} \end{matrix}

(36)

Adding and subtracting $k_{h} E^{2}$ on the right side of equation (36), we get

\begin{matrix} \overset{\cdot}{W} = - k_{h} E^{2} + k_{h} E^{2} + \frac{1}{2} {\hat{φ}}_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) \\ + χ ℏ (ϑ) [k_{h} E^{2} + \frac{1}{2} E^{2} {\hat{φ}}_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1})] - χ E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) \\ + χ E ε_{1 M} - \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} E^{2} \\ - \frac{1}{2} φ_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - \frac{2 {\hat{φ}}_{1} {\tilde{φ}}_{1}}{κ_{1}} \\ = - [k_{h} + \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}}] E^{2} + [1 + χ ℏ (ϑ)] \overset{\cdot}{ϑ} - χ E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) \\ + χ E ε_{1 M} - \frac{1}{2} φ_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - \frac{2 {\hat{φ}}_{1} {\tilde{φ}}_{1}}{κ_{1}} \end{matrix}

(37)

From the fact that ${\tilde{φ}}_{1}^{2} + 2 {\tilde{φ}}_{1} ({\hat{φ}}_{1} - {\tilde{φ}}_{1}) + φ_{1}^{2} = {\tilde{φ}}_{1}^{2} + 2 {\tilde{φ}}_{1} φ_{1} + φ_{1}^{2} = ({\tilde{φ}}_{1} + φ_{1})^{2} \geq 0$ , we have $2 {\tilde{φ}}_{1} {\hat{φ}}_{1} \geq {\tilde{φ}}_{1}^{2}$ $- φ_{1}^{2}$ . By further noting that $\begin{array}{l} - χ E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) = \pm E {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) \leq (E^{2} / 2) {‖ {\bar{ϕ}}_{1}^{T} P_{1} (X_{1}) ‖}^{2} + 1 / 2 \\ = (E^{2} / 2) {‖ {\bar{ϕ}}_{1} ‖}^{2} {‖ P_{1} (X_{1}) ‖}^{2} + 1 / 2 = (E^{2} / 2) φ_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1}) + 1 / 2 \end{array}$ , $χ E ε_{1 M} = \pm E ε_{1 M} \leq (E^{2} / 4) + ε_{1 M}^{2}$ according to Lemma 4, we have

\begin{matrix} \overset{\cdot}{W} \leq - [k_{h} + \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}}] E^{2} + [1 + χ ℏ (ϑ)] \\ \overset{\cdot}{ϑ} + \frac{E^{2}}{2} φ_{1} P_{1}^{T} (X_{1}) P_{1} (X_{1}) \\ + \frac{1}{2} + \frac{E^{2}}{4} + ε_{1 M}^{2} - \frac{1}{2} φ_{1} E^{2} P_{1}^{T} (X_{1}) P_{1} (X_{1}) - \frac{{\tilde{φ}}_{1}^{2} - φ_{1}^{2}}{κ_{1}} \\ = - [k_{h} + \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} - \frac{1}{4}] E^{2} - \frac{{\tilde{φ}}_{1}^{2}}{κ_{1}} \\ + [1 + χ ℏ (ϑ)] \overset{\cdot}{ϑ} + \frac{1}{2} + ε_{1 M}^{2} + \frac{φ_{1}^{2}}{κ_{1}} \end{matrix}

(38)

Let $k_{h} + ({\overset{\cdot}{G}}_{h} (x, δ_{e}^{*}) / (2 | G_{h} (x, δ_{e}^{*}) |^{2})) - (1 / 4) > 0$ . Then the following inequality holds

\overset{\cdot}{W} \leq - ι W + [1 + χ ℏ (ϑ)] \overset{\cdot}{ϑ} + \frac{1}{2} + ε_{1 M}^{2} + \frac{φ_{1}^{2}}{κ_{1}}

(39)

with

ι = min {2 | G_{h} (x, δ_{e}^{*}) | [k_{h} + \frac{{\overset{\cdot}{G}}_{h} (x, δ_{e}^{*})}{2 {| G_{h} (x, δ_{e}^{*}) |}^{2}} - \frac{1}{4}], 2}

Using multiplication of equation (39) by $e^{ι t}$ , it leads to

\frac{d}{d t} (\dot{W} e^{ι t}) \leq - ι W + [1 + χ ℏ (ϑ)] \dot{ϑ} e^{ι t} + (\frac{1}{2} + ε_{1 M}^{2} + \frac{φ_{1}^{2}}{κ_{1}}) e^{ι t}

(40)

Integrating equation (40) over [0, t], we have

\begin{matrix} W (t) \leq e^{- ι t} \int_{0}^{t} [1 + χ ℏ (ϑ)] \overset{\cdot}{ϑ} e^{ι τ} d τ + \frac{1}{ι} (\frac{1}{2} + ε_{1 M}^{2} + \frac{φ_{1}^{2}}{κ_{1}}) \\ + [W (0) - \frac{1}{ι} (\frac{1}{2} + ε_{1 M}^{2} + \frac{φ_{1}^{2}}{κ_{1}})] e^{- ι t} \end{matrix}

(41)

Based on Lemma 1, we know that $W (t)$ is bounded. Meanwhile, E and ${\tilde{φ}}_{1}$ are bounded. Since the polynomial (s + r)³ is Hurwitz, the tracking error e is also bounded. This is the end of the proof.

Remark 6

Theorem 2 shows that the proposed altitude controller can let γ→γ_d, which guarantees the boundedness of $ε_{h} (t)$ . By utilizing Theorem 1, we further obtain that the desired prescribed performance on $\tilde{h}$ can be guaranteed.

Remark 7

It is noted that there are only one fuzzy system and one learning parameter ${\hat{φ}}_{1}$ . Thus, the proposed controller’s computational load is lower than the one’s addressed in Bu et al.²²

Velocity controller design

Considering the simpleness of velocity dynamics, a proportional–integral (PI) controller is chosen for it

Φ = - k_{V 1} ε_{V} (t) - k_{V 2} \int_{0}^{t} ε_{V} (t) d τ

(42)

with

{\begin{matrix} ε_{V} (t) = \ln (\frac{μ_{V} (t) + 1}{1 - μ_{V} (t)}) \\ μ_{V} (t) = \frac{V - V_{ref}}{ρ_{2} (t)} \\ ρ_{2} (t) = \frac{1}{e^{l_{2} t + τ_{2}} - 1} + ρ_{2 \infty} \end{matrix}

(43)

where $l_{2}$ , $τ_{2}$ , and $ρ_{2 \infty}$ are positive constants to be chosen.

It is inferred that the boundedness of $ε_{V} (t)$ can be guaranteed via the PI controller. From Theorem 1, we easily conclude that the velocity tracking error can be limited within $- ρ_{2} (t) < V - V_{ref} < ρ_{2} (t)$ , and its transient and stead-state performance can also be achieved by choosing appropriate design parameters for $ρ_{2} (t)$ .

Simulation results

In this section, a numerical simulation is presented to test the effectiveness of the addressed control approach. The membership functions of the fuzzy system are chosen as

\begin{matrix} ϖ_{Ψ_{1}^{1}} (γ) = \exp [- {(\frac{γ + 0.018}{0.0044})}^{2}], \\ ϖ_{Ψ_{1}^{2}} (γ) = \exp [- {(\frac{γ + 0.009}{0.0044})}^{2}], \\ ϖ_{Ψ_{1}^{3}} (γ) = \exp [- {(\frac{γ + 0}{0.0044})}^{2}] \\ ϖ_{Ψ_{1}^{4}} (γ) = \exp [- {(\frac{γ - 0.009}{0.0044})}^{2}], \\ ϖ_{Ψ_{1}^{5}} (γ) = \exp [- {(\frac{γ - 0.017}{0.0044})}^{2}], \\ ϖ_{Ψ_{2}^{1}} (θ) = \exp [- {(\frac{θ + 0.087}{0.022})}^{2}] \\ ϖ_{Ψ_{2}^{2}} (θ) = \exp [- {(\frac{θ + 0.044}{0.022})}^{2}], \\ ϖ_{Ψ_{2}^{3}} (θ) = \exp [- {(\frac{θ + 0}{0.022})}^{2}], \\ ϖ_{Ψ_{2}^{4}} (θ) = \exp [- {(\frac{θ - 0.044}{0.022})}^{2}] \\ ϖ_{Ψ_{2}^{5}} (θ) = \exp [- {(\frac{θ - 0.087}{0.022})}^{2}], \\ ϖ_{Ψ_{3}^{1}} (Q) = = \exp [- {(\frac{Q + 0.087}{0.022})}^{2}], \\ ϖ_{Ψ_{3}^{2}} (Q) = \exp [- {(\frac{Q + 0.044}{0.022})}^{2}] \\ ϖ_{Ψ_{3}^{3}} (Q) = \exp [- {(\frac{Q + 0}{0.022})}^{2}], \\ ϖ_{Ψ_{3}^{4}} (Q) = \exp [- {(\frac{Q - 0.044}{0.022})}^{2}], \\ ϖ_{Ψ_{3}^{5}} (Q) = \exp [- {(\frac{Q - 0.087}{0.022})}^{2}] \end{matrix}

The performance functions are designed as $ρ_{1} (t) = (1 / e^{0.3 t + 3} - 1) + 0.004$ and $ρ_{2} (t) = (1 / e^{0.1 t + 0.5} - 1) + 0.1$ . The relative design parameters are selected as $k_{V 1} = 0.1$ , $k_{V 2} = 0.45$ , $r = 7$ , $k_{h} = - 25$ , $κ_{1} = 0.01$ , and $k_{h 0} = 2$ . To show the robustness, we suppose that all the aerodynamic coefficients (i.e. $C_{T}^{0}$ , $C_{T}^{α^{i}}$ , $C_{D}^{δ_{e}^{i}}$ , $C_{D}^{α^{i}}$ , $C_{D}^{0}$ , $C_{L}^{δ_{e}}$ , $C_{L}^{α}$ , $C_{L}^{0}$ , $C_{M, α}^{0}$ , $C_{M, α}^{α^{i}}$ , $c_{e}$ , $N_{1}^{0}$ , $N_{1}^{α^{i}}$ , $N_{2}^{α^{i}}$ , $N_{2}^{0}$ , $N_{2}^{δ_{e}}$ , $β_{j} (h, \bar{q})$ , where i = 1, 2, j = 1, 2, …, 8) are uncertain. Define

C = {\begin{matrix} C_{0}, & 0 s \leq t \leq 40 s \\ C_{0} [1 + 0.4 \sin (0.1 π t)], & else \end{matrix}

(44)

where C is the value of uncertain coefficient and C₀ denotes the nominal value of C. In this way, parameter uncertainty up to 40% of the nominal value is taken into consideration.

To show superiority, the proposed fuzzy prescribed performance controller (FPPC) is compared with an improved neural back-stepping controller (INBC) developed in Bu et al.³⁰ The simulation results are presented in Figures 2 –13. The altitude and velocity tracking performance, depicted in Figures 2 –5, infers that the proposed FPPC can provide better transient and stead-state performance for tracking errors than by INBC; meanwhile, INBC’s robustness against parametric uncertainties is also satisfactory. Figures 6 –12 reveal that for both controllers the attitude angles, flexible states, and control inputs are bounded and without high-frequency chattering. The estimation of ${\hat{φ}}_{1}$ is shown in Figure 13.

Figure 2.

Altitude tracking.

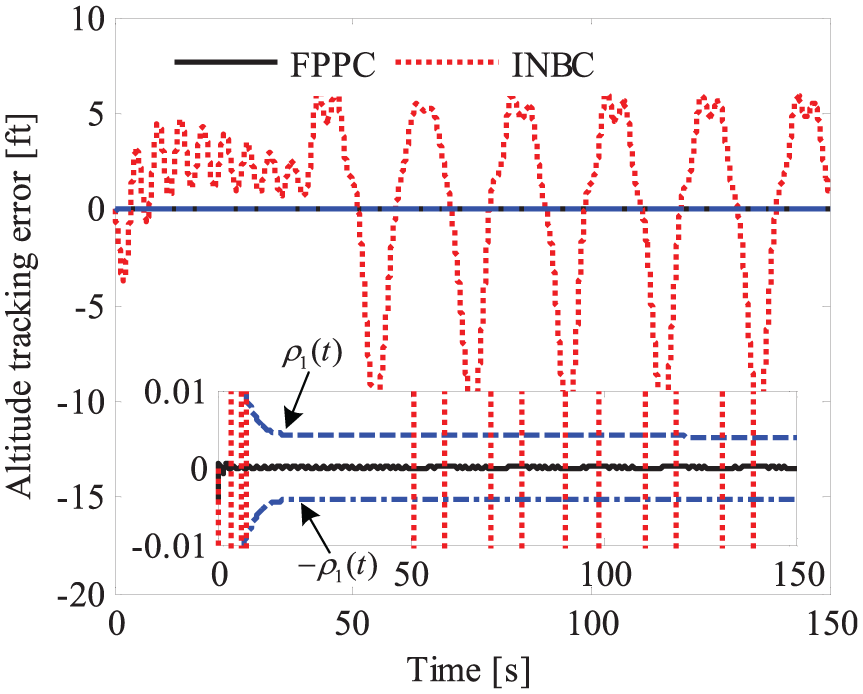

Figure 3.

Altitude tracking error.

Figure 4.

Velocity tracking.

Figure 5.

Velocity tracking error.

Figure 6.

Flight path angle.

Figure 7.

Pitch angle.

Figure 8.

Pitch rate.

Figure 9.

The flexible state η₁.

Figure 10.

The flexible state η₂.

Figure 11.

Elevator angular deflection.

Figure 12.

Fuel equivalence ratio.

Figure 13.

The estimation of ${\hat{φ}}_{1}$ .

Conclusion

This article investigates adaptive fuzzy control of generic HVs with prescribed performance. New performance functions are established to force altitude and velocity tracking errors to satisfy transient and stead-state performance. Transformed errors are devised to facilitate the control system design. For the altitude dynamics, a novel adaptive fuzzy prescribed performance controller is proposed without needing accurate initial tracking errors, while avoiding the complex recursive design procedure of back-stepping. Finally, simulation results from a non-affine HV model demonstrate that the presented control method can provide robust tracking of altitude and velocity reference commands and can guarantee the tracking errors with desired transient and stead-state performance. Our further works are focused on actuator fault control^31–34 designing for HVs with external disturbances and eliminating the low-frequency chattering of attitude angles and control inputs.

Footnotes

Appendix 1

Handling Editor: Xiang Yu

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant Nos 61603410, 61703424, and 61703421) and Young Talent Fund of University Association for Science and Technology in Shaanxi, China (Grant No. 20170107).

References

Guaranteeing prescribed output tracking performance for air-breathing hypersonic vehicles via non-affine back-stepping control design. Nonlinear Dynam 2018; 91: 525–538.

Zhang

et al . Adaptive multivariable integral TSMC of a hypersonic gliding vehicle with actuator faults and model uncertainties. IEEE/ASME T Mech 2017; 22: 2723–2735.

Tian

et al . High-order tracking differentiator based adaptive neural control of a flexible air-breathing hypersonic vehicle subject to actuators constraints. ISA Trans 2015; 58: 237–247.

Xiao

Wang

A prescribed performance control approach guaranteeing small overshoot for air-breathing hypersonic vehicles via neural approximation. Aerosp Sci Technol 2017; 71: 485–498.

Morelli

Flight-test experiment design for characterizing stability and control of hypersonic vehicles. J Guid Control Dynam 2009; 32: 949–959.

Wei

et al . Neural-approximation-based robust adaptive control of flexible air-breathing hypersonic vehicles with parametric uncertainties and control input constraints. Inform Sciences 2016; 346–347: 29–43.

Sun

Yang

Meng

Tracking control of a class of non-linear systems with applications to cruise control of air-breathing hypersonic vehicles. Int J Control 2015; 88: 885–896.

Huang

et al . A guaranteed transient performance-based adaptive neural control scheme with low-complexity computation for flexible air-breathing hypersonic vehicles. Nonlinear Dynam 2016; 84: 2175–2194.

et al . Novel adaptive neural control of flexible air-breathing hypersonic vehicles based on sliding mode differentiator. Chinese J Aeronaut 2015; 28: 1209–1216.

10.

Fiorentini

Serrani

Bolender

et al . Nonlinear robust adaptive control of flexible air-breathing hypersonic vehicles. J Guid Control Dynam 2009; 32: 401–416.

11.

Zhang

et al . Tracking differentiator design for the robust backstepping control of a flexible air-breathing hypersonic vehicle. J Frankl Inst 2015; 352: 1739–1765.

12.

Zhang

Xian

Continuous nonlinear asymptotic tracking control of an air-breathing hypersonic vehicle with flexible structural dynamics and external disturbances. Nonlinear Dynam 2016; 83: 867–891.

13.

Liu

Guo

Robust L_∞-gain fuzzy disturbance observer-based control design with adaptive bounding for a hypersonic vehicle. IEEE T Fuzzy Syst 2014; 22: 1401–1412.

14.

Wang

Dong

Recursive terminal sliding mode control for hypersonic flight vehicle with sliding mode disturbance observer. Nonlinear Dynam 2015; 81: 1489–1510.

15.

Zong

Tian

et al . Continuous sliding mode controller with disturbance observer for hypersonic vehicles. IEEE/CAA J Autom Sin 2015; 2: 45–55.

16.

Sun

Yang

et al . Non-linear disturbance observer-based back-stepping control for airbreathing hypersonic vehicles with mismatched disturbances. IET Control Theory A 2014; 8: 1852–1865.

17.

Shen

Jiang

Cocquempot

Fuzzy logic system-based adaptive fault-tolerant control for near-space vehicle attitude dynamics with actuator faults. IEEE T Fuzzy Syst 2013; 21: 289–300.

18.

et al . Novel adaptive neural control design for a constrained flexible air-breathing hypersonic vehicle based on actuator compensation. Acta Astronaut 2016; 120: 75–86.

19.

Yang

Pan

Global neural dynamic surface tracking control of strict-feedback systems with application to hypersonic flight vehicle. IEEE T Neur Net Lear 2015; 26: 2563–2575.

20.

Shen

Jiang

Cocquempot

Fault-tolerant control for T–S fuzzy systems with application to near-space hypersonic vehicle with actuator faults. IEEE T Fuzzy Syst 2012; 20: 652–665.

21.

Jiang

Tao

et al . Fault tolerant control for a class of nonlinear systems with application to near space vehicle. Circ Syst Signal Pr 2011; 30: 655–672.

22.

et al . Nonsingular direct neural control of air-breathing hypersonic vehicle via back-stepping. Neurocomputing 2015; 153: 164–173.

23.

Parker

Serrani

Yurkovich

et al . Control-oriented modeling of an air-breathing hypersonic vehicle. J Guid Control Dynam 2007; 30: 856–869.

24.

Nussbaum

Some remarks on a conjecture in parameter adaptive control. Syst Control Lett 1983; 3: 243–246.

25.

Hang

Lee

et al . Stable adaptive neural network control. Norwell, MA: Kluwer Academic Publishers, 2002.

26.

Chen

NN-based output feedback adaptive variable structure control for a class of non-affine nonlinear systems: a nonseparation principle design. Neurocomputing 2009; 72: 2009–2016.

27.

Wang

Liu

et al . Adaptive neural control for a general class of pure-feedback stochastic nonlinear systems. Neurocomputing 2014; 135: 348–356.

28.

Chen

Liu

et al . Direct adaptive fuzzy control of nonlinear strict-feedback systems. Automatica 2009; 45: 1530–1535.

29.

Huang

et al . Robust estimation-free prescribed performance back-stepping control of air-breathing hypersonic vehicles without affine models. Int J Control 2016; 89: 2185–2200.

30.

Huang

et al . Minimal-learning-parameter based simplified adaptive neural back-stepping control of flexible air-breathing hypersonic vehicles without virtual controllers. Neurocomputing 2016; 175: 816–825.

31.

Zhang

Aircraft fault accommodation with consideration of actuator control authority and gyro availability. IEEE T Contr Syst T. Epub ahead of print 13 June 2017. DOI: 10.1109/TCST.2017.2707378.

32.

Liu

Zhang

Fault-tolerant flight control design with finite-time adaptation under actuator stuck failures. IEEE T Contr Syst T 2017; 25: 1431–1440.

33.

Zhang

Liu

Fault-tolerant flight control design with explicit consideration of reconfiguration transients. J Guid Control Dynam 2016; 39: 556–563.

34.

Jiang

A survey of fault-tolerant controllers based on safety-related issues. Annu Rev Control 2015; 39: 46–57.
