Whole-body compliance for multi-arm space robotic capturing of large tumbling target in connection compliant phase

Abstract

Based on the characteristics of large tumbling space debris, this article proposes an effective method for whole-body compliant controller to eliminate the effects of the relative velocity between chaser and target which is not zero after the capture hands hold their corresponding handles tightly that is named as connection compliant phase. First, the kinematics and dynamics models are established, including tumbling target, free-floating chaser and chaser–target, respectively. Second, to analyse the characteristics of capturing of a large tumbling target, a simplified kinematics model about the centre of mass of the chaser is established, and a Cartesian-space compliant controller is designed in order to achieve the desired gross force as the input of multi-arm compliant distribution. Subsequently, we propose a method based on centre of forces to distribute the desired gross force to each arm optimized first and also a closed-loop regulator based on the dissipation vectors online as the second step. Then, a passivity-based control strategy is used in order to enhance the robustness of the system. Finally, the effectiveness of the control strategy mentioned above is verified by the simulation and air-bearing experiment in the horizontal plane partially.

Keywords

Space robot multi-arm large tumbling target whole-body compliance chaser–target

Introduction

The increasing launch activities produce more and more debris on Earth’s orbits, which mainly includes failure satellites and rocket upstage bodies. The debris are floating freely on orbit, occupying valuable orbit resources and threatening other working spacecrafts. The debris with larger size and greater mass may cause more serious damages, such as rocket upstage and large satellite. The removal of debris has become a common responsibility and obligation of all mankind.

As is known, rocket launch is very expensive, so the lighter the payload, the lower the launch costs. Reducing the launch mass of space robot as a payload is a very important and challenging task. The payload limitation from rocket will inevitably affect the improvement of the function and performance of the space robot designed, such as more flexible and stronger propulsion flight capability and longer life. So how to design a more versatile, smaller and lighter space robot is of great significance for the robotic grasping and manipulation.

The ETS-IIV¹ from Japan, Orbital Express² from the United States and TECSAS/DEOS³ from Europe are the typical capture of cooperative target. A lot of research work has been carried out on capturing and removing non-cooperative objects from their orbit.^4–6 The debris removal by robotic manipulators seems to be the solution with the longest space experience.⁷ The so-called large or small debris is generally connected with the size, mass and inertia of the space robot and the typical case about capturing of large non-cooperative target is the Phoenix⁸ of DARPA in the United States, in which the mass of the target is about four times larger than that of the space robot. The focus of current research on robotic capturing is mainly on capturing of small target,^9–14 that is, the size and mass of the target are smaller than those of the chaser. In such kind of capture process, the chaser oversees the relationship, and therefore the large target is in charge of the process of capture for the weight advantage.

Some debris are as large as cars or even buses. They tumble uncontrollably and move faster than a speeding bullet. So it is a challenging task for a small robot chaser to capture a large target. They need to have enough flexibility to ensure that the capture process does not cause damage to the chaser or target, and should not push the target away in case the capture failed. In addition, uncontrolled debris always keeps a tumbling state for residual angular momentum due to various mechanical failures or fuel depletion, which will deduce a huge challenge for capturing. Therefore, more attention should be paid on how to deal with the influence of tumbling debris. Quite few technical references in the literature can be found on autonomous capture of a large tumbling target and such manoeuvres have been attempted rarely.

Space robots, named chaser in this article, are generally composed of a satellite-like base and one or more arms mounted on the base and other functional units, for example, solar panel, boosters and object cognition sensors. The base is used for energy management, on-orbit flight control, communication with Earth and so on, while the arms are applied to grasping, manipulation and so on. An end-effector with a specific function is always fixed on the end of the arm, and the end-effector and the corresponding fixtures are named ‘hand’ and ‘handle’ in the following sections, respectively.

The process of capturing of large debris can be divided into three main phases,^6,15 named pre-capture phase, capturing phase and post-capture phase. Based on the characteristics of large-scale tumbling debris, the capturing phase is divided into three substages: active detumbling phase (ADP), impact contact phase (ICP) and connection compliant phase (CCP). This article focuses on CCP and on the problem of compliant control after the capture hands hold their corresponding handles tightly but the relative velocity between the CoM of the chaser and that of the target is not zero.

The contribution of this article lies in the presentation of a whole-body compliant control method based on a multi-arm space robot. In addition, based on the modelling of kinematics and dynamics with constraints, a passivity-based compliant controller is designed to distribute the integrated output force from all hands of the chaser with reasonable principles online. We verify our work with a set of contrast simulations and an experiment on air-bearing bed. In particular, we demonstrate that our approach enables a space multi-arm robot to capture large tumbling debris safely by coping with external forces caused by tumbling of the target from the uncertain environment and make a whole-body compliant reactive behaviour.

This article is organized as follows. Section ‘Modelling target and chaser’ describes the kinematics and dynamics models of the chaser, target and the combined body. Based on the capture of uncertain large tumbling target, section ‘Whole-body compliance control’ designs an online regulator, which includes a distributor based on centre of forces (CoF) and a regulator based on dissipation vector, and designs a passivity-based controller to control the CoM of the chaser and distribute the external force to several arms reasonably. Section ‘Simulation and experiments’ shows the simulations and experiments based on air bearing and analyses the results. Finally, section ‘Conclusion and future work’ summarizes the conclusions from the chaser–target interaction perspective and proposes discussion of future work.

Modelling target and chaser

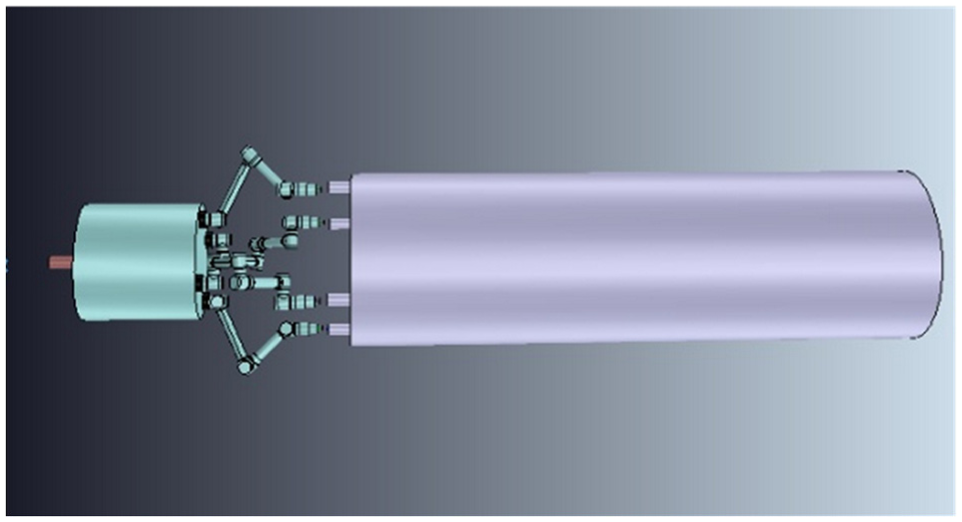

A challenging scene of a multi-arm chaser capturing a large target is shown in Figure 1. The mass of the chaser mentioned in this article is about 500 kg. The mass of the debris of the rocket upstage is generally 1.5 to 5 t, and the ratio of the target to the chaser is about 3:10, which belongs to the capturing of a large target. The research work in this article is based on the condition.

Figure 1.

Chaser versus target.

Target

To enhance the ratio of output to input of the rocket launch, we choose the multi-satellite style for the modern rockets mostly. The upstage is the final stage of the rocket with several payloads, such as satellites or aerocraft, which are transported to the corresponding orbit one by one. After all these tasks, the upstage loses power and control, floats freely on orbit and then becomes debris.

As typical large debris, the rocket upstage shown in Figure 1 has the following characteristics: large-scale, large mass, generally cylindrical and always tumbling; therefore, it is difficult and dangerous to be captured. The upstage can be modelled as a cylinder. Assuming that there are enough handles on the one end of the cylinder that can be used to catch by the corresponding arms, such as the satellite–rocket docking ring, the focus of this article is on the scene that all the arms are involved in the capture and enough handles can be found.

Large debris has residual momentum before inevitable failure. In addition, after being impacted by other debris, it is possible for the debris to generate a larger tumbling velocity due to momentum exchange, which makes the spinning of the target more complicated.

The centre of mass (CoM) of the target is denoted as T-CoM; $Σ_{T}$ represents the reference coordinates referring to the CoM of the target; $x_{t}$ , $y_{t}$ and $z_{t}$ are the identity vectors of the main axis of $Σ_{T}$ ; and $Σ_{I}$ represents the inertial reference coordinates on the Earth orbit.

Assuming that the object is axisymmetric and the mass is distributed evenly, the CoM of the target floats freely on Earth orbit with constant $v_{t} = [v_{x}, v_{y}, v_{z}]$ and rotates around three main axes of $Σ_{T}$ with constant angular velocity $ω_{t} = [ω_{x}, ω_{y}, ω_{z}]$ . The main moment of inertia referring to the three main axes can be defined as $I_{t} = diag [I_{x}, I_{y}, I_{z}] = diag [I_{T}, I_{T}, I_{z}]$ , where $I_{x} = I_{y} = I_{T}$ for the above assumptions; the angular momentum and angular velocity of the target can be denoted as $H_{t}$ and $ω_{t}$ , respectively. The equation of motion of the target is expressed by the following Euler dynamics equation of a single rigid body

\frac{d P_{t}}{dt} + ω_{t} \times P_{t} = f_{e}

(1)

where $f_{e}$ is the external force applied to the target, which becomes zero if the target has no external force. Substituting the moment of inertia of the target $I_{t}$ and the angular velocity $ω_{t}$ into the above equation, we get

{\overset{\cdot}{ω}}_{x} + γ ω_{y} = 0

(2)

{\overset{\cdot}{ω}}_{y} - γ ω_{x} = 0

(3)

I_{z} {\overset{\cdot}{ω}}_{z} = 0

(4)

where $γ = ((I_{z} - I_{T}) / I_{T}) ω_{z}$ from equations (2) and (3), and the angular velocity $ω_{T} = ω_{x} {\hat{x}}_{t} + ω_{y} {\hat{y}}_{t}$ rotates with the angular velocity $γ$ in the direction perpendicular to the spin axis. ${\hat{x}}_{t}$ and ${\hat{y}}_{t}$ denote the unit vectors along each axis of the coordinate $Σ_{T}$ , respectively. From equation (4), we know that the spin rate $ω_{z}$ is constant.

In the process of motion, $ω_{t}$ , $P_{t}$ and ${\hat{z}}_{t}$ lie in the same plane in the Cartesian space as shown in Figure 2. Assuming that without external force the angular momentum $P_{t}$ is constant, the angle between $P_{t}$ and ${\hat{z}}_{t}$ (Figure 2) is named nutational angle, which is from the spinning of the axis ${\hat{z}}_{t}$ rotating around the vector $P_{t}$ .

Figure 2.

The model of rocket upstage body.

From equation (1), the dynamics motion of the target with external force from handles can be described as

H_{t} {\overset{\cdot\cdot}{r}}_{t} + C_{t} = J_{t}^{T} f_{hd}

(5)

where ${\overset{\cdot\cdot}{r}}_{t} = col (p_{t}, φ_{t}) \in ℜ^{6}$ is the generalized velocity vector consisting of the position of the CoM $p_{t} \in ℜ^{3}$ and the attitude $φ_{t} \in ℜ^{3}$ , respectively. $C_{t} \in ℜ^{6}$ represent the centrifugal and Coriolis terms. The vector $f_{hd} = f_{h} \in ℜ^{6}$ represents the force and moment exerted by the arms. $H_{t} \in ℜ^{6 \times 6}$ is the generalized mass matrix which can be given as

H_{t} = [\begin{matrix} m 1 & 0 \\ 0 & I_{c} \end{matrix}]

(6)

where m and $I_{c}$ denote the mass and the inertia tensor of the target, respectively

C_{t} = [\begin{matrix} m {\tilde{ω}}_{t} v_{0} \\ {\tilde{ω}}_{t} I_{c} ω_{0} \end{matrix}]

(7)

Generalized Jacobian matrix $A^{k}$ can be described with $c_{hk} \in ℜ^{3}$ being the position vector of the $k th$ handle contact point with respect to its CoM which is detailed in Figure 2. The operator ∼ denotes the cross product of a vector with the following vector

J_{t}^{k} = [\begin{matrix} 1_{3} & {\tilde{c}}_{hk} \\ 0 & 1_{3} \end{matrix}]

(8)

Furthermore, the relationship of the generalized velocity of the $k th$ handle of the target and the CoM of the target can be denoted as

{\overset{\cdot}{r}}_{t} = J_{t}^{k} {\overset{\cdot}{r}}_{hd}^{k}

(9)

Then, the motion of the $k th$ handle of the target can be calculated as

{\overset{\cdot}{r}}_{hd}^{k} = J_{t}^{k - 1} {\overset{\cdot}{r}}_{t}

(10)

The compact expression of all the handles is described using the following equation from equation (10)

{\overset{\cdot}{r}}_{hd} = {J_{t}}^{- 1} {\overset{\cdot}{r}}_{t}

(11)

where ${\overset{\cdot}{r}}_{hd} = col [{\overset{\cdot}{r}}_{hd}^{1}, \dots, {\overset{\cdot}{r}}_{hd}^{k}, \dots, {\overset{\cdot}{r}}_{hd}^{N}], k = 1, \dots, N$ and $J_{t}^{- 1} = col [J_{t}^{1 - 1}, \dots, J_{t}^{k - 1}, \dots, J_{t}^{N - 1}], k = 1, \dots, N$ . Now the relationship between the motion of all handles and the motion of the CoM of the target can be described using equation (11).

Chaser

To cope with the mission of large tumbling debris and satisfy the need of multi-function manipulation of the space robot chaser, members in our laboratory designed a four-arm robotic chaser platform, hoping to carry out the following research work on the platform.

To reduce costs for multi-function space robot;

To make short-range manoeuvrability flexible on orbit;

To realize safety of capturing of large tumbling debris;

To carry out multi-arm work and enhance the complex operational capacity, such as the replacement of the functional unit.

The robotic system, named as Active Debris Removal Cleaner (ADRC), is shown in Figure 3.

Figure 3.

The model of the chaser with four arms and combined body.

The chaser shown in Figure 3 contains a base and four same arms with six degrees of freedom (DoFs) which is described in Liu et al.¹⁶ The chaser floats on the orbit freely according to the reference coordinates $Σ_{I}$ , and the generalized location of the CoM of the base can be denoted as $r_{0} = [p_{0}^{T}, φ_{0}^{T}]^{T} \in ℜ^{6}$ , where $p_{0} \in ℜ^{3}$ and $φ_{0} \in ℜ^{3}$ denote the position and attitude vector of the CoM of the base, respectively. The mass changing for the consumption of fuel is ignored in this article.

Without losing generality, the number of arms of the chaser is denoted as N and the $k th (k = 1, \dots, N)$ arm has $n_{k} (k = 1, \dots, N)$ serial DoFs, respectively. Every joint is an active joint that can be driven by a rotational actuator inside, and the gross number of all the active joints belonging to all the arms is given as $n_{θ} = \sum_{k = 1}^{N} n^{k}$ , where $n^{k}$ is the joint number of the $k th$ arm. The number of DoFs of the chaser is denoted as $n = 6 + n_{θ}$ , which include 6-DoF generalized location of the CoM of the base and $n_{θ}$ DoFs of all the arms mounted on it.

According to ADRC, the number of arms mounted on the body is $N = 4$ , the number of joints belonging to the $k th$ arm is $n_{k} = 6 (k = 1, 2, 3, 4)$ , the numbers of axes and rigid bodies belonging to every arm are the same as those of the others, that is, $n^{k} = 6, k = 1, \dots, N = 4$ . In general, the chaser has 24 active rotation axes and 25 independent rigid bodies.

As shown in Figure 4, the base of the target is denoted as the $0 th$ rigid body, the order from the base to the end of the arms defined as positive and the $i th (i = 1, \dots, \sum_{k = 1}^{N} n_{k})$ axis connects the $i th$ rigid body. The smaller number joint axis and rigid body are named the father node, and the bigger number joint axis and rigid body are called the child node. The position of every rigid body in the inertial coordinates $Σ_{I}$ is denoted as $r_{i}^{k} (i = 1, \dots, n_{k}; k = 1, \dots, N)$ . The vector from the CoM of the $i th$ father node to that of the $(i + 1) th$ child node is denoted as $b_{j}^{k} (j = 1, \dots, n_{k}; k = 1, \dots, N)$ , and the vector from the $i th$ axis to the $i th$ rigid body can be described as $a_{j}^{k} (j = 1, \dots, n_{k}; k = 1, \dots, N)$ in the inertial coordinates $Σ_{I}$ .

Figure 4.

Model of the chaser that is in contact with the target.

The location vector $r_{i}^{k}$ of the rigid body in the $k th$ arm of the chaser or that of the hand of the $k th$ arm is described as follows

r_{i}^{k} = r_{0} + b_{0}^{k} + \sum_{j = 1}^{i - 1} (a_{j}^{k} + b_{j}^{k}) + a_{i}^{k}

(12)

r_{h}^{k} = r_{0} + b_{0}^{k} + \sum_{j = 1}^{n_{k}} (a_{j}^{k} + b_{j}^{k})

(13)

The CoM of the chaser including all rigid bodies satisfies the following equations

m_{0} r_{0} + \sum_{k = 1}^{N} (\sum_{i = 1}^{n_{k}} m_{i}^{k} {mr}_{i}^{k}) M r_{g}

(14)

M = \sum_{k = 1}^{N} (\sum_{i = 1}^{n_{k}} m_{i}^{k})

(15)

Solving equations (14) and (15), we can obtain the vector expression of the CoM of the chaser as

\begin{matrix} r_{g} = r_{0} + \sum_{k = 1}^{N} \\ {\frac{\sum_{i = 1}^{n_{k}} (m_{i}^{k} b_{0}^{k})}{M} + \frac{\sum_{i = 1}^{n_{k}} [m_{i}^{k} (a_{i}^{k} + \sum_{j = 1}^{i - 1} (a_{j}^{k} + b_{j}^{k}))]}{M}} \end{matrix}

(16)

where $r_{g} = col [p_{g}, φ_{g}] \in ℜ^{6}$ includes the position and attitude vector of the CoM of the chaser.

Deriving the expression of the $i th$ rigid body and the $k th$ hand of the chaser in $Σ_{I}$ , the linear and angular velocities can be written uniformly as

{\overset{\cdot}{r}}_{h}^{k} = [\begin{matrix} v_{h}^{k} \\ ω_{h}^{k} \end{matrix}] = J_{b}^{k} [\begin{matrix} v_{0} \\ ω_{0} \end{matrix}] + J_{θ}^{k} {\overset{\cdot}{θ}}^{k}

(17)

where $J_{b}^{k}$ and $J^{k}$ are the Jacobin matrix of the $k th$ hand and the joint space of the $k th$ arm recording to the base, respectively. The kinematic equation in the sense of velocity of the chaser can be given as

{\overset{\cdot}{r}}_{h} = J_{b} {\overset{\cdot}{r}}_{b} + J_{θ} \overset{\cdot}{θ} = J_{c} \overset{\cdot}{q}

(18)

where $J_{c} = [J_{b}, J_{θ}] \in ℜ^{n \times n}$ , $q = col [r_{b}, θ] \in ℜ^{n}$ , $J_{b} = col [J_{b}^{1}, \dots, J_{b}^{k}, \dots, J_{b}^{N}]$ and $J_{θ} = diag [J_{θ}^{1}, \dots, J_{θ}^{k}, \dots, J_{θ}^{N}] (k = 1, \dots, N)$ .

The time derivative of equation (18) leads to

J_{θ}^{- 1} {\overset{\cdot\cdot}{r}}_{h} - J_{θ}^{- 1} ({\overset{\cdot}{J}}_{b} {\overset{\cdot}{r}}_{b} + {\overset{\cdot}{J}}_{θ} \overset{\cdot}{θ}) - J_{θ}^{- 1} J_{b} {\overset{\cdot\cdot}{r}}_{b} = \overset{\cdot\cdot}{θ}

(19)

Now, the kinematic expression of all the hands can be described by the motion of the base and all joints in equations (18) and (19).

Combined chaser–target

Different from single-arm robot, a multi-arm chaser constructs several kinematic closed-loop chains for the cooperative operation, that is, the kinematic and force closed chain should be solved.

The topology of the chaser from the open tree chain in Figure 3 to closed-loop one when all arms of the chaser connect with corresponding handles on the target. The motion of the arms will be strictly constrained for the kinematic closed-loop configuration as shown in Figure 5. Obviously, all the four arms of ADRC compose three independent kinematic closed-loop chains, set as Arm-1 with Arm-2, Arm-1 with Arm-3 and Arm-1 with Arm-4, respectively. The kinematic constraints in the sense of velocity can be written as

[\begin{matrix} J_{m}^{i} & - T_{j}^{i} J_{m}^{j} \end{matrix}] [\begin{matrix} {\overset{\cdot}{θ}}_{i} \\ {\overset{\cdot}{θ}}_{j} \end{matrix}] = J_{C}^{ij} {\overset{\cdot}{θ}}_{ij} = O

(20)

where $T_{2}^{1} = [\begin{matrix} 1^{6} & Δ {\tilde{r}}_{h}^{12} \\ O & 1^{6} \end{matrix}]$ , $Δ r_{h}^{12} = r_{h}^{1} - r_{h}^{2}$ and $i, j = 1, \dots, N, i \neq j$ . The symbol $1^{6}$ is a unit matrix.

Figure 5.

Three independent constraint closed loops.

Therefore, the three independent constraint equations of ADRC in Figure 5 can be described using equation (20) as follows

[\begin{matrix} J_{m}^{1} & - T_{2}^{1} J_{m}^{2} \end{matrix}] [\begin{matrix} {\overset{\cdot}{θ}}_{1} \\ {\overset{\cdot}{θ}}_{2} \end{matrix}] = J_{C}^{12} {\overset{\cdot}{θ}}_{12} = 0

(21)

Similarly, we know

[\begin{matrix} J_{m}^{1} & - T_{3}^{1} J_{m}^{3} \end{matrix}] [\begin{matrix} {\overset{\cdot}{θ}}_{1} \\ {\overset{\cdot}{θ}}_{3} \end{matrix}] = J_{C}^{13} {\overset{\cdot}{θ}}_{13} = 0

(22)

[\begin{matrix} J_{m}^{1} & - T_{4}^{1} J_{m}^{4} \end{matrix}] [\begin{matrix} {\overset{\cdot}{θ}}_{1} \\ {\overset{\cdot}{θ}}_{4} \end{matrix}] = J_{C}^{14} {\overset{\cdot}{θ}}_{14} = 0

(23)

In conclusion, the kinematic constraint equation of the chaser–target can be described as

J_{m} \overset{\cdot}{θ} = 0

(24)

where $J_{m} = [\begin{matrix} 1 & A \\ O & O \end{matrix}] \in ℜ^{n_{θ} \times n_{θ}}$ and the submatrix of $J_{m}$ is denoted as $A = diag [- J_{m}^{1} T_{2}^{1} J_{m}^{2}, - J_{m}^{1} T_{3}^{1} J_{m}^{3}, - J_{m}^{1} T_{4}^{1} J_{m}^{4}]$ .

Then, the constraints from the motion of the base are introduced. The kinematic constraints of multi-arm grasping the same target have nothing to do with the motion of the base. Then the constraint equation can be rewritten as

E (q) \overset{\cdot}{q} = 0

(25)

where $E (q) = diag [0, J_{m}] \in ℜ^{n \times n}$ . Equation (25) shows the kinematic constraint in the sense of velocity when the chaser captures the target with several arms.

Dynamics modelling

Using the generalized coordinates $q \in ℜ^{n}$ , the exact non-linear dynamics of the chaser with the interaction with target constraints can be derived using a standard Lagrange formulation¹⁷

H_{c} \overset{\cdot\cdot}{q} + C_{c} = u + J_{h}^{T} f_{s}

(26)

where $q \in ℜ^{n}$ represents the generalized coordinates, $H_{c} = H_{c} (q) \in ℜ^{n \times n}$ is the generalized inertia matrix and $C_{c} = C_{c} (q, \overset{\cdot}{q}) \in ℜ^{n}$ represents the centrifugal and Coriolis terms in generalized coordinates, that is, the velocity-independent terms. $u = [f_{b}, τ] \in ℜ^{n}$ is the generalized force from the base driving and joint actuators, respectively. $J_{h} = J_{h} (q) \in ℜ^{6 \times n}$ is the Jacobian matrix associated with the contact and $f_{s} = - f_{h} \in ℜ^{6}$ is the constraint force from the external environment to all the hands of the chaser; in contrast, the general force $f_{h} \in ℜ^{6}$ is the sum of all forces from the hands to the external environment.

Time-based differentiation is performed for equation (25) yielding the following equation

E (q) \overset{\cdot\cdot}{q} + \overset{\cdot}{E} (q) \overset{\cdot}{q} = 0

(27)

One of the important control issues mentioned in this article is base control. Therefore, it is convenient to address the CoM of the chaser to consider. $r_{g} = col [p_{g}, φ_{g}] \in ℜ^{6}$ denotes the generalized location vector of CoM of the chaser in equation (16).

The simple linear dynamics of CoM of the chaser is described as

M {\overset{\cdot\cdot}{r}}_{g} = - f_{h}

(28)

Therefore, we can control ${\overset{\cdot\cdot}{r}}_{g}$ by $f_{p}$ directly, as shown in the following sections.

Solving equations (27) and (28) for q yields

f_{h} = J_{c}^{- T} (τ - C_{c} + H_{c} E^{- 1} \overset{\cdot}{E} \overset{\cdot}{q})

(29)

Therefore, we can calculate the corresponding joint torque by inverting equation (29) for the desired $f_{h}$ . Assuming that only one arm connects with the target, the single contact point is the CoF if no more contact points exist. In the case that the joint torque and the force project one-by-one mapping, there is a unique solution and inverse dynamics control is useful. Therefore, inverse dynamics control becomes impractical for the chaser with too closely connected hands and many DoFs. In this case, the redundancy problem should be solved for many possible solutions existing, which is well known as ill-posedness problem.^17,18

Summary

The mathematical models for the problem of multi-arm chaser capturing a large target are established in this section, and the basic assumptions to solve the problem are proposed. Section ‘Target’ establishes the kinematics and dynamics models for large debris capture. To cope with the diversified mission on orbit, section ‘Chaser’ designs a space robot chaser, and the theory of multi-body rigid is used to model the multi-arm chaser. When the chaser and the target contact with each other, the motion of capture arms follows the strict kinematic constraints, which constitutes several kinematics closed-loop chains. Section ‘Combined chaser–target’ describes the constraints in detail. Finally, section ‘Dynamics modelling’ describes the dynamics model of the chaser in the role of the external force from the hands and the relationship between the gross force and accelerator of the CoM of the chaser.

Whole-body compliance control

As mentioned above, the initial angular momentum of the target is transmitted to the base via the arms to drive the combined body moving after the chaser combined with the target. If the chaser is not driven by the thrusters, that is, $f_{b} = 0$ , it only relies on the joint active force adjustment to dampen the whole dynamic process. An important issue should be solved in the interaction process. In the case that the contact dynamic parameters are unknown, how to design the controller to apply the compliant force so that the base gets the desired control and the desired support force $f_{p}$ is shared by the arms in an ‘optimal’ distribution. When the above problems are solved, the chaser can capture the target safely and improve the capturing ability of the chaser when facing with objects with greater mass and tumbling speed.

Gross force control

At the beginning of the compliant process, the initial generalized relative position of a hand according to the base is defined as ${\bar{r}}_{h 0}^{0} \in ℜ^{6}$ , and all the hands of the chaser and the target are relatively static, so we can use the motion of the hand to describe that of the target

{\bar{r}}_{h 0}^{0} T_{ref}^{0} \underline{\underline{def}} ({\bar{r}}_{h} - {\bar{r}}_{0})

(30)

where ${\bar{r}}_{h} \in ℜ^{6}$ and ${\bar{r}}_{0} \in ℜ^{6}$ are the initial generalized position of one hand and the base of the chaser, respectively. With the transformation of $T_{ref}^{0}$

r_{h 0}^{0} \underline{\underline{def}} T_{ref}^{0} (r_{h} - r_{0})

(31)

Based on the same rules as in equation (30), the current generalized relative position is denoted as $r_{h 0}^{0} \in ℜ^{6}$ .

The desired acceleration ${\overset{\cdot\cdot}{r}}_{g}^{d}$ of the CoM of the chaser can be determined by the equivalent impedance of the multi-arm in the Cartesian space simply. The chaser’s multi-arm as a whole is equivalent to a six-dimensional spring and damper, and then a simple control law can be used

{\overset{\cdot\cdot}{r}}_{g}^{d} = K_{P} (r_{h 0}^{0} - {\bar{r}}_{h 0}^{0}) + K_{D} ({\overset{\cdot}{r}}_{h 0}^{0} - {\overset{\cdot}{r}}_{h 0}^{0})

(32)

where ${\overset{\cdot\cdot}{r}}_{g}^{d}$ is the desired acceleration, ${\bar{r}}_{h 0}^{0} \in ℜ^{6}$ and ${\overset{\cdot}{\bar{r}}}_{h 0}^{0} \in ℜ^{6}$ are the initial relative position and velocity between the hands according to the base of the chaser, respectively, and $r_{h 0}^{0} \in ℜ^{6}$ and ${\overset{\cdot}{r}}_{h 0}^{0} \in ℜ^{6}$ are the current relative position and velocity, the same as ${\bar{r}}_{h 0}^{0}$ and ${\overset{\cdot}{\bar{r}}}_{h 0}^{0}$ , and the task space potential difference gains $K_{P}$ , $K_{D} > 0$ .

Substituting equation (32) into equation (28), we get the desired gross force

f_{h}^{d} = - M {K_{P} (r_{h 0}^{0} - {\bar{r}}_{h 0}^{0}) + K_{D} ({\overset{\cdot}{r}}_{h 0}^{0} - {\overset{\cdot}{\bar{r}}}_{h 0}^{0})}

As the desired integrated control goal, the gross force $f_{h}^{d}$ will be implemented by the multi-arm cooperative control and as an input condition for subsequent compliant distribution behaviour.

Force compliant distribution

This section describes a force distribution strategy based on the CoF, which describes the weight of the multi-arm force distribution. Some research work has been done on this method.^19,20

The CoF of the arms of the chaser can be expressed as

x_{p} = \frac{\sum_{k = 1}^{N} x_{sk} f_{sk - z}}{\sum_{k = 1}^{N} f_{sk - z}}

(33)

y_{p} = \frac{\sum_{k = 1}^{N} y_{sk} f_{sk - z}}{\sum_{k = 1}^{N} f_{sk - z}}

(34)

where $x_{sk}$ is the arm of the force $f_{sk}$ along the z-axis component $f_{sk - z}$ , which is the force of the $k th$ arm. The gross of the respective support forces is

f_{s} = \sum_{k = 1}^{N} f_{sk}

(35)

Equations (33), (34) and (35) can be combined into simple notation as

{\bar{\bar{f}}}_{s - z} = [\begin{matrix} x_{p} \\ y_{p} \\ 1 \end{matrix}] f_{s - z} = \underset{A_{z}}{\underset{︸}{[\begin{matrix} x_{s 1} & x_{s 2} & \dots & x_{sN} \\ y_{s 1} & y_{s 2} & \dots & y_{sN} \\ 1 & 1 & \dots & 1 \end{matrix}]}} F_{s - z}

(36)

Given a desired normal gross force ${\bar{f}}_{s - z}$ and CoF ${\bar{r}}_{s}$ , an optimal contact force distribution as in equation (36) can be calculated in the sense that it minimizes the $L_{2}$ norm of all the support forces

[\begin{matrix} {\bar{f}}_{s 1 - z} \\ {\bar{f}}_{s 2 - z} \\ ⋮ \\ {\bar{f}}_{sN - z} \end{matrix}] = A_{z}^{*} [\begin{matrix} {\bar{x}}_{p} \\ {\bar{y}}_{p} \\ 1 \end{matrix}] {\bar{f}}_{s - z}

(37)

where $A_{z}^{*} = A_{z}^{T} (A_{z} A_{z}^{T})^{- 1}$ and

F_{s - i} = [\begin{matrix} \begin{matrix} f_{s 1 - i}^{T} & f_{s 2 - i}^{T} \end{matrix} & \begin{matrix} \dots & f_{sN - i}^{T} \end{matrix} \end{matrix}] (i = x, y, z) .

Similar to the above method, the following equations can be deduced

{\bar{\bar{f}}}_{s - x} = [\begin{matrix} x_{p} \\ 1 \end{matrix}] f_{s - x} = \underset{A_{x}}{\underset{︸}{[\begin{matrix} \begin{matrix} x_{s 1} & x_{s 2} \\ 1 & 1 \end{matrix} & \begin{matrix} \dots & x_{sN} \\ \dots & 1 \end{matrix} \end{matrix}]}} F_{s - x}

(38)

{\bar{\bar{f}}}_{s - y} = [\begin{matrix} y_{p} \\ 1 \end{matrix}] f_{s - y} = \underset{A_{y}}{\underset{︸}{[\begin{matrix} \begin{matrix} y_{s 1} & y_{s 2} \\ 1 & 1 \end{matrix} & \begin{matrix} \dots & y_{sN} \\ \dots & 1 \end{matrix} \end{matrix}]}} F_{s - y}

(39)

Therefore, a desired gross force might be distributed over all the desired contact points using a combined matrix style

{\bar{f}}_{s} = A^{*} {\bar{\bar{f}}}_{s}

(40)

where ${\bar{\bar{f}}}_{s} = [{\bar{\bar{f}}}_{s - x}^{T}, {\bar{\bar{f}}}_{s - y}^{T}, {\bar{\bar{f}}}_{s - z}^{T}]^{T}$ and $A = diag (A_{x}, A_{y}, A_{z})$ is the total contact force distribution matrix. The distribution principle requires the desired acceleration of the chaser’s CoM and the CoF point. On this basis, this article proposes an online distribution regulation method to achieve better distribution effect on the basis of the principle of balanced distribution on the CoF distributor.

The joint which provides the maximum torque can be denoted as

τ_{m}^{k} = | max (τ_{i}^{k}) |

(41)

where $i = 1, \dots, n_{k}$ and $k = 1, \dots, N$ . Assume that the dissipation parameters $β^{k}$ and the dissipation vector ${\hat{β}}^{k}$ satisfy the following relationship

0 \leq β^{k} \underline{\underline{def}} \frac{| τ_{m}^{k} |}{| τ_{safe} |} \leq 1

(42)

where $k = 1, \dots, N$ and $β^{k}$ represents the dissipation parameters of the $k th$ arm. Then these dissipation vectors in the rendezvous plane are yielded as

{\hat{β}}^{k} \underline{\underline{def}} ρ^{k} β^{k} {\hat{n}}^{k}

(43)

where $ρ^{k}$ is the regulation parameter of the $k th$ arm and ${\hat{n}}^{k}$ is the unit vector of the $k th$ arm. As shown in Figure 6, the desired CoF is adjusted based on the current dissipation vector. The adjustment amount is defined as

[\begin{matrix} Δ x_{p} \\ Δ y_{p} \end{matrix}] = Δ p_{xy} \underline{\underline{def}} \sum_{k = 1}^{N} {\hat{β}}^{k}

(44)

Yield refined desired CoF as

[\begin{matrix} {\hat{x}}_{p} \\ {\hat{y}}_{p} \end{matrix}] = {\hat{p}}_{xy} (k) = p_{xy} (k - 1) + Δ p_{xy} (k - 1)

(45)

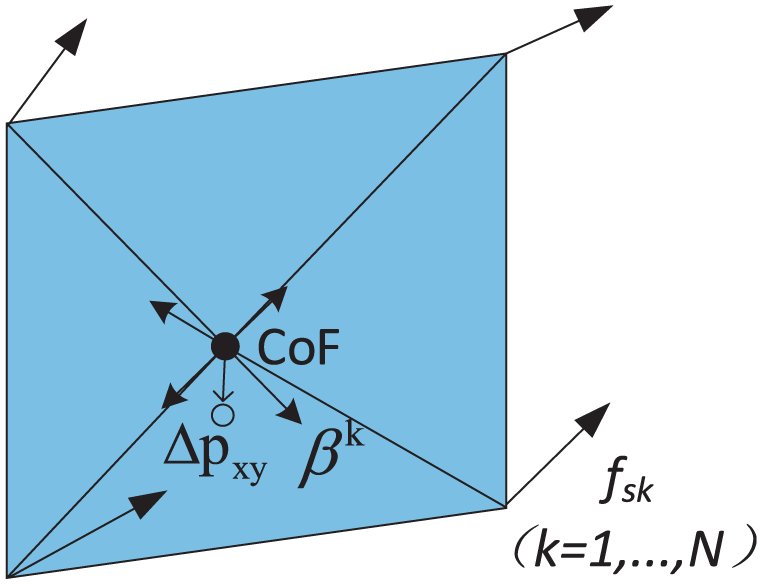

Figure 6.

Dissipation vector regulator online.

Being regulated by CoF- and dissipation-vector-based regulator online, the process of the chaser capturing the target shows better flexibility and the payload force of all the joints are distributed in whole-body optimization.

Then we get the renewed distribution matrix as

A^{#} = {A^{*} |}_{col [{\hat{x}}_{p}, {\hat{y}}_{p}]}

(46)

And the new mapping relationship between the gross force on the chaser and the distributed force on multiple contact points of the hands can be expressed as

f_{s} = A^{#} f_{h}

(47)

where $f_{h}$ is the gross force on the chaser, $f_{s}$ is the distributed force on the several contact points and $A^{#}$ is the new distributed matrix regulated by the dissipation vector. Now, we get a closed-loop distributed regulator and the whole-body controller is detailed below.

Passivity-based control frame

To realize globally, exact tracking should be performed in independent coordination. Inverse dynamics control is more demanding on model accuracy, but it is difficult to achieve in engineering. Lyapunov-based control has been successfully applied to robotic system.²¹ The method does not seek linearization or decoupling, but only asymptotic convergence of the tracking error. As an alternative algorithm to Lyapunov-based control schemes, passivity-based control^22,23 scheme can be designed which explicitly exploits the passivity properties of the Lagrange model. The algorithm is expected to have better robustness properties compared with the inverse dynamics method, because it does not rely on the exact cancellation of the non-linearities of a multi-rigid body robotic system.

The motion relationship of the tips of the hands and the base of the chaser is given by

{\overset{\cdot}{r}}_{h 0}^{0} = J_{h 0} \overset{\cdot}{q}

(48)

where $r_{h}^{0}$ is the position of all the hands in the coordinates of the base of the chaser $Σ_{0}$ and $J_{h 0}$ is the Jacobian matrix mapping the joints to all hands in $Σ_{0}$ . To derivate equation (46), we get

{\overset{\cdot\cdot}{r}}_{h 0}^{0} = {\overset{\cdot}{J}}_{h 0} \overset{\cdot}{q} + J_{0 h} \overset{\cdot\cdot}{q}

(49)

The desired generalized variables ${\overset{\cdot\cdot}{q}}^{d}$ can be designed to meet the following relationship

{\overset{\cdot\cdot}{q}}^{d} = J_{h 0}^{- 1} ({\overset{\cdot\cdot}{r}}_{h 0}^{0} - {\overset{\cdot}{J}}_{h 0} \overset{\cdot}{q})

(50)

The error of generalized variables is

q^{e} = q^{d} - q

(51)

Design the following transform from equation (26)

\overset{\cdot}{ζ} = {\overset{\cdot}{q}}^{d} - K (\cdot) q^{e}

(52)

σ = F^{- 1} (\cdot) q^{e}

(53)

where $K (\cdot)$ is a linear operator that should be chosen so that $F (\cdot)$ is strictly proper and stable, $F (\cdot)$ is the transfer function of a strictly proper and stable linear operator, and the mapping from $- σ$ to $ψ$ is passive relative to V which suffices the following relation

\int_{0}^{t} - σ^{T} (τ) ψ (τ) d τ = V_{1} (t) - V_{1} (0), t \geq 0

(54)

In consideration of the properties of the multi-arm chaser, the choice of $K (\cdot)$ satisfies $K (s) = Λ$ and $Λ$ is a symmetric positive definite diagonal matrix. F and K are related by

F^{- 1} (s) = sI + K (s)

(55)

So we know $F (s) = sI + Λ$ . The control law is designed as

τ = H_{c} \overset{\cdot\cdot}{ζ} + C_{c} \overset{\cdot}{ζ} - K_{D} σ + J_{h}^{T} f_{s}^{d}

(56)

The composition of the control input joint drive torque takes into account the multi-point contact force that are reasonably distributed and the system’s passivity-based characteristics, and the system has been translated into a first-order system from a second-order one. The calculation process and the proof of stability in the sense of Lyapunov are detailed in Appendix 1. Then, we get the controller based on passivity properties.

Summary

This section presents a whole-body active compliant control strategy of a multi-arm chaser, which greatly enhances the security of the chaser capturing a large tumbling target and effectively avoids the inertia force supplied on the rotation joints of the arms that may cause overload damage. Section ‘Gross force control’ establishes the models from the perspective of the chaser and combined body, and the motion relation of the multi-rigid body system is obtained. Section ‘Force compliant distribution’ proposes a multi-arm force distribution method with the desired driving force. The CoF distribution method is used to construct a simple and effective force distribution matrix, so that the arm can distribute the external force reasonably and improve the survivability of the chaser as much as possible as the preliminary first step. In addition, an online regulator based on dissipation vectors is proposed and the compliant process is further optimized on the basis of the above force distribution. Section ‘Passivity-based control frame’ proposes a passivity-based controller, which is insensitive to the model parameters compared with the model-based control method. And then the stability in the sense of Lyapunov is proved.

Simulation and experiments

Simulation

A four-arm chaser named ADRC is taken as a practical application to verify the proposed strategy and the auxiliary simulator is V-REP.²⁴

In order to verify the effect of the compliant controller, a set of simulations are carried out with and without the compliant controller, respectively. The excitation force $f_{exi}$ is supplied to the CoM of the target when the chaser captures the target with four arms with and without compliant controller, respectively. Then, the joint moment curves of the four arms are recorded and compared.

Some chaser parameters are as follows. The four arms mounted on the base are the same as the others. The 6-DoF arm was designed in our lab, the mathematical model of the arm is shown in Figure 7, and the Denavit–Hartenberg parameters are shown in Table 1.

Figure 7.

Manipulator kinematics modelling.

Table 1.

Denavit–Hartenberg parameters.

Joint no.	$α_{i - 1}$	$a_{i - 1}$	$θ_{i}$	$d_{i}$	$θ_{i}$
1	0°	0	$θ_{1}$	0	−175° to +175°
2	90°	0	$θ_{2}$	$d_{2}$	−175° to +175°
3	180°	$a_{2}$	$θ_{3}$	$d_{3}$	−175° to +175°
4	90°	0	$θ_{4}$	$d_{4}$	−175° to +175°
5	−90°	0	$θ_{5}$	$d_{5}$	−175° to +175°
6	−90°	0	$θ_{6}$	0	−175° to +175°

Here, $a_{2} = 610 mm$ , $d_{2} = d_{3} = d_{5} = 164.5 mm$ and $d_{4} = 444.5 mm$ . $α_{i - 1}$ is the link rotation angle, $a_{i - 1}$ is the link length, $θ_{i}$ is the joint rotation angle, $d_{i}$ is the joint offset, and the ranges of the joints are shown in the last column of this table.

The mass and the inertial matrix of the $k th$ rigid body of the 6-DoF arm are denoted as $M_{k}$ and $I_{k}$ , respectively, and these parameters in the simulation and experiment are presented in Tables 2 and 3.

Table 2.

The mass of the rigid body (unit: kg).

Mass	$M_{0}$	$M_{1}$	$M_{2}$	$M_{3}$	$M_{4}$	$M_{5}$	$M_{6}$	$M_{t}$
Value	$3.902 \times 10^{2}$	$2.53$	$7.9$	$2.32$	$4.227$	$2.32$	$1.276$	$4.39 \times 10^{3}$

Table 3.

The inertia matrix of the rigid body.

Inertia matrix	Value	Unit
$I_{0}$	$diag [0.145, 0.145, 0.124]$	$m^{2}$
$I_{1}$	$diag [2.725, 2.984, 1.675]$	$\times 10^{- 3} m^{2}$
$I_{2}$	$diag [6.139, 1.012, 5.401]$	$\times 10^{- 2} m^{2}$
$I_{3}$	$diag [2.727, 2.525, 2.131]$	$\times 10^{- 3} m^{2}$
$I_{4}$	$diag [1.474, 1.066, 0.668]$	$\times 10^{- 2} m^{2}$
$I_{5}$	$diag [2.728, 2.973, 1.684]$	$\times 10^{- 3} m^{2}$
$I_{6}$	$diag [2.652, 2.641, 1.341]$	$\times 10^{- 3} m^{2}$
$I_{t}$	$diag [2.223, 2.223, 0.281]$	$m^{2}$

Four arms of the chaser connect the corresponding handles separately and remain in the initial configuration. A transient drive torque is applied to the CoM of the target to simulate the effect from the tumbling target to the arms of the chaser to ensure that the compliant controller is effective when the chaser is disturbed by the target. The validity of the strategy is verified by comparing the cases with and without a compliant controller. The initial parameters of the contrast experiment are given as follows.

The constant torque supplied to the CoM of the target for simulation is $f_{exi} = col [0, 0, 0, 15, 0, 5] (N / kN m)$ . And the initial configuration parameters of the position $p_{0}$ and the attitude $φ_{0}$ of the chaser’s CoM are $p_{0} = col [0.487, - 0.287, - 0.47]$ and $φ_{0} = col [0.09, 0.035, 27.08]$ .

The initial configuration of the $k th (k = 1, 2, 3, 4)$ joint arm is $θ^{k} = col [- 121.8, - 10.02, 45.06, - 4.4439, 140.3, 21.91]$

where the units of the position and angle are metre and degree in this article. The initial parameters of the target are $p_{t} = col [0.487, - 0.287, 3.656]$ and $φ_{t} = col [0.014, 0, 25.054]$ .

The wrist force and moment curves of the arms with and without compliant controller are shown in Figures 8, 10, 12 and 14, and the joint torque curves of the arms with and without compliant controller are shown in Figures 9, 11, 13 and 15, respectively. In the comparison of the curves with compliant controller (red dashed line) and those without compliant controller just holding the configuration of all the arms (blue solid line), the joint torque peak of the arms with compliant controller is significantly smaller and softer than that of the arms without compliant controller. The force of waist and the torque of joint cyclical change with the sine-like wave for the position hold control in the process of momentum exchange. Furthermore, the chaser regulates the force actively to weaken the inertia force from the mass of both ends of the arms based on joint active motion. So the compliant strategy is verified to be effective in the simulation.

Figure 8.

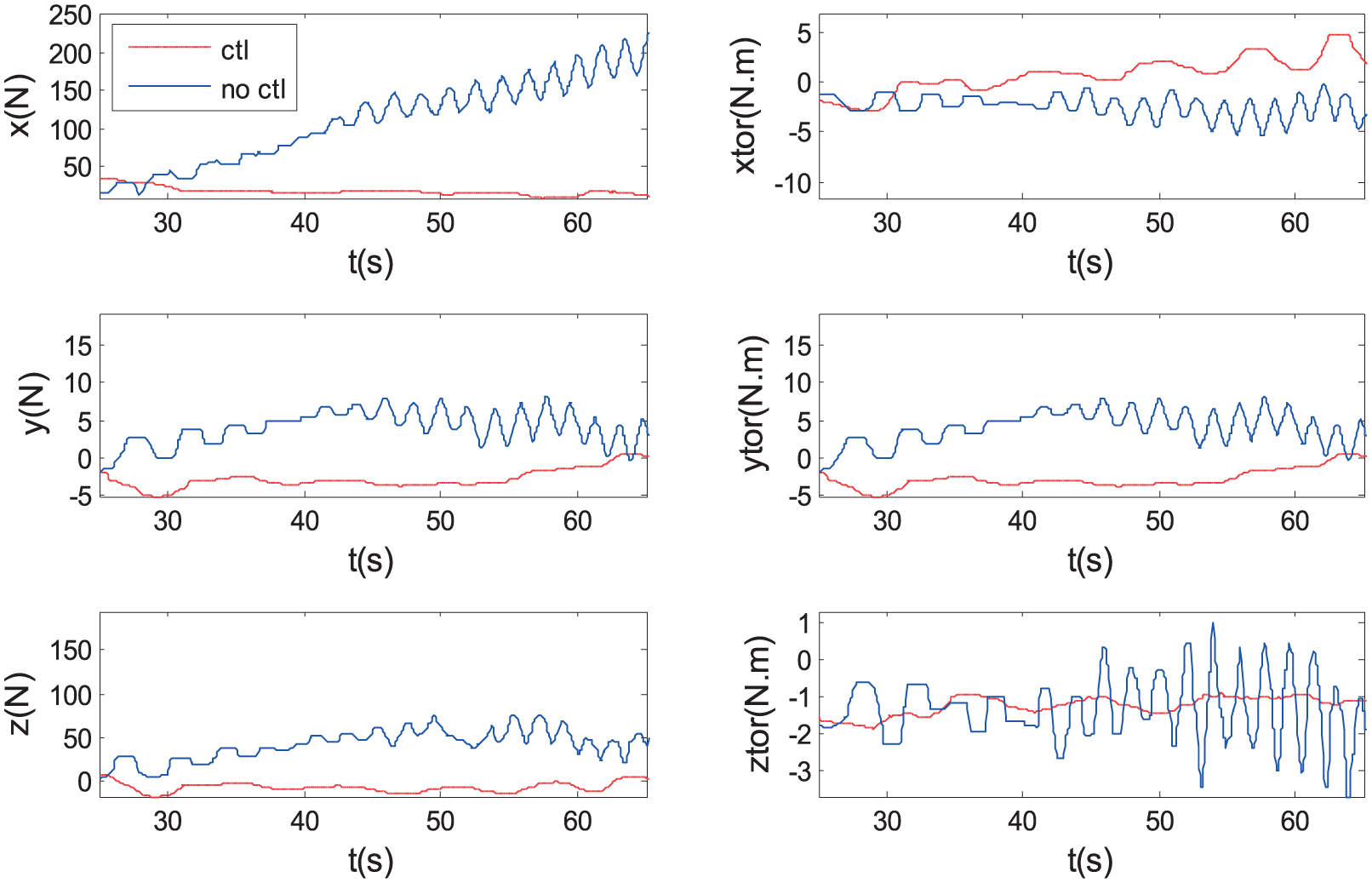

The wrist force and moment of Arm-1.

Figure 9.

The joint torque of Arm-1.

Figure 10.

The wrist force and moment of Arm-2.

Figure 11.

The joint torque of Arm-2.

Figure 12.

The wrist force and moment of Arm-3.

Figure 13.

The joint torque of Arm-3.

Figure 14.

The wrist force and moment of Arm-4.

Figure 15.

The joint torque of Arm-4.

The CoM trajectories of the base of the chaser, of the target and of one hand of the chaser are shown in Figure 16, and the wrist force curves of the four arms are shown in Figures 8, 10, 12 and 14, respectively. Four arms are of similar force from the external environment for the distribution strategy. From the curves shown in Figure 16, it can be seen that the motion process is in charge of the target for its large mass and the chaser follows the motion of the target to reduce the force of the arms. Obviously, the larger target is in charge of the combined process.

Figure 16.

The trajectory curves of the target, hand and chaser.

As shown in Figures 17 and 19, the projection curves of CoF on the handle’s plane (as shown in Figure 2) are controlled by the CoF-based force distribution controller and dissipative-vector-based regulator. In order to verify the effectiveness of the force regulator online, the projection of CoF in the z-direction is recorded and analysed as shown in Figure 17. The projection curves in the plane show that the control of the force distribution regulator can converge and stabilize quickly after being impacted by external disturbance (Figure 18).

Figure 17.

CoF projection on the x-axis of the x–y plane.

Figure 18.

CoF projection on the y-axis of the x–y plane.

The projection of CoF on the x–y plane is shown in Figure 19, which verifies that the distribution strategy is useful. The project point sets of CoF on the x–y plane are distributed as shown in Figure 19, and the CoF is regulated online based on the strategy mentioned above.

Figure 19.

CoF projection on the x–y plane.

Ground experiment based on air bearing

The complete experiment with a whole 4-arm chaser capturing the target is almost impossible to carry out due to the difference in the gravity environment between the orbit and the ground. So the ground experiment needs to be designed equivalently, and the algorithm can be verified partially or just in one point. As shown in Figure 20, the experimental platform based on air-bearing technology was developed in our lab, which consists of a base and two 6-DoF arms, but only 3 DoFs of each arm in the horizontal plane can be experimented. The base of the chaser contains a battery, controller, high-pressure air cylinders and other equipment. The parameters of the two arms are the same as those mentioned in the previous sections. The arm is equipped with a one-dimensional embedded torque sensor in every joint,^16,25 and the joint controller can sense the joint torque and give feedback of the data to the upper controller through the field bus for force control. The gravity of the arms and base is compensated by several distributed air feet, and the approximate microgravity environment is built in the horizontal plane.^25,26

Figure 20.

Site photos of ground experiment of the dual-arm platform.

To verify the effectiveness of the compliant controller in response to the external disturbance, the following experiment was designed: the two hands of the robot held by a fixed object (railing in Figure 21), forming a closed-loop chain, and an external force supplied by experimenter on the base to examine the joint torque and the compliant behaviour. The results can verify the effectiveness of the control strategy in the horizontal plane partially.

Figure 21.

The slides of the experiment based on air bearing.

As shown in Figure 21, when the experimenter pushes the base of the two-arm chaser on air bearing in the horizontal plane which was constructed into a microgravity environment with air bearing, the compliant controller exhibits a reactive behaviour and unloads the external force disturbance supplied to the chaser, thereby reducing the effect on the arm joint from the external force (Figure 22). The joint position curves with compliant control are shown in Figure 23, and the corresponding velocity curves are shown in Figure 24. The figures just show the curves of joint2, joint3 and joint5 which are the horizontal motion DoFs of the arm of ADRC for the constraint of air bearing. The constraints of motion do not affect the verification of compliant control algorithms. These pictures are sampled every 3 s from a video.

Figure 22.

Joint torque curves of the dual-arm experiment.

Figure 23.

Joint position curves of the dual-arm experiment.

Figure 24.

Joint velocity curves of the dual-arm experiment.

From the curves of the motion and joint force of the two arms, it can be seen that when the base of the chaser is supplied an external force, the two arms will unload the effects of the external force to achieve compliant behaviour.

Conclusion and future work

In this article, we presented our motivation and challenge for the study of multi-arm robotic capturing of large tumbling target and conduct safety capture research for large tumbling debris such as large rocket upstage. Through the mathematical modelling of the chaser, target and chaser–target, the control strategy of capturing safety with uncertain dynamics parameters is studied. The main contributions of this article are as follows:

The kinematics and dynamics models of the chaser and target are modelled and the constraint conditions of the closed loop from four capture arms are established, and a whole-body control strategy based on the Cartesian-space impedance behaviour is designed.

We propose a multi-arm force distribution method that consists of a CoF distributor and a dissipation vector regulator, so that the output force from the hands of the chaser can be distributed to multiple arms reasonably.

A passivity-based controller is designed to further improve the performance of the system and the stability is proven in the sense of Lyapunov.

The compliant control strategy is verified by simulations and experiments based on air bearing.²⁶ The phenomenon of non-synchronization between the arms and its possible impact on the capture safety is not considered in this article, and the multi-arm successive contact phenomenon to the challenge of the chaser’s whole-body compliant control behaviour will be taken into consideration in the future research. In addition, we will further enhance the chaser in the face of unknown environmental models and look forward to apply more technology on-orbit.

Footnotes

Appendix 1

The process of the error function calculation and the stability proof in the sense of Lyapunov are detailed in the following.

The system dynamics can be expressed as

(57)

H_{c} \overset{\cdot\cdot}{q} + C_{c} = τ + J_{h}^{T} f_{s}

And the control law $τ$ is given as

(58)

τ = H_{c} \overset{\cdot\cdot}{ζ} + C_{c} \overset{\cdot}{ζ} - K_{D} σ + J_{h}^{T} f_{s}^{d}

Substituting equations (52) and (53) into equation (58), we get the following expression

(59)

\begin{matrix} τ = H_{c} ({\overset{\cdot\cdot}{q}}^{d} - Λ {\overset{\cdot}{q}}^{e}) + C_{c} ({\overset{\cdot}{q}}^{d} - Λ q^{e}) \\ - K_{D} (sI + Λ) q^{e} + J_{h}^{T} f_{s}^{d} \end{matrix}

Substituting equation (59) into equation (57), the system error dynamics equation can be expressed as

\begin{matrix} H_{c} \underset{\overset{\cdot}{σ}}{\underset{︸}{(sI + Λ) {\overset{\cdot}{q}}^{e}}} + C_{c} \underset{σ}{\underset{︸}{(sI + Λ) q^{e}}} + K_{D} \underset{σ}{\underset{︸}{(sI + Λ) q^{e}}} \\ = J_{h}^{T} \underset{f_{s}^{e}}{\underset{︸}{(f_{s}^{d} - J_{h}^{- T} τ_{s})}} \end{matrix}

This equation can be simplified using equations (53) and (55)

(60)

H_{c} \overset{\cdot}{σ} + C_{c} σ + K_{D} σ = ψ

where $ψ = J_{h}^{T} f_{s}^{e}$ and $τ_{s}$ is the joint torque sensor sampling value.

Then, consider the following Lyapunov function

(61)

V = σ^{T} H_{c} σ + V_{1}

The passivity properties of the mapping from $- σ$ to $ψ$ is positive definite. Evaluating the time derivative and solving equation (60) gives

(62)

\begin{matrix} \overset{\cdot}{V} = σ^{T} H_{c} σ + \frac{1}{2} σ^{T} {\overset{\cdot}{H}}_{c} σ - σ^{T} ψ \\ = - σ^{T} K_{D} σ + σ^{T} (\frac{1}{2} {\overset{\cdot}{H}}_{c} - C_{c}) σ = - σ^{T} K_{D} σ \leq 0 \end{matrix}

In view of the passivity of the mapping from $σ$ to $ψ$ , the velocity error ${\overset{\cdot}{q}}^{e}$ goes to zero if $ψ$ is bounded. Now, the stability of the controller in the sense of Lyapunov is proved in the case of input-bounded disturbances and uncertain on the chaser’s model parameters.

Acknowledgements

The authors would like to acknowledge the support of the team members for their outstanding contributions to this article and also thank the reviewers for their helpful comments and suggestions.

Handling Editor: Jose Antonio Tenreiro Machado

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship and/or publication of this article: The research work was supported in part by the government of China, and some basic work was supported in part by the National Natural Science Foundation of China under Grant Nos 61320106012, 61533004 and 61703043.

ORCID iD

Jiayu Liu

References

Yoshida

Engineering test satellite VII flight experiments for space robot dynamics and control: theories on laboratory test beds ten years ago, now in orbit. Int J Robot Res 2003; 22: 321–335.

Wilson

JR.

Satellite hopes ride on orbital express: DARPA plans to extend the lives of satellites already in orbit by refueling and upgrading them in space. Aerospace Am 2007; 45: 30–35.

Cusumano

Lampariello

Hirzinger

. Development of Tele-operation control for a free-floating robot during the grasping of a tumbling target. In: Proceedings of the international conference on intelligent manipulation and grasping, Genoa, 1–2 July 2004, pp.1–2. IMG.

Bonnal

Ruault

Desjean

et al . Active debris removal: recent progress and current trends. Acta Astronaut 2013; 85: 51–60.

Castronuovo

MM.

Active space debris removal – a preliminary mission analysis and design. Acta Astronaut 2011; 69: 848–859.

Liang

et al . Autonomous rendezvous and robotic capturing of non-cooperative target in space. Robotica 2010; 28: 705–718.

Palmerini

Sabatini

Gasbarri

et al . Design of debris removal missions performed by robotic graspers. In: Proceedings of the 63rd international astronautical congress (IAC), vol. 8, Naples, 1–5 October 2012, pp.6356–6366. IET.

Tactical Technology Office of DARPA. Broad agency announcement for Phoenix technologies. DARPA-BAA-12-02, 22 December 2011. IEEE.

Aghili

. Optimal control of a space manipulator for detumbling of a target satellite. In: Proceedings of the IEEE international conference on robotics and automation, Kobe, Japan, 12–17 May 2009, pp.362–367. New York: IEEE.

10.

Lampariello

. On grasping a tumbling debris object with a free-flying robot. In: Proceedings of the IFAC symposium on automatic control in aerospace, Würzburg, 2–6 September 2013, pp.161–166. IFAC.

11.

Nishida

Kawamoto

Strategy for capturing of a tumbling space debris. Acta Astronaut 2011; 68: 113–120.

12.

Yoshida

Sashida

. Modeling of impact dynamics and impulse minimization for space robots. In: Proceedings of the IEEE/RSJ international conference on intelligent robots and systems ’93 (IROS), vol. 3, Yokohama, Japan, 26–30 July 1993, pp.2064–2069. New York: IEEE.

13.

Greaves

Boyle

Doshewnek

. Orbiter boom sensor system and shuttle return to flight: operations analyses. In: Proceedings of the AIAA guidance navigation control conference and exhibit, San Francisco, CA, 15–18 August 2005, p.5986. IEEE.

14.

Landzettel

Brunner

Hirzinger

et al . A unified ground control and programming methodology for space robotics applications – demonstrations on ETS-VII. In: Proceedings of the international symposium on robotics, Montreal, QC, Canada, 15–17 May 2000, pp.422–427. IEEE.

15.

Felicetti

Gasbarri

et al . Design of robotic manipulators for orbit removal of spent launchers’ stages. Acta Astronaut 2016; 119: 118–130.

16.

Liu

Fan

Yang

et al . A space robot manipulator system: designed for capture. Int J Mechatron Autom 2015; 5: 125–132.

17.

Featherstone

Robot dynamics algorithms. Norwell, MA: Wolters Kluwer, 1987.

18.

Murray

Sastry

SS.

A mathematical introduction to robotic manipulation. Boca Raton, FL: CRC Press, 1994.

19.

Hyon

Hale

Cheng

Full-body compliant human–humanoid interaction: balancing in the presence of unknown external forces. IEEE T Robot 2007; 23: 884–898.

20.

Galvez

Estremera

De Santos

PG.

A new legged-robot configuration for research in force distribution. Mechatronics 2003; 13: 907–932.

21.

Pouliezos

. ‘Lyapunov-Based Control of Robotic Systems’– Aman Behal, Warren Dixon, Darren M. Dawson and Bin Xian (CRC Press 2010). J Intell Robot Syst 2011; 62: 295–296.

22.

Ortega

Schaft

AVD

Castanos

et al . Control by interconnection and standard passivity-based control of port-Hamiltonian systems. IEEE T Automat Contr 2009; 53: 2527–2542.

23.

Ortega

Loría

Nicklasson

et al . Passivity-based control of Euler-Lagrange systems. Commun Control Eng 1998; 26: 75–92.

24.

Rohmer

Singh

SPN

Freese

et al . V-REP: a versatile and scalable robot simulation framework. In: Proceedings of the IEEE/RSJ international conference on intelligent robots and systems, Tokyo, Japan, 3–7 November 2013, pp.1321–1326. New York: IEEE.

25.

Liu

Fan

Wang

et al . A space manipulator hand arm system designed for capture. In: Proceedings of IEEE international conference on mechatronics and automation, Beijing, China, 2–5 August 2015. New York: IEEE.

26.

Liu

Huang

Wang

et al . A method of ground verification for energy optimization in trajectory planning for six DOF space manipulator. In: Proceedings of IEEE international conference on fluid power and mechatronics, Harbin, China, 5–7 August 2015, pp.791–796. New York: IEEE.
