A new hybrid conjugate gradient method for dynamic force reconstruction

Abstract

A new hybrid conjugate gradient method is proposed in this article based on the gradient operator and applied to the structural dynamic load identification problem. It has proved that the present method with the strong Wolfe line search possesses sufficient descent property. In addition, the present method is globally convergent when the parameter in the strong Wolfe line search conditions is restricted in some suitable intervals. Three example problems from engineering are solved by the newly developed conjugate gradient method to demonstrate the robustness and effectiveness of conjugate gradient method in solving multi-source dynamic load identification problems. Compared with the traditional Landweber iteration regularization method (Landweber), the proposed conjugate gradient method can more stably and effectively overcome the influences of noise, largely reduce the number of iterations, and provide accurate results in identifying multi-source dynamic force in practical engineering structure.

Keywords

Inverse problems ill-posed dynamic load identification finite element method conjugate gradient method

Introduction

Nowadays many experts have been involved in different kinds of load identification problems.^1–15 With the rapid development of computer technology, it becomes realistic to realize more complex design requirements in modern industry and national defense, which often requires accurate dynamic external loads. However, it is difficult or even impossible to directly measure dynamic loads, such as wind loads acting on a tall building and ice loads acting on offshore platform, because of the limitation of technical or economical condition and costs. Therefore, we should develop the theory of load identification. As an important branch of inverse problems, the usual method is to determine the unknown force acting on the practical engineering structure by measuring the features of the system, such as the dynamic responses of structure, velocity, acceleration, and strain.

The load identification technique which is an important indirect method for obtaining dynamic loads usually solves inverse problems about load identification exploiting the dynamic characteristics of system and the measured responses of structure. Over the years, many researchers have made great achievements in the dynamic load identification methods.^16–25 Lifschitz and D’Attellis²⁶ proposed a computational inverse technology based on wavelets and applied it to a pulsed plasma thruster. Liu and Shepard²⁷ used enhanced least-squares and total least-squares schemes to calculate the dynamic forces in the frequency domain. B Zhang et al.²⁸ presented a practical method to solve the load reconstruction for advanced grid-stiffened composited plates. Hou et al.²⁹ and Zhang and Gao³⁰ predicted the statistics of moving forces on a bridge structure using an inverse pseudo excitation method that they proposed. Zhou et al.³¹ proposed a new method to analyze the grinding damage induced stress (GDIS) distribution in silicon wafers, and the results show that the stress is independent of direction. Gursoy and Niebur³² exploited a statistical signal-processing technique which is known as independent component analysis for harmonic load identification and estimation. Yan and Zhou³³ presented a new computational inverse method that is based on a genetic algorithm to realize the impact load identification, and this method can stably identify the impact location and reconstruct the impact force history simultaneously. Mitra and Gopalakrishnan³⁴ developed a new wavelet-based spectral finite element method and used it to study the propagation of longitudinal and bending waves in rods, beams, and frame structures. Granger and Perotin³⁵ presented an inverse method for estimating a distributed random excitation from the measurement of the structural response at a number of discrete points and made a presentation of the theoretical development. Pezerat and Guyader³⁶ proposed a force analysis technique which is based on the computation of the force distribution and dealt with the identification of stationary force distributions. Law et al.³⁷ proposed a modified iteration scheme and applied it to identify the wind load over the full height of the structure from the structural displacement or strain responses, and only two displacement or strain responses in two orthogonal directions at a reference level are needed to obtain accurate results.

In fact, these inverse problems about load identification mentioned by the references above are generally identified as ill-posed. It means that we cannot directly reconstruct the unknown loads which act on the practical engineering structure. Therefore, from the point of mathematical theory, it is necessary to develop some indirect computational inversion techniques to deal with these usually seriously ill-posed inverse problems.^4–7,38,39 Furthermore, any direct numerical treatment of ill-posed problems will generate useless solutions and it will lead to large deviations from exact solutions of the large-scale inverse problems.^40,41 Up to now, lots of experts and scholars have developed many regularization methods to deal with this ill-posedness.^42–46 In addition, Hager and Zhang⁴⁷ proposed a new nonlinear conjugate gradient method based on an inexact line search. Because of the simplicity and low memory requirement, conjugate gradient methods are widely used to solve large-scale optimization problems. In the past decades, a variety of conjugate gradient methods were developed. There are some well-known conjugate gradient methods, such as Fletcher–Reeves (FR) method,⁴⁸ Hestenes–Stiefel (HS) method,⁴⁹ Polak–Ribiere–Polyak (PRP) method,^50,51 and Dai–Yuan (DY) method.⁵² Yao and Ning⁵³ proposed a three-term conjugate gradient method based on self-scaling memoryless Broyden–Fletcher–Goldfarb–Shanno (BFGS) matrix. Fatemi⁵⁴ proposed a new efficient conjugate gradient method combining the good features of the linear conjugate gradient method and some penalty parameters. However, the application of these new developed conjugate gradient methods was only limited to solve the pure mathematical numerical examples without application to practical engineering problems, and it should be improved to exclude jamming of noises in engineering. Moreover, at present, there is little research on some regularization methods in engineering. Also, we usually prefer to exploit iterative regularization methods to deal with large-scale inverse problems. More importantly, Neubauer studied that Landweber iteration regularization method is a stable and effective method in solving large disturbed ill-posed problems. However, the convergence rate of its corresponding regularized solution is very low.⁵⁵ In addition, in our previous work,⁵⁶ the proposed method is based on a new gradient operator which is given by $β_{k} = ‖ g_{k + 1} ‖^{2} (g_{k + 1} - ‖ d_{k} ‖^{2} g_{k})^{T} d_{k}$ , and this method is only applied to a simple numerical analytical example and simply supported plate problem. Moreover, it is not very powerful in solving dynamic load identification in complex practical engineering structure problems. For the purpose to solve these difficulties and make greater breakthroughs, we try to construct a new conjugate gradient method (MCG) which is based on the ideas of Liu and Li⁵⁷ and apply it to solve the dynamic force identification problems in structural dynamics.

The article is organized as follows. In the next section, we construct a new hybrid conjugate gradient method and give our specific algorithm. In section “The convergent analysis of the proposed method,” the sufficient descent property of the proposed method is also investigated under strong Wolfe line search conditions, and its global convergence is provided. In section “Numerical examples and discussion,” numerical examples are performed to disclose the problems and verify the theoretical results which are presented in sections “The establishment of a new hybrid conjugate gradient algorithm” and “The convergent analysis of the proposed method.” Some concluding remarks are made in section “Conclusion.”

The establishment of a new hybrid conjugate gradient algorithm

First, the following unconstrained optimization problem is considered in this section

min_{x \in R^{n}} f (x)

where $f : R^{n} \to R$ is a continuously differentiable function. The iterative form of this method is

x_{k + 1} = x_{k} + α_{k} d_{k}, k = 0, 1, 2, \dots

(1)

where $α_{k}$ is the step length and $d_{k}$ is the search direction. This step size is often obtained by strong Wolfe search method. The search direction is $d_{k}$ , which is often defined by

d_{k} = {\begin{matrix} - g_{k} + β_{k} d_{k - 1}, & k ⩾ 2 \\ - g_{1}, & k = 1 \end{matrix}

(2)

where $g_{k} = g (x_{k})$ is the gradient of $f (x)$ at point $x_{k}$ ; $β_{k}$ is a scalar, and different choices correspond to different conjugate methods. Well-known formulae for $β_{k}$ are called the conjugate gradient (CD) and Liu-Storey (LS) which are given by $β_{k}^{CD} = - (g_{k + 1}^{T} g_{k + 1}) / (d_{k}^{T} g_{k})$ and $β_{k}^{LS} = - g_{k + 1}^{T} (g_{k + 1} - g_{k}) / g_{k}^{T} d_{k}$ , respectively.

We will propose a new formula as follows

β_{k}^{WX} = \frac{g_{k}^{T} (g_{k} - \frac{g_{k}^{T} d_{k - 1}}{∥ d_{k - 1} ∥^{2}} d_{k - 1})}{- 2 g_{k - 1}^{T} d_{k - 1}}

(3)

The corresponding algorithm is defined as follows.

Algorithm 2.1. (MCG method)
Step 1: Initialization. Choose $δ$ and $σ$ that satisfy $0 < δ < 0.5 < σ < 1$ , $ϵ ⩾ 0$ , and $d_{1} = - g_{1}$ . Given $x_{1} \in R^{n}$ , set $k = 1$ . If $∥ g_{k} ∥ ⩽ ϵ$ , then stop. Step 2: Generate $α_{k}$ based on the following standard Wolfe conditions: $f (x_{k} + α_{k} d_{k}) - f (x_{k}) ⩽ δ α_{k} g_{k}^{T} d_{k} (4)$ $\| g (x_{k} + α_{k} d_{k})^{T} d_{k} \| ⩽ - σ g_{k}^{T} d_{k} (5)$ Step 3: $x_{k + 1}$ is generated by formula (1). If $∥ g_{k + 1} ∥ ⩽ ϵ$ , then stop. Step 4: Generate $d_{k + 1}$ based on equation (2). Step 5: k≔ k + 1, go to step (2). Suppose $∥ g_{k} ∥ \neq 0$ , otherwise this algorithm stops when it finds a stable solution.

Algorithm 2.1. (MCG method)

Step 1: Initialization. Choose

δ

and

σ

that satisfy

0 < δ < 0.5 < σ < 1

ϵ ⩾ 0

, and

d_{1} = - g_{1}

. Given

x_{1} \in R^{n}

, set

k = 1

. If

∥ g_{k} ∥ ⩽ ϵ

, then stop.
Step 2: Generate

α_{k}

based on the following standard Wolfe conditions:

f (x_{k} + α_{k} d_{k}) - f (x_{k}) ⩽ δ α_{k} g_{k}^{T} d_{k} (4)

| g (x_{k} + α_{k} d_{k})^{T} d_{k} | ⩽ - σ g_{k}^{T} d_{k} (5)

Step 3:

x_{k + 1}

is generated by formula (1). If

∥ g_{k + 1} ∥ ⩽ ϵ

, then stop.
Step 4: Generate

d_{k + 1}

based on equation (2).
Step 5: k≔ k + 1, go to step (2).
Suppose

∥ g_{k} ∥ \neq 0

, otherwise this algorithm stops when it finds a stable solution.

The convergent analysis of the proposed method

Lemma 3.1

Suppose the sequence ${g_{k}, d_{k}}$ is generated by the new conjugate gradient method, then $g_{k}^{T} d_{k} < 0$ for $k ⩾ 1$ .

Proof

Suppose $θ_{k}$ is the angle between $g_{k + 1}$ and $d_{k}$ , then

\cos θ_{k} = \frac{g_{k + 1}^{T} d_{k}}{‖ g_{k + 1} ‖ ‖ d_{k} ‖}

(6)

It is easy to check $g_{1}^{T} d_{1} = - ‖ g_{1} ‖^{2} < 0$ .

Assuming $g_{k}^{T} d_{k} < 0$ , and exploiting equation (5), we can obtain $- 2 g_{k}^{T} d_{k} > 0$ .

Notice $d_{k + 1} = - g_{k + 1} + β_{k + 1} d_{k}$ , and we can obtain

\begin{matrix} g_{k + 1}^{T} d_{k + 1} \\ = - {‖ g_{k + 1} ‖}^{2} + β_{k + 1} g_{k + 1}^{T} d_{k} \\ ⩽ - {‖ g_{k + 1} ‖}^{2} + \frac{g_{k + 1}^{T} (g_{k + 1} - \frac{g_{k + 1}^{T} d_{k}}{{‖ d_{k} ‖}^{2}} d_{k})}{- 2 g_{k}^{T} d_{k}} g_{k + 1}^{T} d_{k} \\ = \frac{2 {‖ g_{k + 1} ‖}^{2} g_{k}^{T} d_{k} + [{‖ g_{k + 1} ‖}^{2} - \frac{{(g_{k + 1}^{T} d_{k})}^{2}}{{‖ d_{k} ‖}^{2}}] g_{k + 1}^{T} d_{k}}{- 2 g_{k}^{T} d_{k}} \\ = \frac{{‖ g_{k + 1} ‖}^{2} [2 g_{k}^{T} d_{k} + (1 - \overset{2}{\cos} θ_{k}) g_{k + 1}^{T} d_{k}]}{- 2 g_{k}^{T} d_{k}} \\ ⩽ \frac{{‖ g_{k + 1} ‖}^{2} [2 g_{k}^{T} d_{k} + (1 - \overset{2}{\cos} θ_{k}) | g_{k + 1}^{T} d_{k} |]}{- 2 g_{k}^{T} d_{k}} \end{matrix}

(7)

It is not difficult to check $(\overset{2}{\cos} θ_{k} - 1) σ + 2 > 0$ . Exploiting equation (5), we have

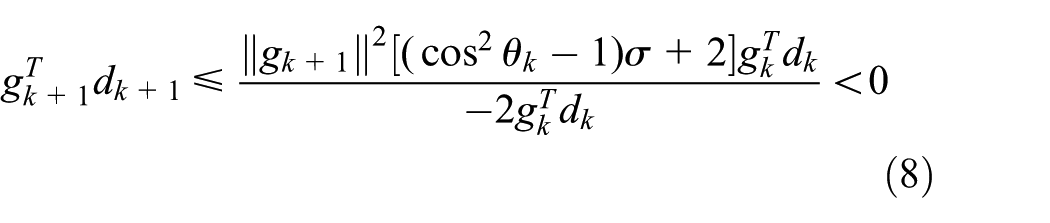

g_{k + 1}^{T} d_{k + 1} ⩽ \frac{{‖ g_{k + 1} ‖}^{2} [(\overset{2}{\cos} θ_{k} - 1) σ + 2] g_{k}^{T} d_{k}}{- 2 g_{k}^{T} d_{k}} < 0

(8)

Thus, we complete the proof of Lemma 3.1.

Lemma 3.2

If $α_{k}$ satisfies equations (4) and (5), then

0 ⩽ β_{k + 1} ⩽ \frac{g_{k + 1}^{T} d_{k + 1}}{g_{k}^{T} d_{k}}, \forall k ⩾ 1

Proof

Let $θ_{k}$ is the angle between $g_{k + 1}$ and $d_{k}$ , then

\begin{matrix} β_{k + 1} = \frac{g_{k + 1}^{T} (g_{k + 1} - \frac{g_{k + 1}^{T} d_{k}}{{‖ d_{k} ‖}^{2}} d_{k})}{- 2 g_{k}^{T} d_{k}} \\ = \frac{{‖ g_{k + 1} ‖}^{2} - \frac{{(g_{k + 1}^{T} d_{k})}^{2}}{{‖ d_{k} ‖}^{2}}}{- 2 g_{k}^{T} d_{k}} \\ = \frac{{‖ g_{k + 1} ‖}^{2} [1 - \frac{{(g_{k + 1}^{T} d_{k})}^{2}}{{‖ d_{k} ‖}^{2} {‖ g_{k + 1} ‖}^{2}}]}{- 2 g_{k}^{T} d_{k}} \\ = \frac{{‖ g_{k + 1} ‖}^{2} [1 - \overset{2}{\cos} θ_{k}]}{- 2 g_{k}^{T} d_{k}} ⩾ 0 \end{matrix}

According to $(1 / 2) < σ < 1$ , we can easily check that

(\overset{2}{\cos} θ_{k} - 1) σ + 2 ⩾ 1 - σ \overset{2}{\cos} θ_{k}

Then

\frac{g_{k + 1}^{T} d_{k + 1}}{g_{k}^{T} d_{k}} ⩾ \frac{{‖ g_{k + 1} ‖}^{2} [(\overset{2}{\cos} θ_{k} - 1) σ + 2]}{- 2 g_{k}^{T} d_{k}}

Since $g_{k}^{T} d_{k} < 0$ , we have

\begin{matrix} \frac{g_{k + 1}^{T} d_{k + 1}}{g_{k}^{T} d_{k}} ⩾ \frac{{‖ g_{k + 1} ‖}^{2} [1 - σ \overset{2}{\cos} θ_{k}]}{- 2 g_{k}^{T} d_{k}} \\ ⩾ \frac{{‖ g_{k + 1} ‖}^{2} [1 - \overset{2}{\cos} θ_{k}]}{- 2 g_{k}^{T} d_{k}} = β_{k + 1} \end{matrix}

Then, we complete the proof of Lemma 3.2.

In the following part, we will prove the convergence of the proposed method. First, we need to make some assumptions:

H1. f is continuously differentiable in a neighborhood N of the level set $Γ = {x \in R^{n} | f (x) ⩽ f (x_{0})}$ at the initial point $x_{0}$ ; f has a lower bound on the level set $Γ$ .

H2. The gradient $g (x)$ is Lipschitz continuous, that is, there exists a constant $L > 0$ such that $∥ g (x) - g (y) ∥ ⩽ L ∥ x - y ∥, \forall x, y \in N$ .

According to the two hypotheses mentioned above, we can get the following lemma at once.⁵⁸

Lemma 3.3

Let $(H_{1}) - (H_{2})$ hold. ${g_{k}, d_{k}}$ is the series generated by equation (2). Then

\sum_{k = 1}^{\infty} \frac{g_{k}^{T} d_{k}}{{‖ d_{k} ‖}^{2}} < \infty

By Lemma 3.3, we get the convergence theorem of this method immediately.

Theorem 3.4

Suppose $(H_{1})$ and $(H_{2})$ hold true. Let the sequence ${g_{k}}$ be generated by the proposed conjugate gradient method. Then

lim_{k \to \infty} ‖ g_{k} ‖ = 0

The proof is very obvious and similar to the developed methods used in Tikhonov et al.,⁴⁴ Hestenes and Stiefel,⁴⁹ and Dai and Yuan⁵² and we omit it here.

Numerical examples and discussion

In order to prove the stability and effectiveness of conjugate gradient methods proposed in this article, three engineering examples are provided next. Dynamic load need to be expressed as a superposition of the unit pulse signal in time domain. We discretize the dynamic load as a series of unit pulse load superposition under the conditions of linearity and time-invariant suppositions of dynamic load identification problems. Considering that the response is caused by unit impulse load system, we can compute the corresponding response. Then, the response at an arbitrary receiving point in a structure can be expressed as a convolution integral of the forcing time history and the corresponding Green’s kernel in time domain^59–61

y (t) = \int_{0}^{t} G (t - τ) p (τ) d τ

(9)

where $y (t)$ is the response which can be displacement, velocity, acceleration, strain, and so on. $G (t)$ is the corresponding Green’s function, which is the kernel of impulse response. $p (t)$ is the desired unknown dynamic load acting on the structure.

By discretizing this convolution integral, the whole concerned time period is separated into equally spaced intervals, and equation (9) is transformed into the following system of algebraic equation

Y (t) = G (t) P (t)

(10)

or equivalently

(\begin{matrix} y_{1} \\ y_{2} \\ ⋮ \\ y_{m} \end{matrix}) = (\begin{matrix} g_{1} \\ g_{2} & g_{1} \\ ⋮ & ⋮ & ⋱ \\ g_{m} & g_{m - 1} & \dots & g_{1} \end{matrix}) (\begin{matrix} p_{1} \\ p_{2} \\ ⋮ \\ p_{m} \end{matrix}) Δ t

In order to reconstruct $P (t)$ , the corresponding information of $y (t)$ and $G (t)$ needs to be known. Herein, we use the finite element method to calculate the response of the receiving point and the numerical Green function. Noticing that $G (t)$ is generally a severely ill-conditioned matrix, the inverse problem of $y (t)$ dynamic load $P (t)$ cannot be directly solved. We will use the proposed method to solve this inverse problem in the next step.

For the purpose of verifying the proposed method, three numerical examples are investigated. A stiffened plate problem is first provided to illustrate how to identify dynamic load by the Landweber iteration regularization method, and its identified results are compared with MCG. Then, the proposed method is applied to a composite laminated cylindrical shell structure and a 3 degree-of-freedom mass-spring system. In these three examples, we directly add the noise to the computer-generated response in order to simulate the noise-contaminated measurement, and the corresponding noisy response is obtained as follows

Y_{err} = Y_{cal} + l_{noise} \cdot std (Y_{cal}) \cdot rand (- 1, 1)

(11)

in which $Y_{cal}$ represents the computer-generated response; $std (Y_{cal})$ represents the standard deviation of $Y_{cal}$ ; $rand (- 1, 1)$ represents the random number between $- 1$ and +1; and $l_{noise}$ represents the parameter controlling the level of noise contamination.

In addition, in order to evaluate the approximation of the identified results, the relative estimation error and the average error are defined as

\tilde{F} = | \frac{F_{Real} (i) - F_{Identified} (i)}{max {F_{j}}} | \times 100

(12)

F_{Average} = \frac{1}{n} \sum_{i = 1}^{n} | \frac{F_{Real} (i) - F_{Identified} (i)}{max {F_{j}}} | \times 100

(13)

where $i = 1, 2, \dots, n, j = 1, 2$ .

A stiffened plate problem

A stiffened plate problem which is shown in Figure 1 is studied and discussed. The properties of the material used are listed as follows: $E = 2.0 \times 10^{5} MPa$ , $ρ = 7.8 \times 10^{3} kg / m^{3}$ , $ν = 0.33$ . The vertical concentrated loads $F_{1}$ and $F_{2}$ are applied at nodes 1,012,912 and 1,014,542, respectively. The corresponding vertical displacement response at nodes 1,013,316 and 1,015,766 can be obtained by finite element method. The bottoms of the stiffened plate are fixed. Figure 1 is the corresponding finite element model, and the arrow in Figure 1 represents the acting point of dynamic load. The definition of real load history is given as follows in numerical engineering examples

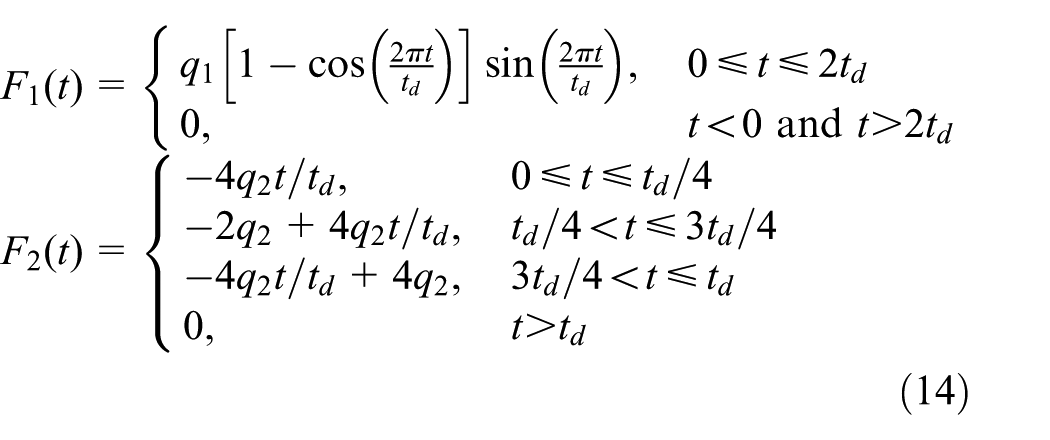

\begin{matrix} F_{1} (t) = {\begin{matrix} q_{1} [1 - \cos (\frac{2 π t}{t_{d}})] \sin (\frac{2 π t}{t_{d}}), & 0 ⩽ t ⩽ 2 t_{d} \\ 0, & t < 0 and t > 2 t_{d} \end{matrix} \\ F_{2} (t) = {\begin{matrix} - 4 q_{2} t / t_{d}, & 0 ⩽ t ⩽ t_{d} / 4 \\ - 2 q_{2} + 4 q_{2} t / t_{d}, & t_{d} / 4 < t ⩽ 3 t_{d} / 4 \\ - 4 q_{2} t / t_{d} + 4 q_{2}, & 3 t_{d} / 4 < t ⩽ t_{d} \\ 0, & t > t_{d} \end{matrix} \end{matrix}

(14)

Herein, $t_{d}$ represents the time cycle of sine force, and q is a constant amplitude of the force. When we choose $t_{d} = 0.004 s, q_{1} = 800 N$ , and $q_{2} = 800 N$ , the random force and triangle force are shown in Figures 2 and 3, respectively. Herein, the experimental data of response is simulated by the computed numerical solution, and the corresponding vertical displacement response can be obtained by finite element method as shown in Figures 4 and 5. Moreover, we add the noise directly to the computer-generated response to simulate the practical measured response and then calculate the noisy response through equation (11).

Figure 1.

The finite element model of stiffened plate.

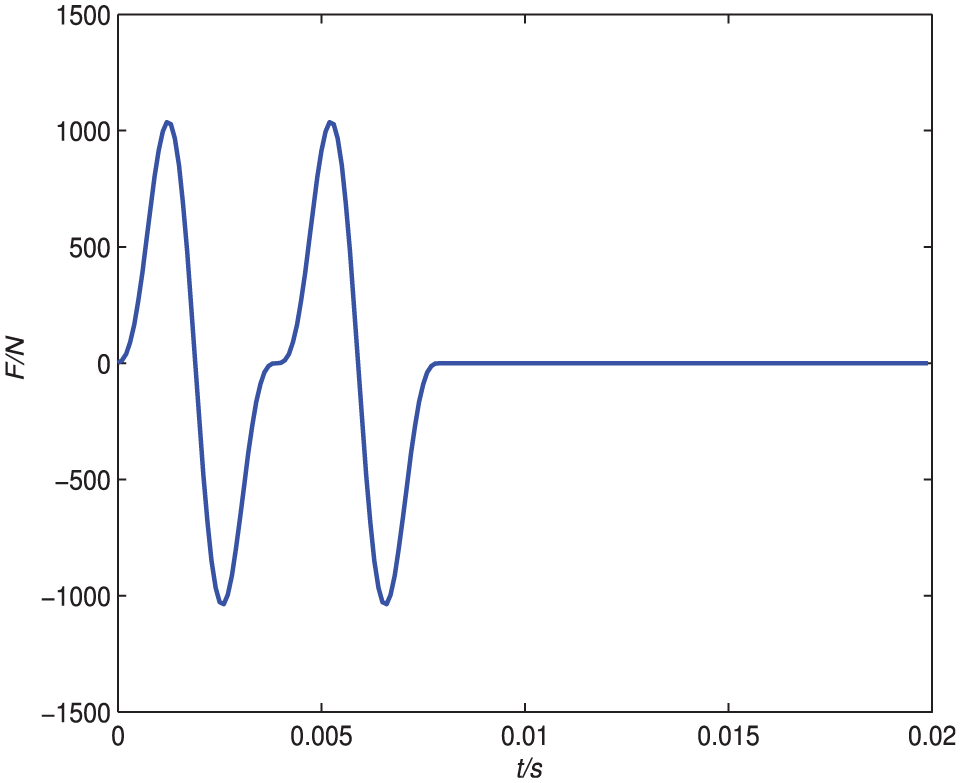

Figure 2.

The vertical concentrated random load acting on the outside surface.

Figure 3.

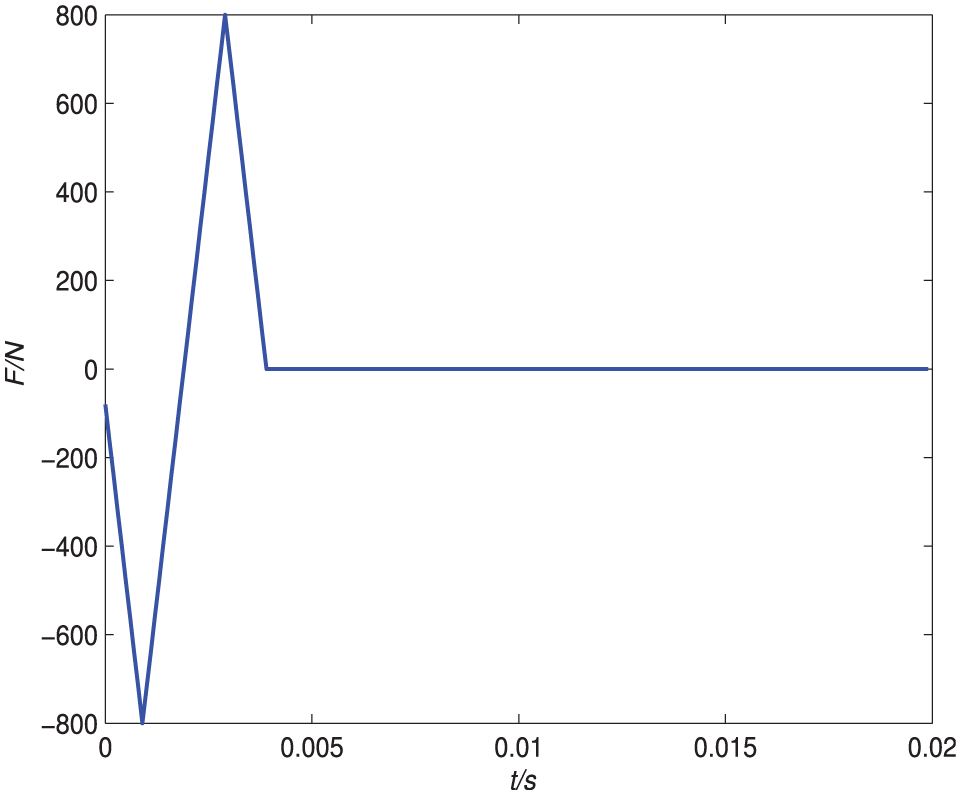

The vertical concentrated triangle load acting on the outside surface.

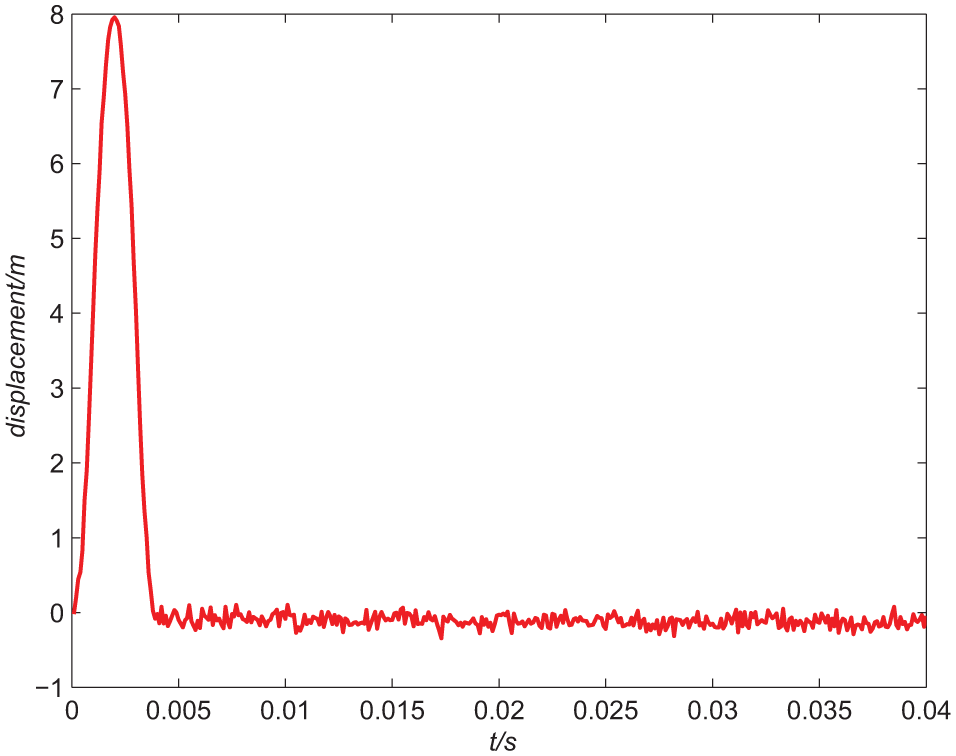

Figure 4.

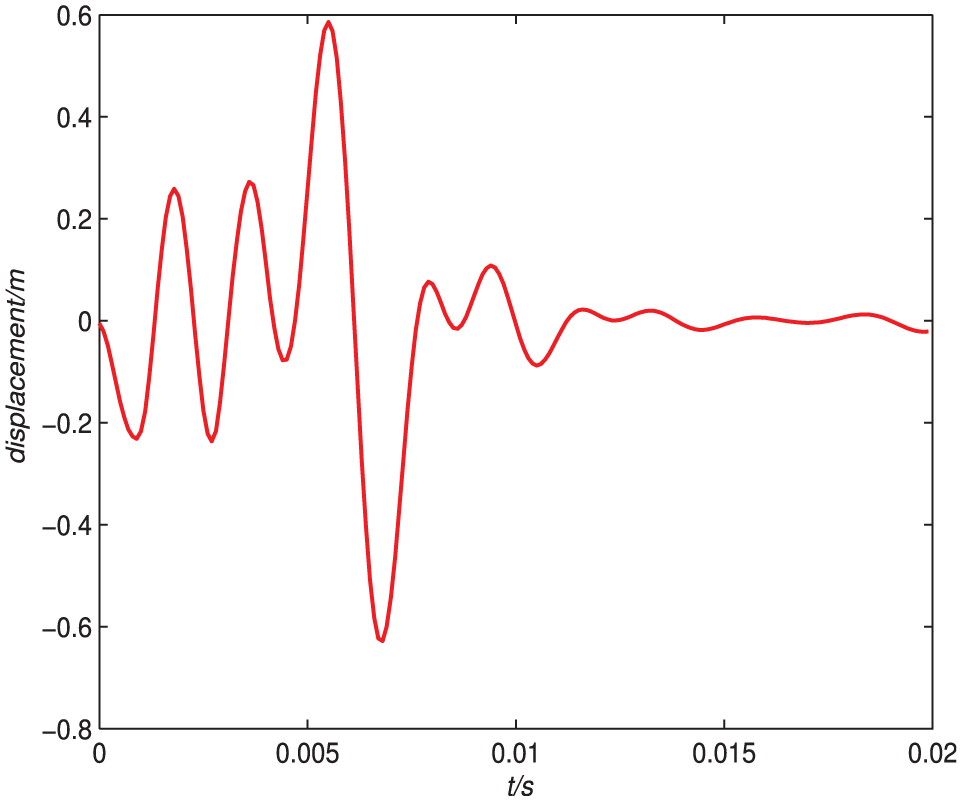

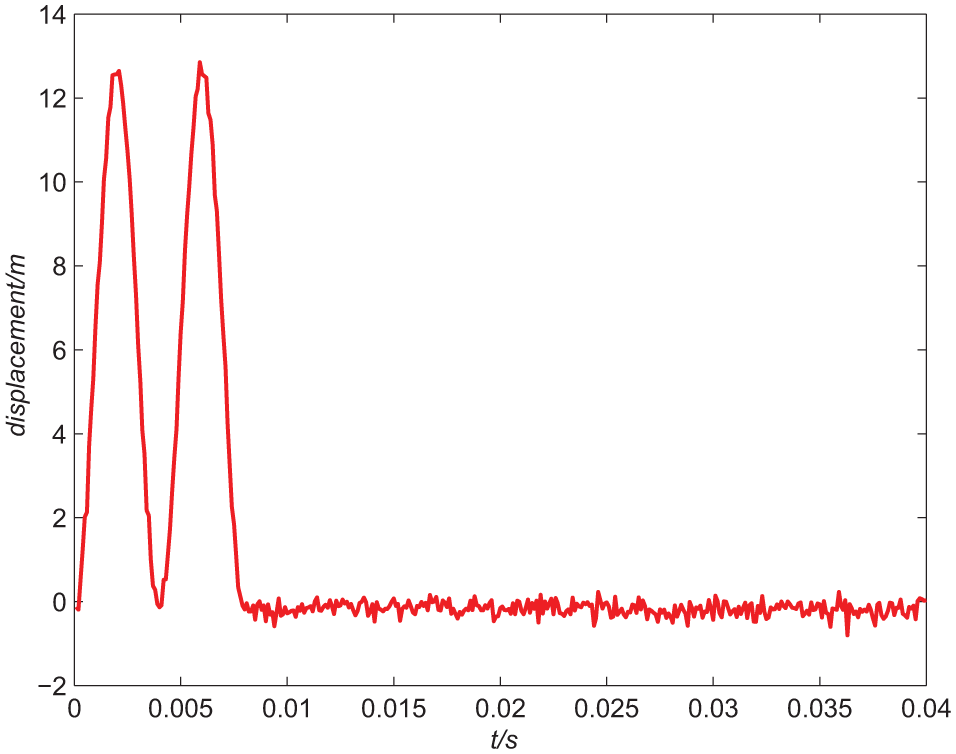

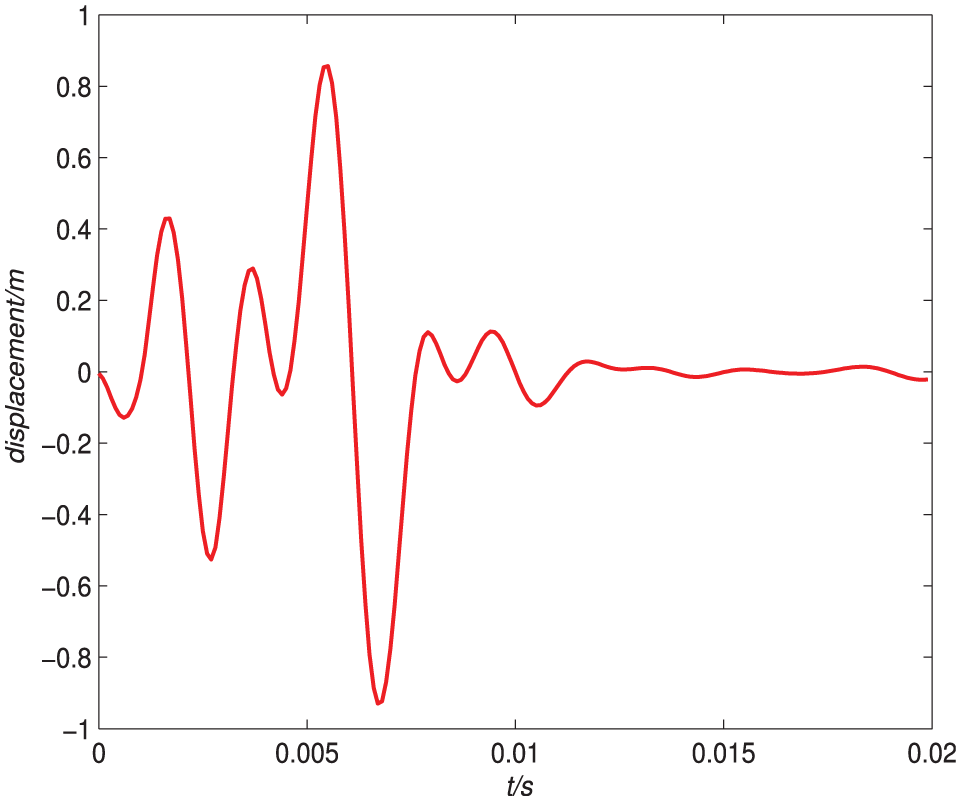

The corresponding vertical displacement response at one point.

Figure 5.

The corresponding vertical displacement response at the other point.

We consider the performances of two regularization methods in two cases with noise levels of 5% and 15%, respectively, which are traditionally considered.^5,16,18 Using the relative estimation error equation, we compare the performances of Landweber iterative regularization method with the MCG method according to equations (12) and (13). In addition, we only need to select five time points and compare the recognized force of each point with the corresponding actual load.

5% noise level

Numerical results are given as follows. As can be seen from Figures 6 –9, Landweber iterative regularization method and MCG can accurately identify the multi-source dynamic loads stably. In addition, in Figures 10 and 11, we can see that MCG is better than Landweber iterative regularization method. The performances of two regularization methods in the relative deviations of identified dynamic load are shown in Figures 12 and 13. These performances show that the deviation of Landweber iterative regularization method is greater than that of MCG method, so MCG method is superior to Landweber iterative regularization method. This shows the advantage of the proposed method in this article.

Figure 6.

The identified random force by Landweber at noise level 5%.

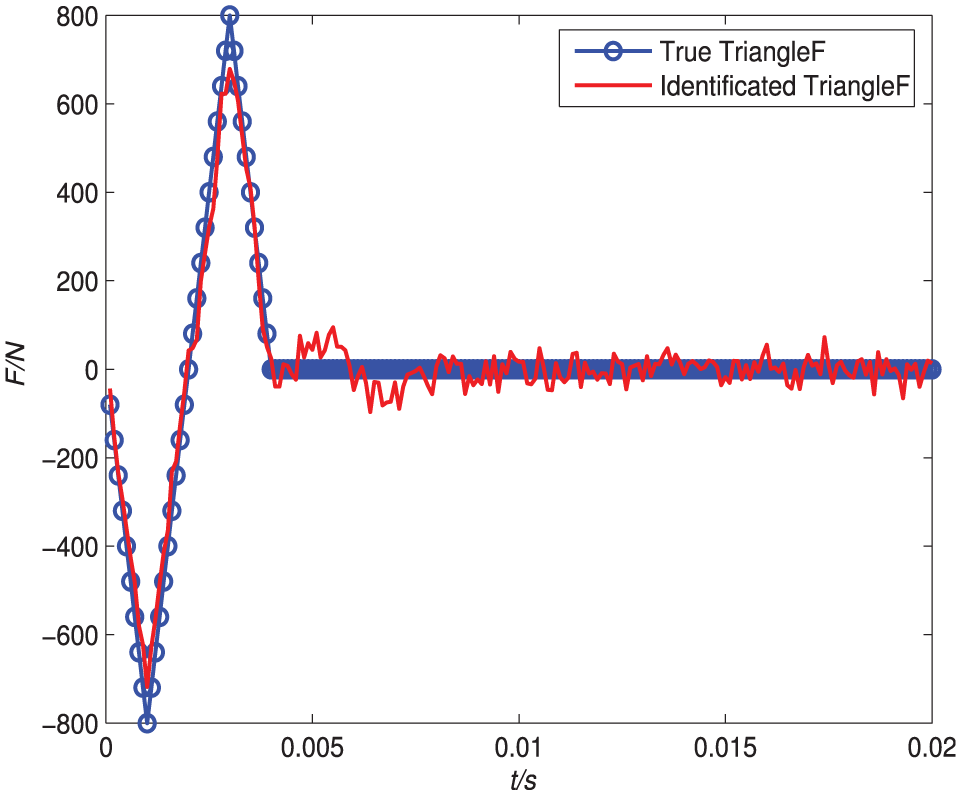

Figure 7.

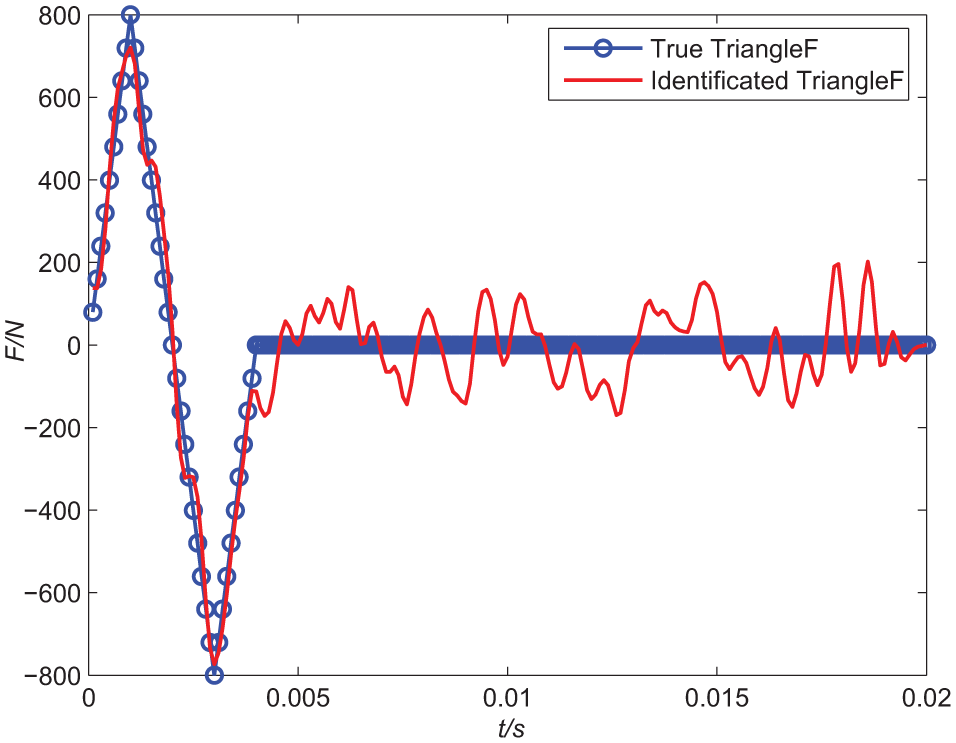

The identified triangle force by Landweber at noise level 5%.

Figure 8.

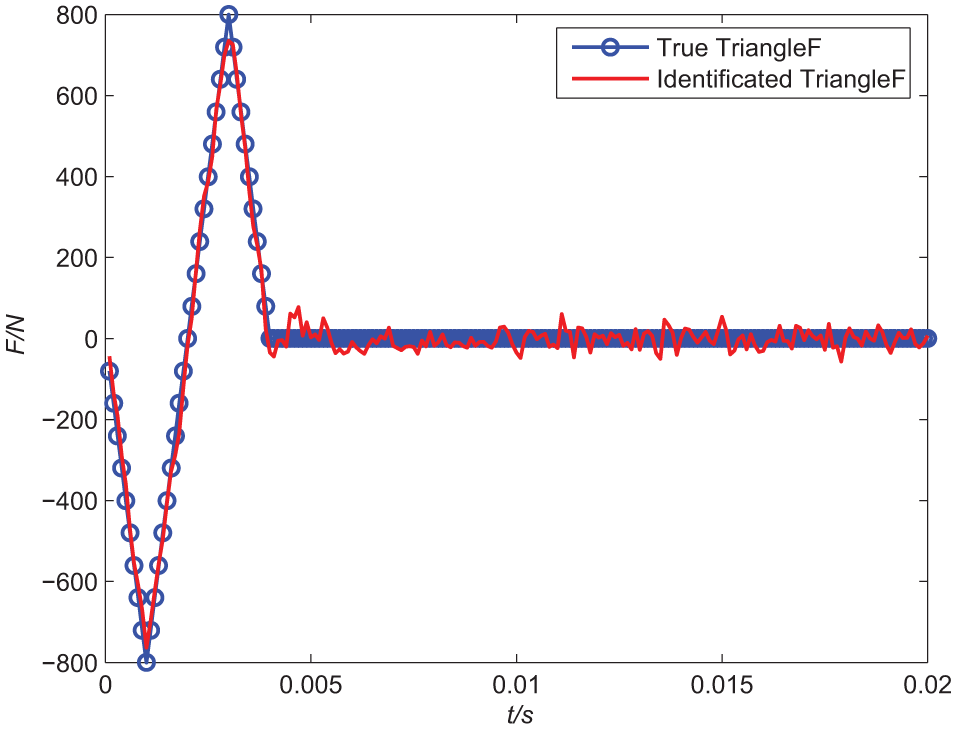

The identified random force by MCG at noise level 5%.

Figure 9.

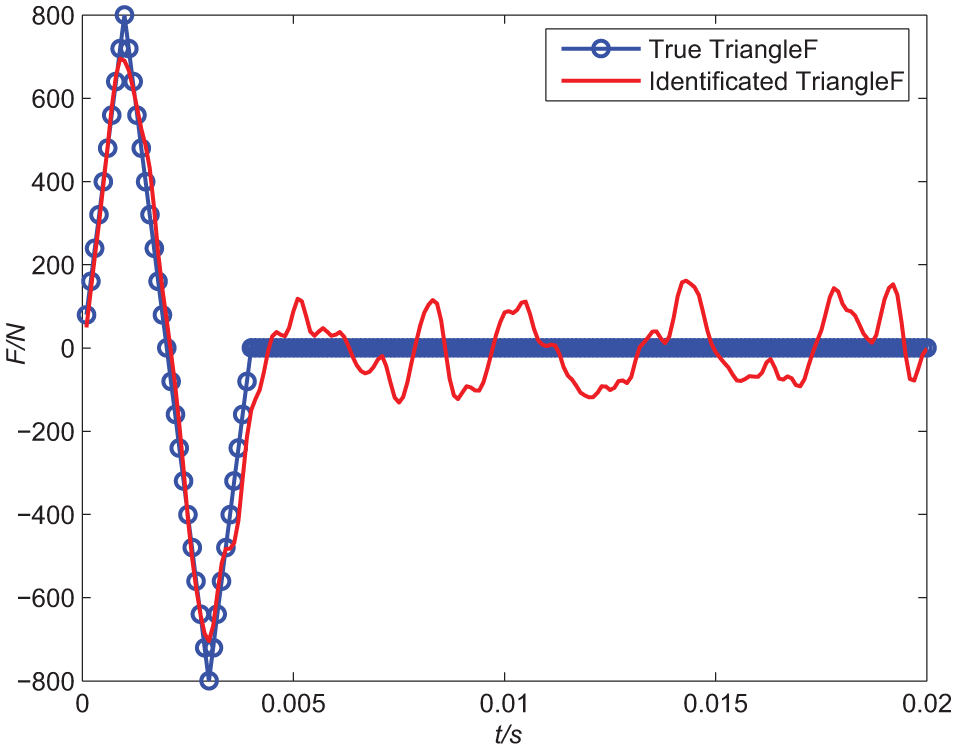

The identified triangle force by MCG at noise level 5%.

Figure 10.

The identified random force by Landweber and MCG at noise level 5%; the number of iterations: $N_{Landweber} = 420, N_{MCG} = 40$ .

Figure 11.

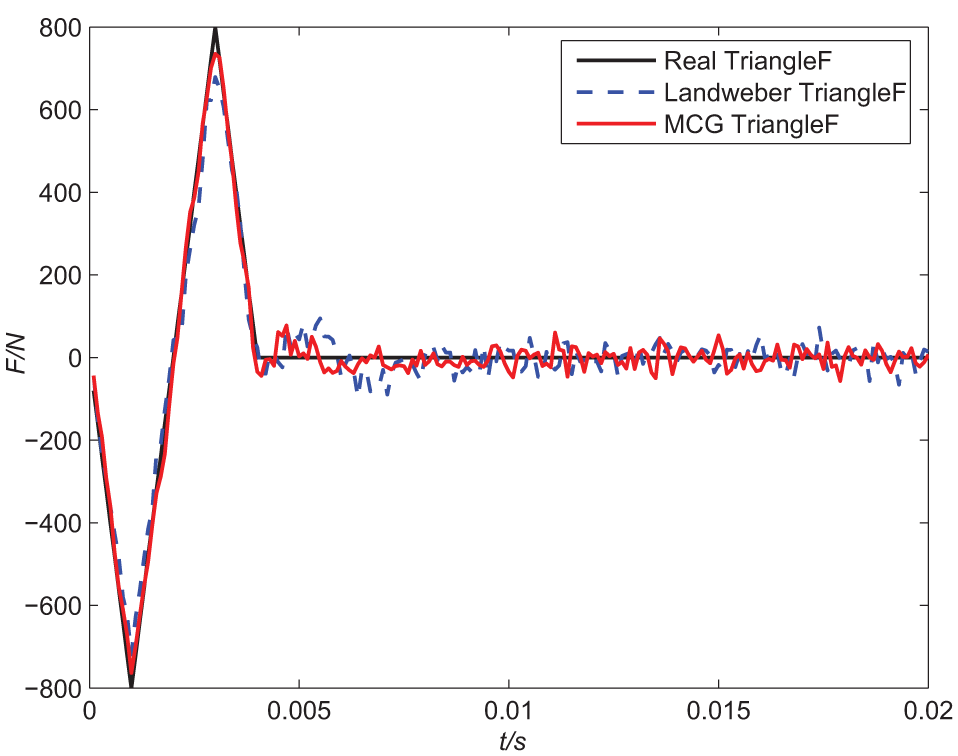

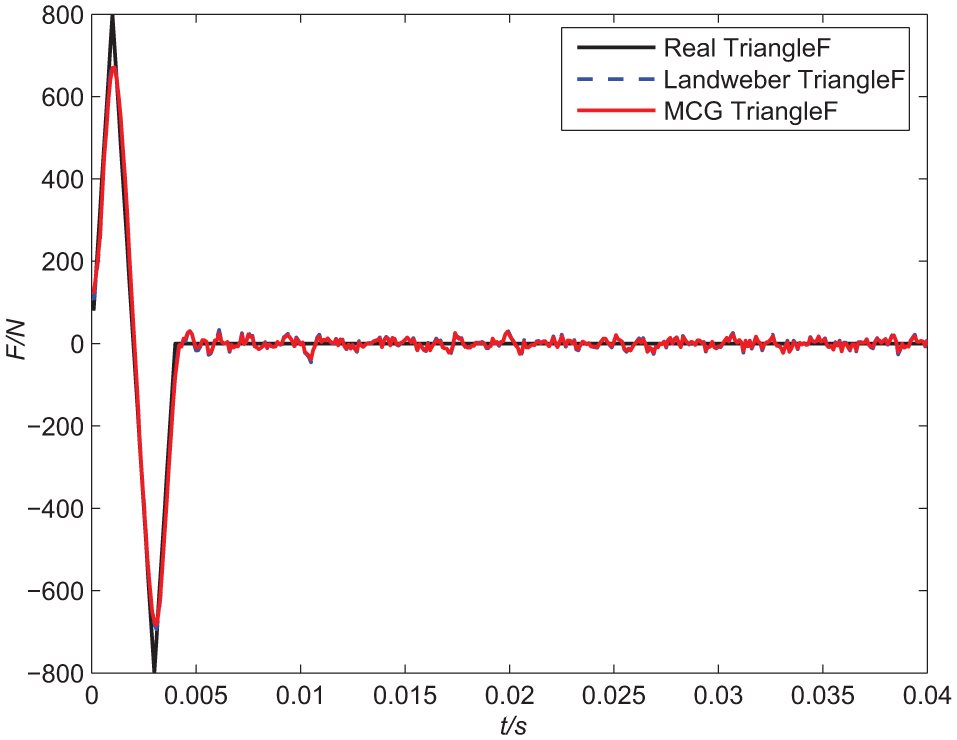

The identified triangle force by Landweber and MCG at noise level 5%; the number of iterations: $N_{Landweber} = 420, N_{MCG} = 40$ .

Figure 12.

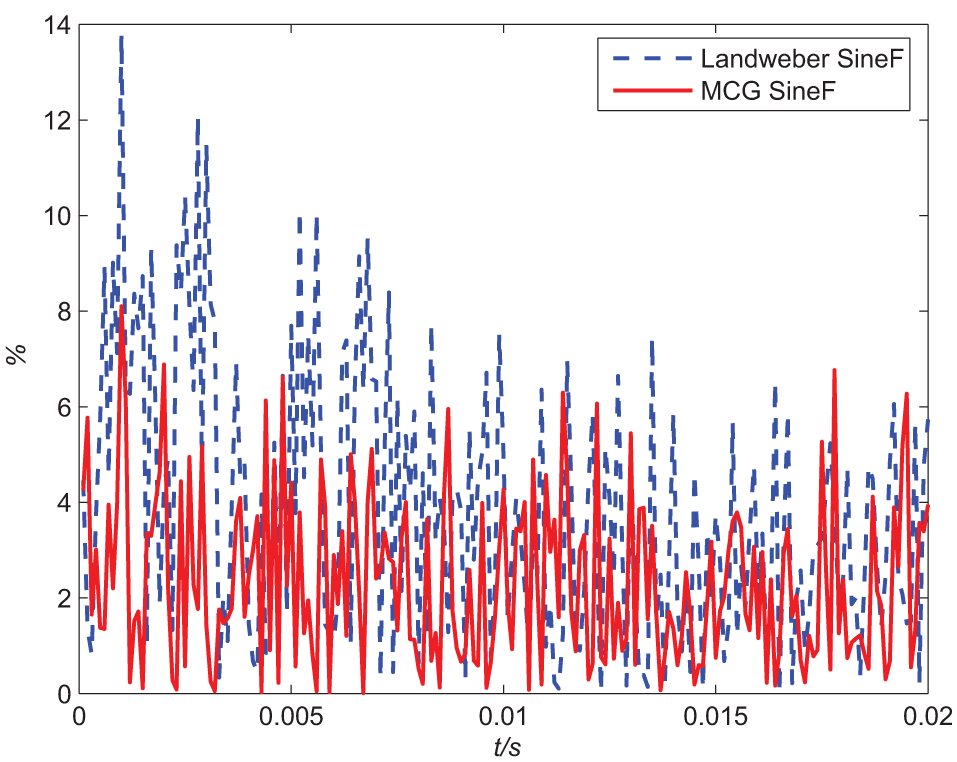

The relative deviations for the identified random force by Landweber and MCG at noise level 5%.

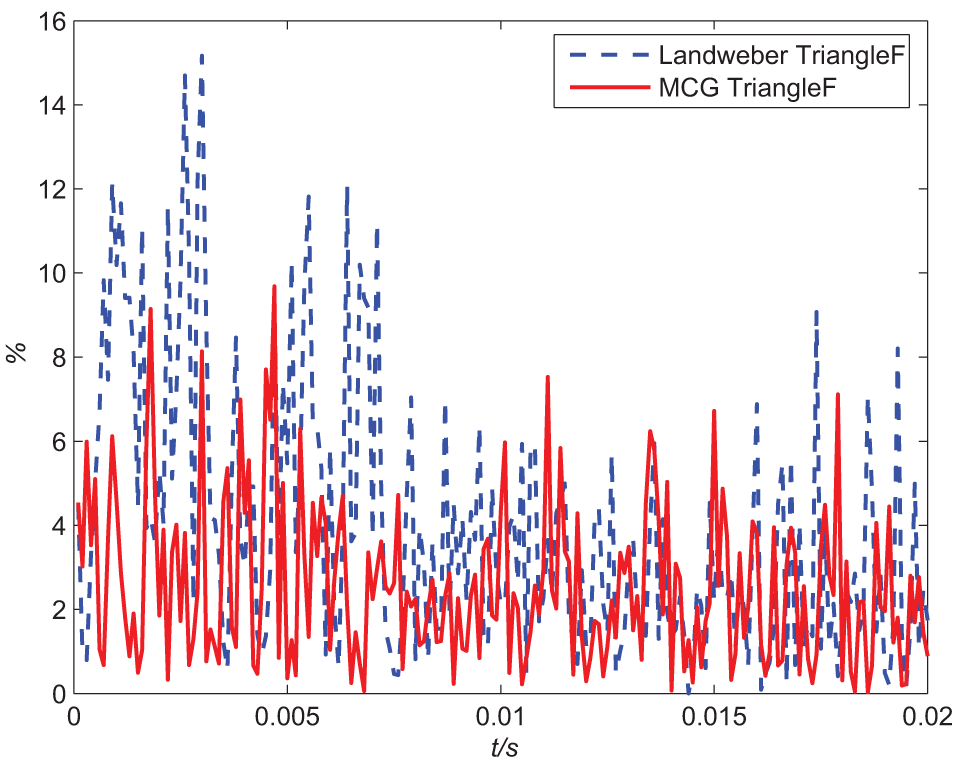

Figure 13.

The relative deviations for the identified triangle force by Landweber and MCG at noise level 5%.

Moreover, the more detailed results at five time points are listed in Table 1. This table shows that the Landweber iterative regularization method has greater deviations than the proposed method in identifying loads at these five time points under the noise level (±5%), which mainly reflects the superiority of the proposed method in reconstructing expected dynamic loads. This shows that the deviation between the proposed method and the Landweber iterative regularization method is mainly between 9.69% and 15.17%, respectively. In addition, this present method is superior to the Landweber iterative regularization method in the random force identification. The latter has the corresponding maximum deviation of 13.80% and average deviation of 3.86%. The maximum deviation of MCG is 8.10%, and the average deviation is 2.34%. The maximum deviation and average deviation of MCG are obviously smaller than those of Landweber iterative regularization method. The results validate that this proposed method has better performances than the traditional Landweber iterative regularization method in triangle force identification, and the maximum and average deviations for the present method are 9.69% and 2.57%, respectively, which are smaller than the traditional Landweber iterative regularization method. In addition, the Landweber iterative regularization method has 420 iterations, which is more than the MCG method with 40 iterations. In a word, the present method is better than Landweber iterative regularization method in dynamic load identification.

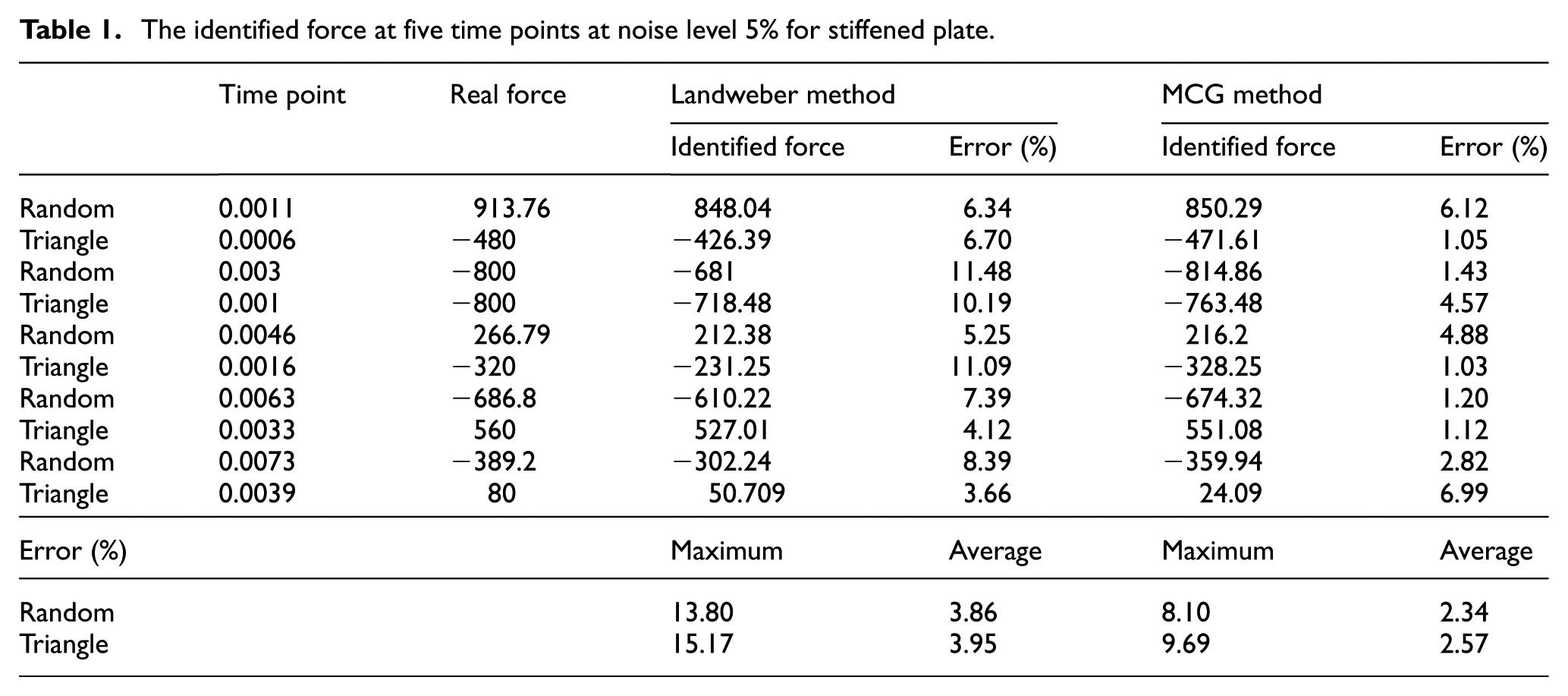

Table 1.

The identified force at five time points at noise level 5% for stiffened plate.

	Time point	Real force	Landweber method		MCG method
	Time point	Real force	Identified force	Error (%)	Identified force	Error (%)
Random	0.0011	913.76	848.04	6.34	850.29	6.12
Triangle	0.0006	−480	−426.39	6.70	−471.61	1.05
Random	0.003	−800	−681	11.48	−814.86	1.43
Triangle	0.001	−800	−718.48	10.19	−763.48	4.57
Random	0.0046	266.79	212.38	5.25	216.2	4.88
Triangle	0.0016	−320	−231.25	11.09	−328.25	1.03
Random	0.0063	−686.8	−610.22	7.39	−674.32	1.20
Triangle	0.0033	560	527.01	4.12	551.08	1.12
Random	0.0073	−389.2	−302.24	8.39	−359.94	2.82
Triangle	0.0039	80	50.709	3.66	24.09	6.99
Error (%)			Maximum	Average	Maximum	Average
Random			13.80	3.86	8.10	2.34
Triangle			15.17	3.95	9.69	2.57

15% noise level

Similar to the analysis above, we can obtain the following assertions.

It follows from Figures 14 –17 that two regularization methods mentioned above can obtain both stable and effective identified results. Actually, the proposed method deals with this problem better than Landweber iteration regularization method, which can be shown in Figures 18 and 19. Figures 20 and 21 display the capability of the proposed method and Landweber iterative regularization method in the aspect of the relative deviation of identifying dynamic loads. From these figures, we can see that most deviations of Landweber iteration regularization method are bigger than MCG method. In addition, Table 2 displays more detailed computational results of two regularization methods mentioned above at five time points. From this table, we can find that most deviations of MCG are smaller than Landweber iteration regularization method. Also, most deviations of Landweber iteration regularization method and MCG are mainly in the range of $26.99 % and 23.93 %$ , respectively. In addition, the maximal deviation and average deviation of the present method in identifying random force are $23.93 % and 7.11 %$ , respectively, which are much smaller than Landweber iteration regularization method. It can also be shown that the maximal deviation and average deviation of our present method in identifying triangle force are $22.52 % and 7.31 %$ , respectively, and they are both smaller than the latter. What is more, iterative number of MCG is 46. It is smaller than Landweber iteration regularization method whose iterative number is 454. In a word, the problem of multi-source dynamic load identification in practical engineering structures can be solved by the presented method in this article more effectively and stably.

Figure 14.

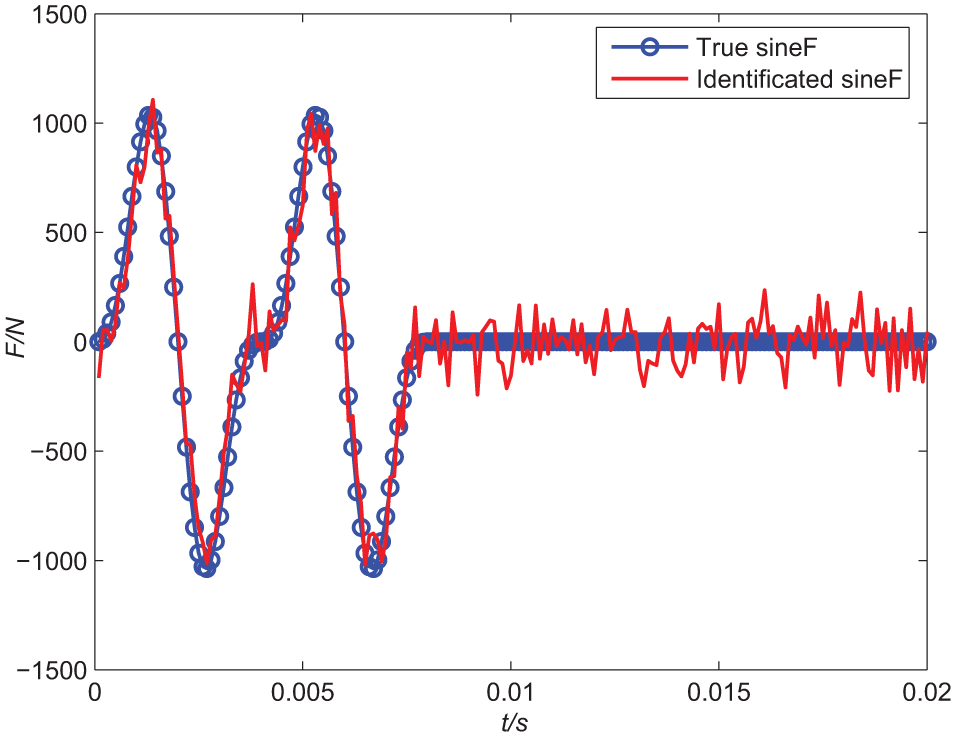

The identified random force by Landweber at noise level 15%.

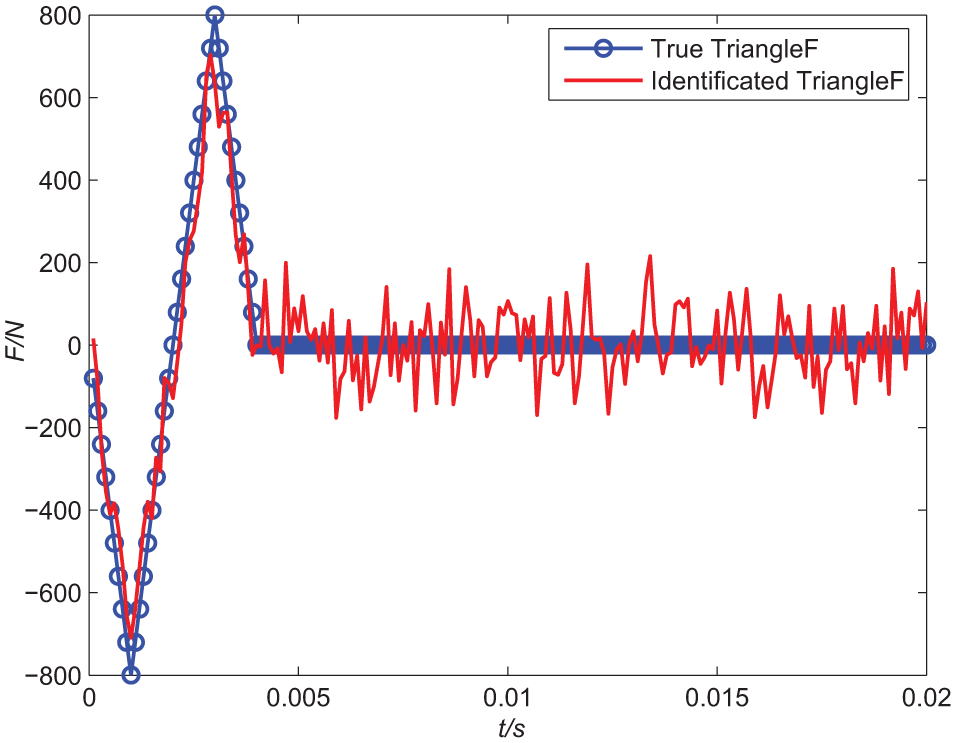

Figure 15.

The identified triangle force by Landweber at noise level 15%.

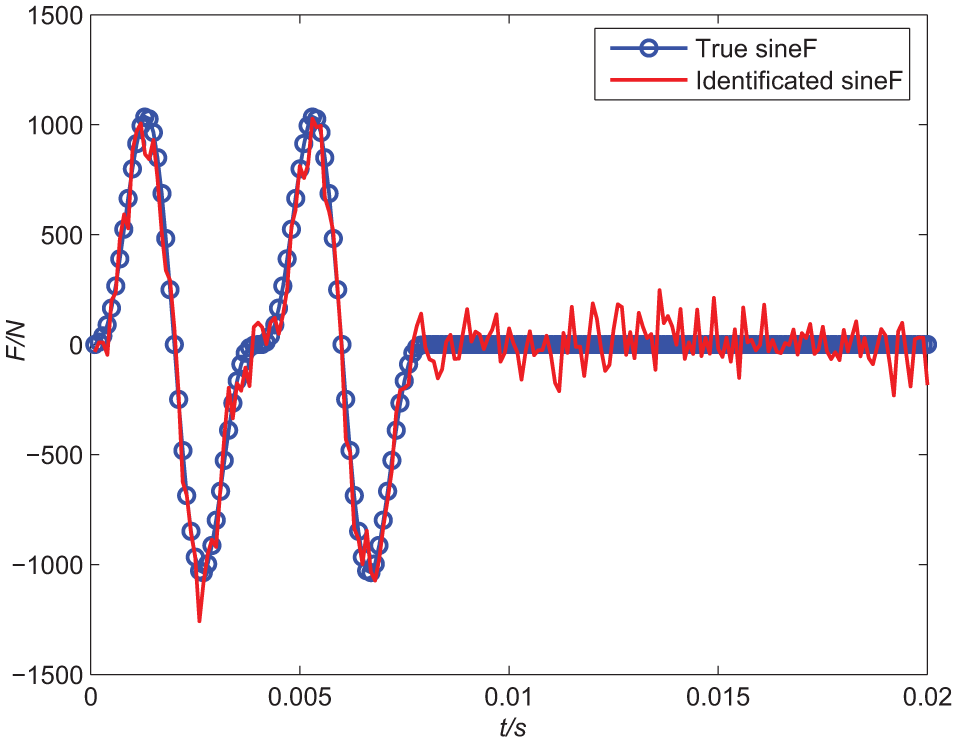

Figure 16.

The identified random force by MCG at noise level 15%.

Figure 17.

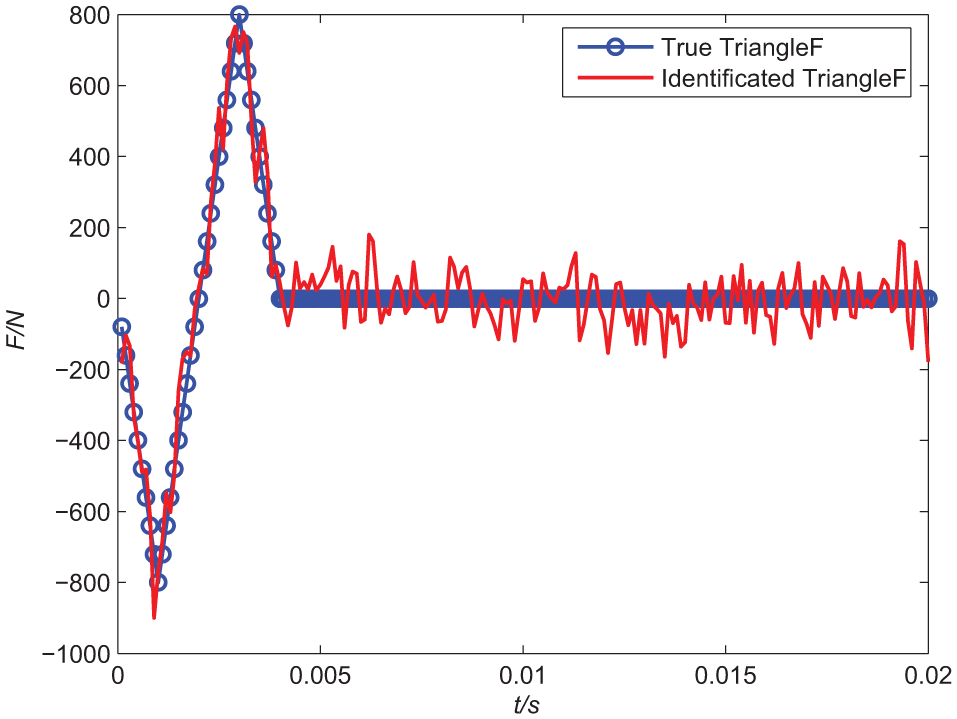

The identified triangle force by MCG at noise level 15%.

Figure 18.

The identified random force by Landweber and MCG at noise level 15%; the number of iterations: $N_{Landweber} = 454, N_{MCG} = 46$ .

Figure 19.

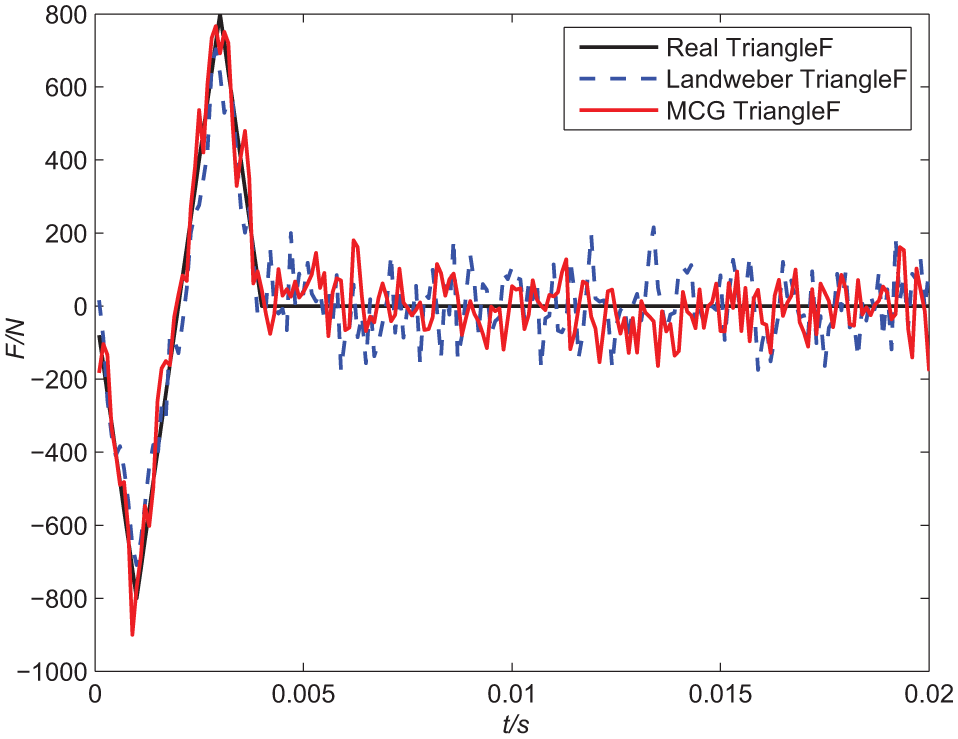

The identified triangle force by Landweber and MCG at noise level 15%; the number of iterations: $N_{Landweber} = 454, N_{MCG} = 46$ .

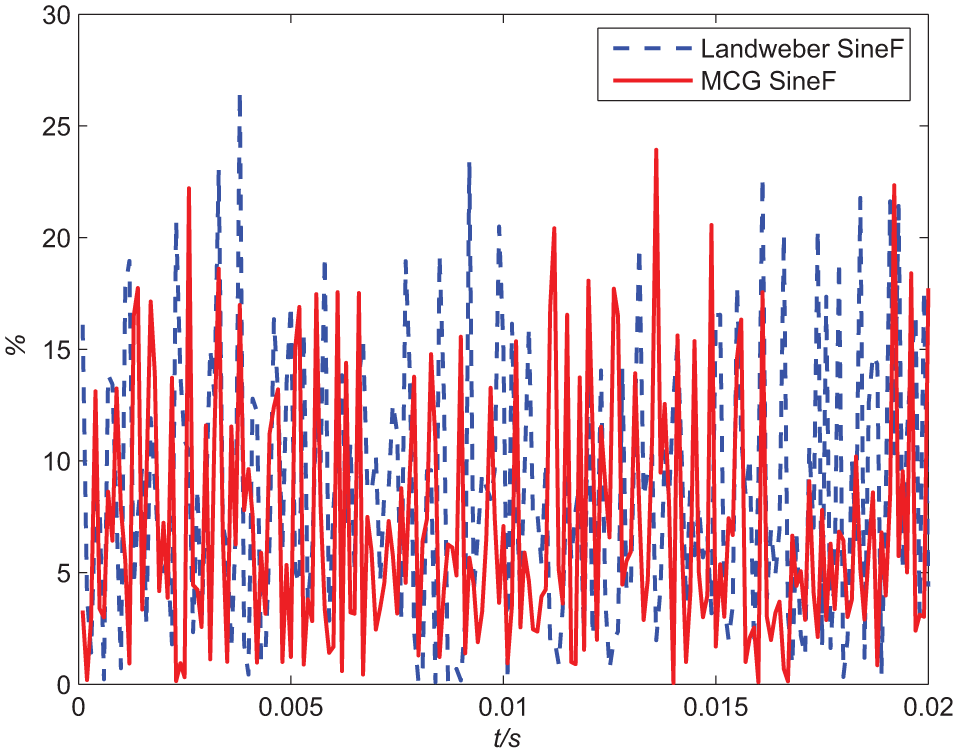

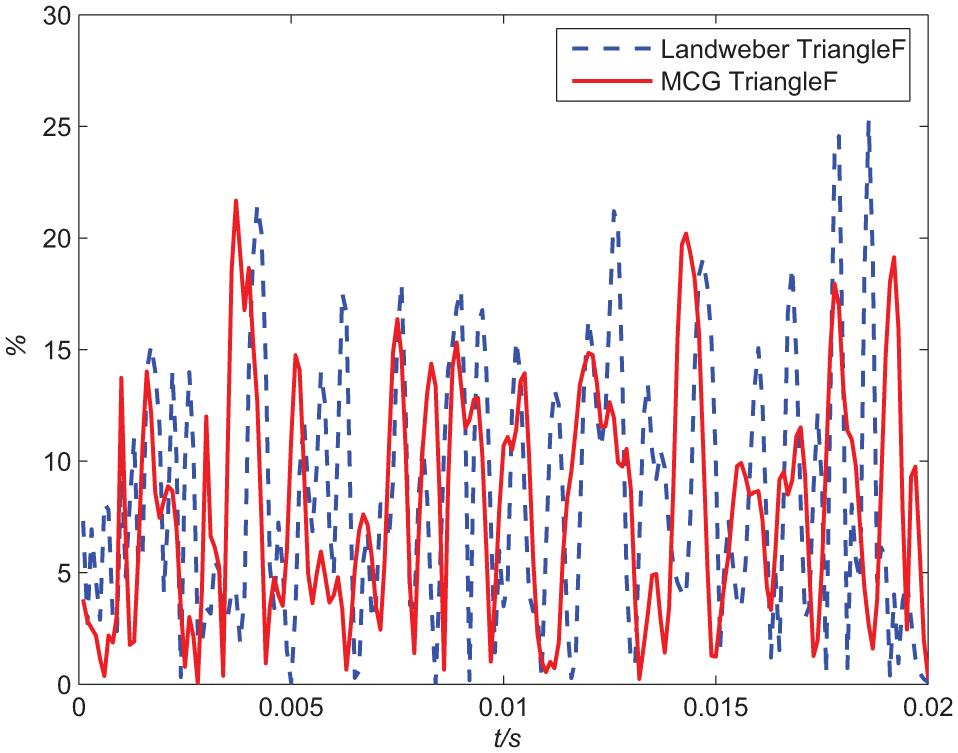

Figure 20.

The relative deviations for the identified random force by Landweber and MCG at noise level 15%.

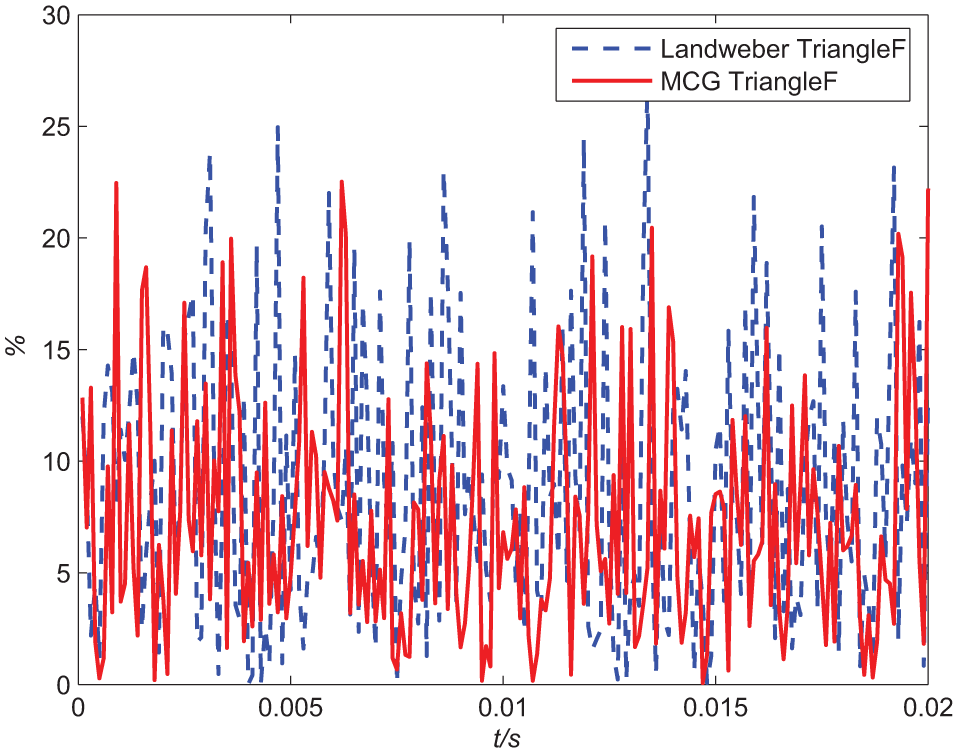

Figure 21.

The relative deviations for the identified triangle force by Landweber and MCG at noise level 15%.

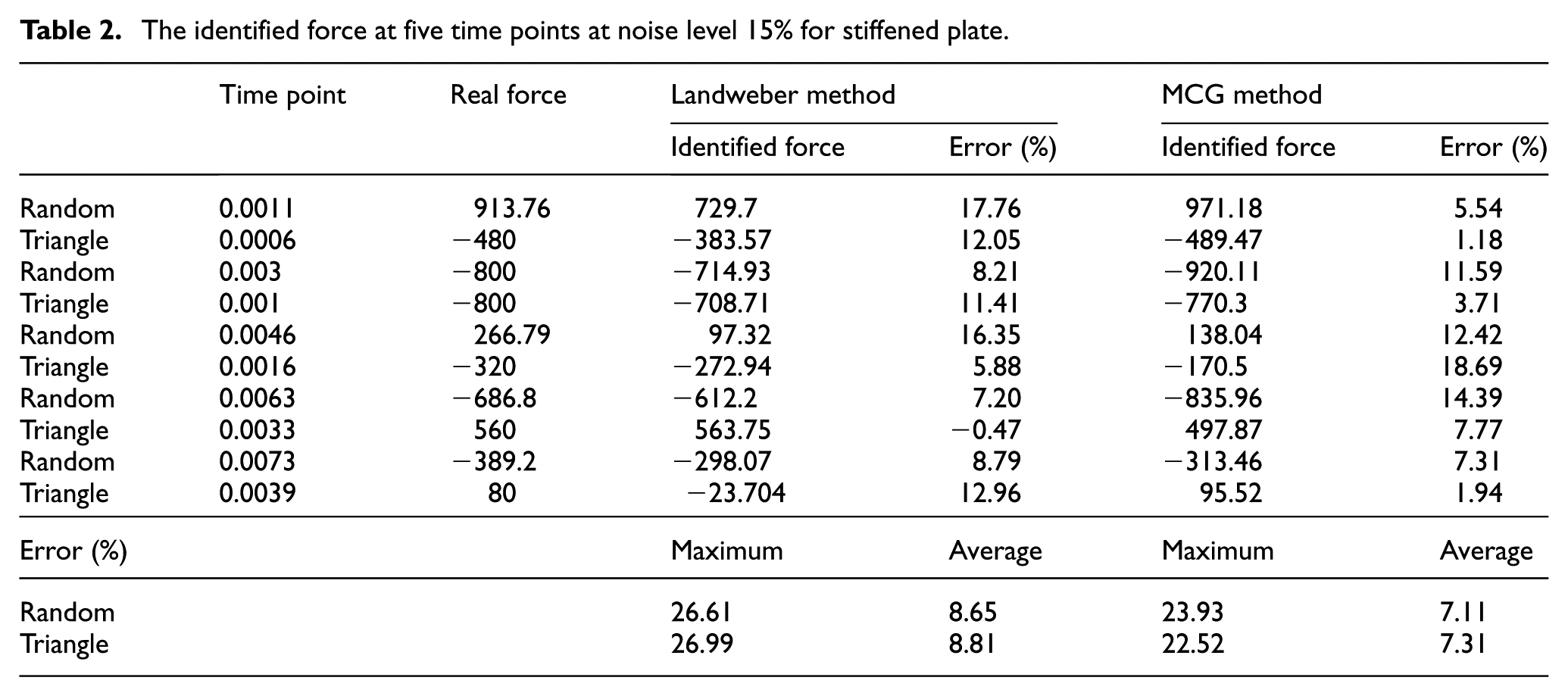

Table 2.

The identified force at five time points at noise level 15% for stiffened plate.

	Time point	Real force	Landweber method		MCG method
	Time point	Real force	Identified force	Error (%)	Identified force	Error (%)
Random	0.0011	913.76	729.7	17.76	971.18	5.54
Triangle	0.0006	−480	−383.57	12.05	−489.47	1.18
Random	0.003	−800	−714.93	8.21	−920.11	11.59
Triangle	0.001	−800	−708.71	11.41	−770.3	3.71
Random	0.0046	266.79	97.32	16.35	138.04	12.42
Triangle	0.0016	−320	−272.94	5.88	−170.5	18.69
Random	0.0063	−686.8	−612.2	7.20	−835.96	14.39
Triangle	0.0033	560	563.75	−0.47	497.87	7.77
Random	0.0073	−389.2	−298.07	8.79	−313.46	7.31
Triangle	0.0039	80	−23.704	12.96	95.52	1.94
Error (%)			Maximum	Average	Maximum	Average
Random			26.61	8.65	23.93	7.11
Triangle			26.99	8.81	22.52	7.31

A composite laminated cylindrical shell problem

In order to further verify the stability and effectiveness of the proposed method in identifying the radial forces of composite laminated cylindrical shells, a problem of composite laminated cylindrical shells as shown in Figure 22 is also presented.⁵ Its material properties of carbon/epoxy and glass/epoxy given are shown in Table 3.

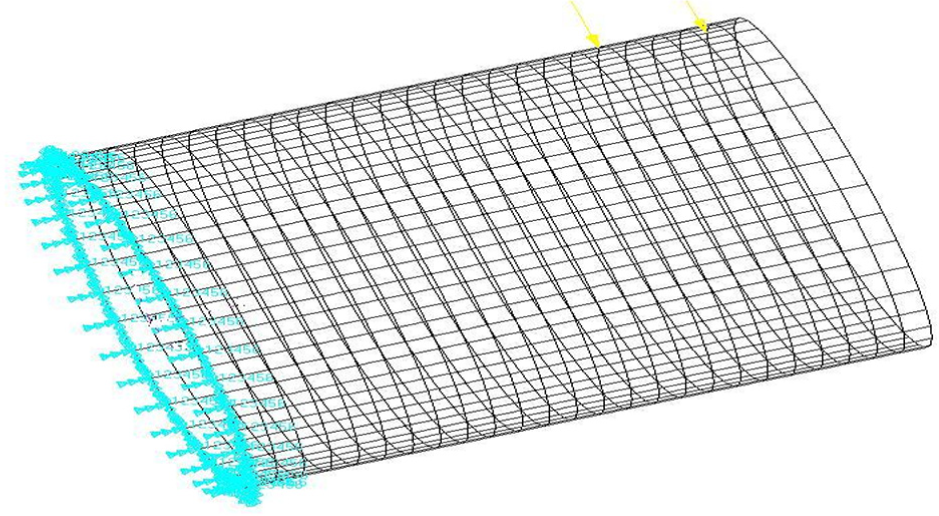

Figure 22.

The FEM model of composite laminated cylindrical shell.

Table 3.

The material properties of composite laminated cylindrical shell.

Material constants	Material properties of glass/epoxy and carbon/epoxy
Material constants	$E_{1} (GPa)$	$E_{2} (GPa)$	$G_{12} (GPa)$	$v_{12}$	$v_{23}$	$ρ (g / c m^{3})$
Glass/epoxy	38.49	9.367	3.414	0.2912	0.5071	2.66
Carbon/epoxy	142.17	9.255	4.795	0.3340	0.4862	1.90

Similarly, the radial concentrated load acts on the outer surface. We measured the displacement response along the radial direction. One end of the shell structure is free, and the other end is fixed. In this way, the corresponding finite element model is established, as shown in Figure 22. The arrow in Figure 22 represents the action point of the dynamic load. The concentrated loads are defined as follows

\begin{matrix} F_{1} (t) & = & {\begin{matrix} q_{1} \sin (\frac{2 π t}{t_{d}}), & 0 ⩽ t ⩽ 2 t_{d} \\ 0, & t < 0 and t > 2 t_{d} \end{matrix} \\ F_{2} (t) & = & {\begin{matrix} 4 q_{2} t / t_{d}, & 0 ⩽ t ⩽ t_{d} / 4 \\ 2 q_{2} - 4 q_{2} t / t_{d}, & t_{d} / 4 < t ⩽ 3 t_{d} / 4 \\ 4 q_{2} t / t_{d} - 4 q_{2}, & 3 t_{d} / 4 < t ⩽ t_{d} \\ 0, & t > t_{d} \end{matrix} \end{matrix}

(15)

Herein, we choose $t_{d} = 0.004 s, q_{1} = 1000 N$ , and $q_{2} = 800 N$ , and the sine force curve and triangle force curve are plotted as shown in Figures 23 and 24, respectively. We simulate the experimental data of response by finite element method, and the corresponding radial displacement responses are shown in Figures 25 and 26. Likewise, we simulate the noise-contaminated measurement by adding the noise to the computer-generated response in the form of equation (11).

Figure 23.

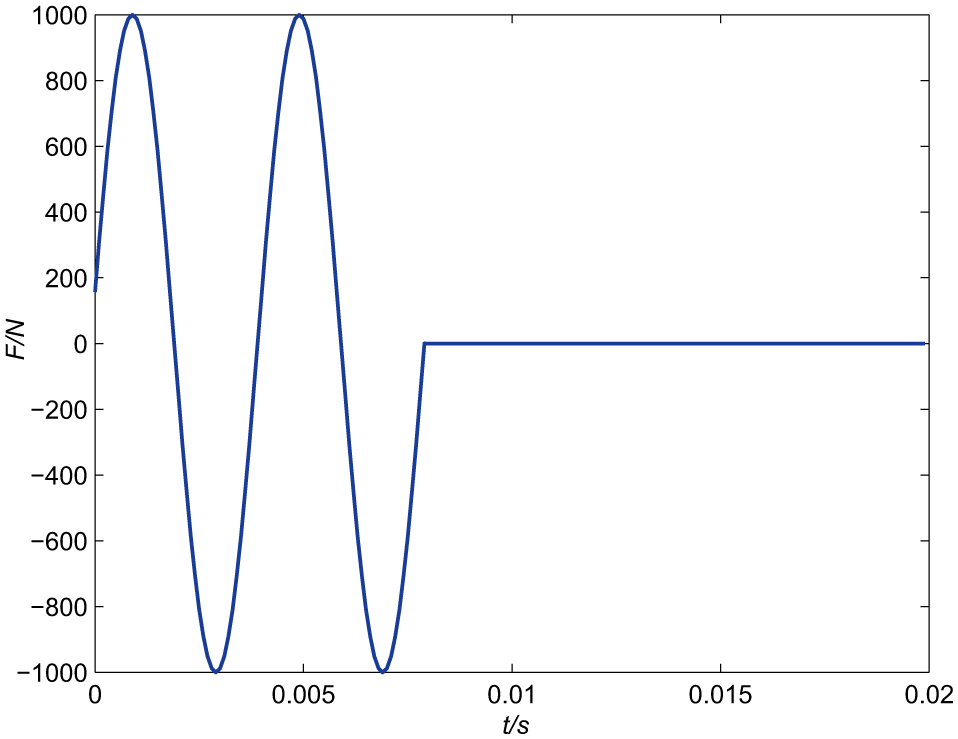

The radial concentrated sine load acting on the outside surface.

Figure 24.

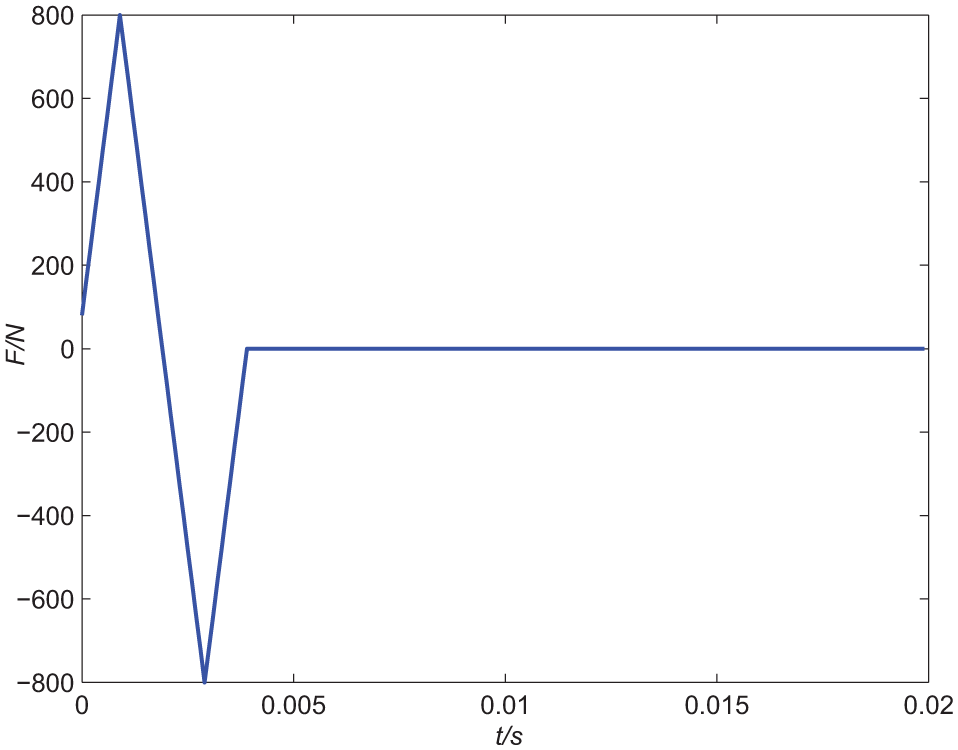

The radial concentrated triangle load acting on the outside surface.

Figure 25.

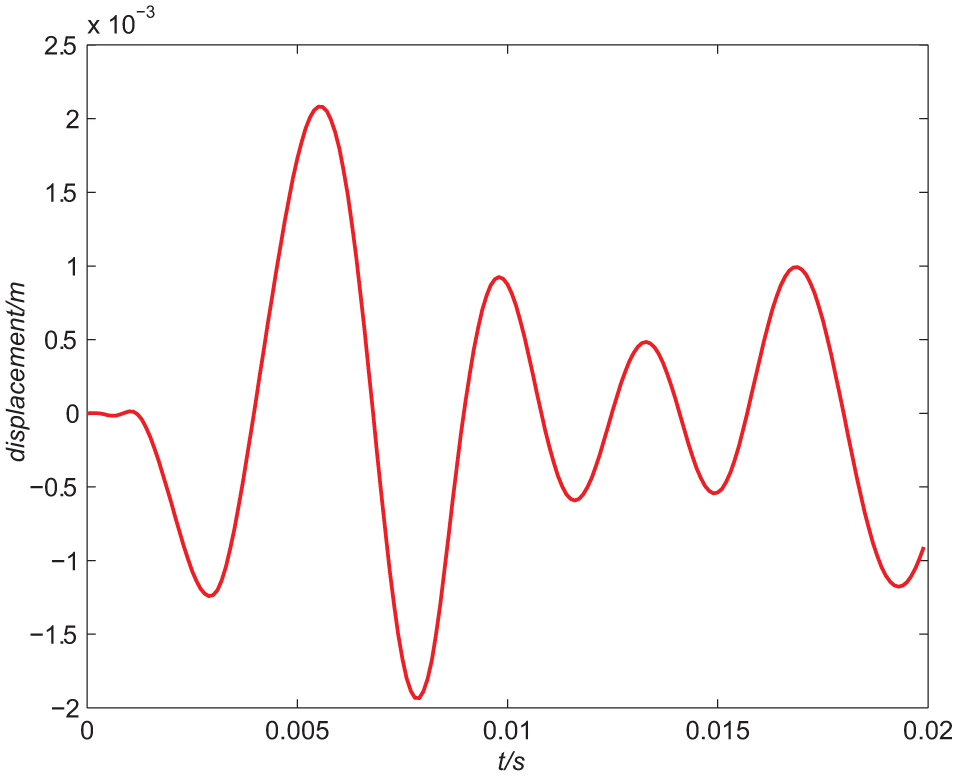

The corresponding radial displacement response at one point.

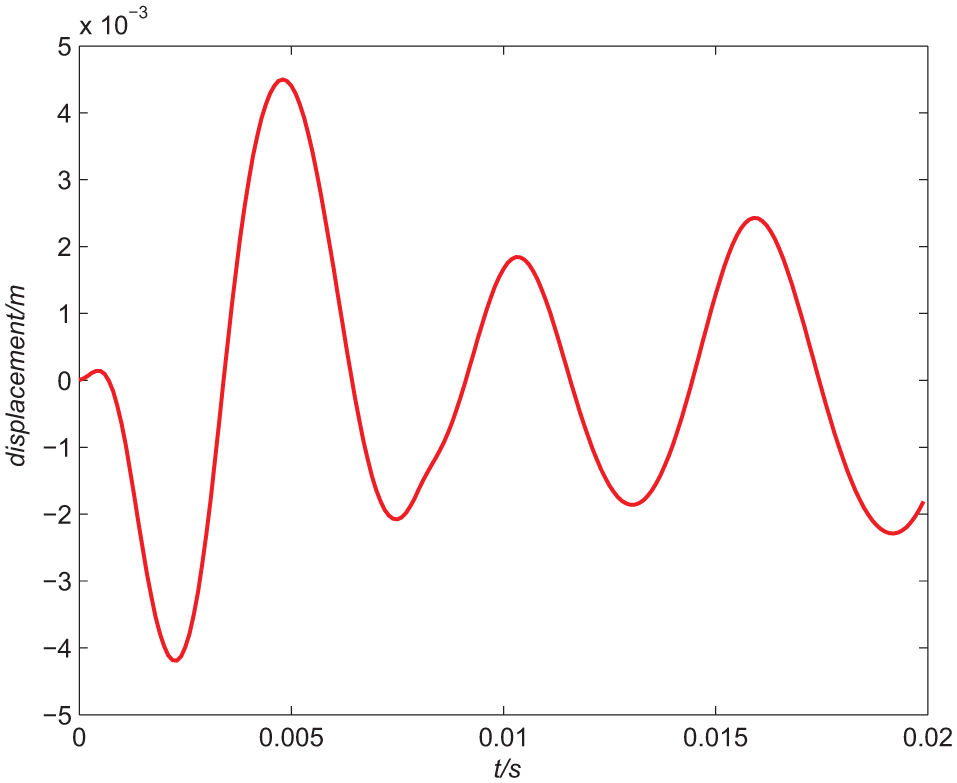

Figure 26.

The corresponding radial displacement response at the other point.

In order to evaluate the performances of the proposed method and Landweber regularization method, 5% and 15% noise level are investigated, respectively. We will compare their performances by the relative estimation error equation (12) and the average error equation (13). In addition, we only need to select five time points, at which the identified loads will be compared by the actual loads.

5% noise level

Numerical results are provided as follows. It can be found from Figures 27 –30 that Landweber iteration regularization method and MCG method can accurately realize the identification of multi-source dynamic load. Moreover, it can be shown in Figures 31 and 32 that the present method does better than the Landweber iteration regularization method. The relative deviations for identified loads by two regularization methods above are shown in Figures 33 and 34. Figures 33 and 34 show the performances of MCG and Landweber iteration regularization method in the aspect of relative deviations of the identified loads. They illustrate that most deviations of Landweber iteration regularization method are larger than MCG. This also validates the effectiveness of the proposed method.

Figure 27.

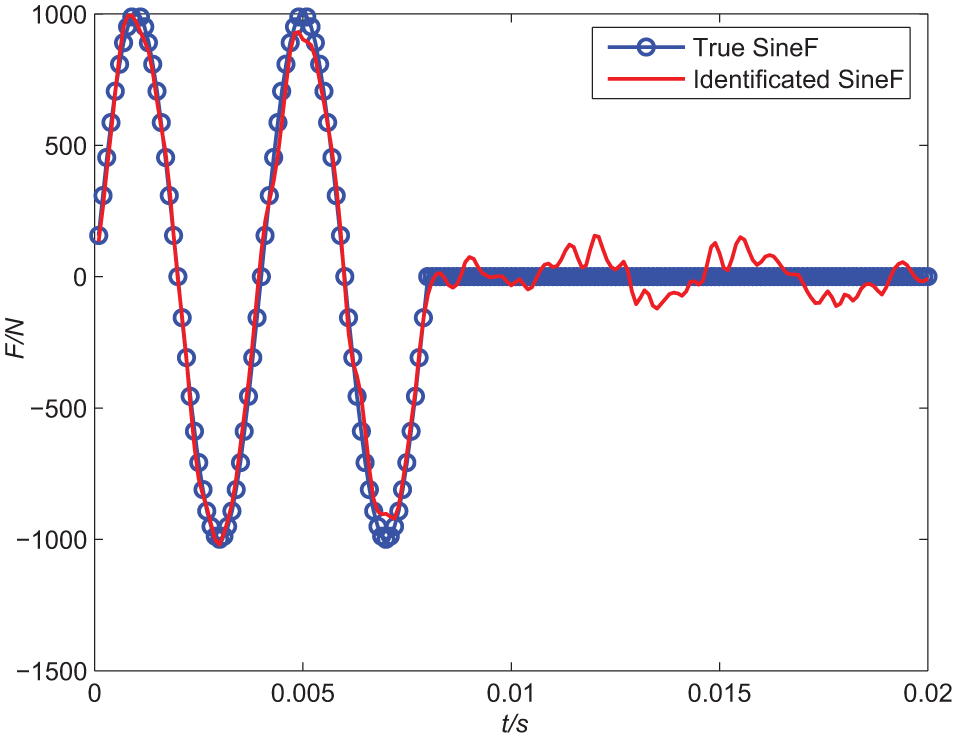

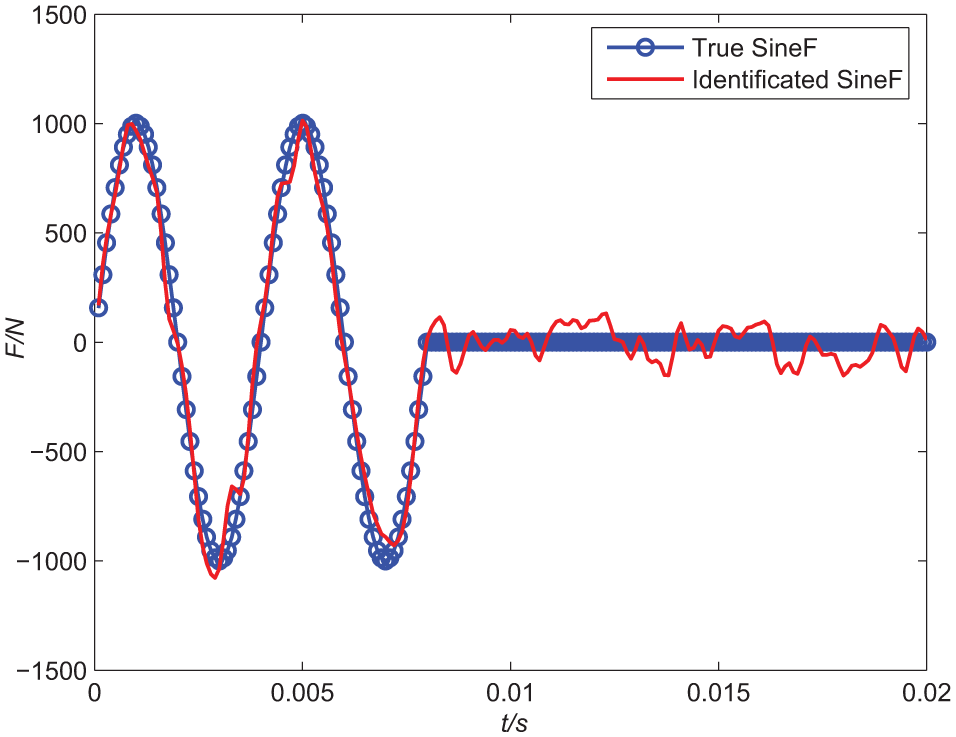

The identified sine force by Landweber at noise level 5%.

Figure 28.

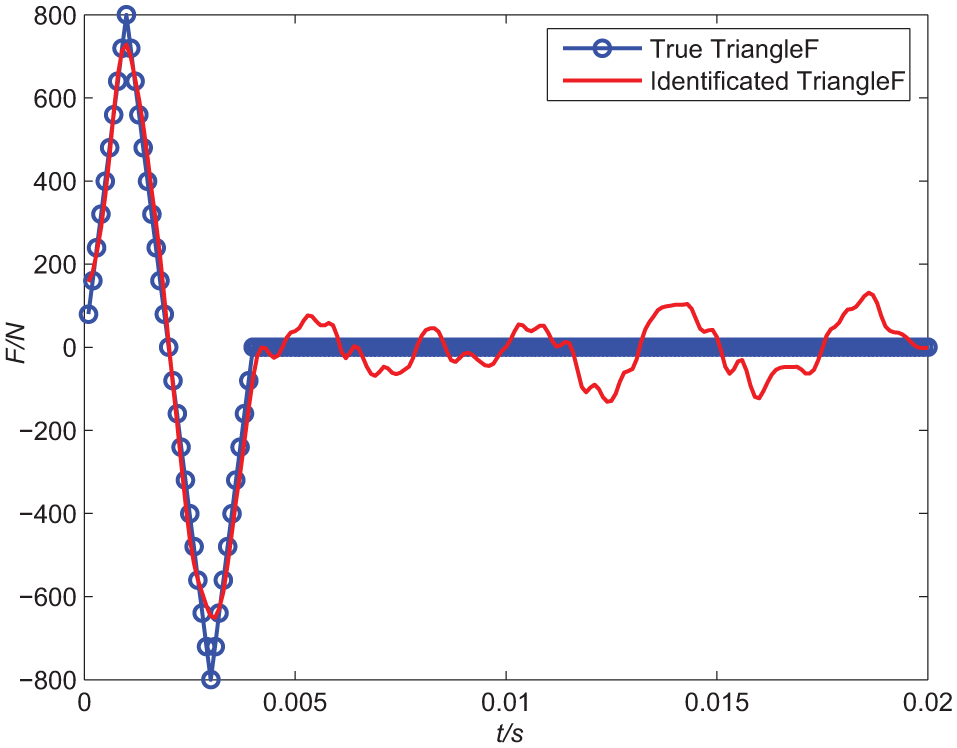

The identified triangle force by Landweber at noise level 5%.

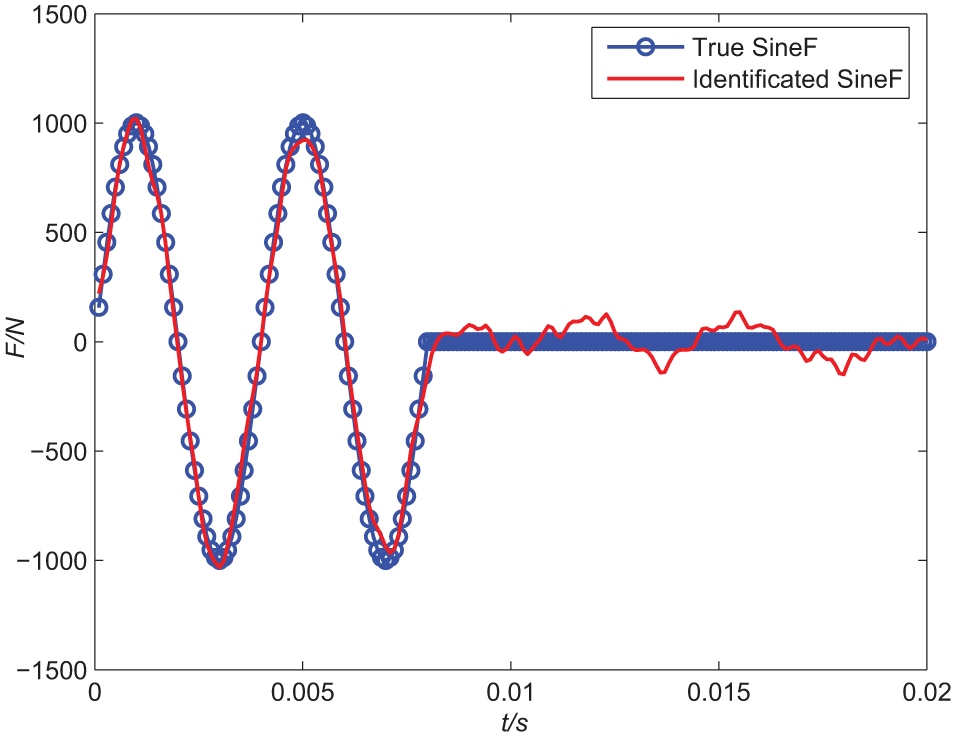

Figure 29.

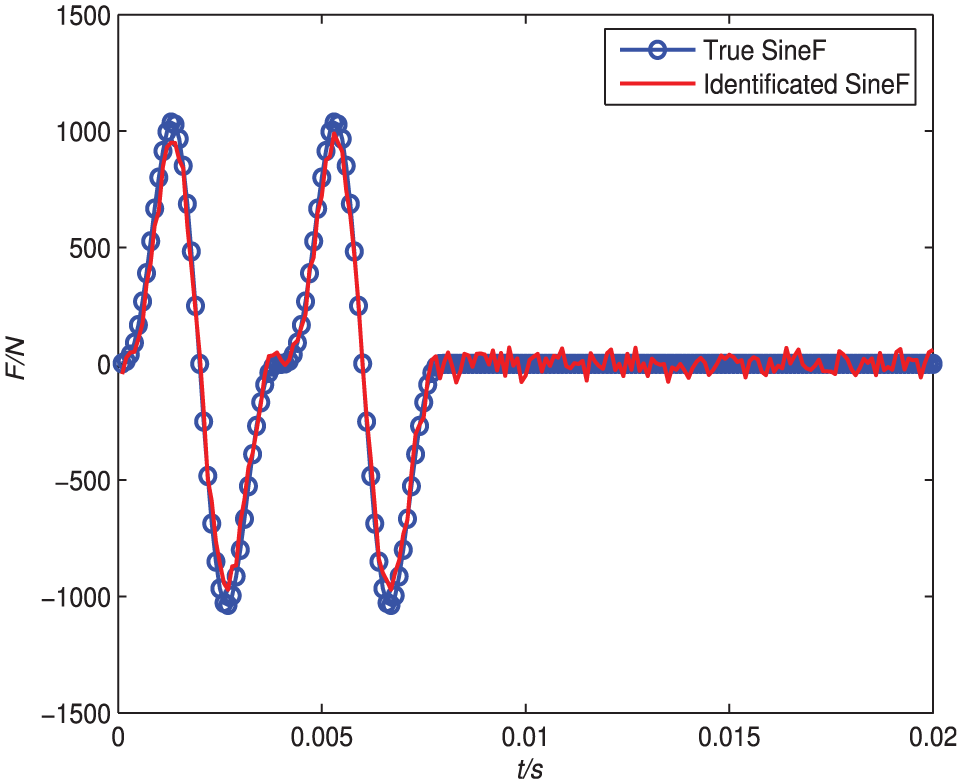

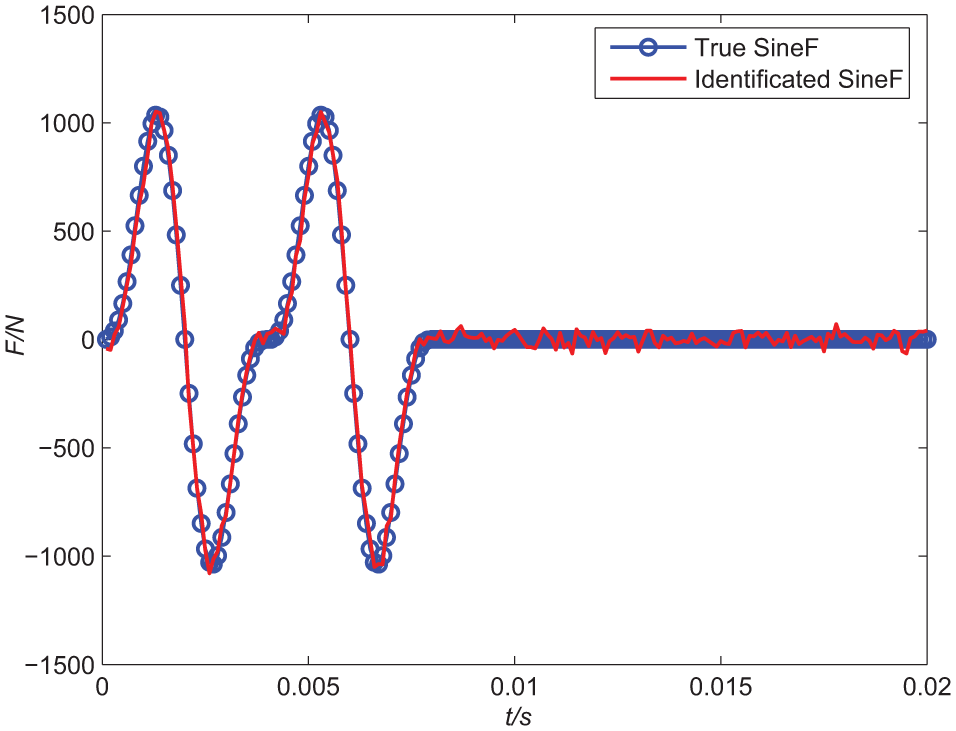

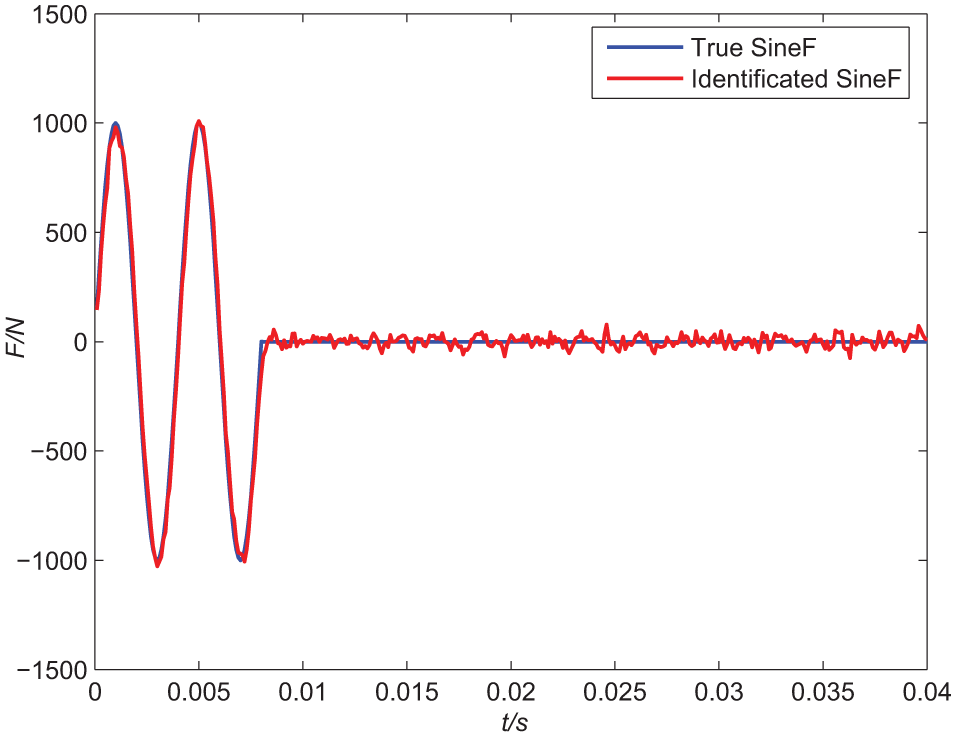

The identified sine force by MCG at noise level 5%.

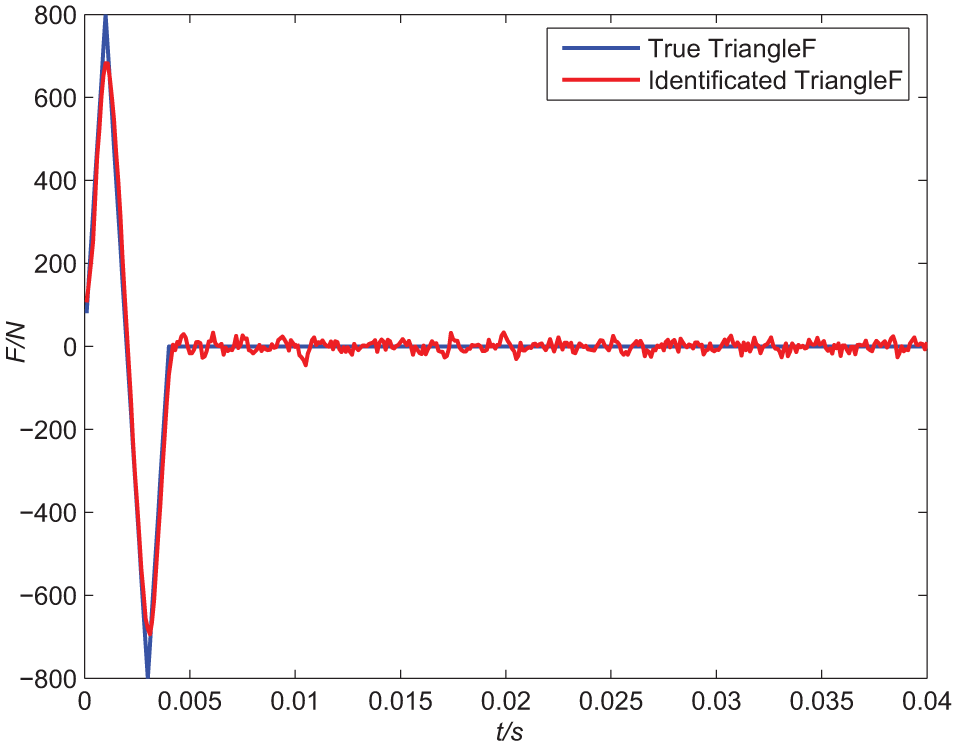

Figure 30.

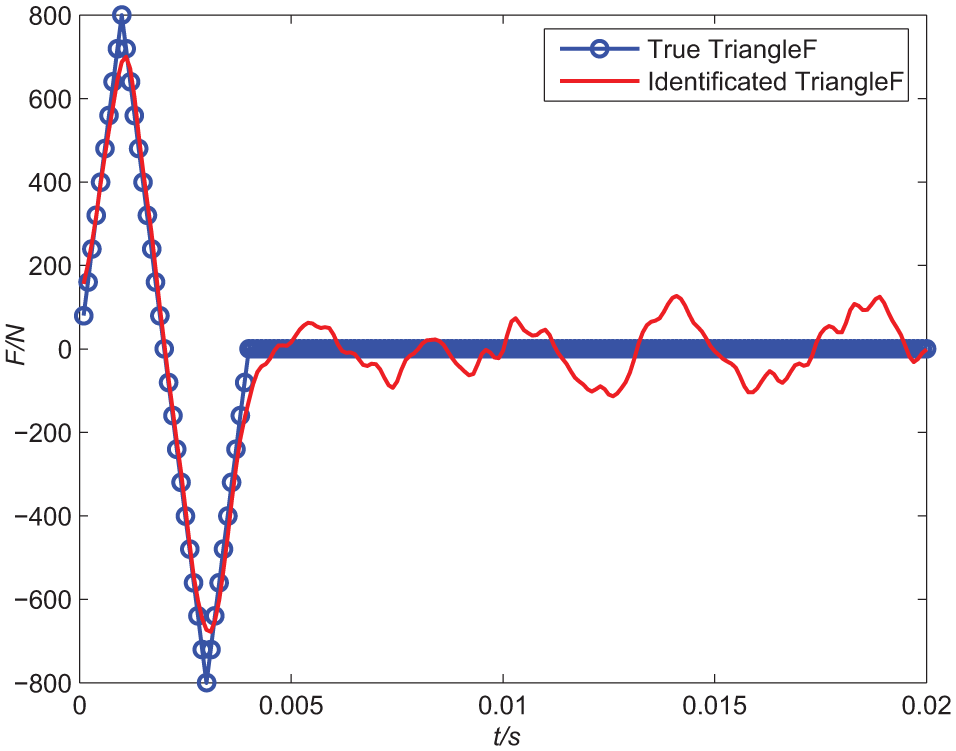

The identified triangle force by MCG at noise level 5%.

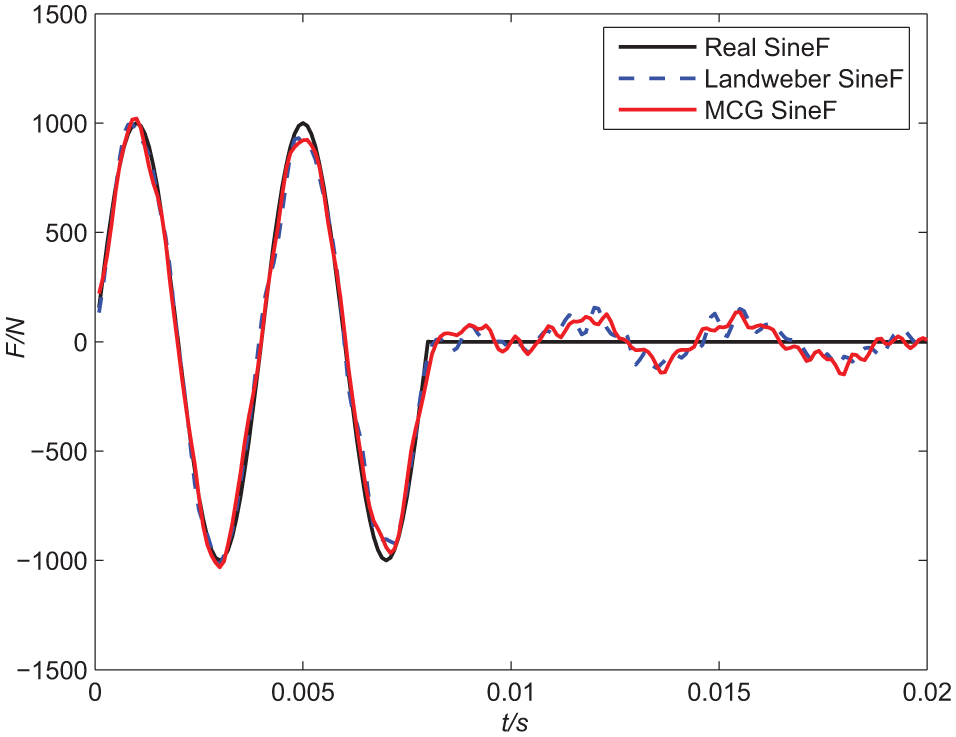

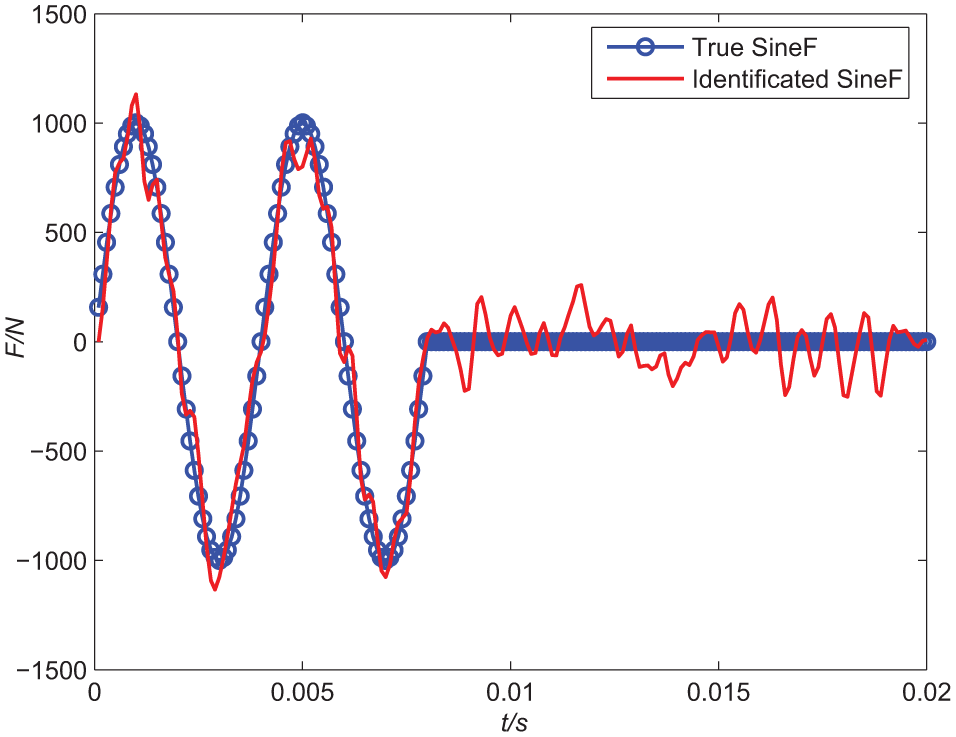

Figure 31.

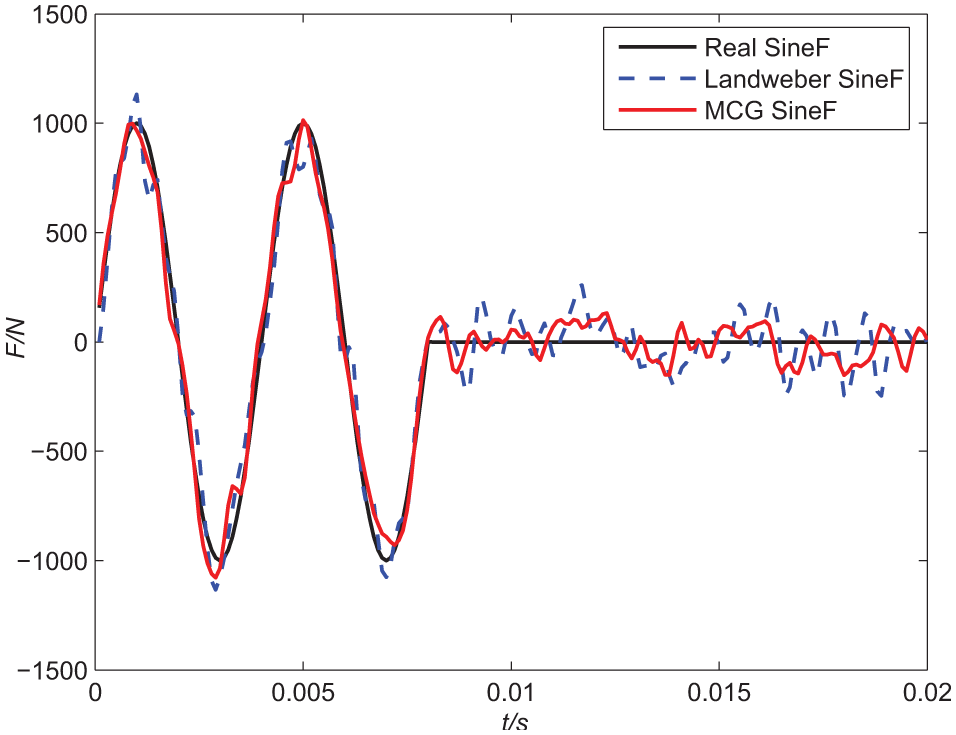

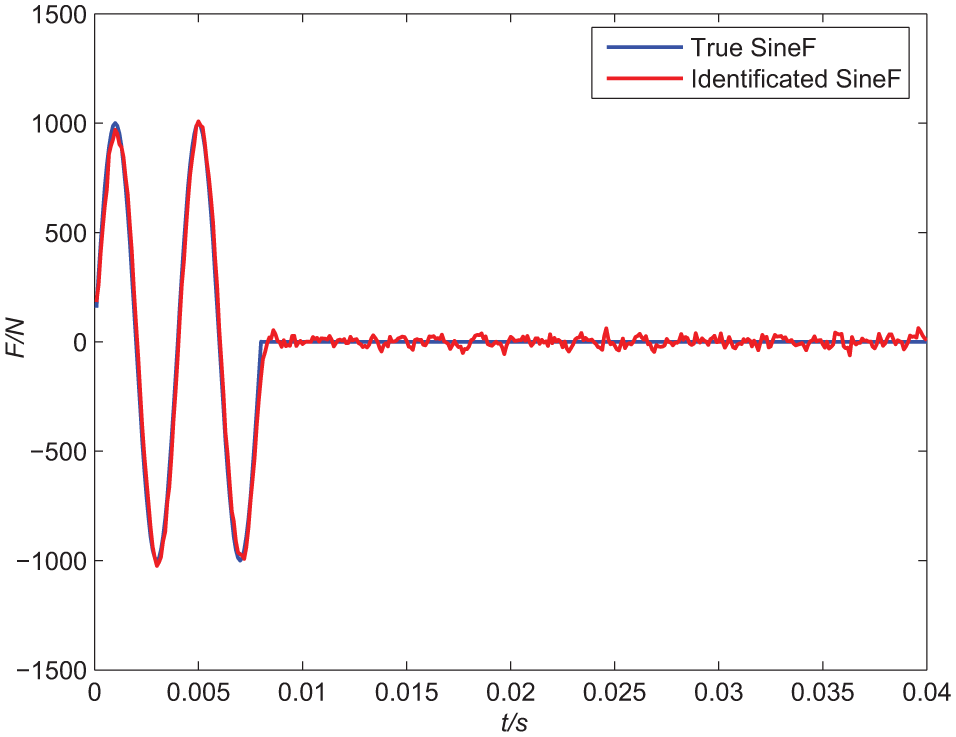

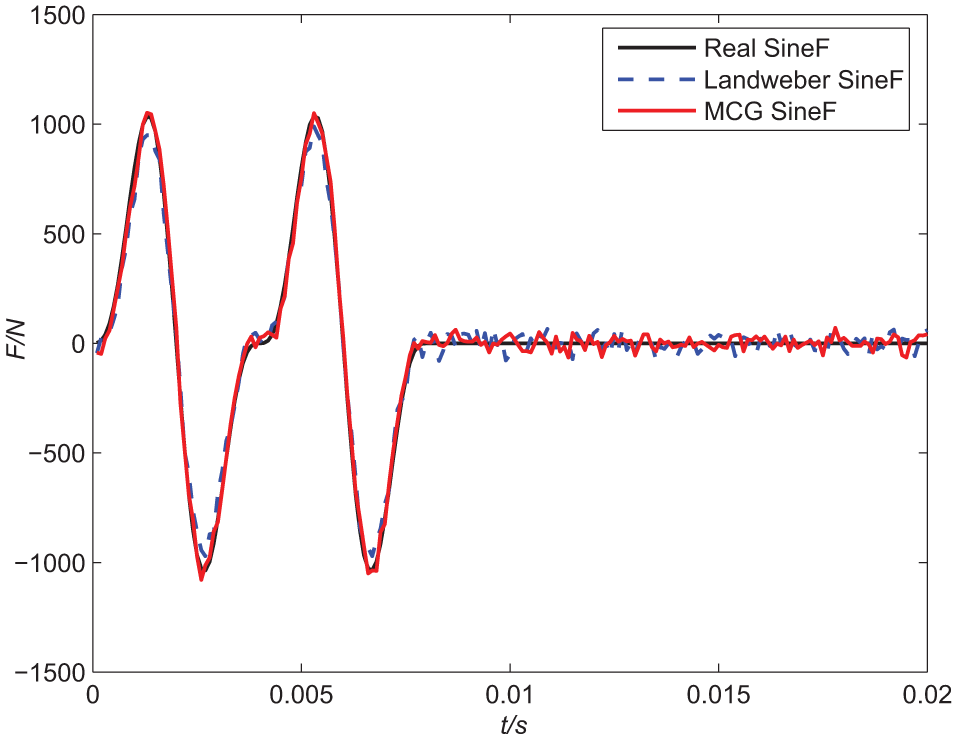

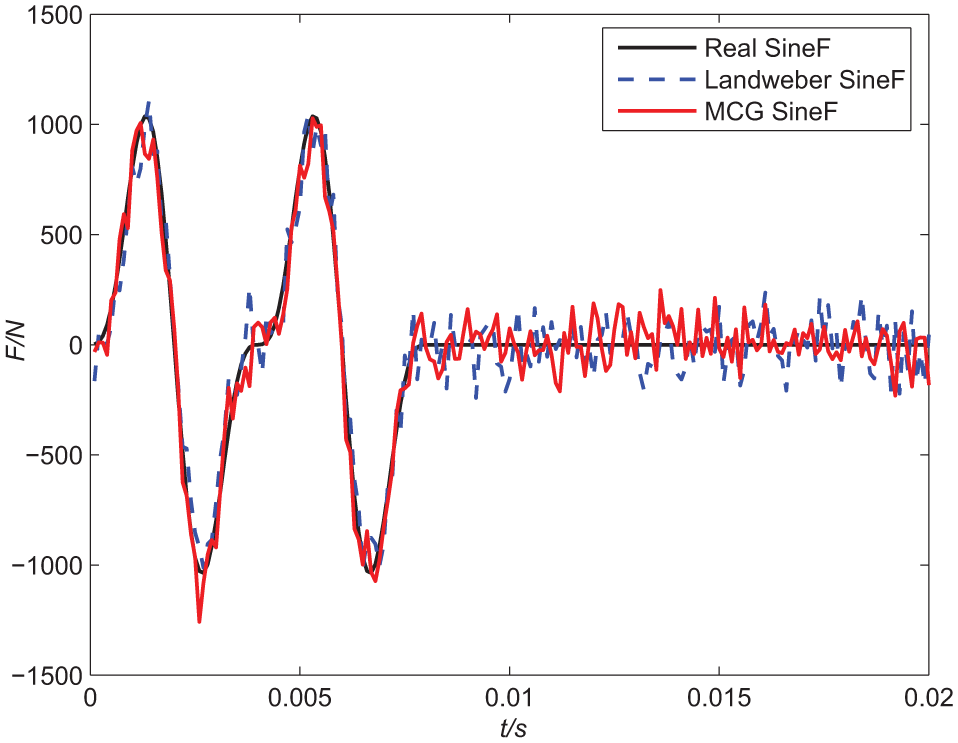

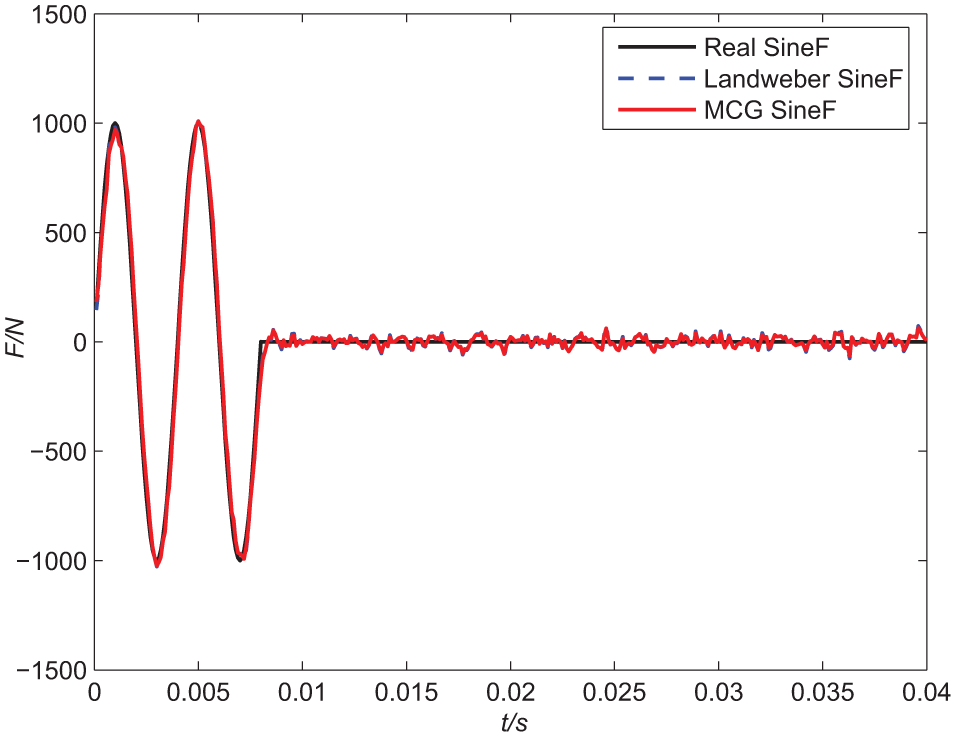

The identified sine force by Landweber and MCG at noise level 5%; the number of iterations: $N_{Landweber} = 446, N_{MCG} = 46$ .

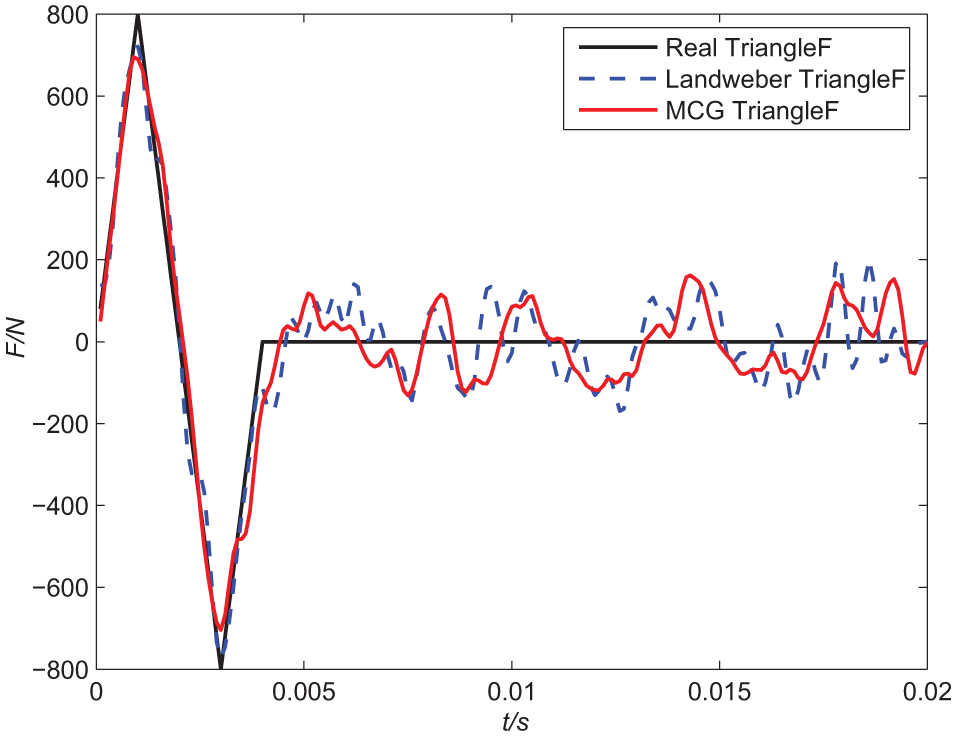

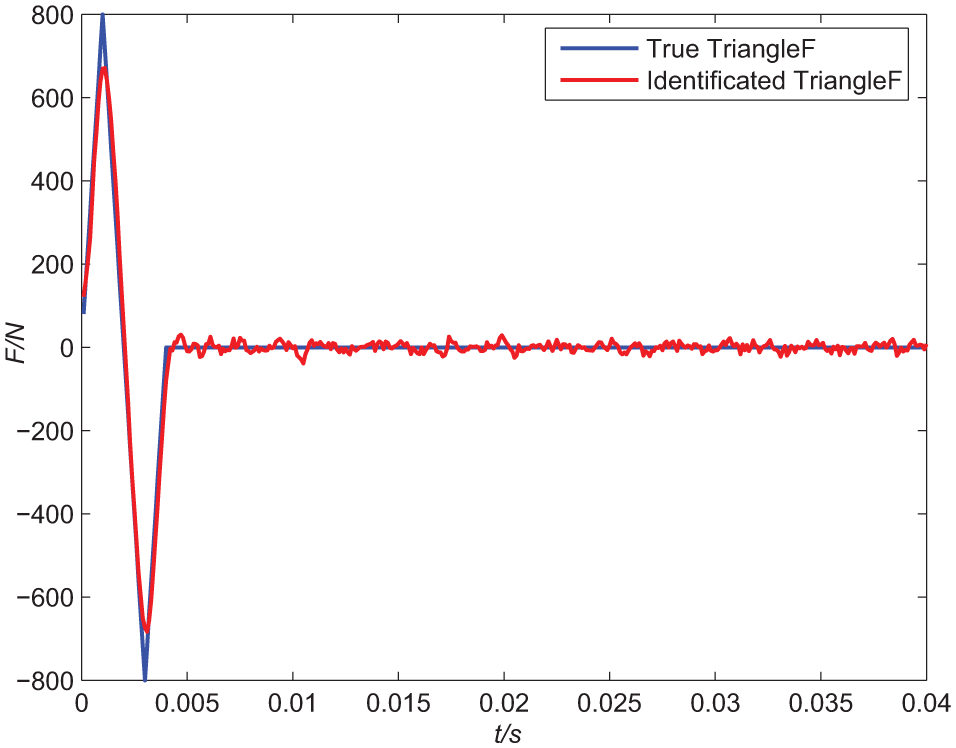

Figure 32.

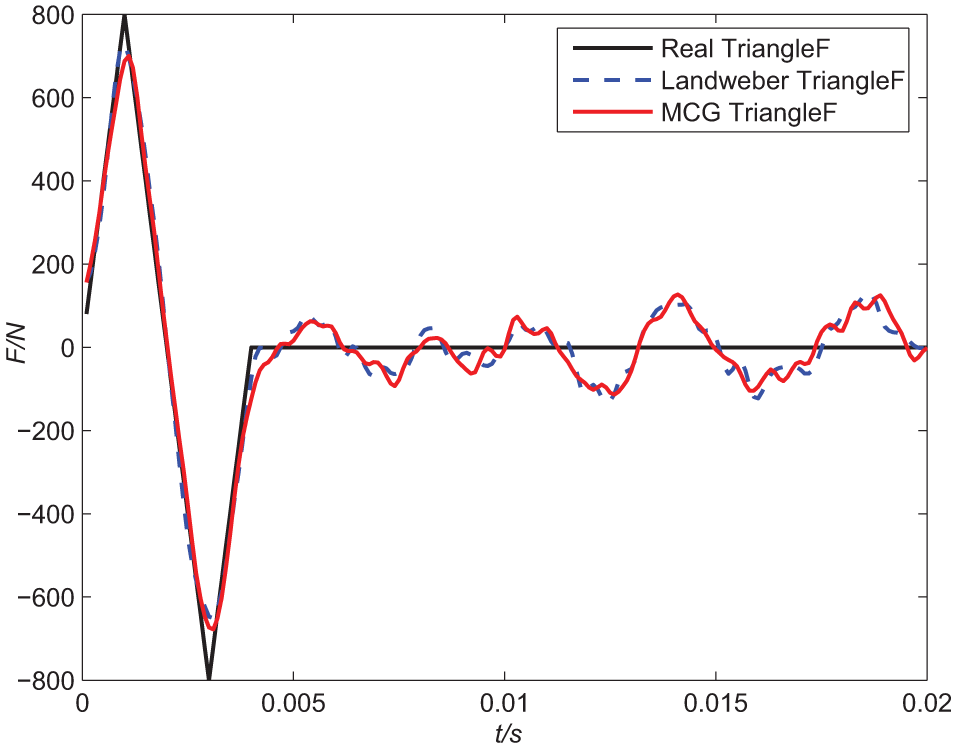

The identified triangle force by Landweber and MCG at noise level 5%; the number of iterations: $N_{Landweber} = 446, N_{MCG} = 46$ .

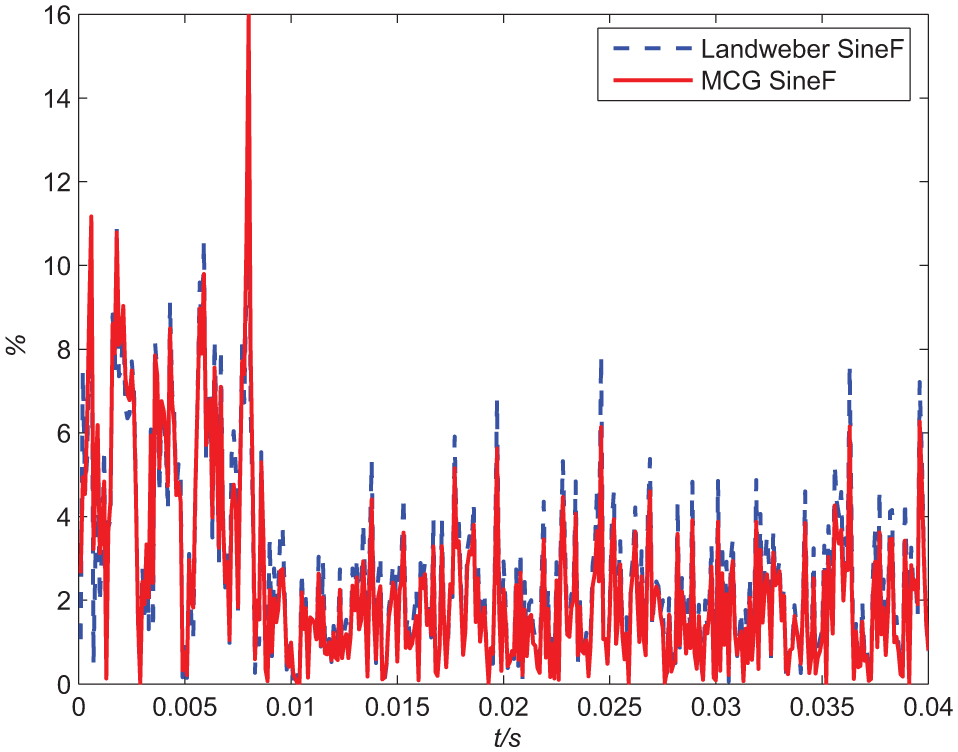

Figure 33.

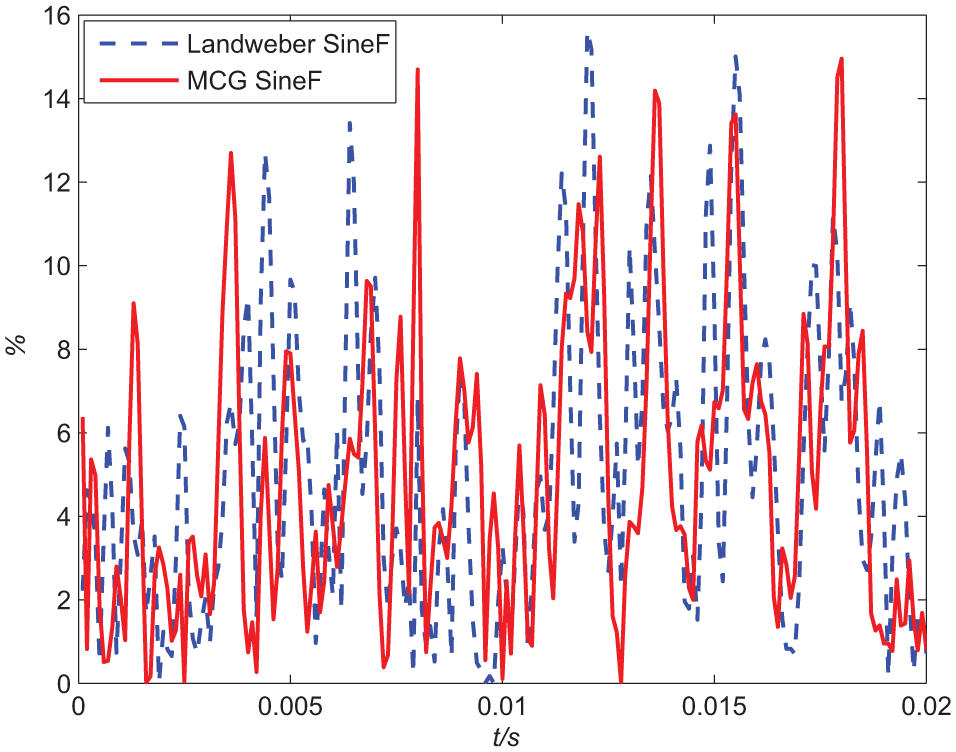

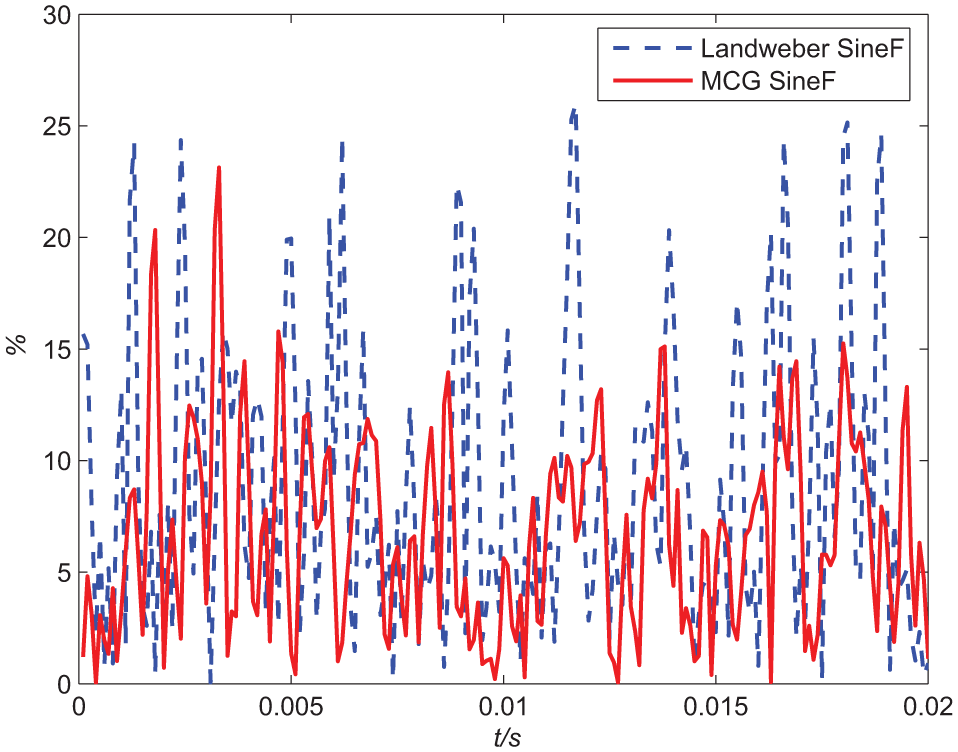

The relative deviations for the identified sine force by Landweber and MCG at noise level 5%.

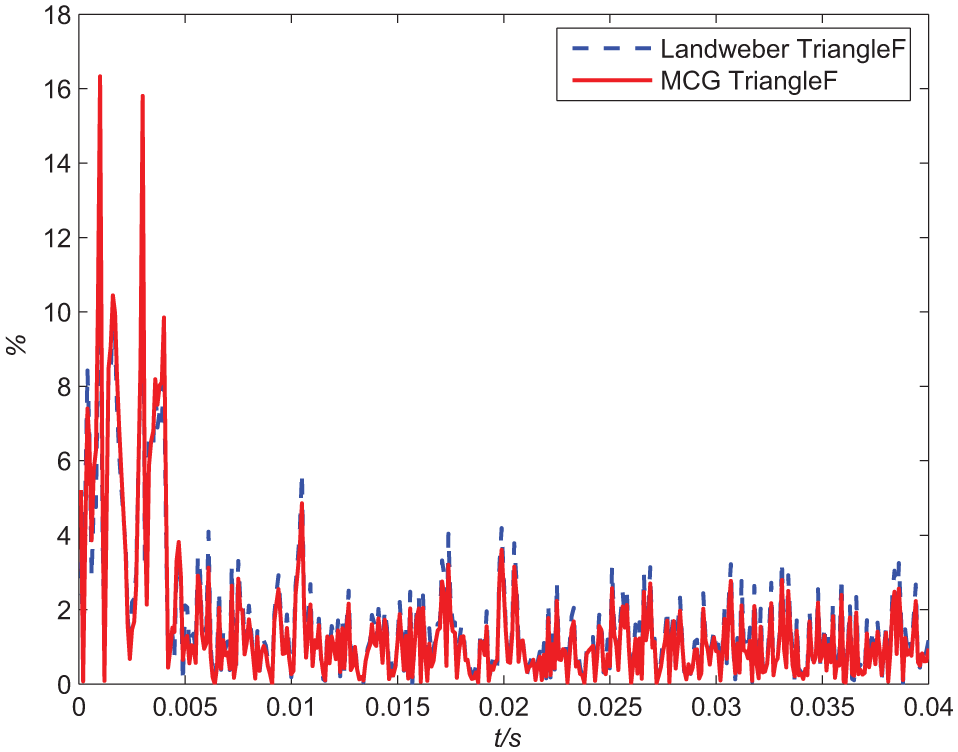

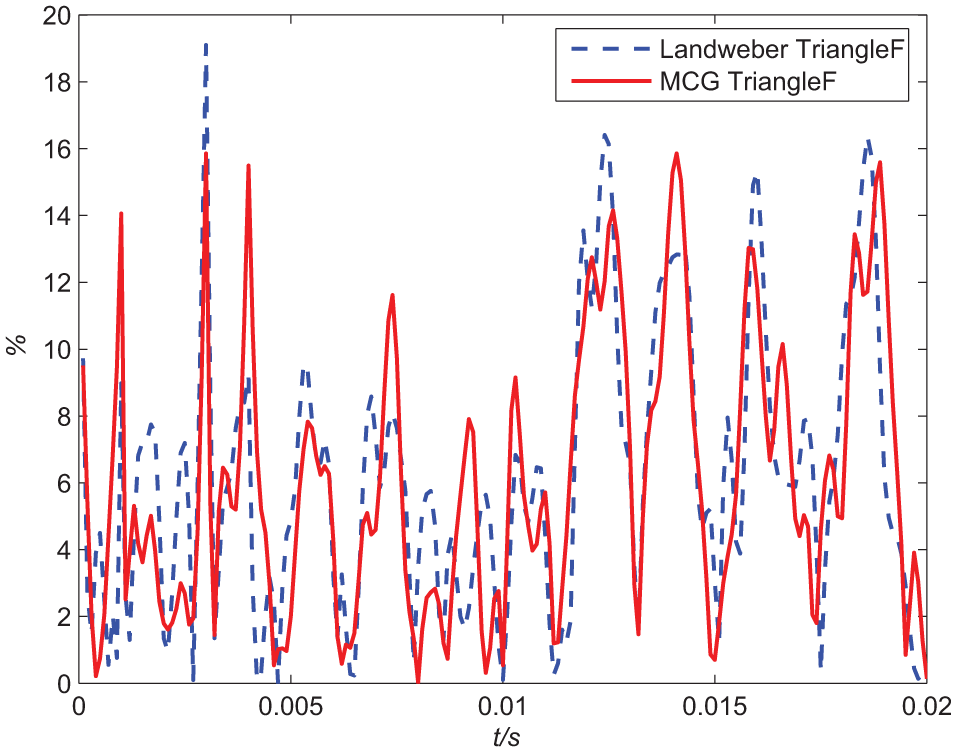

Figure 34.

The relative deviations for the identified triangle force by Landweber and MCG at noise level 5%.

Moreover, more detailed results at these five time points are enumerated in Table 4. From this table, we can see that most of the deviations of the Landweber iterative regularization method in identifying loads at these five time points are larger than those of the proposed method at noise level (±5%), which mainly reflects the superiority of the proposed method in reconstructing the expected dynamic loads. The deviation between the proposed method in this article and the Landweber iterative regularization method is mainly between 15.86% and 19.10%, respectively. Moreover, in identifying the sine force, the present method in this article is better than the latter, and the latter’s maximum deviation and average deviation are 15.63% and 5.08%, respectively. The maximal deviation and average deviation of MCG are $14.95 % and 4.95 %$ , respectively, obviously smaller than Landweber iteration regularization method. Noticing that MCG’s maximal deviation and average deviation are $15.86 % and 6.10 %$ , respectively, we can conclude that the proposed method performs well in identifying dynamic load acting on the practical engineering structure. Both of them for the proposed method are smaller than those of the latter. Moreover, the number of iterations by Landweber iteration regularization method is 446, which is bigger than the present method whose iterative number is 46. In a word, the method proposed in this article achieves better results in multi-source dynamic reconstruction of practical engineering structures.

Table 4.

The identified force at five time points at noise level 5% for composite laminated cylindrical shell.

	Time point	Real force	Landweber method		MCG method
	Time point	Real force	Identified force	Error (%)	Identified force	Error (%)
Sine	0.001	1000	969.82	3.02	1020.3	2.03
Triangle	0.0006	480	460.17	2.48	463.5	2.06
Sine	0.003	−1000	−1020.6	2.06	−1030.8	3.08
Triangle	0.001	800	728.2	8.98	687.54	14.06
Sine	0.0045	707.11	590.68	11.64	669.33	3.78
Triangle	0.0016	320	377.68	7.21	355.33	4.42
Sine	0.0063	−453.99	−377.53	7.65	−405.84	4.82
Triangle	0.0033	−560	−587.17	3.40	−601.37	5.17
Sine	0.0073	−891.01	−873.24	1.78	−884.19	0.68
Triangle	0.0038	−160	−226.47	8.31	−216.29	7.04
Error (%)			Maximum	Average	Maximum	Average
Sine			15.63	5.08	14.95	4.95
Triangle			19.10	6.16	15.86	6.10

15% noise level

Likewise, the following assertions are provided: it follows from Figures 35 –38 that MCG and the Landweber iteration regularization method can obtain both stable and effective identified results. Actually, the proposed method deals with this problem better than Landweber iteration regularization method, which can be shown in Figures 39 and 40. Figures 41 and 42 show the performances of relative deviations of the present method and Landweber iteration regularization method in identifying dynamic loads. From these figures, we can find that most of the deviations of Landweber iterative regularization method are larger than those of the proposed method, and the superiority of the present method is illustrated at the same time. Moreover, Table 5 displays more detailed computational results of two regularization methods mentioned above at five time points. From this table, we can find that most deviations of the present method at these five time points are smaller than Landweber iteration regularization method. Also, most deviations of Landweber iteration regularization method and MCG are mainly in the range of $25.98 % and 23.13 %$ , respectively. In addition, the maximal deviation and average deviation of the present method in identifying sine force are $23.13 % and 6.70 %$ , respectively.

Figure 35.

The identified sine force by Landweber at noise level 15%.

Figure 36.

The identified triangle force by Landweber at noise level 15%.

Figure 37.

The identified sine force by MCG at noise level 15%.

Figure 38.

The identified triangle force by MCG at noise level 15%.

Figure 39.

The identified sine force by Landweber and MCG at noise level 15%; the number of iterations: $N_{Landweber} = 460, N_{MCG} = 49$ .

Figure 40.

The identified triangle force by Landweber and MCG at noise level 15%; the number of iterations: $N_{Landweber} = 460, N_{MCG} = 49$ .

Figure 41.

The relative deviations for the identified sine force by Landweber and MCG at noise level 15%.

Figure 42.

The relative deviations for the identified triangle force by Landweber and MCG at noise level 15%.

Table 5.

The identified force at five time points at noise level 15% for composite laminated cylindrical shell.

	Time point	Real force	Landweber method		MCG method
	Time point	Real force	Identified force	Error (%)	Identified force	Error (%)
Sine	0.001	1000	1131.8	13.18	967.19	3.28
Triangle	0.0006	480	544.94	8.12	482.96	0.37
Sine	0.003	−1000	−1078.3	7.83	−1035.9	3.59
Triangle	0.001	800	720.59	9.93	690.14	13.73
Sine	0.0045	707.11	781.95	7.48	726.06	1.90
Triangle	0.0016	320	432.16	14.02	432.11	14.01
Sine	0.0063	−453.99	−328.13	12.59	−409.6	4.44
Triangle	0.0033	−560	−600.79	5.10	−517.8	5.28
Sine	0.0073	−891.01	−828.77	6.22	−906.67	1.57
Triangle	0.0038	−160	−174.72	1.84	−314.71	19.34
Error (%)			Maximum	Average	Maximum	Average
Sine			25.98	9.03	23.13	6.70
Triangle			25.25	8.45	21.67	8.09

It also follows that the maximal deviation and average deviation of our present method in identifying triangle force are $21.67 % and 8.09 %$ , respectively, and they are both smaller than the latter. What is more, iterative number of Landweber iteration regularization method is 460, obviously larger than MCG whose iterative number is 49. In a word, the problem of multi-source dynamic load identification in practical engineering structures can be solved more effectively and stably by the method presented in this article.

A 3 degree-of-freedom mass-spring system

The numerical model consists of a 3 degree-of-freedom mass-spring system. The values used for M, C, and K are

\begin{matrix} M = [\begin{matrix} 2.5 & 0 & 0 \\ 0 & 2.5 & 0 \\ 0 & 0 & 0.5 \end{matrix}], K = [\begin{matrix} 1.4 & - 0.9 & 0 \\ - 0.9 & 1.7 & - 0.8 \\ 0 & - 0.8 & 0.8 \end{matrix}], \\ C = [\begin{matrix} 0.28 & - 0.18 & 0 \\ - 0.18 & 0.34 & - 0.16 \\ 0 & - 0.16 & 0.16 \end{matrix}] \end{matrix}

In order to demonstrate the effectiveness of the present method, the simulated exact concentrated loads as formula (15) are used in the simulation study. A direct integration technique, such as the precise integration method, is applied to generate simulated displacement responses. In the same way, we add 5% noise level to the computer-generated response to simulate the noise-contaminated measurement. Then, as shown in Figures 43 and 44, we calculate the corresponding noisy response through equation (11).

Figure 43.

The corresponding displacement response at one point.

Figure 44.

The corresponding displacement response at the other point.

In order to evaluate the performances of the proposed method and Landweber regularization method, 5% noise level is investigated. Their performances are compared by the relative estimation error (12) and the mean error (13). In addition, we only need to select five time points, at which the identified loads will be compared by the actual loads.

It can be found from Figures 45 –48 that Landweber iteration regularization method and the proposed method can both accurately realize stable identification of multi-source dynamic load. Moreover, the performances of the present method are better than those of the Landweber iteration regularization method, and This can be seen clearly in Figures 49 and 50. The relative deviations of the identified loads by two regularization methods above are shown in Figures 51 and 52. Figures 51 and 52 show the performances of MCG and Landweber iteration regularization method in the aspect of relative deviations of the identified loads. They illustrate that most deviations of Landweber iteration regularization method are larger than MCG. This also validates the effectiveness of the proposed method.

Figure 45.

The identified sine force by Landweber at noise level 5%.

Figure 46.

The identified triangle force by Landweber at noise level 5%.

Figure 47.

The identified sine force by MCG at noise level 5%.

Figure 48.

The identified triangle force by MCG at noise level 5%.

Figure 49.

The identified sine force by Landweber and MCG at noise level 5%; the number of iterations: $N_{Landweber} = 11, 934, N_{MCG} = 401$ .

Figure 50.

The identified triangle force by Landweber and MCG at noise level 5%; the number of iterations: $N_{Landweber} = 11, 934, N_{MCG} = 401$ .

Figure 51.

The relative deviations for the identified sine force by Landweber and MCG at noise level 5%.

Figure 52.

The relative deviations for the identified triangle force by Landweber and MCG at noise level 5%.

Moreover, the more detailed results of two regularization methods at five time points are listed in Table 6. What we have known from this article is that most deviations by the proposed method and Landweber iteration regularization method concentrate in the range of $16.33 % and 15.00 %$ , respectively. In addition, in identifying the sine force, the maximal deviation and average deviation of Landweber iteration regularization method are $14.62 % and 2.65 %$ , respectively. Although the maximal deviation of the proposed method is larger than Landweber iteration regularization method, the average deviation of the proposed method is smaller than the latter. It can also be found that the maximal deviation and average deviation of the proposed method in identifying the triangle loads are $16.33 % and 1.57 %$ , respectively. However, the average deviation of the proposed method is smaller than the latter.

Table 6.

The identified force at five time points at noise level 5% for 3 degree-of-freedom mass-spring system.

	Time point	Real force	Landweber method		MCG method
	Time point	Real force	Identified force	Error (%)	Identified force	Error (%)
Sine	0.001	1000	980.61	1.94	968.79	3.12
Triangle	0.0006	480	456.92	2.89	449.1	3.86
Sine	0.003	−1000	−1027.7	2.77	−1024.4	2.44
Triangle	0.001	800	682.65	14.67	669.34	16.33
Sine	0.0045	707.11	642.16	6.50	645.09	6.20
Triangle	0.0016	320	398.77	9.85	403.57	10.45
Sine	0.0063	−453.99	−419	3.50	−414.19	3.98
Triangle	0.0033	−560	−613.21	6.65	−606.87	5.86
Sine	0.0073	−891.01	−951.4	6.04	−938.66	4.77
Triangle	0.0038	−160	−218.5	7.31	−224.17	8.02
Error (%)			Maximum	Average	Maximum	Average
Sine			14.62	2.65	15.99	2.43
Triangle			15.00	1.70	16.33	1.57
Iterative steps			11,934		401

In addition, the number of iterations by the proposed method is 401, and the number of iterations by Landweber iterative regularization method is 11,934. This present method is far superior to the latter. All the above show that the proposed method has better performances than Landweber iterative regularization method, which is mainly due to its superiority in reconstructing expected dynamic loads. In summary, the proposed method has more advantages than the Landweber iterative regularization method in multi-source dynamic reconstruction of engineering structures.

Conclusion

This article proposes a new hybrid conjugate gradient method based on gradient operator, and this method is applied to the structural dynamic load identification problem. The stability and convergence of the proposed method is thoroughly proved by the mathematical theory. The accuracy of MCG has been demonstrated by the numerical examples. Compared with Landweber iteration regularization method, the proposed MCG has better precision and anti-noisy ability. Therefore, MCG is a stable and robust identification method for engineering applications and can solve dynamic load identification problems in practical engineering structure effectively.

Footnotes

Handling Editor: Jia-Jang Wu

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (51775308), the Open Fund of Hubei Key Laboratory of Hydroelectric Machinery Design and Maintenance (2018KJX01), Hubei Chenguang Talented Youth Development Foundation and Research Fund for Excellent Dissertation of China Three Gorges University (2019SSPY046).

ORCID iD

Linjun Wang

References

Paez

Red-Horse

Structural dynamics challenge problem: summary. Comput Meth Appl Mech Eng 2008; 197: 2660–2665.

Lin

Guo

Zhi

et al . Computer simulation of structural random loading identification. Comput Struct 2001; 79: 375–387.

Liu

Meng

Jiang

et al . Time-domain Galerkin method for dynamic load identification. Int J Numer Meth Eng 2016; 105: 620–640.

Liu

Sun

Han

et al . A novel computational inverse technique for load identification using the shape function method of moving least square fitting. Comput Struct 2014; 144: 127–137.

Wang

Han

Liu

et al . A new regularization method and application to dynamic load identification problems. Inverse Probl Sci Eng 2011; 19: 765–776.

Qiao

Chen

Xue

et al . The application of cubic B-spline collocation method in impact force identification. Mech Syst Signal Pr 2015; 64–65: 413–427.

Liu

Shepard

Jr.

An improved method for the reconstruction of a distributed force acting on a vibrating structure. J Sound Vib 2006; 291: 369–387.

Karlsson

Identification of external structural loads from measured harmonic responses. J Sound Vib 1996; 196: 59–74.

Choi

Thite

Thompson

DJ.

Comparison of methods for parameter selection in Tikhonov regularization with application to inverse force determination. J Sound Vib 2007; 304: 894–917.

10.

Cai

Deng

State-of-the-art review on bridge weigh-in-motion technology. Adv Struct Eng 2016; 19: 1514–1530.

11.

Liu

Han

Jiang

et al . Dynamic load identification for uncertain structures based on interval analysis and regularization method. Int J Comput Meth 2011; 8: 667–683.

12.

Zhu

Law

. Practical aspects in moving loads identification. J Sound Vib 2002; 258: 123–146.

13.

Chan

THT

. Recent research on identification of moving loads on bridges. J Sound Vib 2007; 305: 3–21.

14.

Xue

Chen

Zhang

et al . Hermitian plane wavelet finite element method: wave propagation and load identification. Comput Math Appl 2016; 72: 2920–2942.

15.

Gunawan

Homma

Kanto

Two-step B-splines regularization method for solving an ill-posed problem of impact-force reconstruction. J Sound Vib 2006; 297: 200–214.

16.

Wang

Han

Liu

et al . An improved iteration regularization method and application to reconstruction of dynamic loads on a plate. J Comput Appl Math 2011; 235: 4083–4094.

17.

Liu

Han

Computational inverse technique in nondestructive evaluation. Boca Raton, FL: CRC Press, 2003.

18.

Law

Zhu

et al . Vehicle axle loads identification using finite element method. Eng Struct 2004; 26: 1143–1153.

19.

Lam

Liew

et al . Dynamic stability analysis of functionally graded cylindrical shells under periodic axial loading. Int J Solid Struct 2001; 38: 1295–1309.

20.

Jacquelin

Bennani

Hamelin

Force reconstruction: analysis and regularization of a deconvolution problem. J Sound Vib 2003; 265: 81–107.

21.

Lourens

Reynders

de Roeck

et al . An augmented Kalman filter for force identification in structural dynamics. Mech Syst Signal Pr 2012; 27: 446–460.

22.

Kazemi

Hematiyan

Shiah

YC.

An efficient load identification for viscoplastic materials by an inverse meshfree analysis. Int J Mech Sci 2018; 136: 303–312.

23.

Jia

Yang

Song

QZ.

Experimental study of random dynamic loads identification based on weighted regularization method. J Sound Vib 2015; 342: 113–123.

24.

Deng

Tiwari

et al . An inverse approach for pressure load identification. Int J Impact Eng 2010; 37: 865–877.

25.

Aucejo

Structural source identification using a generalized Tikhonov regularization. J Sound Vib 2014; 333: 5693–5707.

26.

Lifschitz

D’Attellis

CE.

Input force reconstruction using wavelets with applications to a pulsed plasma thruster. Math Comput Model 2005; 41: 361–369.

27.

Liu

Shepard

Jr.

Dynamic force identification based on enhanced least squares and total least-squares schemes in the frequency domain. J Sound Vib 2005; 282: 37–60.

28.

Zhang

et al . A load reconstruction model for advanced grid-stiffened composite plates. Compos Struct 2008; 82: 600–608.

29.

Hou

Deng

Huang

et al . A new method for the identification of a stationary random load moving on bridge structure. Chin J Comput Mech 2009; 26: 659–663 (in Chinese).

30.

Zhang

Guo

LX.

Vehicle dynamic load determination based on an inverse pseudo excitation method. J Northeast Univ (Nat Sci) 2011; 32: 415–418 (in Chinese).

31.

Zhou

Wang

et al . A load identification method for the grinding damage induced stress (GDIS) distribution in silicon wafers. Int J Mach Tool Manuf 2016; 107: 1–7.

32.

Gursoy

Niebur

Harmonic load identification using complex independent component analysis. IEEE T Power Deliv 2009; 24: 285–292.

33.

Yan

Zhou

Impact load identification of composite structure using genetic algorithms. J Sound Vib 2009; 319: 869–884.

34.

Mitra

Gopalakrishnan

Spectrally formulated wavelet finite element for wave propagation and impact force identification in connected 1-D waveguides. Int J Solid Struct 2005; 42: 4695–4721.

35.

Granger

Perotin

An inverse method for the identification of a distributed random excitation acting on a vibrating structure part 1: theory. Mech Syst Signal Pr 1999; 13: 53–65.

36.

Pezerat

Guyader

JL.

Force analysis technique: reconstruction of force distribution on plates. Acustica 2000; 86: 322–332.

37.

Law

Zhu

XQ.

Time-varying wind load identification from structural responses. Eng Struct 2005; 27: 1586–1598.

38.

Zheng

Wei

A new regularization method for solving a time-fractional inverse diffusion problem. J Math Anal Appl 2011; 378: 418–431.

39.

Sun

Liu

Han

et al . A new improved regularization method for dynamic load identification. Inverse Probl Sci Eng 2014; 22: 1062–1076.

40.

Engl

Hanke

Neubauer

. Regularization of inverse problems. Berlin: Springer, 1996.

41.

Tikhonov

Solution of incorrectly formulated problems and the regularization method. Soviet Math Dokl 1963; 5: 1035–1038.

42.

Hämarik

Palm

Raus

A family of rules for parameter choice in Tikhonov regularization of ill-posed problems with inexact noise level. J Comput Appl Math 2012; 236: 2146–2157.

43.

Reichel

Sgallari

Tikhonov regularization based on generalized Krylov subspace methods. Appl Numer Math 2012; 62: 1215–1228.

44.

Tikhonov

Stepanov

Yagola

et al . Numerical methods for the solution of ill-posed problems. Mathematics & Its Applications 1995: 328.

45.

Engl

Ramlau

Regularization of inverse problems. Dordrecht: Kluwer Academic Publishers, 2000.

46.

Tikhonov

AN.

Resolution of ill-posed problems and the regularization method. Dokl Akad Nauk SSSR 1963; 151: 501–504 (in Russian).

47.

Hager

Zhang

HC.

A new conjugate gradient method with guaranteed descent and an efficient line search. SIAM J Optim 2005; 16: 170–192.

48.

Fletcher

Reeves

CM.

Function minimization by conjugate gradients. Comput J 1964; 7: 149–154.

49.

Hestenes

Stiefel

EL.

Methods of Conjugate Gradients for Solving Linear Systems. J res nat bur stand 1952; 49: 409–436.

50.

Polak

Ribiere

Note sur la convergence de methodes de directions conjuguees. Rev Fr Rech Oper Ser Rouge 1969; 3: 35–43.

51.

Polyak

BT.

The conjugate gradient method in extremal problems. USSR Comput Math Math Phys 1969; 9: 94–112.

52.

Dai

Yuan

A nonlinear conjugate gradient method with a strong global convergence property. SIAM J Optim 1999; 10: 177–182.

53.

Yao

Ning

LS.

An adaptive three-term conjugate gradient method based on self-scaling memoryless BFGS matrix. J Comput Appl Math 2018; 332: 72–85.

54.

Fatemi

A new efficient conjugate gradient method for unconstrained optimization. J Comput Appl Math 2016; 300: 207–216.

55.

Neubauer

On Landweber iteration for nonlinear ill-posed problems in Hilbert scales. Numer Math 2000; 85: 309–328.

56.

Wang

Xie

YX.

A new conjugate gradient method for the solution of linear ill-posed problem. J Appl Comput Math 2012; 1: 108.

57.

Liu

SJ.

New hybrid conjugate gradient method for unconstrained optimization. Appl Math Comput 2014; 245: 36–43.

58.

Zoutendijk

Nonlinear programming, computational methods. Amsterdam: North-Holland Publishing Company, 1970.

59.

Liu

Sun

Han

et al . Dynamic load identification for stochastic structures based on Gegenbauer polynomial approximation and regularization method. Mech Syst Signal Pr 2015; 56–57: 35–54.

60.

Liu

Sun

et al . A probability density function discretization and approximation method for the dynamic load identification of stochastic structures. J Sound Vib 2015; 357: 74–94.

61.

Liu

Meng

Zhang

et al . An efficient method to reduce ill-posedness for structural dynamic load identification. Mech Syst Signal Pr 2017; 95: 273–285.
