Multi-objective optimization of machining parameters during milling of carbon-fiber-reinforced polyetheretherketone composites using grey relational analysis

Abstract

Short carbon-fiber-reinforced composites, especially short carbon-fiber-reinforced polyetheretherketone composites (CF-PEEK), are used extensively in the engineering field because of their superior properties. However, their surface quality and material removal rate need to be optimized to satisfy design and processing requirements. This work focused on a multi-objective optimization to minimize the surface roughness and maximize the material removal rate during machining by grey relational analysis with an analysis-of-variance (ANOVA) and response surface methodology before a multi-objective mathematical model was established. The statistical significance of the predicted model was examined by using an ANOVA to obtain the optimal machining parameters (spindle speed, feed rate, cut depth). The optimal combination of cutting parameters was a spindle speed of 2600 rpm, a feed rate of 720 mm/min, and a cut depth of 1.8 mm.

Keywords

Carbon-fiber-reinforced polyetheretherketone composites Taguchi grey relational analysis response surface methodology design of experiment analysis of variance

Introduction

Polyetheretherketone (PEEK) is a crystalline high-performance special engineering plastic with excellent physical, mechanical, chemical, electrical and thermal properties such as its high heat resistance, fire resistance, and fatigue resistance.¹ To enhance the PEEK strength and performance, it is often necessary to add carbon fiber to the PEEK matrix.² Because carbon fiber and PEEK have a good compatibility, they can enhance the strength, friction performance and thermal properties of composites. Carbon-fiber filling provides the composites with a high performance, but increases the machining difficulty.³ Cutting of CF-PEEK composites is usually needed to obtain components with a specified shape to meet the required dimensional accuracy and surface roughness to complete the assembly process.⁴ However, because of the discontinuity, non-uniformity and anisotropy of the phase distribution of CF-PEEK composites, the cutting process is complex with fiber fracture, matrix cracking and fiber and matrix separation and release. Therefore, CF-PEEK processing is different from traditional metal cutting. Surface roughness is an important index that is used to evaluate a machined surface. A lower surface roughness implies an excellent friction performance, higher fatigue life, and precision fit of critical surfaces. However, the processing efficiency decreases when a high surface quality is achieved. Because, higher surface roughness is often obtained by reducing the cutting speed. The processing efficiency depends on the cutting tool properties, workpiece properties, and machining parameters. For a given material and specified tool, the primary steps for optimizing the surface roughness and machining efficiency is to optimize the machining parameters. An experimental optimization of machining parameters is expensive and time-consuming, so this study presents a predictive and mathematical model to optimize the surface roughness and material removal rate simultaneously. Through grey relational analysis (GRA) and principal component analysis (PCA), a multi-objective predictive model was developed. The response surface methodology (RSM) was used to optimize the machining parameters.

Recent studies have reported the machinability characteristics of CF-PEEK. For example, G. Petropoulos et al.⁵ studied the impact of cutting conditions on surface roughness in turning of PEEK composites including unreinforced PEEK, reinforced PEEK with 30% of carbon fiber and reinforced PEEK with 30% of glass fiber using PCD tool and K15 cemented carbide tool. It was found that feed and cutting speed was the crucial cutting conditions and unreinforced PEEK presented the smallest surface roughness values than reinforced PEEK. J. Paulo Davim et al.⁶ presented a study that evaluated the cutting parameters (cutting velocity and feed rate) under the surface roughness and damage in milling laminate plates of carbon ﬁber-reinforced plastics (CFRPs). They also established a model between cutting velocity and feed rate with the surface roughness and damage using multiple regression analysis. Xiao et al.⁷ used an analytical approach to develop a model that can predict the cutting force for milling multidirectional laminate of carbon fiber reinforced polymer (CFRP) composites. Hanafi et al.⁸ studied the turning process of 30% CF-PEEK composites using TiN cutting tools. They designed experiments by the Taguchi method, determined the effects of three different machining conditions and used the developed response surface models to optimize the machining conditions. Azmi AI et al.⁹ elucidated the end milling machinability of GFRP composites with respect to surface roughness, tool life and machining forces. Taguchi analysis combined with statistical analysis of variance (ANOVA) was performed to quantify the effects of spindle speed, feed rate and depth of cut on those characteristics.

The influence of processing parameters on the machining responses and the multi-objective optimization of processing parameters have been studied extensively. Shi et al.¹⁰ predicted the optimal parameters to improve the microhardness and surface roughness by using GRA in the dry milling of magnesium alloy. In the end milling of an aluminum composite, Rajeswari and Amirthagadeswaran¹¹ decreased the tool wear, cutting force and surface roughness, and improved the material removal rate (MRR) simultaneously by using RSM based GRA. A higher power consumption and a greater tool wear were related to and increased with spindle speed. In the dry turning of ASSI 1045 steel, a combination of RSM and GRA was applied by Kant and Sangwan¹² to reduce the power consumption and surface roughness. Their results suggested that the power consumption and surface roughness decreased when the spindle speed decreased. Oktem et al.¹³ optimized the surface roughness in the machining of aluminum 7075-T6 by regression analysis. Bagaber et al.¹⁴ studied the effect of turning parameters of stainless steel 316 on power consumption. To optimize the turning parameters, the method of response surface and compound desirability value were used. In the machining of tempered and hardened steel AISI 1060 under the application of a pressurized oil jet, Mia et al.¹⁵ presented predictive model equations to elucidate the relationship between the surface roughness and machining parameters by applying RSM. Mia et al.¹⁶ used Taguchi L36 orthogonal array experiments to evaluate the effects of cooling conditions and material hardness during machining. They presented a S-N ratio to optimize the surface roughness and machining temperature.

The literature indicates that multi-objective optimization problems have been applied more extensively than single-objective optimization problems in production. The machining of many different materials (such as milling and turning) have been studied and the cutting parameters have been optimized. However, there are shortcomings and limitations as discussed below.

In previous studies, no comprehensive analysis has been undertaken on the multi-objective optimization of dry milling of CF-PEEK composites with 30% short carbon-fiber. The material removal rate and surface roughness have rarely been considered simultaneously. The nonlinear relationship between the technological performances and processing parameters (spindle speed, feed rate, cut depth) has not been studied systematically. In terms of optimization methods, the GRA has been applied extensively in the multi-objective optimization of metal machining. However, the GRA has rarely been reported in the parametric optimization of CF-PEEK composite machining.

Although long carbon-fiber reinforced PEEK composites have been studied, limited research has been conducted to study the effect of machining parameters on the machinability of short and no-directional CF-PEEK composites during milling. Furthermore, previous studies have been limited to the optimization of only one response. Practicality, material removal rate and surface roughness often need to be considered simultaneously during production. Therefore, the aim of this work is to obtain a more comprehensive understanding of the milling process for short and no-directional CF-PEEK composites. The main influences of the machining parameters (spindle speed, feed rate, cut depth) on the material removal rate and surface roughness of CF-PEEK with 30% fiber contents were analyzed systematically based on GRA and RSM. Multi-objective optimization of the material removal rate and surface roughness was also studied. This study can provide operators and part-processing programmers with practical guidance on selection of machining parameters. It also provides important technical support to improve the machining quality and efficiency.

Methods of research and analysis

Research methods

As shown in Figure 1, the study was conducted by establishing a multi-objective predictive model, optimizing the machining parameters, and verifying the results.

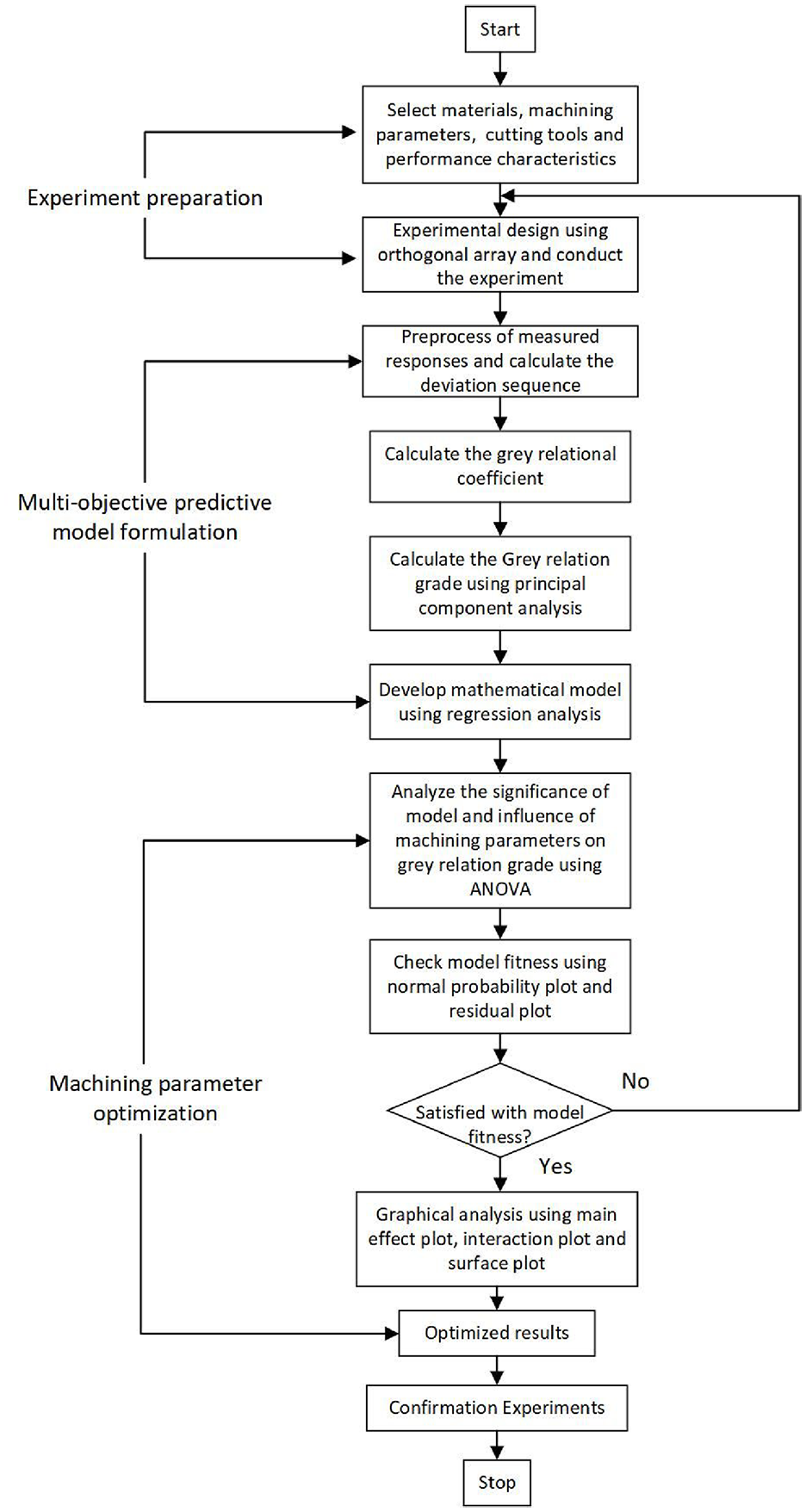

Figure 1.

Research methods used in the study.

In the first phase, milling parameters (spindle speed, feed rate, cut depth) and their levels and performance characteristics (surface roughness and material removal rate) were determined. According to the statistical requirements of the Taguchi orthogonal table, 27 experiments were carried out. In the second phase, GRA was used to transform a multi-objective problem (material removal rate and surface roughness) into a single objective problem (grey relational grade, GRG), and PCA was applied to evaluate the weights of material removal rate and the surface roughness. By using regression analysis, a mathematical model was established to predict the nonlinear relationship between the GRG and the machining parameters. In the third phase, the statistical significance of this model was determined by an analysis of variance (ANOVA). To confirm the results, optimized parameters were used in the verification experiments.

Analysis approaches

Three approaches were used: the GRA, PCA and RSM.

GRA

Data processing

In this multi-objective optimization, the experimental results must be transformed to a dimensionless quantity. The nondimensionalization was carried out by using the surface roughness (equation (1))¹⁷ and material removal rate (equation (2)), as follows¹⁸:

S - N Ratio = - 10 \lg (\frac{1}{n} \sum_{i = 1}^{n} {y_{i}}^{2})

(1)

S - N Ratio = - 10 \lg (\frac{1}{n} \sum_{i = 1}^{n} \frac{1}{{y_{i}}^{2}})

(2)

The original sequence is represented as $x_{i}^{(o)} (k)$ and dimensionless sequence is represented as $x_{i}^{*} (k)$ , $i = 1, 2 \dots, m;$ $k = 1, 2 \dots, n,$ where $m$ is the total number of experiments $n$ is the number of performance characteristics. $m = 27, n = 2$ . During data processing, for the material removal rate, the original sequence was normalized according to¹²:

{x_{i}}^{*} (k) = \frac{{x_{i}}^{(o)} (k) - \min {x_{i}}^{(o)} (k)}{\max {x_{i}}^{(o)} (k) - \min {x_{i}}^{(o)} (k)}

(3)

For the surface roughness, the original sequence was normalized as:

{x_{i}}^{*} (k) = \frac{\max {x_{i}}^{(o)} (k) - {x_{i}}^{(o)} (k)}{\max {x_{i}}^{(o)} (k) - \min {x_{i}}^{(o)} (k)}

(4)

Grey relational coefficients

The grey relational coefficient was determined as¹⁹:

\begin{matrix} γ (x_{0}^{*} (k), x_{i}^{*} (k)) = \frac{Δ_{min} + ξ Δ_{max}}{Δ_{0 i} (k) + ξ Δ_{max}} \\ 0 < γ (x_{0}^{*} (k), x_{i}^{*} (k)) \leq 1 \end{matrix}

(5)

where $Δ_{0 i} (k)$ is the deviational sequence of the reference sequence $x_{0}^{*} (k)$ and the comparability sequence $x_{i}^{*} (k)$ , and $Δ_{0 i} (k) = | x_{0}^{*} (k) - x_{i}^{*} (k) |$ is the absolute value of the difference between $x_{0}^{*} (k)$ and $x_{i}^{*} (k)$ . $ξ$ is the distinguishing coefficient, $ξ \in [0, 1]$ .

Δ_{min} = min_{\forall i} . min_{\forall k} . Δ_{0 i} (k)

(6)

Δ_{max} = max_{\forall i} . max_{\forall k} . Δ_{0 i} (k)

(7)

GRG

The GRG is determined as¹²:

γ (x_{0}^{*}, x_{i}^{*}) = \sum_{k = 1}^{n} β_{k} γ (x_{0}^{*} (k), x_{i}^{*} (k))

(8)

Where $β_{k}$ represents the weight of the k^th response variable, which was determined by PCA.

PCA

PCA is a comprehensive simplification of multivariate data. It is the dimensionality reduction of a high dimensional variable. The PCA steps are as follows²⁰:

(1) Standardizing the original data

Assume that there are $m$ output characteristic variables and $n$ evaluation objects, then the output characteristic matrix is:

X = {[\begin{matrix} a_{11} & a_{12} & \dots & a_{1 m} \\ a_{21} & a_{22} & \dots & a_{2 m} \\ ⋮ & ⋮ & \dots & ⋮ \\ a_{n 1} & a_{n 2} & \dots & a_{nm} \end{matrix}]}_{n \times m}

(9)

{\bar{a}}_{ij} = \frac{a_{ij} - μ_{j}}{s_{j}} (i = 1, 2, \dots, n; j = 1, 2, \dots, m)

(10)

Where, $μ_{j} = \frac{1}{n} \sum_{i = 1}^{n} a_{ij}$ , $s_{j} = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} {(a_{ij} - μ_{j})}^{2}}$ , $μ_{j}$ and $s_{j}$ are the sample mean and sample variance of the j^th indicator, respectively.

$\bar{x_{j}} = \frac{x_{j} - μ_{j}}{s_{j}} (j = 1, 2 \dots, m)$ is the standardized indicator variable. Therefore, each indicator $a_{ij}$ can be standardized to ${\bar{a}}_{ij}$ .

(2) Computing correlation coefficient array

The correlation coefficient array $R = (r_{ij})_{n \times m}$ is computed as:

r_{ij} = \frac{\sum_{k = 1}^{n} {\bar{a}}_{ki} \cdot {\bar{a}}_{kj}}{n - 1} (i, j = 1, 2, \dots, m)

(11)

(3) Computing the eigenvalues and eigenvectors

The eigenvalues and eigenvectors are determined from the correlation coefficient array by using:

(R - λ_{k} I_{m}) μ_{m} = 0

(12)

Where, $λ_{m}$ is the eigenvalue and $μ_{m}$ is the eigenvector.

(4) Determining principle components.

The new indicator variables that consist of eigenvectors are²¹:

\begin{matrix} y_{1} = μ_{11} \bar{x_{1}} + μ_{12} \bar{x_{2}} + \dots + μ_{m 1} \bar{x_{m}}, \\ y_{2} = μ_{12} \bar{x_{1}} + μ_{22} \bar{x_{2}} + \dots + μ_{m 2} \bar{x_{m}}, \\ ⋮ \\ y_{m} = μ_{1 m} \bar{x_{1}} + μ_{2 m} \bar{x_{2}} + \dots + μ_{mm} \bar{x_{m}}, \end{matrix}

(13)

Where, $y_{1}$ is the first principal component, $y_{2}$ is the second principal component, and $y_{m}$ is the m^th principal component.

The contribution rate of the i^th principal component is given in equation (14):

b_{i} = \frac{λ_{j}}{\sum_{k = 1}^{m} λ_{k}} (i = 1, 2, \dots, m)

(14)

The cumulative contribution rate of the first P^th principal components is given in equation (15):

a_{p} = \frac{\sum_{k = 1}^{p} λ_{k}}{\sum_{k = 1}^{m} λ_{k}}

(15)

When $a_{p}$ reaches 85%-95%, the principal components of the first P^th indicator variables are selected to replace the original data for analysis.

RSM

The response surface is a function between the response variable and the input variables. For a model with one factor in the model, the response surface is a curve in two-dimensional space. For two factors, the response surface is a surface in three dimensions. In the analysis of multi-factor quantitative processing, the regression relationship between the test indicators (dependent variables) and multiple test factors (independent variables) can be analyzed by RSM. To study the effect of the machining parameters on the response, a second-order polynomial mathematical equation, as shown in equation (16), was used to develop the response surface²²:

R = d_{0} + \sum_{i = 1}^{k} d_{i} X_{i} + \sum_{i = 1}^{k} d_{ii} {X_{i}}^{2} + \sum_{ij}^{k} d_{ij} X_{i} X_{j}

(16)

where $R$ is the response; k is the number of input factors; $d_{i}, d_{ii} and d_{ij}$ are the regression coefficients; $X_{i}$ is the linear effect of the factors; ${X_{i}}^{2}$ is the quadratic effect of the factors; and $X_{i} X_{j}$ is the linear effect for the interaction of factors.

Experiments

Milling experiments were carried out on a 5-axis machine tool with a maximum spindle speed of 18,000 rpm under dry cutting conditions. We selected the cutting parameters and their levels as shown in Table 1.

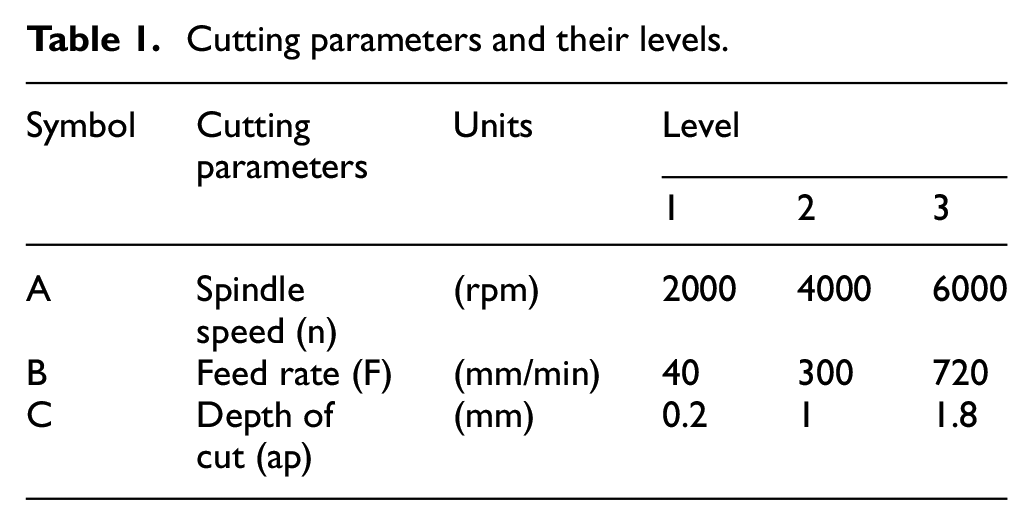

Table 1.

Cutting parameters and their levels.

Symbol	Cutting parameters	Units	Level
			1	2	3
A	Spindle speed (n)	(rpm)	2000	4000	6000
B	Feed rate (F)	(mm/min)	40	300	720
C	Depth of cut (ap)	(mm)	0.2	1	1.8

Materials

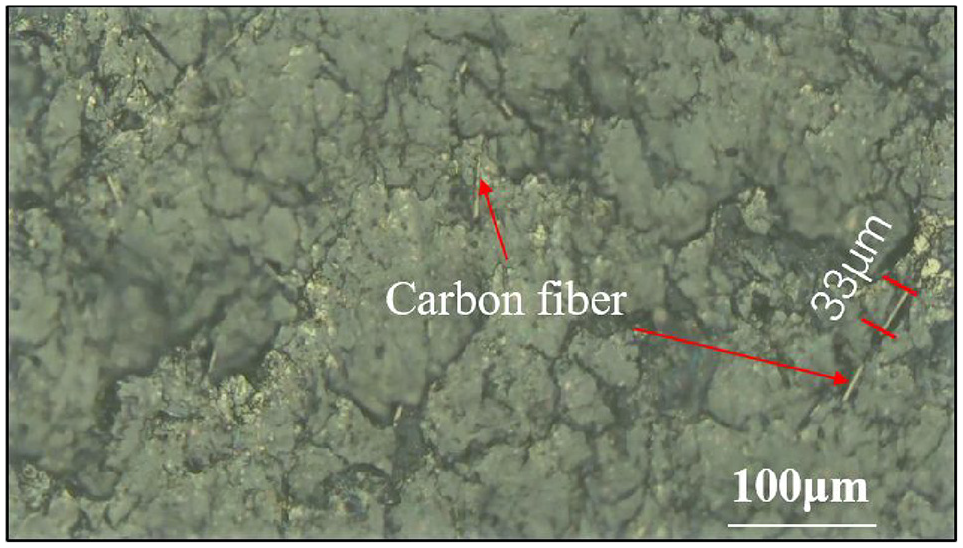

Figure 2 shows a micrograph of the 30-µm-long CF-PEEK composite sample that was reinforced with 30% short carbon fiber. The carbon fiber was distributed in the PEEK matrix randomly and evenly. The size of the machining specimen was 80 mm × 30 mm × 30 mm.

Figure 2.

Micrograph of 30% short carbon fiber reinforced PEEK.

Cutting tools

An 8-mm-diameter PCD end mill with two blades was selected to process the CF-PEEK and cut width is 4mm. The PCD tool has high hardness, high compressive strength, good thermal conductivity and abrasion resistance, and it can achieve a high machining accuracy and efficiency. PCD tool displays an excellent performance when cutting carbon/epoxy or carbon/PEEK materials.²³ PCD tool tends to provide lower roughness than cemented carbide tool when it was used to cut PEEK composites.⁵

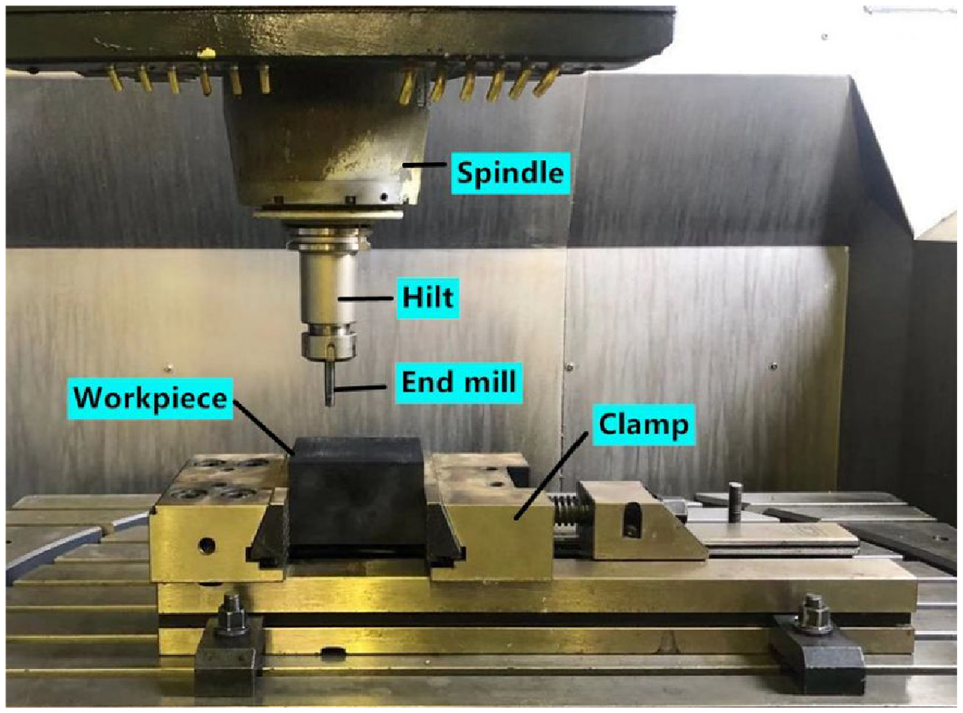

Photographs of the milling experimental device and the end mill that were used are presented in Figures 3 and 4, respectively.

Figure 3.

Diagram of the milling experimental device.

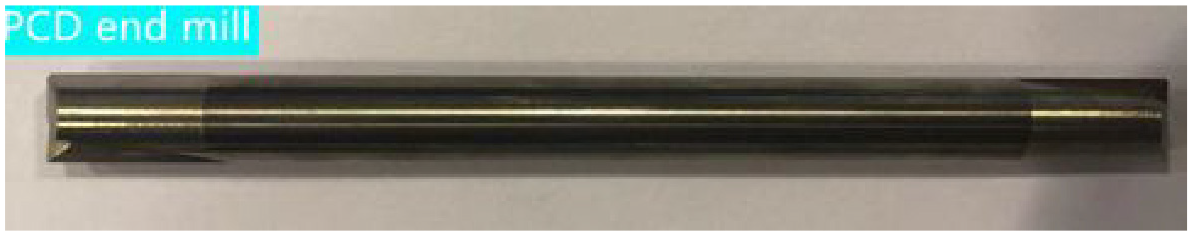

Figure 4.

PCD end mill used in experiments.

Performance parameter measurement

After the milling experiments, the surface roughness was measured by using a two-dimensional surface roughness tester (SJ-310, Japan) according to surface roughness measurement standard ISO 4287, as shown in Figure 5. In each trial, the machined surface roughness was measured three times, and the mean value of the three measurements was selected as the measured result. The MRR was computed from equation (17)²⁴:

MRR = ae * F * ap

(17)

Where $ae$ is the cut width (4mm), $F$ is the feed rate, and $ap$ is the cut depth.

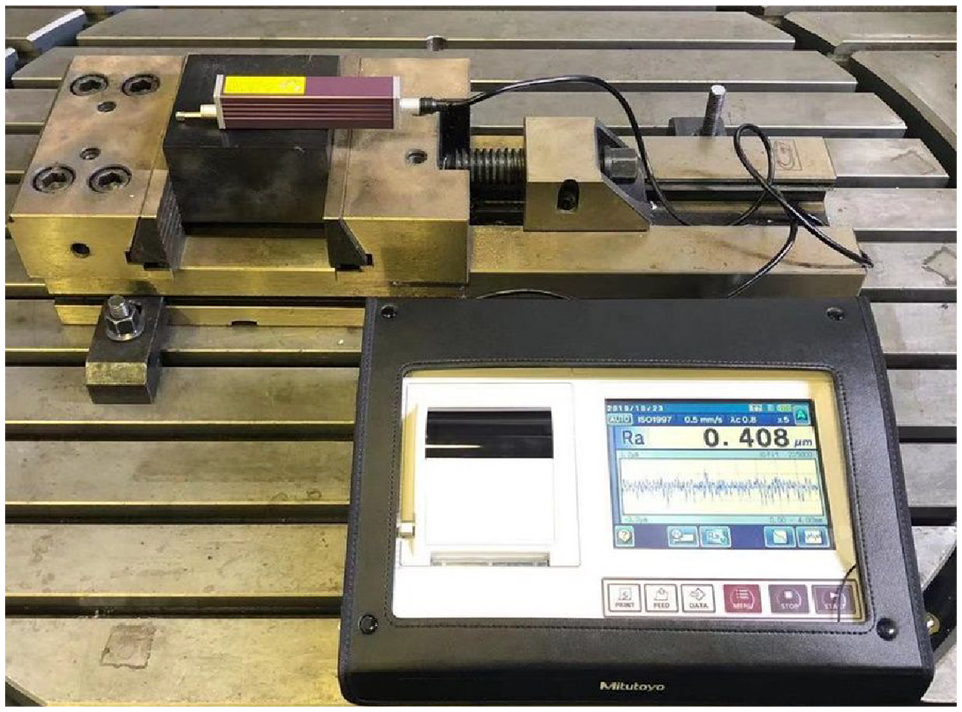

Figure 5.

Surface roughness measurement.

The experimental results, including the MRR and surface roughness (Ra), are given in Table 2, and some R-profiles of the surface roughness are shown in Figure 6.

Table 2.

Orthogonal table L27 for responses.

Exp. No	Designation	Control factors			Responses
		A	B	C	Ra(um)	MRR (mm³/min)
1	A1B1C1	2000	40	0.2	0.534	32
2	A1B1C2	2000	40	1	0.403	160
3	A1B1C3	2000	40	1.8	0.378	288
4	A1B2C1	2000	300	0.2	0.630	240
5	A1B2C2	2000	300	1	0.628	1200
6	A1B2C3	2000	300	1.8	0.620	2160
7	A1B3C1	2000	720	0.2	0.831	576
8	A1B3C2	2000	720	1	0.828	2880
9	A1B3C3	2000	720	1.8	0.818	5184
10	A2B1C1	4000	40	0.2	0.316	32
11	A2B1C2	4000	40	1	0.300	160
12	A2B1C3	4000	40	1.8	0.327	288
13	A2B2C1	4000	300	0.2	0.474	240
14	A2B2C2	4000	300	1	0.510	1200
15	A2B2C3	4000	300	1.8	0.482	2160
16	A2B3C1	4000	720	0.2	0.653	576
17	A2B3C2	4000	720	1	0.626	2880
18	A2B3C3	4000	720	1.8	0.749	5184
19	A3B1C1	6000	40	0.2	0.258	32
20	A3B1C2	6000	40	1	0.346	160
21	A3B1C3	6000	40	1.8	0.346	288
22	A3B2C1	6000	300	0.2	0.434	240
23	A3B2C2	6000	300	1	0.400	1200
24	A3B2C3	6000	300	1.8	0.447	2160
25	A3B3C1	6000	720	0.2	0.571	576
26	A3B3C2	6000	720	1	0.522	2880
27	A3B3C3	6000	720	1.8	0.651	5184

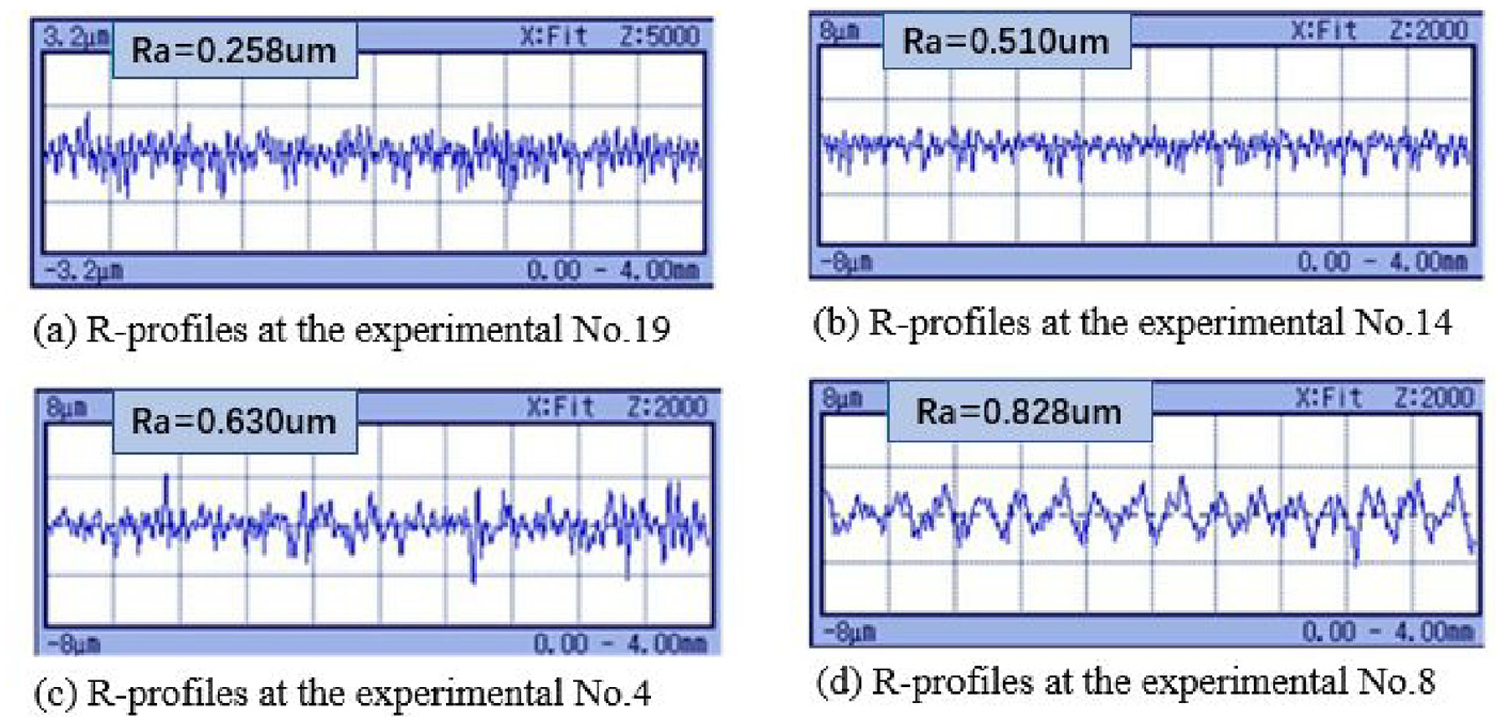

Figure 6.

Roughness profiles at various machining conditions.

Establishing the predictive model

Calculation of grey relational coefficient

Table 3 shows the S-N ratio values and their normalized values. The S-N ratio values were computed from equation (1) for Ra and equation (2) for MRR. The processing sequence was calculated by using equation (4) as the surface roughness fits “the-smaller-the-better” methodology, whereas for the material removal rate, the values were calculated by using equation (3) because the MRR fits “the-larger-the-better.”

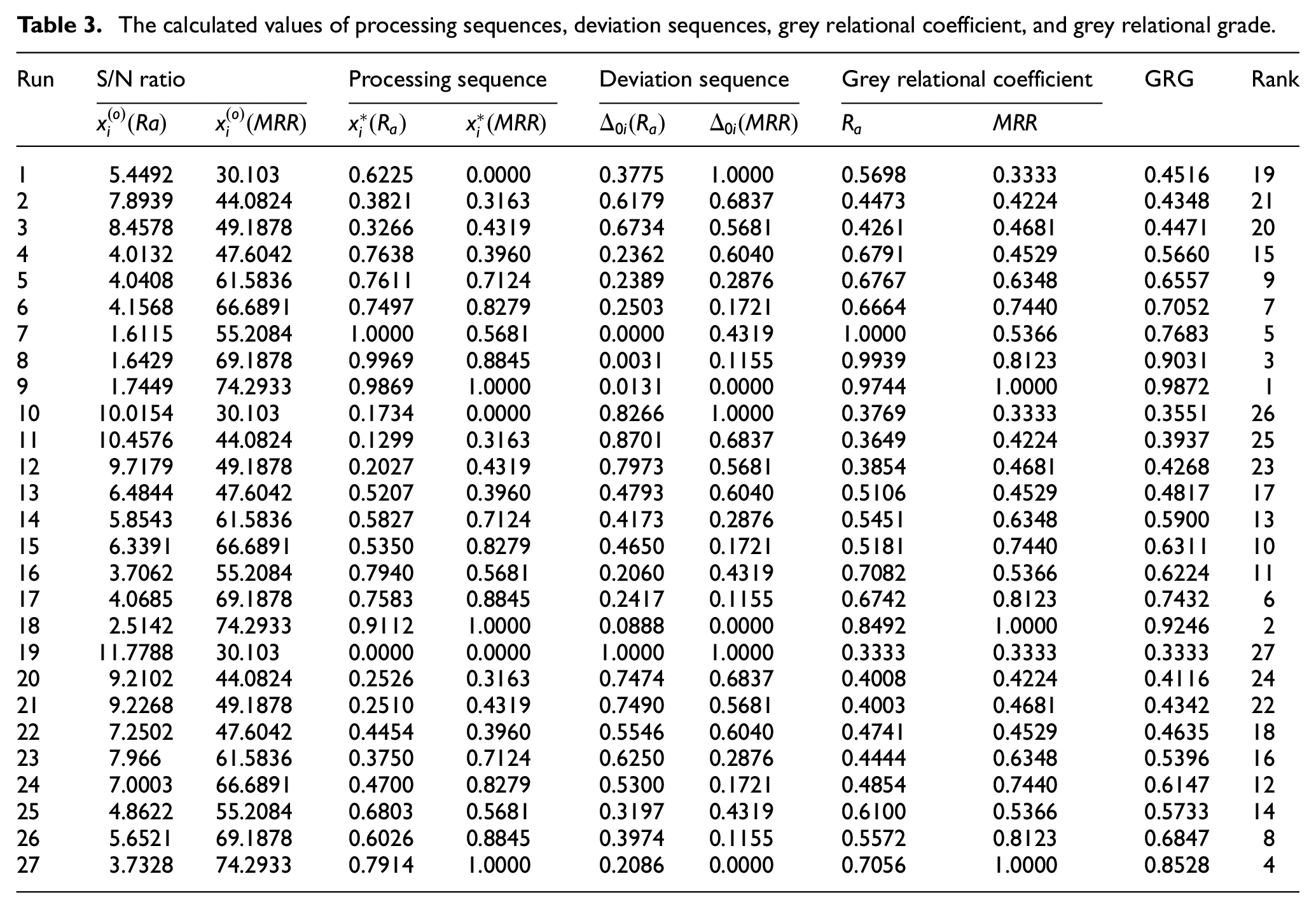

Table 3.

The calculated values of processing sequences, deviation sequences, grey relational coefficient, and grey relational grade.

Run	S/N ratio		Processing sequence		Deviation sequence		Grey relational coefficient		GRG	Rank
	$x_{i}^{(o)} (Ra)$	$x_{i}^{(o)} (MRR)$	$x_{i}^{*} (R_{a})$	$x_{i}^{*} (MRR)$	$Δ_{0 i} (R_{a})$	$Δ_{0 i} (MRR)$	$R_{a}$	$MRR$
1	5.4492	30.103	0.6225	0.0000	0.3775	1.0000	0.5698	0.3333	0.4516	19
2	7.8939	44.0824	0.3821	0.3163	0.6179	0.6837	0.4473	0.4224	0.4348	21
3	8.4578	49.1878	0.3266	0.4319	0.6734	0.5681	0.4261	0.4681	0.4471	20
4	4.0132	47.6042	0.7638	0.3960	0.2362	0.6040	0.6791	0.4529	0.5660	15
5	4.0408	61.5836	0.7611	0.7124	0.2389	0.2876	0.6767	0.6348	0.6557	9
6	4.1568	66.6891	0.7497	0.8279	0.2503	0.1721	0.6664	0.7440	0.7052	7
7	1.6115	55.2084	1.0000	0.5681	0.0000	0.4319	1.0000	0.5366	0.7683	5
8	1.6429	69.1878	0.9969	0.8845	0.0031	0.1155	0.9939	0.8123	0.9031	3
9	1.7449	74.2933	0.9869	1.0000	0.0131	0.0000	0.9744	1.0000	0.9872	1
10	10.0154	30.103	0.1734	0.0000	0.8266	1.0000	0.3769	0.3333	0.3551	26
11	10.4576	44.0824	0.1299	0.3163	0.8701	0.6837	0.3649	0.4224	0.3937	25
12	9.7179	49.1878	0.2027	0.4319	0.7973	0.5681	0.3854	0.4681	0.4268	23
13	6.4844	47.6042	0.5207	0.3960	0.4793	0.6040	0.5106	0.4529	0.4817	17
14	5.8543	61.5836	0.5827	0.7124	0.4173	0.2876	0.5451	0.6348	0.5900	13
15	6.3391	66.6891	0.5350	0.8279	0.4650	0.1721	0.5181	0.7440	0.6311	10
16	3.7062	55.2084	0.7940	0.5681	0.2060	0.4319	0.7082	0.5366	0.6224	11
17	4.0685	69.1878	0.7583	0.8845	0.2417	0.1155	0.6742	0.8123	0.7432	6
18	2.5142	74.2933	0.9112	1.0000	0.0888	0.0000	0.8492	1.0000	0.9246	2
19	11.7788	30.103	0.0000	0.0000	1.0000	1.0000	0.3333	0.3333	0.3333	27
20	9.2102	44.0824	0.2526	0.3163	0.7474	0.6837	0.4008	0.4224	0.4116	24
21	9.2268	49.1878	0.2510	0.4319	0.7490	0.5681	0.4003	0.4681	0.4342	22
22	7.2502	47.6042	0.4454	0.3960	0.5546	0.6040	0.4741	0.4529	0.4635	18
23	7.966	61.5836	0.3750	0.7124	0.6250	0.2876	0.4444	0.6348	0.5396	16
24	7.0003	66.6891	0.4700	0.8279	0.5300	0.1721	0.4854	0.7440	0.6147	12
25	4.8622	55.2084	0.6803	0.5681	0.3197	0.4319	0.6100	0.5366	0.5733	14
26	5.6521	69.1878	0.6026	0.8845	0.3974	0.1155	0.5572	0.8123	0.6847	8
27	3.7328	74.2933	0.7914	1.0000	0.2086	0.0000	0.7056	1.0000	0.8528	4

The deviation sequence was computed as follows:

Δ_{0 i} (R_{a}) = | x_{0}^{*} (R_{a}) - x_{i}^{*} (R_{a}) | = | 1.0000 - 0.6225 | = 0.3775

\begin{matrix} Δ_{0 i} (MRR) = | x_{0}^{*} (MRR) - x_{i}^{*} (MRR) | \\ = | 1.0000 - 0.0000 | = 1.0000 \end{matrix}

From the deviation sequences in Table 3, we found that:

\begin{matrix} Δ_{max} = 1 \\ Δ_{min} = 0 \end{matrix}

The GRC values were calculated as:

\begin{matrix} γ (x_{0}^{*} (R_{a}), x_{1}^{*} (R_{a})) = \frac{Δ_{min} + ξ Δ_{max}}{Δ_{01} (R_{a}) + ξ Δ_{max}} \\ = \frac{0.0000 + 0.5 \times 1.0000}{0.3775 + 0.5 \times 1.0000} = 0.5698 \end{matrix}

\begin{matrix} γ (x_{0}^{*} (MRR), x_{1}^{*} (MRR)) = \frac{Δ_{min} + ξ Δ_{max}}{Δ_{01} (MRR) + ξ Δ_{max}} \\ = \frac{0.0000 + 0.5 \times 1.0000}{1.0000 + 0.5 \times 1.0000} = 0.3333 \end{matrix}

Computing GRG

Before computing the GRG, we need to determine the weights of the response characteristics. The eigenvalues, eigenvectors and performance characteristics contribution rate are shown in Tables 4 and 5.

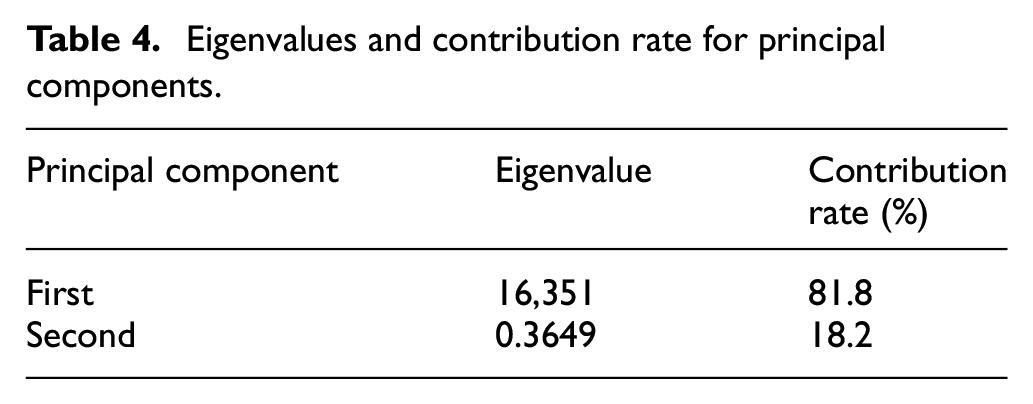

Table 4.

Eigenvalues and contribution rate for principal components.

Principal component	Eigenvalue	Contribution rate (%)
First	16,351	81.8
Second	0.3649	18.2

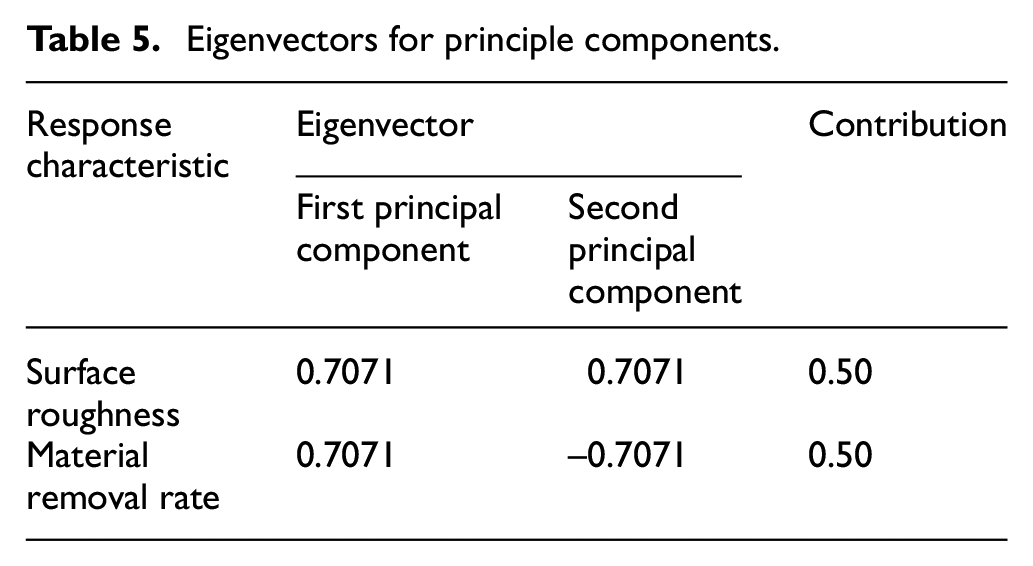

Table 5.

Eigenvectors for principle components.

Response characteristic	Eigenvector		Contribution
	First principal component	Second principal component
Surface roughness	0.7071	0.7071	0.50
Material removal rate	0.7071	−0.7071	0.50

The eigenvectors for principal component in Table 5 show that the weights of surface roughness and material removal rate are 0.5 in the GRA. The MRR and Ra have an equivalent effect on the GRG. Thus, in equation (8), $β_{1} = 0.5, β_{2} = 0.5$ . According to equation (8) and Table 3, the GRG $γ (x_{0}^{*}, x_{i}^{*})$ can be computed as:

γ (x_{0}^{*}, x_{i}^{*}) = 0.5698 \times 0.50 + 0.3333 \times 0.50 = 0.4516

The rest can be calculated in the same way, and the values are given in the tenth column of Table 3. The rank of GRG is also shown in Table 3.

Finding the optimal experimental run

The average GRG for each cutting parameter level was calculated. The average GRG for spindle speed at level 1 was computed.

\bar{n_{1}} = \frac{0.4516 + 0.4348 + 0.4471 + 0.5660 + 0.6557 + 0.7052 + 0.7683 + 0.9031 + 0.9872}{9} = 0.6571

In a similar way, the average GRG values for n, F, and ap at their three levels were calculated and are given in Table 6.

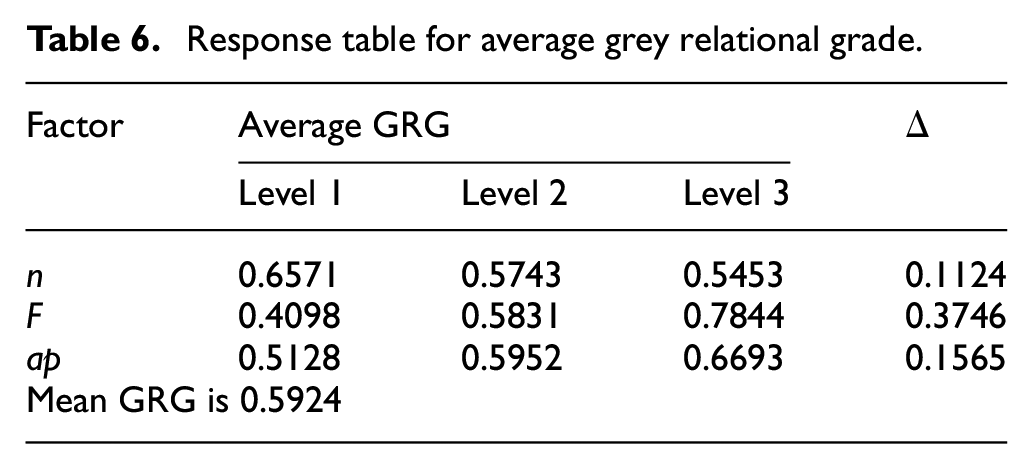

Table 6.

Response table for average grey relational grade.

Factor	Average GRG			$Δ$
	Level 1	Level 2	Level 3
$n$	0.6571	0.5743	0.5453	0.1124
$F$	0.4098	0.5831	0.7844	0.3746
$ap$	0.5128	0.5952	0.6693	0.1565
Mean GRG is 0.5924

The better performance characteristics correspond to the largest GRG. Therefore, the optimal level of every parameter is a spindle speed at level 1 (2000 r/min), a feed rate at level 3 (720 mm/min), and a cutting depth at level 3 (1.8 mm). It also corresponds exactly to the maximum GRG value of the ninth experiment. The Max–Min values ( $Δ$ ) are calculated as shown in Table 6, which indicates that the influence of each performance characteristic on the GRG is as follows:

F > ap > n

Predictive model

The predictive model for the GRG was established as follows:

\begin{matrix} GRG = 0.36776 - 1.76691 \times 10^{- 6} n + 6.29063 \\ \times 10^{- 4} F + 0.015791 ap - 7.17647 \times 10^{- 8} n * F \\ + 1.875 \times 10^{- 6} n * ap + 2.11857 \times 10^{- 4} F * ap \end{matrix}

\begin{matrix} 2000 \leq n \leq 6000 \\ 40 \leq F \leq 720 \\ Constraints : 0.2 \leq ap \leq 1.8 \end{matrix}

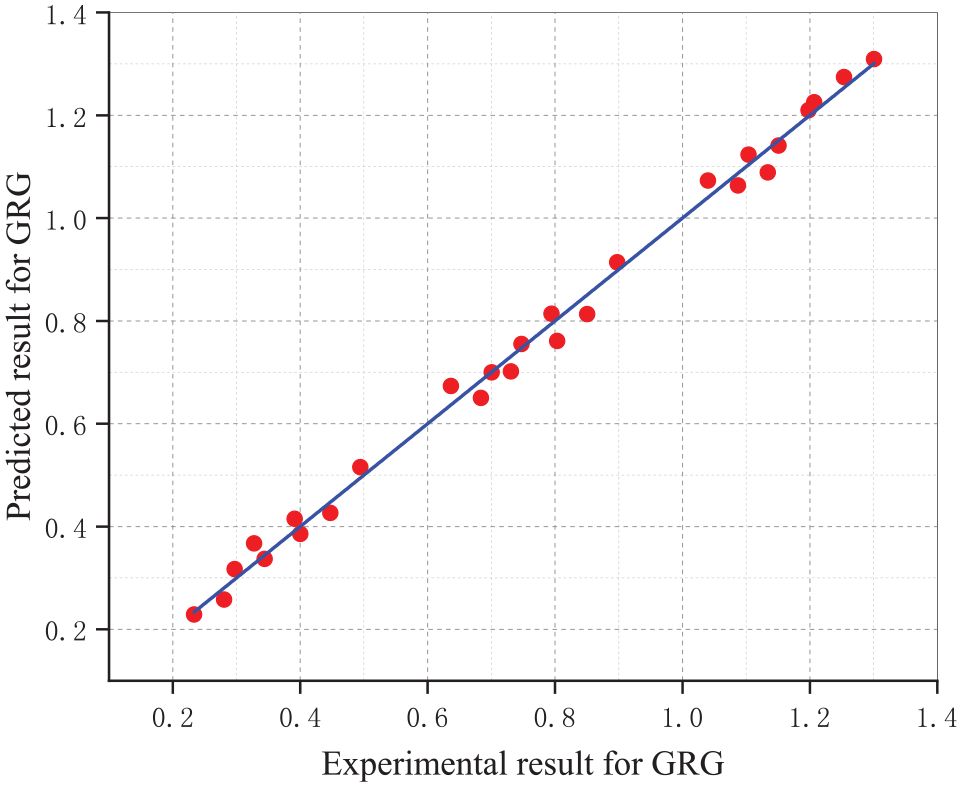

Figure 7 shows the experimental results and predicted values of the GRG. The two sets of values correspond well.

Figure 7.

Predicted values of CRG and experimental values of GRG.

Optimization of cutting parameters

ANOVA

An ANOVA was carried out to determine the important cutting parameters. The confidence of the ANOVA was 95%. The sum of squares, the mean square, the F value, and the P value of every factor for the GRG are shown in Table 7. In general, if F > 4, the input parameter has a significant impact on the response characteristics. If p < 0.05, the input parameter is considered statistically significant.²⁵ Table 7 also shows the contribution rate of each parameter for GRG.

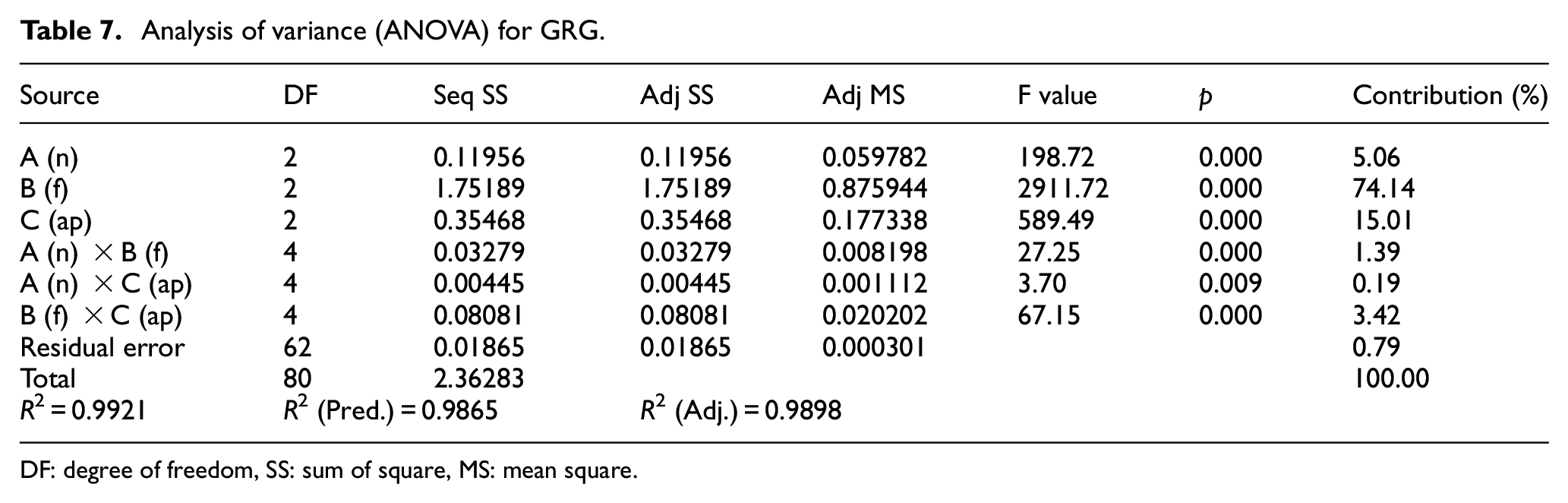

Table 7.

Analysis of variance (ANOVA) for GRG.

Source	DF	Seq SS	Adj SS	Adj MS	F value	p	Contribution (%)
A (n)	2	0.11956	0.11956	0.059782	198.72	0.000	5.06
B (f)	2	1.75189	1.75189	0.875944	2911.72	0.000	74.14
C (ap)	2	0.35468	0.35468	0.177338	589.49	0.000	15.01
A (n) × B (f)	4	0.03279	0.03279	0.008198	27.25	0.000	1.39
A (n) × C (ap)	4	0.00445	0.00445	0.001112	3.70	0.009	0.19
B (f) × C (ap)	4	0.08081	0.08081	0.020202	67.15	0.000	3.42
Residual error	62	0.01865	0.01865	0.000301			0.79
Total	80	2.36283					100.00
R ² = 0.9921	R ² (Pred.) = 0.9865		R ² (Adj.) = 0.9898

DF: degree of freedom, SS: sum of square, MS: mean square.

From Table 7, we conclude that the feed rate (F) is the most important machining parameter because of its high contribution rate of 74.14%, followed by a cut depth (ap) at 15.01% and a spindle speed (n) of 5.06%.

Model fitness check

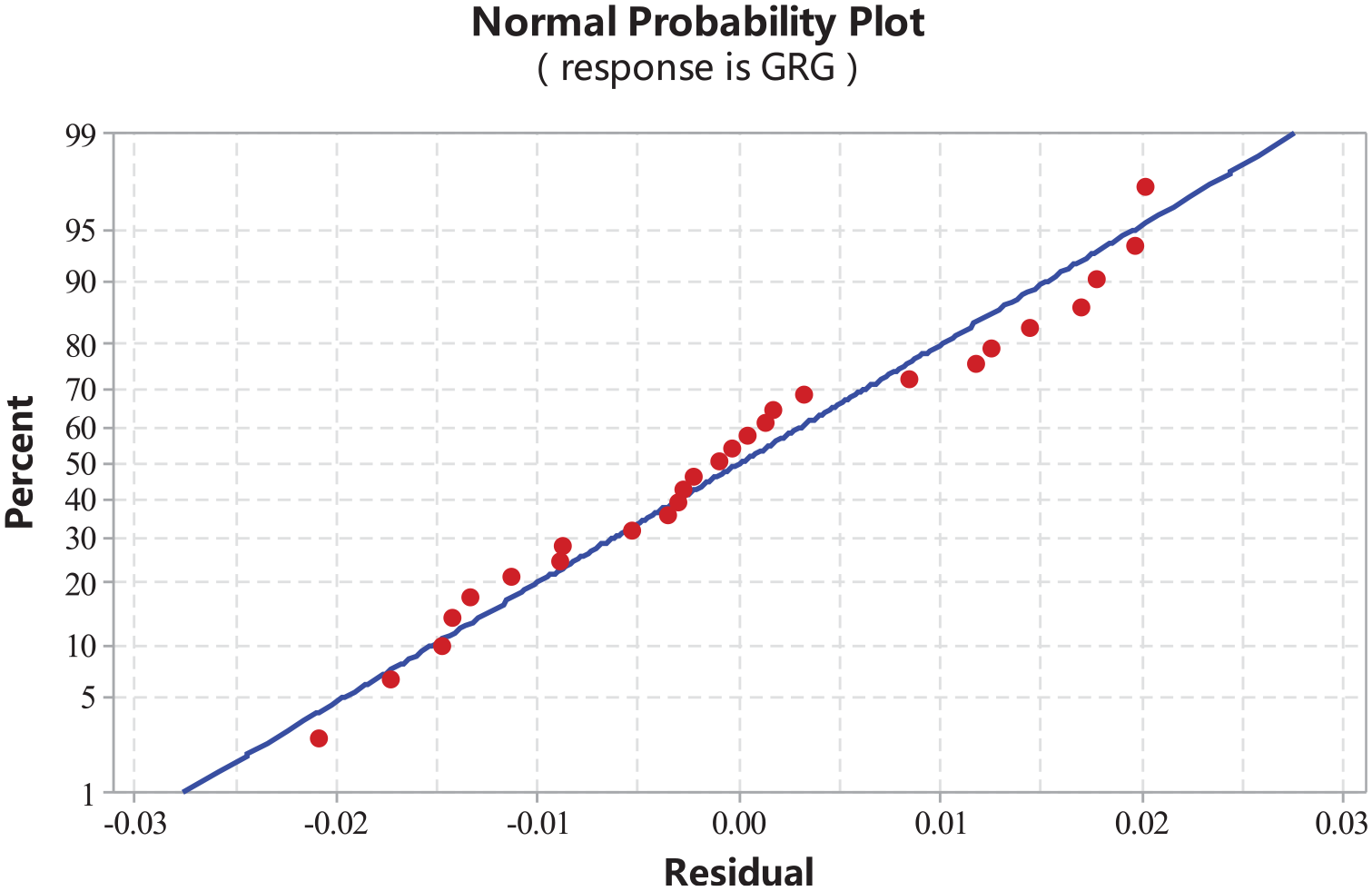

Figure 8 shows the normal probability plot of the GRG residual, which forms a straight line and indicates that this model is effective. Figure 9 shows a plot of the residual versus the fitted values for the GRG. Because there are no obvious patterns or abnormal structures, it is clear that the developed model is adequate to evaluate the GRG.¹⁸

Figure 8.

Normal probability plot of residual for GRG.

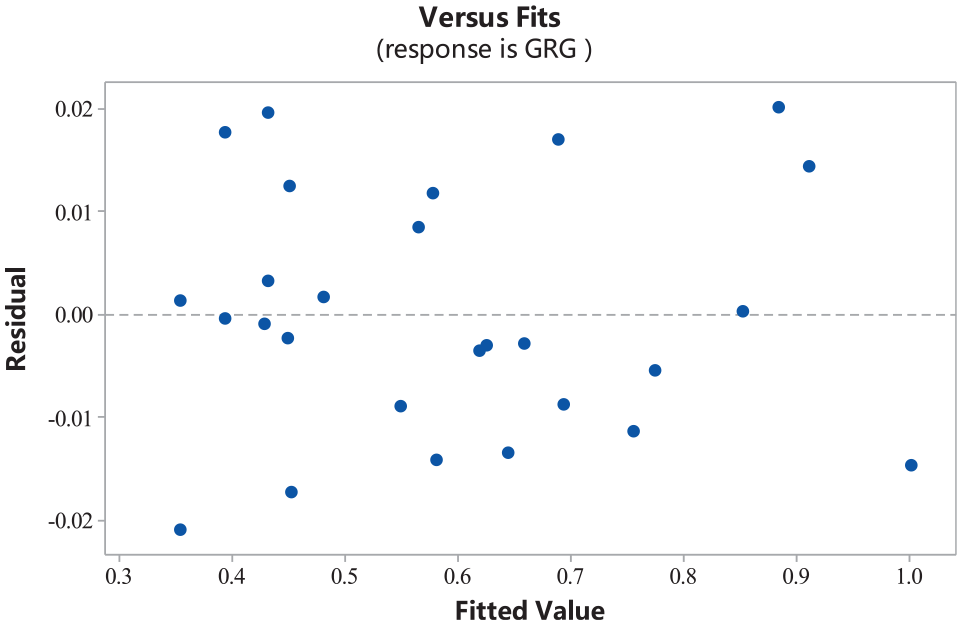

Figure 9.

Plot of residual versus fitted values for GRG.

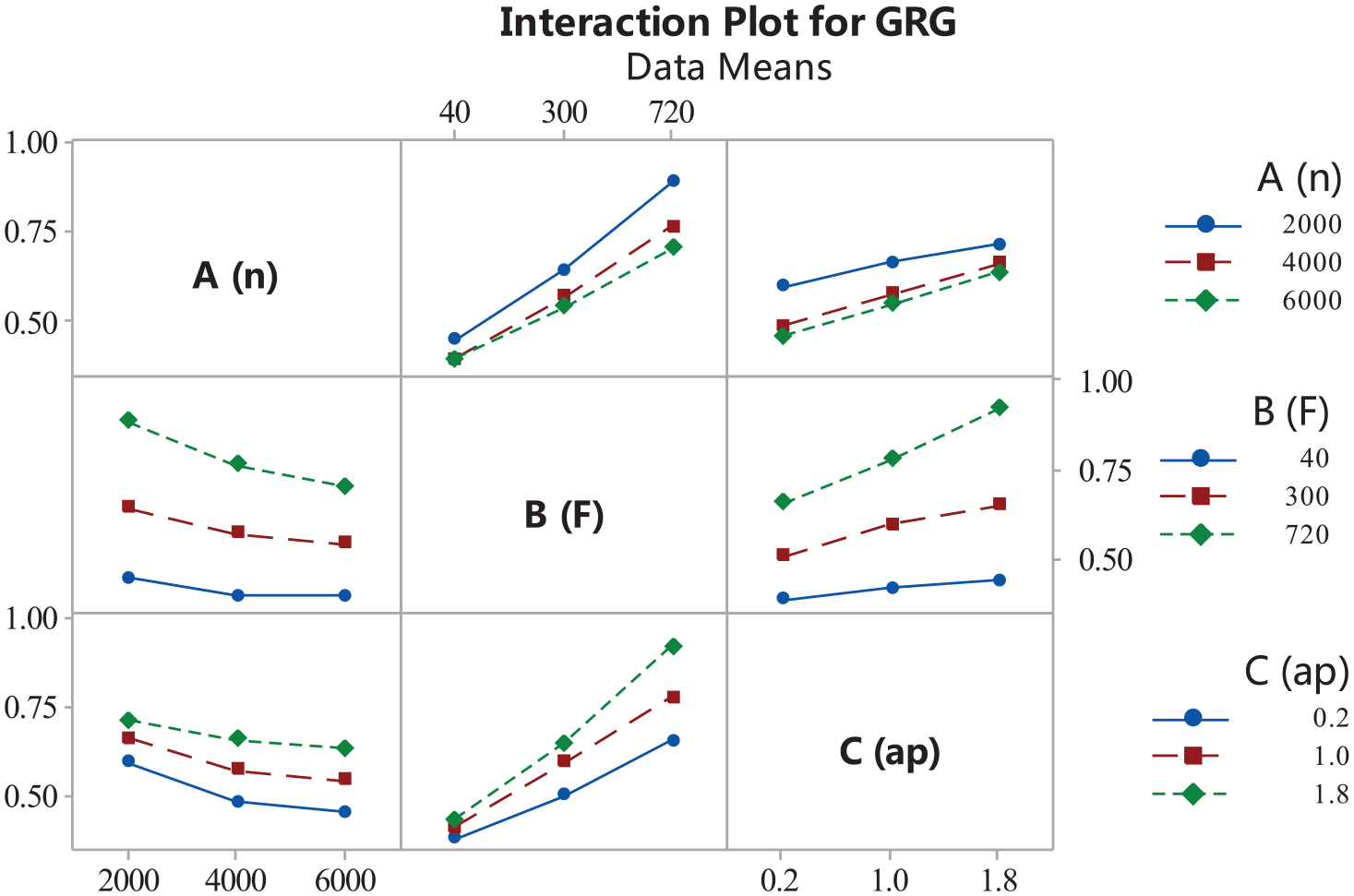

Influence of parameters on GRG

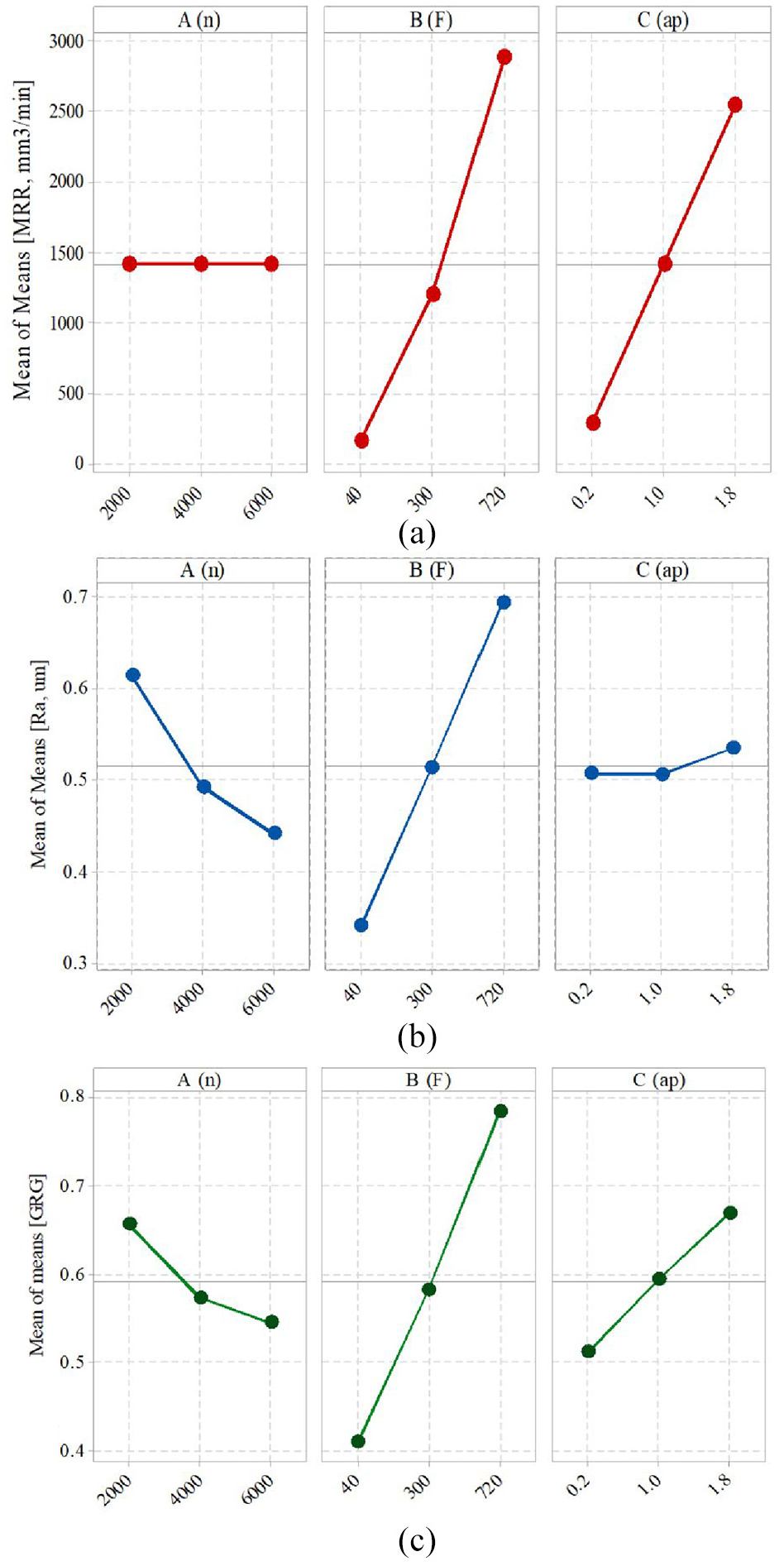

Figure 10 shows the main effect plot for MRR, Ra and GRG. The horizontal line is the average value. A larger line slope indicates a greater impact on the response. Figure 10(a) shows that the influence of cutting parameters on MRR is: F > ap > n. The optimal combination of processing parameters for MRR are level 3 for feed rate and cut depth, and spindle speed has no effect on MRR. By the same token, Figure 10(b) shows that the influence of cutting parameters on Ra is: F > n > ap. Ra decreases as spindle speed grows but increases as feed rate grows. Cut depth has the minimal impact on Ra. When ap is 0.2 mm and 1 mm, Ra doesn’t change much, and when ap is 1.8 mm, Ra increases significantly. Figure 10(c) shows that the slope of feed rate was largest, followed by cut depth and spindle speed. To obtain a high surface quality at a high machine efficiency, the optimal values are levels 3, 3, and 1 for feed rate, cut depth and spindle speed, respectively. This result is also consistent with the parameters corresponding to the maximum GRG value in Table 3.

Figure 10.

(a) Main effects plot for material removal rate (MRR), (b) main effects plot for average surface roughness (Ra), (c) main effects plot for material removal rate (GRG).

The interaction plot for GRG is shown in Figure 11. In the two graphs in the first row, the line space is smallest, which indicates that the spindle speed had the smallest effect on the GRG. The feed rate had the greatest impact on the GRG, and the cut depth is second largest. The graphs in the second column show that when the feed rate is at level 1, the GRG value remains virtually unchanged regardless of the spindle speed and cut depth. The interaction graph shows that the maximum GRG value appears when the spindle speed is at level 1, and the feed rate and cut depth are at level 3.

Figure 11.

Interaction plot for GRG.

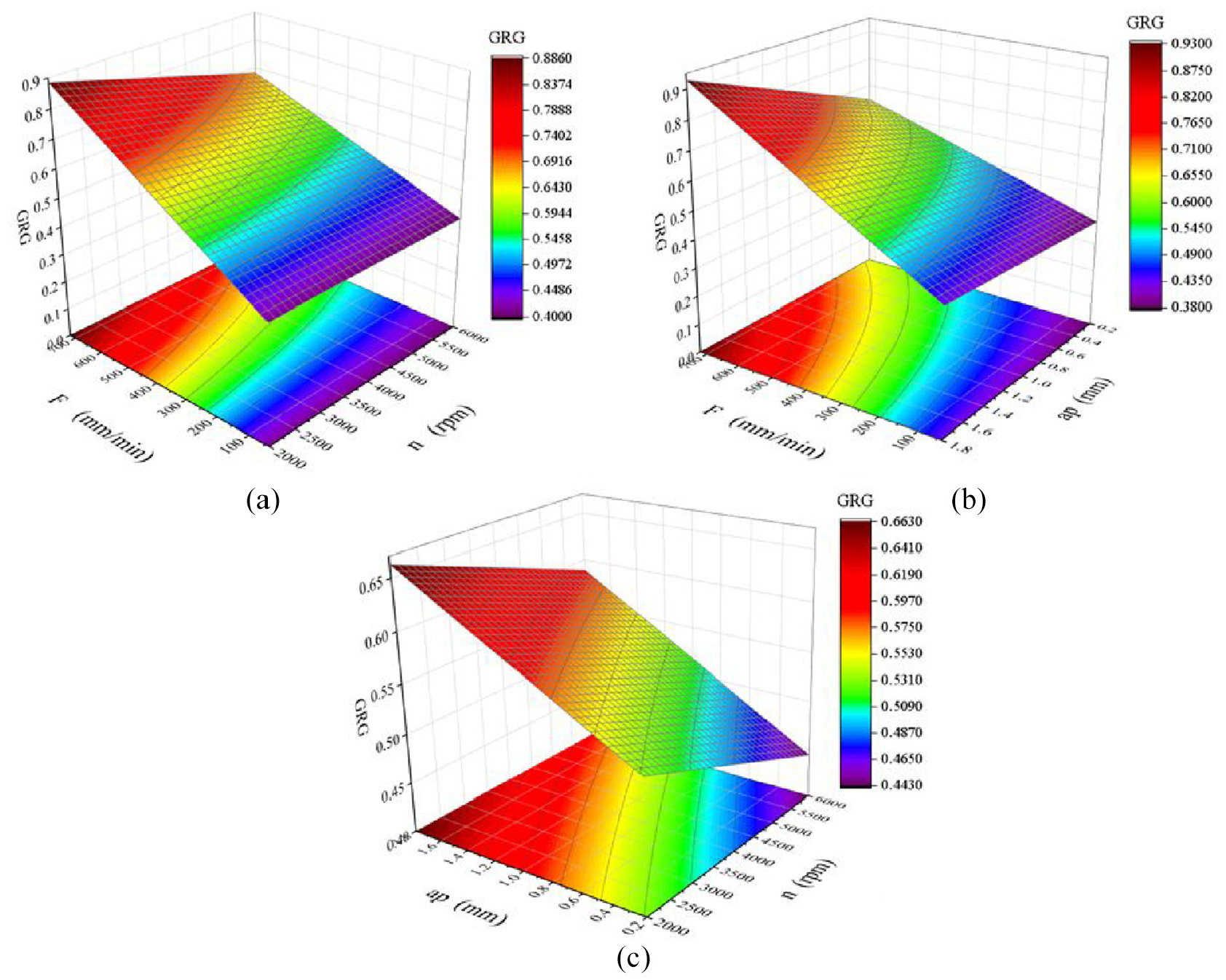

Figure 12 shows the three-dimensional surface and contour plots that represent the influence of the three milling parameters on the GRG. As shown in Figure 12(a), feed rate influenced the GRG more than the spindle speed. The GRG was a maximum at a smaller spindle speed and larger feed rate and increased with an increase in feed rate. The influence of feed rate and cut depth on the GRG at a spindle speed of 4000 rpm is shown in Figure 12(b). The GRG was a maximum at a larger feed rate and cut depth. Even at smaller cutting depths, with an increase of feed rate the CRG increased and when feed rate is large, the GRG increased with the increase of cut depth. Figure 12(c) confirms that the GRG is a maximum at larger cut depth but at lower spindle speed. With an increase in cut depth, the GRG increases, but compared with Figure 12(a), the maximum GRG was lower. The 3D surface and contour plots show the relationship between the GRG and the machining parameters, namely the spindle speed, feed rate and cut depth. These results can serve as a guide for operators to select the appropriate machining parameters.

Figure 12.

(a) surface and contour plot showing the influence of feed rate and spindle speed on GRG at 1 mm depth of cut, (b) surface and contour plot showing the influence of feed rate and depth of cut on GRG at 4000 rpm spindle speed, (c) surface and contour plot showing the influence of depth of cut and spindle speed on GRG at 300 mm/min feed rate.

Optimum GRG values

The goal of this study was to determine the optimal combination of machining parameters to obtain the minimum surface roughness and maximum machining efficiency. To achieve this goal, Minitab 18 was used for the response surface optimization and the result is shown in Figure 13. The optimal combination was a spindle speed of 2600 rpm, a feed rate of 720 mm/min and a cut depth of 1.8 mm.

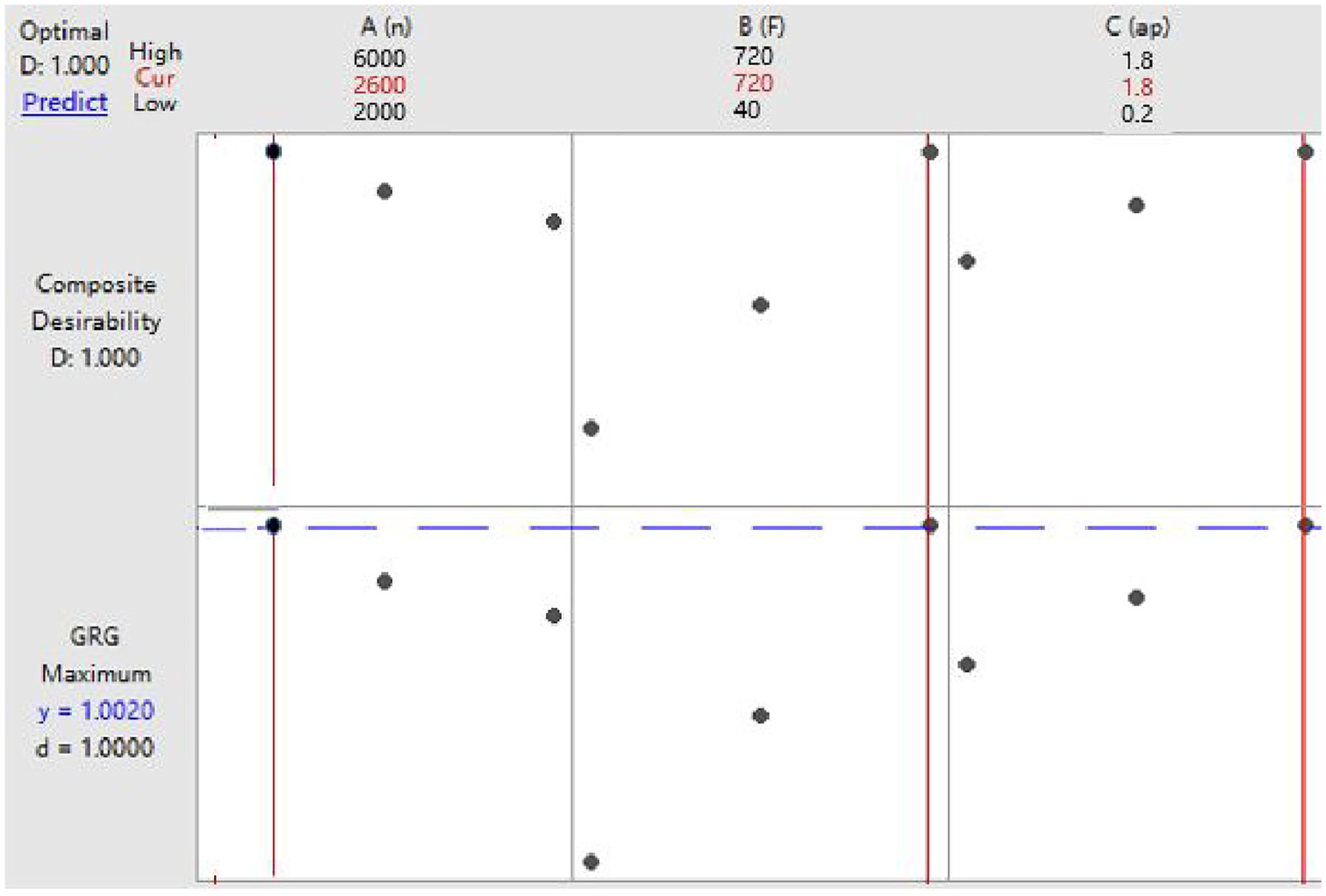

Figure 13.

Optimization plot of GRG using response optimizer.

Confirmation experiment

The optimal machining parameters for the confirmation experiment are shown in Table 8. The results of the conﬁrmation experiment for the surface roughness and material removal rate are listed in Table 8. It is concluded that the optimal machining parameters can lead to better surface roughness.

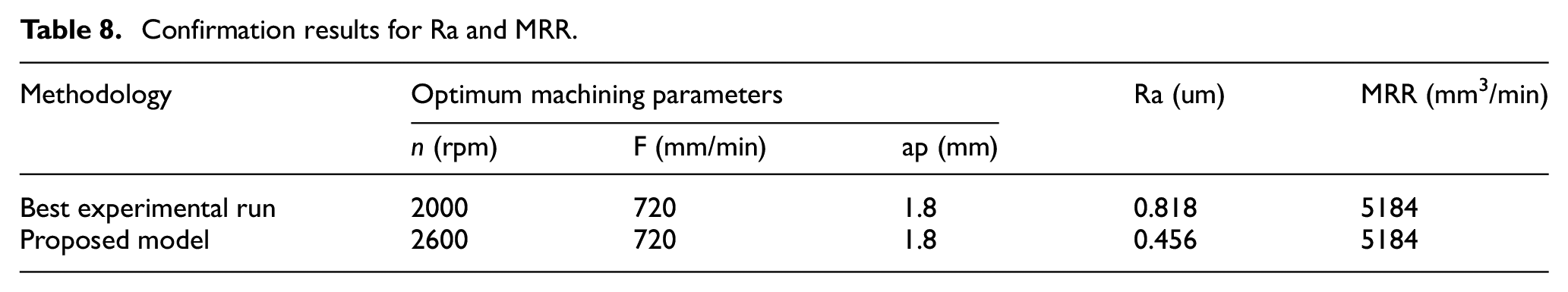

Table 8.

Confirmation results for Ra and MRR.

Methodology	Optimum machining parameters			Ra (um)	MRR (mm³/min)
	n (rpm)	F (mm/min)	ap (mm)
Best experimental run	2000	720	1.8	0.818	5184
Proposed model	2600	720	1.8	0.456	5184

Discussion

The influence of cutting parameters on material removal rate and surface roughness

As can be seen from equation (17), material removal rate is related to cut width, feed rate and cut depth and MRR increases with the increase of these three parameters. However, spindle speed has no effect on MRR.

The surface roughness increases with increase of feed rate. This can be explained by the theoretical surface roughness formula: Ra ≈f²/ 8r, where r is nose radius of the cutting tool and f is feed rate.¹² Because when feed rate increases, it means more heat and vibration will be created and therefore lead to higher surface roughness.²⁶ The surface roughness decreases with increase of spindle speed. This situation can be explained as an increase of spindle speed will reduces the formation of build-up edge and vibration, which is benefit for surface quality.²⁷

Comparison of relevant literature

This paper provides an optimization of material removal rate and surface roughness simultaneously during a milling of 30% CF-PEEK. During the literature research, the author found only one research paper²⁸ related to optimization of MRR and Ra. In that paper, the effects of cutting speed, feed rate and depth of cut on surface roughness and material removal rate during turning of X20Cr13 were investigated using Taguchi experimental design method and ANOVA. It was concluded that feed rate and depth of cut were the most significant factors for Ra and MRR respectively. The current research also shows that feed rate and depth of cut were the most significant factors for MRR. But for surface roughness, the most significant factors are feed rate and spindle speed, which is different from the Lakhdar Bouzid’s²⁸ results. This may be because of difference in the workpiece material and cutting mode (turning and milling). Not only metal and plastic materials are different in cutting properties, but also different plastics. Tushar U Jagtap et al.²⁹ proposed a review paper on the machining of polymers: cases of turning, milling, and drilling. The authors indicated that the behavior regarding machining of various polymers is not the same. For example, Azmi AI et al.⁹ studied the Machinability study of glass fiber-reinforced polymer composites during end milling. This study revealed that feed rate is the governing factor affecting all the machinability outputs. Therefore, the study of machining properties of 30% CF-PEEK composite material is necessary.

Unlike Hanafi et al.³⁰ the weights of the two factors (material removal rate and surface roughness) in this paper are not assumed, but determined by using principal component analysis.

Hanafi et al.,³⁰ Camposeco-Negrete et al.³¹ and Emami et al.³² only provide the average value of response for a level of parameters. However, this study not only gives the average value of response but also gives 3D surfaces created by using RSM, it will give operators the effect of parameters on response. It is an important and realistic guidance.

Conclusion

This study presents a multi-objective optimization model to minimize the surface roughness and maximize the cutting efficiency during the machining of 30% CF-PEEK. It has been concluded that optimum machining parameters can be obtained by the predictive model and the predictive model was statistically significant by ANOVA. It was observed that feed rate is the main cutting parameter for the maximization of cutting efficiency and the minimization of surface roughness followed by the cut depth and spindle speed. The optimal combination of cutting parameters was a spindle speed of 2600 rpm, a feed rate of 720 mm/min, and a cut depth of 1.8 mm. For material removal rate, feed rate is the main influencing parameter followed by depth of cut and spindle speed doesn’t have effect on material removal rate. For surface roughness, feed rate is the main influencing parameter followed by spindle speed and depth of cut. For operators, the 3D surface and contour plots will be a good reference for choosing the optimal machining parameters. It is also useful for machine tool manufactures to give a proper range of cutting parameters for particular application. This study can be a reference for analyzing the effect of different machining parameters and tools on material removal rate and surface roughness during machining other material.

Footnotes

Notation

$Ra$ Surface roughness

$MRR$ Material removal rate

$n$ Spindle speed

$F$ Feed rate

ap Cut depth

$x_{i}^{(o)} (k)$ Original sequence

$x_{i}^{*} (k)$ Dimensionless sequence

$x_{0}^{*} (k)$ Reference sequence

$Δ_{oi} (k)$ Deviational sequence

$γ (x_{0}^{*} (k), x_{i}^{*} (k))$ Grey relational coefficient

$ξ$ Distinguishing coefficient

$γ (x_{o}^{*}, x_{i}^{*})$ Grey relational grade

$β_{k}$ Weight of the k^th response variable

$X$ Output characteristic matrix

$μ_{j}$ Sample mean of the j^th indicator

$s_{i}$ Sample variance of the j^th indicator

$\bar{x_{j}}$ Standardized indicator variable

$R$ Correlation coefficient

$λ_{m}$ Eigenvalue

$μ_{m}$ Eigenvector

$y_{m}$ The m^th principal component

$a_{p}$ Cumulative contribution rate of the first p^th principal components

$R$ Response

$d$ Regression coefficient

ae Cut width

$\bar{n_{1}}$ The average GRG for spindle speed at level 1

Handling Editor: Min Zhang

Declaration of Conflicting Interest

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work is supported by the National Natural Science Foundation of China (Grant No. 51674251).

ORCID iD

Xuehui Li

References

Zhao

, et al. Comparison of mechanical property and machinability for polyetheretherketone and glass fiber–reinforced polyetheretherketone. Adv Mech Eng 2015; 7: 168781401557835.

Garcia-Gonzalez

Rodriguez-Millan

Rusinek

, et al. Investigation of mechanical impact behavior of short carbon-fiber-reinforced PEEK composites. Compos Struct 2015; 133: 1116–1126.

Mata

Gaitonde

Karnik

, et al. Influence of cutting conditions on machinability aspects of PEEK, PEEK CF 30 and PEEK GF 30 composites using PCD tools. J Mater Process Technol 2009; 209: 1980–1987.

Liu

Tao

, et al. Influence of cenosphere on tribological properties of short carbon fiber reinforced PEEK composites. J Appl Polym Sci 2019; 136: 47245.

Petropoulos

Mata

Davim

JP.

Statistical study of surface roughness in turning of peek composites. Mater Design 2008; 29: 218–223.

Davim

Reis

Damage and dimensional precision on milling carbon fiber-reinforced plastics using design experiments. J Mater Process Technol 2005; 160: 160–167.

Xiao

Gao

An analytical approach to cutting force prediction in milling of carbon fiber reinforced polymer laminates. Mach Sci Technol 2018; 22: 1012–1028.

Hanafi

Cabrera

Dimane

, et al. Application of particle swarm optimization for optimizing the process parameters in turning of PEEK CF30 composites. Procedia Technol 2016; 22: 195–202.

Azmi

Lin

RJT

Bhattacharyya

Machinability study of glass fibre-reinforced polymer composites during end milling. Int J Adv Manuf Technol 2012; 64: 247–261.

10.

Shi

Zhang

Ren

Optimization of process parameters for surface roughness and microhardness in dry milling of magnesium alloy using Taguchi with grey relational analysis. Int J Adv Manuf Technol 2015; 81: 645–651.

11.

Rajeswari

Amirthagadeswaran

KS.

Experimental investigation of machinability characteristics and multi-response optimization of end milling in aluminium composites using RSM based grey relational analysis. Measurement 2017; 105: 78–86.

12.

Kant

Sangwan

KS.

Prediction and optimization of machining parameters for minimizing power consumption and surface roughness in machining. J Clean Prod 2014; 83: 151–164.

13.

Öktem

Erzurumlu

Çöl

A study of the Taguchi optimization method for surface roughness in finish milling of mold surfaces. Int J Adv Manuf Technol 2005; 28: 694–700.

14.

Bagaber

Yusoff

AR.

Multi-objective optimization of cutting parameters to minimize power consumption in dry turning of stainless steel 316. J Clean Prod 2017; 157: 30–46.

15.

Mia

Dhar

NR.

Prediction and optimization by using SVR, RSM and GA in hard turning of tempered AISI 1060 steel under effective cooling condition. Neural Comput Appl 2017; 31: 2349–2370.

16.

Mia

Dhar

NR.

Optimization of surface roughness and cutting temperature in high-pressure coolant-assisted hard turning using Taguchi method. Int J Adv Manuf Technol 2016; 88: 739–753.

17.

Selvarajan

Narayanan

JeyaPaul

Optimization of EDM parameters on machining Si3N4–TiN composite for improving circularity, cylindricity, and perpendicularity. Mater Manuf Process 2015; 31: 405–412.

18.

Adalarasan

Santhanakumar

Shanmuga Sundaram

Optimization of weld characteristics of friction welded AA 6061-AA 6351 joints using grey-principal component analysis (G-PCA). J Mech Sci Technol 2014; 28: 301–307.

19.

Haq

Marimuthu

Jeyapaul

Multi response optimization of machining parameters of drilling Al/SiC metal matrix composite using grey relational analysis in the Taguchi method. Int J Adv Manuf Technol 2007; 37: 250–255.

20.

Chang

Hwang

, et al. Grey relational analysis coupled with principal component analysis for optimization design of the cutting parameters in high-speed end milling. J Mater Process Technol 2009; 209: 3808–3817.

21.

Prasanna

Karunamoorthy

Venkat Raman

, et al. Optimization of process parameters of small hole dry drilling in Ti–6Al–4V using Taguchi and grey relational analysis. Measurement 2014; 48: 346–354.

22.

Dakhli

Boulila

Manach

P-Y

, et al. Optimization of processing parameters and surface roughness of metallic sheets plastically deformed by incremental forming process. Int J Adv Manuf Technol 2019; 102: 977–990.

23.

Sun

Zhao

, et al. Study about mechanical property and machinability of carbon-fiber reinforced polyetheretherketone. J Comput Theor Nanosci 2015; 12: 2969–2973.

24.

Chabbi

Yallese

Nouioua

, et al. Modeling and optimization of turning process parameters during the cutting of polymer (POM C) based on RSM, ANN, and DF methods. Int J Adv Manuf Technol 2017; 91: 2267–2290.

25.

Mulay

Ben

Ismail

, et al. Experimental investigations into the effects of SPIF forming conditions on surface roughness and formability by design of experiments. J Braz Soc Mech Sci Eng 2017; 39: 3997–4010.

26.

Sarıkaya

Güllü

Taguchi design and response surface methodology based analysis of machining parameters in CNC turning under MQL. J Clean Prod 2014; 65: 604–616.

27.

Cakir

Ensarioglu

Demirayak

Mathematical modeling of surface roughness for evaluating the effects of cutting parameters and coating material. J Mater Process Technol 2009; 209: 102–109.

28.

Bouzid

Boutabba

Yallese

, et al. Simultaneous optimization of surface roughness and material removal rate for turning of X20Cr13 stainless steel. Int J Adv Manuf Technol 2014; 74: 879–891.

29.

Jagtap

Mandave

HA.

Machining of plastics: a review. Int J Eng Res Gen Sci 2015; 3: 2091–2730.

30.

Hanafi

Khamlichi

Cabrera

, et al. Optimization of cutting conditions for sustainable machining of PEEK-CF30 using TiN tools. J Clean Prod 2012; 33: 1–9.

31.

Camposeco-Negrete

Optimization of cutting parameters for minimizing energy consumption in turning of AISI 6061 T6 using Taguchi methodology and ANOVA. J Clean Prod 2013; 53: 195–203.

32.

Emami

Sadeghi

Sarhan

, et al. Investigating the minimum quantity lubrication in grinding of Al2O3 engineering ceramic. J Clean Prod 2014; 66: 632–643.
