Lightweight and green design of general bridge crane structure based on multi- specular reflection algorithm

Abstract

At present, there are some problems that need to be solved in crane steel structure design, such as heavy self-weight of finished structure, high production energy consumption, and huge manufacturing costs. In view of this, a lightweight design method that meets the green product design principle is proposed for crane structure. In this method, an improved new swarm intelligence optimization algorithm named the multi-specular reflection algorithm (M-SRA) is proposed. This algorithm combines the specular reflection algorithm (SRA) with the traditional swarm intelligence optimization algorithm, which has higher computational efficiency. After that, M-SRA is applied to crane steel structure optimization. The results show that the improved algorithm has higher global searching ability and computational efficiency than traditional population intelligence optimization algorithms. The research in this paper provides a reliable design method for the green lightweight design of crane steel structure and a reference for the green design of mechanical products.

Keywords

Crane structure light weight optimization green

Introduction

In the manufacturing industry, cranes are important material handling equipment, which can be widely used in engineering construction and material handling processes. Due to the rapid development of the global economy, mechanical design and manufacturing technology are also continuously upgrading, which accelerates the urgency of crane development. As one of the most common lifting equipment, general bridge cranes are widely used in various fields, including: machinery manufacturing, material handling, product maintenance, and so on. The steelstructure of one crane means its basic force-bearing component, and the quality of steel structure is a decisive factor for safety performance for a crane. In recent years, lightweight, low energy consumption, and intelligence have become the direction of crane manufacturing technology. However, in order to solve the problem of complicated crane working load and huge impact caused by large speed changes, designers often choose a larger safety factor, which leads to greater structural design redundancy, excessive crane weight, unreasonable structure, and low material utilization. High energy consumption and other shortcomings increase the using cost of one crane, and lead to a huge consumption of ecological resources and giant discharge of pollutants. Considering the above problem, the need for a green and lightweight design of cranes is more pressing.

At present, the lightweight of cranes is mainly in terms of structure optimization. Design methods such as topology optimization, shape optimization, and size optimization are used to optimize the steel structure of the crane or its parts. There are many studies that have explored the above problems. Li et al.¹ established a rapid lightweight design system for cranes, which integrated zero-order optimization, parameter rounding, and partial secondary optimization after rounding, so that the weight of the crane structure is reduced by 10% and the cost is saved. Li and Liu² adopted the design method of super-element global modal parameterization, and they carried out lightweight design of crane frame structure. Deng et al.³ took the trackless telescopic gantry crane structure as the research object, through ANSYS software, the weight of the crane steel structure is optimized by 23.4%, which improves the utilization rate of materials

Xiao et al.⁴ adopted the topology optimization method to carry out the lightweight design of the crane gearbox, which verified the rationality of the box improvement method. Jiao et al.^5,6 established a mathematical model for periodic topology optimization of the main girder, taken the volume as the constraint and the minimum flexibility as the goal, this method provides a reference for the optimization of the size and shape of the general bridge crane. Li and Liu⁷ used super-element technology combined with topology optimization technology to optimize the crane frame structure, and used finite element analysis and fatigue tests to verify that the super-element method can handle complex structures.

Although the topology optimization method can acquire a lighter crane steel structure and achieve the purpose of lightweight, the complexity of the crane structure’s topology shape increases the difficulty of the manufacturing process. Different from topology optimization, size optimization of the whole crane or its parts is more common in the field of structural optimization. Qu et al.⁸ combined the ant colony algorithm with mutation-based local search (ACAM), and the optimization efficiency is better than other intelligent algorithms. Fan and Zhi⁹ applied the RBDO method to the actual crane structure to balance economy and safety, and the convergence speed was increased by three times. Tang et al.¹⁰ used the advantages of the Latin hypercube design, BP neural network, and Hooke-Jeeves three design methods to propose a more efficient crane optimization method. Savković et al.¹¹ used the firefly algorithm, bat algorithm, and cuckoo search algorithm to optimize the design of single-girder bridge crane steel structures, and revealed the advantages and disadvantages of each algorithm in solving the crane steel structure. However, the constraints of material fatigue, manufacturing technology, and economic costs are not considered.

Since the determination of the design parameters of the main girder of the crane is a very complicated task, considering the constraints introduced in the optimization process, the selection problem of the optimization algorithm will arise. Neither traditional optimization methods nor direct search methods can give accurate solutions in the global optimal area. Fortunately, modern intelligent optimization algorithms can quickly and accurately find the optimal solution in the global area. In the field of modern intelligent optimization algorithms research: Prayogo et al.¹² proposed a new hybrid meta-heuristic algorithm – (DBB-BC), this algorithm improves the exploration and exploitation capabilities of the original BB-BC algorithm, especially in Looking for global solutions. Oliveira and Pessoa¹³ proposed an improved branch-Cut-and-Price algorithm for Parallel Machine Scheduling Problems. Tawhid and Savsani¹⁴ proposed a new artificial algae algorithm, which can be used to solve multi-objective engineering optimization design problems. Arora and Singh¹⁵ proposed a butterfly optimization algorithm by simulating the behavior of butterflies looking for food and mating. Hakli¹⁶ proposed an improved algorithm based on the traditional elephant group optimization algorithm (EHO).^17–19 Inspired by (PSO) search operator, Wang et al.²⁰ improved the artificial bee colony algorithm to handle the proposed dual-objective optimization model. Gu et al.²¹ designed an adaptive step size control factor to control the search range of the evolution phase of the algorithm, and proposed a multi-neighborhood local search method to search the high-quality solution region. A hybrid cuckoo search algorithm (HCSA) is proposed. In addition, there are cuckoo and its improved algorithm,^22–26 whale algorithm,^27–29 wolf pack algorithm,^30–32 lion algorithm,^33–36 monkey algorithm,^37–39 dolphin algorithm,⁴⁰ etc. The above algorithms provide a reference for the optimization of engineering products.

The algorithm-based lightweight design method of the main girder has been relatively established in theoretical application, but there still remain some shortcomings. From the perspective of the research object, the researchers not only didn’t make detailed steel structure design on a specific model of crane, but also didn’t consider the influence of the simplified structure model on the calculation results. From perspective of the verification method, the structural stress test of the crane under actual work hasn’t been carried out, and most of the researches are analyzed and verified by finite element or similar theoretical models, which leads to the partiality, contingency, and incompleteness of the research results. In this paper, through a combination of theoretical analysis and experimental verification, the lightweight design of the crane’s main girder structure is carried out. A dynamic loading test was carried out on the main girder structure of the crane, which verified the rationality of the simplified structural model. The best results were found in the lightweight design of the crane, while meeting the requirements of the design specifications, thus decreasing the use of materials. This paper provides a scientific and effective design method for the green design of crane steel structure.

Multi-specular reflection algorithm (M-SRA)

Introduction to M-SRA

M-SRA is a new type of hybrid intelligent optimization algorithm, which is evolved from the Specular Reflection Algorithm.^41,42 Early versions of various swarm intelligence algorithms usually occur premature, and the best results can be achieved by making certain corrections or combining with other algorithms. Like the Specular Reflection Algorithm (SRA), the principle of M-SRA is to simulate the reflection phenomenon of light from the mirror surface, and the observer finds the target object through this natural phenomenon. The practical meaning of the M-SRA is shown in Figure 1. In the design space, all single-specular reflection models are used to find the target object (the book in Figure 1). But in some extraordinary cases, the target object is difficult to be found. In this case, it needs the help of mirrors to change the direction of light propagation in order to find the target object.

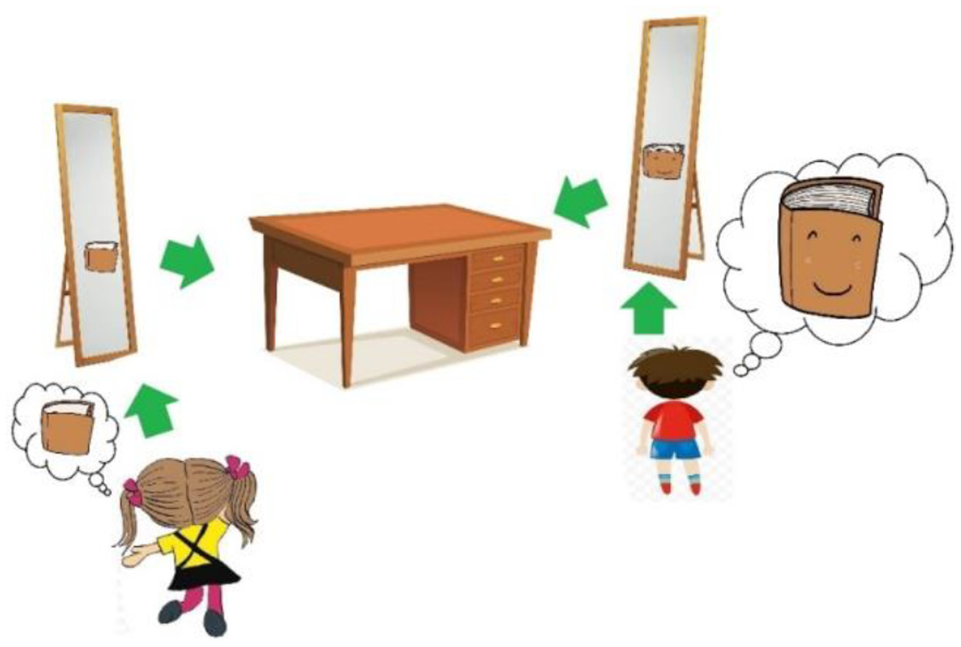

Figure 1.

The schematic diagram of M-SRA.

Taking the minimization optimization problem as an example, the M-SRA is used to optimize the design of the actual problem. The calculation process is as follows:

(1) Randomly search for initial feasible solutions $x_{i} (i = 1, 2, \dots 3 n - 1, 3 n)$ in feasible region. The number of initial feasible solutions is $3 n$ , where n is the number of mirrors.

(2) According to the known initial feasible solution, the number of specular reflection models is determined as n, and each specular reflection model contains three subjects: mirror, specular reflection image, and observer.

(3) $f (x_{i})$ is the objective function value of each feasible solution, which the objective function value is the clarity of the observed object. The smaller the objective function value, the better the position of the observer, and the higher the clarity of the object being observed.

(4) According to the value of $f (x_{i})$ , each specular reflection model is defined by a method. In this method, according to the three initial solutions in each group of specular reflection models, six kinds of permutations and combinations of sizes can be generated, as shown in Table 1, and they all conform to the ruler, as shown in equation (1).

f (x_{n}^{Imagine}) < f (x_{n}^{Mirror}) < f (x_{n}^{Observer})

(1)

(5) According to the current specular reflection model, search for the target object in the feasible space. $x_{n}^{New_1}$ and $x_{n}^{New_2}$ are the new solutions generated, and the search method of the new solutions is shown in the equations (2) and (3):

x_{n}^{New_1} = x_{n}^{Imagine} + ξ \cdot (2 \cdot rand - 1) (x_{n}^{Imagine} - x_{n}^{Observer})

(2)

\begin{matrix} x_{n}^{New_2} = \\ x_{n}^{Imagine} + ξ \cdot (2 \cdot rand - 1) (2 x_{n}^{Imagine} - x_{n}^{Mirror} - x_{n}^{Observer}) \end{matrix}

(3)

Where rand is a function that can generate random numbers uniformly distributed between (0, 1), $ξ$ is the step expansion coefficient, which is used to expand the search space.

(6) Compare the objective function values of the two new solutions, choose the better parameter of the two as the new solution $x_{n}^{New}$ , the alternative method of the new solution is shown in equation (4).

\begin{matrix} f (x_{n}^{New_1}) < f (x_{n}^{New_2}), x_{n}^{New} = x_{n}^{New_1} \\ f (x_{n}^{New_2}) < f (x_{n}^{New_1}), x_{n}^{New} = x_{n}^{New_2} \end{matrix}

(4)

(7) The way to update the current specular reflection model is shown in Table 2, that is, the update strategy of the search point;

(8) Set the stopping criterion and judge whether the algorithm satisfies the stopping criterion. If so, stop the calculation and output the best solution, otherwise return to step 5 to continue the calculation.

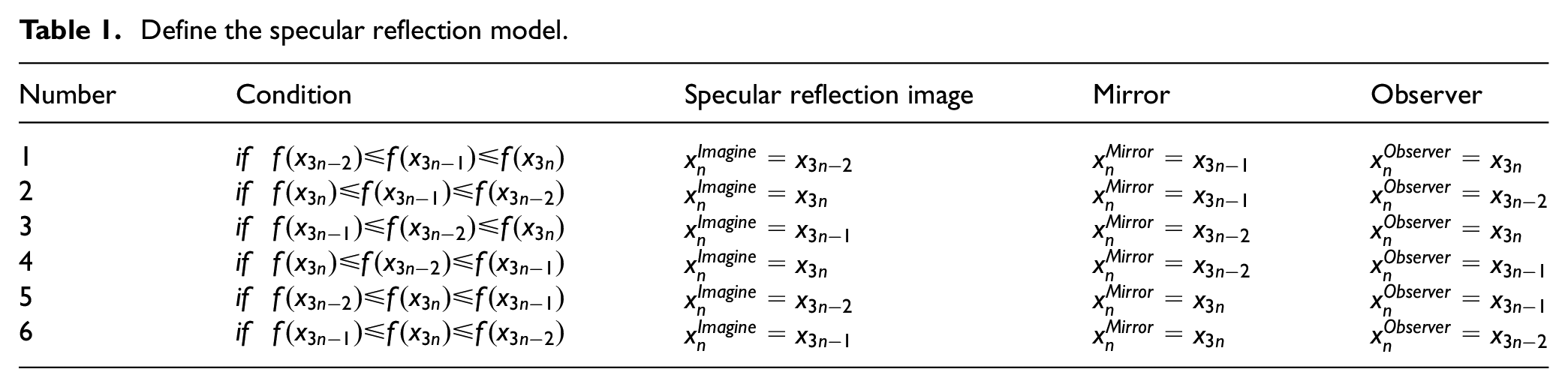

Table 1.

Define the specular reflection model.

Number	Condition	Specular reflection image	Mirror	Observer
1	$if f (x_{3 n - 2}) \leq f (x_{3 n - 1}) \leq f (x_{3 n})$	$x_{n}^{Imagine} = x_{3 n - 2}$	$x_{n}^{Mirror} = x_{3 n - 1}$	$x_{n}^{Observer} = x_{3 n}$
2	$if f (x_{3 n}) \leq f (x_{3 n - 1}) \leq f (x_{3 n - 2})$	$x_{n}^{Imagine} = x_{3 n}$	$x_{n}^{Mirror} = x_{3 n - 1}$	$x_{n}^{Observer} = x_{3 n - 2}$
3	$if f (x_{3 n - 1}) \leq f (x_{3 n - 2}) \leq f (x_{3 n})$	$x_{n}^{Imagine} = x_{3 n - 1}$	$x_{n}^{Mirror} = x_{3 n - 2}$	$x_{n}^{Observer} = x_{3 n}$
4	$if f (x_{3 n}) \leq f (x_{3 n - 2}) \leq f (x_{3 n - 1})$	$x_{n}^{Imagine} = x_{3 n}$	$x_{n}^{Mirror} = x_{3 n - 2}$	$x_{n}^{Observer} = x_{3 n - 1}$
5	$if f (x_{3 n - 2}) \leq f (x_{3 n}) \leq f (x_{3 n - 1})$	$x_{n}^{Imagine} = x_{3 n - 2}$	$x_{n}^{Mirror} = x_{3 n}$	$x_{n}^{Observer} = x_{3 n - 1}$
6	$if f (x_{3 n - 1}) \leq f (x_{3 n}) \leq f (x_{3 n - 2})$	$x_{n}^{Imagine} = x_{3 n - 1}$	$x_{n}^{Mirror} = x_{3 n}$	$x_{n}^{Observer} = x_{3 n - 2}$

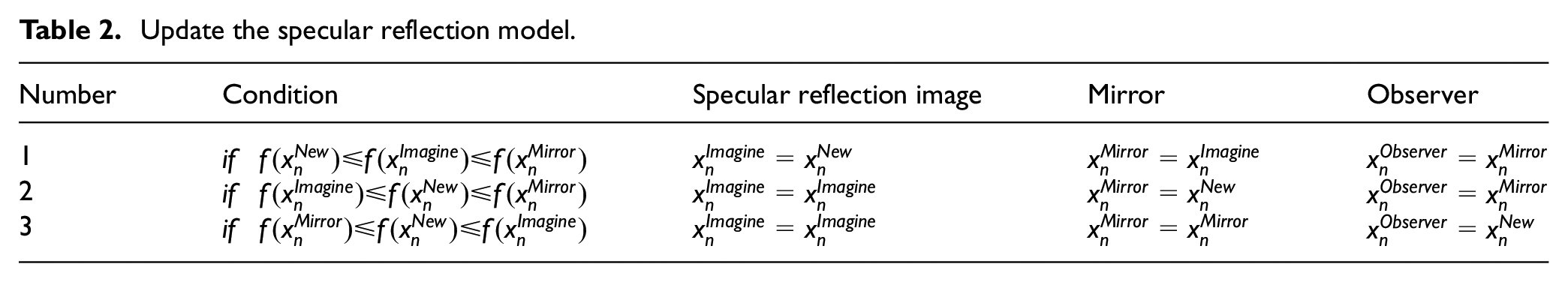

Table 2.

Update the specular reflection model.

Number	Condition	Specular reflection image	Mirror	Observer
1	$if f (x_{n}^{New}) \leq f (x_{n}^{Imagine}) \leq f (x_{n}^{Mirror})$	$x_{n}^{Imagine} = x_{n}^{New}$	$x_{n}^{Mirror} = x_{n}^{Imagine}$	$x_{n}^{Observer} = x_{n}^{Mirror}$
2	$if f (x_{n}^{Imagine}) \leq f (x_{n}^{New}) \leq f (x_{n}^{Mirror})$	$x_{n}^{Imagine} = x_{n}^{Imagine}$	$x_{n}^{Mirror} = x_{n}^{New}$	$x_{n}^{Observer} = x_{n}^{Mirror}$
3	$if f (x_{n}^{Mirror}) \leq f (x_{n}^{New}) \leq f (x_{n}^{Imagine})$	$x_{n}^{Imagine} = x_{n}^{Imagine}$	$x_{n}^{Mirror} = x_{n}^{Mirror}$	$x_{n}^{Observer} = x_{n}^{New}$

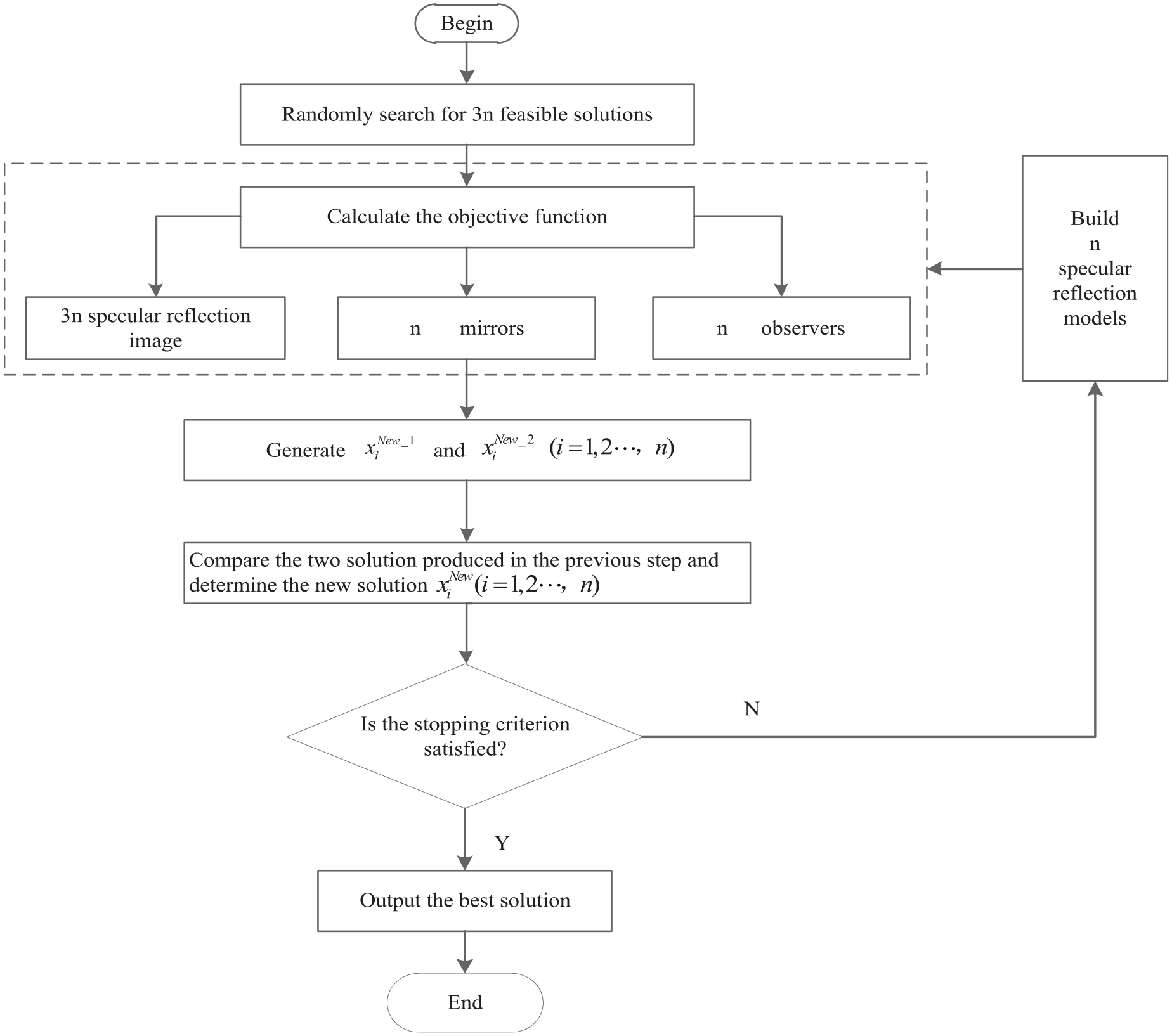

The flow chart of M-SRA is shown in Figure 2.

Figure 2.

The flow chart of M-SRA.

Analysis of algorithm computing power

In order to verify the calculation performance of the M-SRA, four classic optimization algorithm test functions are used. The four test functions are shown in Table 3

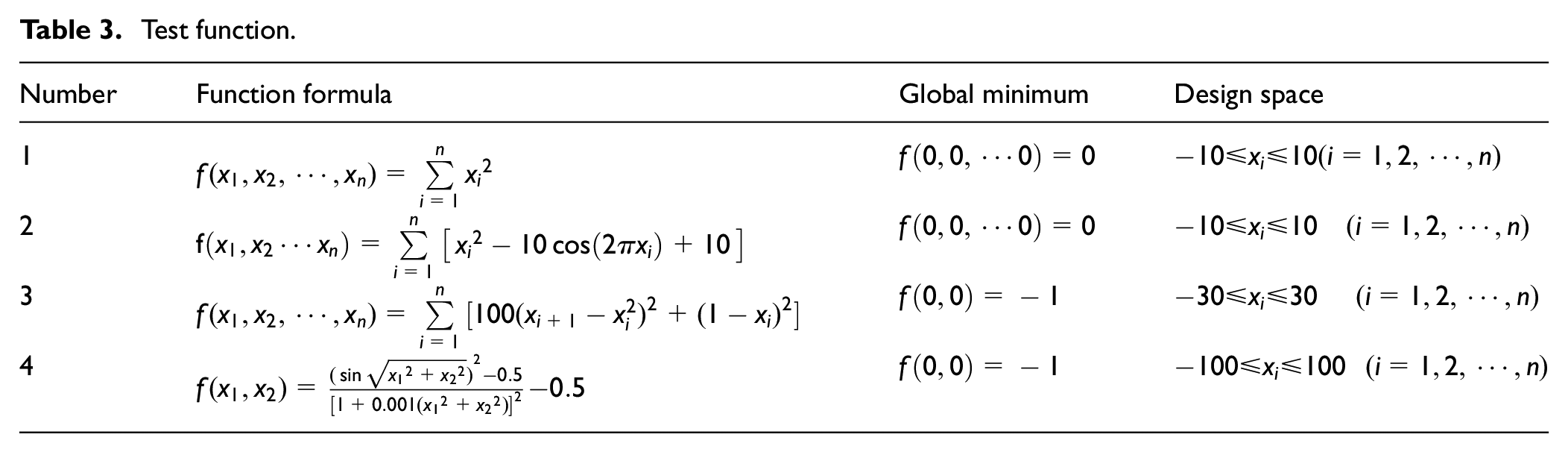

Table 3.

Test function.

Number	Function formula	Global minimum	Design space
1	$f (x_{1}, x_{2}, \dots, x_{n}) = \sum_{i = 1}^{n} {x_{i}}^{2}$	$f (0, 0, \dots 0) = 0$	$- 10 \leq x_{i} \leq 10 (i = 1, 2, \dots, n)$
2	$f (x_{1}, x_{2} \dots x_{n}) = \sum_{i = 1}^{n} [\begin{matrix} {x_{i}}^{2} - 10 \cos (2 π x_{i}) + 10 \end{matrix}]$	$f (0, 0, \dots 0) = 0$	$- 10 \leq x_{i} \leq 10 (i = 1, 2, \dots, n)$
3	$f (x_{1}, x_{2}, \dots, x_{n}) = \sum_{i = 1}^{n} [100 (x_{i + 1} - x_{i}^{2})^{2} + (1 - x_{i})^{2}]$	$f (0, 0) = - 1$	$- 30 \leq x_{i} \leq 30 (i = 1, 2, \dots, n)$
4	$f (x_{1}, x_{2}) = \frac{{(\sin \sqrt{{x_{1}}^{2} + {x_{2}}^{2}})}^{2} - 0.5}{{[1 + 0.001 ({x_{1}}^{2} + {x_{2}}^{2})]}^{2}} - 0.5$	$f (0, 0) = - 1$	$- 100 \leq x_{i} \leq 100 (i = 1, 2, \dots, n)$

The SRA and the M-SRA are respectively used to analyze the above four test functions. MATLAB software is used to write a special optimization test program. This program verifies the calculation ability of M-SRA algorithm from two aspects: different design space dimensions and different mirror numbers, run independently 100 times, the optimization results are shown in Table 4. The number of iterations and calculation time in the table are the average of 100 results, the optimal solution is the best value among the 100 optimization results, and vice versa is the worst solution. The stopping criterion of the algorithm iteration is shown in equation (5), which is determined by the maximum number of iterations and the iteration accuracy.

{\begin{matrix} I_{t} \leq 2 \times 10^{4} \\ or \\ abs (F - B_{F}) \leq 10^{- 10} \end{matrix}

(5)

Where I_t is the maximum number of iterations, F is the current fitness value, B_F is the fitness value of the previous generation. The fitness is the function value corresponding to the search point in the algorithm optimization process.

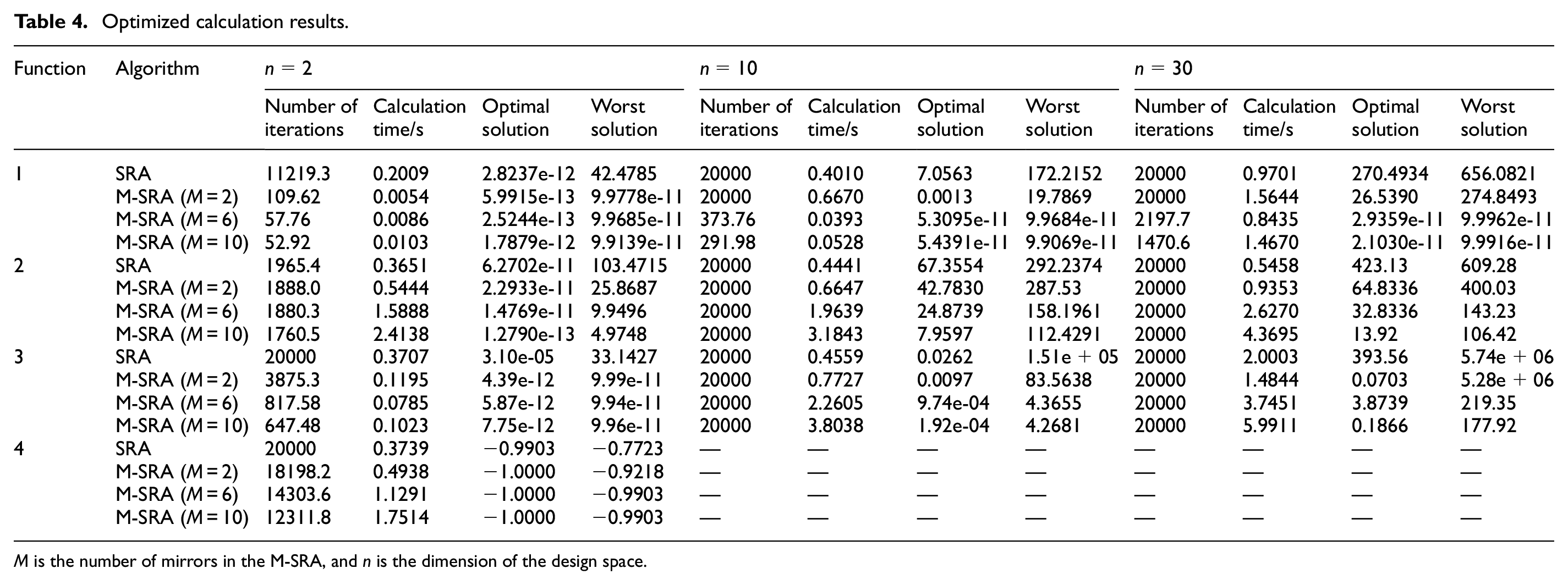

Table 4.

Optimized calculation results.

Function	Algorithm	$n = 2$				$n = 10$				$n = 30$
Function	Algorithm	Number of iterations	Calculation time/s	Optimal solution	Worst solution	Number of iterations	Calculation time/s	Optimal solution	Worst solution	Number of iterations	Calculation time/s	Optimal solution	Worst solution
1	SRA	11219.3	0.2009	2.8237e-12	42.4785	20000	0.4010	7.0563	172.2152	20000	0.9701	270.4934	656.0821
	M-SRA (M = 2)	109.62	0.0054	5.9915e-13	9.9778e-11	20000	0.6670	0.0013	19.7869	20000	1.5644	26.5390	274.8493
	M-SRA (M = 6)	57.76	0.0086	2.5244e-13	9.9685e-11	373.76	0.0393	5.3095e-11	9.9684e-11	2197.7	0.8435	2.9359e-11	9.9962e-11
	M-SRA (M = 10)	52.92	0.0103	1.7879e-12	9.9139e-11	291.98	0.0528	5.4391e-11	9.9069e-11	1470.6	1.4670	2.1030e-11	9.9916e-11
2	SRA	1965.4	0.3651	6.2702e-11	103.4715	20000	0.4441	67.3554	292.2374	20000	0.5458	423.13	609.28
	M-SRA (M = 2)	1888.0	0.5444	2.2933e-11	25.8687	20000	0.6647	42.7830	287.53	20000	0.9353	64.8336	400.03
	M-SRA (M = 6)	1880.3	1.5888	1.4769e-11	9.9496	20000	1.9639	24.8739	158.1961	20000	2.6270	32.8336	143.23
	M-SRA (M = 10)	1760.5	2.4138	1.2790e-13	4.9748	20000	3.1843	7.9597	112.4291	20000	4.3695	13.92	106.42
3	SRA	20000	0.3707	3.10e-05	33.1427	20000	0.4559	0.0262	1.51e+05	20000	2.0003	393.56	5.74e+06
	M-SRA (M = 2)	3875.3	0.1195	4.39e-12	9.99e-11	20000	0.7727	0.0097	83.5638	20000	1.4844	0.0703	5.28e+06
	M-SRA (M = 6)	817.58	0.0785	5.87e-12	9.94e-11	20000	2.2605	9.74e-04	4.3655	20000	3.7451	3.8739	219.35
	M-SRA (M = 10)	647.48	0.1023	7.75e-12	9.96e-11	20000	3.8038	1.92e-04	4.2681	20000	5.9911	0.1866	177.92
4	SRA	20000	0.3739	−0.9903	−0.7723	—	—	—	—	—	—	—	—
	M-SRA (M = 2)	18198.2	0.4938	−1.0000	−0.9218	—	—	—	—	—	—	—	—
	M-SRA (M = 6)	14303.6	1.1291	−1.0000	−0.9903	—	—	—	—	—	—	—	—
	M-SRA (M = 10)	12311.8	1.7514	−1.0000	−0.9903	—	—	—	—	—	—	—	—

M is the number of mirrors in the M-SRA, and n is the dimension of the design space.

This paper evaluates the algorithm performance from three aspects: calculation time, optimal solution accuracy, and robustness, and the results are shown in Table 4.

As can be seen from Table 4, as the number of mirrors increases, the iteration speed of the algorithm is significantly reduced, which proves that the improved algorithm is more efficient in a single iterative search, and it is easier to find the optimal solution. However, it can be found that the calculation time has increased slightly. The reason is the increase in the number of mirrors. The number of mirror reflection models and the number of search points in each search process also increase. The calculation amount of each search process will increase correspondingly, which will eventually cause an increase in calculation time. As shown in Table 4, the calculation efficiency of the improved algorithm (M-SRA) is better than that of the SRA algorithm. The improved M-SRA can significantly improve the search speed and accuracy of the algorithm.

Figures 3 to 12 are the average optimal fitness evolution curves of the SRA and the M-SRA when optimizing the four test functions.

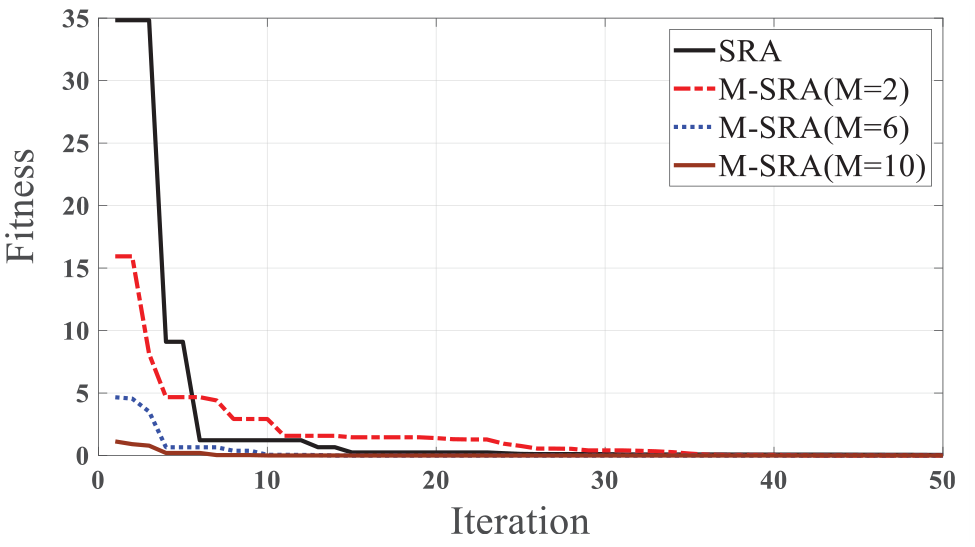

Figure 3.

Iterative curve of test function 1 (n = 2).

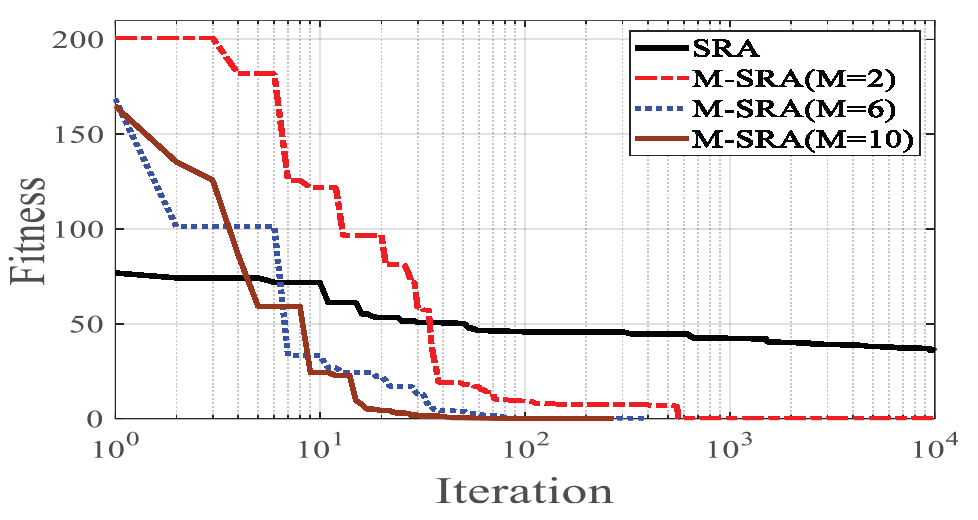

Figure 4.

Iterative curve of test function 1 (n = 10).

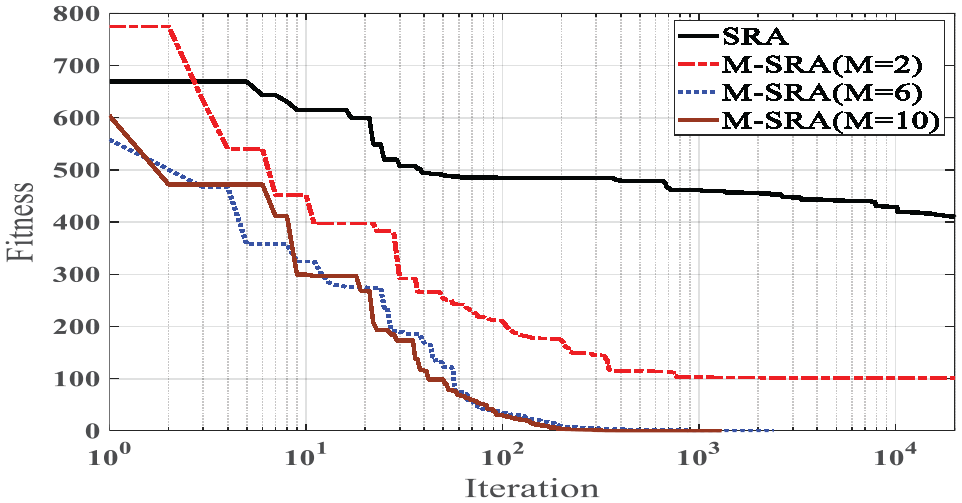

Figure 5.

Iterative curve of test function 1 (n = 30).

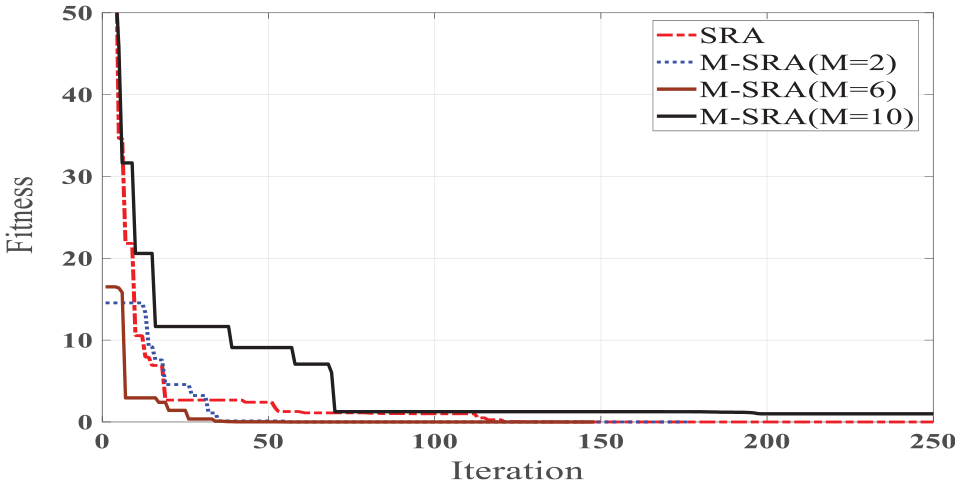

Figure 6.

Iterative curve of test function 2 (n = 2).

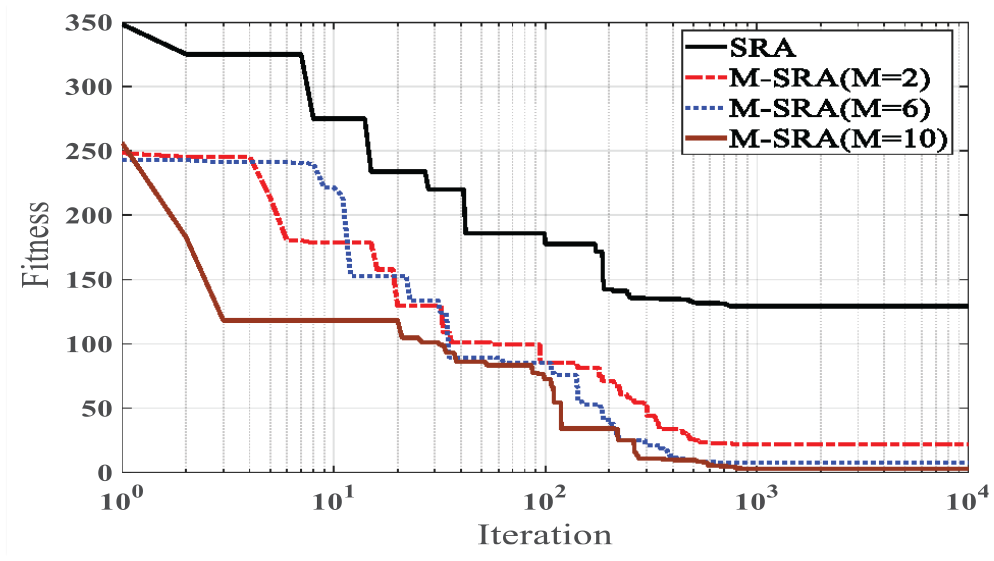

Figure 7.

Iterative curve of test function 2 (n = 10).

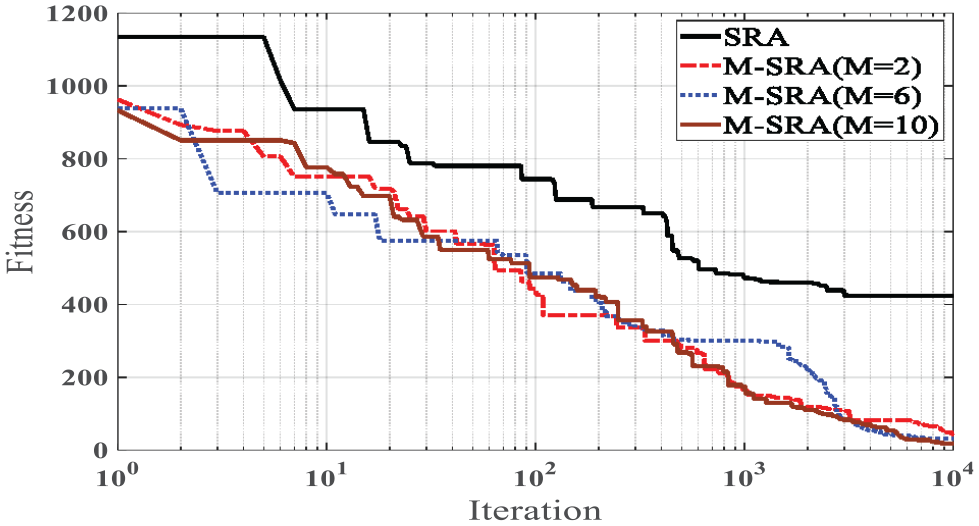

Figure 8.

Iterative curve of test function 2 (n = 30).

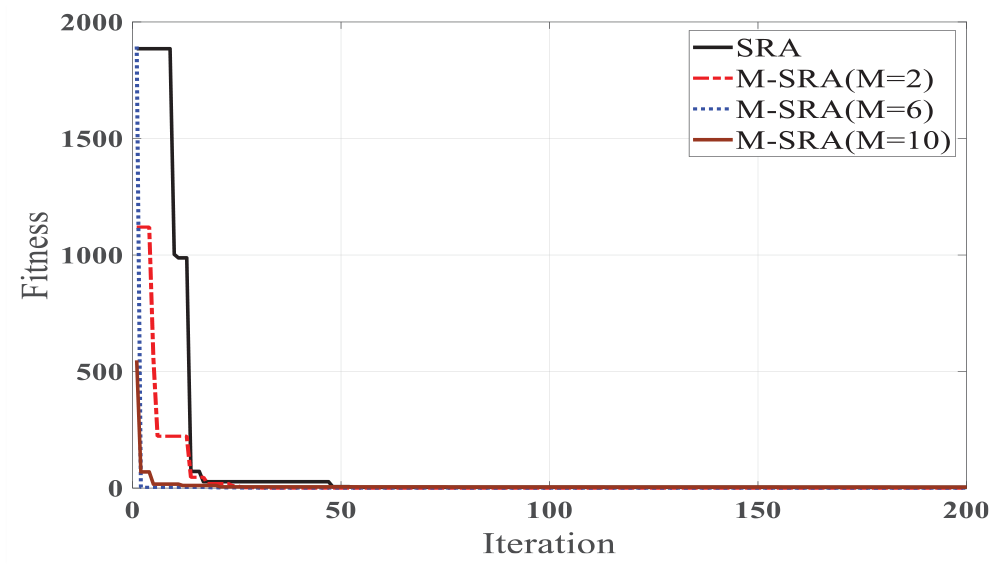

Figure 9.

Iterative curve of test function 3 (n = 2).

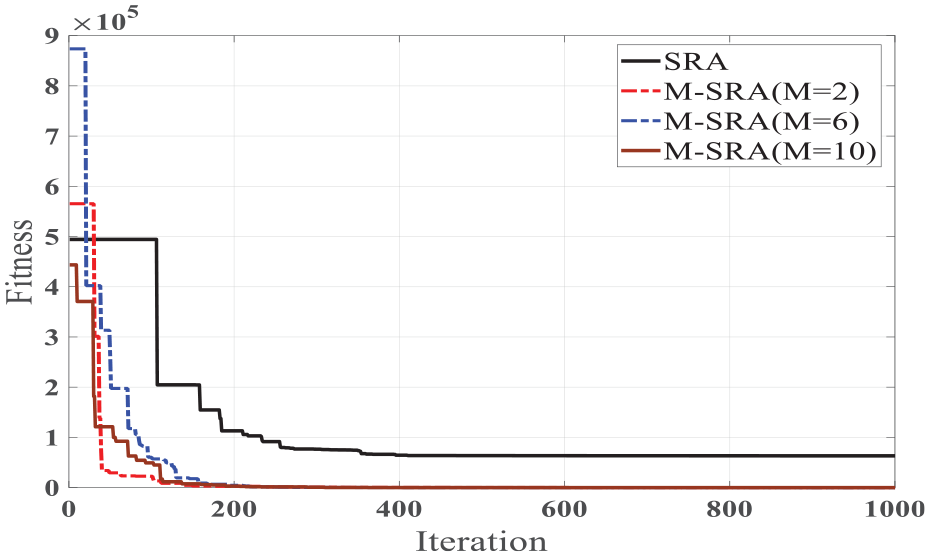

Figure 10.

Iterative curve of test function 3 (n = 10).

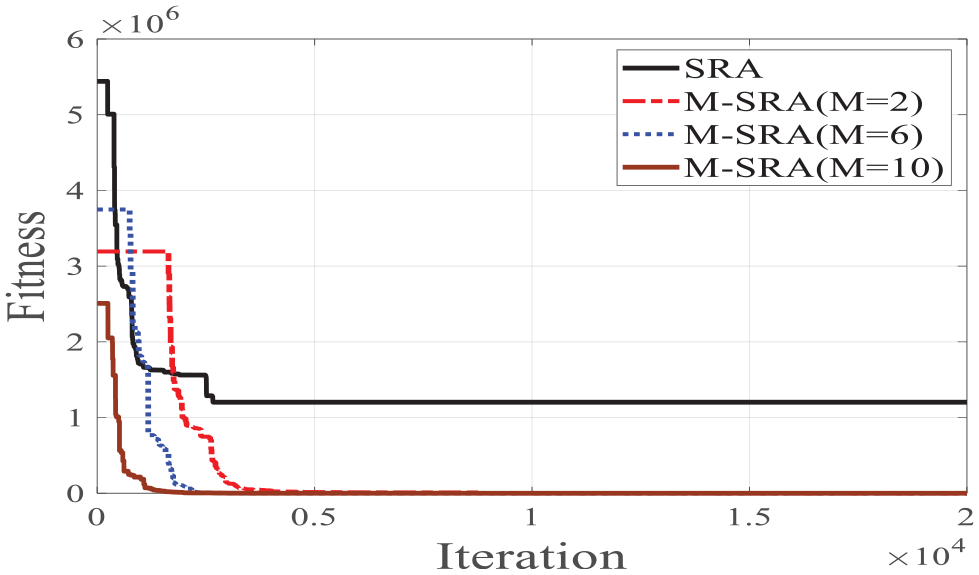

Figure 11.

Iterative curve of test function 3 (n = 30).

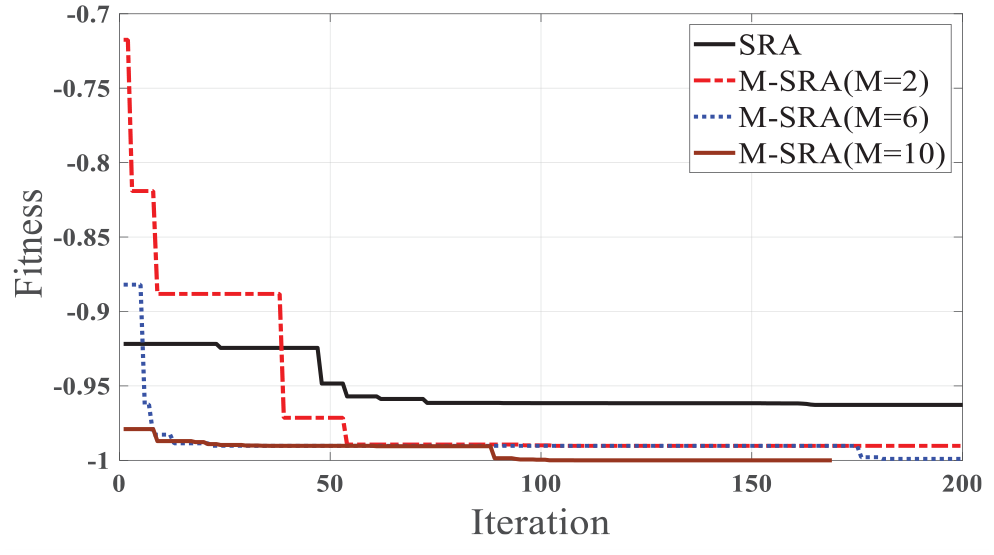

Figure 12.

Iterative curve of test function 4 (n = 2).

Steel structure design and lightweight of general bridge crane

Bridge crane is horizontally mounted over the workshop, warehouse, and factory for material lifting. It is the most widespread crane model, which is widely used. The general bridge crane structure as shown in Figure 13 is taken as the research object.

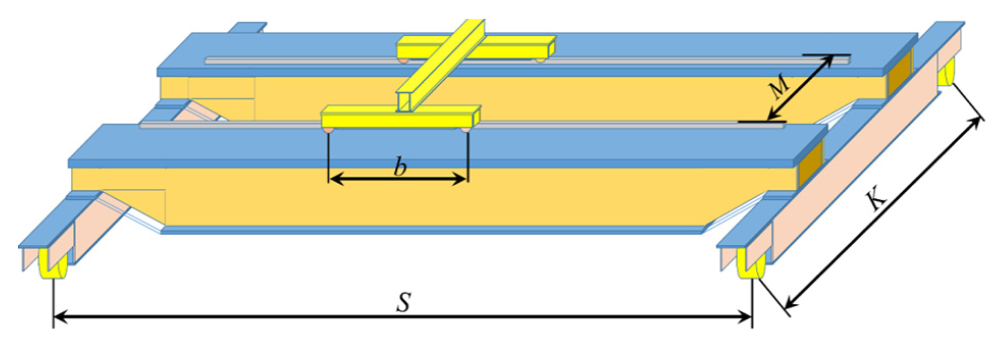

Figure 13.

General bridge crane.

Firstly, the traditional stress ratio method is used in the structural design of crane to obtain a reliable and precise design method of crane steel structure, and the accuracy of the calculation method is determined through the crane load experiment. According to theoretical calculations and experimental results analysis, the design method adopted in this paper has high accuracy, and the safety and reliability of the crane structure can be guaranteed. Finally, the M-SRA mentioned above is used to lightweight design the main girder structure of crane to achieve the minimum structure weight on the premise of qualified structural design indicators. Under this method, the consumption of materials and energy is reduced, and the ecological protection of products is improved.

The overall design parameters of the general bridge crane are shown in Table 5. The main girder section of the crane adopts the bias railed box girder structure as shown in Figure 14, that is, the trolley running track is installed on the top flange plate directly above the main web.

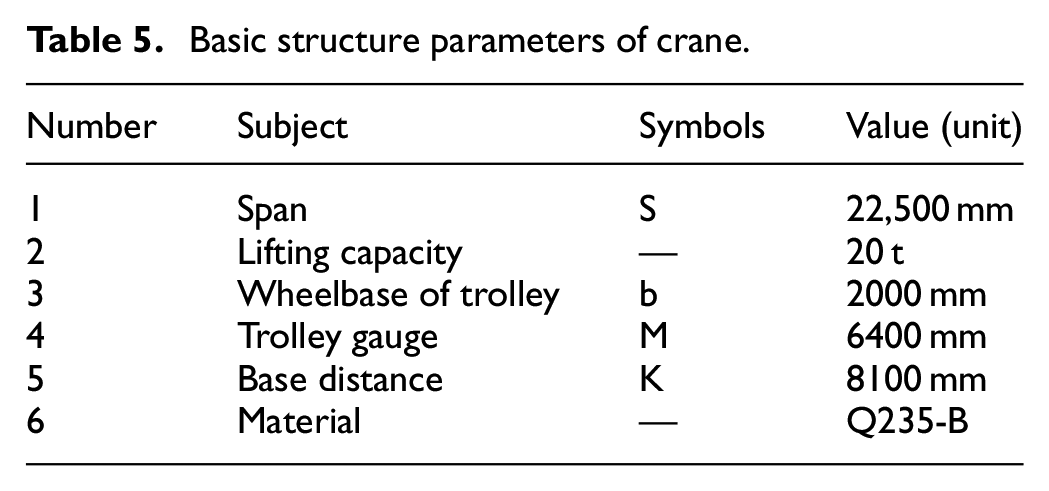

Table 5.

Basic structure parameters of crane.

Number	Subject	Symbols	Value (unit)
1	Span	S	22,500 mm
2	Lifting capacity	—	20 t
3	Wheelbase of trolley	b	2000 mm
4	Trolley gauge	M	6400 mm
5	Base distance	K	8100 mm
6	Material	—	Q235-B

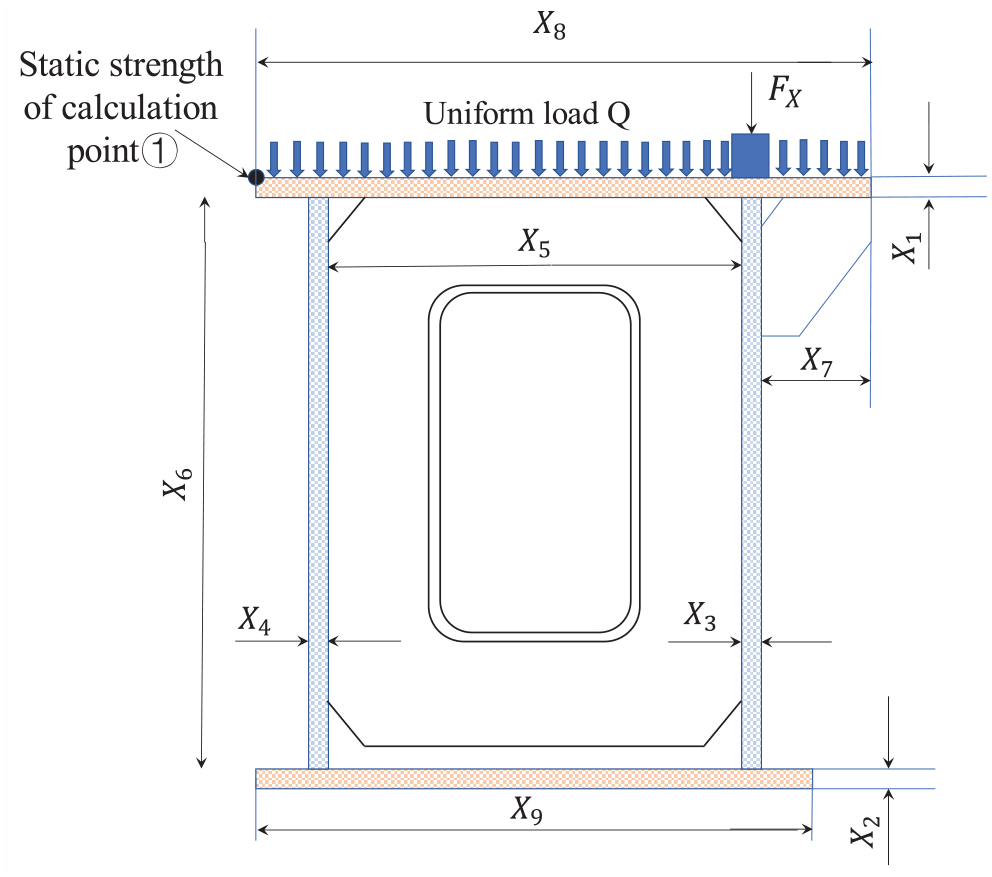

Figure 14.

Mid-span section of main girder.

Steel structure design of crane main girder

The load capacity of the crane mainly depends on its main girder structure, which directly takes the load caused by goods and trolley. Therefore, the quality of the crane structure is directly affected by the design level of the main girder structure. The main girder of the crane shall take the fixed uniform load $Q$ and the moving concentrated load $F_{X}$ in the vertical direction. Under the action of the load in the vertical direction, the wheels on the end carriage of the bridge can rotate laterally around the top of the crane rail. To sum up, the mechanical model of the main girder structure is simplified to the simply supported girder structure model, which is shown in Figure 15. $Q$ in Figure 14 is the uniform load in vertical direction caused by the self-weight of main girder, and the value of $Q$ is determined by the main girder section parameters as shown in Figure 14, which is calculated according to equation (6). Parameters of main girder mid-span section are shown in Table 6. $F_{X}$ is the moving concentrated load at the wheels of the trolley caused by the weight of the goods and the trolley, and $F_{X} = 86 kN$ in this paper.

Q = \frac{δ \times A \times ρ \times g}{10^{6}}

(6)

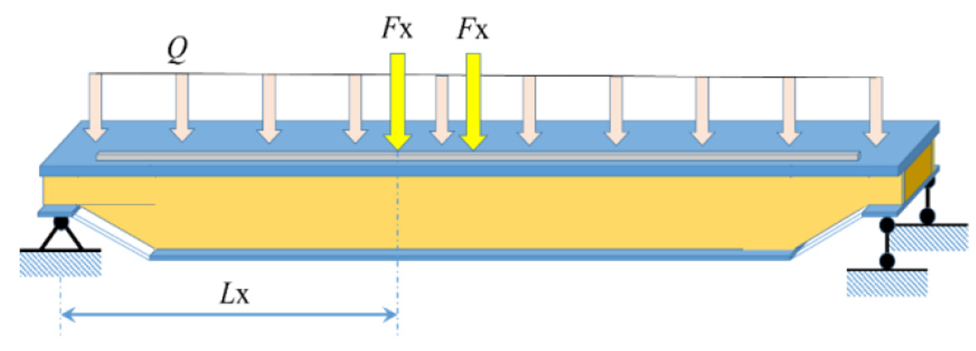

Figure 15.

Mechanical model of the main girder in the vertical direction.

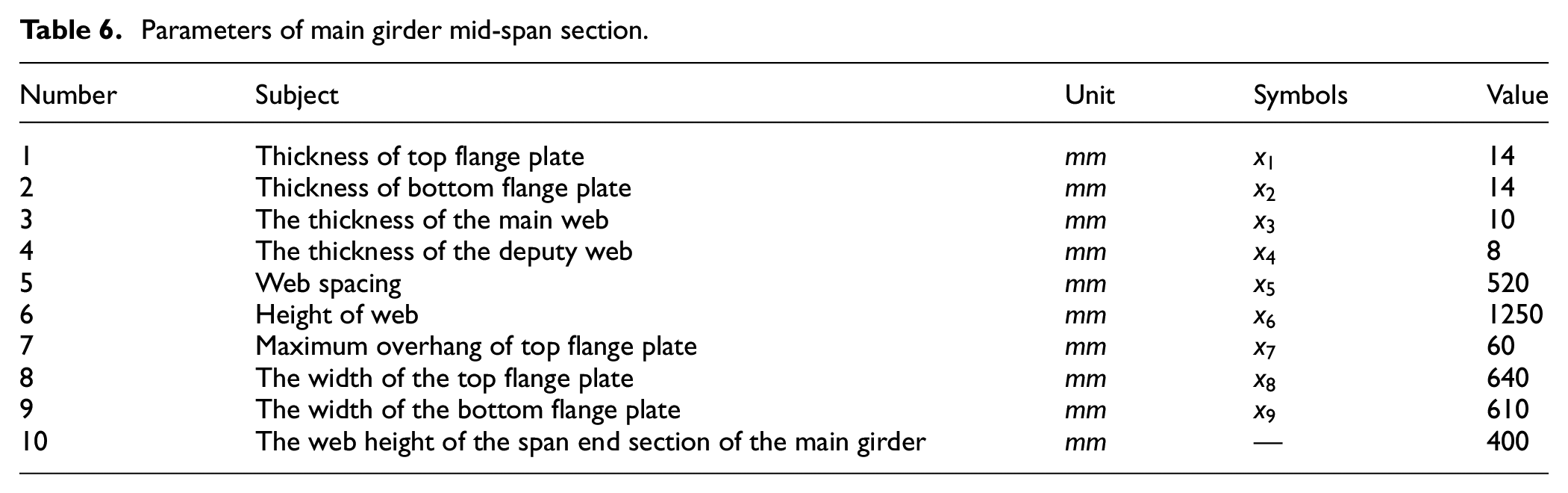

Table 6.

Parameters of main girder mid-span section.

Number	Subject	Unit	Symbols	Value
1	Thickness of top flange plate	$mm$	$x_{1}$	14
2	Thickness of bottom flange plate	$mm$	$x_{2}$	14
3	The thickness of the main web	$mm$	$x_{3}$	10
4	The thickness of the deputy web	$mm$	$x_{4}$	8
5	Web spacing	$mm$	$x_{5}$	520
6	Height of web	$mm$	$x_{6}$	1250
7	Maximum overhang of top flange plate	$mm$	$x_{7}$	60
8	The width of the top flange plate	$mm$	$x_{8}$	640
9	The width of the bottom flange plate	$mm$	$x_{9}$	610
10	The web height of the span end section of the main girder	$mm$	—	400

Where $Q$ is the uniform load caused by the self-weight of the main girder, its unit is $N / mm$ ; $A$ is the cross-sectional area of the main girder as shown in Figure 14, its unit is $m m^{2}$ ; $ρ$ is the density of steel, $ρ = 7850 kg / m m^{3}$ ; $g$ is the acceleration due to gravity, $g = 10 N / kg$ ; $δ$ is the influence coefficient of track, platform, stiffener, etc. on the structure’s own weight, generally $1.2 \leq δ \leq 1.5$ , and the maximum value $δ = 1.5$ is selected in this paper.

When the crane is started or stopped, it will cause the bridge, the trolley, and the goods to induce horizontal inertial loads. Therefore, in the horizontal direction, the main girder structure also needs to bear the horizontal inertial load along the traveling direction of the crane. The horizontal mechanical model of the main girder is shown in Figure 16. $Q_{S}$ is the self-weight inertial load of the main girder, $F_{S}$ is the inertial concentrated load of the fully loaded trolley, which is determined by the design requirements, that is, the driving wheel of the crane does not produce sliding friction force on the track. As shown in equation (7)

Q_{S} = μ \cdot mg \cdot \frac{n_{0}}{n}

(7)

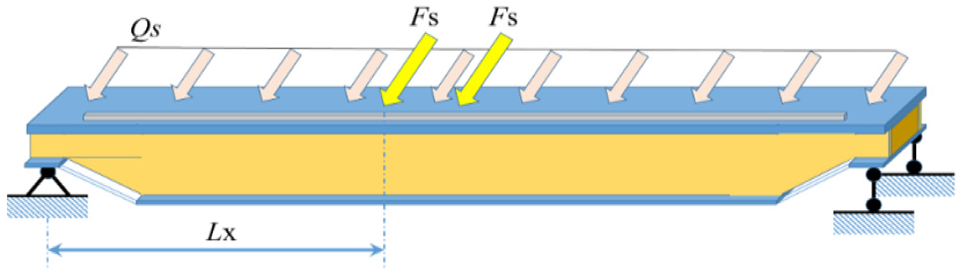

Figure 16.

Horizontal mechanical model of main girder.

Where $μ$ is sliding friction coefficient, for crane track surface without special surface treatment, $μ = 0.14$ ; $n_{0}$ is the number of drive wheels of the crane, for the research object of this article, $n_{0} = 2$ ; $n$ is the total number of wheels of the crane, for the crane model in this article, $n = 4$ ; $mg$ is the self-weight load of the main girder, its unit is $N$ .

$F_{S}$ is the inertial concentrated load of the trolley, which is approximated by equation (8):

F_{S} = \frac{Q_{S}}{Q} \cdot F_{X}

(8)

Where $Q_{S}$ is the self-weight inertial load of the main girder, its unit is $N / mm$ ; $Q$ is the uniform load caused by the self -weight of the main girder, its unit is $N / mm$ ; $F_{X}$ is the moving concentrated load at the wheels of the trolley caused by the weight of the goods and the trolley, its unit is $kN$ .

According to the known mechanical model and known design parameters, the main girder steel structure of the crane is designed based on traditional mechanical methods. The distance from the wheel on one side of the fully loaded trolley to the end-span of the main girder is L_x (as shown in Figures 15 and 16), when the value of L_x is respectively equal to 11.25, 10.25, 9.25, 8.25, 7.25, 6.25, 5.25, 4.25, 3.25, 2.25, 1.25, and 0.25, calculate the static strength at the calculated point 1 (as shown in Figure 14) of top flange plate of main girder, and the results are shown in Table 7.

σ = \frac{M}{W}

(9)

Where $σ$ is the normal stress in the vertical (or horizontal) direction, and the unit is MPa or $N / m m^{2}$ ; $M$ is the maximum bending moment of the main girder in the calculated section, and the unit is $N \cdot mm$ ; $W$ is the flexural coefficient of net section of the main girder in the calculation section, and the unit is $m m^{3}$ .

τ = \frac{F \cdot S_{X}}{I_{X} \cdot δ}

(10)

Where $τ$ is shear stress in the vertical (or horizontal) direction, and the unit is MPa or $N / m m^{2}$ ; $F$ is the maximum shear force of the main girder in the calculated section, and the unit is N; $S_{X}$ is the maximum static moment of the gross section of the main girder in the calculated section, and the unit is $m m^{3}$ ; $I_{X}$ is the gross moment of inertia of the main girder in the calculated section, and the unit is $m m^{4}$ ; $δ$ is the plate thickness of the box girder. When calculating the vertical shear stress, it is the sum of the thickness of the two webs. When checking the horizontal shear stress, it is the sum of the thickness of the two flange plates. The unit is $mm$ .

σ_{H} = \sqrt{σ^{2} + 3 τ^{2}} \leq [σ]

(11)

Where $σ_{H}$ is combined stress, and the unit is MPa or $N / m m^{2}$ ; $[σ]$ is the allowable stress, and determined by the yield strength $σ_{S}$ of the material, $[σ] = 235 / 1.48 = 158.78$ MPa.

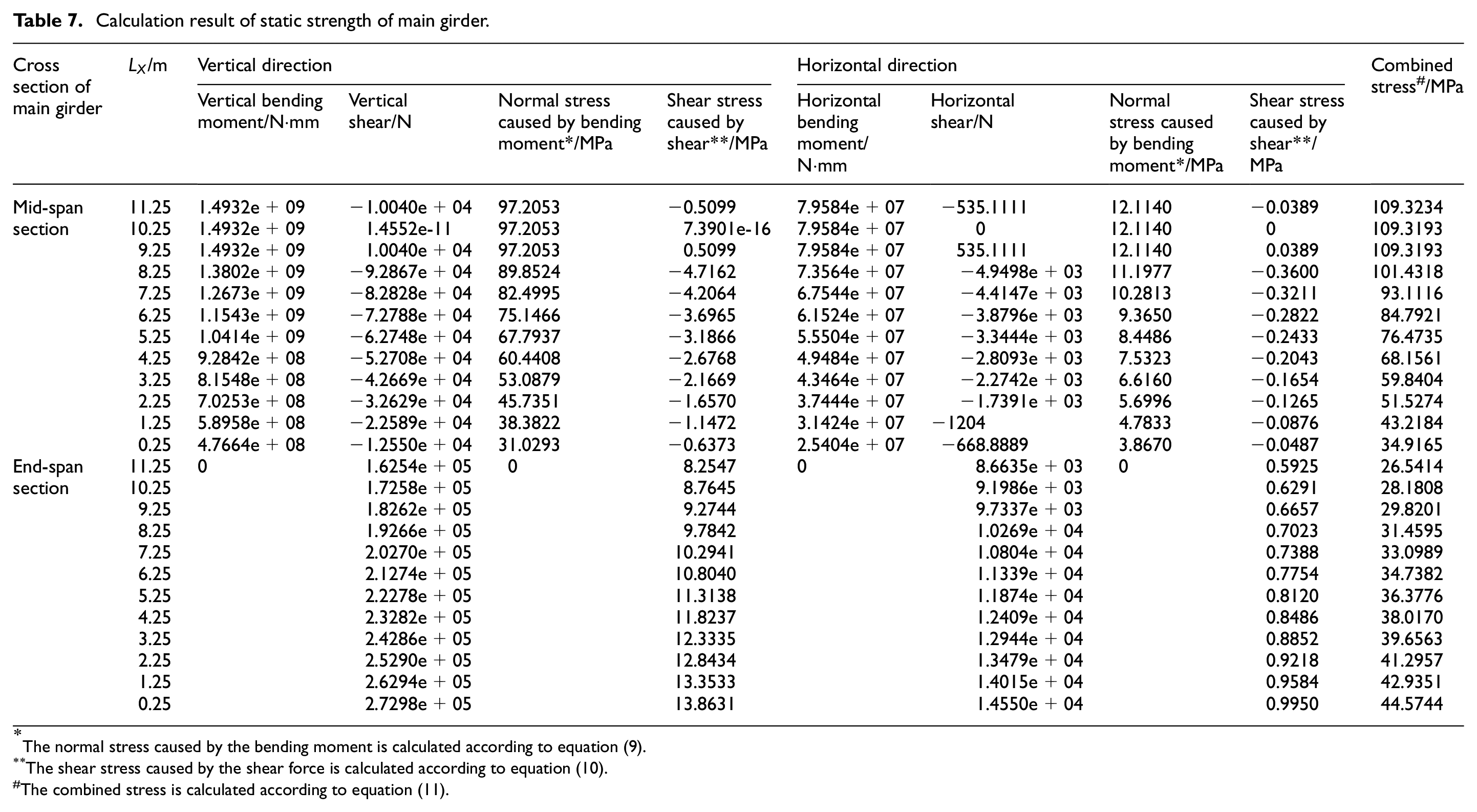

Table 7.

Calculation result of static strength of main girder.

Cross section of main girder	$L_{X}$ /m	Vertical direction				Horizontal direction				Combined stress^#/MPa
Cross section of main girder	$L_{X}$ /m	Vertical bending moment/N·mm	Vertical shear/N	Normal stress caused by bending moment*/MPa	Shear stress caused by shear**/MPa	Horizontal bending moment/N·mm	Horizontal shear/N	Normal stress caused by bending moment*/MPa	Shear stress caused by shear**/MPa	Combined stress^#/MPa
Mid-span section	11.25	1.4932e+09	−1.0040e+04	97.2053	−0.5099	7.9584e+07	−535.1111	12.1140	−0.0389	109.3234
	10.25	1.4932e+09	1.4552e-11	97.2053	7.3901e-16	7.9584e+07	0	12.1140	0	109.3193
	9.25	1.4932e+09	1.0040e+04	97.2053	0.5099	7.9584e+07	535.1111	12.1140	0.0389	109.3193
	8.25	1.3802e+09	−9.2867e+04	89.8524	−4.7162	7.3564e+07	−4.9498e+03	11.1977	−0.3600	101.4318
	7.25	1.2673e+09	−8.2828e+04	82.4995	−4.2064	6.7544e+07	−4.4147e+03	10.2813	−0.3211	93.1116
	6.25	1.1543e+09	−7.2788e+04	75.1466	−3.6965	6.1524e+07	−3.8796e+03	9.3650	−0.2822	84.7921
	5.25	1.0414e+09	−6.2748e+04	67.7937	−3.1866	5.5504e+07	−3.3444e+03	8.4486	−0.2433	76.4735
	4.25	9.2842e+08	−5.2708e+04	60.4408	−2.6768	4.9484e+07	−2.8093e+03	7.5323	−0.2043	68.1561
	3.25	8.1548e+08	−4.2669e+04	53.0879	−2.1669	4.3464e+07	−2.2742e+03	6.6160	−0.1654	59.8404
	2.25	7.0253e+08	−3.2629e+04	45.7351	−1.6570	3.7444e+07	−1.7391e+03	5.6996	−0.1265	51.5274
	1.25	5.8958e+08	−2.2589e+04	38.3822	−1.1472	3.1424e+07	−1204	4.7833	−0.0876	43.2184
	0.25	4.7664e+08	−1.2550e+04	31.0293	−0.6373	2.5404e+07	−668.8889	3.8670	−0.0487	34.9165
End-span section	11.25	0	1.6254e+05	0	8.2547	0	8.6635e+03	0	0.5925	26.5414
	10.25		1.7258e+05		8.7645		9.1986e+03		0.6291	28.1808
	9.25		1.8262e+05		9.2744		9.7337e+03		0.6657	29.8201
	8.25		1.9266e+05		9.7842		1.0269e+04		0.7023	31.4595
	7.25		2.0270e+05		10.2941		1.0804e+04		0.7388	33.0989
	6.25		2.1274e+05		10.8040		1.1339e+04		0.7754	34.7382
	5.25		2.2278e+05		11.3138		1.1874e+04		0.8120	36.3776
	4.25		2.3282e+05		11.8237		1.2409e+04		0.8486	38.0170
	3.25		2.4286e+05		12.3335		1.2944e+04		0.8852	39.6563
	2.25		2.5290e+05		12.8434		1.3479e+04		0.9218	41.2957
	1.25		2.6294e+05		13.3533		1.4015e+04		0.9584	42.9351
	0.25		2.7298e+05		13.8631		1.4550e+04		0.9950	44.5744

The normal stress caused by the bending moment is calculated according to equation (9).

The shear stress caused by the shear force is calculated according to equation (10).

The combined stress is calculated according to equation (11).

According to the calculation results in Table 7, the biggest stress of calculation points is 109.3234 MPa, which is less than the allowable stress (158.78 MPa), and the static strength of the structure meets the design requirements. Since the design margin of static strength is equal to $(158.78 - 109.3234) / 1.58 = 31.15 %$ . Generally speaking, the design margin is larger and the structure is safer, but there is a problem that materials aren’t fully utilized. Therefore, the intelligent optimization algorithm can be used to optimize the selection of the main girder structure design parameters. Under the premise of ensuring the safety of the structure, it not only saves materials but also reduces the weight of the crane steel structure. Furthermore, the goals of economy and environmental protection can be achieved.

Crane model and load simplified verification experiment

In the optimization process, the structure of the crane is complex, and the simplification of the crane model is particularly important. The simplified model can often achieve better optimization results. In order to verify the accuracy of the structural calculation model and the load simplification adopted in this paper, a dynamic loading test was carried out on the crane main girder structure. The specific test plan is as follows: When the crane is not running, starting from the position of $L_{X} = 11.25 m$ (L_X as shown in Figures 15 and 16), the test load with a weight of 20 t is hoisted. After hoisting the load to a certain safe height, the trolley is controlled to move horizontally and laterally to the other end-span of the main girder. As the trolley runs, the normal stress value of check point 1 (as shown in Figure 14) of the mid-span section of the main girder is measured in real time. The installation of the experimental site and strain gauges is shown in Figures 17 and 18.

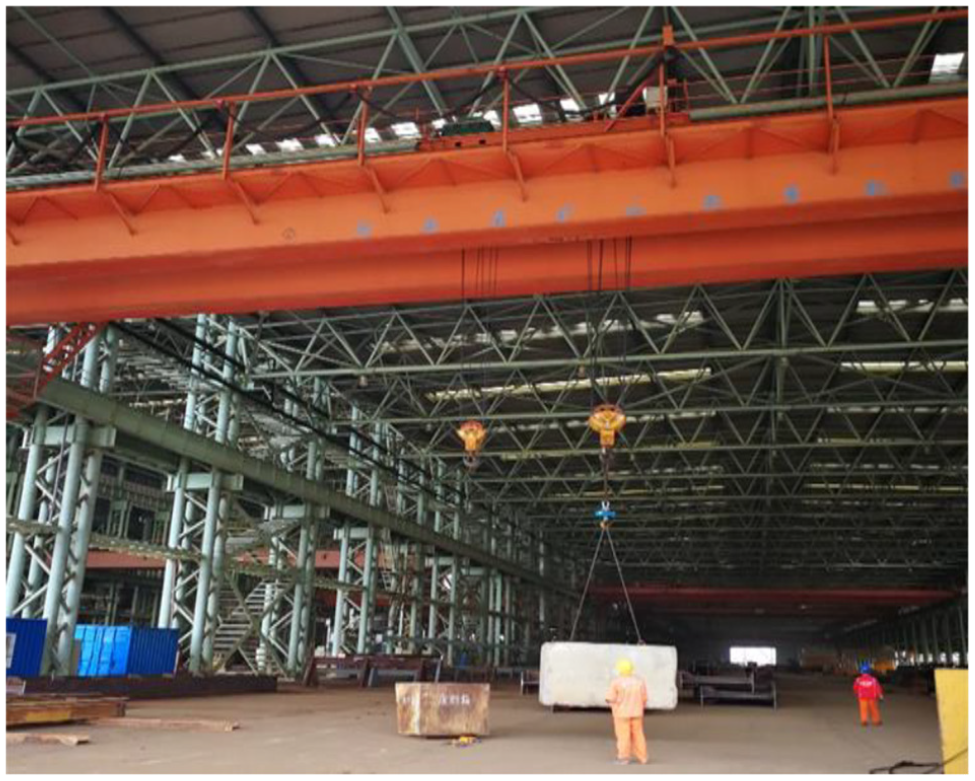

Figure 17.

Experimental site.

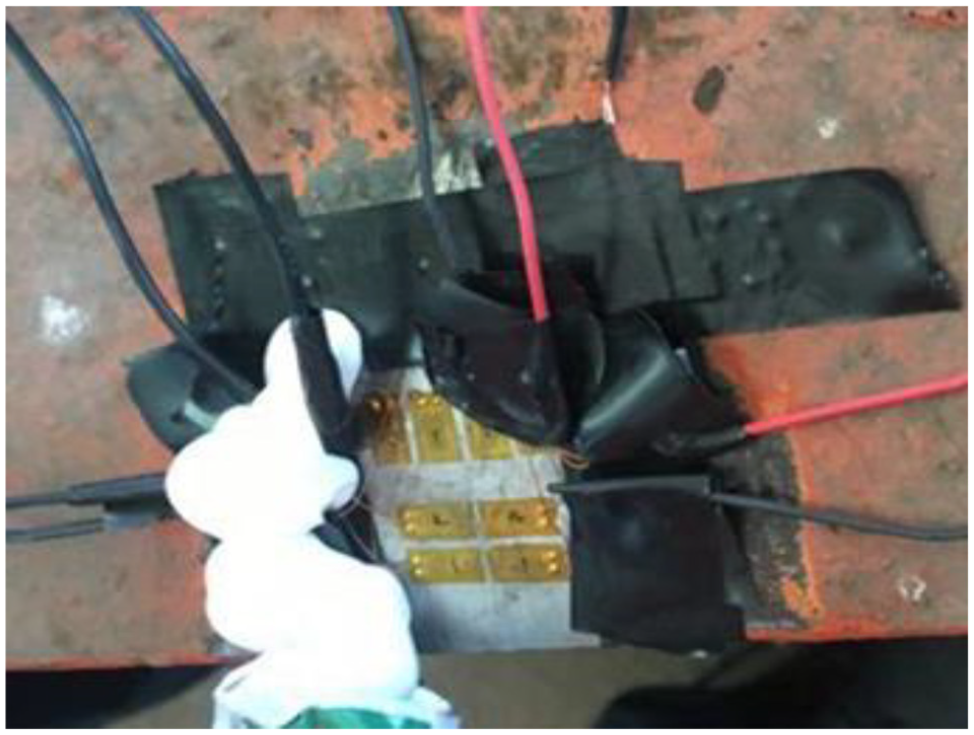

Figure 18.

Installation of strain gauges on the experimental site.

In order to obtain the accurate normal stress of the main girder structure at the check point, the position of the strain gauges should be arranged accurately. When placing the strain gauges, it is necessary to try to avoid the strain gauges close to the main girder stiffeners, rails, and the joints of the plates. The layout of the strain gauges in this article is shown in Figure 19. This layout will enable the strain gauges to measure the normal stress (tensile stress) of the top flange plate in vertical direction.

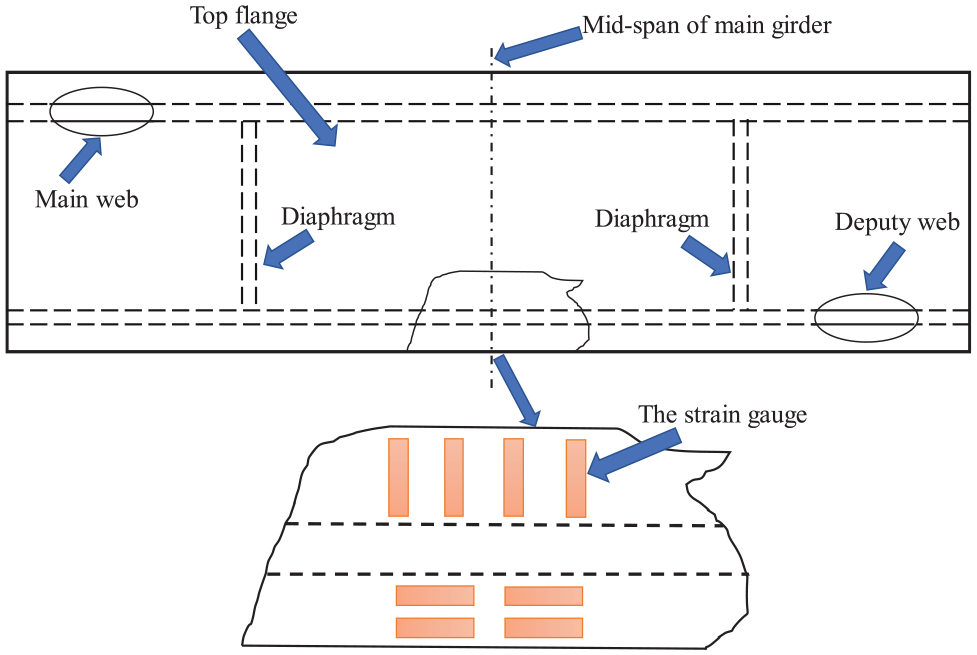

Figure 19.

Layout of main girder strain gauges.

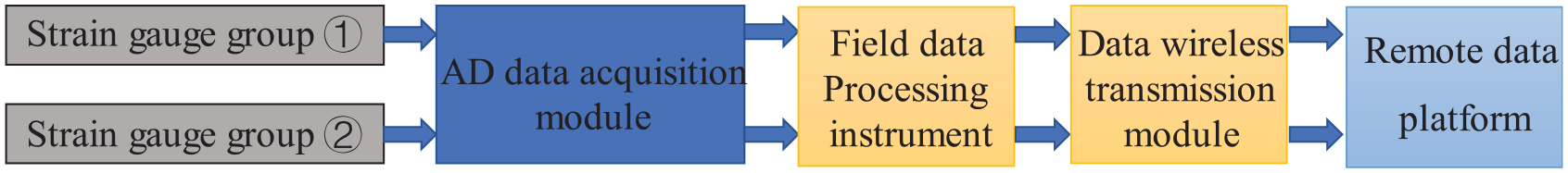

The stress detection system is composed of strain gauges, AD data acquisition module, instrument power supply module, field data processing instrument, and data wireless transmission module. The system structure is shown in Figure 20. Since the self-weight load of the crane structure is inherent, the strain gauge can’t measure the structural stress caused by self-weight load during the structural stress test. In order to ensure the consistency of the calculation results and the experimental results of the main girder structure, the calculation results of the mid-span section of the main girder structure should be revised, and the revised results are shown in Figure 21. The abscissa in the figure is the distance that the trolley moves from the mid-span position (L_X = 11.25 m) to the end-span of the main girder. The corrected stress calculation value at the calculation point of the mid-span section of the main girder structure is shown in the curve (a) of Figure 21.

Figure 20.

Structure of detection system.

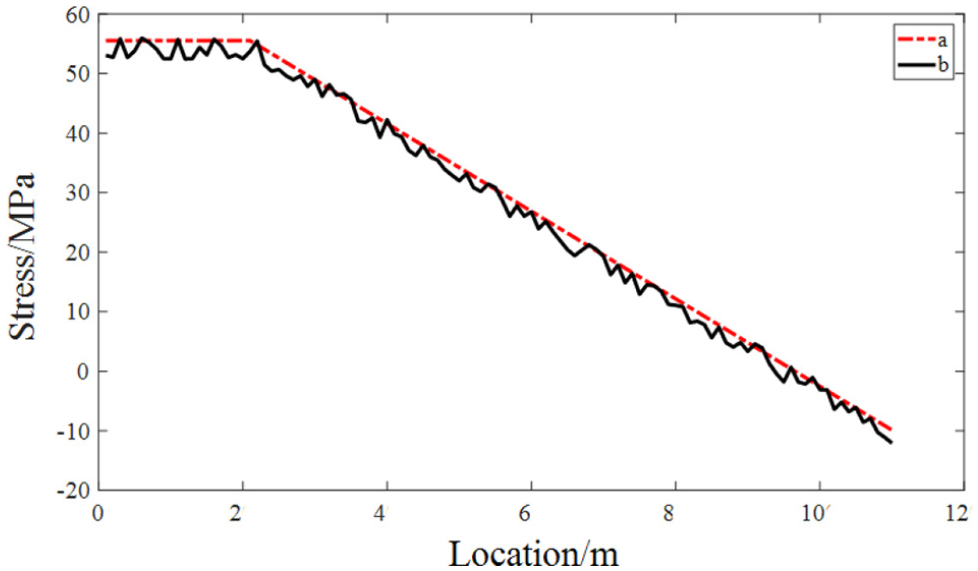

Figure 21.

Stress curve of the measured point.

It can be seen from curve (a) that when the fully loaded trolley is positioned near the mid-span section of the main girder (the abscissa is 0–2), under the action of the fully loaded trolley wheel pressure, the maximum bending stress will be generated at the mid-span section of the main girder, and the maximum stress is 55.33 MPa. When the trolley gradually moves to the end-span of the main girder (the abscissa is 2–11.25), the cross-section stress at the mid-span shows approximately a linear downward trend, which is consistent with the law shown by the theoretical model used in this paper. The curve (b) shown in Figure 21 is the stress data measured on the experimental site, and the curve (b) shows the approximately same stress change trend as the curve (a). The experimental results show that under the same calculation conditions, the maximum relative error between the experimental results and the theoretical calculation results is always maintained below 6.59%, which is less than the actual allowable error (10%) in engineering. It can be seen that the calculation model of crane girder structure in this paper is correct, the strain gauge arrangement is reasonable, and the data collection results are accurate.

Lightweight design problems

Because the crane steel structure in this article has a large design margin, the structural materials have not yet fully utilized its performance, and it is necessary to make a lightweight design for the crane main girder structure.

The main girder structure of crane is taken as the experimental object, and its design variables are the combination of design parameters shown in Figure 14, which is shown in equation (12). The physical meaning of each variable is shown in Table 6:

D_{v} = [x_{1}, x_{2}, x_{3}, x_{4}, x_{5}, x_{6}]

(12)

Taking into account the actual production situation and requirements, in the optimization design, the six parameters shown in equation (11) need to be set as discrete variables, that is, by using the Round function, the initial position of the mirror and the new position generated (six design variables) are taken as integers, which ensures that each solution obtained is an integer solution, and the six variables need to meet the following design requirements respectively: ① The value of the design parameters $x_{1} ~ x_{4}$ used to characterize the plate thickness is an integer multiple of 2; ② The design parameters $x_{5}$ and $x_{6}$ used to characterize the plate width are integers.

The optimization design of the crane main girder structure should include two constraints: one is the constraint of the main girder structure size, and the other is the constraint of the main girder structure design index, such as strength, stiffness, and stability. Due to the small span and low working level of the crane studied in this paper, the main failure mode of the crane girder is the static strength of the structure. Therefore, this paper only focuses on the static strength of the structure and overall stability constraints to carry out the optimization design of the main girder structure. The specific constraint indicators are shown in Table 8.

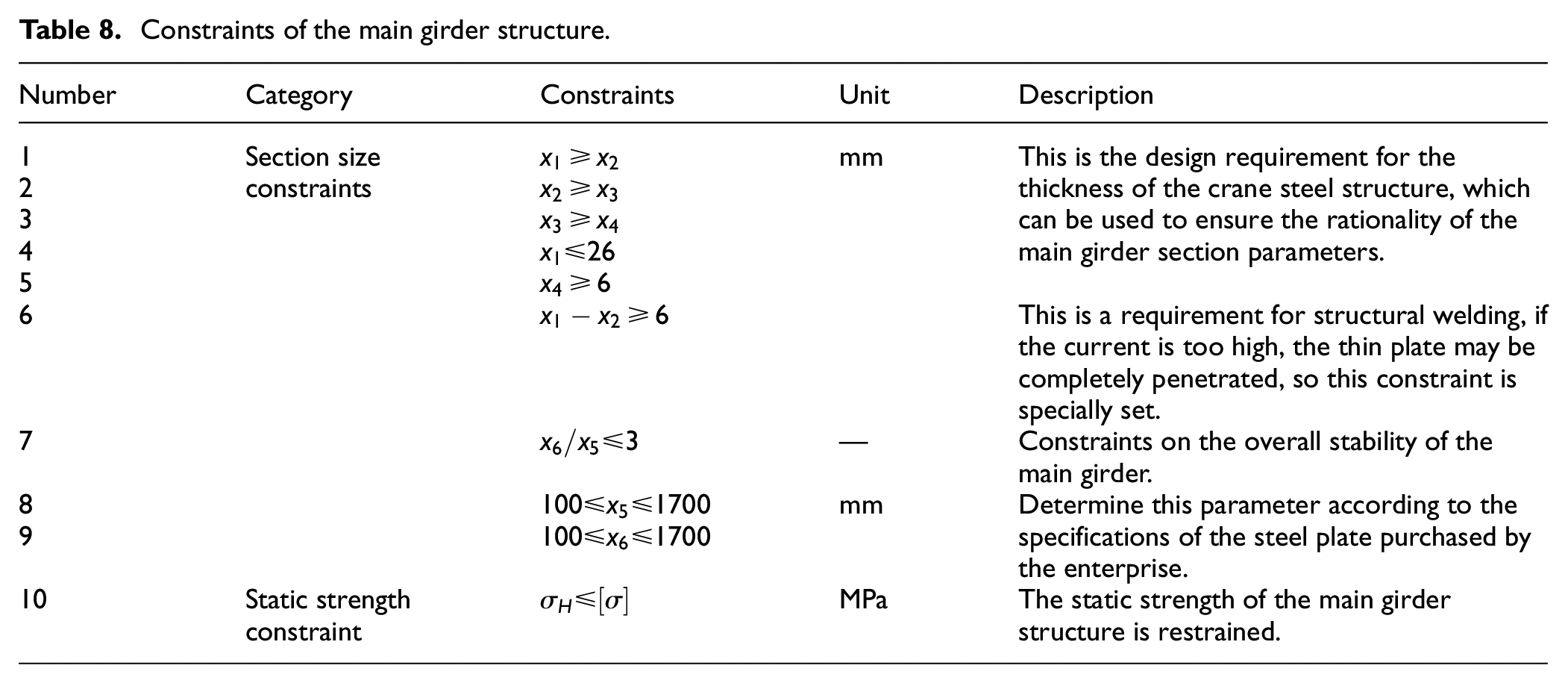

Table 8.

Constraints of the main girder structure.

Number	Category	Constraints	Unit	Description
1	Section size constraints	$x_{1} \geq x_{2}$	mm	This is the design requirement for the thickness of the crane steel structure, which can be used to ensure the rationality of the main girder section parameters.
2		$x_{2} \geq x_{3}$
3		$x_{3} \geq x_{4}$
4		$x_{1} \leq 26$
5		$x_{4} \geq 6$
6		$x_{1} - x_{2} \geq 6$		This is a requirement for structural welding, if the current is too high, the thin plate may be completely penetrated, so this constraint is specially set.
7		$x_{6} / x_{5} \leq 3$	—	Constraints on the overall stability of the main girder.
8		$100 \leq x_{5} \leq 1700$	mm	Determine this parameter according to the specifications of the steel plate purchased by the enterprise.
9		$100 \leq x_{6} \leq 1700$	mm
10	Static strength constraint	$σ_{H} \leq [σ]$	MPa	The static strength of the main girder structure is restrained.

In the optimization design problem, objective function is an important index to evaluate the design parameters. If the reasonable objective function is determined, the optimal solution can be more accurate. In the optimization design of crane girder structure, the ultimate goal of this paper is to minimize the self-weight of the structure $W$ , and $W = A \cdot S \cdot ρ$ . Since the crane span $S$ and steel density $ρ$ are known constant parameters, S = 22,500 mm, $ρ = 7850 kg / m^{3}$ , and the objective function of the main girder structure optimization can be determined as equation (13):

A = x_{1} \cdot x_{8} + x_{2} \cdot x_{9} + (x_{3} + x_{4}) \cdot x_{6}

(13)

Where $x_{8}$ is width of upper flange plate, $x_{8} = x_{3} + x_{4} + x_{5} + 100$ , the unit is $mm$ ; $x_{9}$ is width of lower flange plate, $x_{9} = x_{3} + x_{4} + x_{5} + 70$ , the unit is $mm$ .

Steel structure optimization of main girder

According to the determined optimization design model of the crane main girder structure, the SRA and the M-SRA (the number of specular reflection models is set to 2, 6, and 10 respectively) are used to optimize the model. The results of the optimized design are shown in Table 9. During the optimization process, the iterative curve of the objective function is shown in Figure 22. Since the minimum value of the optimization objective cannot be determined, the iterative termination condition of this optimization design is set as: the maximum number of iterations is 200.

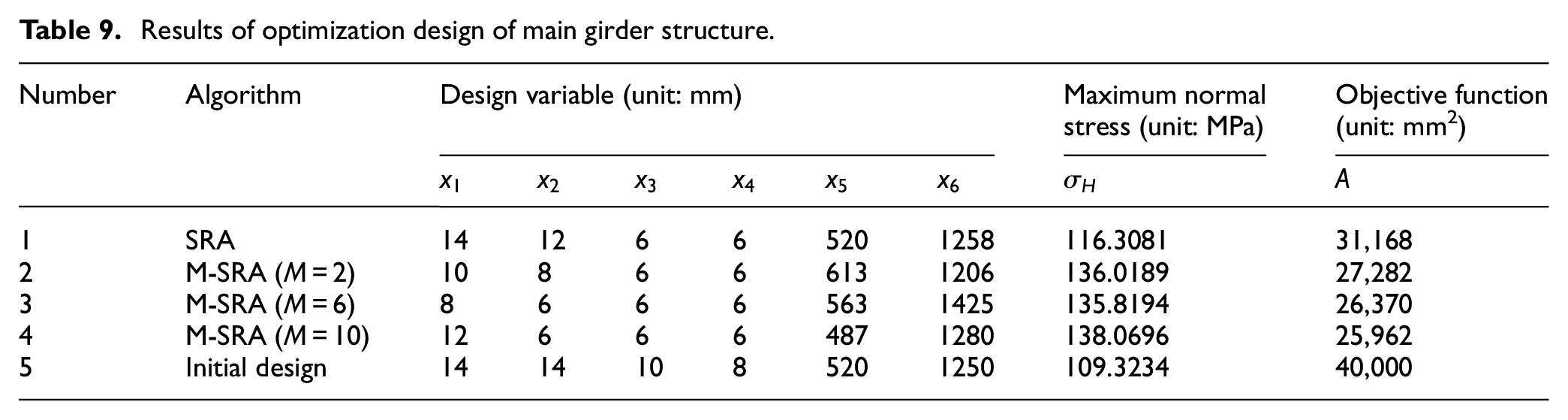

Table 9.

Results of optimization design of main girder structure.

Number	Algorithm	Design variable (unit: mm)						Maximum normal stress (unit: MPa)	Objective function (unit: mm²)
Number	Algorithm	$x_{1}$	$x_{2}$	$x_{3}$	$x_{4}$	$x_{5}$	$x_{6}$	$σ_{H}$	$A$
1	SRA	14	12	6	6	520	1258	116.3081	31,168
2	M-SRA (M = 2)	10	8	6	6	613	1206	136.0189	27,282
3	M-SRA (M = 6)	8	6	6	6	563	1425	135.8194	26,370
4	M-SRA (M = 10)	12	6	6	6	487	1280	138.0696	25,962
5	Initial design	14	14	10	8	520	1250	109.3234	40,000

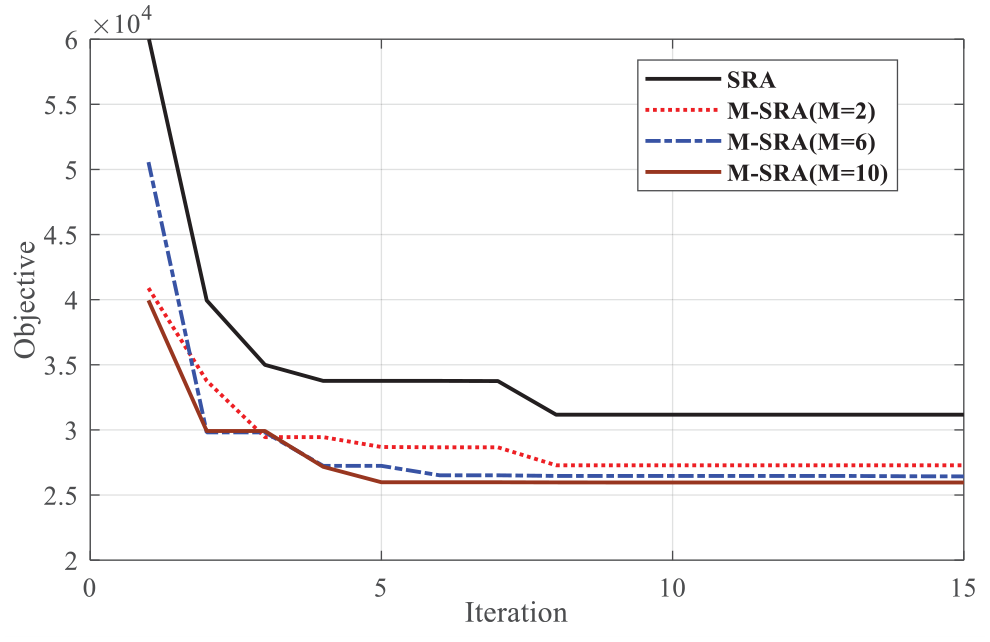

Figure 22.

The iterative curve of the objective function of the crane girder structure optimization.

According to the calculation results in Table 9, each intelligent optimization algorithm has ability to obtain optimized solutions, the value of the optimized solution obtained by (SRA) is $31168 m m^{2}$ , which is 22.08% optimized compared to the original design. However, it can be seen from Figure 22 that each algorithm has ability to quickly converge, and the average number of iterations is less than 10 times. Compared with other algorithms, improved algorithm (M-SRA) has a faster search speed and a stronger ability to obtain optimized solutions. When the number of mirrors (M) is 2, 6, and 10, the optimization rates of the new design obtained are respectively 31.79%, 34.07%, 35.09%, the optimization rate gradually increases as the number of mirrors increases. With the gradual increase of the optimization rate, the maximum normal stress generated in the structure gradually increases, the utilization rate of the material is gradually increasing, and the maximum stress is less than the allowable stress of the structure $[σ] = 158.78$ MPa, which meets the design requirements of the structure. Based on the above calculation results, it is proved that M-SRA has higher calculation capacity than the original algorithm. The improved algorithm (M-SRA) also has higher calculation accuracy and search speed when solving optimization problems of discrete variables, and its ability to solve practical engineering problems is quite excellent.

Conclusion

Nowadays, green design has been widely concerned by researchers all over the world, although the theoretical method of realizing lightweight design of main girder through algorithm has been relatively established, but in the current research, the safety of the optimized crane structure is mostly verified by the finite element method or similar theoretical models. The verification in the study is not tested with specific actual models. The accuracy of the structural optimization design method is not fundamentally judged. In this paper, the M-SRA is proposed to optimize the steel structure of crane, and the accuracy of model simplification is verified by actual stress test. The main contributions of this paper are as follows:

By increasing the number of mirrors, the group advantage and global search ability of the algorithm are enhanced at the initial stage of the search; in the later stage of the search, the advantage of the strong local search ability of the specular reflection algorithm will be highlighted.

The method of combining theoretical analysis and experimental verification is used to design the crane main girder structure model. The stress curves of the measured points obtained by the two methods are approximately the same, which proves that the simplified crane structure design model in this paper is accurate.

The lightweight design of crane main girder structure is carried out by using SRA and M-SRA respectively. The results show that, compared with SRA, the performance and convergence speed of the M-SRA are greatly improved in solving discrete optimization problems in practical engineering.

There are still some shortcomings in the research content of this paper, and the following aspects can be improved in the future: The randomness of generating initial solution needs to be reduced; the research should include additional constraint functions, such as: fatigue of the material, influence of the manufacturing technology and economy; the objective function is single, and the mechanical structure can be optimized by multi-objective.

Footnotes

Handling Editor: James Baldwin

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This article was funded by the National Natural Science Foundation of China (51805348), Shanxi Provincial Applied Basic Research Program (201901D211287), the Science and Technology Innovation Project of Higher Education Institutions in Shanxi Province, and Shanxi “1331 Project” Key Subjects Construction.

ORCID iDs

Qisong Qi

Yunsheng Xin

References

Xiang

, et al. Research and application of crane rapid lightweight design system. J Mech Eng 2018; 54: 205–213.

Liu

. Lightweight design of a crane frame under stress and stiffness constraints using super-element technique. Adv Mech Eng 2017; 9: 1–10.

Deng

Lei

, et al. Lightweight design of trackless telescopic gantry crane based on response surface method. Chin J Eng Des 2018; 3: 288–294.

Xiao

Zhang

Yan

, et al. Lightweight design of reducer box for large overhead crane. Mech Transm 2017; 41: 71–75.

Jiao

Zhou

, et al. Structural model test of lightweight girder of bridge crane. Chin J Mech Eng 2015; 51: 168–174.

Jiao

Zhou

, et al. Periodic topology optimization of the box-type girder of bridge crane. Chin J Mech Eng 2014; 50: 134–139.

Liu

. Topology optimization design of large complex structures based on super element technology. China Mech Eng 2017; 28: 2467–2474.

Fan

, et al. Intelligent optimization methods for the design of an overhead travelling crane. Chin J Mech Eng 2015; 28: 187–196.

Fan

Zhi

. Design for a crane metallic structure based on Imperialist competitive algorithm and inverse reliability strategy. Chin J Mech Eng 2017; 30: 900–912.

10.

Tang

Yan

, et al. Research on lightweight design method of bridge crane main girder. Mechanical Strength 2015; 182: 1173–1177.

11.

Savković

Bulatović

Gašić

, et al. Optimization of the box section of the main girder of the single-girder bridge crane by applying biologically inspired algorithms. Eng Struct 2017; 148: 452–465.

12.

Prayogo

Cheng

, et al. Differential big bang – big crunch algorithm for construction-engineering design optimization. Autom Constr 2018; 85: 290–304.

13.

Oliveira

Pessoa

. An improved branch-cut-and-price algorithm for parallel machine scheduling problems. Informs J Comput 2020; 32: 90–100.

14.

Tawhid

Savsani

. A novel multi-objective optimization algorithm based on artificial algae for multi-objective engineering design problems. Appl Intell 2018; 48: 3762–3781.

15.

Arora

Singh

. Butterfly optimization algorithm: a novel approach for global optimization. Soft Comput 2019; 23: 715–734.

16.

Hakli

. BinEHO: a new binary variant based on elephant herding optimization algorithm. Neural Comput Appl 2020; 32: 16971–16991.

17.

Wang

Alavi

. Learning-based elephant herding optimization algorithm for solving numerical optimization problems. Knowl Based Syst 2020; 195: 1–28.

18.

Jafari

Salajegheh

. An efficient hybrid of elephant herding optimization and cultural algorithm for optimal design of trusses. Eng Comput 2019; 35: 781–801.

19.

Ismaeel

AAK

Elshaarawy

Houssein

, et al. Enhanced elephant herding optimization for global optimization. IEEE Access 2019; 7: 34738–34752.

20.

Wang

Tian

Chen

, et al. Dual-objective program and improved artificial bee colony for the optimization of energy-conscious milling parameters subject to multiple constraints. J Clean Prod 2020; 245: 118714.

21.

Dai

, et al. An energy-efficient multi-objective permutation flow shop scheduling problem using an improved hybrid cuckoo search algorithm. Adv Mech Eng 2021; 13: 168781402110236.

22.

Tavana

Shahdi-Pashaki

Teymourian

, et al. A discrete cuckoo optimization algorithm for consolidation in cloud computing. Comput Ind Eng 2018; 115: 495–511.

23.

Ding

Wang

Zhang

, et al. A hybrid particle swarm optimization-cuckoo search algorithm and its engineering applications. Math Probl Eng 2019; 2019: 1–12.

24.

Zhang

Zhao

Cao

, et al. A hybrid ant colony and cuckoo search algorithm for route optimization of heating engineering. Energies 2018; 11: 2675–2723.

25.

Peng

Zeng

Deng

, et al. Multi-strategy serial cuckoo search algorithm for global optimization. Knowl Based Syst 2021; 214: 106729.

26.

Moezi

Zakeri

Zare

, et al. On the application of modified cuckoo optimization algorithm to the crack detection problem of cantilever Euler–Bernoulli beam. Comput Struct 2015; 157: 42–50.

27.

Kaur

Arora

. Chaotic whale optimization algorithm. J Comput Des Eng 2018; 5: 275–284.

28.

Abdel-Basset

Manogaran

El-Shahat

, et al. A hybrid whale optimization algorithm based on local search strategy for the permutation flow shop scheduling problem. Future Gener Comput Syst 2018; 85: 129–145.

29.

Abdel-Basset

El-Shahat

El-Henawy

, et al. A novel whale optimization algorithm for cryptanalysis in Merkle-Hellman cryptosystem. Mob Netw Appl 2018; 23: 723–733.

30.

Naghi

. Meta-heuristic algorithm inspired by Grey Wolves for solving function optimization problems. In: Naghi

(ed.) International conference on advanced intelligent systems & informatics. Cham: Springer International Publishing, 2016, pp.480–490.

31.

Saxena

Kothari

. Optimal pattern synthesis of linear antenna array using grey wolf optimization algorithm. Int J Antennas Propag 2016; 2016: 1–11.

32.

Zhu

Jiang

Kong

, et al. A chaos wolf optimization algorithm with self-adaptive variable step-size. AIP Adv 2017; 7: 105024–105116.

33.

Yazdani

Jolai

. Lion Optimization Algorithm (LOA): a nature-inspired metaheuristic algorithm. J Comput Des Eng 2016; 3: 24–36.

34.

Yamany

Tharwat

Hassanin

, et al. A new multi-layer perceptrons trainer based on ant lion optimization algorithm. In: Fourth international conference on information science & industrial applications, Busan, South Korea, 20–22 September 2015, pp.40–45, New York: IEEE.

35.

Dinakara

PRP

Veera Reddy

Gowri Manohar

. Ant Lion optimization algorithm for optimal sizing of renewable energy resources for loss reduction in distribution systems. J Electr Sys Inform Technol 2018; 5: 663–680.

36.

Chander

Vijaya

Dhyani

. Fractional Lion algorithm-an optimization algorithm for data clustering. J Comput Sci 2016; 12: 323–340.

37.

Bansal

Singh

Pal

. Spider Monkey Optimization algorithm for numerical optimization. Memet Comput 2019; 6: 31–47.

38.

Wang

Mumtaz

Zhang

, et al. Application of an improved spider monkey optimization algorithm for component assignment problem in PCB assembly. Procedia CIRP 2019; 83: 266–271.

39.

Singh

Elaziz

Xiong

. Modified spider monkey optimization based on Nelder–Mead method for global optimization. Expert Syst Appl 2018; 110: 264–289.

40.

Kaveh

Vaez

SRH

Hosseini

. Simplified dolphin echolocation algorithm for optimum design of frame. Smart Struct Syst 2018; 21: 321–333.

41.

Fan

, et al. A new specular reflection optimization algorithm. Adv Mech Eng 2015; 7: 1–10.

42.

Wang

. Reliability-based robust optimization design based on specular reflection algorithm. Zidonghua Xuebao 2017; 43: 1457–1464.
