Abstract
Objective
Long-pulsed 1064 nm Nd:YAG laser can damage vessels with higher diameters and penetrate to a deeper level than other laser therapies. We aim to analyze outcomes of the treatment of leg veins with long-pulsed 1064 nm Nd:YAG laser regarding intervention protocol, technical success, clinical success, and side effects.
Methods
A research of the published literature was conducted, using PubMed and Embase databases, in April 2022. The key words used were telangiectasia, reticular veins, neodymium YAG laser, clearance, satisfaction, and treatment. PRISMA guidelines were followed.
Results
We included twenty-six articles, twenty-three prospective and three retrospective studies, with a total of 1991 patients. The articles were organized in different sections according to the control group. The four outcomes were analyzed in each section. These studies showed that the long-pulsed 1064 nm Nd:YAG laser is a safe and very good option for the treatment of leg veins measuring up to 3 mm in diameter. Studies comparing long-pulsed 1064 nm Nd:YAG laser therapy and sclerotherapy showed similar clearance rates with no significant differences. However, sclerotherapy seemed to be less painful and to have faster clinical improvements. In two articles, Nd:YAG laser had better outcomes in the treatment of smaller vessels with less than 1 mm in diameter, than sclerotherapy alone. Treatment with polidocanol microfoam and Nd:YAG laser had better clearance rates than Nd:YAG laser alone in three studies. In the comparison of 1064 nm Nd:YAG laser therapy with other lasers and light sources, the studies had contradictory results.
Conclusion
Long-pulsed 1064 nm Nd:YAG laser is a valid therapeutic option for leg telangiectasia and reticular veins with great aesthetic outcomes and minor side effects. Nd:YAG laser therapy could be combined with sclerotherapy or other laser therapies or IPL in order to achieve better results. Serious side effects are rare, but the procedure is almost always accompanied by moderate tolerable pain.
Introduction
Leg telangiectasias and reticular veins are a very common and prevalent unaesthetic problem. Their etiology is not well understood and may or may not be concurrent with venous hypertension. The result is an unaesthetic appearance of the legs, and some of these patients can become symptomatic over time. Furthermore, it can be responsible for psychological side effects that distress self-confidence and mental health. For all these reasons, this is a significant concern nowadays with an increasing demand for cosmetic treatment.
Sclerotherapy remains a gold standard in the treatment of leg telangiectasias and reticular veins. However, a continuous technological development in laser devices has been noticed and laser therapy is now a noninvasive and efficiently proven option for the treatment of leg veins. It could be an option to consider in many patients, but it has a clear application in patients with needle phobia, resistance or contraindications for sclerotherapy, and vessels too small for the needle diameter. 1
In laser therapy, there is a conversion of the absorbed light energy into thermal energy. This energy will heat the target chromophore, which is the hemoglobin present in the treated vessels, resulting in vascular coagulation. 2 Cooling of the skin is crucial to minimize side effects such as burned skin and post-inflammatory hyperpigmentation. Pulse durations, wavelength, and fluence will determine the selectivity for the target vessels, depth level of penetration, and potency of the laser device, respectively. 3
Despite the technological evolution, leg veins remain a difficult pathology to treat with laser devices, especially deeper and larger vessels. Long-pulsed 1064 nm Neodymium:Yttrium-Aluminum-Garnet (Nd:YAG) laser can damage vessels with higher diameters and penetrate to a deeper level into the dermis avoiding absorption by the epidermal melanin. In fact, it can be used to treat deeper and larger varicose veins and has less side effects in the skin surface, compared to other laser techniques. On the other hand, some patients have been describing laser therapy as more painful than sclerotherapy.4–8
In this systematic review, we aim to gather and analyze the information published so far related to different outcomes of long-pulsed 1064 nm Nd:YAG laser in the treatment of leg veins (intervention protocol, technical success, clinical success, and side effects).
Methods
We performed an electronic search of the literature published about this matter, in the PubMed and Embase databases. The search was conducted in April 2022. The key words used in the search engines advanced tool followed the PICO scheme: ((telangiectasia* OR reticular veins*) AND (neodymium yag laser OR Nd:YAG) AND (clearance* OR satisfaction* OR treatment*)). We included only retrospective or prospective studies, in English. Backwards citation tracking was performed by manual review of the lists of references of each included article. PRISMA guidelines for systematic review were followed. Risk of bias was evaluated using ROB2 crossover bias assessment (Figure 1). ROB2 crossover bias assessment.
The inclusion criteria were studies published since January 2000 until April 2022; only articles in English; studies with information about treatment of telangiectasia or reticular veins in the lower extremities; and retrospective or prospective studies. There were no exclusion criteria related to gender, ethnicity, or socioeconomic level. Commentary, letter, expert opinion, or review articles were excluded. Animal studies or studies with a pregnant population were also excluded.
The primary outcomes of this systematic review were technical success, clinical success, and side effects. Secondary outcomes were the features of the intervention protocol.
Results

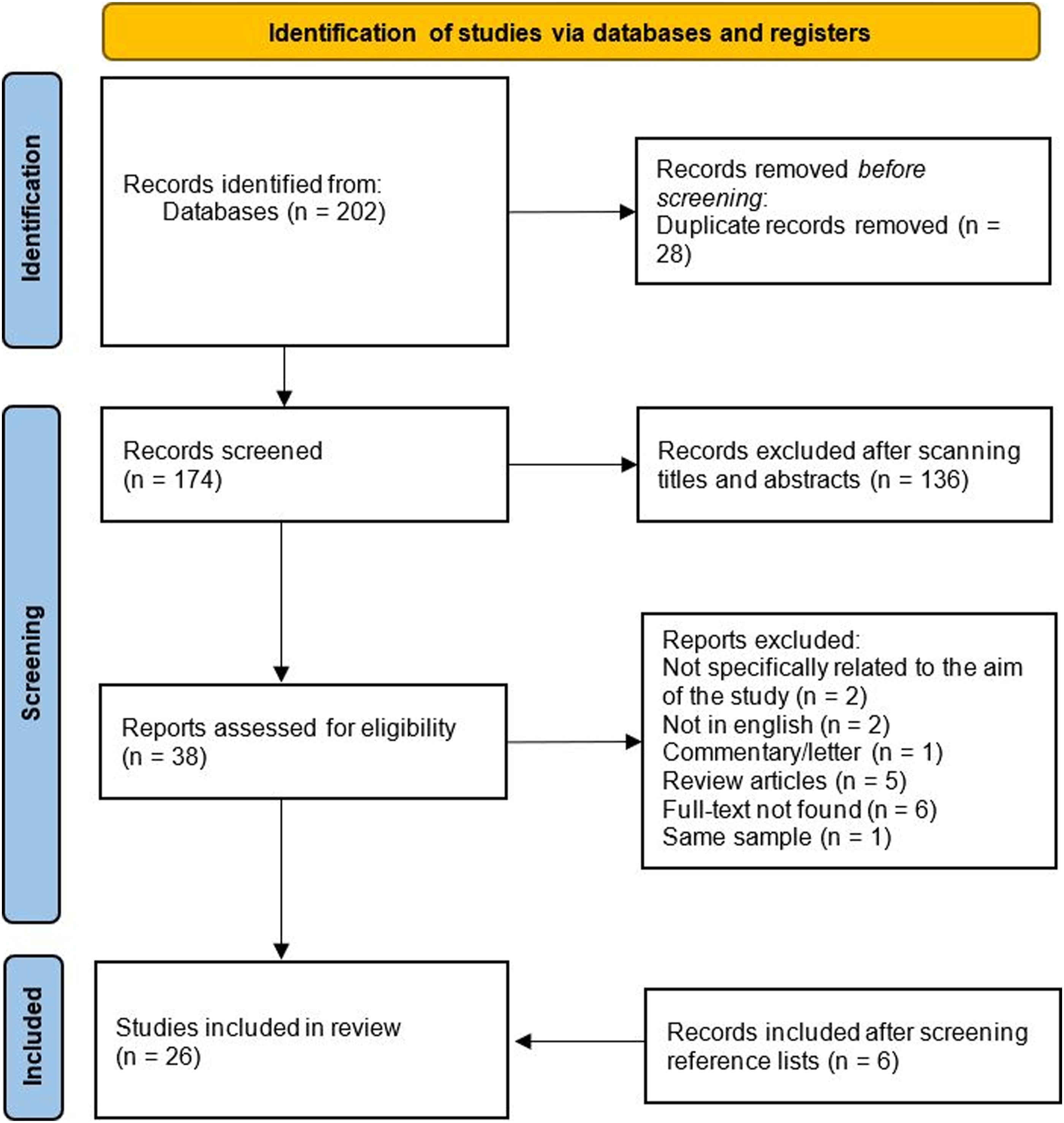

First, we screened the titles of 174 articles retrieved in our search after excluded those that were duplicated. Then, we excluded 136 articles after scanning the titles and abstracts. After fully read 38 reports, we end up with 20 articles that we could use to discuss in this systematic review. Finally, we searched the selected articles’ references and found six more suitable articles, giving a total of twenty-six studies included in our review (Figure 2). PRISMA 2020 flow diagram for new systematic reviews which included searches of databases and registers only.
We included twenty-six studies, twenty-three prospective and three retrospective, with a total of 1991 included patients. The articles were organized in different sections according to the control group: (I) case series of long-pulsed 1064 nm Nd:YAG laser without a control group; (II) long-pulsed 1064 nm Nd:YAG laser versus sclerotherapy; (III) long-pulsed 1064 nm Nd:YAG laser versus other laser therapies; and (IV) combined treatments. Then, we analyzed the outcomes we aimed to study in each section (intervention protocol, technical success, clinical success, and side effects).
The intervention protocol refers to the laser settings (spot size, pulse duration, and fluency), the number of sessions, and the control group. The evaluation of the results was based on the comparison of pretreatment and posttreatment pictures of the treated areas. The technical success was described by the clearance rate assessed by one or more experienced physicians that graded the results according to a selected scale that varied across the studies, but that was mostly divided in relation with the percentage of clearance. The clinical success corresponded to the patients’ satisfaction with the results, patients’ subjective clearance rate, and painful sensation. To measure the clinical success, some studies had the participants answering a self-evaluation questionnaire at the follow-up to quantify their satisfaction and subjective clearance according to a selected scale and their pain with a visual analogue scale. Finally, the side effects were assessed and compared between different treatment groups.
Case series of long-pulsed 1064 nm Nd:YAG laser
Long-pulsed 1064 nm Nd:YAG laser efficacy.
y: years-old.
aObserver(s) judged the outcome and graded the improvement in five percentage groups (0%; 0%–25%; 25%–50%; 50%–75%; 75%–100%).
bPatients rated their satisfaction and subjective improvement in five groups: 1 (no satisfaction/improvement), 2 (little satisfaction/improvement), 3 (somewhat satisfied/some improvement), 4 (satisfied/significant improvement), and 5 (very satisfied/complete improvement).
cClearance was graded in subgroups: clear (I), marked improvement (II), partial response (III), poor response (IV), and no change or worsening.
dEfficacy scale from 1 (totally unsatisfied) to 10 (totally satisfied) was used by the doctor and each patient to assess the results.
eObserver(s) rated the clearance rate in four subgroups: none; mild; moderate; significant.
fPatients’ satisfaction was evaluated in a posttreatment questionnaire and graded in three groups (not satisfied; somewhat satisfied; highly satisfied).
gPatients’ satisfaction was assessed by a self-evaluation scale (not at all satisfied; minimally satisfied; moderately satisfied; greatly satisfied).
The number of sessions in the treatment of leg veins can possibly play an important role in the outcomes. In these studies, the number of sessions varied between one and five. Ozyurt et al. found that 80.8% of the leg veins treated with Nd:YAG laser showed a significant clearance after five sessions with 4 weeks interval, but only 21.2% had this magnitude of improvement after three sessions. 12 On the other hand, the studies in our search with the best clearance results needed up to three sessions.9,14 There was also a discrepancy between laser settings across the reports (laser spot size 1.5–6.0 mm, pulse duration 10–60 ms, and fluency 90–600 J/cm2) that could have influenced the results.
Patient satisfaction is crucial when assessing laser therapy outcomes. Studies using self-evaluation scales found high satisfaction rates (64% to 90%) after treatment with long-pulsed 1064 nm Nd:YAG laser for leg veins under 2 mm in diameter.10,14–16
The side effects were assessed with the most common ones being transient post-inflammatory hypo or hyperpigmentation, burns with blisters, telangiectatic matting, bruising, and superficial thrombosis. Transitory hyperpigmentation appears to be the most common side effect with a prevalence varying between 10% and 62%. Parlette et al. stated that longer pulse durations (40–60 milliseconds) were associated with less side effects. 16 Moderate tolerable discomfort was mentioned across all studies. In a report of Ianosi et al., sensitivity was assessed with a scale from 1 (most intensive pain) to 10 (no pain) and the average sensitivity was 6.33 for men and 7.077 for women. 10
Long-pulsed 1064 nm Nd:YAG laser versus sclerotherapy
Long-pulsed 1064 nm Nd:YAG laser versus sclerotherapy.
y: years-old.
aResults were analyzed using a clearance scale with 5°: 0 (no change), 1 (1%–25%), 2 (25%–50%), 3 (51%–75%), and 4 (75%–100%).
bThe physicians graded the improvement in four-point groups: 1 (<25%); 2 (26%–50%); 3 (51%–75%); 4 (76%–100%).
cThe physician and two independent observers graded the improvement in a scale from 0 (no improvement) to 10 (complete clearing).
In these five articles, the number of sessions was two in four studies and three in one study. A significant variation between laser setting was also present across the reports (laser spot size 3.0–7.0 mm, pulse duration 10–50 ms, and fluency 100–350 J/cm2).
In studies comparing long-pulsed 1064 nm Nd:YAG laser and sclerotherapy, results varied based on factors such as vessel diameter. Laser therapy was more effective for telangiectasias under 1 mm, while sclerotherapy showed better results for vessels between 1 and 2 mm.17,18
Some studies indicated quicker effects with fewer sessions for sclerotherapy.19,20
Laser therapy was generally found to be more painful, and there were no severe complications reported.8,19,20 Differences in side effects were observed, with laser therapy causing more transient post-inflammatory hyperpigmentation than sclerotherapy. 19 Overall, the choice between laser therapy and sclerotherapy depends on factors such as vessel size and patient preferences, with each method having its advantages and considerations.

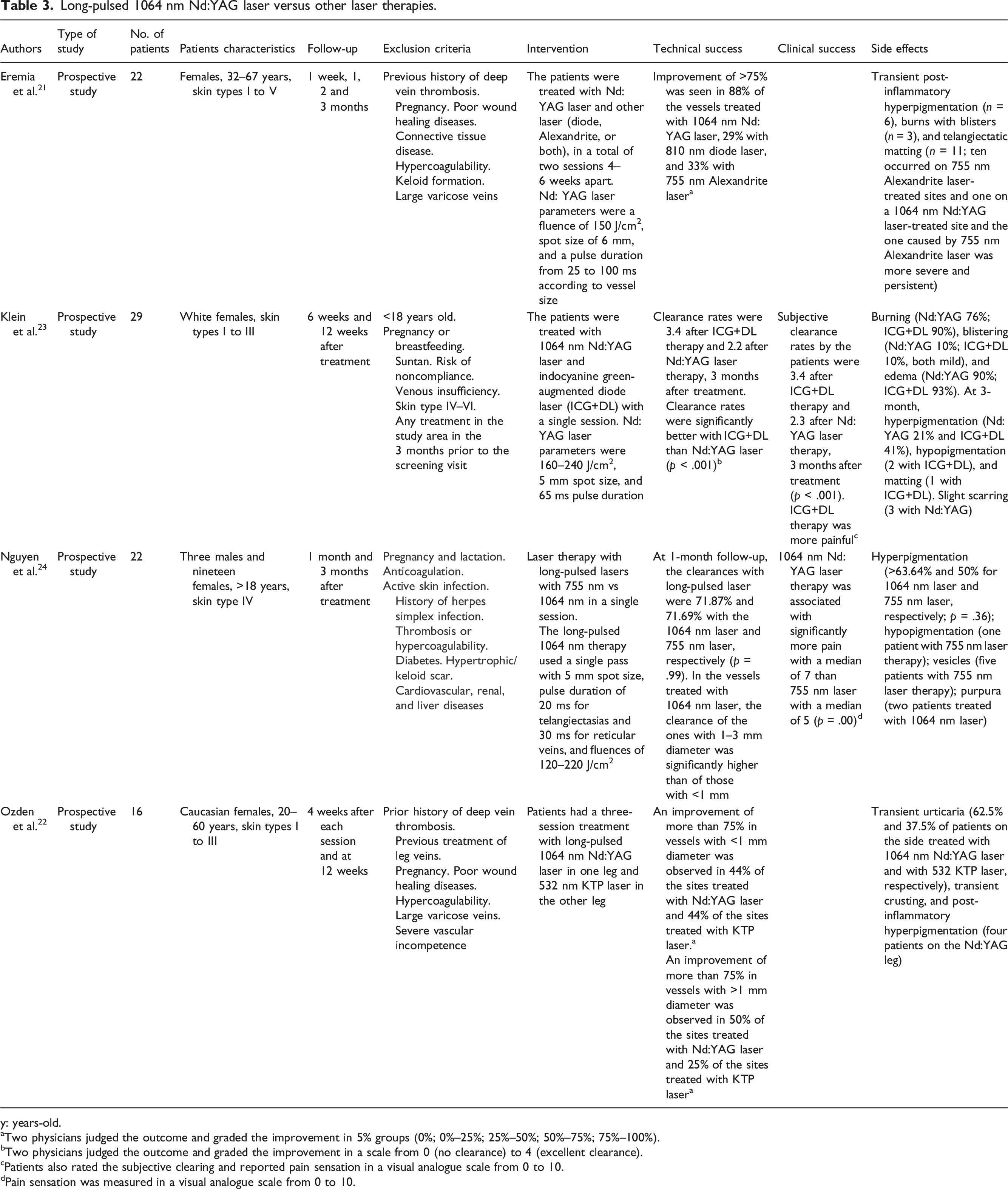

Long-pulsed 1064 nm Nd:YAG laser versus other laser therapies
Long-pulsed 1064 nm Nd:YAG laser versus other laser therapies.
y: years-old.
aTwo physicians judged the outcome and graded the improvement in 5% groups (0%; 0%–25%; 25%–50%; 50%–75%; 75%–100%).
bTwo physicians judged the outcome and graded the improvement in a scale from 0 (no clearance) to 4 (excellent clearance).
cPatients also rated the subjective clearing and reported pain sensation in a visual analogue scale from 0 to 10.
dPain sensation was measured in a visual analogue scale from 0 to 10.
In these four articles, the number of sessions varied from one to three sessions. A variation between laser settings was still seen across the reports (laser spot size 5.0–6.0 mm, pulse duration 20–100 ms, and fluency 120–240 J/cm2).
In studies comparing long-pulsed 1064 nm Nd:YAG laser with other laser therapies, results varied based on vessel diameter. Nd:YAG laser showed better technical success rates for vessels >1 mm in two studies,21,22 but diode laser therapy was more successful in another study. 23 The fourth study reports no differences between treatments. 24
Patient satisfaction and pain levels were assessed in some studies. Diode laser therapy resulted in better subjective clearance and less pain than Nd:YAG laser therapy.23,24
Common side effects included transient post-inflammatory hyperpigmentation, burns, telangiectatic matting, and transient urticaria. Notably, 755 nm Alexandrite laser caused more severe and persistent telangiectatic matting than 1064 nm Nd:YAG laser. 21 No serious complications were reported.

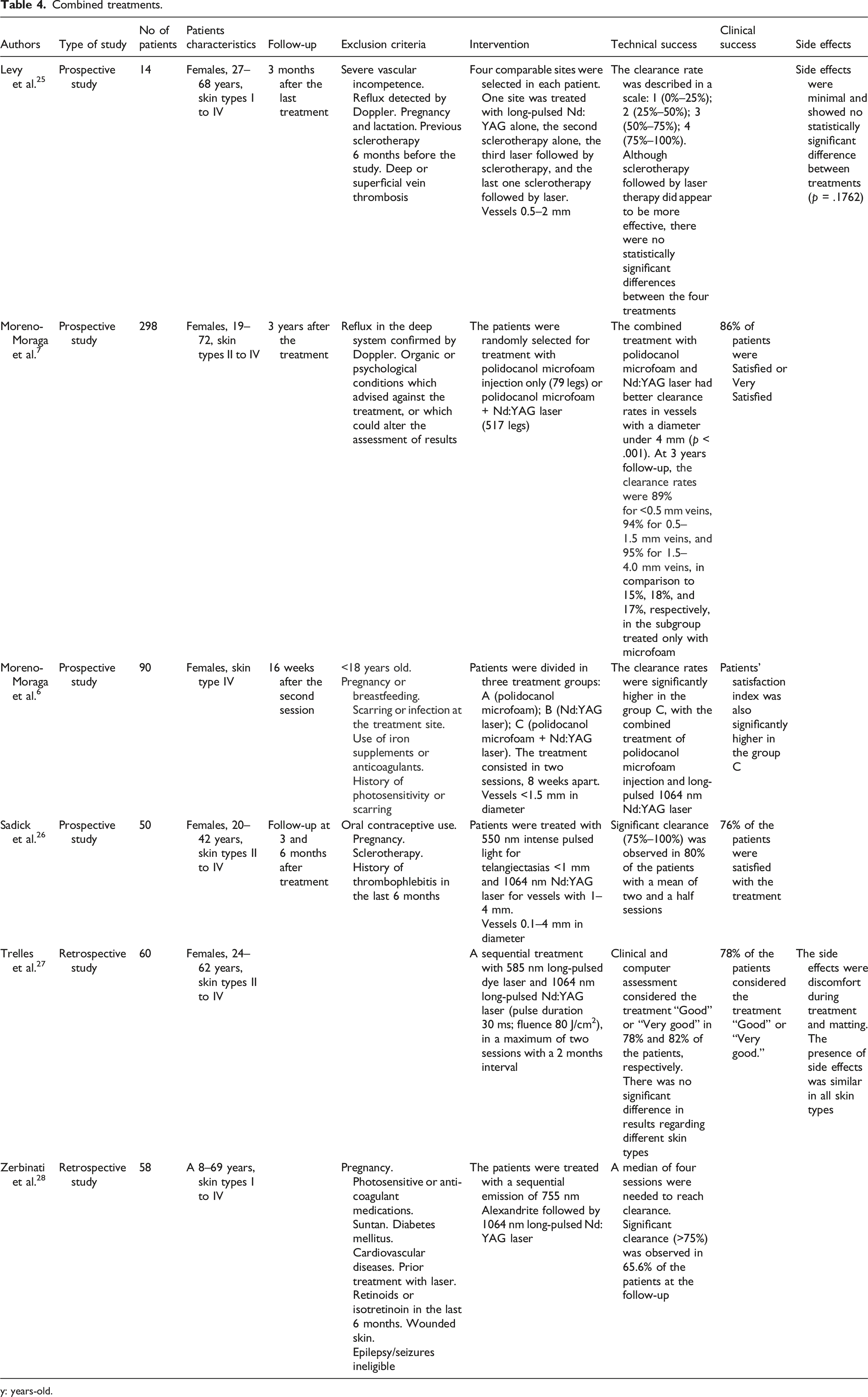

Results of combined treatments
Combined treatments.
y: years-old.
Moreno-Moraga et al. conducted three studies on combined sclerotherapy and 1064 nm Nd:YAG laser therapy. In a prospective study, the combined treatment showed superior clearance rates in vessels <3 mm (p < .001) at 3 years follow-up. 7 A retrospective analysis of 202 patients revealed high clearance rates at 5 years (85% for class I, 89% for class II, and 92% for class III varicose veins). 29 In another study, combined therapy resulted in significantly higher clearance rates and patient satisfaction (p < .0001). 6 Levy et al. studied a small population of fourteen patients that were treated in four sites (one site with 1064 nm Nd:YAG laser alone, the second one with sclerotherapy alone, the third with laser followed by sclerotherapy, and the last one with sclerotherapy and then laser). Although sclerotherapy followed by laser therapy did appear to be more effective, there were no statistically significant differences between the four treatments, likely due to the small sample size. 25
Combining 1064 nm Nd:YAG laser with other therapies also showed promising outcomes. Sadick et al. achieved significant clearance (>75%) in 80% of patients using IPL for vessels <1 mm and 1064 nm Nd:YAG laser for larger vessels. 26 Trelles et al.’s sequential protocol with 585 nm long-pulsed dye laser and 1064 nm Nd:YAG laser resulted in positive patient and clinical assessments (78%–82% with “Good” or “Very good” results). 27 Zerbinati et al. reported significant clearance (>75%) in 65.6% of patients with a combination of 755 nm Alexandrite laser followed by 1064 nm Nd:YAG laser. 28
Discussion
This review summarizes the main features of the protocols that use long-pulsed 1064 nm Nd:YAG laser to treat telangiectasia and reticular veins as a single intervention, or as part of a treatment that combines long-pulsed 1064 nm Nd:YAG with sclerotherapy or with other lasers.
Sclerotherapy has been the “gold-standard” for treatment of legs’ telangiectasia and reticular veins. More recently, with new technological advances in laser and intense pulse light devices, laser therapy has become increasingly popular for the treatment of these pathologies. 30
Long-pulsed 1064 nm Nd:YAG laser has a longer wavelength and a larger pulse, which can be responsible for better results in the treatment of deeper and larger veins, with less side effects on the skin. 31 The longer wavelength contributes for less absorption of the energy by the skin’s melanin, making it also an important advantage when treating patients with higher phototypes, because there is a significant lower risk of dyschromia. 32 Studies have been shown promising results for Nd:YAG laser in the treatment of vessels up to 3 mm in diameter,4,5,9–15 and some found better outcomes in blue vessels with diameters above 2 mm.13,33 Numerous studies showed not only good clearance rates but also a great percentage of patients highly satisfied with the outcomes.10,14 However, Trelles et al. stated that only 57% of the patients in their retrospective study considered the treatment “Good” or “Very good,” whereas the clinical and computer assessment considered the treatment “Good” or “Very good” in 64% and 71% of the patients, respectively. 15 These differences could probably be explained by high unrealistic expectations that are often encountered in these patients and should be assessed and clarified previously to the treatment. Thus, long-pulsed 1064 nm Nd:YAG laser is a valid therapeutic option for the treatment of leg veins with 3 mm or less in diameter, deeper blue veins and veins in patients with darker skin, with good clearance rates and patients’ satisfaction. Serious side effects are rare, but the procedure is almost always accompanied by moderate pain level. 33
Even though long-pulsed 1064 nm Nd:YAG laser has been showing great results in the treatment of vessels with up to 3 mm diameter, it is interesting to note that laser parameters such as spot size, pulse duration, and fluence vary in the different studies and the consequences of these variations on the outcomes aren’t yet fully understood. 34 Sadick et al. used different parameters in the Nd:YAG laser device for vessels with less than 1 mm and vessels with 1 to 3 mm (spot size 1.5 mm, fluence 400 to 600 J/cm2, and pulse duration 30 to 50 ms for red vessels <1 mm; and spot size 3 mm, fluence 250–370 J/cm2, and pulse duration 50–60 ms for blue vessels 1–3 mm). In this study, they concluded that for the treatment of red vessels with <1 mm, long-pulsed 1064 nm Nd:YAG should be used with a smaller spot size, higher fluence, and shorter duration. Whereas in the treatment of blue vessels with 1–3 mm, it should be used a large spot size, moderate fluence, and long pulse duration. 14
In the comparison of 1064 nm Nd:YAG laser therapy with other lasers and light sources, the studies we found in the literature have some contradictory outcomes. These discrepancies can possibly be explained by a limitation present in all four articles, which is a very small population size, along with the great heterogeneity of laser therapies being used as the control group.
Studies comparing sclerotherapy and long-pulsed 1064 nm Nd:YAG laser therapy in the treatment of leg veins showed similar clearance rates with no significant differences. However, sclerotherapy seemed to be less painful and had faster clinical improvements.8,19,20 In two articles conducted by Ianosi et al. (one with a population of 132 female patients and the other with 285), Nd:YAG laser had better outcomes in the treatment of smaller vessels with less than 1 mm in diameter, than sclerotherapy alone.17,18
Sclerotherapy consists in injecting a chemical agent able to provoke sclerosis of the blood vessels and damage to the endothelium. It has great results in the treatment of leg veins, but there are many disadvantages (allergic reactions, need for multiple injections, ulceration, or telangiectatic matting), that can make it not the ideal option for all patients. 35 There isn’t still enough evidence that supports the use of Nd:YAG laser above sclerotherapy and both can be used to treat effectively leg telangiectasia and reticular veins. Nonetheless, Nd:YAG laser is an excellent option for patients with needle phobia, resistance or contraindications for sclerotherapy, known allergy to sclerosant solutions, with vessels too small for the needle diameter, or patients who developed post-sclerotherapy telangiectatic matting. 20
Moreno-Moraga et al. wrote three articles about a combined treatment with 1064 nm Nd:YAG laser and sclerotherapy in comparison with both treatments alone and found statistically significant higher clearance and patients’ satisfaction percentages.6,7,29 Sclerotherapy and laser therapy should be used as complementary treatments because small vessels could be very difficult to needle catheterization in sclerotherapy and 1064 nm Nd:YAG laser results are still limited for vessels larger than 3–4 mm. 36
Conclusion
Long-pulsed 1064 nm Nd:YAG laser is a valid therapeutic option for leg telangiectasia and reticular veins with growing evidence and popularity. It has been showing great aesthetic outcomes with minor side effects. Nd:YAG laser therapy could be combined with sclerotherapy or other laser therapies or IPL in order to achieve better results. Giving the limited level of evidence, more powered studies should be conducted to further understand which laser device parameters should be used to obtain the best clinical improvements.
