Sonography of musculoskeletal infection in children

Abstract

Musculoskeletal infection, especially in young children, often presents with non-specific clinical signs and symptoms necessitating early imaging to identify the source of infection. While MRI is the investigation of choice to demonstrate bone infection, it is expensive and often requires a general anaesthetic in the young child. Ultrasound can be a useful tool in the initial assessment due to its easy availability and portable equipment. It does not involve ionising radiation and is used to guide aspiration and drainage procedures. This review explains sonographic features of septic arthritis, osteomyelitis, pyomyositis and soft tissue infection in children and highlights advantages and limitations of sonography when assessing the child with suspected musculoskeletal infection.

Keywords

Musculoskeletal infection osteomyelitis septic arthritis sonography child

Introduction

The investigation of a child with suspected musculoskeletal infection can present a diagnostic challenge. While older children usually present with systemic symptoms including fever and malaise, young children may show only non-specific signs such as crying, poor feeding or refusal to move a limb. Fever and systemic symptoms can be absent in neonates and inflammatory markers (C-reactive protein, white blood cell count) may be normal due to an immature immune system and with certain infections such as Kingella kingae.^1–4 Radiographs are easily available, inexpensive, but insensitive for joint effusion and in the early stages of bone infection.⁵ Due to its excellent soft tissue contrast, its ability to show bone oedema early and its high sensitivity and specificity, magnetic resonance imaging (MRI) is generally regarded as the imaging modality of choice.^6,7 However, it is expensive, not universally available and often requires general anaesthesia or sedation in young children.⁸ Increasing concerns about high radiation exposure has limited the use of scintigraphy and computed tomography (CT) in recent years.^7,9

Sonography offers a cheap, easily available and radiation free alternative. It is however operator dependent, and should be performed and interpreted by a trained professional who is regularly imaging children. Use of a high performance machine is preferable over a handheld or basic scanner. Equipment is portable and images are less susceptible to motion and metal artefact than MRI. Ultrasound is especially useful because the unossified cartilage in a young child helps to visualise the joint and to guide drainage of collections.

Sonography should be performed in a child friendly quiet room with support of the parent or carer. A high frequency linear transducer (at least 10–12 MHz) is ideal for imaging small superficial structures or joints in young children. A lower frequency curvilinear transducer may be required for older children to image a deep intramuscular abscess and extended field of view imaging can be employed to document large lesions.⁹ Imaging of the opposite joint for comparison can be helpful but detailed anatomical knowledge of each area examined and awareness of physiological changes occurring during growth and development are prerequisites for accurate diagnosis. Sonography should be used as a first line test or in conjunction with radiographs if bone involvement is suspected. It may eliminate the need for further imaging with MRI.

Septic arthritis

Septic arthritis is infection of a joint from haematogenous seeding of organisms into the highly vascular synovium.³ Staphylococcus aureus is most frequently identified, followed by Group A Streptococcus and Streptococcus pneumoniae. Group B Streptococcus and Escherichia coli are recognised in neonates, whereas Neisseria gonorrhoea may occur in adolescents.¹⁰ The incidence of septic arthritis in children varies in different regions but ranges between 5 and 12 per 100,000 per year.¹¹ Septic arthritis is usually monoarticular with the hip and knee most commonly affected.¹¹ It may be associated with osteomyelitis due to direct extension of infection from bone into the joint which occurs more frequently in joints where the metaphysis is intra-articular such as the hip or shoulder.^6,12 These children usually present with a longer duration of symptoms.¹² A quick diagnosis and early treatment is important as joint damage occurs due to bacterial endotoxins, the body’s own inflammatory response and avascular necrosis related to tamponade of nutrient vessels by large joint effusions.^3,13,14

Sonography is usually performed as first line investigation in a young limping child to exclude a hip joint effusion and to investigate any swollen or painful joint.^15,16 Ultrasound can detect joint effusions as small as 1–2 ml but cannot distinguish an infected from a non-infected effusion regardless of the size or echogenicity of the fluid.^3,12,16 It is useful to compare both sides when deciding if a small amount of fluid may be pathological. While the absence of a joint effusion excludes a diagnosis of septic arthritis, ultrasound may be negative in the first 24 hours after onset of symptoms when a sufficient effusion has not yet accumulated.^3,16,17 Fluid preferentially accumulates in different areas of each joint: the suprapatellar recess of the knee, the anterior recess of the hip or the posterior recess of the elbow (Figures 1 to 4). This knowledge should guide the operator to the most appropriate initial scan plane when examining an unsettled child. This includes the suprapatellar region of the knee in a sagittal plane, the anterior aspect of the ankle in a sagittal plane, the posterior aspect of the elbow in a sagittal plane and the anterior aspect of the shoulder including the biceps tendon in a transverse plane. In a cooperative child, a full examination of the joint in multiple planes is suggested. Care should be taken to not mistake the unossified hypoechoic epiphysis in a young child for joint fluid which can be avoided by comparing the affected joint with the opposite site, careful observation of fluid movement and adjusting the gain during scanning.

Figure 1.

Four year old with septic arthritis of the hip. Longitudinal scan of the right anterior hip along the axis of the femoral neck shows a prominent joint effusion (arrow) with associated synovial thickening accumulating in the anterior recess where the capsule is most distensible.

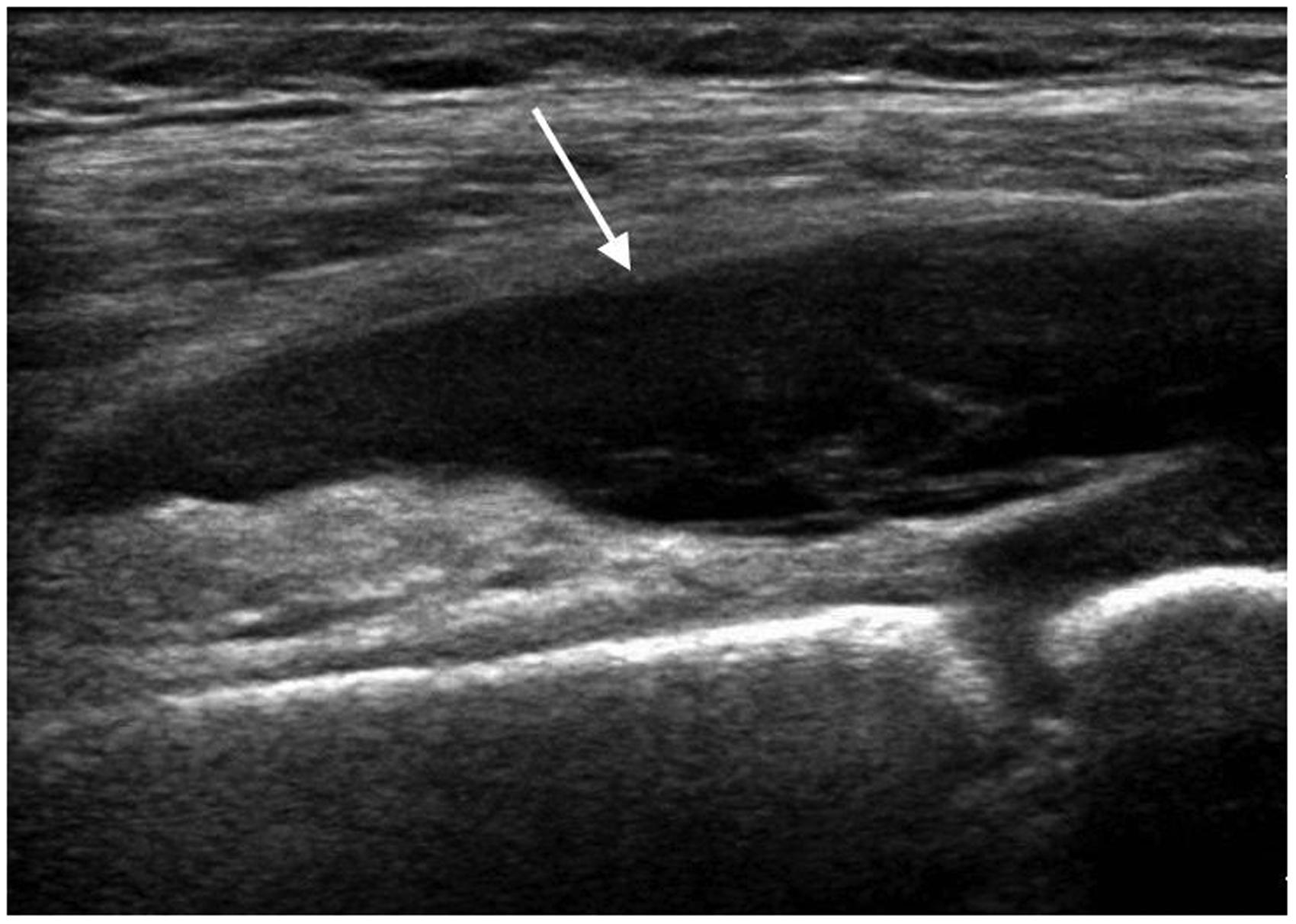

Figure 2.

Five year old with septic arthritis of the knee. Longitudinal scan of the suprapatellar region demonstrates a large joint effusion (arrow).

Figure 3.

Infant of 10 months with septic arthritis of the elbow. Longitudinal scan along the posterior elbow shows a large joint effusion (arrow) in the olecranon fossa.

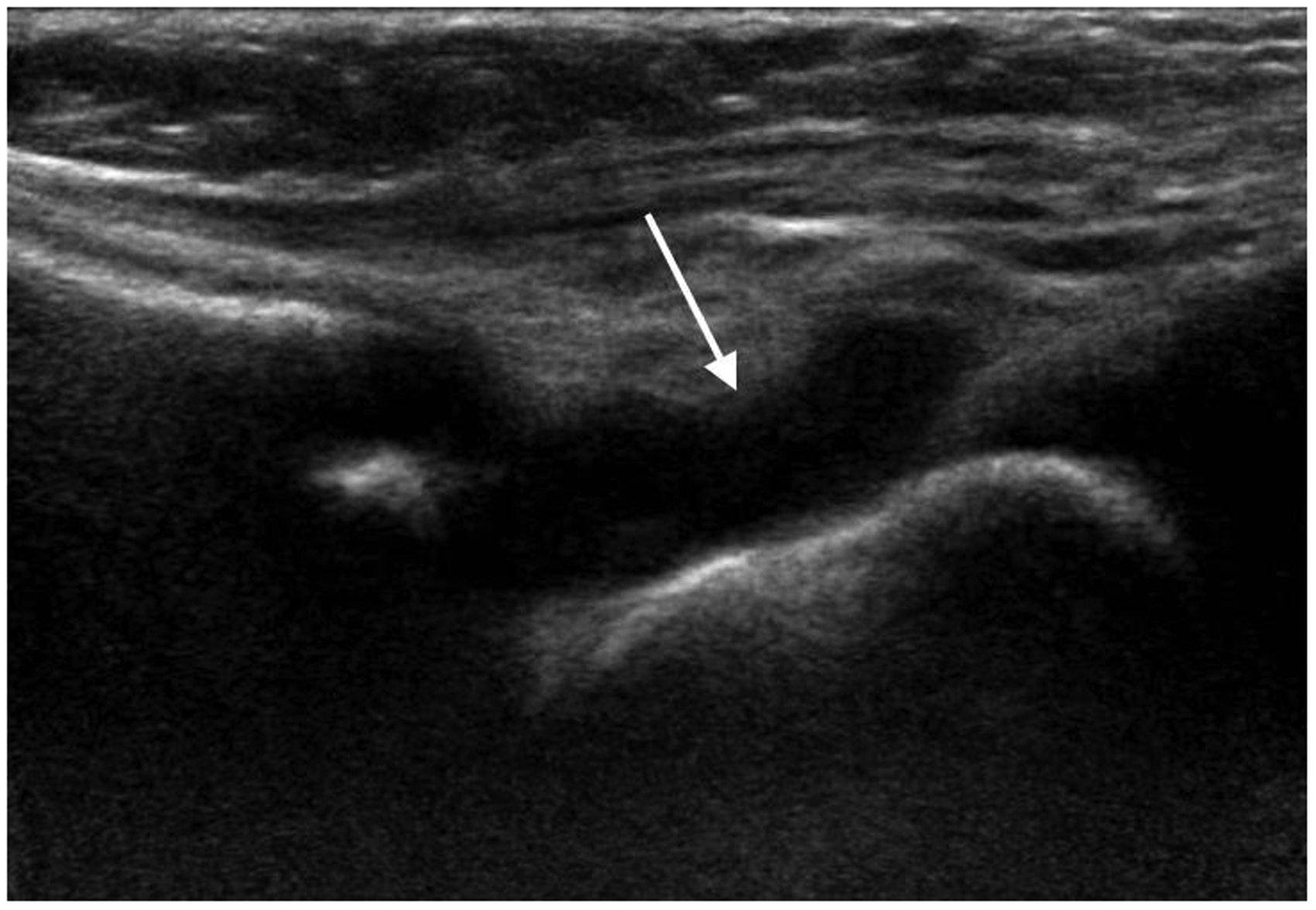

Figure 4.

One year old with septic arthritis of the ankle. Longitudinal scan of the anterior ankle demonstrates a large joint effusion (arrow).

Several authors have described clinical decision algorithms evaluating fever, raised CRP >20 mg/l, ESR >40 mm/h, WBC >12 × 10⁹cells/l and non-weight bearing status to differentiate septic arthritis from transient synovitis, a self-limiting benign process.^18–20 However, there is no single investigation or blood test to reliably distinguish the two entities. Many authors regard joint aspiration and culture of the fluid as the definitive investigation if the clinical algorithms point towards septic arthritis or the diagnosis remains unclear.^18–21

Osteomyelitis

Osteomyelitis represents infection of the bone and bone marrow with an incidence of approximately 1 in 5000.^6,13 Young children are more commonly affected. The most common causative organism is S. aureus, which accounts for 80–90% of infections followed by β-Haemolytic Streptococcus, S. pneumoniae, E. coli and Pseudomonas spp. However, recently other organisms such as K. kingae and aggressive Panton–Valentine leukocidin toxin producing S. aureus strains are more frequently encountered.^2,12,22 Infection may occur either from direct or haematogenous spread. The long bones most frequently affected include the femur, tibia and humerus. Other bones affected include pelvis and calcaneus.⁴

Haematogenous osteomyelitis in children commonly affects the highly vascularised metaphyses of fast-growing long bones allowing easy seeding of bacteria (Figure 5).¹³ Children less than two years old have more transphyseal vessels entering the epiphyseal circulation from the metaphyses which allows the infection to spread more easily across the physis into the epiphysis and joints.^4,6 Epiphyseal osteomyelitis is therefore often observed in neonates and infants but can occur at any age (Figure 6).²³ Due to an immature immune system, neonates and young children are prone to multifocal infection (Figure 7).⁴ In young children, the periosteum is not firmly attached to the cortex leading to prominent subperiosteal collections (Figure 8).⁶ In the older age group, vascular supply between the epiphysis and metaphysis is separated by the avascular growth plate; it is therefore rare for haematogenous osteomyelitis to spread from the metaphysis to the epiphysis without mechanical disruption of the growth plate.²³

Figure 5.

Two year old with tibial osteomyelitis. (a) Longitudinal scan of the left proximal tibia shows increased echogenicity in the metaphysis and epiphysis (arrow). Marked superficial soft tissue thickening (*) is best appreciated when compared to the normal proximal right tibia in (b). (c) Transverse scan of the proximal tibia demonstrates an echogenic focus and bone destruction in the metaphyseal region (arrow). (d) AP radiograph of the left knee shows the same area of bone destruction (arrow).

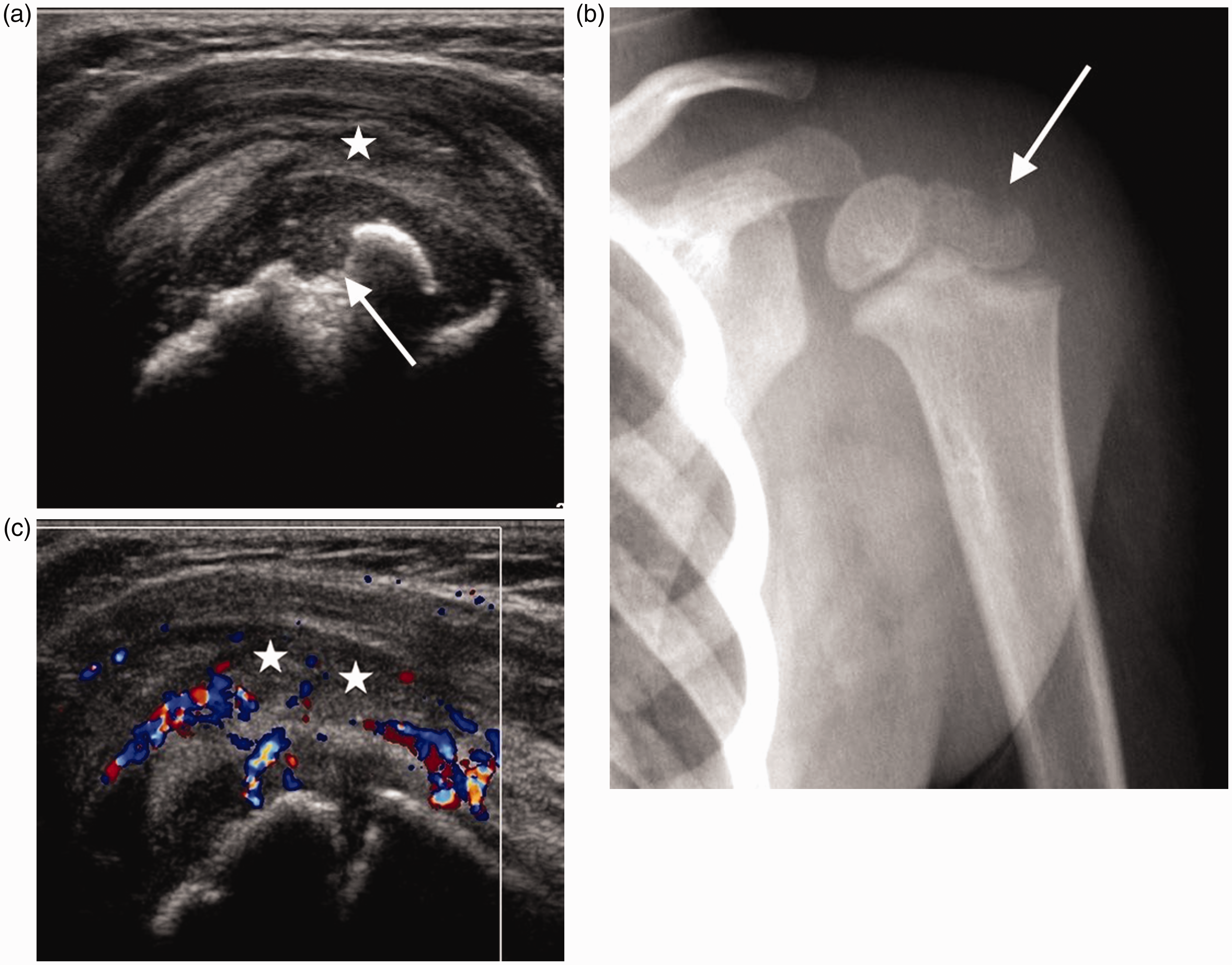

Figure 6.

Infant of 21 months with epiphyseal osteomyelitis of the humeral head. (a) Longitudinal scan of the shoulder demonstrates a defect in the humeral epiphysis (arrow), an echogenic joint effusion (*) and thickening of the joint capsule. (b) AP radiograph of the left shoulder confirms the bone defect seen on sonography (arrow). (c) Longitudinal colour Doppler image shows marked increase in vascularity. Joint effusion (*).

Figure 7.

Neonate of six weeks with multifocal osteomyelitis. (a) Longitudinal scan over the xiphisternum demonstrates a collection (arrow) extending from the cartilage (*) into the superficial soft tissues. (b) Longitudinal scan of the anterior aspect of the left ankle shows bony irregularity (arrow) with a small adjacent collection (*). There was also a joint effusion and synovitis (not shown). (c) Longitudinal scan of the suprapatellar region of the left knee shows an echogenic joint effusion with synovitis and bony irregularity at the femoral metaphysis (arrow). (d) Longitudinal scan along the left proximal humeral metaphysis demonstrates cortical bone irregularity (arrow) in keeping with osteomyelitis. (e) Longitudinal colour Doppler image of the left hip along the femoral neck shows a joint effusion (*) with marked increase in vascularity. (f) Longitudinal colour Doppler image of the left elbow shows increase in vascularity (arrow). There was also a joint effusion better seen in the olecranon fossa (not shown).

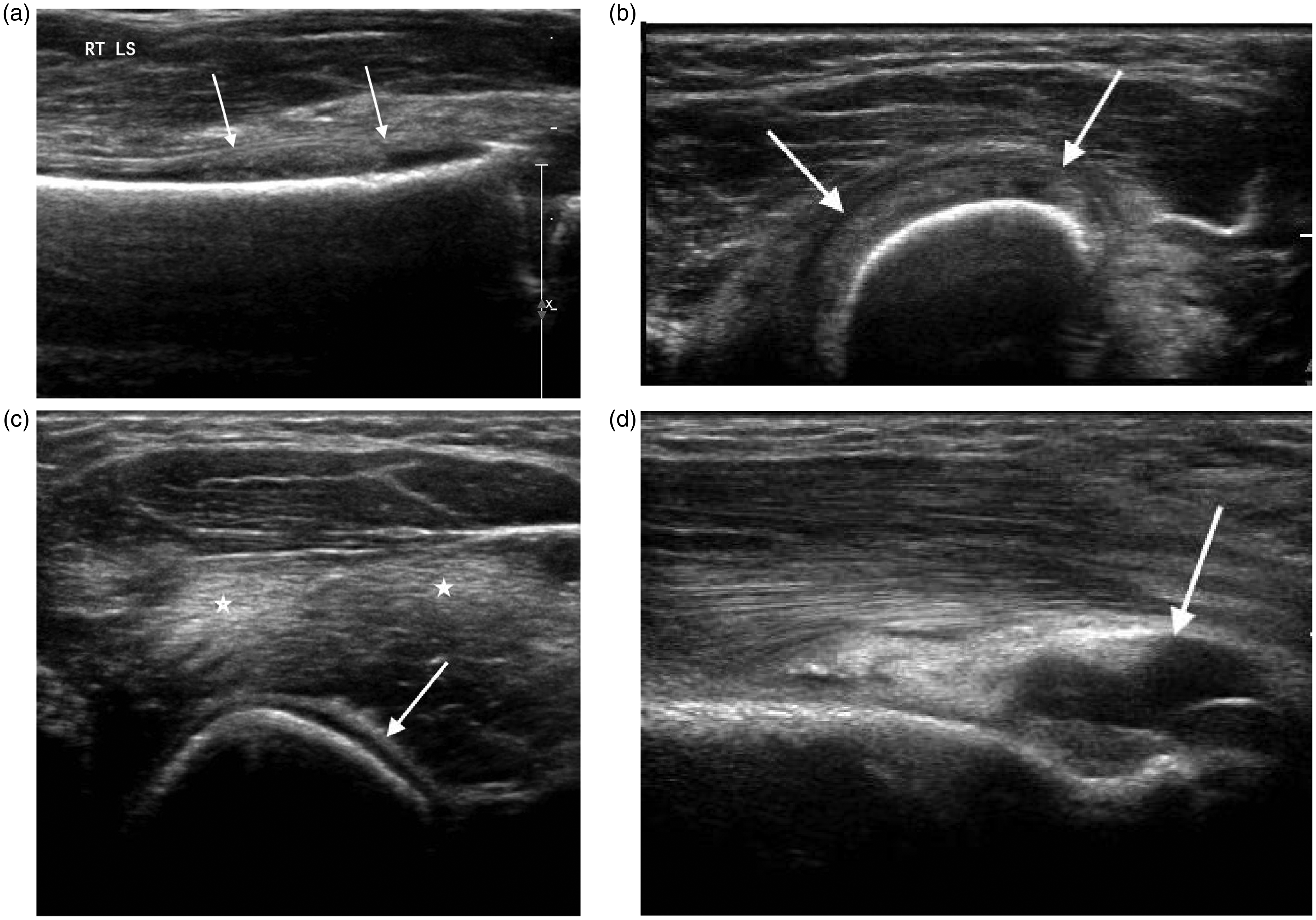

Figure 8.

Two year old with humeral osteomyelitis. (a) Longitudinal and (b) transverse scans of the distal humerus demonstrate an echogenic subperiosteal collection (arrows). (c) Transverse scan of the upper arm demonstrates periosteal reaction (arrow) and associated muscle oedema (*). (d) Longitudinal scan of the posterior elbow shows an associated joint effusion (arrow).

The use of ultrasound in detecting osteomyelitis has been reported in small series.^5,24–29 Sonography can demonstrate a range of findings as early as 1–3 days after the onset of symptoms (Figures 5 to 8). Juxtacortical deep soft tissue swelling is the earliest finding visible on ultrasound.^24,25,27 This is followed by periosteal thickening or elevation with a thin layer of fluid and subperiosteal abscess formation.^24,26,28,30 These findings are usually seen on ultrasound before any change is apparent on radiographs, up to two weeks later.⁵ Subperiosteal collections are characterised by a hypo- or anechoic lenticular-shaped fluid collection extending along the cortex of the bone. Anechoic collections in continuity with the bone are highly suggestive of osteomyelitis (Figure 9).^24,26,27,29 If soft tissue can be identified between the fluid collection and the bone, the collection is likely of non-osseous origin.²⁴ Cortical erosions and cloaca may be demonstrated but are not usually apparent until 7–10 days after onset of symptoms (Figures 7 and 9).²⁴ Reactive or infective joint effusions may also be identified and sonography can be used to guide aspirations (Figures 7 and 8).^4,17,24,30

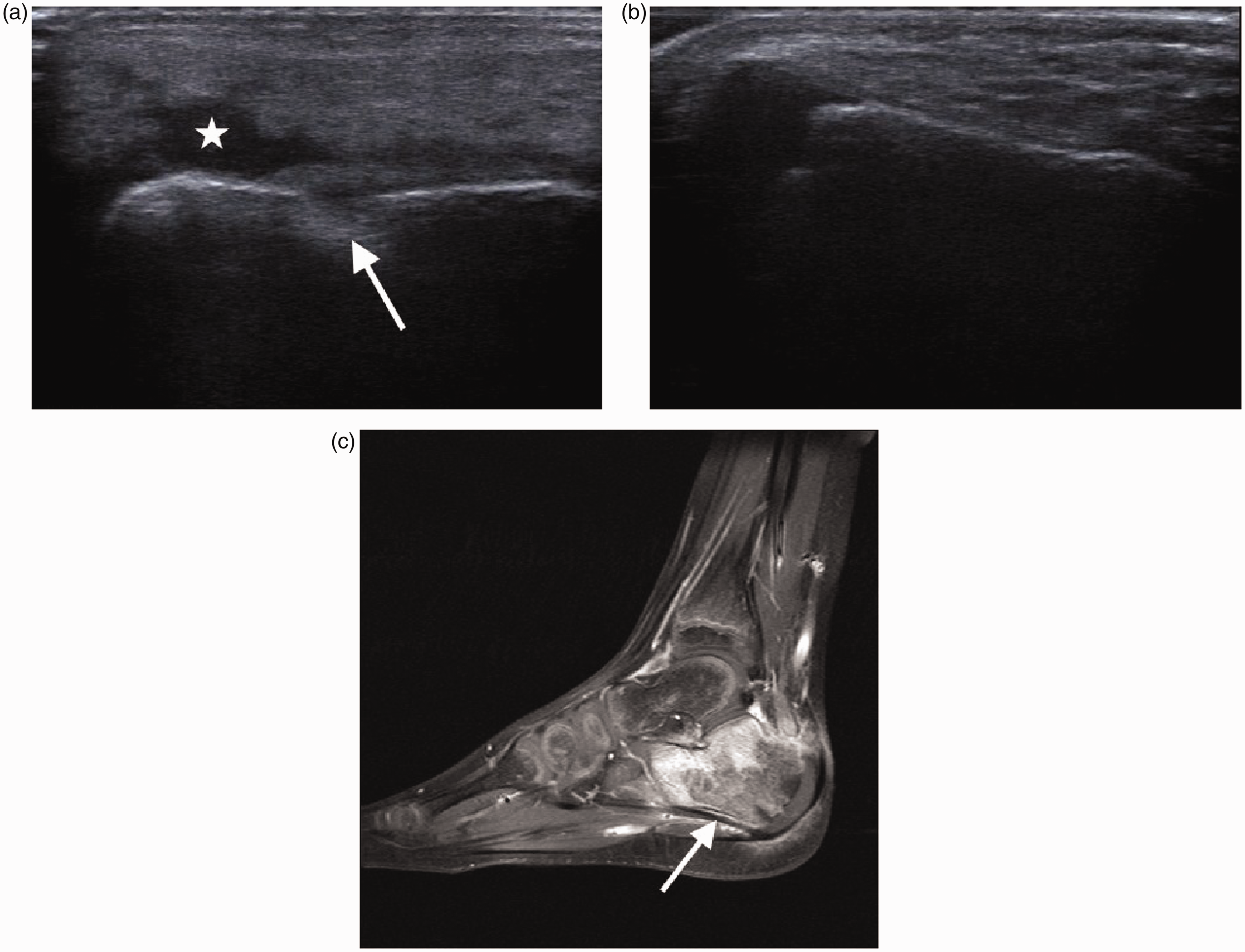

Figure 9.

Six year old with calcaneal osteomyelitis. (a) Longitudinal scan of the lateral aspect of the right calcaneus shows bone destruction (arrow) and a small associated soft tissue collection (*). (b) Normal left calcaneus for comparison. (c) Post-contrast sagittal T1 weighted fat saturated image shows involvement of the whole calcaneus (arrow) which would have been underestimated by sonography.

Colour or power Doppler can demonstrate increased vascularity in the periosteum and surrounding tissues or synovitis in the adjacent joint in keeping with inflammation (Figures 6 and 7).^24,27,31 Chao et al.³¹ report that increased flow on Doppler around the periosteum corresponds to advanced aggressive disease in patients with higher CRP. Ezzat et al.²⁷ have shown that increased flow on Doppler around the periosteum early in the disease process is likely to progress into a subperiosteal collection which can be demonstrated on follow-up sonography. Therefore, Doppler imaging may identify patients that require more aggressive management or surgical intervention.^27,31

Ultrasound is most sensitive in suspected acute osteomyelitis of long bones where the tendency to develop periosteal reaction or subperiosteal collections is greatest.³⁰ It cannot assess the bone marrow therefore underestimating the amount of bone involvement, and can also miss collections within the bone (Figure 9).³⁰ Assessment of the pelvis, especially in older children with suspected osteomyelitis, is often difficult.³² Early MRI may be required because presentations can be non-specific, the pelvic bony anatomy is complex and findings of soft tissue oedema and deep pelvic collections can be subtle on ultrasound (Figures 10 and 11).²⁵

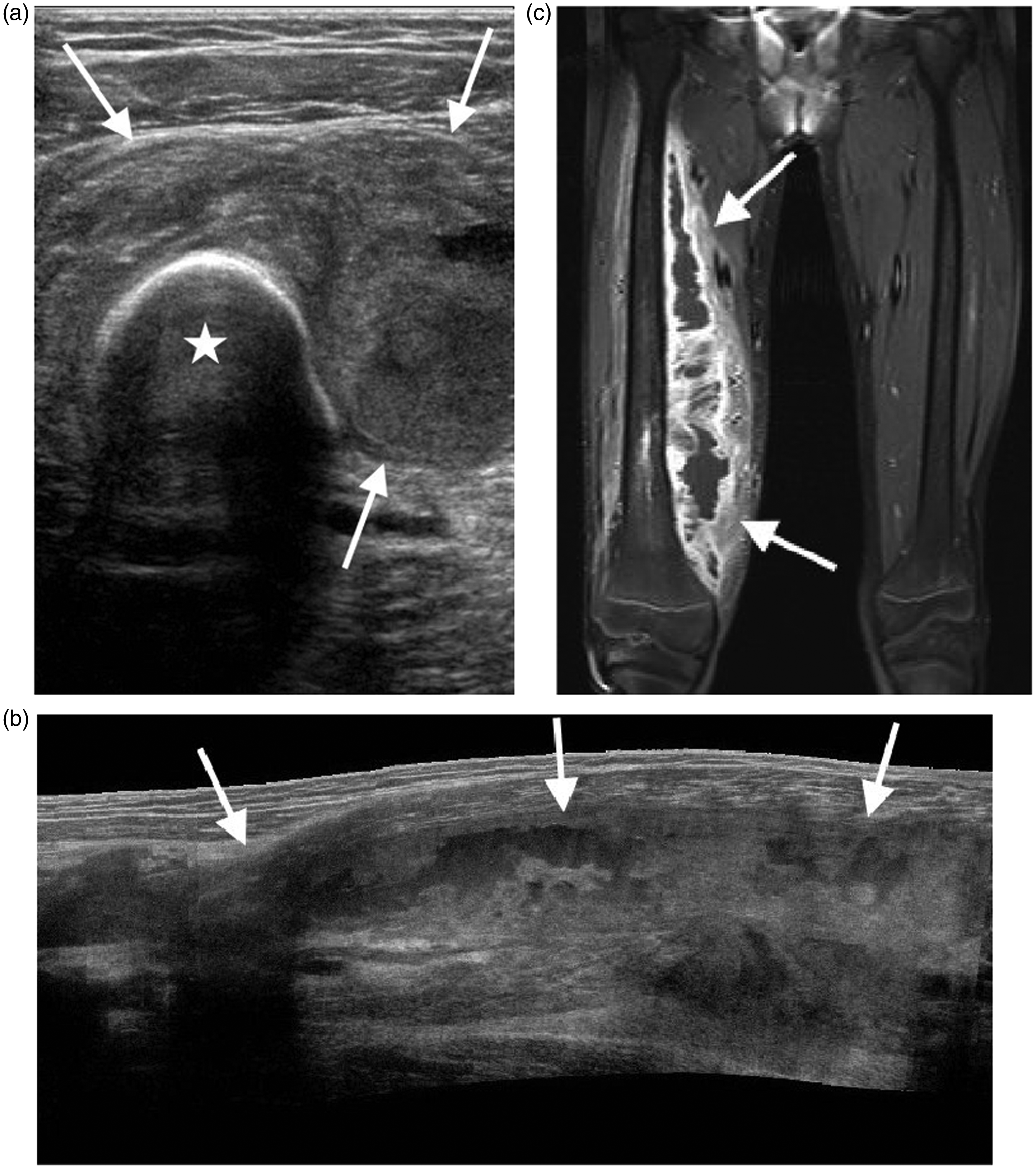

Figure 10.

Limitations of ultrasound shown in a teenager with chronic osteomyelitis. (a) Transverse image of the right upper thigh shows a large collection (arrows) surrounding the femur (*). Extended field of view imaging (b) and low-frequency images (not shown) failed to fully demonstrate the collection in a way useful for surgical planning. (c) Coronal post-contrast T1 weighted fat saturated MR image better demonstrates the full extent of the collection (arrows).

Figure 11.

Neonate of three weeks with pelvic osteomyelitis and soft tissue abscess. (a) Transverse scan through the pelvis shows a large collection (arrows) associated with the left pelvic side wall, bladder (*). (b) Longitudinal scan of the left hip shows bone destruction of the left ilium (arrow), femoral head (*). (c) Transverse scan over the buttock demonstrates a large soft tissue abscess (arrows). (d) Axial post-contrast T1 weighted fat saturated MRI image shows the large collection (arrows) related to the iliac bone extending into the pelvis and buttock, useful for surgical planning.

In children with sickle cell disease, acute pain may be due to vaso-occlusive crisis related bone infarction or osteomyelitis.³³ Clinical differentiation can be difficult especially if blood cultures are negative. Ultrasound can help differentiating osteomyelitis from vaso-occlusive crisis if large subperiosteal collections (>4 mm in depth) are detected especially when seen with high CRP and WBC.^33–35 William et al.³⁵ suggest that patients with pain and subperiosteal collections of <4 mm require aspiration of the fluid to diagnose osteomyelitis (Figure 12).

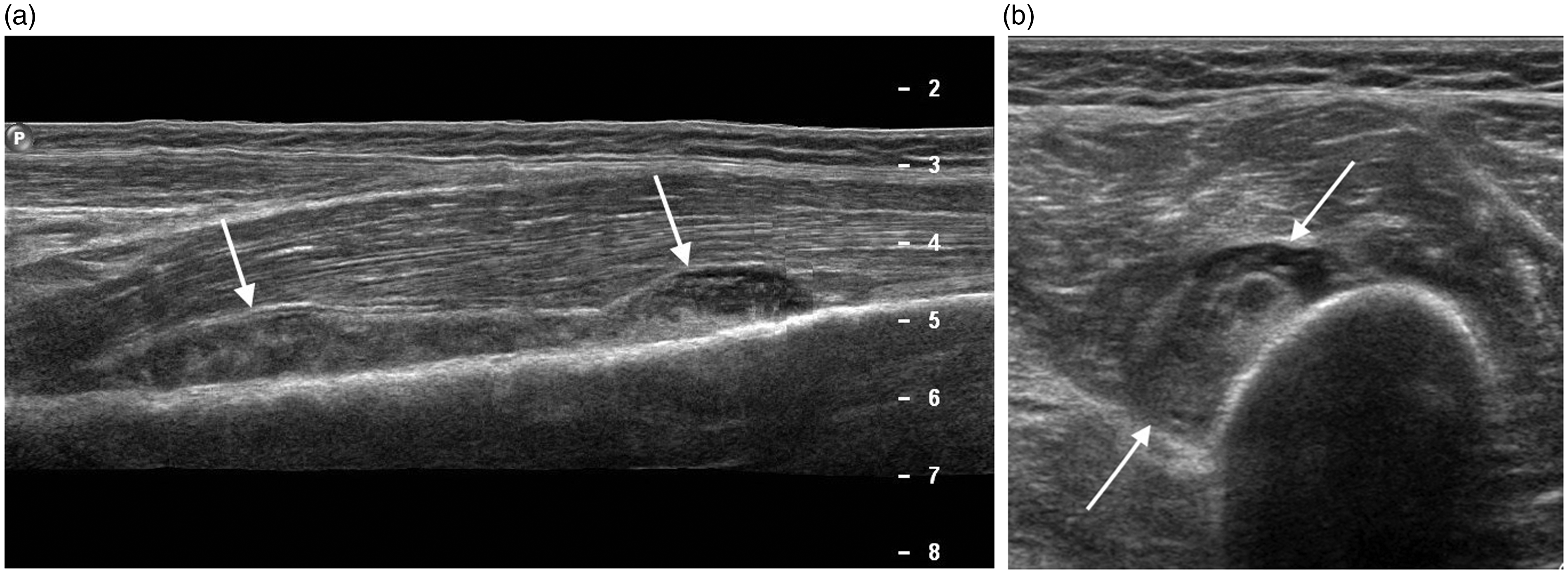

Figure 12.

Twelve year old with sickle cell disease and femoral osteomyelitis. (a) Longitudinal extended field of view image of the right femur demonstrates a large subperiosteal collection (arrows). (b) Transverse image shows the eccentric collection (arrow) next to the femur. Wash out of the hip joint effusion (not shown) and drainage of the subperiosteal collections yielded S. aureus.

Deep vein thrombosis (DVT) is a recognised complication of osteomyelitis.³⁶ Localised endothelial damage mediated by surrounding inflammation and release of cytokines that activate the coagulation cascade are thought to play a role, compounded by local oedema compromising venous flow. Clinically, patients complain of rapid onset of intense pain, a greater severity of clinical symptoms, loss of function in the affected limb and extensive soft tissue oedema (Figure 13).³⁶

Figure 13.

Teenager with femoral osteomyelitis, septic arthritis and DVT. (a) Transverse scan of the lower thigh demonstrates a collection (callipers) related to the femur. A knee joint effusion (not shown) due to associated septic arthritis was also present. (b) Transverse colour Doppler image of the groin shows a superficial femoral vein (arrow) expanded by thrombus and without colour flow representing DVT.

Pyomyositis

Pyomyositis, an infection of striated muscle, is uncommon as striated muscle is relatively resistant to infection.¹⁰ It is caused by S. aureus in over 75% of cases, followed by Mycobacterium tuberculosis, Streptococcus pyogenes and anaerobic bacteria.^37–39 Pyomyositis was originally described in tropical climates but penetrating trauma, systemic infections, immunodeficiency syndromes, diabetes, leukaemia and chronic renal failure have accounted for an increase in its incidence worldwide.^40,41 Although pyomyositis can affect any muscle, there is a predilection for the large muscles of the pelvis and lower extremity with osteomyelitis and septic arthritis concomitantly present in up to two-thirds of cases.⁴² Psoas abscesses are a frequent site although multiple areas may be affected.⁴⁰ Psoas abscesses can be related to bowel disease and appendicitis or spondylodiscitis (Figure 14).

Figure 14.

Four year old with spinal osteomyelitis and psoas abscess presenting with fever and hip pain. (a) Longitudinal scan of the left psoas muscle demonstrates an abscess within the muscle (arrow). (b) Longitudinal scan of the normal right psoas muscle for comparison. (c) Axial post-contrast T1 weighted fat saturated image shows the psoas abscess (*) and an associated extradural collection (arrow) due to osteomyelitis of the posterior spinal elements.

In the early phlegmonous stage of pyomyositis, sonography may identify an increase in muscle volume and oedema with disrupted hyperechoic muscle fibres, hypoechoic septa and generalised hyperaemia.⁴⁰ In the later suppurative stage, a more discrete, complex fluid collection or abscess can be delineated, surrounded by a thick hyperechoic and hyperaemic wall on colour Doppler imaging (Figure 15).^40,43–45 Gas within the abscess is characteristic of infection and manifests as tiny hyperechoic foci with reverberation artefact or ‘dirty shadowing’.⁴⁶ Dynamic compression aids visualisation of an echogenic liquefied component of the abscess which could be aspirated with ultrasound guidance.⁴⁷ An enlarged proximal psoas muscle and a focal walled-off collection is best evaluated posterior to the kidneys, from the flank or the lower abdomen (Figure 14).⁴⁴

Figure 15.

Eight year old with multifocal pyomyositis due to neutropenia while receiving treatment for leukaemia. (a) Longitudinal extended field of view image of the upper lumbar region demonstrates an abscess in the right paraspinal muscles (arrows). (b) Transverse colour Doppler image of the abscess demonstrates a thick echogenic rind with increased vascularity surrounding a hypoechoic centre (*). Several further abscesses were identified in the gluteus and quadriceps muscles (not shown).

Sonography can underestimate the extent of muscle inflammation in the early stages where subtle disruption of muscle fibres and change in echogenicity are the only signs.⁴⁰ Concerns for pyomyositis in deep pelvic muscles with possible coexistent osteomyelitis and spondylodiscitis are better evaluated with MRI.³²

Soft tissue infection and post-operative complications

As soft tissue infection commonly occurs by direct extension through broken skin, trauma and surgery are common predisposing factors. Immunocompromised patients are at increased risk.

Cellulitis and soft tissue abscess

Cellulitis is an inflammatory process of the skin and superficial soft tissues which preferentially affects the extremities in children. S. aureus and S. pyogenes are the commonest causative organisms.^10,30

Cellulitis remains a clinical diagnosis but ultrasound findings progress over time and correlate well with clinical findings and serum CRP.⁴⁸ In the early stages, thickening and increased echogenicity of the skin and subcutaneous tissues are seen (Figure 16). As early as 1–2 days after the onset of symptoms, an advanced stage with distortion of the tissues and layering of fluid between hyperechoic fatty lobules can be observed, giving a ‘cobblestone’ appearance.⁴⁸ These findings are non-specific and similar appearances may be seen in non-infective subcutaneous oedema.³⁰ Localised abscess formation can be identified with sonography and indicates the late stage.^10,48 Abscesses can demonstrate a hypo- or hyperechoic centre. An abscess with a hyperechoic centre may be mistaken for a solid lesion but dynamic assessment to show movement of material within it aids diagnosis and helps assess the need for aspiration.⁴⁴ Increased flow on power Doppler within the wall of an abscess but not the centre supports the diagnosis.^43,45

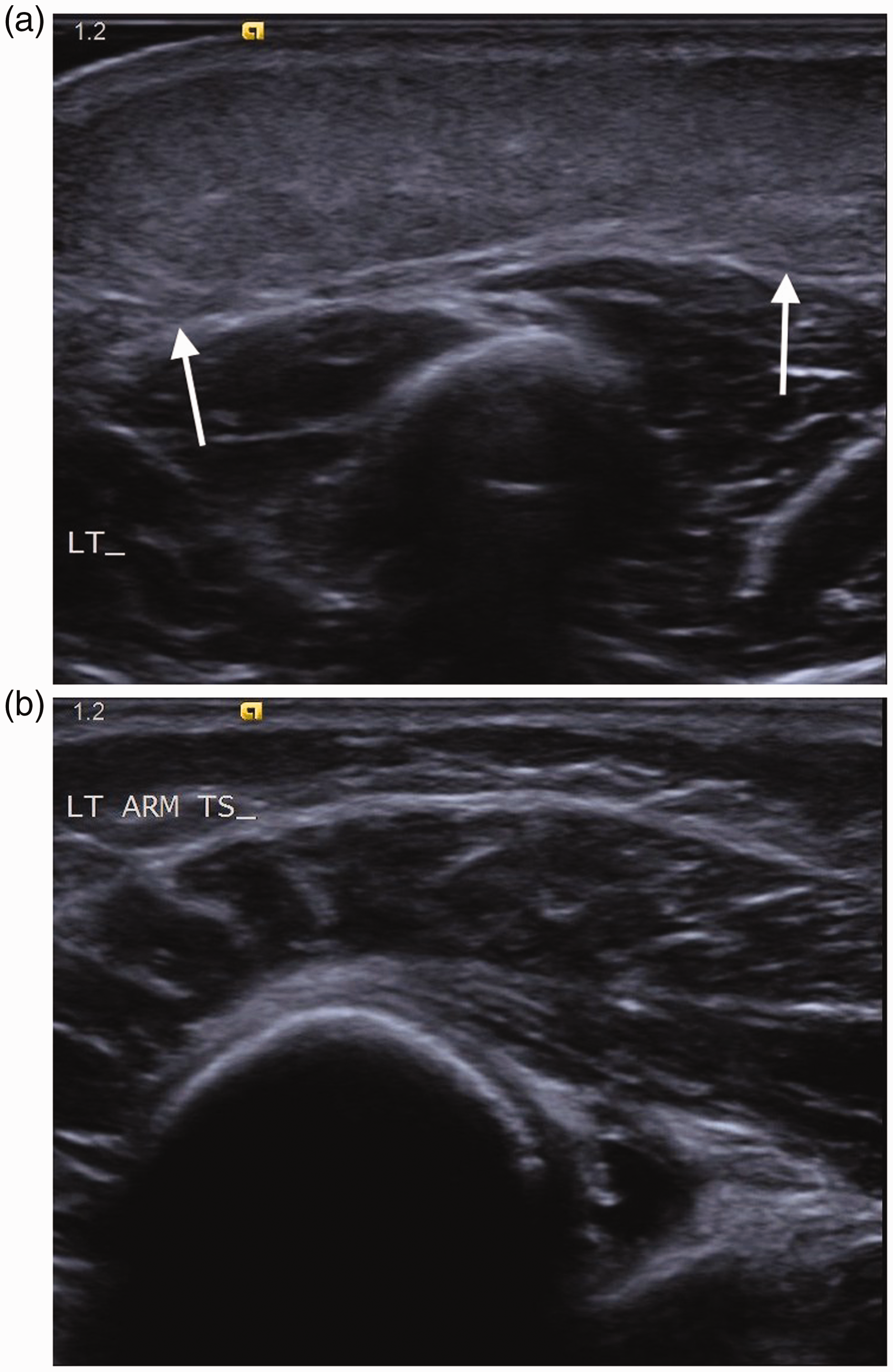

Figure 16.

Infant of 13 months with cellulitis. (a) Transverse scan of the upper arm demonstrates soft tissue oedema and thickening (arrows) excluding an abscess. (b) Transverse scan of the arm distal to the visible area of redness demonstrates normal superficial soft tissues.

Necrotising fasciitis, severe soft tissue infection, can be difficult to diagnose in its early stages when similar findings to cellulitis are seen.^10,37 In advanced stages, ultrasound will demonstrate thickening of the fascia with surrounding layered fluid collections.³⁷ If necrotising fasciitis is suspected clinically, cross-sectional imaging may be needed to guide acute intervention.

Infective tenosynovitis

Tenosynovitis represents infection and/or inflammation of the tendon sheath with S. aureus and S. pyogenes being the most common causative organisms.³⁰ Infective tenosynovitis is usually suspected clinically and patients present with raised inflammatory markers.

Ultrasound findings of infective tenosynovitis include thickening of the tendon and tendon sheath. Colour Doppler can demonstrate increased vascularity of the tendon sheath and less commonly within the tendon itself. Care should be taken as applying excessive transducer pressure during colour Doppler interrogation may eliminate neovascularity, a supportive feature of infective tenosynovitis.³⁸ The use of colour Doppler can therefore help to distinguish tendon sheath thickening from an effusion which may require drainage under ultrasound guidance. More pronounced tendon sheath fluid collections are a feature of severe suppurative tenosynovitis (Figure 17).³⁰ Thickening, oedema and hyperaemia of the adjacent subcutaneous tissues can indicate peritendinous spread of infection.

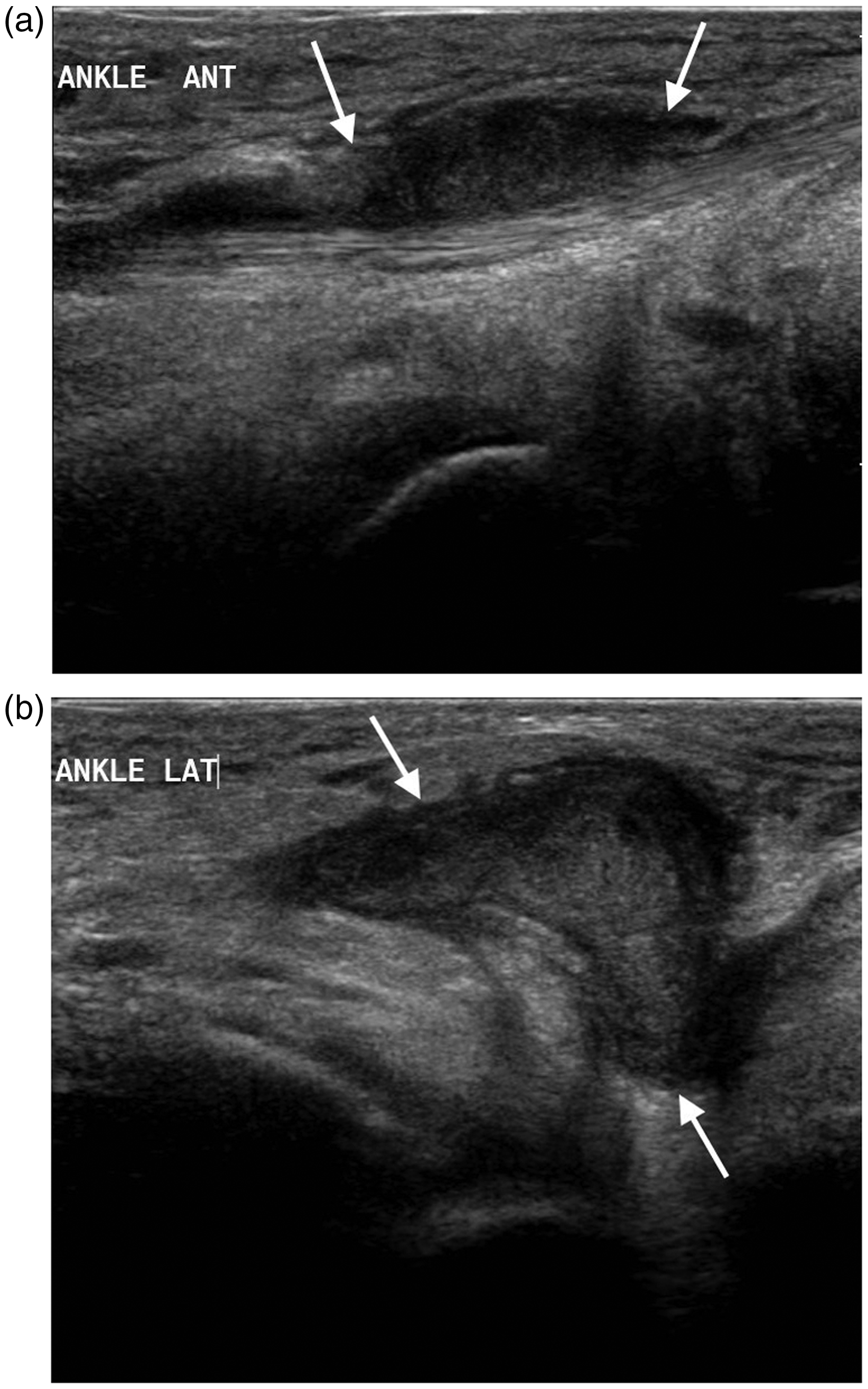

Figure 17.

Eleven year old with soft tissue and tendon infection after surgery for tarsal coalition. (a) Longitudinal image of the anterior ankle demonstrates echogenic fluid around the tibialis anterior tendon (arrows) in keeping with tendonitis. (b) Longitudinal image of the lateral ankle shows a separate abscess containing echogenic fluid (arrows).

Infected prostheses and post-operative soft tissue infection

The ferromagnetic material of metal prostheses creates beam-hardening artefact on CT and blooming susceptibility artefact on MRI, thus limiting assessment of patients with suspected post-operative complications involving metal fixation. Artefact from metalwork on ultrasound is less noticeable, but a tightly curved metal prosthetic surface results in scattering and refraction of the ultrasound beam creating posterior acoustic shadowing.³⁹ Hypoechoic fluid collections, subcutaneous oedema and increased vascularity of the adjacent soft tissues on colour Doppler may indicate soft tissue infection (Figure 18). In the early post-operative stages, haematoma appears as ovoid or spherical hypoechoic fluid collections with internal echoes and septations, and can mimic an abscess. Over time, it becomes anechoic and reduces in size. Similarly, periprosthetic soft tissue oedema, evident immediately following surgery, should reduce with time. A follow-up ultrasound scan can therefore help distinguish infection from reactive oedema.⁴⁹ Juxtacortical non-encapsulated fluid collections in direct contact with the bone have been described as an indirect sign of active bone infection. Cortical discontinuity may be related to post-operative change but cortical breach with increase in vascularity on Doppler in this area strongly suggests active bone infection.⁵⁰ In patients with an arthroplasty, distension of the pseudocapsule is more frequent with infection. Periosteal hyperaemia is a sign of post-operative reactivated osteomyelitis whereas periosteal thickening alone is a non-specific finding (Figure 18).⁵⁰

Figure 18.

Teenager with joint infection post joint reconstruction for osteosarcoma. (a) Longitudinal extended field of view scan of the suprapatellar and (b) infrapatellar regions demonstrate fluid (arrows) which is also tracking along the prosthesis. Patella (*) (c) Lateral radiograph of the knee for comparison demonstrates the contour of the prosthesis.

Conclusion

Ultrasound can be a very valuable imaging modality in the diagnosis and follow-up of musculoskeletal infection in children if the operator is aware of its limitations and can interpret findings in the clinical context to direct interventions or further investigation as necessary.
