HCN2 contributes to oxaliplatin-induced neuropathic pain through activation of the CaMKII/CREB cascade in spinal neurons

Ethics and animals

Male Sprague-Dawley rats weighing 200–220 g were housed in cages with corncob bedding and were maintained on a 12-h light/dark cycle with ad libitum access to food and water. The animals were habituated to the housing facilities for at least one week prior to the behavioral test. All procedures were approved by the Ethics Committee of Jinling Hospital and were performed in accordance with the Guide for the Care and Use of Laboratory Animals from the National Institutes of Health.

Drugs

Oxaliplatin (Eloxatin, Sanofi-Aventis, Laboratoires Thissen, Belgium) was dissolved in a 5% glucose solution. Oxaliplatin (4 mg/kg body weight) was injected intraperitoneally (i.p.) into each rat twice a week for four weeks. ⁸ ZD7288 (Tocris Bioscience, Ellisville, MO) solubilized in 0.9% saline was intrathecally administrated with a 10-μl microinjection syringe into the intervertebral space between L4 and L6 after the rat was anesthetized with isoflurane/carbogen. Ro 25–6981 (Tocris Bioscience), an NR2B activation antagonist, and KN-93 (Tocris Bioscience), a selective CaMKII antagonist, were both administered via intrathecal injection.

Behavioral tests

All the behavioral tests were conducted 5 h after drug treatment and performed blindly with respect to drug administration. Rats were acclimatized to the testing environment for 30 min prior to data collection.

Paw withdrawal threshold (PWT) was measured with the Electro Von Frey Aneshesiometer (Model 2390CE, IITC Life Science Inc, USA) according to a modification of a previously described method ⁹ before the first drug administration (day 0), and on days 7, 14, and 21, and 5 h after drug administration in a quiet, temperature-controlled room. Rats were placed individually beneath an inverted, ventilated Plexiglas cage on a metal-mesh floor in order to allow access to the plantar surface of the hind paw. After acclimatization, a calibrated von Frey hair of incremental stiffness (maximum 200g) was applied perpendicularly to the dorsal surface of the bilateral hind paw. Each trial consisted of five applications of the hair to the dorsal surface of the bilateral hind paw perpendicularly every 4 s for 3 to 4 s. Foot withdrawals in response to the mechanical stimulus of the von Frey hair were considered positive. Five trials for each paw were conducted every 5 min and the applied force (g) was recorded.

Paw withdrawal thermal latency (PWTL) was determined using a modified Hargreaves device (UARDG of UCSD, La Jolla, CA). Rats were placed in boxes with a wire mesh floor. An infrared light beam was focused on the plantar surface of the hind paw. Withdrawal latency (s) was automatically recorded when the rat withdrew its paw. Each paw was measured three times with intervals of 3 min.

Cold sensitivity was assessed using the acetone test previously described. ¹⁰ Rats were placed in a clear plastic box with a metal grid and habituated for 30 min before testing. A 50-μl drop of acetone (Wako Pure Chemical Ltd., Osaka, Japan) was applied to the plantar skin of each hind paw three times with a syringe fitted with a blunted needle. The duration of lifting/licking (s) of the hind paw was recorded for 40 s from the start of the acetone spray.

Western blot analysis

All rats were deeply anesthetized with sodium pentobarbital (60 mg/kg), and the L4-L6 spinal cord was quickly harvested and stored at −80°C before being subjected to the following procedure. Samples were homogenized in Tris buffer with a cocktail of proteinase inhibitors and phosphatase inhibitors and were subjected to SDS-PAGE, followed by electrophoretic transfer onto polyvinylidene fluoride (PVDF) membranes. The membranes were placed in the block buffer at room temperature for 1 h and incubated with one of the following primary antibodies: anti-HCN2 (Proteintech, Wuhan, China), anti-NR2B (Proteintech), anti-pCaMKII (Cell Signalling Technology, USA); anti-CaMKII (Cell Signalling Technology); anti-pCREB (Cell Signalling Technology); anti-CREB (Cell Signalling Technology) at 4°C for 12 h, and then incubated with horseradish peroxidase-conjugated anti-rabbit IgG (Proteintech) for 1 h. Quantification of the band for each protein was performed with Image J software.

qRT-PCR analysis

Total RNA was isolated using the TRIzol reagent (Invitrogen, Carlsbad, CA) according to the manufacturer’s protocol. First-strand cDNA synthesis was performed using the Verso cDNA synthesis kit (Thermo Scientific, ABgene, Surrey, UK). qRT-PCR was performed using SYBR Green Master Mix (Takara, Dalian, China) on ABI 7900HT Fast Real-Time PCR System-Applied Bio-systems. Relative mRNA levels were calculated using the 2^−ΔΔCT method. Gene expression was normalized using GAPDH levels. Each analysis was performed in triplicate.

Lentiviral vector production and intrathecal injection

The full-length sequence of the HCN2 cDNA was amplified and cloned into the lentiviral vector pCDH-CMV-MCS-EF1-coGFP (System Biosciences, Palo Alto, CA) using the Gateway system™. According to the manufacturer’s instructions, Lentivirus particles were harvested 48 h after pCDH-HCN2 cotransfection with the packaging plasmid psPAX2 and pMD into HEK 293T cells using Lipofectamine® 2000. The intraspinal injection was performed as described previously. ¹¹ The needle was inserted into the intervertebral space of a conscious rat between the L4 and L6 regions of the spinal cord after the rat was anesthetized with isoflurane.

Statistical analysis

Data are presented as mean ± SD. Differences between two groups or more than two groups were determined using a Student’s t test or a one-way analysis of variance, respectively. Statistical evaluation was performed with Graphpad Prism 5.0 software (San Diego, CA, http://www.graphpad.com/). *P < 0.05 was considered statistically significant.

HCN2 is upregulated in a rat model of oxaliplatin-induced neuropathic pain

In order to investigate the involvement of HCN2 in oxaliplatin-induced neuropathic pain, we first established a rat neuropathic pain model using intraperitoneal injection of oxaliplatin (4 mg/kg). As shown in Figure 1(a) and (b), significant decreases in the PWT and PWTL were detected in rats beginning day 7 and persisting to day 21 after intraperitoneal injection of oxaliplatin compared to vehicle administration. In the acetone test, the oxaliplatin-treated rats showed an increase in the duration of lifting/licking behaviors over the same period (Figure 1(c)). These results revealed that the rats that were subjected to oxaliplatin developed mechanical hyperalgesia, heat hypoalgesia, and cold allodynia. To examine the role of HCN2 in oxaliplatin-induced neuropathic pain, we detected HCN2 mRNA and protein expression in the spinal cord on days 0, 7, 14, and 21 after oxaliplatin administration. The qRT-PCR and Western blot results indicated that HCN2 expression increased remarkably and remained at a high, stable level starting at day 21 after oxaliplatin injection, compared to that of the naive rats (Figure 1(d) and (e)). We performed immunostaining to further determine HCN2 expression pattern changed in neuropathic pain. The images showed an increase in the number of HCN2-positive neurons in oxaliplatin rats compared with the naive rats (Figure 1(f)). All findings suggested that HCN2 might be involved in oxaliplatin-induced neuropathic pain.

OPEN IN VIEWER

Figure 1.

HCN2 is upregulated in oxaliplatin-induced neuropathic pain. A single intraperitoneal administration of oxaliplatin induced pain-related behavior in the spinal dorsal horn. (a) Mechanical allodynia was measured by PWT. (b) Thermal hyperalgesia was measured by PWTL. (c) Cold allodynia was measured by the acetone test on days 0, 7, 14, and 21 after oxaliplatin administration. (d) mRNA and (e) protein levels of HCN2 in the spinal dorsal horn after single oxaliplatin treatment. Tissues were collected on days 0 and 21 after oxaliplatin treatment or no treatment. (f) Immunofluorescence staining of HCN2 immunoreactive neurons in the spinal cord of rat treatment with oxaliplatin or not was shown. Bar = 50 μm. *P < 0.05.

Role of HCN2 in oxaliplatin-induced neuropathic pain behaviors

To elucidate the role of HCN2 in oxaliplatin-induced neuropathic pain, an HCN-specific blocker ZD7288 was intrathecally injected on day 14 after the first injection of oxaliplatin. qRT-PCR and Western blot analysis showed that the upregulated expression of HCN2 was dramatically decreased by the treatment with ZD7288 (Figure 2(a) and (b)). Furthermore, oxaliplatin-induced mechanical allodynia, thermal hyperalgesia, and cold allodynia were observably reduced after intrathecal injection of ZD7288 when compared to naive rats (Figure 2(c) to (e)). Together, these results indicated that the HCN2 blockage eased the oxaliplatin-induced neuropathic pain behaviors, illustrating the important role of HCN2 in oxaliplatin-induced neuropathic pain.

OPEN IN VIEWER

Figure 2.

Role of HCN2 in oxaliplatin-induced neuropathic pain behaviors. HCN2 expression was detected by (a) qRT-PCR and (b) Western blot analysis 5 h after ZD7288 or IgG administration. (c) Mechanical allodynia was measured by PWT. (d) Thermal hyperalgesia was measured by PWTL. (e) Cold allodynia was measured by the acetone test 5 h after ZD7288 or IgG administration. *P < 0.05.

Role of HCN2 in the upregulation of NR2B expression in oxaliplatin-induced neuropathic pain model

The N-methyl-D-aspartate (NMDA) receptor in the superficial dorsal horn has been found to greatly contribute to pain transmission sensitization. ¹² Inhibition of the NMDA receptor by its antagonist reduces the excitatory nociceptive transmission that results from exposure to noxious stimuli and chronic pain in experimental animals with spinal cord injuries. ¹³ Recently, NR2B (a membrane-spanning subunit of the NMDA receptor) has gained much attention, and we previously reported that NR2B was upregulated during oxaliplatin-induced neuropathic pain. ⁹ Congruously, we found that the expression of spinal NR2B was increased after oxaliplatin injection (Figure 3(a)). Next, we detected the expression of NR2B after ZD7288 injection to determine whether the increase in NR2B was modulated by HCN2. qRT-PCR and Western blot analysis indicated that the enhanced expression of NR2B was decreased by the administration of ZD7288 on the 14th day after oxaliplatin administration (Figure 3(b) and (c)). In addition, pretreatment with Ro 25–6981, an NR2B antagonist, observably weakened the mechanical, cold allodynia and thermal hyperalgesia induced by overexpression of HCN2 (Figure 3(d) to (f)). Collectively, these data demonstrated that HCN2 is able to regulate the upregulation of NR2B expression in oxaliplatin-induced neuropathic pain.

OPEN IN VIEWER

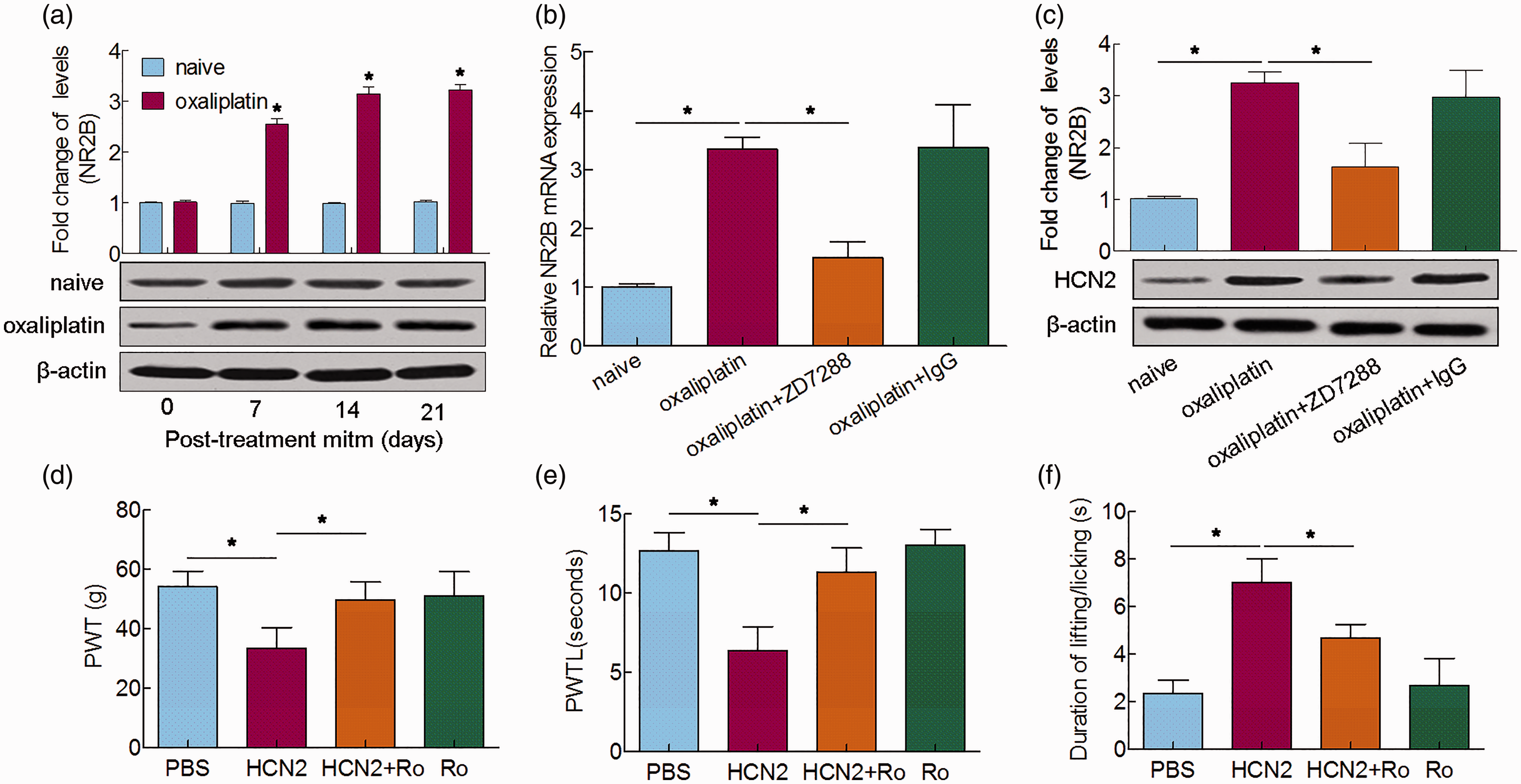

Figure 3.

Role of HCN2 in the upregulation of NR2B expression in oxaliplatin-induced neuropathic pain. (a) Western blot analysis of NR2B in the spinal cord 0, 7, 14, and 21 days after oxaliplatin treatment. (b) qRT-PCR and (c) Western blot analysis of NR2B 5 h after ZD7288 or IgG administration. (d) Mechanical allodynia was measured by PWT. (e) Cold allodynia was measured by PWTL. (f) Thermal hyperalgesia was measured by the acetone test 5 h after administration of Ro25–6981 in naïve rats with induced HCN2 overexpression. *P < 0.05.

Involvement of the spinal neuronal CaMKII–CREB cascade in HCN2-mediated, oxaliplatin-induced neuropathic pain

Next, we examined the underlying mechanisms of HCN2-mediated, oxaliplatin-induced neuropathic pain. It has been illustrated that Ca²⁺/calmodulin-dependent protein kinase II (CaMKII) and c-AMP-responsive element binding protein (CREB) in spinal neurons contribute to the development of neuropathic pain. ¹⁴ Here, the expressions of pCaMKII/CaMKII and pCREB/CREB were both increased after oxaliplatin administration and maintained at a high level until the 21st day, when compared to those of naive rats (Figure 4(a)). After intrathecal administration of ZD7288 on the 14th day after the first injection of oxaliplatin, the expressions of both pCaMKII/CaMKII and pCREB/CREB were notably decreased (Figure 4(b)). Pretreatment with CaMKII inhibitor KN-93 notably reversed the mechanical and cold allodynia and thermal hyperalgesia induced by overexpression of HCN2 (Figure 4(c) to (e)), as well as restrained the CREB activation and NR2B upregulation (Figure 4(f)). These results jointly indicated that the spinal neuronal CaMKII/CREB cascade was modulated by HCN2 and was involved in oxaliplatin-induced neuropathic pain.

OPEN IN VIEWER

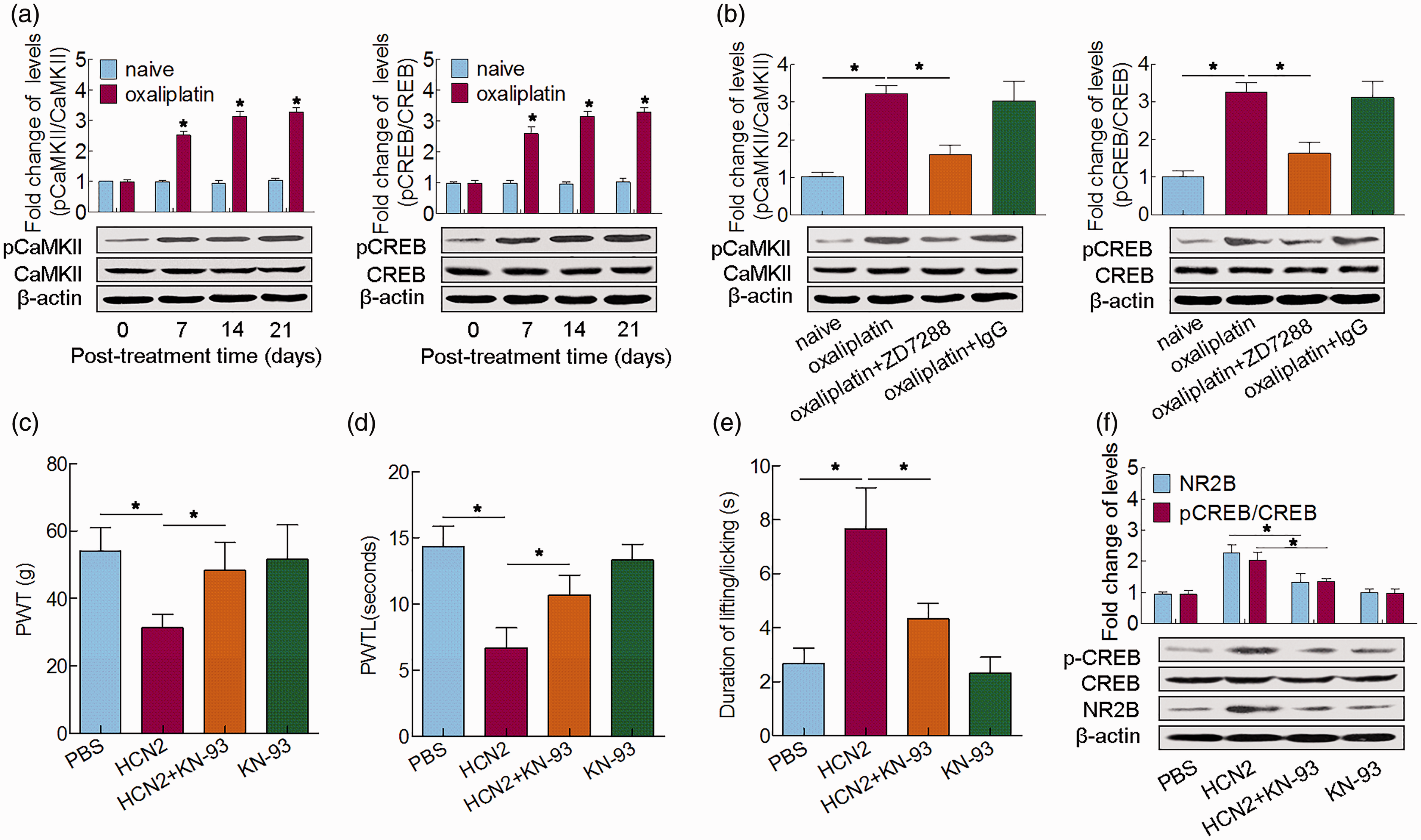

Figure 4.

Involvement of the spinal neuronal CaMKII–CREB cascade in HCN2-mediated, oxaliplatin-induced neuropathic pain. (a) Western blot analysis of pCaMKII/CaMKII and pCREB/CREB in the spinal cord 0, 7, 14, and 21 days after oxaliplatin treatment. (b) Western blot analysis of pCaMKII/CaMKII and pCREB/CREB 5 h after ZD7288 or IgG administration. (c) Mechanical allodynia was measured by PWT. (d) Cold allodynia was measured by PWTL. (e) Thermal hyperalgesia was measured by the acetone test 5 h after administration of KN-93 in naïve rats infected with HCN2 overexpression. (f) Western blot analysis of pCREB/CREB and NR2B in the spinal cord 5 h after cotreatment of KN-93 and HCN2 in naïve rats. *P < 0.05.
