Machine learning-based automated phenotyping of inflammatory nocifensive behavior in mice

Animals

Mice were single sex, group-housed (3–5) with ad lib water and food under a 12-h light–dark schedule, and experiments were conducted in the light phase. Video data from 166 mice were used in training, testing, and validation of the model (The Jackson Laboratory: C57BL/6NJ=JR005304: male n = 53, female = 37, C57BL/6J=JR000664: male = 46, female = 30). Mice (age 11–17 weeks) were tested in 25 sessions between August 2018 and March 2019 and at the conclusion of each experimental session all mice were euthanized. All procedures and protocols were approved by The Jackson Laboratory Animal Care and Use Committee and were conducted in compliance with the National Institutes of Health Guideline for Care and Use of Laboratory Animals.

Video data collection

Video data of mouse behavior in response to a hind paw formalin injection were collected and used in training, testing, and validation of the automatic scoring system. A clear acrylic enclosure (22 cm L × 21.6 cm W × 12.7 cm H; IITC Life Science, catalog number 433) containing four testing arenas separated by opaque black walls (see Figures 1 and 2) was placed on a clear glass surface. A video camera (black and white, Bosch, Dinion) was placed directly below (16 cm) the glass floor of the enclosure to provide the best view of the paws and recording, under the control of Noldus software (Noldus media recorder v4), began with the empty enclosure. Four enclosures, each with one dedicated camera, were set up such that a total of 16 mice could be run simultaneously. The lighting varied between the four enclosures but was optimized to reduce glare and reflections with the addition of a white polycarbonate cover for the top of each enclosure (23.5 cm L × 12.1 cm W × 1 cm H; manufactured in-house). Video was recorded (30 frames per second: 704 × 480 pixels) for 90 min after the last mouse entered the arena. The choice to extend the video beyond 60 min was to ensure that any strain differences in the timing of peak behavior would be captured.

OPEN IN VIEWER

Figure 1.

Model components. Labels (a) and associated images (b) were used as input to train the DeepLabCut tracker. (a) The video frames were manually annotated for training. Each mouse was labeled (x,y pixel coordinates) with 12 points (mouth, nose, right front paw, left front paw, three points on each hind paw—outer, inner, and base; abdomen; and tailbase) and the inner enclosure walls were marked (at the ends and cross point). (b) Input to the model was consecutive video frames. Each enclosure had four arenas; in this image, the mouse in arena 4 is still in recovery from the anesthetic, and the other arenas show active mice. (c) The output of the keypoint tracker is 12 points per mouse, shown here with “skeleton” connections and “body/head” circles to orient the reader. (d) Relative location measures (66 paired distances and 15 angles; only one of each shown in the figure) were calculated for the body parts for every video frame. The putative frame of interest is highlighted and the measures for the preceding and following frames are shown (24 consecutive frames). The statistical inputs were calculated over windows of three different sizes (6, 11, and 21 frames), and these per frame features were used as the input to the classifier model.

OPEN IN VIEWER

Figure 2.

Tracking error. The tracking errors for a single test frame of the body-part tracking (average error of these four mice for body parts listed above are: 2.65, 1.84, 2.89, 1.01, 2.77, 1.67, 2.89, 3.19, 2.50, 2.36, 2.03, 3.88; the average grid error was 1.26 pixels).

Formalin was administered while the mice were under anesthesia to maximize the consistency of both the injection site and the volume delivered and to reduce stress for the mice. The right hind paw of the mouse was injected (intra-plantar) with 30 µl of 2.5% Formalin solution in saline (Formaldehyde solution (Sigma-Aldrich; Product number: 15512); Sterile saline solution (Henry Schein; Product number: 002477)) under gas anesthesia (4% isoflurane; Henry Schein Isothesia; Product number: 1169567762). The mouse was then transferred into the first testing arena, and the procedure was repeated with the next three mice for this enclosure. Typically, mice regained consciousness from the anesthesia within 1 min of being placed in the testing arena and were fully ambulatory within 3 min.

Building the automated scoring system

The model has distinct tasks to solve and was accordingly divided into three separate modules. First, the model was trained to use key point detection to track the body parts of mice in the arena for every video frame using “DeepLabCut” ²⁹ (https://github.com/AlexEMG/DeepLabCut) (Figure 1(a) to (c)). Next, features were extracted on a per frame basis, utilizing the concepts established for the JAABA model of analyzing statistical metrics over different time windows to detect behaviors ³² (Figure 1(d)). Finally, the model took these frame-based features for a single mouse as input and classified each video frame as showing the behavior of licking/biting or not.

Module 3: Behavior classification

Training data

To create a training set for behavior classification, utilizing the extracted frame-based features, an experienced human observer annotated videos labeling the onset and offset of licking behavior. Training data were taken from 40 different videos, to cover all enclosures, arenas and sizes, or sex of mice. A total of 9300 frames were used for training with no more than 10 s (300 frames) per video. The video was initially manually annotated (Noldus) to determine the behavior of licking with a resolution of a second. This was subsequently reanalyzed frame by frame to obtain exact onset and offset video frames of licking behavior (Matlab). No distinction was made between licking and biting behaviors, any contact between the mouth and the right hind paw was scored as licking. To obtain a well-balanced training set, frames were selected using stratified random sampling from clear licking (22%) and nonlicking video segments (78%). The bias toward no licking behavior was intentional because this behavior does not occur equally in an experimentally recorded video. The selected training frames were not consecutive. The classifier evaluates each frame based only on the metrics provided for that frame, and it is the window-based statistics that give the context of what happened before and after the frame. Several different classifiers were trained and tested (Matlab: Mathworks) to determine the most effective model (see Table 1).

OPEN IN VIEWER

Table 1.

Results of classifier models on the validation data set.

Classifier	Precision (%)	Recall (%)	False positive (%)	Total accuracy (%)
12 point GentleBoost	96	95	1	97.9
12 point GentleBoost PCA 99%	94	90	2	96.7
12 point GentleBoost PCA 95%	93	89	2	96.2
8 point GentleBoost	95	94	1	97.6
8 point GentleBoost PCA 99%	92	89	2	96.4
8 point GentleBoost PCA 95%	94	87	2	95.6
5 point GentleBoost	93	93	2	96.9
5 point GentleBoost PCA 99%	92	88	2	95.7
5 point GentleBoost PCA 95%	87	85	3	94.1
12 point Fine KNN	95	94	1	97.6
12 point Ensemble KNN	95	94	1	97.6
12 point Cubic SVM	93	92	2	96.8

[Precision = true positive/(true positive + false positive): (or what proportion of frames identified as licking are truly licking)] [Recall = true positive/(true positive + false negative): (or what proportion of true licking frames were found)] [False positive = what proportion of “no licking” frames incorrectly identified as licking). PCA: principal component analysis; SVM: support vector machine; KNN: k nearest neighbor.

For validation purposes, 111 short videos, with a wide range of timing relative to injection, were annotated for behaviors. The most common nocifensive behavior observed was licking/biting, with paw flicking/shaking observed at a relatively low level. The total annotated time was 17,029 s, of which 1673 s were labeled as licking (in 318 bouts of varying lengths), and flicking was noted for approximately 8 s (in 21 events). Although flicking represented about 6% of events recorded, each instance was of short duration and thus total flicking time comprised less than 0.5% of nocifensive behavior (8/1681) and less than 0.05% (8/17,029) of annotated video. The classifier was therefore trained and tested only on licking/biting behavior, as this was the most common and reliable behavior to score.

GentleBoost classifier models

GentleBoost (gentle adaptive boost ³⁵ ) is an ensemble supervised learner based on minimizing exponential loss using decision trees and was utilized by Kabra et al. to classify a wide range of behaviors. ³² The GentleBoost algorithm is well-suited for a dichotomous categorical response and is easy to implement. The classifier used 30 weighted learners, each of which fitted a regression model to the predictors and labels using a maximum of 20 splits and a learning rate of 0.1. Five-fold cross-validation was used to limit overlearning and to provide estimates of training. The large number of inputs obviously have significant redundancy, and therefore, the GentleBoost model was also trained with the implementation of principal component analysis (PCA), accounting for either 99% (65 inputs) or 95% (11 inputs) of variation. Table 1 shows the final results of all the tested classifiers for precision (proportion of frames correctly classified as licking), recall (proportion of licking frames correctly identified), false positives (proportion of incorrectly labeled frames as licking), and total overall accuracy. These metrics are helpful to distinguish the performance of models in accurately labeling the behavior when the licking is present and also when it is absent. High values in precision–recall dimensions indicate that the model is able to correctly find licking without missing occurrences of behavior, regardless of how rare; this view is particularly useful when the two behaviors are unequally distributed. Low false-positive rates indicate that when the licking is not present, then the model does not report the behavior; this shows that the model does not label everything as licking in order to prevent missing the behavior. The GentleBoost model performs very well on all metrics. PCA reduction of parameters resulted in diminished performance for precision and recall, with a slight increase in false-positive rates (Table 1).

To determine if 12 points were necessary for optimal performance, the GentleBoost model was retrained with inputs calculated from 8 points (removed both front paws and the inner point on both hind paws) or 5 points (removed the mouth, both front paws and the inner and outer points from both hind paws). Reducing the number of points resulted in a slight of loss of performance, but the 8-point model was very similar to the full 12-point model. PCA for the eight-point and five-point models resulted in clear loss of precision and recall as well as a small increase in false-positive rates.

The full GentleBoost classifier using all 12 mouse body parts and all statistical parameters (1047 inputs) had the best performance (Table 1). However, labeling all 12 points for training the tracking module is a time-consuming endeavor and could be reduced to fewer points if the slight loss of performance was an acceptable trade-off. The loss of performance with PCA is not worth the efficiency benefits as the cost of evaluating the full 12-point classifier is very low (prediction speed approximately 10,000 observations per second). Using Matlab on a CPU (laptop) to open excel file data, calculate inputs, classify behavior, calculate bins, and save results to three different formats (HDF5 file, excel spreadsheet, and backup Matlab output structure file) took approximately 20–25 s per mouse. A smaller parameter list is more efficient, but even a small loss in accuracy in detecting licking does not seem warranted given the low cost of keeping all parameters.

Other classifier models

Two other classifiers using all the 1047 input parameters performed almost as well as the full GentleBoost model (Table 1); a k-nearest neighbor (KNN) classifier (neighbors = 1, Euclidian distance, equal distance weight, ties broken to smallest; prediction speed 110 observations/s) and an ensemble subspace KNN classifier (30 learners, subspace dimension = 624, prediction speed 8.7 observations/s) but were less efficient in implementation of prediction. A support vector machine with a cubic kernel was more efficient than the KNN models (1600 observations/s) but slightly less accurate.

Model parameters

The 12-point GentleBoost model has 1047 inputs, but only 385 actually contributed information to the classifier and as is typical for this ensemble classifier, each useful input contributed a small amount of information, and there were no dominant cues. Each of the 12 body parts and three time windows are included multiple times in the 1047 inputs, and the heatmap of Figure 3 shows the percentage of useful representation as a proportion of all possible opportunities for that variable. The time window with greatest information was the 21 frames (700 ms) with approximately 46% of all used cues in this window. Licking duration generally extends well beyond a second, and the 700 ms window appears to be sufficient for capturing the ongoing behavior, and the shorter windows may be more useful for transitions between behaviors.

OPEN IN VIEWER

Figure 3.

Input value to classifier model. Heatmap of body parts and window sizes highlighting actual contribution to the decision of the classifier as a percentage of their possible contribution. The figure shows the relative importance of each window size and each body part to the model.

Examination of the relative information content of body-part points can be used to determine the most valuable points to keep for a model of this type (see Figure 3). Not surprisingly, all points on the right hind paw, mouth, and nose appear to provide useful information about contact between right hind paw and mouth. Points on the tail and abdomen seem to provide pertinent information about body shape and position. Although the base point on the left hind paw is useful as a relative comparison (average 36% use), it may not be necessary to include all three points for the left hind paw, as the outer (average 30%) and inner (average 16%) points were the least used. Inclusion of the front paws, however, appears to be warranted, as the mouse often uses the front paws to hold the hind paw while licking.

Classifier validation: 111 short videos

The GentleBoost classifier performance was tested on 111 new short video clips (from 111 different mice: with 71 completely novel videos and new clips from 40 training videos) for a combined total of about 284 min of testing. Each video was manually annotated for licking behavior, for a single mouse in an arena, with temporal resolution of a second (Noldus). Mice were from all enclosures, and an approximately equal number of arenas were annotated (see Figure 4). The temporal resolution of human classification was poorer than the model, and therefore, a match of licking behavior was recorded if the model was within ±15 frames of the human (i.e., 1 sec). Classifications were compared for each second of annotated videos for a total of 17,029 tests (283 min and 49 sec) and resulted in approximately 98% accuracy. Figure 4(a) shows the direct comparisons of the human and model licking classification for two videos (mouse 54 and mouse 56: all the 111 mice are shown in Supplemental Figures 1 to 4). Kabra et al. ³² also found that a similar number of comparisons for the classification of two mouse behaviors, “following” (20,015 frames) and “walking” (12,223 frames) was sufficient to validate performance, while using only four mice for testing and training.

OPEN IN VIEWER

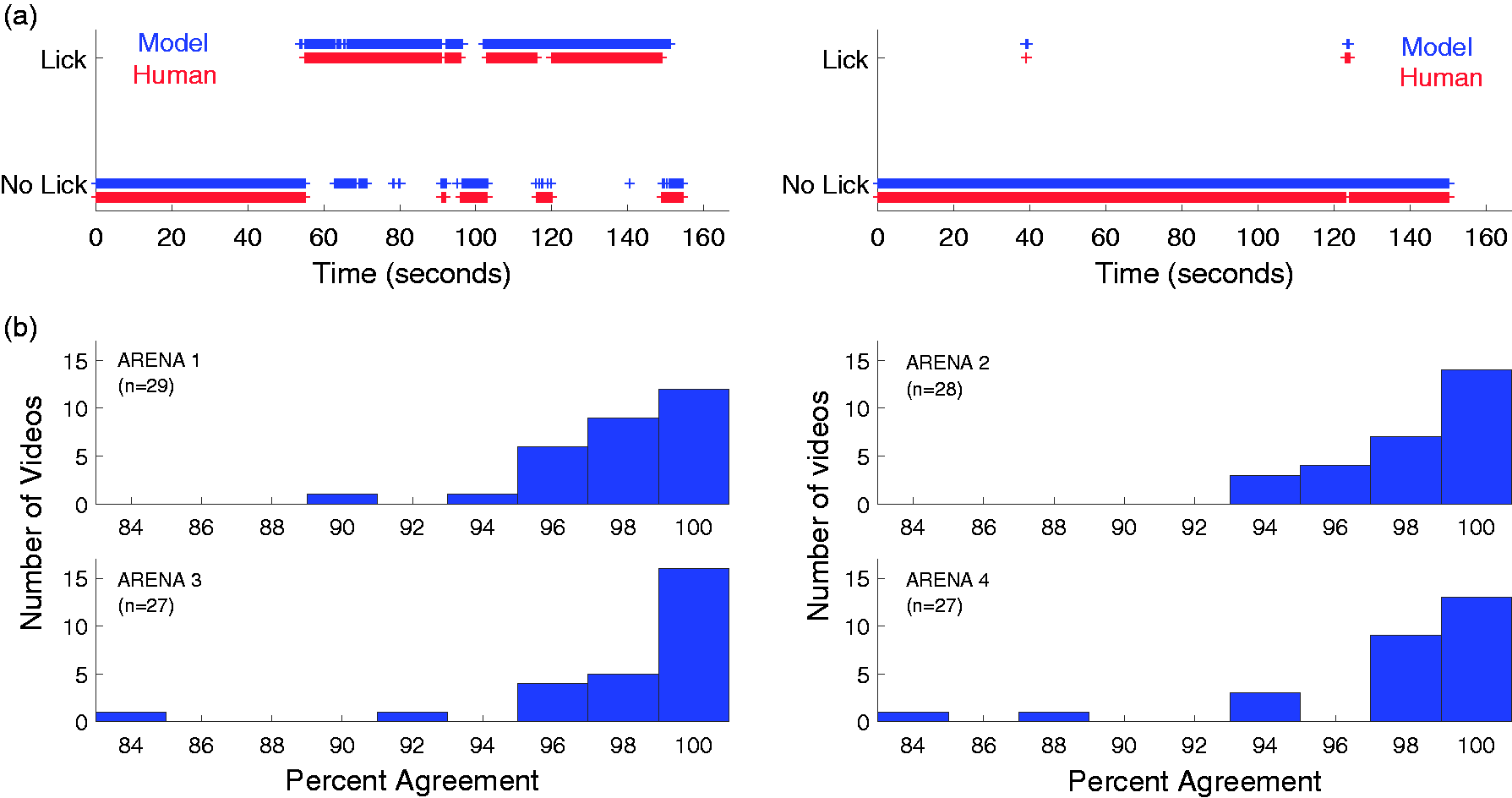

Figure 4.

Video validation: classifier performance on novel test videos. (a) Classification of licking and no licking by human (red) and model (blue) for each second of two short example videos (approximately 2.5 min each). The percent agreement between human and model was 93.7% for the left panel (mouse 56) and 99.6% for the right panel (mouse 54). All 111 mice are shown in Supplemental Figures 1 to 4 grouped by arena. (b) The agreement (percentage) between model and human for each of 111 videos displayed as histograms by arena. The average agreement over all arenas was 98%.

To summarize the performance for each video, the percentage of video seconds in agreement between the model and human observer was calculated and displayed (Figure 4(b)) as histograms of the number of videos at a given performance level. Forty-three video clips had no licking behavior, and the average agreement over these videos was 98.8% which indicates a low false-positive level. Figure 4(b) shows that matching on two videos was less accurate with performance in the range of 84% agreement. Close examination of these videos revealed ambiguous behavior, and it was difficult for a human observer to ascertain if the mouse was licking or not. For example, on one video, the mouth was apparently in contact with the right hind paw, but it was obscured by the tail, so licking could be marked only by inference and not by observation, and the model does not score missing information. The other video showed a lot of grooming of the leg and paw area, and it was difficult to score purely paw licking. These behaviors were not typical but are hard to classify and different human observers do not agree well under these circumstances.

Previous models of automated scoring have demonstrated their utility by showing that their models can reliably detect differences in the amount of licking in response to formalin dose changes ¹⁹ or analgesia ²⁰ for groups of animals. Without additional pharmacological manipulation, our validation videos already show a wide range of response levels (confirmed by human annotation) and can therefore be clustered to determine how well the model can distinguish between groups of animals with known differences. Typically, behavior in a formalin test is not reported at the precise resolution of a second and is instead more broadly reported as the sum of behaviors over a time bin of one to several minutes.^12,15 To demonstrate the ability of the model to detect different levels of response, each of the videos was truncated at 2 min, and the sum of licking in seconds was calculated for the human observer and the model. The level of summed licking across the 111 mice ranged from no licking, as might be seen in an experiment using saline control or analgesics, to a moderate-high level of approximately 70% licking. The 111 videos are shown ranked from lowest to highest level of summed licking, as determined by the human observer (Figure 5(a)). Similar levels of behavior, based on the human observations, were then clustered together to create groups of videos in categories of low to high behavior. Bootstrap sampling using an experimentally realistic sample size (n = 6) was used to determine if these categories could be reliably differentiated by the observer and model (10,000 bootstrapped samples for t-test comparisons). The example shown in Figure 5(a) used categories, based on summed licking performance, grouped with approximately 20 s mean difference (human observer determined mean and standard deviation of seconds of summed licking for each category I–IV: 1.6 (2.6), 20.7 (4.0), 35.6 (5.7), 63.3 (12.9); model means and standard deviations: 2.5 (3.4), 22.9 (10.3), 38.2 (13.7), 62.2 (11.8)). This 20 s category spacing was easily distinguished by both observer and model scorings (>9800/10,000 significant tests) for every neighboring group comparison. The windows were then shifted to produce smaller group differences to determine the smallest difference that could be reliably detected for this data set. The human scored data could reliably distinguish between groups with an average of 11 s of separation (80% significant tests) and the model required about 16 s of separation (80% significant tests). The videos were ranked by human observer, and therefore, the created categories for the human observer were less variable and should be more readily differentiated statistically than the model categories. The lowest response level category had the lowest variability for both the model and human observer scores, and the highest response level had the greatest variability. However, the most interesting comparisons are between adjacent clusters of moderate response levels with similar levels of variability and these consistently show that effect sizes of about 15–16 s for the model categories are necessary for differentiation. This bootstrapping test shows that the model is able to distinguish biologically realistic differences^6,14 of approximately 13% in the level of licking/biting between groups of videos which would be sufficient to detect known strain differences ¹⁴ or analgesic effects. ¹⁵

OPEN IN VIEWER

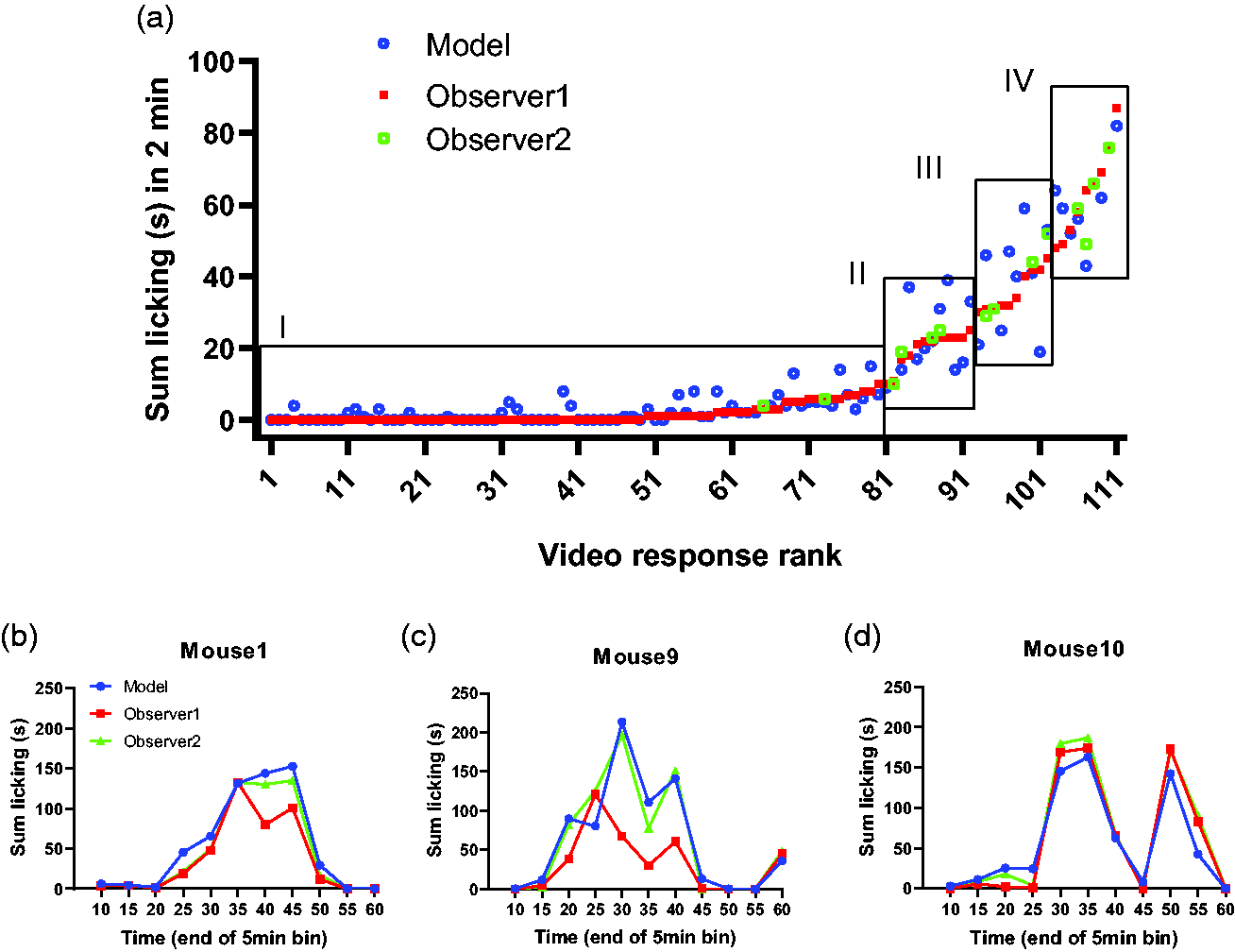

Figure 5.

Human observer validation. (a) Sum of licking in seconds was calculated for 2 min for each of 111 videos for both Observer 1 (red square) and the model (blue circle). The videos are displayed ranked from low to high levels of licking ordered by the human observations. The boxes I–IV represent an example of categorization of behavior response level imposed on the data with approximately a 20-s separation: (I) very low level (human mean 1.6 s: model mean 2.5 s), (II) low-mid level (human mean 20.7: model mean 22.9), (III) moderate level (human mean 35.6: model mean 38.2), and (IV) high level (human mean 63.3: model mean 62.2). Observer 2 annotated 14 of these videos and the summed results for each (green open square) are superimposed on the plot of Observer 1 rankings (located at rank: 65, 73, 82, 83, 87, 88, 94, 95, 100, 102, 106, 107, 108, 110). Mice ranked at 95 and 110 have identical scores, and the markers are therefore indistinguishable, scores for mice at 73, 82, and 106 differ by only 1 s for one of the marks. (b) to (d) Comparison of manual scoring by two human operators with the classifier model for three mice. The data are shown as summed licking in 5 min bins for 60 min postinjection (bins range from 5–10 to 55–60).

Interobserver validation

Fourteen of the 111 validation videos were annotated by an additional observer (see Figure 5(a); Observer 2). These 14 videos were intentionally selected to include examples of good agreement between Observer 1 and model (no difference) and poor agreement (e.g., 21 s discrepancy) and ranged from low (3 s of licking) to high (76 s) response level. To show the full range, it is necessary to include videos with poor agreement even though they are not typical of the validation data. The average difference between the model and Observer 1, for the 111 video validation set, is 1 s, but the average absolute discrepancy is 4.5 s. The discrepancy between the two scores (Observer 1 vs. model) as described here emphasizes the size of the difference by using absolute discrepancy (abs (Observer 1 − model)) because the size of the difference is retained, and the direction of the difference is removed. The total absolute discrepancy over all 14 videos (1680 s) was 41 s between the two human observers (2.3%), 63 s between model and Observer 1 (3.75%), and 53 s between model and Observer 2 (3.1%). Ten of the 14 videos had very good agreement between both human observers and the model with no more than 4 s absolute difference in 2 min for any video and an average of 1% disagreement or less across all 10 videos. Several points in Figure 5(a) show identical scoring for model and observers; of the remaining videos with greater discrepancy in scoring, two videos showed improved agreement using scoring between the model and Observer 2, and two showed improvement using both human observers (see Figure 5(a)). The correlations between the recorded scores of licking in seconds for the 14 videos were consistently high (Observer 1: Observer 2 Pearson r = 0.98; Observer 1: Model Pearson r = 0.95; Observer 2: Model Pearson r = 0.97).

To further test experimenter interobserver reliability, videos (60 min) of three mice were annotated by two observers, visualized using Noldus Media Recorder 4 software. The observations were summed in 5 min intervals, and the correlation between observers was generally good (Pearson r = 1.0, 0.82, and 0.97). Both human observers agree about what constitutes licking but can disagree on exactly when to start and stop recording the behavior, sometimes licking bouts were scored as continuous by one observer and a series of short bouts by the other. For observations of mouse 9, this resulted in several substantially different measures, for example, two 5-min bins were recorded as 67 and 60 s by Observer 1 and 197 and 151 s by Observer 2 (see Figure 5(c)). Both human observers were compared to the model, and again agreement was quite high (Observer 1 Pearson r = 0.98, 0.75, 0.95 and Observer 2 Pearson r = 0.98, 0.96, 0.99). For mouse 9, the model appeared to be in better agreement with Observer 2, with the aforementioned 5-min bins recorded as 213 and 141 s of licking (see Figure 5(c)). Observer 2 was the more experienced of the two people and was training Observer 1 in behavioral annotation; these three mice were human scored months before the model was developed. After completing training, Observer 1 ultimately conducted all the manual annotation of the videos used for model training, testing, and validation.

Strain comparison validation

Bryant et al. used manual scoring methods for the formalin test to compare the licking response of C57BL/6NCrl compared to C57BL/6J mice in Phase I and Phase II. ³⁶ They found that male C57BL/6NCrl showed a reduced licking response in the Phase II of nociception response (measured as 20–45 min), but there was no significant difference for females. To validate the utility of the automatic video classification under experimental conditions, the formalin test was conducted comparing similar mouse strains (The Jackson Laboratory: C57BL/6NJ male n = 45, female= 30: C57BL/6J male = 46, female =30). As the mice in our study were anesthetized for the injection, the first 5 min of the nociception response, known as Phase I, was atypical and not included in the analysis. All of the data were run through the system, but the model determined the start frame for each mouse and then skipped 9000 frames (5 min) before binning the data into seventeen 5-min bins (5–10: 85–90) of cumulative licking in seconds.

Figure 6(a) shows the summed licking behavior in the time bin equivalent to that used in the Bryant study (20–45 min postinjection) and as predicted male C57BL/6NJ showed reduced licking compared to C57BL/6J male mice. The female mice, however, showed the reverse pattern with C57BL/6NJ licking more (Sex by Strain interaction F_(1,147) = 9.99 p = 0.0019; Holms–Sidak multiple comparisons for male and female, p = 0.042). The time course of the responses over the full 90 min reveals differences more clearly between the sexes and strains (Figure 6(b) and (c)). The curves differ in both timing and amplitude of licking and the choice of how the data are binned for analysis will determine if differences between sexes or strains are detected. Figure 6(d) and (e) compare bootstrapped statistical analysis (alpha level 0.05) for two different bin choices with increasing sample size. The 20- to 45-min bin, selected by Bryant and replicated here, shows that as sample size increases, the probability of finding a significant difference between the strains also increases, for both males and females (Figure 6(d)). For females, this bin sizing appears to maximize the onset timing difference of the response between strains. The larger bin size of 10–60 minimizes the timing difference for females, and bootstrapped comparisons show that an increase of sample size does not alter showing statistical significance (Figure 6(e)). The female probability remains near 5% which would be the level due to chance (alpha of 0.05); the females have the same amount of licking. However, the male probability of detecting a difference increases with sample size, the males appear to differ in the amount of licking, in both the amplitude and duration of peak behavior.

OPEN IN VIEWER

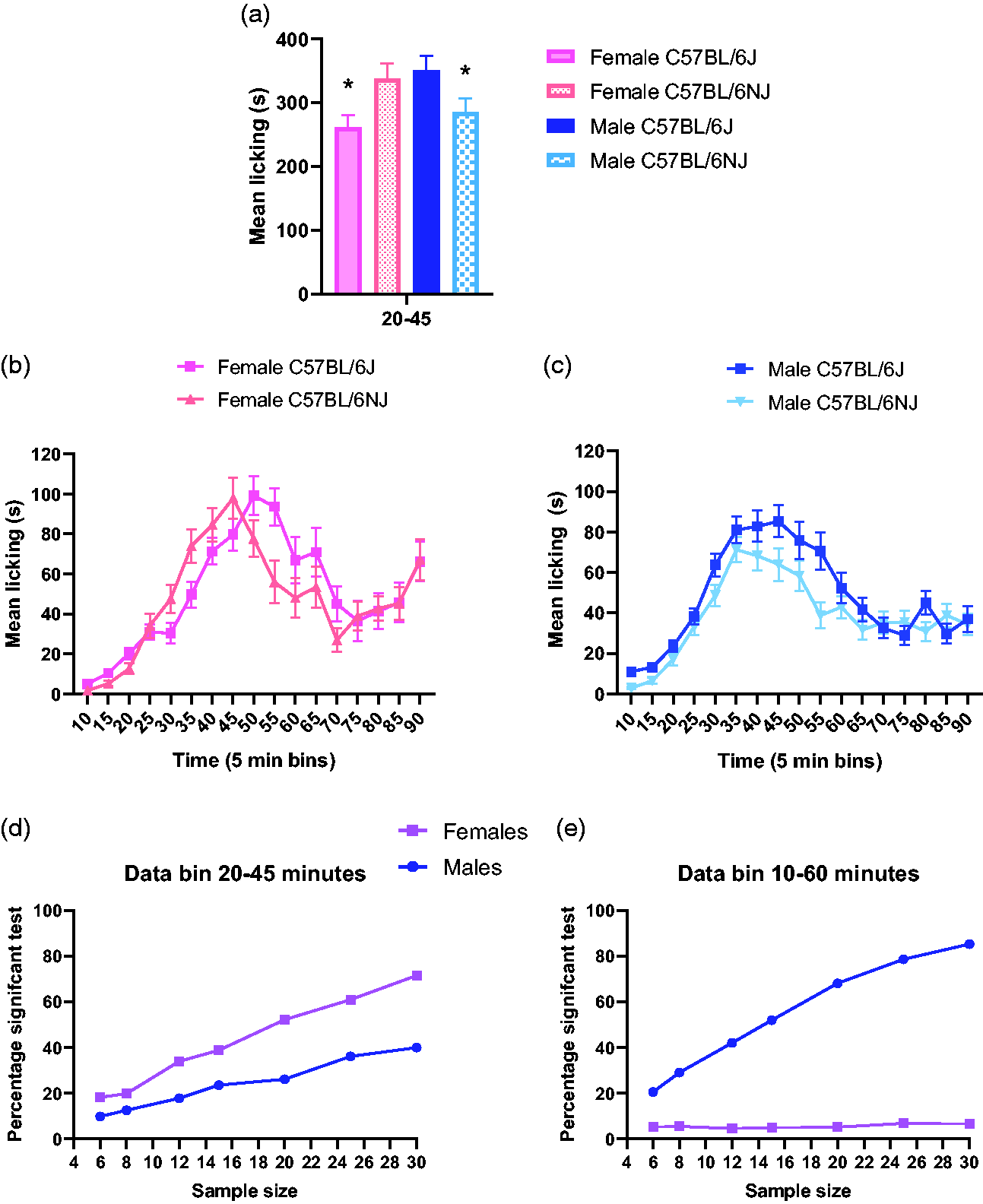

Figure 6.

Comparison of male and female mice of the two strains: C57BL/6J and C57BL/6NJ. (a) Licking summed in a single bin over the 20–45 min postinjection period; showing mean and SEM separated by sex (significant 2-way ANOVA sex × strain interaction 0.05; *significant post hoc comparison between strains for each sex). (b) and (c) Mean and SEM of licking summed in 5 min bins and displayed for 90 min postinjection (bins range from 5–10 min to 85–90 min) for females (b) and males (c). (d) and (e) Percentage from bootstrapping of significant t-tests (alpha = 0.05) showing the difference between the strains by sample size for metrics binned over the periods of 20–45 min (d) and of 10–60 min (e).

Sample sizes of 12 or greater yield reasonable probabilities of showing differences but for lower, more typical experimental sample sizes (6–8), the odds are above chance but not high. The licking behavior in response to formalin appears quite variable; the automated classification accuracy of six extremely high or low licking mice were manually verified, and it was determined that the recorded variability is behavioral, some mice lick more than others. This nociception assay will reveal strong effects with small numbers of animals, but minor differences are likely to be obscured with variability.
