New chalcone-substituted metallophthalocyanines: Synthesis,characterization,and investigation of their properties

Abstract

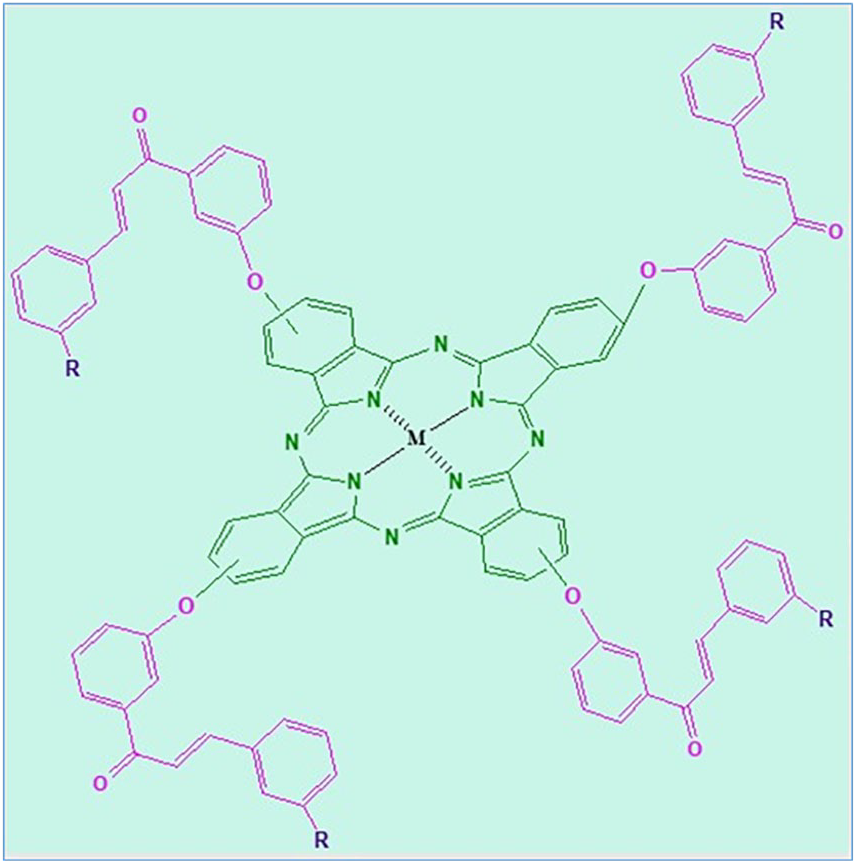

The synthesis of novel metallophthalocyanines (M = Zn, Mg, and Co) derived from (E)-3-(3-bromophenyl)-1-(3-hydroxyphenyl)prop-2-en-1-one and (E)-3-(3-fluorophenyl)-1-(3-hydroxyphenyl)prop-2-en-1-one is achieved. These complexes and the synthesized novel phthalonitrile derivatives are characterized by FTIR, ¹H NMR, ¹³C NMR, UV-Vis, mass spectrometry, and elemental analysis. The aggregation properties of the metallophthalocyanines ZnPc, MgPc, and CoPc are investigated in different solvents and at different concentrations in dimethyl formamide. The electrochemical behavior is also investigated. The cyclic voltammograms give one oxidation reaction for all the bromo-derived metallophthalocyanines and one reduction reaction for all the fluoro-derived metallophthalocyanines. Fe³⁺, Cd²⁺, Hg²⁺, Cu²⁺, Ni²⁺, and Co²⁺ ions are titrated fluorometrically with the phthalocyanines. The bromo- and fluoro-substituted phthalocyanine compounds show different effects on the metal ion titrations.

Keywords

aggregation chalcones cyclic redox metal-sensing phthalocyanines

Introduction

Phthalocyanines (PCs) have been examined at an increasing rate since their discovery.¹ This macrocyclic molecule with 18 π-electrons in the conjugated system can be easily synthesized, can be derivatized from peripheral positions to tetra, and can also be derivatized from non-peripheral positions.^2–5 This allows for the formation of a rich pool of molecules and to the design of PCs that can be applied in many different applications. Because of their macrocyclic aromatic structure, simple derivatization and easy electron exchange, PCs are frequently used in areas such as catalysis,⁶ organic photovoltaic devices and solar cells,⁷ electrophotography,⁸ Langmuir–Blodgett films,⁹ photosensitizers in photodynamic therapy,¹⁰ electrochromic displays,¹¹ liquid crystals,¹² and optical disks.¹³

The solubilization of PCs is necessary for their use in various applications and to improve their low solubility.¹⁴ Two methods are applied for this purpose. The first is the choice of the central metal ion to increase the interaction with solvent molecules. The second is substitution with small moieties. The latter method is also expected to give additional properties to the PC derivative.^15,16

Recently, the sensor and biological activities of chalcones have been studied and diverse biological activities have been found, for example, antioxidant, cytotoxic, antiviral, tyrosinase inhibitory, antimalarial, antibacterial, and anti-inflammatory.^17–19 In addition, chalcones are used as stating materials for synthesizing many compounds such as flavones, thiadiazines, isoxazoles, quinolinones, benzodiazepines, benzothiazepines, and benzofuranones.²⁰ Derivation of PCs with chalcones and the applications of these new compounds are quite new. With PCs derived from chalcones, applications as metal sensors,²¹ catalysts,²² photovoltaic devices, and solar cells²³ have been described. Both colorimetric and fluorometric techniques have been studied in metal titrations of PCs derived with chalcones.²⁴

In this study, the novel phthalonitrile derivatives 3 and 4 and the novel metallophthalocyanines (MPcs; M = Zn, Mg, and Co) derived from (E)-3-(3-bromophenyl)-1-(3-hydroxyphenyl)prop-2-en-1-one 3a–c and (E)-3-(3-fluorophenyl)-1-(3-hydroxyphenyl)prop-2-en-1-one 4a–c have been synthesized and then characterized by Fourier-transform infrared spectroscopy (FTIR), ¹H NMR, ¹³C NMR, UV-Vis, mass spectrometry, and elemental analysis. In addition, the aggregation properties of the newly synthesized chalcone-substituted PC compounds 3a–c and 4a–c are described. The electrochemical properties of the synthesized PCs are also investigated. Fe³⁺, Cd²⁺, Hg²⁺, Cu²⁺, Ni²⁺, and Co²⁺ ions were titrated and studied by fluorescence spectroscopy with the zinc complexes of both bromo- and fluoro-substituted PCs. Some ions selectively increase the fluorescence emissions of PCs in these titrations.

Results and discussion

Synthesis

The synthesis of zinc(II), magnesium(II), and cobalt(II) PCs with chalcones bearing halogen atoms was performed by the procedure described in Scheme 1. Chalcone compounds 1 and 2 were synthesized according to the literature²⁵ and were obtained as E isomers, as confirmed on the basis of their ¹H NMR spectra. Compounds 3 and 4 were obtained by nucleophilic S_NAr-type substitution of 4-nitrophthalonitrile and chalcone compounds 1 and 2 at 60°C in the presence of K₂CO₃ as the catalyst. Derivatization of MPCs with chalcone imparts solubility to MPcs and favorable characteristics for metal-sensing.²⁶

Scheme 1.

The synthetic route to the metallophthalocyanines.

The reaction yields for compounds 3 and 4 were 60% for both after column chromatography. The melting points of phthalonitrile compounds 3 and 4 were 76–79°C and 98–101°C, respectively. The melting point of compound 4, substituted with an F atom, is higher than that of compound 3 bearing a Br atom. The fluorine atom is more electronegative than a bromine atom so the intermolecular forces present in compound 4 are higher than those of compound 3.²⁷ The structures of 3 and 4 were determined by ¹H NMR and ¹³C NMR spectroscopy and further confirmed by FTIR spectroscopy. Compounds 3 and 4 were used to synthesize MPCs 3a–c and 4a–c. The Zn, Mg, and Co Pcs 3a–c and 4a–c were obtained from the corresponding metal salts, Zn(CH₃COO)₂, MgCl₂, or CoCl₂, in n-pentanol and using 1,8-diazabicyclo[5,4,0]undec-7-ene (DBU) as the catalyst. The Zn, Mg, and Co Pcs were purified by column chromatography using an alumina gel (Al₂O₃) column with chloroform–methanol as the eluent.

Solubility is an important factor for electrochemical- and metal-sensing applications and our synthesized MPcs are highly soluble in common organic solvents such as chloroform, tetrahydrofuran (THF), dimethylformamide (DMF), and dimethyl sulphoxide (DMSO). The MPcs 3a, 3b and 4a, 4b were dissolved in CDCl₃ to record their ¹H NMR spectra, while MPcs 3a–4c were dissolved in THF for cyclic voltammetric measurements. MPcs 3a and 4a and all of the metal salts were dissolved in a mixture of acetonitrile/chloroform in a 1:1 ratio for fluorometric metal ion titrations.

Structure elucidation

Spectroscopic techniques were used to identify the structures of the phthalonitriles. In the FTIR spectra of phthalonitrile compounds 3 and 4 the disappearance of the OH groups of 1 and 2 (3380 cm⁻¹) and the presence of characteristic stretching bands for C≡N groups at 2232 and 2232 cm⁻¹ were indicative of succesful coupling. No change was observed in the other bands of the spectra except for minor shifts. Other IR stretching vibrations of 3 and 4 were similar to those of compounds 1 and 2. Additional characteristic vibration peaks were observed for 3 and 4: aromatic C–H stretches at 3071 cm⁻¹ (for 3) and 3073 cm⁻¹ (for 4), carbonyl groups (C=O) at 1665 cm⁻¹ (for 3) and 1663 cm⁻¹ (for 4), Ar–C=C group stretches of at 1596–1578 cm⁻¹ (for 3) and 1595–1481 cm⁻¹ (for 4) and ether group (ArC–O–CAr) stretches at 1308–1247 cm⁻¹ (for 3) and 1311–1244 cm⁻¹ (for 4).

In the ¹H NMR spectra of the phthalonitrile compounds (Figure 1), the OH group at 12.8 ppm had disappeared and aromatic protons appeared at around 8.00–7.15 ppm. The ¹³C NMR spectra of compounds 3 and 4 indicated the presence of nitrile carbon atoms (C≡N) at 121.80 and 121.64 (for 3) and 117.93 and 117.72 ppm (for 4), respectively. The observed molecular ion peaks of phthalonitrile compounds 3 and 4 are shown in Supporting Information (Table 1). Due to the difficult ionization of these compounds, we were unable to obtain a clear ion peak.

Figure 1.

¹H NMR spectra of phthalonitrile compounds 3 and 4

Table 1.

Absorption spectral data of novel metallophthalocyanine compounds 3a–c and 4a–c in DMF.

Compound	Q band λ_max (nm)		log ε		Β band λ_max (nm)		log ε
3a	680	613	4.88	4.28	385		4.46
4a	680	614	4.58	4.03	385	337	4.23	4.51
3b	680	613	4.65	4.08	384		4.29
4b	679	613	3.91	3.62	385	326	3.84	4.19
3c	667	613	4.34	4.04	328		4.58
4c	674	613	4.09	3.78	380		3.92

The disappearance of the C≡N vibration band at 2232 cm⁻¹ is considered as evidence of the formation of zinc(II) PCs 3a and 4a, magnesium(II) PCs 3b and 4b, and cobalt(II) PCs 3c and 4c. The ¹H NMR spectra of the zinc(II) PC complexes 3a and 4a showed the presence of aromatic protons at 7.29 ppm (s, 52H, ArH) while magnesium(II) PC complexes 3b and 4b showed the aromatic protons at 7.28 ppm (s, 52H, ArH) because of aggregation. Due to the paramagnetic nature of complexes 3c and 4c, the ¹H NMR spectra of these compounds could not be determined.²⁸

In the mass spectra of the zinc, magnesium, and cobalt Pcs, the presence of molecular ion peaks at m/z = 1844.39 [M + Na + K]⁺ for 3a; 1538.74 [M]⁺ for 4a; 1742.06 [M + H]⁺ for 3b; 1498.35 [M + H]⁺ for 4b; 1841.45 [M + 2MeOH]⁺ for 3c; and 1587.84 [M + Na + MeOH]⁺ for 4c, confirmed the proposed structures (see Supporting Information).

UV-Vis absorption spectra and aggregation properties

PC complexes in the UV-Vis region show two strong absorptions regions; the first one is at 300–500 nm and is called the B band. The second, the more energetic absorption, is known as the Q band, and occurs at near 600–700 nm.²⁹ The UV-Vis absorption spectra of the synthesized zinc, magnesium, and cobalt PCs 3a–c, 4a–c in DMF at 1.2 × 10⁻⁵ M concentration are shown in Figures 2 and 3. The UV-Vis absorption spectra show Q band absorptions at 680/613 (corresponding to degenerate D_4h symmetry), 680/614, 680/613, 679/613, 667/613, and 674/613 nm, respectively, while the B band absorptions were observed at 385, 385/337, 384, 385/326, 328, and 380 nm, respectively (Table 1).

Figure 2.

UV-Vis spectra of phthalocyanine compounds 3a–c in DMF at 12 × 10⁻⁶ M concentration.

Figure 3.

UV-Vis spectra of phthalocyanine compounds 4a–c in DMF at 12 × 10⁻⁶ M concentration.

The MPCs 3a–c have the same periphery, but they have different metal ions in the core. Their Q band positions were similar due to the same substituent on their peripheries (Figure 2). However, CoPc 3c showed a blue-shifted Q band when compared with the other PC complexes 3a and 3b. The intensity of the Q bands of PC 3a–c followed the order: ZnPc > MgPc > CoPc.

As shown in Figure 3, PC complexes 4a–c, having the same substituent, but containing different metal atoms in the core, showed similar Q band positions in the UV-Vis spectra. The Q band intensity of PCs 4a–c was ZnPc > MgPc > CoPc.

Aggregation depends on the concentration, solvent, temperature, metal ions, and structures of the substituents.³⁰ Aggregation of the PC compounds is generally examined by changing the concentration of the PC or by changing the solvent. These factors will affect the shape and position of the Q band when aggregation happens.

In this study, the aggregation behavior of the MPC complexes 3a–c and 4a–c were investigated in different solvents and changed with increased concentration according to UV-Vis spectroscopy (Figures 4 and 5). We know that the absorption intensities of Q bands are markedly changed by the solvent. The effect of different solvents on the aggregation properties of the ZnPcs (3a, 4a), MgPcs (3b, 4b), and CoPcs (3c, 4c) can be seen in Figure 4.

Figure 4.

Absorption spectra of ZnPcs (3a, 4a), MgPcs (3b, 4b), and CoPcs (3c, 4c) in different solvents at 12 × 10⁻⁶ mol dm⁻³.

Figure 5.

Absorption spectra of ZnPcs (3a, 4a), MgPcs (3b, 4b), and CoPcs (3c, 4c) in DMF at different concentrations: A; 2 × 10⁻⁶, B; 4 × 10⁻⁶, C; 6 × 10⁻⁶, D; 8 × 10⁻⁶, E; 10 × 10⁻⁶, F; 12 × 10⁻⁶ mol dm⁻³.

Compound 3a showed the highest absorbance values in DMF and THF and the lowest absorbance value in ethanol. In addition, the position of the Q bands of compound 3a in DMF and THF indicated a slight shift (ca. 4 nm) to higher energy in comparison with other solvents. The absorbance data shows that 3a showed aggregation, especially in ethanol. The UV-Vis absorption spectra of 4a in different solvents showed the highest absorbance value in THF and the lowest absorbance value in ethanol. Also, compound 4a in the ethyl acetate, diethyl ether, and THF showed a slight shift (ca. 2–3 nm) to lower energy in comparison with the other solvents in the UV-Vis absorption spectra. The UV-Vis absorption spectra of 3b showed the highest absorbance in DMF, while that of 4b occured in CHCl₃. The lowest absorbance values of 3b and 4b were observed in ethanol and diethyl ether, respectively. In addition, compound 3b in ethyl acetate and THF showed a slight shift (ca. 2 nm) to lower energy in comparison with the other solvents, while 4b underwent a slight shift (ca. 3–4 nm) to the lower energy in ethyl acetate, DMF, THF, and diethyl ether.

The UV-Vis absorption spectra of cobalt PCs 3c and 4c in different solvents are also shown in Figure 4. The highest absorbance value of 3c was observed in diethyl ether and the lowest absorbance value in acetonitrile and ethanol. The CoPc complex 3c undergoes H-type aggregation in acetonitrile, CHCl₃, CH₂Cl₂, DMF, THF, ethanol, DMSO, and EtOAc. The UV-Vis absorption spectra of 4c showed the highest absorbance values in DMF and diethyl ether and the lowest absorbance values in ethanol. Compound 4c was the most aggregated in ethanol compared with the other solvents.

The effect of changing the concentration on the aggregation properties of the ZnPcs (3a and 4a), MgPcs (3b and 4b), and CoPcs (3c and 4c) can be seen in Figure 5. All of the studied MPCs did not aggregate in DMF at concentrations between 2 × 10⁻⁶ and 1.2 × 10⁻⁵ mol L⁻¹ and they all exhibited monomeric behavior. At concentrations between 2 × 10⁻⁶ and 1.2 × 10⁻⁵ mol L⁻¹, the MPC compounds 3a–c and 4a–c were found to be compatible with the Beer–Lambert law.

Cyclic voltammetric measurements

The cyclic voltammetric measurements of all the MPcs were recorded on a Parstat 2273 potentiostat/galvanostat. In three-electrode systems, a Pt working electrode, a Pt counter electrode and a glassy carbon electrode, as reference, were used. As the electrolyte pure 0.1 M tetra-n-butylammonium tetrafluoroborate (TBAB) was used together with pure THF. Figures 6 –8 show the cyclic voltammograms of the MPcs. The cyclic voltammetric measurements showed one irrevesible oxidation at about 1.0 V for the bromo-derived PC compounds 3a–c. The cyclic voltammetric measurements also showed one irrevesible reduction at about −1.7 V for the fluoro-derived PC compounds 4a–c. Thus, bromo and fluoro substitution gave different redox behavior to the MPCs.

Figure 6.

Cyclic voltammograms of zinc phthalocyanines 3a and 4a.

Figure 7.

Cyclic voltammograms of magnesium phthalocyanines 3b and 4b.

Figure 8.

Cyclic voltammograms of cobalt phthalocyanines 3c and 4c.

Compounds 3a, 3b have the same half-wave potantials, E_1/2 = 0.92 V. Likewise 4a, 4b have the same half-wave potentials, E_1/2 = 1.76 V. When the central metal ion is Zn(II) or Mg(II), the bromo and fluoro substituents on the periphery of the PC ligand do not influence strongly the solution redox chemistry of these materials. When looking at compounds 3c and 4c, different half-wave potentials are observed. The half-wave potential of compound 3c is 1.1 V, while the half-wave potential of compound 4c is −1.55 V. Since cobalt(II) ions have d orbitals which interact electronically with the PC ring, unlike zinc and magnesium ions, the E_1/2 values of cobalt(II) PC complexes 3c and 4c are different. This observation is consistent with the literature in which zinc and magnesium are redox inactive and cobalt is redox active.^1,4,8

Fluorometric metal ion titrations of Zn PC compounds 3a and 4a

The fluorescence spectra were recorded on a Hitachi F-7000 fluorescence spectrophotometer. The PC compounds 3a and 4a were used for titration of the metal ions, and concentrations of 6.73 × 10⁻⁵ and 1.56 × 10⁻⁴ M were used, respectively. FeCl₃·6H₂O (7.40 × 10⁻⁴ M), 3CdSO₄·8H₂O (1.25 × 10⁻³ M), HgCl₂ (1.18 × 10⁻³ M), CuSO₄·5H₂O (8.01 × 10⁻⁴ M), NiCl₂·6H₂O (1.35 × 10⁻³ M), and Co(CH₃COO)₂·4H₂O (1.28 × 10⁻³ M) salts were used as the metal ions. All the metal salts were dissolved in a mixture of acetonitrile/chloroform in a 1:1 ratio. The PC s were also dissolved in the same solvent mixture.

The fluorescence excitation wavelength of the PC s was determined as 610 nm, and this value was used to record fluorescence spectra of the PC s. The PC s and metal ions were mixed in a 1:1 ratio and the fluorescence spectra were measured. After recording the spectra of the mixtures, the same volume of metal ion solution was added and the fluorescence spectra recorded. Thus, increased spectrum intensity was recorded. The addition of the metal ion solution was repeated 10 times.

The PC compound 3a showed no reaction versus Fe³⁺, Hg²⁺, and Ni²⁺ ions (Figure 9). However, Co²⁺, Cu²⁺, and Cd²⁺ metal ions increased the fluorescence emission intensity of compound 3a (Figure 10). The PC compound 4a showed a reaction versus only Cd²⁺ metal ions (Figure 10). Only Cd²⁺ metal ions increased the emission intensity of compound 4a.

Figure 9.

The metal ions that do not affect the fluorometric intensities of phthalocyanines 3a and 4a.

Figure 10.

The metal ions that affect the fluorometric intensities of phthalocyanines 3a and 4a.

According to results of the fluroescence metal ion titrations of PC s 3a and 4a, it can be surmised that the bromo- and fluoro-chalcone-derived PC s show different responses to different metal ions. Thus, these results show that these halogen-substituted PC s can be used as selective sensors for different metal ions.

Conclusion

In conclusion, we have synthesized and characterized novel Zn(II), Mg(II), and Co(II) PC s which are substituted with chalcones bearing bromo or fluoro atoms. The structures of the synthesized compounds have been fully characterized by FTIR, ¹H NMR, ¹³C NMR, MALDI-TOF MS, LC-HRMS, UV-Vis, and elemental analysis.

The electronic absorption spectra showed that all the MPcs were non-aggreging and were also well soluble in common organic solvents and compatible with the Beer–Lambert law. The electrochemical behavior was also investigated and the cyclic voltammograms gave one oxidation reaction for all the bromo-derived MPcs and one reduction reaction for all the fluoro-derived MPcs. Fe³⁺, Cd²⁺, Hg²⁺, Cu²⁺, Ni²⁺, and Co²⁺ ions were titrated fluorometrically with the PC compounds 3a and 4a, with the bromo- and fluoro-substituted PC s showing different behavior. The bromo-substituted PC 3a was affected by Co²⁺, Cu²⁺, and Cd²⁺ ions, while the fluoro-substituted PC 4a only responded to Cd²⁺ ions. These results show that different halogen-substituted PC s can be used in metal ion titrations as selective sensors for different metal ions.

Experimental

Materials and equipment

The used materials, equipment, and spectra (IR, NMR, and mass) are supplied as supplementary information that is available online.

Synthesis

General procedure for the synthesis of phthalonitrile derivatives 3 and 4

The chalcone-bound phthalonitriles were synthesized in dry DMF at 60°C by adding K₂CO₃. Equivalent amounts (1:1) of (4-nitrophthalonitrile and chalcone compounds 1 and 2 were used. The contents of the reaction vessel were stirred under a nitrogen atmosphere for 4 days. On completion of the reaction, the mixture was poured into ice-water and stirred to yield a crude product. The mixture was then filtered and dried for 3 h. The obtained crude product was purified by column chromatography using chloroform/methanol as the eluent. The reaction pathway is shown in Scheme 1.

4-{3-((2E)-3-(3-bromophenyl)prop-2-enoyl)phenoxy}phthalonitrile (3)

Yield: (0.59 g) 60%, m.p. 76–79°C. IR (ATR), ν_max/cm⁻¹ = 3071 (ArH), 2232 (C≡N), 1665 (C=O), 1596–1578 (Ar–C=C), 1308–1247 (Ar–O–Ar), 751. ¹H NMR (400 MHz, CDCl₃): δ 8.00–7.98 (d, J = 8 Hz, 1H, =C–H), 7.82–7.75 (m, 4H, ArH), 7.68–7.64 (t, J = 8 Hz, 1H, ArH), 7.58–7.57 (d, J = 8 Hz, 1H, ═C–H), 7.52 (s, 1H, ArH), 7.35–7.28 (m, 5H, ArH). ¹³C NMR (400 MHz, CDCl₃): δ 188.42 (–C=O), 161.22, 154.21, 144.14, 140.57, 136.62, 135.58, 133.68, 131.10, 130.89, 130.58, 127.48, 126.16, 125.02, 123.19, 122.37 (ArC–Br), 121.80, 121.64, 120.42, 117.91, 115.21 (–C≡N), 114.81 (–C≡N), 109.55. MALDI-TOF-MS: m/z = 429.22 [M]⁺. Anal. Calcd for C₂₃H₁₃N₂O₂Br: C, 64.35; H, 3.05; N, 6.53; found: C, 65.36; H, 3.35; N, 6.79%.

4-{3-((2E)-3-(3-fluorophenyl)prop-2-enoyl)phenoxy}phthalonitrile (4)

Yield: (0.46 g) 60%, m.p. 98–101°C. IR (ATR), ν_max/cm⁻¹ = 3073 (ArH), 2232 (C≡N), 1663 (C=O), 1595–1481 (Ar–C=C), 1311–1244 (Ar–O–Ar), 782. ¹H NMR (400 MHz, CDCl₃): δ 7.99 (d, J = 8 Hz, 1H, =C–H), 7.81–7.75 (d, J = 9 Hz, 1H, ArH), 7.68–7.64 (t, J = 8 Hz, 1H, ArH), 7.51 (s, 1H, ArH), 7.44–7.42 (m, 2H, =C–H and ArH), 7.36–7.28 (m, 4H, ArH). ¹³C NMR (400 MHz, CDCl₃): δ 188.15 (C=O), 164.30 (d, ¹J_C-F = 246.5 Hz), 161.21, 154.22, 144.49, 144.47, 140.62, 136.80, 136.72, 135.57, 131.09, 130.69 (d, ³J_C-F = 8 Hz), 126.13, 124.97, 124.77 (d, ⁴J_C-F = 2.7 Hz) 121.79, 121.63, 120.40, 117.93 (d, ²J_C-F = 20.8 Hz), 115.19 (–C≡N), 114.79 (d, ²J_C-F = 11.9 Hz), 114.45 (–C≡N), 109.57. MALDI-TOF-MS: m/z = 368.35 [M]⁺. Anal. Calcd for C₂₃H₁₃N₂O₂F: C, 74.99; H, 3.56; N, 7.60; found: C, 75.05; H, 3.94; N, 7.35%.

General procedure for the synthesis of MPCs 3a, 4a; 3b, 4b; and 3c, 4c

The chalcone-substituted phthalonitriles, 3 or 4 (0.44 mmol) and the anhydrous metal salt (Zn(CH₃COO)₂, MgCl₂, or CoCl₂ (0.11 mmol)) were dissolved in n-pentanol (2 mL) and DBU (6 drops). Next, the mixture was stirred at reflux under a nitrogen atmosphere at 160°C for 24 h. The reaction mixture was poured into ethanol. The obtained green precipitate was filtered and washed with hot ethanol and methanol. The synthesized metallophthalocyanine complexes were purified on an alumina gel (Al₂O₃) column with chloroform–methanol (10:4) for compound 3a; (10:2) for compound 4a; (10:1) for compound 3b; (10:2) for compound 4b; (10:4) for compound 3c; and (10:3) for compound 4c as eluent (Scheme 1).

The spectral data of MPCs 3a, 4a; 3b, 4b; and 3c, 4c

3a (ZnPc): Yield: (23.5 mg) 12%, m.p. >300°C. IR (ATR), ν_max/cm⁻¹ = 3066 (ArH), 1719 (C=O), 1578–1437 (Ar–C=C), 1243 (Ar–O–Ar), 783. ¹H NMR (400 MHz, CDCl₃): δ 7.29 (s, 52H, ArH). MALDI-TOF-MS: m/z = 1844.39 [M + Na + K]⁺. UV-Vis (DMF): λ_max, nm (log ε) = 680 (4.81), 618 (4.23), 342 (4.62). Anal. Calcd for C₉₂H₅₂N₈O₈Br₄Zn: C, 61.94; H, 2.92; N, 6.28; found: C, 61.42; H, 2.50; N, 5.96%.

4a (ZnPc): Yield: (20 mg) 12%, m.p. >300°C. IR (ATR), ν_max/cm⁻¹ = 3066 (ArH), 1717 (C=O), 1648–1578 (Ar–C=C), 1259–1225 (Ar–O–Ar), 784. ¹H NMR (400 MHz, CDCl₃): δ 7.29 (s, 52H, ArH). MALDI-TOF-MS: m/z = 1538.74 [M]⁺. UV-Vis (DMF): λ_max, nm (log ε)= 680 (4.52), 613 (3.99), 384 (4.20). Anal. Calcd for C₉₂H₅₂N₈O₈F₄Zn: C, 71.74; H, 3.38; N, 7.28; found: C, 71.57; H, 3.56; N, 7.55%.

3b (MgPc): Yield: (28.7 mg) 15%, m.p. >300°C. IR (ATR), v_max /cm⁻¹ = 3066 (ArH), 1718 (C=O), 1578–1475 (Ar–C=C), 1243 (Ar–O–Ar), 784. ¹H NMR (400 MHz, CDCl₃): δ 7.28 (s, 52H, ArH). MALDI-TOF-MS: m/z = 1742.06 [M + H]⁺. UV-Vis (DMF): λ_max, nm (log ε) = 680 (4.59), 613 (4.04), 325 (4.55). Anal. Calcd for C₉₂H₅₂N₈O₈Br₄Mg: C, 63.39; H, 2.98; N, 6.43; found: C, 63.86; H, 2.71; N, 6.95%.

4b (MgPc): Yield: (24.7 mg) 15%, m.p. >300°C. IR (ATR), ν_max/cm⁻¹ = 3070 (ArH), 1717 (C=O), 1567–1438 (Ar–C=C), 1259–1226 (Ar–O–Ar), 785. ¹H NMR (CDCl₃): δ 7.28 (s, 52H, ArH). MALDI-TOF-MS: m/z = 1498.35 [M + H]⁺. UV-Vis (DMF): λ_max, nm (log ε): 679 (3.88), 615 (3.61), 380 (3.78). Anal. Calcd for C₉₂H₅₂N₈O₈F₄Mg: C, 73.71; H, 3.47; N, 7.47; found: C, 73.69; H, 3.64; N, 7.51%.

3c (CoPc): Yield: (27.4 mg) 14%, m.p. >300°C. IR (ATR), ν_max/cm⁻¹ = 3064 (ArH), 1716 (C=O), 1645–1435 (Ar–C=C), 1322, 1240 (Ar–O–Ar), 784. MALDI-TOF-MS: m/z = 1841.45 [M + 2MeOH]⁺. UV-Vis (DMF): λ_max, nm (log ε) = 667 (4.34), 613 (4.04), 328 (4.58). Anal. Calcd for C₉₂H₅₂N₈O₈Br₄Co: C, 62.16; H, 2.93; N, 6.31; found: C, 62.44; H, 2.73; N, 6.02%.

4c (CoPc): Yield: (23.6 mg) 14%. m.p. >300°C. IR (ATR) ν_max/cm⁻¹ = 3064 (ArH), 1716 (C=O), 1645–1437 (Ar–C=C), 1243 (Ar–O–Ar), 783. MALDI-TOF-MS: m/z = 1587.84 [M + Na + MeOH]⁺. UV-Vis (DMF): λ_max, nm (log ε) = 674 (4.09), 610 (3.78), 380 (3.92). Anal. Calcd for C₉₂H₅₂N₈O₈F₄Co: C, 72.05; H, 3.39; N, 7.31; found: C, 72.21; H, 3.59; N, 7.64%.

Supplemental Material

Supplementary_material – Supplemental material for New chalcone-substituted metallophthalocyanines: Synthesis, characterization, and investigation of their properties

Supplemental material, Supplementary_material for New chalcone-substituted metallophthalocyanines: Synthesis, characterization, and investigation of their properties by Ayse Aktas Kamiloglu, Hüseyin Karaca, Gonca Celik, Irfan Acar and Halit Kantekin in Journal of Chemical Research

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was supported by the Research Fund of Artvin Çoruh University, Project no: 2018.F91.02.01 (Artvin-Turkey). Huseyin Karaca is grateful to the research fund of Sakarya University (BAPK: 2018-3-12-165).

ORCID iDs

Ayse Aktas Kamiloglu

Gonca Celik

Supplemental material

Supplemental material for this article is available online.

References

Leznoff

Lever

ABP

. Phthalocyanines, properties and applications, vols. 1–4. New York: VCH, 1989–1996.

Hanack

Schneider

Barthel

, et al. Coord Chem Rev 2001; 219–221: 235–258.

Jeong

Kumar

Mergu

, et al. J Mol Struct 2017; 1147: 469–479.

Karaca

J Organomet Chem 2016; 822: 39–45.

Vashurin

Maizlish

Tikhomirova

, et al. J Mol Struct 2018; 1160: 440–446.

Riquelme

Neira

Marco

, et al. Electrochim Acta 2018; 265: 547–555.

Suzuki

Okumura

Yamasaki

, et al. App Surface Sci 2019; 488: 586–592.

Koca

Kalkan

Bayır

ZA.

Electrochim Acta 2011; 56: 5513–5525.

Palacin

Adv Colloid Interface Sci 2000: 87; 165–181.

10.

Sen

Managa

Nyokong

Inorg Chim Acta 2019; 491: 1–8.

11.

Banasz

Wałęsa-Chora

Coord Chemiy Rev 2019; 389: 1–18.

12.

Erbahar

Harbeck

Gümüş

, et al. Sens Actuators B Chem 2014; 190: 651–656.

13.

Klyamer

Basova

Krasnov

, et al. J Mol Struct 2019; 1189: 73–80.

14.

Aktas Kamiloglu

Acar

Biyiklioglu.

Polyhedron 2017; 137:10–16.

15.

Karaca

Sezer

Ozalp-Yaman

, et al. Polyhedron 2014; 72: 147–156.

16.

Bagdassarian

VLC

Bagdassarian

Atanassova

MS.

Mintage J Pharm Med Sci 2013; 2: 26–31.

17.

Liu

XL.

Curr Med Chem 2005; 12: 481–99.

18.

Bhat

Dhar

Puri

, et al. Bioorg Med Chem Lett 2005; 15: 3177–3180.

19.

Jurasek

Knoppava

Dandarova

, et al. Tetrahedron 1978; 34: 1833–1836.

20.

Motta

Gaudio

Takahata

Internet Electron J Mol Des 2006; 5: 555–569.

21.

Karaca

Cayeğil

Sezer

Synth Met 2016; 215: 134–141.

22.

Zhao

Qiu

Gou

, et al. Chin J Catal 2016; 37: 571–578.

23.

Shalini

Balasundara Prabhu

Prasanna

, et al. Renew Sustain Energy Rev 2015; 51: 1306–1325.

24.

Herndon

JW.

Coor Chem Rev 2018; 377: 86–190.

25.

Syam

Abdelwahab

Al-Mamary

, et al. Molecules 2012; 17: 6179–6195.

26.

Kaur

Kumar

Tetrahedron 2011; 67: 9233–9264.

27.

Khazaal

Al-hambani

A-Faeq

Mintage J Pharm Med Sci 2016; 5: 24–32.

28.

Aktas Kamiloglu

Aydemir

Acar

, et al. Karadeniz Chem Sci Tech 2017; 1: 22–30.

29.

Demirbaş

Akyüz

Akcay

, et al. J Mol Struct 2019; 1176: 695–702.

30.

Kantekin

Yalazan

Kahriman

, et al. J Photochem Photobiol A Chem 2018; 361: 1–11.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

1.76 MB
