The kinetics and mechanism of the ligand substitution reaction of aquapentacyanoruthenate(II) with d -penicillamine in aqueous medium

Introduction

Transition metals have received significant attention because of their applicability in the area of inorganic medicinal chemistry.^1–4 One of the important properties associated with transition metal complexes is their profound action as chemotherapeutic agents. ⁵ For example, complexes of ruthenium(II),^6,7 rhodium(III) ⁸ and iridium(III)^9–11 (possessing d ⁶ configuration) exhibit antitumor properties by interacting selectively with biomolecules in nano- to micro-molar doses.

D-Penicillamine, that is, C₅H₁₁NO₂S or D-PA, is a decomposition product of β-lactam antibiotics, produced naturally by β-lactam ring degradation in penicillin (Figure 1).

OPEN IN VIEWER

Figure 1.

Structure of D-penicillamine.

D-PA is an amino acid, and its structure is quite similar to that of cysteine and valine and is therefore regarded as β,β-dimethylcysteine and β-mercaptovaline, respectively. The presence of –SH, –NH₂ and –COOH groups in penicillamine imparts different modes of binding with various organic^12–14 and inorganic^15,16 substrates, or both,^17,18 during complexation. Out of the D- and L-enantiomers of penicillamine, the former is employed clinically because of the reported high toxic behaviour of the latter. ¹⁹ D-PA has strong chelation ability, especially with metal ions that possess a strong affinity for chelation with a sulfur atom. ²⁰ The exceptional pharmaceutical importance of D-PA lies in its excellent potential to bind with metal ions. ²¹ On account of its excellent properties, D-PA has been used for the treatment of Wilson’s disease by decreasing excess copper levels through reduction of Cu(II) to Cu(I), in heavy metal poisoning, in cystinuria, in rheumatoid arthritis, and also has several significant applications in biological systems.^22–29

In the past, ruthenium compounds have been widely employed as potential cytostatic agents as well as a possible alternative to drugs containing platinum metal.^30–32 Amino and cyano complexes of ruthenium metal, that is, [(NH₃)₅RuL]²⁺ and [(CN)₅RuL]³⁺ with pyrazine or pyridine aromatic heterocycles, ³³ have been explored previously along with other pentacyano(ligand) complexes of Ru(II)^34–37 and Fe(II).^38,39 The reason behind the use of low-spin [Ru(CN)₅OH₂]³⁻ in the case of amino acids ⁴⁰ lies in its high coordination potential to bind effectively with additional ligands, which further easily substitutes a coordinated molecule of water and ultimately forms a complex of high stability. Such types of substituted pentacyanoruthenate(II) complexes show an excellent potential to explore their kinetic properties.^41,42 In this regard, research concerning the kinetics of [Ru(CN)₅OH₂]³⁻ with heterocyclic ligands^43,44 in aqueous medium was performed earlier by Naik and co-workers. The kinetic properties of [Fe(CN)₅OH₂]³⁻ with penicillamine in aqueous ⁴⁵ as well as in acidic ⁴⁶ media have also been investigated, but in contrast to Fe(II) complexes, very minimal information is available on the substitutional kinetic behaviour of Ru(II) complexes with ligands containing sulfur. Therefore, we considered it important to strengthen our understanding by detailed kinetic studies of ligand substitution of sulfur containing D-PA with [Ru(CN)₅OH₂]³⁻ in aqueous medium, forming the complex [Ru(CN)₅D-PA]³⁻. A stoichiometry of 1:1 at 490 nm was determined on the basis of various reaction parameters (namely, pH, ionic strength, [Ru(CN)₅OH₂³⁻], D-PA and temperature).

Results and discussion

The impact of different reaction parameters (namely, pH, [Ru(CN)₅OH₂³⁻], D-PA, ionic strength and temperature) was analysed on the rate of the reaction by modifying the concentration of each variable at a time and maintaining the others as constant to their optimum values.

Dependency of the reaction rate on pH

To select a suitable value of pH for the optimum reaction rate, the complexation efficiency was first tested as a function of pH in the range of 2.0–9.0, with the other experimental parameters fixed to their optimum values using the fixed time procedure method. Phthalate/sodium hydroxide or HCl buffer solution was used to maintain the pH of the reaction mixture. At each pH, the corresponding k_obs and k_f values were determined. The k_f versus pH plot (Figure 2) indicates clearly that the reaction rate was markedly slow at low pH, and increased on increasing the value of pH before being retarded at higher pH values. The pH value (3.8 ± 0.02) was recommended as an optimum value for kinetic analysis, since at this pH, appreciable changes in absorbance were noticed. At low pH, a noticeable decrease in k_f values represented its close proximity with that of observed with further Fe(II) complex ⁴⁷ earlier, suggesting the coordinated cyanide ligands protonation is liable for the decreased lability of H₂O molecule in the protonated species [(HNC)Ru(CN)₄OH₂]²⁻, ⁴¹ as mentioned in equations (1)–(4)

[ ( HNC ) Ru ( CN ) 4 OH 2 ] 2 − ⇌ K a [ Ru ( CN ) 5 OH 2 ] 3 − + H +

(1)

H [ D − PA ] + ⇌ K 1 [ D − PA ] + H +

(2)

[ Ru ( CN ) 5 OH 2 ] 3 − + H [ D − PA ] + → k 1 [ Ru ( CN ) 5 H ( D − PA ) ] 2 − + H 2 O

(3)

[ Ru ( CN ) 5 OH 2 ] 3 − + [ D − PA ] → k 2 [ Ru ( CN ) 5 ( D − PA ) ] 3 − + H 2 O

(4)

OPEN IN VIEWER

Figure 2.

Effect of pH on the reaction of [Ru(CN)₅OH₂]³⁻ with D-PA as the ligand in aqueous medium under the optimum reaction conditions: D-PA = 4.5 × 10⁻³ M, [Ru(CN)₅OH₂³⁻] = 4.5 × 10⁻⁴ M, μ = 0.25 M and temperature = 30.0 ± 0.01 °C.

Dependency of the reaction rate on d-PA

At the optimum pH value (3.8 ± 0.02), the influence of D-PA on the rate of reaction was analysed with the variation of D-PA in the range of 1.5 × 10⁻³ to 4.5 × 10⁻³ M, following pseudo-first-order conditions by taking D-PA in excess over [Ru(CN)₅OH₂]³⁻ and maintaining the other experimental variables constant to their optimum values. The obtained plot of k_obs versus D-PA is linear in nature (Figure 3) and passes through the origin (R² ⩾ 0.9952, standard deviation (SD) ⩽ 0.0698).

OPEN IN VIEWER

Figure 3.

Effect of D-PA on the reaction of [Ru(CN)₅OH₂]³⁻ with D-PA in aqueous medium under the optimum reaction conditions: pH = 3.8 ± 0.02, [Ru(CN)₅OH₂³⁻] = 4.5 × 10⁻⁴ M, μ = 0.25 M and temperature = 30.0 ± 0.01 °C.

On the basis of studies performed previously, ⁴⁴ the reaction most probably occurs through equations (5) and (6)

[ Ru ( CN ) 6 ] 4 − + H 2 O ⇌ k -1 k 1 [ Ru ( CN ) 5 OH 2 ] 3 − + CN − ( s l o w )

(5)

[ Ru ( CN ) 5 OH 2 ] 3 − + [ D − PA ] ⇌ k − 2 k 2 [ Ru ( CN ) 5 ( D − PA ) ] 3 − + H 2 O

(6)

Equation (6) can be represented in terms of the rate expression in equation (7)

d [ Ru ( CN ) 5 ( D − PA ) 3 − ] dt = k o b s [ Ru ( CN ) 5 OH 2 3 − ]

(7)

where k o b s = k 2 [ D − PA ] + k − 2 , in which k 2  = forward rate constant or second-order rate constant (k_f). The zero intercept in Figure 3 indicates that in equation (6), there is a minimum possibility of reversibility of the reaction.

Dependency of the reaction rate on the reactant [Ru(CN)₅OH₂³⁻]

The values of k_obs were evaluated as a function of [Ru(CN)₅OH₂³⁻] by varying its concentration in the range of 1 × 10⁻⁴ to 4.5 × 10⁻⁴ M while maintaining the values of the other reaction variables fixed. Low concentration values of [Ru(CN)₅OH₂³⁻] were strictly avoided to minimize the possibility of dimerization. ⁴⁷ The obtained values of k_obs and k_f with [Ru(CN)₅OH₂³⁻] are compiled in Table 1 and depict no significant variation with increasing concentration of [Ru(CN)₅OH₂³⁻] over the whole concentration range. Thus, the reaction rate was found to be invariant with respect to the Ru(II) concentration.

OPEN IN VIEWER

Table 1.

Effect of [Ru(CN)₅OH₂³⁻] under the optimum conditions: pH = 3.8 ± 0.02, D-PA = 4.5 × 10⁻³ M, µ = 0.25 M (NaClO₄) and temperature = 30.0 ± 0.01 °C.

[Ru(CN)5OH23−] × 104 M	kobs × 104 s−1	kf × 10−1 M−1s−1
1.0	1.01 ± 0.05	0.22 ± 0.01
2.5	0.3 ± 0.03	0.06 ± 0.02
3.0	0.24 ± 0.04	0.05 ± 0.01
4.0	0.31 ± 0.06	0.07 ± 0.03
4.5	0.19 ± 0.03	0.04 ± 0.02

k_obs (av) = 0.41 ± 0.042; k_f (av) = 0.088 ± 0.02.

Dependency of the reaction rate on the ionic strength (µ)

The electrolyte effect on the ligand substitution kinetics was studied by changing the neutral electrolyte concentration, that is, NaClO₄ in the range of 0.025–0.25 M, while maintaining the other parameters constant to their optimum values. The graph plotted between ln k_f versus √I/1 + √I was observed to be a straight line (Figure 4) (R² ⩾ 0.9915, SD ⩽ 0.8721) and confirms with the relationship proposed by Bronsted–Bjerrum–Christiansen. ⁴⁸ The graph is indicative of a negative salt effect, that is, as the NaClO₄ concentration increases, the reaction rate decreases, probably due to interactions of the cation (i.e. Na⁺ from NaClO₄) with the CN⁻ ion, which leads to a decrease in the electron density on the ruthenium metal centre, resulting in the requirement of more energy to release H₂O from [Ru(CN)₅OH₂]³⁻.

OPEN IN VIEWER

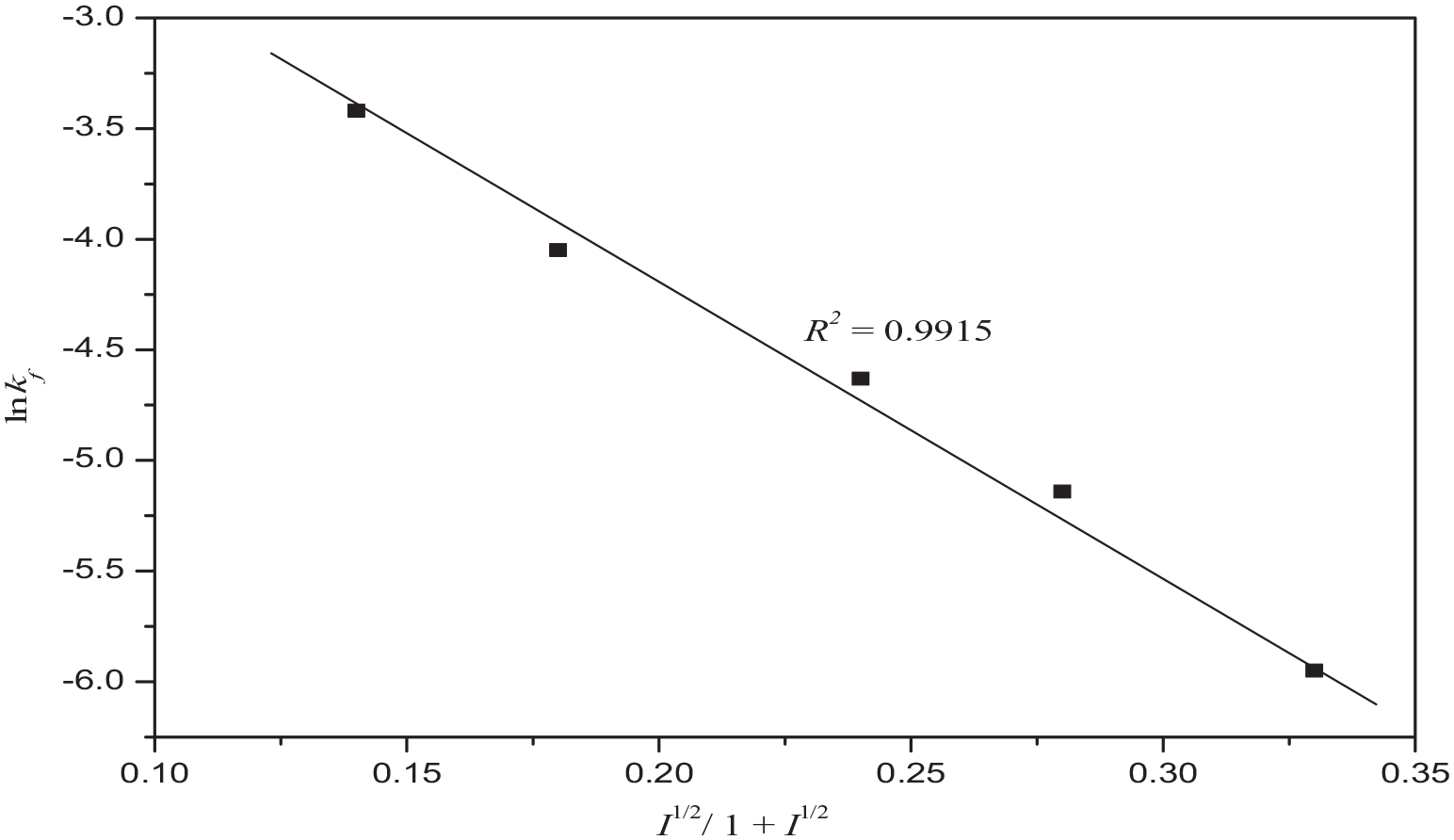

Figure 4.

Effect of ionic strength in the reaction of [Ru(CN)₅OH₂]³⁻ with D-PA in aqueous medium under the optimum reaction conditions: pH = 3.8 ± 0.02, D-PA = 4.5 × 10⁻³ M, [Ru(CN)₅OH₂³⁻] = 4.5 × 10⁻⁴ M and temperature = 30.0 ± 0.01 °C.

Dependency of the reaction rate on the temperature

The impact of the temperature on the rate of the reaction was studied in the range of 308–323 K within the accuracy of ±0.02 °C, under optimized conditions. Kinetic studies at high temperature are circumvented to minimize the possibility of decomposition of the product. The value of k_f was evaluated and is related to different thermodynamic parameters (namely, ∆S^# (entropy of activation) and ∆H^# (enthalpy of activation)) through Eyringʼs equation as shown in equation (8)

ln ( k f T ) = ln ( k B h e Δ S # R ) − Δ H # R T

(8)

The linear least square plot between ln(k_f/T) versus 1/T is obtained as a straight line (Figure 5) with R² ⩾ 0.9962 and SD ⩽ 0.2753.

OPEN IN VIEWER

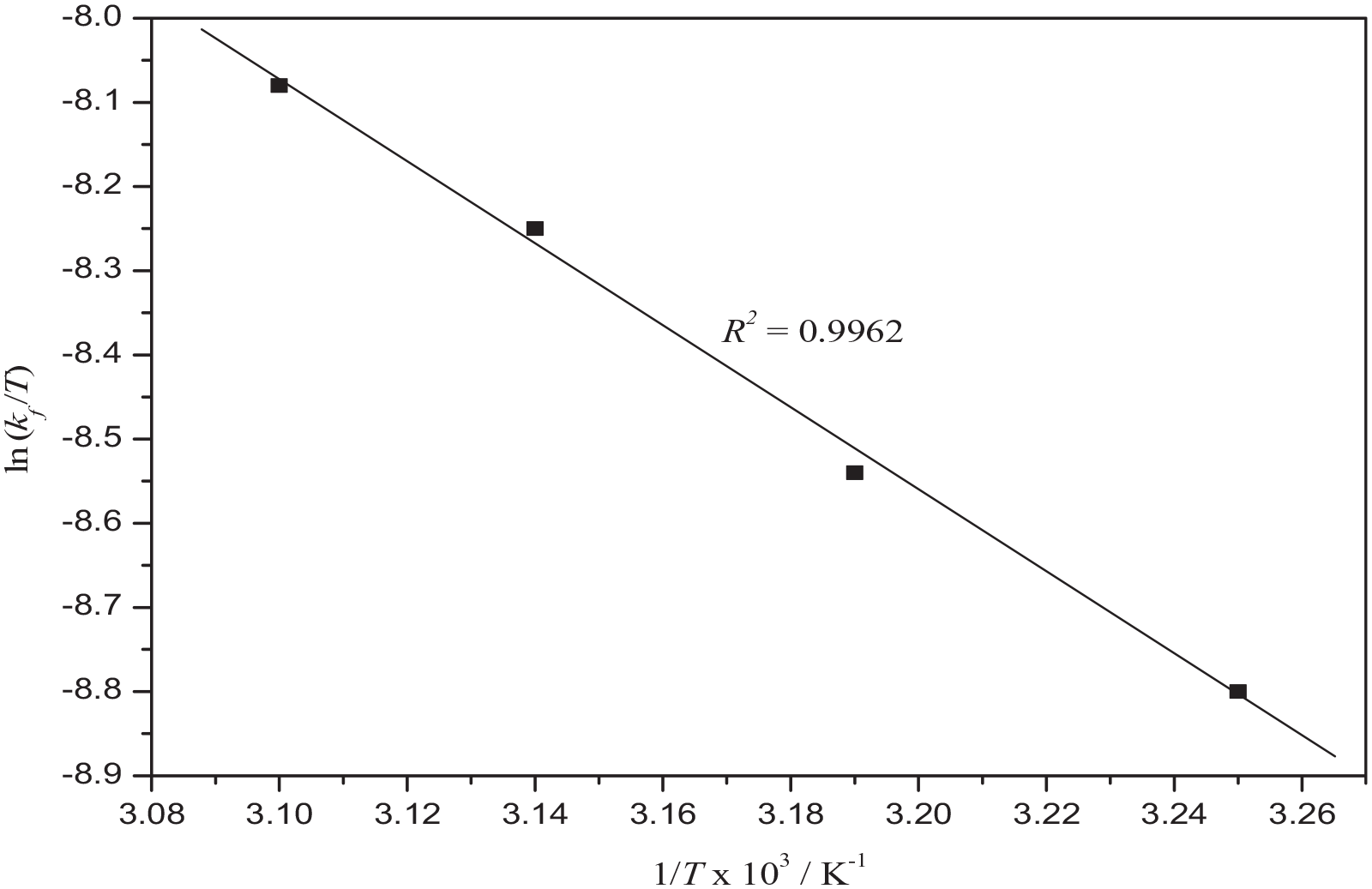

Figure 5.

Effect of temperature for the reaction of [Ru(CN)₅OH₂]³⁻ with D-PA in aqueous medium under the optimum reaction conditions: D-PA = 4.5 × 10⁻³ M, [Ru(CN)₅OH₂³⁻] = 4.5 × 10⁻⁴ M, pH = 3.8 ± 0.02 and µ = 0.25 M.

The values of ∆H^# and ∆S^# were computed, respectively, from the slope and intercept of the plotted graph. The obtained values of Ea, ∆H^#, ∆S^# and ∆G^# are 56.8 kJ mol⁻¹, 48.2 kJ mol⁻¹, 193.4 JK⁻¹ mol⁻¹ and −10.4 kJ mol⁻¹, respectively. The ∆S^# exhibits a high positive value, therefore taking into account the above-mentioned results, the reaction shows a high bond dissociative character. Analysis of the above-mentioned activation parameters and kinetic data suggests that the reaction under consideration preferentially follows a dissociation (D) mechanism. The most reasonable scheme for the whole mechanism is given through equations (9) and (10), corresponding to the substitution processes in pentacyanoferrate(II)^49,50

[ Ru ( CN ) 5 OH 2 ] 3 − ⇌ k -1 k 1 [ Ru ( CN ) 5 ] 3 − + H 2 O

(9)

[ Ru ( CN ) 5 ] 3 − + [ D − PA ] → k 2 [ Ru ( CN ) 5 D − PA ] 3 −

(10)

Applying steady-state approximation for a trigonal-bipyramidal intermediate, that is, [Ru(CN)₅]³⁻, equation (11) can be derived

k 1 [ Ru ( CN ) 5 OH 2 3 − ] = [ Ru ( CN ) 5 3 − ] { k 2 [ D − PA ] + k − 1 [ H 2 O ] }

(11)

Upon simplification of equation (11), equation (12) can be obtained

[ Ru ( CN ) 5 3 − ] = k 1 [ Ru ( CN ) 5 OH 2 3 − ] k 2 [ D − PA ] + k − 1 [ H 2 O ]

(12)

Using equation (11), the reaction rate is expressed as follows in equation (13)

Rate = k 2 [ Ru ( CN ) 5 3 − ] [ D − PA ]

(13)

After solving equations (12) and (13), equation (14) is deduced

Rate = k 2 k 1 [ D − PA ] [ Ru ( CN ) 5 OH 2 3 − ] k 2 [ D − PA ] + k − 1 [ H 2 O ]

(14)

As the rate of the reaction is directly proportional to [Ru(CN)₅OH₂³⁻] and D-PA, therefore it can be depicted as follows in equation (15) or in equation (16)

Rate = k f [ D − PA ] [ Ru ( CN ) 5 OH 2 3 − ]

(15)

Rate = k o b s [ Ru ( CN ) 5 OH 2 3 − ]

(16)

Substituting equation (16) in to equation (14), k_obs can be expressed through equation (17)

k o b s = k 2 k 1 [ D − PA ] k 2 [ D − PA ] + k − 1 [ H 2 O ]

(17)

As per the reaction conditions, we know

k − 1 [ H 2 O ] > > k 2 [ D − PA ]

Therefore, equation (17) can be written as

k o b s = k 2 k 1 [ D − PA ] k − 1 [ H 2 O ]

(18)

By applying

k 2 k 1 k − 1 [ H 2 O ] = k a p

Equation (18) converts into equation (19)

k o b s = k a p [ D − PA ]

(19)

Equation (19) shows that k_obs follows first-order kinetics and the plotted graph between k_obs versus D-PA (Figure 3) represents a straight line with a zero intercept, which is in good correlation.

Both metal complexes of Ru(II) and Fe(II) possess a low-spin d ⁶ transition state; therefore, a similar rate during their water exchange process is to be assumed. But the salient feature for the prevalence of the difference in rate constant during replacement of the coordinated H₂O molecule in aqua complexes of Ru(II) and Fe(II) is the strength of the bond between the metal and the coordinated water molecule, which is slightly stronger in the case of Ru(II) metal complexes due to a much more favourable 4d orbital enhancement of the lowest unoccupied molecular orbital (LUMO) towards the lone pairs of the H₂O molecule as compared to Fe(II) complexes. Removal of a coordinated water molecule from Ru(II) metal complexes is mainly attributed to effective charge reduction on the metal centre, which subsequently decreases the activation energy due to an interaction between the oxygen atom lone pairs and the ruthenium metal, and being responsible for M–OH₂ dissociation. The large 4d orbital enhancement of the LUMO in Ru(II) accounts for the substantial π-back-bonding character of the CN ligands, which ultimately emphasizes the M(III) character of Ru(II) as compared to Fe(II), resulting in faster exchange of coordinated water in aqua complexes of Fe(II) than in Ru(II). The value of the rate constant in Ru(II) also decreases considerably in acidic environment for exchange of a coordinated water molecule due to coordinated cyanide ligand protonation. This cyanide ligand protonation changes the electronic environment, making the bond between ruthenium metal and coordinated water stronger. Even so, in the present kinetic study in aqueous medium, the high positive value of entropy is the main factor behind the occurrence of the dissociative (D) mechanism.

Finally, an overlay scan of the product formation was recorded at different time intervals between 200 and 900 nm for substitution of the water molecule in the complex [Ru(CN)₅OH₂]³⁻ (λ_max 310 nm, ε = 1.64 × 10³ M⁻¹cm⁻¹) in aqueous medium by D-PA (Figure 6). The maximum absorbance was noticed at λ_max 490 nm (ε = 1.97 × 10³ M⁻¹cm⁻¹) due to the formation of an orange-coloured product [Ru(CN)₅D-PA]³⁻ as a function of time and attributed to a metal to ligand charge transfer transition where only the product shows a maximum absorbance without any intervention caused by the reactants. The metal-to-ligand transitions due to [ Ru ( d π ) ↔ CN ( p π * ) ] were also observed at wavelength close to 250 nm.

OPEN IN VIEWER

Figure 6.

Absorption spectra of the product [Ru(CN)₅D-PA]³⁻ under the conditions: [Ru(CN)₅OH₂³⁻] = 4.5 × 10⁻⁴ M, D-PA = 4.5 × 10⁻³ M, µ = 0.25 M, temperature = 30.0±0.01 °C and pH = 3.8 ± 0.02.

Conclusion

An orange-coloured substituted complex [Ru(CN)₅D-PA]³⁻ was formed as a final reaction product through substitution of a coordinated water molecule between [Ru(CN)₅OH₂]³⁻ and D-PA through metal to ligand charge transfer transition ( [ Ru ( d π ) ↔ D − PA ) p π * ) ] transition ) in aqueous medium at 490 nm (ε = 1.97 × 10³ M⁻¹cm⁻¹). The activation parameters were computed to assist the above-mentioned mechanism and were also confirmed by Taube’s correlation, ⁵¹ which encapsulated that dissociative pathways proceeding through trigonal-bipyramidal intermediates with positive values of ∆S^#.

Experimental

Kinetic measurements

All kinetic measurements were carried out in aqueous medium, using a DIGI-110 single beam visible spectrophotometer (SISCO, India) accompanied with a self-made thermostating system having circulatory arrangement of water. ⁵⁴ The spectral scan for the product formation was recorded using a double beam UV-Vis spectrophotometer (Systronic-2203). For pH measurements, a Systronics µ pH System (model-361) was employed. Kinetic measurements were performed ensuring pseudo-first-order conditions by considering D-PA in excess (at least 10 times) over the ruthenium ion solution, and all manipulations were executed at the desired temperature. A rapid aquation of [Ru(CN)₆]⁴⁻ produced [Ru(CN)₅OH₂]³⁻ solution by reacting the same molar concentrations of hexacyanoruthenate(II) and bromine with KBr in 10-fold excess. ⁵⁵ [Ru(CN)₆]⁴⁻ reacts with Br₂ in an expeditious manner and produces [Ru(CN)₅OH₂]³⁻ solution (pale yellow in colour, λ_max 310 nm).

To start the reaction, the pre-equilibrated reagents were added in the given order: [Ru(CN)₅OH₂]³⁻, NaClO₄ and D-PA (2 cm³). After appropriate mixing, the mixture was transferred into a 10-mm quartz cuvette cell inside the spectrophotometer to monitor the progress of the reaction at different intervals of time at 490 nm. The value of the pseudo-first-order rate constant (k_obs) was assessed from equation (20) using the least-squares fitting method

ln ( A ∞ − A t ) = ln ( A ∞ − A 0 ) − k o b s . t

(20)

where A₀ is the absorbance at time zero, A_t is the absorbance at different intervals of time, and A_∞ is the final absorbance, recorded when the reaction was finalized.
