A highly selective OFF–ON fluorescent probe is developed for the sensing of Cu2+ based on the hydrolysis of a quinoline-2-carboxylate moiety. The probe is weakly fluorescent due to esterification of the phenolic group. Upon treatment with 1 equiv. of Cu2+, the probe exhibits strong fluorescence at 570 nm. The probe also exhibits high selectivity for Cu2+ over other cations with a low detection limit of 0.2 μM, which is sensitive enough to meet the standard of the World Health Organization for Cu2+ in drinking water (30 μM). Moreover, the probe shows a very low cell cytotoxicity, and imaging experiments demonstrate that the probe can be used for the sensing of Cu2+ in living cells.
A highly selective OFF–ON fluorescent probe is developed for the sensing of Cu2+ based on the hydrolysis of a quinoline-2-carboxylate moiety. Upon treatment with 1 equiv. of Cu2+, the probe exhibits strong fluorescence at 570 nm with a low detection limit of 0.2 μM and fast response (15 min).
Introduction
As the third-most abundant transition cation in the human body, copper ions play a vital role in physiological and pathological processes, such as signal transduction, cell respiration, cell proliferation, and apoptosis.1–5 An abnormal elevation of the copper ion concentration will induce a series of neurodegenerative diseases, including Alzheimer’s disease,5,6 Parkinson’s disease,7 Wilson’s disease,8 and Menkes disease.9 It has been reported that intracellular copper ions mainly exist in the lower oxidative state (Cu+ form) under physiological environments.10 Furthermore, high levels of copper ions accumulating in lysosomes in the higher oxidative state (Cu2+ form) cause serious damage to living cells.11–14 Therefore, it is desirable to design new methods and tools for the sensing of intracellular copper ions.
A variety of sensing methods and tools have been designed for the detection of copper ions, including atomic absorption spectrometry,15 atomic emission spectrometry,16 voltammetry,17 and inductively coupled plasma atomic emission spectrometry.18 However, these sensing methods still suffer from many weaknesses such as complicated sample preparation, time-consuming procedures, and expensive instruments, and are unsuitable for real-time analysis. In recent years, fluorescence imaging methods have attracted more and more attention due to their advantages over other methods such as easy operation, minimal sample consumption, real-time analysis, and nondestructive bioimaging. The development of an OFF–ON fluorescent probe for Cu2 is a challenging task due to its paramagnetic nature.19–21 To solve this problem, the development of reaction-based fluorescent probes is a desirable solution. Although many fluorescent probes for the sensing of Cu2+ are based on hydrolysis of a picolinate group,22–26 hydrolysis of a hydrazide group,27–32 and click chemistry,33,34 there is still great demand to design new fluorescent probes for copper-ion-sensing with new recognition sites or sensing mechanisms.
Herein, we have synthesized new fluorescent probe 1 bearing a quinoline-2-carboxylate moiety for the detection of Cu2+, which showed high selectivity and sensitivity for Cu2+ over other competing metal ions. The attachment of a quinoline-2-carboxylate moiety to the phenolate group of highly fluorescent compound 2 inhibits intramolecular charge transfer (ICT) from the dicyanomethylene to the phenolate moiety. After Cu2+-induced release of quinoline-2-carboxylate from probe 1, the ICT effect is recovered along with a dramatic enhancement in the fluorescence intensity. As shown in Scheme 1, probe 1 was obtained in high yield by the esterification of compound 2 with quinoline-2-carboxylic acid. The product was fully characterized by 1H NMR, 13C NMR, and high-resolution mass spectrometry (HRMS) (see Figures S1–S5, Supporting Information). Further studies revealed that probe 1 exhibits high selectivity and sensitivity for Cu2 over other cations and anions with a low detection limit of 0.2 μM. The fast response (15 min) of the probe to Cu2 and low cell cytotoxicity indicate that probe 1 is suitable for the sensing of Cu2 in living cells.
Synthetic route to probe 1.
Results and discussion
Initially, we investigated the selectivity of probe 1 toward various metal ions by UV-Vis and fluorescence spectroscopy. The absorption spectrum of probe 1 (10 μM) exhibited a strong band at 397 nm in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4). Next, a variety of metal ions including Li+, Na+, K+, Ca2+, Mg2+, Ag+, Cd2+, Co2+, Fe2+, Fe3+, Ni2+, Pb2+, Hg2, and Cu2+ were systematically introduced to the above-mentioned solution of probe 1. Only on treatment with Cu2 did the absorbance at 397 nm bathochromically shift to 420 nm, with a slight decrease in the fluorescence intensity, while the addition of other metal ions did not induce any absorption change (Figure 1(a)). Due to the inhibition of ICT, probe 1 exhibited a very weak fluorescence. The addition of Cu2+ induced a strong emission band at 570 nm, while the addition of other metal ions induced negligible changes in the fluorescence intensity (Figure 1(b)). Meanwhile, the color of the solution turned from pale yellow to yellow after the addition of Cu2+ (inset, Figure 1(a)), and an enhanced orange fluorescence of the solution was observed under UV lamp irradiation (inset, Figure 1(b)). We also tested the selectivity of probe 1 toward various anions including F−, Cl−, Br−, I−, AcO−, H2PO−, NO−, HSO−, and ClO−. The results indicated that anions did not induce any fluorescence change of probe 1 (Figure S6(a)).
(a) Absorption spectra of probe 1 (10 μM) in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4) upon addition of different metal ions (5 equiv.). Inset: visual color picture of probe 1 in the absence (left) and presence (right) of Cu2+. (b) Fluorescence spectra of probe 1 (10 μM) upon addition of different metal ions (5 equiv.). Inset: visible emission observed under a UV lamp in the absence (left) and presence (right) of Cu2+.
To investigate the sensing ability of probe 1 for Cu2+, titration experiments were also conducted with UV-Vis and fluorescence spectroscopy. As shown in Figure 2, upon addition of Cu2+ from 0 to 1.0 equiv., the absorption peak at 397 nm decreased with concomitant formation of a new peak at 420 nm, together with a clear isosbestic point at 412 nm. Upon excitation at 470 nm, the fluorescence intensity at 570 nm increased gradually upon the addition of Cu2+, and reached a plateau after the addition of 1 equiv. of Cu2+ with a 10.2-fold fluorescence enhancement (Figure 3(a)). A linear relationship (R2 = 0.985) was found between the fluorescence intensity at 570 nm and [Cu2+] in the range of 0–6.0 μM (inset, Figures 3(b) and S7), suggesting that probe 1 is capable of sensing Cu2+ both qualitatively and quantitatively. The detection limit of probe 1 for Cu2+ was measured to be 0.2 μM, which is sensitive enough to meet the standard of the World Health Organization (WHO) for Cu2+ in drinking water (30 μM).35
(a) Absorption spectra of probe 1 (10 μM) in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4) upon addition of Cu2+ (0–2.5 equiv.). (b) Absorbance at 397 and 420 nm of probe 1 (10 μM) as a function of [Cu2+].
(a) Fluorescence titration of probe 1 (10 μM) in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4) upon addition of Cu2+. Excitation wavelength is set at 470 nm. Excitation/emission wavelength slit is 5/10 nm. (b) Fluorescence intensity at 570 nm of probe 1 (10 μM) as a function of [Cu2+]. Inset: plot of the linear relationship (R2 = 0.985) between the fluorescence intensity at 570 nm and [Cu2+] (0, 0.1, 0.2, 0.3, 0.4, and 0.6 equiv.).
For the practical sensing of Cu2+, the coexistence of other metal ions and anions should not interfere with the detection of Cu2+. The sensing properties of probe 1 for Cu2+ in the presence of other metal ions were investigated (Figures 4 and S6(b)). It was found that the sensing ability of probe 1 to Cu2+ was not affected significantly by the presence of other co-existing metal ions or anions (5 equiv.), which indicated that probe 1 is a promising for the sensing of Cu2+ in living cells.
Fluorescence enhancement ratio of probe 1 (10 μM) in the presence of other co-existing metal ions (5 equiv.) upon addition of Cu2+ (1 equiv.) in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4).
We also investigated the time-dependent responses of probe 1 to different concentrations of Cu2+ (Figure 5). It was found that the fluorescence output of probe 1 became steady after 15 min following addition of Cu2+. Furthermore, the sensing ability of probe 1 for Cu2+ at different pH values was also investigated. As shown in Figure 6, the fluorescence intensity of probe 1 remains unchanged in the pH range of 4.0–10.0. In the presence of Cu2+, the fluorescence intensity of probe 1 increased gradually when the pH increased from 4.0 to 7.0, and reached a steady reading at a pH range of 7.0–8.0. The fluorescence intensity of probe 1 then decreased significantly when the pH changed from 8.0 to 10.0. It was speculated that the nitrogen atom of the quinoline moiety would be protonated under acidic conditions, which inhibited the coordination of Cu2+ with probe 1. As a result, hydrolysis of the ester bond of probe 1 is blocked. In an alkaline environment, the decrease in the fluorescence intensity was attributed to the formation of an insoluble alkaline copper salt. It is worth noting that a new fluorescence band at 660 nm emerged when the pH value was >9 (Figure S8), and this phenomenon can be ascribed to the deprotonation of the phenol moiety of hydrolysis product 3 in highly alkaline conditions (Scheme 2).
Time-dependent fluorescence enhancement at 570 nm of probe 1 (10 μM) in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4) upon the addition of various concentrations of Cu2+.
Fluorescence intensity at 570 nm of probe 1 (10 μM) in DMSO–Tris buffer (1:1, v/v, 20 mM, pH 7.4) with (red circles) and without (black squares) addition of Cu2+ as a function of pH.

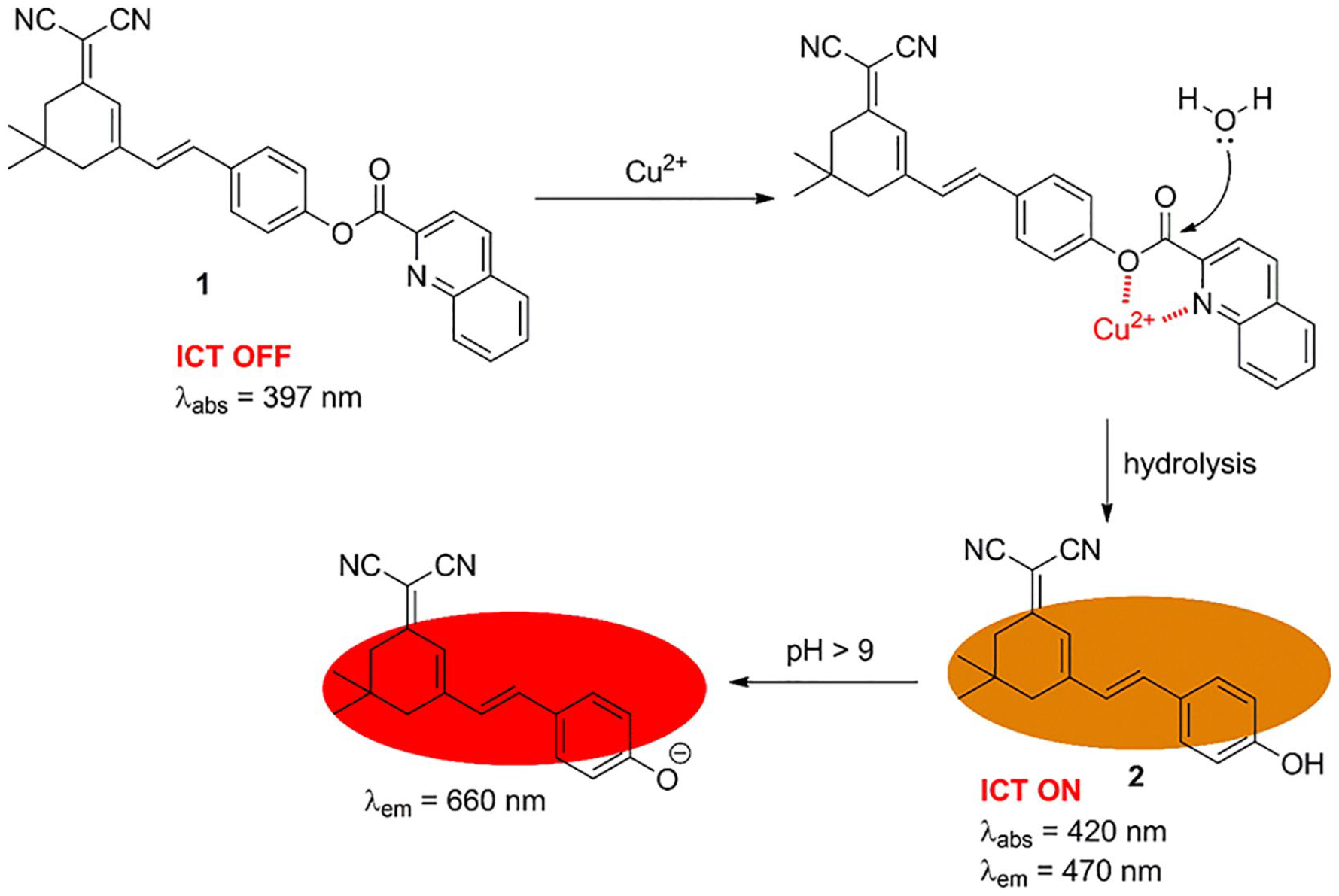

Proposed sensing mechanism for probe 1 and Cu2+.
To further identify the sensing mechanism of probe 1, high-performance liquid chromatography (HPLC) analysis was utilized to detect the hydrolysis process. Initially, probe 1 displayed a single peak with a retention time at 9.6 min (Figure 7(c)) while compound 2 and quinoline-2-carboxylic acid produced a single peak with a retention time at 6.3 and 2.3 min, respectively, (Figure 7(b) and (d)). Upon addition of Cu(ClO4)2 to the solution of probe 1, the peak at 9.6 min weakened while 6.3 and 2.3 min appeared (Figure 7(a)). This result confirmed that the fluorescence enhancement of probe 1 in the presence of Cu2+ is ascribed to the release of molecule 2 from probe 1.
The reversed-phase HPLC with absorption (254 nm) detection. (a) 20 μM probe 1 in the presence of 20 μM Cu(ClO4)2 for 15 min, (b) 20 μM compound 2, (c) 20 μM probe 1, and (d) 20 μM quinoline-2-carboxylic acid.
According to the above-mentioned experimental results, we have proposed a sensing mechanism for probe 1 and Cu2+ (Scheme 2). The positions of the oxygen and nitrogen atoms in the quinoline-2-carboxylate moiety are suitable for the five-membered ring coordination of Cu2+. Furthermore, this coordination assists the attack of water on the carbonyl group; thus, a highly fluorescent molecule 2 is released due to the hydrolysis of probe 1.36–38
Encouraged by the above experimental results, a further application of probe 1 for the sensing of Cu2+ in living cells was conducted. Initially, we evaluated the cytotoxicity of probe 1 at various concentrations using MTT assays (Figure S9). Living HeLa cells were incubated with different concentrations of probe 1 (0–50 μM) for 24 h at 37 °C, with the results suggesting that probe 1 has very low cytotoxicity to HeLa cells, even at high concentration.
The reaction time of probe 1 for Cu2+ was determined to be about 15 min, which suggested that probe 1 is suitable for the real-time detection of Cu2+ in living cells. When HeLa cells were incubated with probe 1 (10 μM) at 37 °C for 15 min, very weak fluorescence was observed (Figure 8). After 30 min of incubation of Cu(ClO4)2 (10 μM), a strong fluorescence was observed, suggesting that probe 1 has good cell membrane permeability and can be used to detect Cu2+ in living cells.
Confocal microscopy images of HeLa cell staining with probe 1 (10 μM) (a–c) followed by the incubation of Cu2+ (10 μM) (d–f). (a) and (d): bright field images; (b) and (e): fluorescence images collected in the range of 500–550 nm; (c): overlay of (a) and (b); and (f): overlay of (d) and (e).
Conclusion
In summary, we have designed a highly selective fluorescent probe 1 for the sensing of Cu2+ based on the hydrolysis of a quinoline-2-carboxylate moiety catalyzed by Cu2+. The reaction of probe 1 with 1 equiv. of Cu2+is complete in a short time (15 min) with a low detection limit of 0.2 μM. The sensing of probe 1 for Cu2+ ions is not interfered with by the presence of other metal ions. Furthermore, MTT assays suggest that probe 1 has a very low cytotoxicity toward living cells and can be utilized for the sensing of Cu2+ in living cells.
Experimental section
Materials and instruments
1H NMR and 13C NMR spectra were recorded on a Bruker Avance III 400 MHz Spectrometer (at 400 and 100 MHz, respectively) using tetramethylsilane as an internal standard. HRMS was performed with an electrospray ionization (ESI) source and a time of flight (TOF) detector. Fluorescence emission spectra and UV-Vis spectra were collected on a SHIMAZU UV-2450 and an RF-5301 spectrometer, respectively. The melting point was determined with an X-5A melting point apparatus (uncorrected). The pH measurements were recorded on a Rex PHS-3G pH/mV/temperature benchtop meter equipped with an E-201-C pH combined electrode. Double-distilled water (DI-water) was used throughout the experiments. Fluorescence imaging was performed by confocal fluorescence microscopy on an Olympus FluoView Fv1000 laser scanning microscope.
All solvents and reagents were obtained from Shanghai Titan Scientific Co. Ltd. and were of analytical grade and used without further purification. Analytical thin-layer chromatography was performed using TLC silica gel 60 GF254 (aluminum sheets; Merck KGaA, Darmstadt, Germany). LiCl, NaCl, KCl, MgCl2, Cd(ClO4)2·H2O, Co(ClO4)2·6H2O, Cu(ClO4)2·6H2O, Fe(ClO4)2·H2O, Pb(NO3)2, Fe(ClO4)3·H2O, Hg(ClO4)2·6H2O, AgNO3, Ni(NO3)2·6H2O, Zn(NO3)2·6H2O, and CaCl2 were stored in a vacuum desiccator.
Synthesis of (E)-4-(2-(3-(dicyanomethylene)-5,5-dimethylcyclohex-1-en-1-yl)vinyl)phenyl quinoline-2-carboxylate (1)
To a mixture of compound 2 (209 mg, 0.72 mmol), quinoline-2-carboxylic acid (140 mg, 0.81 mmol), HOBt (113 mg, 0.84 mmol), and EDC HCl (210 mg, 1.1 mmol) in dry CH2Cl2 (5 mL) was added Et3N (0.3 mL, 2.1 mmol) dropwise, and then the solution was stirred at room temperature overnight under an N2 atmosphere. H2O (20 mL) was added to the reaction mixture, and the aqueous phase was extracted with CH2Cl2 (2 × 20 mL). The combined organic phases were washed with brine and dried over anhydrous Na2SO4. After removal of the solvent, the residue was purified by column chromatography on silica gel (PE/EtOAc = 5:1) to give probe 1 as a yellow solid (247 mg, yield: 77%). m.p.: 234–235 °C. 1H NMR (400 MHz, CDCl3): δ 8.43-8.33 (m, 3H), 7.97 (d, J = 8.1 Hz, 1H), 7.89-7.86 (m, 1H), 7.76-7.72 (m, 1H), 7.63 (d, J = 8.6 Hz, 2H), 7.39 (d, J = 8.6 Hz, 2H), 7.12 (d, J = 16.1 Hz, 1H), 7.01 (d, J = 16.1 Hz, 1H), 6.89 (s, 1H), 2.64 (s, 2H), 2.51 (s, 2H), 1.12 (s, 6H) ppm. 13C NMR (100 MHz, CDCl3): δ 169.1, 164.0, 153.5, 152.1, 147.8, 147.1, 137.5, 135.8, 133.7, 130.9, 130.6, 129.6, 129.5, 129.1, 128.7, 127.6, 123.8, 122.6, 121.4, 113.4, 112.6, 79.1, 43.0, 39.3, 32.1, 28.0. HRMS (ESI): m/z [M + H+] calcd for C29H24N3O2+: 446.1863; found: 446.1858.
Spectroscopic measurements
The absorption and fluorescence spectral experiments were conducted with DMSO–H2O solution (1:1, v:v, 20 mM Tris, pH 7.4). Stock solutions of cations (10.0 mM, used as chloride or perchlorate or nitrate salts) including LiCl, NaCl, KCl, MgCl2, Cd(ClO4)2, Co(ClO4)2, Cu(ClO4)2, Fe(ClO4)2, Pb(NO3)2, Fe(ClO4)3, Hg(ClO4)2, AgNO3, Ni(NO3)2, Zn(NO3)2, and CaCl2 were prepared in double distilled water (DI-H2O). Stock solution of probe 1 (1.0 mM) was prepared in DMSO, and the stock solution was diluted in DMSO–H2O solution (1:1, v:v, 20 mM Tris, pH 7.4) to 10 μM for absorption and fluorescence spectral experiments. In the fluorescence spectral experiments, the excitation wavelength was set at 470 nm, and the excitation and emission slit widths were set at 5 and 10 nm, respectively.
HPLC measurement
A Shimadzu LC-20A HPLC system equipped with a C18 column (Inertsil ODS-SP, 5 mm, 150 mm × 4.6 mm) was used. Eluent is 60% CH3CN (0–15 min). The flow rate was 1.0 mL/min, and the eluents were detected at 254 nm. Injection volume is 10 mL.
Cell imaging
Probe 1 (1.0 mM) was prepared in DMSO solution. HeLa cells plated on coverslips were washed with phosphate-buffered saline (PBS), followed by incubating with 10 μM of the probe solution in DMSO for 15 min at 37 °C, and then washed with PBS three times. After incubating with 10 μM of Cu(ClO4)2 solution in PBS for 30 min at 37 °C, the cells were washed with PBS three times again.
Cytotoxicity assay
The cellular toxicity of probe 1 was performed using a Cell Counting Kit-8 (CCK-8). HeLa cells were seeded into 96-well plates at a density of 4000/well, cultured at 37 °C with 5% CO2 for 24 h, and then different concentrations of probe 1 (5, 10, 20, 50 μM) were added to the wells. Subsequently, 10 μL of CCK-8 was added to each well followed by incubation for an additional 4 h at 37 °C under 5% CO2. The absorbance of each well was measured on a micro-plate reader (Tecan, Austria) at a detection wavelength of 450 nm. The following formula was used to calculate the inhibition of cell growth: cell viability (%) = (mean of absorbance value of treatment group/mean of absorbance value of control) × 100%.
