Panabipinoside A and panabipinoside B,two new oleanane triterpenoid saponins from the roots of Panax bipinnatifidus with nitric oxide inhibitory activity

Abstract

Panax bipinnatifidus belongs to the ginseng genus and it is used in traditional Vietnamese and Chinese medicine. Phytochemical studies of the roots of this plant led to the isolation of two new oleanane triterpenoid saponins, panabipinoside A and panabipinoside B, and three known compounds, ginsennoside Ro, 3-O-β-D-glucopyranosyl-(1→3)-β-glucuronopyranosyl oleanolic acid, and spinasaponin A 28-O-glucoside. Their structures are established by extensive spectroscopic analysis (IR, high-resolution electrospray ionization mass spectrometry, and nuclear magnetic resonance) and by comparison of the spectral data with those reported in the literature. The anti-inflammatory activity of the isolated compounds is evaluated by their inhibition of nitric oxide production in lipopolysaccharide stimulated RAW 264.7 cells. Compounds 2–5 showed inhibitory effects on nitric oxide production with IC₅₀ values of 0.62 ± 0.09, 0.21 ± 0.04, 0.30 ± 0.03, and 0.45 ± 0.05 µg/mL, respectively, compared to value of 8.08 ± 0.09 µg/mL for the positive control compound, N^G-monomethyl-L-arginine.

Keywords

Araliaceae panabipinoside A panabipinoside B anti-inflammatory activity

Introduction

Nitric oxide (NO) is a very short half-life molecule. It is known to be a ubiquitous signaling molecule involved in numerous important biological processes in the body such as neurotransmission, in the vascular system and in immune defenses. NO also plays a key role in the pathogenesis of inflammatory diseases.¹ In mammalian cells, the formation of NO is catalyzed by inducible nitric oxide synthase (iNOS) enzymes. In the presence of NADPH and oxygen, iNOSs oxidize L-arginine into L-citrulline and NO. The NO produced aids host defenses by killing invaders such as microorganisms and cancer cells. However, an excess production of NO can cause host and tissue damage which lead to acute and chronic inflammation.^2,3 Thus, the level of NO produced by iNOS can be reflected in the degree of inflammation and is considered as an indicator for monitoring inflammatory processes. In addition, NO has been shown as a potential promoter of several types of cancer such as breast, cervical, lung, and gastrointestinal cancers.⁴ An understanding of NO inhibitors can be helpful in reducing the risk of cancer.

Panax, also known as the ginseng genus, which is a member of the Araliaceae family, consists of 18 species.⁵ Most species of the genus Panax are distributed in the Himalayas, Nepal, and China. Previously, the southern area of Yunnan province (China) and the northern provinces of Vietnam near the China–Vietnam border, which are located at latitude 23°N, were considered to be the distribution limit of the Asia Panax genus. Only 2 of the 18 species of this genus are native to North America. Panax is very popular in Asia and has been used as an edible food and as a tonic and has history of use as medicine over four millennia. The chemical composition of the Panax genus can be classified into four main groups: saponins, polyacetylenes, polysaccharides, and flavonoids.^6,7 Besides, there are eight other sub-groups, including phenolics, sterols, carbohydrates, proteins, amino acids, minerals, lipids, and fatty acids.^7,8 Several plants of the Panax species have long been used as medicinal herbs in oriental countries, for example, P. ginseng C.A. Meyer (Korean ginseng), P. quinquefolius L. (American ginseng), and P. notoginseng F.H. Chen (Notoginseng). Panax bipinnatifidus Seem. belongs to the ginseng genus, and is distributed in China, Nepal, and Vietnam. In Vietnam, it was found in the Hoang Lien Son mountains at an altitude of 1800–2400 m and grows wild under the canopy of a tropical forest.⁹ According to traditional medicine, P. bipinnatifidus has been used to stop bleeding, to cure hemorrhages and nosebleeds, to improve memory, and to reduce cancer risk and blood sugar levels in diabetes.^9–11 Recently, more than 10 saponins isolated from P. bipinnatifidus roots have been reported, all of which have the oleanane-type structure.^12,13 In this study, with the aim of continuing to research on bioactive compounds in P. bipinnatifidus from Vietnam, five saponins were successfully isolated from the roots of this species including two new oleanane triterpenoid saponins, and three known compounds. The inhibition of NO production in lipopolysaccharide (LPS) stimulated RAW 264.7 cells by compounds 1–5 was evaluated.

Results and discussion

Compound 1 was obtained as a colorless amorphous powder. Its molecular formula was established as C₄₈H₇₈O₁₈ from the high-resolution electrospray ionization mass spectrometry (HR-ESI-MS) quasi-molecular ion peak at m/z 941.51031 [M–H]⁻ (calcd for [C₄₈H₇₇O₁₈]⁻, 941.51099), indicating 10° of unsaturation (see Supplemental Figure S3). Its IR spectrum exhibited the presence of hydroxy (3401 cm⁻¹), carbonyl (1732 cm⁻¹), and C-O-C (1028 cm⁻¹) groups (see Supplemental Figure S2). The ¹H NMR (nuclear magnetic resonance) spectrum of 1 exhibited 7 methyl singlet signals at δ_H 0.88, 0.91, 0.92, 1.00, 1.03, 1.09, and 1.21 (each, 3H, s), one oxygenated methylene group at 3.50 (2H, s, H-28), and a broad singlet due to one olefinic proton at δ_H 5.21, corresponding to an olean-12-ene skeleton (see Supplemental Figure S4). In addition, three sugar molecules were identified by presence of the anomeric protons at δ_H 4.17 (1H, d, J = 8.0 Hz), 4.42 (1H, d, J = 7.5 Hz), and 4.61 (1H, d, J = 7.5 Hz), as well as by the typical signals of the sugars appearing in the range of δ_H 2.95–3.63. Analyses of the ¹³C NMR, heteronuclear single quantum coherence (HSQC), and heteronuclear multiple bond correlation (HMBC) spectra of 1 indicated that this compound had 48 carbons, including 30 from the oleanane skeleton and 18 of the three sugar molecules, which was consistent with the HR-ESI-MS results (see Supplemental Figures S5–S7). Oxygenated methylene, methine carbinol, and double bond groups were identified at δ_C 77.8, 91.1, and 123.6 (CH)/145.8 (C), respectively, while three anomeric carbons were identified at δ_C 105.3, 105.0, and 106.3. In the HSQC spectrum, protons H-1′ (δ_H 4.17), H-2′ (δ_H 3.20), H-3′ (δ_H 3.35), H-4′ (δ_H 3.32), H-5′ (δ_H 3.32), and H-6′ (δ_H 3.68/3.78) had cross peaks with the carbons at δ_C 105.3, 75.1, 77.8, 71.5, 78.2, and 62.8, respectively. In addition, COSY cross peaks of H-1′/H-2′/H-3′/H-4′/H-5′/H-6′ were observed. The above evidence together with HMBC correlations from H-1′ (δ_H 4.17) to C-28 (δ_C 77.8), as well as from H-28 (δ_H 3.50) to C-1′ (105.3) indicated one glucopyranosyl sugar attached to C-28 by an ether linkage. Furthermore, the HMBC correlations from H-28 (δ_H 3.50) to C-16 (δ_C 22.7)/C-17 (δ_C 37.8)/C-18 (δ_C 44.2)/C-22 (δ_C 33.0) exactly confirmed the location of the 28-CH₂O- group. As with compounds 3–5, the glucuronopyranosyl sugar of 1 was attached to C-3, as confirmed by a HMBC correlation from the anomeric proton at δ_H 4.42 (d, J = 7.5 Hz) to C-3 (δ_C 91.1). The large coupling constant value of H-3 at δ_H 3.21 (J_H-3/H-2 = 12.0 Hz) confirmed the axial/α orientation of this proton and equatorial/β orientation of the group at C-3. In the H–H COSY spectrum, cross peaks were observed between H-1′′ (δ_H 4.42)/H-2′′ (δ_H 3.47)/H-3′′ (δ_H 3.62)/H-4′′ (δ_H 3.63)/H-5′′ (δ_H 3.71), which also exhibited HSQC cross peaks to the carbons at δ_C 106.3, 74.8, 87.0, 71.9, and 76.7, respectively (see Supplemental Figure S8). Furthermore, a HMBC correlation from H-1′′′ (δ_H 4.61) to C-3′′(δ_C 87.0) indicates that the remaining glucopyranosyl sugar was linked to C-3′′ of the glucuronopyranosyl moiety (see Supplemental Figure S1). The carbon signal for C-6′′ (the carboxylic carbon in the glucuronic acid moiety) was not detected because of NMR analysis in CD₃OD; however, the presence of this carboxylic group was established by IR spectrometry (ν_C=O: 1732 cm⁻¹), and further confirmed by HR-ESI-MS data and by comparison of NMR spectral data (C-1″ to C-5″) between compound 1 and compounds 4 and 5 (Table 1). The glucuronopyranosyl group is typically reported in triterpene saponins from plants belonging to the Araliaceae family.^14–17 All the sugar linkages in compound 1 must be in the β-form as judged from the coupling constants (J = 7.5–8.0 Hz) of the anomeric protons at δ_H 4.17, 4.42, and 4.61. The configurations of the sugar moieties of 1 were suggested by analogy with compounds 3–5, which coexist in saponins from the Panax genus,^12,14–19 and further confirmed by the acid hydrolysis. The presence of D-glucose and D-glucuronic acid in the acid hydrolysis products of compound 1 were confirmed by thin-layer chromatography (TLC) analysis and by comparison of their optical rotations with those of authentic D-glucose and D-glucuronic acid.²⁰ Consequently, the chemical structure of compound 1 was established as 3β,28-dihydroxyolean-12-ene 3-O-[β-D-glucopyranosyl-(1→3)-β-D-glucuronopyranoside]-28-O-β-D-glucopyranoside, a new compound and named as panabipinoside A (Figure 1).

Table 1.

The NMR data of compounds 1–5..

C	1		2		3	4	5
C	δ_C^a,c	δ_H^b,c (mult., J in Hz)	δ_C^a,c	^b,cδ_H (mult., J in Hz)	δ_C^a,d	δ_C^a,c	δ_C^a,c
1	40.0	0.99 (m)/1.62 (m)	40.0	0.96 (m)/1.61 (m)	38.3	39.7	39.9
2	26.9	1.72 (m)/1.91 (m)	26.9	1.70 (m)/1.87 (m)	25.3	26.9	26.9
3	91.1	3.21 (dd, 12.0, 4.5)	91.0	3.21 (dd, 12.0, 4.5)	88.1	91.0	91.0
4	40.2	–	40.2	–	38.6	40.3	40.2
5	57.0	0.80 (d, 12.5)	57.0	0.81 (d, 12.5)	55.1	57.0	57.1
6	19.3	1.47 (m)/1.59 (m)	19.2	1.45 (m)/1.58 (m)	17.8	19.3	19.4
7	33.8	1.40 (m)/1.57 (m)	33.8	1.40 (m)/1.59 (m)	32.3	34.0	34.0
8	41.2	–	41.2	–	41.3	40.6	40.7
9	49.0	1.60 (m)	49.0	1.60 (m)	47.1	49.0	49.0
10	37.8	–	37.8	–	36.2	37.9	37.9
11	24.7	1.90 (m)/1.92 (m)	24.7	1.90 (m)/1.92 (m)	22.9	24.5	24.6
12	123.6	5.21 (br s)	123.6	5.20 (br s)	121.7	123.7	123.9
13	145.8	–	145.8	–	143.4	145.2	144.8
14	42.9	–	42.9	–	39.0	42.9	43.0
15	26.9	1.00 (m)/1.70 (m)	27.0	1.03 (m)/1.70 (m)	27.2	28.8	28.9
16	22.7	1.41 (m)/1.89 (m)	22.7	1.42 (m)/1.90 (m)	22.5	24.1	24.0
17	37.8	–	37.8	–	45.9	47.6	48.0
18	44.2	2.03 (dd, 13.0, 3.5)	44.2	2.01 (dd, 13.0, 3.5)	40.8	42.8	42.6
19	47.7	1.07 (m)/1.81 (m)	47.7	1.07 (m)/1.83 (m)	45.5	47.3	47.2
20	31.8	–	31.8	–	30.3	31.6	31.6
21	35.3	1.16 (m)/1.33 (m)	35.3	1.16 (m)/1.33 (m)	33.2	34.9	34.9
22	33.0	1.52 (m)/1.60 (m)	33.0	1.51 (m)/1.60 (m)	31.6	33.8	33.1
23	28.5	1.09 (s)	28.5	1.08 (s)	27.6	28.5	28.6
24	16.7	0.88 (s)	17.1	0.87 (s)	16.1	17.0	17.2
25	16.2	1.00 (s)	16.2	0.99 (s)	15.2	15.9	16.2
26	17.6	1.03 (s)	17.6	1.02 (s)	16.7	17.4	17.7
27	26.6	1.21 (s)	26.6	1.20 (s)	25.5	26.4	26.4
28	77.8	3.50 (s)	77.9	3.50 (s)	175.2	181.8	178.1
29	33.8	0.91 (s)	33.8	0.91 (s)	32.7	33.6	33.6
30	24.2	0.92 (s)	24.2	0.92 (s)	23.3	24.0	24.0
28-O-Glc
1ʹ	105.3	4.17 (d, 8.0)	105.3	4.16 (d, 7.5)	94.1		95.7
2ʹ	75.1	3.20 (dd, 9.0, 8.0)	75.1	3.20 (dd, 9.0, 7.5)	72.4		73.9
3ʹ	77.8	3.35 (m)*	78.2	3.35 (m)*	76.7		78.2
4ʹ	71.5	3.32 (m)*	71.7	3.31 (m)*	69.8		71.1
5ʹ	78.2	3.32 (m)*	78.0	3.23 (m)*	77.7		78.6
6ʹ	62.8	3.68 (m)/3.87 (m)	62.8	3.69 (m)/3.87 (m)	60.8		62.5
3-O-GluA
1ʹʹ	106.3	4.42 (d, 7.5)	106.4	4.39 (d, 8.0)	103.7	106.5	106.3
2ʹʹ	74.8	3.47 (dd, 9.0, 7.5)	76.5	3.56 (dd, 9.0, 8.0)	81.4	74.9	74.9
3ʹʹ	87.0	3.62 (m)*	82.2	3.78 (m)*	76.7	86.7	87.0
4ʹʹ	71.9	3.63 (m)*	74.8	3.88 (m)*	72.1	71.9	72.0
5ʹʹ	76.7	3.71 (d, 9.0)	77.9	3.25*	73.0	76.5	76.7
6ʹʹ	nd	–	nd	–	172.0^#	nd	nd
3ʹʹ-O-Glc/2ʹʹ-O-Glc
1ʹʹʹ	105.0	4.61 (d, 7.5)	104.5	4.88 (d, 8.0)	104.0	105.1	104.9
2ʹʹʹ	75.1	3.32 (dd, 9.0, 7.5)	75.1	3.27 (dd, 9.0, 8.0)	75.4	75.5	75.2
3ʹʹʹ	77.8	3.43 (m)*	78.2	3.36 (m)*	76.0	77.8	77.7
4ʹʹʹ	71.7	3.31 (m)*	71.0	3.37 (m)*	69.6	71.6	71.4
5ʹʹʹ	78.3	3.23 (m)	78.3	3.26 (m)*	76.8	78.2	78.3
6ʹʹʹ	62.8	3.68 (m)/3.87 (m)	62.3	3.70 (m)/3.83 (m)	60.7	62.6	62.5
4ʹʹ-O-Ara(f)
1ʹʹʹʹ			107.9	5.24 (br s)
2ʹʹʹʹ			82.0	4.03 (br s)
3ʹʹʹʹ			79.5	3.82*
4ʹʹʹʹ			87.3	4.40 (m)
5ʹʹʹʹ			63.3	3.66 (m), 3.71 (m)

NMR: nuclear magnetic resonance; nd: not detected.

Measured at 125 MHz.

Measured at 500 MHz.

Measured in CD₃OD.

Measured in dimethyl sulfoxide d₆ (DMSO-d₆).

indicates overlapped signals.

Signals were detected from heteronuclear multiple bond correlation (HMBC) spectra.

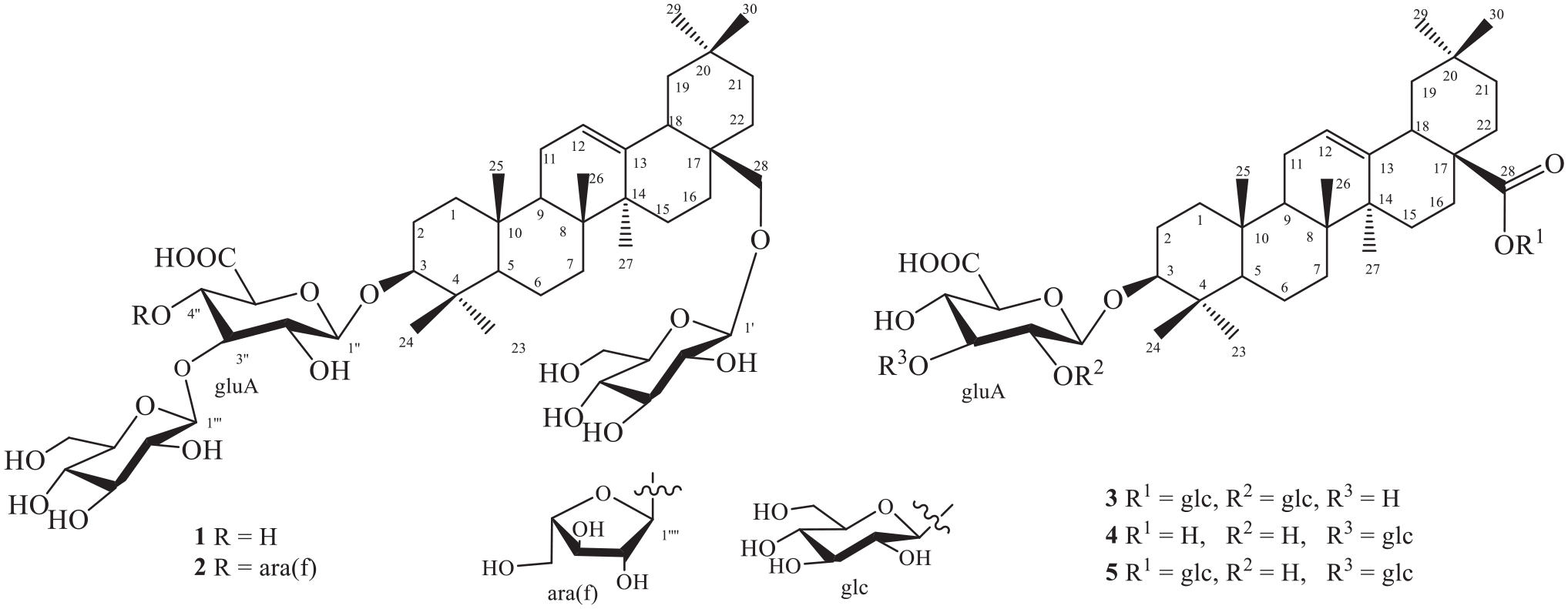

Figure 1.

Chemical structures of compounds 1–5.

Compound 2 was obtained as colorless amorphous powder. Its molecular formula was established as C₅₃H₈₆O₂₂ from the HR-ESI-MS quasi-molecular ion peaks at m/z 1073.54980 [M–H]⁻ (calcd for [C₅₃H₈₅O₂₂], 1073.55325), indicating 11° of unsaturation (Supplemental Figure S10). The IR spectrum of 2 exhibited the presence of hydroxy (3406 cm⁻¹), carbonyl (1732 cm⁻¹), and C-O-C (1029 cm⁻¹) groups (see Supplemental Figure S9). The NMR spectra of 2 (measured in CD₃OD) were similar to that of 1, suggesting that 2 is a derivative of 1. The 28-CH₂-O- and C-12/C-13 double bond groups were identified at δ_H 3.50 (2H, s)/δ_C 77.9, δ_H 5.20 (br s)/δ_C 123.6, and δ_C 145.8, respectively. Four sugar moieties were evident because of the anomeric signals at δ_H 4.16 (d, J = 7.5 Hz)/δ_C 105.3, δ_H 4.39 (d, J = 8.0 Hz)/δ_C 106.4, δ_H 4.88 (d, J = 8.0 Hz)/δ_C 104.5, and δ_H 5.24 (br s)/δ_C 107.9. The additional signals at δ_H 5.24 (br s)/δ_C 107.9, δ_H 4.03 (br s)/δ_C 82.0, δ_H 3.82/δ_C 79.5, δ_H 4.40/δ_C 87.3, δ_H 3.66, and 3.71/δ_C 63.3 in the NMR spectrum of 2 compared to the NMR spectrum of 1 indicated that compound 2 had an additional α-arabinofuranosyl moiety.¹² The assignments of the ¹H and ¹³C NMR signals for all four sugar moieties were achieved by detailed analysis of the HSQC, HMBC, and ¹H–¹H COSY experiments (see Supplemental Figures S1 and S11–S15). The HMBC correlations from H-1′ (δ_H 4.16) to C-28 (δ_C 77.9), from H-1′′ (δ_H 4.39) to C-3 (δ_C 91.0), from H-1′′′ (δ_H 4.88) to C-3′′(δ_C 82.2), and from H-1′′′′ (δ_H 5.24) to C-4′′(δ_C 74.8) were observed, confirming that one glucose was linked to C-28, the glucuronopyranosyl sugar was linked to C-3, the other glucose was attached to C-3′′, and that the arabinofuranosyl sugar was attached to C-4′′ of the glucuronopyranosyl sugar, respectively. Furthermore, the coupling constants (J = 7.5–8.0 Hz) observed for the anomeric protons H-1′ (δ_H 4.16), H-1′′ (δ_H 4.39), and H-1′′′ (4.88) in the ¹H NMR spectrum of 2 indicated the β-glucoside linkages of these sugar moieties. The large coupling constant value of H-3 at δ_H 3.21 (J_H-3/H-2 = 12.0 Hz) confirmed the axial/α orientation of this proton and equatorial/β orientation of the moiety at C-3. The configurations of the sugar moieties of 2 were expected to be the same as typical sugars, which have previously been reported in saponins from the roots of the Panax genus and were further confirmed by acid hydrolysis.^12,14–19 The presence of D-glucose, D-glucuronic acid, and L-arabinose in the acid hydrolysis products of compound 2 were confirmed by TLC analysis and by comparison of their optical rotations with those of authentic D-glucose, D-glucuronic acid, and L-arabinose.²⁰ Consequently, the chemical structure of compound 2 was established as 3β,28-dihydroxyolean-12-ene 3-O-{β-D-glucopyranosyl-(1→3)-[α-L-arabinofuranosyl-(1→4)]-β-D-glucuronopyranoside}-28-O-β-D-glucopyranoside, a new compound and named as panabipinoside B (Figure 1).

Compounds 3–5 were identified as gisenoside Ro (3) (see Supplemental Figures S16–S22),¹⁴ 3-O-β-D-glucopyranosyl-(1→3)-β-glucuronopyranosyl oleanolic acid (4),²¹ and spinasaponin A 28-O-glucoside (5).¹⁷ The NMR spectral data of compounds 3–5 were consistent with those previously reported in the literature.

Saponins have been reported to be major components responsible for numerous pharmacological properties of the Panax species. Most saponins have anti-cancer and anti-inflammatory properties. Inhibition of NO productions is not only part of the explanation for the anti-inflammatory activity but also the use of P. bipinnatifidus in traditional medicine to reduce the risk of cancer.

Saponins 1–5 were then evaluated for their effects on the NO productions in LPS stimulated RAW 264.7 cells. Each compound was assessed at a concentration of 20 µg/mL. Compounds 1–5 exhibited inhibitory rates from 74.45% to 96.89%, which were higher than that of the positive control (L-NMMA: 70.08%) (see Table S1 in the Supplementary Material for comprehensive analysis). No cytotoxic effects on the RAW 264.7 cells was found after treating the cells with compounds 2–5 (20 µg/mL), however compound 1 showed cytotoxic effects. Therefore, compounds 2–5 were further evaluated for their IC₅₀ values. Compounds 2–5 showed the inhibitory effects on NO production with IC₅₀ values of 0.62 ± 0.09, 0.30 ± 0.03, 0.21 ± 0.04, and 0.45 ± 0.05 µg/mL, respectively, compared to a value of 8.08 ± 0.09 µg/mL for the positive control compound, L-NMMA (see Tables 2 and 3).

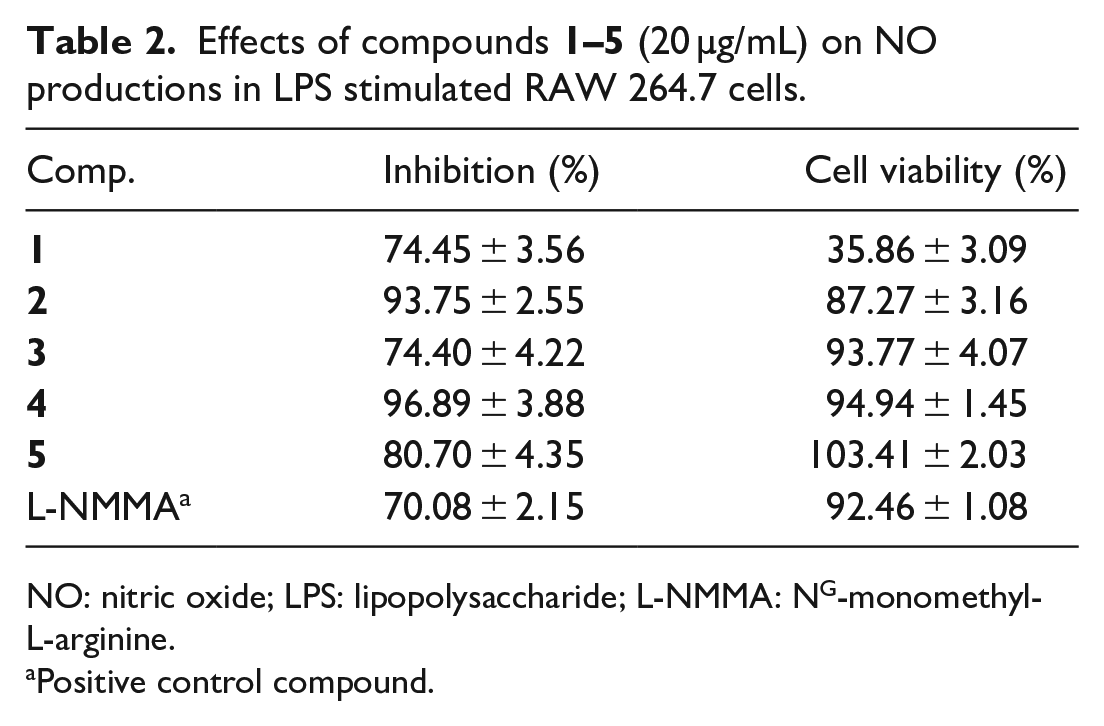

Table 2.

Effects of compounds 1–5 (20 µg/mL) on NO productions in LPS stimulated RAW 264.7 cells.

Comp.	Inhibition (%)	Cell viability (%)
1	74.45 ± 3.56	35.86 ± 3.09
2	93.75 ± 2.55	87.27 ± 3.16
3	74.40 ± 4.22	93.77 ± 4.07
4	96.89 ± 3.88	94.94 ± 1.45
5	80.70 ± 4.35	103.41 ± 2.03
L-NMMA^a	70.08 ± 2.15	92.46 ± 1.08

NO: nitric oxide; LPS: lipopolysaccharide; L-NMMA: N^G-monomethyl-L-arginine.

Positive control compound.

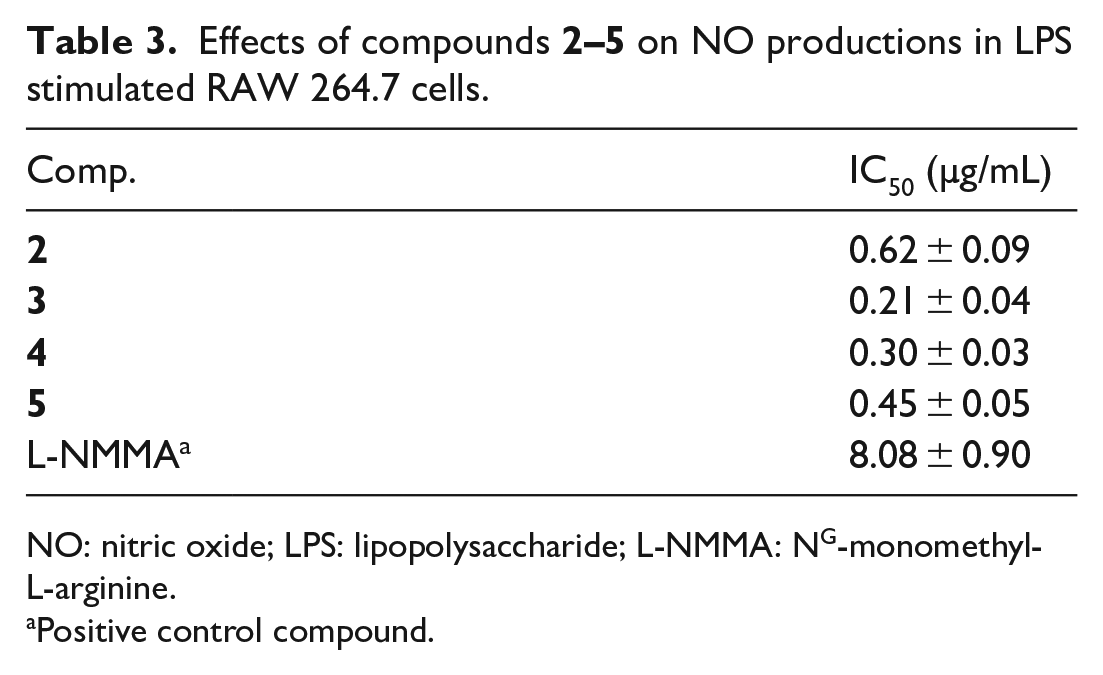

Table 3.

Effects of compounds 2–5 on NO productions in LPS stimulated RAW 264.7 cells.

Comp.	IC₅₀ (µg/mL)
2	0.62 ± 0.09
3	0.21 ± 0.04
4	0.30 ± 0.03
5	0.45 ± 0.05
L-NMMA^a	8.08 ± 0.90

NO: nitric oxide; LPS: lipopolysaccharide; L-NMMA: N^G-monomethyl-L-arginine.

Positive control compound.

Conclusion

Two new oleanane triterpenoid saponins, named panabipinoside A (1) and panabipinoside B (2), and three known compounds, ginsennoside Ro (3), 3-O-β-D-glucopyranosyl-(1→3)-β-glucuronopyranosyl oleanolic acid (4), and spinasaponin A 28-O-glucoside (5), were isolated from the roots of Panax bipinnatifidus by various chromatographic methods. Their structures were established by extensive spectroscopic analysis (UV, IR, HR-ESI-MS, and NMR) and by comparison of their spectral data with those reported in the literature. The anti-inflammatory activities of compounds 1–5 were evaluated by their inhibition on NO production in LPS stimulated RAW 264.7 cells. Compounds 2–5 showed inhibitory effects on NO production with IC₅₀ values of 0.62 ± 0.09, 0.21 ± 0.04, 0.30 ± 0.03, and 0.45 ± 0.05 µg/mL, respectively, compared to the value of 8.08 ± 0.09 µg/mL for the positive control compound, L-NMMA.

Material and methods

General

Optical rotations were measured on a Jasco P2000 polarimeter. IR spectra were recorded on a Spectrum Two Fourier transform infrared (FTIR) spectrometer. HR-ESI-MS were measured on an Agilent 6530 Accurate Mass Q-TOF LC/MS or a Thermo Scientific Q Exactive:tm: Focus Hybrid Quadrupole-Orbitrap. NMR spectra were recorded on a Bruker 500 MHz spectrometer. Preparative high-performance liquid chromatography (HPLC) were run on an Agilent 1100 system including a quaternary pump, an autosampler, a DAD detector, and a preparative HPLC column YMC J’sphere ODS-H80 (4 µm, 20 × 250 mm). Anisocratic mobile phase with a flow rate of 3 mL/min was used for pre-HPLC. Compounds were monitored at wavelengths of 205, 230, 254, and 280 nm. Flash column chromatography was performed using silica gel, reversed phase C-18, and Dianion HP-20 resins as the stationary phase. TLC was carried out on pre-coated silica gel 60 F₂₅₄ and RP-18 F_254S plates. The spots were detected by spraying with an aqueous solution of 5% H₂SO₄ followed by heating with a heat gun.

Plant material

The roots of Panax bipinnatifidus Seem. were collected at Sapa, Lao Cai, Vietnam, in May 2019, and identified by Dr Do Ngoc Dai, Department of Forestry, Nghe An University of Economics. A voucher specimen (coded: SVD-BK2019) was deposited at the School of Chemical Engineering, Hanoi University of Science and Technology.

Extraction and isolation

The air-dried roots of P. bipinnatifidus (1.0 kg) were ultrasonically extracted in C₂H₅OH (3 L × 3, 80 °C). After filtration, the extracts were concentrated in vacuo to dryness. The obtained C₂H₅OH residue (350 g) was suspended in H₂O (1 L) and then partitioned with n-hexane and ethyl acetate (each 2.5 L × 3), successively, to give n-hexane and ethyl acetate soluble fractions in the weights of 82.5 and 35.72 g, and the water layer. The water layer was subjected to a Dianion HP-20 column and eluted stepwise using a mixture of H₂O and C₂H₅OH (100:0→4:96; v/v) to give four fractions (fr. 1.1–fr. 1.5). After checking these fractions by TLC, the sub-fraction 1.3 (3 g) was first separated on a reverse phase C-18 resin column chromatography, eluting with acetone/water (1/1.2, v/v) to give seven smaller fractions, 1.3A–G. Fraction 1.3B was further purified by HPLC using a J’sphere ODS H-80, 250 mm × 20 mm column, MeCN in H₂O (20%, v/v), and a flow rate of 3 mL/min to yield compound 3 (29.5 mg). Next, fraction 1.3D was chromatographed on HPLC using the same conditions to obtain compounds 2 (12.0 mg) and 5 (20.0 mg). Fraction 1.3E was purified by HPLC using a J’sphere ODS H-80, 250 mm × 20 mm column, MeCN in H₂O (23%, v/v), and a flow rate of 3 mL/min to yield compound 1 (14.0 mg). Finally, fraction 1.3G was purified by HPLC using the same conditions to give compound 4 (11.0 mg).

Panabipinoside A ( 1 ):

Colorless amorphous powder, [∝]_D²⁵: +12.2 (c 0.1, MeOH);IR (KBr): ν_max 3401 (broad), 2944, 1732, 1612, 1076, 1028 cm⁻¹; HR-ESI-MS: m/z 941.51031 [M–H]⁻ (calcd for [C₄₈H₇₇O₁₈], 941.51099).

¹H NMR (CD₃OD, 500 MHz) and ¹³C NMR (CD₃OD, 125 MHz) data: see Table 1.

Panabipinoside B ( 2 ):

Colorless amorphous powder, [∝]_D²⁵: +16.7 (c 0.1, MeOH); IR (KBr): ν_max 3406 (broad), 2945, 1732, 1613, 1077, 1029 cm⁻¹; HR-ESI-MS: m/z 1073.54980 [M–H]⁻ (calcd for [C₅₃H₈₅O₂₂], 1073.55325).

¹H NMR (CD₃OD, 500 MHz) and ¹³C NMR (CD₃OD, 125 MHz) data: see Table 1.

Nitric oxide assay

Refer to Supplemental Material

Acid hydrolysis and confirmation of the monosaccharides

Refer to Supplemental Material

Supplemental Material

sj-pdf-1-chl-10.1177_17475198211018988 – Supplemental material for Panabipinoside A and panabipinoside B, two new oleanane triterpenoid saponins from the roots of Panax bipinnatifidus with nitric oxide inhibitory activity

Supplemental material, sj-pdf-1-chl-10.1177_17475198211018988 for Panabipinoside A and panabipinoside B, two new oleanane triterpenoid saponins from the roots of Panax bipinnatifidus with nitric oxide inhibitory activity by Phan Van Kiem, Vu DinhHoang, Nguyen Thi Hoang Anh, Dinh Thi Phuong Anh, Do Thi Trang and Bui Huu Tai in Journal of Chemical Research

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research is funded by the Ministry of Education and Training of Vietnam under Grant B2019_BKA.02 (2019–2020).

Ethical approval

Our institution does not require ethical approval for reporting individual cases or case series.

Informed consent

There are no human subjects in this article and informed consent is not applicable.

Human and animal rights

This article does not contain any studies with human or animal subjects.

ORCID iD

Phan Van Kiem

Supplemental material

Supplemental material for this article is available online.

References

Xiang

, et al. J Int Med Res 2020; 48: 0300060520905985.

Kolb-Bachofen

Kuhn

Suschek

CV.

Rheumatology 2006; 45(Suppl. 3): iii17–iii19.

Kolb

Kolb-Bachofen

Immunol Today 1998; 19: 556–561.

Sharma

Al-Omran

Parvathy

SS.

Inflammopharmaco-logy 2007; 15: 252–259.

Lee

Wen

Mol Phylogenet Evol 2004; 31: 894–903.

Christensen

LP.

Adv Food Nutr Res 2009; 55: 1–99.

Liu

Wang

YZ.

J Ethnopharmacol 2020; 263: 112792.

Yang

, et al. Phytochemistry 2014; 106: 7–24.

Bich

Chung

Chuong

, et al. Medicinal plants and animals for medicine in Vietnam. Hanoi: Science and Technics Publishing House, 2006, p. 771.

10.

Dong

Luan

Huong

NTT

. Vietnamese ginseng and some Araliaceae medicinal plants. Hanoi: Science and Technics Publishing House; 2007, pp. 327–338.

11.

Zhang

Shi

Liu

, et al. J Chromatogr B, Anal Technol Biomed Life Sci 2016; 1039: 79–87.

12.

Tung

Quang

Ngan

NTT

, et al. Chem Pharm Bull 2011; 59: 1417–1420.

13.

Thom

Tung

Diep

, et al. Pharmacogn Res 2018; 10: 333–337.

14.

Sanada

Kondo

Shoji

, et al. Chem Pharm Bull 1974; 22: 421–428.

15.

Tanaka

Morita

Kasai

, et al. Chem Pharm Bull 1985; 33: 2323–2330.

16.

Zhang

Tan

, et al. Tetrahedron Lett 2002; 43: 973–977.

17.

Liang

Ding

Nguyen

, et al. Bioorganic Med Chem Lett 2010; 20: 7110–7115.

18.

Zhao

Shi

Cao

, et al. Chin Chem Lett 2010; 21: 1216–1218.

19.

Chan

Hwang

Reddy

MVB

, et al. J Nat Prod 2011; 74: 796–802.

20.

Laurence

Reneta

Nicolas

, et al. Phytochemistry 2013; 90: 114–127.

21.

Shao

Kasai

, et al. Chem Pharm Bull 1989; 37: 311–314.
