Approximations for standard normal distribution function and its invertible

Introduction

The numerous applications as well as the significant statistical properties of the normal distribution make it one of the most important continuous distribution functions. Usually, researchers in various areas including but not limited to medical, engineering, and social studies use the cumulative distribution function (CDF) of normal distribution in testing and verifying various problems and conjectures in these fields.

It is well known that a random variable Z is normally distributed with mean 0 and standard deviation equals 1 if the probability density function of Z is given by,

f ( z ) = 1 2 π e − z 2 2 , − ∞ < z < ∞ .

Φ ( z ) = 1 2 π ∫ − ∞ z e − t 2 2 d t .

Given that Φ ^ ( z ) is an approximation of Φ ( z ) evaluated at a specific value of z, two well-known criteria that used by many authors to measure the accuracy of Φ ^ ( z ) were used (see ⁹ and the references therein). The first measure is the maximum absolute error ( MXAE ) of Φ ^ ( z ) , which is defined as follows:

MXAE ( Φ ^ ( z ) ) = max z | Φ ^ ( z ) − Φ ( z ) | .

MAE ( Φ ^ ( z ) ) = ∑ z | Φ ^ ( z ) − Φ ( z ) | n ,

In this article, we discuss some existing approximations of Φ ( z ) that have been introduced in the literature based on Tocher's approximation of Φ ( z ) .^10–13 We aim at proposing new approximations of Φ ( z ) to improve the existing Tocher's approximation. We intend to use the previously mentioned accuracy measures MXAE and MAE to investigate and compare the performance of the new proposed approximation as well as some of the existing approximations.

Existing approximations of Φ ( z )

A pioneer and simple idea was introduced by Tocher ¹⁴ to present a closed-form approximation of Φ ( z ) as follows:

Φ 1 ( z ) = e 2 2 π z 1 + e 2 2 π z ,

= 1 1 + e − 2 2 π z , z > 0

Several approximations have been suggested in the literature to improve the accuracy of Tocher's approximation and we list some of these approximations in the sequel:

1. The first improvement of Tocher's approximation considered in this article is proposed by Lin ¹⁰ as follows:

Φ 2 ( z ) = 1 1 + e − 4.2 π z 9 − z , 0 ≤ z < 9

2. The second improvement is proposed by Divgi ¹¹ as follows:

Φ 3 ( z ) = 1 1 + e − y ,

3. The third approximation is proposed by Vedder ¹² as follows

Φ 4 ( z ) = 1 1 + e − y ,

4. The fourth improvement is introduced by Waissi and Rossin ¹⁵ in the following form

Φ 5 ( z ) = 1 1 + e − y ,

5. Bowling et al. ¹⁶ proposed another improvement following the same previously mentioned ideas as

Φ 6 ( z ) = 1 1 + e − 1.5976 z − 0.07056 z 3 ,

6. The next approximation considered in this article was proposed by Boiroju and Rao ¹³ given as

Φ 7 ( z ) = 1 1 + e − y ,

y = 1 2 ( − 0.506445 + 10.4467 tanh ( 1.3448 + 0.3264 z ) + 9.8475 tanh ( − 1.3519 + 0.3376 z ) + 1.5976 z + 0.070565992 z 3 ) .

In this case, the value of MXAE corresponding to Φ 7 ( z ) is 2.41 × 10 − 5 .

7. Finally, Eidous and Ananbeh ¹⁷ proposed another improvement to enhance the accuracy level of the approximation as follows:

Φ 8 ( z ) = 1 1 + e − y ,

The MXAE of Φ 8 ( z ) obtained for this approximations is 7.62 × 10 − 7 .

Proposed approximation of Φ ( z )

In this section, we propose a new approximation to improve the accuracy of Tocher's approximation and the accuracy of previous approximations as well. The proposed approximation of Φ ( x ) is given as

Φ 9 ( z ) = 1 1 + e − a ( z ) z , z ≥ 0

a ( z ) = 1.5957691187 + 5.37366 × 10 − 8 z + 0.72670769 z 2 − 9.229 × 10 − 7 z 3 − 5.3498 × 10 − 5 z 4 − 9.0342 × 10 − 5 z 5 + 1.049448 × 10 − 4 z 6 − 3.0263611 × 10 − 3 z 7 + 2.99472642 × 10 − 4 z 8 − 1.98173433 × 10 − 4 z 9 + 9.4285766 × 10 − 5 z 10 − 3.1366467 × 10 − 5 z 11 + 7.1524366 × 10 − 6 z 12 + 1.09550613 × 10 − 6 z 13 + 1.079959 × 10 − 7 z 14 − 6.208087 × 10 − 9 z 15 + 1.585371 × 10 − 10 z 16 .

a ( z ) = ∑ j = 1 17 k j z j − 1 ,

OPEN IN VIEWER

Table 1.

The values of k j , j = 1 , 2 , 3 , … , 17 .

k 1	1.5957691187
k 2	5.37366 × 10 − 8
k 3	0.72670769
k 4	− 9.229 × 10 − 7
k 5	5.3498 × 10 − 5
k 6	− 9.0342 × 10 − 5
k 7	1.049448 × 10 − 4
k 8	− 3.0263611 × 10 − 3
k 9	2.99472642 × 10 − 4
k 10	− 1.98173433 × 10 − 4
k 11	9.4285766 × 10 − 5
k 12	− 3.1366467 × 10 − 5
k 13	7.1524366 × 10 − 6
k 14	1.09550613 × 10 − 6
k 15	1.079959 × 10 − 7
k 16	− 6.208087 × 10 − 9
k 17	1.585371 × 10 − 10

The values of the constants k 1 , k 2 , … , k 17 are obtained by using the regression method to determine the best-fitting model of the form 1 / ( 1 + e − z ∑ j = 1 17 k j z j − 1 ) that minimizes the absolute difference between the exact Φ ( x ) and the corresponding approximation model. Figure 1 illustrates the differences between our proposed approximation and the true value of Φ ( z ) . A thorough look allows us to see that the MXAE value of the approximation Φ 9 ( z ) is 4.43429 × 10 − 10 which occurs at z = 0.794634 .

OPEN IN VIEWER

Figure 1.

The difference between Φ 9 ( z ) and Φ ( z ) .

Approximation of the inverse of Φ ( z )

Let p = Φ ( z ) be the CDF of standard normal, where z ≥ 0 . The inverse of the CDF of the standard normal distribution is z = Φ − 1 ( p ) . Assuming that the value of p is given, we are interested in obtaining the approximate value of z ( z ≥ 0 ) at which the area underneath it is p under the standard normal curve.

Schmeiser ¹⁸ derived a simple approximation for z, which is given by,

z ^ 1 = ( p 0.135 − ( 1 − p ) 0.135 ) 0.1975 , p ≥ 0.5.

z ^ 2 = − 5.531 ( ( 1 − p p ) 0.1193 − 1 ) .

p = Φ P ( z ) = 0.5 ( 1 + 1 − e − ( 2 π ) z 2 ) .

z ^ 3 = − 1 d 1 log ( 1 − [ 2 ( p − 0.5 ) ] 2 ) ,

d 1 = 0.8039 − 0.9446 p + 1.5806 p 2 − 1.7824 p 4 + 1.5098 p 6 − 0.5689 p 8 .

If we define Δ i = Z ^ i − Z , then we can easily see the changes in Δ i with respect to the values of p . Figure 2 illustrates the behavior of Δ 3 that reflects the accuracy of our proposed approximation.

OPEN IN VIEWER

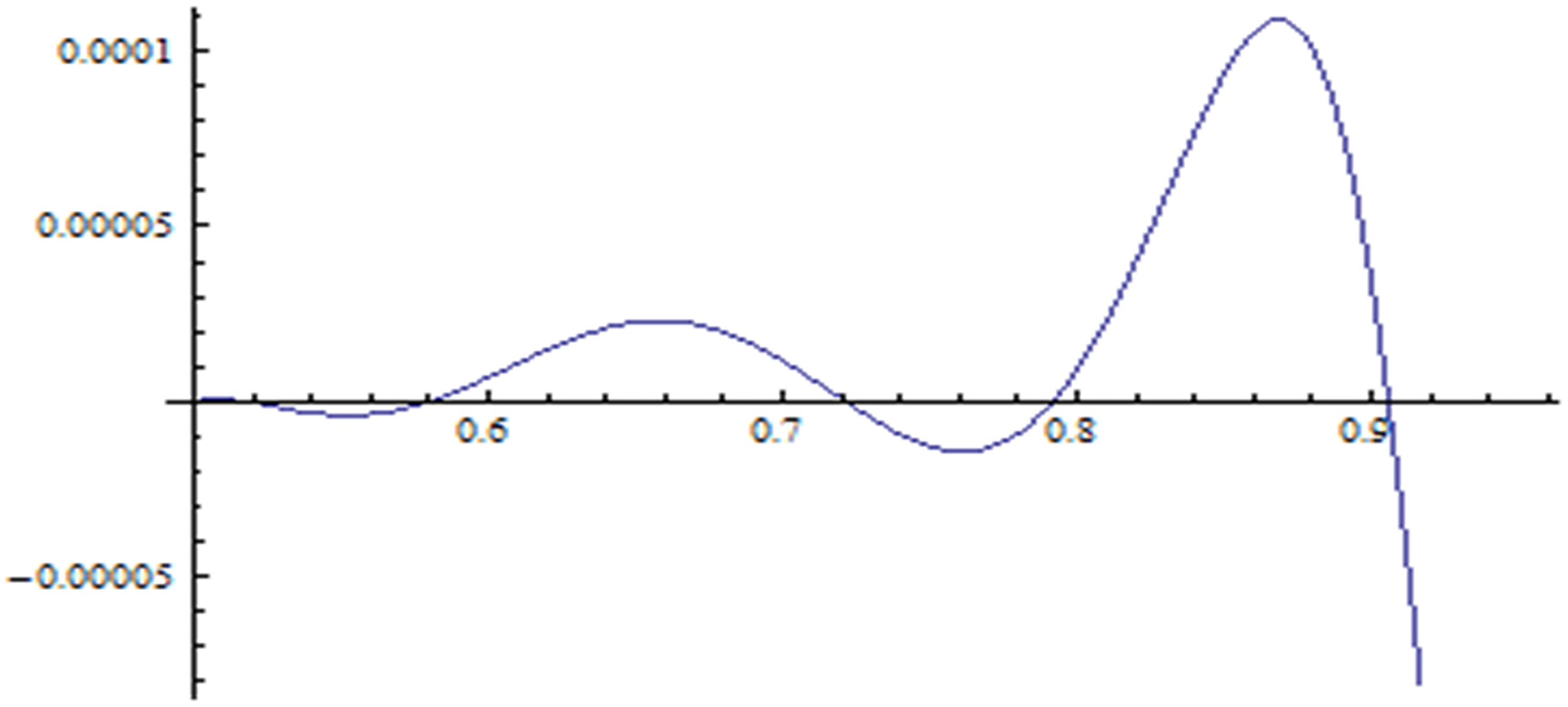

Figure 2.

Graphical presentation of Δ 3 = z ^ 3 − z with respect to p .

Comparisons and conclusions

To shed more light on the accuracy of variant approximations of Φ ( z ) that discussed in this article, we obtain the values of MAE for each approximation depending on grid values of z starting from 0 to 5 with step 0.001 and we summarize these results in Table 2. To simplify the comparison mechanism, we include, in Table 2, the MXAE values of the approximations discussed in this article.

OPEN IN VIEWER

Table 2.

The MXAE and the MAE for the approximations Φ 1 ( z ) to Φ 9 ( z ) .

Approximation	MXAE	MAE
Φ 1 ( z )	1.77 × 10 − 2	7.05 × 10 − 3
Φ 2 ( z )	6.69 × 10 − 3	1.10 × 10 − 3
Φ 3 ( z )	2.10 × 10 − 3	9.78 × 10 − 4
Φ 4 ( z )	3.14 × 10 − 4	9.99 × 10 − 5
Φ 5 ( z )	4.37 × 10 − 5	1.69 × 10 − 5
Φ 6 ( z )	1.42 × 10 − 4	6.88 × 10 − 5
Φ 7 ( z )	2.41 × 10 − 5	7.26 × 10 − 6
Φ 8 ( z )	7.62 × 10 − 7	1.82 × 10 − 7
Φ 9 ( z )	4.43 × 10 − 10	9.62 × 10 − 11

Table 2 clearly shows that the proposed approximation Φ 9 ( z ) is more accurate than the other approximations based on the two criteria MXAE and MAE .

The other part of our computational aspect focuses on investigating the accuracy of the proposed approximation z ^ 3 . A number of values for z are selected from 0 to 4.8 with step 0.4. For each value of z, we compute the corresponding value of p = Φ ( z ) and then we obtain the proposed estimate ( z ^ 3 ) . For sake of comparison, we include the results of the two approximations z ^ 1 and z ^ 2 in Tables 3 and 4.

OPEN IN VIEWER

Table 3.

The three approximations of z obtained at selected true values of z corresponding to p .

z	p = Φ ( z )	z ^ 1	z ^ 2	z ^ 3
0.0	0.5000	0.000	0.000	0.000
0.4	0.6554	0.3976	0.4084	0.4000
0.8	0.7881	0.7969	0.8024	0.8000
1.2	0.8849	1.1989	1.1948	1.1999
1.6	0.9452	1.6038	1.5932	1.6003
2.0	0.9773	2.0093	1.9993	1.9975
2.4	0.9918	2.4105	2.4097	2.3864
2.8	0.9974	2.7999	2.8168	2.7660
3.2	0.9993	3.1686	3.2109	3.1386
3.6	0.9998	3.5084	3.5826	3.5068
4.0	0.99997	3.8130	3.9239	3.8725
4.4	0.99999	4.0783	4.2293	4.2366
4.8	1.0000	4.3032	4.4958	4.5997

OPEN IN VIEWER

Table 4.

The differences Δ i = z ^ i − z , i = 1 , 2 , 3 corresponding to the approximation of z evaluated at selected exact values of z.

z	p = Φ ( z )	Δ 1	Δ 2	Δ 3
0.0	0.5000	0.	0.	0.
0.4	0.6554	−0.00238	0.00839	−0.00002
0.8	0.7881	−0.00313	0.00237	3.28071 × 10−6
1.2	0.8849	−0.00107	−0.00521	−0.00009
1.6	0.9452	0.00380	−0.00685	0.00025
2.0	0.9773	0.00932	−0.00070	−0.00025
2.4	0.9918	0.01051	0.00972	−0.01360
2.8	0.9974	−0.00015	0.01681	−0.03403
3.2	0.9993	−0.03141	0.01094	−0.06142
3.6	0.9998	−0.09157	−0.01738	−0.09318
4.0	0.99997	−0.18706	−0.07607	−0.12752
4.4	0.99999	−0.32173	−0.17066	−0.16342
4.8	1.0000	−0.49679	−0.30416	−0.20026

This allows the reader to compare the values of the different approximations with the exact values of z (first column). To simplify the comparison process, we provided the differences Δ i = z ^ i − z for i = 1 , 2 , 3 in Table 4.

Table 3 clearly shows that the proposed approximation z ^ 3 is more accurate than z ^ 1 and z ^ 2 especially when the exact value of Φ ( z ) < 0.99 . Table 4 emphasizes on the high quality of the proposed estimator in view of the values of Δ 3 . All results and graphs are obtained by using Mathematica, Version 12.

Discussion

In this article, we focused on developing a new approximation of the cumulative normal distribution Φ ( z ) for given values of z. In addition, we suggested an invertible approximation of z for given values of p = Φ ( z ) . Accordingly, it is found that the performance of the proposed approximation is dominant when compared to some of the existing approximations for a wide range of true values of z.
