Tissue Doppler indices of diastolic function in critically ill patients and association with mortality

Abstract

Purpose

Systolic impairment is well reported in critically ill patients but diastolic function has been relatively understudied. The objective of this review was to assess tissue Doppler indices of diastolic function in critically ill patients along with any association with mortality.

Methods

A systematic review of articles in English using Medline, EMBASE, CINAHL and the Cochrane database of systematic reviews. Search terms included diastolic function, diastolic dysfunction, diastolic abnormal*, diastolic heart failure, diastolic filling, ventricular relaxation, pulmonary artery occlusion pressure, left ventricular filling pressure, cardiac dysfunction, intensive care, critical care, critically ill, critical illness, sepsis and septic shock. Only studies of critically ill adult patients (excluding post-cardiac surgical patients) whose diastolic function was assessed using tissue Doppler imaging were included. Study quality was assessed using a modified version of the Newcastle–Ottawa Scale (NOS).

Results

Nineteen studies were included, with a total of 1365 patients. All trials were observational. There was a large heterogeneity in patient populations and the methodology of tissue Doppler assessment of diastology resulting in a descriptive analysis. Patient groups included severe sepsis or septic shock (5 studies), septic shock (5 studies), systemic inflammatory response syndrome and shock (1 study), septic shock and acute lung injury (1 study), cancer and septic shock (2 studies), general ICU patients (1 study), combined medical and surgical ICU (2 studies) and sub-arachnoid haemorrhage patients (2 studies). Seventeen studies scored 5/6 on the NOS with the remaining two scoring 4/6. Fourteen studies reported on numbers of patients diagnosed with diastolic dysfunction (500/999, mean 50%, range 20–92%). Three studies found that diastolic dysfunction was an independent predictor of mortality.

Conclusions

Current data shows a large range in the incidence of diastolic dysfunction in this patient population and a variable link with mortality. Future research should focus on the definition of normal values for diastolic function in critically ill patients along with the effects of ICU therapies and consensus criteria for its assessment in this patient population.

Keywords

Diastolic dysfunction critical care critical illness sepsis incidence mortality

Introduction

Maclean et al.¹ published a landmark study in 1967 on the early haemodynamic clinical course of patients with septic shock. They identified a group of patients with a low cardiac output, high peripheral vascular resistance and cold cyanotic extremities that had an associated high mortality. Since then clinical interest in heart failure in critically ill patients has focused on systolic dysfunction.

Parker et al.² showed that left ventricular (LV) systolic impairment was present in half of patients with septic shock. More modern imaging modalities have revealed an incidence of just over two-thirds.³ Diastolic dysfunction in critically ill patients has been relatively under-investigated which is surprising given its significant haemodynamic consequences.

Diastole is the time period during which the myocardium loses its ability to generate force and returns to an unstressed pressure and myocyte length. In health left ventricular relaxation creates a suction effect that promotes filling from the left atrium. As diastolic function worsens this pressure gradient falls and is eventually reversed, with a compensatory rise in left atrial (and hence left ventricular filling) pressure to maintain ventricular filling.

Assessment of diastolic function in health uses tissue Doppler imaging to measure the velocity of relaxation of the left ventricular myocardium (e′). The diagnosis is refined by integrating qualitative and quantitative measures of left ventricular filling pressures as they are directly related with diastolic function in health,⁴ grading function as normal or impaired (Grades I–III). This is performed by assessing the ratio of blood flow across the mitral valve during early passive left ventricular filling (E) and atrial contraction (A), the E/A ratio. Additional measure include the ratio of blood flow through the pulmonary veins into the left atrium during systole (S) and diastole (D), the S/D ratio, along with left atrial size.

Assessment of diastolic function in critically ill patients differs as the severity of pathologies (such as sepsis, hypoxia and acidosis), changes in intravascular status (from intravenous fluid therapy, capillary leak syndrome, renal replacement therapies) and the large variety of treatments (such as sedatives, vasopressors, inotropes and positive pressure ventilation) result in constant fluctuations in the loading conditions of the heart, affecting most of the qualitative and quantitative methods for the measurement of left ventricular filling pressures.⁴

Tissue Doppler has been validated as a relatively preload and afterload-independent measure of left ventricular relaxation, especially when it is measured at the lateral annulus.⁵ It is not completely load independent⁶ and is affected by many ICU therapies including the lusitropic effects of vasoactive drugs and fluid loading. Normal minimum relaxation values are 8 cm/s at the septal mitral annulus and 10 cm/s at the lateral mitral annulus, or an average of 9 cm/s.⁷ Values below these thresholds suggest diastolic dysfunction in outpatients – the normal minimum values in critically ill patients is yet to be determined.

Historically the burden of disease of heart failure in the general population was attributed to systolic heart failure, but in recent years the diagnosis of diastolic heart failure has increased.⁸ Diastolic heart failure has a significant incidence and associated morbidity in outpatient populations, but has been relatively understudied in the critically ill. This is an area of importance as approximately one third of heart failure patients have little evidence of systolic failure.⁸ However, when they are hospitalised with heart failure their 1-year and 5-year survival rates are the same, or only slightly better than patients with systolic heart failure.⁹

The aims of this review were to assess observational echocardiographic studies performed in critically ill adult patients that assessed diastolic function and/or the incidence of diastolic dysfunction, using tissue Doppler indices and to determine whether there was any association with mortality.

Methods

Study eligibility

Observational studies that used tissue Doppler echocardiography to assess diastolic function in critically ill adult patients were considered. Outcome measures were diastolic function or incidence of diastolic dysfunction, and/or a mortality association with diastolic function/diastolic dysfunction. Paediatric studies, animal studies, studies of patients post cardiac surgery and non-echocardiographic studies were excluded.

Literature search

We performed an electronic literature search on 21 August 2014 using Medline, EMBASE, CINAHL and the Cochrane database of systematic reviews. The search terms used were ((diastolic function) OR (diastolic dysfunction) OR (diastolic abnormal*) OR (diastolic heart failure) OR (diastolic filling) OR (ventricular relaxation) OR (pulmonary artery occlusion pressure) OR (left ventricular filling pressure) OR (cardiac dysfunction)) AND ((intensive care) OR (critical care) OR (critically ill) OR (critical illness) OR (sepsis) OR (septic shock)). The search was limited to studies in the English language. No publication date or publication status restrictions were imposed.

Study selection

Only studies that assessed diastolic function using tissue Doppler were included.

Data items

Information was extracted from each study on: (1) number and character of trial participants; (2) study type; (3) method of echocardiographic assessment of diastolic function; (4) incidence of diastolic dysfunction/qualitative assessment of diastolic function; (5) mortality association (if any) with diastolic dysfunction.

Statistical analysis

The studies varied in their methods of tissue Doppler assessment of diastolic function and had a large heterogeneity in their patient populations. Analysis was therefore descriptive.

Quality assessment

There is no current consensus for assessing the quality and susceptibility to bias of observational studies. The Newcastle–Ottawa Scale (NOS) score has been endorsed by the Cochrane Collaboration for assessing the quality of non-randomised studies included in a systematic review.¹⁰ For this review we used a modified version of the NOS based on two major study components – selection of study groups (0–3 points), and ascertainment of exposure (0–3 points) (Figure 1). A higher overall score indicates a better methodological quality.

Figure 1.

Modified Newcastle–Ottawa quality assessment scale for cohort studies.

Results

The search of Medline, EMBASE, CINAHL and the Cochrane database of systematic reviews resulted in a total of 872 potential citations. Of these, 810 were excluded as they did not meet the criteria. A further 32 were excluded after reviewing the abstracts. The full text of the remaining 30 citations was examined in more detail. Eleven citations did not meet the inclusion criteria described above, leaving 19 studies for inclusion in the final review. No further studies were identified by checking the references, and no unpublished further relevant studies were obtained. These results are summarised in Figure 2.

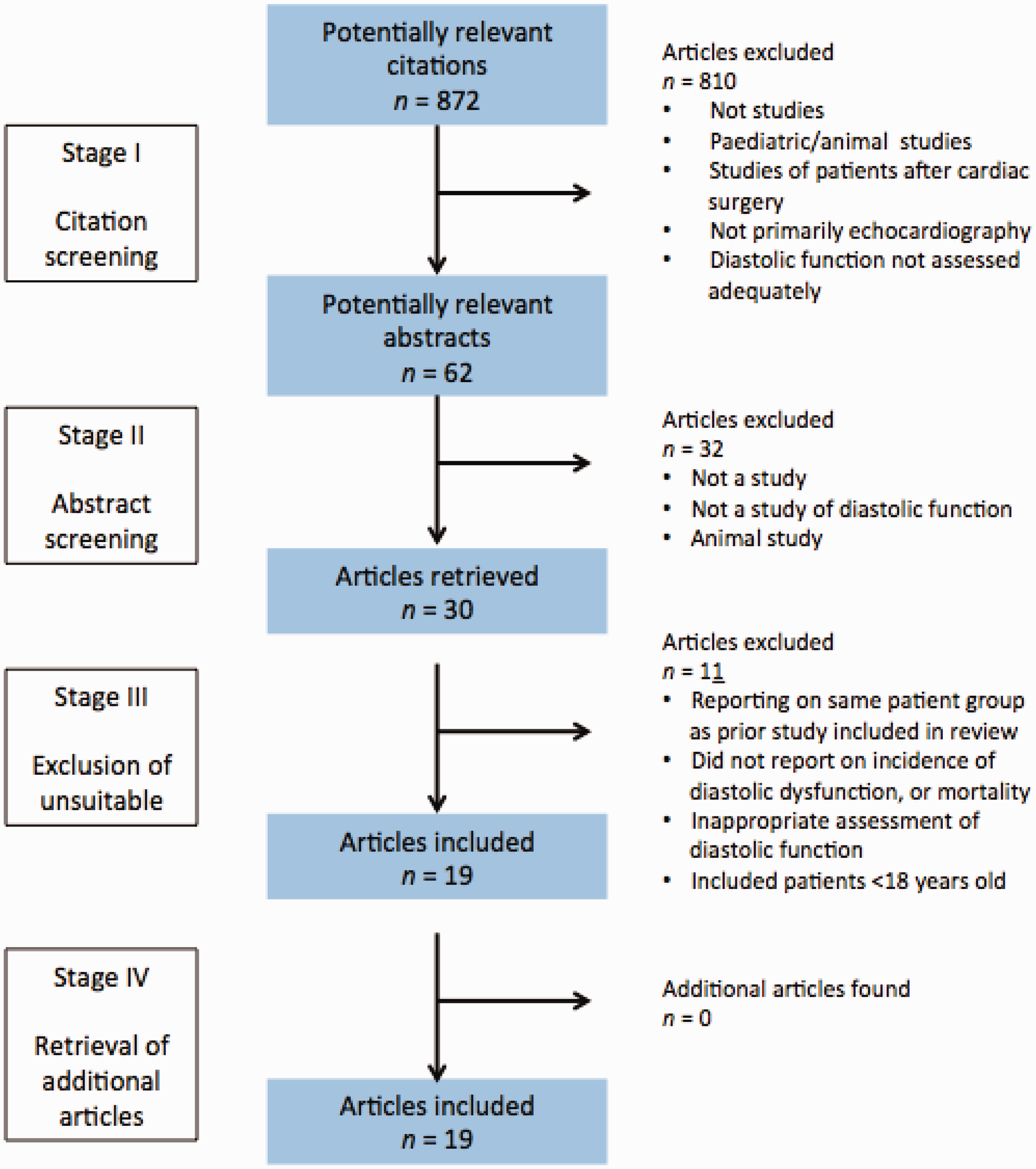

Figure 2.

Citation filtering process.

All 19 articles included were cohort observational studies in English with a total of 1365 patients (Table 1). Sixteen studies were conducted on a single ICU,^11–26 1 study was conducted in two ICUs in different hospitals,²⁷ one study was conducted in two ICUs in the same hospital²⁸ and one study was conducted in three ICUs in the same hospital.²⁹

Table 1.

Major features of studies included in the analysis.

Author	Year	n	Patient	Study type	Method of assessment of diastolic dysfunction	No of patients mechanically ventilated	Incidence of diastolic dysfunction (n, %)	Cutoff value used to diagnose diastolic dysfunction (cm/s)	Mortality of group with diastolic dysfunction	Quality score (max. of 6)
Mourad et al.¹¹	2014	72	Patients with cancer and septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (lateral)	49(68%)	33(46)	Lateral e′ < 8	Difference in diastolic function (survivors vs. non-survivors on the ICU) e′ < 8 8(21.3%) vs. 25(71.4%), p < 0.001 e′ < 8 independently associated with ICU mortality (OR 7.7, 95% CI 2.58–23.38, p < 0.001)	4
Landesberg et al.¹²	2014	106	Severe sepsis or septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal and lateral)	106(100%)	Not measured	–	Difference in diastolic function (survivors vs. non-survivors at hospital discharge) Septal e′ 8.6 ± 2.8 vs. 7.5 ± 2.2 cm/s, p = 0.038 Lateral e′ 12.5 ± 3.3 vs. 10.4 ± 3.2 cm/s, p = 0.004	5
Sturgess et al.¹³	2013	32	Combined medical/surgical ICU (non-cardiac)	Prospective observational cohort study	Transmitral flow Tissue Doppler		11(34)	Mean e′ < 9	–	5
Bergenzaun et al.¹⁴	2012	49	SIRS and shock 2/3^rd had septic shock, rest had pancreatitis, post-op, multi-organ failure, intoxication	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal) LA volume	44(90%)	Not measured Median e′ of patients = 8.4 (7.1–10.0)	–	No difference in diastolic function (survivors vs. non-survivors at 1 year) Median e′ = 8.4 (7.5–10.8) vs. 7.9 (6.3–9.6), non-significant	5
Brown et al.²⁸	2012	78	Severe sepsis or septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal) Pulmonary venous flow	–	47(61.8)	Septal e′ < 8	–	5
Furian et al.¹⁵	2012	45	Severe sepsis or septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (lateral)	87%	Not measured Mean e′ of patients = 12.2 ± 4.6	–	Difference in diastolic function (survivors vs. non-survivors at hospital discharge) e′ = 13.2 ± 4.7 vs. 10.1 ± 3.7, p = 0.03	5
Landesberg et al.¹⁶	2012	262	Severe sepsis or septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal and lateral)	262(100%)	131(50) of all patients 153(58.5) of patients with septic shock	Mean e′ < 8	Difference in diastolic function (survivors vs. non-survivors at 2-year follow up) Septal e′ 9.3 ± 3.4 vs. 6.8 ± 2.2 cm/s, p < 0.0001 Lateral e′ 11.3 ± 4.1 vs. 9.0 ± 3.5 cm/s, p < 0.0001 Cox multivariate survival analysis showed reduced septal e′ was strongest independent predictor of mortality (at hospital discharge)	5
Pulido et al.²⁹	2012	106	Severe sepsis or septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal and lateral)	–	39(37)	Mean e′ < 8	No survival difference between group with diastolic dysfunction and normal myocardium group 30-day mortality = 15(38%) vs. 16(42%), p = 0.74 1-year mortality = 26(67%) vs. 21(55%), p = 0.30	5
Mahjoub et al.¹⁷	2012	83	Septic shock – study of fluid response	Prospective observational cohort study	Transmitral flow Tissue Doppler (lateral)	83(100%)	47(57)	Lateral e′ < 12	–	5
Mousavi et al.²⁷	2010	40	Septic shock	Retrospective observational cohort study	Transmitral flow Tissue Doppler (septal and lateral) PAC	–	Not measured Mean e′ of patients = 9.5 ± 2.2 cm/s	–	–	5
Sturgess et al.¹⁸	2010	20	Septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal)	16(72%)	11(55)	Septal e′ < 9.6	–	5
Ikonomidis et al.¹⁹	2010	58	General Intensive Care Unit Patients, mechanically ventilated, no history of heart failure	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal and lateral)	58(100%)	27(46)	Mean e′ < 8 and/or mean E/e′ > 13	Patients with diastolic dysfunction had a reduced in-hospital survival (37% vs. 83%, p = 0.001) Diastolic dysfunction was a significant univariate predictor of in-hospital mortality by Cox regression analysis	5
Meaudre et al.²⁰	2009	31	Subarachnoid haemorrhage	Prospective observational cohort study	Transmitral flow Tissue Doppler (lateral) (in only 27 patients)	15(48%)	Not measured Mean e′ of patients = 16.3 ± 3.2	–	–	5
Tanabe et al.²¹	2008	95	Aneurysmal subarachnoid haemorrhage patients on the ICU	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal and lateral)	–	Not measured Mean e′ of patients = 8.4 ± 2.1	–	–	5
Bouhemad et al.²²	2008	54	Septic shock	Prospective observational cohort study	Transmitral flow (flow propagation velocity) Tissue Doppler	–	11(20)	Lateral e′ < 12	–	5
Etchecopar- Chevreuil et al.²³	2008	35	Septic shock	Prospective observational cohort study	Tissue Doppler (lateral)	35(100%)	7(20)	Lateral e’ < 8.5	No difference in diastolic function (survivors vs. non-survivors at hospital discharge) e′ = 11.4(9.1–16.0) vs. 12(11.1–13.4)	5
Mokartet al.²⁴	2007	45	Patients with cancer and septic shock	Prospective observational cohort study	Transmitral flow Tissue Doppler (lateral)	49(96%)	18(40)	Lateral e′ < 8 and/or E/e′ > 8	Difference in the incidence of diastolic dysfunction (survivors vs. non-survivors on the ICU) 6(26%) vs. 12(54.5%), p = 0.07	4
Sturgess et al.²⁵	2007	94	Combined medical/surgical ICU	Retrospective observational cohort study	Transmitral flow Tissue Doppler (septal)	37(39%)	63(67)	Septal e′ < 9.6	No difference in diastolic function (survivors vs. non-survivors at 28 days) e′ = 8.7 ± 2.7 cm/s vs. 9.1 ± 3.5 cm/s, p = 0.58	5
Bouhemad et al.²⁶	2003	60	Septic shock and acute lung injury	Prospective observational cohort study	Transmitral flow Tissue Doppler (septal) Pulmonary venous flow	60(100%)	55(92)	Lateral e′ < 10 and E/A < 1	–	5

Patients from general ICUs/combined medical and surgical ICUs,^13,19,25 with subarachnoid haemorrhage,^20,21 patients with systemic inflammatory response syndrome (SIRS)/shock/sepsis/septic shock^{12,14–18,22,23,26–29} and patients with cancer and septic shock^11,24 were included in the studies selected. Seventeen studies were prospective^{11–24,26,28,29} and two were retrospective.^25,27

Thirteen studies examined on incidence of patients on mechanical ventilation^{11,12,14–20,23–26} with a reported range of 39–100%. All studies used tissue Doppler imaging to assess diastolic function. Thirteen studies assessed diastology in a dichotomous fashion^{11,13,16–19,22–26,28,29} (normal diastolic function/presence of diastolic dysfunction), five studies reported diastolic function as mean/median tissue Doppler velocities^{14,15,20,21,27} and one study did not assess diastolic function in a dichotomous fashion or report it as mean/median Doppler velocity.¹² Ten studies looked for an association between diastolic function and mortality.^{11,12,14–16,19,23–25,29} Quality assessment using the modified NOS scale resulted in 17 studies scoring 5/6, the remaining 2 studies scored 4/6. All studies failed to demonstrate that the outcome of interest (impaired diastolic function/diastolic dysfunction) was not present at the start of the study.

There was a large heterogeneity across the studies for the echocardiographic cutoff values used for the diagnosis of diastolic dysfunction. Two studies used a lateral e′ < 12,^17,22 two studies used a septal e′ < 9.6,^18,25 one study used a mean e′ < 9,¹³ one study used a lateral e′ < 8.5,²³ two studies used a mean e′ < 8,^16,29 one study used a septal e′ < 8²⁸ and one study used a lateral e′ < 8.¹¹ The other studies used composite measures – one study used a lateral e′ < 10 and E/A < 1,²⁶ one study used a mean e′ < 8 and/or a mean E/e′ > 13¹⁹ and one study used a lateral e′ < 8 and/or an E/e′ > 8.²⁴ Due to this heterogeneity the results were not meta-analysed. We have focused on describing the studies, their results, applicability and limitations.

Incidence of diastolic dysfunction

Thirteen studies reported on the numbers of patients diagnosed with diastolic dysfunction^{11,13,16–19,22–26,28,29} using the criteria specified above. The incidence ranged from 20% to 92%, with a total 500/999 (50%) patients (Table 2). Five studies reported mean or median e′ values.^{14,15,20,21,27}

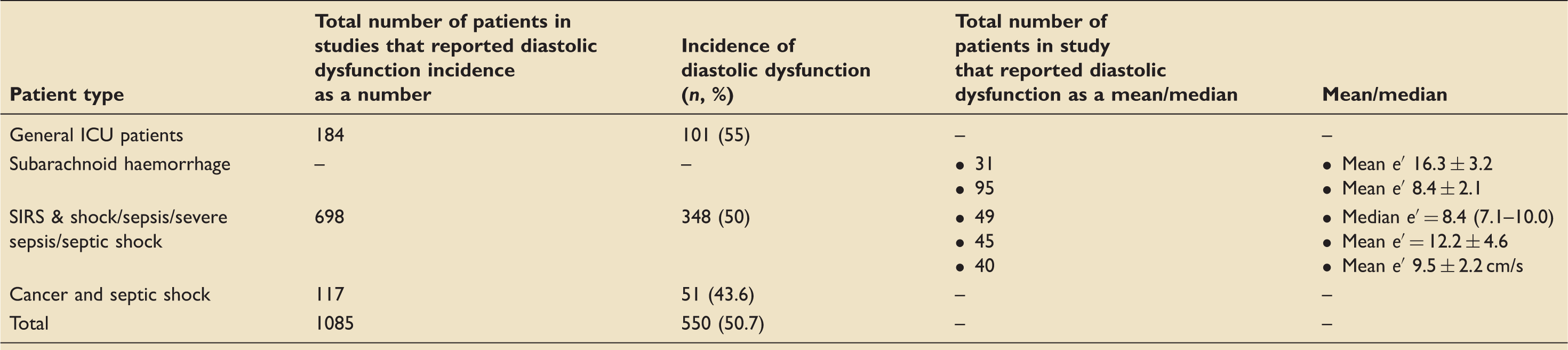

Table 2.

Incidence of diastolic dysfunction/mean and median values of diastolic function.

Patient type	Total number of patients in studies that reported diastolic dysfunction incidence as a number	Incidence of diastolic dysfunction (n, %)	Total number of patients in study that reported diastolic dysfunction as a mean/median	Mean/median
General ICU patients	184	101 (55)	–	–
Subarachnoid haemorrhage	–	–	• 31 • 95	• Mean e′ 16.3 ± 3.2 • Mean e′ 8.4 ± 2.1
SIRS & shock/sepsis/severe sepsis/septic shock	698	348 (50)	• 49 • 45 • 40	• Median e′ = 8.4 (7.1–10.0) • Mean e′ = 12.2 ± 4.6 • Mean e′ 9.5 ± 2.2 cm/s
Cancer and septic shock	117	51 (43.6)	–	–
Total	1085	550 (50.7)	–	–

Association with mortality

Ten studies looked for a mortality association.^{11,12,14–16,19,23–25,29} Three studies showed that diastolic dysfunction was an independent predictor of mortality.^11,16,19 Six studies found an association between diastolic function and mortality (Table 3).^{11,12,15,16,19,24} Two of them found a direct association between the presence of diastolic dysfunction and mortality.^19,24 The remaining four studies looked at the patients as two groups according to whether or not they survived and found a statistically significant difference in the tissue Doppler velocities.^11,12,15,16 The velocity was significantly worse in all of the groups that did not survive in three of the studies. In one study the group that survived had a significantly higher velocity.¹¹

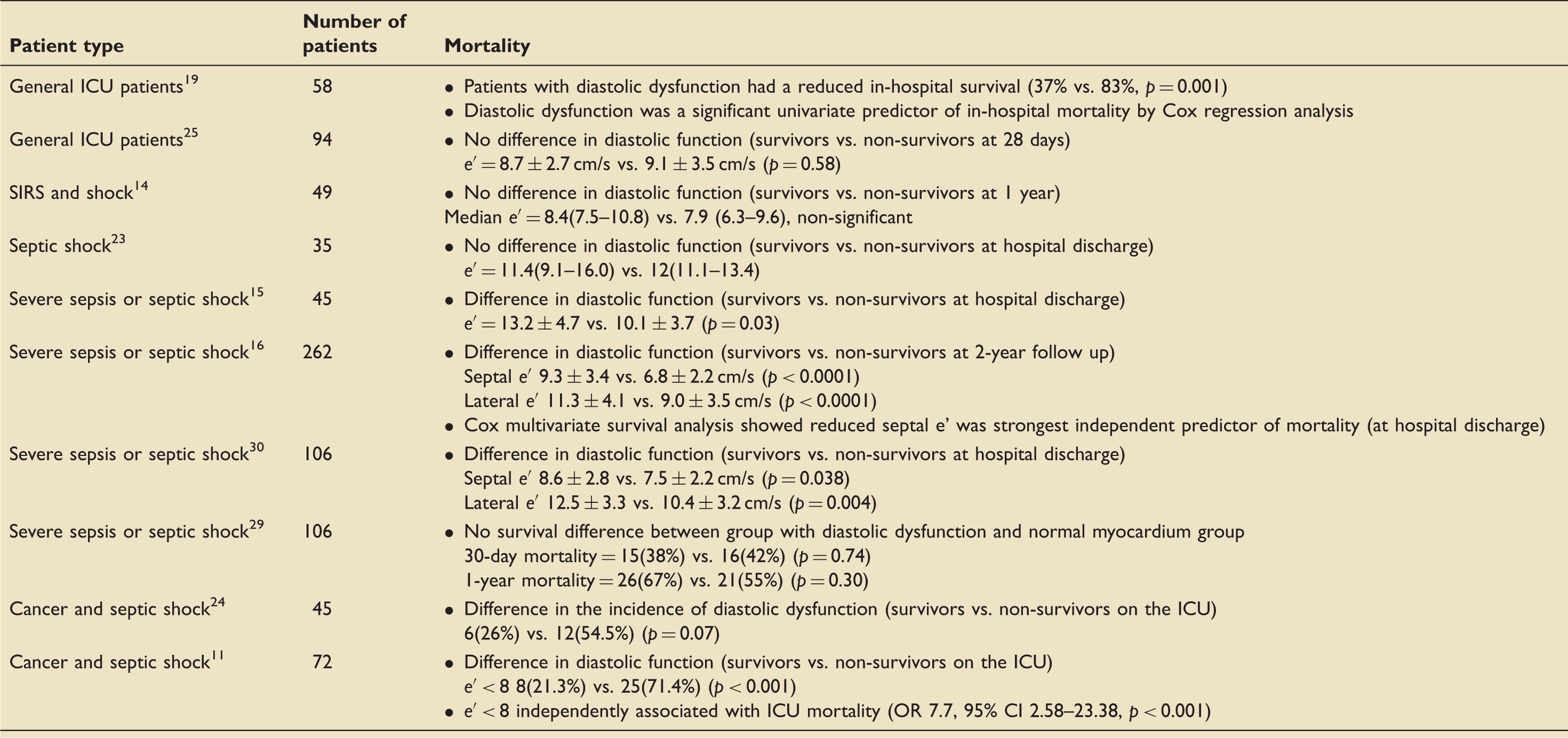

Table 3.

Association of diastolic dysfunction with mortality.

Patient type	Number of patients	Mortality
General ICU patients¹⁹	58	• Patients with diastolic dysfunction had a reduced in-hospital survival (37% vs. 83%, p = 0.001) • Diastolic dysfunction was a significant univariate predictor of in-hospital mortality by Cox regression analysis
General ICU patients²⁵	94	• No difference in diastolic function (survivors vs. non-survivors at 28 days) e′ = 8.7 ± 2.7 cm/s vs. 9.1 ± 3.5 cm/s (p = 0.58)
SIRS and shock¹⁴	49	• No difference in diastolic function (survivors vs. non-survivors at 1 year) Median e′ = 8.4(7.5–10.8) vs. 7.9 (6.3–9.6), non-significant
Septic shock²³	35	• No difference in diastolic function (survivors vs. non-survivors at hospital discharge) e′ = 11.4(9.1–16.0) vs. 12(11.1–13.4)
Severe sepsis or septic shock¹⁵	45	• Difference in diastolic function (survivors vs. non-survivors at hospital discharge) e′ = 13.2 ± 4.7 vs. 10.1 ± 3.7 (p = 0.03)
Severe sepsis or septic shock¹⁶	262	• Difference in diastolic function (survivors vs. non-survivors at 2-year follow up) Septal e′ 9.3 ± 3.4 vs. 6.8 ± 2.2 cm/s (p < 0.0001) Lateral e′ 11.3 ± 4.1 vs. 9.0 ± 3.5 cm/s (p < 0.0001) • Cox multivariate survival analysis showed reduced septal e’ was strongest independent predictor of mortality (at hospital discharge)
Severe sepsis or septic shock³⁰	106	• Difference in diastolic function (survivors vs. non-survivors at hospital discharge) Septal e′ 8.6 ± 2.8 vs. 7.5 ± 2.2 cm/s (p = 0.038) Lateral e′ 12.5 ± 3.3 vs. 10.4 ± 3.2 cm/s (p = 0.004)
Severe sepsis or septic shock²⁹	106	• No survival difference between group with diastolic dysfunction and normal myocardium group 30-day mortality = 15(38%) vs. 16(42%) (p = 0.74) 1-year mortality = 26(67%) vs. 21(55%) (p = 0.30)
Cancer and septic shock²⁴	45	• Difference in the incidence of diastolic dysfunction (survivors vs. non-survivors on the ICU) 6(26%) vs. 12(54.5%) (p = 0.07)
Cancer and septic shock¹¹	72	• Difference in diastolic function (survivors vs. non-survivors on the ICU) e′ < 8 8(21.3%) vs. 25(71.4%) (p < 0.001) • e′ < 8 independently associated with ICU mortality (OR 7.7, 95% CI 2.58–23.38, p < 0.001)

Discussion

Assessment of diastolic function in critically ill patients is challenging. Most of the traditional echocardiographic indices are affected by the loading conditions of the heart that are constantly changing in critically ill patients as a result of the illness, organ failures, supportive therapies and treatments. This review only included studies that used tissue Doppler imaging. It is a relatively preload and afterload-independent measure but is still affected by many common therapies such as fluid loading and vasoactive drugs. The 19 studies included in this review show a large heterogeneity in their patient populations and the methodology of tissue Doppler assessment of diastolic function. This is reflected in the large range of the incidence of diastolic dysfunction of 20–92%.

Only three of the studies found that diastolic dysfunction was an independent predictor of mortality. Six of the 10 studies found an association between impaired diastology during critical illness and mortality and one study found an inverse association. There was a large variability in the timings of the echocardiograms during the critical illness and some studies used hospital discharge data making it difficult to ascertain whether diastolic dysfunction persisted beyond ICU discharge and whether it was linked to post ICU mortality.

The mean incidence of diastolic dysfunction in this review is identical to the historical incidence of systolic dysfunction in patients with severe sepsis/septic shock (50%).² However, newer imaging modalities such as speckle tracking have revealed that the incidence of systolic dysfunction in this patient population is higher at just over two-thirds.³ Application of these more sensitive techniques could potentially reveal an increased prevalence of diastolic dysfunction in critical illness.

Our review has several limitations. There is no current consensus for assessing the quality and susceptibility to bias of observational studies (a recent systematic review identified 86 tools³¹). A pragmatic approach was used for the assessment of the quality of the 19 studies included in this review. None of the studies specifically quantified diastolic function in patients prior to ICU admission. Systematic pre-ICU echocardiographic assessment would, however, be difficult as critical illness is usually an unforeseen event. Several studies declared no prior history of heart failure, and most studies excluded patients with known heart disease, coronary artery disease or valvular disease. Another limitation was a lack of consistency within and between the 19 studies for the timing of the echocardiograms during the patient’s ICU stay.

Many of the studies used different tissue Doppler cutoff values for the diagnosis of diastolic dysfunction. This is likely as a result of historical changes in consensus guidelines used for the assessment of diastolic function,⁴ coupled with a changing evidence base for the application of these values in critically ill patients. Although tissue Doppler imaging is the current echocardiographic gold standard for assessing diastolic function in critically ill patients, it is not completely load independent⁶ and is notably affected by vasoactive drugs that are very commonly used in this patient population. Additionally normal values for diastolic function have not yet been defined in this patient population.

We only included studies that used tissue Doppler for the assessment of diastolic function, but we allowed several studies that used composite measures that include assessment of the pulmonary capillary wedge pressure (PCWP) to assess diastolic function. One study used a mean e′ < 8 and/or a mean E/e′ > 13, and another study used a lateral e′ < 8 and/or an E/e′ > 8. The E/e′ ratio has been shown to correlate with the PCWP in critically ill patients.³² The addition of the E/A ratio to the tissue Doppler velocity is unnecessary, and could also have led to an underestimation of the incidence of diastolic function in this study.

Conclusions

This review found an incidence of diastolic dysfunction using tissue Doppler imaging of 20–92% in 1365 patients. Three studies found that diastolic dysfunction is an independent predictor of mortality in this patient population but this must be interpreted in the context of the high heterogeneity of the studies combined with the as yet unquantified effects of ICU therapies on tissue Doppler imaging. Future research should focus on the definition of normal values for diastolic function in critically ill patients, the effects of ICU therapies and consensus criteria for its assessment in this patient population. The results could inform interventional studies looking at preventative measures and potential treatments.

Footnotes

Acknowledgements

We would like to thank Dr Payashi Garry for reviewing the manuscript and Dr Stuart McKechnie for statistical advice.

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

References

MacLean

Mulligan

McLean

. Patterns of septic shock in man–a detailed study of 56 patients. Ann Surg 1967; 166: 543–562.

Parker

Shelhamer

Bacharach

. Profound but reversible myocardial depression in patients with septic shock. Ann Int Med 1984; 100: 483–490.

Orde

Pulido

Masaki

. Outcome prediction in sepsis: Speckle tracking echocardiography based assessment of myocardial function. Crit Care 2014; 18: R149.

Nagueh

Appleton

Gillebert

. Recommendations for the evaluation of left ventricular diastolic function by echocardiography. Eur J Echocardiogr 2009; 10: 165–193.

Vignon

Allot

Lesage

. Diagnosis of left ventricular diastolic dysfunction in the setting of acute changes in loading conditions. Crit Care 2007; 11: R43.

Jacques

Pinsky

Severyn

. Influence of alterations in loading on mitral annular velocity by tissue Doppler echocardiography and its associated ability to predict filling pressures. Chest 2004; 126: 1910–1918.

Paulus

Tschope

Sanderson

. How to diagnose diastolic heart failure: A consensus statement on the diagnosis of heart failure with normal left ventricular ejection fraction by the Heart Failure and Echocardiography Associations of the European Society of Cardiology. Eur Heart J 2007; 28: 2539–2550.

Aurigemma

Gaasch

. Clinical practice. Diastolic heart failure. N Engl J Med 2004; 351: 1097–1105.

Aurigemma

. Diastolic heart failure–a common and lethal condition by any name. N Engl J Med 2006; 355: 308–310.

10.

Wells GA, Shea B, O'Connell D, et al. The Newcastle-Ottawa Scale (NOS) for assessing the quality of nonrandomised studies in meta-analyses [19/01/2015]. http://www.ohri.ca/programs/clinical_epidemiology/oxford.asp.

11.

Mourad

Chow-Chine

Faucher

. Early diastolic dysfunction is associated with intensive care unit mortality in cancer patients presenting with septic shock. Br J Anaesth 2014; 112: 102–109.

12.

Landesberg

Jaffe

Gilon

. Troponin elevation in severe sepsis and septic shock: The role of left ventricular diastolic dysfunction and right ventricular dilatation. Crit Care Med 2014; 42: 790–800.

13.

Sturgess

Parmar

Dulhunty

. A preliminary evaluation of plasma b-type natriuretic peptide as a screening test for left ventricular diastolic dysfunction in non-cardiac intensive care. Anaesth Intensive Care 2013; 41: 591–595.

14.

Bergenzaun

Ohlin

Gudmundsson

. High-sensitive cardiac Troponin T is superior to echocardiography in predicting 1-year mortality in patients with SIRS and shock in intensive care. BMC Anesthesiol 2012; 12: 25.

15.

Furian

Aguiar

Prado

. Ventricular dysfunction and dilation in severe sepsis and septic shock: Relation to endothelial function and mortality. J Crit Care 2012; 27: 319.e9–15.

16.

Landesberg

Gilon

Meroz

. Diastolic dysfunction and mortality in severe sepsis and septic shock. Eur Heart J 2012; 33: 895–903.

17.

Mahjoub

Benoit-Fallet

Airapetian

. Improvement of left ventricular relaxation as assessed by tissue Doppler imaging in fluid-responsive critically ill septic patients. Intensive Care Med 2012; 38: 1461–1470.

18.

Sturgess

Marwick

Joyce

. Prediction of hospital outcome in septic shock: A prospective comparison of tissue Doppler and cardiac biomarkers. Crit Care 2010; 14: R44.

19.

Ikonomidis

Nikolaou

Dimopoulou

. Association of left ventricular diastolic dysfunction with elevated NT-pro-BNP in general intensive care unit patients with preserved ejection fraction: A complementary role of tissue Doppler imaging parameters and NT-pro-BNP levels for adverse outcome. Shock 2010; 33: 141–148.

20.

Meaudre

Jego

Kenane

. B-type natriuretic peptide release and left ventricular filling pressure assessed by echocardiographic study after subarachnoid hemorrhage: a prospective study in non-cardiac patients. Crit Care 2009; 13: R76.

21.

Tanabe

Crago

Suffoletto

. Relation of elevation in cardiac troponin I to clinical severity, cardiac dysfunction, and pulmonary congestion in patients with subarachnoid hemorrhage. Am J Cardiol 2008; 102: 1545–1550.

22.

Bouhemad

Nicolas-Robin

Arbelot

. Isolated and reversible impairment of ventricular relaxation in patients with septic shock. Crit Care Med 2008; 36: 766–774.

23.

Etchecopar-Chevreuil

Francois

Clavel

. Cardiac morphological and functional changes during early septic shock: A transesophageal echocardiographic study. Intensive Care Med 2008; 34: 250–256.

24.

Mokart

Sannini

Brun

. N-terminal pro-brain natriuretic peptide as an early prognostic factor in cancer patients developing septic shock. Crit Care 2007; 11: R37.

25.

Sturgess

Marwick

Joyce

. Tissue Doppler in critical illness: A retrospective cohort study. Crit Care 2007; 11: R97.

26.

Bouhemad

Nicolas-Robin

Benois

. Echocardiographic Doppler assessment of pulmonary capillary wedge pressure in surgical patients with postoperative circulatory shock and acute lung injury. Anesthesiology 2003; 98: 1091–1100.

27.

Mousavi

Czarnecki

Ahmadie

. The utility of tissue Doppler imaging for the noninvasive determination of left ventricular filling pressures in patients with septic shock. J Intensive Care Med 2010; 25: 163–167.

28.

Brown

Pittman

Hirshberg

. Diastolic dysfunction and mortality in early severe sepsis and septic shock: a prospective, observational echocardiography study. Crit Ultrasound J 2012; 4: 8.

29.

Pulido

Afessa

Masaki

. Clinical spectrum, frequency, and significance of myocardial dysfunction in severe sepsis and septic shock. Mayo Clinic Proc 2012; 87: 620–628.

30.

Landesberg G, Levin PD, Gilon D, et al. Myocardial dysfunction in severe sepsis and septic shock - no correlation with inflammatory cytokines in real-life clinical setting. Chest 2015.

31.

Sanderson

Tatt

Higgins

. Tools for assessing quality and susceptibility to bias in observational studies in epidemiology: A systematic review and annotated bibliography. Int J Epidemiol 2007; 36: 666–676.

32.

Vignon

AitHssain

Francois

. Echocardiographic assessment of pulmonary artery occlusion pressure in ventilated patients: A transoesophageal study. Crit Care 2008; 12: R18.
