Inflammation in dry eye associated with rheumatoid arthritis: Cytokine and in vivo confocal microscopy study

Abstract

The purpose of this research was to study ocular surface inflammation in relation to systemic disease activity in rheumatoid arthritis (RA) patients with or without secondary Sjögren’s syndrome (SSII and non-SSII respectively). The study was conducted in two phases. In phase I, 12 patients with active RA SSII and 12 with active RA non-SSII were consecutively enrolled. Each completed an Ocular Surface Disease Index (OSDI) questionnaire and underwent a full eye exam and in vivo confocal microscopy examination of the cornea. Tear fluid samples were collected in sponges and analyzed for IL-1α, -6, and -8, and TNF-α. When RA activity was suppressed by systemic treatment the patients entered phase II of the study in which all of the phase I examinations were repeated. In RA SSII patients, OSDI, fluorescein staining dendritic cell density, and concentrations of IL-1α and IL-6 decreased significantly (P < 0.01) between phases I and II. Tear breakup time scores increased significantly. For RA non-SSII patients, there were no significant differences between phases I and II. Differences in the clinical, cellular and cytokine responsiveness to systemic RA treatments show that the ocular surface pathology is dissimilar for RA SSII and RA non-SSII patients.

Keywords

Rheumatoid arthritis Sjögren’s syndrome dry eye confocal microscopy inflammation

Introduction

Rheumatoid arthritis (RA) is a chronic inflammatory disease of unknown etiology that involves most joints, but it also has systemic involvement. The RA course is chronic, occurring in most cases with quiescent phases alternating with relapses.^1,2 The systemic disease may involve the respiratory, cardiovascular, nervous and renal systems, as well as the skin and eyes.^1,3,4

Keratoconjunctivitis sicca (KCS) is the most frequent ocular complication of RA. Based upon extended diagnostic criteria, the prevalence of KCS among RA patients might be about 90%.⁵ Approximately 11–31% of RA patients have secondary Sjögren’s syndrome (RA SSII), in which the most prevalent clinical sign is KCS. The pathogenic processes of the ocular surface in patients with RA, with or without SSII (RA non-SSII), and the potential correlations with the systemic inflammatory disease have been reported.^5–7 The purpose of this study was to investigate the ocular surface inflammatory changes in relation to systemic disease activity in RA SSII and RA non-SSII patients.

Materials and methods

All patients in this study signed an informed consent agreement in compliance with the Italian privacy law. The patients were treated in accordance with the criteria of the Helsinki Declaration. This study was approved by the institutional review board at the Fondazione Ospedale Maggiore Policlinico, Mangiagalli e Regina Elena, IRCCS, Milan, Italy. The study was performed in two phases. In phase I, patients with active RA SSII and RA non-SSII were given clinical exams with ocular surfaces imaging by confocal microscopy, and tear samples were collected (described later). Each patient was then treated medically for RA as described later. When the RA was in remission, the patients entered Phase II of the study in which the examinations of phase I were repeated.

Phase I

Patients

Twelve patients with active RA SSII (12 women, average age 51 years, range 44–63 years) and 12 patients with active RA non-SSII (10 women and 2 men; average age 48.8 years, range 42–64 years) were recruited consecutively (Table 1). All patients were screened at the Dipartimento di Reumatologia Ospedale Gaetano Pini, Milan, Italy, and were diagnosed and classified according to the latest American College of Rheumatology/European League Against Rheumatism criteria.⁸ The diagnosis of SSII was conducted in accordance with the criteria of American–European Consensus Group.⁹ The activity of the disease was evaluated with the disease activity score 28 (DAS 28). Patients with DAS 28 > 3.2 were considered to be in the active phase, so also included moderate RA activity.^10,11

Table 1.

Baseline anagraphical and clinical data.

	Age	Gender (female: rate, %)	RA duration (months)	DAS 28 score	N swollen joints	N tender joints	RF positive (rate, %)	CRP (mg/l)	ESR (mm/h)	a-SSA positive (rate, %)	a-SSB positive (rate, %)
RA SSII	51.4 ± 6.1	12/12, 100%	13.7 ± 5.1	4.8 ± 0.6	13.0 ± 2.9	14.4 ± 3.6	9/12, 75%	14.5 ± 3.5	36.7 ± 5.4	12/12, 100%	10/12, 100%
RA non-SSII	48.8 ± 7.4	10/12, 83%	13.5 ± 4.1	4.6 ± 0.7	11.7 ± 3.1	13.9 ± 3.0	11/12, 92%	15.6 ± 4.6	37.8 ± 10.9	–	–

Potential patients were excluded if they had lymphoma; AIDS; sarcoidosis; diabetes mellitus; dystrophies or infections of the ocular surface; systemic treatments with drugs of known corneal toxicity; local treatments with drugs for glaucoma and steroidal or non-steroidal anti-inflammatory drugs; wore contact lenses; or previous ophthalmic surgery.

Clinical examination

An accurate medical history was taken for each patient in the study and all patients completed a questionnaire for a standardized evaluation of dry eye-related symptoms (Ocular Surface Disease Index; OSDI). All patients included in the study underwent a thorough ophthalmic evaluation, including biomicroscopic examination of ocular adnexa and anterior segment, evaluation of tear breakup time (BUT), corneal surface staining with sodium fluorescein 1% collyrium and bulbar conjunctival staining with lissamine green, which was evaluated by the Collaborative Longitudinal Evaluation of Keratoconus scheme.¹² Corneal apex sensitivity was evaluated with a Cochet-Bonnet nylon thread aesthesiometer (Luneau Ophtalmologie, Chartres, France) and tear secretion was evaluated by the Schirmer test with oxybuprocaine cloridrate 0.4%.¹³ Both eyes were examined in all subjects. For statistical analysis, the eye with the highest fluorescein staining score was selected. In case of equal scores for the two eyes, the discriminant criteria considered were, by order of relevance, the conjunctival staining and the Schirmer test.

Confocal microscopy

Images acquisition

All patients underwent corneal scanning laser digital confocal microscopy with the Heidelberg Retina Tomograph (HRT) II Corneal Rostock Module (Heidelberg Engineering, Dossenheim, Germany) using a scanning wavelength of 670 nm. The objective lens (Zeiss 63 × immersion) was covered by a polymethacrylate sterile cap and had a working distance of 0.0–2.0 mm. Before each examination, a drop of oxybuprocaine chlorohydrate 0.4% and an ophthalmic gel (polyacrylic gel 0.2%) were instilled separately in the conjunctival fornix. The duration of each confocal exam was between 4 and 6 min.

The examination with the confocal microscope was conducted over an area of 400 × 400 µm, approximately at the corneal apex, with the help of an accessory digital camera set perpendicularly to the lens. With the microscope in the acquisition modality ‘Section Mode’, we manually acquired frames beginning with the sub-basal plexus nerve fibers and then progressed through the anterior and posterior stroma. Image acquisition was repeated three times consecutively, from the superficial to the deep layers.

Image analysis

For statistical analysis we selected the best quality image of the sub-basal plexus from each of the three antero-posterior scans. Similarly, we selected the first good image of the anterior stroma taken after passage through the sub-basal plexus. For the posterior stroma, we selected the last good image that appeared just before the endothelium. Each confocal microscopy variable was obtained by averaging the results of the three scans.

All images were analyzed by the same masked investigator. By quantifying the cell number in a standardized region of interest (0.05 mm²), we quantified the apparent cell densities (cell/mm²) of the anterior and the posterior stroma and the density of the sub-basal dendritic cells. As described previously, we also quantified the number of activated keratocytes (hyper-reflective stromal cells), the number of the sub-basal plexus nerve fibers visible in one frame, and the tortuosity of those fibers that was graded on a scale of 0–4.^14,15 We also counted the number of bead-like formations per 100 µm of nerve fiber.⁷A second independent investigator analyzed the images, quantifying the cell density in the different layers and the number of bead-like formations. These data were used to calculate the inter-observer variances.

Tear fluid collection

At least 30 min after the end of the clinical and confocal examinations, tear fluid was collected from all patients using polyurethane absorbent mini-sponges (PeleTim; VOCO, Cuxhaven, Germany).¹⁶ The patient was asked to communicate any discomfort during the procedure. A dry mini-sponge was laid in the outer third of the lower conjunctival fornix for about 5 min. The sponge was recovered and placed in the narrow end of a truncated tip of a Gilson micropipette adapted to an Eppendorf tube and centrifuged at 4000 g for 5 min. The amount of absorbed tear fluid was quantified by weighing the sponge within the micropipette tip and the Eppendorf tube both before and after the tear collection. Tear collection was repeated two more times consecutively for each patient. All samples were collected and stored at –80℃.

Phase II

Patients and treatments

Each patient, at the rheumatologist’s indication, started RA systemic therapy soon after phase I and were treated with prednisone, starting with 1 mg/kg and adopting a tapering scheme, and methotrexate, 0.3 mg/kg/wk. The rheumatologist evaluated all patients 8 wk after phase I and then every 2 wk until remission of the RA activity, as determined by a DAS 28 < 2.6.¹¹ Patients were then directed to our clinic for the phase II visit. No topical drugs were allowed between the phase I and phase II visits.

Examinations

Each patient underwent an anamnestic update to verify compliance with the inclusion and exclusion criteria. Following the update, clinic examination, confocal microscopy and tear fluid collection were performed as described in phase I.

Cytokine assay

Human IL-1α, IL-6, IL-8 and TNF-α in the tear samples collected from Phases I and II were assayed in duplicate using ELISA kits (Bender MedSystems, Vienna, Austria).^17,18

Statistical analysis

All data were expressed as means ± SD. The tortuosity of nerve fibers was treated as a non-parametric variable. Because in some cases the concentrations of IL-1α, IL-6, IL-8 and TNF-α may be too low to be measured, these were also treated as non-parametric variables.

The statistical analysis was conducted with commercial software (SPSS for Windows, ver. 12.0; SPSS, Chicago, IL, USA). The comparisons of RA with SSII versus RA non-SSII at phases I and II were done using the t-test for independent samples for parametric variables and the Mann–Whitney U test for non-parametric variables. Comparisons within each group of patients between phases I and II were done with the t-test for repeated measures for parametric variables and with the Wilcoxon test for non-parametric variables. The minimum criterion for tests of significance was P < 0.01.

For each variable in which we found no significant difference between phase I and phase II data, we calculated the minimum detectable difference (MDD; β = 0.80) for that variable. Correlations among variables were analyzed with Spearman’s index of linear correlation. The minimum criterion for tests of significance was P < 0.01.

Results

Phase I

We collected 44.7 ± 6.2 µl of tear fluid from RA with SSII patients and 48.4 ± 7.5 µl from RA non-SSII patients. There was no statistically significant difference between RA SSII and RA non-SSII for any of the clinical, confocal or cytokine variables.

Phase II

In phase II, we collected tears from each patient after he/she was in remission, as determined by the DAS 28 score. We collected 52.1 ± 7.3 µl of tear fluid for RA SSII patients and 45.8 ± 7.8 µl of tear fluid for RA non-SSII patients. The only variable that was significantly different between RA SSII and RA non-SSII patients was IL-1α (86.27 ± 81.69 pg/ml and 212.17 ± 118.65 pg/ml respectively; P < 0.01; Mann–Whitney test).

Phase I versus phase II

Clinical data

In RA SSII patients, OSDI and fluorescein staining were significantly decreased in phase II compared to phase I, and BUT was significantly increased (P < 0.01 for all comparisons, t-test for repeated measures).

In patients with RA non-SSII, there were no significant differences between OSDI, BUT, fluorescein staining, lissamine staining, corneal sensitivity or Schirmer values between phases I and II (Table 2).

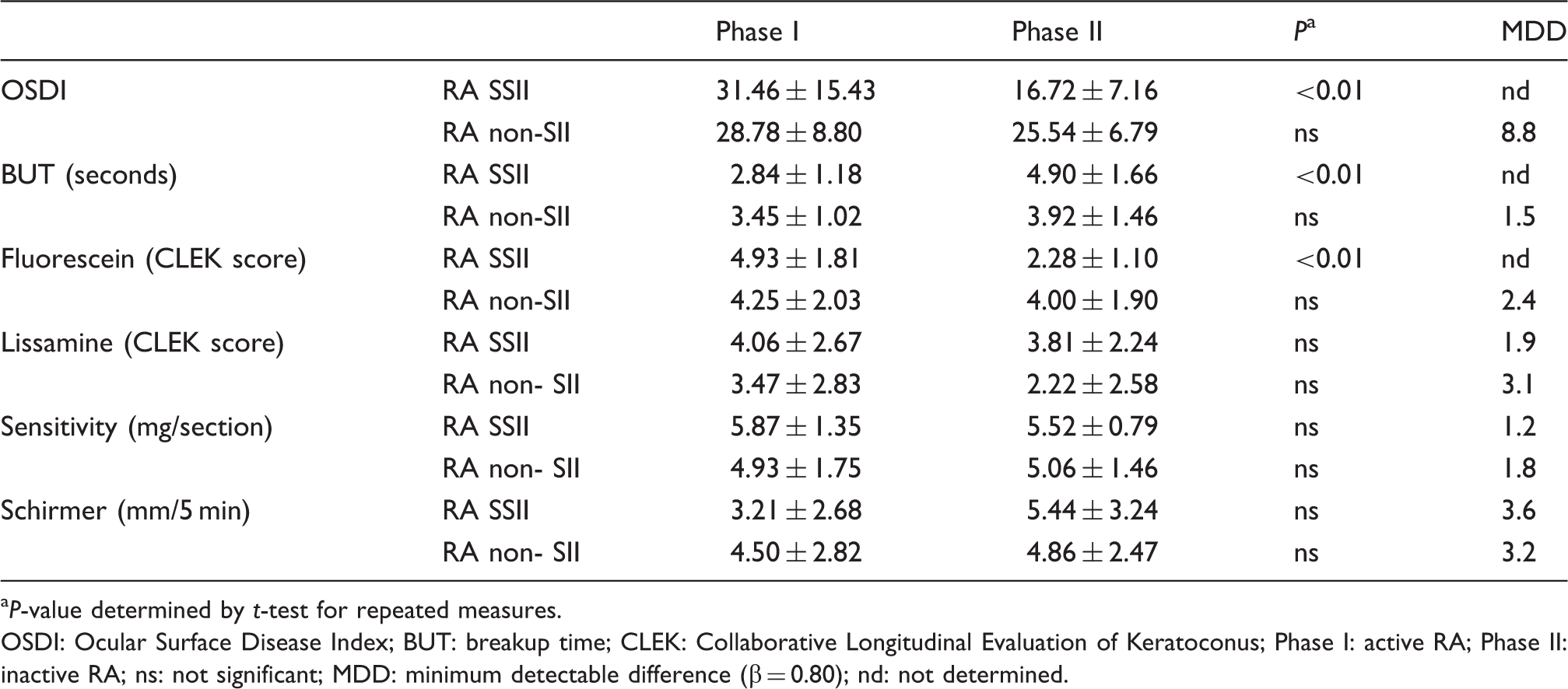

Table 2.

Ocular surface clinical data: Phase I versus phase II.

		Phase I	Phase II	P ^a	MDD
OSDI	RA SSII	31.46 ± 15.43	16.72 ± 7.16	<0.01	nd
OSDI	RA non-SII	28.78 ± 8.80	25.54 ± 6.79	ns	8.8
BUT (seconds)	RA SSII	2.84 ± 1.18	4.90 ± 1.66	<0.01	nd
BUT (seconds)	RA non-SII	3.45 ± 1.02	3.92 ± 1.46	ns	1.5
Fluorescein (CLEK score)	RA SSII	4.93 ± 1.81	2.28 ± 1.10	<0.01	nd
Fluorescein (CLEK score)	RA non-SII	4.25 ± 2.03	4.00 ± 1.90	ns	2.4
Lissamine (CLEK score)	RA SSII	4.06 ± 2.67	3.81 ± 2.24	ns	1.9
Lissamine (CLEK score)	RA non- SII	3.47 ± 2.83	2.22 ± 2.58	ns	3.1
Sensitivity (mg/section)	RA SSII	5.87 ± 1.35	5.52 ± 0.79	ns	1.2
Sensitivity (mg/section)	RA non- SII	4.93 ± 1.75	5.06 ± 1.46	ns	1.8
Schirmer (mm/5 min)	RA SSII	3.21 ± 2.68	5.44 ± 3.24	ns	3.6
Schirmer (mm/5 min)	RA non- SII	4.50 ± 2.82	4.86 ± 2.47	ns	3.2

P-value determined by t-test for repeated measures.

OSDI: Ocular Surface Disease Index; BUT: breakup time; CLEK: Collaborative Longitudinal Evaluation of Keratoconus; Phase I: active RA; Phase II: inactive RA; ns: not significant; MDD: minimum detectable difference (β = 0.80); nd: not determined.

Confocal data

Comparing phase I with phase II, there were no significant differences between the densities of the anterior or posterior activated hyper-reflective and normal stromal cells in both RA with SSII and RA non-SSII patients (Figure 1; Table 3).

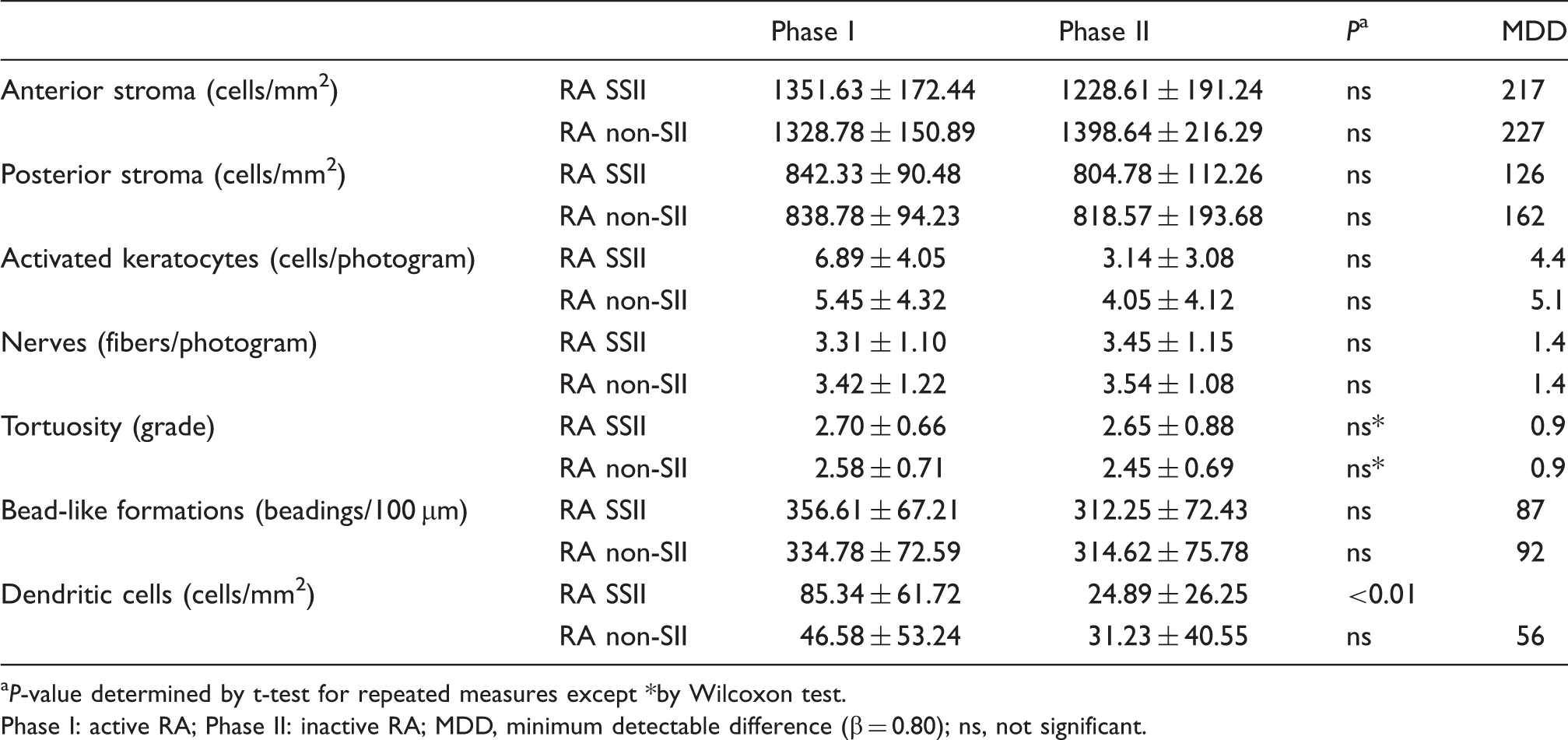

Table 3.

Confocal microscopy data: Phase I versus phase II.

		Phase I	Phase II	P ^a	MDD
Anterior stroma (cells/mm²)	RA SSII	1351.63 ± 172.44	1228.61 ± 191.24	ns	217
Anterior stroma (cells/mm²)	RA non-SII	1328.78 ± 150.89	1398.64 ± 216.29	ns	227
Posterior stroma (cells/mm²)	RA SSII	842.33 ± 90.48	804.78 ± 112.26	ns	126
Posterior stroma (cells/mm²)	RA non-SII	838.78 ± 94.23	818.57 ± 193.68	ns	162
Activated keratocytes (cells/photogram)	RA SSII	6.89 ± 4.05	3.14 ± 3.08	ns	4.4
Activated keratocytes (cells/photogram)	RA non-SII	5.45 ± 4.32	4.05 ± 4.12	ns	5.1
Nerves (fibers/photogram)	RA SSII	3.31 ± 1.10	3.45 ± 1.15	ns	1.4
Nerves (fibers/photogram)	RA non-SII	3.42 ± 1.22	3.54 ± 1.08	ns	1.4
Tortuosity (grade)	RA SSII	2.70 ± 0.66	2.65 ± 0.88	ns*	0.9
Tortuosity (grade)	RA non-SII	2.58 ± 0.71	2.45 ± 0.69	ns*	0.9
Bead-like formations (beadings/100 µm)	RA SSII	356.61 ± 67.21	312.25 ± 72.43	ns	87
Bead-like formations (beadings/100 µm)	RA non-SII	334.78 ± 72.59	314.62 ± 75.78	ns	92
Dendritic cells (cells/mm²)	RA SSII	85.34 ± 61.72	24.89 ± 26.25	<0.01
Dendritic cells (cells/mm²)	RA non-SII	46.58 ± 53.24	31.23 ± 40.55	ns	56

P-value determined by t-test for repeated measures except *by Wilcoxon test.

Phase I: active RA; Phase II: inactive RA; MDD, minimum detectable difference (β = 0.80); ns, not significant.

Figure 1.

Hyper-reflective and normal low-reflective stromal cells. Activated keratocytes were detected as hyper-reflective cells (arrows) in the stroma of this secondary Sjögren’s syndrome phase I patient.

For RA SSII patients, the phase II density of the dendritic cells of the sub-basal layer was significantly reduced compared with phase I (Figure 2). However, there were no significant differences between phases I and II in nerve density, tortuosity or bead-like formations. For RA non-SSII patients, there were no differences between phases I and II in nerve density, tortuosity, bead-like formations or dendritic cell density.

Figure 2.

Sub-basal dendritic cells. (A) In phase I, several sub-basal dendritic cells were apparent in this RA SSII patient. (B) For the same patient in phase II, no clearly recognizable dendritic cells were present. In RA non-SSII patients, the density of sub-basal dendritic cells did not change between phase I (C) and phase II (D).

The inter-observer variance was 18%, 26% and 10% for the number of activated keratocytes, the number of bead-like formation and the density of dendritic cells respectively. For all the three variables, values calculated by the two investigators showed a strong correlation (P < 0.001; Spearman).

Cytokine data

In patients with RA SSII, there was a significant reduction in the concentrations of IL-1α and IL-6 between phases I and II (P < 0.001; Wilcoxon test) (Table 4). For IL-8 and TNF-α, there were no significant treatment-related changes. For patients with RA non-SSII, there were no significant changes in cytokine concentrations between Phases I and II.

Table 4.

Cytokine concentrations in tear fluid: Phase I versus phase II.

		Phase I	Phase II	P ^a	MDD
IL-1α (pg/ml)	RA SSII	358.02 ± 160.13	86.27 ± 81.69	<0.001	nd
IL-1α (pg/ml)	RA non SII	239.55 ± 105.28	212.17 ± 118.65	ns	139
IL-6(pg/ml)	RA SSII	56.21 ± 18.33	18.84 ± 16.20	<0.001	nd
IL-6(pg/ml)	RA non SII	27.77 ± 14.56	25.03 ± 16.50	ns	19
IL-8(pg/ml)	RA SSII	427 ± 212.37	389 ± 202.11	ns	258
IL-8(pg/ml)	RA non SII	416.58 ± 311.62	450.86 ± 268.16	ns	351
TNF-α(pg/ml)	RA SSII	207.66 ± 82.45	202.41 ± 76.14	ns	100
TNF-α(pg/ml)	RA non SII	132.26 ± 34.75	155.73 ± 28.18	ns	46

P-value determined by Wilcoxon test.

Phase I: active RA; Phase II: inactive RA; MDD, minimum detectable difference (β = 0.80); ns, not significant; nd, not determined.

Correlations

We analyzed five sets of correlative data: (i) number of dendritic cells versus number of activated keratocytes; (ii) number of bead-like formations versus tortuosity of the fibers, (iii) concentration of IL-1α versus corneal staining with fluorescein, (iv) concentration of IL-1α vs. concentration of IL-6; (v) concentration of IL-1α versus number of dendritic cells. In each case, the correlation was highly significant (P < 0.01, Spearman’s index of linear correlation).

Discussion

Confocal microscopy and other new approaches that offer us a real or optical ‘sampling’ of the ocular surface are providing new information regarding the pathogenesis of ocular surface diseases. In vivo confocal microscopy is an emerging non-invasive technology which enables microstructural analysis of the cornea and several ocular surface components, allowing fresh insight into their structure in health and in several pathological conditions.^7,19–21 While still evolving methodologically and technically, the quantitative approach to confocal microscopy increases the potential usefulness of this technology.

Despite the many obvious methodological limitations, this study offers new data about ocular surface inflammation associated with RA and about the pathogenesis of SS and non-SS autoimmune dry eye.

Recently, the International Dry Eye Workshop inserted the concept of inflammation into the definition of dry eye.²² The role of this pathogenic aspect is particularly evident in KCS associated with inflammatory autoimmune pathologies. In a previous study using confocal microscopy⁷ we quantified in RA patients the number of hyper-reflective corneal keratocytes, which are indicators of activated stromal cells. We also reported the density of neuronal bead-like formations, which are signs of metabolic activation.⁷ The changes in keratocytes and bead-like formations were consistent with changes in inflammation of the ocular surface of the patients. Mastropasqua et al.²³ first described the presence of sub-basal dendritic cells, such as antigen presenting cells, as indicators of inflammation.

In the present study, the number of activated keratocytes was correlated significantly with the density of dendritic cells. While the decrease in activated keratocytes in patients with RA SSII was not significant, this may have been owing to the small size of the study population. If the decrease is subtle but real, this could be detected with a larger sample size. In this case, the decrease would support the interpretation of these hyper-reflective keratocytes as a sign of inflammation.^7,14

There was no detectable change in the density of bead-like formations between phases I and II for either group of RA patients. This finding raises doubts about the reliability of the bead-like formations as an indicator of the corneal inflammatory status.²⁴ Additional studies may be necessary to clarify the nature of these structures in the context of corneal damage and regeneration of the nerve fibers.

We quantified the concentration of some inflammatory cytokines in tear fluid to determine how they varied with the clinical and confocal data. Collection of tears for cytokine assay is a way of ‘sampling’ the ocular surface,¹³ but required us to choose between methods that would obtain very small samples of tears and others that would induce a degree of reflex tearing that enabled the collection of larger volumes. The purpose of our work was not to obtain the absolute concentration of the cytokines, but to compare the concentration of cytokines in the same patient in phases I and II. Therefore, we decided to ensure sufficient tear volumes by the induction of reflex tearing. By strictly using the same standardized sampling procedure for phases I and II we ensured a valid comparison between before and after treatment phases.

There are a number of cytokines involved in inflammatory diseases of the ocular surface. However, we obtained sufficient volume of tears for the study of only four of them. We chose IL-1αIL-6, IL-8 and TNF-α because they are involved in both ocular inflammation and in RA. Future studies, performed with techniques which allow the study of a greater number of cytokines, may provide important information, exploring also the balance between pro- and anti-inflammatory cytokines (i.e. IL-10).

Increased levels of inflammatory mediators, including pro-inflammatory cytokines and chemokines such as the ones we chose for study, have been detected in the tear fluid and/or conjunctival epithelium of patients with KCS.^17,25–27

Clinical evidence indicates that these inflammatory mediators are relevant in the pathogenesis of KCS. Anti-inflammatory therapies that target components of the inflammatory response to dry eye are effective.²⁸ Moreover, IL-1 is a potent inducer of other inflammatory cytokines, such as IL-6 and TNF-α and of chemokines, such as IL-8.²⁹ Pro-inflammatory cytokines are also important in RA. Various cytokines, including IL-1α, TNF-α, IL-6 and IL-8, are present in the synovial fluid and tissue of RA patients.^29,30 Intervention therapy using blockers of TNF-α, IL-1α and IL-6 have remarkable therapeutic efficacies.^31–36 These findings indicate that these pro-inflammatory cytokines play crucial roles in the pathogenesis of RA.³⁷

Our results showed that IL-1α and IL-6, but not IL-8 or TNF-α, decreased significantly at the ocular surface of RA SSII patients with the reduction of the systemic disease activity. It is difficult to clearly explain these results, but they might be attributed to the existence of different response times.

A limitation of this study is the small number of patients and its potential effect on the power of the statistical tests. To check this, in each case in which we found no significant differences between phase I and phase II data, we calculated the MDD with α = 0.01 and β = 0.80. The values we obtained were in all cases reasonable from a biological point of view. This provides indirect reassurance regarding the statistical power of our analysis.

The clinical, confocal and cytokine data revealed differences between RA SSII and RA non-SSII patients in the behavior of the ocular surface inflammation when the systemic disease activity decreased. Previously, we found an association between systemic RA non-SSII activity and the number of bead-like formations and activated keratocytes.⁷ We interpreted these associations as signs of ocular surface inflammation. Here, we tried to clarify this issue by analyzing the ocular surface disease activity in both the active and inactive phases of RA. However, in this study, we could not confirm the previously hypothesized association.

Fujita et al.⁵ found a significant correlation between RA activity and some clinical tests for KCS in patients with RA SSII. Our results show important links between RA activity and the inflammation of the ocular surface in SSII patients. These links are not present in patients with RA non-SSII. It is possible that in RA non-SSII patients, KCS is associated with local pathogenic mechanisms more than with the systemic inflammation. These results support Lemp’s⁶ hypothesis that ocular surfaces of RA SSII and RA non-SSII patients have very different pathogenic processes, but that they often lead to similar clinical findings. Thus, the molecular mechanisms in the pathogenesis of KCS and ocular surface inflammation in patients with autoimmune diseases with or without SSII must be clarified.

Footnotes

Acknowledgment

Edoardo Villani had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

References

Grassi

De Angelis

Lamanna

Cervini

. The clinical features of rheumatoid arthritis. Eur J Radiol 1998; 27(Suppl. 1)S18–S24.

Scutellari

Orzincolo

. Rheumatoid arthritis: sequences. Eur J Radiol 1998; 27(Suppl. 1)S31–S38.

Robin

Dugel

. Immunologic disorders of the cornea and conjunctiva, New York: Churchill Livingstone, 1988, pp. 533–537.

Jabs

. Ocular manifestations of the rheumatic diseases, Philadelphia: JB Lippincott, 1992, pp. 1–5.

Fujita

Igarashi

Kurai

. Correlation between dry eye and rheumatoid arthritis activity. Am J Ophthalmol 2005; 140: 808–813.

Lemp

. Dry eye (keratoconjunctivitis sicca), rheumatoid arthritis, and Sjogren’s syndrome. Am J Ophthalmol 2005; 140: 898–899.

Villani

Galimberti

Viola

. Corneal involvement in rheumatoid arthritis: an in vivo confocal study. Invest Ophthalmol Vis Sci 2008; 49: 560–564.

Aletaha

Neogi

Silman

. 2010 Rheumatoid arthritis classification criteria: an American College of Rheumatology/European League Against Rheumatism collaborative initiative. Arthritis Rheum 2010; 62: 2569–2581.

Vitali

Bombardieri

Jonsson

. Classification criteria for Sjogren’s Syndrome: a revised version of the European criteria proposed by the American-European Consensus Group. Ann Rheum Dis 2002; 61: 554–558.

10.

Prevoo

MLL

van't Hof

Kuper

. Modified disease activity scores that include twenty-eight-joint counts. Development and validation in a prospective longitudinal study of patients with rheumatoid arthritis. Arthritis Rheum 1995; 38: 44–48.

11.

Wells

Becker

Teng

. Validation of the 28-joint Disease Activity Score (DAS28) and European League Against Rheumatism response criteria based on C-reactive protein against disease progression in patients with rheumatoid arthritis, and comparison with the DAS28 based on erythrocyte sedimentation rate. Ann Rheum Dis 2009; 68: 954–960.

12.

Barr

Schechtman

Fink

. Corneal scarring in the Collaborative Longitudinal Evaluation of Keratoconus (CLEK) Study: baseline prevalence and repeatability of detection. Cornea 1999; 18: 34–46.

13.

Methodologies to diagnose and monitor dry eye disease: report of the Diagnostic Methodology Subcommittee of the International Dry Eye Work Shop (2007). Ocul Surf 2007; 5: 108–152.

14.

Villani

Galimberti

Viola

. The cornea in Sjögren’s syndrome: an in vivo confocal study. Invest Ophthalmol Vis Sci 2007; 48: 2017–2022.

15.

Tuisku

Konttinen

Tervo

. Alterations in corneal sensitivity and nerve morphology in patients with primary Sjögren's syndrome. Exp Eye Res 2008; 86: 879–885.

16.

López-Cisternas

Castillo-Díaz

Traipe-Castro

López-Solís

. Use of polyurethane minisponges to collect human tear fluid. Cornea 2006; 25: 312–318.

17.

Solomon

Dursun

Liu

. Pro- and anti-forms of interleukin-1 in the tear fluid and conjunctiva of patients with dry-eye disease. Invest Ophthalmol Vis Sci 2001; 42: 2283–2292.

18.

Sack

Vijmasi

. Antibody protein array analysis of the tear film cytokines. Optom Vis Sci 2008; 85: 653–660.

19.

Villani

Ceresara

Beretta

. In vivo confocal microscopy of meibomian glands in contact lens wearers. Invest Ophthalmol Vis Sci 2011; 52: 5215–5219.

20.

Villani

Beretta

Galimberti

. In vivo confocal microscopy of conjunctival roundish bright objects: young, older, and Sjögren subjects. Invest Ophthalmol Vis Sci 2011; 52: 4829–4832.

21.

Villani

Beretta

De Capitani

. In vivo confocal microscopy of meibomian glands in Sjögren's syndrome. Invest Ophthalmol Vis Sci 2011; 52: 933–939.

22.

The definition and classification of dry eye disease: report of the Definition and Classification Subcommittee of the International Dry WorkShop (2007). Ocul Surf 2007; 5: 75–92.

23.

Mastropasqua

Nubile

Lanzini

. Epithelial dendritic cell distribution in normal and inflamed human cornea: in vivo confocal microscopy study. Am J Ophthalmol 2006; 142: 736–744.

24.

Benitez del Castillo

Acosta

Wassfi

. Relation between corneal innervation with confocal microscopy and corneal sensitivity with noncontact esthesiometry in patients with dry eye. Invest Ophthalmol Vis Sci 2007; 48: 173–181.

25.

Jones

Monroy

. Sjögren’s syndrome: cytokine and Epstein-Barr viral gene expression within the conjunctival epithelium. Invest Ophthalmol Vis Sci 1994; 35: 3493–3504.

26.

Pflugfelder

Jones

. Altered cytokine balance in the tear fluid and conjunctiva of patients with Sjögren’s syndrome keratoconjunctivitis sicca. Curr Eye Res 1999; 19: 201–211.

27.

Yoon

Jeong

Park

Yang

. Interleukin-6 and tumor necrosis factor-alpha levels in tears of patients with dry eye syndrome. Cornea 2007; 26: 431–437.

28.

Pflugfelder

. Anti-inflammatory therapy of dry eye. Ocul Surf 2003; 1: 31–36.

29.

Selvan

Kapadia

Platt

. Complement-induced expression of chemokine genes in endothelium: regulation by IL-1-dependent and -independent mechanisms. J Immunol 1998; 161: 4388–4395.

30.

Okamoto

. NF-kappaB and rheumatic diseases. Endocr Metab Immune Disord Drug Targets 2006; 6: 359–372.

31.

Elliott

Maini

Feldmann

. Treatment of rheumatoid arthritis with chimeric monoclonal antibodies to tumor necrosis factor alpha. Arthritis Rheum 1993; 36: 1681–1690.

32.

Moreland

Baumgartner

Schiff

. Treatment of rheumatoid arthritis with a recombinant human tumor necrosis factor receptor (p75)-Fc fusion protein. N Engl J Med 1997; 337: 141–147.

33.

Bresnihan

Alvaro-Gracia

Cobby

. Treatment of rheumatoid arthritis with recombinant human interleukin-1 receptor antagonist. Arthritis Rheum 1998; 41: 2196–2204.

34.

Nishimoto

Yoshizaki

Miyasaka

. Treatment of rheumatoid arthritis with humanized anti-interleukin-6 receptor antibody: a multicenter, double-blind, placebo-controlled trial. Arthritis Rheum 2004; 50: 1761–1769.

35.

Maini

Breedveld

Kalden

. Therapeutic efficacy of multiple intravenous infusions of anti-tumor necrosis factor alpha monoclonal antibody combined with low-dose weekly methotrexate in rheumatoid arthritis. Arthritis Rheum 1998; 41: 1552–1563.

36.

Maini

St Clair

Breedveld

. Infliximab (chimeric anti-tumour necrosis factor alpha monoclonal antibody) versus placebo in rheumatoid arthritis patients receiving concomitant methotrexate: a randomised phase III trial. ATTRACT Study Group. Lancet 1999; 354: 1932–1939.

37.

Firestein

. Evolving concepts of rheumatoid arthritis. Nature 2003; 423: 356–361.
