Comparison of the bronchodilator and systemic effects of AZD3199,an inhaled ultra-long-acting β 2 -adrenoceptor agonist,with formoterol in patients with asthma

Abstract

Objectives:

Pharmacologically mediated bronchodilation is important in the management of asthma, and is primarily achieved with β₂-agonists. Novel compounds should preferably have a longer duration of action and a better systemic side effect profile than established alternatives at comparable peak bronchodilation. This single-dose crossover study was conducted to investigate and compare with formoterol the bronchodilatory and systemic effects, tolerability and safety of AZD3199, a novel ultra-long-acting β₂-agonist (uLABA).

Methods:

Patients with asthma (n = 37) were randomized to receive AZD3199 (120, 480, 1920 µg), formoterol (9, 36 µg) or placebo inhaled via a Turbuhaler™. Bronchodilation was evaluated by maximum (E_max) and average 22–26 h (E_22–26) forced expiratory volume in 1 second (FEV₁). Serum potassium was evaluated by minimum (E_min) and 0–4 h average (E_av) determined from serial measurements. AZD3199 and formoterol were compared on the basis of relative dose potency. Adverse events, clinical laboratory tests and physical examinations were markers for safety and tolerability, with plasma AZD3199 as the indicator of drug exposure.

Results:

All active treatments dose-dependently increased E_max and AZD3199 (480 and 1920 µg) and formoterol (36 µg) significantly increased E_22–26 versus placebo. Relative dose potency between AZD3199 and formoterol was 50-fold on the microgram scale with respect to E_max and 11-fold with respect to E_22–26. Small, dose-dependent effects on potassium, heart rate and QTc were seen after administration of AZD3199 compared with placebo. These well-known dose-related class effects of β₂-agonists were mild. Notably, serum potassium suppression was less pronounced after AZD3199 compared with formoterol at similar bronchodilation. Overall, AZD3199 was well tolerated.

Conclusions:

AZD3199 480 µg and 1920 µg produced 24-hour bronchodilation. At comparable peak bronchodilator effect, AZD3199 was associated with a lower level of systemic side effects than formoterol. AZD3199 was well tolerated, with no safety concerns identified to preclude further investigation.

ClinicalTrials.gov study identifier:

NCT00736489

Keywords

asthma AZD3199 bronchodilator chronic obstructive pulmonary disease

Introduction

Asthma and chronic obstructive pulmonary disease (COPD) are characterized by airway obstruction and airflow limitation. Pharmacologically mediated bronchodilation is an important component of the management of these conditions and in asthma this is primarily achieved using β₂-adrenoceptor agonists [Bateman, 2010]. Inhaled β₂-agonists provide a faster onset of action and an improved therapeutic index, as compared with oral formulations [Lofdahl and Svedmyr, 1989]. In order to maintain a sustained therapeutic effect, however, inhaled β₂-agonists should have a high affinity for airway tissue, or undergo slow release and absorption from the airway lumen, to allow retention of the drug in the lungs.

Formoterol and salmeterol are widely used β₂-agonists and a high affinity for airway tissues is believed to be responsible for their bronchodilating effects, which last at least 12 hours [Anderson et al. 1994; Palmqvist et al. 1997]. New approaches to the management of asthma and COPD have focused on the development of once-daily, well-tolerated treatments. Novel compounds should have a systemic side-effect profile that is similar to, or better than, that of inhaled formoterol at comparable peak bronchodilating effects.

AZD3199, a benzothiazolone derivative, is a novel, selective, inhaled ultra-long-acting β₂-agonist (uLABA), with a rapid onset of action that is not significantly different from that of formoterol, but is significantly faster than that of salmeterol, and has a significantly longer duration of action than both formoterol and salmeterol (see further review by Cazzola and colleagues [Cazzola et al. 2012]), characteristics that could potentially improve the pharmacological treatment of obstructive pulmonary diseases. AZD3199 has been investigated as a once-daily bronchodilator in COPD [Kuna et al. 2013]. The aim of the present study was to examine the bronchodilatory and systemic effects, tolerability and safety of AZD3199 in comparison with formoterol, both inhaled via Turbuhaler™, in patients with mild-to-moderate persistent asthma.

Materials and methods

Treatments and study design

This trial was a double-blind, placebo-controlled, randomized, six-way crossover single-dose study performed in patients with mild-to-moderate asthma at three centres in Sweden and one in Denmark.

Patients were randomized to receive AZD3199 (120, 480, 1920 µg), formoterol (9, 36 µg) or placebo, administered via a Turbuhaler™ (AstraZeneca) on six separate occasions. The Turbuhaler™ delivered doses of AZD3199 120 μg (2 × 60 μg per puff), 480 μg (2 × 240 μg per puff) and 1920 µg (8 × 240 μg per puff) were estimated to equate to 48, 192 and 768 µg lung deposited doses, based on the analysis of fine particles generated in vitro, using a computational model for extra-thoracic deposition from dry powder inhalers [DeHaan and Finlay, 2004] i.e. 40% of delivered doses. If required, Bricanyl® Turbuhaler™ (0.25 mg/inhalation) could be used as rescue medication during the clinic visits.

Objectives

The primary objective of the study was to investigate the pharmacodynamics of inhaled AZD3199 in comparison with formoterol and placebo, with assessments of forced expiratory volume in 1 second (FEV₁) and serum potassium levels.

Serial FEV₁ measurements were performed in duplicates at −30 and −15 minutes predose and then at 5, 15, 30 and 60 minutes and 2, 4, 6, 8, 10, 12, 14, 18, 22, 24 and 26 hours postdose. The magnitude of bronchodilatation, assessed as maximum FEV₁ (E_max) and duration of action, assessed as the residual effect on FEV₁ at 22–26 hours postdose (E_22–26) constituted the primary basis for evaluation of efficacy. In addition, average effects on FEV₁ over 24 hours (E_av), over the first 12 hours (E_0–12) and from 12–24 hours were examined, with FEV₁ at 5 minutes (E_{5 min}) as a measure of the onset of action.

Blood sampling for serum potassium was performed predose and then at 15, 30, 60 minutes, 2, 4, 8, 12 and 24 hours postdose. Magnitude of serum potassium suppression, assessed as minimum serum (E_min) and 0–4 hours postdose average (E_av) constituted the primary basis for evaluation of systemically mediated effect. Heart rate, QTcB, pulse, blood pressure, tremor and palpitations were similarly assessed as secondary variables for systemically mediated effects.

The safety and tolerability of AZD3199 were assessed on the basis of incidence and nature of adverse events, clinical laboratory assessments and physical examination, as a secondary objective of the study.

Drug exposure of AZD3199 was investigated by assessment of drug concentration in plasma and calculated pharmacokinetic (PK) parameters.

Inclusion and exclusion criteria

Patients were male or postmenopausal females aged ≥18 years with a minimum 6-month history of asthma. Those taking inhaled steroids prior to enrolment were allowed to continue taking them during the study period, provided that the dose was maintained at a constant level. Use of inhaled short-acting bronchodilators was permitted, except for the period prior to inhalation of study drug (≤8 h for β₂-agonist and ≤ 12 h for anticholinergic). Long-acting β₂-agonist bronchodilators were not allowed from 72 h prior to first spirometry and throughout the study period and long-acting muscarinic antagonist bronchodilators were not allowed from 48 h prior to first spirometry and throughout the study period. Patients were to be nonsmokers or exsmokers, with a prebronchodilator FEV₁ ≥60% predicted normal and ≥1.5 l. A small number of users of tobacco snuff were included in the study. Airway obstruction with a confirmed stepwise reversibility to salbutamol was also required for study inclusion. For the stepwise reversibility test, patients received 100 µg salbutamol, followed by an FEV₁ recording after 15–30 minutes. Patients then received an additional dose of 900 µg salbutamol, with FEV₁ again recorded after 15–30 minutes. An increase in FEV₁ ≥5% between the first and second dose of salbutamol and a total increase of ≥15% relative to baseline after the two doses of salbutamol was required for a patient to fulfil the inclusion criteria.

Patients with any clinically significant disease or disorder were excluded from the study. A history of ischaemic heart disease or failure, a QTcF interval >450 ms, a QT interval >500 ms or any other ECG abnormalities were other reasons for exclusion. Patients who had received systemic glucocorticoid treatment within the 30 days prior to the study, or who had donated blood or plasma within 3 months or 14 days respectively prior to the first study visit, were also excluded from study participation.

Statistical analysis

Bronchodilator and systemic effects were compared between treatments using analysis of variance models, with fixed factors for treatment, period and patient, using the predose value of FEV₁ (mean of the two predose values) as a covariate. Pairwise treatment contrasts were constructed between doses of AZD3199, formoterol and placebo. A closed testing procedure, starting at the top dose, was used when testing for efficacy versus placebo. The relative dose potency between the two treatments was estimated assuming parallel lines for lung function and shifted sigmoidal curves for systemic effects. Onset times were compared using a Cox proportional hazards model with treatment as factor and stratified by patient.

Ethics

The clinical study was approved by the Independent Ethics Committee in each participating country. The study was performed in accordance with the ethical principles that have their origin in the Declaration of Helsinki and that are consistent with International Conference on Harmonization (ICH)/Good Clinical Practice (GCP) and applicable regulatory requirements and the AstraZeneca policy on Bioethics. Informed consent was obtained from all subjects prior to initiation of any study specific procedures.

Results

Of the 73 patients enrolled in the study, 37 were randomized to treatment. The demographic and baseline characteristics of patients are outlined in Table 1. The average patient age was 40.3 years (range 22–68); 32/37 were male and 35/37 were white. Only four patients (11%) were current users of tobacco snuff and none had smoked in the 6 months prior to enrolment or had a smoking history of more than 15 pack-years. Patients had a median time since asthma diagnosis of 25.2 years (range 2–58). Mean prebronchodilator FEV₁ at entry to the study was 3.1 l, corresponding to 77% predicted normal. Mean stepwise reversibility in FEV₁ in response to salbutamol was 24%.

Table 1.

Summary of demographic and disease-related data at entry.

Characteristics	All n = 37
Sex
Male	32
Female	5
Age (years)	40.3 (22–68)
Race
White	35
Black	1
Other	1
BMI (kg/m²)	26.5 (18–45)
Time since diagnosis (years)^a	25.2 (2–58)
FEV₁ (%PN)	77.49 (60.6–113.3)
Reversibility (%)	24.35 (14.7–78.3)
Inhaled GCS
No	5
Yes	32
Inhaled GCS daily dose (µg)	566.9 (160–1000)
LABA
No	17
Yes	20

Median

BMI, body mass index; GCS, glucocorticosteroid; LABA, long-acting β₂-agonist; %PN, % predicted normal.

Bronchodilation and rescue medication

A dose-dependent and statistically significant effect on peak FEV₁ was observed with all active treatments in comparison with placebo (all p < 0.01; see Figure 1 and Table 2). Statistically significant effects were also observed on E_av, E_0–12, E_12–24 and E_5min for all doses of AZD3199 and formoterol versus placebo (all p < 0.05; see Table 2). The estimated relative dose potency for peak bronchodilation between treatments was 50-fold on the microgram scale.

Figure 1.

Mean changes in forced expiratory volume in 1 second (FEV₁) following administration of AZD3199 (120, 480, 1920 µg), formoterol (9, 36 µg) or placebo in patients with mild-to-moderate persistent asthma.

Table 2.

Treatment estimates and pairwise contrasts for FEV₁: E_max, E_av, E_0–12, E_12–14, E_5min and E_22–26.

Variable/parameter	Treatment	Treatment: Baseline ratio	Treatment contrasts
Variable/parameter	Treatment	Treatment: Baseline ratio		Ratio	95% CI	p value
FEV₁ E_max	AZD3199 120 µg	1.144	AZD3199 1920 µg versus Placebo	1.07	(1.05–1.09)	<0.001
	AZD3199 480 µg	1.166	AZD3199 480 µg versus Placebo	1.05	(1.03–1.07)	<0.001
	AZD3199 1920 µg	1.186	AZD3199 120 µg versus Placebo	1.03	(1.01–1.05)	0.002
	Formoterol 9 µg	1.161	Formoterol 36 µg versus Placebo	1.07	(1.05–1.09)	<0.001
	Formoterol 36 µg	1.191	Formoterol 9 µg versus Placebo	1.05	(1.03–1.07)	<0.001
FEV₁ E_av	AZD3199 120 µg	1.057	AZD3199 1920 µg versus Placebo	1.07	(1.05–1.09)	<0.001
	AZD3199 480 µg	1.080	AZD3199 480 µg versus Placebo	1.05	(1.03–1.07)	<0.001
	AZD3199 1920 µg	1.102	AZD3199 120 µg versus Placebo	1.03	(1.01–1.05)	0.003
	Formoterol 9 µg	1.069	Formoterol 36 µg versus Placebo	1.08	(1.06–1.10)	<0.001
	Formoterol 36 µg	1.111	Formoterol 9 µg versus Placebo	1.04	(1.02–1.06)	<0.001
FEV₁ E_0–12	AZD3199 120 µg	1.066	AZD3199 1920 µg versus Placebo	1.08	(1.06–1.10)	<0.001
	AZD3199 480 µg	1.092	AZD3199 480 µg versus Placebo	1.06	(1.04–1.08)	<0.001
	AZD3199 1920 µg	1.113	AZD3199 120 µg versus Placebo	1.04	(1.02–1.06)	0.001
	Formoterol 9 µg	1.086	Formoterol 36 µg versus Placebo	1.10	(1.08–1.12)	<0.001
	Formoterol 36 µg	1.132	Formoterol 9 µg versus Placebo	1.06	(1.03–1.08)	<0.001
FEV₁ E_12–24	AZD3199 120 µg	1.048	AZD3199 1920 µg versus Placebo	1.07	(1.04–1.09)	<0.001
	AZD3199 480 µg	1.068	AZD3199 480 µg versus Placebo	1.04	(1.02–1.07)	<0.001
	AZD3199 1920 µg	1.092	AZD3199 120 µg versus Placebo	1.02	(1.00–1.05)	0.040
	Formoterol 9 µg	1.051	Formoterol 36 µg versus Placebo	1.06	(1.04–1.09)	<0.001
	Formoterol 36 µg	1.089	Formoterol 9 µg versus Placebo	1.03	(1.00–1.05)	0.019
FEV₁ E_5min	AZD3199 120 µg	1.078	AZD3199 1920 µg versus Placebo	1.06	(1.03–1.09)	<0.001
	AZD3199 480 µg	1.076	AZD3199 480 µg versus Placebo	1.08	(1.05–1.11)	<0.001
	AZD3199 1920 µg	1.052	AZD3199 120 µg versus Placebo	1.08	(1.06–1.11)	<0.001
	Formoterol 9 µg	1.078	Formoterol 36 µg versus Placebo	1.13	(1.11–1.16)	<0.001
	Formoterol 36 µg	1.120	Formoterol 9 µg versus Placebo	1.08	(1.05–1.11)	<0.001
FEV₁ E_22–26	AZD3199 120 µg	1.054	AZD3199 1920 µg versus Placebo	1.05	(1.03–1.07)	<0.001
	AZD3199 480 µg	1.074	AZD3199 480 µg versus Placebo	1.04	(1.02–1.05)	<0.001
	AZD3199 1920 µg	1.090	AZD3199 120 µg versus Placebo	1.02	(1.00–1.04)	0.090
	Formoterol 9 µg	1.042	Formoterol 36 µg versus Placebo	1.04	(1.02–1.06)	<0.001
	Formoterol 36 µg	1.076	Formoterol 9 µg versus Placebo	1.00	(0.99–1.02)	0.641

CI, confidence interval; FEV1, forced expiratory volume in 1 second.

Dose-dependent and statistically significant effects on E_22–26 (all p < 0.001; see Table 2), were observed after AZD3199 (480 and 1920 µg) and formoterol (36 µg), but not after the lowest dose of each active compound. The estimated relative dose potency for E_22–26 was 11-fold on the microgram scale, approximately 5 times smaller than based on peak bronchodilation.

An early statistically significant effect on FEV₁ (E_5min) was seen after AZD3199 and formoterol. However, in contrast to the effect of formoterol, that of AZD3199 was not dose dependent. Therefore, no firm conclusion could be drawn regarding the relative onset properties.

The most frequent use of rescue medication was reported in patients receiving placebo treatment (10 patients, 41 doses), with the least frequent use of rescue medication following treatment with AZD3199 480 µg (four patients, seven doses) and AZD3199 1920 µg (four patients, nine doses).

Systemic effects

Statistically significant systemic effects were only seen after formoterol 36 μg and AZD3199 1920 μg. On serum potassium and tremor formoterol gave the largest effects, whereas on heart rate and QTcB effects were of similar magnitude (Figure 2 and Tables 3 and 4). Overall, at comparable peak effects on FEV₁, AZD3199 was shown to have a more favourable profile than formoterol with regard to systemic effects.

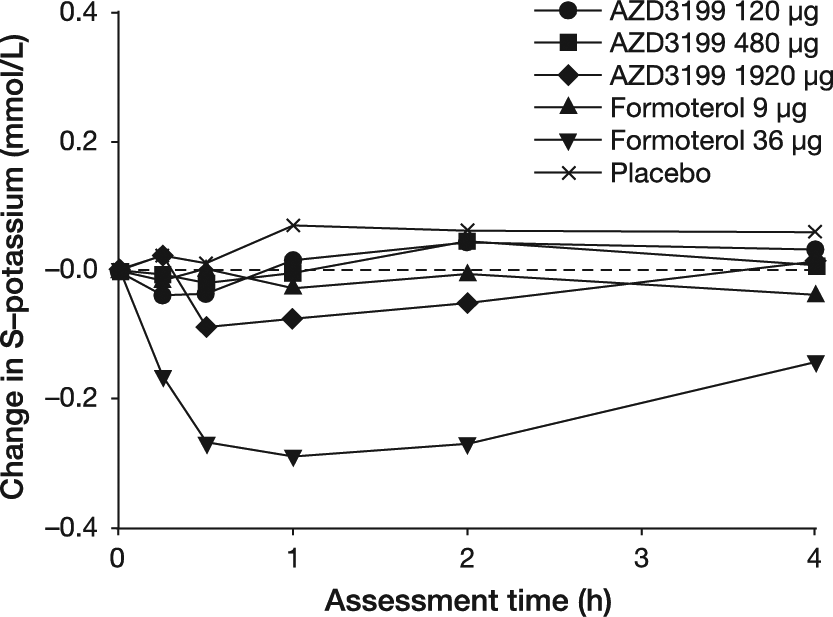

Figure 2.

Mean change in serum potassium during the first 4 hours after drug administration.

Table 3.

Treatment estimates and pairwise contrasts for average (E_av) effects on serum potassium, heart rate, QTcB, pulse, blood pressure, tremor and palpitations.

Treatment	Baseline difference	Treatment contrasts
Treatment	Baseline difference	Difference		95% CI	p value
	Serum potassium
AZD3199 120 µg	0.02	AZD3199 1920 µg versus Placebo	−0.06	(−0.12 to −0.01)	0.029
AZD3199 480 µg	0.02	AZD3199 480 µg versus Placebo	−0.01	(−0.07 to 0.04)	0.685
AZD3199 1920 µg	−0.04	AZD3199 120 µg versus Placebo	−0.01	(−0.06 to 0.05)	0.807
Formoterol 9 µg	−0.01	Formoterol 36 µg versus Placebo	−0.25	(−0.30 to −0.19)	<0.001
Formoterol 36 µg	−0.22	Formoterol 9 µg versus Placebo	−0.04	(−0.09 to 0.02)	0.196
	Heart rate E_av
AZD3199 120 µg	−3.4	AZD3199 1920 µg versus Placebo	4.0	(2.5 to 5.6)	<0.001
AZD3199 480 µg	−2.5	AZD3199 480 µg versus Placebo	1.3	(−0.3 to 2.8)	0.106
AZD3199 1920 µg	0.3	AZD3199 120 µg versus Placebo	0.3	(−1.2 to 1.9)	0.662
Formoterol 9 µg	−2.8	Formoterol 36 µg versus Placebo	4.9	(3.4 to 6.4)	<0.001
Formoterol 36 µg	1.1	Formoterol 9 µg versus Placebo	0.9	(−0.6 to 2.5)	0.242
	QTcB E_av
AZD3199 120 µg	−0.8	AZD3199 1920 µg versus Placebo	7.7	(3.6 to 11.7)	<0.001
AZD3199 480 µg	−1.2	AZD3199 480 µg versus Placebo	2.4	(−1.7 to 6.4)	0.251
AZD3199 1920 µg	4.1	AZD3199 120 µg versus Placebo	2.8	(−1.3 to 6.9)	0.180
Formoterol 9 µg	−2.6	Formoterol 36 µg versus Placebo	11.7	(7.7 to 15.8)	<0.001
Formoterol 36 µg	8.2	Formoterol 9 µg versus Placebo	1.0	(−3.1 to 5.0)	<0.638
	Pulse E_av
AZD3199 120 µg	−4.0	AZD3199 1920 µg versus Placebo	3.5	(2.3 to 4.8)	<0.001
AZD3199 480 µg	−2.7	AZD3199 480 µg versus Placebo	0.6	(−0.7 to 1.8)	0.393
AZD3199 1920 µg	0.3	AZD3199 120 µg versus Placebo	−0.7	(−2.0 to 0.6)	0.285
Formoterol 9 µg	−2.9	Formoterol 36 µg versus Placebo	4.1	(2.8 to 5.4)	<0.001
Formoterol 36 µg	0.8	Formoterol 9 µg versus Placebo	0.4	(−0.9 to 1.7)	0.559
	Diastolic blood pressure E_av
AZD3199 120 µg	−1.6	AZD3199 1920 µg versus Placebo	−1.3	(−2.7 to 0.2)	0.084
AZD3199 480 µg	−1.5	AZD3199 480 µg versus Placebo	−1.1	(−2.6 to 0.4)	0.142
AZD3199 1920 µg	−1.7	AZD3199 120 µg versus Placebo	−1.2	(−2.7 to 0.2)	0.101
Formoterol 9 µg	−1.9	Formoterol 36 µg versus Placebo	−1.6	(−3.1 to −0.1)	0.031
Formoterol 36 µg	−2.0	Formoterol 9 µg versus Placebo	−1.5	(−3.0 to −0.0)	0.044
	Tremor E_av
AZD3199 120 µg	0.00	AZD3199 1920 µg versus Placebo	0.03	(−0.04 to 0.10)	0.413
AZD3199 480 µg	0.01	AZD3199 480 µg versus Placebo	0.00	(−0.06 to 0.07)	0.891
AZD3199 1920 µg	0.04	AZD3199 120 µg versus Placebo	−0.01	(−0.07 to 0.06)	0.828
Formoterol 9 µg	0.01	Formoterol 36 µg versus Placebo	0.14	(0.08 to 0.21)	<0.001
Formoterol 36 µg	0.15	Formoterol 9 µg versus Placebo	0.00	(−0.07 to 0.07)	0.994
	Palpitations E_av
AZD3199 120 µg	−0.02	AZD3199 1920 µg versus Placebo	0.02	(−0.03 to 0.07)	0.409
AZD3199 480 µg	0.00	AZD3199 480 µg versus Placebo	0.01	(−0.04 to 0.06)	0.690
AZD3199 1920 µg	0.01	AZD3199 120 µg versus Placebo	−0.02	(−0.07 to 0.03)	0.531
Formoterol 9 µg	−0.01	Formoterol 36 µg versus Placebo	0.06	(0.01 to 0.11)	0.025
Formoterol 36 µg	0.05	Formoterol 9 µg versus Placebo	0.00	(−0.05 to 0.05)	0.947

CI, confidence interval.

Table 4.

Treatment estimates and pairwise contrasts for maximum (E_max) effects on heart rate, QTcB, pulse, tremor and palpitations, and minimum (E_min) effects on potassium and blood pressure.

Treatment	Baseline difference	Treatment contrasts
Treatment	Baseline difference	Difference		95% CI	p value
	Serum potassium E_min
AZD3199 120 µg	−0.16	AZD3199 1920 µg versus Placebo	−0.08	(−0.14 to −0.02)	0.011
AZD3199 480 µg	−0.17	AZD3199 480 µg versus Placebo	−0.03	(−0.09 to 0.03)	0.364
AZD3199 1920 µg	−0.22	AZD3199 120 µg versus Placebo	−0.02	(−0.08 to 0.04)	0.585
Formoterol 9 µg	−0.17	Formoterol 36 µg versus Placebo	−0.23	(−0.29 to −0.17)	<0.001
Formoterol 36 µg	−0.37	Formoterol 9 µg versus Placebo	−0.02	(−0.08 to 0.04)	0.442
	Heart rate E_max
AZD3199 120 µg	2.3	AZD3199 1920 µg versus Placebo	3.0	(1.5 to 4.4)	<0.001
AZD3199 480 µg	2.7	AZD3199 480 µg versus Placebo	0.2	(−1.3 to 1.6)	0.814
AZD3199 1920 µg	5.5	AZD3199 120 µg versus Placebo	−0.2	(−1.7 to 1.2)	0.767
Formoterol 9 µg	2.4	Formoterol 36 µg versus Placebo	2.7	(1.3 to 4.2)	<0.001
Formoterol 36 µg	5.2	Formoterol 9 µg versus Placebo	−0.1	(−1.6 to 1.3)	0.887
	QTcB E_max
AZD3199 120 µg	11.9	AZD3199 1920 µg versus Placebo	5.5	(1.3 to 9.7)	0.010
AZD3199 480 µg	8.7	AZD3199 480 µg versus Placebo	−1.0	(−5.2 to 3.2)	0.653
AZD3199 1920 µg	15.2	AZD3199 120 µg versus Placebo	2.2	(−2.0 to 6.5)	0.300
Formoterol 9 µg	10.0	Formoterol 36 µg versus Placebo	9.2	(5.0 to 13.4)	<0.001
Formoterol 36 µg	18.9	Formoterol 9 µg versus Placebo	0.4	(−3.8 to 4.6)	0.862
	Pulse E_max
AZD3199 120 µg	1.3	AZD3199 1920 µg versus Placebo	2.0	(0.4 to 3.5)	0.013
AZD3199 480 µg	3.3	AZD3199 480 µg versus Placebo	0.2	(−1.3 to 1.8)	0.776
AZD3199 1920 µg	5.1	AZD3199 120 µg versus Placebo	−1.7	(−3.3 to −0.2)	0.029
Formoterol 9 µg	2.0	Formoterol 36 µg versus Placebo	2.0	(0.4 to 3.5)	0.013
Formoterol 36 µg	5.0	Formoterol 9 µg versus Placebo	−1.0	(−2.6 to 0.5)	0.190
	Diastolic blood pressure E_min
AZD3199 120 µg	−5.6	AZD3199 1920 µg versus Placebo	−2.5	(−4.1 to −1.0)	0.001
AZD3199 480 µg	−6.0	AZD3199 480 µg versus Placebo	−1.9	(−3.4 to −0.3)	0.019
AZD3199 1920 µg	−6.7	AZD3199 120 µg versus Placebo	−1.5	(−3.0 to 0.1)	0.061
Formoterol 9 µg	−6.4	Formoterol 36 µg versus Placebo	−2.0	(−3.6 to −0.5)	0.010
Formoterol 36 µg	−6.2	Formoterol 9 µg versus Placebo	−2.3	(−3.8 to −0.8)	0.004
	Tremor E_max
AZD3199 120 µg	0.06	AZD3199 1920 µg versus Placebo	0.13	(−0.02 to 0.28)	0.094
AZD3199 480 µg	0.06	AZD3199 480 µg versus Placebo	0.02	(−0.13 to 0.17)	0.793
AZD3199 1920 µg	0.17	AZD3199 120 µg versus Placebo	0.02	(−0.13 to 0.17)	0.789
Formoterol 9 µg	0.06	Formoterol 36 µg versus Placebo	0.44	(0.29 to 0.59)	<0.001
Formoterol 36 µg	0.47	Formoterol 9 µg versus Placebo	0.03	(−0.13 to 0.18)	0.725
	Palpitations E_max
AZD3199 120 µg	0.00	AZD3199 1920 µg versus Placebo	0.09	(0.0 to 0.18)	0.060
AZD3199 480 µg	0.04	AZD3199 480 µg versus Placebo	0.03	(−0.06 to 0.13)	0.457
AZD3199 1920 µg	0.09	AZD3199 120 µg versus Placebo	0.00	(−0.1 to 0.09)	0.936
Formoterol 9 µg	0.00	Formoterol 36 µg versus Placebo	0.07	(−0.02 to 0.16)	0.149
Formoterol 36 µg	0.07	Formoterol 9 µg versus Placebo	0.00	(−0.09 to 0.09)	0.980

CI, confidence interval.

Safety

AZD3199 was well tolerated, with no deaths, serious adverse events, discontinuations due to adverse events or other significant adverse events. The most frequently reported adverse events were headache and nasopharyngitis. Adverse events were more frequently reported following AZD3199 1920 µg, with four patients reporting throat irritation at this dose only.

Discussion

The aim of the present study was to investigate the pharmacodynamics of AZD3199, in comparison with formoterol, to aid the selection of appropriate doses of AZD3199 for further phase II studies. The dose range was selected on the basis of the results of a single-ascending dose (SAD) study. A fourfold difference between doses was aimed for, to optimize the possibility of seeing dose-dependent effects. The minimum inhaled dose of 120 µg was selected to be on the lower limit of an effective dose, whereas the intermediate dose of 480 µg was expected to give a 24-hour duration of bronchodilatory effect. The maximum dose of 1920 µg was selected to provide a margin below the mean maximum exposure observed in the SAD study. Patients with asthma were selected for the study population as they are considered to be the most sensitive group of patients to β₂-agonist treatment, and because dose–response to a β₂-agonist can be assessed following temporary withdrawal of bronchodilator therapy in these patients.

All doses of AZD3199 and formoterol significantly and dose-dependently increased peak FEV₁ relative to placebo. AZD3199 480 and 1920 µg and formoterol 36 µg maintained bronchodilation for 24 hours, with a significant difference in comparison with placebo for E_22–26. The estimated relative dose potency between AZD3199 and formoterol on the microgram scale was 50-fold with respect to maximal bronchodilation, suggesting equal potency between AZD3199 480 µg and formoterol 9 µg. With respect to residual bronchodilation at 22–26 hours postdose, the relative dose potency between AZD3199 and formoterol was 11-fold on the microgram scale, indicating a prolonged duration of bronchodilation with AZD3199. This is supported by the less frequent use of rescue medication following AZD3199 480 and 1920 µg treatment in comparison with formoterol. All active substances produced a statistically significant effect at 5 minutes postdose, but the early response of AZD3199 was not dose-dependent, in contrast to formoterol. As such, no firm conclusions can be drawn regarding the relative onset properties between AZD3199 and formoterol.

Statistically significant systemic effects were observed only following treatment with formoterol 36 µg and AZD3199 1920 µg. Formoterol had a greater effect on serum potassium levels and tremor scores, whereas AZD3199 and formoterol had comparable effects on heart rate and QTcB. Overall, at doses with comparable effects on peak FEV₁, AZD3199 was associated with a lower level of systemically mediated effects in comparison with formoterol, suggesting a more favourable therapeutic index.

AZD3199 was demonstrated to be well tolerated in these patients with asthma at the studied dose range. Adverse events were more frequently reported following treatment with AZD3199 1920 µg, with throat irritation reported only at this highest dose. This reaction started soon after dosing and may, therefore, be related to the large quantity of drug administered at this dose level. No serious adverse events or discontinuations due to adverse events were reported, and no safety concerns were identified for AZD3199.

Conclusions

AZD3199 produced effective bronchodilation over 24 hours at doses of 480 and 1920 µg. The data suggest that AZD3199 can achieve a peak bronchodilatory effect that is comparable with formoterol, but with a longer duration and a lower level of systemic side effects. No safety concerns were identified that could preclude AZD3199 entering further clinical trials.

Footnotes

Acknowledgements

The authors thank Dr Kim Krogsgaard for participating in the conduct of this study. The authors thank David Candlish and Natasha Hausman of inScience Communications, Springer Healthcare, for medical writing assistance funded by AstraZeneca. Turbuhaler™ is a trademark of the AstraZeneca group of companies. Turbuhaler™ is a registered trademark in Sweden and Denmark where the studies were performed.

Funding

This study was supported by AstraZeneca.

Conflict of interest statement

LB has received honoraria for speaking and consulting and/or financial support for attending meetings from Almirall, AstraZeneca, Airsonett, Andre Pharma, Boehringer, GlaxoSmithKline, Merck, Mundipharma, Nigard, Novartis, Nycomed/Takeda and Orion Pharma. JR is an employee of AstraZeneca plc and holds shares in the company. TB was an employee of AstraZeneca at the time this study was carried out and holds shares in the company. JL has received honoraria for speaking and consulting and/or financial support for research from AstraZeneca, Airsonett, GlaxoSmithKline, Merck/MSD and Novartis.

References

Anderson

Lindén

Rabe

(1994) Why are long-acting beta-adrenoceptor agonists long-acting? Eur Respir J 3: 569–578.

DeHaan

W. H.

Finlay

W. H.

(2004) Predicting extrathoracic deposition from dry powder inhalers. J Aerosol Sci 35: 309–331.

Bateman

(2010) Global strategy for asthma management and prevention. Global Initiative for Asthma (GINA).

Cazzola

Page

Calzetta

Matera

(2012) Pharmacology and therapeutics of bronchodilators. Pharmacol Rev 64: 450–504.

Kuna

Ivanov

Trofimov

Saito

Beckman

Bengtsson

(2013) Efficacy and safety of AZD3199 vs formoterol in COPD: a randomized, double-blind study. Respir Res 14: 64.

Lofdahl

Svedmyr

(1989) Formoterol fumarate, a new beta 2-adrenoceptor agonist. Acute studies of selectivity and duration of effect after inhaled and oral administration. Allergy 44: 264–271.

Palmqvist

Persson

Lazer

Rosenborg

Larsson

Lotvall

(1997) Inhaled dry-powder formoterol and salmeterol in asthmatic patients: onset of action, duration of effect and potency. Eur Respir J 10: 2484–2489.
