Integration of magnetic resonance imaging into prostate cancer nomograms

Studies prior to mpMRI

Early, large-scale prostate cancer screening studies used 4.0 ng/mL as the threshold for recommendation for prostate cancer biopsy; however, it was noted that men with PSA levels between 2.5 and 4.0 ng/mL had similar rates of prostate cancer.^18,19 This prompted the need to find additional factors to help predict prostate cancer. In 1999, Eastham et al. developed a nomogram that predicted the probability of positive prostate biopsy in men with an abnormal DRE exam and elevated PSA. In the study, the group noted that while PSA alone would be easier for patients, a nomogram utilizing multiple factors could provide a better percentage for detecting prostate cancer and better guide the decision-making process. In their analysis of pre-biopsy risk factors (age, race, and serum PSA), only serum PSA was an independent predictor of a positive prostate biopsy. ²⁰ This nomogram was later upgraded to also include percent-free PSA, family history, and DRE findings. This new model was found to have an AUC of 0.71. ²¹ A similar model to the updated model was created in 2007, known as the Sunnybrook nomogram, named after the patients who were referred to the Sunnybrook Health Sciences Center and University Health Network in Toronto, Canada. ²²

Finne et al. utilized artificial neural networking to create a multilayer perception and logical regression for prostate cancer screening to eliminate false-positive PSA findings. The enhanced model included the proportion of free PSA along with DRE results, and prostate volume for men with total serum PSA concentrations ranging from 4 to 10 ng/mL. The study was successful in creating a model with a sensitivity of 95% that eliminated 19% of the false-positive PSA results. ²³ This was then validated in a multicenter study that grouped patients into 2–4 and 4–10 ng/mL, with specificities of 90% and 62%, respectively. ²⁴ However, this model has not been well utilized, as it was not easily accessible for physicians to use.

In 2003, Garzotto et al. expanded the PSA and DRE nomogram to include age >75 and TRUS findings as independent predictors in a single institution study. The inclusion of hypoechoic TRUS findings increased the AUC to 0.73 from 0.62 in this population. The study suggested that this model could reduce unnecessary biopsy procedures by 24%. ²⁵ TRUS imaging initially showed promise in improving clinical decision-making, but the PROMIS study highlighted the inability for TRUS-guided biopsy to identify true clinically significant prostate cancer with sensitivities of 93% for mpMRI and 48% for TRUS-guided biopsy. ¹⁴ Although, in the study, mpMRI performed poorer in ruling out clinically significant prostate cancer having specificities of 41% for mpMRI and 96% for TRUS-biopsy.

This may be due to the suggested poor ability to identify cribiform morphology Gleason pattern 4 on mpMRI. ²⁶ Although, it has been recently shown that cribiform morphology could accurately be identified in the peripheral zone by primarily focusing upon ADC values from the DWI of the mpMRI. ²⁷ This study highlighted the need for information in addition to mpMRI in order to determine those that should and should not be biopsied. The nomograms presented below highlight the AUC of each nomogram without specifically highlighting sensitivity or specificity as these values change with different cut-off thresholds for detection of clinically significant prostate cancers. Further work may be necessary to identify if widely accepted cut-off thresholds or individual nomogram cut-offs should be utilized to maximize utility and comparability (Table 1).

OPEN IN VIEWER

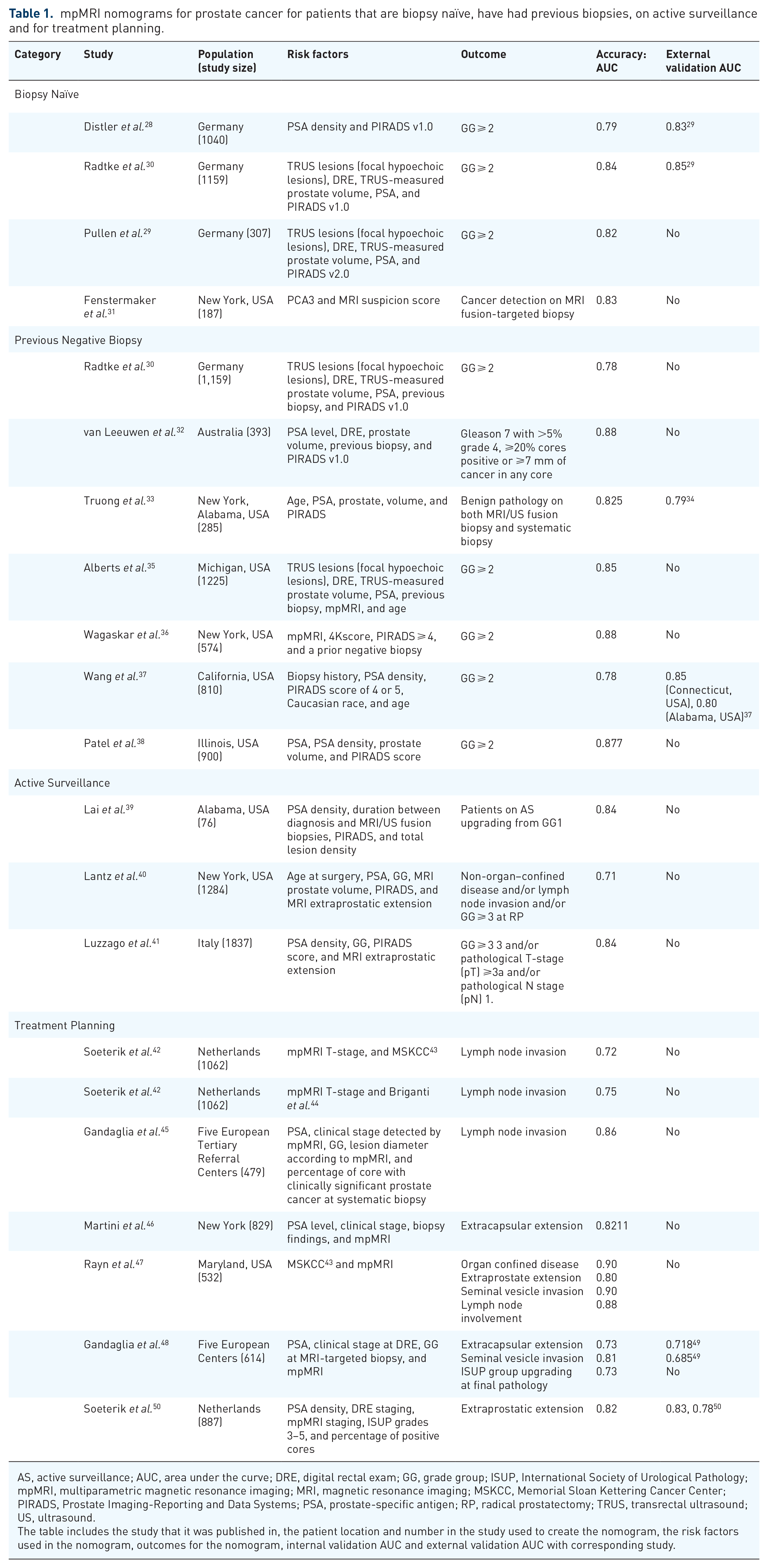

Table 1.

mpMRI nomograms for prostate cancer for patients that are biopsy naïve, have had previous biopsies, on active surveillance and for treatment planning.

Category	Study	Population (study size)	Risk factors	Outcome	Accuracy: AUC	External validation AUC
Biopsy Naïve
	Distler et al. 28	Germany (1040)	PSA density and PIRADS v1.0	GG ⩾ 2	0.79	0.8329
	Radtke et al. 30	Germany (1159)	TRUS lesions (focal hypoechoic lesions), DRE, TRUS-measured prostate volume, PSA, and PIRADS v1.0	GG ⩾ 2	0.84	0.8529
	Pullen et al. 29	Germany (307)	TRUS lesions (focal hypoechoic lesions), DRE, TRUS-measured prostate volume, PSA, and PIRADS v2.0	GG ⩾ 2	0.82	No
	Fenstermaker et al. 31	New York, USA (187)	PCA3 and MRI suspicion score	Cancer detection on MRI fusion-targeted biopsy	0.83	No
Previous Negative Biopsy
	Radtke et al. 30	Germany (1,159)	TRUS lesions (focal hypoechoic lesions), DRE, TRUS-measured prostate volume, PSA, previous biopsy, and PIRADS v1.0	GG ⩾ 2	0.78	No
	van Leeuwen et al. 32	Australia (393)	PSA level, DRE, prostate volume, previous biopsy, and PIRADS v1.0	Gleason 7 with >5% grade 4, ⩾20% cores positive or ⩾7 mm of cancer in any core	0.88	No
	Truong et al. 33	New York, Alabama, USA (285)	Age, PSA, prostate, volume, and PIRADS	Benign pathology on both MRI/US fusion biopsy and systematic biopsy	0.825	0.7934
	Alberts et al. 35	Michigan, USA (1225)	TRUS lesions (focal hypoechoic lesions), DRE, TRUS-measured prostate volume, PSA, previous biopsy, mpMRI, and age	GG ⩾ 2	0.85	No
	Wagaskar et al. 36	New York, USA (574)	mpMRI, 4Kscore, PIRADS ⩾ 4, and a prior negative biopsy	GG ⩾ 2	0.88	No
	Wang et al. 37	California, USA (810)	Biopsy history, PSA density, PIRADS score of 4 or 5, Caucasian race, and age	GG ⩾ 2	0.78	0.85 (Connecticut, USA), 0.80 (Alabama, USA) 37
	Patel et al. 38	Illinois, USA (900)	PSA, PSA density, prostate volume, and PIRADS score	GG ⩾ 2	0.877	No
Active Surveillance
	Lai et al. 39	Alabama, USA (76)	PSA density, duration between diagnosis and MRI/US fusion biopsies, PIRADS, and total lesion density	Patients on AS upgrading from GG1	0.84	No
	Lantz et al. 40	New York, USA (1284)	Age at surgery, PSA, GG, MRI prostate volume, PIRADS, and MRI extraprostatic extension	Non-organ–confined disease and/or lymph node invasion and/or GG ⩾ 3 at RP	0.71	No
	Luzzago et al. 41	Italy (1837)	PSA density, GG, PIRADS score, and MRI extraprostatic extension	GG ⩾ 3 3 and/or pathological T-stage (pT) ⩾3a and/or pathological N stage (pN) 1.	0.84	No
Treatment Planning
	Soeterik et al. 42	Netherlands (1062)	mpMRI T-stage, and MSKCC 43	Lymph node invasion	0.72	No
	Soeterik et al. 42	Netherlands (1062)	mpMRI T-stage and Briganti et al. 44	Lymph node invasion	0.75	No
	Gandaglia et al. 45	Five European Tertiary Referral Centers (479)	PSA, clinical stage detected by mpMRI, GG, lesion diameter according to mpMRI, and percentage of core with clinically significant prostate cancer at systematic biopsy	Lymph node invasion	0.86	No
	Martini et al. 46	New York (829)	PSA level, clinical stage, biopsy findings, and mpMRI	Extracapsular extension	0.8211	No
	Rayn et al. 47	Maryland, USA (532)	MSKCC 43 and mpMRI	Organ confined diseaseExtraprostate extensionSeminal vesicle invasionLymph node involvement	0.900.800.900.88	No
	Gandaglia et al. 48	Five European Centers (614)	PSA, clinical stage at DRE, GG at MRI-targeted biopsy, and mpMRI	Extracapsular extensionSeminal vesicle invasionISUP group upgrading at final pathology	0.730.810.73	0.71849 0.68549 No
	Soeterik et al. 50	Netherlands (887)	PSA density, DRE staging, mpMRI staging, ISUP grades 3–5, and percentage of positive cores	Extraprostatic extension	0.82	0.83, 0.7850

AS, active surveillance; AUC, area under the curve; DRE, digital rectal exam; GG, grade group; ISUP, International Society of Urological Pathology; mpMRI, multiparametric magnetic resonance imaging; MRI, magnetic resonance imaging; MSKCC, Memorial Sloan Kettering Cancer Center; PIRADS, Prostate Imaging-Reporting and Data Systems; PSA, prostate-specific antigen; RP, radical prostatectomy; TRUS, transrectal ultrasound; US, ultrasound.

The table includes the study that it was published in, the patient location and number in the study used to create the nomogram, the risk factors used in the nomogram, outcomes for the nomogram, internal validation AUC and external validation AUC with corresponding study.

MpMRI nomograms

Previous negative biopsy

The Prostate Cancer Prevention trial (PCPT) identified PSA, family history, abnormal DRE, and prior negative biopsy as useful predictive factors for any prostate cancer. However, PSA, abnormal DRE, older age at biopsy, previous negative biopsy, and African-American (AA) race were factors in predicting higher-grade disease (Gleason score ⩾ 7). The PCPT Risk Calculator (PCPTRC) has been updated several times over the years. In 2013, a risk calculator based on PCPT was created that now included prostate volume and AUA symptom score. ⁶⁵ The official PCPTRC was updated first in 2014 to include low-risk prostate cancer, and then again in 2018.^66–68 The 2014 PCPT risk calculator was externally validated by the Prostate Biopsy Collaborative Group (PCGB) consisting of 25,449 biopsies from 10 international cohorts and at the Early Detection Research Network. The 2014 PCTPT was compared to the ERSPC-RC stage 4 (ERSPC-RC4, prior negative biopsy) in 2016 by Poyet et al. This study of 996 men from a European tertiary care center found no significant difference for all prostate cancer (AUC 0.65 vs 0.66) but did find the ERSPC-RC4 to be superior in the detection of clinically significant prostate cancer (AUC 0.73 vs 0.70). ⁶⁹ The model was again updated in 2018 based on data from 15,611 men in the PCGB and renamed the PBCGRC. ⁶⁷ A retrospective study of 7119 men from 10 independent cohorts in Europe and Australia compared the ERSPC-RC4, PCPT 2018, and several other risk calculators. The study, like the 2016 Poyet et al., found no difference in predicting any prostate cancer but did find the ERSPC-RC4 to be superior at identifying clinically significant prostate cancer with an AUC of 0.77. ⁷⁰ One important finding from the PCPT and PCGB studies is that there is a decreased likelihood of a positive biopsy after a prior negative biopsy.

Although race had been included in previous prostate cancer risk assessments, the PCPT identified AA race as a predictor of high-grade disease. A similar simultaneous study done at several institutions in the United States analyzed 9473 patients at equal-access health care institutes created a nomogram that utilized AA race as a key predictor of prostate cancer. The nomogram utilized AA race, age, year of biopsy, PSA level, DRE, and number of cores taken to be statistically significant. The final predicted model had a concordance index of 75%. Of note, AA men in the study had significantly higher PSA levels than Caucasians. ⁷¹

The inclusion of mpMRI has been shown to vastly improve prior negative biopsy risk calculators. van Leeuwen et al.’s model, based on 393 men from Australia, was the first to create a risk calculator for those with previous biopsy to include mpMRI. The risk calculator included PSA level, DRE, prostate volume, previous biopsy, and PIRADS score. The AUC for the model without mpMRI was 0.80, but increased to 0.88 with the inclusion of mpMRI. ³² In 2018, a nomogram created by Truong et al. was created from a retrospective two institution study in the United States from patients with at least one prior negative biopsy. Of the 285 patients, 135 had benign biopsy pathology. The multivariate analysis found predictors of benign pathology to be associated with age, PSA, prostate volume, and PI-RADS score. The AUC for this study was found to be 0.825. ³³ The Truong reported nomogram was then externally validated and updated by Bjurlin et al. in 2019 as a multi-institutional effort. Validation utilizing 2063 men across three different United States institutions found an AUC of 0.79. ³⁴

ERSPC-RCs were updated in 2019 to include mpMRI. Alberts et al. constructed MRI-ERSPC-RCs from 1225 Michigan men for the prediction of any and high-grade prostate cancer by adding PI-RADS and age as parameters to both ERSPC-RC3 and ERSPC-RC4. The AUC for ERSPC-RC3 (0.84 vs 0.76) and ERSPC-RC4 (0.85 vs 0.74) improved with the addition of mpMRI. ³⁵

Analysis of the ERSPC screening in Sweden in 2008 and later in France in 2010 derived an algorithm for predicting prostate cancer at biopsy by combining human kallikrein-related peptidase 2 to blood-total, free, and intact PSA or the 4Kscore. Comparing PSA alone in the cohort from Sweden to the 4 K score increased the AUC from 0.608 to 0.84.^72,73 Later, a 4 K nomogram based off 574 men in New York that included mpMRI found 4 K score, PI-RADS ⩾ 4, and a prior negative biopsy to be significant predictors of prostate cancer, clinically significant prostate cancer (Gleason score ⩾ 3 + 4), and unfavorable prostate cancer (Gleason score ⩾ 4 + 3). The AUC for these three were 0.84, 0.88, and 0.86 compared to 0.73, 0.80, and 0.81 for 4 K score alone. ³⁶

A group at Stanford University created a unique nomogram that utilized mpMRI to predict clinically significant prostate cancer with a prior biopsy history using 2125 men cared for across three different institutions. The group validated the study based on data sets at two other large academic institutions. The Stanford Prostate Cancer Calculator (SPCC) used biopsy history, PSA density, PIRADS score of 4 or 5, Caucasian race, and age as risk factors. ³⁷ The AUC of the SPCC was 0.78, 0.85, and 0.80 at the three institutions. This study also noted that AA race did not confer a higher risk for prostate cancer. However, SPCC does not include men with a normal MRI, and they did not include family history in their model. An online version of this model is available. ⁷⁴

The Prospective Loyola University mpMRI (PLUM) Prostate Biopsy assessed for predictors of clinically significant prostate cancer in 900 men who were either biopsy-naive or had prior negative biopsies. Patients underwent mpMRI followed by TRUS fusion-guided biopsies with both systemic and targeted core PSA. Predictors for any cancer were found to include PSA, PSA density, prostate volume, and PI-RADS score. The study noted that family history and race were not associated with prostate cancer in the prior negative biopsy setting. The AUC for clinically significant prostate cancer of biopsy-naive patients was 0.877 with PI-RADS scoring and 0.814 without. In addition, the AUC for the prior biopsy group dropped from 0.869 to 0.775 with the removal of PI-RADS scoring. Regarding PI-RADS cut offs, for biopsy-naive patients a PI-RADS cutoff of 3 most closely approximated the model up to a threshold of 16% change of clinically significant prostate cancer. For the prior biopsy group, a PI-RADS cutoff of 4 was closest approximation up to the threshold of 27% chance of clinically significant prostate cancer. An online version of this model is also available.^38,75

Active surveillance

Active surveillance (AS) provides select patients an option to delay or potentially avoid definitive treatment of their localized prostate cancer. AS protocols have generally been based on clinical parameters including PSA, clinical stage, and biopsy results. However, misassignment of patients into AS protocols that result in worse oncologic outcomes or exclusion of patients into AS protocols leading to overtreatment are all issues that continue to be active areas of debate. It has been hypothesized that the inclusion of clinically insignificant disease, Gleason 6 or Grade Group 1 (GG1) in these protocols and their use of predefined thresholds of each clinical variable, prevents an individualized assessment of a patient’s candidacy for AS.^76,77 The inclusion of mpMRI and MRI-targeted biopsy has improved the prediction of upgrading Gleason score on confirmatory biopsy in men on AS. ⁷⁸ Therefore, Lai et al. created a nomogram to predict prostate cancer upgrading in 76 men. Twenty-two (26.32%) men were upgraded with PSA density, duration between diagnosis and MRI/US fusion biopsies, PI-RADS, and total lesion density were independent risk factors for upgrading. Utilizing these factors, their model generated an AUC of 0.84 compared to an AUC of 0.69 with only PSA being utilizing. ³⁹ Interestingly, the added information provided by mpMRI and targeted biopsy pathology data has been shown to influence patient decision-making, as those that undergo MRI-targeted biopsy are more likely to choose AS than any definitive therapy when adjusting for age, PSA density, biopsy history, race, and prostate cancer grade group.^79,80

Gandaglia et al. sought to establish a nomogram that would increase the number of patients eligible for AS without increasing the risk of unfavorable pathology or upgrading after RP. They analyzed 16,049 patients with low- or intermediate-risk prostate cancer at biopsy, who were then treated with RP. Of these, 5289 patients (33%) had unfavorable disease defined as lymphovascular invasion, non-organ confined disease, and/or GG ⩾ 3. They too found that PSA, clinical stage, GG at biopsy, number of positive cores, and PSA density were independent predictors of unfavorable pathology (p < 0.001). These variables were included into their model with an AUC at internal validation of 0.752. Furthermore, they compared their model to known AS protocols from the Prostate Cancer Research International: Active Surveillance (PRIAS) criteria, Toronto, University of California at San Francisco, and Royal Marsden. While PRIAS criteria had the lowest rate of misclassification (13%) compared to the other established protocols, adoption of Gandaglia’s model at an 18% threshold led to increase of eligible AS patients from 20.6% to 29.4% without increasing the risk of misclassification. ⁸¹ Lantz et al. externally validated the model created by Gandaglia’s team, but also included MRI findings as well to improve the predictability of the model. External validation of the Gandaglia published model resulted in an AUC of 0.63. However, inclusion of MRI prostate volume, and MRI detection of extraprostatic extension increased the AUC to 0.71 as well as increased the proportion of AS eligible men from 45% to 77% with only a 1% increase in unfavorable pathology. ⁴⁰

Luzzago et al. also developed their own nomogram to identify candidates for AS that accounted for a patient’s PSA density, GG, PI-RADS score, and MRI detection of extraprostatic extension. They compared their model to PAIS criteria, Johns Hopkins (JH), European Association of Urology (EAU) low-risk classification, and EAU low-risk or low-volume with GG2. After analysis of 1837 patients (42.2% had clinically significant prostate cancer at RP), Luzzago’s model AUC of 0.84 outperformed the other criteria by 0.20. This combined nomogram increased the eligibility of men for AS by ~25% and 35%, compared to the PRAIS and JH criteria, respectively. Furthermore, their model had lower rates of unfavorable pathology at RP compared to all established criteria. However, their model utilized cognitive fusion biopsy, and their data are not externally validated. Nevertheless, these models continue to support the integration and use of MRI and nomograms in AS protocols. ⁴¹

Treatment planning

The assessment of tumor extension, risk of residual disease, and determine of whether to perform a pelvic lymph node dissection (PLND) in men with newly diagnosed localized prostate cancer is critical during treatment planning. The Partin tables and D’Amico models were one of first models to risk stratify prostate cancer and predict the probability of adverse pathology and recurrence, biochemical outcomes after RP, external beam radiation therapy, or interstitial brachytherapy radiation for clinically localized prostate cancer.^82–84 Since then, many nomograms have been built to assess for adverse pathologic features and lymph node invasion. ⁸⁵

The decision to perform PLND concurrently at time of RP in men with localized clinically significant prostate cancer must be carefully weighed. While PLND allows accurate nodal staging and guides the potential need for adjuvant treatment, the increased operative time and complications including lymphocele and lymphedema must be considered. ⁸⁶ The Briganti nomogram is classically one of the most widely utilized nomograms to determine the need for PLND. Their landmark study noted 10.4% of patients having lymph node invasion at the time of surgery with PSA, Gleason score, clinical stage, and percentage of positive cores being independent predictors of lymph node invasion (p < 0.001). ⁸⁷ Briganti et al. again updated their model in 2017 and reported a 90.8% predictive accuracy and at a 7% cutoff, they noted that 69% of PLND could be avoided with only missing 1.5% of patients with lymph node invasion. ⁸⁸ In addition, the Memorial Sloan Kettering Cancer Center (MSKCC) nomogram has also been widely utilized, given its easy-to-use online interface. ⁴³ Therefore, current guidelines by the EAU and National Comprehensive Cancer Network have recommended that men with a high risk of lymph node invasion (>2–5%) pursue PLND. However, these models are based on historical cohorts that were diagnosed by only systematic biopsy. As previously discussed, the combination of mpMRI and MRI-targeted biopsy detects more clinically significant tumors and reduces the detection of insignificant prostate cancer. ⁸⁹ These advances have resulted in a treatment shift toward higher-risk disease in patients undergoing prostatectomy in contemporary cohorts. ⁹⁰ Soeterik et al. ⁴² substituted clinical staging by DRE with mpMRI and noted a significant improvement of the AUC of both the MSKCC and Briganti 2012 nomograms in detected lymph node invasion. A new nomogram created by Gandaglia et al. incorporated men diagnosed with MRI-targeted biopsies in their study cohort of 497 men who underwent RP and PLND. With 65 (12.5%) patients having lymph node invasion, their model accounted for PSA, clinical stage detected by mpMRI, GG of targeted biopsy, lesion diameter according to mpMRI and percentage of core with clinically significant prostate cancer at systematic biopsy. The new model’s AUC of 0.86, outperformed the AUC of the Brignati 2012 (0.82), Briganti 2017 (0.82), and MSKCC (0.81) models. Furthermore, at a 7% cutoff, utilization of this new nomogram avoided 57% of PLND while missing a lower number lymph node invasion (1.6% vs 4.6% vs 4.5% vs 4.2% for the novel, Briganti 2012, Briganti 2017, and MSKCC nomograms, respectively). ⁴⁵ The Briganti 2019 model was externally validated with 487 men diagnosed via MRI-targeted biopsy and underwent RP and PLND. With 38 (8%) of men having lymph node invasion, the nomogram’s AUC was 79% again outperformed prior models (75% vs 65% vs 74% for the Briganti 2012, Briganti 2017, and MSKCC nomograms, respectively). At the 7% cutoff, 273 (56%) of PLND would be avoided, while only missing 2.6% of men with lymph node involvement. ⁹¹

At the time of surgical resection, it is imperative to understand the presence of adverse pathologic features including extracapsular extension (ECE) and seminal vesicle invasion (SVI) as they can guide the decision to pursue sparing of the neurovascular bundle and determine the need for adjuvant treatment.^92–94 The Partin tables and MSKCC nomograms have historically been used as a guide to predict the probability of ECE and SVI prior to prostatectomies; however, they do not utilize data provided by mpMRI.^95,96 While mpMRI has a moderate sensitivity in predicting ECE and SVI, it has been incorporated in some models and has increased the model’s ability to predict adverse pathology.^46,97–99 Soeterik et al. substituted clinical staging by DRE with mpMRI and noted a significant improvement of the AUC of both the MSKCC and Briganti 2012 nomograms in detected lymph node invasion. Rayn et al. incorporated data from mpMRI and MRI-targeted biopsy into the Partin tables and MSKCC nomogram. Incorporation of mpMRI resulted in significant increases in AUC for detecting organ defined disease, ECE, SVI, and lymph node invasion for both the MSKCC nomogram and Partin tables. The addition of including the Gleason score obtained from MRI-targeted biopsy resulted in increases in the AUC in predicting organ-confined disease and ECE in both nomograms. ⁴⁷ Therefore, Gandaglia et al. developed a novel nomogram that incorporated men who underwent combined MRI-targeted and systematic biopsy to predict adverse pathologic features and prostatectomy. Of the 614 men included in the study, 333 (54%) had ECE, 88 (14%) had SVI, and 169 (27%) had upgrading of grade group at final pathology. The inclusion of mpMRI and MRI targeted with concomitant systematic biopsy into their model resulted in AUCs of 0.73 for ECE, 0.81 for SVI, and 0.73 for upgrading. Interestingly, while omitting systematic biopsy reduced the detection of clinically insignificant prostate cancer, inclusion into the model reduced the rates of upgrading at final pathology. ⁴⁸ This model was externally validated with 566 men with 209 (37%) having ECE and 68 (12%) having SVI at final pathology. The new nomogram demonstrated higher discrimination (71.8% vs 69.8%, p = 0.3% and 71.8% vs 61.3%, p < 0.001) and similar net benefit for a probability threshold of at least 30% of predicting ECE when compared with MSKCC nomogram and Partin tables, respectively. Regarding SVI, the novel nomogram had comparable discrimination (68.5% vs 70.4% vs 67.8%, p > 0.05) and only a slight benefit for probability thresholds greater than 7.5% compared to the MSKCC nomogram and Partin tables, respectively. Disappointingly, this new novel nomogram did not distinctively improve the detection of ECE and SVI compared to prior models. ⁴⁹ Whether there are other clinical factors influencing ECE and SVI, discrepancies between MRI and pathologic interpretations, or even mpMRI’s moderate sensitivity in predicting these adverse pathologies remains to be seen. Nevertheless, these studies have demonstrated that incorporation of mpMRI and targeted biopsy in prostate cancer nomograms demonstrates some promise in selecting patients for PLND and predicting adverse pathologies for treatment planning.

Furthermore, nomograms have been created to help in the decision to perform incremental nerve-sparing prostatectomy. Severing the neurovascular bundles during RP can lead to poor outcomes such as urinary incontinence and erectile dysfunction.^100–102 Current AUA and European Association of Urology guidelines recommends against preserving the neurovascular bundle in cases with non-localized disease and the clinical stage >T2c with any biopsy Gleason score >7, respectively.^103–105 Nomograms have been generated to identify patients that have ECE and are therefore excluded from nerve-sparing procedures. Ohori et al., Steuber et al., and Patel et al. created nomograms to identify ECE, with AUC’s for identifying ECE ranging from 0.78 to 0.81.^106–108 As mpMRI becomes more common in preoperative setting, new nomograms that utilized mpMRI focused on higher GG as well as prostates that underwent targeted biopsy, unlike prior nomograms. Due to mpMRI’s low per-patient sensitivity for the detection of ECE at 57%, nomograms can provide superior preoperative planning. ⁹⁷ A nomogram by Martini et al. in 2018 from 829 New York patients utilized PSA level, clinical stage, biopsy findings, and mpMRI. This nomogram had an internalized AUC of 82%. ⁴⁶ Of note, there is currently no consensus on the grading system that should be used for nerve-sparing tumor’s operability. For example, Patel et al. used a five inverse grade scale corresponding to the extra fascial dissection. Whereas, Martini et al. ¹⁰⁹ used a grading system based on the multi-layered structure of the lateral prostatic fascia. In 2020, Soeterik et al. noted the small number of nomograms for identifying nerve-sparing procedures and created their own from 887 Dutch patients using PSA density, DRE staging, mpMRI staging, ISUP grades 3–5, and percentage of positive cores. The AUC for their model was 0.82 on internal validation and 0.83 and 0.78 on external validation at two other Dutch hospitals. ⁵⁰
